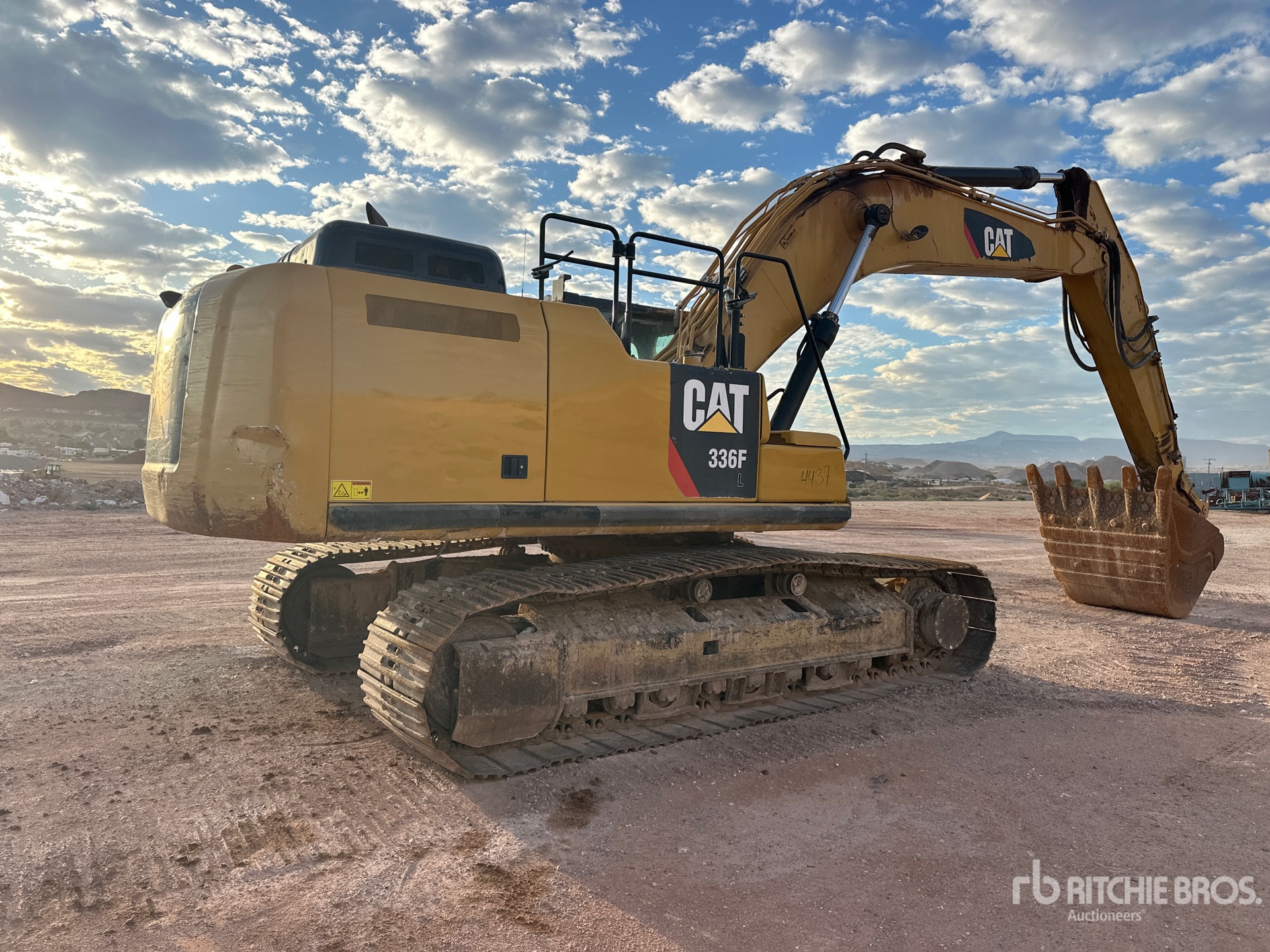

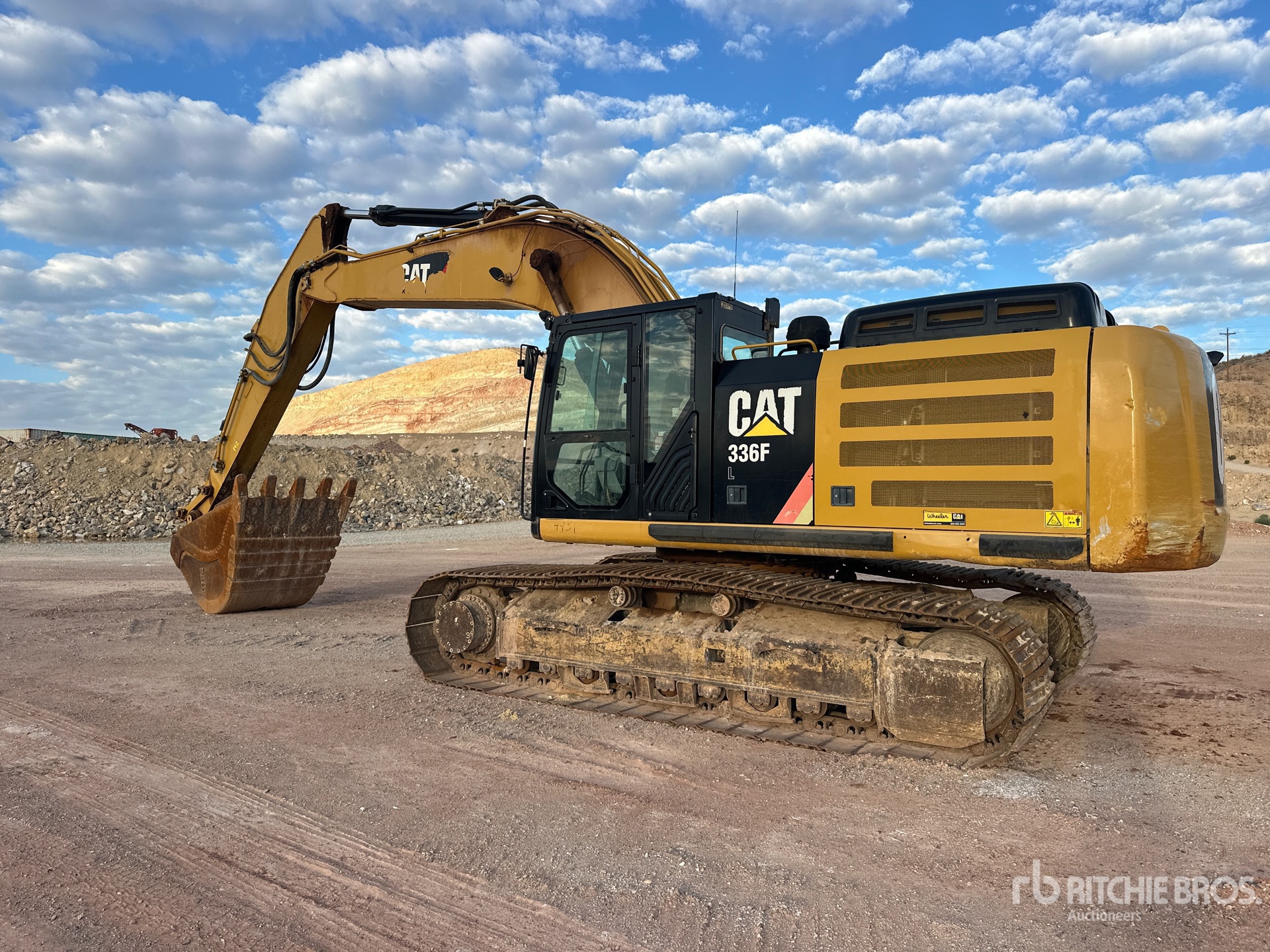

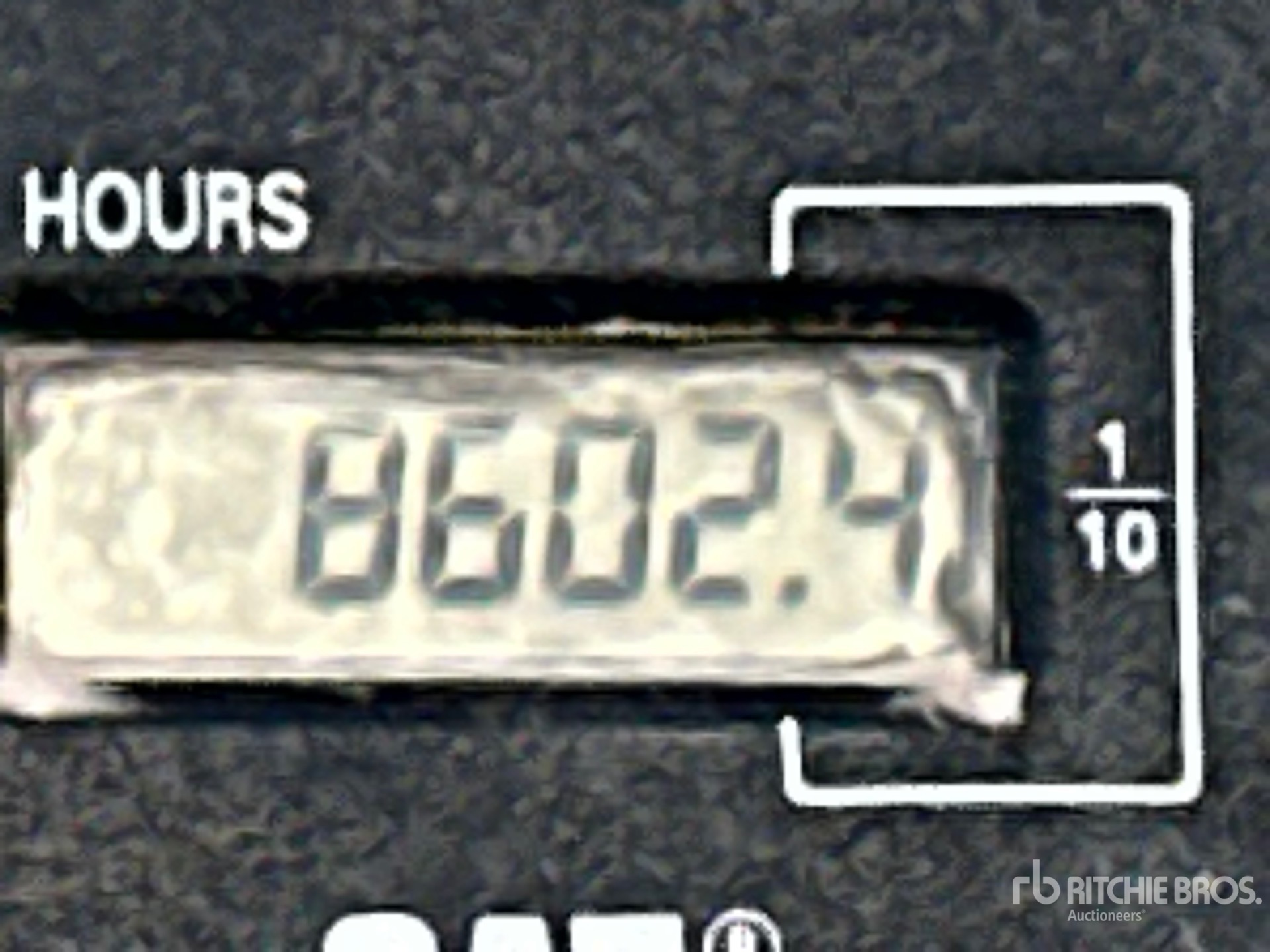

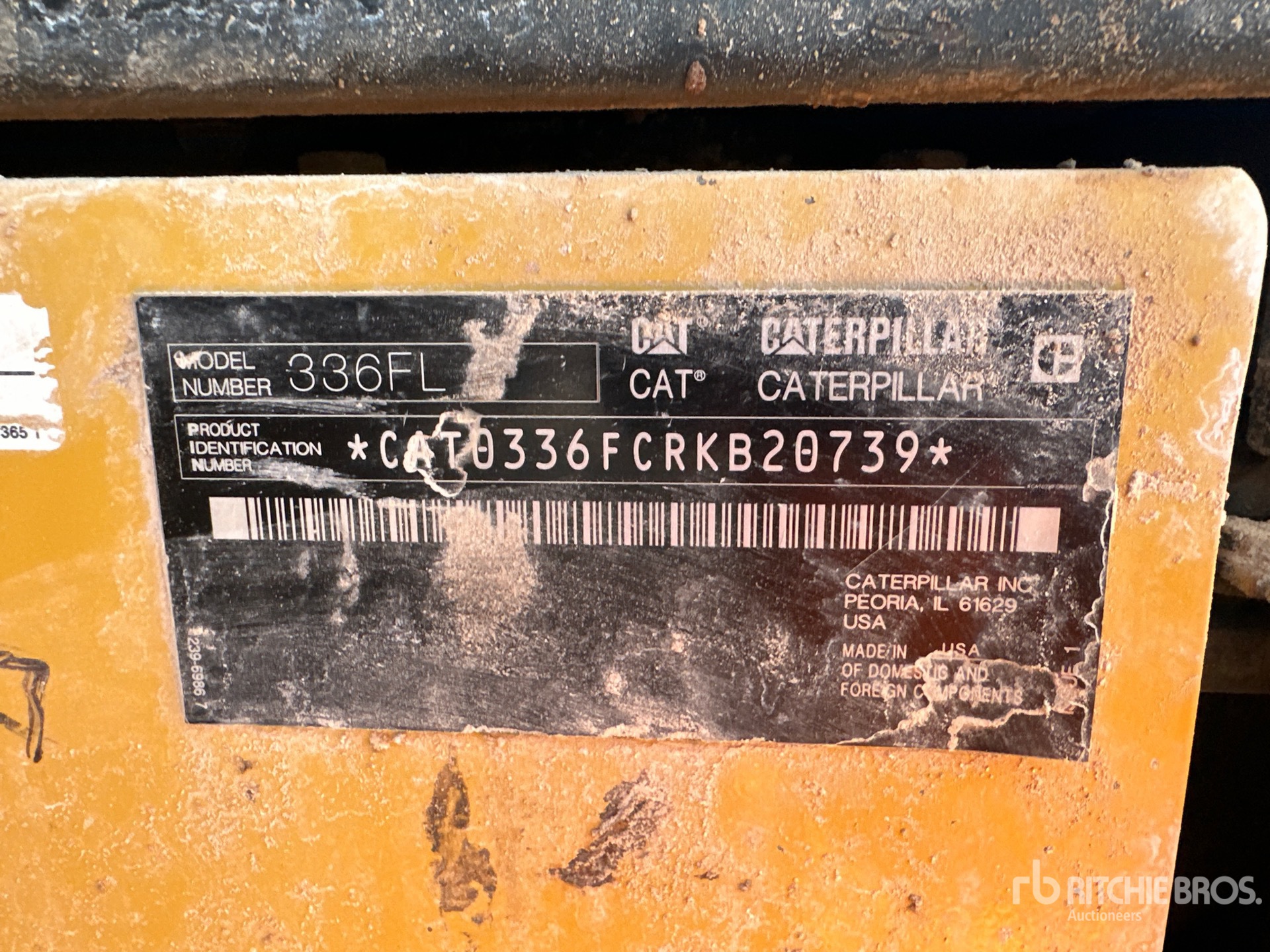

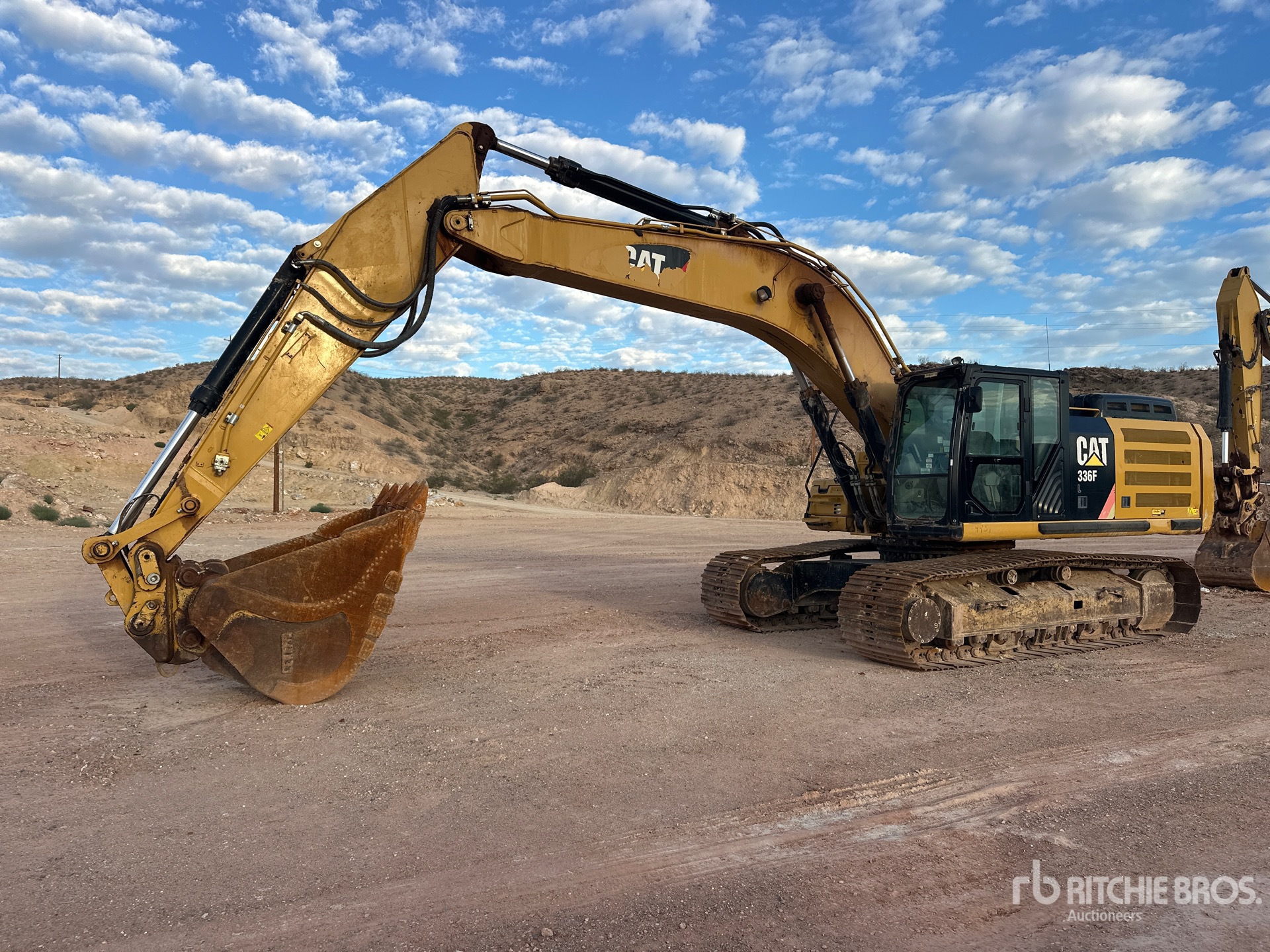

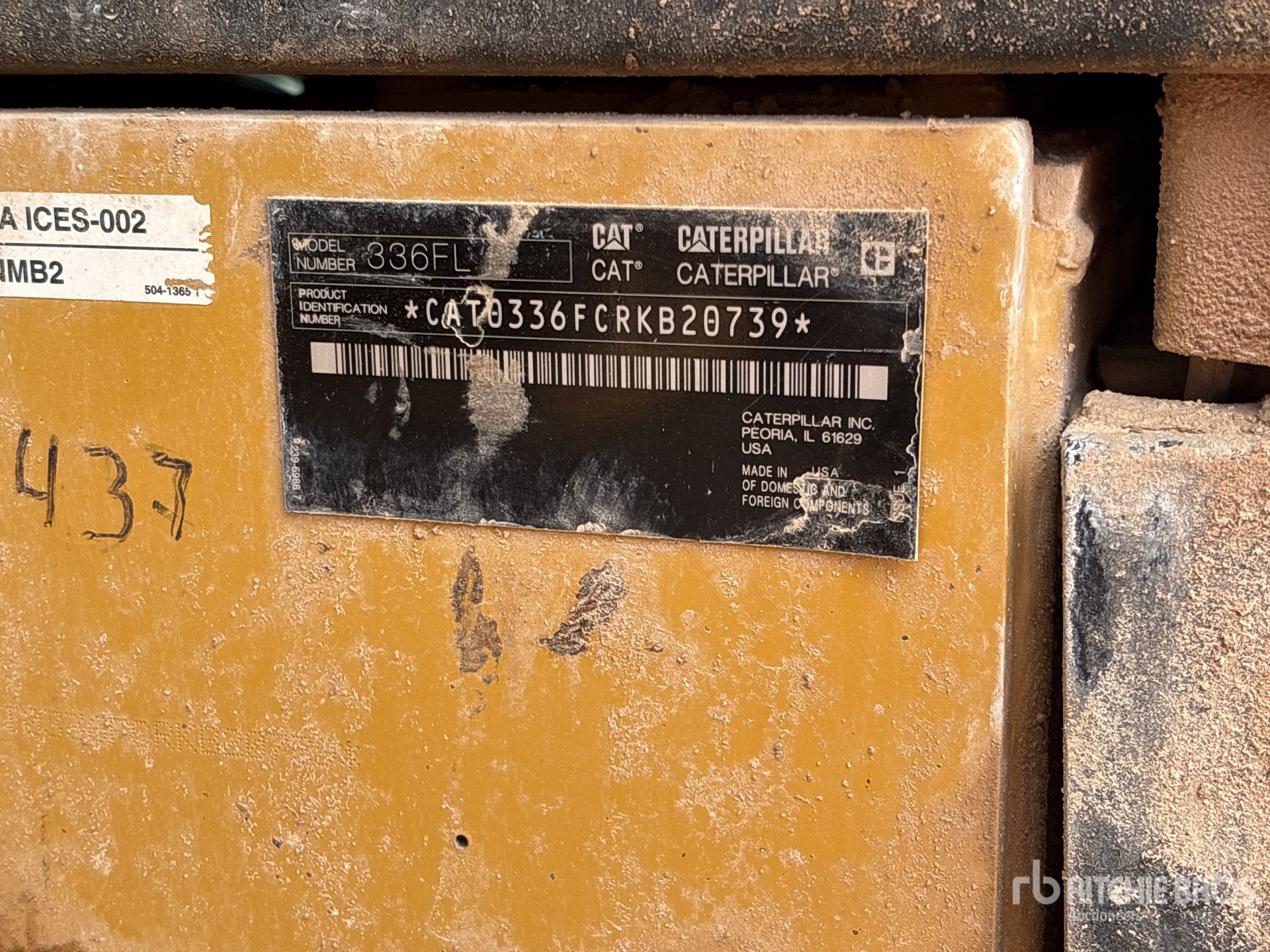

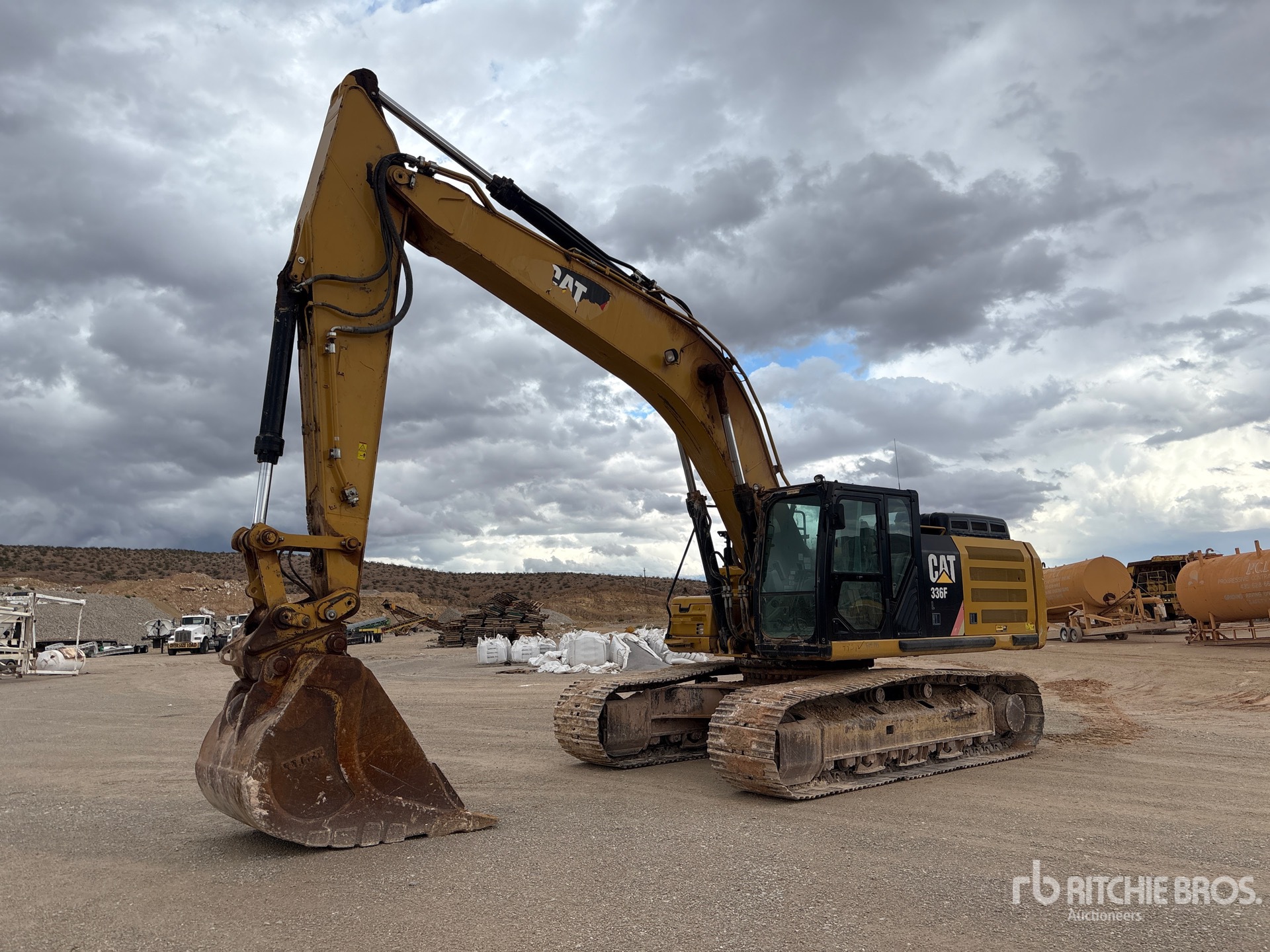

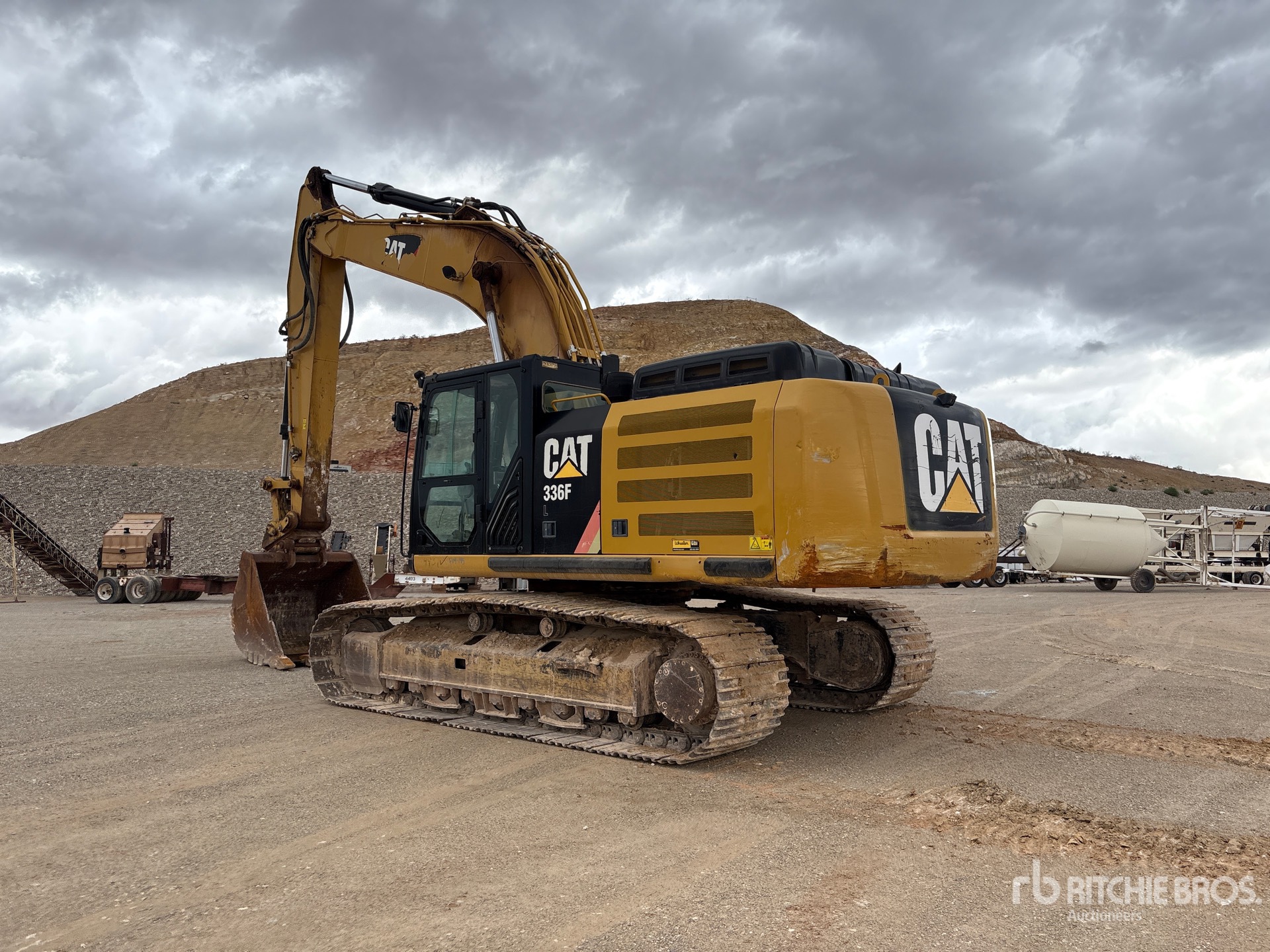

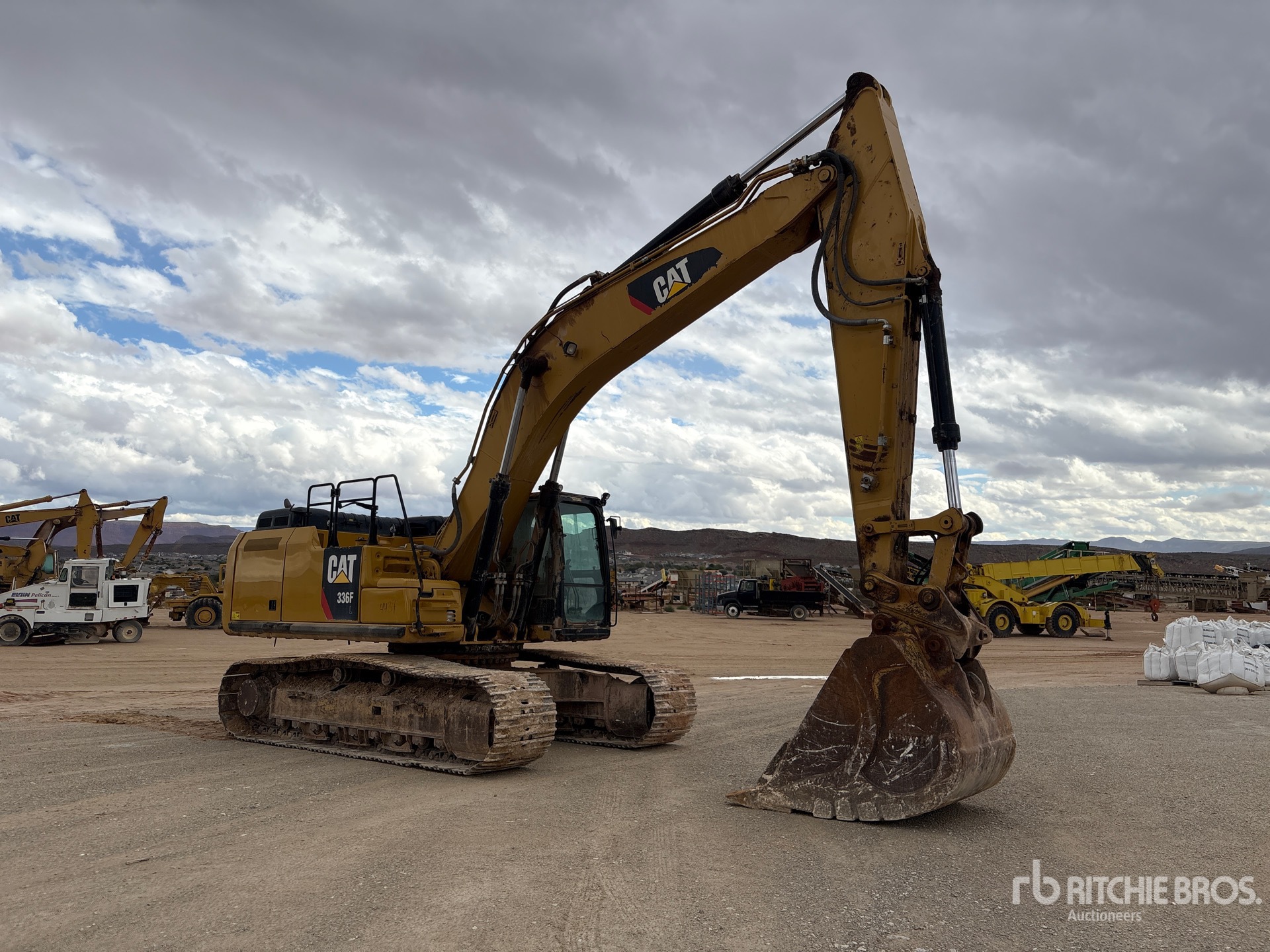

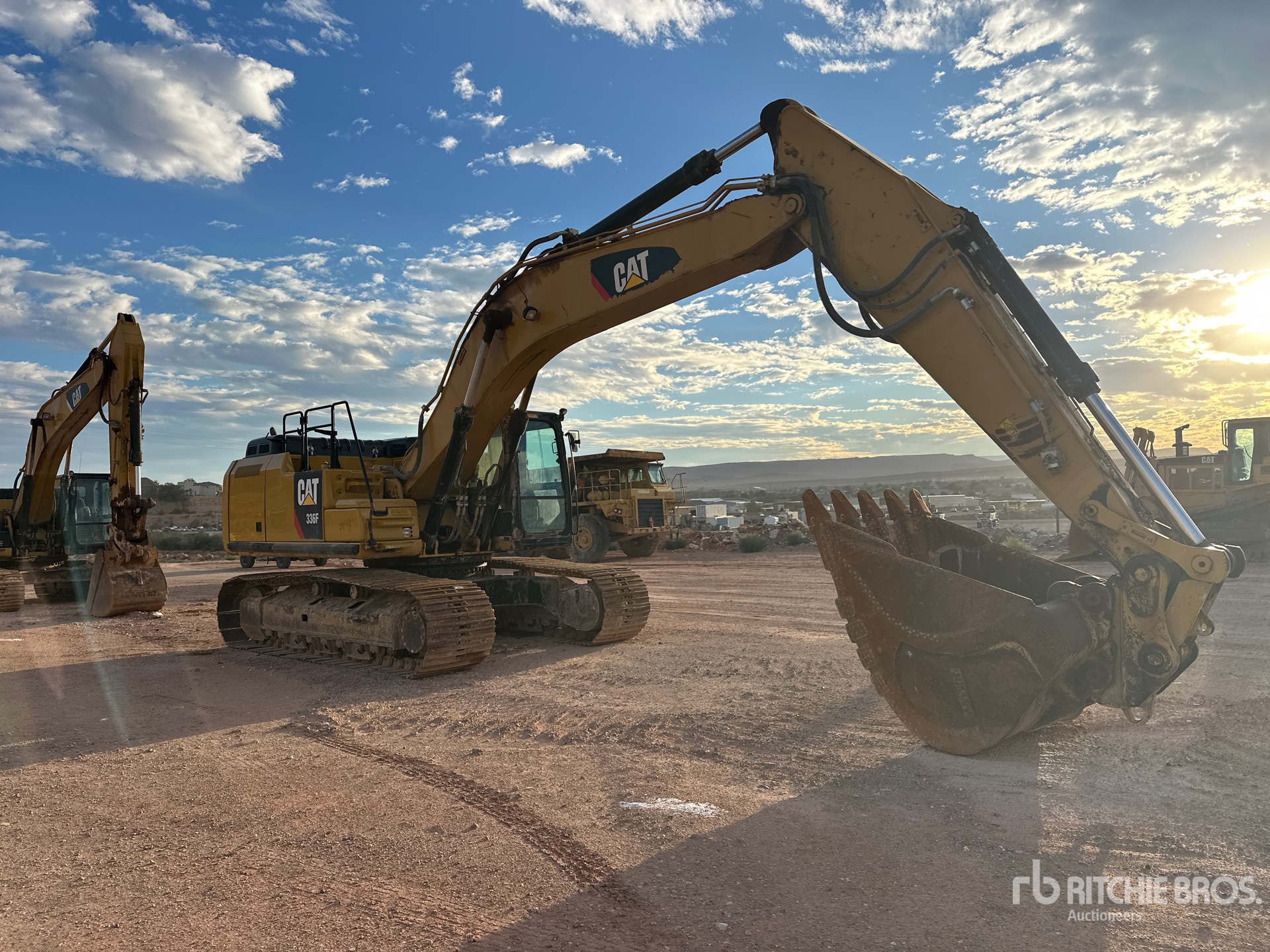

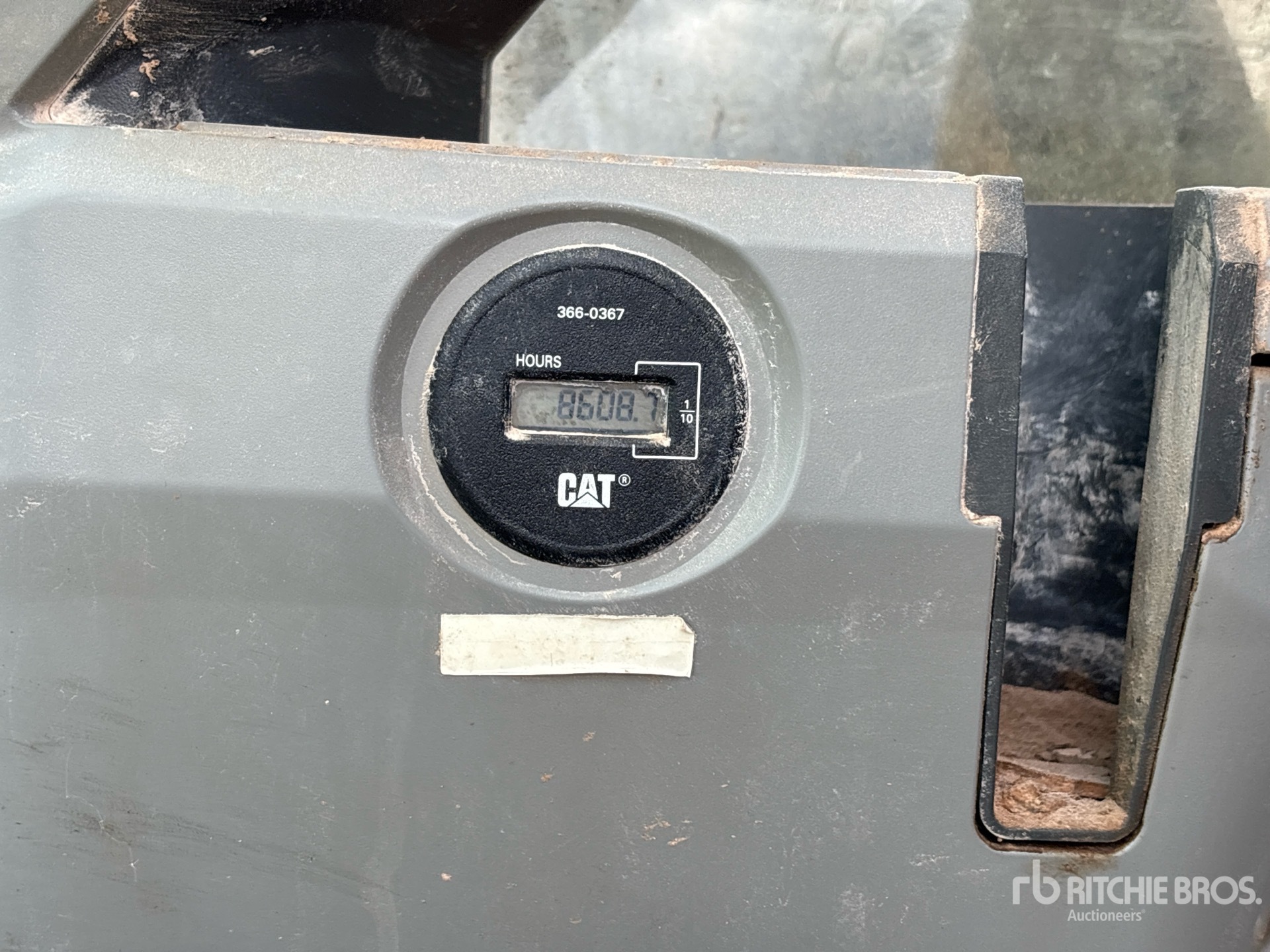

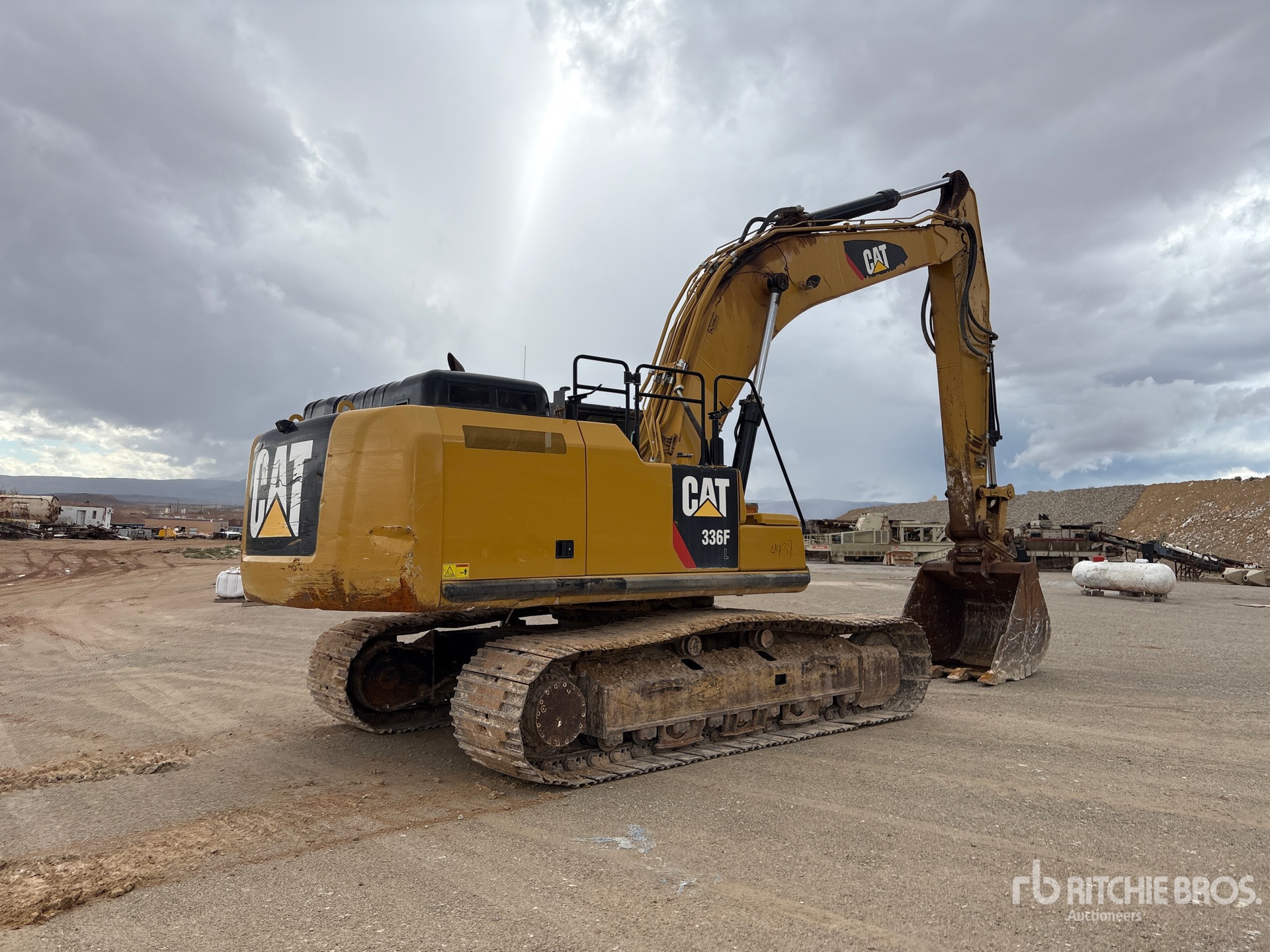

| Boom/Stick 1 |
|
Boom/Stick 1 |
Boom - 6.50 m,21.4 ft in / Stick - R3.9DB (12.10 ft in ) |
|
Max Cutting Height |
35 ft (11 m)
|
|
Max Digging Depth |
27 ft (8 m)
|
|
Max Loading Height |
25 ft (8 m)
|
|
Max Vertical Wall Digging Depth |
21 ft (6 m)
|
|
Maximum Reach At Ground Level |
38 ft (12 m)
|
|
Shipping Height Of Unit |
12 ft (4 m)
|
|
Shipping Length Of Unit |
37 ft (11 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Boom - 6.50 m,21.4 ft in / Stick - R3.2DB (10.6 ft in ) |
|
Max Cutting Height |
34 ft (10 m)
|
|
Max Digging Depth |
25 ft (7 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Vertical Wall Digging Depth |
18 ft (6 m)
|
|
Maximum Reach At Ground Level |
434 in (1,102 cm)
|
|
Shipping Height Of Unit |
11 ft (4 m)
|
|
Shipping Length Of Unit |
37 ft (11 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
Mass Boom - 6.18 m, 20.3 ft in / stick - M2.55TB (8.4 ft in) |
|
Max Cutting Height |
33 ft (10 m)
|
|
Max Digging Depth |
22 ft (7 m)
|
|
Max Loading Height |
22 ft (7 m)
|
|
Max Reach Along Ground |
34 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
15 ft (4 m)
|
|
Shipping Height Of Unit |
12 ft (4 m)
|
|
Shipping Length Of Unit |
36 ft (11 m)
|
| Capacities |
|
Cooling System |
11 gal (43 l)
|
|
Def Tank |
11 gal (41 l)
|
|
Engine Oil |
9 gal (32 l)
|
|
Final Drive |
2 gal (8 l)
|
|
Fuel Tank |
164 gal (620 l)
|
|
Hydraulic System |
100 gal (380 l)
|
|
Hydraulic Tank |
46 gal (175 l)
|
|
Swing Drive |
5 gal (19 l)
|
| Dimensions |
|
Cab Height |
124 in (316 cm)
|
|
Gradeability |
70 % |
|
Ground Clearance |
2 ft (0 m)
|
|
Height |
12 ft (4 m)
|
|
Height |
12 ft (4 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Length |
37 ft (11 m)
|
|
Length |
37 ft (11 m)
|
|
Removal Counterweight Clearance |
4 ft (1 m)
|
|
Tail Swing Radius |
11 ft (3 m)
|
|
Track Gauge |
9 ft (3 m)
|
|
Track Length |
198 in (503 cm)
|
|
Weight |
88,400 lbs (40,098 kg)
|
|
Weight |
88,000 lbs (39,916 kg)
|
|
Width |
11 ft (3 m)
|
|
Width |
11 ft (3 m)
|
|
Width To Outside Of Tracks |
11 ft (3 m)
|
| Drive |
|
Maximum Drawbar Pull |
66,139 lbs (30,000 kg)
|
|
Maximum Travel Speed |
3 mph (5 kph)
|
| Engine |
|
Bore |
5 in (12 cm)
|
|
Displacement |
568 cu in (9,301 cu cm)
|
|
Displacement |
568 cu in (9,308 cu cm)
|
|
Engine Make |
Cat |
|
Engine Model |
C15 ACERT |
|
Engine Model |
Cat C9.3 (ATAAC) |
|
Gross Power |
319 hp (238 kw)
|
|
Gross Power - Sae J1995 |
322 hp (240 kw)
|
|
Net Flywheel Power |
303 hp (226 kw)
|
|
Net Power |
314 hp (234 kw)
|
|
Net Power - Sae J1349 |
303 hp (226 kw)
|
|
Stroke |
6 in (15 cm)
|
| General Specifications |
|
( ) Shoe Width - Long (Since 2017)
|
17,990 lbs (8,160 kg)
|
|
( ) Shoe Width - Long (Since 2017)
|
22,444 lbs (10,180 kg)
|
|
( ) Shoe Width - Long (Since 2017)
|
30,000 lbs (13,608 kg)
|
|
( ) Shoe Width - Long (Since 2017)
|
31,500 lbs (14,288 kg)
|
|
( ) Shoe Width - Long (Since 2018)
|
17,990 lbs (8,160 kg)
|
|
( ) Shoe Width - Long (Since 2018)
|
22,444 lbs (10,180 kg)
|
|
( ) Shoe Width - Long (Since 2018)
|
30,000 lbs (13,608 kg)
|
|
( ) Shoe Width - Long (Since 2018)
|
31,500 lbs (14,288 kg)
|
|
( ) Shoe Width - Long (Since 2019)
|
17,990 lbs (8,160 kg)
|
|
( ) Shoe Width - Long (Since 2019)
|
22,444 lbs (10,180 kg)
|
|
( ) Shoe Width - Long (Since 2019)
|
30,000 lbs (13,608 kg)
|
|
( ) Shoe Width - Long (Since 2019)
|
31,500 lbs (14,288 kg)
|
|
( ) Shoe Width - Long Narrow (Since 2017)
|
29,800 lbs (13,517 kg)
|
|
( ) Shoe Width - Long Narrow (2018)
|
29,800 lbs (13,517 kg)
|
|
( ) Shoe Width - Long Narrow (2019)
|
29,800 lbs (13,517 kg)
|
|
( ) Shoe Width - Standard (Since 2017)
|
26,700 lbs (12,111 kg)
|
|
( ) Shoe Width - Standard (2018)
|
26,700 lbs (12,111 kg)
|
|
( ) Shoe Width - Standard (2019)
|
26,700 lbs (12,111 kg)
|
|
Booms - One-piece Mass (Since 2016)
|
9,300 lbs (4,218 kg)
|
|
Booms - One-piece Mass (2017)
|
9,300 lbs (4,218 kg)
|
|
Booms - One-piece Mass (2018)
|
9,300 lbs (4,218 kg)
|
|
Booms - One-piece Mass (2019)
|
9,300 lbs (4,218 kg)
|
|
Booms - One-piece Reach ES (Since 2016)
|
9,500 lbs (4,309 kg)
|
|
Booms - One-piece Reach ES (2017)
|
9,500 lbs (4,309 kg)
|
|
Booms - One-piece Reach ES (2018)
|
9,500 lbs (4,309 kg)
|
|
Booms - One-piece Reach ES (2019)
|
9,500 lbs (4,309 kg)
|
|
Booms - One-piece Reach HD (Since 2015)
|
8,631 lbs (3,915 kg)
|
|
Booms - One-piece Reach HD (2016)
|
8,631 lbs (3,915 kg)
|
|
Booms - One-piece Reach HD (Since 2016)
|
9,000 lbs (4,082 kg)
|
|
Booms - One-piece Reach HD (Since 2017)
|
8,631 lbs (3,915 kg)
|
|
Booms - One-piece Reach HD (Since 2017)
|
9,000 lbs (4,082 kg)
|
|
Booms - One-piece Reach HD (Since 2018)
|
8,631 lbs (3,915 kg)
|
|
Booms - One-piece Reach HD (Since 2018)
|
9,000 lbs (4,082 kg)
|
|
Booms - One-piece Reach HD (Since 2019)
|
8,631 lbs (3,915 kg)
|
|
Booms - One-piece Reach HD (Since 2019)
|
9,000 lbs (4,082 kg)
|
|
Bucket Capacity Range (heaped) (Since 2015)
|
1 - 4 cu yd (1 - 3 cu m)
|
|
Bucket Capacity Range (heaped) (2016)
|
1 - 4 cu yd (1 - 3 cu m)
|
|
Bucket Capacity Range (heaped) (2017)
|
1 - 4 cu yd (1 - 3 cu m)
|
|
Bucket Capacity Range (heaped) (2018)
|
1 - 4 cu yd (1 - 3 cu m)
|
|
Bucket Capacity Range (heaped) (2019)
|
1 - 4 cu yd (1 - 3 cu m)
|
|
Counterweight - Heavy (Since 2017)
|
15,400 lbs (6,985 kg)
|
|
Counterweight - Heavy (Since 2017)
|
13,400 lbs (6,078 kg)
|
|
Counterweight - Heavy (Since 2018)
|
15,400 lbs (6,985 kg)
|
|
Counterweight - Heavy (Since 2018)
|
13,400 lbs (6,078 kg)
|
|
Counterweight - Heavy (Since 2019)
|
15,400 lbs (6,985 kg)
|
|
Counterweight - Heavy (Since 2019)
|
13,400 lbs (6,078 kg)
|
|
Counterweight - Standard (Since 2017)
|
13,200 lbs (5,987 kg)
|
|
Counterweight - Standard (Since 2017)
|
11,200 lbs (5,080 kg)
|
|
Counterweight - Standard (Since 2018)
|
13,200 lbs (5,987 kg)
|
|
Counterweight - Standard (Since 2018)
|
11,200 lbs (5,080 kg)
|
|
Counterweight - Standard (Since 2019)
|
13,200 lbs (5,987 kg)
|
|
Counterweight - Standard (Since 2019)
|
11,200 lbs (5,080 kg)
|
|
Displacement (Since 2015)
|
568 cu in (9,308 cu cm)
|
|
Displacement (2016)
|
568 cu in (9,308 cu cm)
|
|
Displacement (2017)
|
568 cu in (9,308 cu cm)
|
|
Displacement (2018)
|
568 cu in (9,308 cu cm)
|
|
Displacement (2019)
|
568 cu in (9,308 cu cm)
|
|
Emission Standards (Since 2016)
|
Tier 4 Final |
|
Emission Standards (2017)
|
Tier 4 Final |
|
Emission Standards (2018)
|
Tier 4 Final |
|
Emission Standards (2019)
|
Tier 4 Final |
|
Emissions (Since 2015)
|
Tier 4 Final |
|
Engine Model (Since 2015)
|
C9.3 ACERT |
|
Engine Model (2016)
|
C9.3 ACERT |
|
Engine Model (2017)
|
C9.3 ACERT |
|
Engine Model (2018)
|
C9.3 ACERT |
|
Engine Model (2019)
|
C9.3 ACERT |
|
Engine Power - ISO 9249 (Since 2015)
|
303 hp (226 kw)
|
|
Engine Power - ISO 9249 (2016)
|
303 hp (226 kw)
|
|
Engine Power - ISO 9249 (2017)
|
303 hp (226 kw)
|
|
Engine Power - ISO 9249 (2018)
|
303 hp (226 kw)
|
|
Engine Power - ISO 9249 (2019)
|
303 hp (226 kw)
|
|
Fuel Tank Refill Capacity (Since 2015)
|
164 US gal (620 L)
|
|
Fuel Tank Refill Capacity (Since 2016)
|
164 US gal (620 L)
|
|
Fuel Tank Refill Capacity (2017)
|
164 US gal (620 L)
|
|
Fuel Tank Refill Capacity (2018)
|
164 US gal (620 L)
|
|
Fuel Tank Refill Capacity (2019)
|
164 US gal (620 L)
|
|
Ground Contact Area with Std. Shoe (Since 2015)
|
11,563 sq in (7 sq m)
|
|
Ground Contact Area with Std. Shoe (2016)
|
11,563 sq in (7 sq m)
|
|
Ground Contact Area with Std. Shoe (2017)
|
11,563 sq in (7 sq m)
|
|
Ground Contact Area with Std. Shoe (2018)
|
11,563 sq in (7 sq m)
|
|
Ground Contact Area with Std. Shoe (2019)
|
11,563 sq in (7 sq m)
|
|
Ground Pressure (Since 2015)
|
10 psi (68 kPa)
|
|
Ground Pressure (Since 2015)
|
9 psi (59 kPa)
|
|
Ground Pressure (Since 2015)
|
8 psi (52 kPa)
|
|
Ground Pressure (Since 2015)
|
7 psi (50 kPa)
|
|
Ground Pressure (Since 2016)
|
10 psi (68 kPa)
|
|
Ground Pressure (Since 2016)
|
9 psi (59 kPa)
|
|
Ground Pressure (Since 2016)
|
8 psi (52 kPa)
|
|
Ground Pressure (Since 2016)
|
7 psi (50 kPa)
|
|
Ground Pressure (Since 2017)
|
10 psi (68 kPa)
|
|
Ground Pressure (Since 2017)
|
9 psi (59 kPa)
|
|
Ground Pressure (Since 2017)
|
8 psi (52 kPa)
|
|
Ground Pressure (Since 2017)
|
7 psi (50 kPa)
|
|
Ground Pressure (Since 2018)
|
10 psi (68 kPa)
|
|
Ground Pressure (Since 2018)
|
9 psi (59 kPa)
|
|
Ground Pressure (Since 2018)
|
8 psi (52 kPa)
|
|
Ground Pressure (Since 2018)
|
7 psi (50 kPa)
|
|
Ground Pressure (Since 2019)
|
10 psi (68 kPa)
|
|
Ground Pressure (Since 2019)
|
9 psi (59 kPa)
|
|
Ground Pressure (Since 2019)
|
8 psi (52 kPa)
|
|
Ground Pressure (Since 2019)
|
7 psi (50 kPa)
|
|
Hydraulic System (includes tank) (Since 2015)
|
100 US gal (380 L)
|
|
Hydraulic System (includes tank) (Since 2016)
|
100 US gal (380 L)
|
|
Hydraulic System (includes tank) (2017)
|
100 US gal (380 L)
|
|
Hydraulic System (includes tank) (2018)
|
100 US gal (380 L)
|
|
Hydraulic System (includes tank) (2019)
|
100 US gal (380 L)
|
|
Hydraulic Tank (Since 2015)
|
46 US gal (170 L)
|
|
Hydraulic Tank (Since 2016)
|
46 US gal (175 L)
|
|
Hydraulic Tank (2017)
|
46 US gal (175 L)
|
|
Hydraulic Tank (2018)
|
46 US gal (175 L)
|
|
Hydraulic Tank (2019)
|
46 US gal (175 L)
|
|
Long ES Stick (Since 2015)
|
5,150 lbs (2,336 kg)
|
|
Long HD Stick (Since 2015)
|
4,508 lbs (2,045 kg)
|
|
Maximum Drawbar Pull (Since 2015)
|
66,319 lbf (295 kN)
|
|
Maximum Drawbar Pull (Since 2016)
|
66,139 lbf (294 kN)
|
|
Maximum Drawbar Pull (2017)
|
66,139 lbf (294 kN)
|
|
Maximum Drawbar Pull (2018)
|
66,139 lbf (294 kN)
|
|
Maximum Drawbar Pull (2019)
|
66,139 lbf (294 kN)
|
|
Maximum Travel Speed at Rated RPM (Since 2015)
|
3 mph (5 kph)
|
|
Maximum Travel Speed at Rated RPM (2016)
|
3 mph (5 kph)
|
|
Maximum Travel Speed at Rated RPM (2017)
|
3 mph (5 kph)
|
|
Maximum Travel Speed at Rated RPM (2018)
|
3 mph (5 kph)
|
|
Maximum Travel Speed at Rated RPM (2019)
|
3 mph (5 kph)
|
|
Medium Stick (Since 2015)
|
4,147 lbs (1,881 kg)
|
|
No. of Cylinders (Since 2015)
|
6 |
|
No. of Cylinders (2016)
|
6 |
|
No. of Cylinders (2017)
|
6 |
|
No. of Cylinders (2018)
|
6 |
|
No. of Cylinders (2019)
|
6 |
|
Operating Weight (Since 2015)
|
80,500 - 88,400 lbs (36,514 - 40,098 kg)
|
|
Operating Weight (2016)
|
80,500 - 88,400 lbs (36,514 - 40,098 kg)
|
|
Operating Weight (2017)
|
80,500 - 88,400 lbs (36,514 - 40,098 kg)
|
|
Operating Weight (2018)
|
80,500 - 88,400 lbs (36,514 - 40,098 kg)
|
|
Operating Weight (2019)
|
80,500 - 88,400 lbs (36,514 - 40,098 kg)
|
|
Overall Track Length (Since 2015)
|
198 in (503 cm)
|
|
Overall Track Length (2016)
|
198 in (503 cm)
|
|
Overall Track Length (2017)
|
198 in (503 cm)
|
|
Overall Track Length (2018)
|
198 in (503 cm)
|
|
Overall Track Length (2019)
|
198 in (503 cm)
|
|
Range Dimension A (source diagram) (Since 2015)
|
280 in (711 cm)
|
|
Range Dimension A (source diagram) (Since 2015)
|
295 in (749 cm)
|
|
Range Dimension A (source diagram) (Since 2015)
|
250 in (635 cm)
|
|
Range Dimension A (source diagram) (Since 2015)
|
261 in (663 cm)
|
|
Range Dimension A (source diagram) (Since 2016)
|
280 in (711 cm)
|
|
Range Dimension A (source diagram) (Since 2016)
|
295 in (749 cm)
|
|
Range Dimension A (source diagram) (Since 2016)
|
250 in (635 cm)
|
|
Range Dimension A (source diagram) (Since 2016)
|
261 in (663 cm)
|
|
Range Dimension A (source diagram) (Since 2017)
|
280 in (711 cm)
|
|
Range Dimension A (source diagram) (Since 2017)
|
295 in (749 cm)
|
|
Range Dimension A (source diagram) (Since 2017)
|
250 in (635 cm)
|
|
Range Dimension A (source diagram) (Since 2017)
|
261 in (663 cm)
|
|
Range Dimension A (source diagram) (Since 2018)
|
280 in (711 cm)
|
|
Range Dimension A (source diagram) (Since 2018)
|
295 in (749 cm)
|
|
Range Dimension A (source diagram) (Since 2018)
|
250 in (635 cm)
|
|
Range Dimension A (source diagram) (Since 2018)
|
261 in (663 cm)
|
|
Range Dimension A (source diagram) (Since 2019)
|
280 in (711 cm)
|
|
Range Dimension A (source diagram) (Since 2019)
|
295 in (749 cm)
|
|
Range Dimension A (source diagram) (Since 2019)
|
250 in (635 cm)
|
|
Range Dimension A (source diagram) (Since 2019)
|
261 in (663 cm)
|
|
Range Dimension B (source diagram) (Since 2015)
|
422 in (1,072 cm)
|
|
Range Dimension B (source diagram) (Since 2015)
|
461 in (1,171 cm)
|
|
Range Dimension B (source diagram) (Since 2015)
|
434 in (1,102 cm)
|
|
Range Dimension B (source diagram) (Since 2015)
|
387 in (983 cm)
|
|
Range Dimension B (source diagram) (Since 2015)
|
404 in (1,026 cm)
|
|
Range Dimension B (source diagram) (Since 2016)
|
422 in (1,072 cm)
|
|
Range Dimension B (source diagram) (Since 2016)
|
461 in (1,171 cm)
|
|
Range Dimension B (source diagram) (Since 2016)
|
434 in (1,102 cm)
|
|
Range Dimension B (source diagram) (Since 2016)
|
387 in (983 cm)
|
|
Range Dimension B (source diagram) (Since 2016)
|
404 in (1,026 cm)
|
|
Range Dimension B (source diagram) (Since 2017)
|
422 in (1,072 cm)
|
|
Range Dimension B (source diagram) (Since 2017)
|
461 in (1,171 cm)
|
|
Range Dimension B (source diagram) (Since 2017)
|
434 in (1,102 cm)
|
|
Range Dimension B (source diagram) (Since 2017)
|
387 in (983 cm)
|
|
Range Dimension B (source diagram) (Since 2017)
|
404 in (1,026 cm)
|
|
Range Dimension B (source diagram) (Since 2018)
|
422 in (1,072 cm)
|
|
Range Dimension B (source diagram) (Since 2018)
|
461 in (1,171 cm)
|
|
Range Dimension B (source diagram) (Since 2018)
|
434 in (1,102 cm)
|
|
Range Dimension B (source diagram) (Since 2018)
|
387 in (983 cm)
|
|
Range Dimension B (source diagram) (Since 2018)
|
404 in (1,026 cm)
|
|
Range Dimension B (source diagram) (Since 2019)
|
422 in (1,072 cm)
|
|
Range Dimension B (source diagram) (Since 2019)
|
461 in (1,171 cm)
|
|
Range Dimension B (source diagram) (Since 2019)
|
434 in (1,102 cm)
|
|
Range Dimension B (source diagram) (Since 2019)
|
387 in (983 cm)
|
|
Range Dimension B (source diagram) (Since 2019)
|
404 in (1,026 cm)
|
|
Range Dimension C (source diagram) (Since 2015)
|
279 in (709 cm)
|
|
Range Dimension C (source diagram) (Since 2015)
|
322 in (818 cm)
|
|
Range Dimension C (source diagram) (Since 2015)
|
295 in (749 cm)
|
|
Range Dimension C (source diagram) (Since 2015)
|
246 in (625 cm)
|
|
Range Dimension C (source diagram) (Since 2015)
|
262 in (665 cm)
|
|
Range Dimension C (source diagram) (Since 2016)
|
279 in (709 cm)
|
|
Range Dimension C (source diagram) (Since 2016)
|
322 in (818 cm)
|
|
Range Dimension C (source diagram) (Since 2016)
|
295 in (749 cm)
|
|
Range Dimension C (source diagram) (Since 2016)
|
246 in (625 cm)
|
|
Range Dimension C (source diagram) (Since 2016)
|
262 in (665 cm)
|
|
Range Dimension C (source diagram) (Since 2017)
|
279 in (709 cm)
|
|
Range Dimension C (source diagram) (Since 2017)
|
322 in (818 cm)
|
|
Range Dimension C (source diagram) (Since 2017)
|
295 in (749 cm)
|
|
Range Dimension C (source diagram) (Since 2017)
|
246 in (625 cm)
|
|
Range Dimension C (source diagram) (Since 2017)
|
262 in (665 cm)
|
|
Range Dimension C (source diagram) (Since 2018)
|
279 in (709 cm)
|
|
Range Dimension C (source diagram) (Since 2018)
|
322 in (818 cm)
|
|
Range Dimension C (source diagram) (Since 2018)
|
295 in (749 cm)
|
|
Range Dimension C (source diagram) (Since 2018)
|
246 in (625 cm)
|
|
Range Dimension C (source diagram) (Since 2018)
|
262 in (665 cm)
|
|
Range Dimension C (source diagram) (Since 2019)
|
279 in (709 cm)
|
|
Range Dimension C (source diagram) (Since 2019)
|
322 in (818 cm)
|
|
Range Dimension C (source diagram) (Since 2019)
|
295 in (749 cm)
|
|
Range Dimension C (source diagram) (Since 2019)
|
246 in (625 cm)
|
|
Range Dimension C (source diagram) (Since 2019)
|
262 in (665 cm)
|
|
Range Dimension D (source diagram) (Since 2015)
|
215 in (546 cm)
|
|
Range Dimension D (source diagram) (Since 2015)
|
248 in (630 cm)
|
|
Range Dimension D (source diagram) (Since 2015)
|
217 in (551 cm)
|
|
Range Dimension D (source diagram) (Since 2015)
|
162 in (411 cm)
|
|
Range Dimension D (source diagram) (Since 2015)
|
175 in (445 cm)
|
|
Range Dimension D (source diagram) (Since 2016)
|
215 in (546 cm)
|
|
Range Dimension D (source diagram) (Since 2016)
|
248 in (630 cm)
|
|
Range Dimension D (source diagram) (Since 2016)
|
217 in (551 cm)
|
|
Range Dimension D (source diagram) (Since 2016)
|
162 in (411 cm)
|
|
Range Dimension D (source diagram) (Since 2016)
|
175 in (445 cm)
|
|
Range Dimension D (source diagram) (Since 2017)
|
215 in (546 cm)
|
|
Range Dimension D (source diagram) (Since 2017)
|
248 in (630 cm)
|
|
Range Dimension D (source diagram) (Since 2017)
|
217 in (551 cm)
|
|
Range Dimension D (source diagram) (Since 2017)
|
162 in (411 cm)
|
|
Range Dimension D (source diagram) (Since 2017)
|
175 in (445 cm)
|
|
Range Dimension D (source diagram) (Since 2018)
|
215 in (546 cm)
|
|
Range Dimension D (source diagram) (Since 2018)
|
248 in (630 cm)
|
|
Range Dimension D (source diagram) (Since 2018)
|
217 in (551 cm)
|
|
Range Dimension D (source diagram) (Since 2018)
|
162 in (411 cm)
|
|
Range Dimension D (source diagram) (Since 2018)
|
175 in (445 cm)
|
|
Range Dimension D (source diagram) (Since 2019)
|
215 in (546 cm)
|
|
Range Dimension D (source diagram) (Since 2019)
|
248 in (630 cm)
|
|
Range Dimension D (source diagram) (Since 2019)
|
217 in (551 cm)
|
|
Range Dimension D (source diagram) (Since 2019)
|
162 in (411 cm)
|
|
Range Dimension D (source diagram) (Since 2019)
|
175 in (445 cm)
|
|
Range Dimension E (source diagram) (Since 2015)
|
252 in (640 cm)
|
|
Range Dimension E (source diagram) (Since 2015)
|
300 in (762 cm)
|
|
Range Dimension E (source diagram) (Since 2015)
|
269 in (683 cm)
|
|
Range Dimension E (source diagram) (Since 2015)
|
208 in (528 cm)
|
|
Range Dimension E (source diagram) (Since 2015)
|
229 in (582 cm)
|
|
Range Dimension E (source diagram) (Since 2016)
|
252 in (640 cm)
|
|
Range Dimension E (source diagram) (Since 2016)
|
300 in (762 cm)
|
|
Range Dimension E (source diagram) (Since 2016)
|
269 in (683 cm)
|
|
Range Dimension E (source diagram) (Since 2016)
|
208 in (528 cm)
|
|
Range Dimension E (source diagram) (Since 2016)
|
229 in (582 cm)
|
|
Range Dimension E (source diagram) (Since 2017)
|
252 in (640 cm)
|
|
Range Dimension E (source diagram) (Since 2017)
|
300 in (762 cm)
|
|
Range Dimension E (source diagram) (Since 2017)
|
269 in (683 cm)
|
|
Range Dimension E (source diagram) (Since 2017)
|
208 in (528 cm)
|
|
Range Dimension E (source diagram) (Since 2017)
|
229 in (582 cm)
|
|
Range Dimension E (source diagram) (Since 2018)
|
252 in (640 cm)
|
|
Range Dimension E (source diagram) (Since 2018)
|
300 in (762 cm)
|
|
Range Dimension E (source diagram) (Since 2018)
|
269 in (683 cm)
|
|
Range Dimension E (source diagram) (Since 2018)
|
208 in (528 cm)
|
|
Range Dimension E (source diagram) (Since 2018)
|
229 in (582 cm)
|
|
Range Dimension E (source diagram) (Since 2019)
|
252 in (640 cm)
|
|
Range Dimension E (source diagram) (Since 2019)
|
300 in (762 cm)
|
|
Range Dimension E (source diagram) (Since 2019)
|
269 in (683 cm)
|
|
Range Dimension E (source diagram) (Since 2019)
|
208 in (528 cm)
|
|
Range Dimension E (source diagram) (Since 2019)
|
229 in (582 cm)
|
|
Range Dimension F (source diagram) (Since 2015)
|
350 in (889 cm)
|
|
Range Dimension F (source diagram) (Since 2015)
|
365 in (927 cm)
|
|
Range Dimension F (source diagram) (Since 2015)
|
350 in (889 cm)
|
|
Range Dimension F (source diagram) (Since 2015)
|
325 in (826 cm)
|
|
Range Dimension F (source diagram) (Since 2015)
|
337 in (856 cm)
|
|
Range Dimension F (source diagram) (Since 2016)
|
350 in (889 cm)
|
|
Range Dimension F (source diagram) (Since 2016)
|
365 in (927 cm)
|
|
Range Dimension F (source diagram) (Since 2016)
|
350 in (889 cm)
|
|
Range Dimension F (source diagram) (Since 2016)
|
325 in (826 cm)
|
|
Range Dimension F (source diagram) (Since 2016)
|
337 in (856 cm)
|
|
Range Dimension F (source diagram) (Since 2017)
|
350 in (889 cm)
|
|
Range Dimension F (source diagram) (Since 2017)
|
365 in (927 cm)
|
|
Range Dimension F (source diagram) (Since 2017)
|
350 in (889 cm)
|
|
Range Dimension F (source diagram) (Since 2017)
|
325 in (826 cm)
|
|
Range Dimension F (source diagram) (Since 2017)
|
337 in (856 cm)
|
|
Range Dimension F (source diagram) (Since 2018)
|
350 in (889 cm)
|
|
Range Dimension F (source diagram) (Since 2018)
|
365 in (927 cm)
|
|
Range Dimension F (source diagram) (Since 2018)
|
350 in (889 cm)
|
|
Range Dimension F (source diagram) (Since 2018)
|
325 in (826 cm)
|
|
Range Dimension F (source diagram) (Since 2018)
|
337 in (856 cm)
|
|
Range Dimension F (source diagram) (Since 2019)
|
350 in (889 cm)
|
|
Range Dimension F (source diagram) (Since 2019)
|
365 in (927 cm)
|
|
Range Dimension F (source diagram) (Since 2019)
|
350 in (889 cm)
|
|
Range Dimension F (source diagram) (Since 2019)
|
325 in (826 cm)
|
|
Range Dimension F (source diagram) (Since 2019)
|
337 in (856 cm)
|
|
Range Dimension G (source diagram) (Since 2015)
|
408 in (1,036 cm)
|
|
Range Dimension G (source diagram) (Since 2015)
|
423 in (1,074 cm)
|
|
Range Dimension G (source diagram) (Since 2015)
|
406 in (1,031 cm)
|
|
Range Dimension G (source diagram) (Since 2015)
|
379 in (963 cm)
|
|
Range Dimension G (source diagram) (Since 2015)
|
393 in (998 cm)
|
|
Range Dimension G (source diagram) (Since 2016)
|
408 in (1,036 cm)
|
|
Range Dimension G (source diagram) (Since 2016)
|
423 in (1,074 cm)
|
|
Range Dimension G (source diagram) (Since 2016)
|
406 in (1,031 cm)
|
|
Range Dimension G (source diagram) (Since 2016)
|
379 in (963 cm)
|
|
Range Dimension G (source diagram) (Since 2016)
|
393 in (998 cm)
|
|
Range Dimension G (source diagram) (Since 2017)
|
408 in (1,036 cm)
|
|
Range Dimension G (source diagram) (Since 2017)
|
423 in (1,074 cm)
|
|
Range Dimension G (source diagram) (Since 2017)
|
406 in (1,031 cm)
|
|
Range Dimension G (source diagram) (Since 2017)
|
379 in (963 cm)
|
|
Range Dimension G (source diagram) (Since 2017)
|
393 in (998 cm)
|
|
Range Dimension G (source diagram) (Since 2018)
|
408 in (1,036 cm)
|
|
Range Dimension G (source diagram) (Since 2018)
|
423 in (1,074 cm)
|
|
Range Dimension G (source diagram) (Since 2018)
|
406 in (1,031 cm)
|
|
Range Dimension G (source diagram) (Since 2018)
|
379 in (963 cm)
|
|
Range Dimension G (source diagram) (Since 2018)
|
393 in (998 cm)
|
|
Range Dimension G (source diagram) (Since 2019)
|
408 in (1,036 cm)
|
|
Range Dimension G (source diagram) (Since 2019)
|
423 in (1,074 cm)
|
|
Range Dimension G (source diagram) (Since 2019)
|
406 in (1,031 cm)
|
|
Range Dimension G (source diagram) (Since 2019)
|
379 in (963 cm)
|
|
Range Dimension G (source diagram) (Since 2019)
|
393 in (998 cm)
|
|
Rated Engine RPM (Since 2015)
|
1,800 rpm |
|
Rated Engine RPM (2016)
|
1,800 rpm |
|
Rated Engine RPM (2017)
|
1,800 rpm |
|
Rated Engine RPM (2018)
|
1,800 rpm |
|
Rated Engine RPM (2019)
|
1,800 rpm |
|
Region Offerings (Since 2015)
|
North America |
|
Region Offerings (2016)
|
North America |
|
Region Offerings (2017)
|
North America |
|
Region Offerings (2018)
|
North America |
|
Region Offerings (2019)
|
North America |
|
Relief Valve Settings - Implement Circuits (Since 2015)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Implement Circuits (2016)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Implement Circuits (2017)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Implement Circuits (2018)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Implement Circuits (2019)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Pilot Circuits (Since 2015)
|
595 psi (4,100 kPa)
|
|
Relief Valve Settings - Pilot Circuits (2016)
|
595 psi (4,100 kPa)
|
|
Relief Valve Settings - Pilot Circuits (2017)
|
595 psi (4,100 kPa)
|
|
Relief Valve Settings - Pilot Circuits (2018)
|
595 psi (4,100 kPa)
|
|
Relief Valve Settings - Pilot Circuits (2019)
|
595 psi (4,100 kPa)
|
|
Relief Valve Settings - Swing Circuits (Since 2015)
|
4,061 psi (28,000 kPa)
|
|
Relief Valve Settings - Swing Circuits (2016)
|
4,061 psi (28,000 kPa)
|
|
Relief Valve Settings - Swing Circuits (2017)
|
4,061 psi (28,000 kPa)
|
|
Relief Valve Settings - Swing Circuits (2018)
|
4,061 psi (28,000 kPa)
|
|
Relief Valve Settings - Swing Circuits (2019)
|
4,061 psi (28,000 kPa)
|
|
Relief Valve Settings - Travel Circuits (Since 2015)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Travel Circuits (2016)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Travel Circuits (2017)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Travel Circuits (2018)
|
5,076 psi (35,000 kPa)
|
|
Relief Valve Settings - Travel Circuits (2019)
|
5,076 psi (35,000 kPa)
|
|
Shipping Dimension A (source diagram) (Since 2015)
|
132 in (335 cm)
|
|
Shipping Dimension A (source diagram) (Since 2016)
|
124 in (315 cm)
|
|
Shipping Dimension A (source diagram) (2017)
|
124 in (315 cm)
|
|
Shipping Dimension A (source diagram) (2018)
|
124 in (315 cm)
|
|
Shipping Dimension A (source diagram) (2019)
|
124 in (315 cm)
|
|
Shipping Dimension B (source diagram) (Since 2015)
|
116 in (295 cm)
|
|
Shipping Dimension B (source diagram) (Since 2016)
|
118 in (300 cm)
|
|
Shipping Dimension B (source diagram) (2017)
|
118 in (300 cm)
|
|
Shipping Dimension B (source diagram) (2018)
|
118 in (300 cm)
|
|
Shipping Dimension B (source diagram) (2019)
|
118 in (300 cm)
|
|
Shipping Dimension C (source diagram) (Since 2015)
|
135 in (343 cm)
|
|
Shipping Dimension C (source diagram) (2016)
|
135 in (343 cm)
|
|
Shipping Dimension C (source diagram) (2017)
|
135 in (343 cm)
|
|
Shipping Dimension C (source diagram) (2018)
|
135 in (343 cm)
|
|
Shipping Dimension C (source diagram) (2019)
|
135 in (343 cm)
|
|
Shipping Dimension D (source diagram) (Since 2015)
|
19 in (48 cm)
|
|
Shipping Dimension D (source diagram) (2016)
|
19 in (48 cm)
|
|
Shipping Dimension D (source diagram) (2017)
|
19 in (48 cm)
|
|
Shipping Dimension D (source diagram) (2018)
|
19 in (48 cm)
|
|
Shipping Dimension D (source diagram) (2019)
|
19 in (48 cm)
|
|
Shipping Dimension E (source diagram) (Since 2015)
|
132 in (335 cm)
|
|
Shipping Dimension E (source diagram) (Since 2016)
|
48 in (122 cm)
|
|
Shipping Dimension E (source diagram) (2017)
|
48 in (122 cm)
|
|
Shipping Dimension E (source diagram) (2018)
|
48 in (122 cm)
|
|
Shipping Dimension E (source diagram) (2019)
|
48 in (122 cm)
|
|
Shipping Dimension F (source diagram) (Since 2015)
|
138 in (351 cm)
|
|
Shipping Dimension F (source diagram) (Since 2016)
|
137 in (348 cm)
|
|
Shipping Dimension F (source diagram) (2017)
|
137 in (348 cm)
|
|
Shipping Dimension F (source diagram) (2018)
|
137 in (348 cm)
|
|
Shipping Dimension F (source diagram) (2019)
|
137 in (348 cm)
|
|
Shipping Dimension G (source diagram) (Since 2015)
|
198 in (503 cm)
|
|
Shipping Dimension G (source diagram) (2016)
|
198 in (503 cm)
|
|
Shipping Dimension G (source diagram) (2017)
|
198 in (503 cm)
|
|
Shipping Dimension G (source diagram) (2018)
|
198 in (503 cm)
|
|
Shipping Dimension G (source diagram) (2019)
|
198 in (503 cm)
|
|
Shipping Dimension H (source diagram) (Since 2015)
|
429 in (1,090 cm)
|
|
Shipping Dimension H (source diagram) (Since 2015)
|
440 in (1,118 cm)
|
|
Shipping Dimension H (source diagram) (2016)
|
440 in (1,118 cm)
|
|
Shipping Dimension H (source diagram) (2017)
|
440 in (1,118 cm)
|
|
Shipping Dimension H (source diagram) (2018)
|
440 in (1,118 cm)
|
|
Shipping Dimension H (source diagram) (2019)
|
440 in (1,118 cm)
|
|
Shipping Dimension J (source diagram) (Since 2015)
|
142 in (361 cm)
|
|
Shipping Dimension J (source diagram) (Since 2015)
|
144 in (366 cm)
|
|
Shipping Dimension J (source diagram) (2016)
|
144 in (366 cm)
|
|
Shipping Dimension J (source diagram) (2017)
|
144 in (366 cm)
|
|
Shipping Dimension J (source diagram) (2018)
|
144 in (366 cm)
|
|
Shipping Dimension J (source diagram) (2019)
|
144 in (366 cm)
|
|
Shipping Dimension K (source diagram) (Since 2015)
|
159 in (404 cm)
|
|
Shipping Dimension K (source diagram) (2016)
|
159 in (404 cm)
|
|
Shipping Dimension K (source diagram) (2017)
|
159 in (404 cm)
|
|
Shipping Dimension K (source diagram) (2018)
|
159 in (404 cm)
|
|
Shipping Dimension K (source diagram) (2019)
|
159 in (404 cm)
|
|
Shipping Dimension L (source diagram) (Since 2015)
|
102 in (259 cm)
|
|
Shipping Dimension L (source diagram) (2016)
|
102 in (259 cm)
|
|
Shipping Dimension L (source diagram) (2017)
|
102 in (259 cm)
|
|
Shipping Dimension L (source diagram) (2018)
|
102 in (259 cm)
|
|
Shipping Dimension L (source diagram) (2019)
|
102 in (259 cm)
|
|
Sticks: (for Mass Boom) - ( ) Shoe Width - Long (Since 2015)
|
17,990 lbs (8,160 kg)
|
|
Sticks: (for Mass Boom) - ( ) Shoe Width - Long (Since 2015)
|
22,444 lbs (10,180 kg)
|
|
Sticks: (for Mass Boom) - ( ) Shoe Width - Long (Since 2016)
|
17,990 lbs (8,160 kg)
|
|
Sticks: (for Mass Boom) - ( ) Shoe Width - Long (Since 2016)
|
22,444 lbs (10,180 kg)
|
|
Sticks: (for Mass Boom) - ( ) Shoe Width - Long (Since 2016)
|
30,000 lbs (13,608 kg)
|
|
Sticks: (for Mass Boom) - ( ) Shoe Width - Long (Since 2016)
|
31,500 lbs (14,288 kg)
|
|
Sticks: (for Mass Boom) - ( ) Shoe Width - Long Narrow (Since 2016)
|
29,800 lbs (13,517 kg)
|
|
Sticks: (for Mass Boom) - ( ) Shoe Width - Standard (Since 2016)
|
26,700 lbs (12,111 kg)
|
|
Sticks: (for Mass Boom) - Counterweight - Heavy (Since 2016)
|
15,400 lbs (6,985 kg)
|
|
Sticks: (for Mass Boom) - Counterweight - Heavy (Since 2016)
|
13,400 lbs (6,078 kg)
|
|
Sticks: (for Mass Boom) - Counterweight - Standard (Since 2015)
|
13,228 lbs (6,000 kg)
|
|
Sticks: (for Mass Boom) - Counterweight - Standard (Since 2016)
|
13,200 lbs (5,987 kg)
|
|
Sticks: (for Mass Boom) - Counterweight - Standard (Since 2016)
|
11,200 lbs (5,080 kg)
|
|
Sticks: (for Mass Boom) - Medium Stick (Since 2015)
|
4,885 lbs (2,216 kg)
|
|
Sticks: (for Mass Boom) - Medium Stick (2016)
|
4,885 lbs (2,216 kg)
|
|
Sticks: (for Mass Boom) - Medium Stick (Since 2016)
|
4,600 lbs (2,087 kg)
|
|
Sticks: (for Mass Boom) - Medium Stick (Since 2017)
|
4,885 lbs (2,216 kg)
|
|
Sticks: (for Mass Boom) - Medium Stick (Since 2017)
|
4,600 lbs (2,087 kg)
|
|
Sticks: (for Mass Boom) - Medium Stick (Since 2018)
|
4,885 lbs (2,216 kg)
|
|
Sticks: (for Mass Boom) - Medium Stick (Since 2018)
|
4,600 lbs (2,087 kg)
|
|
Sticks: (for Mass Boom) - Medium Stick (Since 2019)
|
4,885 lbs (2,216 kg)
|
|
Sticks: (for Mass Boom) - Medium Stick (Since 2019)
|
4,600 lbs (2,087 kg)
|
|
Sticks: (for Mass Boom) - Upperstructure (complete w/o ctwt) (Since 2015)
|
21,312 lbs (9,667 kg)
|
|
Sticks: (for Mass Boom) - Upperstructure (complete w/o ctwt) (2016)
|
21,312 lbs (9,667 kg)
|
|
Sticks: (for Mass Boom) - Upperstructure (complete w/o ctwt) (Since 2016)
|
21,800 lbs (9,888 kg)
|
|
Sticks: (for Mass Boom) - Upperstructure (complete w/o ctwt) (Since 2016)
|
22,000 lbs (9,979 kg)
|
|
Sticks: (for Mass Boom) - Upperstructure (complete w/o ctwt) (Since 2016)
|
23,600 lbs (10,705 kg)
|
|
Sticks: (for Mass Boom) - Upperstructure (complete w/o ctwt) (Since 2016)
|
24,700 lbs (11,204 kg)
|
|
Sticks: (for Reach Boom) - Long ES Stick (Since 2016)
|
5,150 lbs (2,336 kg)
|
|
Sticks: (for Reach Boom) - Long ES Stick (2017)
|
5,150 lbs (2,336 kg)
|
|
Sticks: (for Reach Boom) - Long ES Stick (2018)
|
5,150 lbs (2,336 kg)
|
|
Sticks: (for Reach Boom) - Long ES Stick (2019)
|
5,150 lbs (2,336 kg)
|
|
Sticks: (for Reach Boom) - Long HD Stick (Since 2016)
|
4,508 lbs (2,045 kg)
|
|
Sticks: (for Reach Boom) - Long HD Stick (2017)
|
4,508 lbs (2,045 kg)
|
|
Sticks: (for Reach Boom) - Long HD Stick (2018)
|
4,508 lbs (2,045 kg)
|
|
Sticks: (for Reach Boom) - Long HD Stick (2019)
|
4,508 lbs (2,045 kg)
|
|
Sticks: (for Reach Boom) - Long Stick ES (Since 2016)
|
4,600 lbs (2,087 kg)
|
|
Sticks: (for Reach Boom) - Long Stick ES (2017)
|
4,600 lbs (2,087 kg)
|
|
Sticks: (for Reach Boom) - Long Stick ES (2018)
|
4,600 lbs (2,087 kg)
|
|
Sticks: (for Reach Boom) - Long Stick ES (2019)
|
4,600 lbs (2,087 kg)
|
|
Sticks: (for Reach Boom) - Long Stick HD (Since 2016)
|
4,200 lbs (1,905 kg)
|
|
Sticks: (for Reach Boom) - Long Stick HD (2017)
|
4,200 lbs (1,905 kg)
|
|
Sticks: (for Reach Boom) - Long Stick HD (2018)
|
4,200 lbs (1,905 kg)
|
|
Sticks: (for Reach Boom) - Long Stick HD (2019)
|
4,200 lbs (1,905 kg)
|
|
Sticks: (for Reach Boom) - Medium Stick (Since 2016)
|
4,147 lbs (1,881 kg)
|
|
Sticks: (for Reach Boom) - Medium Stick (2017)
|
4,147 lbs (1,881 kg)
|
|
Sticks: (for Reach Boom) - Medium Stick (2018)
|
4,147 lbs (1,881 kg)
|
|
Sticks: (for Reach Boom) - Medium Stick (2019)
|
4,147 lbs (1,881 kg)
|
|
Sticks: (for Reach Boom) - Medium Stick ES (Since 2016)
|
4,200 lbs (1,905 kg)
|
|
Sticks: (for Reach Boom) - Medium Stick ES (2017)
|
4,200 lbs (1,905 kg)
|
|
Sticks: (for Reach Boom) - Medium Stick ES (2018)
|
4,200 lbs (1,905 kg)
|
|
Sticks: (for Reach Boom) - Medium Stick ES (2019)
|
4,200 lbs (1,905 kg)
|
|
Sticks: (for Reach Boom) - Medium Stick HD (Since 2016)
|
4,000 lbs (1,814 kg)
|
|
Sticks: (for Reach Boom) - Medium Stick HD (2017)
|
4,000 lbs (1,814 kg)
|
|
Sticks: (for Reach Boom) - Medium Stick HD (2018)
|
4,000 lbs (1,814 kg)
|
|
Sticks: (for Reach Boom) - Medium Stick HD (2019)
|
4,000 lbs (1,814 kg)
|
|
Sticks: (for Reach Boom) - Short Stick HD (Since 2016)
|
4,000 lbs (1,814 kg)
|
|
Sticks: (for Reach Boom) - Short Stick HD (2017)
|
4,000 lbs (1,814 kg)
|
|
Sticks: (for Reach Boom) - Short Stick HD (2018)
|
4,000 lbs (1,814 kg)
|
|
Sticks: (for Reach Boom) - Short Stick HD (2019)
|
4,000 lbs (1,814 kg)
|
|
Track Gauge (Since 2015)
|
102 in (259 cm)
|
|
Track Gauge (2016)
|
102 in (259 cm)
|
|
Track Gauge (2017)
|
102 in (259 cm)
|
|
Track Gauge (2018)
|
102 in (259 cm)
|
|
Track Gauge (2019)
|
102 in (259 cm)
|
|
Track Shoe Width (Since 2015)
|
24 in (61 cm)
|
|
Track Shoe Width (Since 2015)
|
28 in (71 cm)
|
|
Track Shoe Width (Since 2015)
|
32 in (81 cm)
|
|
Track Shoe Width (Since 2015)
|
33 in (84 cm)
|
|
Track Shoe Width (Since 2016)
|
24 in (61 cm)
|
|
Track Shoe Width (Since 2016)
|
28 in (71 cm)
|
|
Track Shoe Width (Since 2016)
|
32 in (81 cm)
|
|
Track Shoe Width (Since 2016)
|
34 in (86 cm)
|
|
Track Shoe Width (Since 2017)
|
24 in (61 cm)
|
|
Track Shoe Width (Since 2017)
|
28 in (71 cm)
|
|
Track Shoe Width (Since 2017)
|
32 in (81 cm)
|
|
Track Shoe Width (Since 2017)
|
34 in (86 cm)
|
|
Track Shoe Width (Since 2018)
|
24 in (61 cm)
|
|
Track Shoe Width (Since 2018)
|
28 in (71 cm)
|
|
Track Shoe Width (Since 2018)
|
32 in (81 cm)
|
|
Track Shoe Width (Since 2018)
|
34 in (86 cm)
|
|
Track Shoe Width (Since 2019)
|
24 in (61 cm)
|
|
Track Shoe Width (Since 2019)
|
28 in (71 cm)
|
|
Track Shoe Width (Since 2019)
|
32 in (81 cm)
|
|
Track Shoe Width (Since 2019)
|
34 in (86 cm)
|
|
Upperstructure (complete w/o ctwt) (Since 2017)
|
21,312 lbs (9,667 kg)
|
|
Upperstructure (complete w/o ctwt) (Since 2017)
|
21,800 lbs (9,888 kg)
|
|
Upperstructure (complete w/o ctwt) (Since 2017)
|
22,000 lbs (9,979 kg)
|
|
Upperstructure (complete w/o ctwt) (Since 2017)
|
23,600 lbs (10,705 kg)
|
|
Upperstructure (complete w/o ctwt) (Since 2017)
|
24,700 lbs (11,204 kg)
|
|
Upperstructure (complete w/o ctwt) (Since 2018)
|
21,312 lbs (9,667 kg)
|
|
Upperstructure (complete w/o ctwt) (Since 2018)
|
21,800 lbs (9,888 kg)
|
|
Upperstructure (complete w/o ctwt) (Since 2018)
|
22,000 lbs (9,979 kg)
|
|
Upperstructure (complete w/o ctwt) (Since 2018)
|
23,600 lbs (10,705 kg)
|
|
Upperstructure (complete w/o ctwt) (Since 2018)
|
24,700 lbs (11,204 kg)
|
|
Upperstructure (complete w/o ctwt) (Since 2019)
|
21,312 lbs (9,667 kg)
|
|
Upperstructure (complete w/o ctwt) (Since 2019)
|
21,800 lbs (9,888 kg)
|
|
Upperstructure (complete w/o ctwt) (Since 2019)
|
22,000 lbs (9,979 kg)
|
|
Upperstructure (complete w/o ctwt) (Since 2019)
|
23,600 lbs (10,705 kg)
|
|
Upperstructure (complete w/o ctwt) (Since 2019)
|
24,700 lbs (11,204 kg)
|
|
Width of Standard Track Shoe (Since 2015)
|
34 in (86 cm)
|
|
Width of Standard Track Shoe (2016)
|
34 in (86 cm)
|
|
Width of Standard Track Shoe (2017)
|
34 in (86 cm)
|
|
Width of Standard Track Shoe (2018)
|
34 in (86 cm)
|
|
Width of Standard Track Shoe (2019)
|
34 in (86 cm)
|
| Hydraulic System |
|
Boom Cylinder - Bore |
6 in (15 cm)
|
|
Boom Cylinder - Stroke |
57 in (144 cm)
|
|
Db Family Bucket Cylinder - Bore |
6 in (15 cm)
|
|
Db Family Bucket Cylinder - Stroke |
45 in (115 cm)
|
|
Main System - Maximum Flow - Total |
151 gpm (572 lpm)
|
|
Maximum Pressure - Equipment - Heavy Lift |
5,511 psi |
|
Maximum Pressure - Equipment - Normal |
5,076 psi |
|
Maximum Pressure - Swing |
4,061 psi |
|
Maximum Pressure - Travel |
5,076 psi |
|
Pilot System - Maximum Flow |
8 gpm (30 lpm)
|
|
Pilot System - Maximum Pressure |
595 psi |
|
Stick Cylinder - Bore |
7 in (17 cm)
|
|
Stick Cylinder - Stroke |
68 in (174 cm)
|
|
Swing System - Maximum Flow |
74 gpm (280 lpm)
|
|
Tb Family Bucket Cylinder - Bore |
6 in (16 cm)
|
|
Tb Family Bucket Cylinder - Stroke |
53 in (136 cm)
|
| Operational |
|
Operating Weight |
88,400 lbs (40,098 kg)
|
| Service Refill Capacities |
|
Cooling System |
15 gal (57 l)
|
|
Def Tank |
11 gal (42 l)
|
|
Engine Oil - With Filter |
8 gal (30 l)
|
|
Final Drive - Each |
2 gal (8 l)
|
|
Fuel Tank Capacity |
164 gal (621 l)
|
|
Hydraulic System - Including Tank |
100 gal (379 l)
|
|
Hydraulic Tank |
46 gal (174 l)
|
|
Swing Drive - Each |
5 gal (19 l)
|
| Sound Performance |
|
Operator Noise - Sae J1166 |
71 dB(A) |
| Standards |
|
Brakes |
ISO 10265 2008 |
|
Cab/Fogs |
ISO 10262 1998 |
| Swing Mechanism |
|
Swing Speed |
9 rpm |
|
Swing Speed |
9 rpm |
|
Swing Torque |
80,394 lbs ft (108,999 nm)
|
|
Swing Torque |
80,144 lbs ft (108,659 nm)
|
| Track |
|
Number Of Carrier Rollers - Each Side - Long Undercarriage |
2 |
|
Number Of Shoes - Each Side - Long Undercarriage |
49 |
|
Number Of Track Rollers - Each Side - Long Undercarriage |
9 |
| Undercarriage |
|
Drawbar Pull |
66,094 lbs (29,980 kg)
|
|
Max Travel Speed |
3 mph (5 kph)
|
|
Number Of Carrier Rollers Per Side |
2 |
|
Number Of Shoes Per Side |
49 |
|
Number Of Track Rollers Per Side |
9 |
| Weights |
|
Maximum Weight |
88,400 lbs (40,098 kg)
|
|
Minimum Weight |
80,500 lbs (36,514 kg)
|
