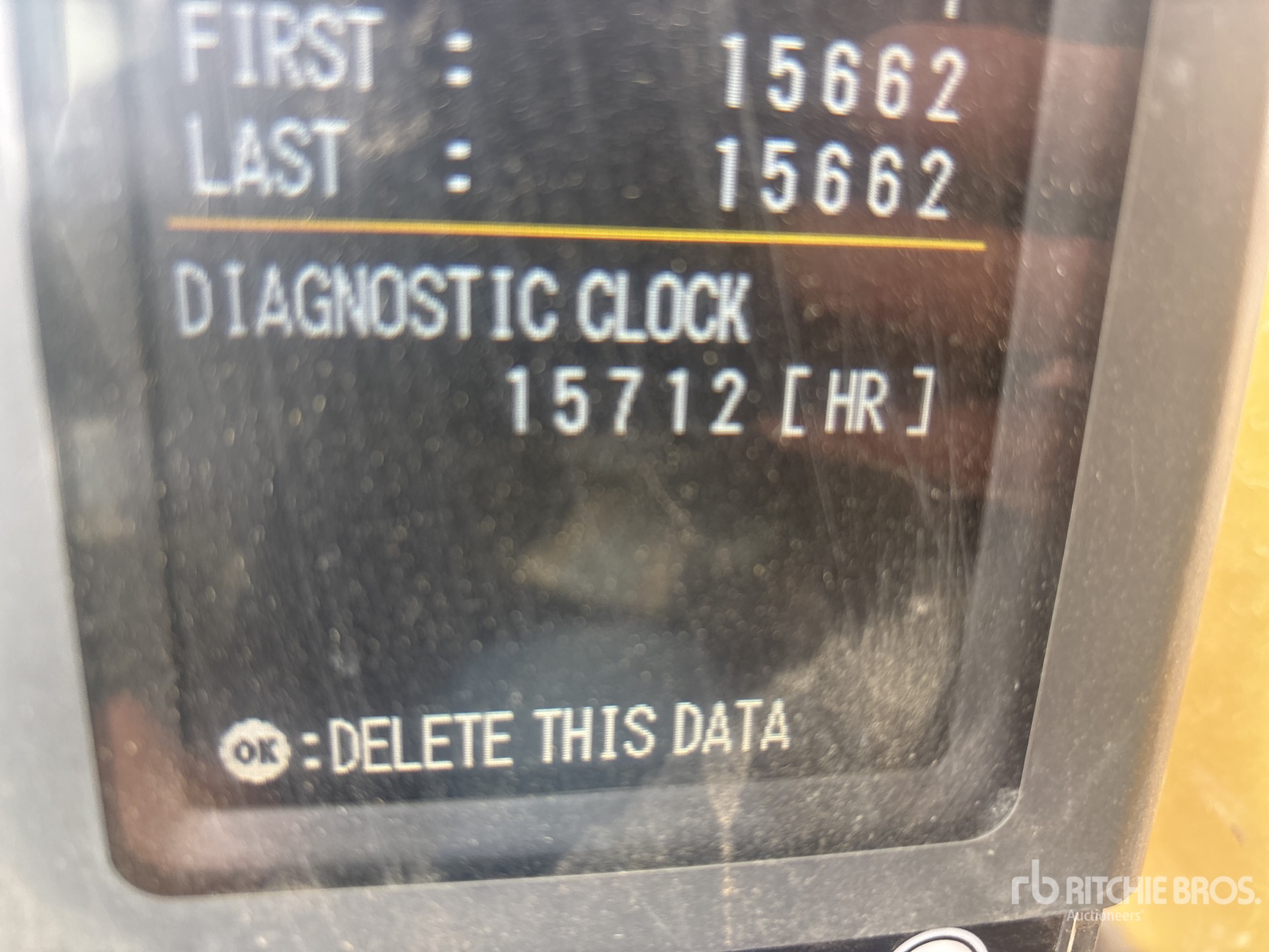

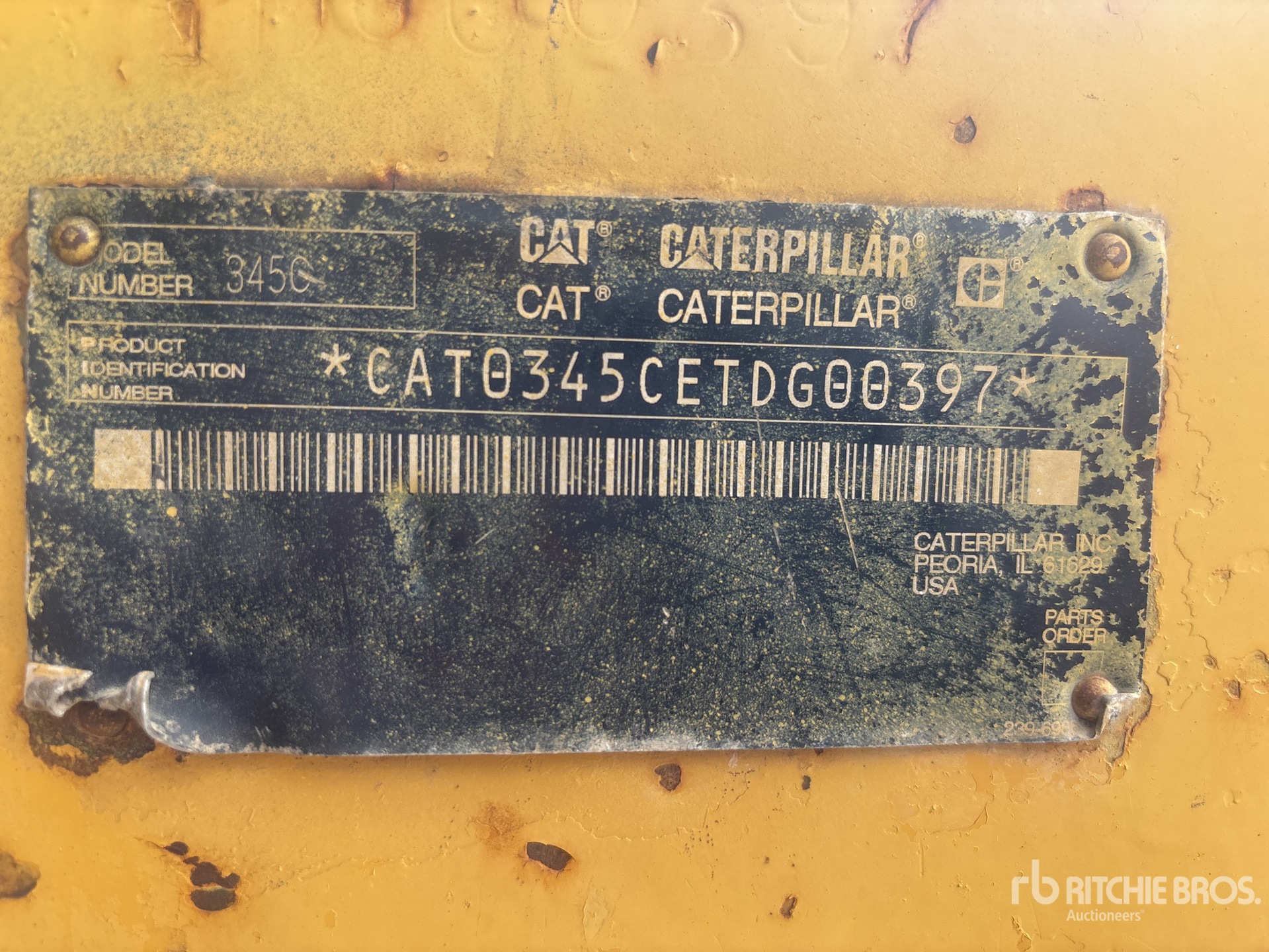

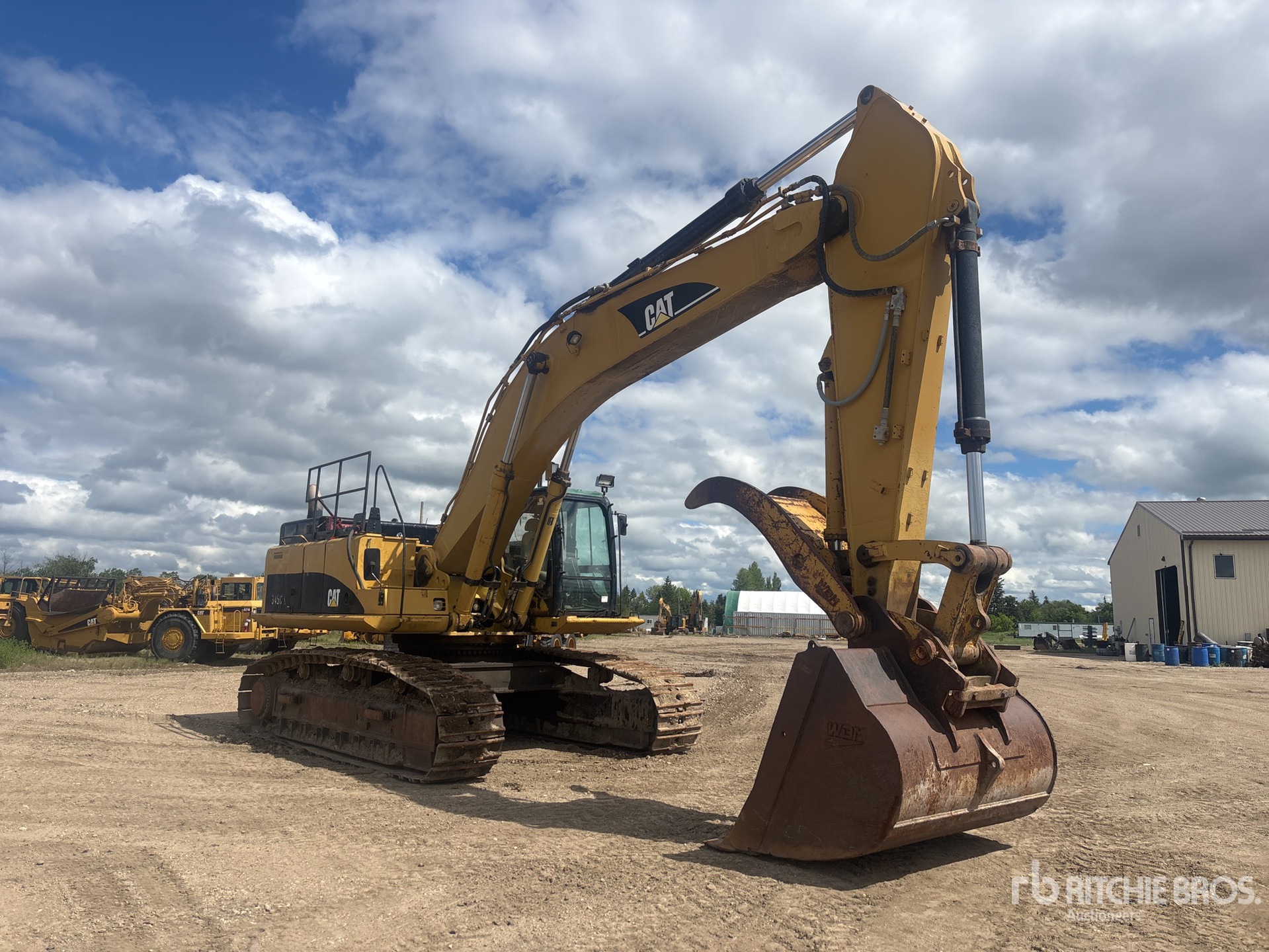

| Boom/Stick 1 |
|
Boom/Stick 1 |
R4.3TB-Reach Boom |
|
Max Digging Depth |
28 ft (9 m)
|
|
Max Loading Height |
25 ft (8 m)
|
|
Max Reach Along Ground |
41 ft (13 m)
|
|
Max Vertical Wall Digging Depth |
19 ft (6 m)
|
|
Shipping Height Of Unit |
12 ft (4 m)
|
|
Shipping Length Of Unit |
39 ft (12 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
R3.9TB--Reach Boom |
|
Max Digging Depth |
27 ft (8 m)
|
|
Max Loading Height |
25 ft (7 m)
|
|
Max Reach Along Ground |
40 ft (12 m)
|
|
Max Vertical Wall Digging Depth |
18 ft (5 m)
|
|
Shipping Height Of Unit |
12 ft (4 m)
|
|
Shipping Length Of Unit |
39 ft (12 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
R3.5TB-Reach Boom |
|
Max Digging Depth |
25 ft (8 m)
|
|
Max Loading Height |
24 ft (7 m)
|
|
Max Reach Along Ground |
38 ft (12 m)
|
|
Max Vertical Wall Digging Depth |
17 ft (5 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
39 ft (12 m)
|
| Boom/Stick 4 |
|
Boom/Stick 4 |
R2.9TB-Mass Excavation Boom |
|
Max Digging Depth |
24 ft (7 m)
|
|
Max Loading Height |
24 ft (7 m)
|
|
Max Reach Along Ground |
37 ft (11 m)
|
|
Max Vertical Wall Dig Depth |
16 ft (5 m)
|
|
Shipping Height Of Unit |
12 ft (4 m)
|
|
Shipping Length Of Unit |
39 ft (12 m)
|
| Boom/Stick 5 |
|
Boom/Stick 5 |
R4.3TB-Long Reach Boom |
|
Max Digging Depth |
29 ft (9 m)
|
|
Max Loading Height |
26 ft (8 m)
|
|
Max Reach Along Ground |
43 ft (13 m)
|
|
Max Vertical Wall Dig Depth |
20 ft (6 m)
|
|
Shipping Height Of Unit |
12 ft (4 m)
|
|
Shipping Length Of Unit |
41 ft (12 m)
|
| Boom/Stick 6 |
|
Boom/Stick 6 |
R3.9TB-Long Reach Boom |
|
Max Digging Depth |
28 ft (9 m)
|
|
Max Loading Height |
26 ft (8 m)
|
|
Max Reach Along Ground |
41 ft (13 m)
|
|
Max Vertical Wall Dig Depth |
18 ft (5 m)
|
|
Shipping Height Of Unit |
12 ft (4 m)
|
|
Shipping Length Of Unit |
41 ft (12 m)
|
| Buckets |
|
Maximum Bucket Capacity |
5 cu yd |
|
Reference Bucket Capacity |
3 cu yd |
| Dimensions |
|
Ground Clearance |
2 ft (1 m)
|
|
Height |
12 ft (4 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Length |
41 ft (12 m)
|
|
Length Of Track On Ground |
14 ft (4 m)
|
|
Removal Counterweight Clearance |
4 ft (1 m)
|
|
Shipping Height |
12 ft (4 m)
|
|
Tail Swing Radius |
12 ft (4 m)
|
|
Weight |
99,150 lbs (44,974 kg)
|
|
Width |
12 ft (4 m)
|
|
Width To Outside Of Tracks |
11 ft (3 m)
|
| Drive |
|
Maximum Drawbar Pull - Long Undercarriage |
75,920 lbs (34,431 kg)
|
|
Maximum Travel Speed |
3 mph (4 kph)
|
| Engine |
|
Bore |
5 in (13 cm)
|
|
Cylinders |
6 |
|
Displacement |
763 cu in (12,503 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Make |
2,236 |
|
Engine Model |
C13 |
|
Engine Model |
C13 ACERT |
|
Engine Model |
Cat C13 ACERT |
|
Net Flywheel Power |
345 hp (257 kw)
|
|
Net Power |
325 hp (242 kw)
|
|
Net Power |
345 hp (257 kw)
|
|
Net Power - Eec 80/1269 |
345 hp (257 kw)
|
|
Net Power - Iso 9249 |
345 hp (257 kw)
|
|
Net Power - Sae J1349 |
345 hp (257 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
1,800 rpm |
|
Stroke |
6 in (16 cm)
|
| Hydraulic System |
|
Boom Cylinder - Bore |
6 in (16 cm)
|
|
Boom Cylinder - Stroke |
62 in (157 cm)
|
|
Main Normal Relief Pressure |
5,080 psi |
|
Main System - Maximum Flow - Total |
190 gpm (719 lpm)
|
|
Maximum Pressure - Equipment - Heavy Lift |
5,511 psi |
|
Maximum Pressure - Equipment - Normal |
5,080 psi |
|
Maximum Pressure - Swing |
4,550 psi |
|
Maximum Pressure - Travel |
5,080 psi |
|
Pilot System - Maximum Flow |
11 gpm (42 lpm)
|
|
Pilot System - Maximum Pressure |
596 psi |
|
Stick Cylinder - Bore |
8 in (19 cm)
|
|
Stick Cylinder - Stroke - For Long Reach And Reach Fronts |
70 in (178 cm)
|
|
Stick Cylinder - Stroke - For Mass Excavation Fronts |
69 in (176 cm)
|
|
Tb Family Bucket Cylinder - Bore |
6 in (16 cm)
|
|
Tb Family Bucket Cylinder - Stroke |
53 in (136 cm)
|
|
Ub Family Bucket Cylinder - Bore |
7 in (17 cm)
|
|
Ub Family Bucket Cylinder - Stroke |
55 in (140 cm)
|
| Operating Specifications |
|
Bucket Digging Force - Normal |
39,300 lbs (17,823 kg)
|
|
Maximum Bucket Capacity |
5 cu yd |
|
Maximum Digging Depth |
29 ft (9 m)
|
|
Maximum Reach - Ground Level |
43 ft (13 m)
|
|
Nominal Bucket Weight |
3,880 lbs (1,760 kg)
|
| Operational |
|
Cooling System Fluid Capacity |
16 gal (61 l)
|
|
Engine Oil Capacity |
11 gal (42 l)
|
|
Fuel Capacity |
186 gal (704 l)
|
|
Hydraulic Pump Flow Capacity |
190 gpm (719 lpm)
|
|
Hydraulic System Fluid Capacity |
150 gal (568 l)
|
|
Hydraulic System Relief Valve Pressure |
5,080 psi |
|
Operating Weight |
99,150 lbs (44,966 kg)
|
|
Swing Drive Fluid Capacity |
3 gal (10 l)
|
| Service Refill Capacities |
|
Cooling System |
16 gal (61 l)
|
|
Engine Oil |
11 gal (42 l)
|
|
Final Drive - Each |
4 gal (15 l)
|
|
Fuel Tank Capacity |
186 gal (704 l)
|
|
Hydraulic System - Including Tank |
150 gal (568 l)
|
|
Hydraulic Tank |
64 gal (242 l)
|
|
Swing Drive - Each |
3 gal (10 l)
|
| Sound Performance |
|
Performance |
ANSI/SAE J1166 MAY90 Meets OSHA and MSHA Requirements |
| Standards |
|
Brakes |
SAE J1026 APR90 |
|
Cab/Fogs |
SAE J1356 FEB 88 and ISO 10262-1998 |
| Swing Mechanism |
|
Swing Speed |
9 rpm |
|
Swing Torque |
109,560 lbs ft (148,541 nm)
|
| Track |
|
Number Of Carrier Rollers - Each Side |
2 |
|
Number Of Shoes - Each Side - Long Undercarriage |
52 |
|
Number Of Track Rollers - Each Side - Long Undercarriage |
9 |
| Undercarriage |
|
Drawbar Pull |
75,920 lbs (34,431 kg)
|
|
Max Travel Speed |
3 mph (4 kph)
|
|
Number Of Carrier Rollers Per Side |
2 |
|
Number Of Shoes Per Side |
52 |
|
Number Of Track Rollers Per Side |
9 |
|
Shoe Size |
30 in (76 cm)
|
|
Track Gauge |
9 ft (3 m)
|
| Weights |
|
Operating Weight |
99,150 lbs (44,966 kg)
|
|
Operating Weight - Long Undercarriage |
99,150 lbs (44,966 kg)
|
|
Operating Weight - Standard Undercarriage |
99,150 lbs (44,966 kg)
|
