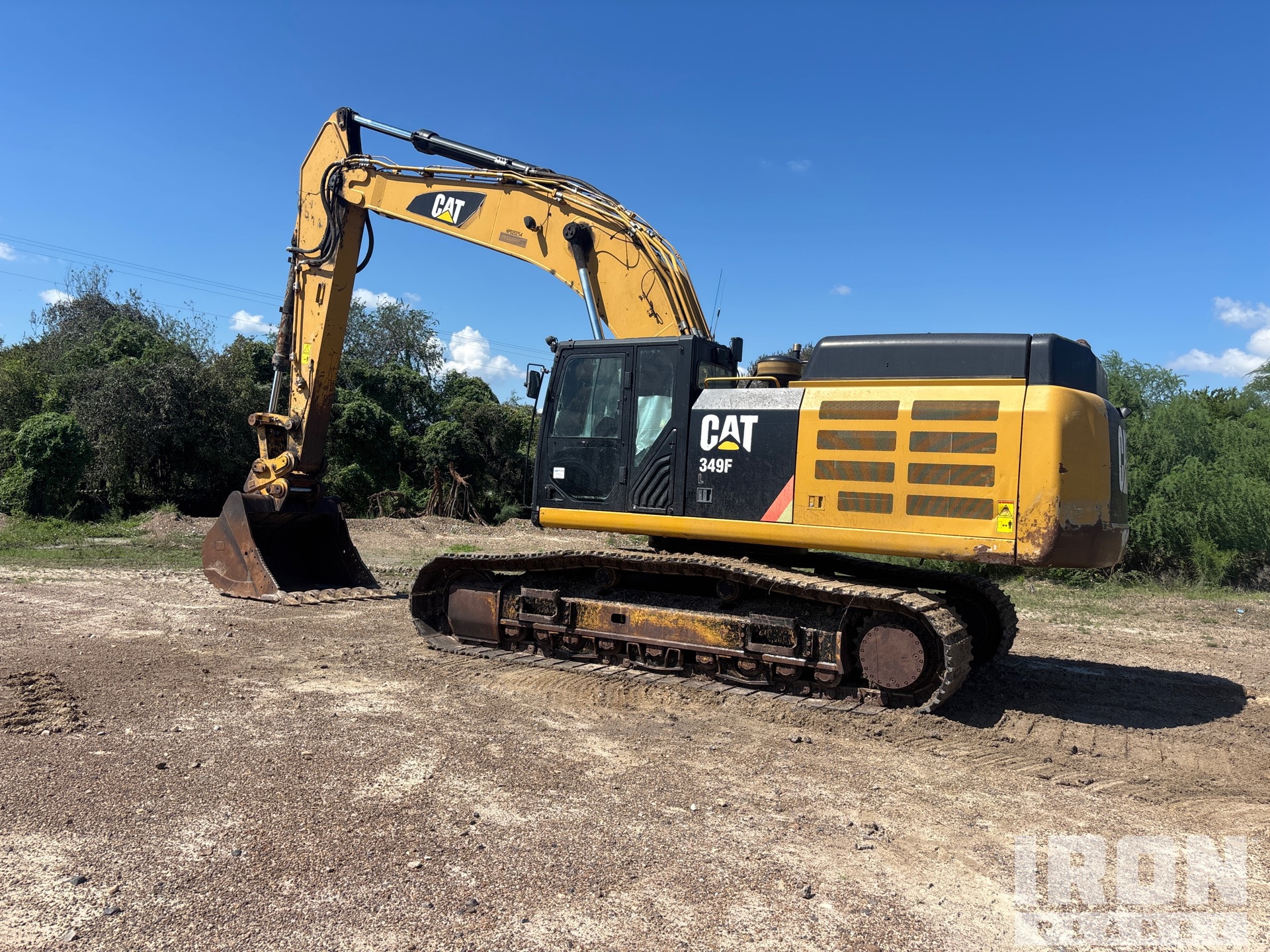

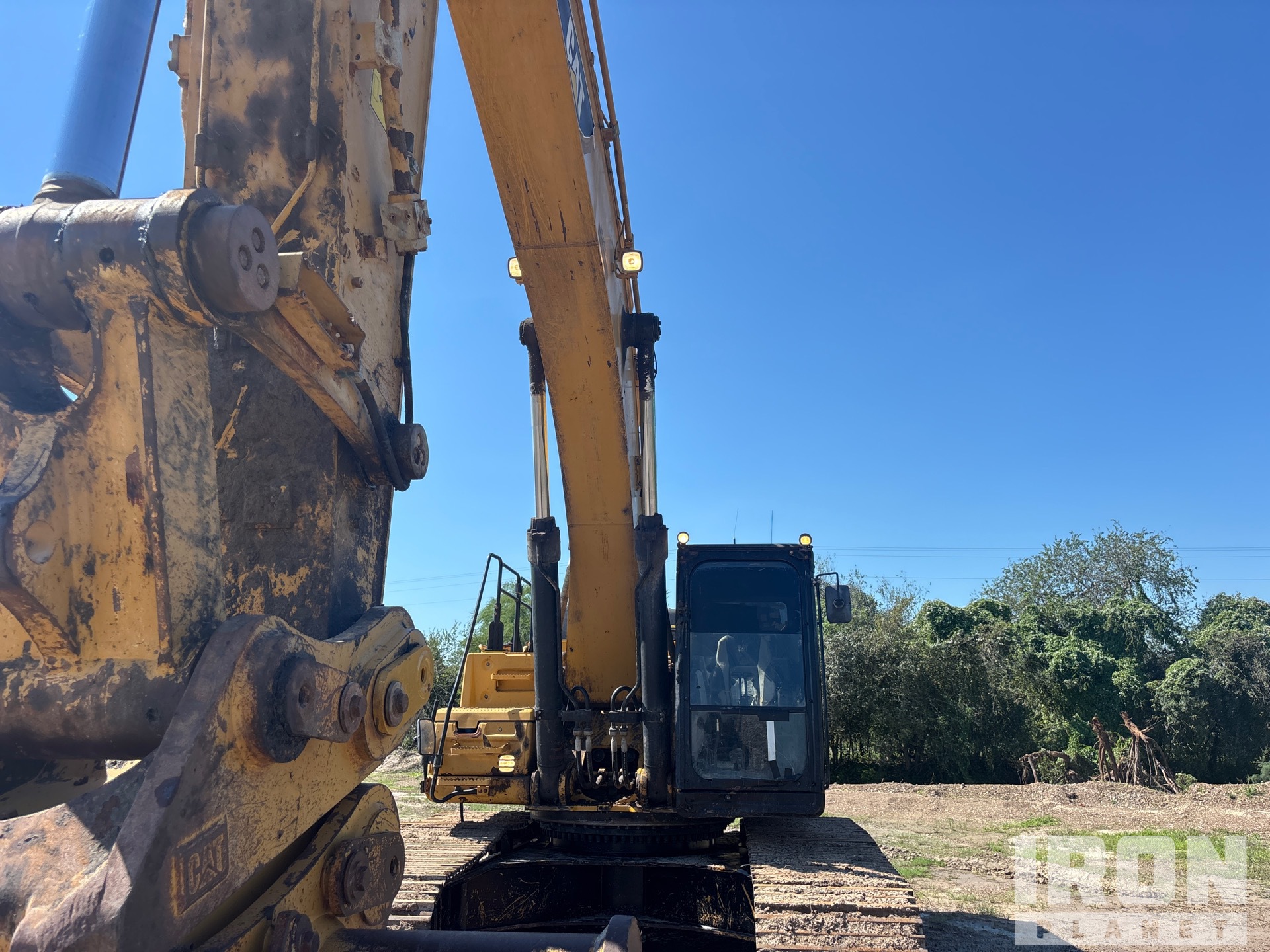

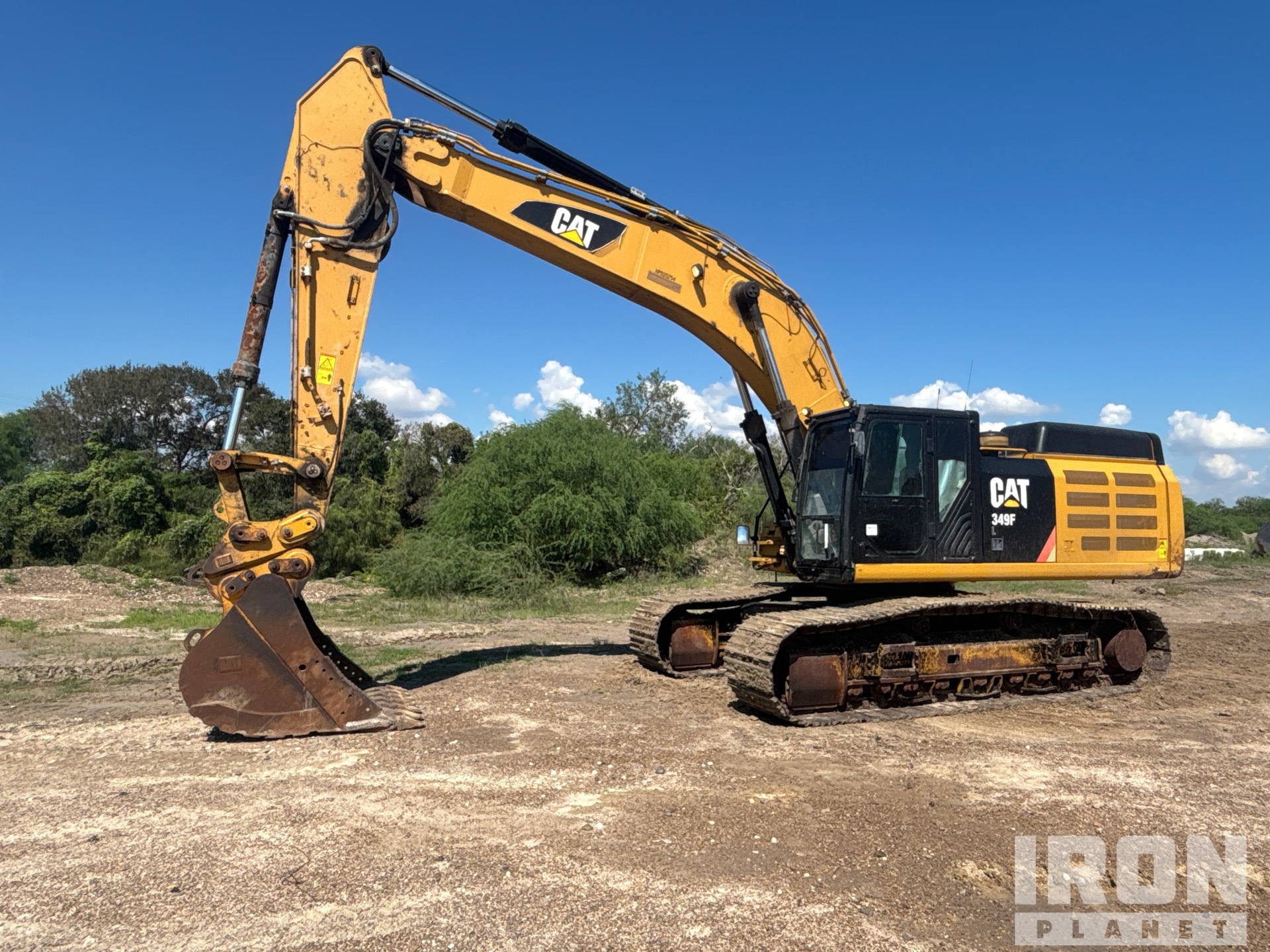

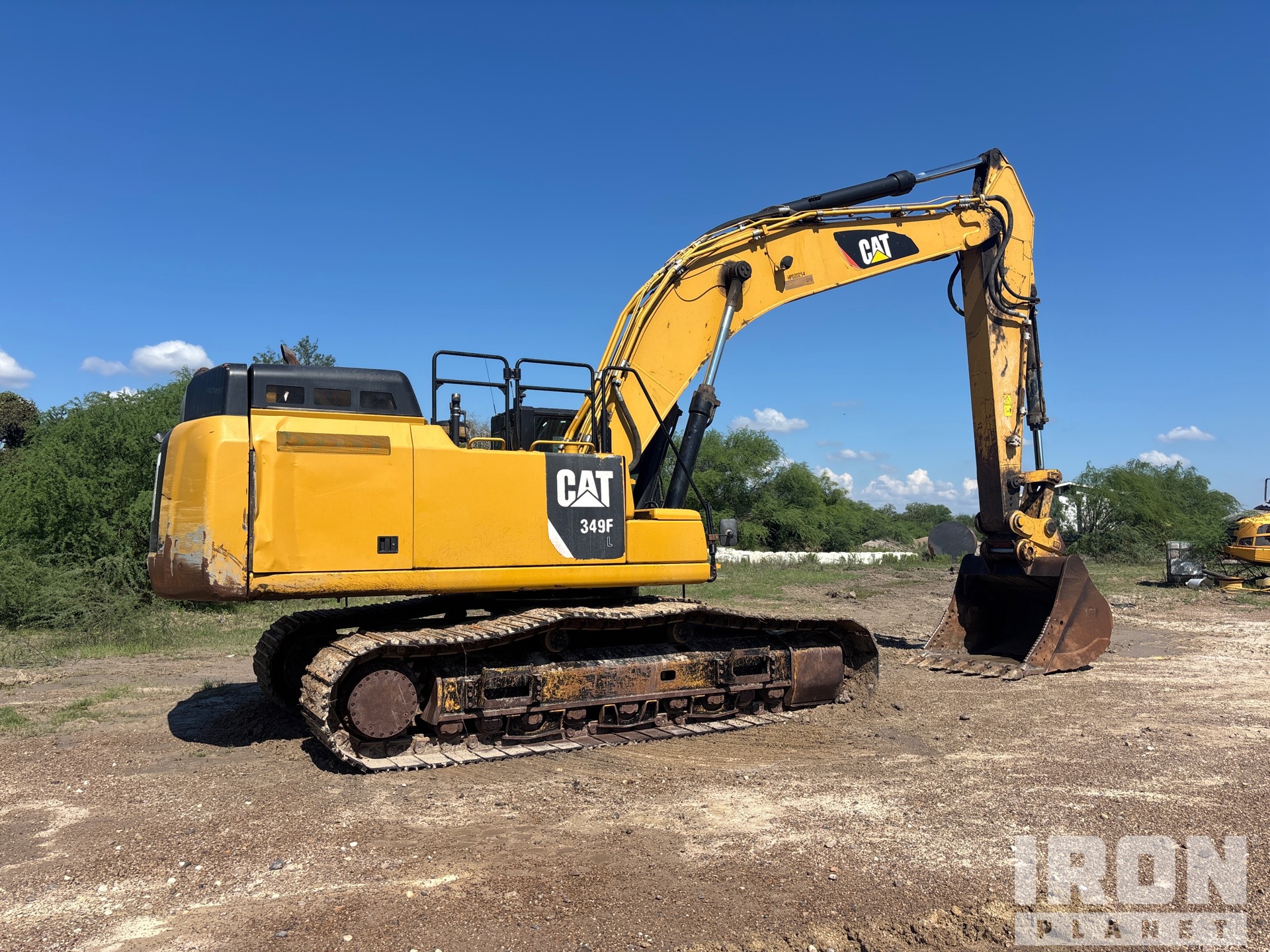

| Dimensions |
|
Height |
12 ft (4 m)
|
|
Length |
41 ft (13 m)
|
|
Weight |
117,500 lbs (53,297 kg)
|
|
Width |
12 ft (4 m)
|
| Dimensions - Long Fix Undercarriage: Heavy-Duty R6.9m (22'8") Boom; R3.35tb Hd (11'0") Stick |
|

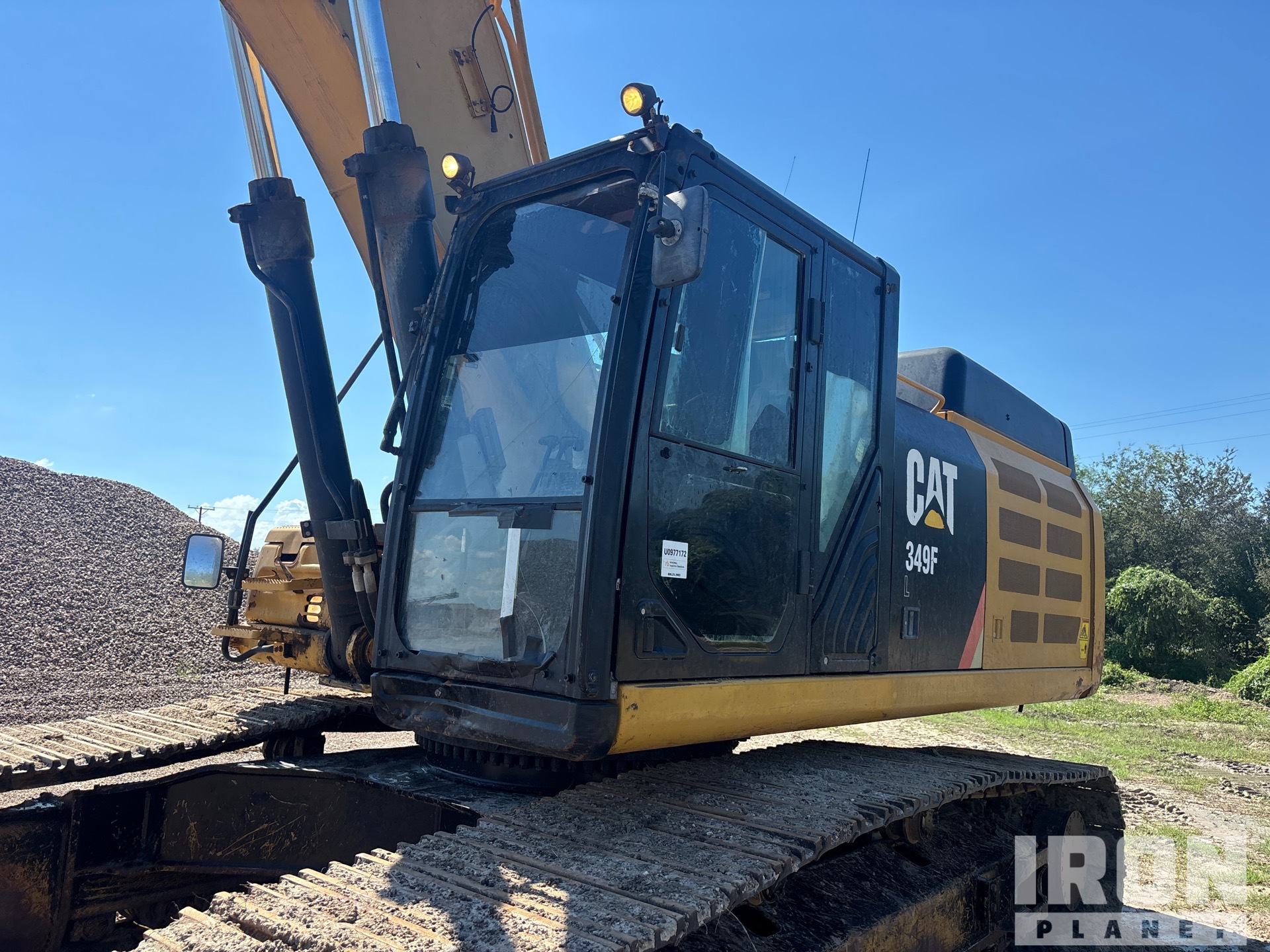

Cab Height |
11 ft (3 m)
|
|
Cab Height - With Top Guard |
11 ft (3 m)
|
|
Counterweight Clearance* |
4 ft (1 m)
|
|
Ground Clearance - With Shoe Lug Height |
2 ft (0 m)
|
|
Ground Clearance - Without Shoe Lug Height |
2 ft (1 m)
|
|
Length - Center Of Rollers |
14 ft (4 m)
|
|
Note |
*Without shoe lug height. |
|
Shipping Height |
12 ft (4 m)
|
|
Shipping Length |
39 ft (12 m)
|
|
Tail Swing Radius |
12 ft (4 m)
|
|

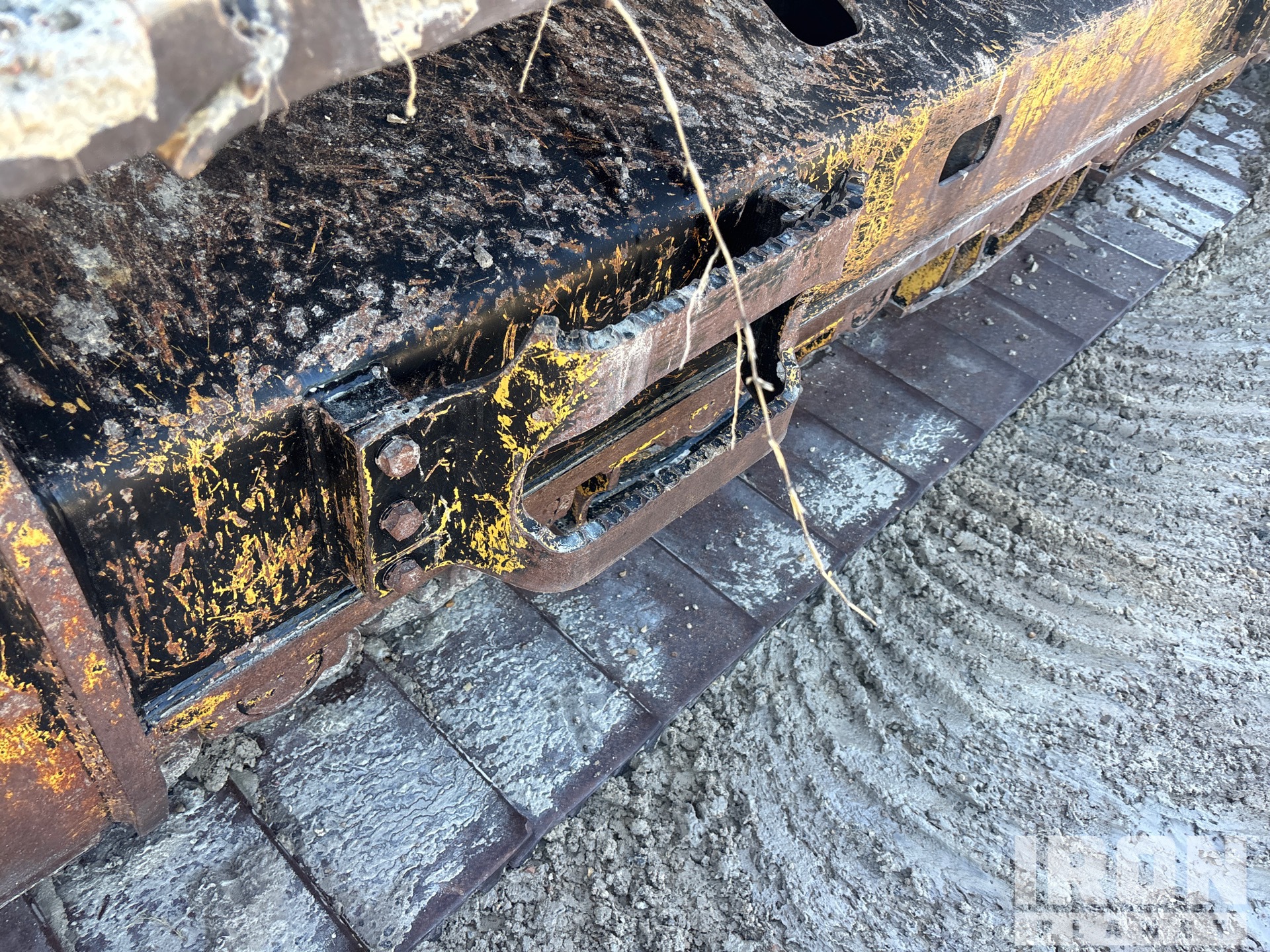

Track Gauge |
9 ft (3 m)
|
|
Track Length |
18 ft (5 m)
|
|
Transport Width - 600 Mm (24 In) Shoes |
11 ft (3 m)
|
|
Transport Width - 750 Mm (30 In) Shoes |
11 ft (3 m)
|
| Drive |
|
Maximum Drawbar Pull |
75,300 lbs (34,156 kg)
|
|
Maximum Travel Speed |
3 mph (5 kph)
|

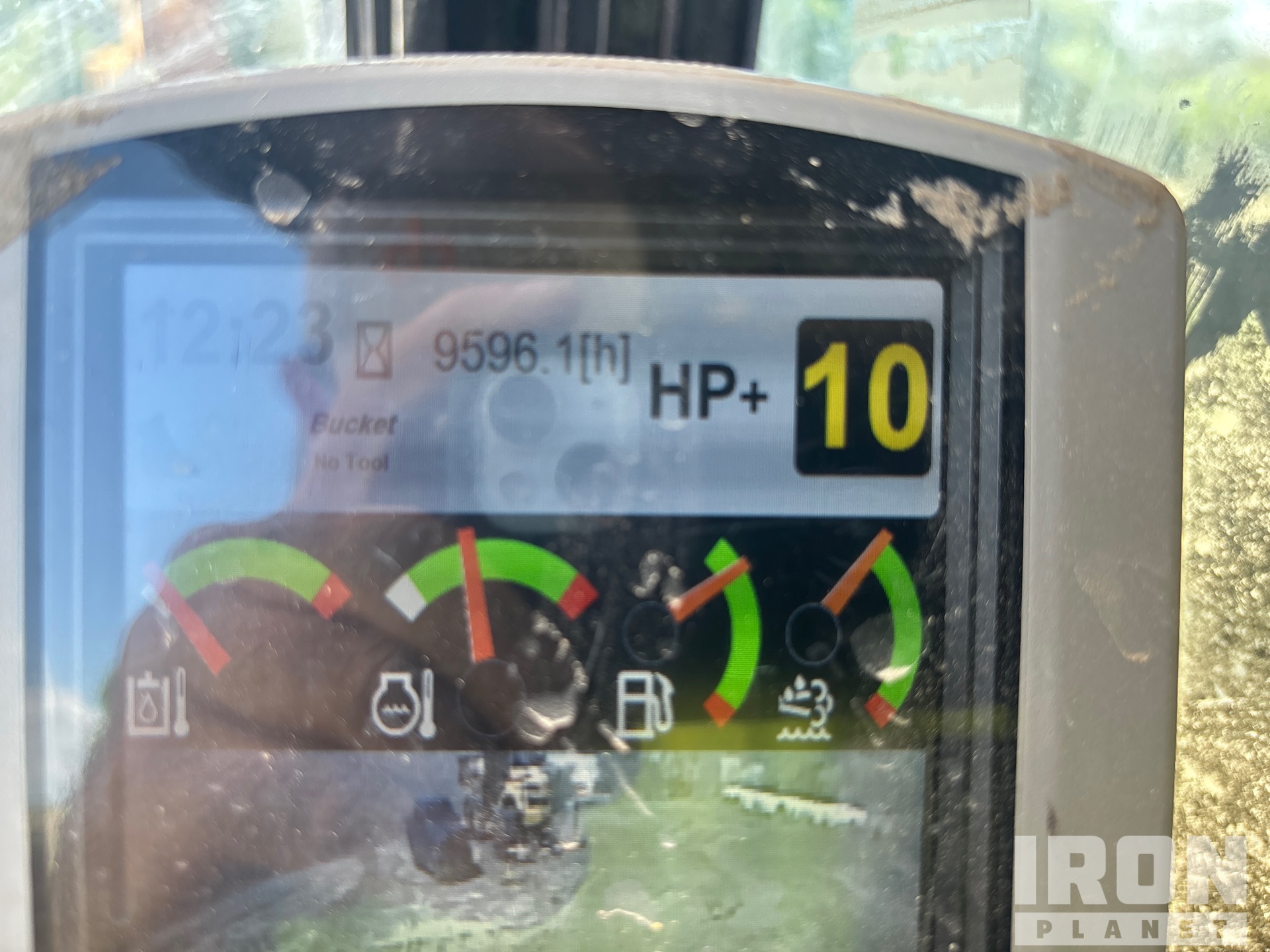

| Engine |
|
Bore |
5 in (13 cm)
|
|
Displacement |
763 cu in (12,503 cu cm)
|
|
Engine Model |
Cat C13 ACERT |
|
Net Flywheel Power |
417 hp (311 kw)
|
|
Stroke |
6 in (16 cm)
|
| Hydraulic System |
|
Main System - Maximum Flow - Total |
203 gpm (768 lpm)
|
|
Maximum Pressure - Equipment - Heavy Lift |
5,512 psi |
|
Maximum Pressure - Equipment - Normal |
5,076 psi |
|
Maximum Pressure - Swing |
3,989 psi |
|
Maximum Pressure - Travel |
5,076 psi |
|
Pilot System - Maximum Flow |
7 gpm (27 lpm)
|
|
Pilot System - Maximum Pressure |
598 psi |
|
Swing System - Maximum Flow |
102 gpm (386 lpm)
|
| Machine Weight |
|
Note |
*349F L with long fix undercarriage, HD R6.9m (22'8") boom, R3.35m (11'0") stick, 3.1 m3 (4.1 yd3) GP bucket, 600 mm (24") DG shoes. |
|
Operating Weight* |
107,145 lbs (48,600 kg)
|
| Service Refill Capacities |
|
Cooling System |
13 gal (50 l)
|
|
Def Tank Capacity |
11 gal (42 l)
|
|
Engine Oil - With Filter |
10 gal (38 l)
|
|
Final Drive - Each |
4 gal (15 l)
|
|
Fuel Tank Capacity |
190 gal (719 l)
|
|
Hydraulic System - Including Tank |
151 gal (570 l)
|
|
Hydraulic Tank |
108 gal (407 l)
|
|
Swing Drive - Each |
3 gal (10 l)
|
| Sound Performance |
|
Exterior - Iso 6395 |
106 dB(A) |
|
Operator - Sae J1166/Iso 6396 |
69 dB(A) |
| Swing Mechanism |
|
Maximum Swing Torque |
137,924 lbs ft (186,997 nm)
|
|
Swing Speed |
9 rpm |
|
Swing Torque |
109,500 lbs ft (148,460 nm)
|
| Weights |
|
Operating Weight |
107,145 lbs (48,600 kg)
|

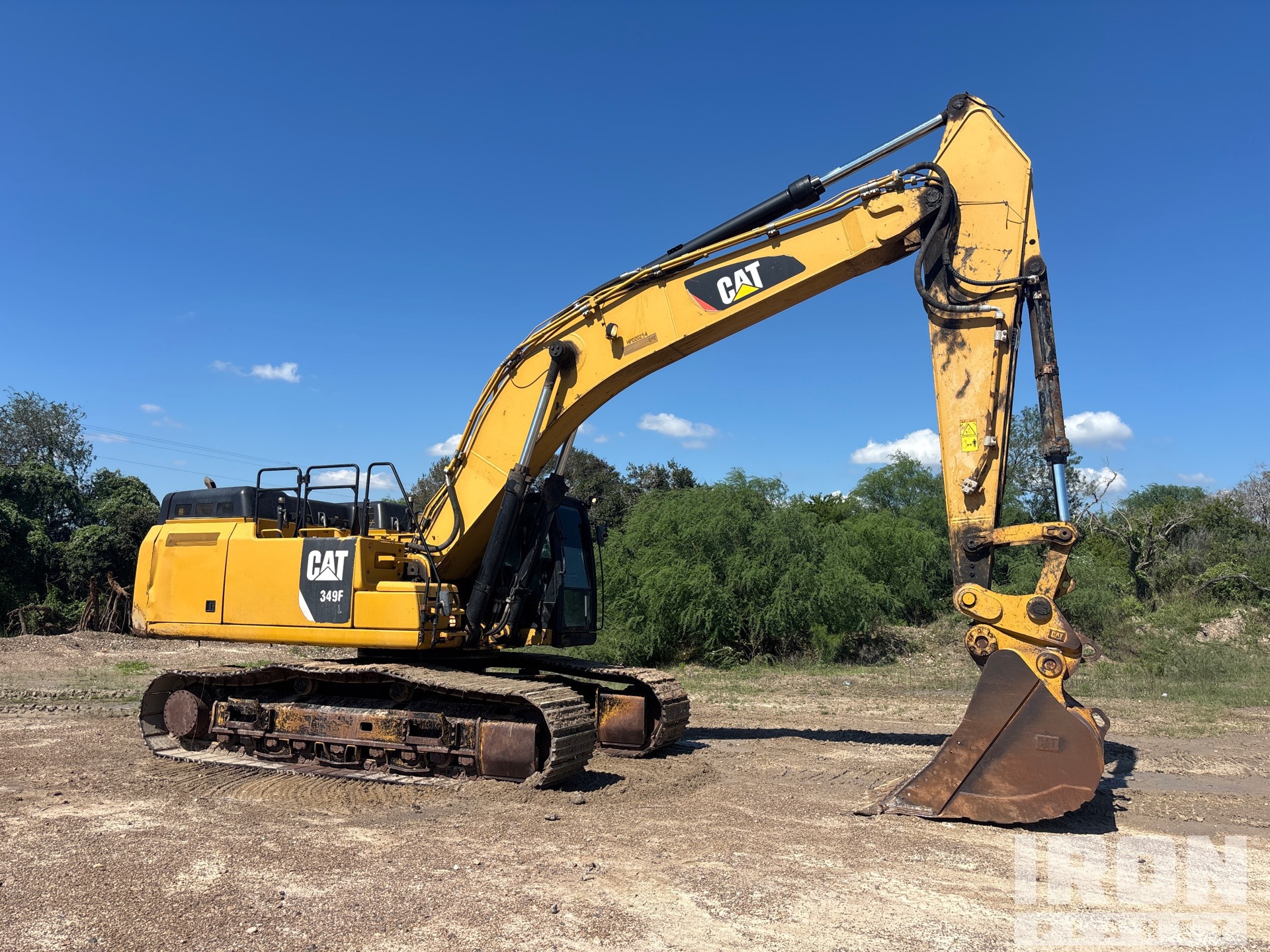

| Working Ranges - Long Fix Undercarriage: Heavy-Duty R6.9m (22'8") Boom; R3.35tb Hd (11'0") Stick |
|
Maximum Cutting Height |
36 ft (11 m)
|
|
Maximum Depth Cut For 2440 Mm (8'0") Level Bottom |
25 ft (8 m)
|
|
Maximum Digging Depth |
25 ft (8 m)
|
|
Maximum Loading Height |
25 ft (7 m)
|
|
Maximum Reach - Ground Level |
39 ft (12 m)
|
|
Maximum Vertical Wall Digging Depth |
19 ft (6 m)
|
|
Minimum Loading Height |
9 ft (3 m)
|
