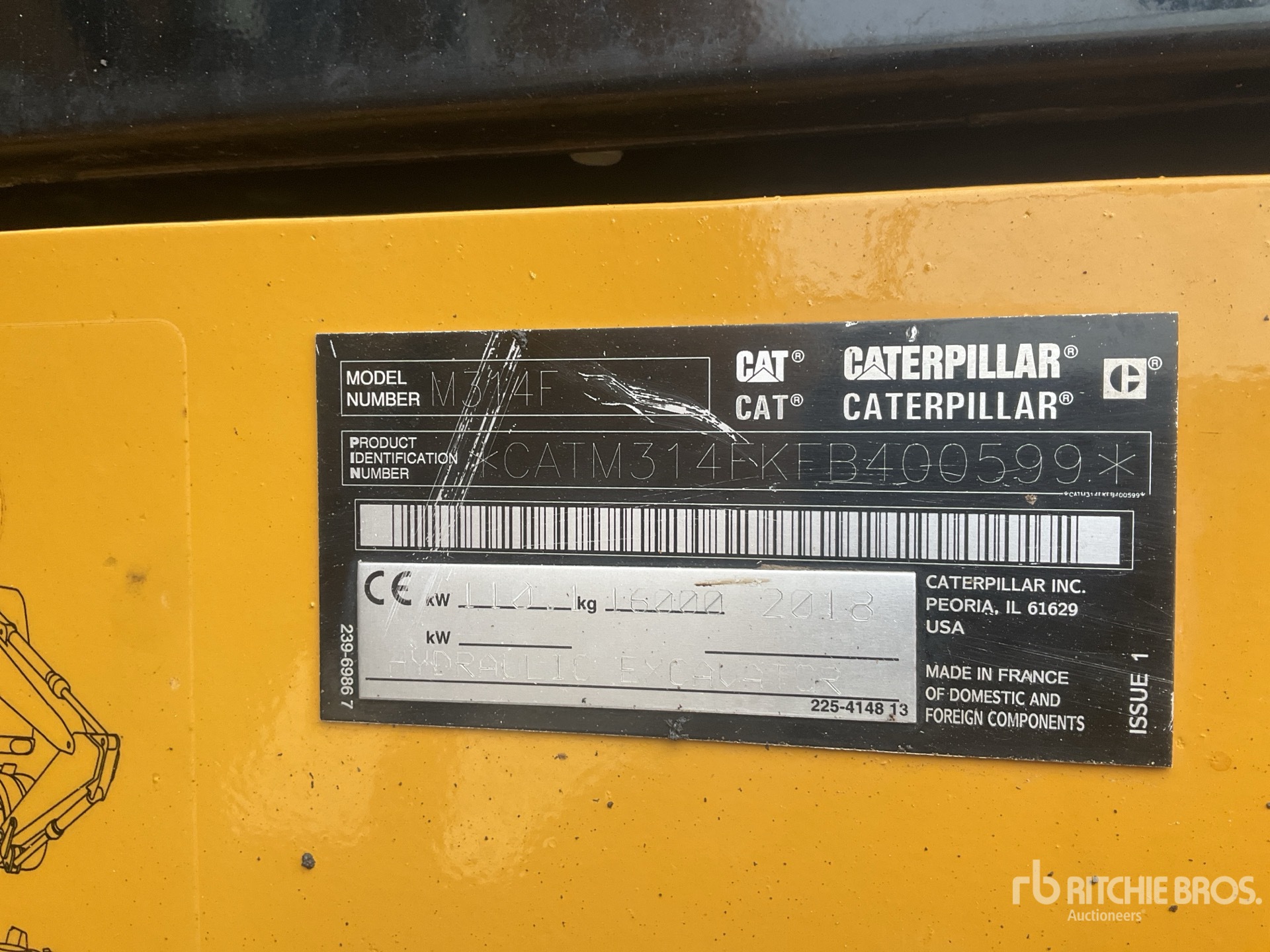

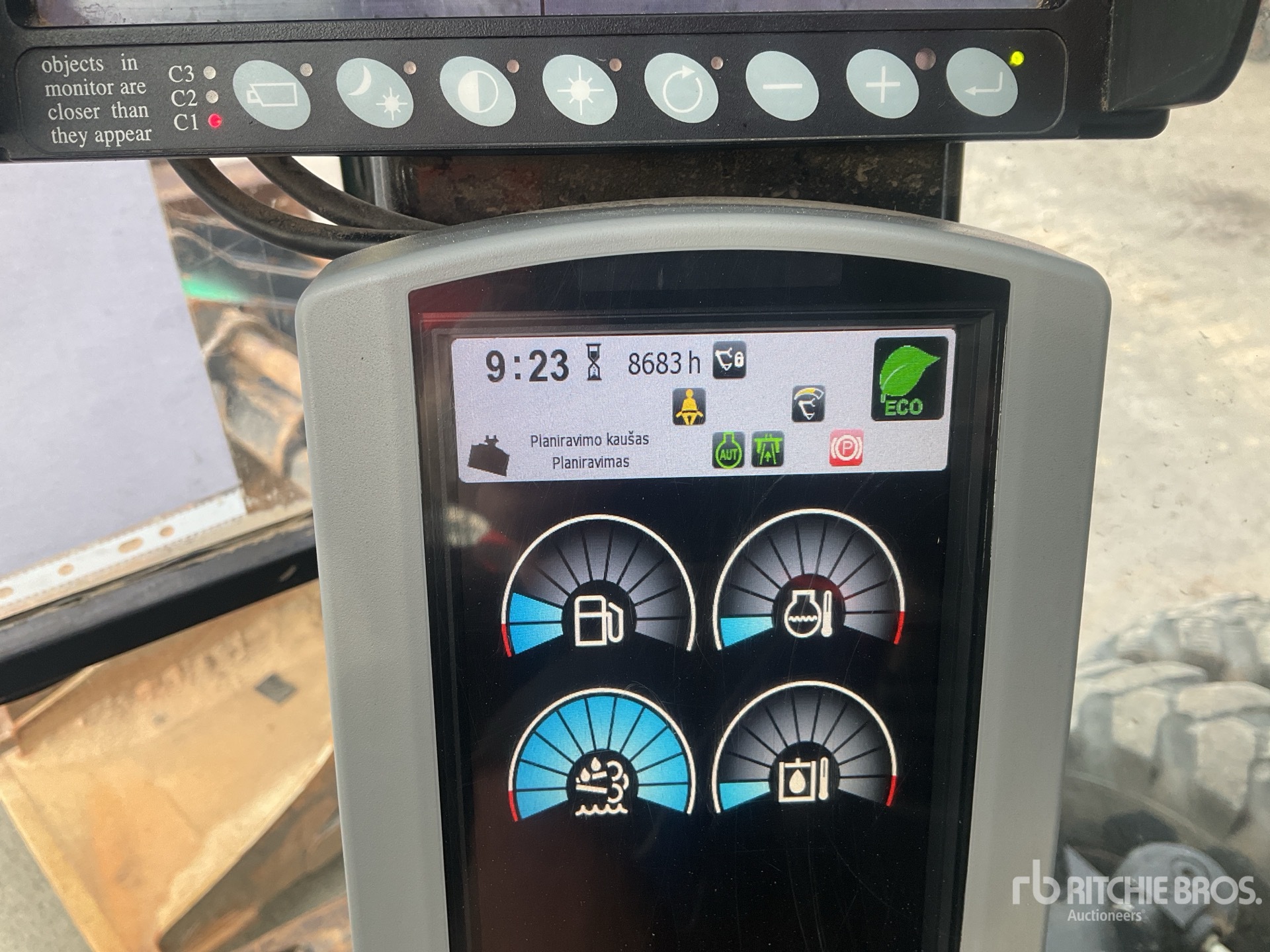

| Bucket Specifications |
|
Bucket Capacities |
0.2 m-1 m (0.26 yd-1.31 yd) |
| Dimensions |
|
Height |
11 ft (3 m)
|
|
Length |
28 ft (8 m)
|
|
Weight |
35,164 lbs (15,947 kg)
|
|
Width |
8 ft (3 m)
|
| Dozer Blade |
|
Blade Roll - Over Height |
2 ft (1 m)
|
|
Blade Total Height |
2 ft (1 m)
|
|
Blade Type |
Radial |
|
Maximum Lowering Depth From Ground |
5 in (13 cm)
|
|
Maximum Raising Height Above Ground |
2 ft (0 m)
|
|
Width |
100 in (253 cm)
|
| Drive |
|
Maximum Travel Speed |
23 mph (37 kph)
|
|
Maximum Travel Speed |
23 mph (37 kph)
|
| Emissions And Safety |
|
Engine Emissions |
Tier 4 Final |
|
Fluids (Optional) - Biodiesel Up To B20 |
Meets EN 14214 or ASTM D6751 with EN590 or ASTM D975 Standard Mineral diesel fuels |
|
Fluids (Optional) - Cat Bio Hydo Advanced |
Readily biodegradable EU Flower eco-label certified |
|
Fluids (Optional) - Diesel Exhaust Fluid |
Must meet ISO 22241 |
|
Vibration Levels - Maximum Hand/Arm - Iso 5349:2001 |
Less Than 2.5 m/s (Less Than 8.2 ft/s) |
|
Vibration Levels - Maximum Whole Body - Iso/Tr 25398:2006 |
Less Than 0.5 m/s (Less Than 1.6 ft/s) |
|
Vibration Levels - Seat Transmissibility Factor - Iso 7096:2000 - Spectral Class Em6 |
Less Than 0.7 |
| Engine |
|
Bore |
4 in (10 cm)
|
|
Bore |
4 in (10 cm)
|
|
Displacement |
269 cu in (4,400 cu cm)
|
|
Displacement |
269 cu in (4,400 cu cm)
|
|
Emissions |
Meets Tier 4 Final/Stage IV emission standards. |
|
Emissions |
U.S. EPA Tier 4 Final, Korea Tier 4 Final |
|
Engine Gross Power (Maximum) - Iso 14396 |
148 hp (110 kw)
|
|
Engine Gross Power (Maximum) - Iso 14396 - (Ps) - Metric |
150 hp (112 kw)
|
|
Engine Model |
Cat C4.4 ACERT |
|
Engine Model |
Cat C4.4 ACERT |
|
Engine Power - Maximum Gross - Iso 14396 |
110 kW (148 hp [150 hp]*) |
|
Engine Power - Maximum Net - Iso 9249/Sae J1349 |
105 kW (141 hp [143 hp]*) |
|
Maximum Torque - 1,400 Rpm |
413 lbs ft (560 nm)
|
|
Maximum Torque - 1,400 Rpm |
413 lbs ft (560 nm)
|
|
Net Power |
141 hp (105 kw)
|
|
Net Power |
141 hp (105 kw)
|
|
Net Power (Maximum) - Iso 14396 At 2,000 Rpm |
148 hp (110 kw)
|
|
Net Power (Maximum) - Iso 9249/Sae J1349 At 2,000 Rpm |
141 hp (105 kw)
|
|
Net Power (Rated) - Iso 9249/Sae J1349 - (Ps) - Metric |
143 hp (107 kw)
|
|
Net Power - Maximum - 80/1269/Eec |
141 hp (105 kw)
|
|
Net Power - Maximum - Iso 14396 At 2,000 Rpm - (Ps) - Metric |
150 hp (112 kw)
|
|
Net Power - Maximum - Iso 9249/Sae J1349 |
141 hp (105 kw)
|
|
Net Power - Maximum - Iso 9249/Sae J1349 - (Ps) - Metric |
143 hp (107 kw)
|
|
Net Power - Maximum - Iso 9249/Sae J1349 At 2,000 Rpm - (Ps) - Metric |
143 hp (107 kw)
|
|
Net Power - Rated - 80/1269/Eec |
141 hp (105 kw)
|
|
Net Power - Rated - Iso 9249/Sae J1349 |
141 hp (105 kw)
|
|
Note |
*Metric values. |
|
Number Of Cylinders |
4 |
|
Number Of Cylinders - In Line |
4 |
|
Ratings |
2,000 rpm |
|
Ratings |
2,000 rpm |
|
Stroke |
5 in (13 cm)
|
|
Stroke |
5 in (13 cm)
|
| Hydraulic System |
|
Maximum Flow - Auxiliary Circuit - High Pressure |
48 gpm (180 lpm)
|
|
Maximum Flow - Auxiliary Circuit - High Pressure |
48 gpm (180 lpm)
|
|
Maximum Flow - Auxiliary Circuit - Medium Pressure |
13 gpm (50 lpm)
|
|
Maximum Flow - Auxiliary Circuit - Medium Pressure |
13 gpm (50 lpm)
|
|
Maximum Flow - Implement/Travel Circuit |
48 gpm (180 lpm)
|
|
Maximum Flow - Implement/Travel Circuit |
48 gpm (182 lpm)
|
|
Maximum Flow - Swing Mechanism |
21 gpm (78 lpm)
|
|
Maximum Flow - Swing Mechanism |
21 gpm (80 lpm)
|
|
Maximum Pressure - Auxiliary Circuit - High Pressure |
5,076 psi |
|
Maximum Pressure - Auxiliary Circuit - High Pressure |
5,076 psi |
|
Maximum Pressure - Auxiliary Circuit - Medium Pressure |
2,683 psi |
|
Maximum Pressure - Auxiliary Circuit - Medium Pressure |
2,683 psi |
|
Maximum Pressure - Implement Circuit - Heavy Lift |
5,439 psi |
|
Maximum Pressure - Implement Circuit - Heavy Lift |
5,439 psi |
|
Maximum Pressure - Implement Circuit - Normal |
5,076 psi |
|
Maximum Pressure - Implement Circuit - Normal And Travel Circuit |
5,076 psi |
|
Maximum Pressure - Implement Circuit - Travel Circuit |
5,076 psi |
|
Maximum Pressure - Swing Mechanism |
5,076 psi |
|
Swing Mechanism |
5,076 psi |
|
System |
58.1 gal (US) |
|
System |
58.1 gal (US) |
|
Tank Capacity |
24 gal (89 l)
|
| Service Refill Capacities |
|
Cooling System |
10 gal (38 l)
|
|
Diesel Exhaust Fluid Tank |
5 gal (19 l)
|
|
Diesel Exhaust Fluid Tank |
5 gal (19 l)
|
|
Engine Crankcase |
2 gal (8 l)
|
|
Final Drive |
1 gal (2 l)
|
|
Front Steering Axle - Differential |
2 gal (9 l)
|
|
Fuel Tank - Total Capacity |
74 gal (280 l)
|
|
Fuel Tank - Total Capacity |
74 gal (280 l)
|
|
Powershift Transmission |
1 gal (3 l)
|
|
Rear Axle - Housing (Differential) |
3 gal (11 l)
|
| Sound Performance |
|
Operator Sound - 2000/14/Ec |
71 dB(A) |
|
Spectator Sound - 2000/14/Ec |
101 dB(A) |
| Standards |
|
Cab/Sound Levels |
Meets appropriate standards as listed in "Sound Performance" |
|
Operator Protective Structure - Top/Front Guards |
FOPS (Falling Object Protective Structure) meets FOPS criteria ISO 10262:1998 and SAE J1356:2008 |
|
Rops |
ROPS (Rollover Protective Structure) offered by Caterpillar meets ROPS criteria ISO 12117-2:2008 |
| Swing Mechanism |
|
Maximum Swing Torque |
35,402 lbs ft (47,998 nm)
|
|
Swing Speed |
10 rpm |
|
Swing Speed |
10 rpm |
|
Swing Torque |
24,420 lbs ft (33,109 nm)
|
| Tires |
|
Optional (1) |
10.00-20 (Dual Solid Rubber) |
|
Optional (2) |
445/70/R19.5 TL XF (Single Pneumatic) |
|
Standard |
10.00-20 (Dual Pneumatic) |
| Transmission |
|
Creeper Speed - 1st Gear |
2 mph (3 kph)
|
|
Creeper Speed - 2nd Gear |
8 mph (12 kph)
|
|
Drawbar Pull |
16,411 lbs (7,444 kg)
|
|
Drawbar Pull |
16,411 lbs (7,444 kg)
|
|
Forward/Reverse - 1st Gear |
6 mph (9 kph)
|
|
Forward/Reverse - 2nd Gear |
23 mph (37 kph)
|
|
Maximum Forward/Reverse - 2nd Gear |
23 mph (37 kph)
|
|
Maximum Gradeability (15 000 Kg/33,070 Lb) |
52.50% |
|
Maximum Gradeability (15 000 Kg/33,070 Lb) |
52.5% |
| Undercarriage |
|
Ground Clearance |
1 ft (0 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Maximum Towable Trailer Mass* |
17,637 lbs (8,000 kg)
|
|
Minimum Turning Radius - End Of Offset Boom |
22 ft (7 m)
|
|
Minimum Turning Radius - End Of One-Piece Boom |
27 ft (8 m)
|
|
Minimum Turning Radius - End Of Va Boom |
22 ft (7 m)
|
|
Minimum Turning Radius - Outside Of Tire |
20 ft (6 m)
|
|
Note |
*For Optional Trailer Package Not available in Australia/New Zealand. |
|
Oscillation Axle Angle |
9 degrees |
| Weights |
|
Counterweights |
2800/3300 kg (6,173/7,275 lb) |
|
Note |
*Includes medium stick, 2800 kg (6,173 lb) counterweight, full fuel tank, operator, quick coupler (225 kg/496 lb), bucket (490 kg/1,080 lb), dual pneumatic tires. Weight varies depending on configuration. |
|
One-Piece Boom - Front And Rear Outriggers |
34,392 lbs (15,600 kg)
|
|
One-Piece Boom - Front Dozer, Rear Outriggers |
33,775 lbs (15,320 kg)
|
|
Operating Weight - With Attachment |
14 620 kg-17 610 kg (32,230 lb-38,820 lb) |
|
Va Boom - Front And Rear Outriggers |
35,164 lbs (15,950 kg)
|
|
Va Boom - Rear Dozer Only |
32,430 lbs (14,710 kg)
|
|
Va Boom - Rear Dozer, Front Outriggers |
34,546 lbs (15,670 kg)
|
|
Weight - Counterweight - Optional |
7,275 lbs (3,300 kg)
|
|
Weight - Counterweight - Standard |
6,173 lbs (2,800 kg)
|
|
Weight - Offset Boom - Front And Rear Outriggers |
36,398 lbs (16,510 kg)
|
|
Weight - Offset Boom - Rear Dozer, Front Outriggers |
35,781 lbs (16,230 kg)
|
|
Weight - One-Piece Boom - Front And Rear Outriggers |
34,392 lbs (15,600 kg)
|
|
Weight - One-Piece Boom - Front Dozer, Rear Outriggers |
33,775 lbs (15,320 kg)
|
|
Weight - Sticks - Industrial - Drop Nose (2900 Mm/9'6") |
860 lbs (390 kg)
|
|
Weight - Sticks - Long (2600 Mm/8'6") |
1,488 lbs (675 kg)
|
|
Weight - Sticks - Medium (2300 Mm/7'7") |
1,389 lbs (630 kg)
|
|
Weight - Sticks - Short (2000 Mm/6'7") |
1,345 lbs (610 kg)
|
|
Weight - Va Boom - Front And Rear Outriggers |
35,164 lbs (15,950 kg)
|
|
Weight - Va Boom - Rear Dozer Only |
32,430 lbs (14,710 kg)
|
|
Weight - Va Boom - Rear Dozer, Front Outriggers |
34,546 lbs (15,670 kg)
|
| Working Ranges |
|
Maximum Digging Depth |
19 ft (6 m)
|
|
Maximum Reach - Ground Level |
30 ft (9 m)
|
|
Note |
Range values are calculated with GD bucket 900 mm (35.5"), 0.53 m3 (0.7 yd3) with tips J250 and quick coupler with a tip radius of 1437 mm (56.6"). |
|
One-Piece Boom - 2300 Mm (7'7") Stick Length: Digging Depth |
18 ft (5 m)
|
|
One-Piece Boom - 2300 Mm (7'7") Stick Length: Digging Height |
29 ft (9 m)
|
|
One-Piece Boom - 2300 Mm (7'7") Stick Length: Dump Height |
20 ft (6 m)
|
|
One-Piece Boom - 2300 Mm (7'7") Stick Length: Reach At Ground Level |
28 ft (9 m)
|
|
One-Piece Boom - 2600 Mm (8'6") Stick Length: Digging Depth |
19 ft (6 m)
|
|
One-Piece Boom - 2600 Mm (8'6") Stick Length: Digging Height |
29 ft (9 m)
|
|
One-Piece Boom - 2600 Mm (8'6") Stick Length: Dump Height |
20 ft (6 m)
|
|
One-Piece Boom - 2600 Mm (8'6") Stick Length: Reach At Ground Level |
29 ft (9 m)
|
|
Va Boom - 2300 Mm (7'7") Stick Length: Digging Depth |
18 ft (5 m)
|
|
Va Boom - 2300 Mm (7'7") Stick Length: Digging Height |
33 ft (10 m)
|
|
Va Boom - 2300 Mm (7'7") Stick Length: Dump Height |
23 ft (7 m)
|
|
Va Boom - 2300 Mm (7'7") Stick Length: Reach At Ground Level |
29 ft (9 m)
|
|
Va Boom - 2600 Mm (8'6") Stick Length: Digging Depth |
19 ft (6 m)
|
|
Va Boom - 2600 Mm (8'6") Stick Length: Digging Height |
33 ft (10 m)
|
|
Va Boom - 2600 Mm (8'6") Stick Length: Dump Height |
24 ft (7 m)
|
|
Va Boom - 2600 Mm (8'6") Stick Length: Reach At Ground Level |
30 ft (9 m)
|
