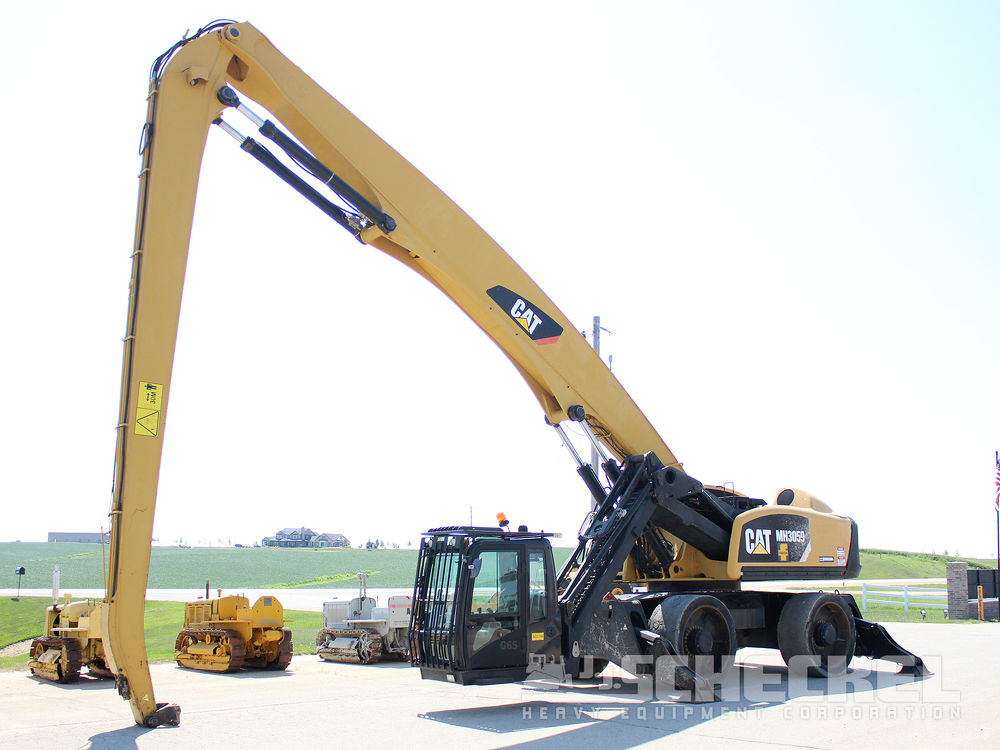

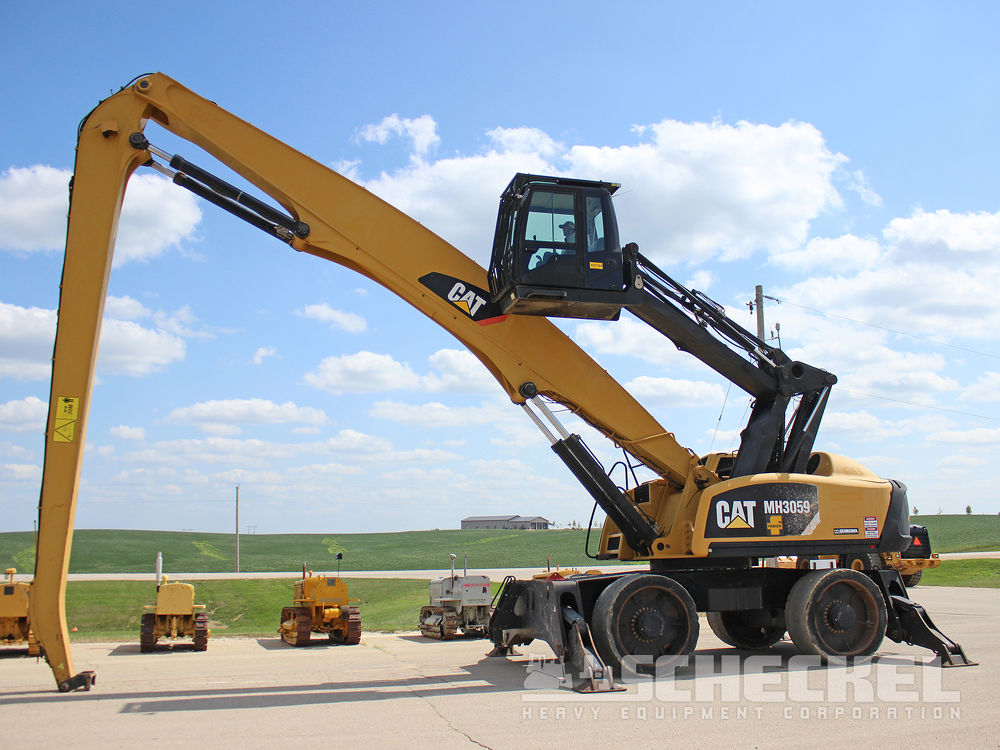

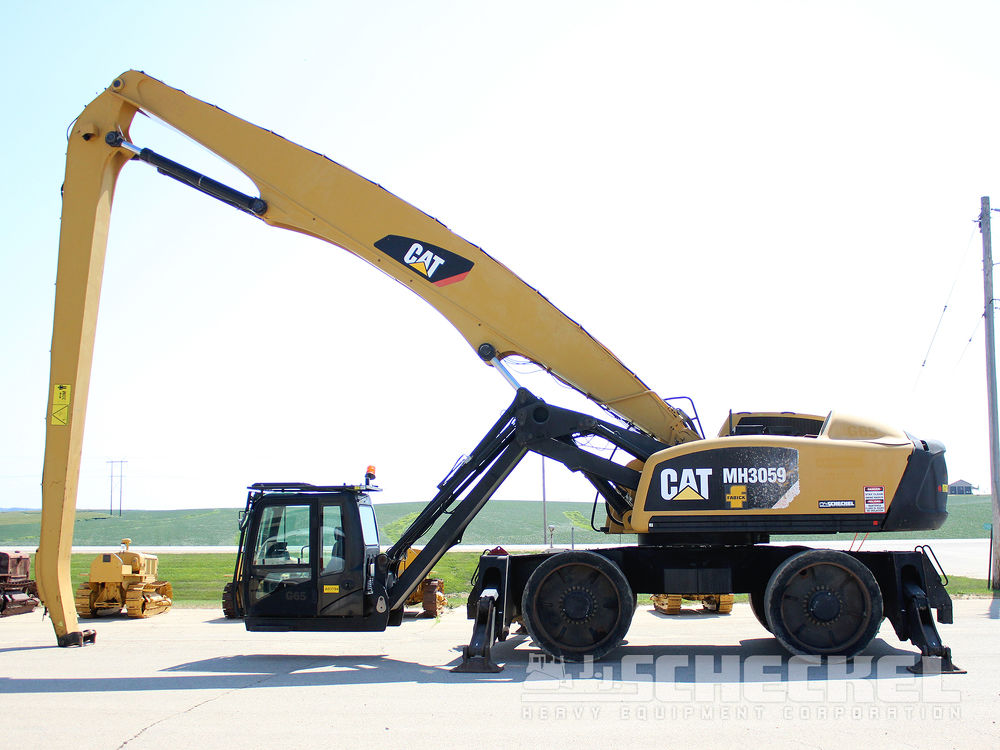

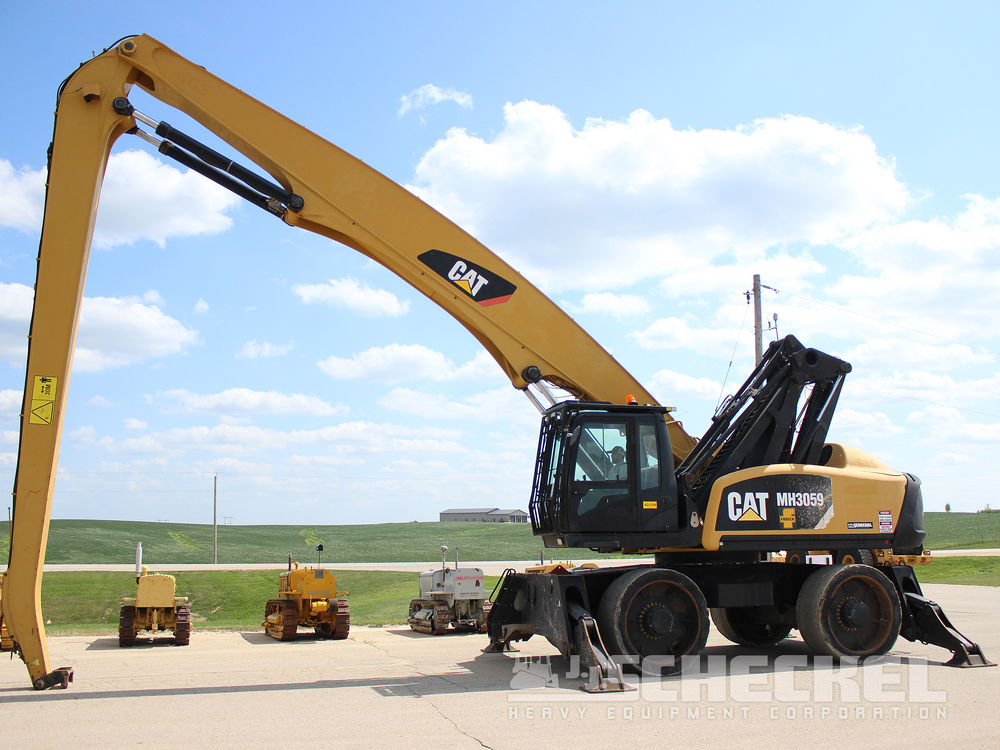

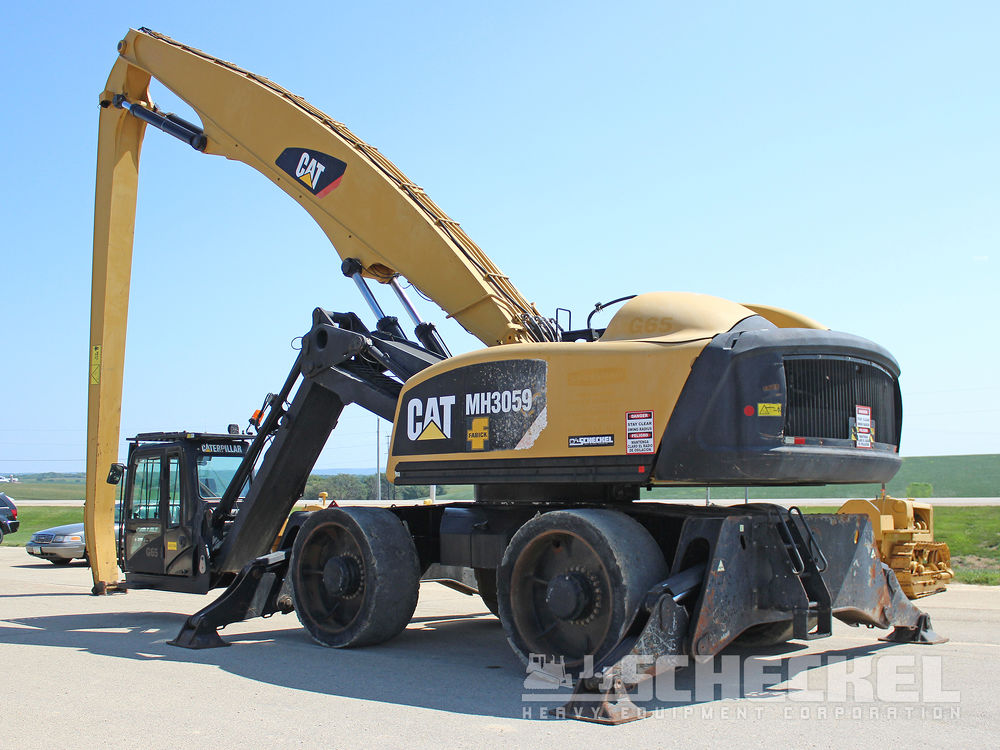

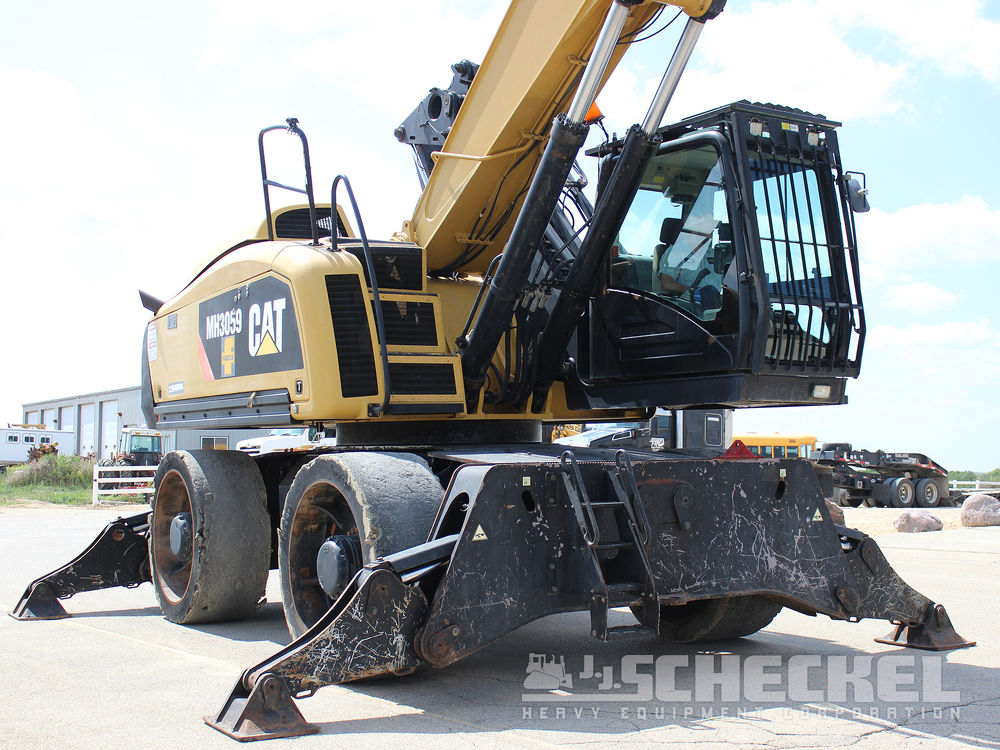

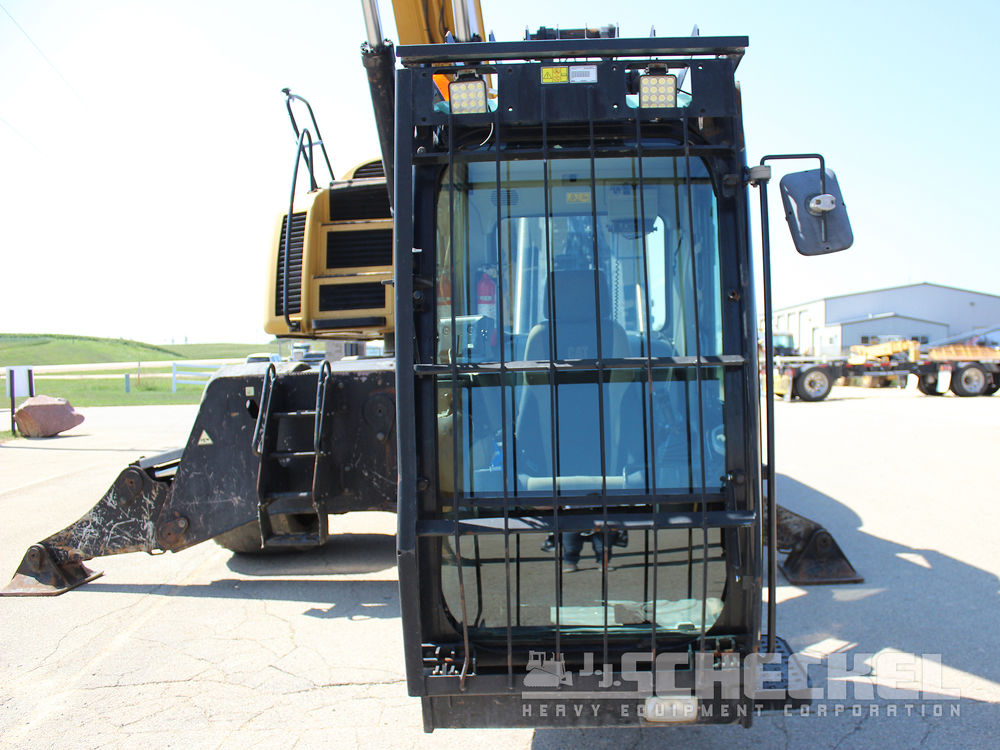

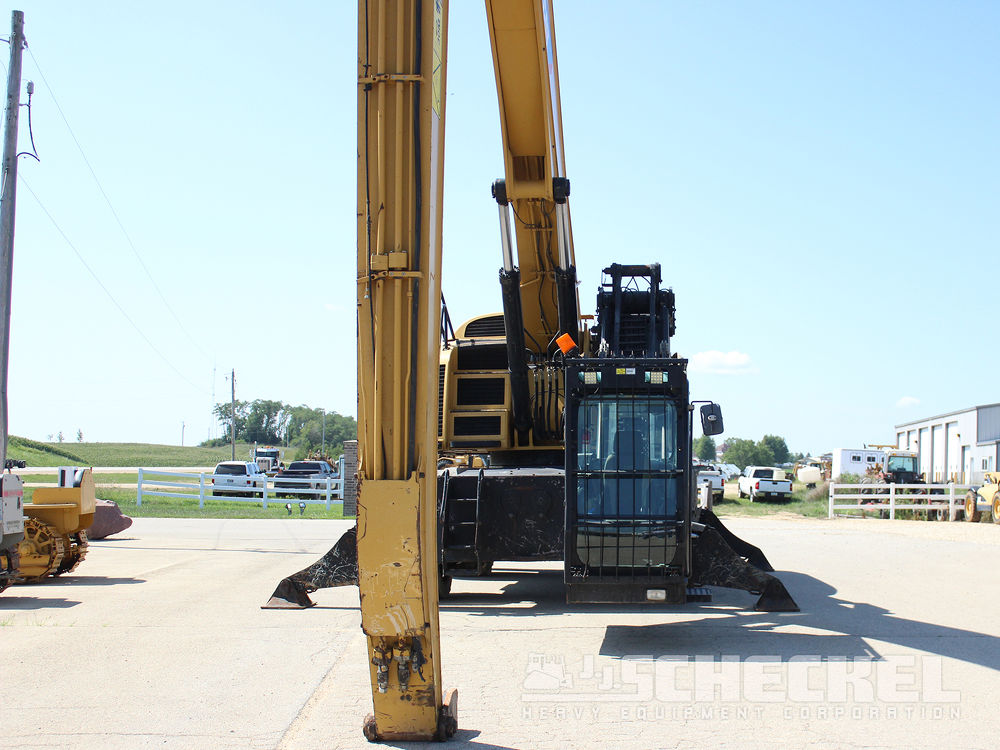

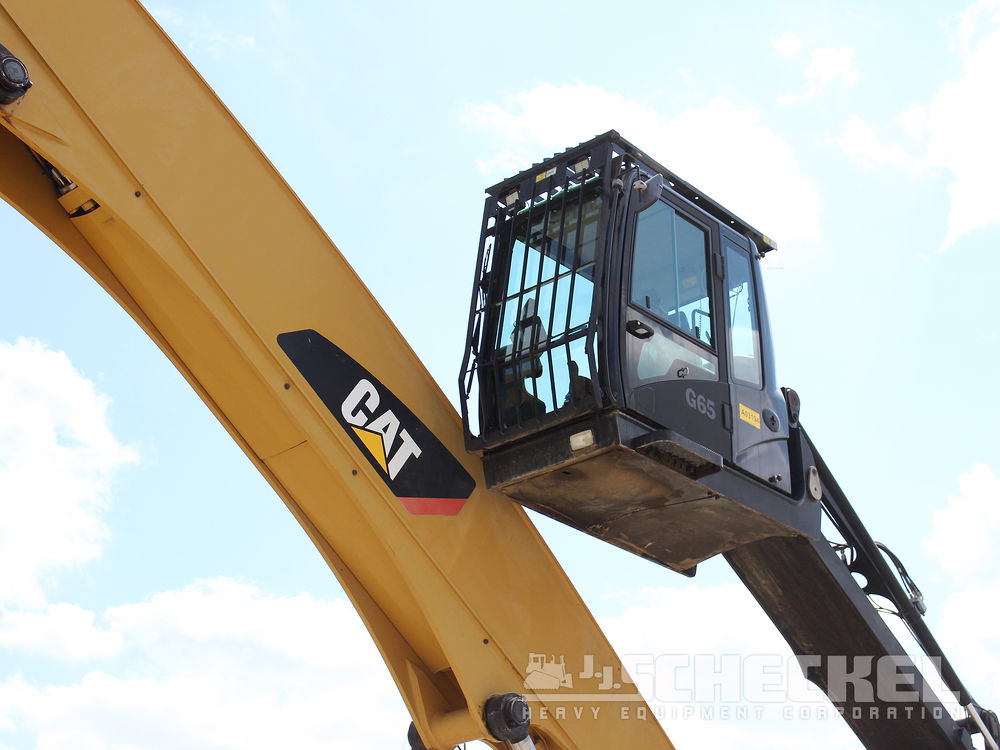

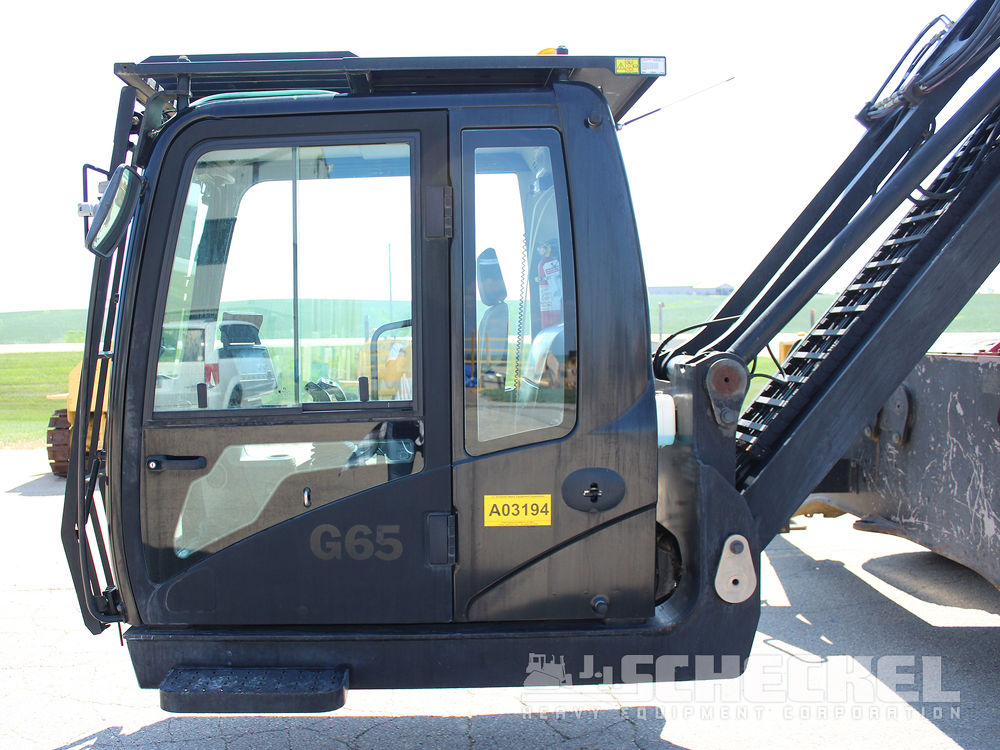

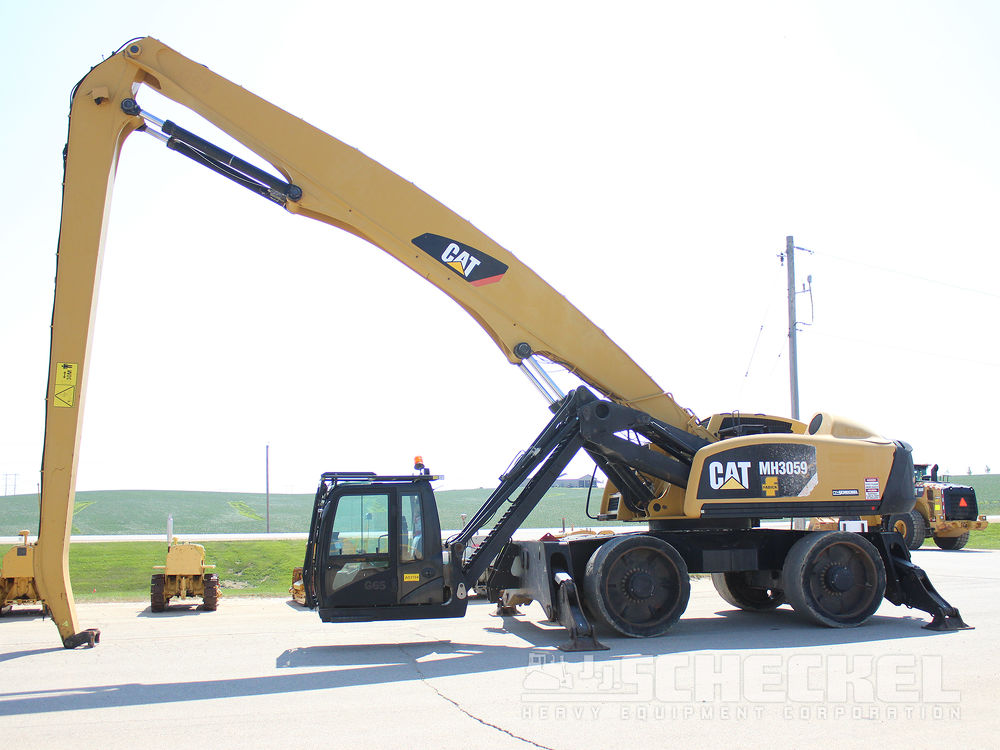

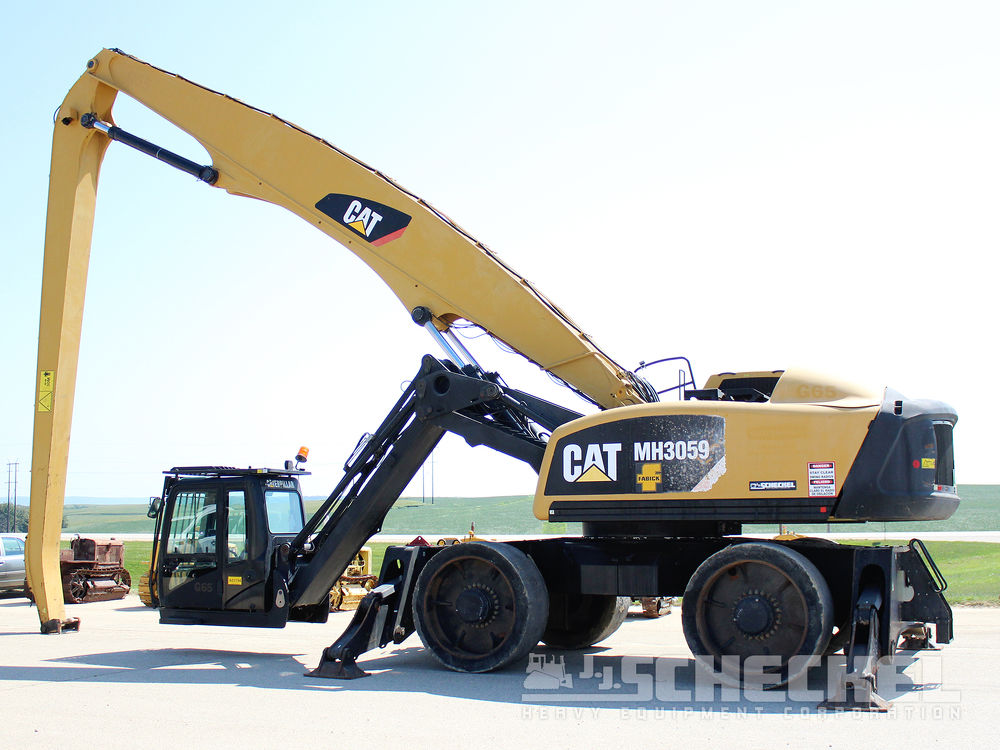

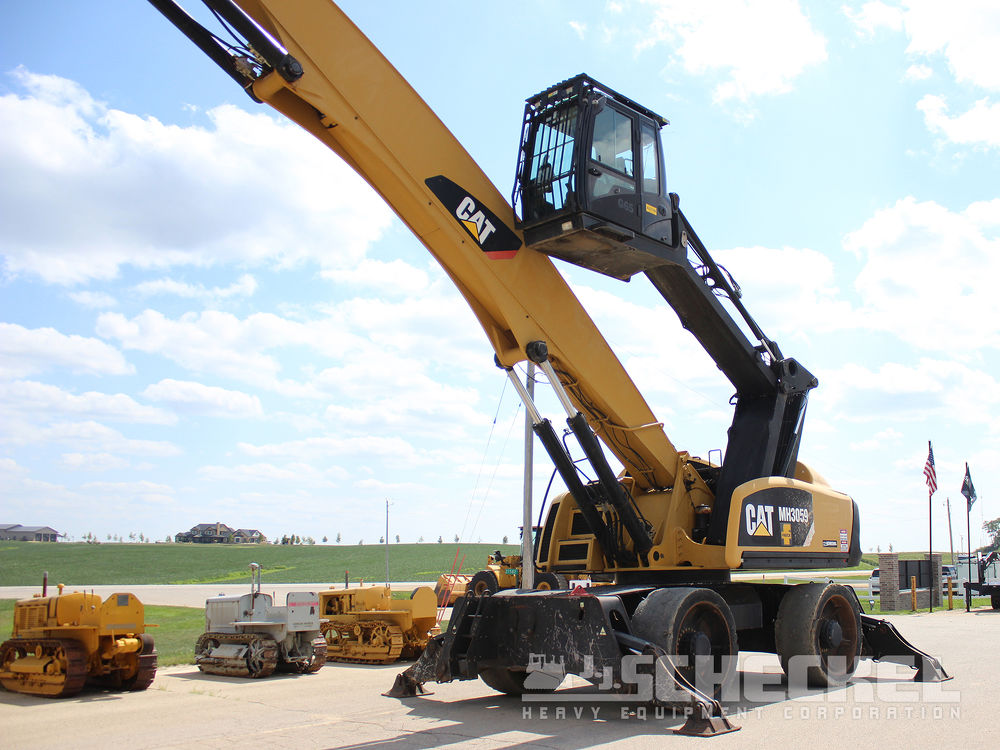

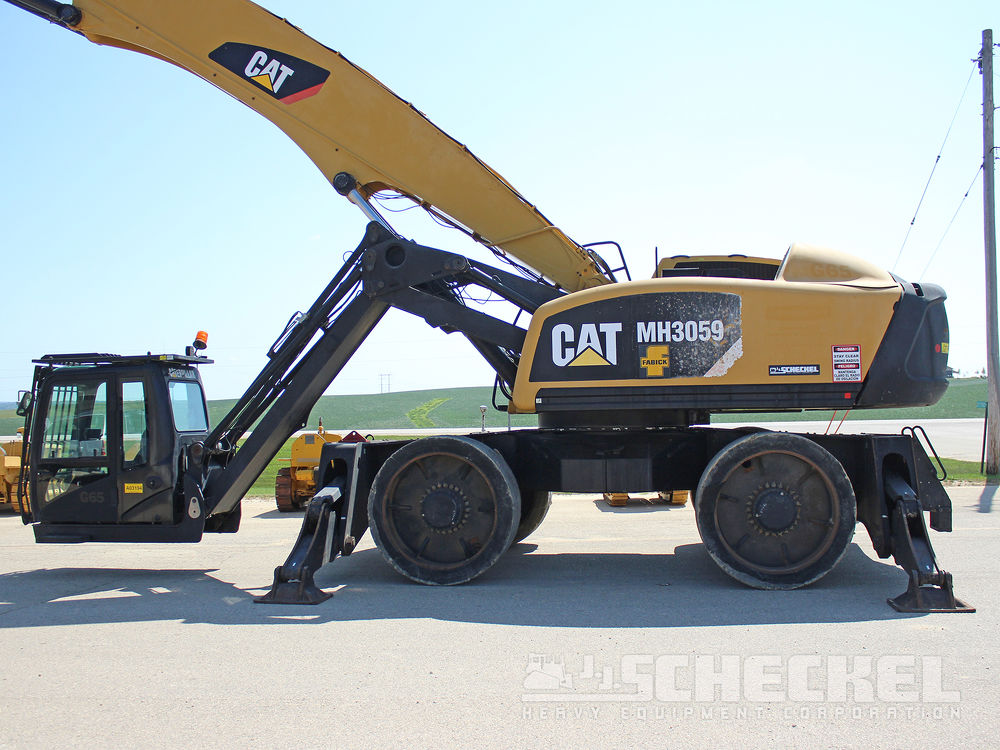

| Dimensions |
|
Height |
13 ft (4 m)
|
|
Length |
48 ft (15 m)
|
|
Weight |
130,000 lbs (58,967 kg)
|
|
Width |
12 ft (4 m)
|
| Engine |
|
Bore |
5 in (11 cm)
|
|
Cylinders |
6 in-line |
|
Displacement |
537 cu in (8,800 cu cm)
|
|
Emissions |
U.S. Stage lllA/Tier 3 |
|
Engine Model |
Cat C9 ACERT |
|
Fuel Capacity |
110 gal (416 l)
|
|
Maximum Torque - 1,400 Rpm |
1,095 lbs ft (1,485 nm)
|
|
Net Power - Iso 9249 |
325 hp (242 kw)
|
|
Stroke |
6 in (15 cm)
|

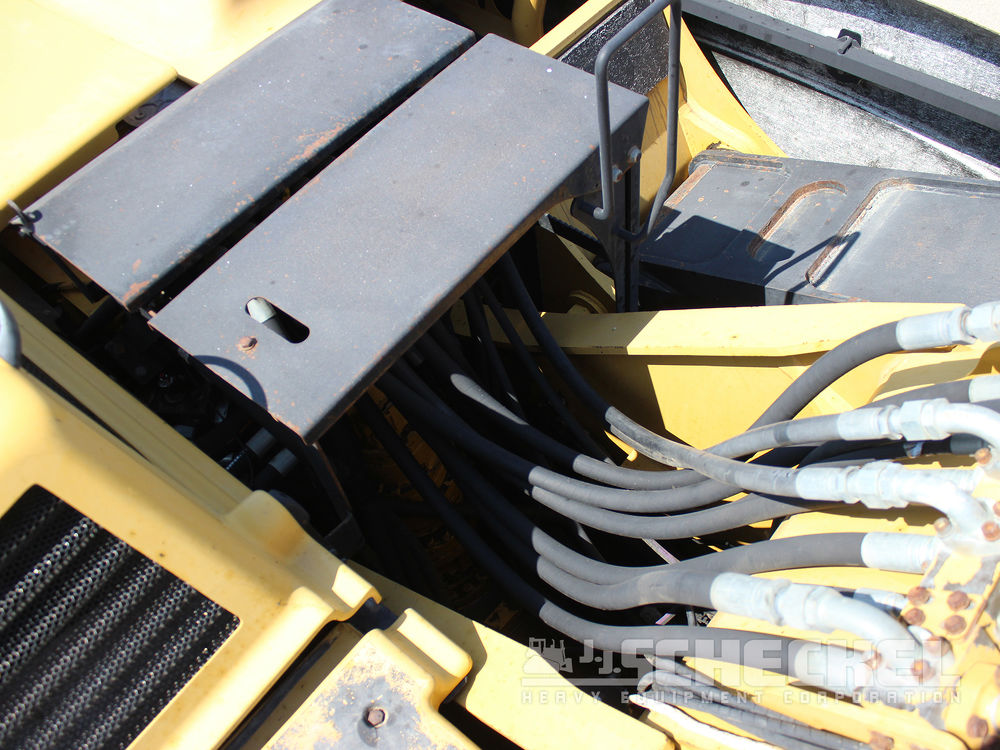

| Hydraulic System |
|

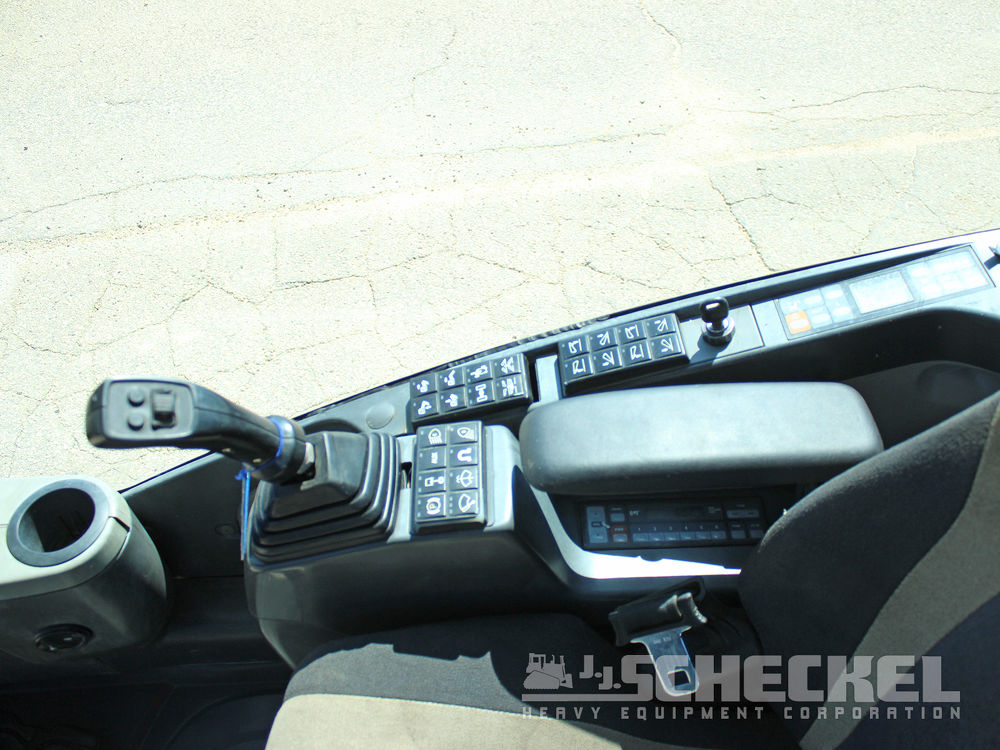

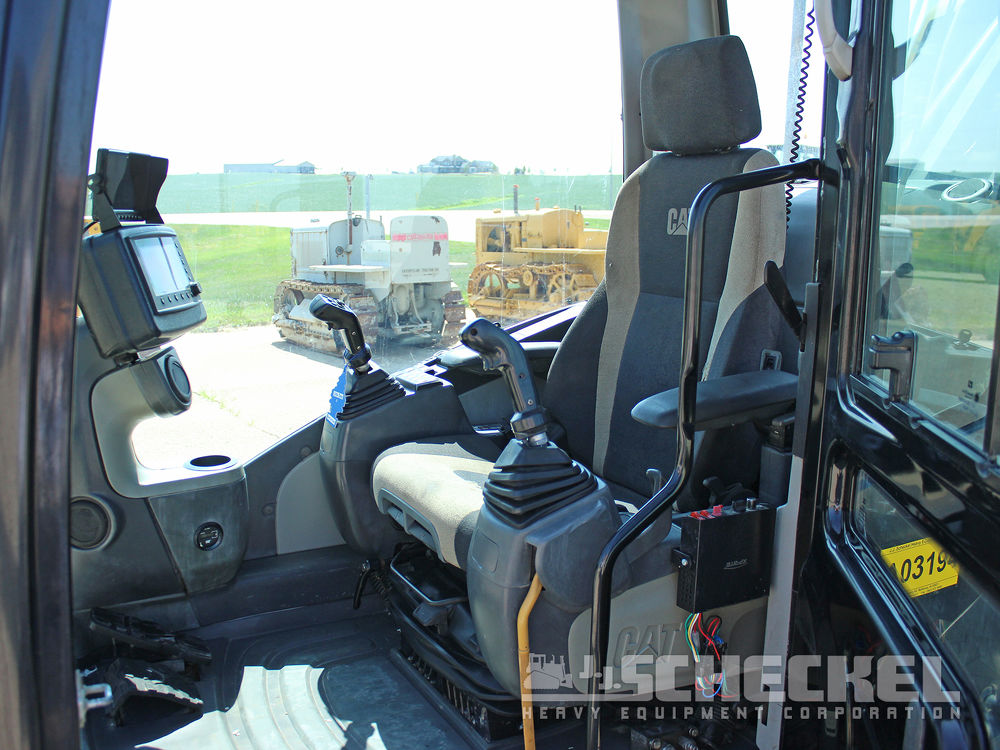

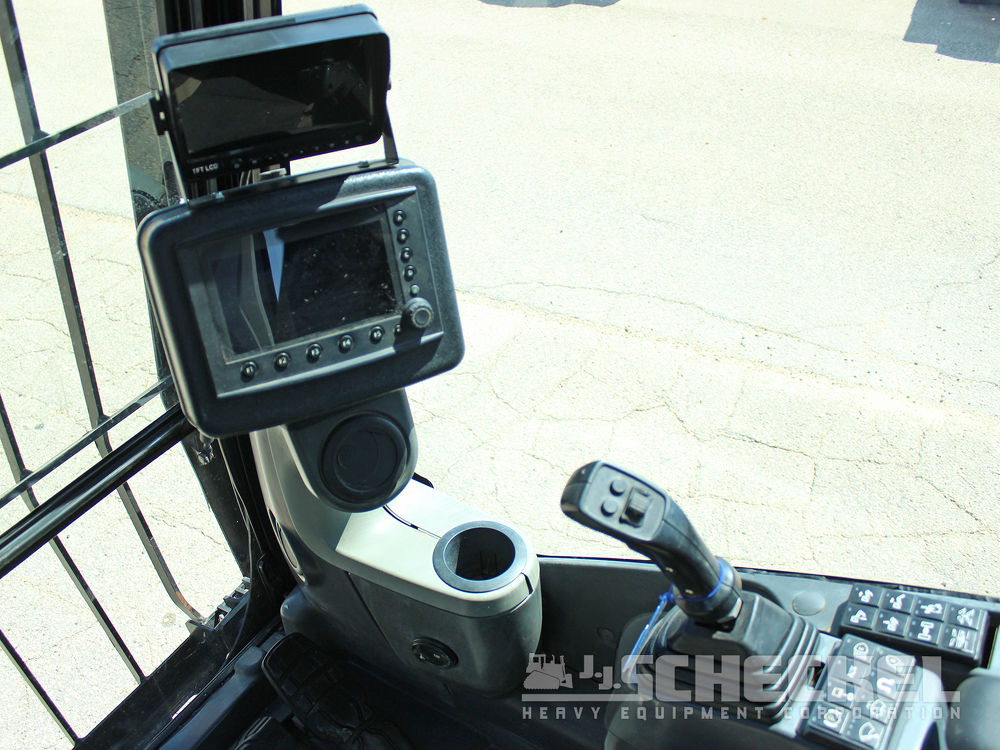

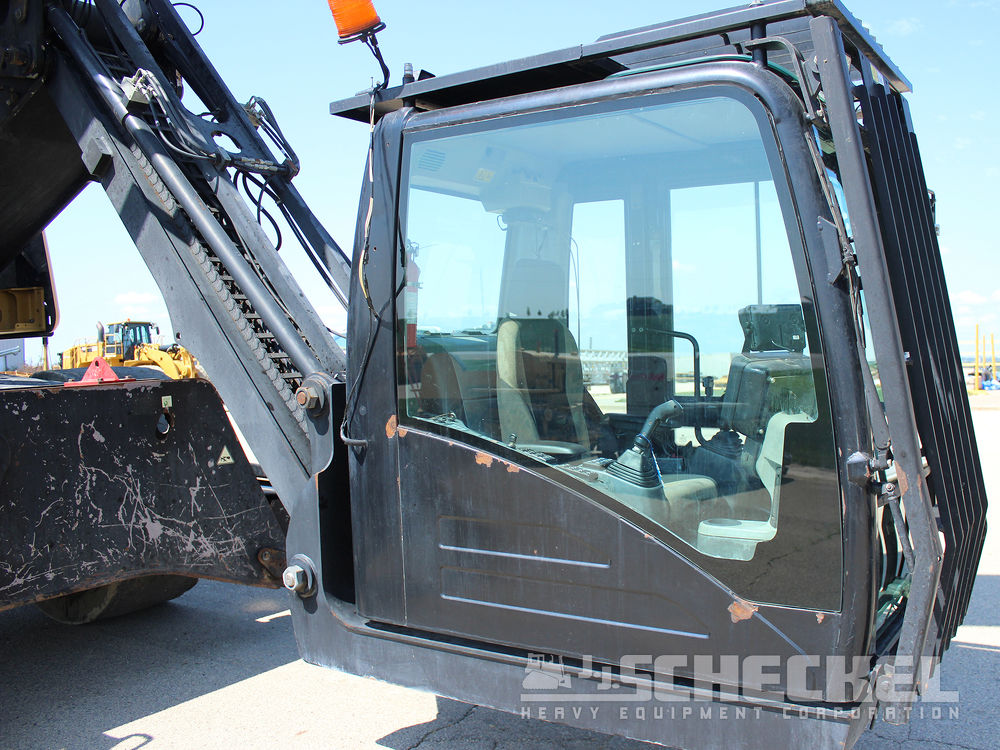

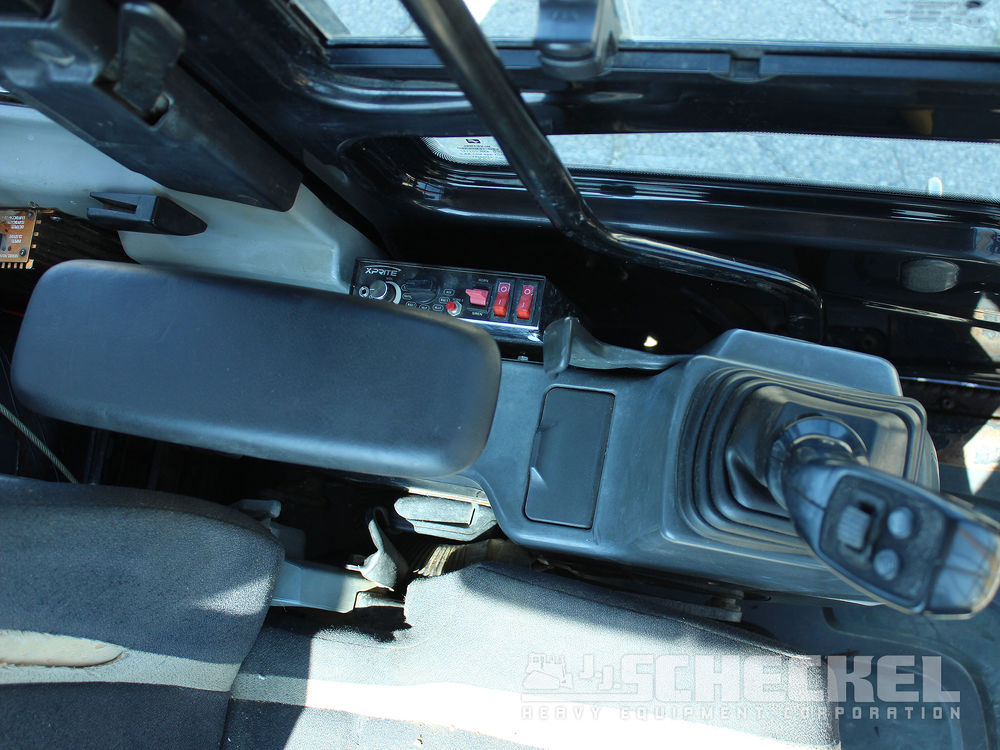

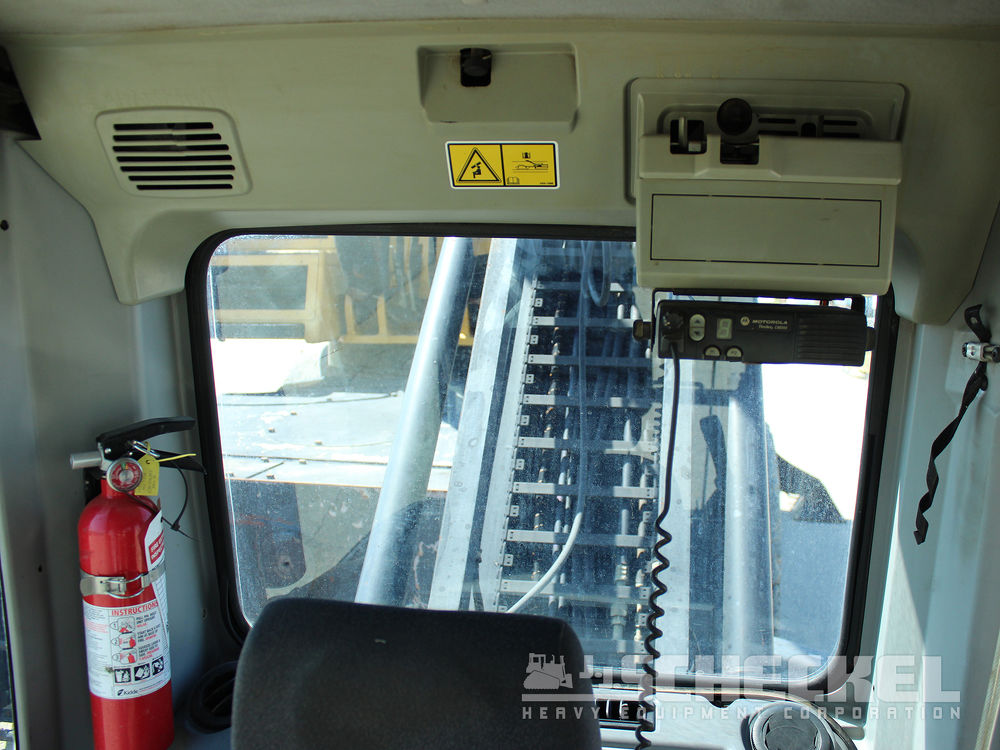

Controls |
Electro/hydraulic pilot controls |
|
System Capacity |
205 gal (776 l)
|
|
Tank Capacity |
130 gal (492 l)
|
| Hydraulic System - Maximum Flow |
|
Auxiliary Circuit - High Pressure |
79 gpm (299 lpm)
|
|
Auxiliary Circuit - Medium Pressure |
25 gpm (95 lpm)
|
|
Implement Circuit - Combined (2 Pumps) |
168 gpm (636 lpm)
|
|
Operating Temperature |
60-73 degrees C (140-164 degrees F) |
| Hydraulic System - Maximum Pressure |
|
Auxiliary Circuit - High Pressure - Factory Setting |
22 750 kPa/15 168 kPa (3,300 psi/2,200 psi) |
|
Auxiliary Circuit - High Pressure - Maximum Allowable Relief Setting |
4,800 psi |
|
Auxiliary Circuit - Medium Pressure - Factory Setting |
2,200 psi |
|
Auxiliary Circuit - Medium Pressure - Maximum Allowable Relief Setting |
2,500 psi |
|
Implement Circuit |
4,800 psi |
|
Swing Circuit |
5,500 psi |
|
Travel Circuit |
4,800 psi |

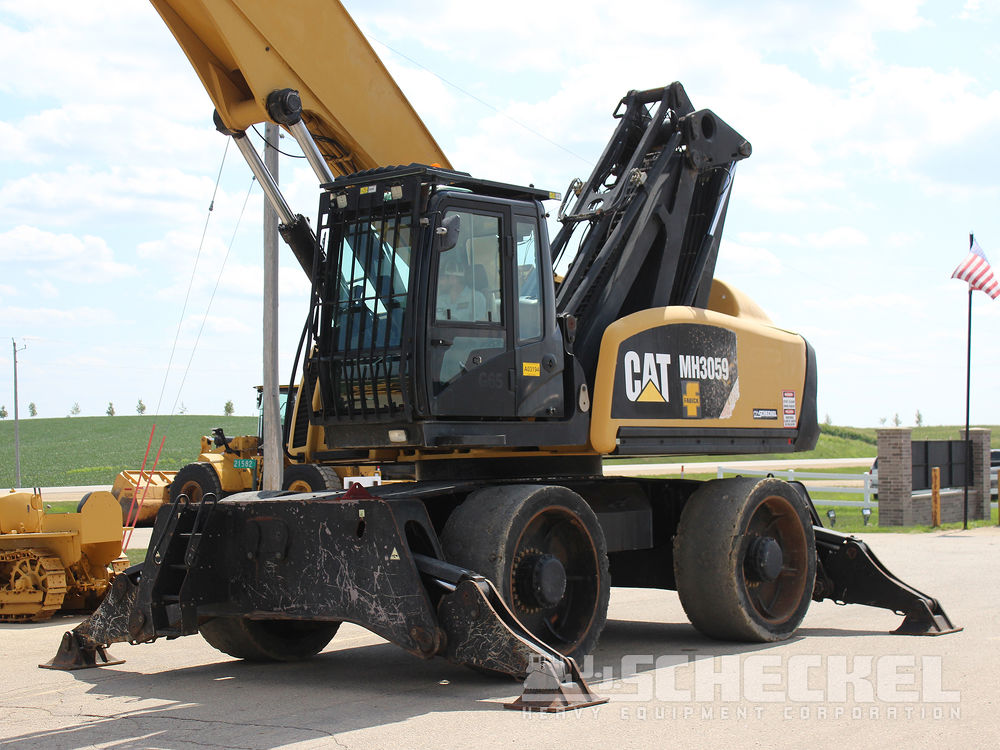

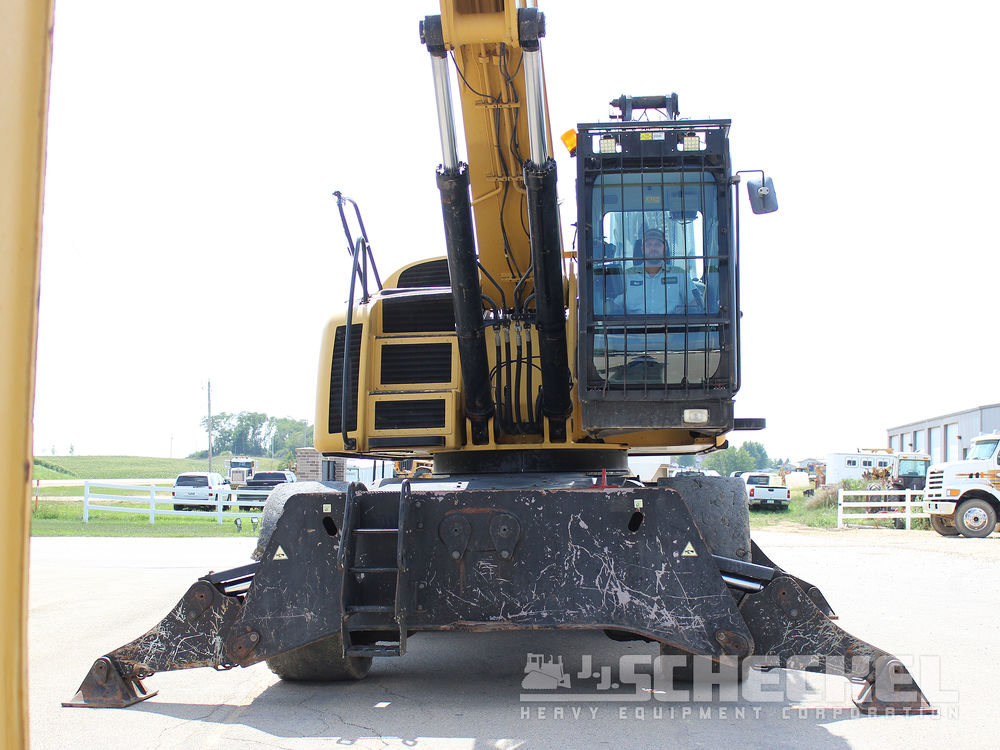

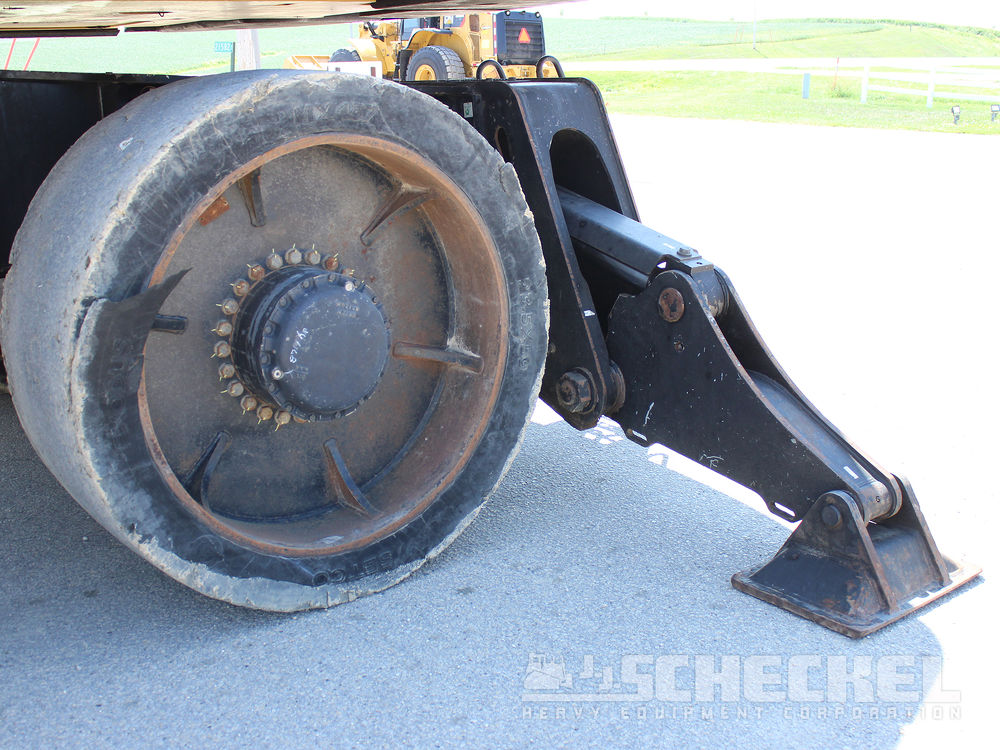

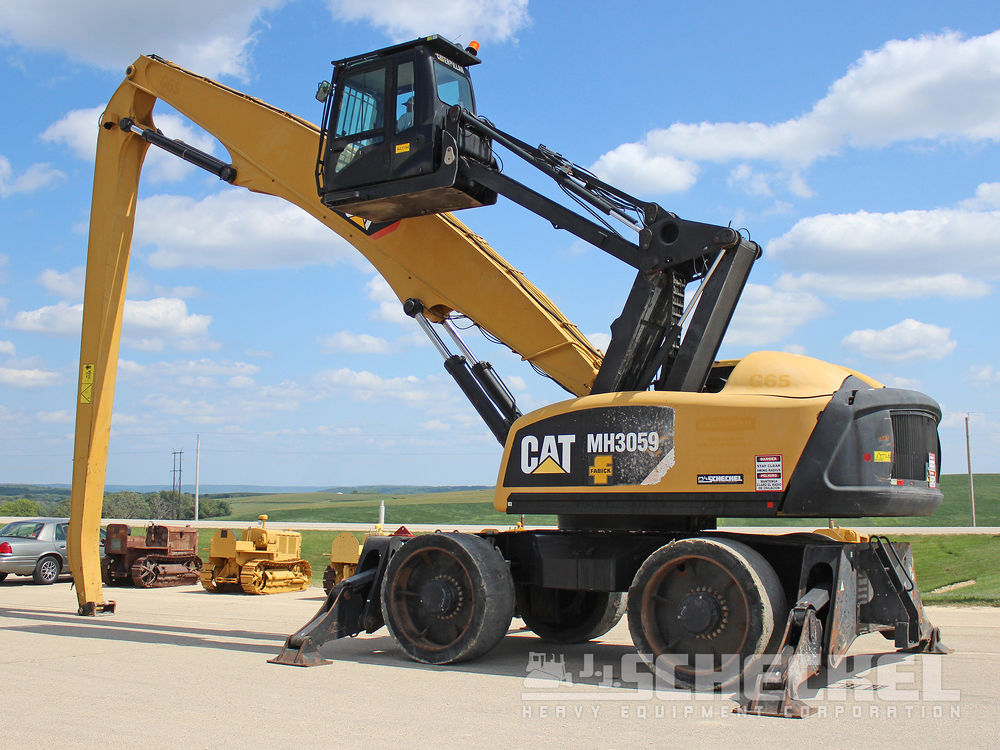

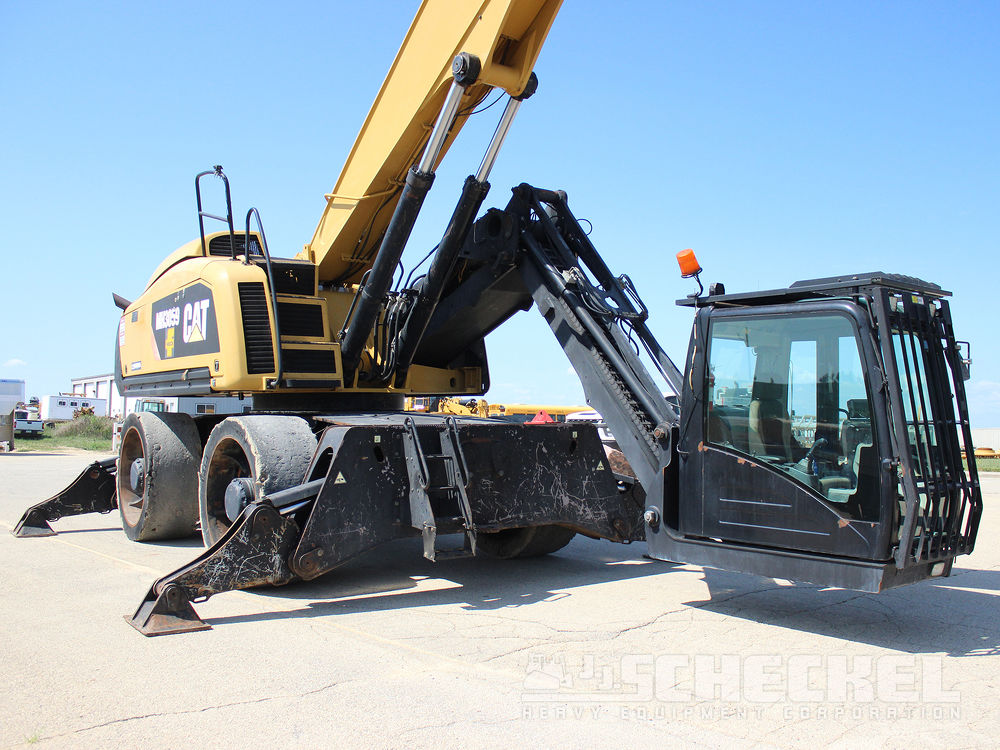

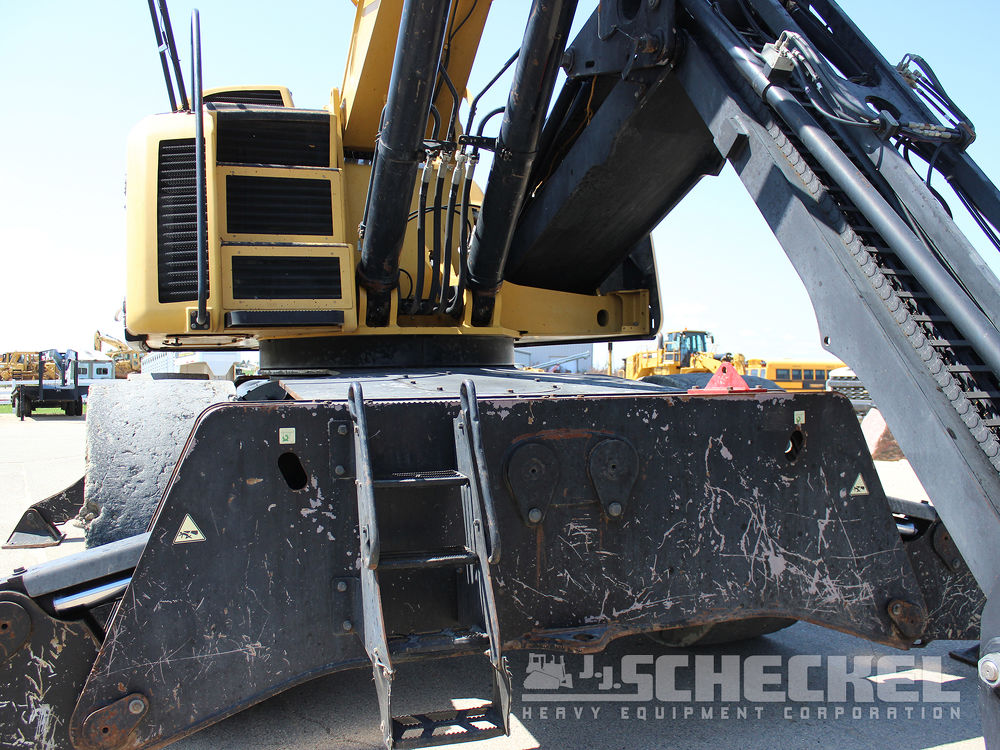

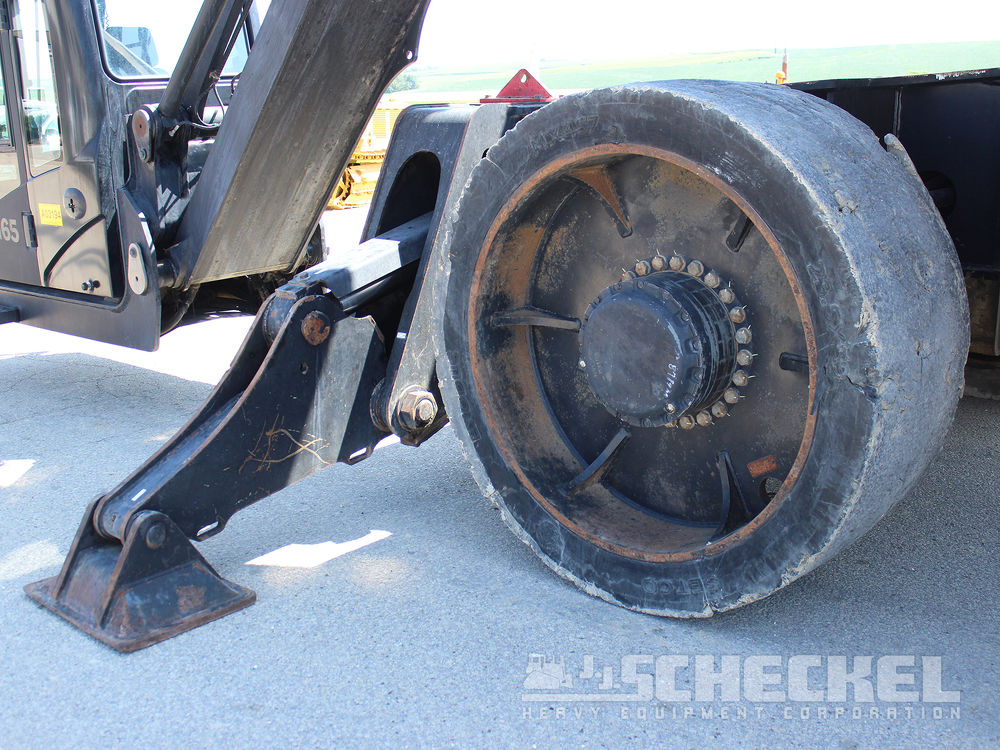

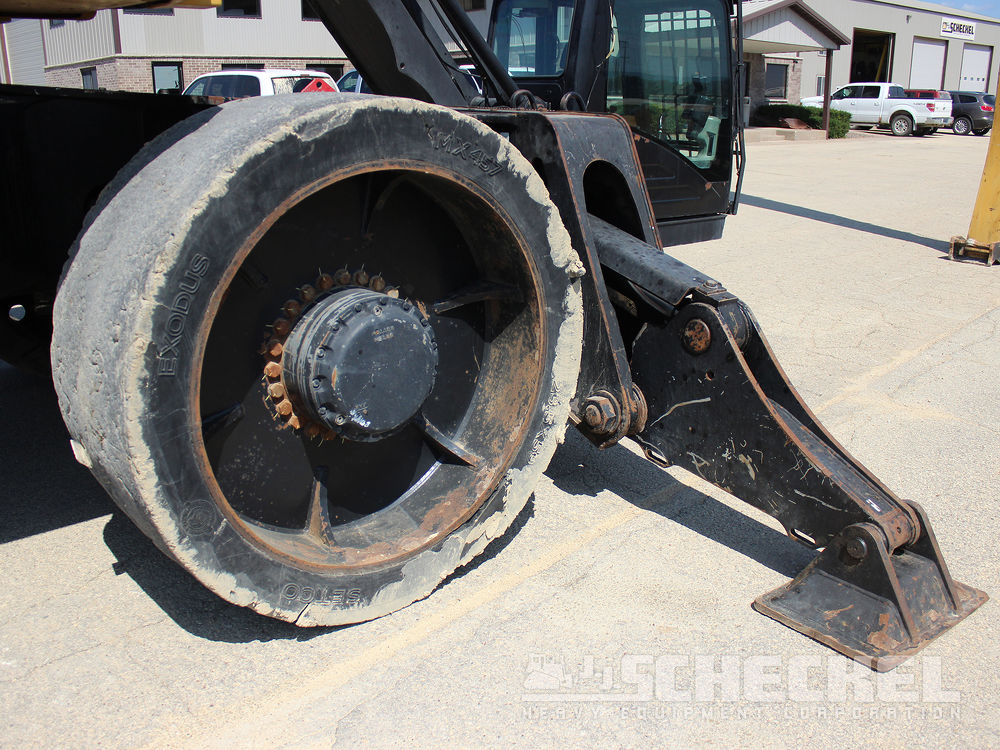

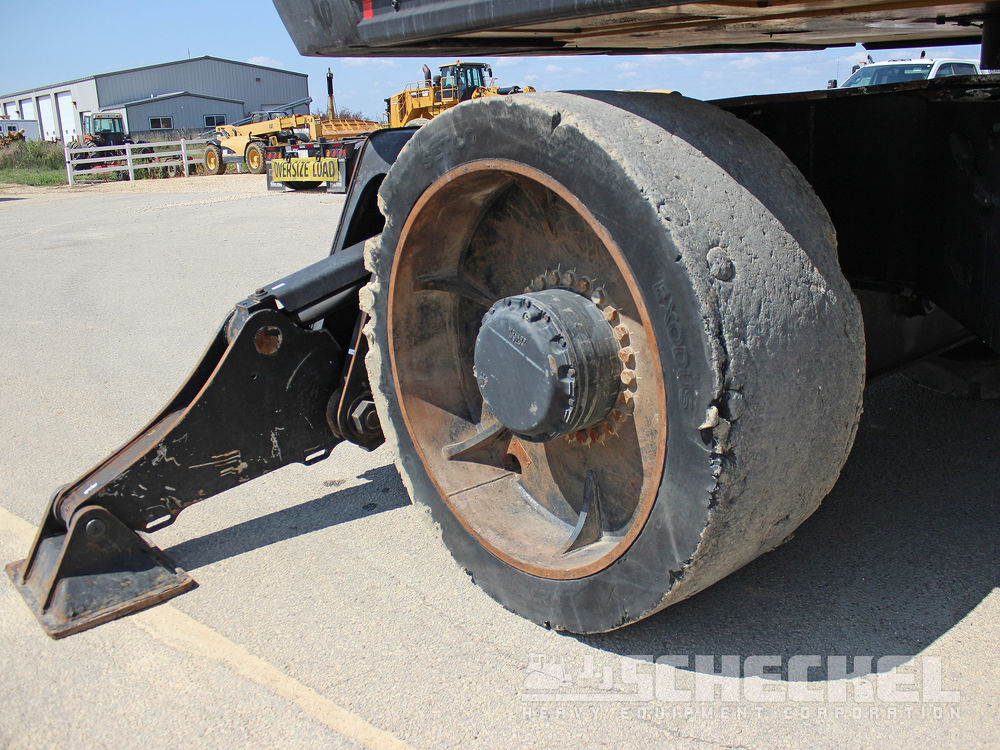

| Outriggers |
|
Ground Penetration |
6 in (15 cm)
|
| Service Refill Capabilities |
|
Cooling System |
10 gal (36 l)
|
|
Engine Crankcase - With Filter |
9 gal (33 l)
|
|
Final Drive - Each |
2 gal (8 l)
|
|
Fuel Tank |
110 gal (416 l)
|
|
Hydraulic System - Including Tank |
205 gal (776 l)
|
|
Hydraulic Tank |
130 gal (492 l)
|
|
Pump Drive |
2 gal (6 l)
|

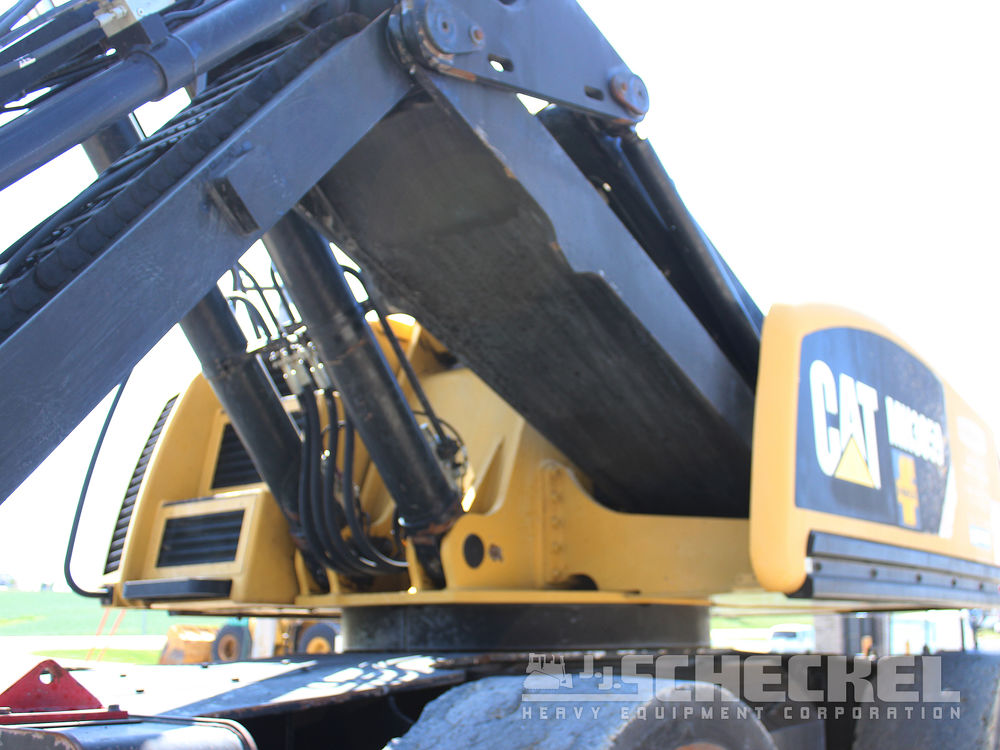

| Swing Mechanism |
|
Maximum Swing Pump Flow |
52 gpm (197 lpm)
|
|
Swing Speed |
7 rpm |
|
Swing System |
Closed loop hydrostatic system with electro-proportional controls |
|
Swing Torque |
97,000 lbs ft (131,513 nm)
|
| Transmission |
|
Creeper Speed |
2 mph (4 kph)
|
|
Maximum Gradeability |
35% |
|
Maximum Travel Speed |
7 mph (12 kph)
|

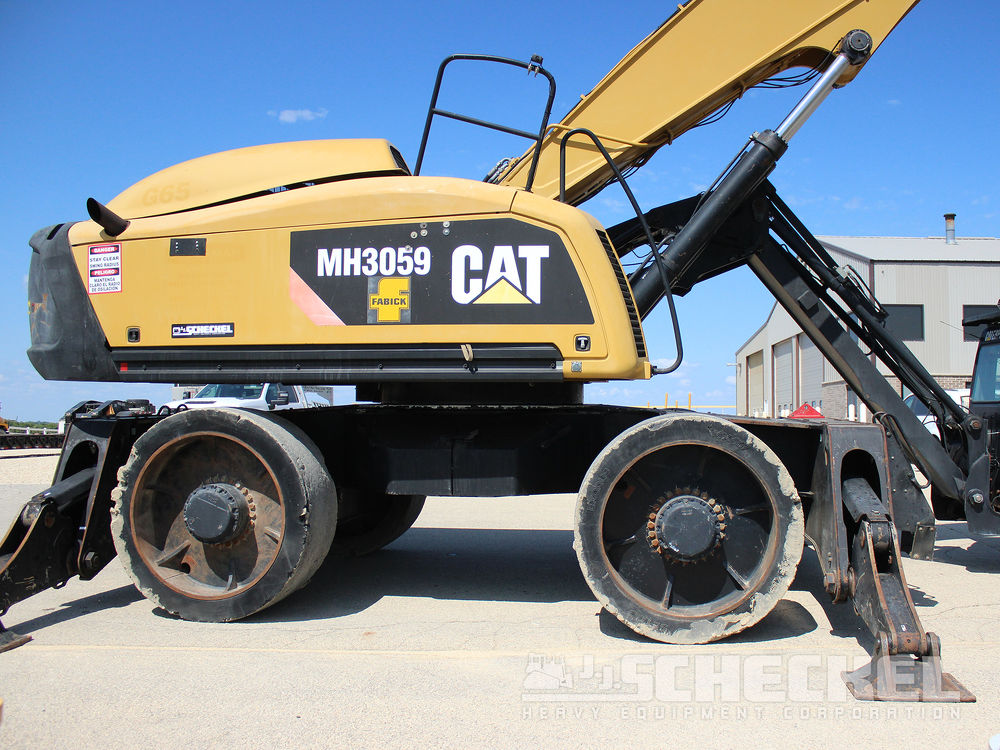

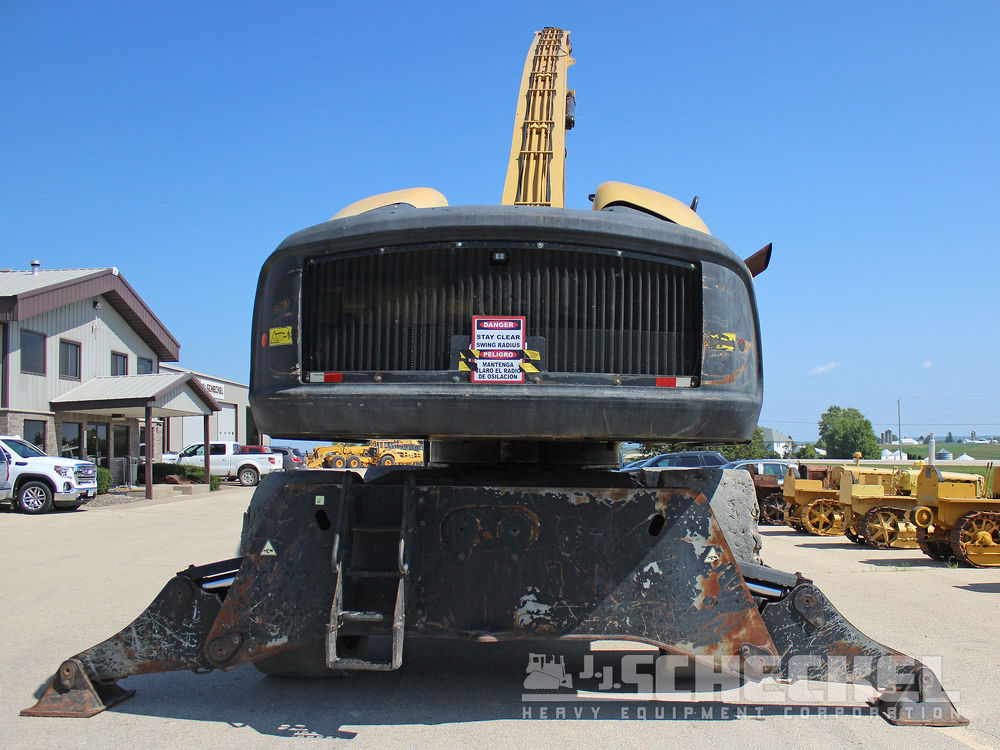

| Undercarriage |
|
Ground Clearance - Lowest Point |
11 in (27 cm)
|
|
Minimum Turning Radius - Inside |
21 ft (6 m)
|
|
Oscillation Axle Angle |
4 degrees |
| Weights |
|

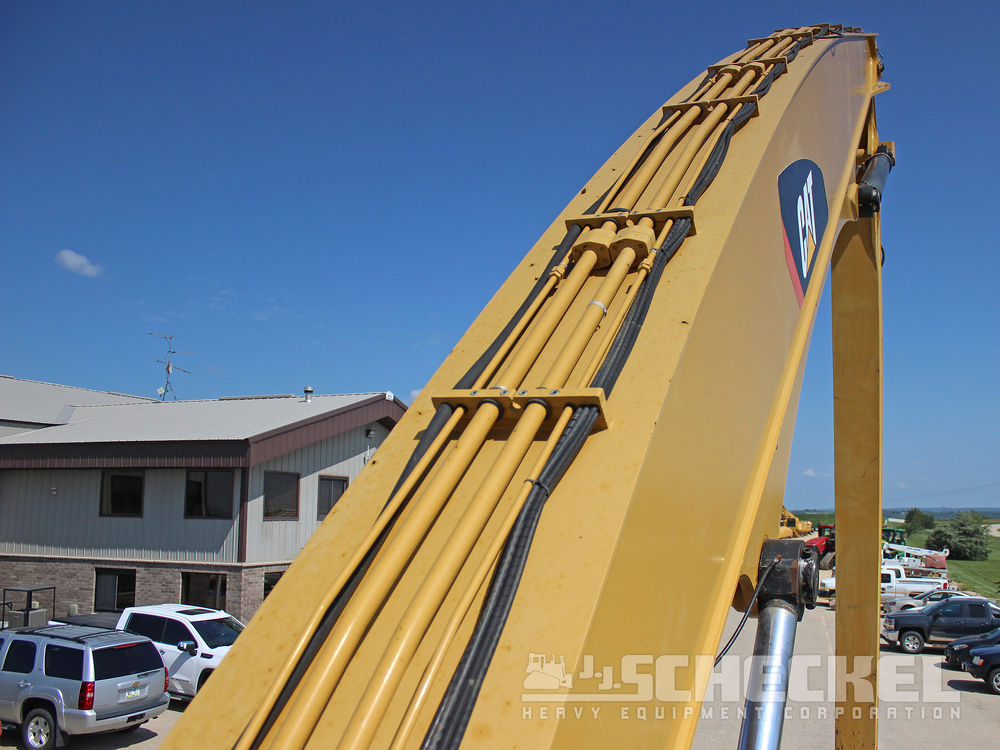

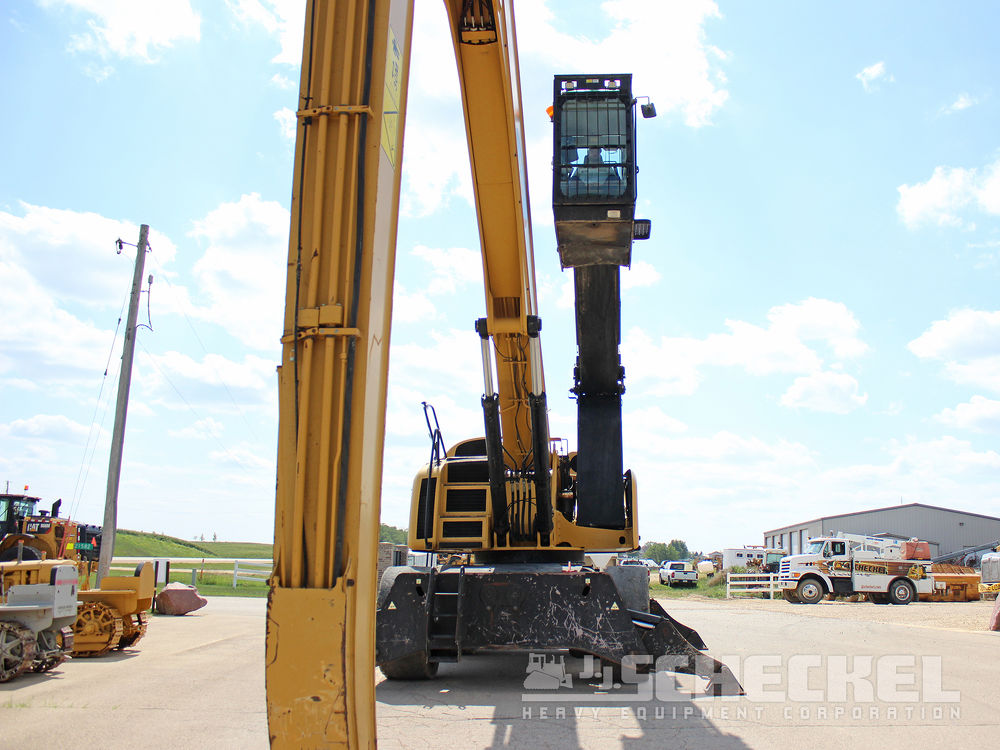

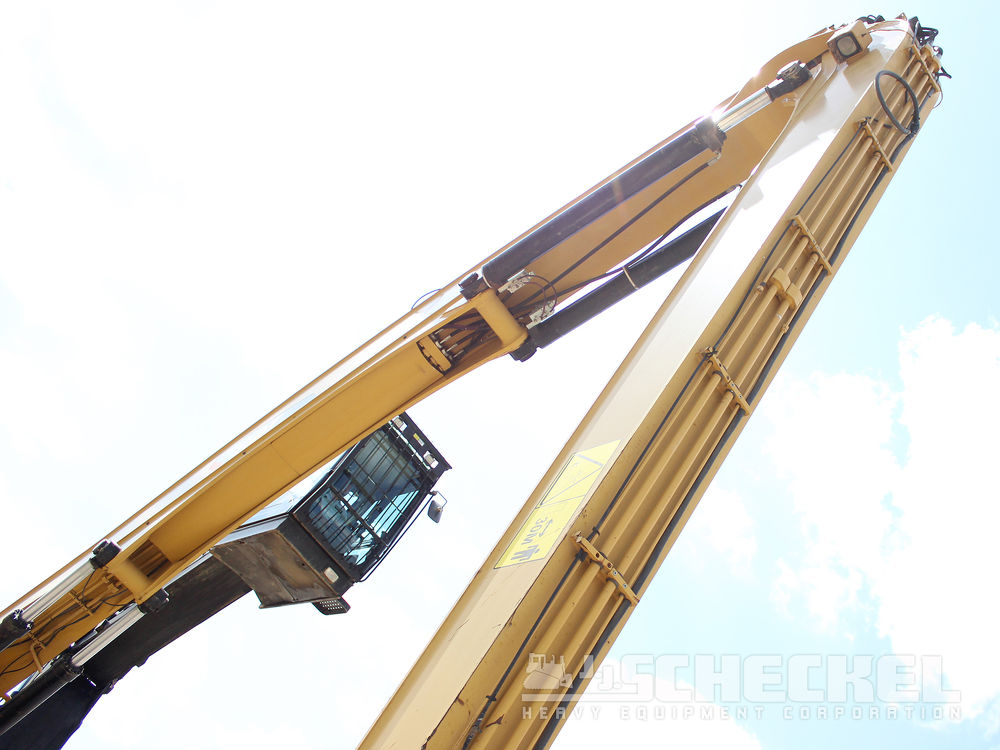

Boom Weight - With Cylinders |
13,800 lbs (6,260 kg)
|
|

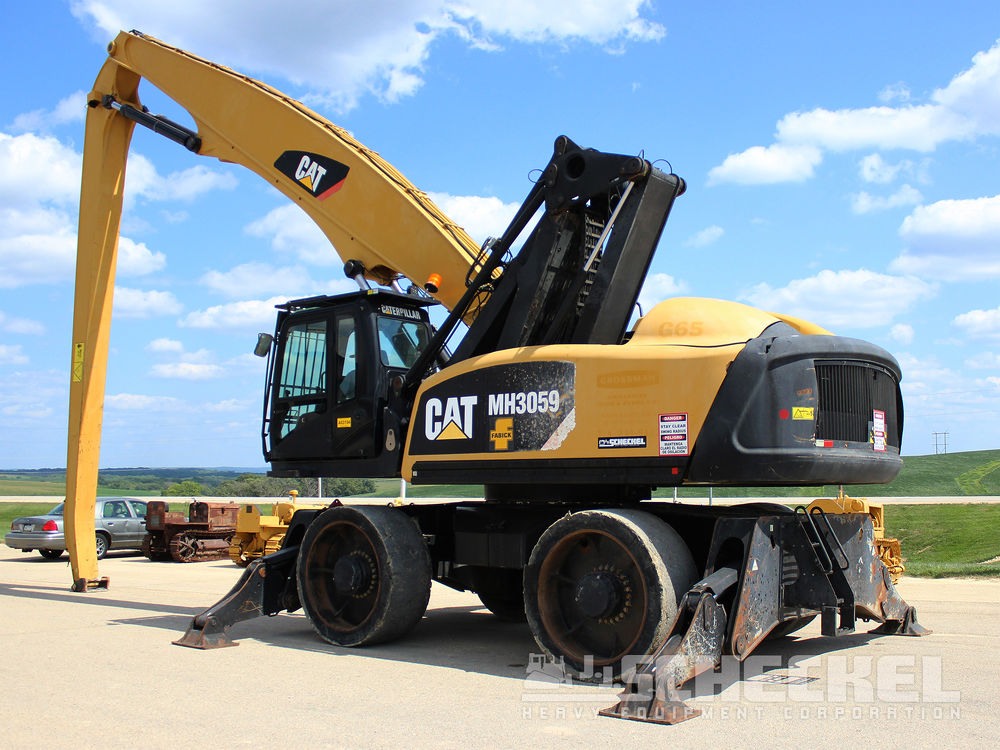

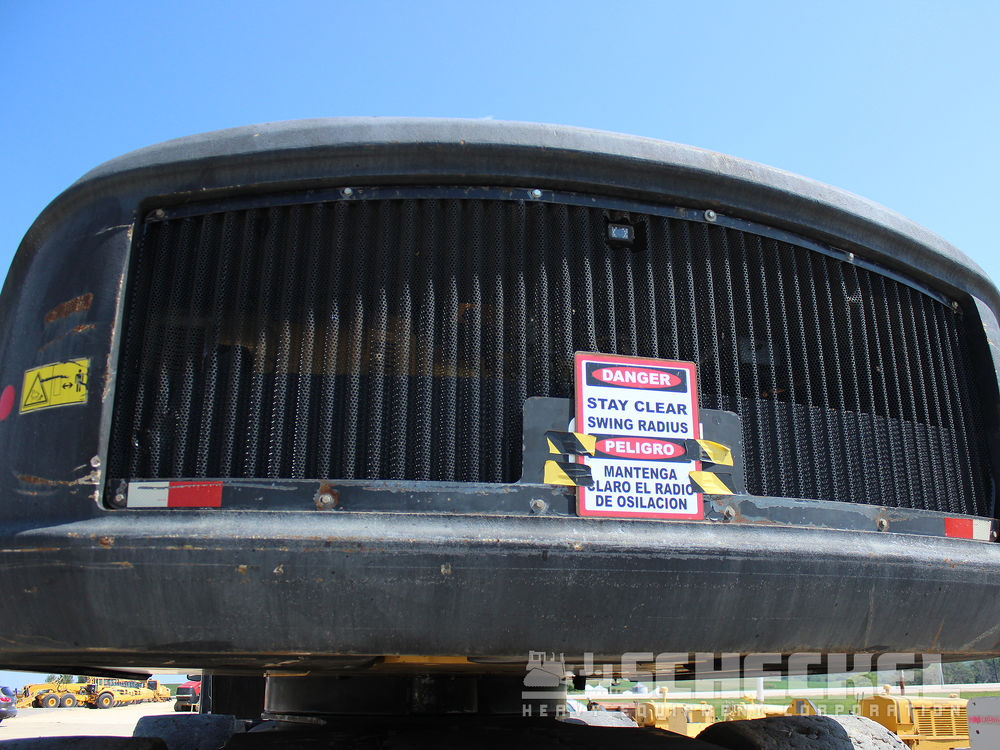

Counterweight |
27,000 lbs (12,247 kg)
|
|
Mh Undercarriage - 4 Welded Outriggers |
45,300 lbs (20,548 kg)
|
|
Operating Weight |
58 967 kg (130,000 lb) |
|

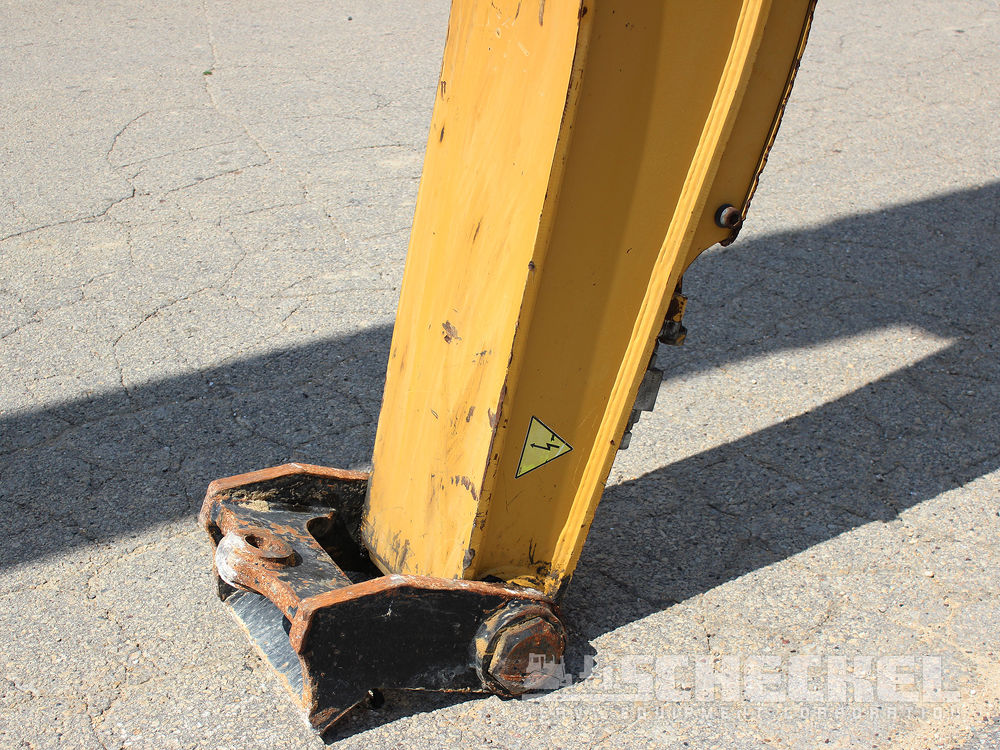

Stick Weight - With Cylinders |
8,000 lbs (3,629 kg)
|
|
Upper Weight |
62,900 lbs (28,531 kg)
|

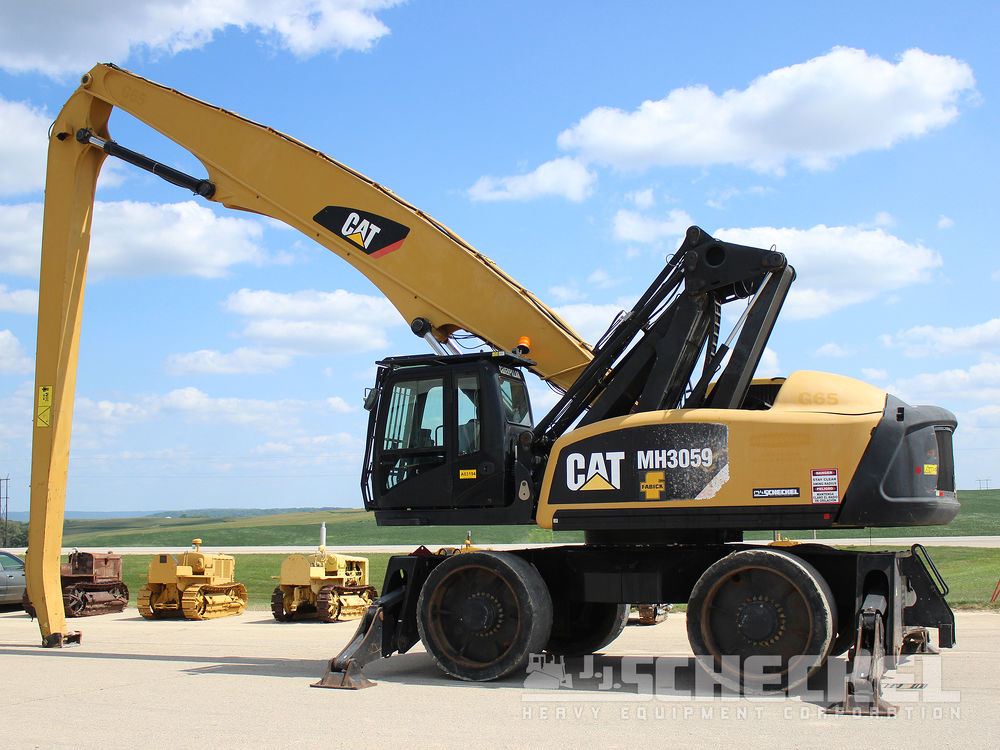

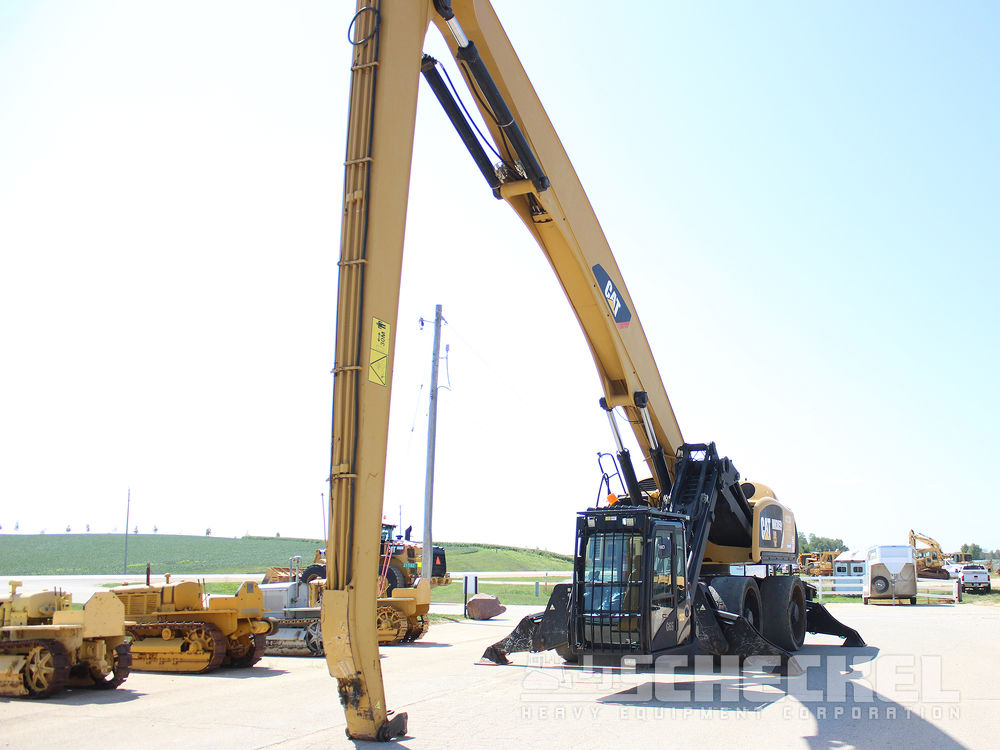

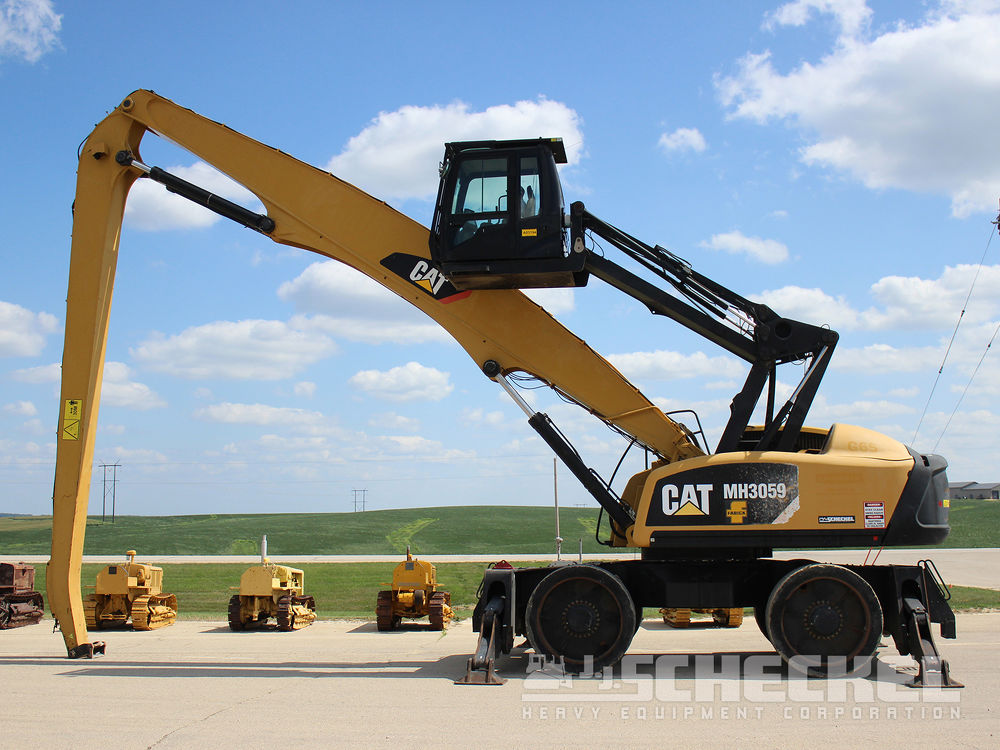

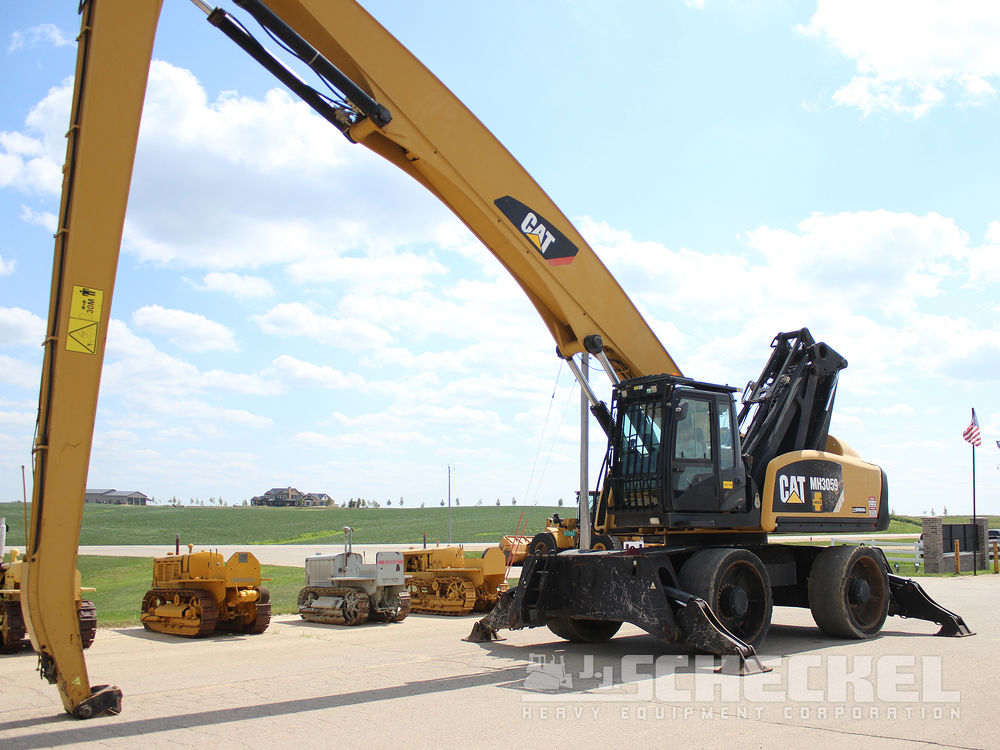

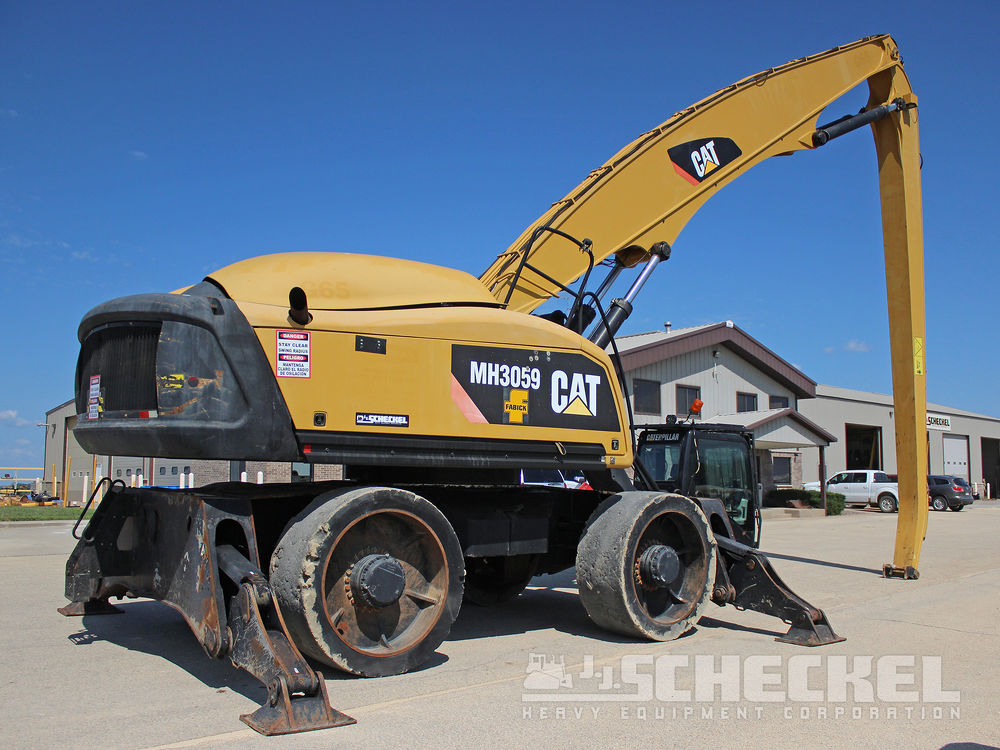

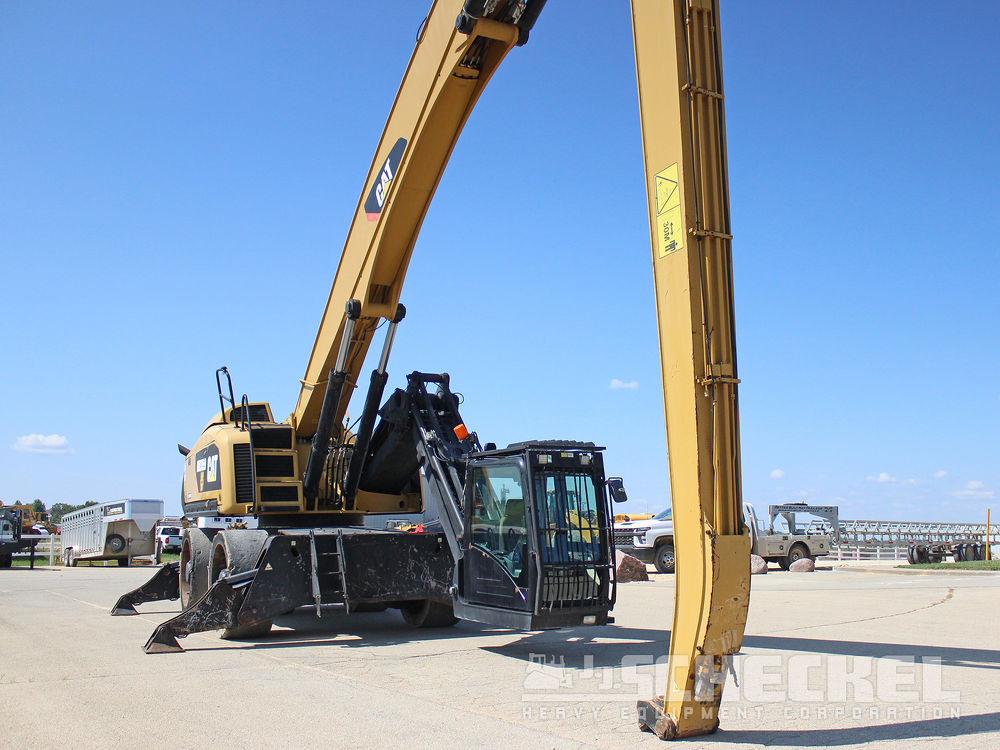

| Working Ranges |
|
Long Boom/Long Stick - Maximum Depth |
21 ft (6 m)
|
|
Long Boom/Long Stick - Maximum Height |
71 ft (22 m)
|
|
Long Boom/Long Stick - Maximum Reach |
63 ft (19 m)
|
