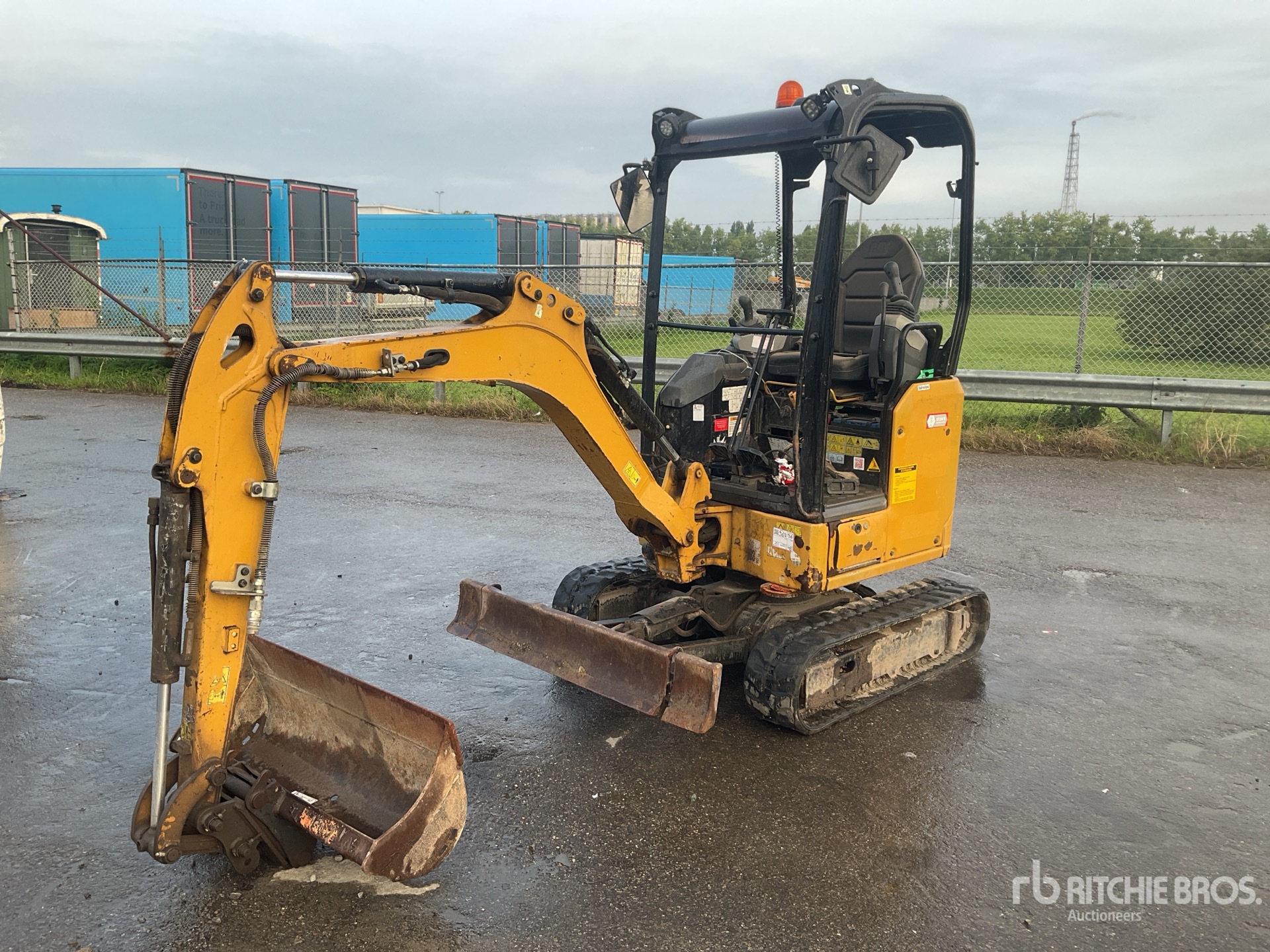

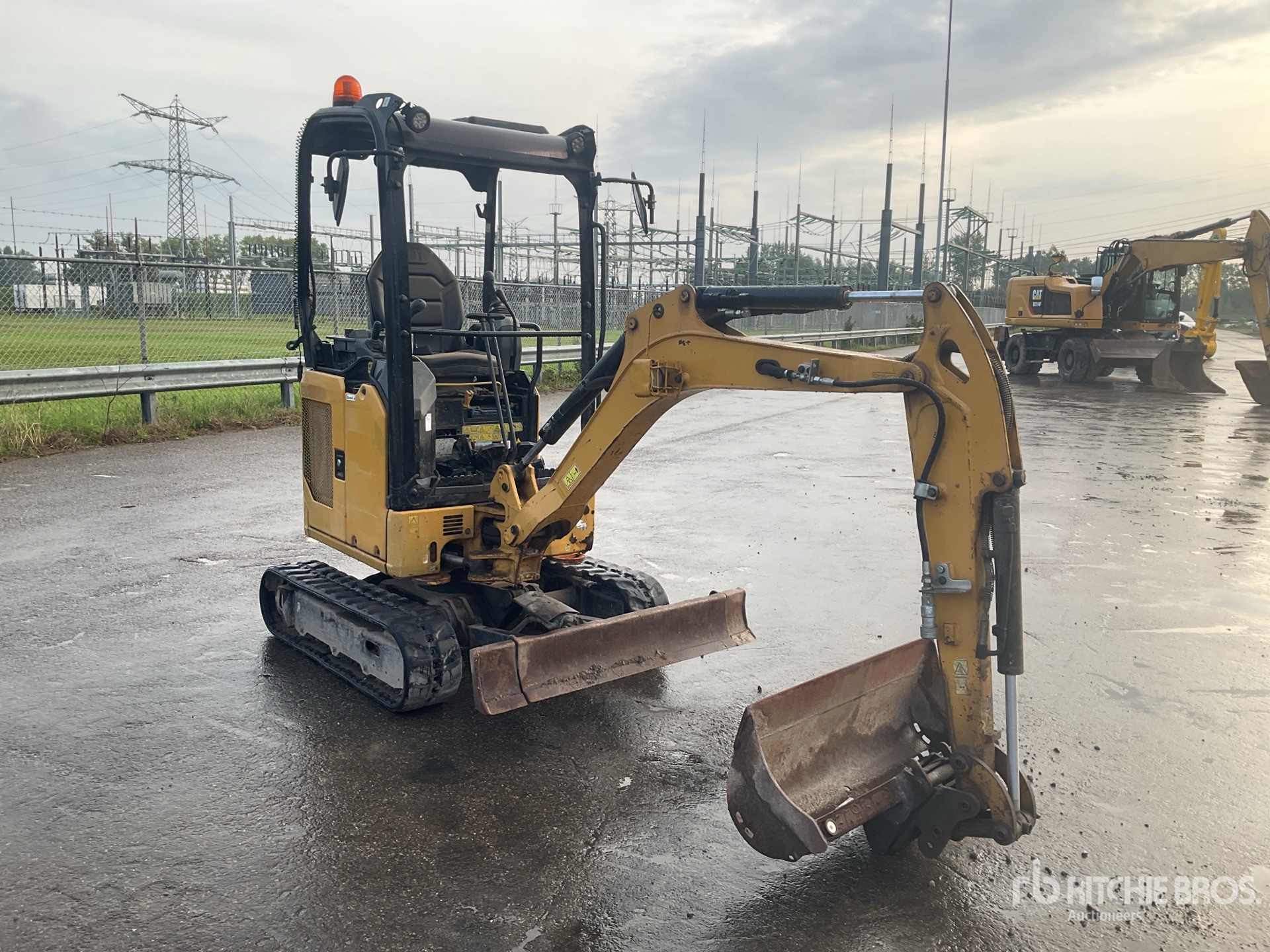

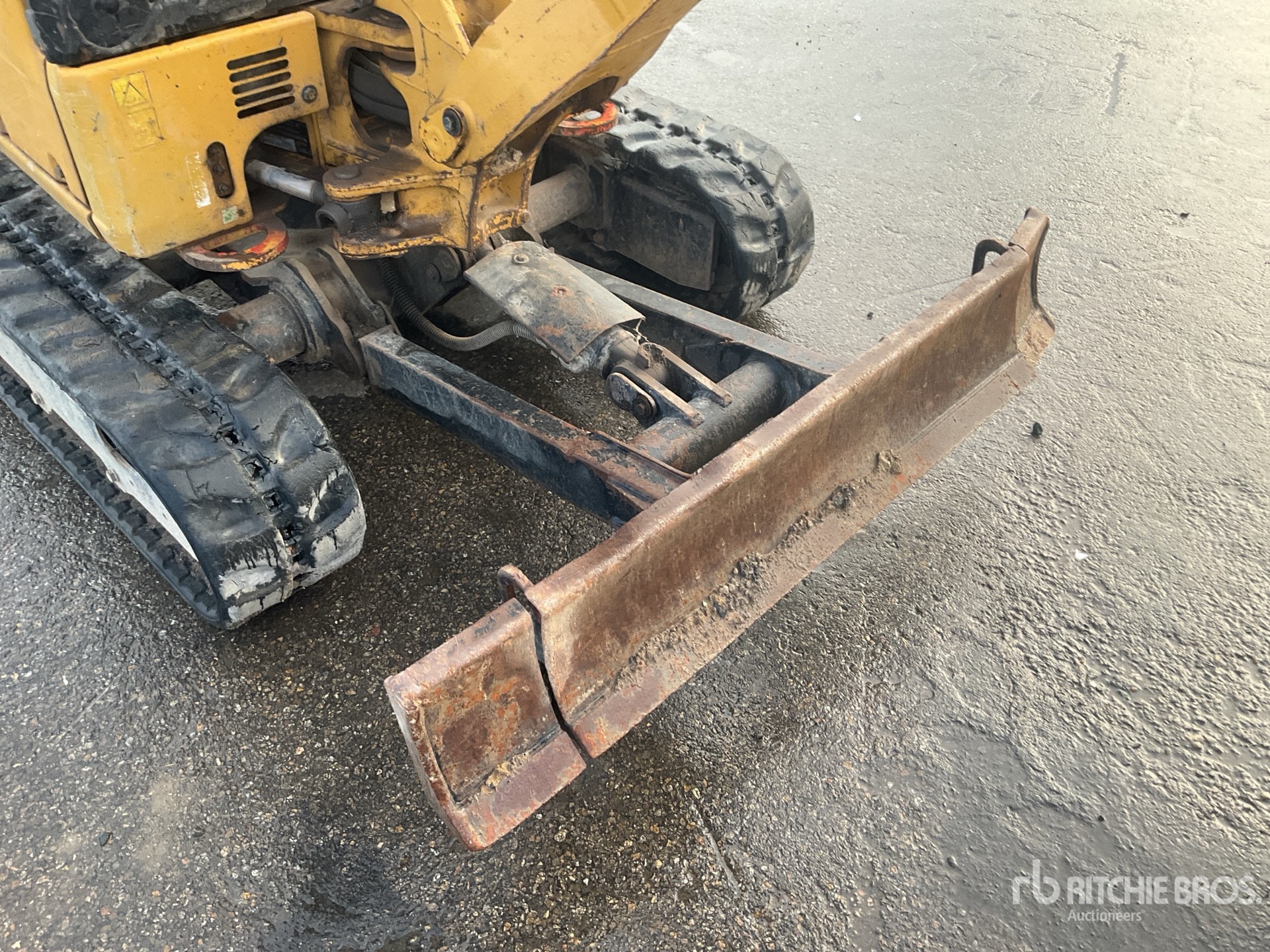

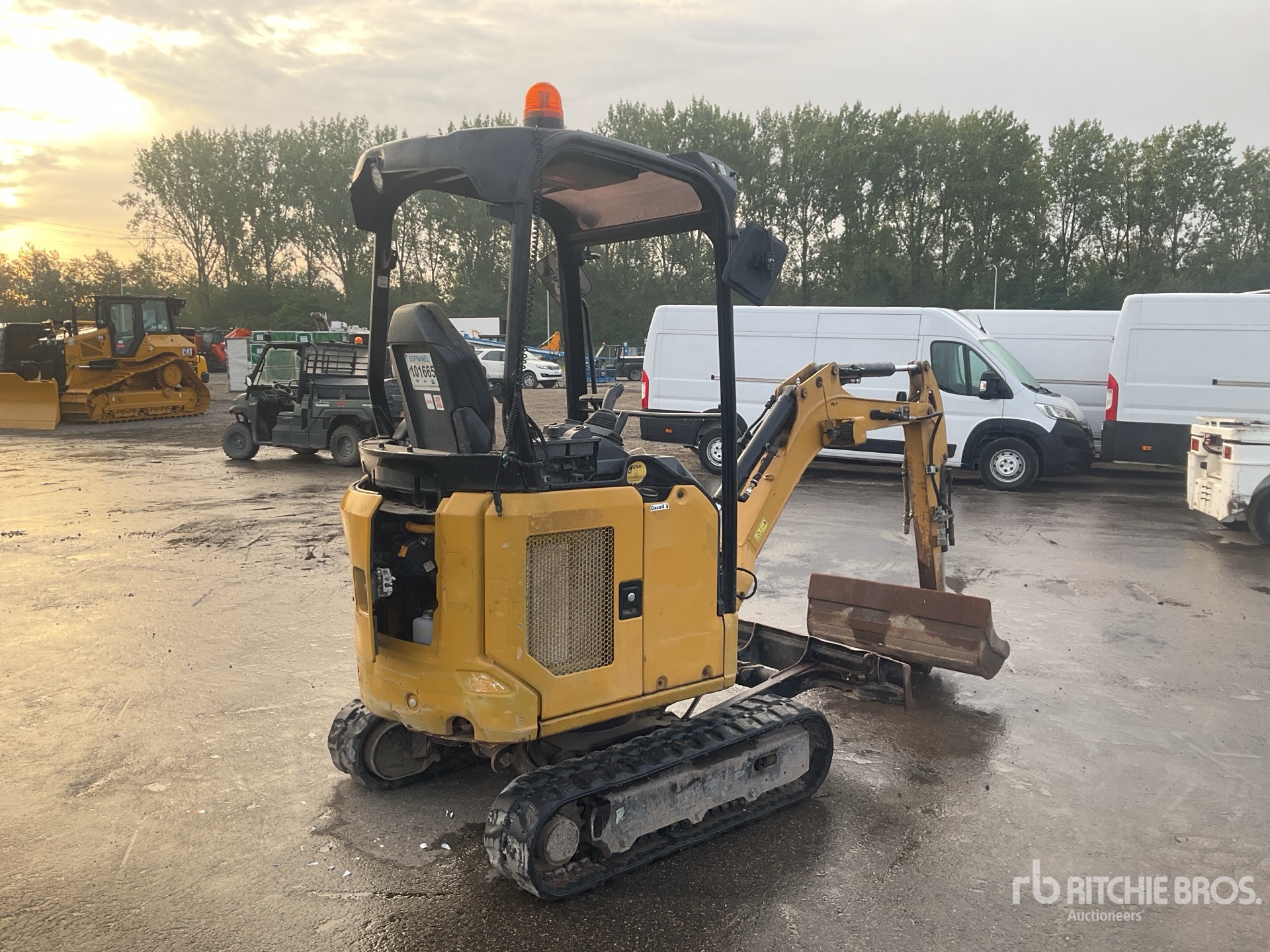

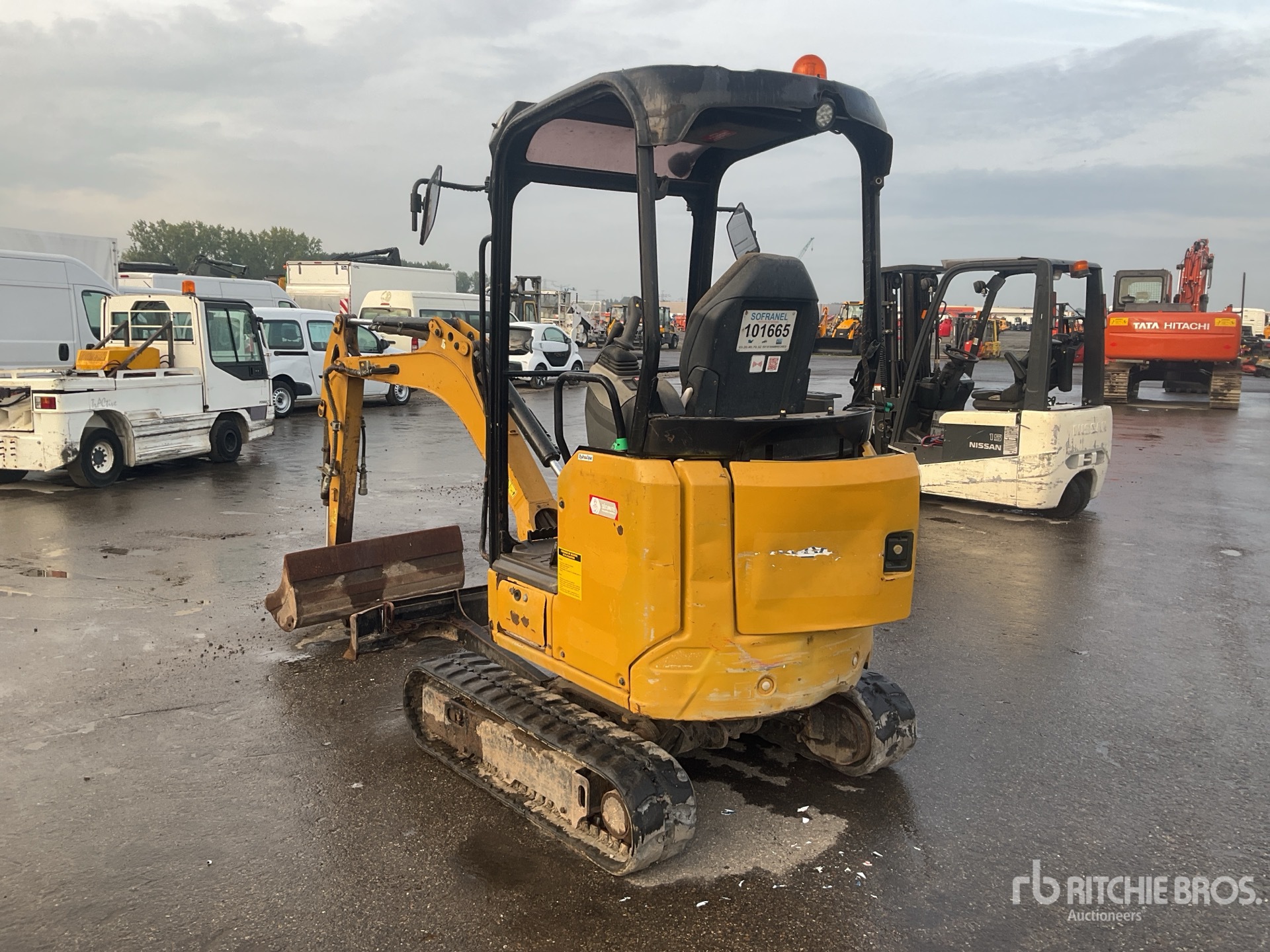

| Blade |
|
Height (Since 2026)
|
9 in (23 cm)
|
|
Width* (Since 2026)
|
39 in (99 cm)
|
| Certification - Canopy |
|
Roll Over Protective Structure (ROPS) (Since 2026)
|
ISO 12117-2:2008 |
|
Tip Over Protective Structure (TOPS) (Since 2026)
|
ISO 12117:1997 |
|
Top Guard (Since 2026)
|
ISO 10262:1998 (Level I) |
| Dimensions - Long Stick |
|
Boom Height - Shipping Position (Since 2026)
|
41 in (104 cm)
|
|
Boom In Reach (Since 2026)
|
57 in (145 cm)
|
|

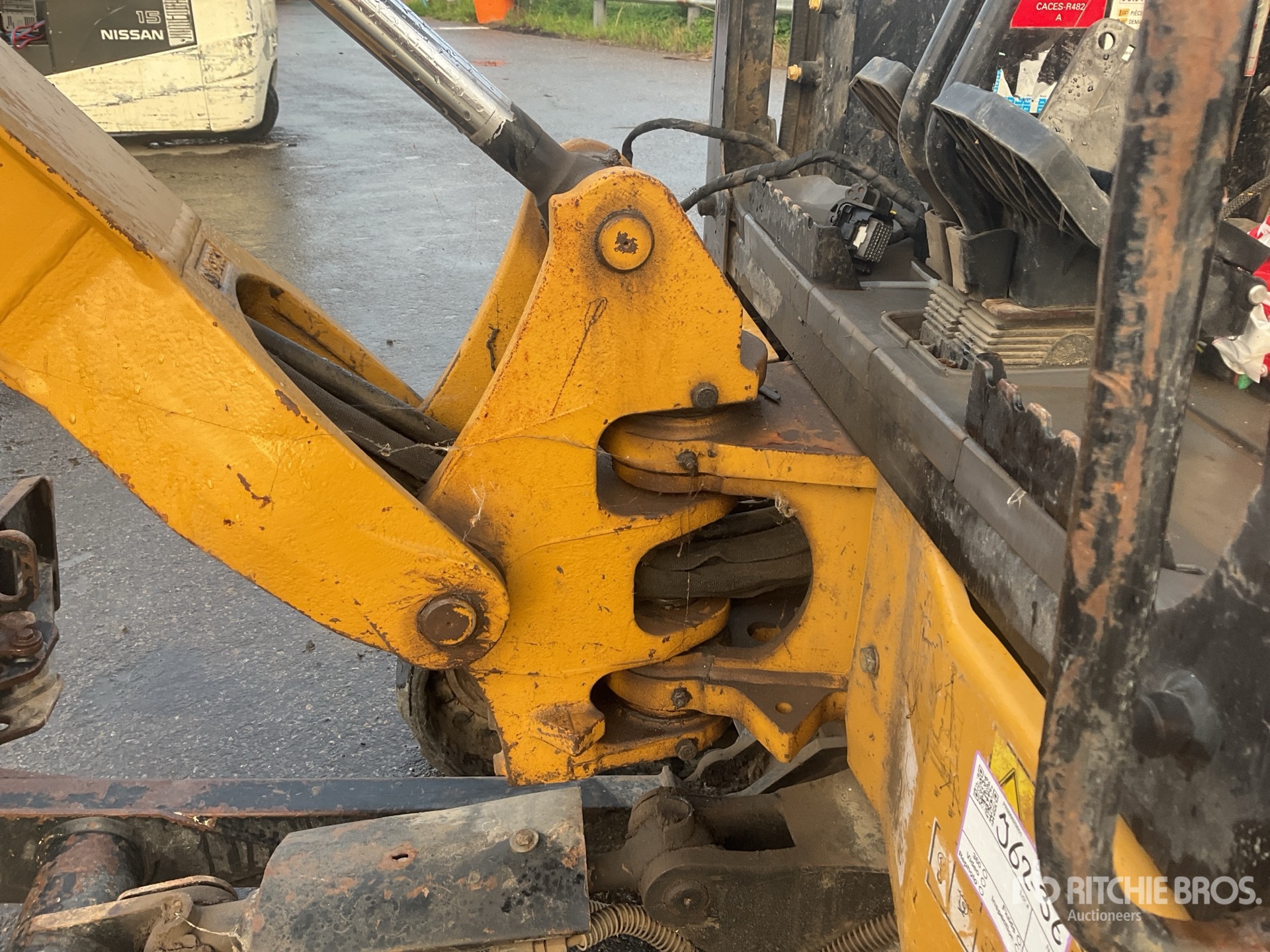

Boom Swing - Left (Since 2026)
|
65 degrees |
|
Boom Swing - Right (Since 2026)
|
50 degrees |
|
Dig Depth (Since 2026)
|
100 in (254 cm)
|
|
Maximum Blade Depth (Since 2026)
|
10 in (26 cm)
|
|
Maximum Blade Height (Since 2026)
|
11 in (27 cm)
|
|
Maximum Dig Height (Since 2026)
|
137 in (349 cm)
|
|
Maximum Dump Clearance (Since 2026)
|
99 in (251 cm)
|
|
Maximum Reach (Since 2026)
|
156 in (396 cm)
|
|
Maximum Reach - Ground Level (Since 2026)
|
153 in (389 cm)
|
|
Minimum Ground Clearance Below Undercarriage (Since 2026)
|
6 in (15 cm)
|
|
O/A Shipping Height (Since 2026)
|
91 in (231 cm)
|
|
O/A Undercarriage Length (Since 2026)
|
58 in (146 cm)
|
|
Overall Shipping Length* (Since 2026)
|
141 in (359 cm)
|
|
Stick Length (Since 2026)
|
46 in (116 cm)
|
|
Swing Bearing - Height (Since 2026)
|
18 in (44 cm)
|
|
Tail Swing (Since 2026)
|
32 in (82 cm)
|
|
Track Belt/Shoe Width (Since 2026)
|
9 in (23 cm)
|
|
Track Width - Expanded (Since 2026)
|
51 in (130 cm)
|
|
Track Width - Retracted (Since 2026)
|
39 in (99 cm)
|
|
Vertical Wall (Since 2026)
|
74 in (189 cm)
|
| Dimensions - Standard Stick |
|
Boom Height - Shipping Position (Since 2026)
|
43 in (109 cm)
|
|
Boom In Reach (Since 2026)
|
58 in (146 cm)
|
|
Boom Swing - Left (Since 2026)
|
65 degrees |
|
Boom Swing - Right (Since 2026)
|
50 degrees |
|
Dig Depth (Since 2026)
|
92 in (234 cm)
|
|
Maximum Blade Depth (Since 2026)
|
10 in (26 cm)
|
|
Maximum Blade Height (Since 2026)
|
11 in (27 cm)
|
|
Maximum Dig Height (Since 2026)
|
135 in (343 cm)
|
|
Maximum Dump Clearance (Since 2026)
|
97 in (245 cm)
|
|
Maximum Reach (Since 2026)
|
150 in (380 cm)
|
|
Maximum Reach - Ground Level (Since 2026)
|
147 in (373 cm)
|
|
Minimum Ground Clearance Below Undercarriage (Since 2026)
|
6 in (15 cm)
|
|
O/A Shipping Height (Since 2026)
|
91 in (231 cm)
|
|
O/A Undercarriage Length (Since 2026)
|
58 in (146 cm)
|
|
Overall Shipping Length* (Since 2026)
|
143 in (362 cm)
|
|
Stick Length (Since 2026)
|
38 in (96 cm)
|
|
Swing Bearing - Height (Since 2026)
|
18 in (44 cm)
|
|
Tail Swing (Since 2026)
|
32 in (82 cm)
|
|
Track Belt/Shoe Width (Since 2026)
|
9 in (23 cm)
|
|
Track Width - Expanded (Since 2026)
|
51 in (130 cm)
|
|
Track Width - Retracted (Since 2026)
|
39 in (99 cm)
|
|
Vertical Wall (Since 2026)
|
71 in (180 cm)
|
| Engine |
|
Bore (Since 2026)
|
3 in (8 cm)
|
|
Displacement (Since 2026)
|
69 cu in (1,131 cu cm)
|
|
Emissions (Since 2026)
|
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. |
|
Engine Model (Since 2026)
|
C1.1 |
|
Gross Power - ISO 14396 (Since 2026)
|
22 hp (16 kw)
|
|
Net Power (Since 2026)
|
21 hp (16 kw)
|
|
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC (Since 2026)
|
21 hp (16 kw)
|
|
Stroke (Since 2026)
|
3 in (8 cm)
|
| General Specifications |
|
(complete w/o ctwt) (Since 2006)
|
1,460 lbs (662 kg)
|
|
(complete w/o ctwt) (Since 2006)
|
1,768 lbs (802 kg)
|
|
(std shoe) (Since 2006)
|
1,290 lbs (585 kg)
|
|
(std shoe) (Since 2006)
|
961 lbs (436 kg)
|
|
Approx. Operating Weight (Since 1998)
|
3,640 lbs (1,651 kg)
|
|
Approx. Operating Weight (1999)
|
3,640 lbs (1,651 kg)
|
|
Approx. Operating Weight (2000)
|
3,640 lbs (1,651 kg)
|
|
Approx. Operating Weight (2001)
|
3,640 lbs (1,651 kg)
|
|
Approx. Operating Weight (2002)
|
3,640 lbs (1,651 kg)
|
|
Approx. Operating Weight (2003)
|
3,640 lbs (1,651 kg)
|
|
Approx. Operating Weight (2004)
|
3,640 lbs (1,651 kg)
|
|
Approx. Operating Weight (2005)
|
3,640 lbs (1,651 kg)
|
|
Booms - One-piece (Since 2001)
|
231 lbs (105 kg)
|
|
Booms - One-piece (Since 2006)
|
200 lbs (91 kg)
|
|
Booms - One-piece (Since 2006)
|
231 lbs (105 kg)
|
|
Bore (Since 2001)
|
3 in (7 cm)
|
|
Bore (2006)
|
3 in (7 cm)
|
|
Bucket Bite Width (Since 1998)
|
9 in (23 cm)
|
|
Bucket Bite Width (Since 1998)
|
24 in (60 cm)
|
|
Bucket Bite Width (Since 1998)
|
12 in (30 cm)
|
|
Bucket Bite Width (Since 1998)
|
16 in (40 cm)
|
|
Bucket Bite Width (Since 1998)
|
20 in (50 cm)
|
|
Bucket Bite Width (Since 1998)
|
32 in (80 cm)
|
|
Bucket Bite Width (Since 1998)
|
39 in (100 cm)
|
|
Bucket Bite Width (Since 2001)
|
9 in (23 cm)
|
|
Bucket Bite Width (Since 2001)
|
20 in (51 cm)
|
|
Bucket Bite Width (Since 2001)
|
24 in (61 cm)
|
|
Bucket Bite Width (Since 2001)
|
10 in (25 cm)
|
|
Bucket Bite Width (Since 2001)
|
12 in (30 cm)
|
|
Bucket Bite Width (Since 2001)
|
16 in (41 cm)
|
|
Bucket Bite Width (Since 2001)
|
18 in (46 cm)
|
|
Bucket Bite Width (Since 2001)
|
28 in (71 cm)
|
|
Bucket Bite Width (Since 2001)
|
32 in (81 cm)
|
|
Bucket Bite Width (Since 2001)
|
40 in (102 cm)
|
|
Bucket Bite Width (Since 2001)
|
48 in (122 cm)
|
|
Bucket Bite Width (Since 2006)
|
9 in (23 cm)
|
|
Bucket Bite Width (Since 2006)
|
20 in (51 cm)
|
|
Bucket Bite Width (Since 2006)
|
24 in (61 cm)
|
|
Bucket Bite Width (Since 2006)
|
12 in (30 cm)
|
|
Bucket Bite Width (Since 2006)
|
16 in (41 cm)
|
|
Bucket Bite Width (Since 2006)
|
18 in (46 cm)
|
|
Bucket Bite Width (Since 2006)
|
32 in (81 cm)
|
|
Bucket Bite Width (Since 2006)
|
40 in (102 cm)
|
|
Bucket Capacity Range (heaped) (Since 2001)
|
0 - 0 cu yd (0 - 0 cu m)
|
|
Bucket Capacity Range (heaped) (2006)
|
0 - 0 cu yd (0 - 0 cu m)
|
|
Bucket Heaped Capacity (Since 1998)
|
0 cu yd (18 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
0 cu yd (56 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
0 cu yd (22 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
0 cu yd (33 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
0 cu yd (45 L)
|
|
Bucket Heaped Capacity (Since 1998)
|
0 cu yd (44 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
0 cu yd (18 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
0 cu yd (45 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
0 cu yd (56 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
0 cu yd (35 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
0 cu yd (41 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
0 cu yd (54 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
0 cu yd (65 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
0 cu yd (73 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
0 cu yd (92 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
0 cu yd (111 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
0 cu yd (22 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
0 cu yd (33 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
0 cu yd (40 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
0 cu yd (44 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
0 cu yd (80 L)
|
|
Bucket Heaped Capacity (Since 2001)
|
0 cu yd (102 L)
|
|
Bucket Heaped Capacity (Since 2006)
|
0 cu yd (18 L)
|
|
Bucket Heaped Capacity (Since 2006)
|
0 cu yd (45 L)
|
|
Bucket Heaped Capacity (Since 2006)
|
0 cu yd (56 L)
|
|
Bucket Heaped Capacity (Since 2006)
|
0 cu yd (22 L)
|
|
Bucket Heaped Capacity (Since 2006)
|
0 cu yd (33 L)
|
|
Bucket Heaped Capacity (Since 2006)
|
0 cu yd (40 L)
|
|
Bucket Heaped Capacity (Since 2006)
|
0 cu yd (44 L)
|
|
Bucket Tip Radius (Since 1998)
|
17 in (44 cm)
|
|
Bucket Tip Radius (Since 1998)
|
20 in (50 cm)
|
|
Bucket Tip Radius (Since 1998)
|
14 in (35 cm)
|
|
Bucket Tip Radius (Since 2001)
|
17 in (43 cm)
|
|
Bucket Tip Radius (Since 2001)
|
20 in (51 cm)
|
|
Bucket Tip Radius (Since 2001)
|
22 in (56 cm)
|
|
Bucket Tip Radius (Since 2001)
|
26 in (66 cm)
|
|
Bucket Tip Radius (2001)
|
26 in (66 cm)
|
|
Bucket Tip Radius (Since 2001)
|
14 in (36 cm)
|
|
Bucket Tip Radius (Since 2001)
|
19 in (48 cm)
|
|
Bucket Tip Radius (Since 2006)
|
17 in (43 cm)
|
|
Bucket Tip Radius (Since 2006)
|
20 in (51 cm)
|
|
Bucket Tip Radius (Since 2006)
|
14 in (36 cm)
|
|
Bucket Weight with Teeth (Since 1998)
|
55 lbs (25 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
99 lbs (45 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
64 lbs (29 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
60 lbs (27 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
68 lbs (31 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
70 lbs (32 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
77 lbs (35 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
79 lbs (36 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
90 lbs (41 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
88 lbs (40 kg)
|
|
Bucket Weight with Teeth (Since 1998)
|
93 lbs (42 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
55 lbs (25 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
90 lbs (41 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
88 lbs (40 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
99 lbs (45 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
96 lbs (44 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
105 lbs (48 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
97 lbs (44 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
112 lbs (51 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
107 lbs (49 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
64 lbs (29 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
121 lbs (55 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
116 lbs (53 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
130 lbs (59 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
122 lbs (55 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
140 lbs (64 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
136 lbs (62 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
155 lbs (70 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
152 lbs (69 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
170 lbs (77 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
60 lbs (27 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
68 lbs (31 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
77 lbs (35 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
75 lbs (34 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
84 lbs (38 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
79 lbs (36 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
95 lbs (43 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
178 lbs (81 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
172 lbs (78 kg)
|
|
Bucket Weight with Teeth (Since 2001)
|
193 lbs (88 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
55 lbs (25 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
90 lbs (41 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
88 lbs (40 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
99 lbs (45 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
64 lbs (29 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
60 lbs (27 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
68 lbs (31 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
77 lbs (35 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
75 lbs (34 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
84 lbs (38 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
79 lbs (36 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
95 lbs (43 kg)
|
|
cont'd) Flywheel Horsepower (Since 1998)
|
17 hp (13 kw)
|
|
cont'd) Flywheel Horsepower (1999)
|
17 hp (13 kw)
|
|
cont'd) Flywheel Horsepower (2000)
|
17 hp (13 kw)
|
|
cont'd) Flywheel Horsepower (2001)
|
17 hp (13 kw)
|
|
cont'd) Flywheel Horsepower (2002)
|
17 hp (13 kw)
|
|
cont'd) Flywheel Horsepower (2003)
|
17 hp (13 kw)
|
|
cont'd) Flywheel Horsepower (2004)
|
17 hp (13 kw)
|
|
cont'd) Flywheel Horsepower (2005)
|
17 hp (13 kw)
|
|
Counterweight (Since 2001)
|
220 lbs (100 kg)
|
|
Counterweight (Since 2006)
|
200 lbs (91 kg)
|
|
Counterweight (Since 2006)
|
220 lbs (100 kg)
|
|
Digging Depth (Since 2025)
|
8 ft (3 m)
|
|
Digging Reach (Since 2025)
|
13 ft (4 m)
|
|
Displacement (Since 2001)
|
58 cu in (954 cu cm)
|
|
Displacement (2006)
|
58 cu in (954 cu cm)
|
|
Engine (Since 2025)
|
19 hp (14 kw)
|
|
Engine Model (Since 2001)
|
3,003 |
|
Engine Model (2006)
|
3,003 |
|
Extra Counterweight (Since 2006)
|
130 lbs (59 kg)
|
|
Flywheel Power (Since 2001)
|
17 hp (13 kw)
|
|
Flywheel Power (2006)
|
17 hp (13 kw)
|
|
Fuel Tank Refill - Capacity (Since 2001)
|
5 US gal (20 L)
|
|
Fuel Tank Refill - Capacity (2006)
|
5 US gal (20 L)
|
|
Ground Contact Area - with Std. Shoe (Since 2001)
|
806 sq in (1 sq m)
|
|
Ground Contact Area - with Std. Shoe (2006)
|
806 sq in (1 sq m)
|
|
Ground Pressure (Since 2006)
|
4 psi (29 kPa)
|
|
Height (Since 1998)
|
86 in (218 cm)
|
|
Height (1999)
|
86 in (218 cm)
|
|
Height (2000)
|
86 in (218 cm)
|
|
Height (2001)
|
86 in (218 cm)
|
|
Height (2002)
|
86 in (218 cm)
|
|
Height (2003)
|
86 in (218 cm)
|
|
Height (2004)
|
86 in (218 cm)
|
|
Height (2005)
|
86 in (218 cm)
|
|
Hydraulic System - (includes tank) (Since 2001)
|
10 US gal (37 L)
|
|
Hydraulic System - (includes tank) (2006)
|
10 US gal (37 L)
|
|
Length (Since 1998)
|
145 in (368 cm)
|
|
Length (1999)
|
145 in (368 cm)
|
|
Length (2000)
|
145 in (368 cm)
|
|
Length (2001)
|
145 in (368 cm)
|
|
Length (2002)
|
145 in (368 cm)
|
|
Length (2003)
|
145 in (368 cm)
|
|
Length (2004)
|
145 in (368 cm)
|
|
Length (2005)
|
145 in (368 cm)
|
|
Lift Capacity (Since 1998)
|
830 lbs (376 kg)
|
|
Lift Capacity (1999)
|
830 lbs (376 kg)
|
|
Lift Capacity (2000)
|
830 lbs (376 kg)
|
|
Lift Capacity (2001)
|
830 lbs (376 kg)
|
|
Lift Capacity (2002)
|
830 lbs (376 kg)
|
|
Lift Capacity (2003)
|
830 lbs (376 kg)
|
|
Lift Capacity (2004)
|
830 lbs (376 kg)
|
|
Lift Capacity (2005)
|
830 lbs (376 kg)
|
|
Max. Reach (Since 1998)
|
150 in (381 cm)
|
|
Max. Reach (1999)
|
150 in (381 cm)
|
|
Max. Reach (2000)
|
150 in (381 cm)
|
|
Max. Reach (2001)
|
150 in (381 cm)
|
|
Max. Reach (2002)
|
150 in (381 cm)
|
|
Max. Reach (2003)
|
150 in (381 cm)
|
|
Max. Reach (2004)
|
150 in (381 cm)
|
|
Max. Reach (2005)
|
150 in (381 cm)
|
|
Maximum Drawbar - Pull (Since 2001)
|
3,060 lbs (1,388 kg)
|
|
Maximum Drawbar - Pull (2006)
|
3,060 lbs (1,388 kg)
|
|
Maximum Travel (Since 2001)
|
Two Speed Travel |
|
Maximum Travel (2006)
|
Two Speed Travel |
|
Maximum Travel Speed at Rated RPM - High (Since 2001)
|
3 mph (4 kph)
|
|
Maximum Travel Speed at Rated RPM - High (2006)
|
3 mph (4 kph)
|
|
Maximum Travel Speed at Rated RPM - Low (Since 2001)
|
1 mph (2 kph)
|
|
Maximum Travel Speed at Rated RPM - Low (2006)
|
1 mph (2 kph)
|
|
No. of Cylinders (Since 2001)
|
3 |
|
No. of Cylinders (2006)
|
3 |
|
Number of Bucket Teeth (Since 1998)
|
0 |
|
Number of Bucket Teeth (Since 1998)
|
4 |
|
Number of Bucket Teeth (Since 1998)
|
3 |
|
Number of Bucket Teeth (Since 2001)
|
0 |
|
Number of Bucket Teeth (Since 2001)
|
4 |
|
Number of Bucket Teeth (Since 2001)
|
3 |
|
Number of Bucket Teeth (Since 2006)
|
0 |
|
Number of Bucket Teeth (Since 2006)
|
4 |
|
Number of Bucket Teeth (Since 2006)
|
3 |
|
Operating Weight (Since 2001)
|
3,640 lbs (1,651 kg)
|
|
Operating Weight (2006)
|
3,640 lbs (1,651 kg)
|
|
Operating Weight (Since 2025)
|
3,880 lbs (1,760 kg)
|
|
Overall Track Length (Since 2001)
|
55 in (140 cm)
|
|
Overall Track Length (2006)
|
55 in (140 cm)
|
|

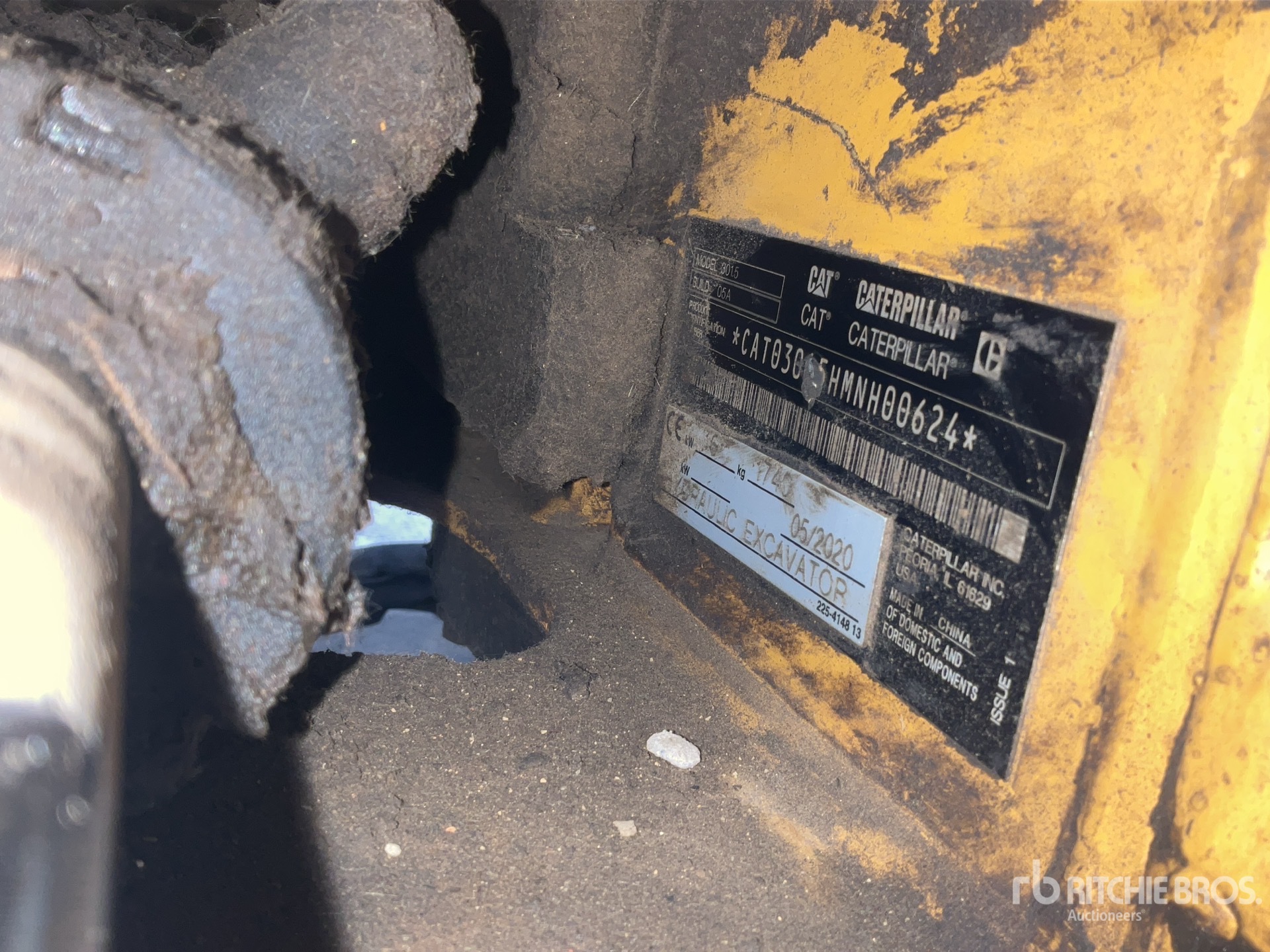

Product Identification Prefix (Since 1998)
|
3YW |
|
Product Identification Prefix (1999)
|
3YW |
|
Product Identification Prefix (2000)
|
3YW |
|
Product Identification Prefix (2001)
|
3YW |
|
Product Identification Prefix (2002)
|
3YW |
|
Product Identification Prefix (2003)
|
3YW |
|
Product Identification Prefix (2004)
|
3YW |
|
Product Identification Prefix (2005)
|
3YW |
|
Range Dimension A (source diagram) (Since 2001)
|
97 in (246 cm)
|
|
Range Dimension A (source diagram) (2006)
|
97 in (246 cm)
|
|
Range Dimension A (source diagram) (Since 2006)
|
102 in (259 cm)
|
|
Range Dimension B (source diagram) (Since 2001)
|
149 in (378 cm)
|
|
Range Dimension B (source diagram) (2006)
|
149 in (378 cm)
|
|
Range Dimension B (source diagram) (Since 2006)
|
146 in (371 cm)
|
|
Range Dimension C (source diagram) (Since 2001)
|
90 in (229 cm)
|
|
Range Dimension C (source diagram) (2006)
|
90 in (229 cm)
|
|
Range Dimension C (source diagram) (Since 2006)
|
85 in (216 cm)
|
|
Range Dimension D (source diagram) (Since 2001)
|
69 in (175 cm)
|
|
Range Dimension D (source diagram) (2006)
|
69 in (175 cm)
|
|
Range Dimension D (source diagram) (Since 2006)
|
68 in (173 cm)
|
|
Range Dimension E (source diagram) (Since 2006)
|
58 in (147 cm)
|
|
Range Dimension F (source diagram) (Since 2001)
|
115 in (292 cm)
|
|
Range Dimension F (source diagram) (2006)
|
115 in (292 cm)
|
|
Range Dimension F (source diagram) (Since 2006)
|
121 in (307 cm)
|
|
Range Dimension G (source diagram) (Since 2001)
|
134 in (340 cm)
|
|
Range Dimension G (source diagram) (2006)
|
134 in (340 cm)
|
|
Range Dimension G (source diagram) (Since 2006)
|
141 in (358 cm)
|
|
Rated Engine RPM (Since 2001)
|
2,300 rpm |
|
Rated Engine RPM (2006)
|
2,300 rpm |
|
Relief Valve Settings - Implement Circuits (Since 2001)
|
2,700 psi (18,600 kPa)
|
|
Relief Valve Settings - Implement Circuits (2006)
|
2,700 psi (18,600 kPa)
|
|
Relief Valve Settings - Swing Circuits (Since 2001)
|
2,500 psi (17,200 kPa)
|
|
Relief Valve Settings - Swing Circuits (2006)
|
2,500 psi (17,200 kPa)
|
|
Relief Valve Settings - Travel Circuits (Since 2001)
|
2,700 psi (18,600 kPa)
|
|
Relief Valve Settings - Travel Circuits (2006)
|
2,700 psi (18,600 kPa)
|
|
Shipping Dimension A (source diagram) (Since 2001)
|
86 in (218 cm)
|
|
Shipping Dimension A (source diagram) (Since 2006)
|
91 in (231 cm)
|
|
Shipping Dimension A (source diagram) (Since 2006)
|
86 in (218 cm)
|
|
Shipping Dimension B (source diagram) (Since 2001)
|
39 in (99 cm)
|
|
Shipping Dimension B (source diagram) (2006)
|
39 in (99 cm)
|
|
Shipping Dimension C (source diagram) (Since 2001)
|
39 in (99 cm)
|
|
Shipping Dimension C (source diagram) (2006)
|
39 in (99 cm)
|
|
Shipping Dimension D (source diagram) (Since 2001)
|
9 in (22 cm)
|
|
Shipping Dimension D (source diagram) (Since 2006)
|
7 in (18 cm)
|
|
Shipping Dimension D (source diagram) (Since 2006)
|
9 in (22 cm)
|
|
Shipping Dimension E (source diagram) (Since 2001)
|
18 in (46 cm)
|
|
Shipping Dimension E (source diagram) (2006)
|
18 in (46 cm)
|
|
Shipping Dimension E (source diagram) (2006)
|
18 in (46 cm)
|
|
Shipping Dimension F (source diagram) (Since 2001)
|
42 in (107 cm)
|
|
Shipping Dimension F (source diagram) (Since 2006)
|
25 in (64 cm)
|
|
Shipping Dimension F (source diagram) (Since 2006)
|
42 in (107 cm)
|
|
Shipping Dimension G (source diagram) (Since 2001)
|
55 in (140 cm)
|
|
Shipping Dimension G (source diagram) (Since 2006)
|
62 in (157 cm)
|
|
Shipping Dimension G (source diagram) (Since 2006)
|
55 in (140 cm)
|
|
Shipping Dimension H (source diagram) (Since 2001)
|
145 in (368 cm)
|
|
Shipping Dimension H (source diagram) (Since 2006)
|
137 in (348 cm)
|
|
Shipping Dimension H (source diagram) (Since 2006)
|
145 in (368 cm)
|
|
Shipping Dimension J (source diagram) (Since 2006)
|
91 in (231 cm)
|
|
Shipping Dimension K (source diagram) (Since 2001)
|
40 in (102 cm)
|
|
Shipping Dimension K (source diagram) (Since 2006)
|
48 in (122 cm)
|
|
Shipping Dimension K (source diagram) (Since 2006)
|
40 in (102 cm)
|
|
Shipping Dimension L (source diagram) (Since 2001)
|
30 in (76 cm)
|
|
Shipping Dimension L (source diagram) (2006)
|
30 in (76 cm)
|
|
Sourcing (Since 2001)
|
U.K. |
|
Sourcing (2006)
|
U.K. |
|
Standard undercarriage (std shoe) (Since 2001)
|
961 lbs (436 kg)
|
|
Stick (Since 2001)
|
56 in (142 cm)
|
|
Stick (Since 2006)
|
42 in (107 cm)
|
|
Stick (Since 2006)
|
44 in (112 cm)
|
|
Sticks - Long Stick (Since 2001)
|
130 lbs (59 kg)
|
|
Sticks - Long Stick (Since 2006)
|
120 lbs (54 kg)
|
|
Sticks - Long Stick (Since 2006)
|
130 lbs (59 kg)
|
|
Sticks - Medium Stick (Since 2001)
|
119 lbs (54 kg)
|
|
Sticks - Medium Stick (Since 2006)
|
110 lbs (50 kg)
|
|
Sticks - Medium Stick (Since 2006)
|
119 lbs (54 kg)
|
|
Stroke (Since 2001)
|
3 in (7 cm)
|
|
Stroke (2006)
|
3 in (7 cm)
|
|
Track Gauge (Since 1998)
|
30 in (76 cm)
|
|
Track Gauge (1999)
|
30 in (76 cm)
|
|
Track Gauge (2000)
|
30 in (76 cm)
|
|
Track Gauge (2001)
|
30 in (76 cm)
|
|
Track Gauge (2002)
|
30 in (76 cm)
|
|
Track Gauge (2003)
|
30 in (76 cm)
|
|
Track Gauge (2004)
|
30 in (76 cm)
|
|
Track Gauge (2005)
|
30 in (76 cm)
|
|
Track Gauge - Standard - Undercarriage (Since 2001)
|
30 in (76 cm)
|
|
Track Gauge - Standard - Undercarriage (2006)
|
30 in (76 cm)
|
|
Track Shoe Width (Since 1998)
|
9 in (23 cm)
|
|
Track Shoe Width (2006)
|
9 in (23 cm)
|
|
Upperstructure (complete w/o ctwt) (Since 2001)
|
1,768 lbs (802 kg)
|
|
Width (Since 1998)
|
39 in (99 cm)
|
|
Width (1999)
|
39 in (99 cm)
|
|
Width (2000)
|
39 in (99 cm)
|
|
Width (2001)
|
39 in (99 cm)
|
|
Width (2002)
|
39 in (99 cm)
|
|
Width (2003)
|
39 in (99 cm)
|
|
Width (2004)
|
39 in (99 cm)
|
|
Width (2005)
|
39 in (99 cm)
|
|
Width of Standard - Track Shoe (Since 2001)
|
9 in (23 cm)
|
|
Width of Standard - Track Shoe (2006)
|
9 in (23 cm)
|
|
Years Built (Since 1998)
|
1,998 - 2,005 |
|
Years Built (1999)
|
1,998 - 2,005 |
|
Years Built (2000)
|
1,998 - 2,005 |
|
Years Built (2001)
|
1,998 - 2,005 |
|
Years Built (2002)
|
1,998 - 2,005 |
|
Years Built (2003)
|
1,998 - 2,005 |
|
Years Built (2004)
|
1,998 - 2,005 |
|
Years Built (2005)
|
1,998 - 2,005 |
| Hydraulic System |
|
Auxiliary Circuit - Primary - Flow (Since 2026)
|
9 gpm (33 lpm)
|
|
Auxiliary Circuit - Primary - Pressure (Since 2026)
|
3,089 psi |
|
Auxiliary Circuit - Secondary - Flow (Since 2026)
|
4 gpm (14 lpm)
|
|
Auxiliary Circuit - Secondary - Pressure (Since 2026)
|
3,089 psi |
|
Digging Force - Bucket (Since 2026)
|
3,170 lbs ft (4,298 nm)
|
|
Digging Force - Stick - Long (Since 2026)
|
1,616 lbs ft (2,192 nm)
|
|
Digging Force - Stick - Standard (Since 2026)
|
1,843 lbs ft (2,499 nm)
|
|
Operating Pressure - Equipment (Since 2026)
|
3,089 psi |
|
Operating Pressure - Swing (Since 2026)
|
1,494 psi |
|
Operating Pressure - Travel (Since 2026)
|
3,089 psi |
|
Pump Flow at 2,400 rpm (Since 2026)
|
17 gpm (66 lpm)
|
|
Type (Since 2026)
|
Load Sensing Hydraulics with Variable Displacement Piston Pump |
| Service Refill Capacities |
|
Cooling System (Since 2026)
|
1 gal (4 l)
|
|
Engine Oil (Since 2026)
|
1 gal (5 l)
|
|
Fuel Tank (Since 2026)
|
6 gal (22 l)
|
|
Hydraulic System (Since 2026)
|
7 gal (26 l)
|
|
Hydraulic Tank (Since 2026)
|
5 gal (18 l)
|
| Sound |
|
Average Exterior Sound Pressure (ISO 6395:2008) (Since 2026)
|
93 dB(A) |
|
Operator Sound Pressure (ISO 6396:2008) (Since 2026)
|
72 dB(A) |
| Sustainability |
|
Recyclability (Since 2026)
|
95% |
| Swing System |
|
Machine Swing Speed (Since 2026)
|
10 r/min |
| Travel System |
|
Gradeability - Maximum (Since 2026)
|
30 degrees |
|
Ground Pressure - Maximum Weight (Since 2026)
|
4 psi |
|
Ground Pressure - Minimum Weight (Since 2026)
|
4 psi |
|
Maximum Traction Force - High Speed (Since 2026)
|
2,316 lbs ft (3,139 nm)
|
|
Maximum Traction Force - Low Speed (Since 2026)
|
3,597 lbs ft (4,877 nm)
|
|
Travel Speed - High (Since 2026)
|
3 mph (4 kph)
|
|
Travel Speed - Low (Since 2026)
|
2 mph (3 kph)
|
| Weight Increase From Minimum Configuration |
|
Expandable Undercarriage (Since 2026)
|
284 lbs (129 kg)
|
|
Long Stick (Since 2026)
|
18 lbs (8 kg)
|
|
Steel Tracks (Since 2026)
|
126 lbs (57 kg)
|
| Weights |
|
EU: CE Plate Weight*** (Since 2026)
|
3,836 lbs (1,740 kg)
|
|
Maximum Operating Weight with Canopy** (Since 2026)
|
3,913 lbs (1,775 kg)
|
|
Minimum Operating Weight with Canopy* (Since 2026)
|
3,483 lbs (1,580 kg)
|
|
Operating Weight (Since 2026)
|
3,913 lbs (1,775 kg)
|
