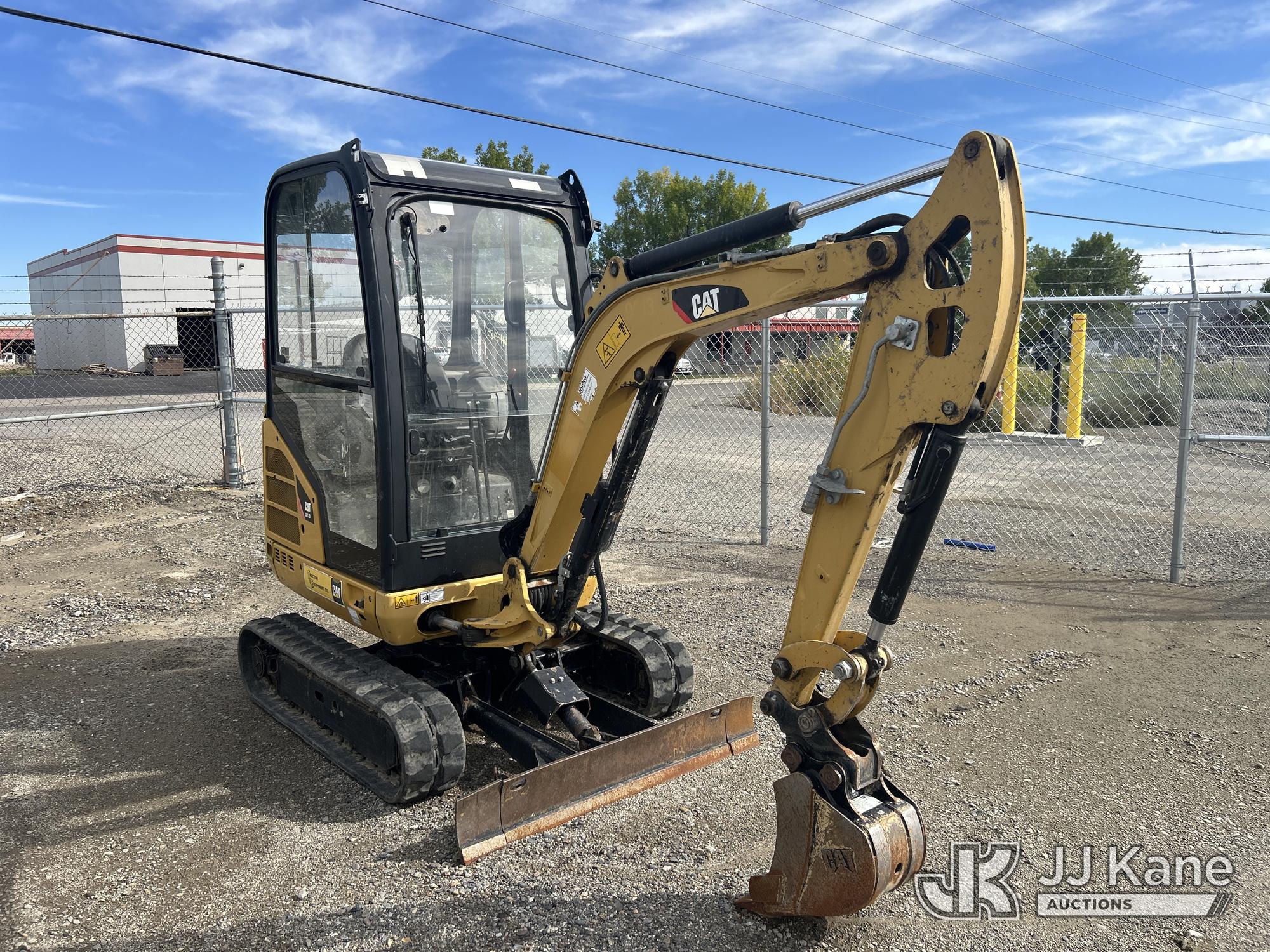

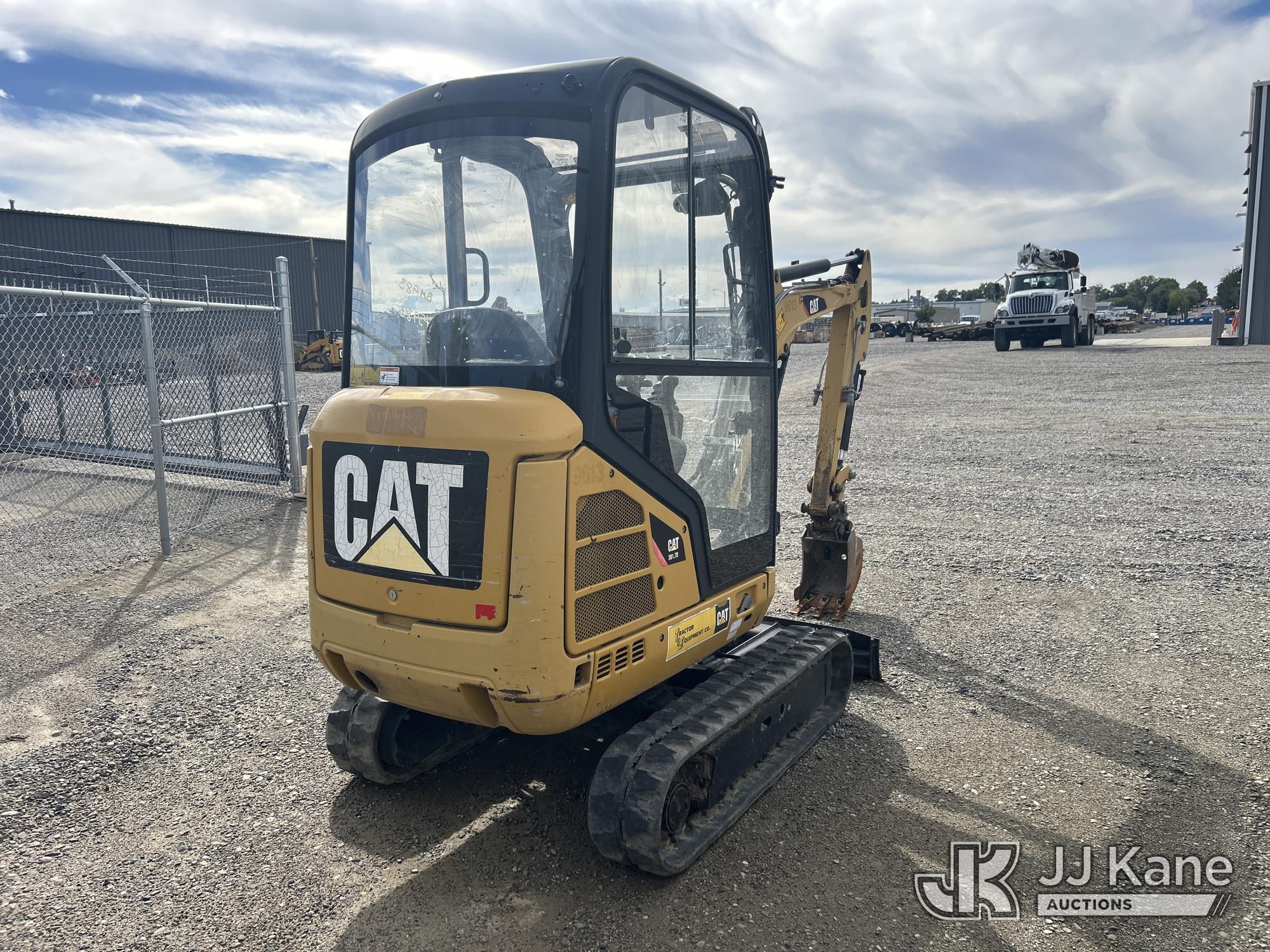

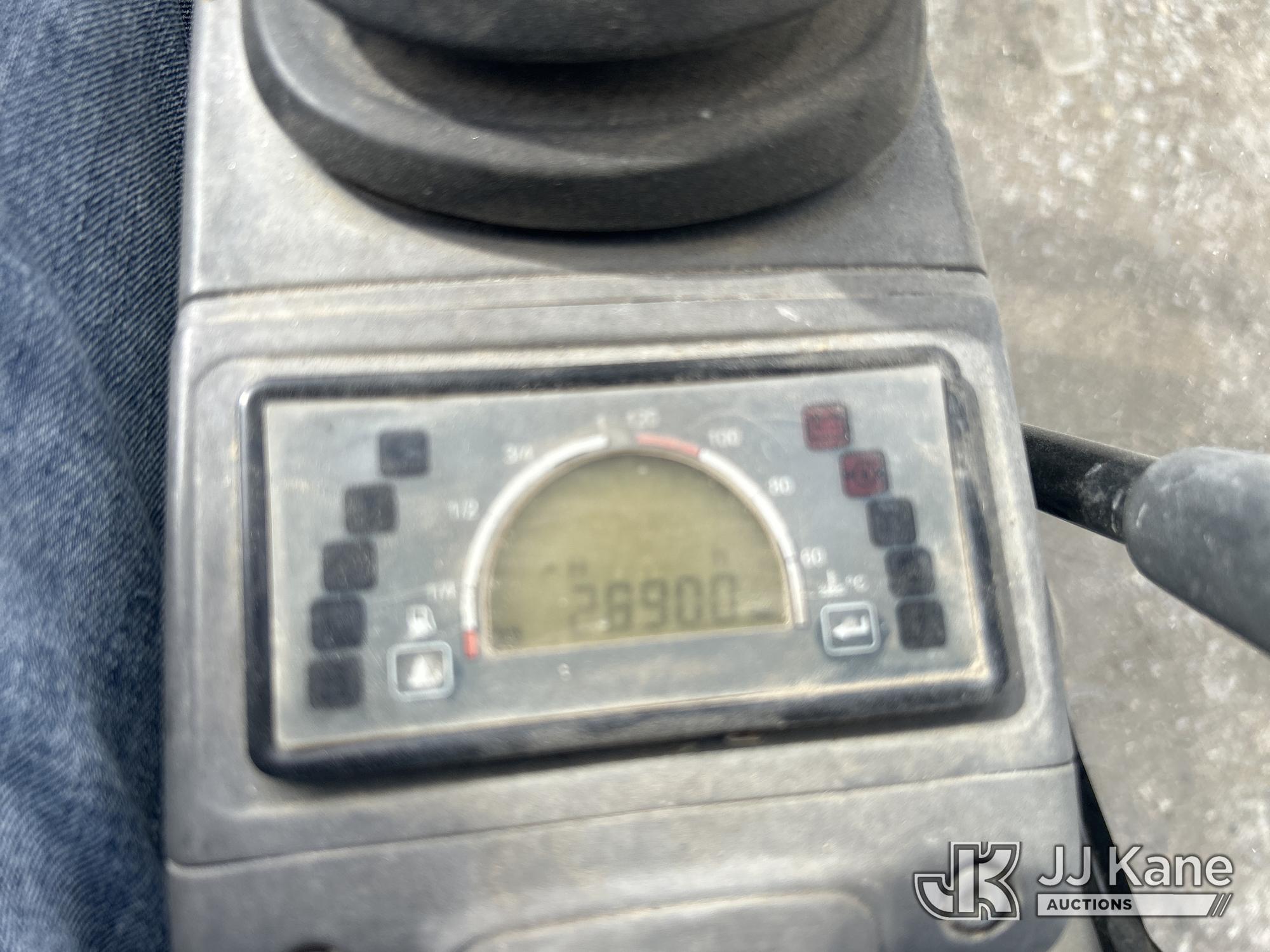

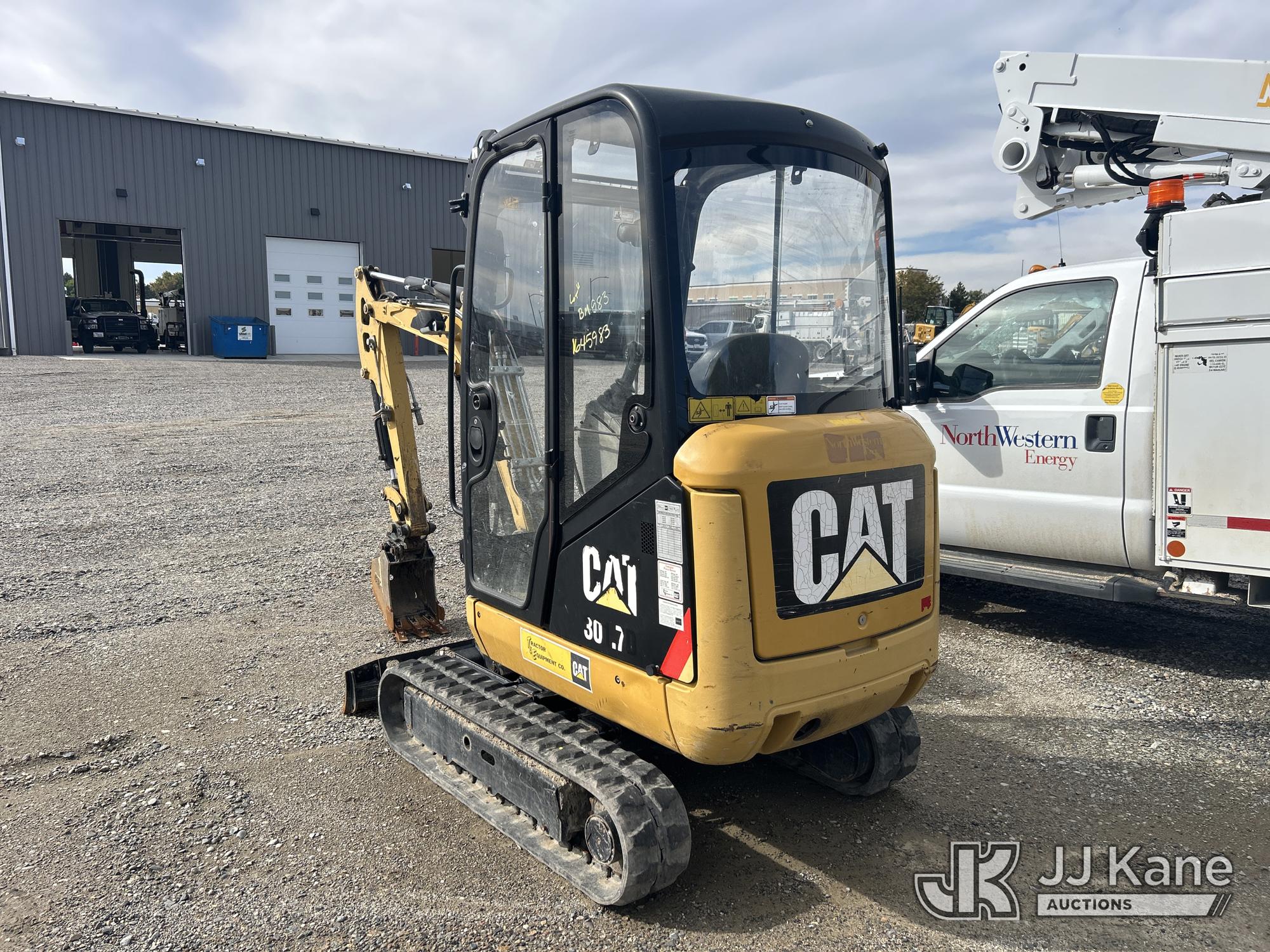

| Blade |
|
Dig Depth - Standard Blade |
13 in (32 cm)
|
|
Height |
9 in (23 cm)
|
|
Lift Height - Standard Blade |
8 in (20 cm)
|
|
Width |
3 ft (1 m)
|
| Dimensions |
|
Height |
7 ft (2 m)
|
|
Length |
13 ft (4 m)
|
|
Weight |
3,792 lbs (1,720 kg)
|
|
Width |
3 ft (1 m)
|
| Dimensions (Approximate) - Long Stick |
|
Boom Swing Angle - Lh |
77 degrees/64 degrees |
|
Boom Swing Angle - Rh |
48 degrees |
|
Height |
8 ft (2 m)
|
|
Length - Undercarriage - Extending |
5 ft (2 m)
|
|
Length - Undercarriage - Fixed |
5 ft (1 m)
|
|
Maximum Boom Offset - Lh |
1 ft (0 m)
|
|
Maximum Boom Offset - Rh |
2 ft (1 m)
|
|
Maximum Dig Height |
12 ft (4 m)
|
|
Maximum Digging Depth |
8 ft (2 m)
|
|
Maximum Dozer Dig Depth |
1 ft (0 m)
|
|
Maximum Dozer Lift Height |
8 in (20 cm)
|
|
Maximum Dump Height |
9 ft (3 m)
|
|
Maximum Reach - Ground Level |
13 ft (4 m)
|
|
Maximum Vertical Dig Depth |
5 ft (2 m)
|
|
Tail Swing Radius |
4 ft (1 m)
|
|
Transport Length - Arm Lowered |
13 ft (4 m)
|
|
Undercarriage Width - Extended |
4 ft (1 m)
|
|
Undercarriage Width - Retracted |
3 ft (1 m)
|
|
Width |
3 ft (1 m)
|
| Dimensions (Approximate) - Standard Stick |
|
Boom Swing Angle - Lh |
77 degrees/64 degrees |
|
Boom Swing Angle - Rh |
48 degrees |
|
Height |
8 ft (2 m)
|
|
Length - Undercarriage - Extending |
5 ft (2 m)
|
|
Length - Undercarriage - Fixed |
5 ft (1 m)
|
|
Maximum Boom Offset - Lh |
1 ft (0 m)
|
|
Maximum Boom Offset - Rh |
2 ft (1 m)
|
|
Maximum Dig Height |
11 ft (3 m)
|
|
Maximum Digging Depth |
7 ft (2 m)
|
|
Maximum Dozer Dig Depth |
1 ft (0 m)
|
|
Maximum Dozer Lift Height |
8 in (20 cm)
|
|
Maximum Dump Height |
8 ft (3 m)
|
|
Maximum Reach - Ground Level |
12 ft (4 m)
|
|
Maximum Vertical Dig Depth |
5 ft (1 m)
|
|
Tail Swing Radius |
4 ft (1 m)
|
|
Transport Length - Arm Lowered |
13 ft (4 m)
|
|
Undercarriage Width - Extended |
4 ft (1 m)
|
|
Undercarriage Width - Retracted |
3 ft (1 m)
|
|
Width |
3 ft (1 m)
|
| Engine |
|
Displacement |
40 cu in (655 cu cm)
|
|
Engine Model |
Yanmar 3TNV76 |
|
Gross Power - Iso 14396 |
24 hp (18 kw)
|
|
Net Power |
18 hp (13 kw)
|
|
Rated Net Power - 2,200 Rpm - Iso 9249 |
18 hp (13 kw)
|
| Hydraulic System |
|
Auxiliary Circuits - Primary |
30 L/min at 170 bar (8 gal/min at 2,465 psi) |
|
Auxiliary Circuits - Secondary |
17 L/min at 200 bar (4.5 gal/min at 2,900 psi) |
|
Maximum Bucket Force |
4,226 lbs (1,917 kg)
|
|
Maximum Stick Force - Long Stick |
2,203 lbs (999 kg)
|
|
Maximum Stick Force - Standard Stick |
2,518 lbs (1,142 kg)
|
|
Operating Pressure - Equipment |
2,900 psi |
|
Operating Pressure - Swing |
1,813 psi |
|
Operating Pressure - Travel |
2,900 psi |
|
Pump Flow At 2,200 Rpm |
2 gpm (6 lpm)
|
| Operating Specifications |
|
Machine Overhang |
20 in (50 cm)
|
|
Stick Length - Long |
46 in (117 cm)
|
|
Stick Length - Standard |
40 in (101 cm)
|
| Operational |
|
Operating Weight |
3,810 lbs (1,728 kg)
|
| Service Refill Capacities |
|
Fuel Tank Capacity |
6 gal (24 l)
|
|
Hydraulic Tank Capacity |
6 gal (21 l)
|
| Travel System |
|
Gradeability |
30 degrees/58% |
|
Travel Speed |
2.8 km/h/5.6 km/h (1.74 mph/3.48 mph) |
| Weights |
|
Operating Weight - With Cab |
3,792 lbs (1,720 kg)
|
|
Operating Weight - With Cab And Extending Undercarriage |
4,068 lbs (1,845 kg)
|
|
Operating Weight - With Canopy |
3,550 lbs (1,610 kg)
|
|
Operating Weight - With Canopy And Extending Undercarriage |
3,825 lbs (1,735 kg)
|
