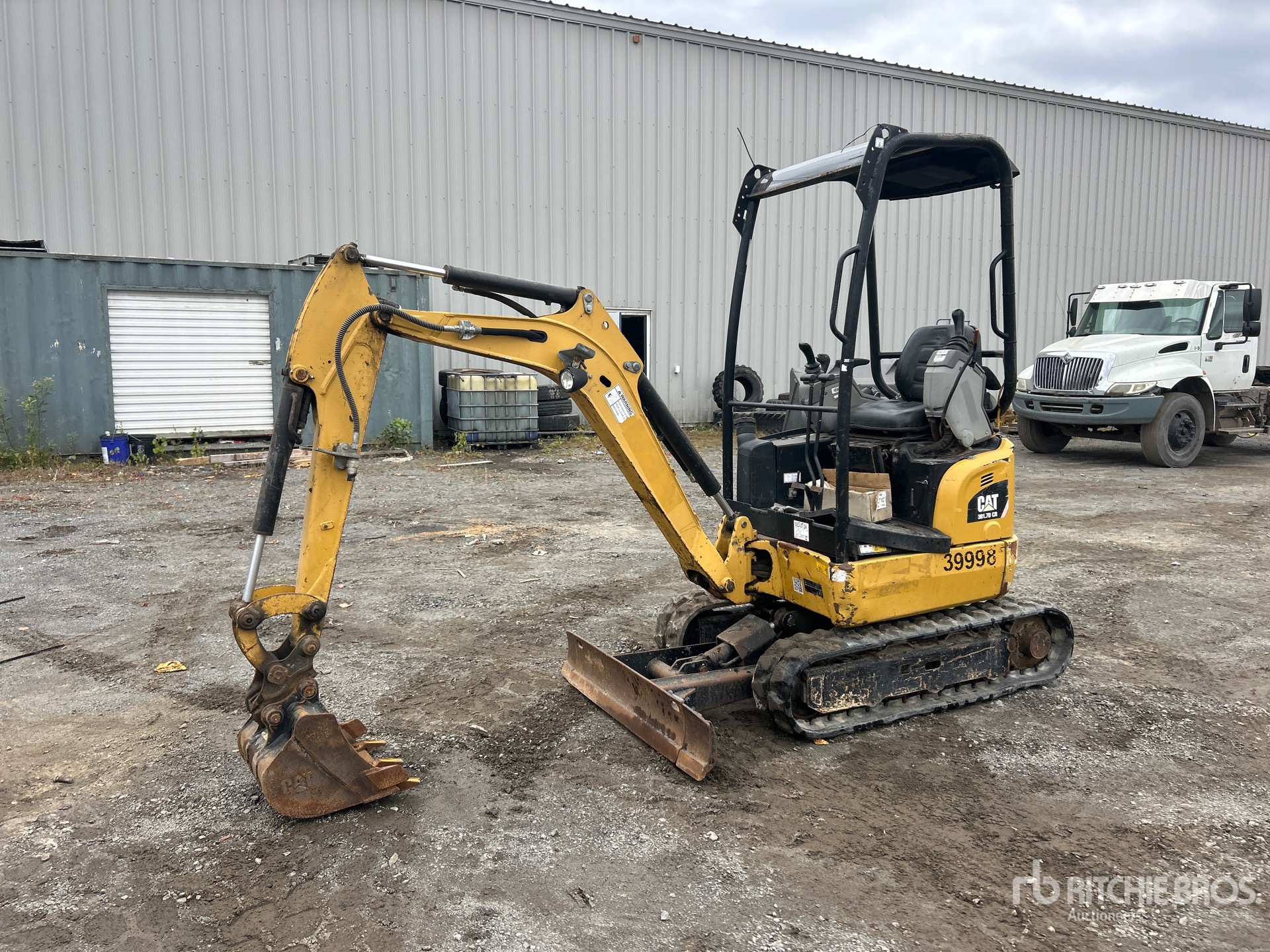

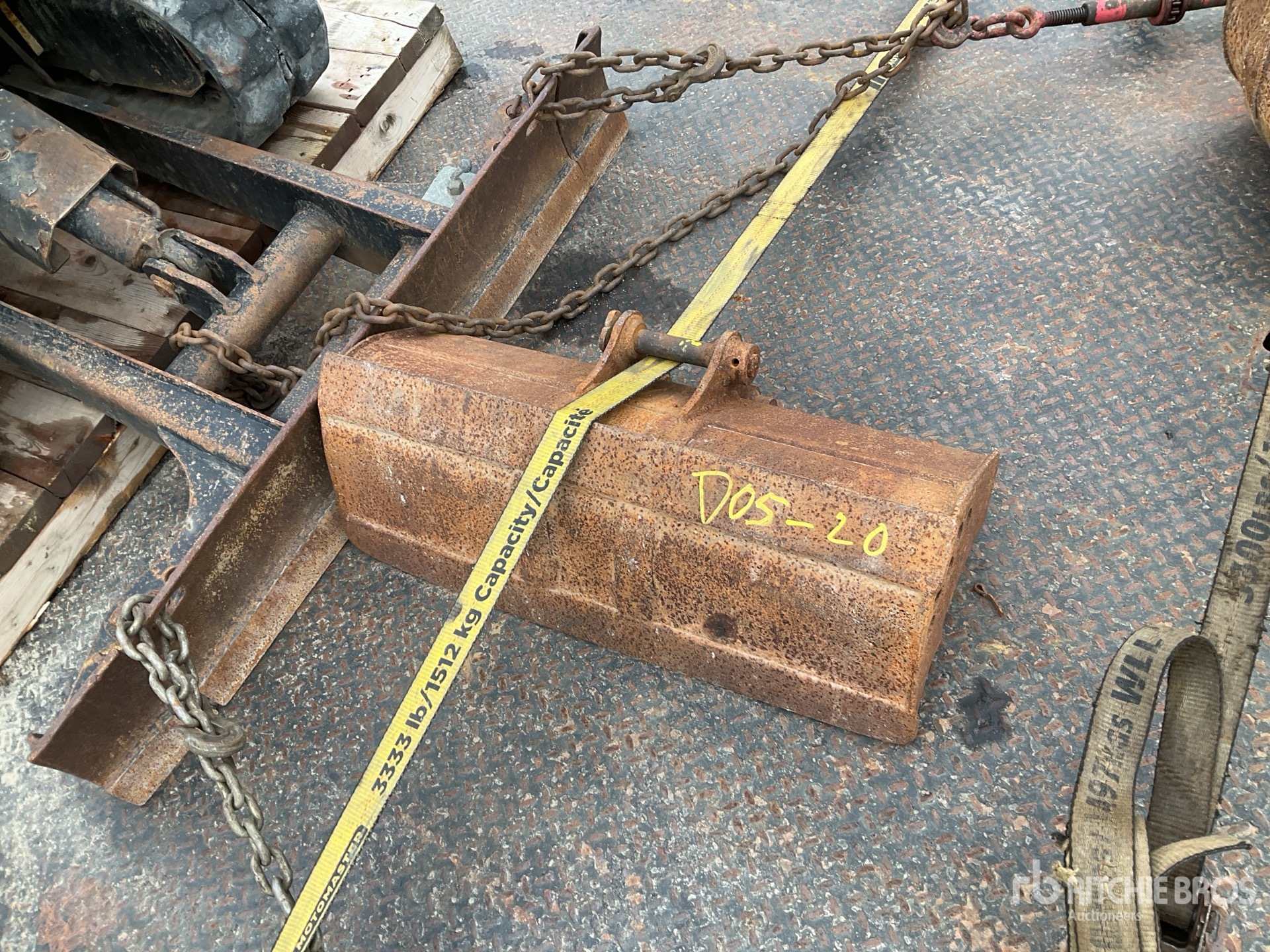

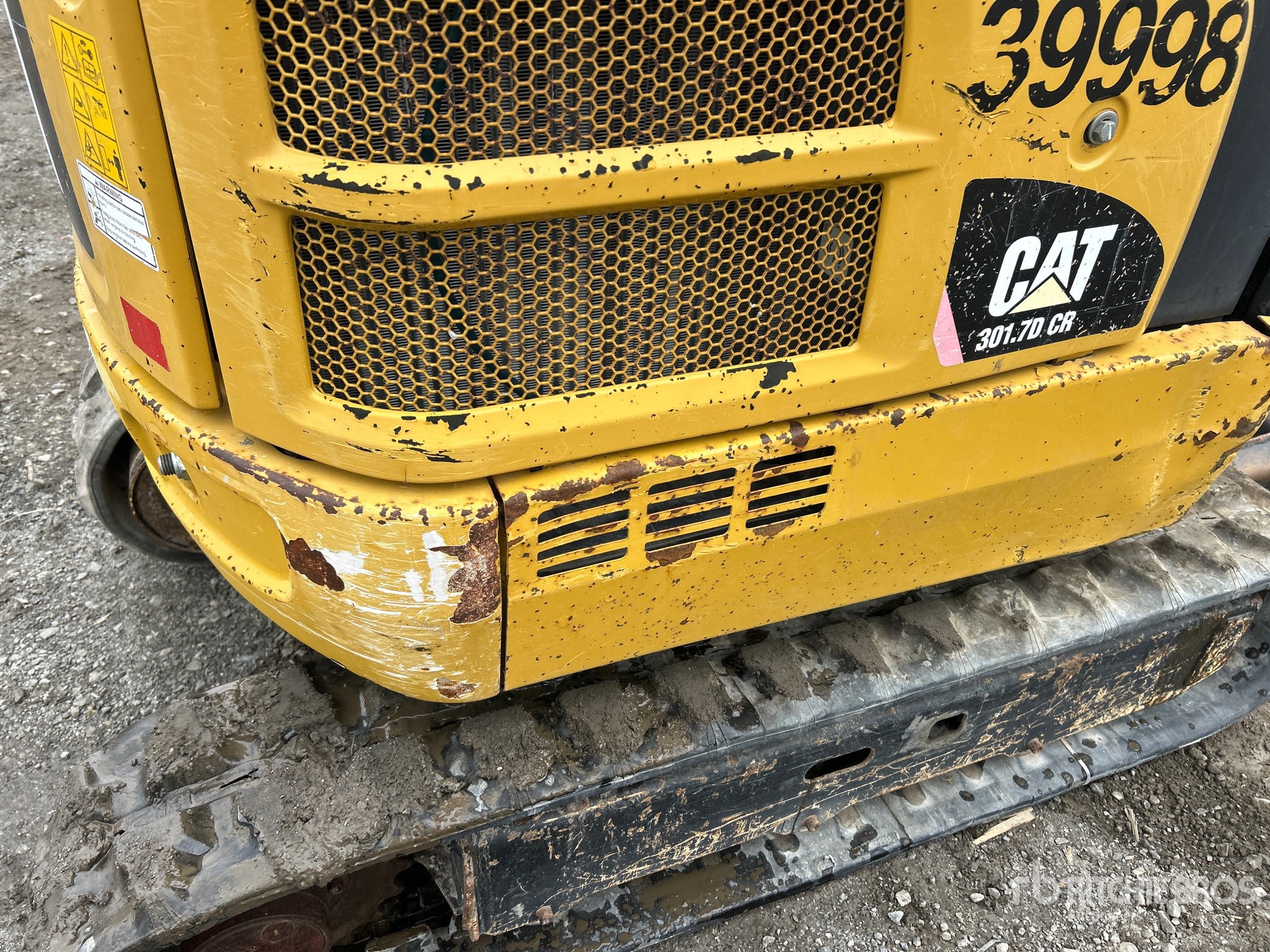

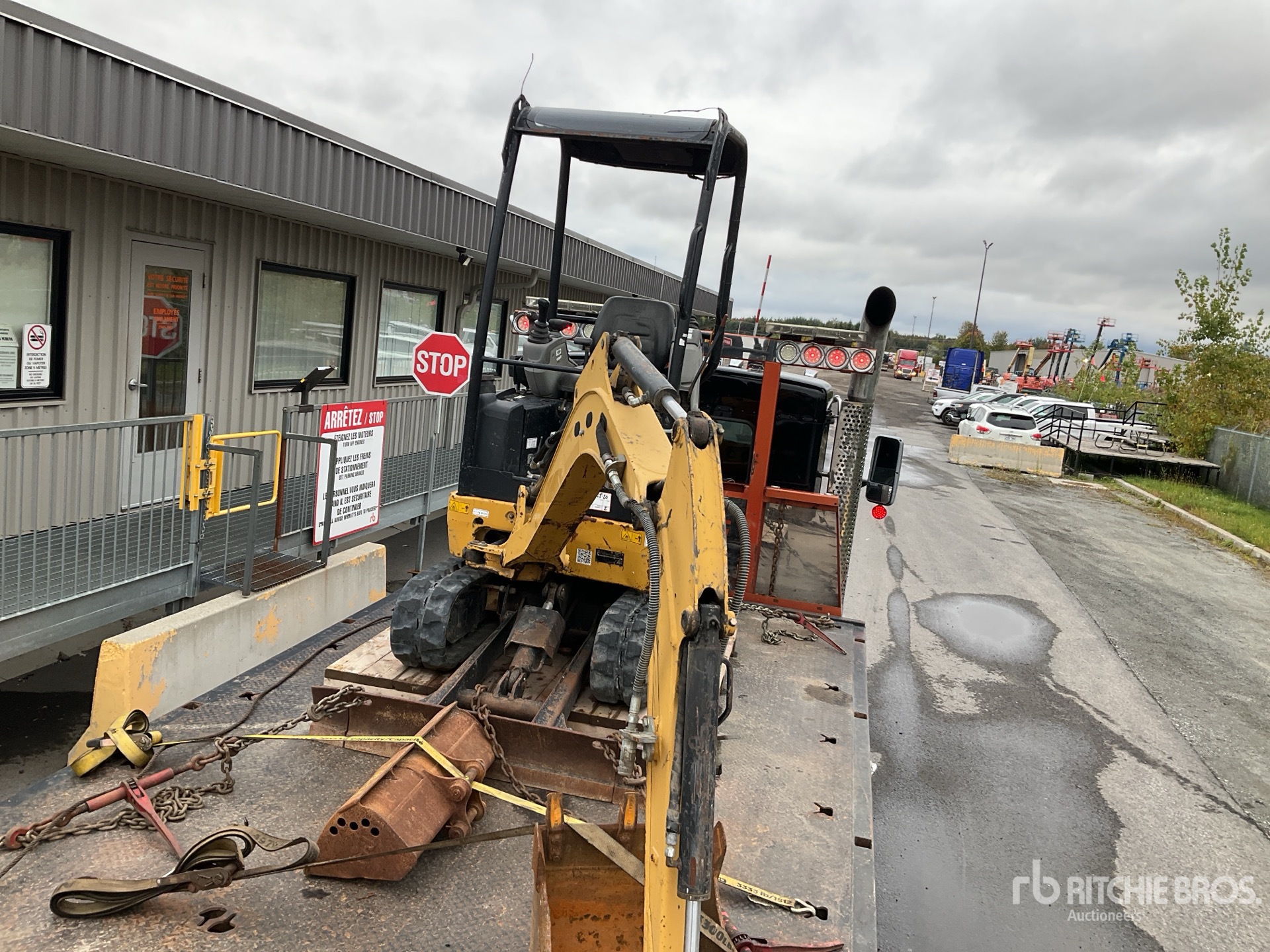

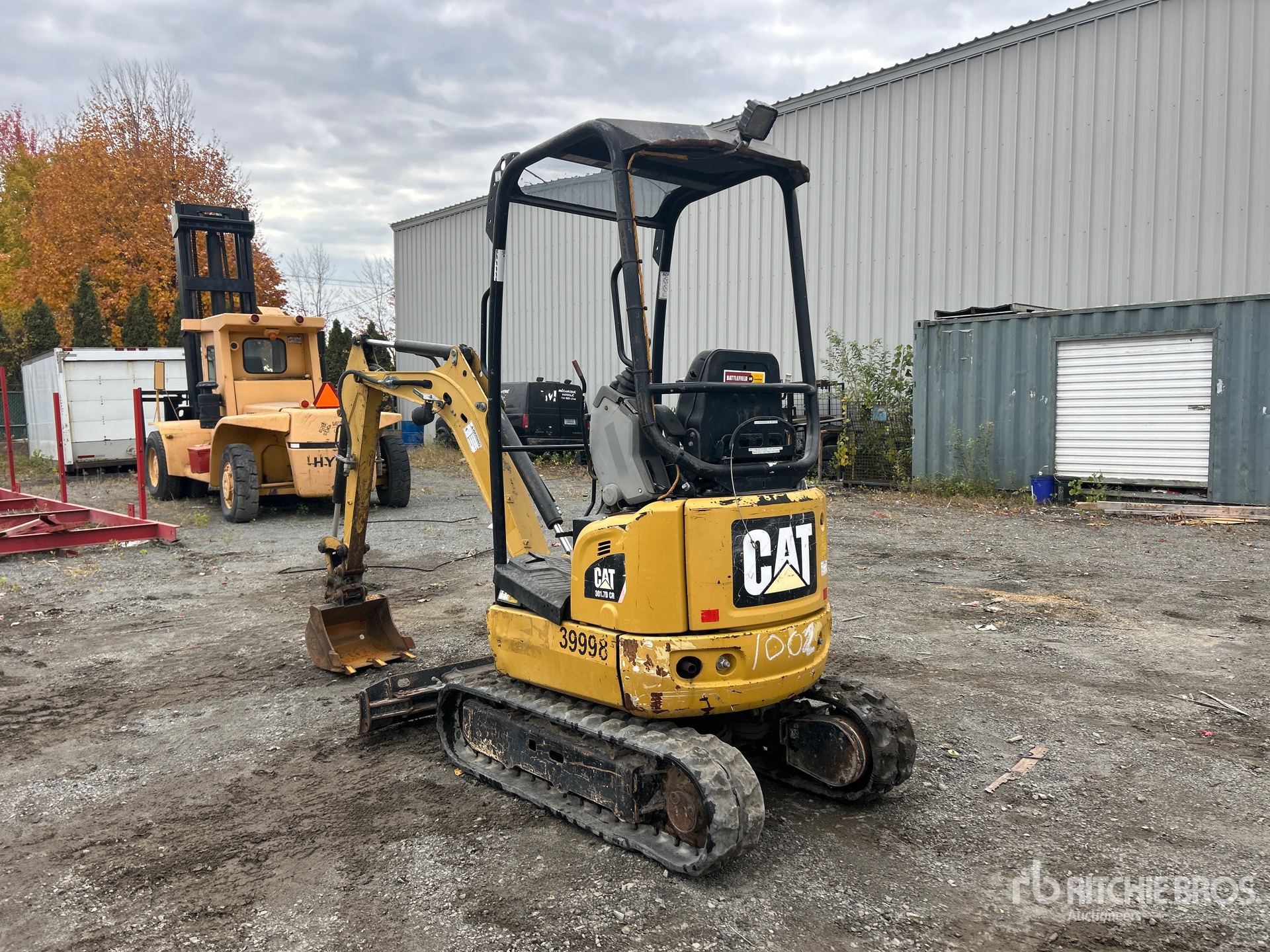

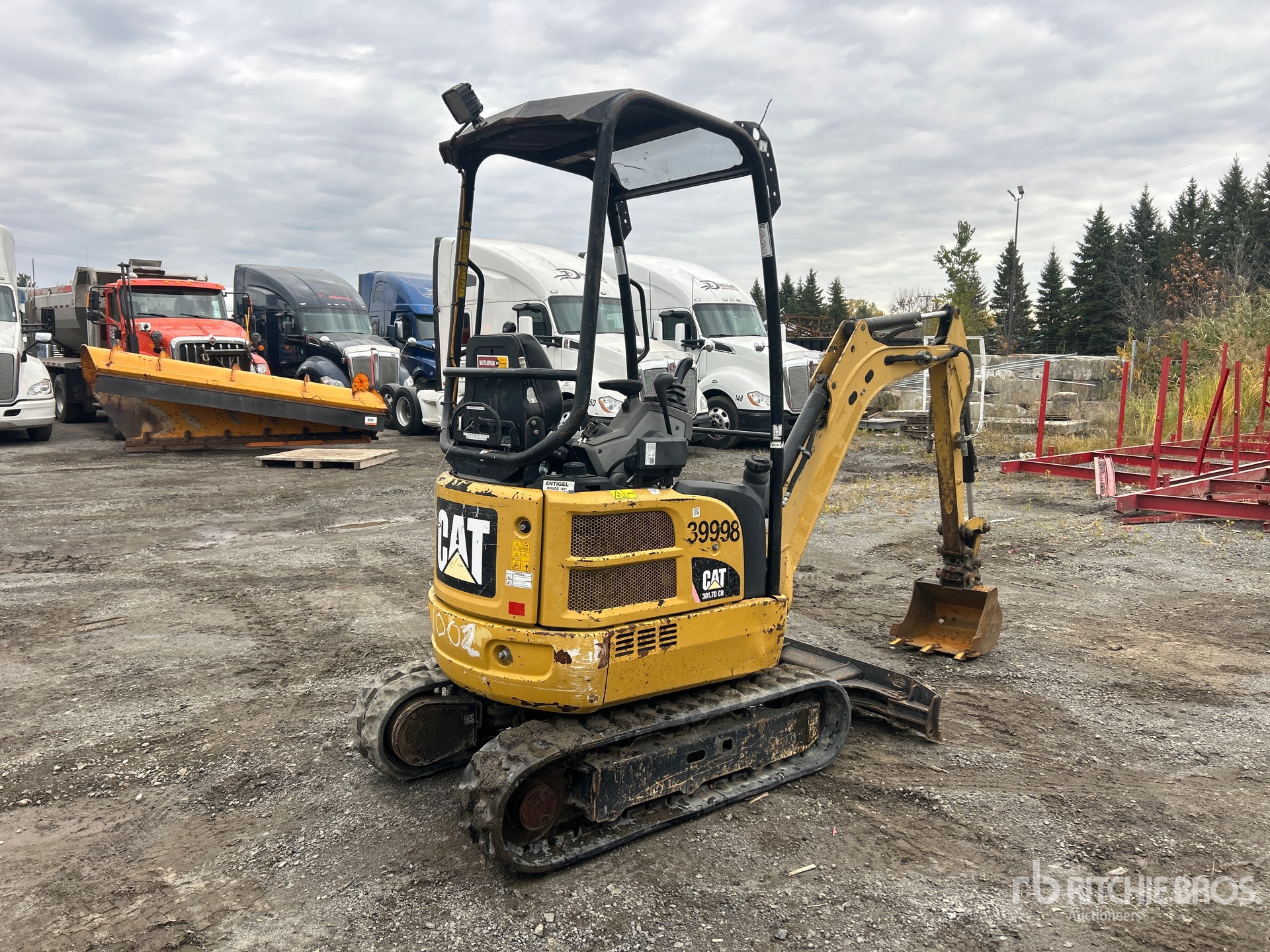

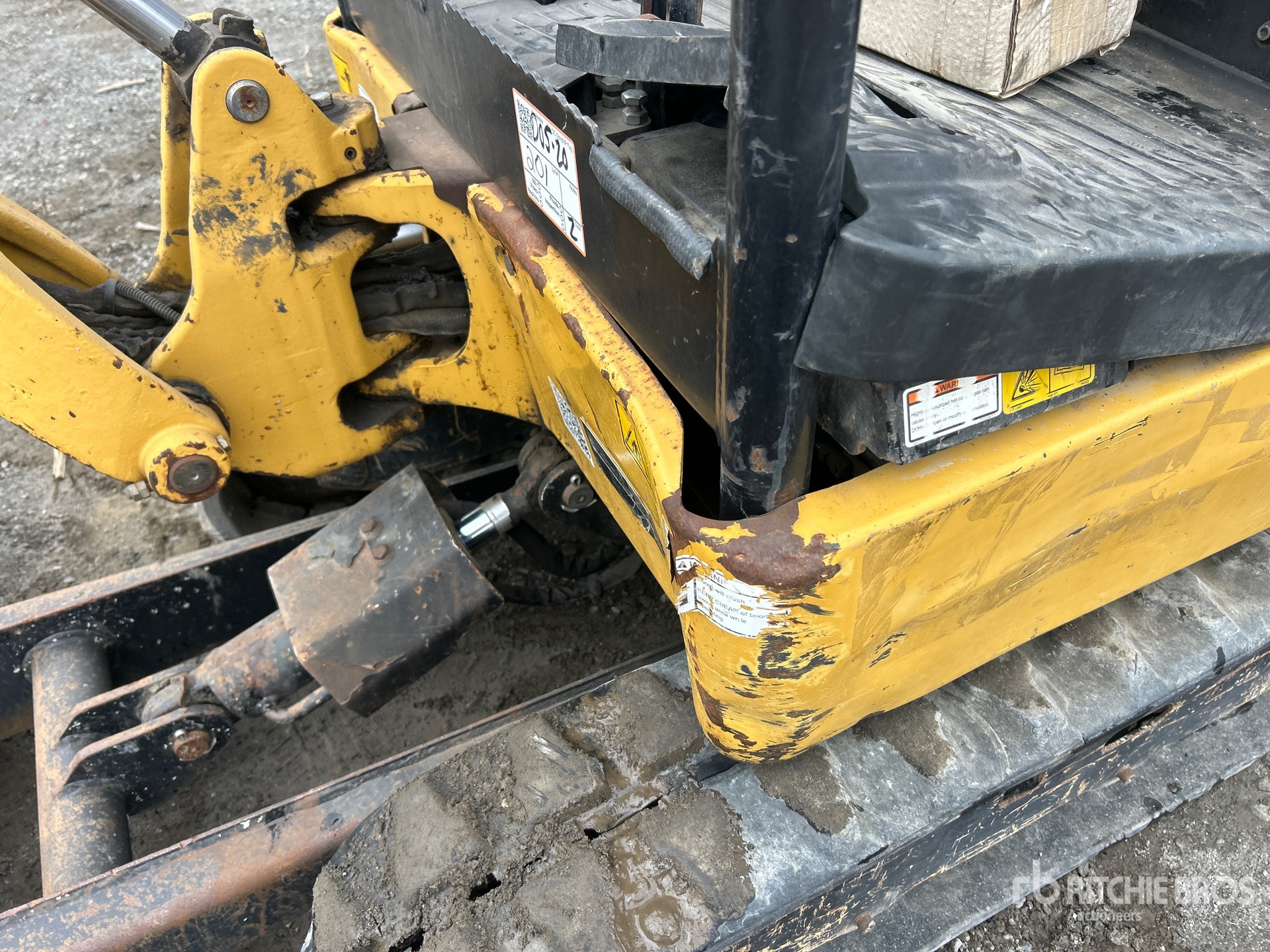

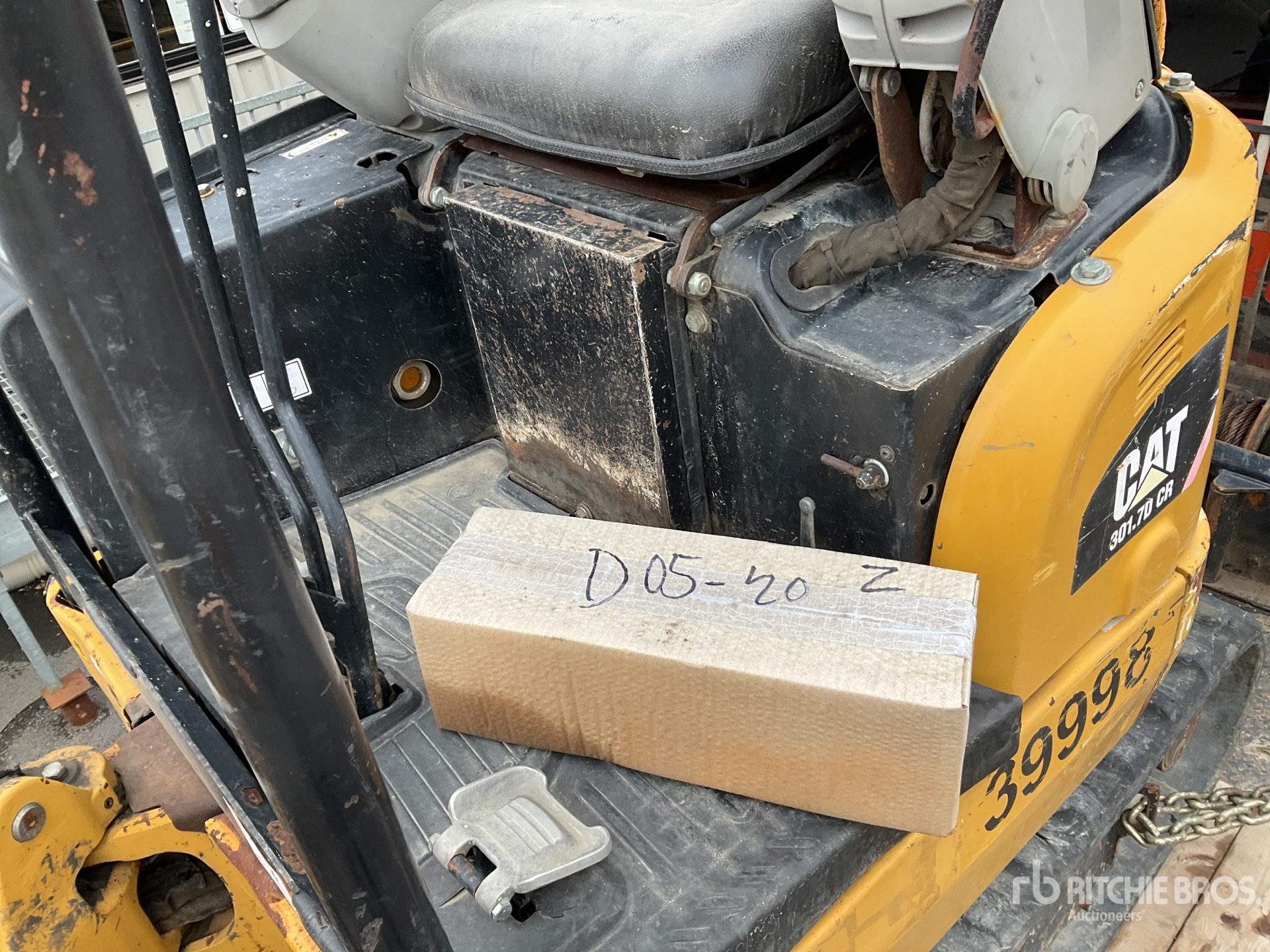

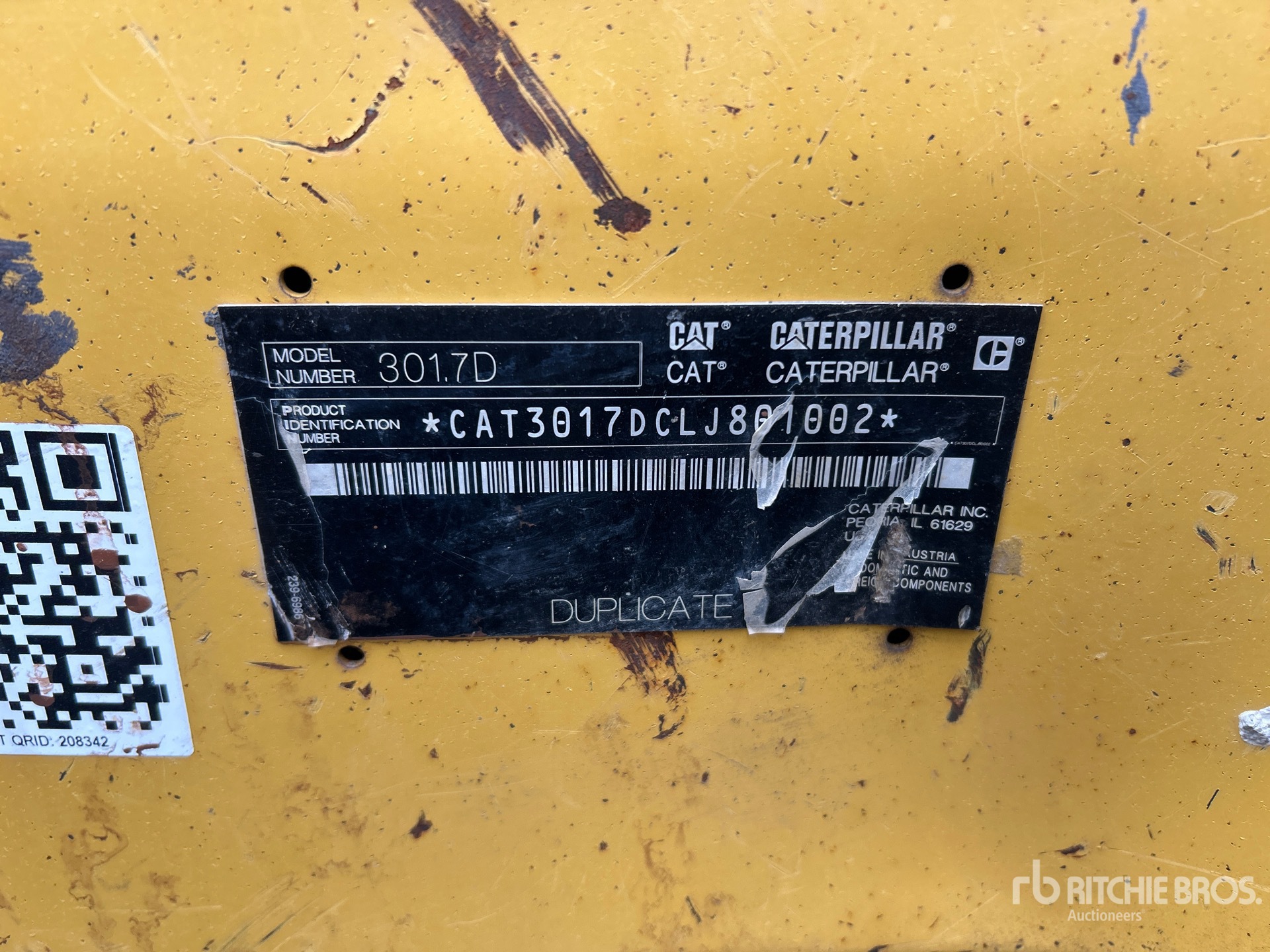

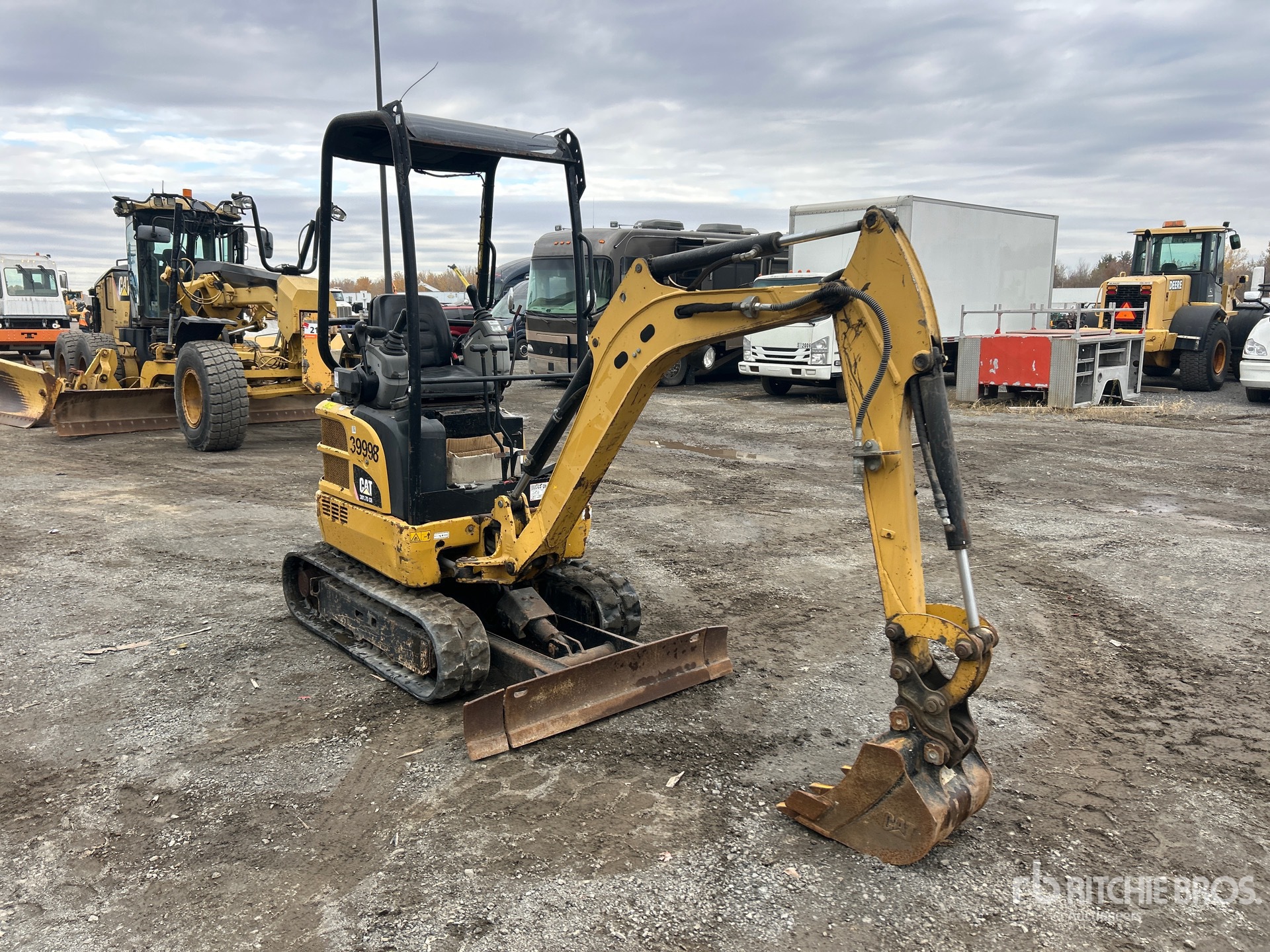

| Blade |
|
Dig Depth |
15 in (38 cm)
|
|
Height |
9 in (23 cm)
|
|
Lift Height |
11 in (28 cm)
|
| Dimensions (Approximate) - Long Stick |
|
Boom Swing Angle - Lh |
65 degrees |
|
Height |
8 ft (2 m)
|
|
Length - Undercarriage - Extending |
5 ft (2 m)
|
|
Maximum Boom Offset - Lh |
1 ft (0 m)
|
|
Maximum Boom Offset - Rh |
2 ft (1 m)
|
|
Maximum Dig Height |
12 ft (4 m)
|
|
Maximum Digging Depth |
8 ft (2 m)
|
|
Maximum Dozer Dig Depth |
1 ft (0 m)
|
|
Maximum Dozer Lift Height |
11 in (28 cm)
|
|
Maximum Dump Height |
8 ft (3 m)
|
|
Maximum Reach - Ground Level |
13 ft (4 m)
|
|
Maximum Vertical Dig Depth |
6 ft (2 m)
|
|
Transport Length - Arm Lowered |
12 ft (4 m)
|
|
Undercarriage Width - Extended |
4 ft (1 m)
|
|
Undercarriage Width - Retracted |
3 ft (1 m)
|
|
Width |
2 ft (1 m)
|
| Dimensions (Approximate) - Standard Stick |
|
Boom Swing Angle - Lh |
65 degrees |
|
Height |
8 ft (2 m)
|
|
Length - Undercarriage - Extending |
5 ft (2 m)
|
|
Maximum Boom Offset - Lh |
1 ft (0 m)
|
|
Maximum Boom Offset - Rh |
2 ft (1 m)
|
|
Maximum Dig Height |
11 ft (3 m)
|
|
Maximum Digging Depth |
8 ft (2 m)
|
|
Maximum Dozer Dig Depth |
1 ft (0 m)
|
|
Maximum Dozer Lift Height |
11 in (28 cm)
|
|
Maximum Dump Height |
8 ft (2 m)
|
|
Maximum Reach - Ground Level |
13 ft (4 m)
|
|
Maximum Vertical Dig Depth |
5 ft (2 m)
|
|
Transport Length - Arm Lowered |
12 ft (4 m)
|
|
Undercarriage Width - Extended |
4 ft (1 m)
|
|
Undercarriage Width - Retracted |
3 ft (1 m)
|
|
Width |
2 ft (1 m)
|

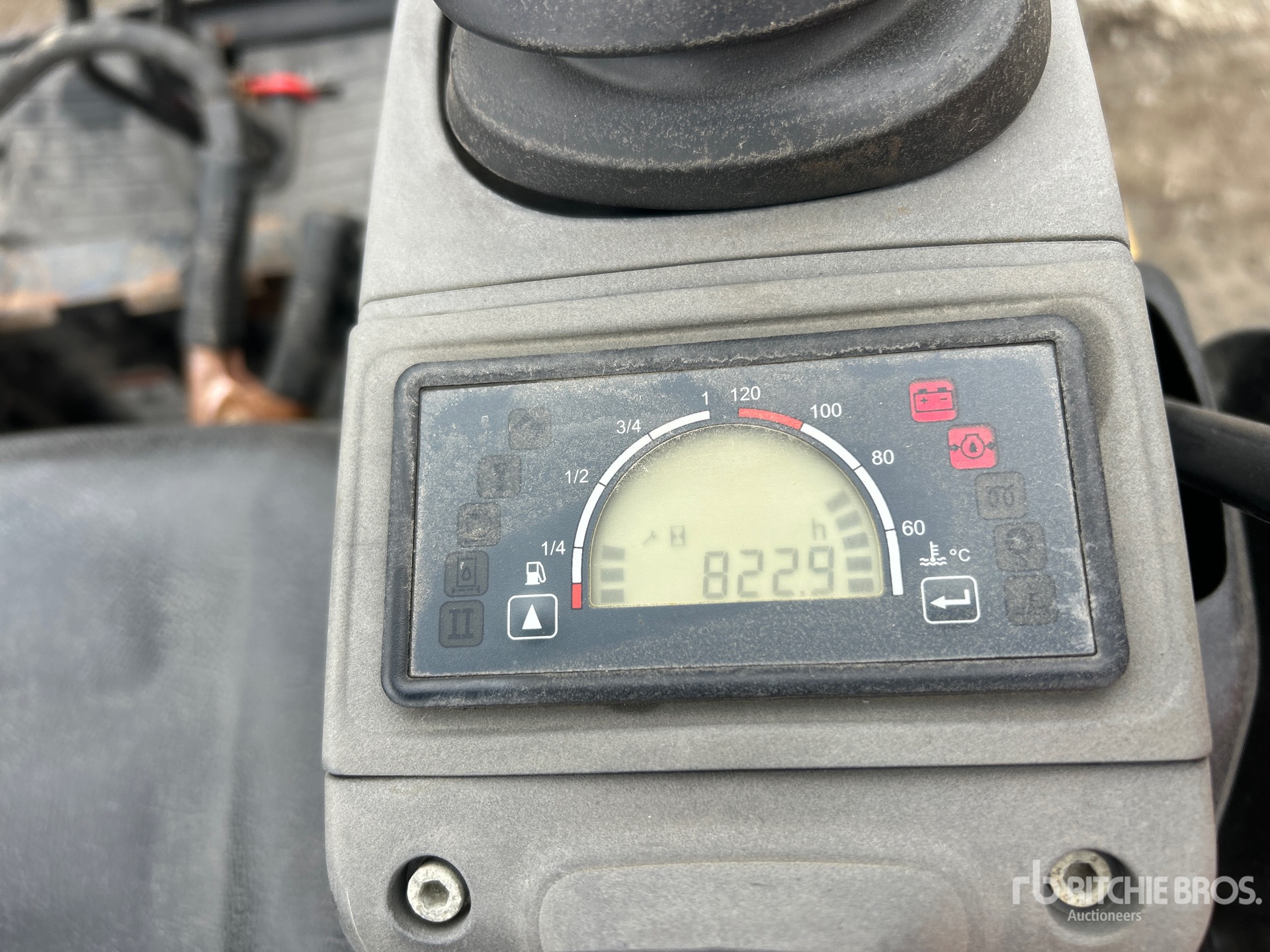

| Engine |
|
Displacement |
68 cu in (1,116 cu cm)
|
|
Engine Model |
Yanmar 3TNV76 |
|
Gross Power - Iso 14396 |
24 hp (18 kw)
|
|
Net Power |
18 hp (13 kw)
|
|
Rated Net Power - 2,200 Rpm - Iso 9249 |
18 hp (13 kw)
|
| Hydraulic System |
|
Auxiliary Circuits - Primary And Secondary - Maximum Flow |
9 gpm (34 lpm)
|
|
Auxiliary Circuits - Primary And Secondary - Maximum Pressure |
3,335 psi |
|
Maximum Bucket Force |
3,190 lbs (1,447 kg)
|
|
Maximum Stick Force - Long Stick |
1,640 lbs (744 kg)
|
|
Maximum Stick Force - Standard Stick |
1,890 lbs (857 kg)
|
|
Operating Pressure - Equipment |
3,481 psi |
|
Operating Pressure - Swing |
2,610 psi |
|
Operating Pressure - Travel |
3,481 psi |
|
Pump Flow At 2,200 Rpm |
11 gpm (40 lpm)
|
| Operating Specifications |
|
Counterweight |
110 lbs (50 kg)
|
|
Stick Length - Long |
43 in (110 cm)
|
|
Stick Length - Standard |
37 in (94 cm)
|
| Operational |
|
Operating Weight |
3,726 lbs (1,690 kg)
|
| Service Refill Capacities |
|
Fuel Tank Capacity |
5 gal (19 l)
|
|
Hydraulic Tank Capacity |
5 gal (20 l)
|
| Travel System |
|
Gradeability |
30 degrees/58% |
|
Travel Speed |
2.8 km/h-5.6 km/h (1.74 mph-3.48 mph) |
| Weights |
|
Operating Weight - With Canopy |
3,726 lbs (1,690 kg)
|
|
Transport Weight - With Canopy |
3,550 lbs (1,610 kg)
|
