Caterpillar 301.7D CR For Sale in Birmingham, AL

0 Caterpillar 301.7D CR
0 Caterpillar 301.7D CR
0 Caterpillar 301.7D CR
0 Caterpillar 301.7D CR
0 Caterpillar 301.7D CR
0 Caterpillar 301.7D CR
0 Caterpillar 301.7D CR
0 Caterpillar 301.7D CR
0 Caterpillar 301.7D CR 0 Caterpillar 301.7D CR 0 Caterpillar 301.7D CR 0 Caterpillar 301.7D CR 0 Caterpillar 301.7D CR 0 Caterpillar 301.7D CR 0 Caterpillar 301.7D CR 0 Caterpillar 301.7D CR

/ Save to Watch List

Email Dealer

Auction Pricing



   Auction Info: Starting on 2026-10-28


JJ Kane Auctions

JJ Kane Auctions Dealer Info
JJ Kane Auctions Website
Click here to email JJ Kane Auctions.

Request an equipment inspection

Get shipping quotes
Click for Phone Number

Machine Info:

Hours:111
Serial Number:LJ800415
Machine Location:BIRMINGHAM, AL

Description:

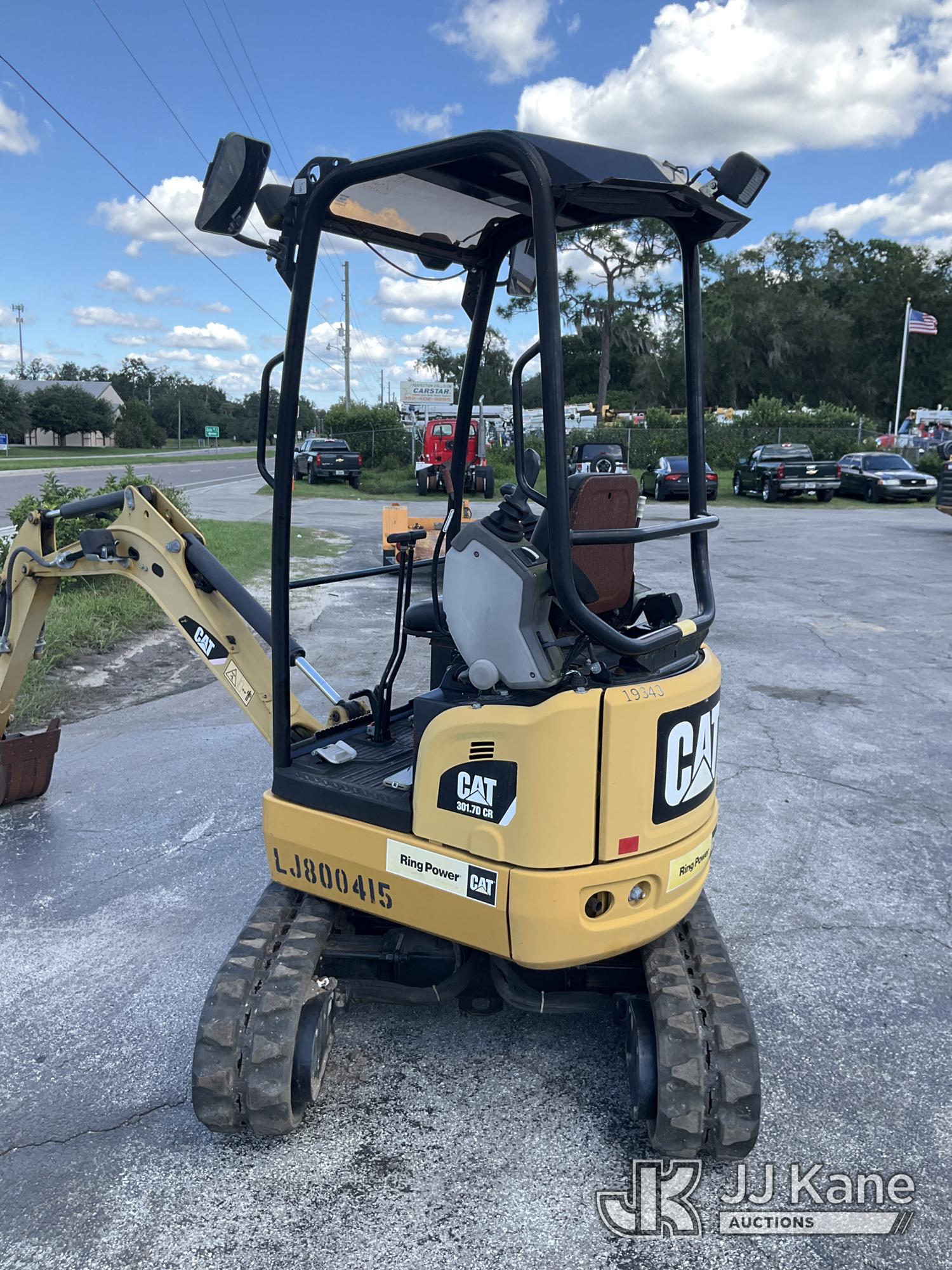

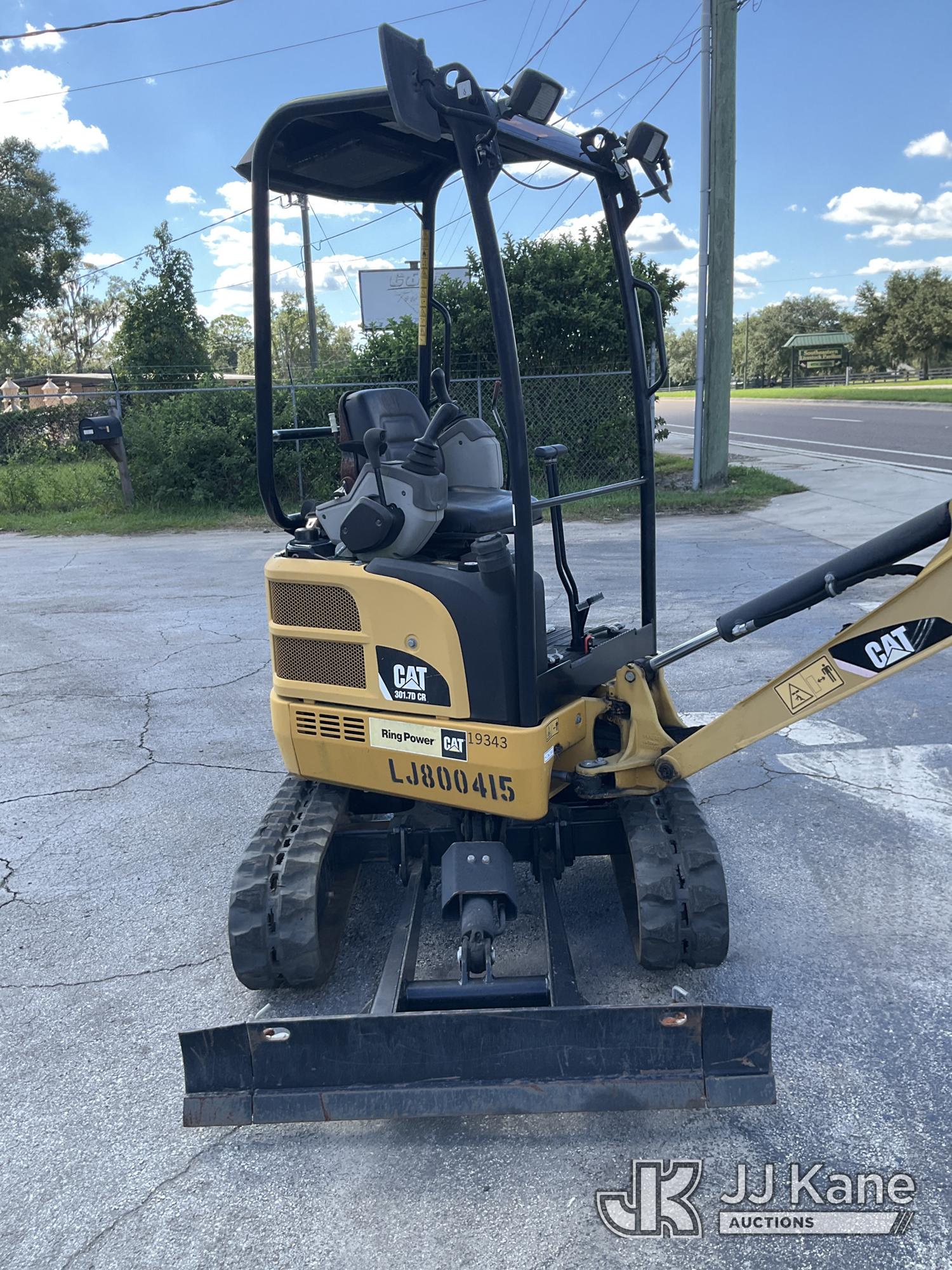

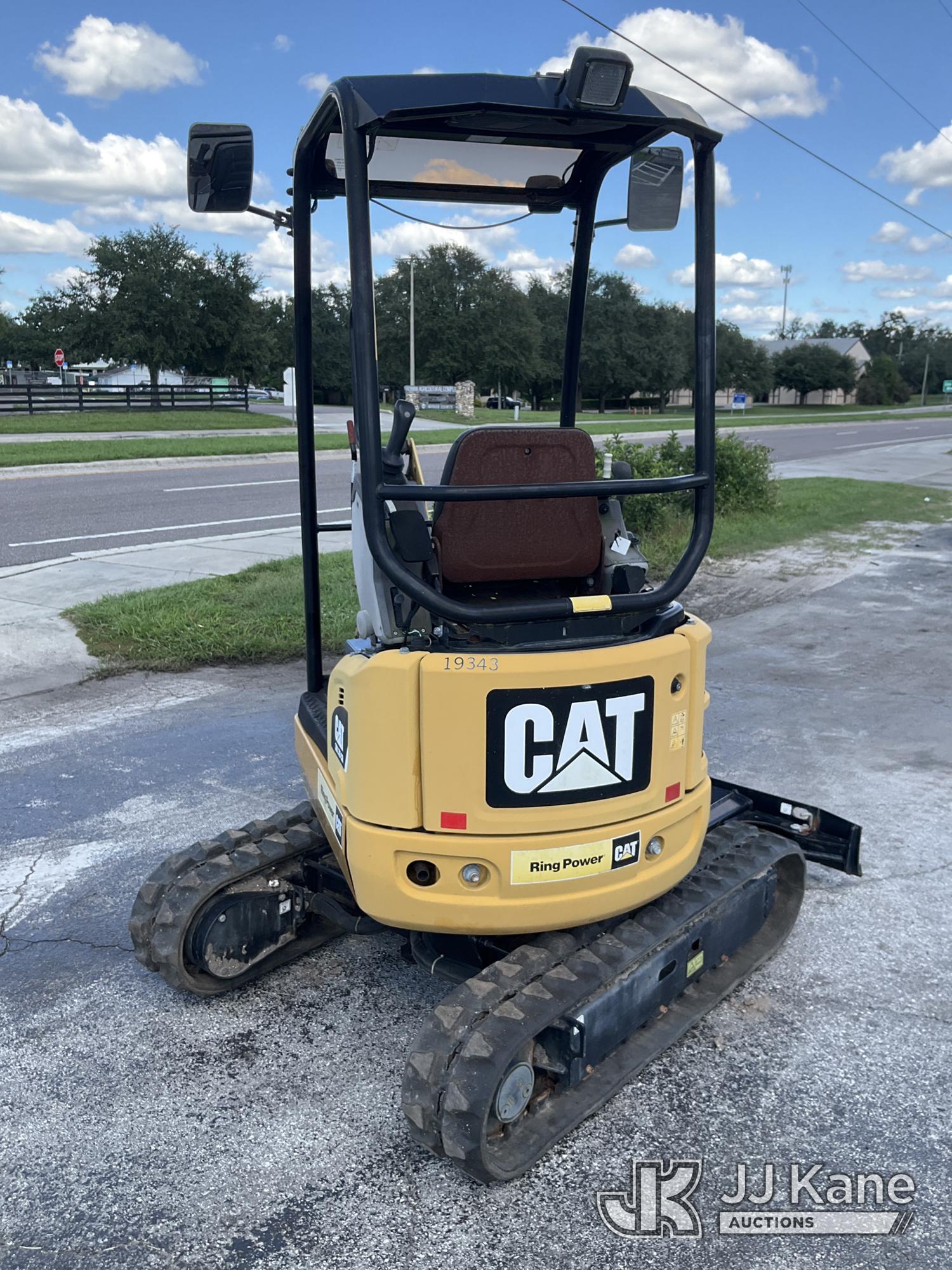

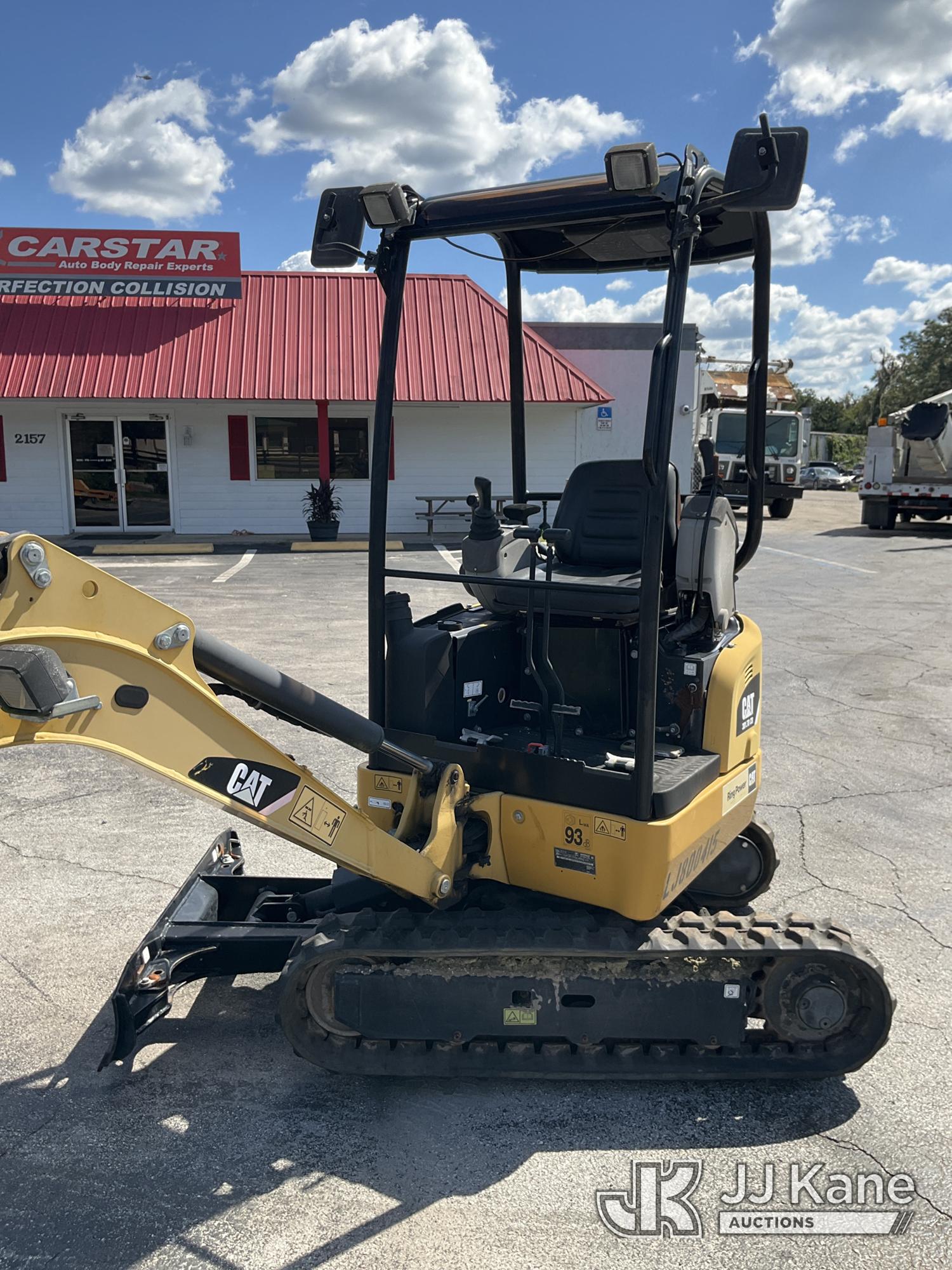

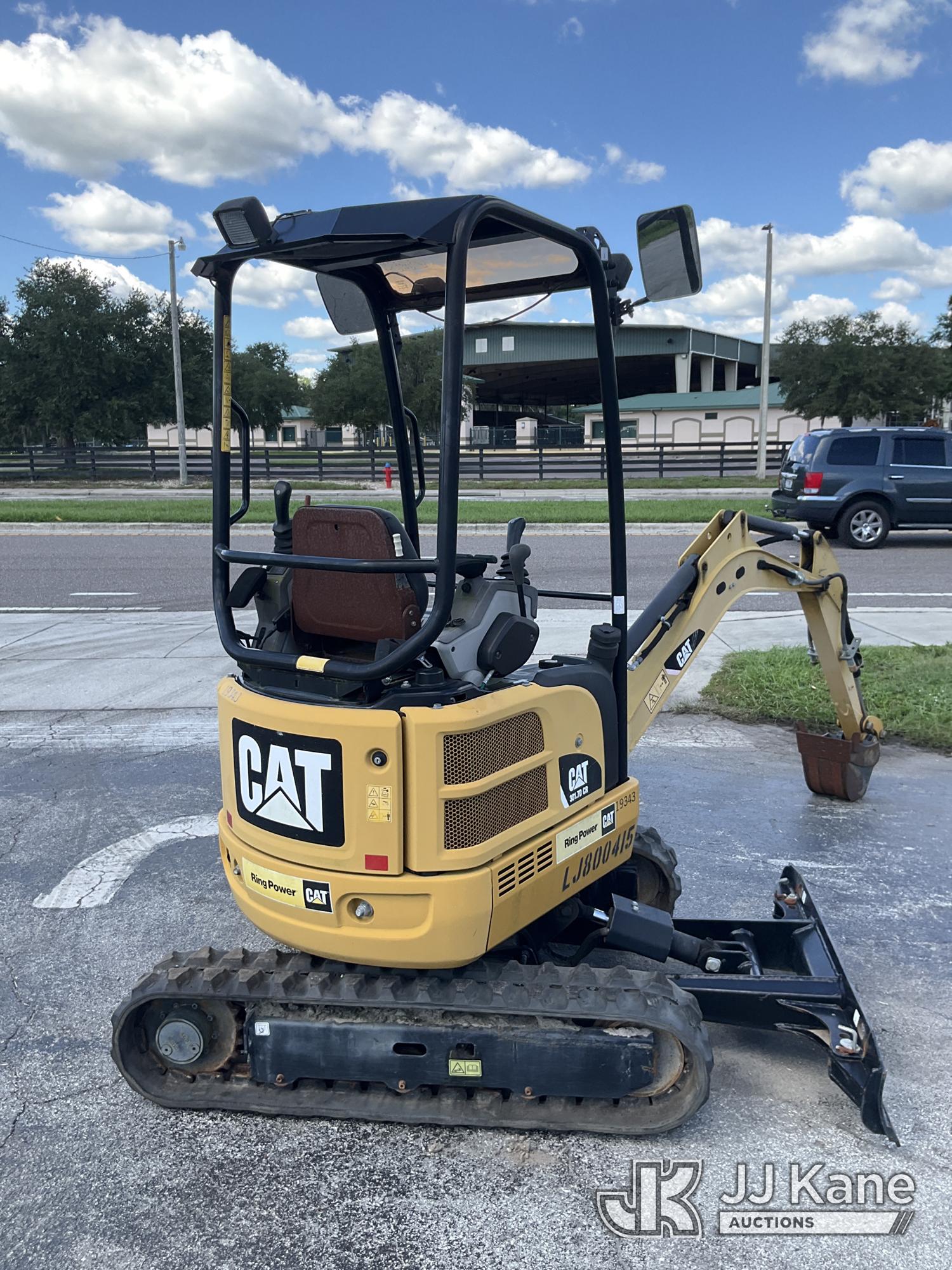

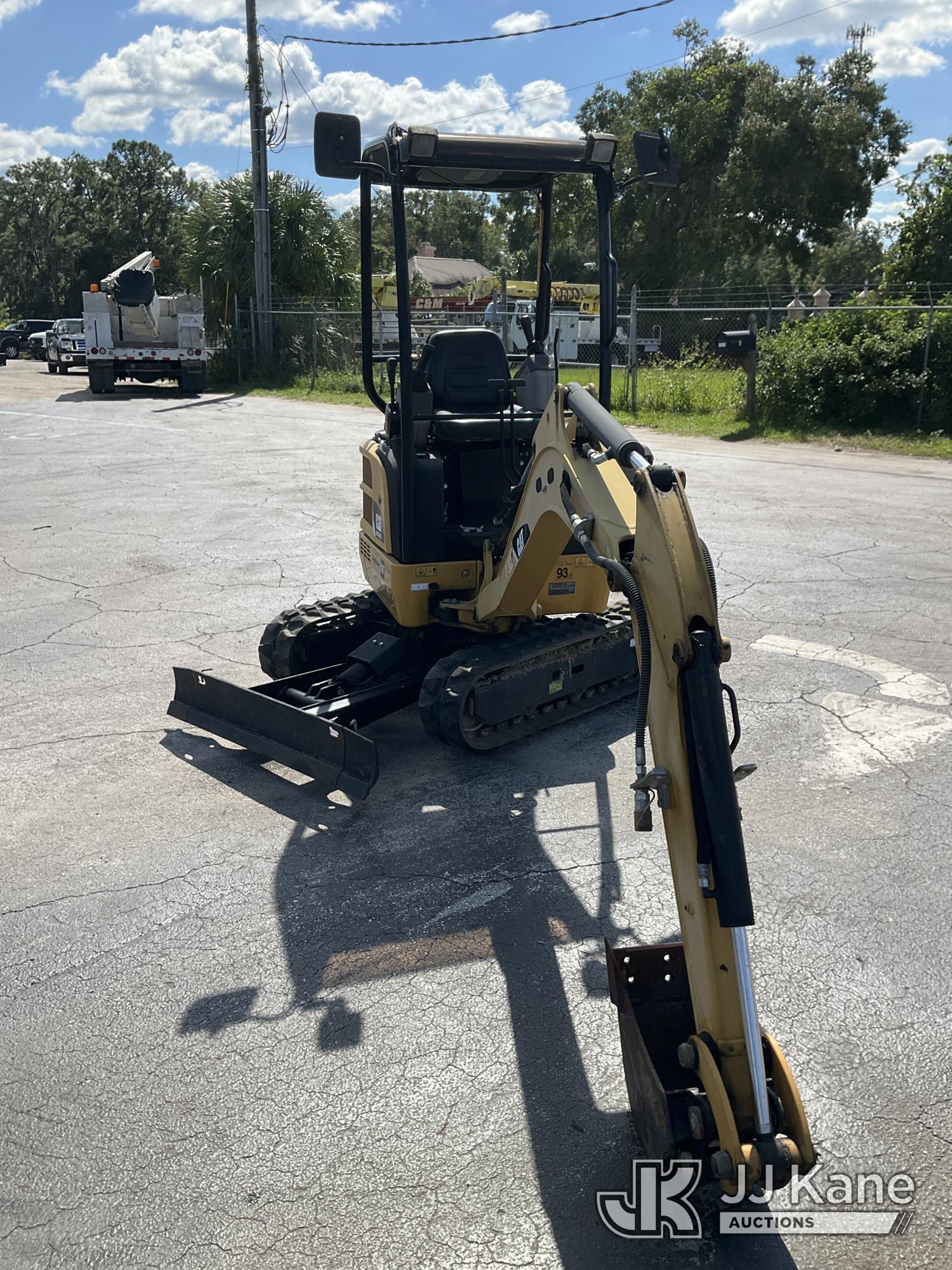

Caterpillar 301.7D CR Mini Hydraulic Excavator, s/n LJ800415, Diesel, Hydraulic Drive, with aux hydraulics, backfill blade, rubber tracks, ROPS, (Reads 111 Engine Hours) (Duke Unit) (Runs, Moves & Operates) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Ocala, FL. Inspection & preview days for this unit are by appointment only; please contact us at [email protected] or 84-Go-JJKane for more details. For more information & removal arrangements please contact Mike Lessard @ (352) 629-6677. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Caterpillar 301.7D CR is a compact mini excavator designed for construction, landscaping, utility, and site preparation work in confined spaces. It features a reduced tail swing design for improved maneuverability, a compact operating footprint, and hydraulic performance suited to digging, trenching, grading, and material handling tasks. The 301.7D CR is commonly used on urban job sites and residential projects where access is limited. As part of Caterpillar's mini excavator lineup, it is built for transportability, operator visibility, and versatile attachment use. This model is categorized under mini excavators and is suited to light-duty excavation applications.
Blade
Dig Depth 15 in (38 cm)
Height 9 in (23 cm)
Lift Height 11 in (28 cm)
Dimensions (Approximate) - Long Stick
Boom Swing Angle - Lh 65 degrees
Height 8 ft (2 m)
Length - Undercarriage - Extending 5 ft (2 m)
Maximum Boom Offset - Lh 1 ft (0 m)
Maximum Boom Offset - Rh 2 ft (1 m)
Maximum Dig Height 12 ft (4 m)
Maximum Digging Depth 8 ft (2 m)
Maximum Dozer Dig Depth 1 ft (0 m)
Maximum Dozer Lift Height 11 in (28 cm)
Maximum Dump Height 8 ft (3 m)
Maximum Reach - Ground Level 13 ft (4 m)
Maximum Vertical Dig Depth 6 ft (2 m)
Transport Length - Arm Lowered 12 ft (4 m)
Undercarriage Width - Extended 4 ft (1 m)
Undercarriage Width - Retracted 3 ft (1 m)
Width 2 ft (1 m)
Dimensions (Approximate) - Standard Stick
Boom Swing Angle - Lh 65 degrees
Height 8 ft (2 m)
Length - Undercarriage - Extending 5 ft (2 m)
Maximum Boom Offset - Lh 1 ft (0 m)
Maximum Boom Offset - Rh 2 ft (1 m)
Maximum Dig Height 11 ft (3 m)
Maximum Digging Depth 8 ft (2 m)
Maximum Dozer Dig Depth 1 ft (0 m)
Maximum Dozer Lift Height 11 in (28 cm)
Maximum Dump Height 8 ft (2 m)
Maximum Reach - Ground Level 13 ft (4 m)
Maximum Vertical Dig Depth 5 ft (2 m)
Transport Length - Arm Lowered 12 ft (4 m)
Undercarriage Width - Extended 4 ft (1 m)
Undercarriage Width - Retracted 3 ft (1 m)
Width 2 ft (1 m)

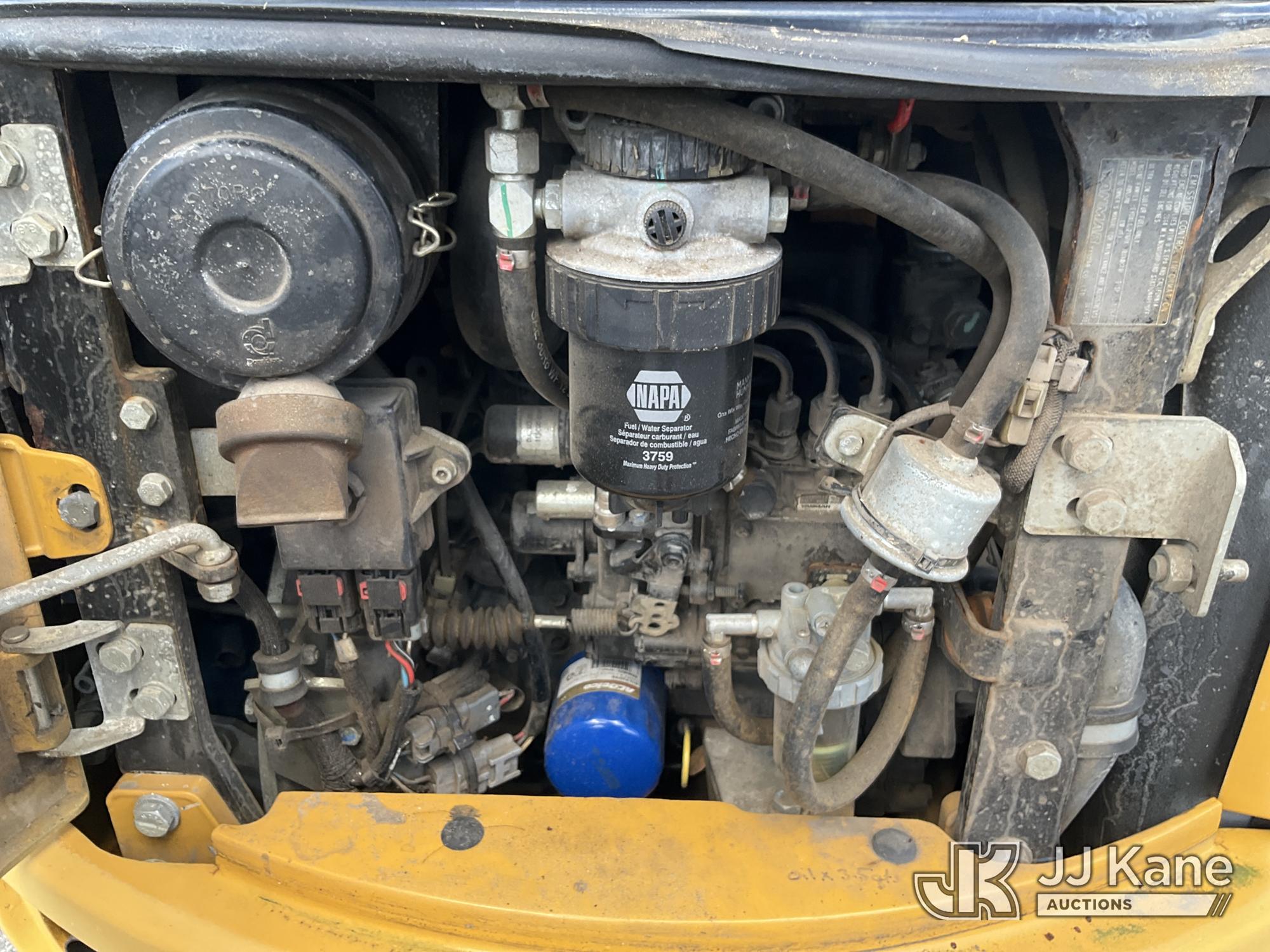

Engine
Displacement 68 cu in (1,116 cu cm)
Engine Model Yanmar 3TNV76
Gross Power - Iso 14396 24 hp (18 kw)
Net Power 18 hp (13 kw)
Rated Net Power - 2,200 Rpm - Iso 9249 18 hp (13 kw)
General Specifications
Range Dimension A (source diagram) (Since 2015) 96 in (244 cm)
Range Dimension B (source diagram) (Since 2015) 151 in (384 cm)
Range Dimension C (source diagram) (Since 2015) 91 in (231 cm)
Range Dimension D (source diagram) (Since 2015) 62 in (157 cm)
Range Dimension G (source diagram) (Since 2015) 135 in (343 cm)
Shipping Dimension A (source diagram) (Since 2015) 93 in (236 cm)
Shipping Dimension B (source diagram) (Since 2015) 39 in (99 cm)
Shipping Dimension B (source diagram) (Since 2017) 29 in (74 cm)
Shipping Dimension F (source diagram) (Since 2015) 26 in (66 cm)
Shipping Dimension G (source diagram) (Since 2015) 63 in (160 cm)
Shipping Dimension H (source diagram) (Since 2015) 141 in (358 cm)
Shipping Dimension J (source diagram) (Since 2015) 93 in (236 cm)
Stick (Since 2015) 41 in (104 cm)
Hydraulic System
Auxiliary Circuits - Primary And Secondary - Maximum Flow 9 gpm (34 lpm)
Auxiliary Circuits - Primary And Secondary - Maximum Pressure 3,335 psi
Maximum Bucket Force 3,190 lbs (1,447 kg)
Maximum Stick Force - Long Stick 1,640 lbs (744 kg)
Maximum Stick Force - Standard Stick 1,890 lbs (857 kg)
Operating Pressure - Equipment 3,481 psi
Operating Pressure - Swing 2,610 psi
Operating Pressure - Travel 3,481 psi
Pump Flow At 2,200 Rpm 11 gpm (40 lpm)
Operating Specifications
Counterweight 110 lbs (50 kg)
Stick Length - Long 43 in (110 cm)
Stick Length - Standard 37 in (94 cm)
Operational
Operating Weight 3,726 lbs (1,690 kg)
Service Refill Capacities
Fuel Tank Capacity 5 gal (19 l)
Hydraulic Tank Capacity 5 gal (20 l)
Travel System
Gradeability 30 degrees/58%
Travel Speed 2.8 km/h-5.6 km/h (1.74 mph-3.48 mph)
Weights
Operating Weight - With Canopy 3,726 lbs (1,690 kg)
Transport Weight - With Canopy 3,550 lbs (1,610 kg)
