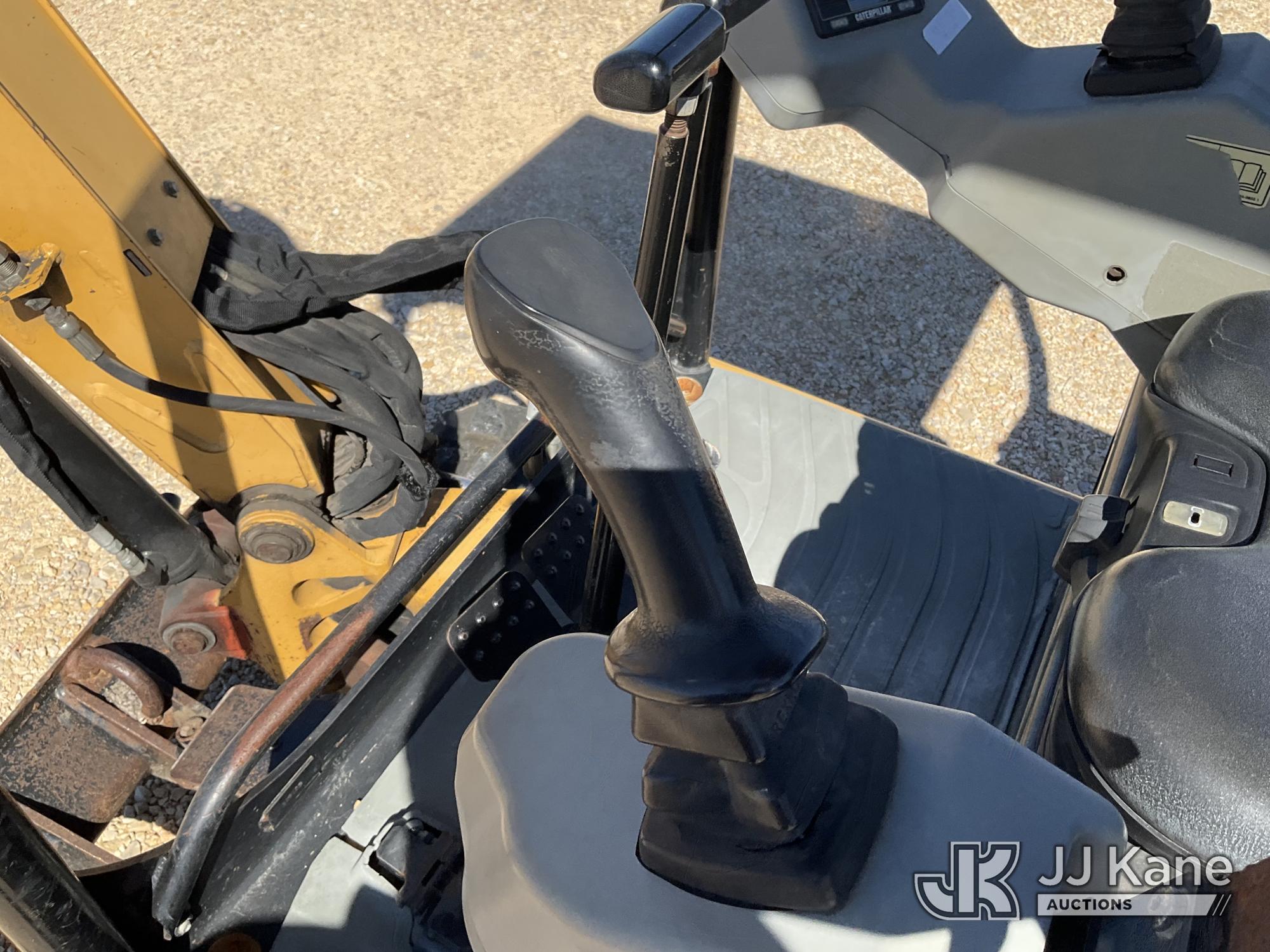

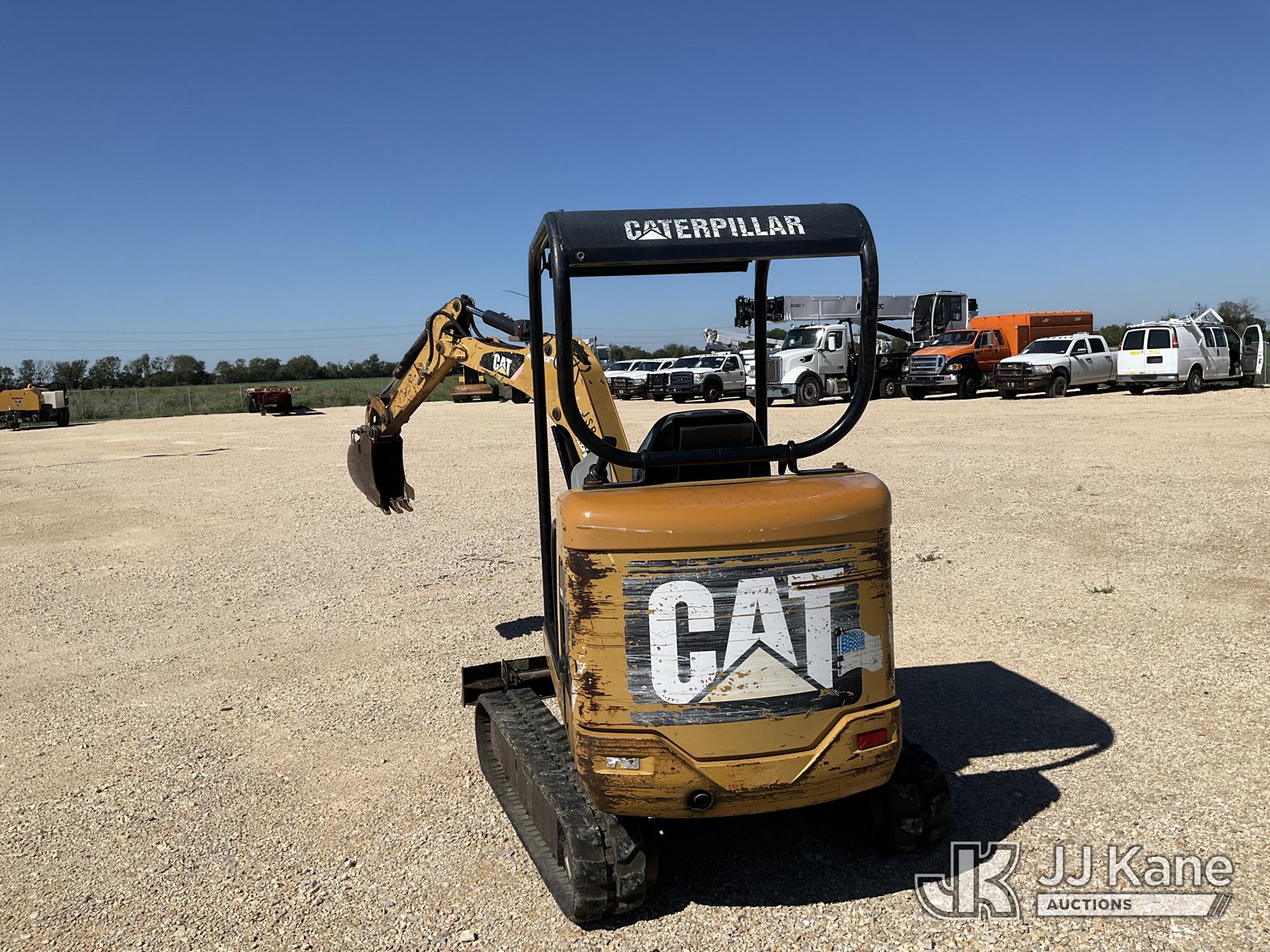

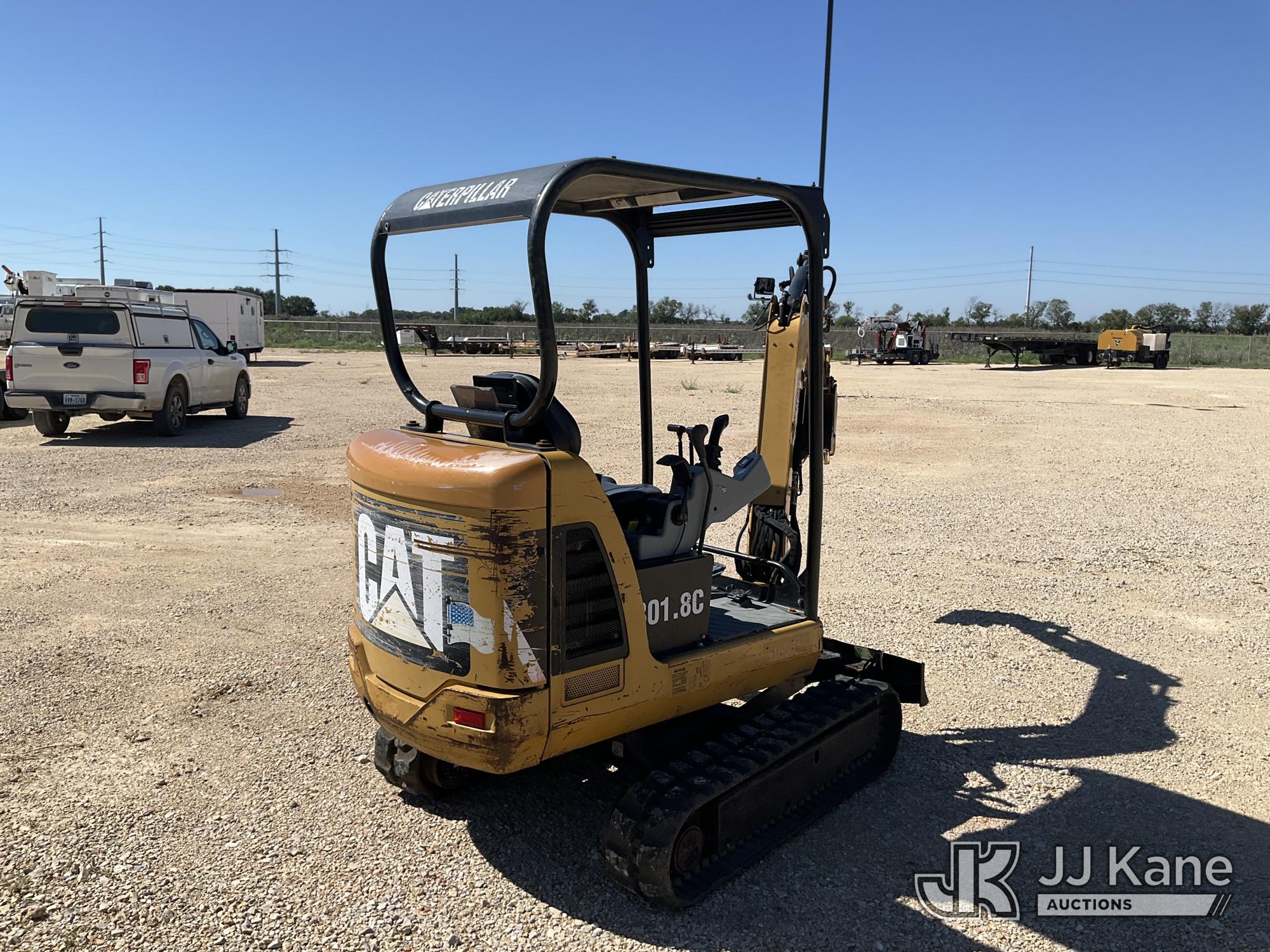

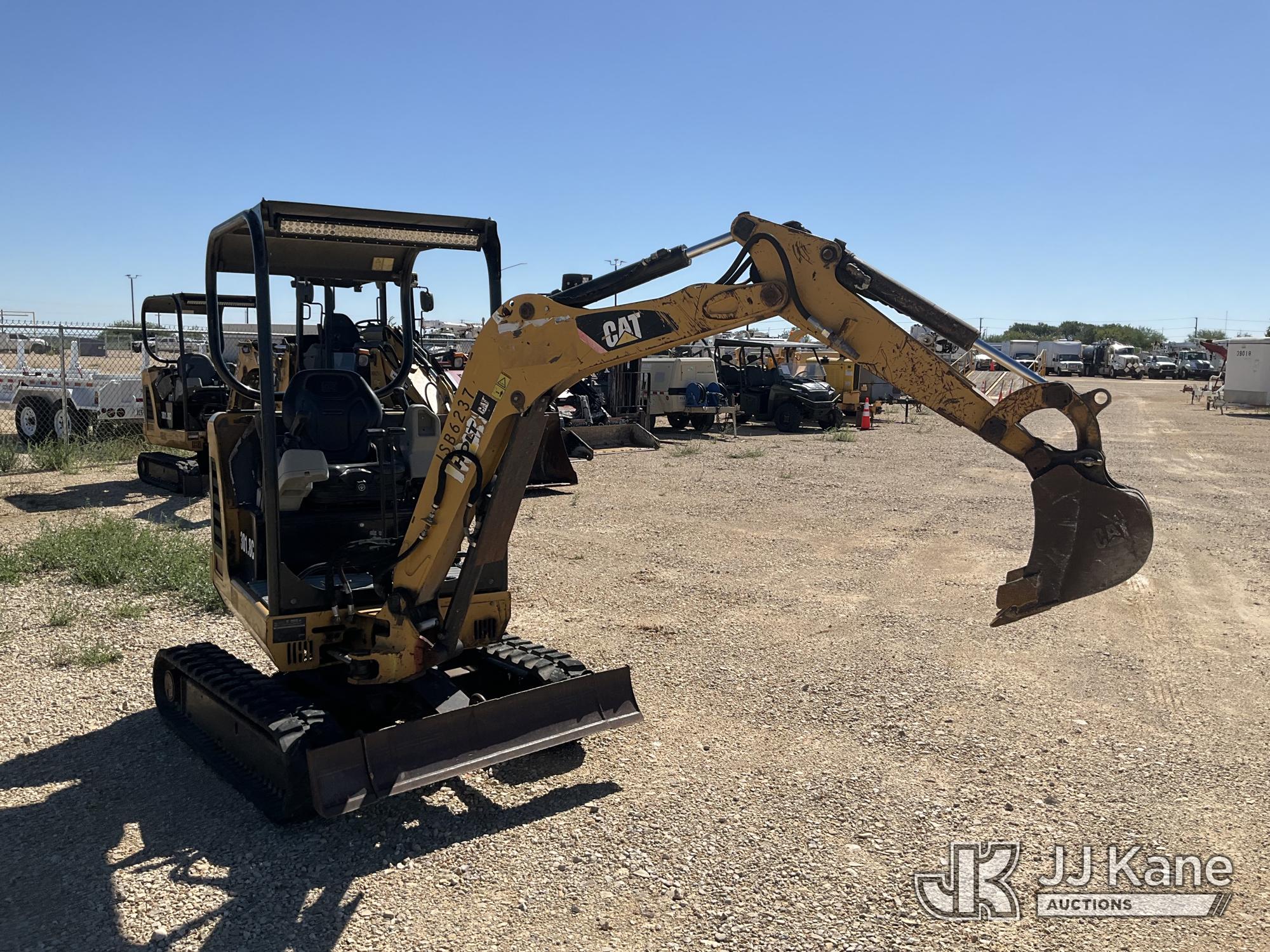

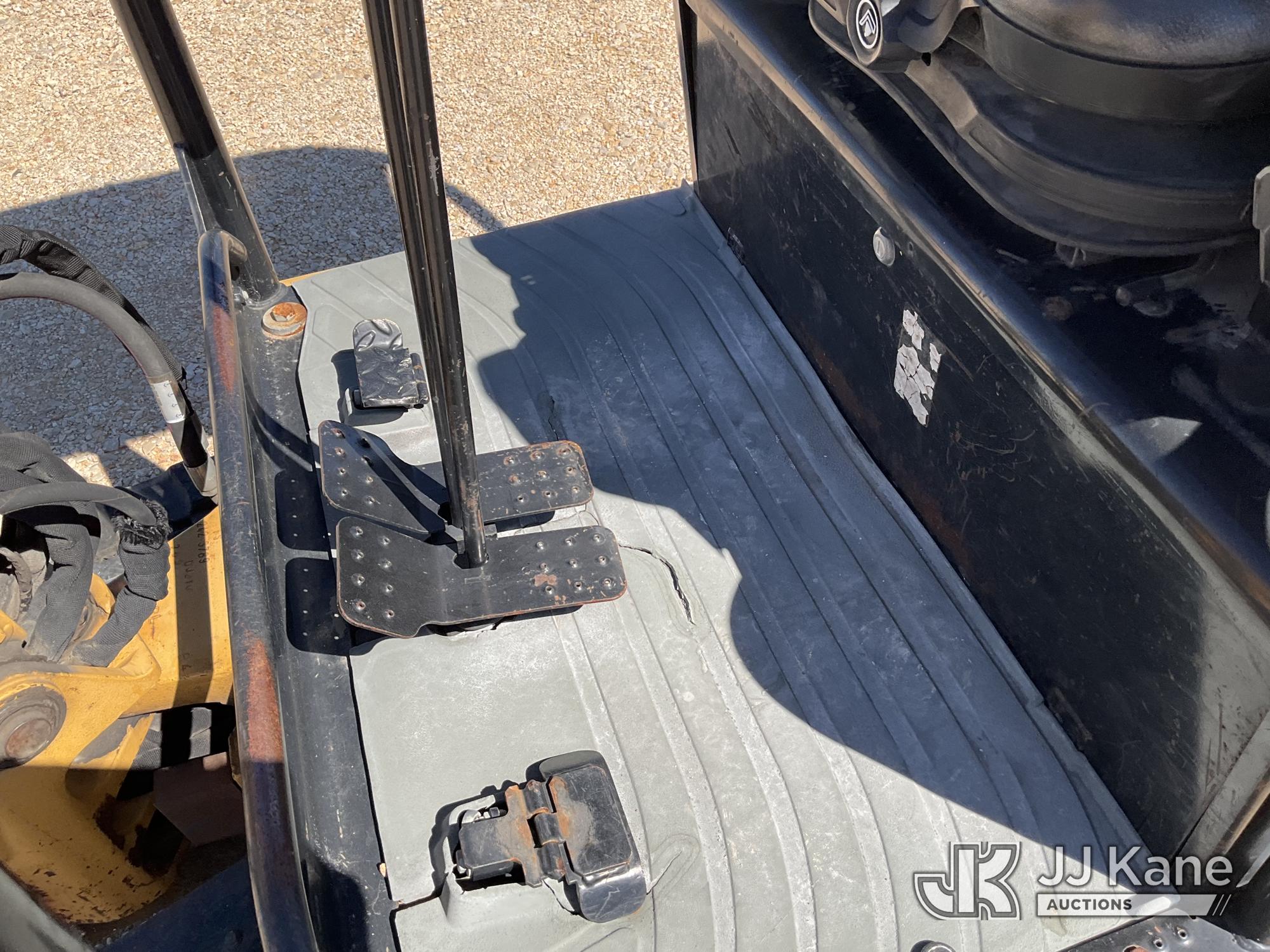

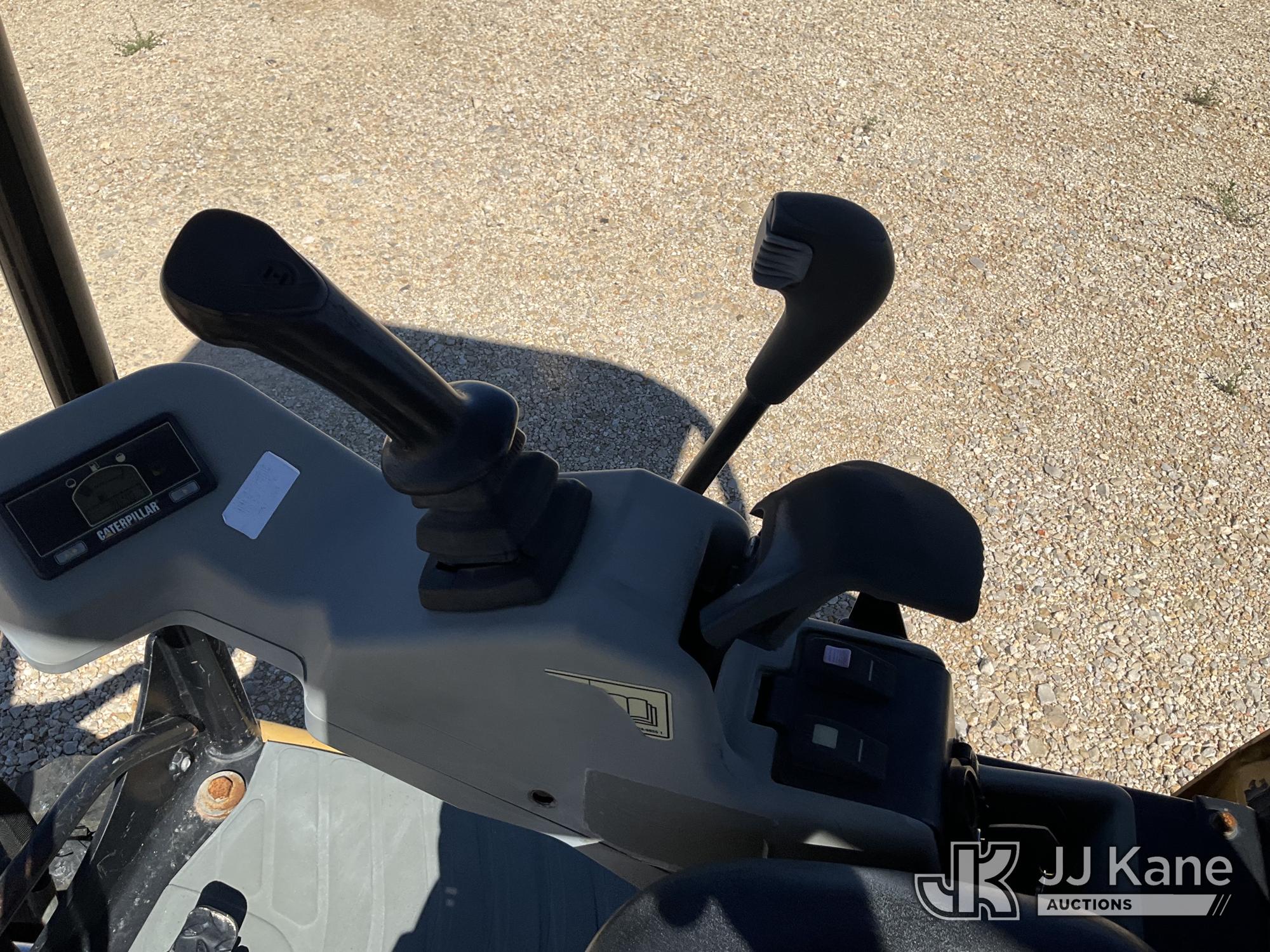

| Blade |
|
Dig Depth |
10 in (25 cm)
|
|
Height |
10 in (25 cm)
|
|
Lift Height |
8 in (20 cm)
|
|
Width |
3 ft (1 m)
|
| Boom/Stick 1 |
|
Boom/Stick 1 |
Standard Stick |
|
Max Cutting Height |
11 ft (3 m)
|
|
Max Digging Depth |
7 ft (2 m)
|
|
Max Loading Height |
8 ft (2 m)
|
|
Max Reach Along Ground |
12 ft (4 m)
|
|
Max Vertical Wall Digging Depth |
5 ft (2 m)
|
|
Shipping Height Of Unit |
7 ft (2 m)
|
|
Shipping Length Of Unit |
12 ft (4 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Long stick |
|
Max Cutting Height |
11 ft (3 m)
|
|
Max Digging Depth |
8 ft (2 m)
|
|
Max Loading Height |
8 ft (2 m)
|
|
Max Reach Along Ground |
13 ft (4 m)
|
|
Max Vertical Wall Digging Depth |
6 ft (2 m)
|
|
Shipping Height Of Unit |
7 ft (2 m)
|
|
Shipping Length Of Unit |
12 ft (4 m)
|
| Buckets |
|
Maximum Bucket Capacity |
0 cu yd |
|
Minimum Bucket Capacity |
0 cu yd |
|
Reference Bucket Capacity |
0 cu yd |
| Dimensions |
|
Center Ground Clearance |
1 ft (0 m)
|
|
Height - Over Cab |
7 ft (2 m)
|
|
Height - Over Canopy |
7 ft (2 m)
|
|
Height To Top Of Cab |
7 ft (2 m)
|
|
Length - Center Of Rollers |
11.84 ft |
|
Length Of Track On Ground |
5 ft (2 m)
|
|
Maximum Cutting Height - Long Stick |
11 ft (3 m)
|
|
Maximum Cutting Height - Standard Stick |
11 ft (3 m)
|
|
Maximum Digging Depth - Long Stick |
8 ft (2 m)
|
|
Maximum Digging Depth - Standard Stick |
7 ft (2 m)
|
|
Maximum Dump Height - Long Stick |
8 ft (2 m)
|
|
Maximum Dump Height - Standard Stick |
8 ft (2 m)
|
|
Maximum Horizontal Reach - Long Stick |
13 ft (4 m)
|
|
Maximum Horizontal Reach - Standard Stick |
12 ft (4 m)
|
|
Maximum Reach - Ground Level - Long Stick |
13 ft (4 m)
|
|
Maximum Reach - Ground Level - Standard Stick |
12 ft (4 m)
|
|
Maximum Vertical Dig Depth - Long Stick |
6 ft (2 m)
|
|
Maximum Vertical Dig Depth - Standard Stick |
5 ft (2 m)
|
|
Removal Counterweight Clearance |
1 ft (0 m)
|
|
Shipping Height |
7 ft (2 m)
|
|
Shipping Length |
12 ft (4 m)
|
|
Stick Length - Long Stick |
4 ft (1 m)
|
|
Stick Length - Standard Stick |
3 ft (1 m)
|
|
Swing Radius - Rear |
4 ft (1 m)
|
|
Tail Swing Radius |
4 ft (1 m)
|
|
Track Gauge |
3 ft (1 m)
|
|
Track Shoe Width |
9 ft (3 m)
|
|
Transport Width |
3 ft (1 m)
|
|
Width - Over Track |
3 ft (1 m)
|
|
Width - Upper Structure |
3 ft (1 m)
|
|
Width To Outside Of Tracks |
4 ft (1 m)
|
| Electrical System |
|
Electrical System Type |
Twelve-volt system |
| Engine |
|
Displacement |
53 cu in (869 cu cm)
|
|
Engine Make |
2,251 |
|
Engine Model |
L3E |
|
Engine Model |
Mitsubishi L3NE NA Diesel |
|
Gross Power |
19 hp (14 kw)
|
|
Net Power |
18 hp (14 kw)
|
|
Number Of Cylinders |
3 |
|
Power Measured @ |
2,400 rpm |
| Engine Dimensions |
|
Bore |
3 in (8 cm)
|
|
Displacement |
58 cu in (950 cu cm)
|
|
Stroke |
3 in (8 cm)
|
| Hydraulic System |
|
Auxiliary Circuits - Primary - At 174 Bar |
9 gpm (34 lpm)
|
|
Auxiliary Circuits - Secondary - At 174 Bar |
4 gpm (15 lpm)
|
|
Digging Force - Bucket |
3,462 lbs (1,570 kg)
|
|
Digging Force - Stick - Long |
1,978 lbs (897 kg)
|
|
Digging Force - Stick - Standard |
2,226 lbs (1,010 kg)
|
|
Operating Pressure - Equipment |
2,988 psi |
|
Operating Pressure - Swing |
2,524 psi |
|
Operating Pressure - Travel |
2,988 psi |
|
Pump - Gear (Dual) (Swing, Pilot) |
4 gpm (15 lpm)
|
|
Pump - Piston (Tandem) |
5 gpm (20 lpm)
|
| Msc Comments |
|
Msc Spec Date |
8/05 |
| Operational |
|
Alternator Supplied Amperage |
35 amps |
|
Cooling System Fluid Capacity |
1 gal (4 l)
|
|
Engine Oil Capacity |
1 gal (4 l)
|
|
Fuel Capacity |
6 gal (22 l)
|
|
Hydraulic Pump Flow Capacity |
11 gpm (40 lpm)
|
|
Hydraulic System Fluid Capacity |
10 gal (37 l)
|
|
Hydraulic System Relief Valve Pressure |
2,988 psi |
|
Operating Voltage |
12 V |
|
Operating Weight |
3,936 lbs (1,785 kg)
|
| Service Refill Capacities |
|
Cooling System |
1 gal (4 l)
|
|
Engine Oil |
1 gal (4 l)
|
|
Fuel Tank |
6 gal (22 l)
|
|
Hydraulic System |
10 gal (37 l)
|
|
Hydraulic Tank |
6 gal (24 l)
|
| Sound Levels |
|
Cab |
83 dB(A) |
|
Canopy |
83 dB(A) |
| Swing Mechanism |
|
Swing Speed |
11 rpm |
| Swing System |
|
Boom Swing - Left - With Stop |
54 degrees |
|
Boom Swing - Left - Without Stop |
90 degrees |
|
Boom Swing - Right |
50 degrees |
|
Machine Swing Speed |
11 rpm |
|
Swing System Type |
Hydraulic Motor Driven |
| Travel System |
|
Gradeability - Maximum - High |
30 degrees |
|
Maximum Traction Force - High Speed |
1,574 lbs (714 kg)
|
|
Maximum Traction Force - Low Speed |
3,372 lbs (1,530 kg)
|
|
Travel Speed - High |
3 mph (5 kph)
|
|
Travel Speed - Low |
1 mph (2 kph)
|
| Undercarriage |
|
Max Travel Speed |
3 mph (5 kph)
|
|
Shoe Size |
9 in (23 cm)
|
|
Track Gauge |
3 ft (1 m)
|
| Weights |
|
Operating Weight |
3,703 lbs (1,680 kg)
|
|
Operating Weight - With Cab |
3,935 lbs (1,785 kg)
|
