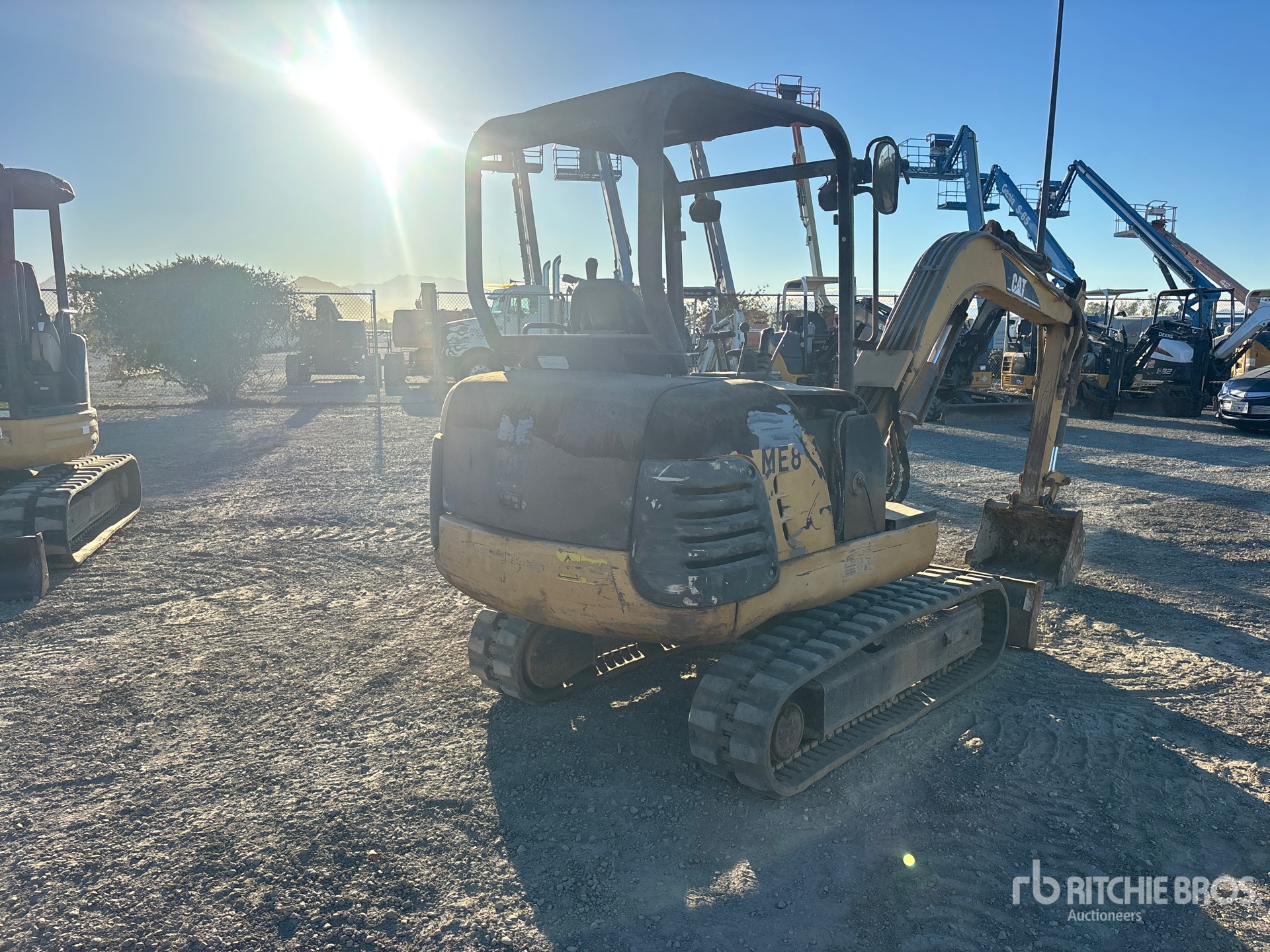

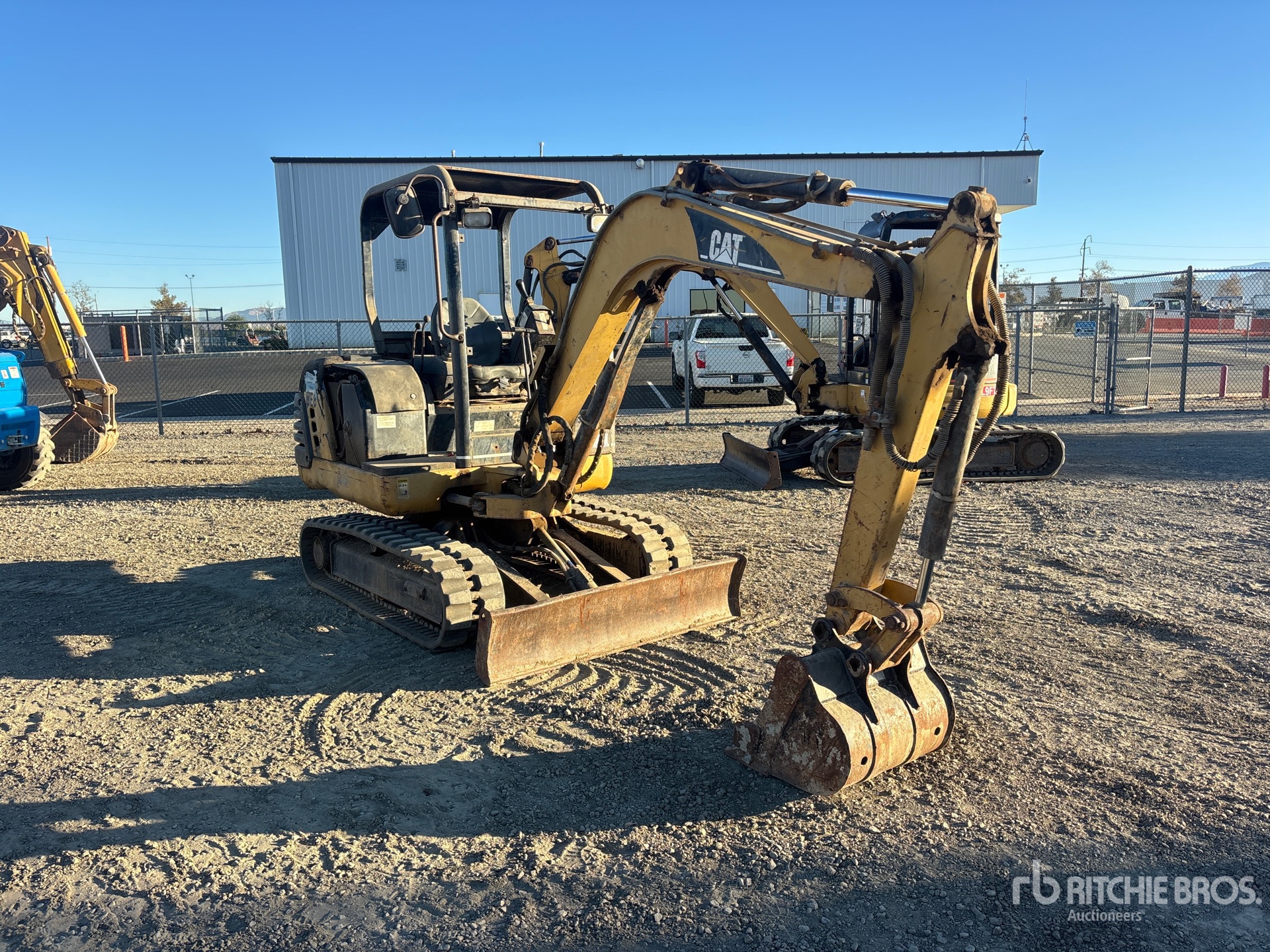

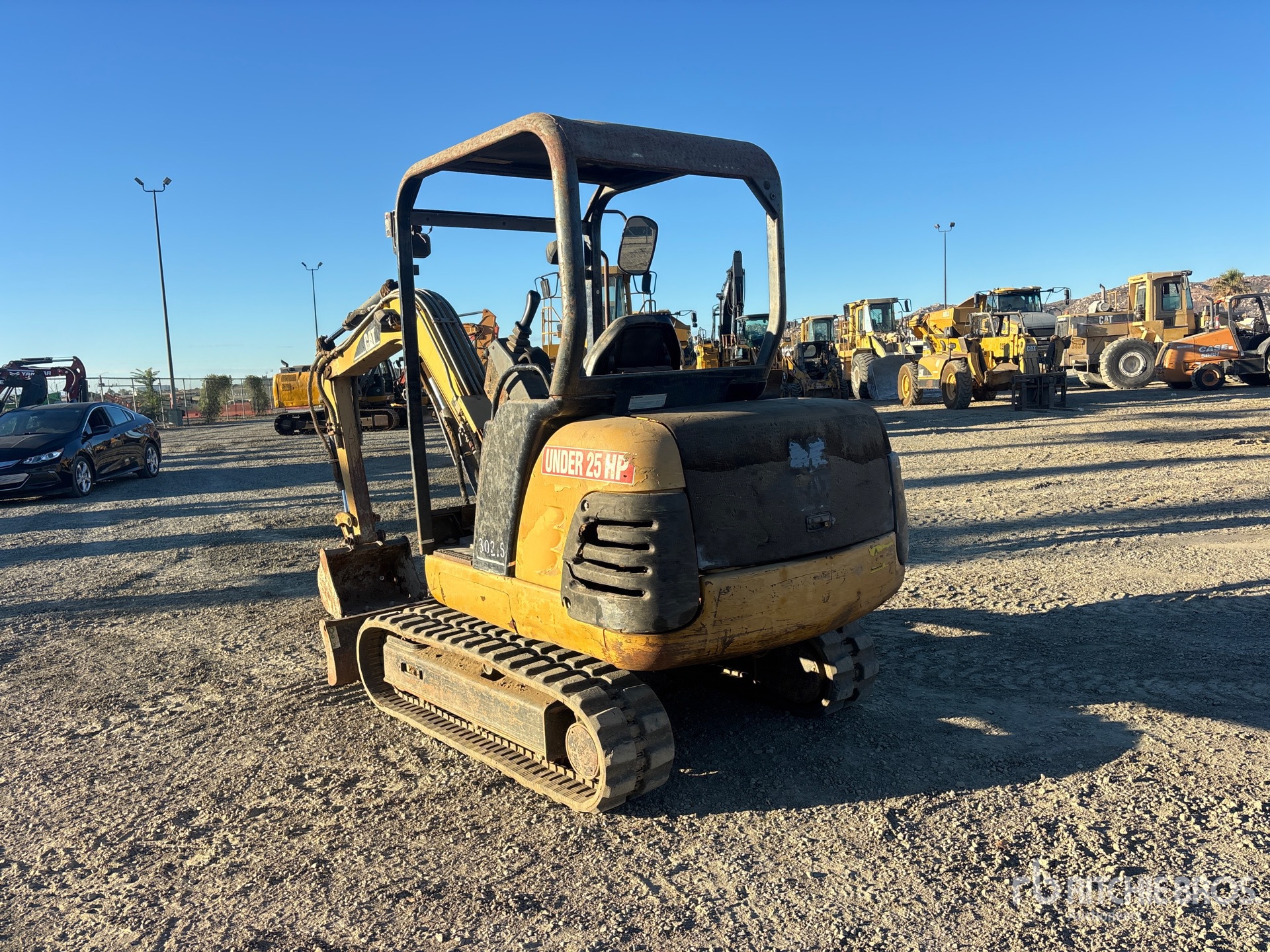

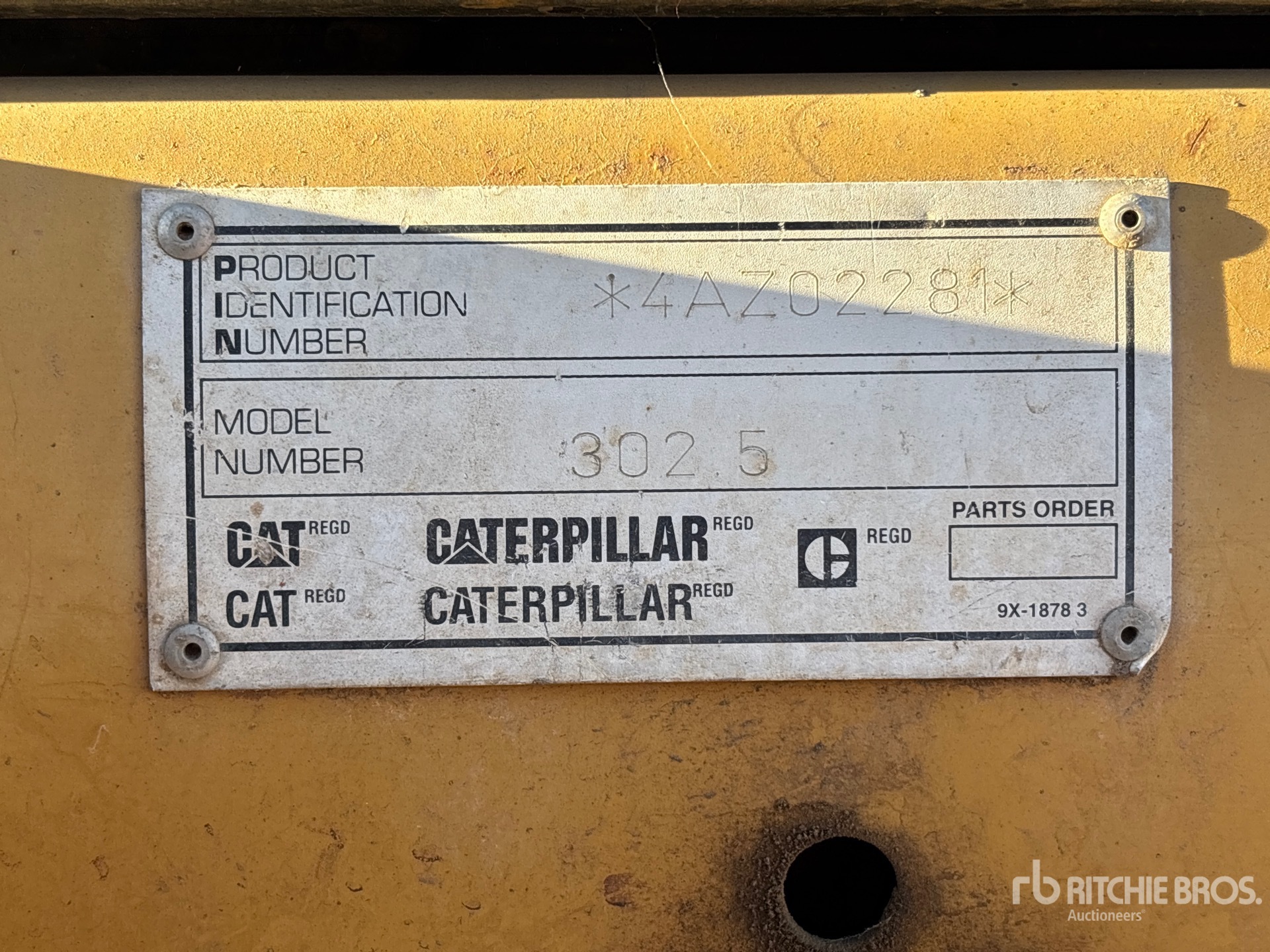

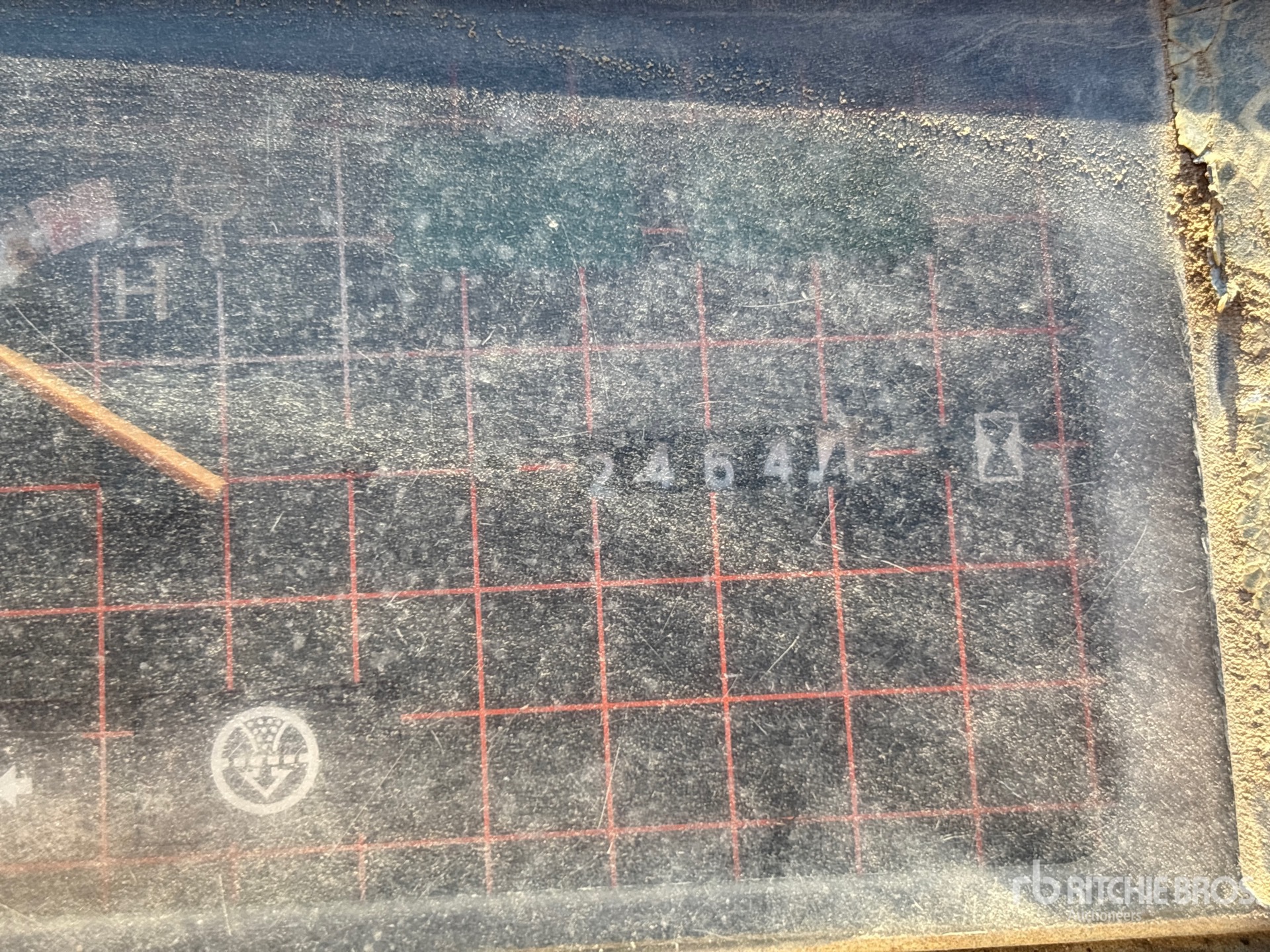

| Blade |
|
Dig Depth |
11 in (28 cm)
|
|
Height |
14 in (36 cm)
|
|
Lift Height |
13 in (33 cm)
|
|
Width |
5 ft (1 m)
|
| Boom/Stick 1 |
|
Boom/Stick 1 |
boom w/ stick 1110mm |
|
Max Cutting Height |
14 ft (4 m)
|
|
Max Digging Depth |
9 ft (3 m)
|
|
Max Loading Height |
10 ft (3 m)
|
|
Max Reach Along Ground |
15 ft (5 m)
|
|
Max Vertical Wall Digging Depth |
7 ft (2 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
boom w/ stick 1410mm |
|
Max Cutting Height |
15 ft (5 m)
|
|
Max Digging Depth |
10 ft (3 m)
|
|
Max Loading Height |
11 ft (3 m)
|
|
Max Reach Along Ground |
16 ft (5 m)
|
|
Max Vertical Wall Digging Depth |
8 ft (2 m)
|
| Dimensions |
|
Center Ground Clearance |
1 ft (0 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
8 ft (2 m)
|
|
Height - Over Cab |
8 ft (2 m)
|
|
Height - Over Canopy |
8 ft (2 m)
|
|
Height To Top Of Cab |
8 ft (2 m)
|
|
Length |
15 ft (5 m)
|
|
Length Of Track On Ground |
5 ft (1 m)
|
|
Maximum Cutting Height - Long Stick |
15 ft (5 m)
|
|
Maximum Cutting Height - Standard Stick |
14 ft (4 m)
|
|
Maximum Digging Depth - Long Stick |
10 ft (3 m)
|
|
Maximum Digging Depth - Standard Stick |
9 ft (3 m)
|
|
Maximum Dump Height - Long Stick |
11 ft (3 m)
|
|
Maximum Dump Height - Standard Stick |
10 ft (3 m)
|
|
Maximum Horizontal Reach - Long Stick |
16 ft (5 m)
|
|
Maximum Horizontal Reach - Standard Stick |
15 ft (5 m)
|
|
Maximum Reach - Ground Level - Long Stick |
16 ft (5 m)
|
|
Maximum Reach - Ground Level - Standard Stick |
15 ft (5 m)
|
|
Maximum Vertical Dig Depth - Long Stick |
8 ft (2 m)
|
|
Maximum Vertical Dig Depth - Standard Stick |
7 ft (2 m)
|
|
Removal Counterweight Clearance |
2 ft (1 m)
|
|
Shipping Length |
15 ft (5 m)
|
|
Stick Length - Long Stick |
5 ft (1 m)
|
|
Stick Length - Standard Stick |
4 ft (1 m)
|
|
Swing Radius - Rear |
4 ft (1 m)
|
|
Tail Swing Radius |
4 ft (1 m)
|
|
Track Gauge |
4 ft (1 m)
|
|
Track Shoe Width |
12 ft (4 m)
|
|
Weight |
6,283 lbs (2,850 kg)
|
|
Width |
5 ft (1 m)
|
|
Width - Over Track |
5 ft (1 m)
|
|
Width - Upper Structure |
5 ft (1 m)
|
|
Width To Outside Of Tracks |
4 ft (1 m)
|
| Electrical System |
|
Electrical System Type |
Twelve-volt system |

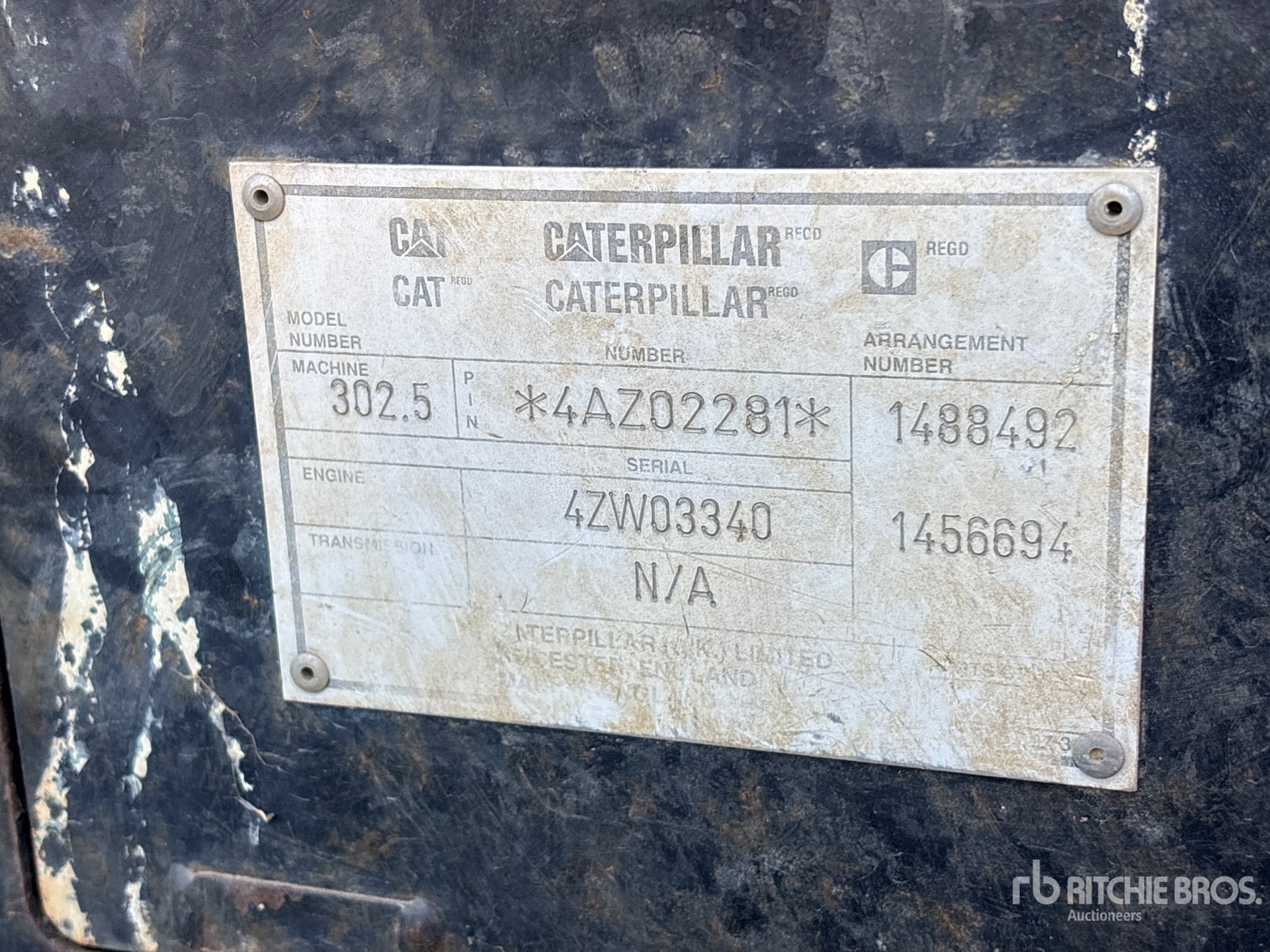

| Engine |
|
Displacement |
91 cu in (1,496 cu cm)
|
|
Engine Model |
3,013 |
|
Gross Power |
24 hp (18 kw)
|
| Engine Dimensions |
|
Bore |
3 in (8 cm)
|
|
Displacement |
91 cu in (1,496 cu cm)
|
|
Stroke |
4 in (10 cm)
|
| Hydraulic System |
|
Auxiliary Circuit - Primary (245 Bar/3,553 Psi) |
14 gpm (51 lpm)
|
|
Digging Force - Bucket |
4,928 lbs (2,235 kg)
|
|
Digging Force - Stick - Long |
2,665 lbs (1,209 kg)
|
|
Digging Force - Stick - Standard |
3,124 lbs (1,417 kg)
|
|
Operating Pressure - Equipment |
2,987 psi |
|
Operating Pressure - Swing |
2,494 psi |
|
Operating Pressure - Travel |
2,987 psi |
|
Pump - Gear (Single) |
5 gpm (19 lpm)
|
|
Pump - Gear (Tandem) |
9 gpm (33 lpm)
|
| Msc Comments |
|
Msc Spec Date |
1/1/2000 |
| Operational |
|
Fuel Capacity |
11 gal (42 l)
|
|
Hydraulic System Fluid Capacity |
13 gal (50 l)
|
|
Hydraulic System Relief Valve Pressure |
2,987 psi |
|
Operating Weight |
6,028 lbs (2,734 kg)
|
| Service Refill Capacities |
|
Cooling System Tag |
1 gal (4 l)
|
|
Engine Oil |
2 gal (6 l)
|
|
Fuel Tank |
11 gal (41 l)
|
|
Hydraulic System |
13 gal (49 l)
|
|
Hydraulic Tank |
9 gal (36 l)
|
| Swing System |
|
Boom Swing - Left - With Stop |
55 degrees |
|
Boom Swing - Left - Without Stop |
90 degrees |
|
Boom Swing - Right |
50 degrees |
|
Machine Swing Speed |
9 rpm |
|
Swing System Type |
Hydraulic Motor Driven |
| Travel System |
|
Gradeability - Maximum - High |
31 degrees |
|
Gradeability - Maximum - Low |
37 degrees |
|
Maximum Traction Force - High Speed |
2,475 lbs (1,122 kg)
|
|
Maximum Traction Force - Low Speed |
4,950 lbs (2,245 kg)
|
|
Travel Speed - High |
3 mph (5 kph)
|
|
Travel Speed - Low |
2 mph (3 kph)
|
| Undercarriage |
|
Drawbar Pull |
4,950 lbs (2,245 kg)
|
|
Max Travel Speed |
3 mph (5 kph)
|
|
Shoe Size |
12 in (30 cm)
|
|
Track Gauge |
4 ft (1 m)
|
| Weights |
|
Operating Weight |
5,762 lbs (2,613 kg)
|
|
Operating Weight - With Cab |
6,015 lbs (2,728 kg)
|
