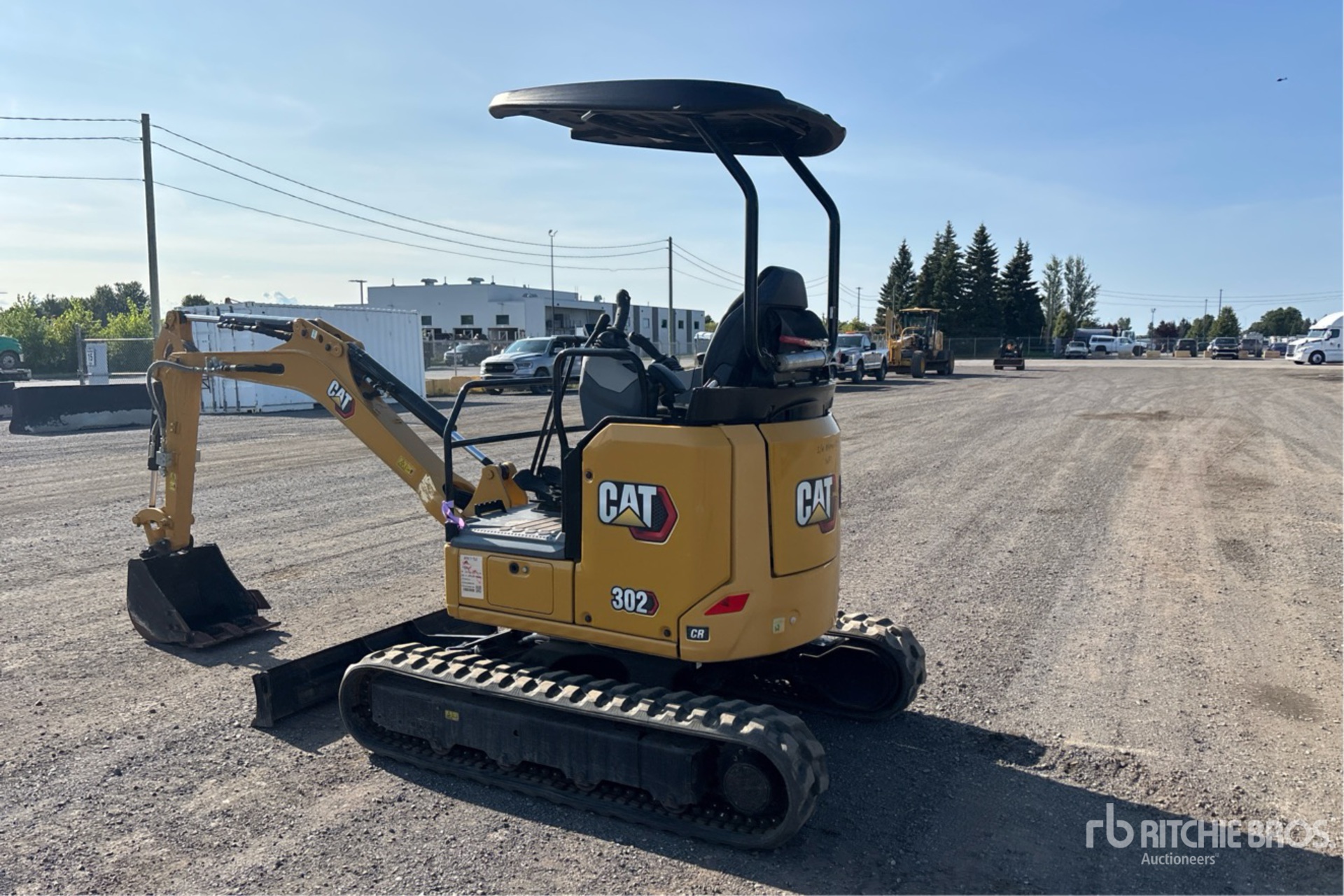

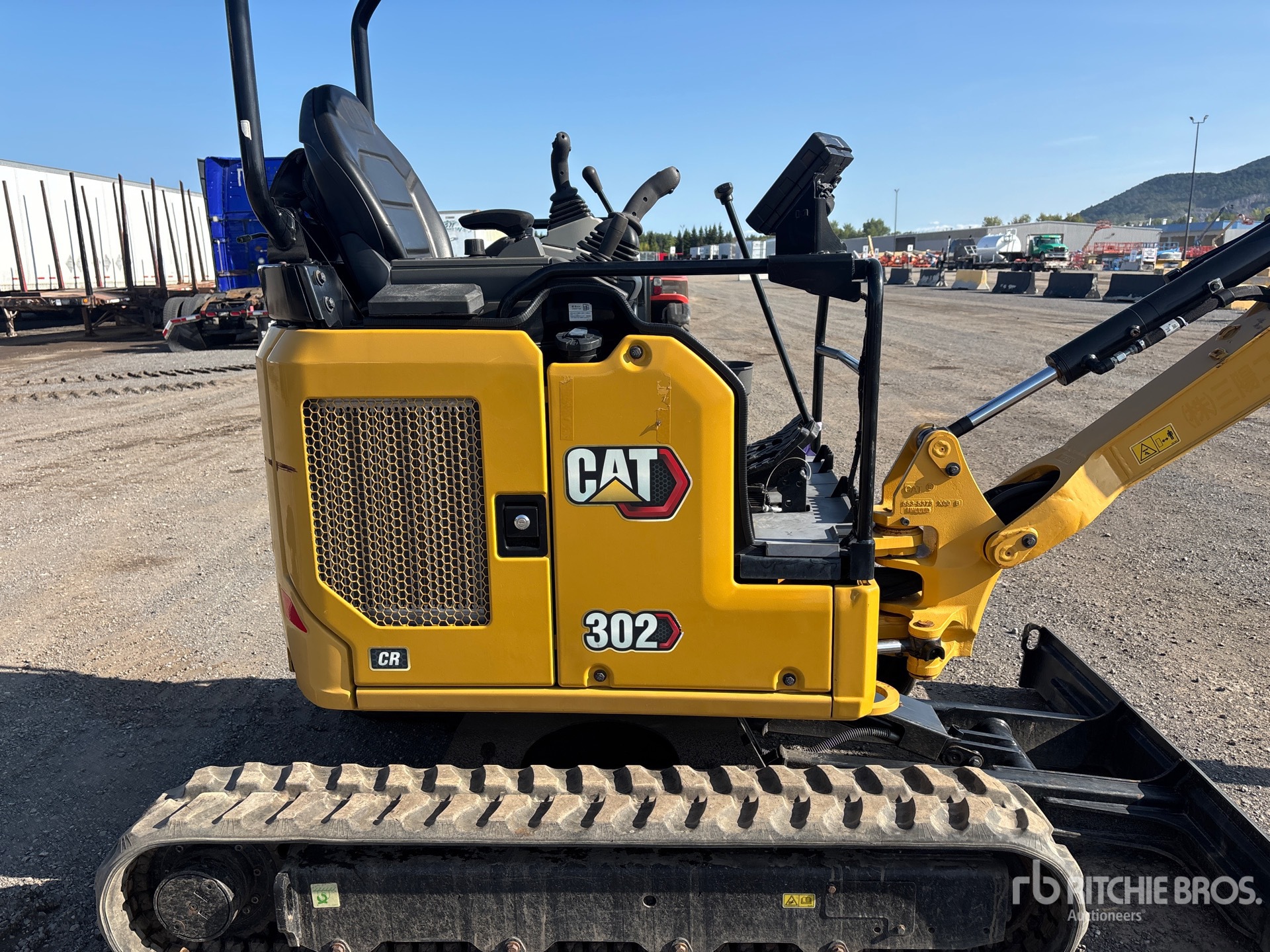

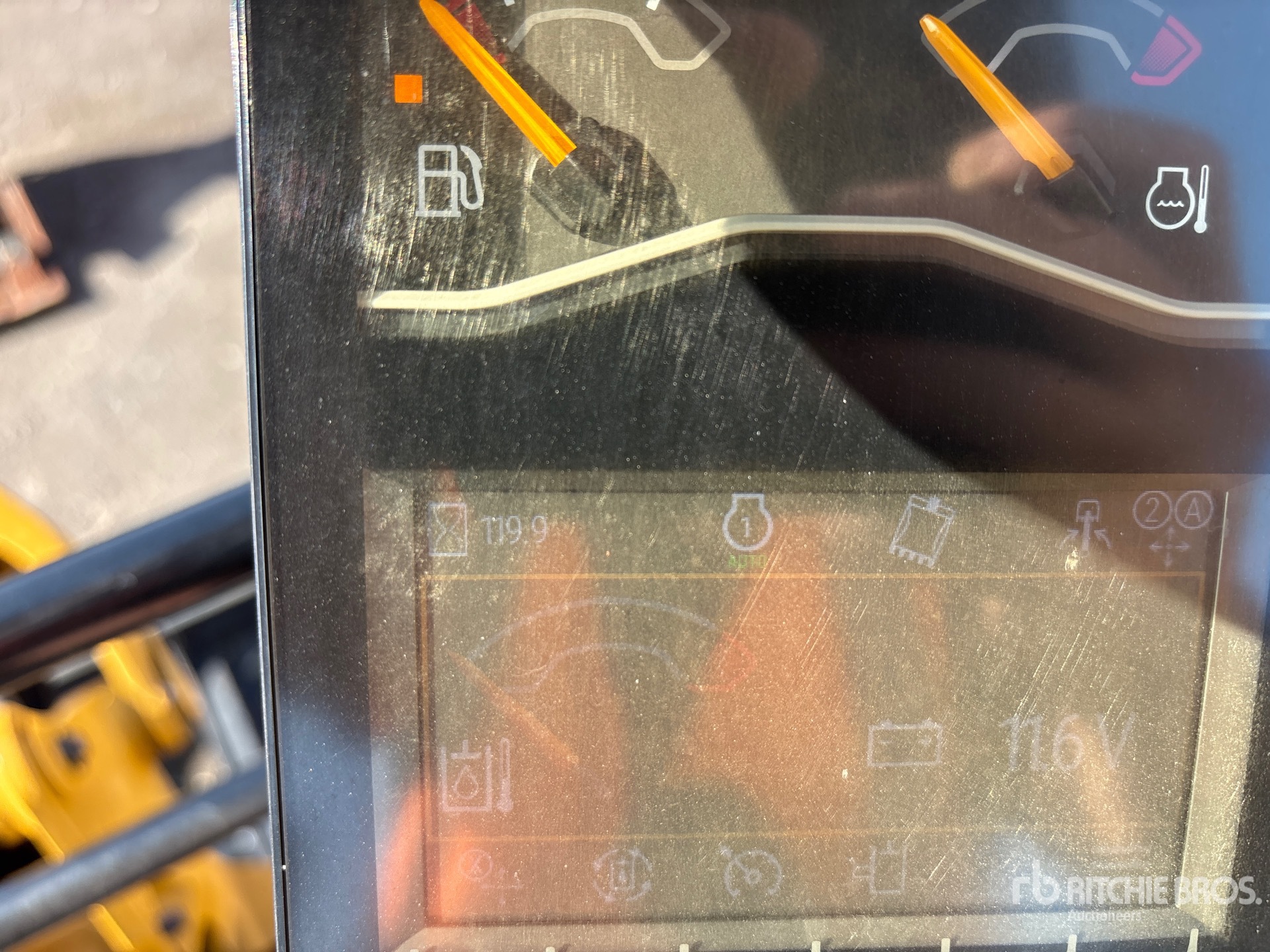

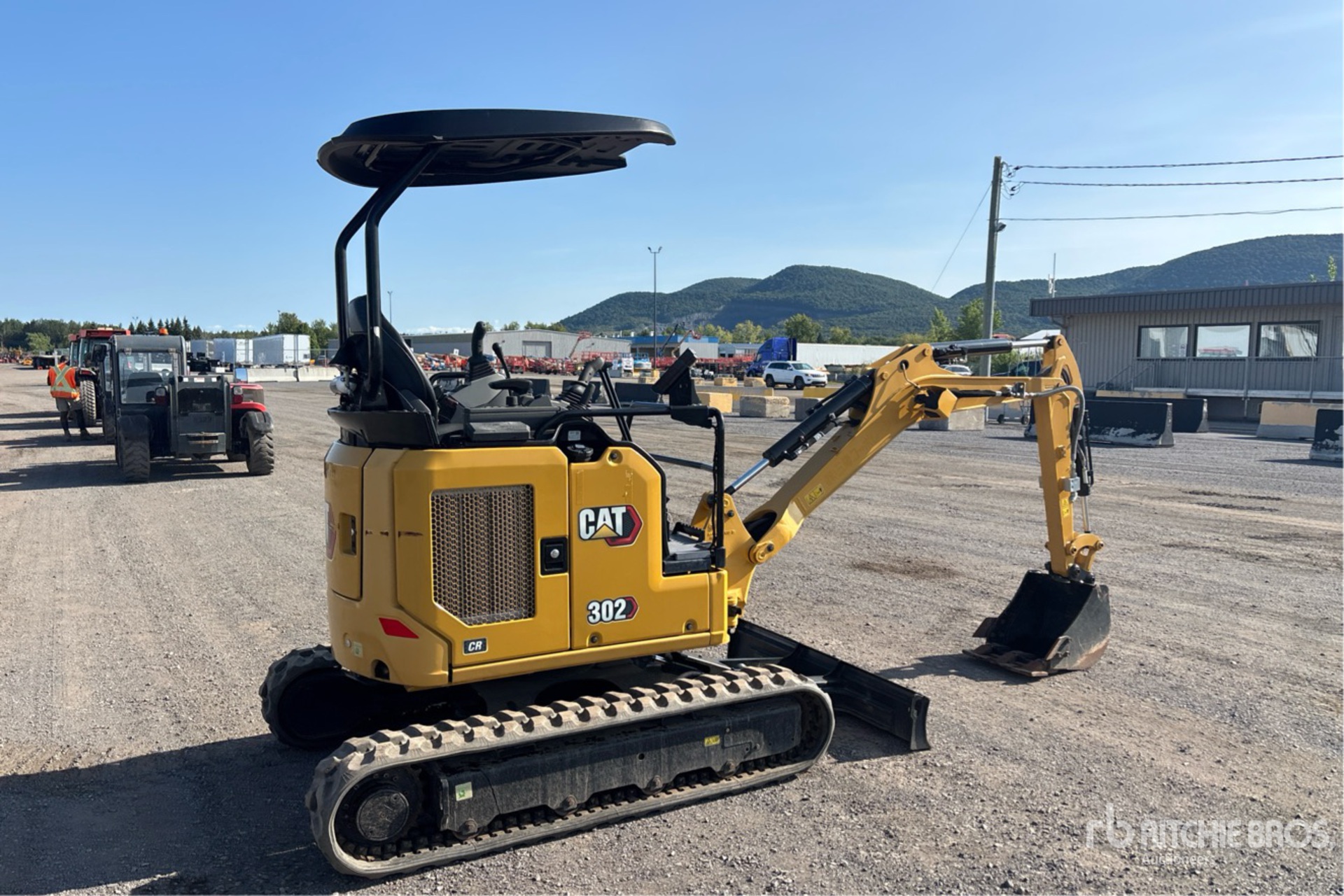

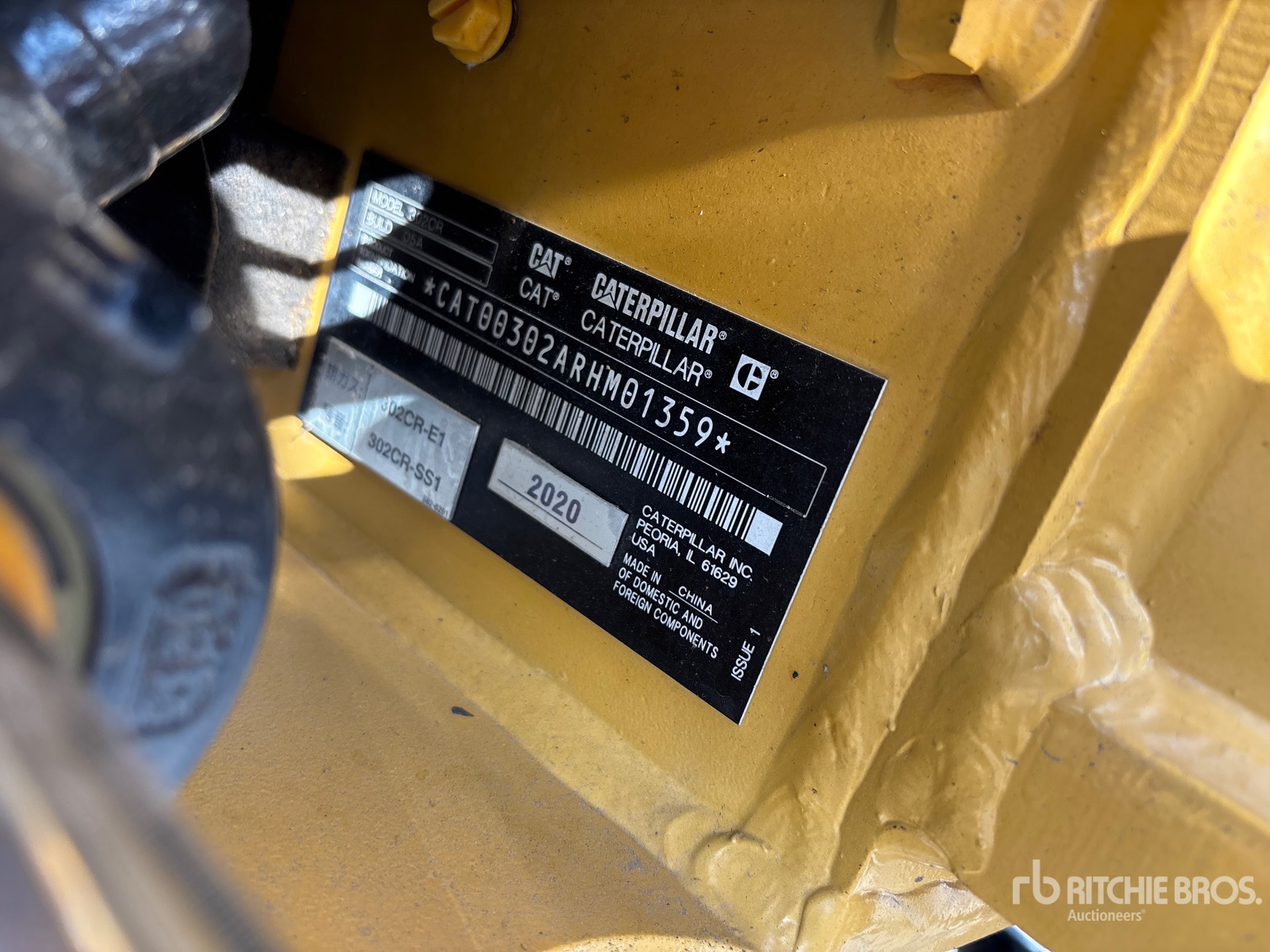

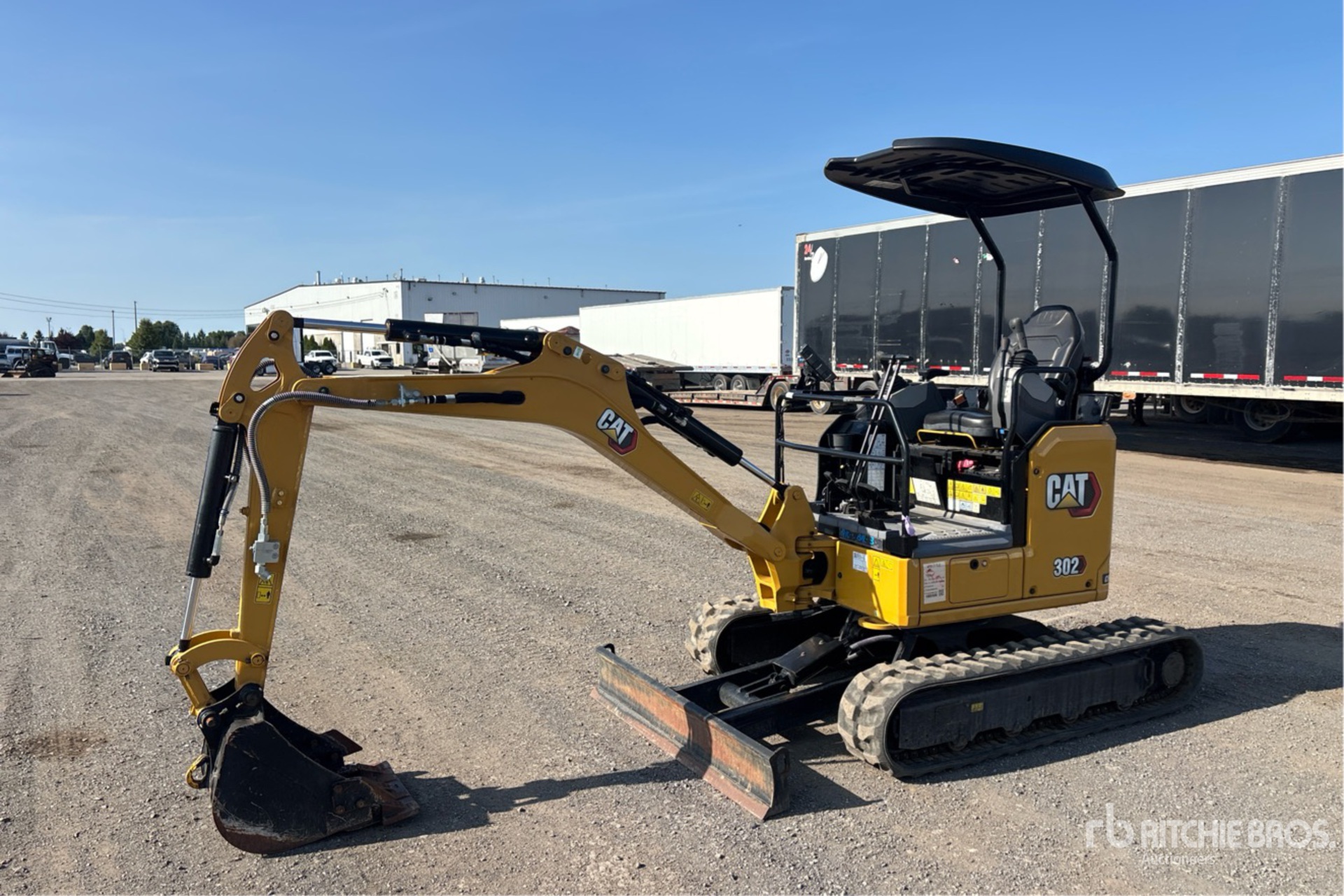

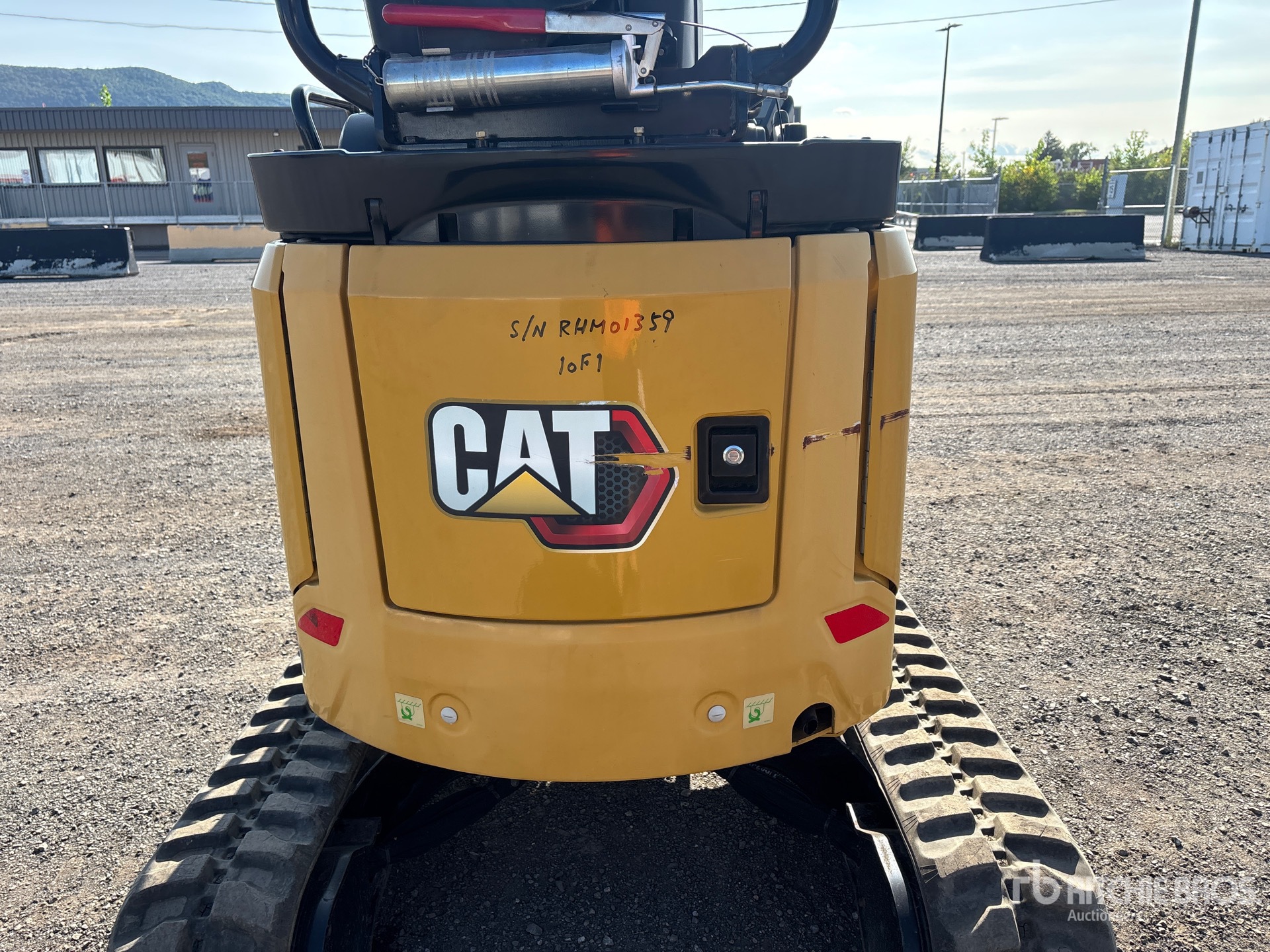

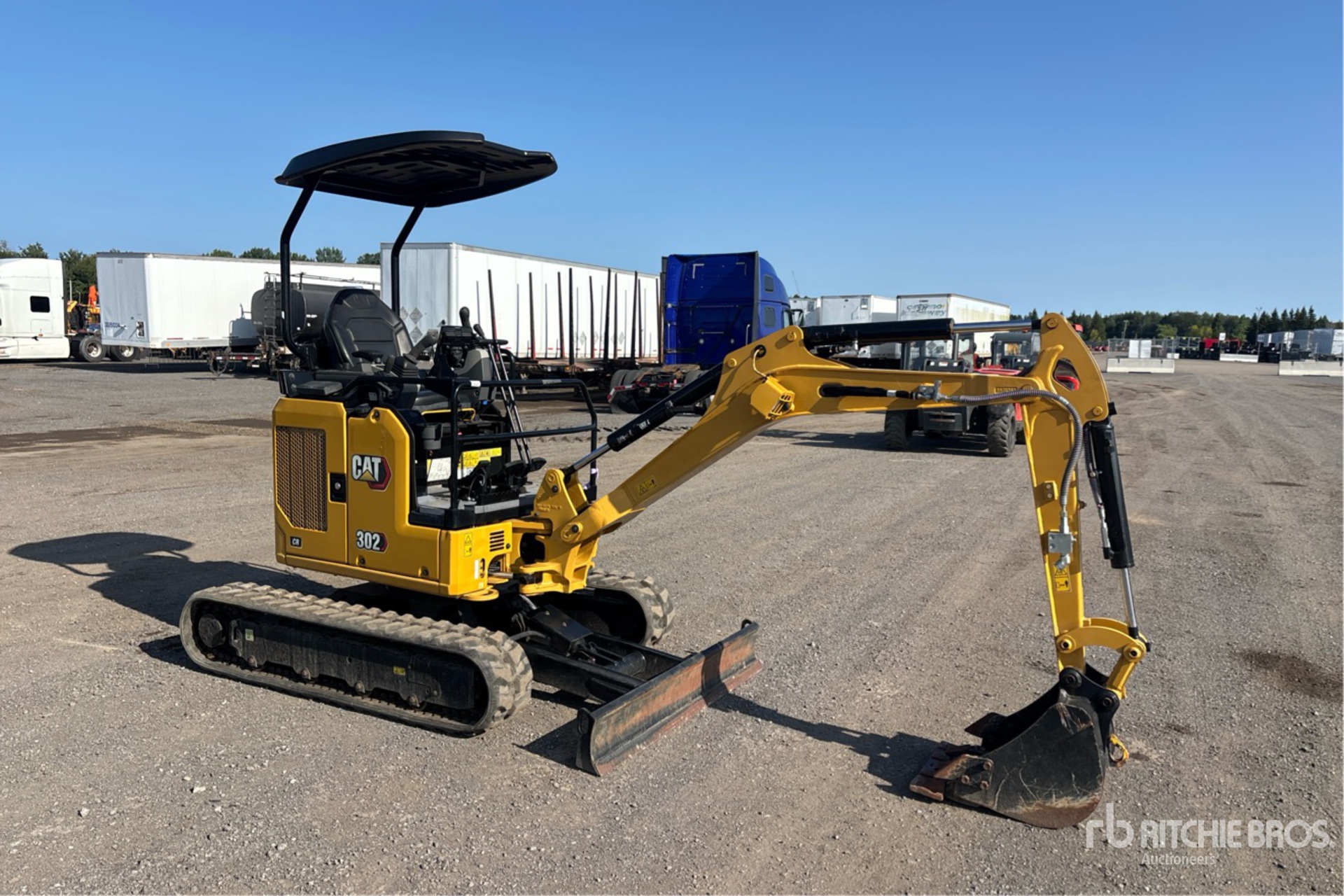

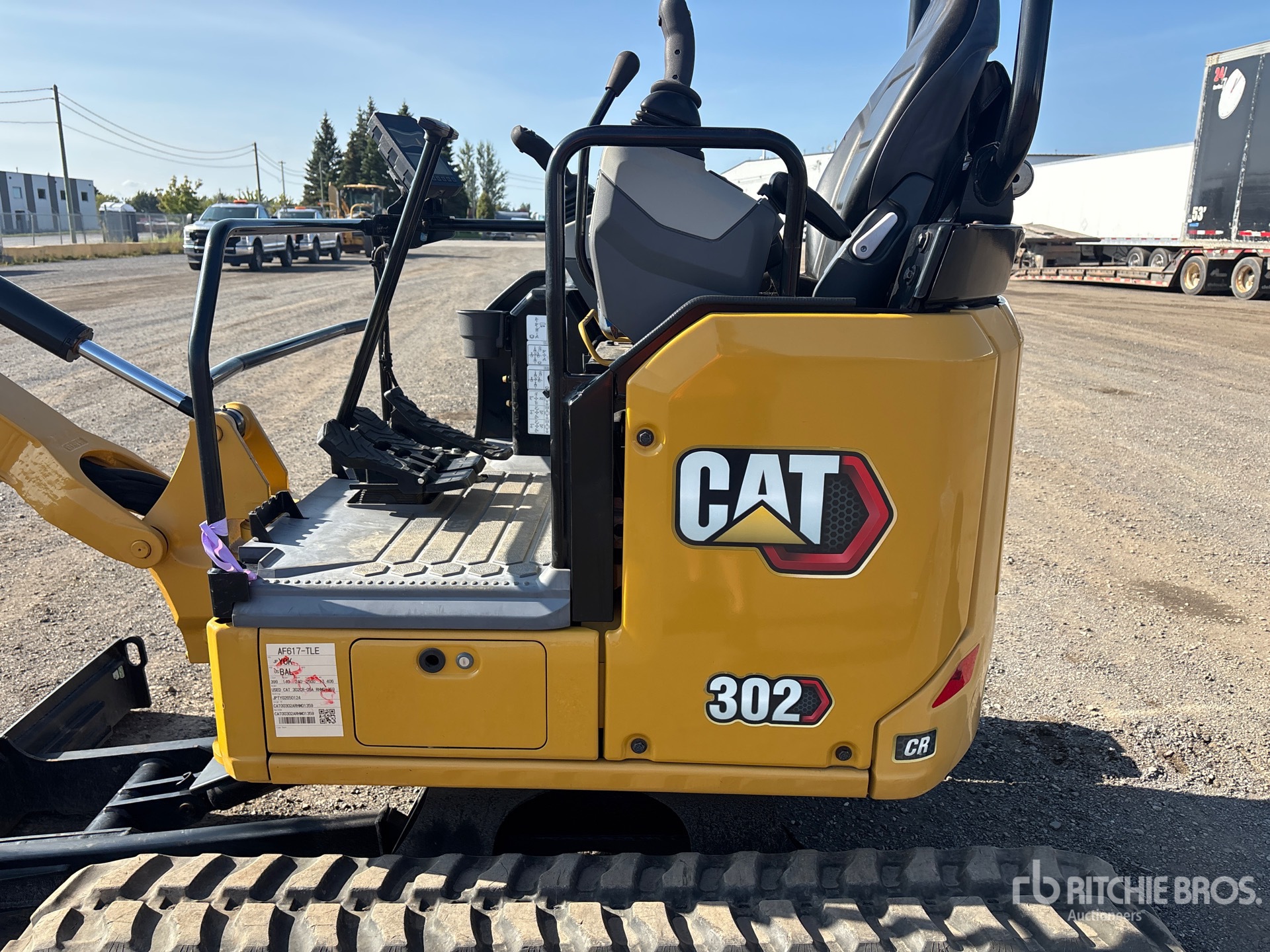

| Air Conditioning System |
|
Air Conditioning (Since 2026)
|
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf (Europe) (Global Warming Potential = 1430). See label or instruction manual for gas refrigerant identification. The system contains 0.75 kg (1.65 lb), 0.90 kg (1.98 lb) or 1 kg (2.20 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons) for R134a and 0.001 tonnes (0.001 tons) for R1234yf (Europe). |
| Blade |
|
Height (Since 2026)
|
9 in (23 cm)
|
|
Width* (Since 2026)
|
43 in (109 cm)
|
| Certification - Cab And Canopy |
|
Roll Over Protective Structure (ROPS) (Since 2026)
|
ISO 12117-2:2008 |
|
Tip Over Protective Structure (TOPS) (Since 2026)
|
ISO 12117:1997 |
|
Top Guard (Since 2026)
|
ISO 10262:1998 (Level I) |
| Dimensions |
|
Height |
7 ft (2 m)
|
|
Length |
13 ft (4 m)
|
|
Weight |
4,850 lbs (2,200 kg)
|
|
Width |
4 ft (1 m)
|
| Dimensions - Long Stick |
|
Boom Height - Shipping Position (Since 2026)
|
40 in (102 cm)
|
|
Boom In Reach (Since 2026)
|
65 in (166 cm)
|
|
Boom Swing - Left (Since 2026)
|
65 degrees |
|
Boom Swing - Right (Since 2026)
|
50 degrees |
|
Dig Depth (Since 2026)
|
101 in (257 cm)
|
|
Maximum Blade Depth (Since 2026)
|
12 in (29 cm)
|
|
Maximum Blade Height (Since 2026)
|
11 in (28 cm)
|
|
Maximum Dig Height (Since 2026)
|
143 in (362 cm)
|
|
Maximum Dump Clearance (Since 2026)
|
104 in (264 cm)
|
|
Maximum Reach (Since 2026)
|
168 in (427 cm)
|
|
Maximum Reach - Ground Level (Since 2026)
|
166 in (421 cm)
|
|
Minimum Ground Clearance Below Undercarriage (Since 2026)
|
6 in (15 cm)
|
|
O/A Shipping Height (Since 2026)
|
91 in (230 cm)
|
|
O/A Undercarriage Length (Since 2026)
|
73 in (185 cm)
|
|
Overall Shipping Length* (Since 2026)
|
153 in (388 cm)
|
|
Stick Length (Since 2026)
|
46 in (116 cm)
|
|
Swing Bearing - Height (Since 2026)
|
17 in (44 cm)
|
|
Tail Swing (Since 2026)
|
30 in (75 cm)
|
|
Track Belt/Shoe Width (Since 2026)
|
10 in (25 cm)
|
|
Track Width - Expanded (Since 2026)
|
55 in (140 cm)
|
|
Track Width - Retracted (Since 2026)
|
43 in (109 cm)
|
|
Vertical Wall (Since 2026)
|
76 in (194 cm)
|
| Dimensions - Standard Stick |
|
Boom Height - Shipping Position (Since 2026)
|
42 in (107 cm)
|
|
Boom In Reach (Since 2026)
|
65 in (166 cm)
|
|
Boom Swing - Left (Since 2026)
|
65 degrees |
|
Boom Swing - Right (Since 2026)
|
50 degrees |
|
Dig Depth (Since 2026)
|
93 in (237 cm)
|
|
Maximum Blade Depth (Since 2026)
|
12 in (29 cm)
|
|
Maximum Blade Height (Since 2026)
|
11 in (28 cm)
|
|
Maximum Dig Height (Since 2026)
|
140 in (355 cm)
|
|
Maximum Dump Clearance (Since 2026)
|
101 in (256 cm)
|
|
Maximum Reach (Since 2026)
|
162 in (411 cm)
|
|
Maximum Reach - Ground Level (Since 2026)
|
159 in (404 cm)
|
|
Minimum Ground Clearance Below Undercarriage (Since 2026)
|
6 in (15 cm)
|
|
O/A Shipping Height (Since 2026)
|
91 in (230 cm)
|
|
O/A Undercarriage Length (Since 2026)
|
73 in (185 cm)
|
|
Overall Shipping Length* (Since 2026)
|
154 in (390 cm)
|
|
Stick Length (Since 2026)
|
38 in (96 cm)
|
|
Swing Bearing - Height (Since 2026)
|
17 in (44 cm)
|
|
Tail Swing (Since 2026)
|
30 in (75 cm)
|
|
Track Belt/Shoe Width (Since 2026)
|
10 in (25 cm)
|
|
Track Width - Expanded (Since 2026)
|
55 in (140 cm)
|
|
Track Width - Retracted (Since 2026)
|
43 in (109 cm)
|
|
Vertical Wall (Since 2026)
|
73 in (185 cm)
|
| Engine |
|
Bore (Since 2026)
|
3 in (8 cm)
|
|
Displacement (Since 2026)
|
69 cu in (1,131 cu cm)
|
|
Emissions (Since 2026)
|
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. |
|
Engine Model (Since 2026)
|
C1.1 |
|
Gross Power - SAE J1995:2014 (Since 2026)
|
22 hp (16 kw)
|
|
Net Power (Since 2026)
|
21 hp (16 kw)
|
|
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC (Since 2026)
|
21 hp (16 kw)
|
|
Stroke (Since 2026)
|
3 in (8 cm)
|
| General Specifications |
|
Digging Depth (Since 2025)
|
8 ft (3 m)
|
|
Digging Reach (Since 2025)
|
14 ft (4 m)
|
|
Engine (Since 2025)
|
19 hp (14 kw)
|
|
Operating Weight (Since 2025)
|
4,850 lbs (2,200 kg)
|
| Hydraulic System |
|
Auxiliary Circuit - Primary - Flow (Since 2026)
|
9 gpm (33 lpm)
|
|
Auxiliary Circuit - Primary - Pressure (Since 2026)
|
3,553 psi |
|
Auxiliary Circuit - Secondary - Flow (Since 2026)
|
4 gpm (14 lpm)
|
|
Auxiliary Circuit - Secondary - Pressure (Since 2026)
|
3,553 psi |
|
Digging Force - Bucket (Since 2026)
|
4,406 lbs ft (5,974 nm)
|
|
Digging Force - Stick - Long (Since 2026)
|
2,203 lbs ft (2,987 nm)
|
|
Digging Force - Stick - Standard (Since 2026)
|
2,540 lbs ft (3,444 nm)
|
|
Operating Pressure - Equipment (Since 2026)
|
3,553 psi |
|
Operating Pressure - Swing (Since 2026)
|
2,132 psi |
|
Operating Pressure - Travel (Since 2026)
|
3,553 psi |
|
Pump Flow at 2,400 rpm (Since 2026)
|
17 gpm (66 lpm)
|
|
Type (Since 2026)
|
Load Sensing Hydraulics with Variable Displacement Piston Pump |
| Service Refill Capacities |
|
Cooling System (Since 2026)
|
1 gal (4 l)
|
|
Engine Oil (Since 2026)
|
1 gal (5 l)
|
|
Fuel Tank (Since 2026)
|
7 gal (26 l)
|
|
Hydraulic System (Since 2026)
|
7 gal (26 l)
|
|
Hydraulic Tank (Since 2026)
|
5 gal (18 l)
|
| Sound |
|
Average Exterior Sound Pressure (ISO 6395:2008) (Since 2026)
|
99 dB(A) |
|
Operator Sound Pressure (ISO 6396:2008) (Since 2026)
|
72 dB(A) |
| Sustainability |
|
Recyclability (Since 2026)
|
95% |
| Swing System |
|
Machine Swing Speed (Since 2026)
|
10 r/min |
| Travel System |
|
Gradeability - Maximum (Since 2026)
|
30 degrees |
|
Ground Pressure - Maximum Weight (Since 2026)
|
4 psi |
|
Ground Pressure - Minimum Weight (Since 2026)
|
3 psi |
|
Maximum Traction Force - High Speed (Since 2026)
|
2,968 lbs ft (4,023 nm)
|
|
Maximum Traction Force - Low Speed (Since 2026)
|
4,496 lbs ft (6,096 nm)
|
|
Travel Speed - High (Since 2026)
|
3 mph (4 kph)
|
|
Travel Speed - Low (Since 2026)
|
2 mph (3 kph)
|
| Weight Increase From Minimum Configuration |
|
Expandable Undercarriage (Since 2026)
|
212 lbs (96 kg)
|
|
Long Stick (Since 2026)
|
18 lbs (8 kg)
|
|
Steel Tracks (Since 2026)
|
132 lbs (60 kg)
|
| Weights |
|
EU: CE Plate Weight with Cab*** (Since 2026)
|
4,718 lbs (2,140 kg)
|
|
EU: CE Plate Weight with Canopy*** (Since 2026)
|
4,508 lbs (2,045 kg)
|
|
Maximum Operating Weight with Cab** (Since 2026)
|
4,987 lbs (2,262 kg)
|
|
Maximum Operating Weight with Canopy** (Since 2026)
|
4,588 lbs (2,081 kg)
|
|
Minimum Operating Weight with Cab* (Since 2026)
|
4,535 lbs (2,057 kg)
|
|
Minimum Operating Weight with Canopy* (Since 2026)
|
4,229 lbs (1,918 kg)
|
|
Operating Weight (Since 2026)
|
4,987 lbs (2,262 kg)
|
