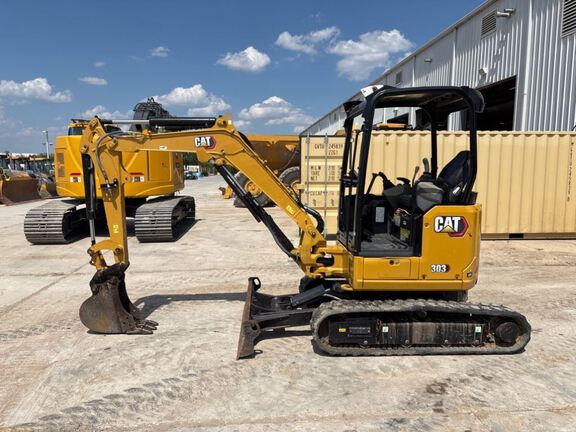

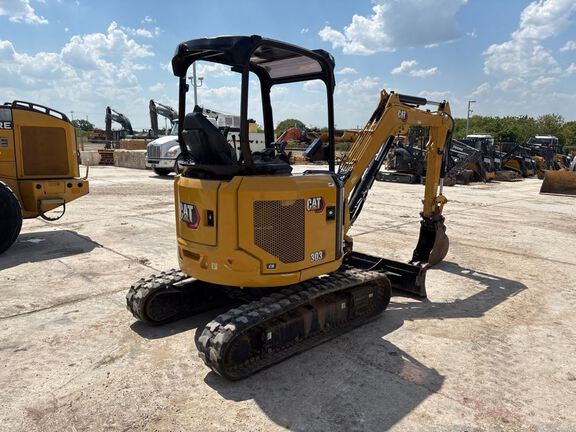

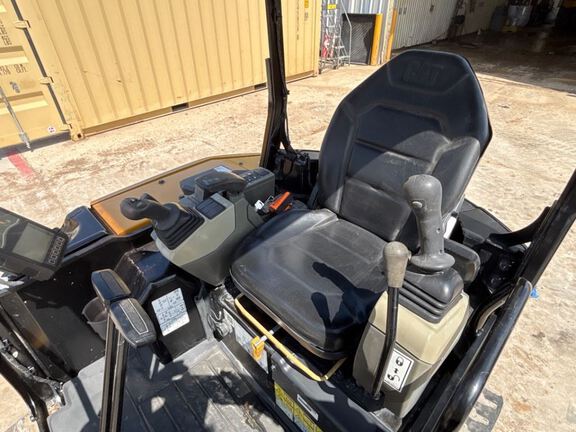

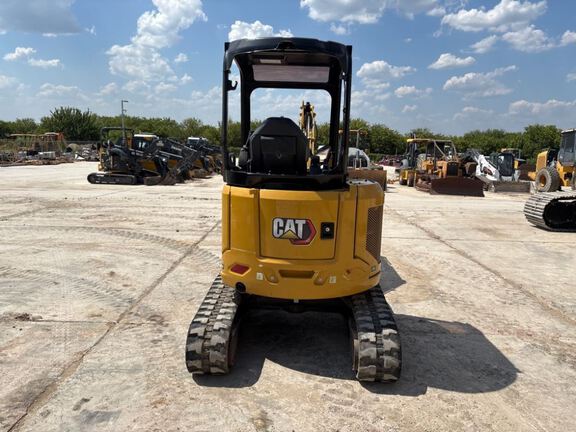

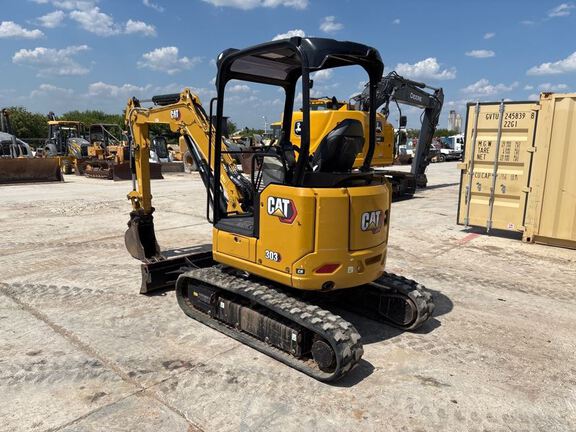

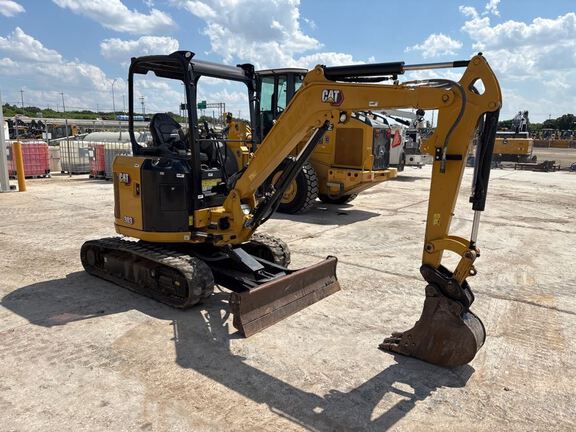

| Air Conditioning System |
|
Air Conditioning (Since 2026)
|
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf (Europe) (Global Warming Potential = 1430). See label or instruction manual for gas refrigerant identification. The system contains 0.75 kg (1.65 lb), 0.90 kg (1.98 lb) or 1 kg (2.20 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons) for R134a and 0.001 tonnes (0.001 tons) for R1234yf (Europe). |

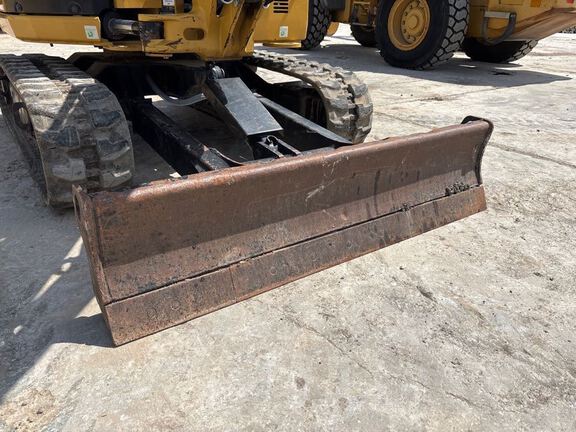

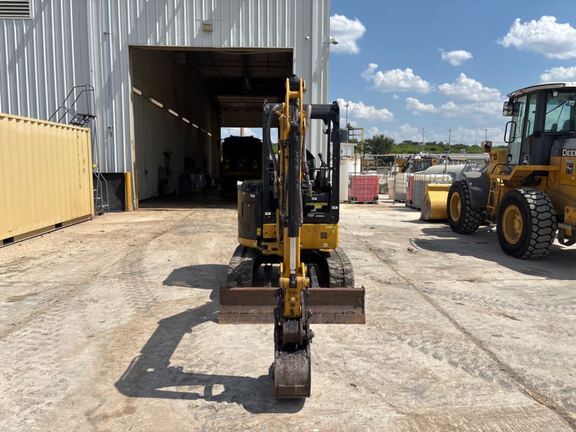

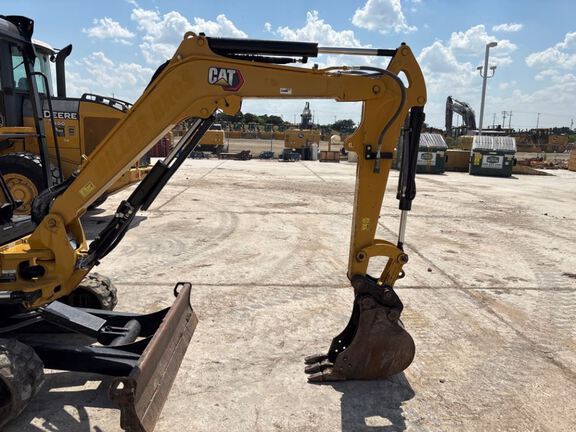

| Blade |
|
Height (Since 2026)
|
14 in (35 cm)
|
|
Width (Since 2026)
|
61 in (155 cm)
|

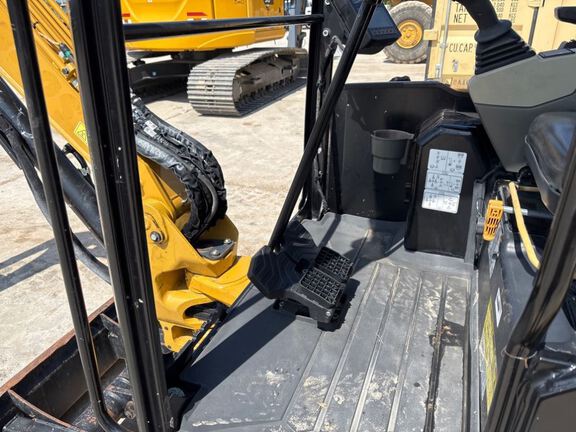

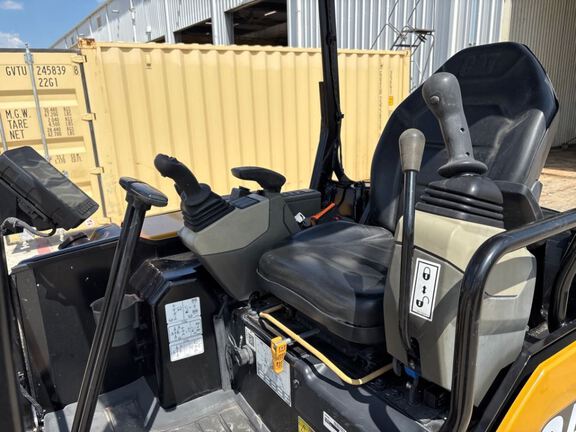

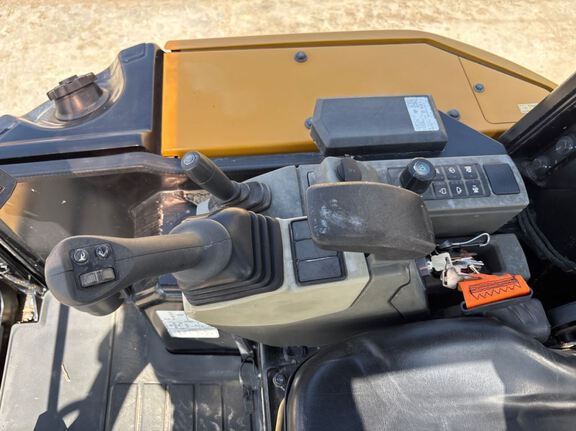

| Certification - Cab And Canopy |
|
Roll Over Protective Structure (ROPS) (Since 2026)
|
ISO 12117-2:2008 |
|
Tip Over Protective Structure (TOPS) (Since 2026)
|
ISO 12117:1997 |
|
Top Guard (Since 2026)
|
ISO 10262:1998 (Level I) |

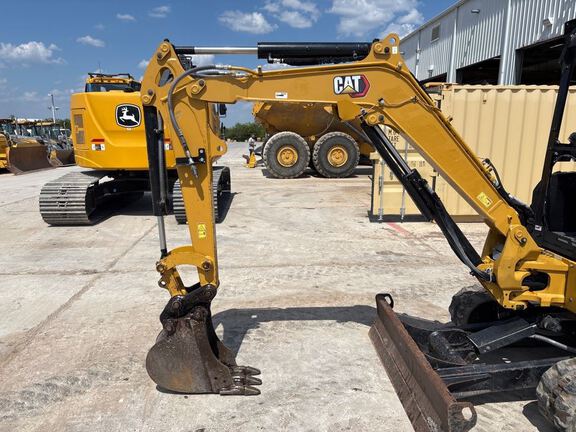

| Dimensions - Long Stick |
|
Boom Height - Shipping Position (Since 2026)
|
76 in (192 cm)
|
|
Boom In Reach (Since 2026)
|
74 in (188 cm)
|
|
Boom Swing - Left (Since 2026)
|
25 in (64 cm)
|
|
Boom Swing - Right (Since 2026)
|
34 in (87 cm)
|
|
Dig Depth (Since 2026)
|
116 in (295 cm)
|
|
Maximum Blade Depth (Since 2026)
|
21 in (54 cm)
|
|
Maximum Blade Height (Since 2026)
|
15 in (39 cm)
|
|
Maximum Dig Height (Since 2026)
|
183 in (465 cm)
|
|
Maximum Dump Clearance (Since 2026)
|
130 in (331 cm)
|
|
Maximum Reach (Since 2026)
|
206 in (524 cm)
|
|
Maximum Reach - Ground Level (Since 2026)
|
201 in (511 cm)
|
|
Minimum Ground Clearance Below Undercarriage (Since 2026)
|
12 in (31 cm)
|
|
O/A Shipping Height (Since 2026)
|
98 in (248 cm)
|
|
O/A Undercarriage Length (Since 2026)
|
82 in (207 cm)
|
|
Overall Shipping Length* (Since 2026)
|
180 in (456 cm)
|
|
Stick Length (Since 2026)
|
61 in (156 cm)
|
|
Swing Bearing - Height (Since 2026)
|
22 in (57 cm)
|
|
Tail Swing - with Extra Counterweight (Since 2026)
|
35 in (89 cm)
|
|
Tail Swing without Counterweight (Since 2026)
|
31 in (77 cm)
|
|
Track Belt/Shoe Width (Since 2026)
|
12 in (30 cm)
|
|
Track Width (Since 2026)
|
61 in (155 cm)
|
|
Vertical Wall (Since 2026)
|
82 in (207 cm)
|

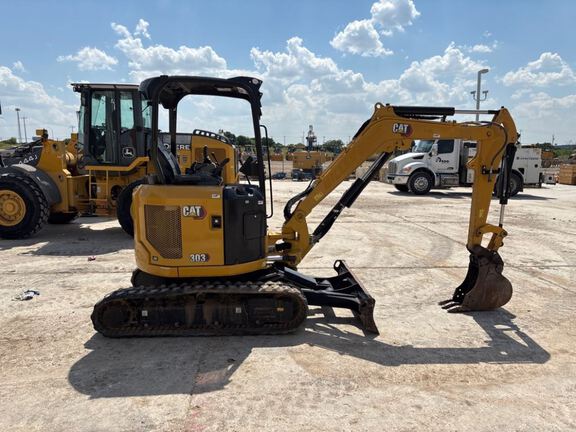

| Dimensions - Standard Stick |
|
Boom Height - Shipping Position (Since 2026)
|
63 in (160 cm)
|
|
Boom In Reach (Since 2026)
|
69 in (175 cm)
|
|
Boom Swing - Left (Since 2026)
|
25 in (64 cm)
|
|
Boom Swing - Right (Since 2026)
|
34 in (87 cm)
|
|
Dig Depth (Since 2026)
|
104 in (265 cm)
|
|
Maximum Blade Depth (Since 2026)
|
21 in (54 cm)
|
|
Maximum Blade Height (Since 2026)
|
15 in (39 cm)
|
|
Maximum Dig Height (Since 2026)
|
178 in (451 cm)
|
|
Maximum Dump Clearance (Since 2026)
|
125 in (317 cm)
|
|
Maximum Reach (Since 2026)
|
196 in (498 cm)
|
|
Maximum Reach - Ground Level (Since 2026)
|
190 in (483 cm)
|
|
Minimum Ground Clearance Below Undercarriage (Since 2026)
|
12 in (31 cm)
|
|
O/A Shipping Height (Since 2026)
|
98 in (248 cm)
|
|
O/A Undercarriage Length (Since 2026)
|
82 in (207 cm)
|
|
Overall Shipping Length* (Since 2026)
|
178 in (451 cm)
|
|
Stick Length (Since 2026)
|
50 in (126 cm)
|
|
Swing Bearing - Height (Since 2026)
|
22 in (57 cm)
|
|
Tail Swing with Extra Counterweight (Since 2026)
|
35 in (89 cm)
|
|
Tail Swing without Counterweight (Since 2026)
|
31 in (77 cm)
|
|
Track Belt/Shoe Width (Since 2026)
|
12 in (30 cm)
|
|
Track Width (Since 2026)
|
61 in (155 cm)
|
|
Vertical Wall (Since 2026)
|
72 in (182 cm)
|

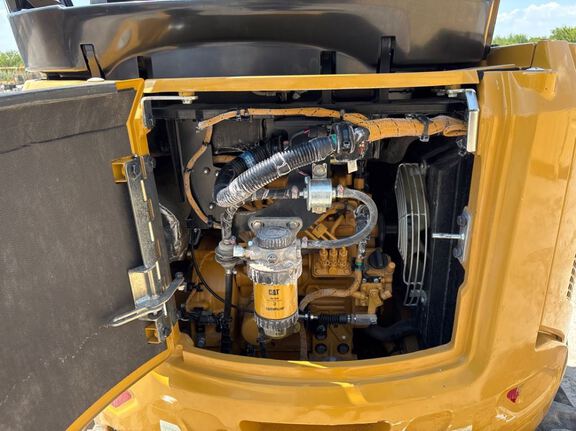

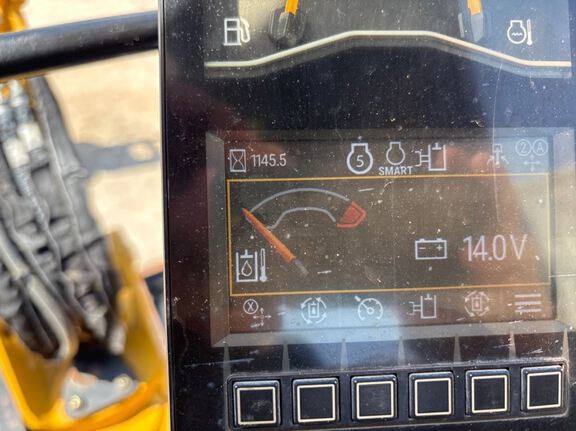

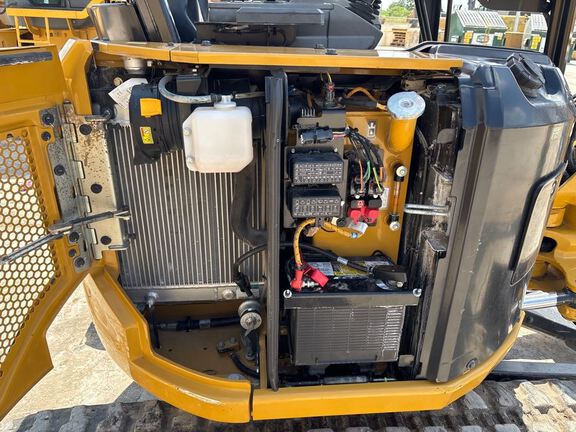

| Engine |
|
Bore (Since 2026)
|
3 in (8 cm)
|
|
Displacement (Since 2026)
|
69 cu in (1,131 cu cm)
|
|
Emissions (Since 2026)
|
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. |
|
Engine Model (Since 2026)
|
C1.1 Turbo |
|
Net Power (Since 2026)
|
24 hp (18 kw)
|
|
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC (Since 2026)
|
24 hp (18 kw)
|
|
Net Power - ISO 9249 (Since 2026)
|
25 hp (18 kw)
|
|
Stroke (Since 2026)
|
3 in (8 cm)
|

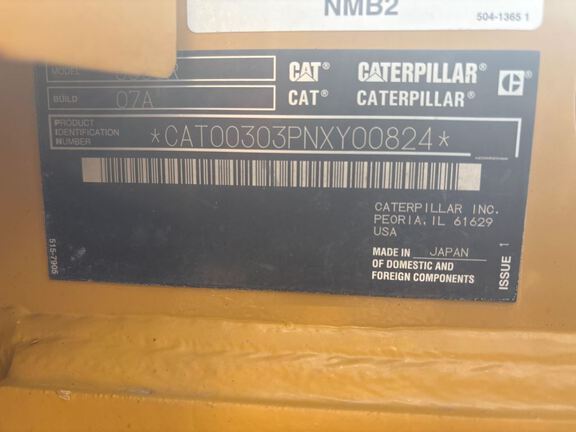

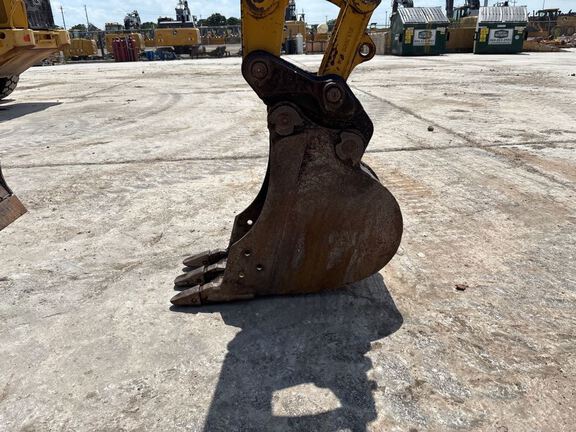

| General Specifications |
|
Approx. Operating Weight (Since 2001)
|
7,077 lbs (3,210 kg)
|
|
Approx. Operating Weight (2002)
|
7,077 lbs (3,210 kg)
|
|
Approx. Operating Weight (2003)
|
7,077 lbs (3,210 kg)
|
|
Approx. Operating Weight (2004)
|
7,077 lbs (3,210 kg)
|
|
Approx. Operating Weight (2005)
|
7,077 lbs (3,210 kg)
|
|
at Rated RPM - High (Since 2006)
|
3 mph (5 kph)
|
|
Bore (Since 2006)
|
3 in (8 cm)
|
|

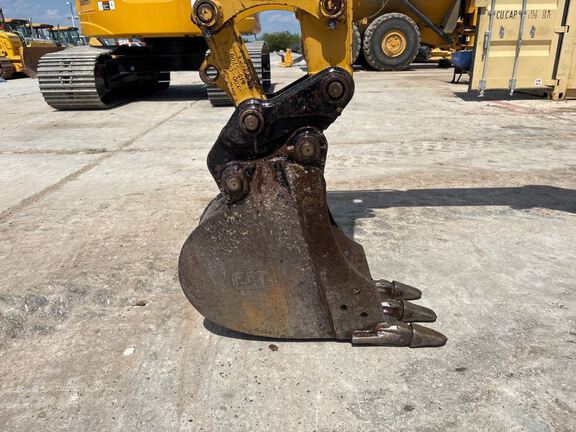

Bucket Bite Width (Since 2006)
|
24 in (61 cm)
|
|
Bucket Bite Width (Since 2006)
|
26 in (66 cm)
|
|
Bucket Bite Width (Since 2006)
|
12 in (30 cm)
|
|
Bucket Bite Width (Since 2006)
|
16 in (41 cm)
|
|
Bucket Bite Width (Since 2006)
|
20 in (51 cm)
|
|
Bucket Bite Width (Since 2006)
|
40 in (102 cm)
|
|
Bucket Bite Width (Since 2006)
|
48 in (122 cm)
|
|
Bucket Bite Width (Since 2006)
|
55 in (140 cm)
|
|
Bucket Capacity Range (heaped) (Since 2006)
|
0 - 0 cu yd (0 - 0 cu m)
|
|
Bucket Heaped Capacity (Since 2006)
|
0 cu yd (113 L)
|
|
Bucket Heaped Capacity (Since 2006)
|
0 cu yd (126 L)
|
|
Bucket Heaped Capacity (Since 2006)
|
0 cu yd (49 L)
|
|
Bucket Heaped Capacity (Since 2006)
|
0 cu yd (65 L)
|
|
Bucket Heaped Capacity (Since 2006)
|
0 cu yd (89 L)
|
|
Bucket Heaped Capacity (Since 2006)
|
0 cu yd (111 L)
|
|
Bucket Heaped Capacity (Since 2006)
|
0 cu yd (135 L)
|
|
Bucket Heaped Capacity (Since 2006)
|
0 cu yd (159 L)
|
|
Bucket Tip Radius (Since 2006)
|
29 in (74 cm)
|
|
Bucket Tip Radius (Since 2006)
|
30 in (76 cm)
|
|
Bucket Tip Radius (Since 2006)
|
20 in (51 cm)
|
|
Bucket Weight with Teeth (Since 2006)
|
159 lbs (72 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
178 lbs (81 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
167 lbs (76 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
185 lbs (84 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
119 lbs (54 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
133 lbs (60 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
129 lbs (59 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
142 lbs (64 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
162 lbs (73 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
236 lbs (107 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
222 lbs (101 kg)
|
|
Bucket Weight with Teeth (Since 2006)
|
249 lbs (113 kg)
|
|
cont'd) Flywheel Horsepower (Since 2001)
|
26 hp (19 kw)
|
|
cont'd) Flywheel Horsepower (2002)
|
26 hp (19 kw)
|
|
cont'd) Flywheel Horsepower (2003)
|
26 hp (19 kw)
|
|
cont'd) Flywheel Horsepower (2004)
|
26 hp (19 kw)
|
|
cont'd) Flywheel Horsepower (2005)
|
26 hp (19 kw)
|
|
Digging Depth (Since 2025)
|
10 ft (3 m)
|
|
Digging Reach (Since 2025)
|
17 ft (5 m)
|
|
Displacement (Since 2006)
|
79 cu in (1,295 cu cm)
|
|
Engine (Since 2025)
|
24 hp (18 kw)
|
|
Engine Model (Since 2006)
|
S3L2 |
|
Flywheel Power (Since 2006)
|
26 hp (19 kw)
|
|
Fuel Tank Refill Capacity (Since 2006)
|
11 US gal (42 L)
|
|
Ground Contact Area with Std. Shoe (Since 2006)
|
1,705 sq in (1 sq m)
|
|
Height (Since 2001)
|
98 in (249 cm)
|
|
Height (2002)
|
98 in (249 cm)
|
|
Height (2003)
|
98 in (249 cm)
|
|
Height (2004)
|
98 in (249 cm)
|
|
Height (2005)
|
98 in (249 cm)
|
|
Hydraulic System (includes tank) (Since 2006)
|
8 US gal (30 L)
|
|
Length (Since 2001)
|
184 in (467 cm)
|
|
Length (2002)
|
184 in (467 cm)
|
|
Length (2003)
|
184 in (467 cm)
|
|
Length (2004)
|
184 in (467 cm)
|
|
Length (2005)
|
184 in (467 cm)
|
|
Lift Capacity (Since 2001)
|
2,646 lbs (1,200 kg)
|
|
Lift Capacity (2002)
|
2,646 lbs (1,200 kg)
|
|
Lift Capacity (2003)
|
2,646 lbs (1,200 kg)
|
|
Lift Capacity (2004)
|
2,646 lbs (1,200 kg)
|
|
Lift Capacity (2005)
|
2,646 lbs (1,200 kg)
|
|
Max. Reach (Since 2001)
|
212 in (538 cm)
|
|
Max. Reach (2002)
|
212 in (538 cm)
|
|
Max. Reach (2003)
|
212 in (538 cm)
|
|
Max. Reach (2004)
|
212 in (538 cm)
|
|
Max. Reach (2005)
|
212 in (538 cm)
|
|
Maximum Drawbar Pull (Since 2006)
|
30 kN 6740 lb Two Speed Travel |
|
Maximum Travel Speed at Rated RPM - Low (Since 2006)
|
2 mph (3 kph)
|
|
No. of Cylinders (Since 2006)
|
3 |
|

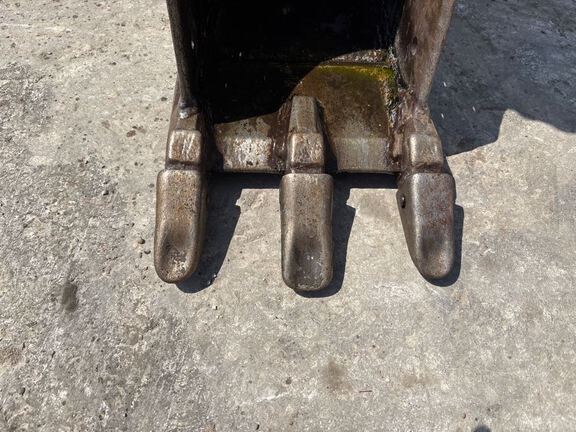

Number of Bucket Teeth (Since 2006)
|
0 |
|
Number of Bucket Teeth (Since 2006)
|
4 |
|
Number of Bucket Teeth (Since 2006)
|
3 |
|
Operating Weight (Since 2025)
|
7,817 lbs (3,546 kg)
|
|
Operating Weight - with Additional Counterweight (Since 2006)
|
7,077 lbs (3,210 kg)
|
|
Overall Track Length (Since 2006)
|
81 in (206 cm)
|
|
Product Identification Prefix (Since 2001)
|
DMA |
|
Product Identification Prefix (2002)
|
DMA |
|
Product Identification Prefix (2003)
|
DMA |
|
Product Identification Prefix (2004)
|
DMA |
|
Product Identification Prefix (2005)
|
DMA |
|
Rated Engine RPM (Since 2006)
|
2,400 rpm |
|
Relief Valve Settings - Implement Circuits (Since 2006)
|
3,550 psi (24,500 kPa)
|
|
Relief Valve Settings - Pilot Circuits (Since 2006)
|
500 psi (3,430 kPa)
|
|
Relief Valve Settings - Swing Circuits (Since 2006)
|
2,990 psi (20,600 kPa)
|
|
Relief Valve Settings - Travel Circuits (Since 2006)
|
3,550 psi (24,500 kPa)
|
|
Sourcing (Since 2006)
|
Japan |
|
Stroke (Since 2006)
|
4 in (10 cm)
|
|
Track Gauge (Since 2001)
|
49 in (124 cm)
|
|
Track Gauge (2002)
|
49 in (124 cm)
|
|
Track Gauge (2003)
|
49 in (124 cm)
|
|
Track Gauge (2004)
|
49 in (124 cm)
|
|
Track Gauge (2005)
|
49 in (124 cm)
|
|
Track Gauge Standard Undercarriage (Since 2006)
|
49 in (124 cm)
|
|
Width (Since 2001)
|
61 in (155 cm)
|
|
Width (2002)
|
61 in (155 cm)
|
|
Width (2003)
|
61 in (155 cm)
|
|
Width (2004)
|
61 in (155 cm)
|
|
Width (2005)
|
61 in (155 cm)
|
|
Width of Standard Track Shoe (Since 2006)
|
12 in (30 cm)
|
|
Years Built (Since 2001)
|
2,001 - 2,005 |
|
Years Built (2002)
|
2,001 - 2,005 |
|
Years Built (2003)
|
2,001 - 2,005 |
|
Years Built (2004)
|
2,001 - 2,005 |
|
Years Built (2005)
|
2,001 - 2,005 |

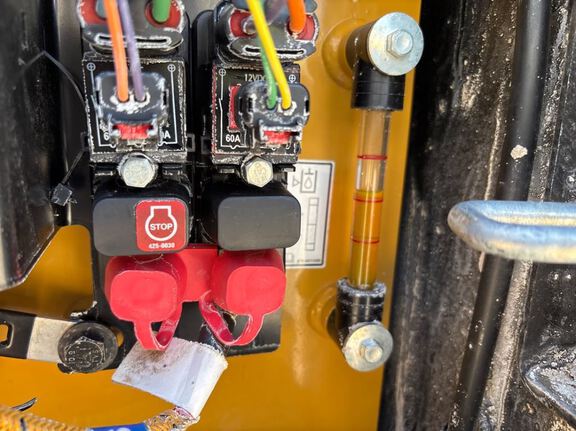

| Hydraulic System |
|
Auxiliary Circuit - Primary - Flow (Since 2026)
|
17 gpm (64 lpm)
|
|
Auxiliary Circuit - Primary - Pressure (Since 2026)
|
3,553 psi |
|
Auxiliary Circuit - Secondary - Flow (Since 2026)
|
7 gpm (27 lpm)
|
|
Auxiliary Circuit - Secondary - Pressure (Since 2026)
|
3,553 psi |
|
Digging Force - Bucket (Since 2026)
|
6,385 lbs ft (8,657 nm)
|
|
Digging Force - Stick - Long (Since 2026)
|
3,327 lbs ft (4,511 nm)
|
|
Digging Force - Stick - Standard (Since 2026)
|
3,732 lbs ft (5,060 nm)
|
|
Operating Pressure - Equipment (Since 2026)
|
3,553 psi |
|
Operating Pressure - Swing (Since 2026)
|
2,553 psi |
|
Operating Pressure - Travel (Since 2026)
|
3,553 psi |
|
Pump Flow at 2,400 rpm (Since 2026)
|
26 gpm (98 lpm)
|
|
Type (Since 2026)
|
Load Sensing Hydraulics with Variable Displacement Piston Pump |
| Service Refill Capacities |
|
Cooling System (Since 2026)
|
1 gal (4 l)
|
|
Engine Oil (Since 2026)
|
1 gal (4 l)
|
|
Fuel Tank (Since 2026)
|
12 gal (45 l)
|
|
Hydraulic System (Since 2026)
|
9 gal (35 l)
|
|
Hydraulic Tank (Since 2026)
|
5 gal (18 l)
|
| Sound |
|
Average Exterior Sound Pressure (ISO 6395:2008) (Since 2026)
|
94 dB(A) |
|
Operator Sound Pressure (ISO 6396:2008) (Since 2026)
|
78 dB(A) |
| Sustainability |
|
Recyclability (Since 2026)
|
95% |

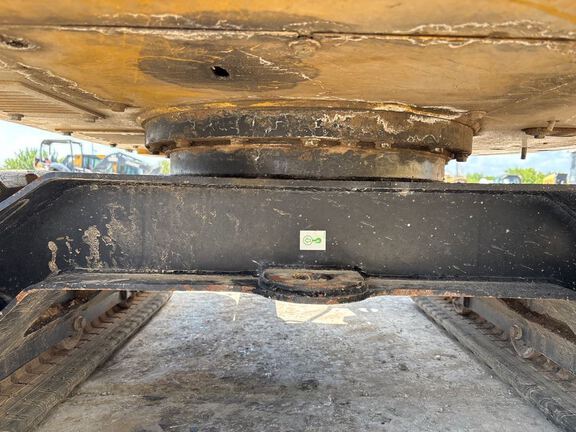

| Swing System |
|
Boom Swing - Left (Since 2026)
|
75 degrees |
|
Boom Swing - Right (Since 2026)
|
50 degrees |
|
Machine Swing Speed (Since 2026)
|
9 r/min |

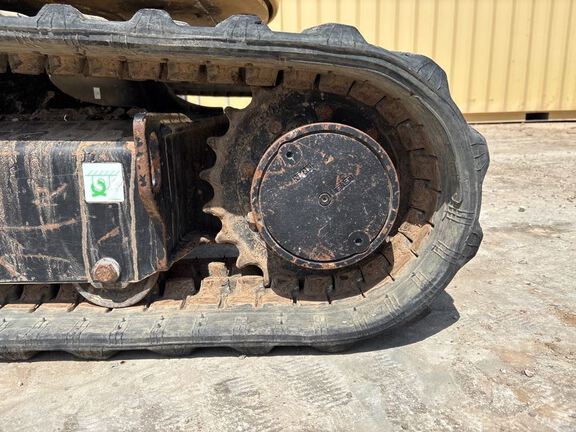

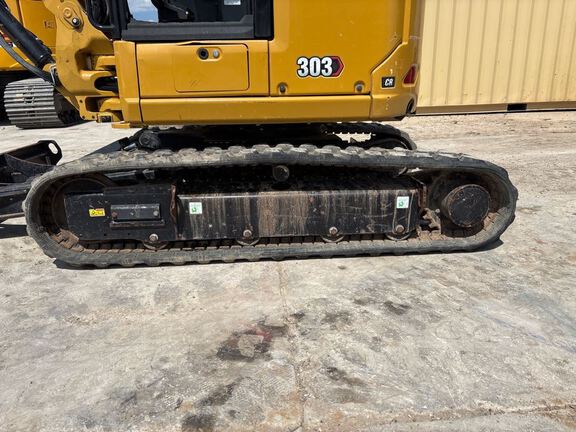

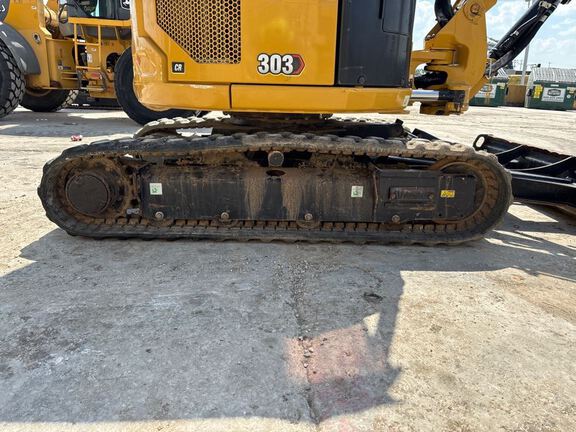

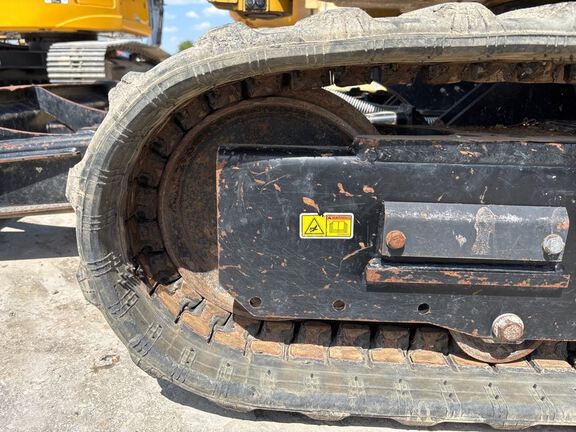

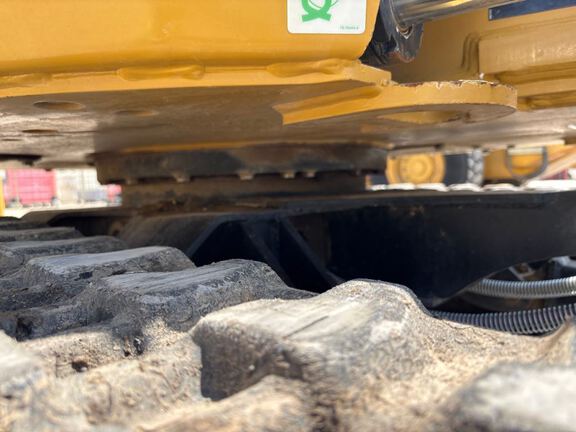

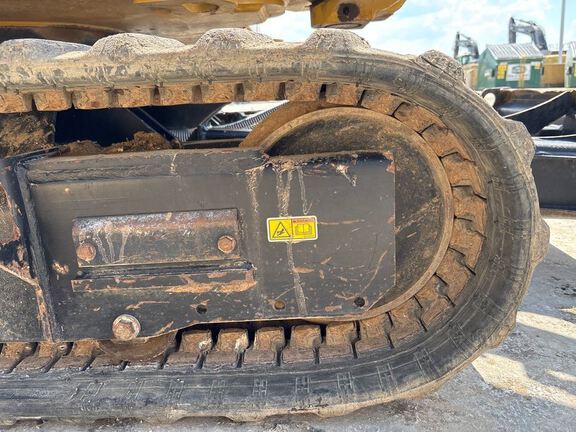

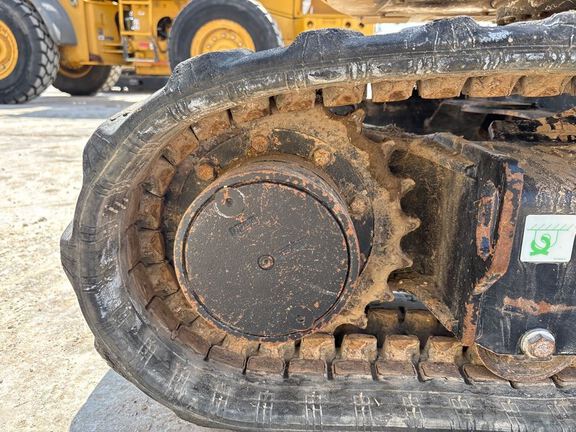

| Travel System |
|
Gradeability - Maximum (Since 2026)
|
30 degrees |
|
Ground Pressure - Maximum Weight (Since 2026)
|
5 psi |
|
Ground Pressure - Minimum Weight (Since 2026)
|
4 psi |
|
Maximum Traction Force - High Speed (Since 2026)
|
3,305 lbs ft (4,481 nm)
|
|
Maximum Traction Force - Low Speed (Since 2026)
|
7,059 lbs ft (9,571 nm)
|
|
Travel Speed - High (Since 2026)
|
3 mph (5 kph)
|
|
Travel Speed - Low (Since 2026)
|
2 mph (3 kph)
|
| Weight Increase From Minimum Configuration |
|
Cab (Since 2026)
|
254 lbs (115 kg)
|
|
Counterweight (Since 2026)
|
221 lbs (100 kg)
|
|
Extra Counterweight (Since 2026)
|
551 lbs (250 kg)
|
|
Long Stick (Since 2026)
|
55 lbs (25 kg)
|
|
Steel Tracks (Since 2026)
|
276 lbs (125 kg)
|
| Weights |
|
EU: CE Plate Weight with Cab*** (Since 2026)
|
7,012 lbs (3,181 kg)
|
|
EU: CE Plate Weight with Canopy*** (Since 2026)
|
6,791 lbs (3,080 kg)
|
|
Maximum Operating Weight with Cab** (Since 2026)
|
7,817 lbs (3,546 kg)
|
|
Maximum Operating Weight with Canopy** (Since 2026)
|
7,552 lbs (3,426 kg)
|
|
Minimum Operating Weight with Cab* (Since 2026)
|
6,924 lbs (3,141 kg)
|
|
Minimum Operating Weight with Canopy* (Since 2026)
|
6,670 lbs (3,025 kg)
|
|
Operating Weight (Since 2026)
|
7,817 lbs (3,546 kg)
|
