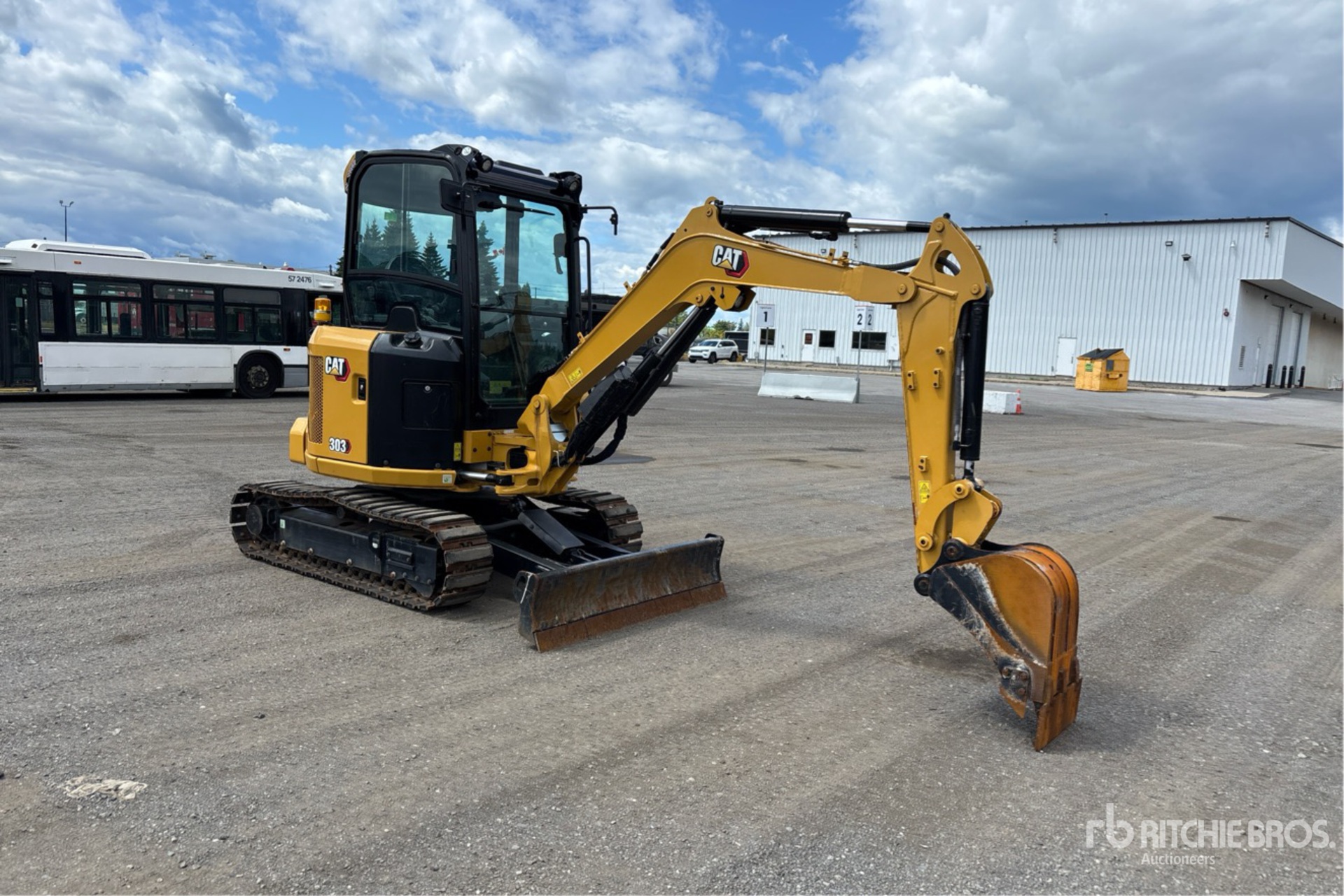

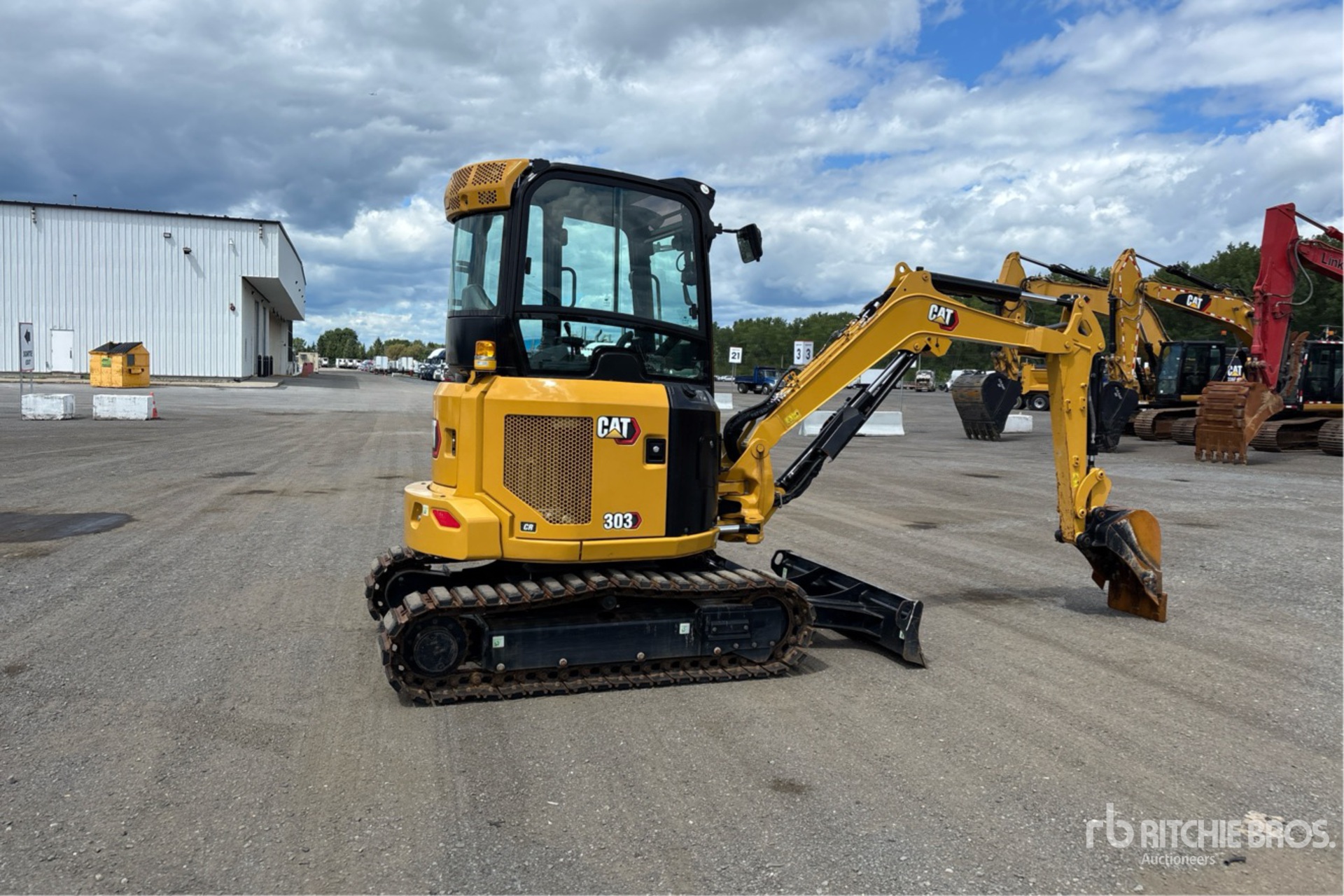

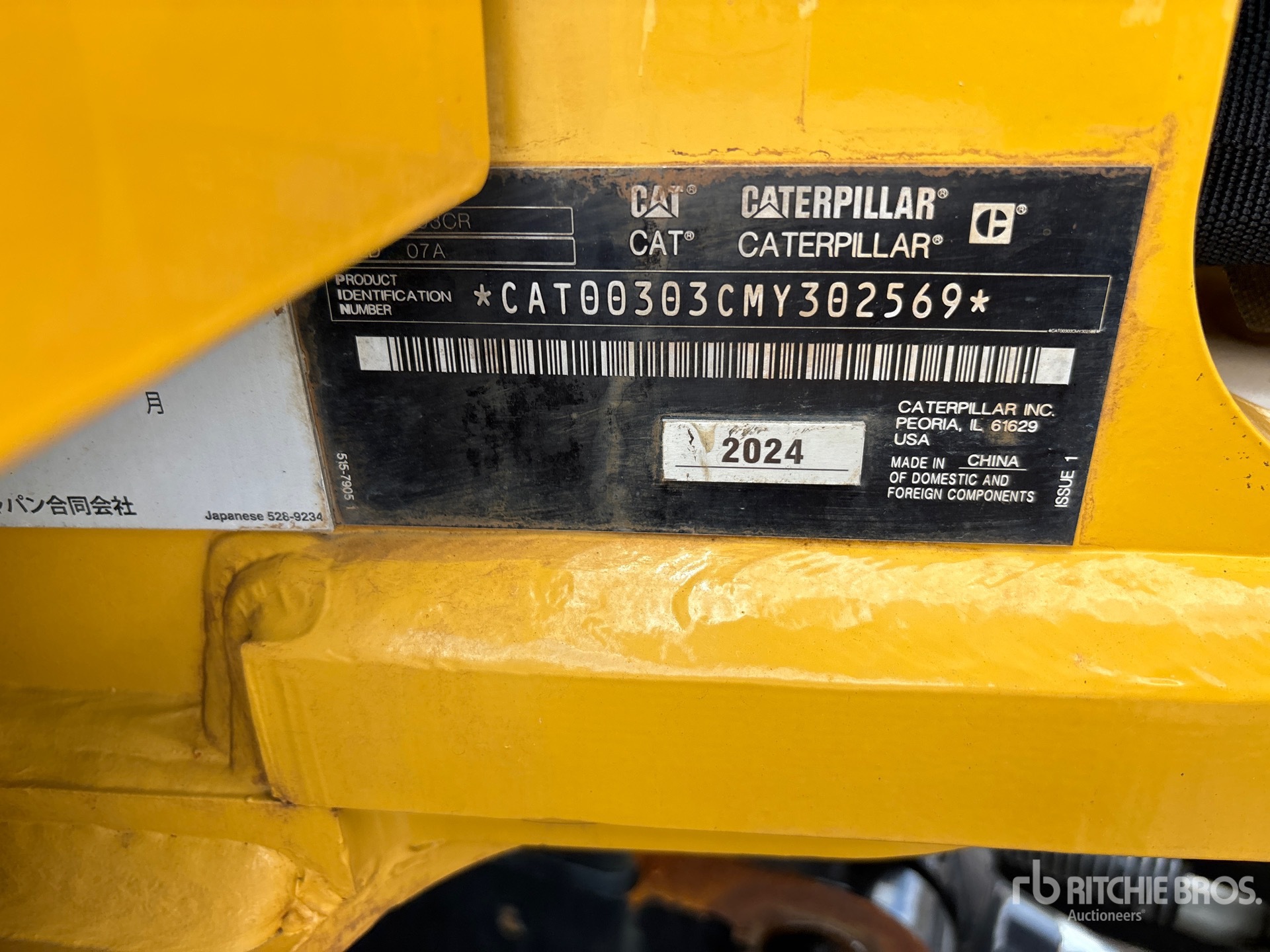

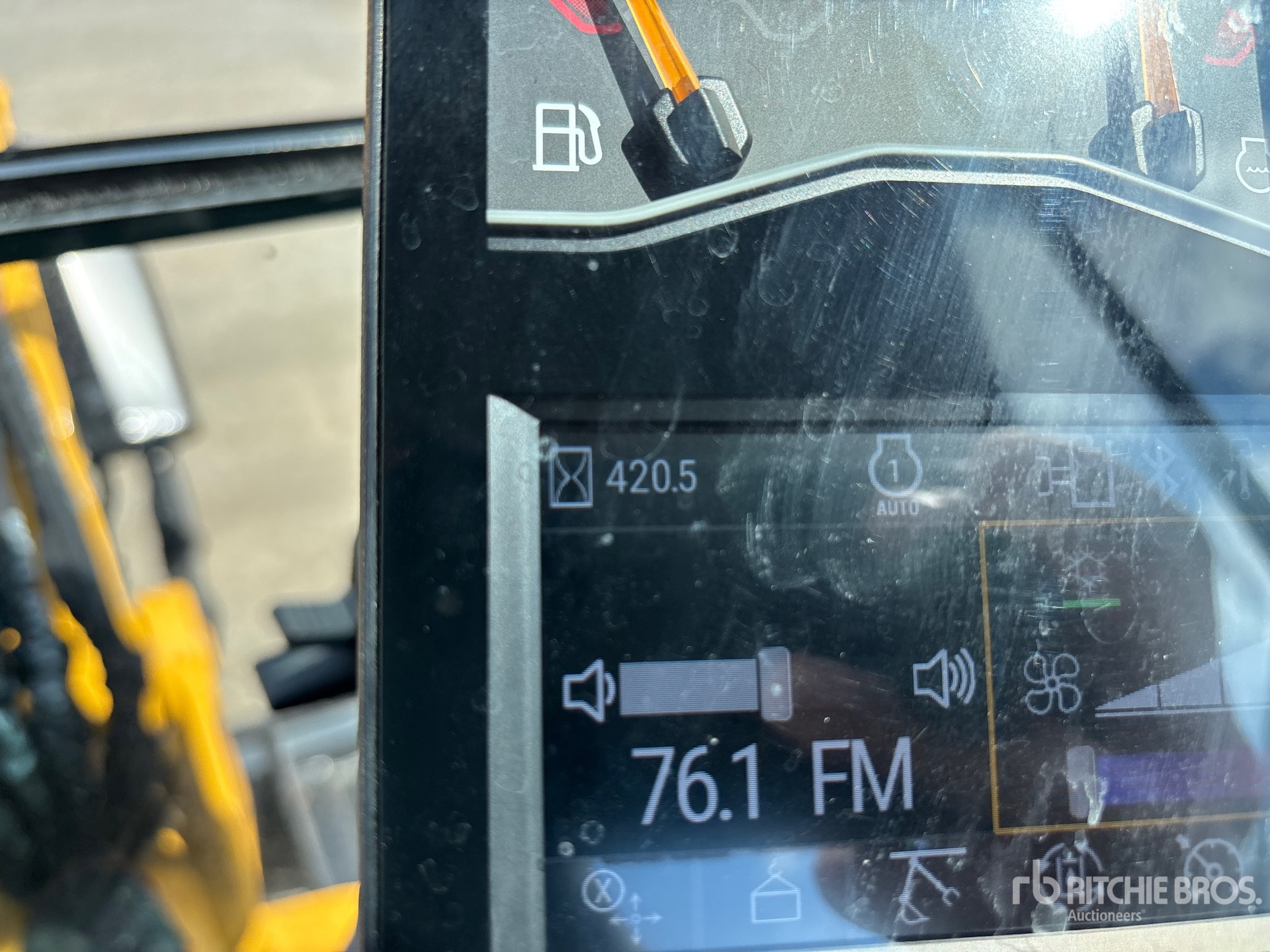

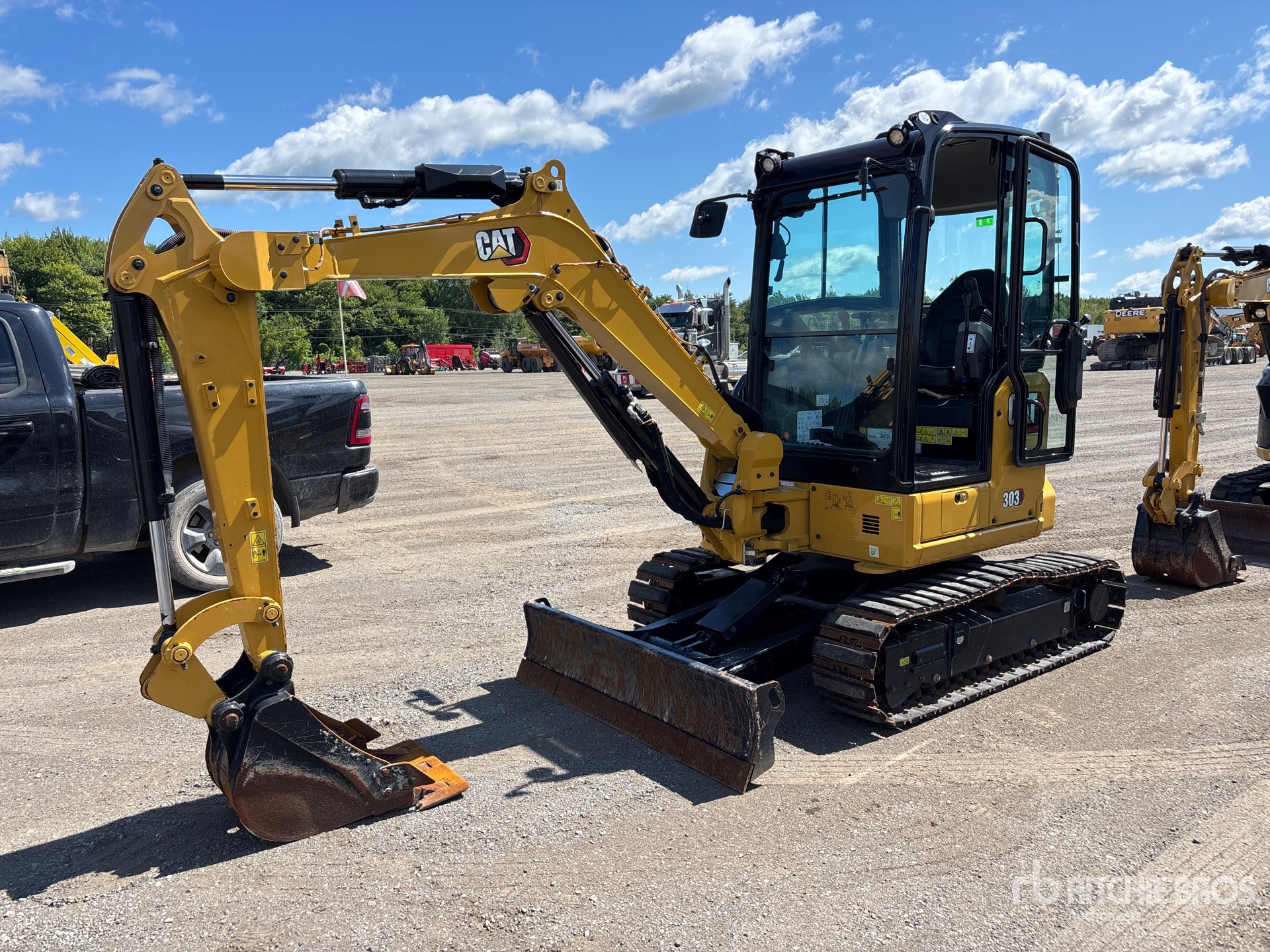

| Blade |
|
Dig Depth |
15 in (38 cm)
|
|
Lift Height |
16 in (41 cm)
|
|
Width |
5 ft (2 m)
|
| Dimensions |
|
Center Ground Clearance |
1 ft (0 m)
|
|
Height - Over Cab |
8 ft (3 m)
|
|
Height - Over Canopy |
8 ft (3 m)
|
|
Maximum Cutting Height - Long Stick |
16 ft (5 m)
|
|
Maximum Cutting Height - Standard Stick |
15 ft (5 m)
|
|
Maximum Digging Depth - Long Stick |
10 ft (3 m)
|
|
Maximum Digging Depth - Standard Stick |
10 ft (3 m)
|
|
Maximum Dump Height - Long Stick |
11 ft (3 m)
|
|
Maximum Dump Height - Standard Stick |
10 ft (3 m)
|
|
Maximum Horizontal Reach - Long Stick |
18 ft (5 m)
|
|
Maximum Horizontal Reach - Standard Stick |
17 ft (5 m)
|
|
Maximum Reach - Ground Level - Long Stick |
16 ft (5 m)
|
|
Maximum Reach - Ground Level - Standard Stick |
17 ft (5 m)
|
|
Maximum Vertical Dig Depth - Long Stick |
8 ft (2 m)
|
|
Maximum Vertical Dig Depth - Standard Stick |
8 ft (3 m)
|
|
Shipping Length |
15 ft (5 m)
|
|
Swing Radius - Rear |
3 ft (1 m)
|
|
Track Gauge |
4 ft (1 m)
|
|
Track Shoe Width |
1 ft (0 m)
|
|
Width - Over Track |
5 ft (2 m)
|
|
Width - Upper Structure |
5 ft (2 m)
|
| Electrical System |
|
Electrical System Type |
Twelve-volt system |
| Engine |
|
Engine Model |
S3L2 |
|
Gross Power |
27 hp (20 kw)
|
|
Net Power |
26 hp (19 kw)
|
| Engine Dimensions |
|
Bore |
3 in (8 cm)
|
|
Displacement |
81 cu in (1,319 cu cm)
|
|
Stroke |
4 in (9 cm)
|
| General Specifications |
|
Digging Depth (Since 2025)
|
10 ft (3 m)
|
|
Digging Reach (Since 2025)
|
17 ft (5 m)
|
|
Engine (Since 2025)
|
24 hp (18 kw)
|
|
Operating Weight (Since 2025)
|
7,817 lbs (3,545 kg)
|
| Hydraulic System |
|
Auxiliary Circuit - Primary |
13 gpm (50 lpm)
|
|
Auxiliary Circuit - Primary (245 Bar/3,553 Psi) |
13 gpm (50 lpm)
|
|
Digging Force - Bucket |
6,000 lbs (2,721 kg)
|
|
Digging Force - Stick - Long |
3,484 lbs (1,580 kg)
|
|
Digging Force - Stick - Standard |
3,822 lbs (1,733 kg)
|
|
Operating Pressure - Equipment |
3,550 psi |
|
Operating Pressure - Swing |
3,550 psi |
|
Operating Pressure - Travel |
3,550 psi |
|
Pump - Gear (Single) |
6 gpm (23 lpm)
|
|
Pump - Gear (Tandem) |
9 gpm (33 lpm)
|
| Msc Comments |
|
Msc Spec Date |
1/1/2000 |
| Operational |
|
Operating Weight |
7,326 lbs (3,322 kg)
|
| Service Refill Capacities |
|
Cooling System Tag |
1 gal (4 l)
|
|
Engine Oil |
2 gal (6 l)
|
|
Fuel Tank |
11 gal (41 l)
|
|
Hydraulic System |
18 gal (69 l)
|
|
Hydraulic Tank |
8 gal (30 l)
|
| Swing System |
|
Boom Swing - Left - With Stop |
65 degrees |
|
Boom Swing - Left - Without Stop |
90 degrees |
|
Boom Swing - Right |
50 degrees |
|
Machine Swing Speed |
10 rpm |
|
Swing System Type |
Hydraulic Motor Driven |
| Travel System |
|
Gradeability - Maximum - High |
25 degrees |
|
Travel Speed - High |
3 mph (5 kph)
|
|
Travel Speed - Low |
2 mph (3 kph)
|
| Weights |
|
Operating Weight - With Cab |
7,524 lbs (3,412 kg)
|
