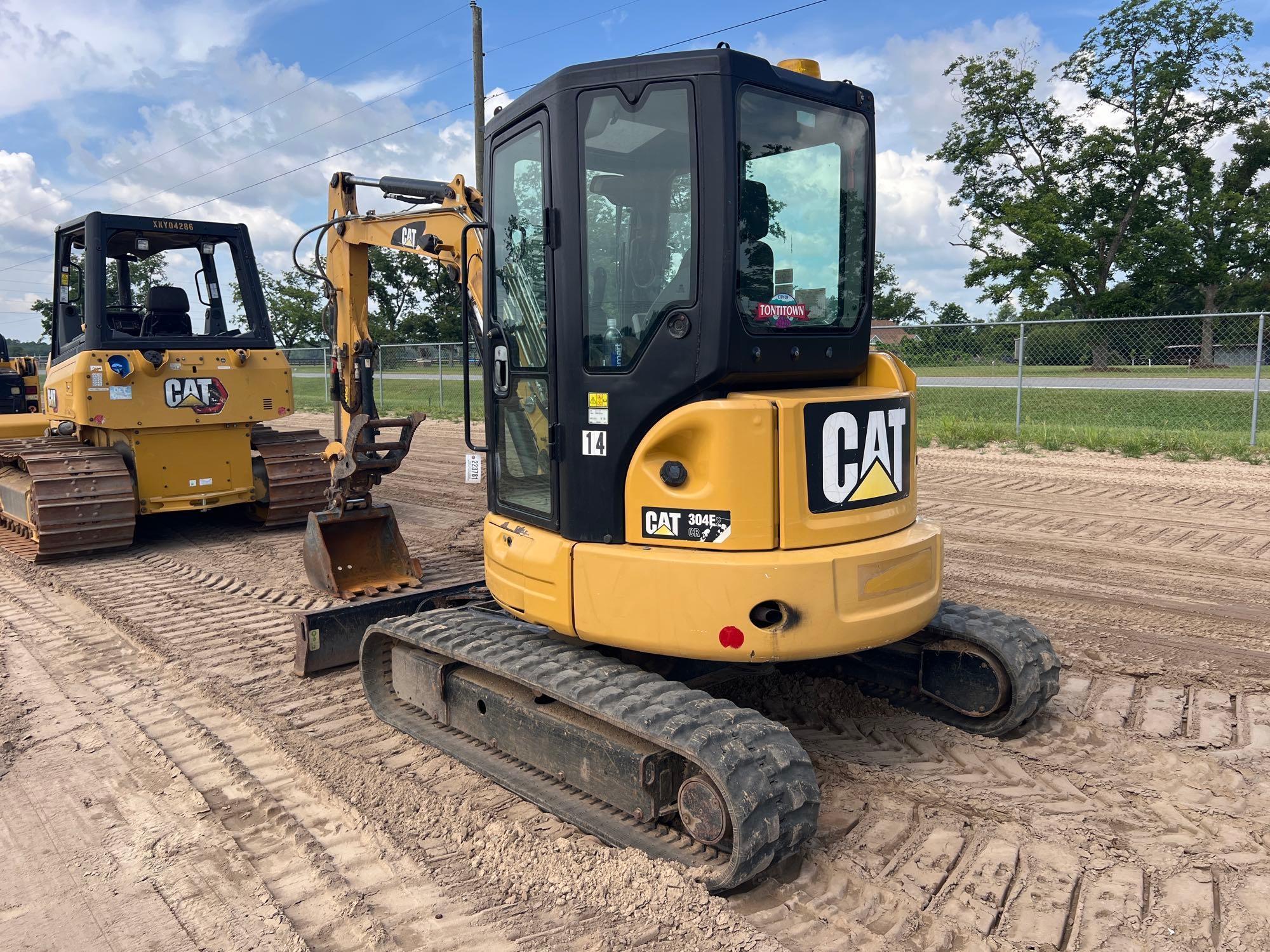

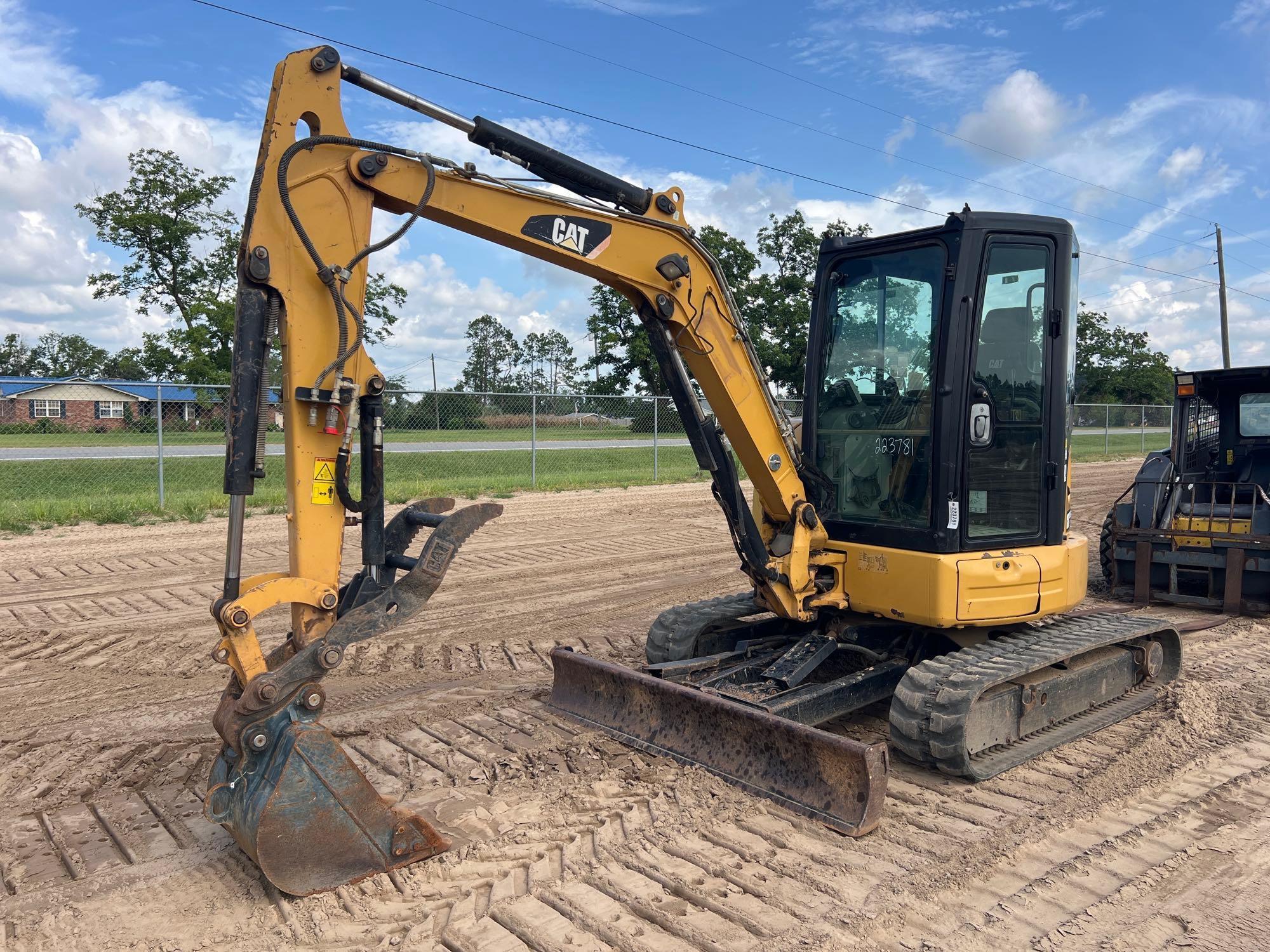

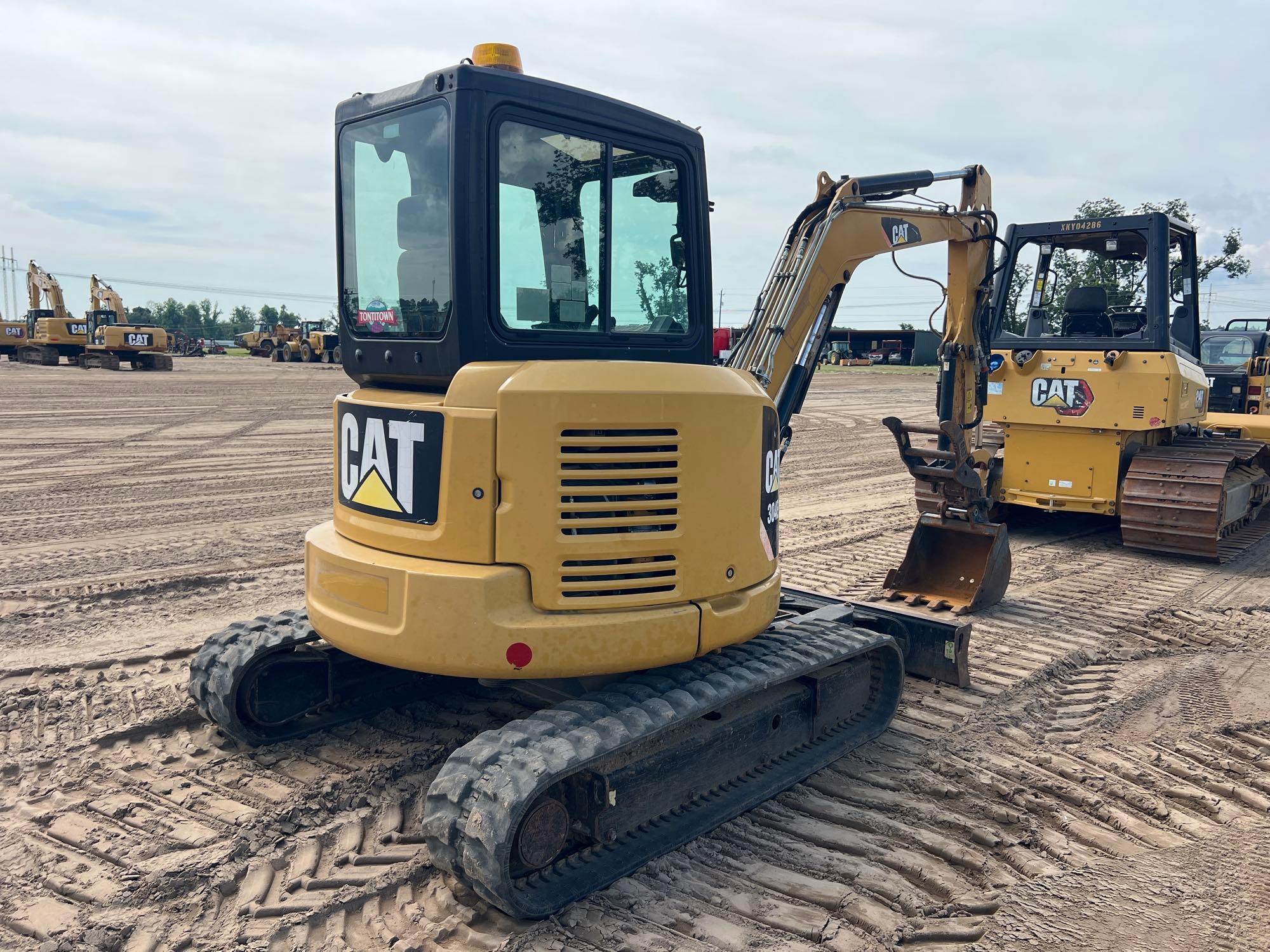

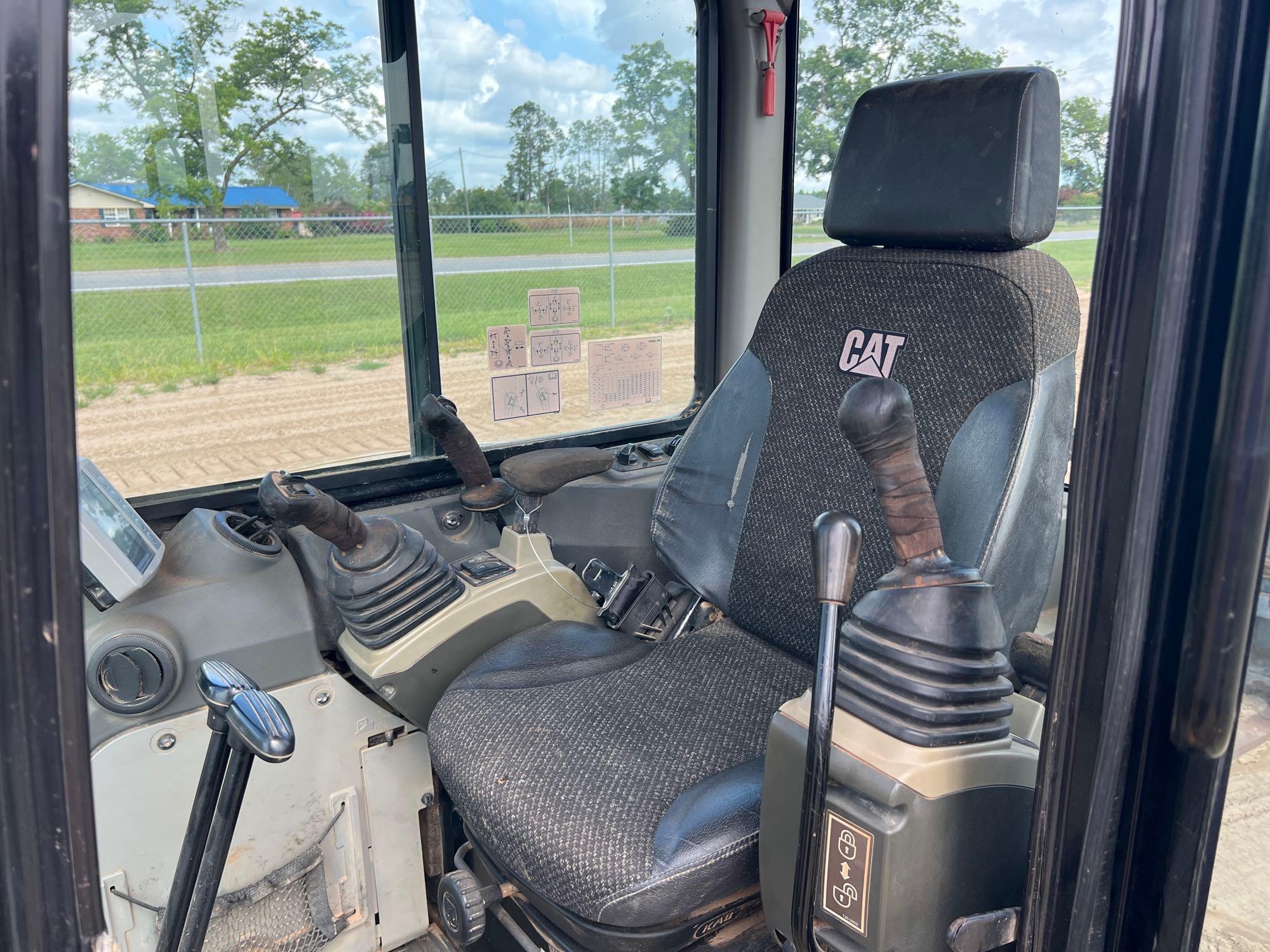

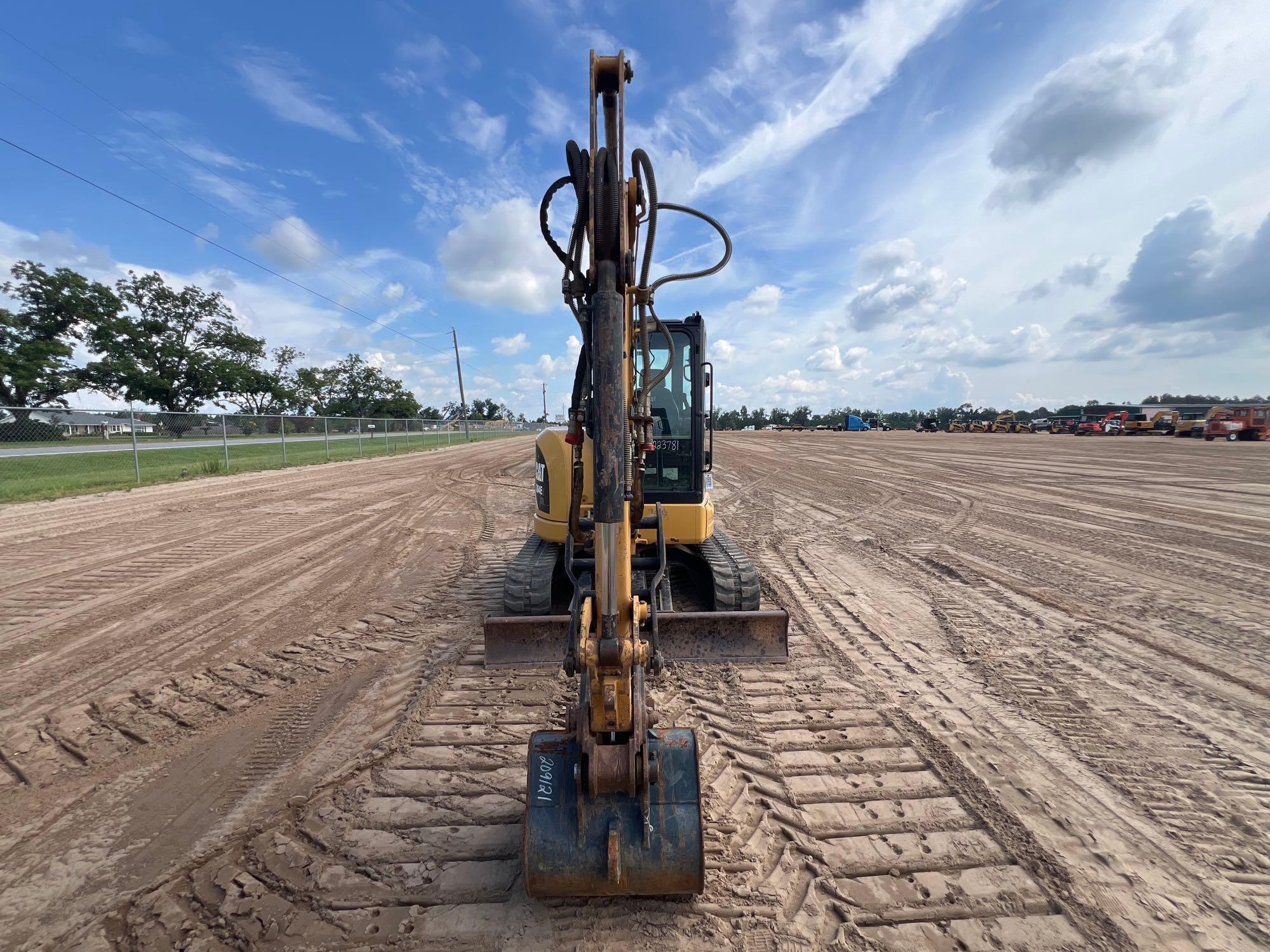

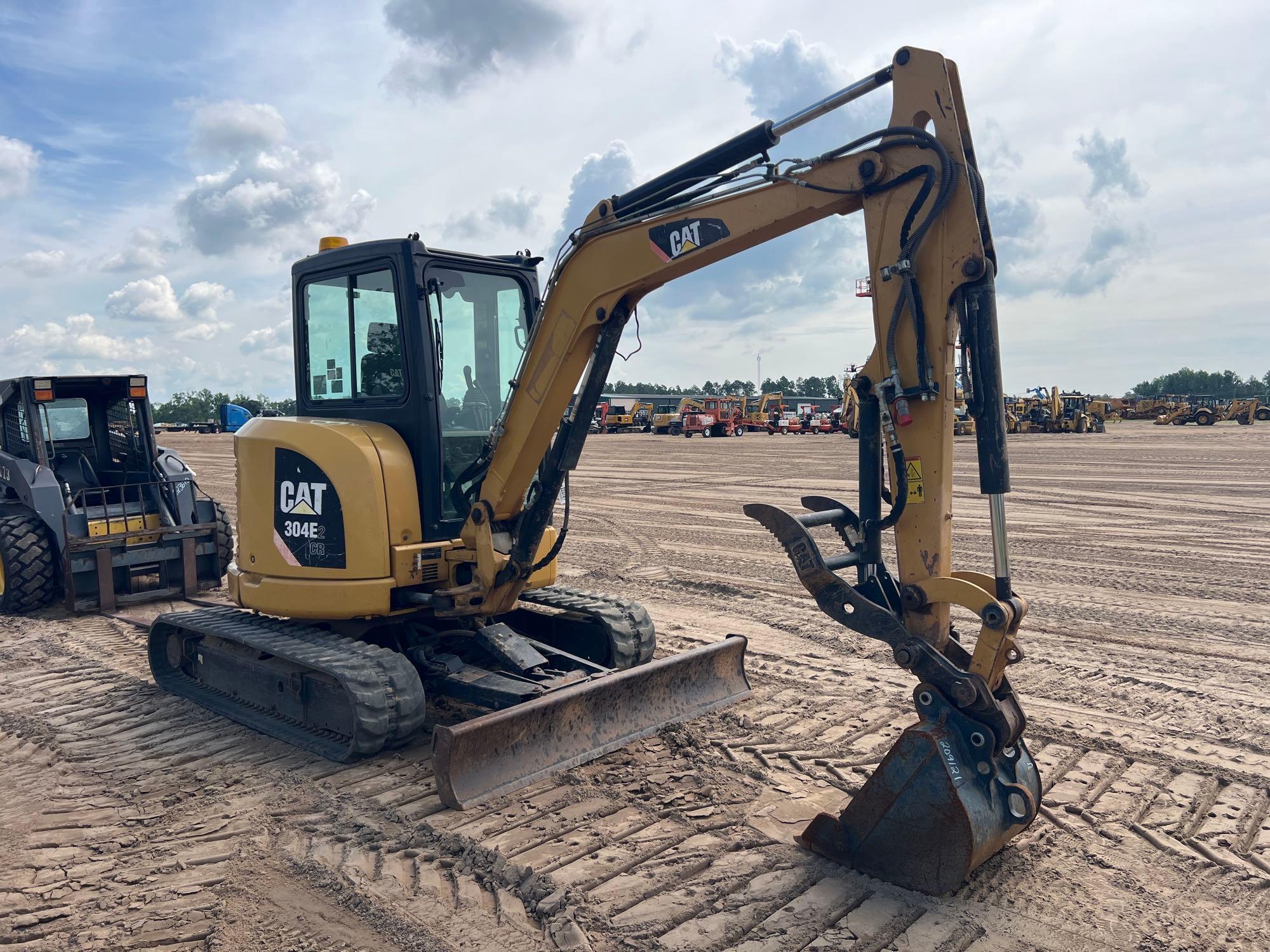

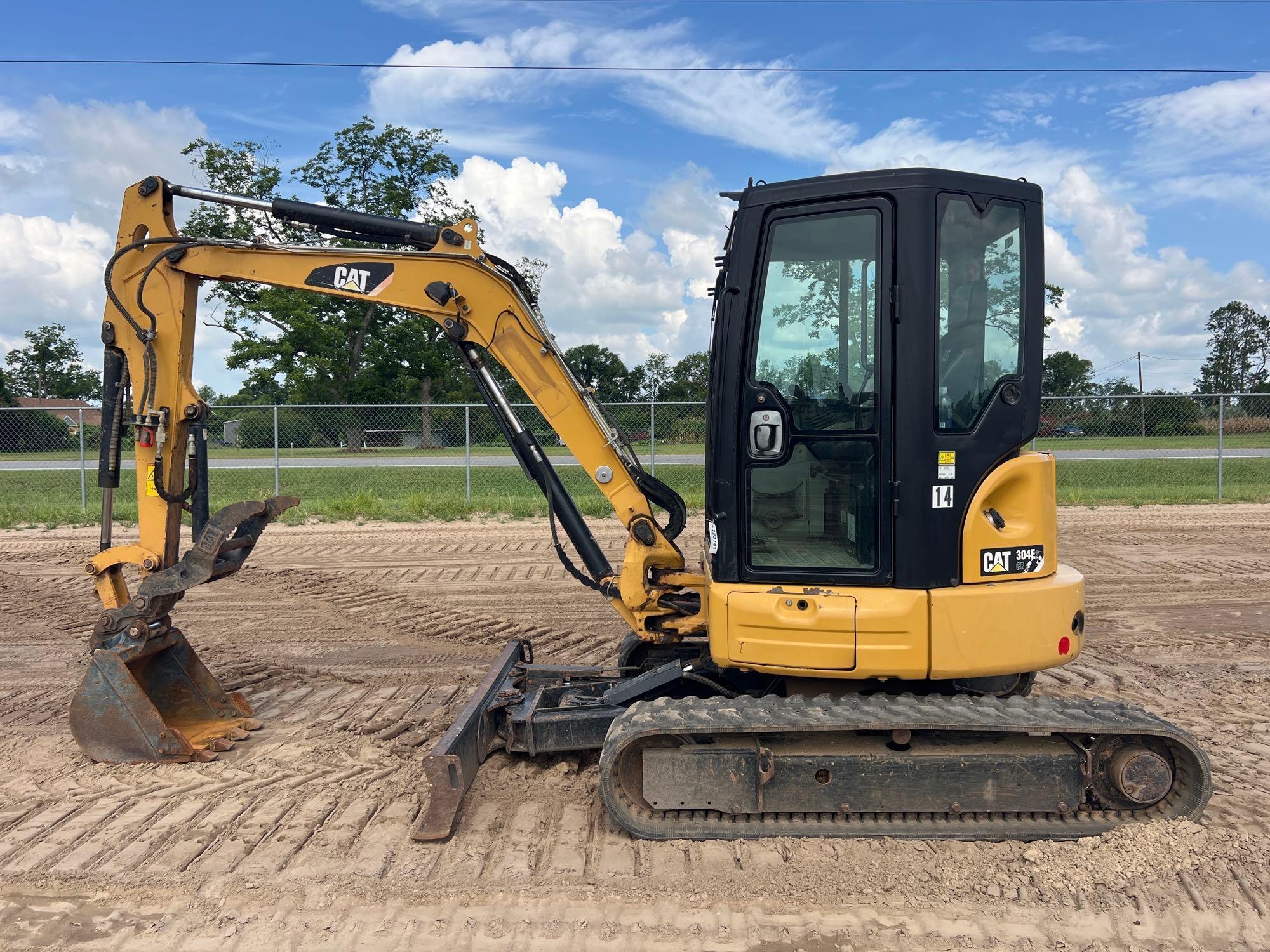

| Blade |
|
Dig Depth |
19 in (47 cm)
|
|
Height |
13 in (33 cm)
|
|
Lift Height |
16 in (40 cm)
|
|
Width |
6 ft (2 m)
|

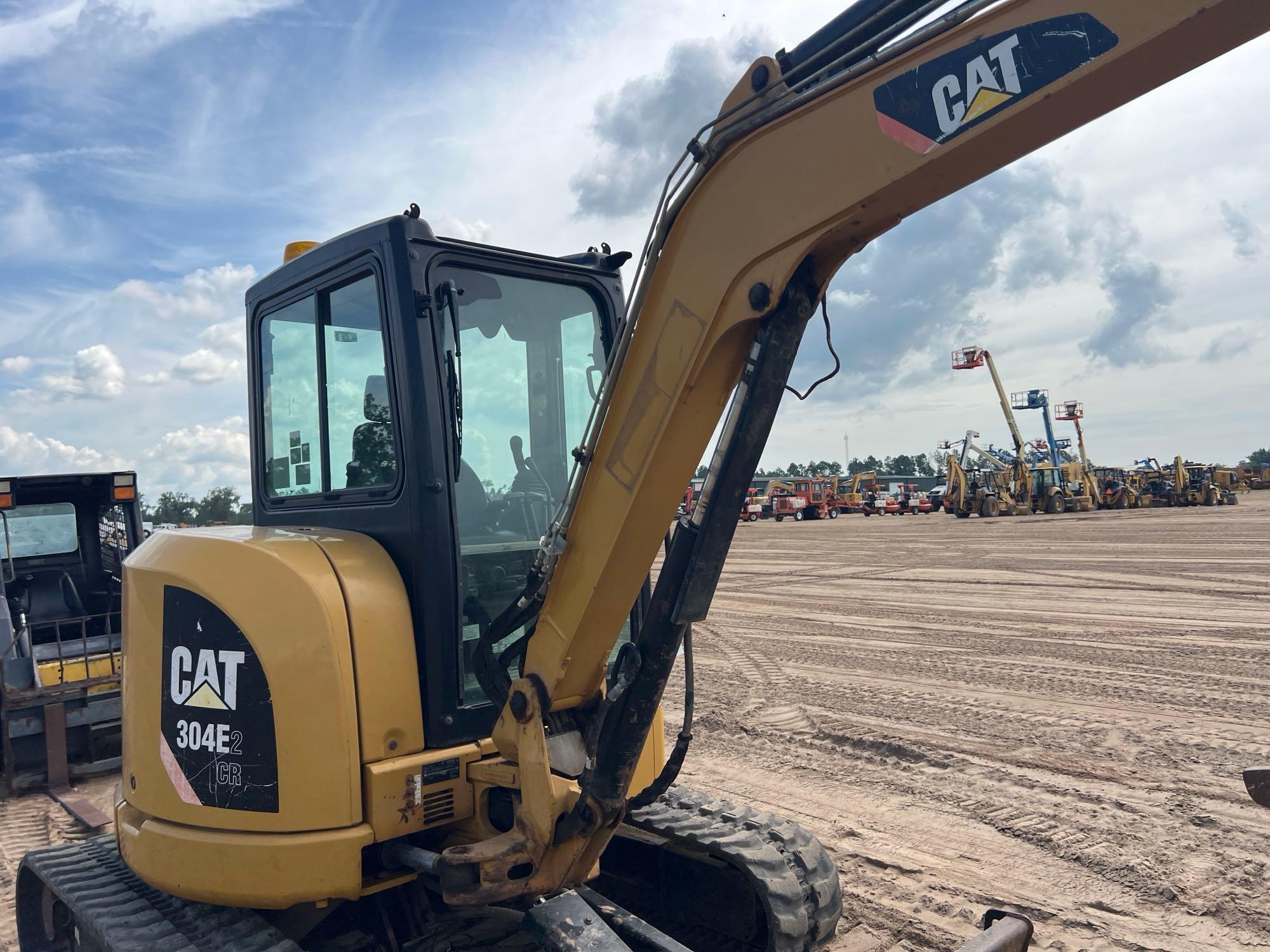

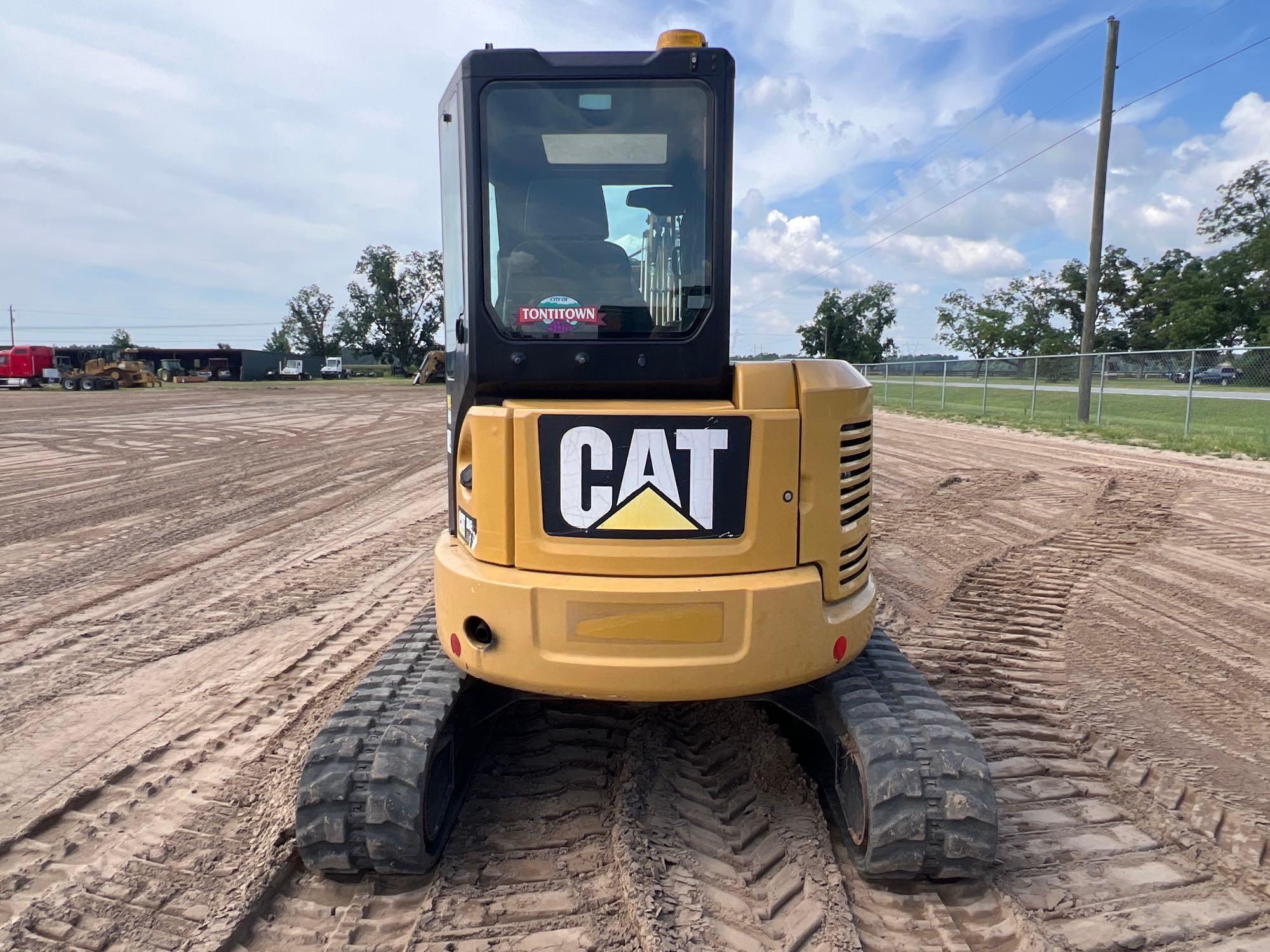

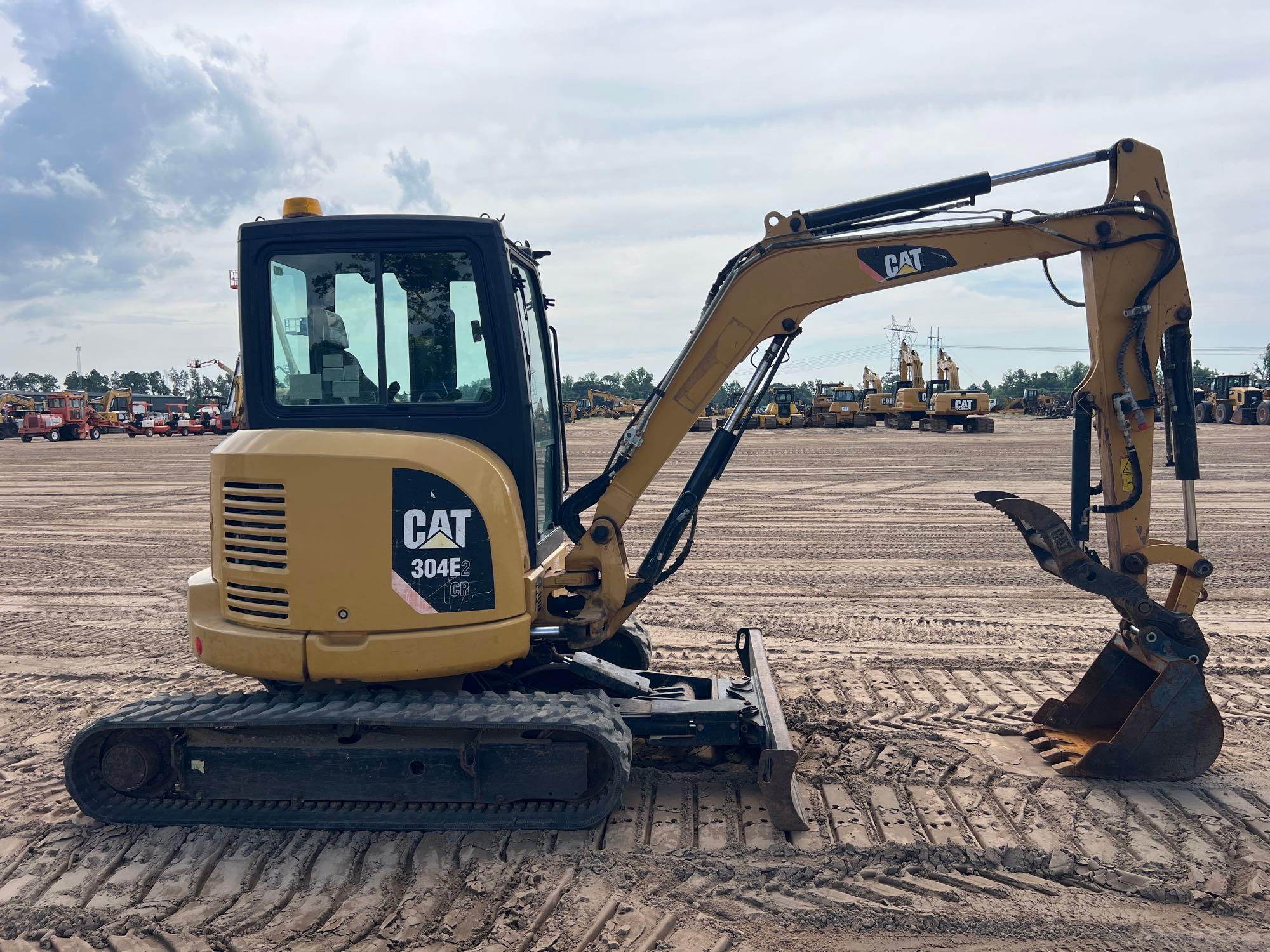

| Dimensions |
|
Height - Over Cab |
8 ft (3 m)
|
|
Maximum Cutting Height - Long Stick |
17 ft (5 m)
|
|
Maximum Cutting Height - Standard Stick |
16 ft (5 m)
|
|
Maximum Digging Depth - Standard Stick |
10 ft (3 m)
|
|
Maximum Dump Height - Long Stick |
12 ft (4 m)
|
|
Maximum Dump Height - Standard Stick |
12 ft (4 m)
|
|
Maximum Horizontal Reach - Long Stick |
18 ft (5 m)
|
|
Maximum Horizontal Reach - Standard Stick |
17 ft (5 m)
|
|
Maximum Reach - Ground Level - Standard Stick |
18 ft (5 m)
|
|
Maximum Vertical Dig Depth - Long Stick |
8 ft (3 m)
|
|
Maximum Vertical Dig Depth - Standard Stick |
8 ft (2 m)
|
|
Shipping Height |
8 ft (3 m)
|
|
Shipping Length |
16 ft (5 m)
|
|

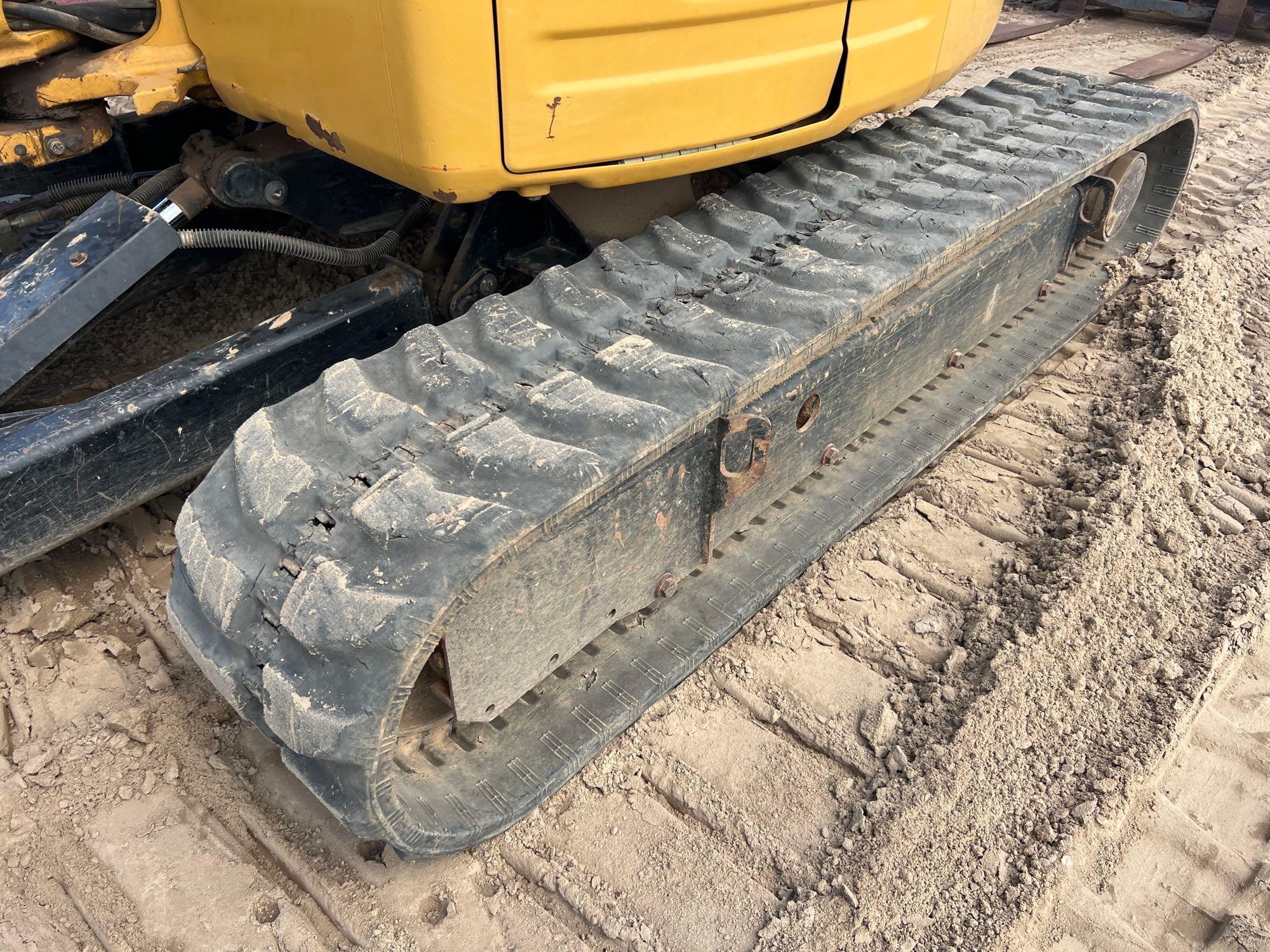

Track Shoe Width |
1 ft (0 m)
|
|
Transport Width |
6 ft (2 m)
|

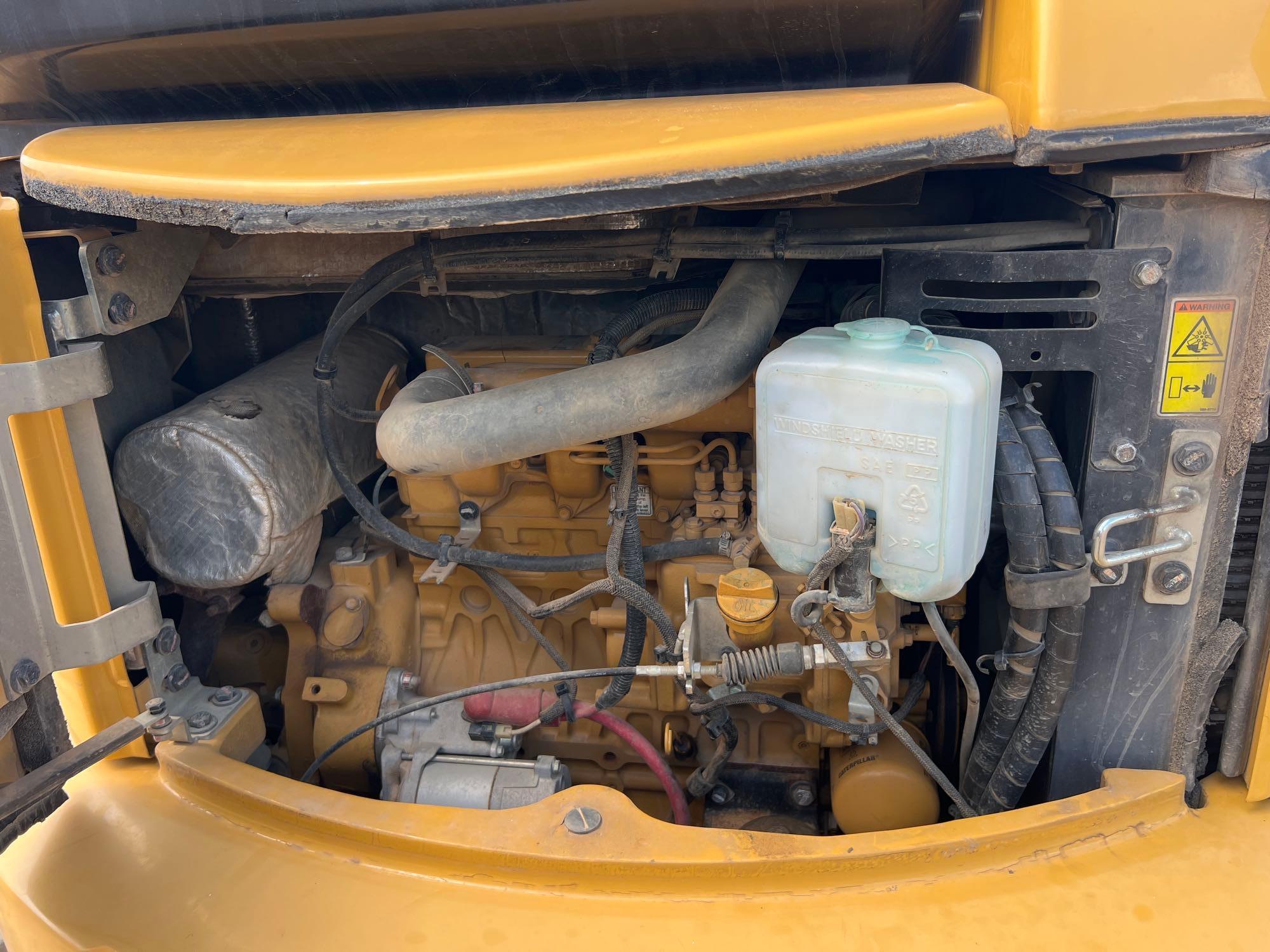

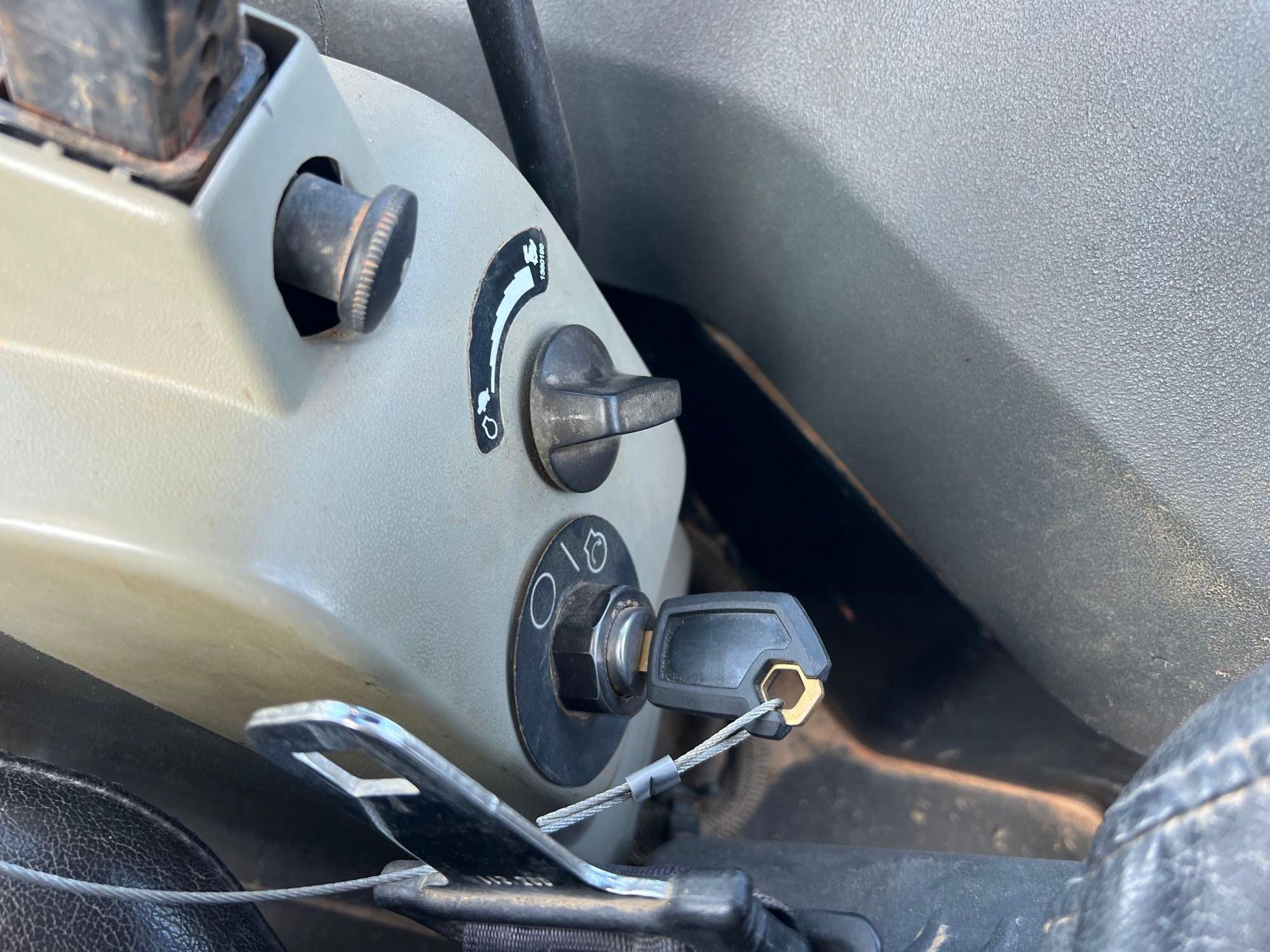

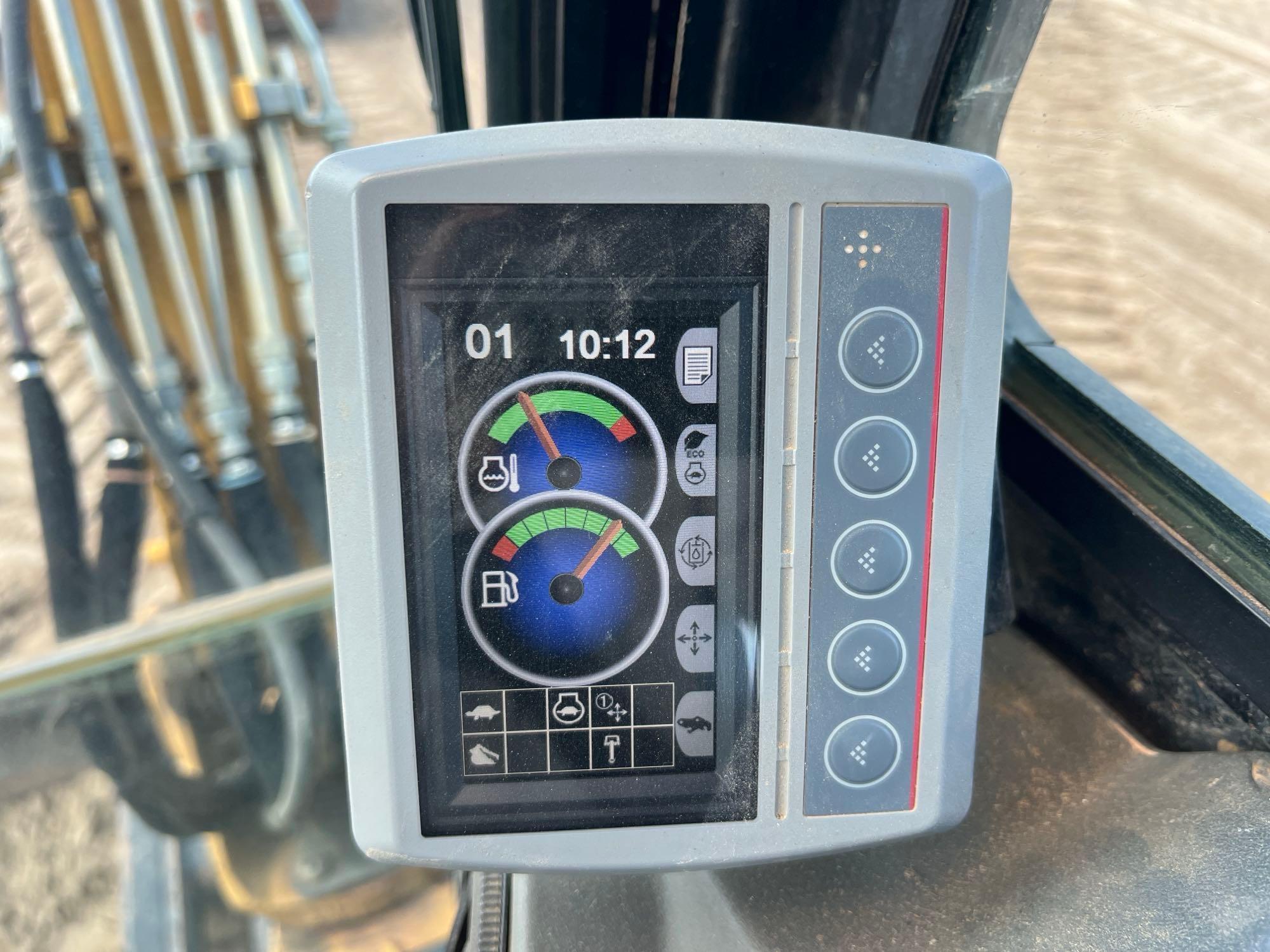

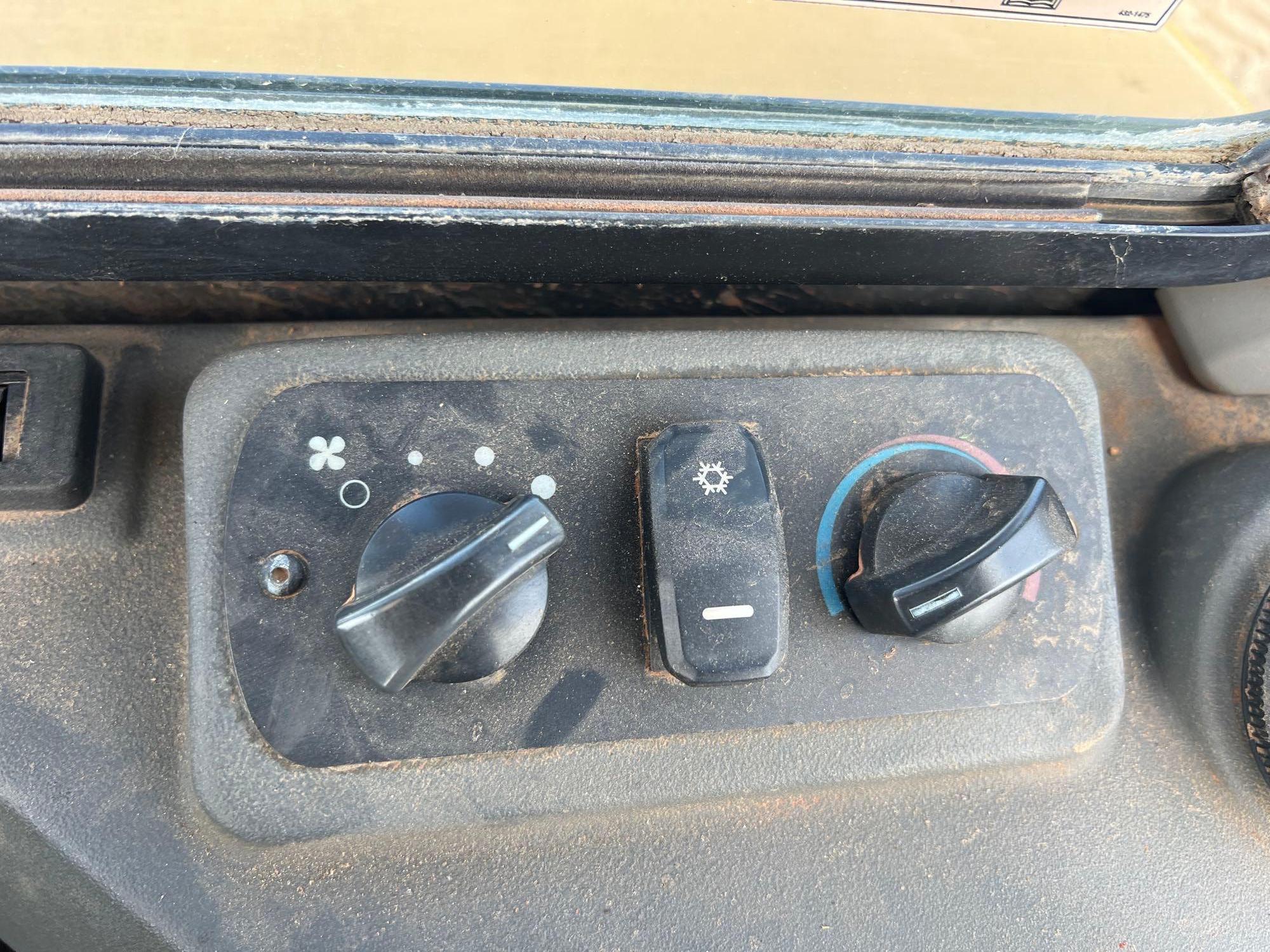

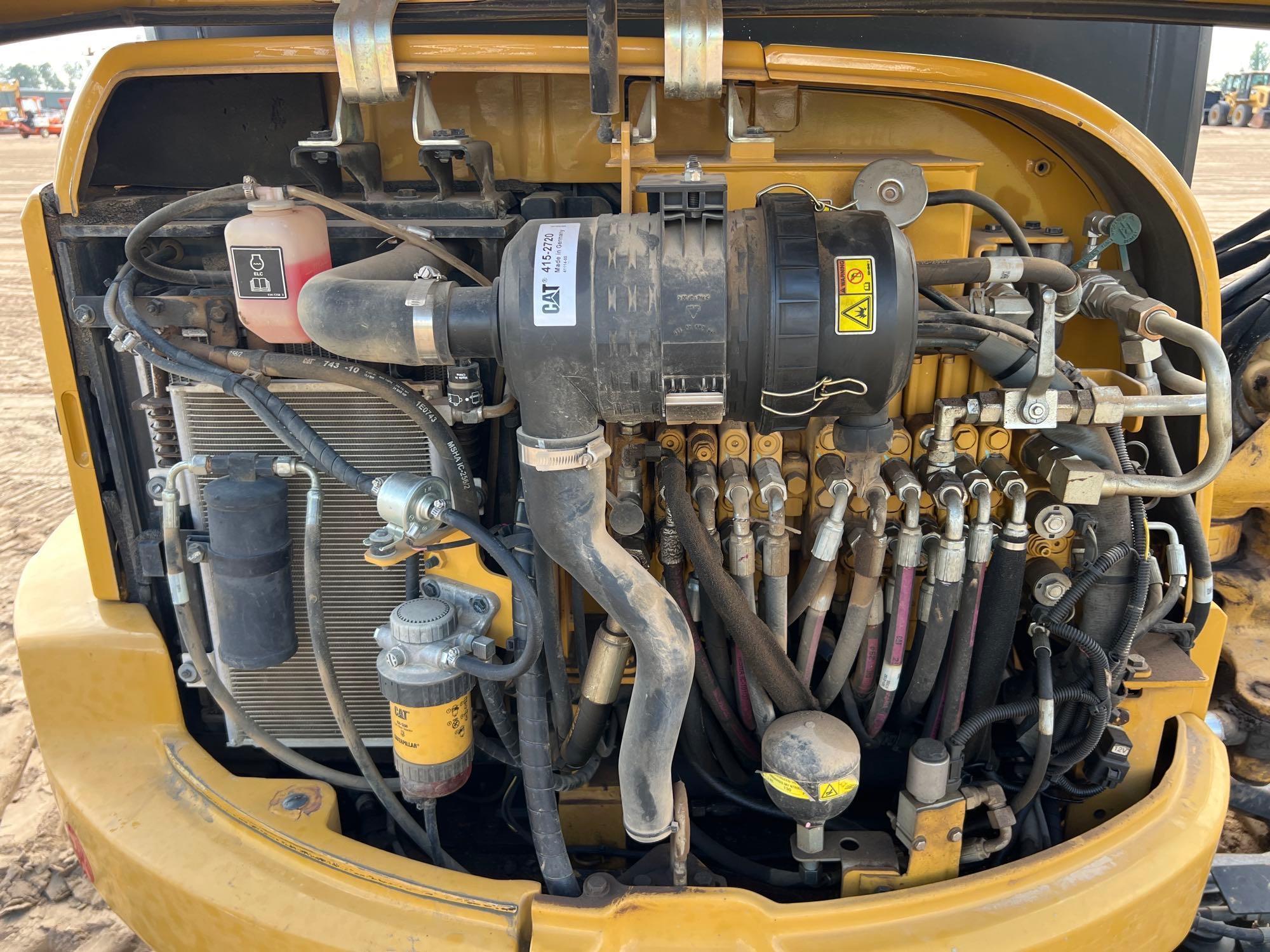

| Engine |
|
Engine Model |
Cat C2.4 |
|
Gross Power |
42 hp (31 kw)
|
|
Net Power |
40 hp (30 kw)
|
| Engine Dimensions |
|
Bore |
3 in (9 cm)
|
|
Displacement |
146 cu in (2,393 cu cm)
|
|
Stroke |
4 in (10 cm)
|
| General Specifications |
|
Approx. Operating Weight (Since 2011)
|
8,820 lbs (4,001 kg)
|
|
Approx. Operating Weight (2012)
|
8,820 lbs (4,001 kg)
|
|
Approx. Operating Weight (2013)
|
8,820 lbs (4,001 kg)
|
|
Approx. Operating Weight (2014)
|
8,820 lbs (4,001 kg)
|
|
Approx. Operating Weight (2015)
|
8,820 lbs (4,001 kg)
|
|
Approx. Operating Weight (2016)
|
8,820 lbs (4,001 kg)
|
|
Bore (Since 2013)
|
3 in (9 cm)
|
|
Bore (2015)
|
3 in (9 cm)
|
|

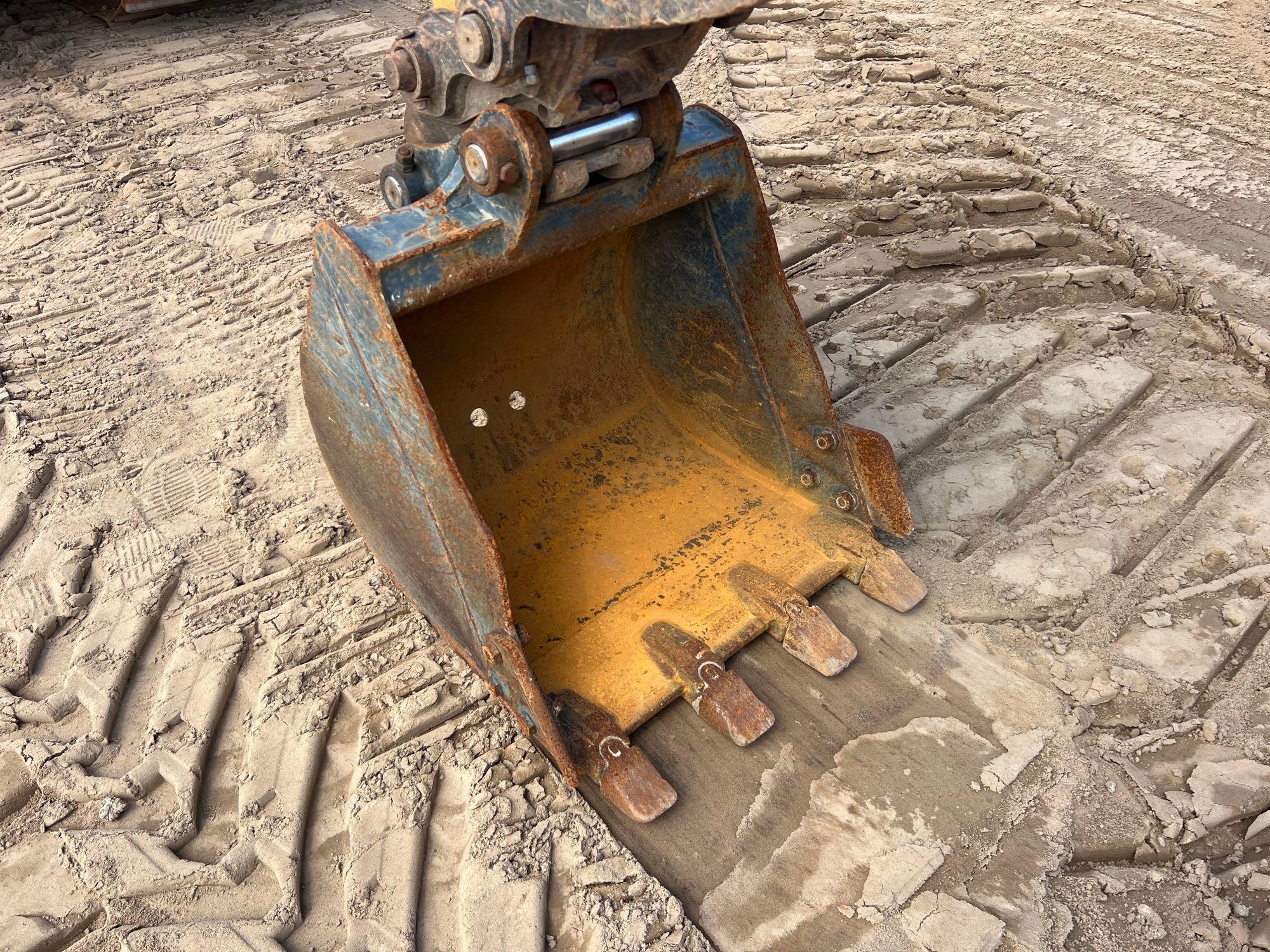

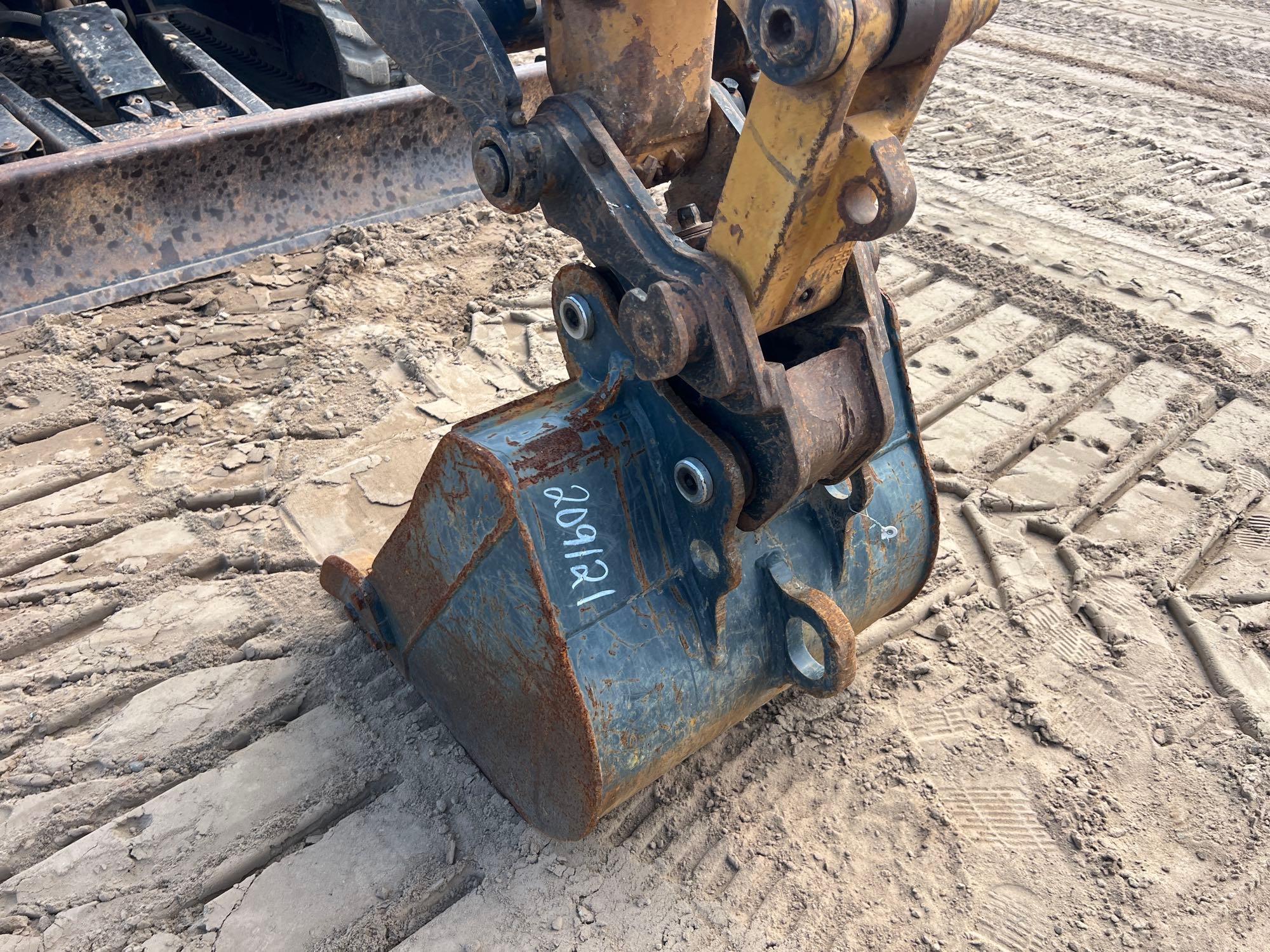

Bucket Bite Width (Since 2013)
|
12 in (30 cm)
|
|
Bucket Bite Width (Since 2013)
|
16 in (41 cm)
|
|
Bucket Bite Width (Since 2013)
|
18 in (46 cm)
|
|
Bucket Bite Width (Since 2013)
|
20 in (51 cm)
|
|
Bucket Bite Width (Since 2013)
|
24 in (61 cm)
|
|
Bucket Bite Width (Since 2013)
|
30 in (76 cm)
|
|
Bucket Bite Width (Since 2013)
|
36 in (91 cm)
|
|
Bucket Bite Width (Since 2019)
|
40 in (102 cm)
|
|
Bucket Bite Width (Since 2019)
|
47 in (119 cm)
|
|
Bucket Bite Width (Since 2019)
|
55 in (140 cm)
|
|
Bucket Bite Width (Since 2019)
|
12 in (30 cm)
|
|
Bucket Bite Width (Since 2019)
|
16 in (41 cm)
|
|
Bucket Bite Width (Since 2019)
|
18 in (46 cm)
|
|
Bucket Bite Width (Since 2019)
|
20 in (51 cm)
|
|
Bucket Bite Width (Since 2019)
|
24 in (61 cm)
|
|
Bucket Bite Width (Since 2019)
|
30 in (76 cm)
|
|
Bucket Bite Width (Since 2019)
|
36 in (91 cm)
|
|
Bucket Capacity Range (heaped) (Since 2013)
|
0 - 0 cu yd (0 - 0 cu m)
|
|
Bucket Capacity Range (heaped) (2015)
|
0 - 0 cu yd (0 - 0 cu m)
|
|
Bucket Heaped Capacity (Since 2013)
|
0 cu yd (48 L)
|
|
Bucket Heaped Capacity (Since 2013)
|
0 cu yd (69 L)
|
|
Bucket Heaped Capacity (Since 2013)
|
0 cu yd (82 L)
|
|
Bucket Heaped Capacity (Since 2013)
|
0 cu yd (94 L)
|
|
Bucket Heaped Capacity (Since 2013)
|
0 cu yd (119 L)
|
|
Bucket Heaped Capacity (Since 2013)
|
0 cu yd (157 L)
|
|
Bucket Heaped Capacity (Since 2013)
|
0 cu yd (191 L)
|
|
Bucket Rated Heaped Capacity (Since 2019)
|
5 cu ft (0 cu m)
|
|
Bucket Rated Heaped Capacity (Since 2019)
|
6 cu ft (0 cu m)
|
|
Bucket Rated Heaped Capacity (Since 2019)
|
7 cu ft (0 cu m)
|
|
Bucket Rated Heaped Capacity (Since 2019)
|
2 cu ft (0 cu m)
|
|
Bucket Rated Heaped Capacity (Since 2019)
|
3 cu ft (0 cu m)
|
|
Bucket Rated Heaped Capacity (Since 2019)
|
3 cu ft (0 cu m)
|
|
Bucket Rated Heaped Capacity (Since 2019)
|
3 cu ft (0 cu m)
|
|
Bucket Rated Heaped Capacity (Since 2019)
|
4 cu ft (0 cu m)
|
|
Bucket Rated Heaped Capacity (Since 2019)
|
6 cu ft (0 cu m)
|
|
Bucket Rated Heaped Capacity (Since 2019)
|
7 cu ft (0 cu m)
|
|
Bucket Rated Heaped Capacity (Since 2019)
|
8 cu ft (0 cu m)
|
|
Bucket Rated Heaped Capacity (Since 2019)
|
6 cu ft (0 cu m)
|
|
Bucket Tip Radius (Since 2013)
|
29 in (74 cm)
|
|
Bucket Tip Radius (Since 2013)
|
28 in (71 cm)
|
|
Bucket Tip Radius (Since 2019)
|
22 in (55 cm)
|
|
Bucket Tip Radius (Since 2019)
|
29 in (74 cm)
|
|
Bucket Tip Radius (Since 2019)
|
25 in (63 cm)
|
|
Bucket Tip Radius (Since 2019)
|
29 in (72 cm)
|
|
Bucket Weight with Teeth (Since 2013)
|
139 lbs (63 kg)
|
|
Bucket Weight with Teeth (Since 2013)
|
158 lbs (72 kg)
|
|
Bucket Weight with Teeth (Since 2013)
|
176 lbs (80 kg)
|
|
Bucket Weight with Teeth (Since 2013)
|
193 lbs (88 kg)
|
|
Bucket Weight with Teeth (Since 2013)
|
217 lbs (98 kg)
|
|
Bucket Weight with Teeth (Since 2013)
|
253 lbs (115 kg)
|
|
Bucket Weight with Teeth (Since 2013)
|
300 lbs (136 kg)
|
|
Calculated Bucket Weight (Since 2019)
|
240 lbs (109 kg)
|
|
Calculated Bucket Weight (Since 2019)
|
235 lbs (107 kg)
|
|
Calculated Bucket Weight (Since 2019)
|
259 lbs (117 kg)
|
|
Calculated Bucket Weight (Since 2019)
|
139 lbs (63 kg)
|
|
Calculated Bucket Weight (Since 2019)
|
158 lbs (72 kg)
|
|
Calculated Bucket Weight (Since 2019)
|
176 lbs (80 kg)
|
|
Calculated Bucket Weight (Since 2019)
|
193 lbs (88 kg)
|
|
Calculated Bucket Weight (Since 2019)
|
217 lbs (98 kg)
|
|
Calculated Bucket Weight (Since 2019)
|
253 lbs (115 kg)
|
|
Calculated Bucket Weight (Since 2019)
|
300 lbs (136 kg)
|
|
Calculated Bucket Weight (Since 2019)
|
331 lbs (150 kg)
|
|
Calculated Bucket Weight (Since 2019)
|
357 lbs (162 kg)
|
|
cont'd) Flywheel Horsepower (Since 2011)
|
40 hp (30 kw)
|
|
cont'd) Flywheel Horsepower (2012)
|
40 hp (30 kw)
|
|
cont'd) Flywheel Horsepower (2013)
|
40 hp (30 kw)
|
|
cont'd) Flywheel Horsepower (2014)
|
40 hp (30 kw)
|
|
cont'd) Flywheel Horsepower (2015)
|
40 hp (30 kw)
|
|
cont'd) Flywheel Horsepower (2016)
|
40 hp (30 kw)
|
|
Displacement (Since 2013)
|
146 cu in (2,393 cu cm)
|
|
Displacement (2015)
|
146 cu in (2,393 cu cm)
|
|
Emissions (Since 2015)
|
Tier 4 Interim |
|
Engine Model (Since 2013)
|
Cat C2.4 |
|
Engine Model (2015)
|
Cat C2.4 |
|
Flywheel Power (Since 2013)
|
40 hp (30 kw)
|
|
Flywheel Power (2015)
|
40 hp (30 kw)
|
|
Fuel Tank Refill Capacity (Since 2013)
|
12 US gal (46 L)
|
|
Fuel Tank Refill Capacity (2015)
|
12 US gal (46 L)
|
|
Ground Contact Area with Std. Shoe (Since 2013)
|
1,845 sq in (1 sq m)
|
|
Ground Contact Area with Std. Shoe (2015)
|
1,845 sq in (1 sq m)
|
|
Ground Pressure (Since 2013)
|
4 psi (30 kPa)
|
|
Ground Pressure (2017)
|
4 psi (30 kPa)
|
|
Ground Pressure (2018)
|
4 psi (30 kPa)
|
|
Ground Pressure (2019)
|
4 psi (30 kPa)
|
|
Height (Since 2011)
|
98 in (249 cm)
|
|
Height (2012)
|
98 in (249 cm)
|
|
Height (2013)
|
98 in (249 cm)
|
|
Height (2014)
|
98 in (249 cm)
|
|
Height (2015)
|
98 in (249 cm)
|
|
Height (2016)
|
98 in (249 cm)
|
|
Hydraulic System (includes tank) (Since 2013)
|
17 US gal (65 L)
|
|
Hydraulic System (includes tank) (2015)
|
17 US gal (65 L)
|
|
Length (Since 2011)
|
190 in (483 cm)
|
|
Length (2012)
|
190 in (483 cm)
|
|
Length (2013)
|
190 in (483 cm)
|
|
Length (2014)
|
190 in (483 cm)
|
|
Length (2015)
|
190 in (483 cm)
|
|
Length (2016)
|
190 in (483 cm)
|
|
Lift Capacity (Since 2011)
|
3,460 lbs (1,569 kg)
|
|
Lift Capacity (2012)
|
3,460 lbs (1,569 kg)
|
|
Lift Capacity (2013)
|
3,460 lbs (1,569 kg)
|
|
Lift Capacity (2014)
|
3,460 lbs (1,569 kg)
|
|
Lift Capacity (2015)
|
3,460 lbs (1,569 kg)
|
|
Lift Capacity (2016)
|
3,460 lbs (1,569 kg)
|
|
Max. Implement Hydraulic Pump - Output at Rated RPM (Since 2015)
|
23 US gpm (87 L/min)
|
|
Max. Implement Hydraulic Pump Output at Rated RPM (Since 2013)
|
23 US gpm (87 L/min)
|
|
Max. Reach (Since 2011)
|
216 in (549 cm)
|
|
Max. Reach (2012)
|
216 in (549 cm)
|
|
Max. Reach (2013)
|
216 in (549 cm)
|
|
Max. Reach (2014)
|
216 in (549 cm)
|
|
Max. Reach (2015)
|
216 in (549 cm)
|
|
Max. Reach (2016)
|
216 in (549 cm)
|
|
Maximum Drawbar Pull (Since 2013)
|
30.8 kN 6924 lbf Two Speed Travel |
|
Maximum Drawbar Pull (2015)
|
30.8 kN 6924 lbf Two Speed Travel |
|
No. of Cylinders (Since 2013)
|
4 |
|
No. of Cylinders (2015)
|
4 |
|
Number of Bucket Teeth (Since 2013)
|
3 |
|
Number of Bucket Teeth (Since 2013)
|
4 |
|
Number of Bucket Teeth (Since 2013)
|
5 |
|
Number of Bucket Teeth (Since 2013)
|
6 |
|
Number of Bucket Teeth (Since 2019)
|
0 |
|
Number of Bucket Teeth (Since 2019)
|
3 |
|
Number of Bucket Teeth (Since 2019)
|
4 |
|
Number of Bucket Teeth (Since 2019)
|
5 |
|
Operating Weight (Since 2013)
|
8,497 lbs (3,854 kg)
|
|
Operating Weight (2015)
|
8,497 lbs (3,854 kg)
|
|

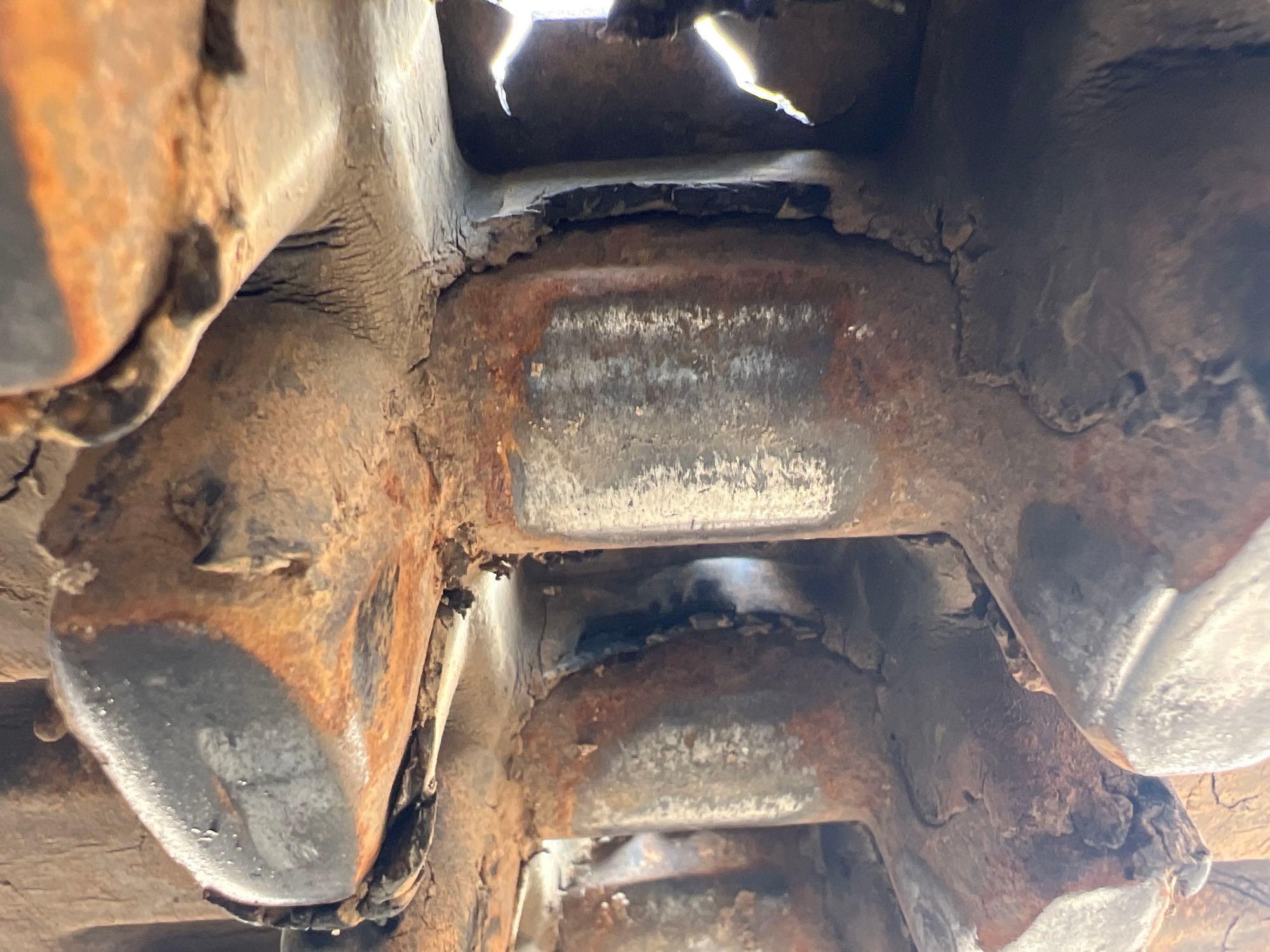

Overall Track Length (Since 2013)
|
87 in (221 cm)
|
|
Overall Track Length (2015)
|
87 in (221 cm)
|
|

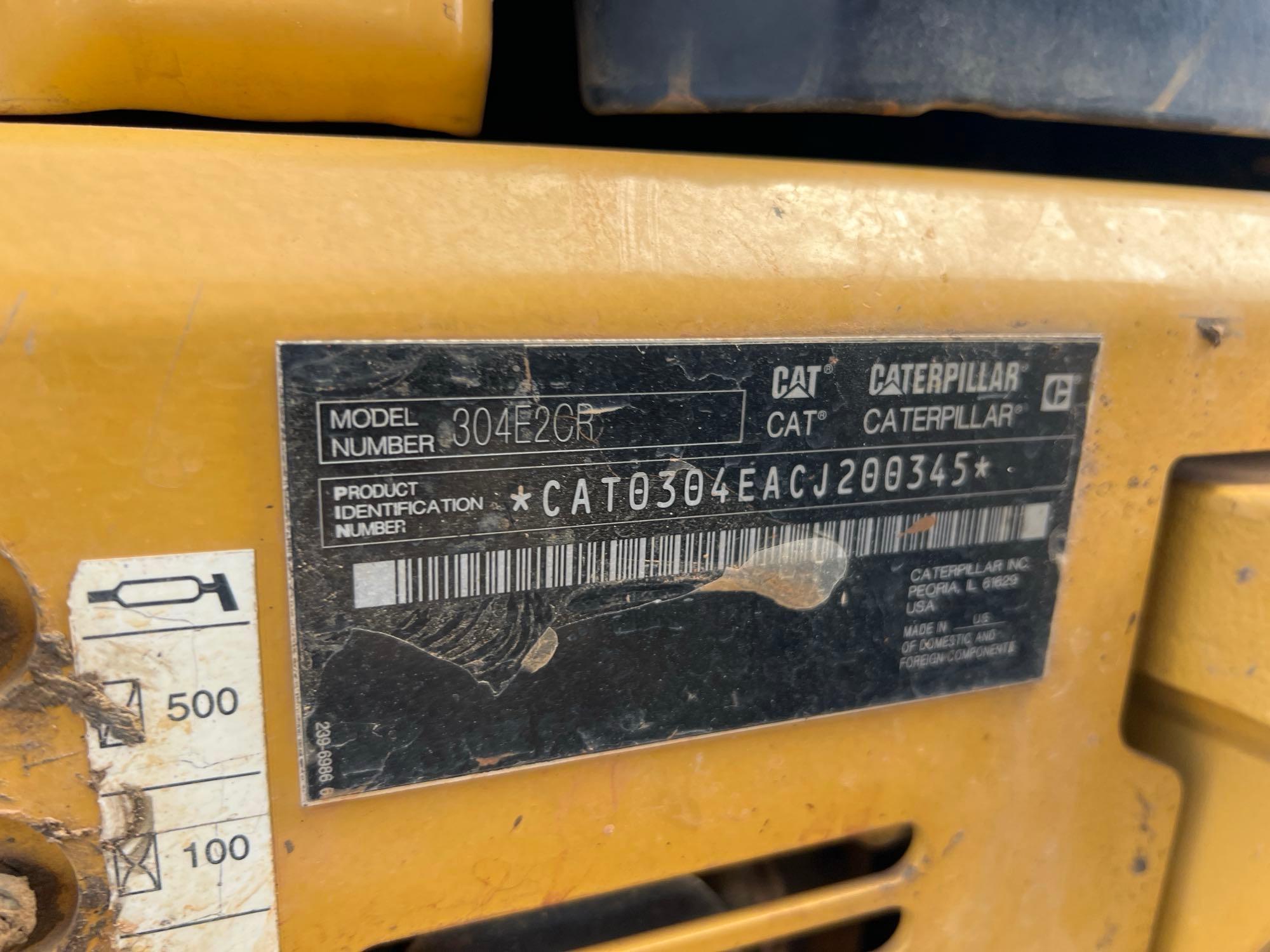

Product Identification Prefix (Since 2011)
|
TTN |
|
Product Identification Prefix (2012)
|
TTN |
|
Product Identification Prefix (2013)
|
TTN |
|
Product Identification Prefix (2014)
|
TTN |
|
Product Identification Prefix (2015)
|
TTN |
|
Product Identification Prefix (2016)
|
TTN |
|

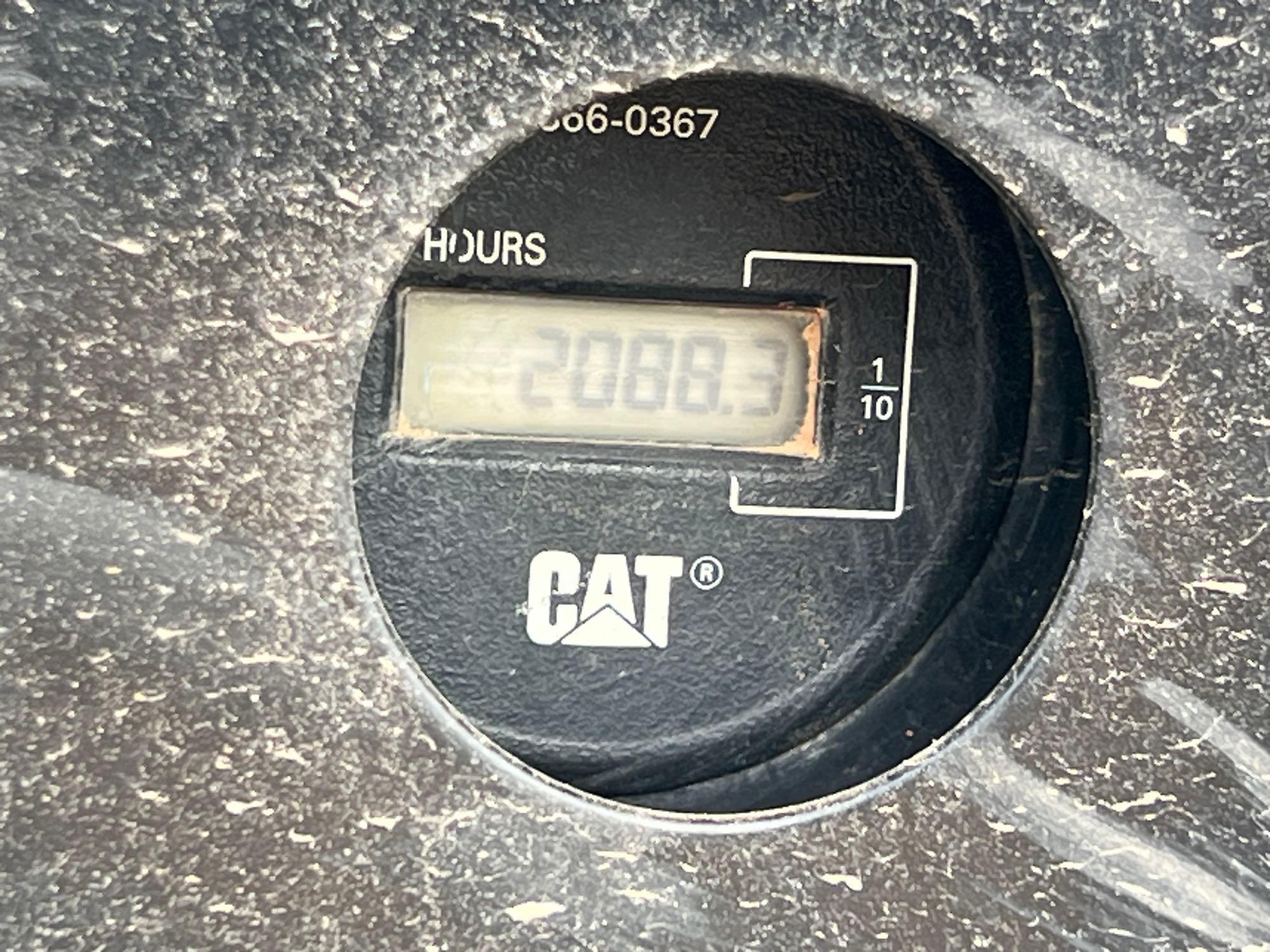

Rated Engine RPM (Since 2013)
|
2,400 rpm |
|
Rated Engine RPM (2015)
|
2,400 rpm |
|
Region Offerings (Since 2013)
|
Japan |
|
Region Offerings (Since 2015)
|
North America, South America, Canada, Australia, New Zealand, Europe, Africa, Middle East |
|
Relief Valve Settings - Implement Circuits (Since 2013)
|
3,553 psi (25 mPa)
|
|
Relief Valve Settings - Implement Circuits (2015)
|
3,553 psi (25 mPa)
|
|
Relief Valve Settings - Swing Circuits (Since 2013)
|
2,625 psi (18 mPa)
|
|
Relief Valve Settings - Swing Circuits (2015)
|
2,625 psi (18 mPa)
|
|
Relief Valve Settings - Travel Circuits (Since 2013)
|
3,553 psi (25 mPa)
|
|
Relief Valve Settings - Travel Circuits (2015)
|
3,553 psi (25 mPa)
|
|
Stroke (Since 2013)
|
4 in (10 cm)
|
|
Stroke (2015)
|
4 in (10 cm)
|
|
Track Gauge (Since 2011)
|
63 in (160 cm)
|
|
Track Gauge (2012)
|
63 in (160 cm)
|
|
Track Gauge (2013)
|
63 in (160 cm)
|
|
Track Gauge (2014)
|
63 in (160 cm)
|
|
Track Gauge (Since 2015)
|
62 in (157 cm)
|
|
Track Gauge (Since 2015)
|
63 in (160 cm)
|
|
Track Gauge (2016)
|
63 in (160 cm)
|
|
Track Gauge - Standard Undercarriage (Since 2013)
|
62 in (157 cm)
|
|
Track Shoe Width (Since 2013)
|
13 in (33 cm)
|
|
Track Shoe Width (Since 2017)
|
14 in (36 cm)
|
|
Track Shoe Width (2018)
|
14 in (36 cm)
|
|
Track Shoe Width (2019)
|
14 in (36 cm)
|
|
Width (Since 2011)
|
77 in (196 cm)
|
|
Width (2012)
|
77 in (196 cm)
|
|
Width (2013)
|
77 in (196 cm)
|
|
Width (2014)
|
77 in (196 cm)
|
|
Width (2015)
|
77 in (196 cm)
|
|
Width (2016)
|
77 in (196 cm)
|
|
Width of Standard Track Shoe (Since 2013)
|
14 in (36 cm)
|
|
Width of Standard Track Shoe (2015)
|
14 in (36 cm)
|
|
Years Built (Since 2011)
|
2,011 - 2,016 |
|
Years Built (Since 2011)
|
2,011 - 2,015 |
|
Years Built (Since 2012)
|
2,011 - 2,016 |
|
Years Built (Since 2012)
|
2,011 - 2,015 |
|
Years Built (Since 2013)
|
2,011 - 2,016 |
|
Years Built (Since 2013)
|
2,011 - 2,015 |
|
Years Built (Since 2014)
|
2,011 - 2,016 |
|
Years Built (Since 2014)
|
2,011 - 2,015 |
|
Years Built (Since 2015)
|
2,011 - 2,016 |
|
Years Built (Since 2015)
|
2,011 - 2,015 |
|
Years Built (Since 2016)
|
2,011 - 2,016 |

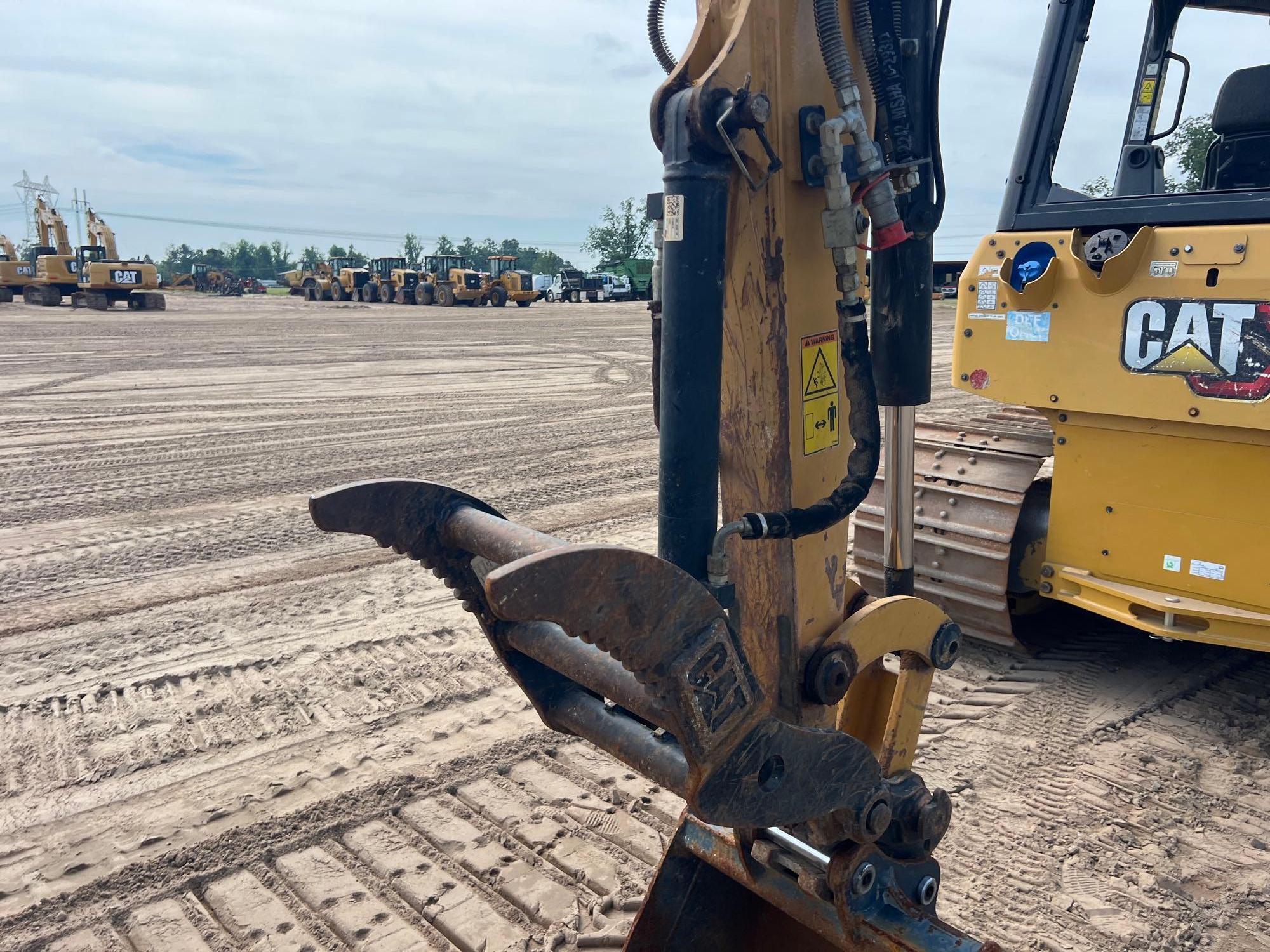

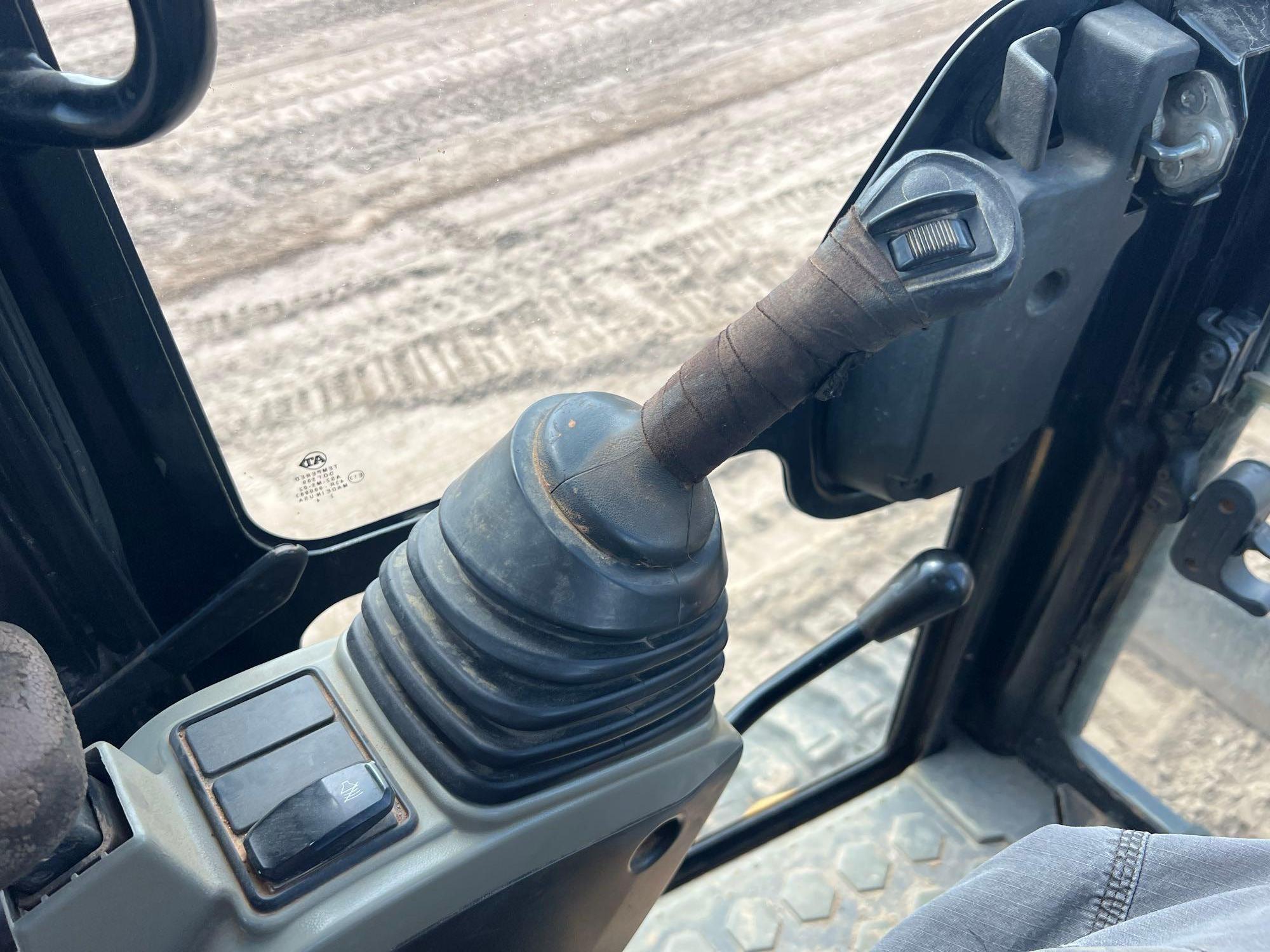

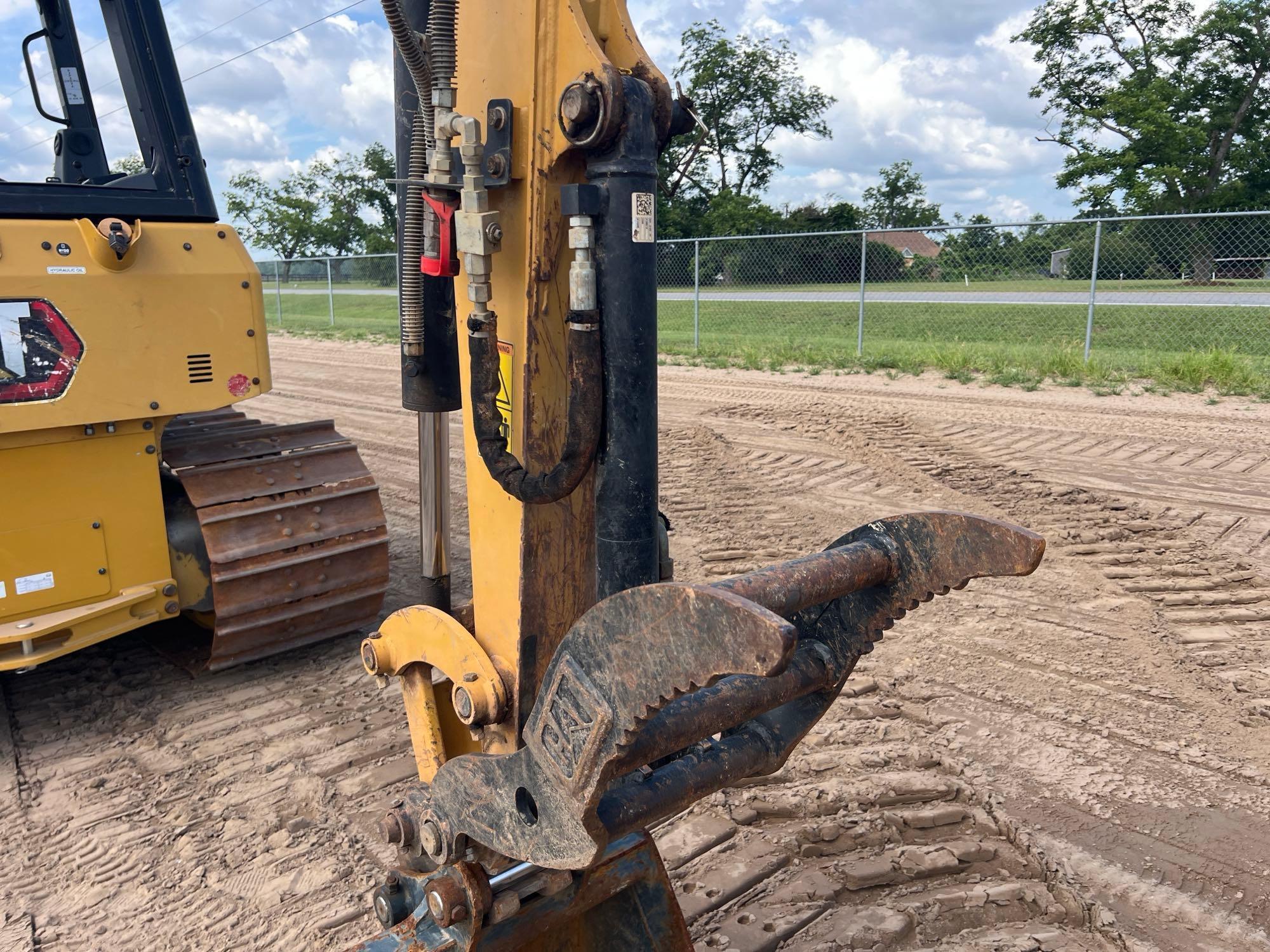

| Hydraulic System |
|
Auxiliary Circuit - Primary |
16 gpm (60 lpm)
|
|
Auxiliary Circuit - Secondary |
7 gpm (27 lpm)
|
|
Digging Force - Bucket |
8,498 lbs (3,855 kg)
|
|
Digging Force - Stick - Long |
4,384 lbs (1,989 kg)
|
|
Digging Force - Stick - Standard |
4,856 lbs (2,203 kg)
|
|
Operating Pressure - Equipment |
3,553 psi |
|
Operating Pressure - Swing |
2,625 psi |
|
Operating Pressure - Travel |
3,553 psi |
| Msc Comments |
|
Msc Spec Date |
3/06 |
| Operational |
|
Operating Weight |
8,497 lbs (3,854 kg)
|
| Service Refill Capacities |
|
Cooling System |
2 gal (6 l)
|
|
Engine Oil |
3 gal (9 l)
|
|
Fuel Tank |
12 gal (46 l)
|
|
Hydraulic System |
17 gal (65 l)
|
|
Hydraulic Tank |
11 gal (42 l)
|

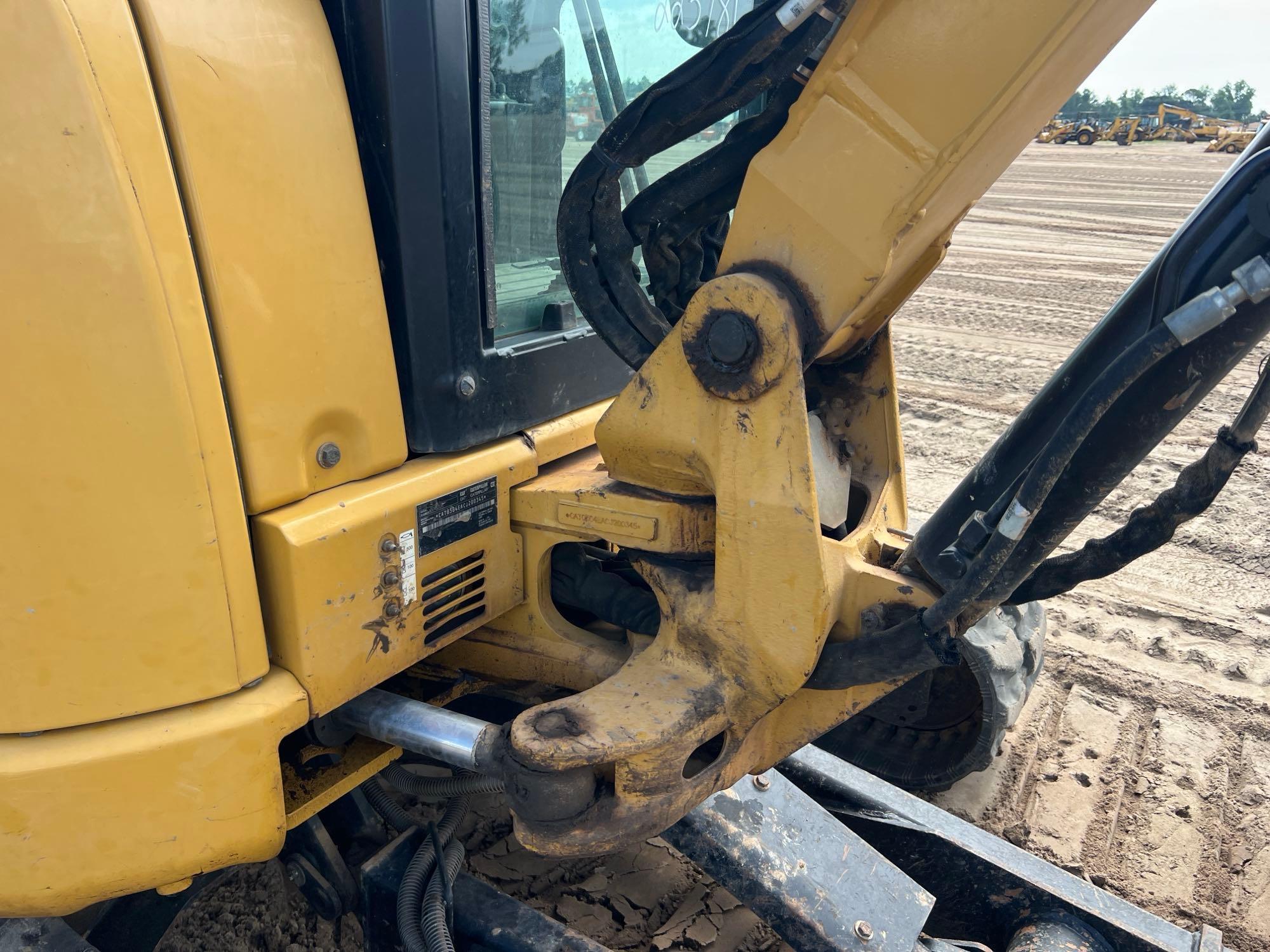

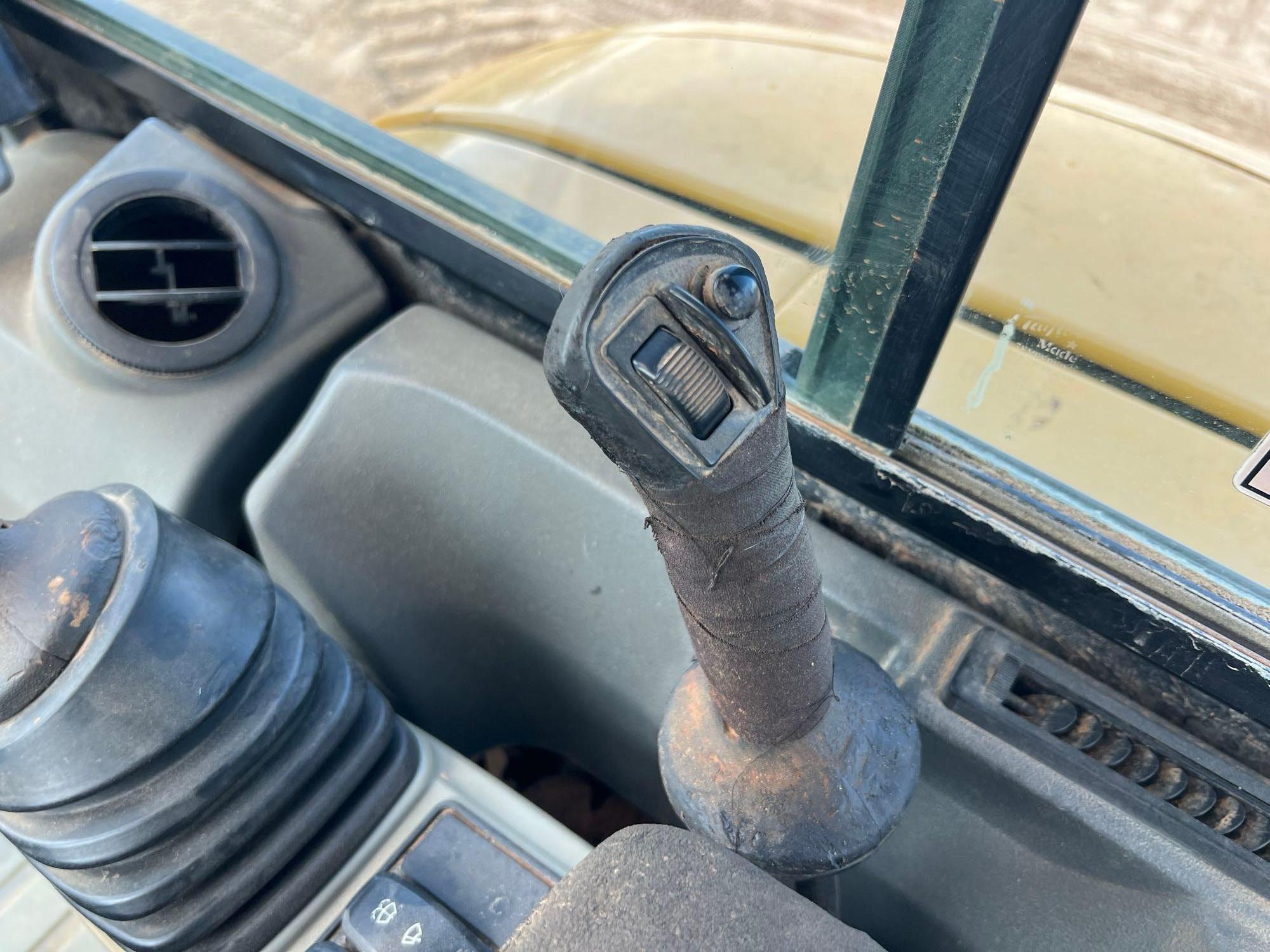

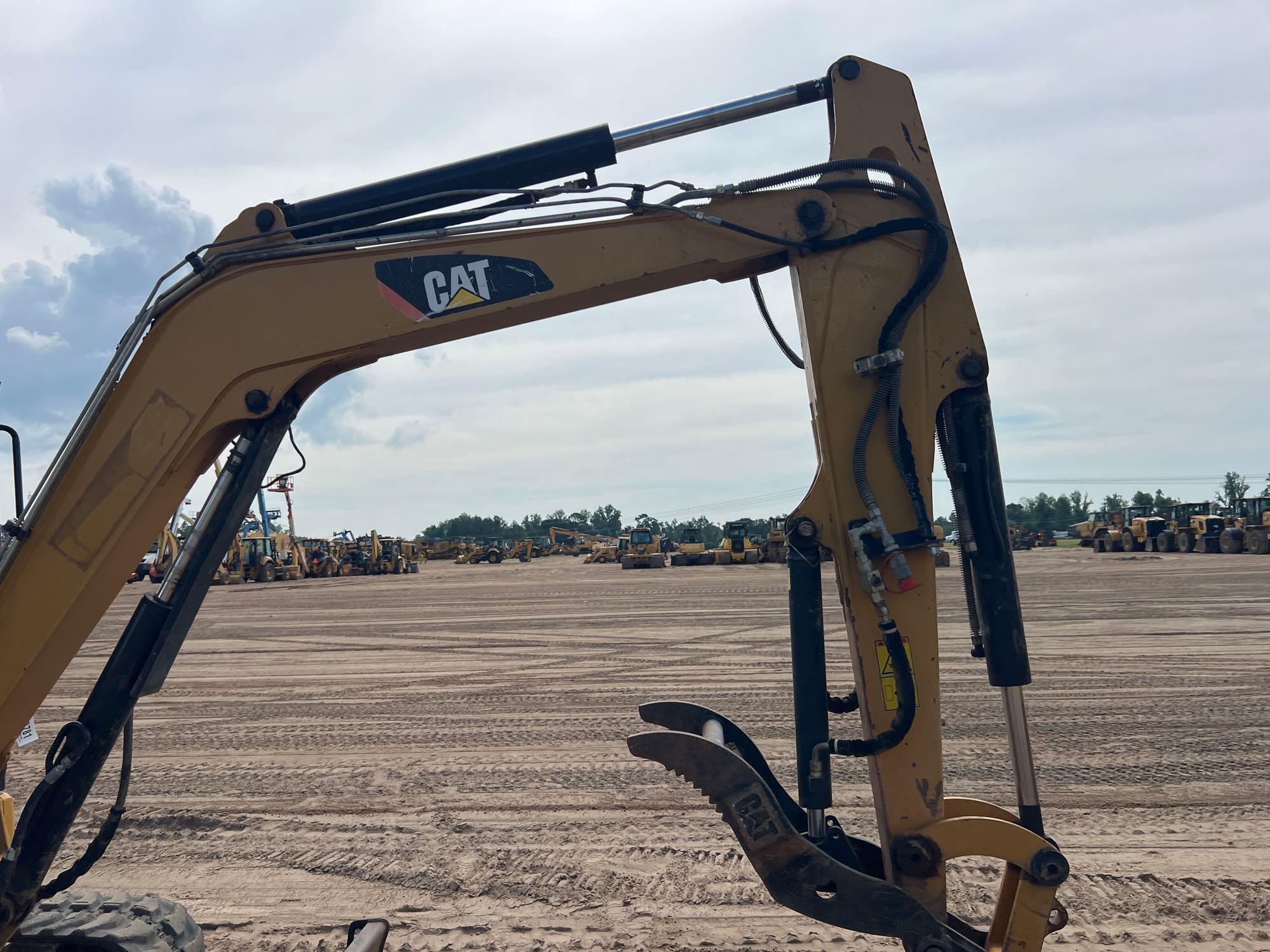

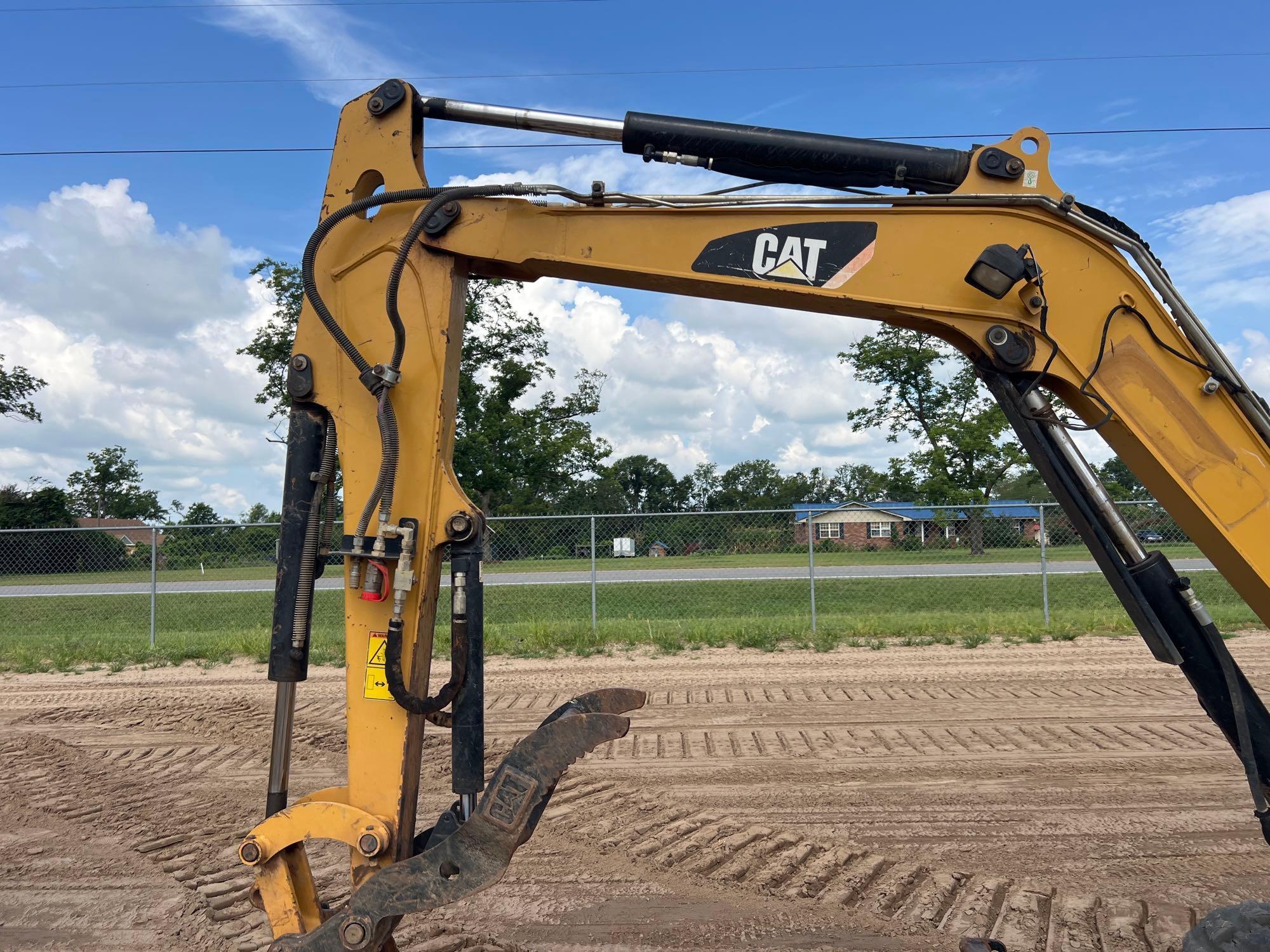

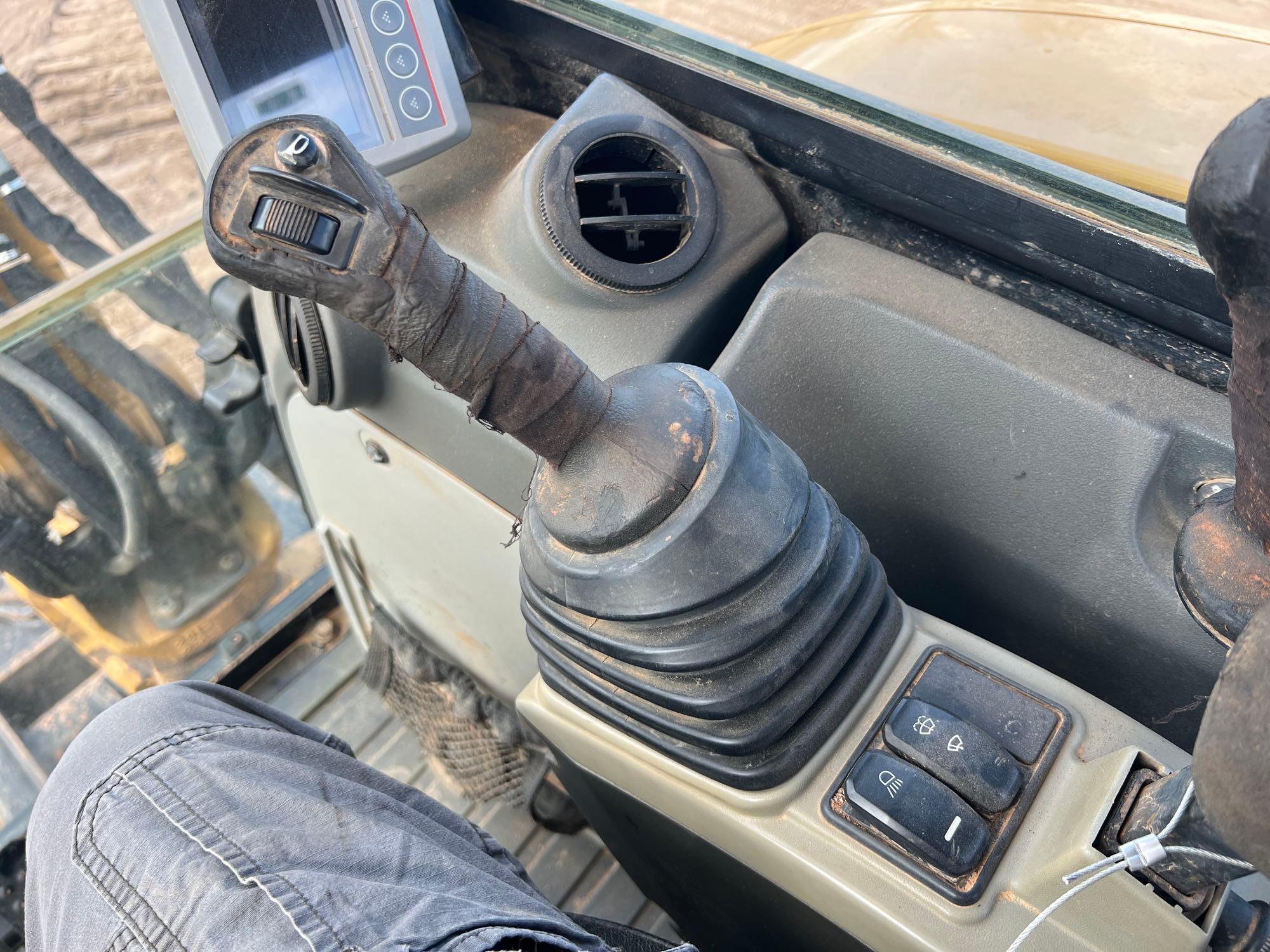

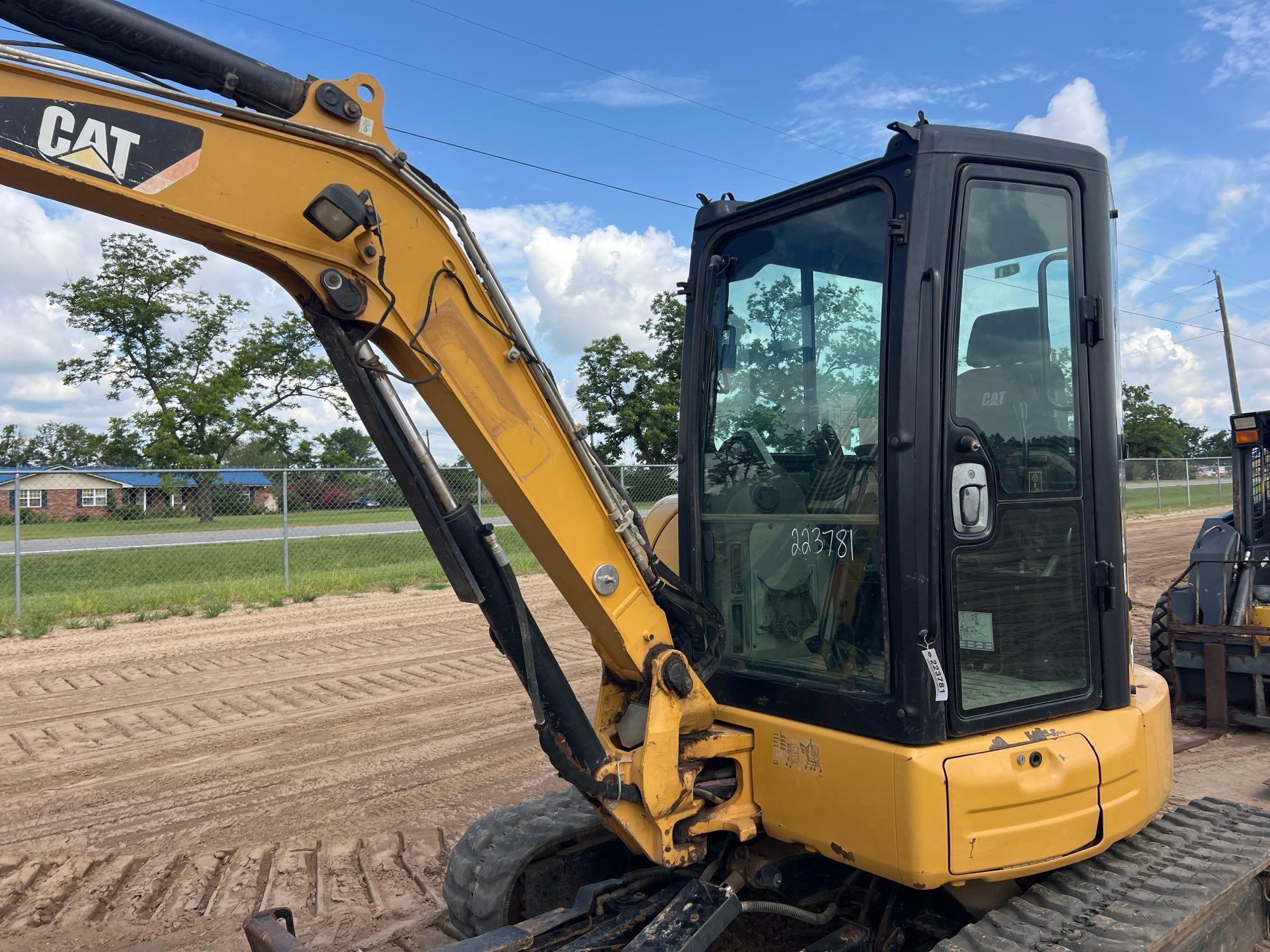

| Swing System |
|
Boom Swing - Left - With Stop |
55 degrees |
|
Boom Swing - Left - Without Stop |
80 degrees |
|
Boom Swing - Right |
50 degrees |
|
Machine Swing Speed |
9 rpm |

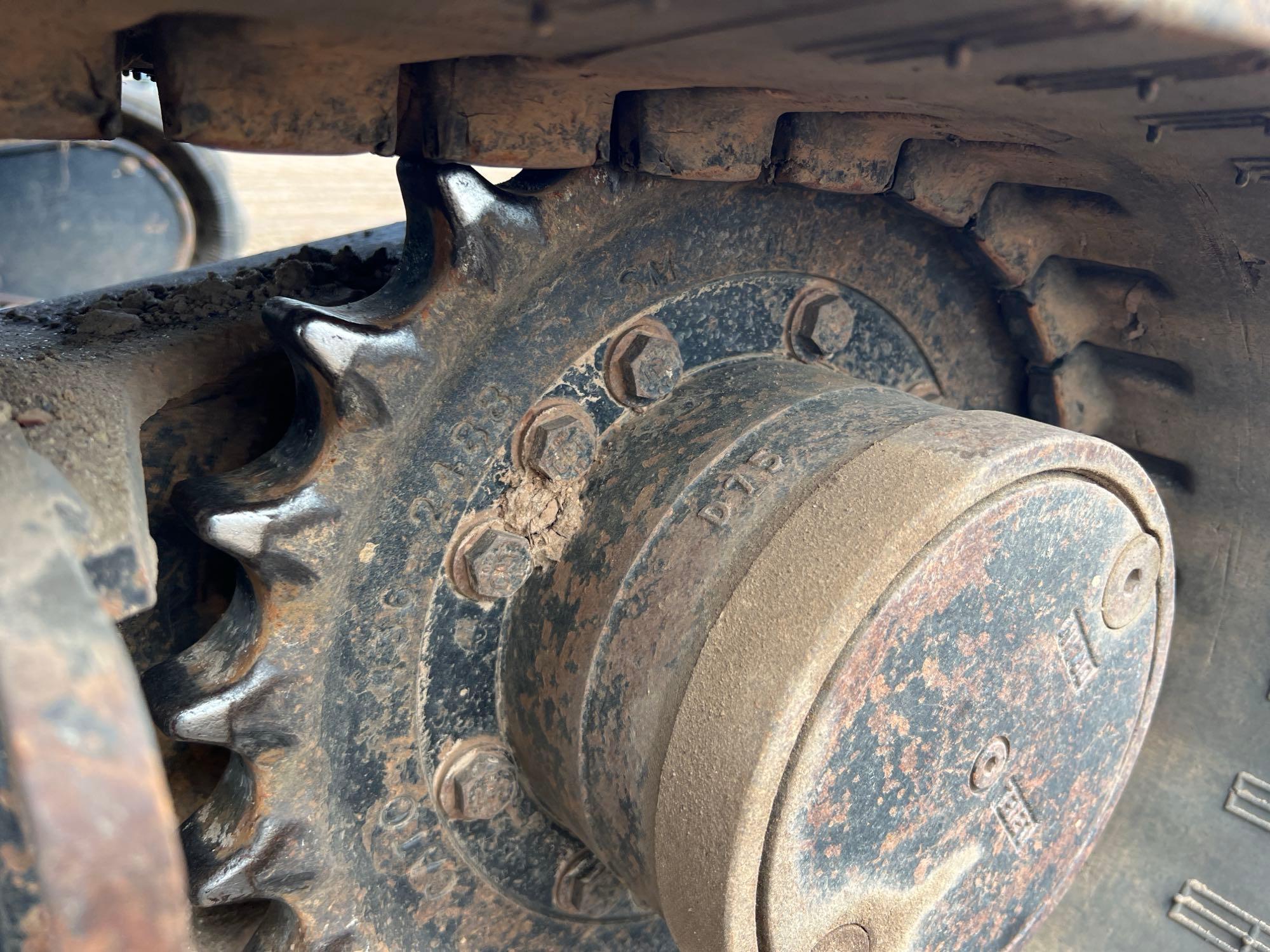

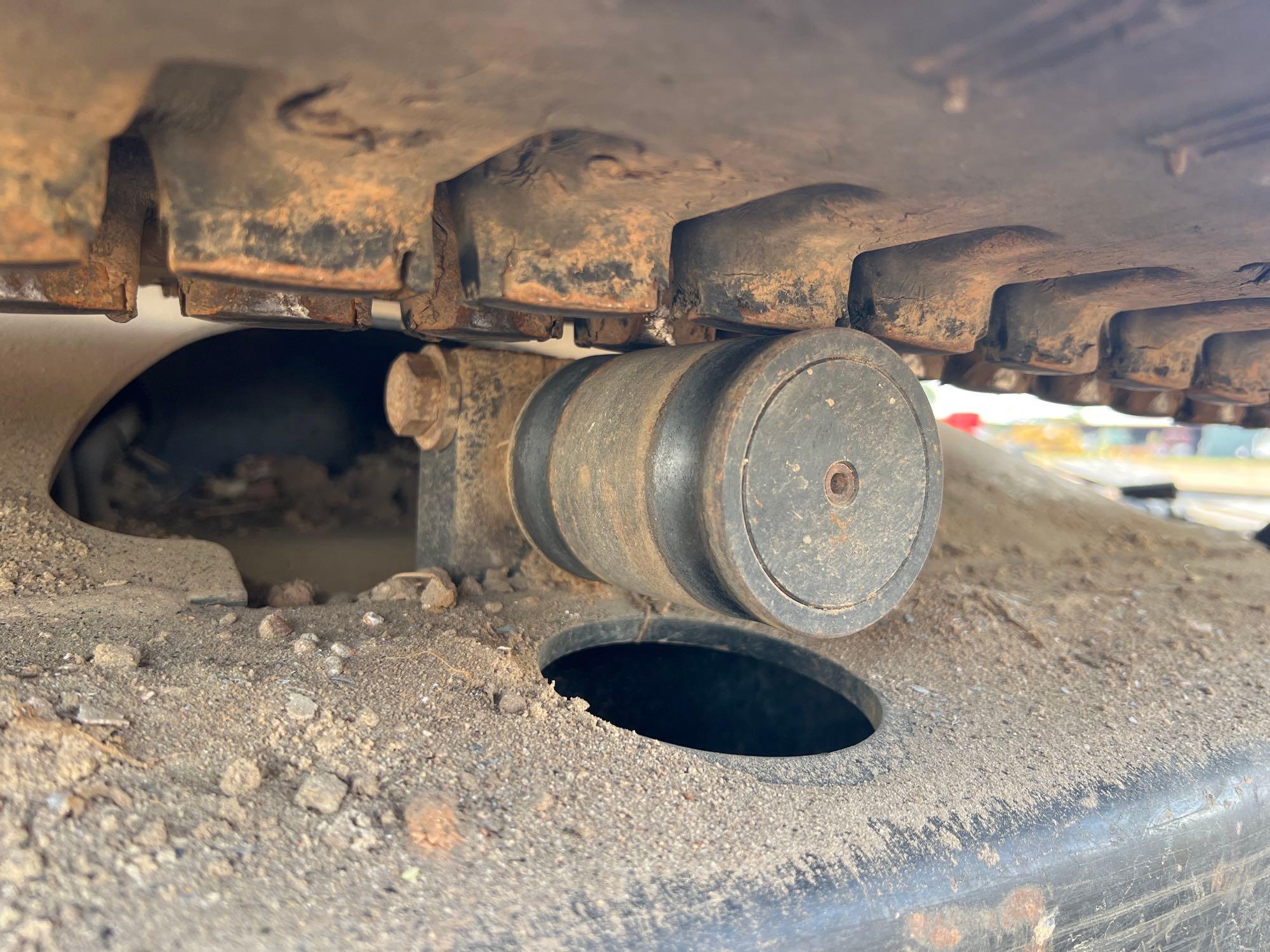

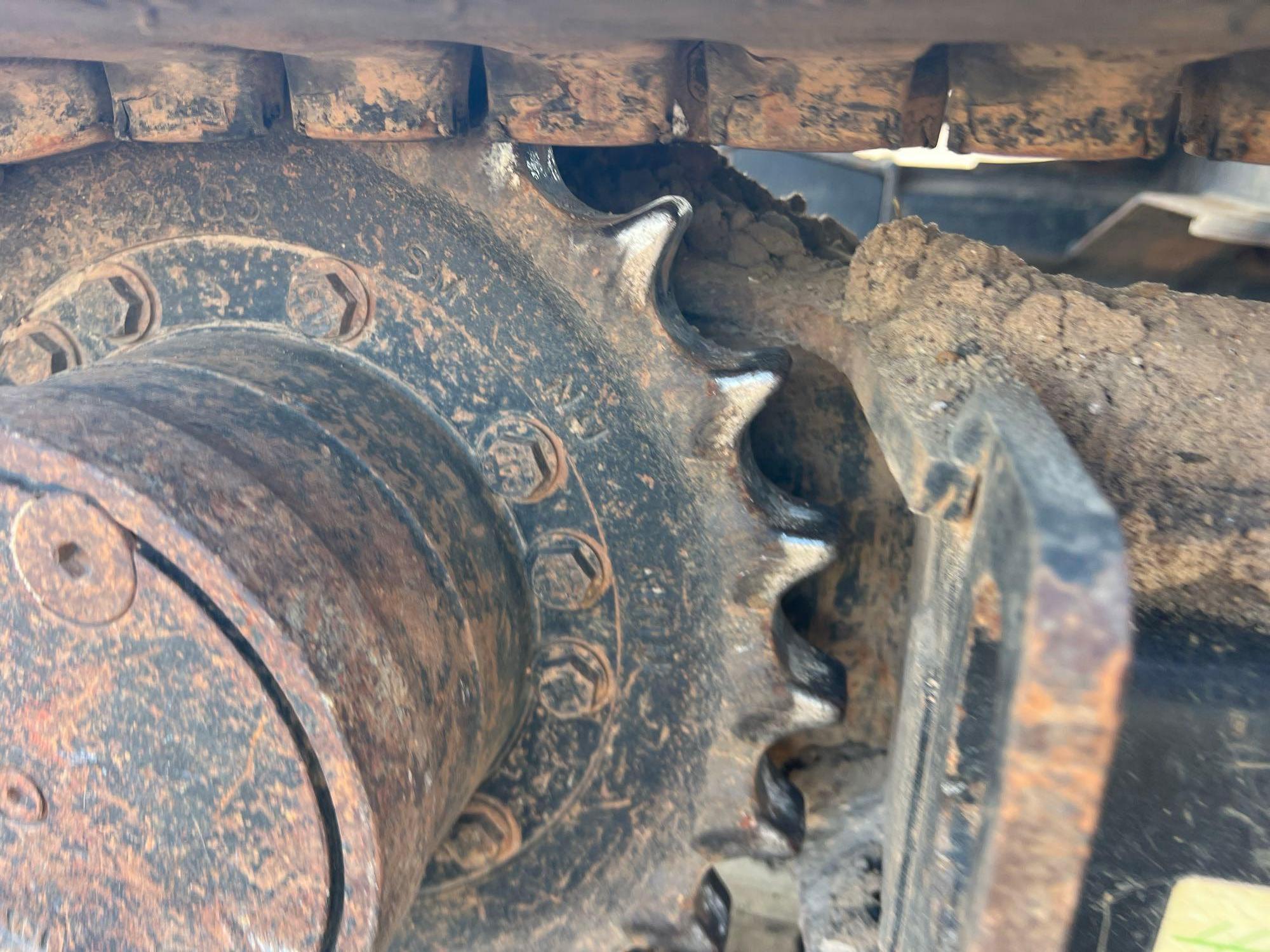

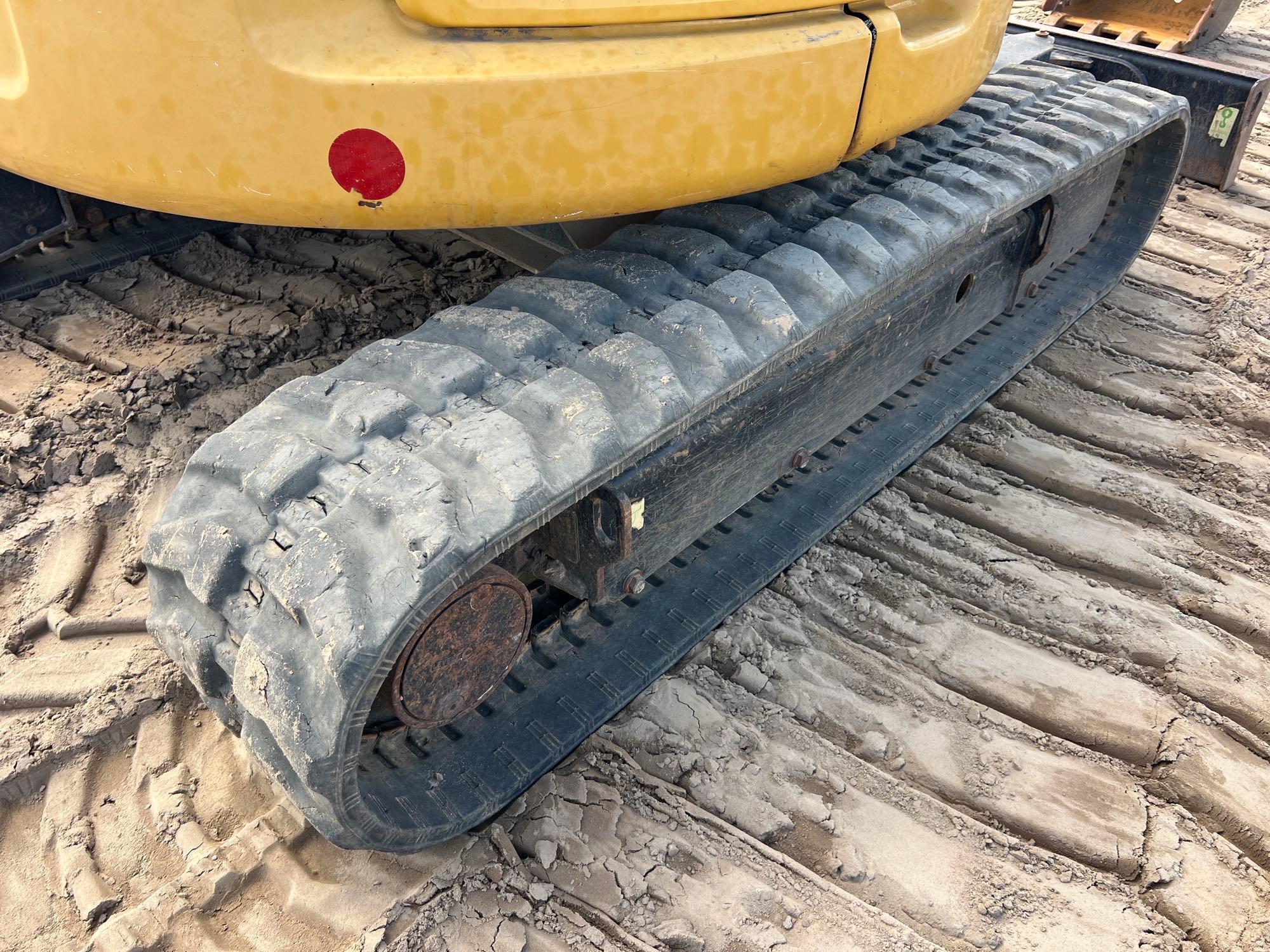

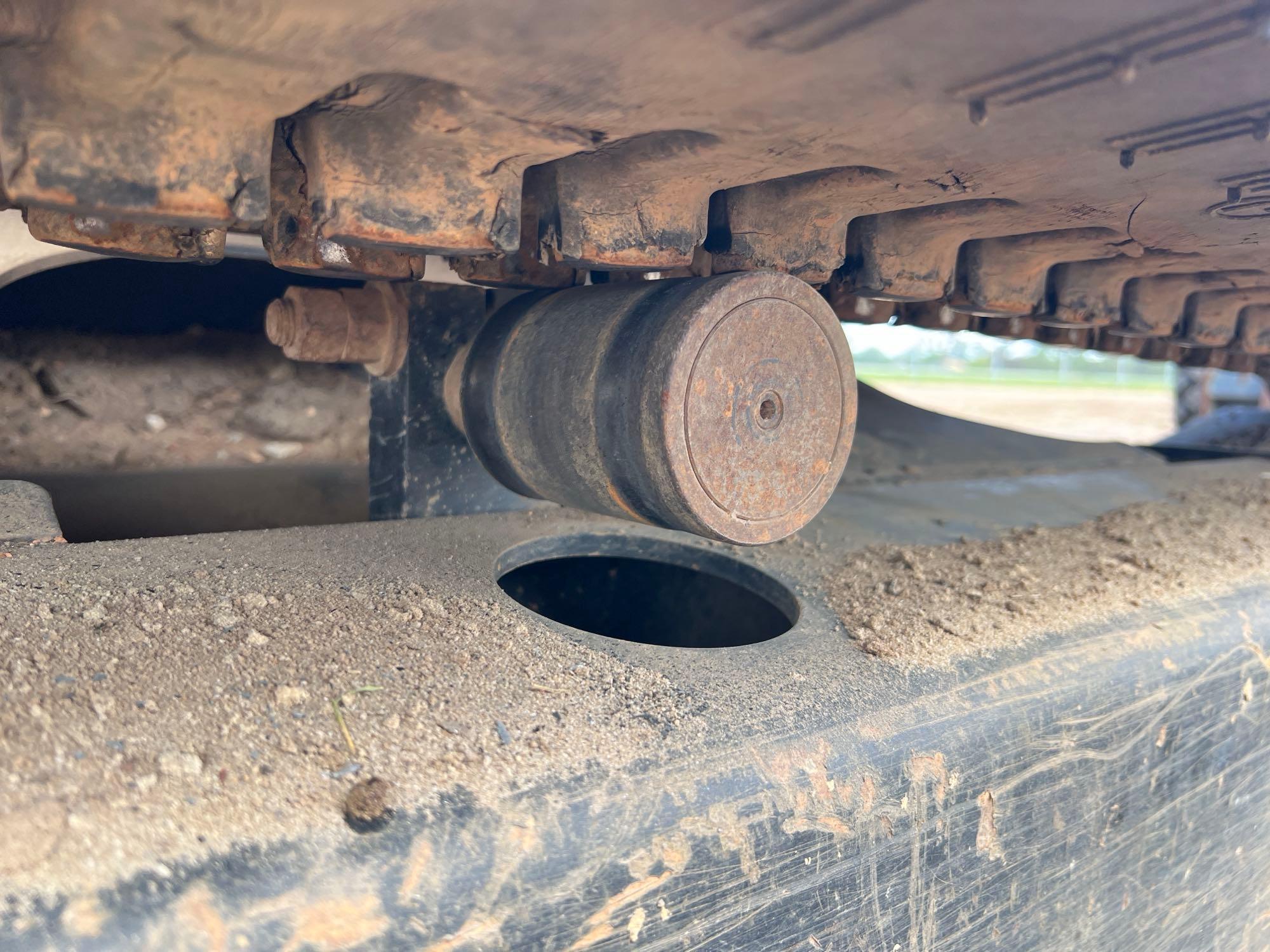

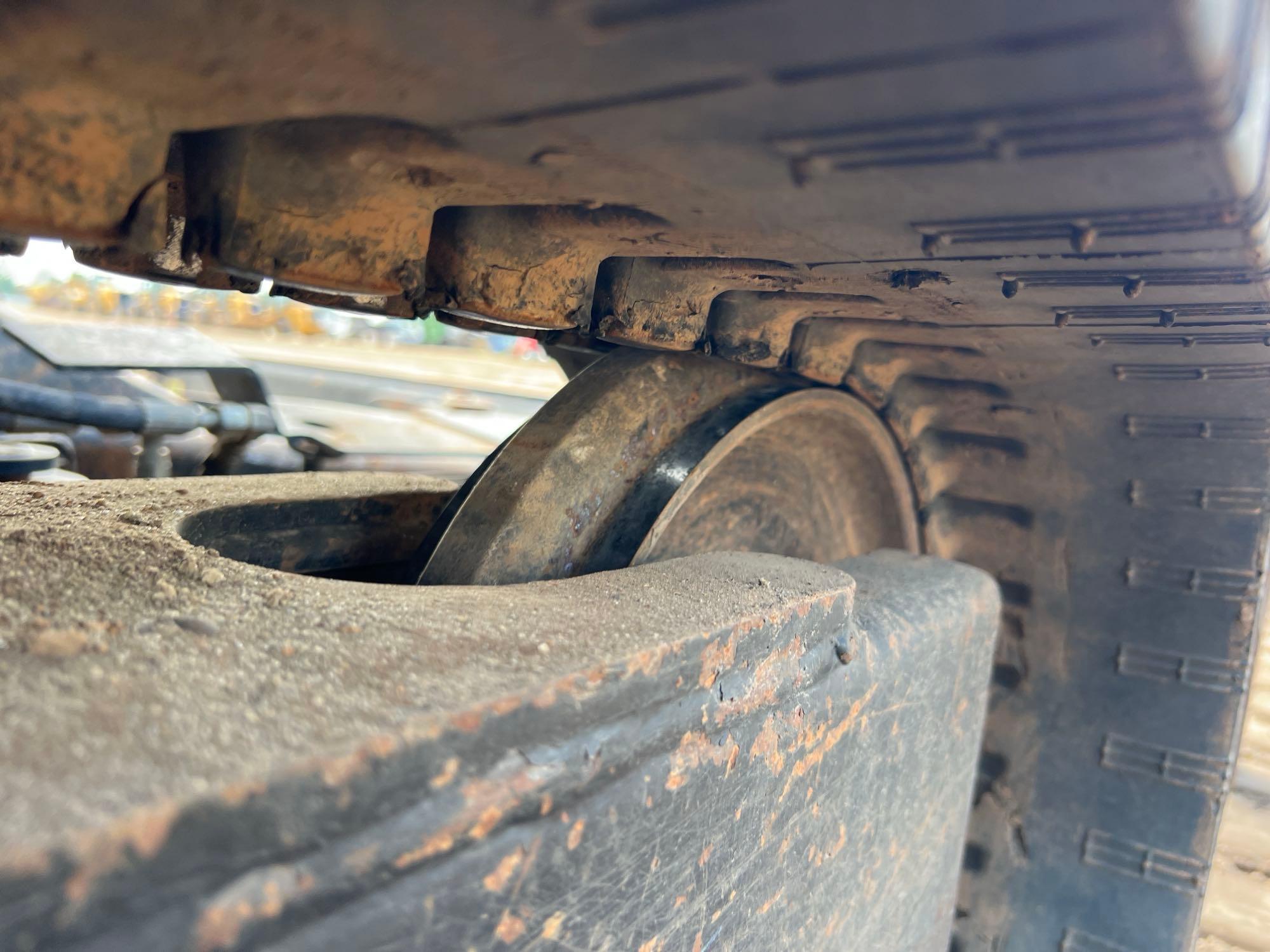

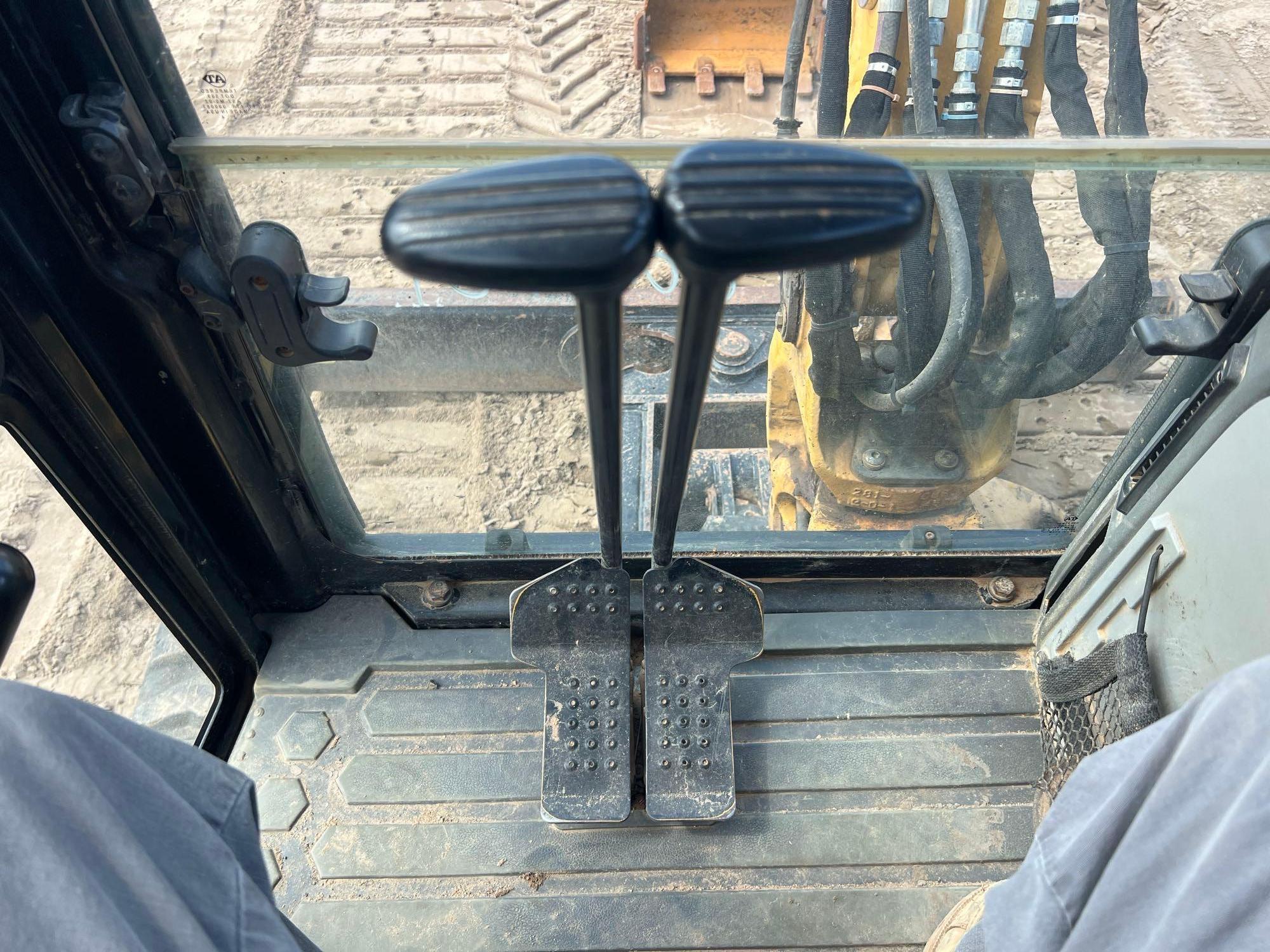

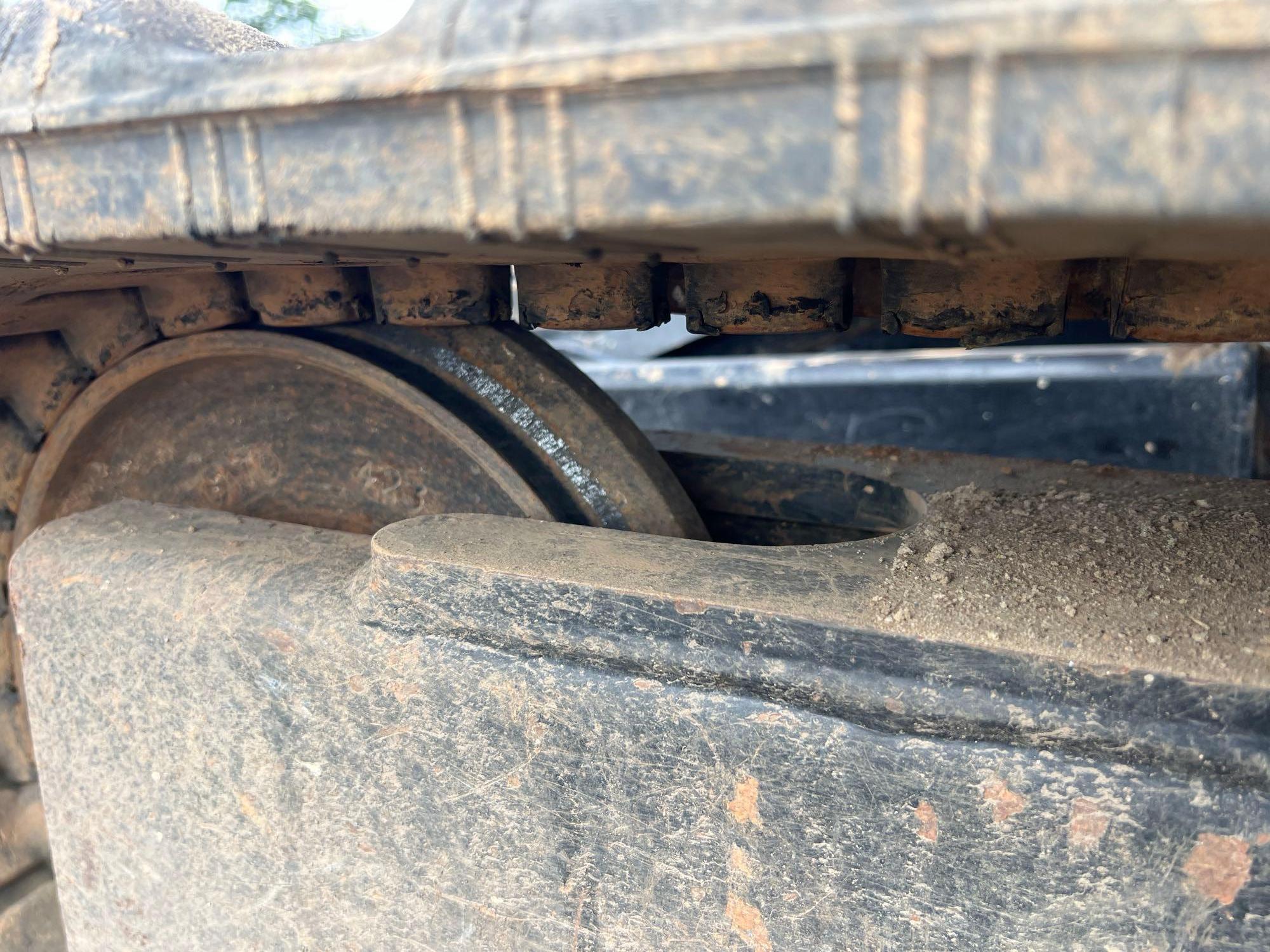

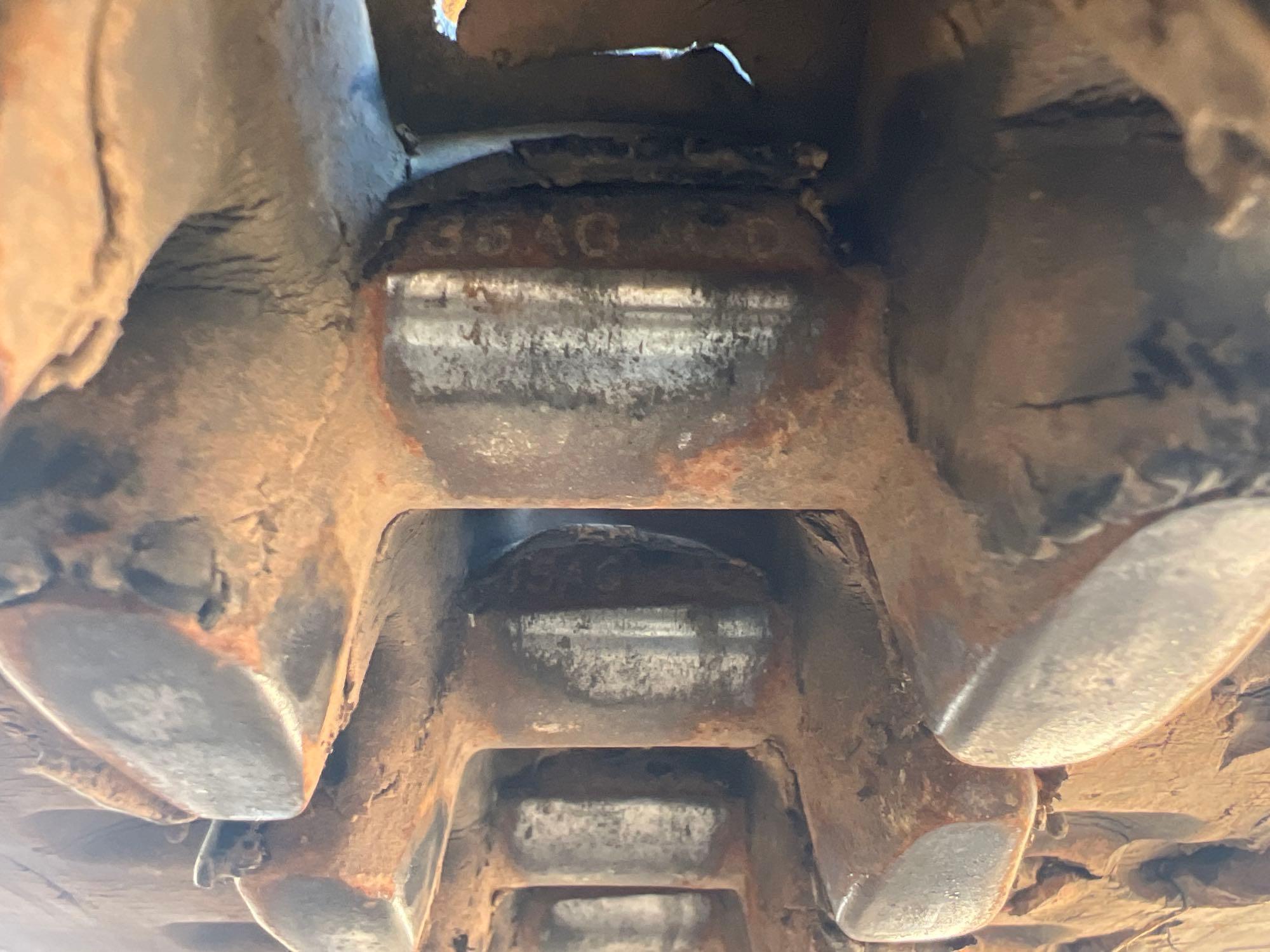

| Travel System |
|
Maximum Traction Force - High Speed |
3,777 lbs (1,713 kg)
|
|
Maximum Traction Force - Low Speed |
6,921 lbs (3,139 kg)
|
|
Travel Speed - High |
3 mph (5 kph)
|
|
Travel Speed - Low |
2 mph (3 kph)
|
| Weights |
|
Operating Weight - With Cab |
8,838 lbs (4,009 kg)
|
