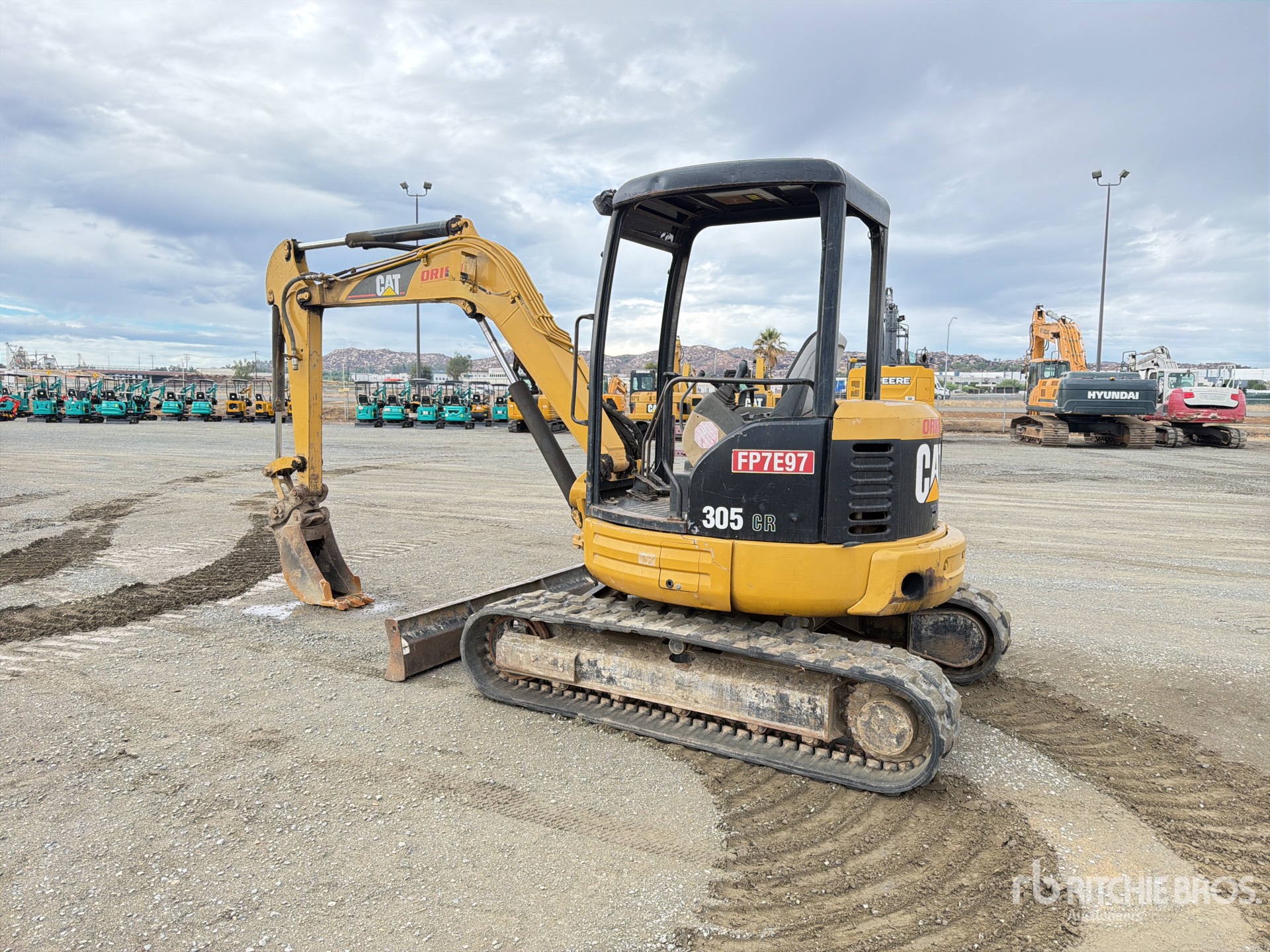

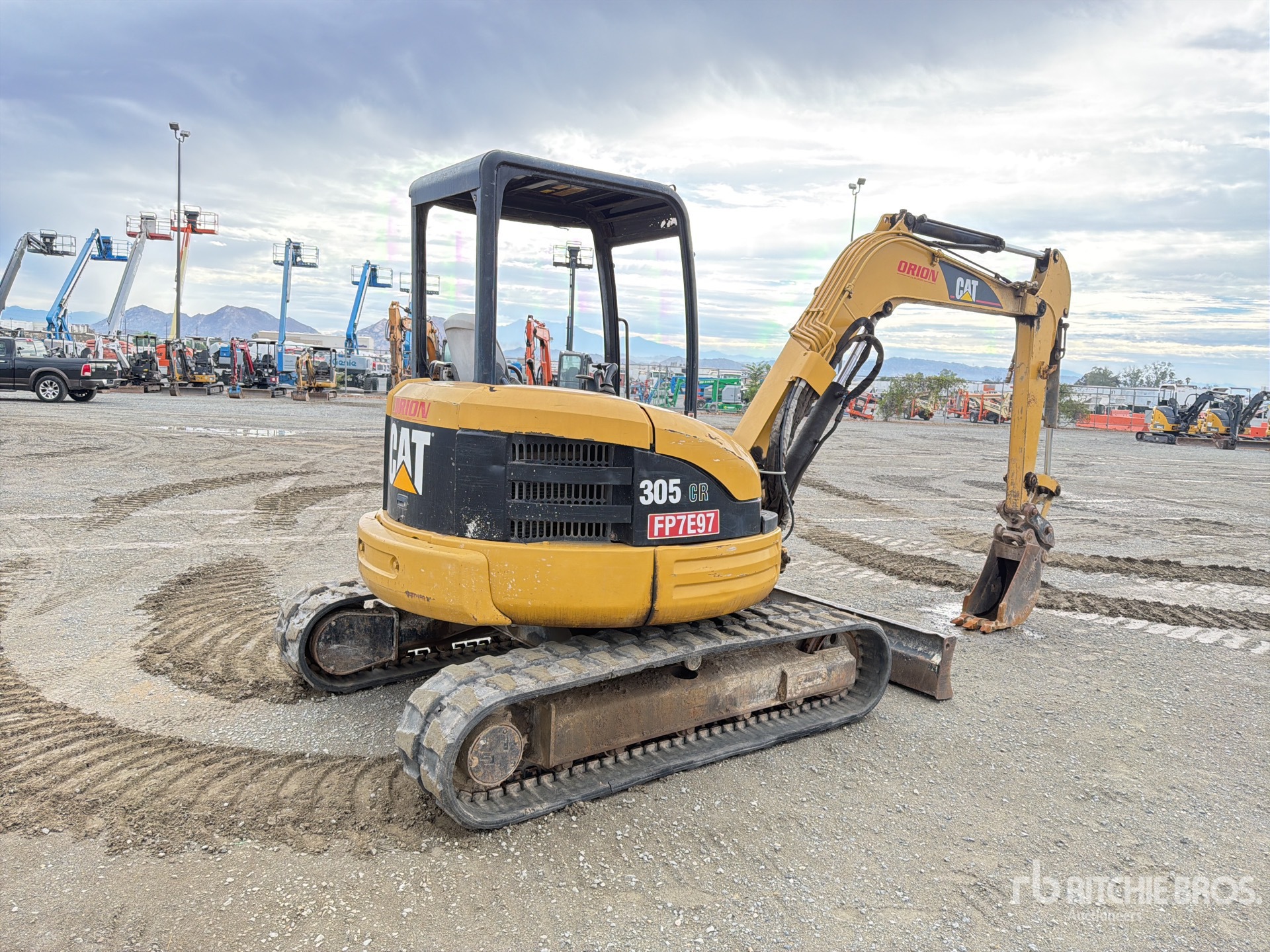

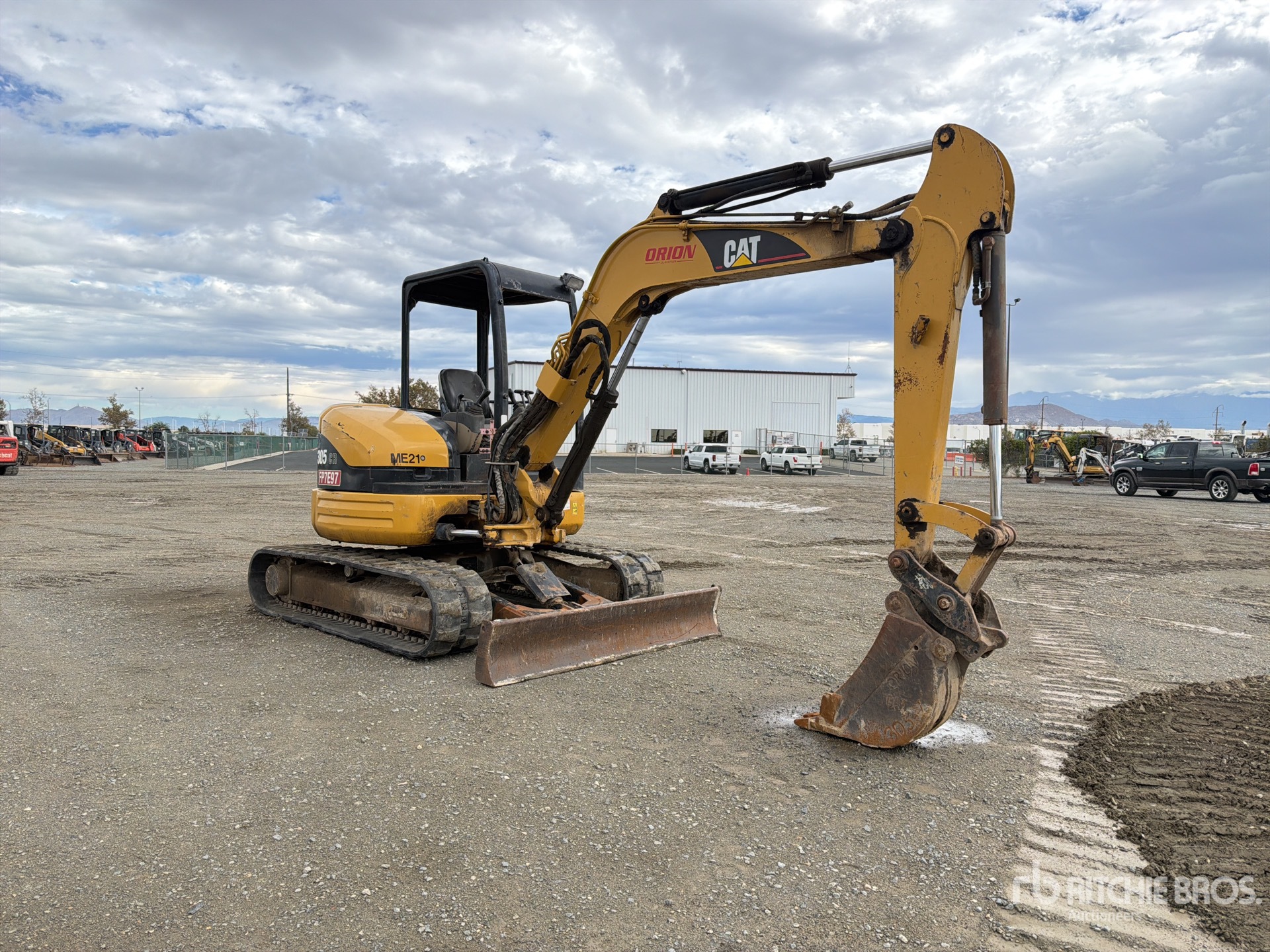

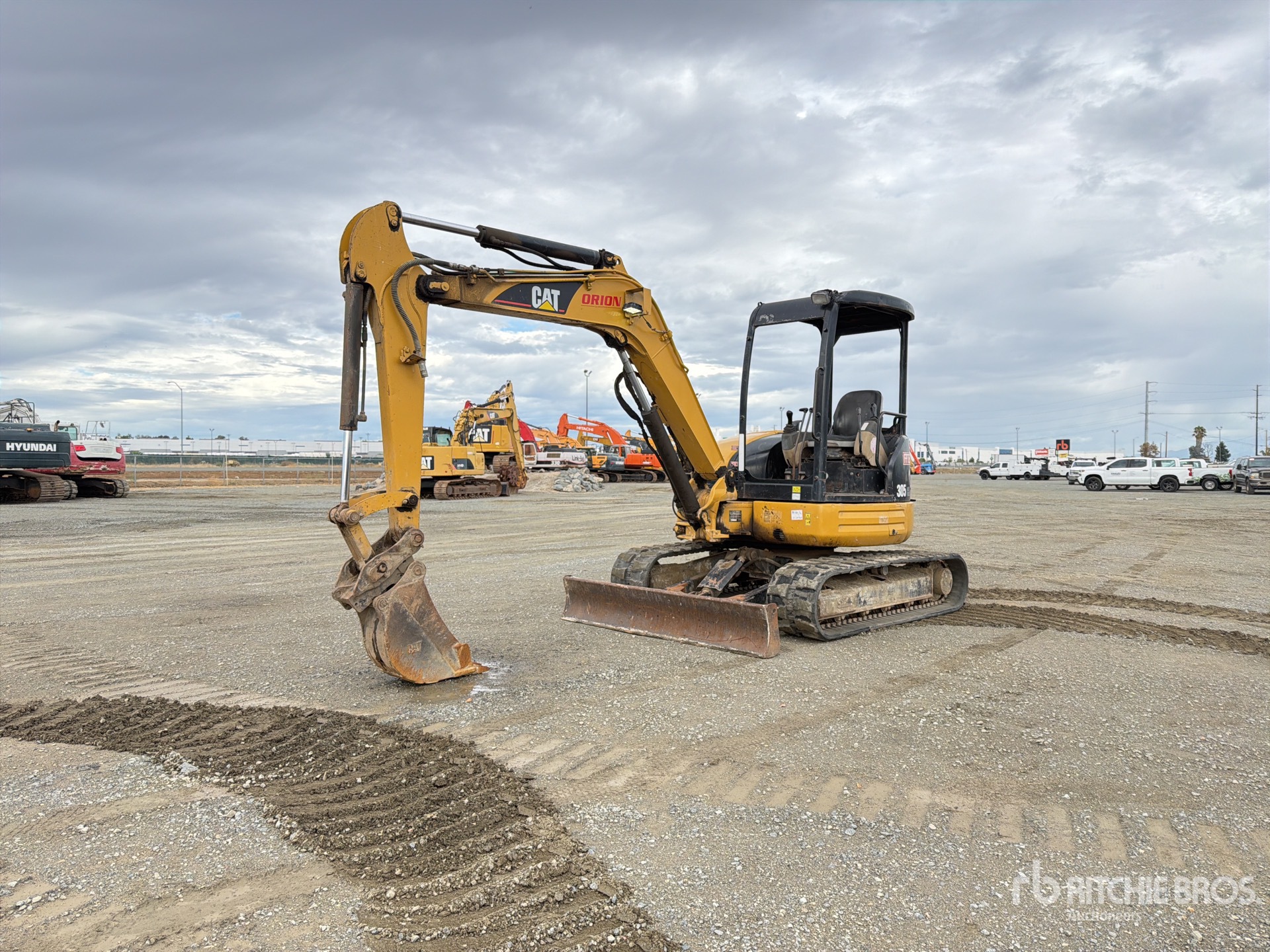

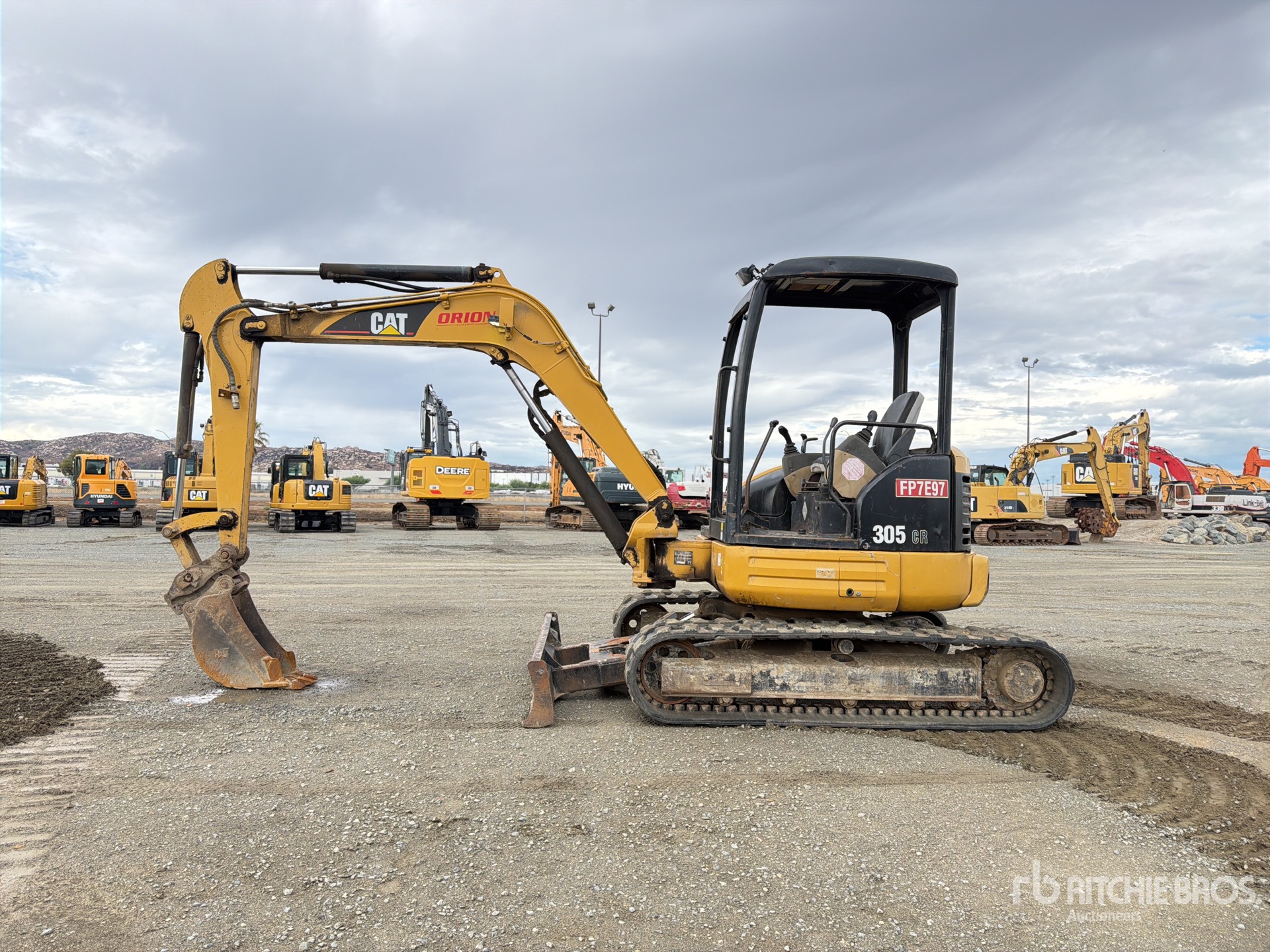

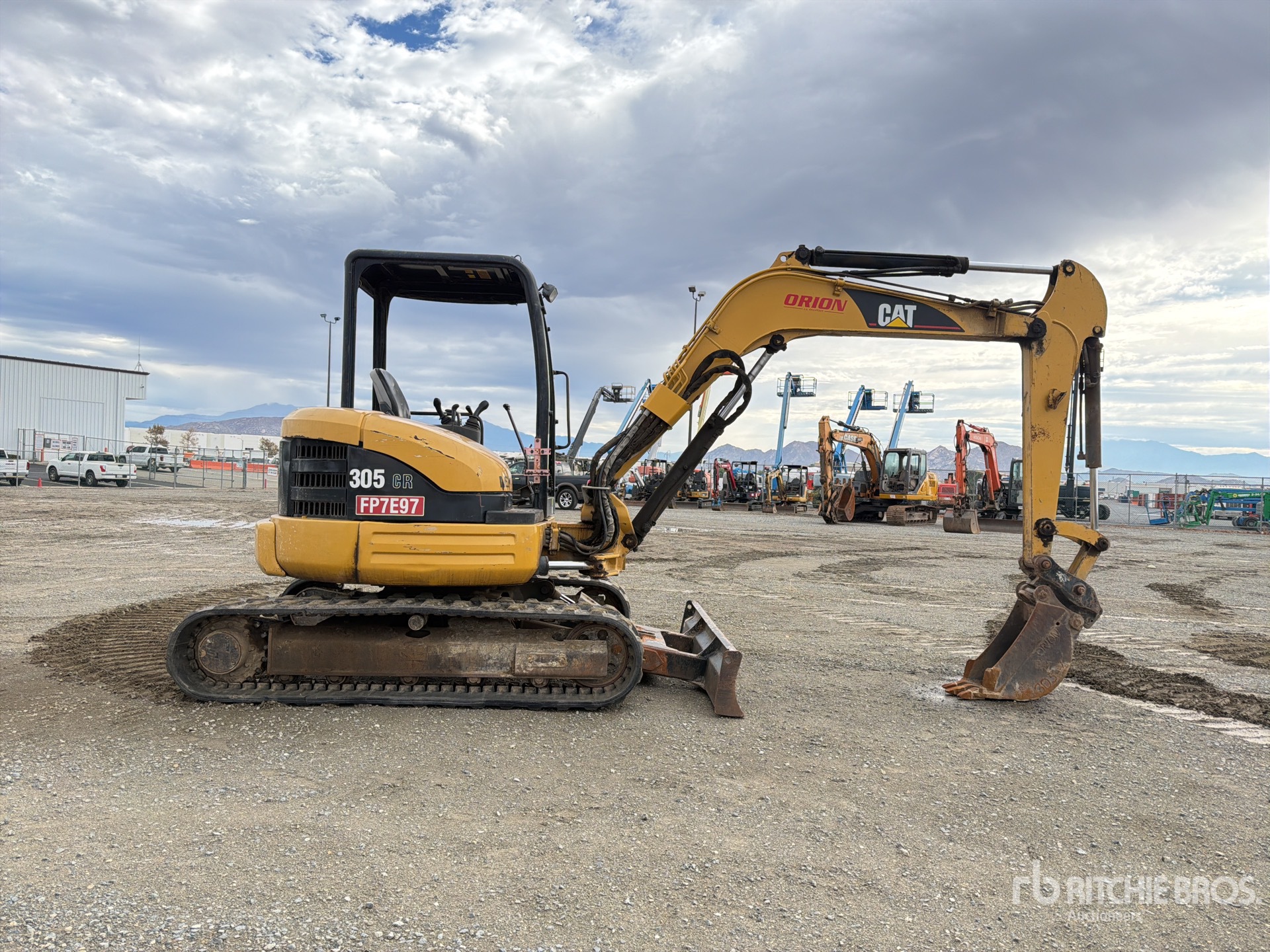

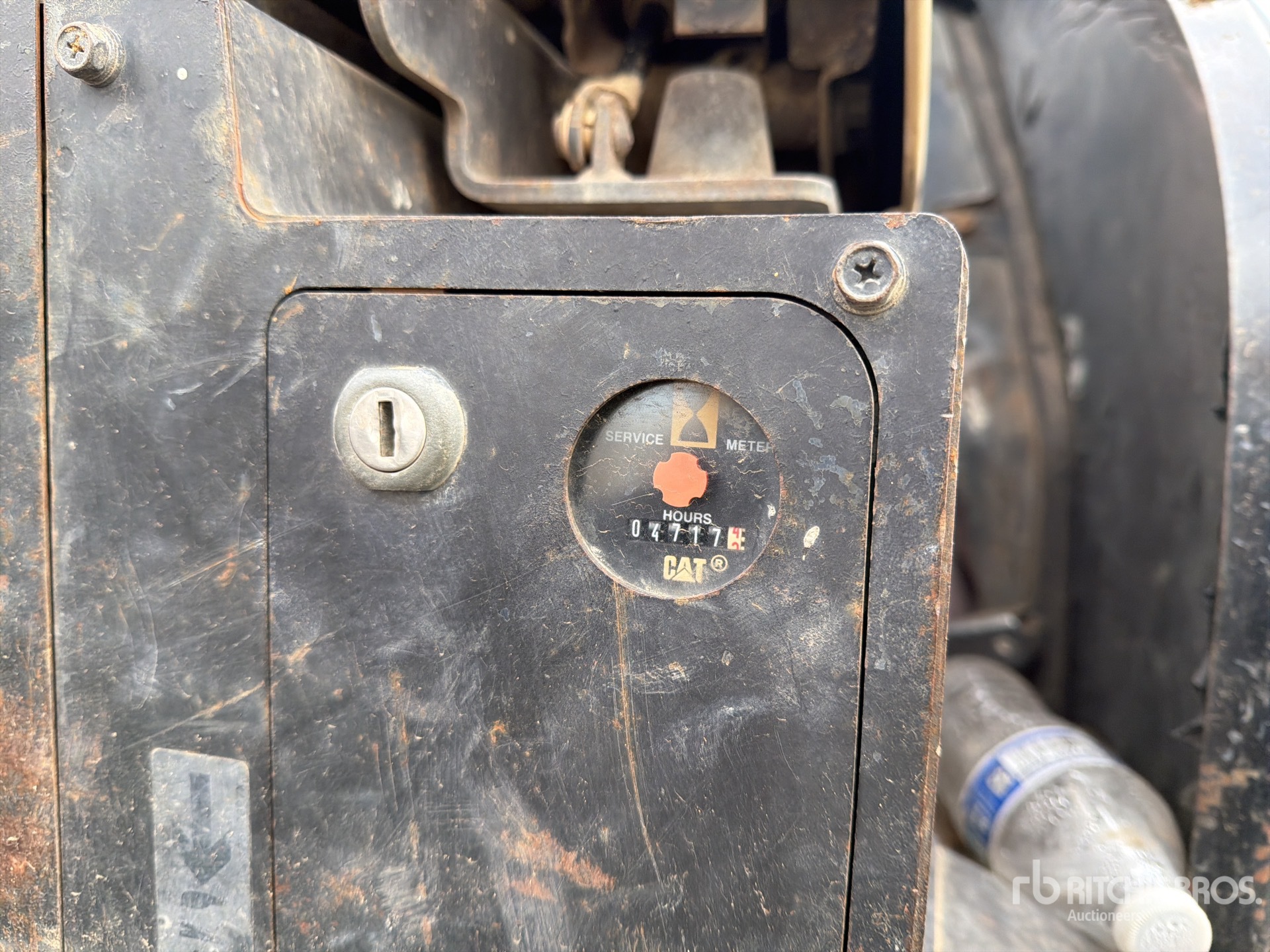

| Blade |
|
Dig Depth |
14 in (36 cm)
|
|
Lift Height |
18 in (46 cm)
|
|
Width |
7 ft (2 m)
|
| Dimensions |
|
Center Ground Clearance |
2 ft (1 m)
|
|
Height - Over Cab |
9 ft (3 m)
|
|
Height - Over Canopy |
9 ft (3 m)
|
|
Maximum Cutting Height - Long Stick |
18 ft (6 m)
|
|
Maximum Cutting Height - Standard Stick |
18 ft (5 m)
|
|
Maximum Digging Depth - Long Stick |
12 ft (4 m)
|
|
Maximum Digging Depth - Standard Stick |
12 ft (4 m)
|
|
Maximum Dump Height - Long Stick |
13 ft (4 m)
|
|
Maximum Dump Height - Standard Stick |
12 ft (4 m)
|
|
Maximum Horizontal Reach - Long Stick |
21 ft (6 m)
|
|
Maximum Horizontal Reach - Standard Stick |
19 ft (6 m)
|
|
Maximum Reach - Ground Level - Long Stick |
20 ft (6 m)
|
|
Maximum Reach - Ground Level - Standard Stick |
18 ft (6 m)
|
|
Maximum Vertical Dig Depth - Long Stick |
11 ft (3 m)
|
|
Maximum Vertical Dig Depth - Standard Stick |
9 ft (3 m)
|
|
Shipping Length |
18 ft (5 m)
|
|
Swing Radius - Rear |
4 ft (1 m)
|
|
Track Gauge |
5 ft (2 m)
|
|
Track Shoe Width |
1 ft (0 m)
|
|
Width - Over Track |
7 ft (2 m)
|
|
Width - Upper Structure |
6 ft (2 m)
|
| Electrical System |
|
Electrical System Type |
Twelve-volt system |
| Engine |
|
Engine Model |
3,013 |
|
Gross Power |
43 hp (32 kw)
|
|
Net Power |
42 hp (31 kw)
|
| Engine Dimensions |
|
Bore |
4 in (9 cm)
|
|
Displacement |
140 cu in (2,294 cu cm)
|
|
Stroke |
4 in (9 cm)
|
| General Specifications |
|
Digging Depth (Since 2025)
|
12 ft (4 m)
|
|
Digging Reach (Since 2025)
|
19 ft (6 m)
|
|
Engine (Since 2025)
|
45 hp (34 kw)
|
|
Operating Weight (Since 2025)
|
12,688 lbs (5,755 kg)
|
| Hydraulic System |
|
Auxiliary Circuit - Primary (245 Bar/3,553 Psi) |
25 gpm (95 lpm)
|
|
Digging Force - Bucket |
9,440 lbs (4,282 kg)
|
|
Digging Force - Stick - Long |
5,240 lbs (2,377 kg)
|
|
Digging Force - Stick - Standard |
6,205 lbs (2,815 kg)
|
|
Operating Pressure - Equipment |
3,550 psi |
|
Operating Pressure - Swing |
3,550 psi |
|
Operating Pressure - Travel |
3,550 psi |
|
Pump - Gear (Single) |
11 gpm (42 lpm)
|
|
Pump - Gear (Tandem) |
14 gpm (52 lpm)
|
| Msc Comments |
|
Msc Spec Date |
1/1/2000 |
| Operational |
|
Operating Weight |
10,890 lbs (4,940 kg)
|
| Service Refill Capacities |
|
Cooling System Tag |
2 gal (7 l)
|
|
Engine Oil |
2 gal (8 l)
|
|
Fuel Tank |
18 gal (68 l)
|
|
Hydraulic System |
22 gal (85 l)
|
|
Hydraulic Tank |
15 gal (57 l)
|
| Swing System |
|
Boom Swing - Left - With Stop |
55 degrees |
|
Boom Swing - Left - Without Stop |
80 degrees |
|
Boom Swing - Right |
50 degrees |
|
Machine Swing Speed |
10 rpm |
|
Swing System Type |
Hydraulic Motor Driven |
| Travel System |
|
Gradeability - Maximum - High |
25 degrees |
|
Travel Speed - High |
3 mph (5 kph)
|
|
Travel Speed - Low |
2 mph (3 kph)
|
| Weights |
|
Operating Weight - With Cab |
11,000 lbs (4,990 kg)
|
