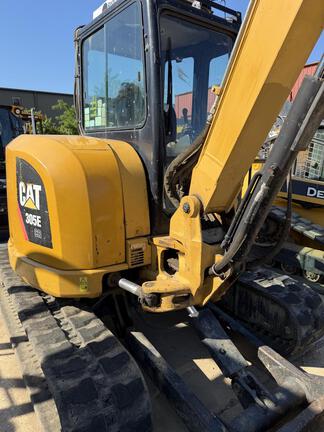

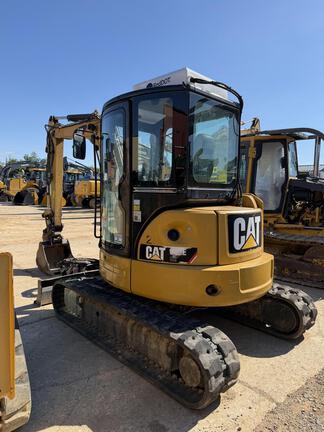

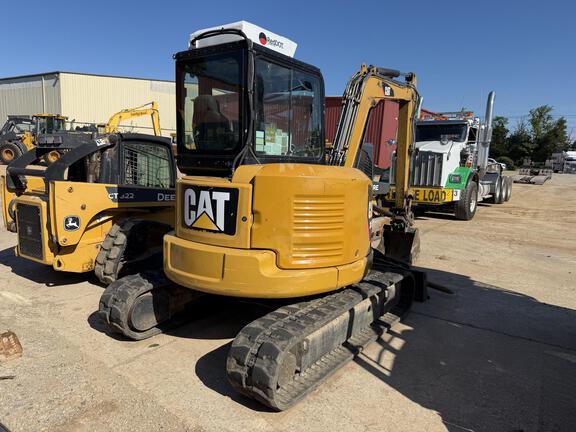

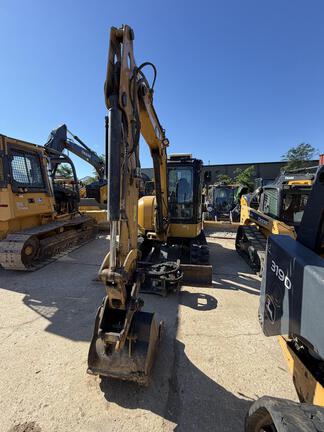

2012 Caterpillar 305E CR

Name: 2012 Caterpillar 305E CR
Brand: Caterpillar
SKU: 88770912
Availability: OutOfStock

❮

❯

/ Save to Watch List

MACHINE SOLD

McCoy Construction & Forestry

McCoy Construction & Forestry Dealer Info

McCoy Construction & Forestry Website

Click here to email McCoy Construction & Forestry.

Contact: Todd Jakoby

Click for Phone Number

Machine Info:

Serial Number:	CAT0385EKXFA01025
Stock Number:	310199
Machine Location:	LOUISVILLE, KY

Description:

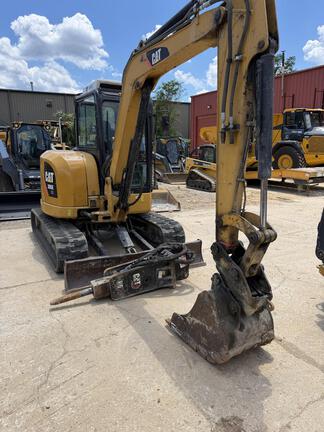

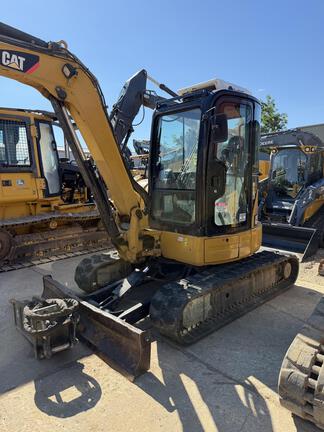

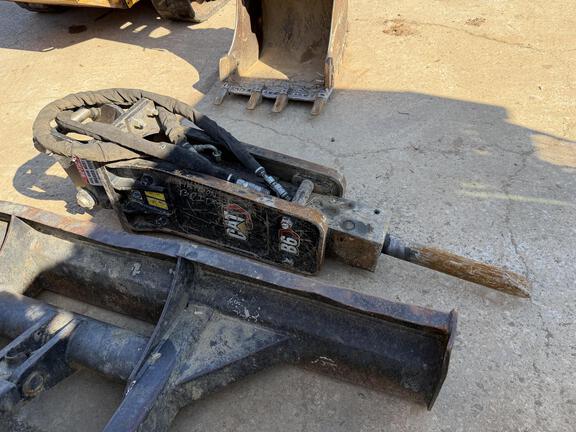

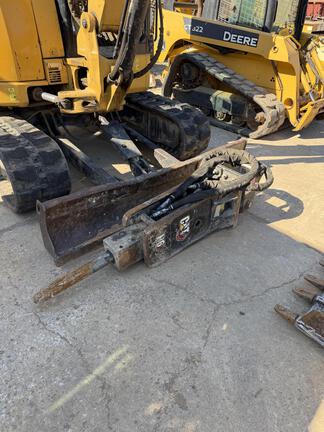

Cab w/ AC Standard Track 24" Bucket Aux Hydraulics Blade, CAT B6 Hammer, Warranty Unknown

Machine Details:

General Specifications

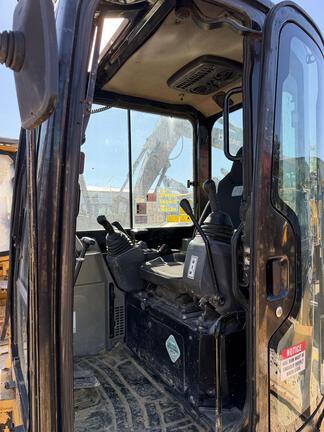

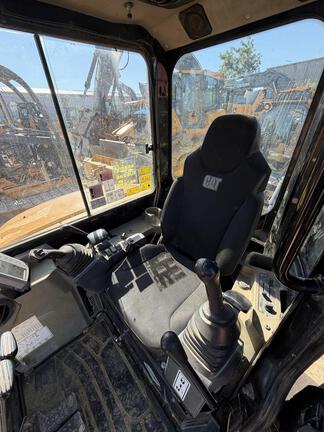

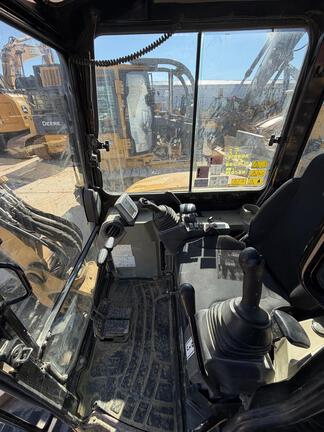

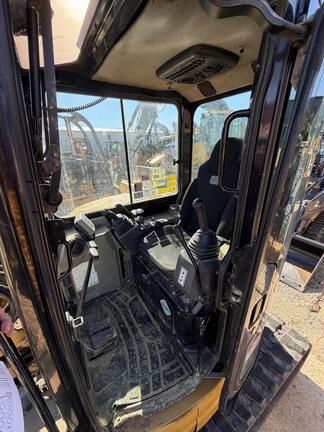

Operators Station	Cab w/ AC
Tracks	Standard Track

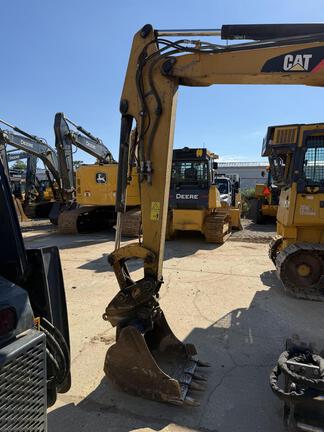

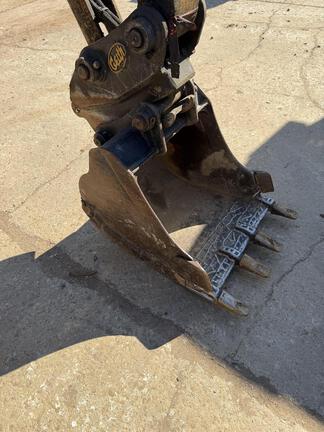

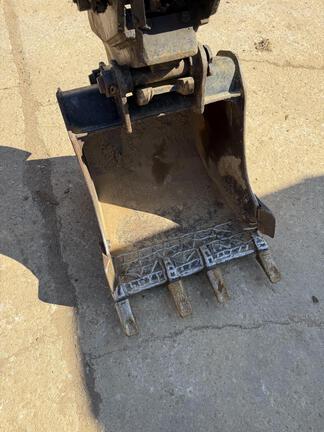

Buckets	24" Bucket

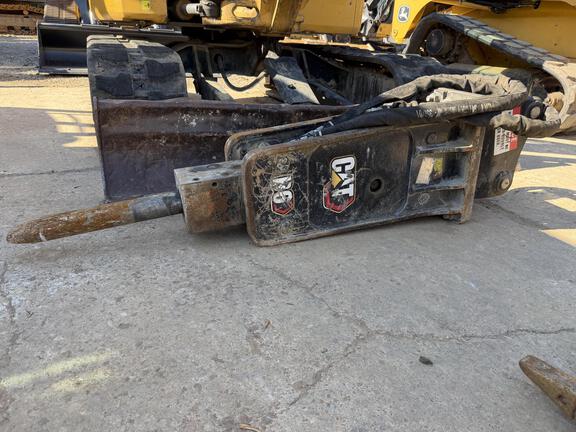

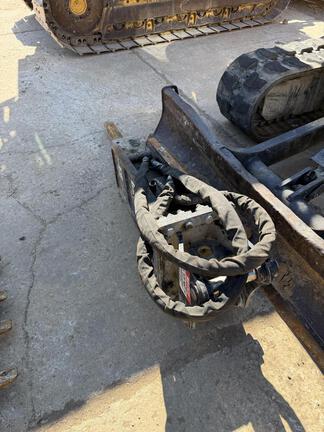

Attachments	Hammer

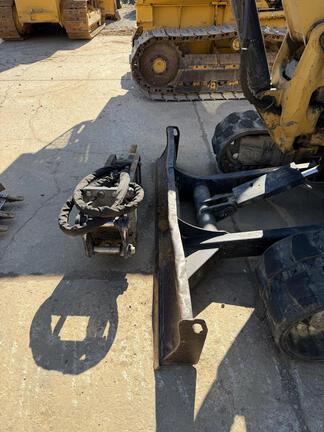

Blades	Blade
Options	Aux Hydraulics

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 305E CR is a compact mini excavator designed for digging, trenching, grading, and utility work in confined jobsite conditions. It features a reduced tail swing design for improved maneuverability near walls, structures, and obstacles. The 305E CR is commonly used in construction, landscaping, municipal maintenance, and site preparation applications. Caterpillar equipped this model with a fuel-efficient diesel engine, hydraulic performance suited to precision control, and a comfortable operator station. Its compact size, transportability, and attachment compatibility make the Caterpillar 305E CR a practical choice for contractors needing a versatile mini excavator for light to medium-duty earthmoving tasks.

Blade
Dig Depth	21 in (54 cm)
Height	15 in (38 cm)
Lift Height	17 in (42 cm)
Width	7 ft (2 m)
Dimensions
Height - Over Cab	8 ft (3 m)
Maximum Cutting Height - Long Stick	18 ft (5 m)
Maximum Cutting Height - Standard Stick	17 ft (5 m)
Maximum Digging Depth - Standard Stick	11 ft (3 m)
Maximum Dump Height - Long Stick	13 ft (4 m)
Maximum Dump Height - Standard Stick	12 ft (4 m)
Maximum Horizontal Reach - Long Stick	20 ft (6 m)
Maximum Horizontal Reach - Standard Stick	18 ft (6 m)
Maximum Reach - Ground Level - Standard Stick	18 ft (5 m)
Maximum Vertical Dig Depth - Long Stick	9 ft (3 m)
Maximum Vertical Dig Depth - Standard Stick	8 ft (2 m)
Shipping Height	8 ft (3 m)
Shipping Length	17 ft (5 m)
Track Shoe Width	1 ft (0 m)
Transport Width	7 ft (2 m)
Engine
Engine Model	Cat C2.4
Gross Power	42 hp (31 kw)
Net Power	40 hp (30 kw)
Engine Dimensions
Bore	3 in (9 cm)
Displacement	146 cu in (2,393 cu cm)
Stroke	4 in (10 cm)
Hydraulic System
Auxiliary Circuit - Primary	19 gpm (70 lpm)
Auxiliary Circuit - Secondary	10 gpm (38 lpm)
Digging Force - Bucket	10,050 lbs (4,558 kg)
Digging Force - Stick - Long	4,788 lbs (2,171 kg)
Digging Force - Stick - Standard	5,550 lbs (2,517 kg)
Operating Pressure - Equipment	3,553 psi
Operating Pressure - Swing	2,690 psi
Operating Pressure - Travel	3,553 psi
Msc Comments
Msc Spec Date	3/06
Operational
Operating Weight	10,836 lbs (4,914 kg)
Service Refill Capacities
Cooling System	3 gal (11 l)
Engine Oil	3 gal (9 l)
Fuel Tank	17 gal (63 l)
Hydraulic System	21 gal (78 l)
Hydraulic Tank	18 gal (68 l)
Swing System
Boom Swing - Left - With Stop	60 degrees
Boom Swing - Left - Without Stop	80 degrees
Boom Swing - Right	50 degrees
Machine Swing Speed	9 rpm
Travel System
Maximum Traction Force - High Speed	5,418 lbs (2,457 kg)
Maximum Traction Force - Low Speed	10,161 lbs (4,608 kg)
Travel Speed - High	3 mph (5 kph)
Travel Speed - Low	2 mph (3 kph)
Weights
Operating Weight - With Cab	11,217 lbs (5,087 kg)
