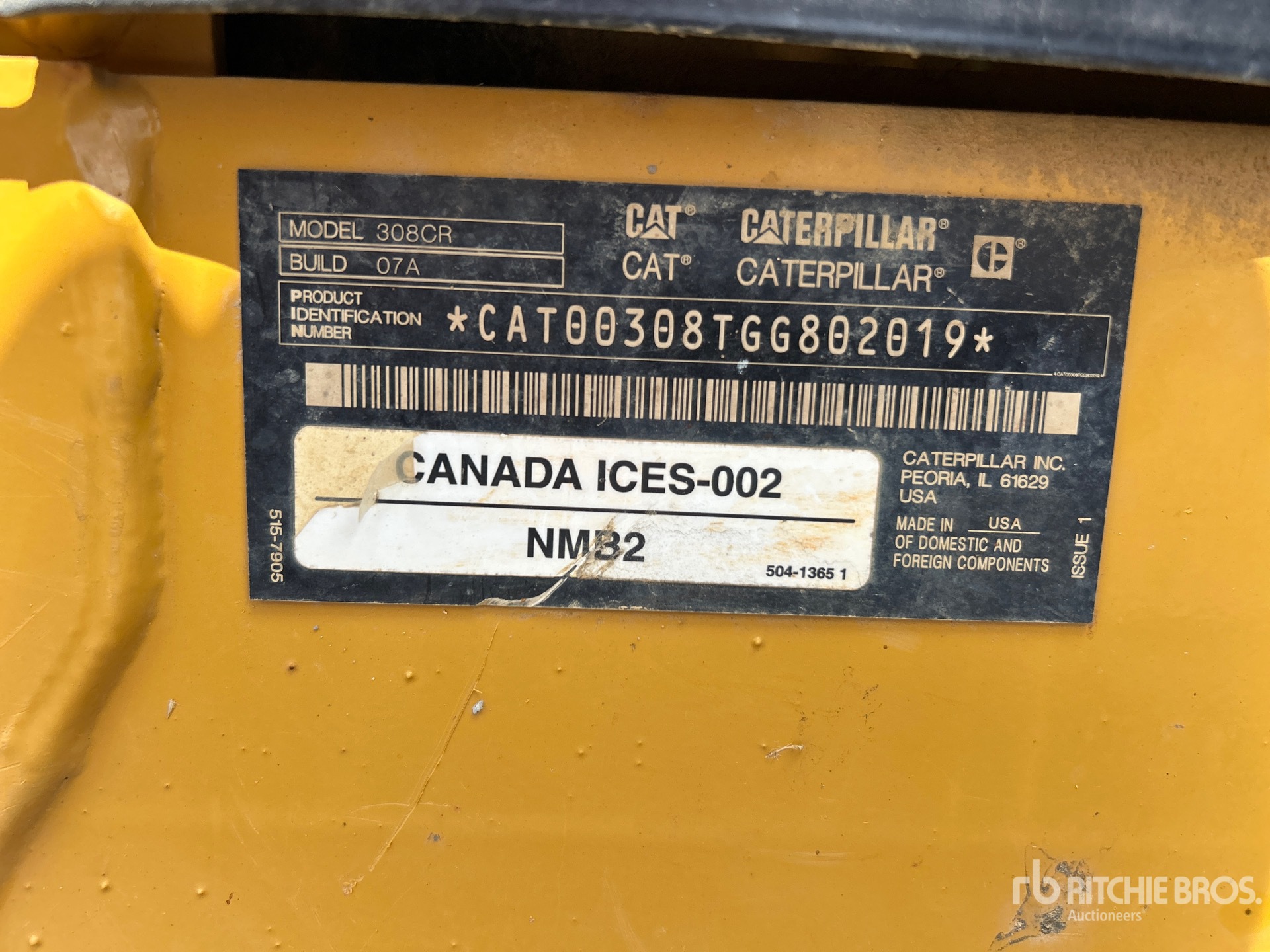

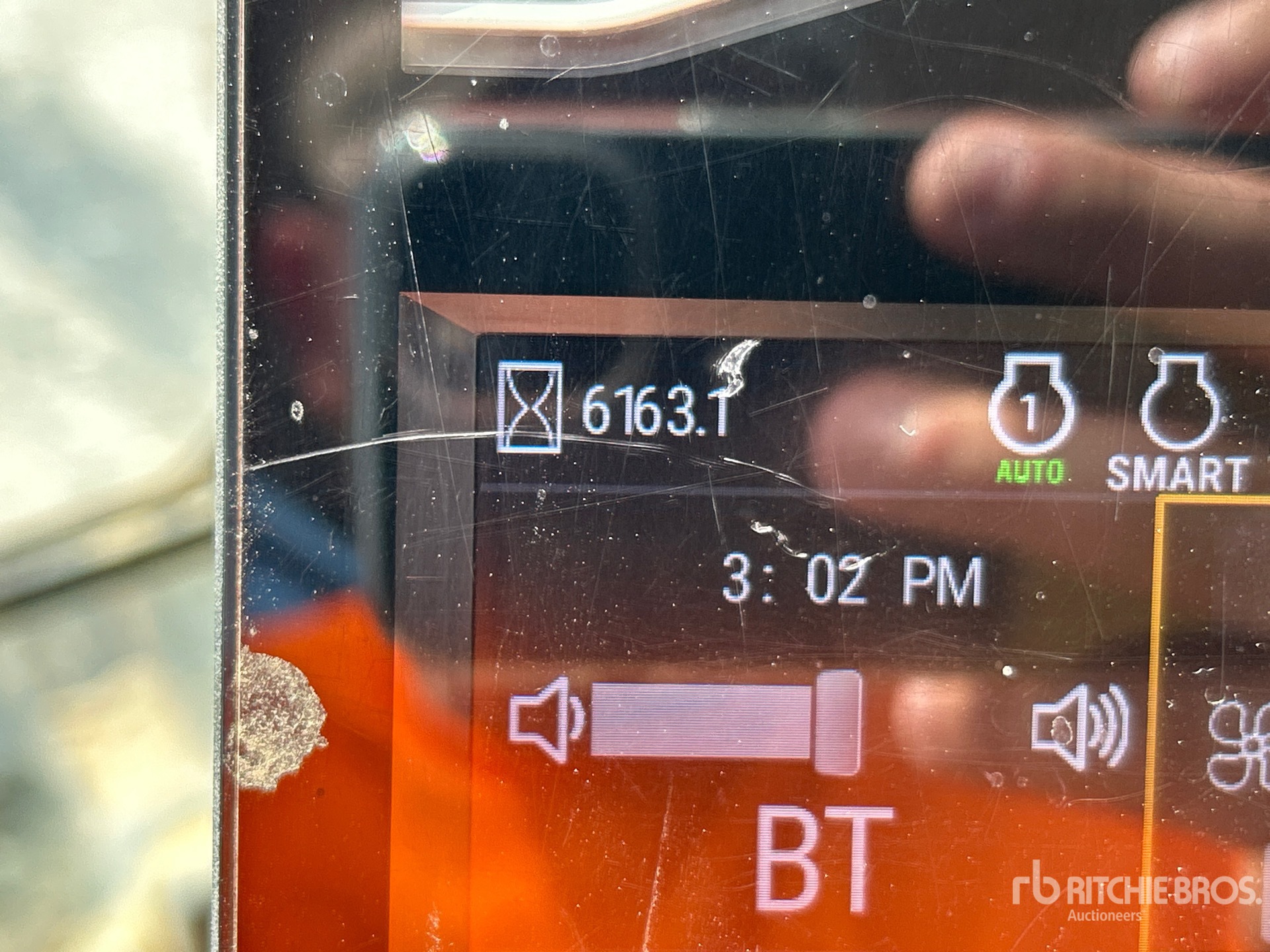

| Air Conditioning System |
|
Air Conditioning |
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes. |
| Blade |
|
Height |
17 in (43 cm)
|
|
Width - Standard |
91 in (230 cm)
|
|
Width - Wide |
97 in (245 cm)
|
| Certification - Cab |
|
Roll Over Protective Structure (Rops) |
ISO 12117-2:2008 |
|
Tip Over Protective Structure (Tops) |
ISO 12117:1997 |
|
Top Guard |
ISO 10262:1998 (Level II) |
| Dimensions - Long Stick |
|
Boom In Reach |
127 in (322 cm)
|
|
Boom Swing - Left |
20 in (51 cm)
|
|
Boom Swing - Right |
38 in (97 cm)
|
|
Cab Height |
99 in (252 cm)
|
|
Dig Depth |
183 in (464 cm)
|
|
Ground Clearance |
14 in (35 cm)
|
|
Maximum Blade Depth |
16 in (41 cm)
|
|
Maximum Blade Height |
15 in (37 cm)
|
|
Maximum Dig Height |
277 in (704 cm)
|
|
Maximum Dump Clearance |
200 in (507 cm)
|
|
Maximum Reach |
301 in (764 cm)
|
|
Maximum Reach - Ground Level |
294 in (746 cm)
|
|
O/A Shipping Length |
262 in (665 cm)
|
|
O/A Track Width |
91 in (230 cm)
|
|
O/A Undercarriage Length |
114 in (289 cm)
|
|
Stick Length |
93 in (236 cm)
|
|
Swing Bearing - Height |
29 in (73 cm)
|
|
Tail Swing With Counterweight |
65 in (165 cm)
|
|
Tail Swing Without Counterweight |
57 in (145 cm)
|
|
Track Belt/Shoe Width |
18 in (45 cm)
|
|
Transport Height |
99 in (252 cm)
|
|
Vertical Wall |
134 in (341 cm)
|
| Dimensions - Standard Stick |
|
Boom In Reach |
120 in (306 cm)
|
|
Boom Swing - Left |
20 in (51 cm)
|
|
Boom Swing - Right |
38 in (97 cm)
|
|
Cab Height |
99 in (252 cm)
|
|
Dig Depth |
162 in (411 cm)
|
|
Ground Clearance |
14 in (35 cm)
|
|
Maximum Blade Depth |
16 in (41 cm)
|
|
Maximum Blade Height |
15 in (37 cm)
|
|
Maximum Dig Height |
265 in (674 cm)
|
|
Maximum Dump Clearance |
187 in (476 cm)
|
|
Maximum Reach |
281 in (714 cm)
|
|
Maximum Reach - Ground Level |
274 in (695 cm)
|
|
O/A Shipping Length |
259 in (657 cm)
|
|
O/A Track Width |
91 in (230 cm)
|
|
O/A Undercarriage Length |
114 in (289 cm)
|
|
Stick Length |
72 in (182 cm)
|
|
Swing Bearing - Height |
29 in (73 cm)
|
|
Tail Swing With Counterweight |
65 in (165 cm)
|
|
Tail Swing Without Counterweight |
57 in (145 cm)
|
|
Track Belt/Shoe Width |
18 in (45 cm)
|
|
Transport Height |
98 in (249 cm)
|
|
Vertical Wall |
118 in (299 cm)
|
| Engine |
|
Bore |
4 in (9 cm)
|
|
Displacement |
203 cu in (3,327 cu cm)
|
|
Engine Model |
Cat C3.3B |
|
Gross Power - Iso 14396 |
74 hp (55 kw)
|
|
Net Power |
70 hp (52 kw)
|
|
Rated Net Power - 2,200 Rpm - Eu Stage V - Iso 9249/Eec 80/1269 |
72 hp (53 kw)
|
|
Rated Net Power - 2,200 Rpm - U.S. Epa Tier 4 Final - Iso 9249/Eec 80/1269 |
70 hp (52 kw)
|
|
Stroke |
5 in (12 cm)
|
| General Specifications |
|
Digging Depth (Since 2025)
|
15 ft (5 m)
|
|
Digging Reach (Since 2025)
|
25 ft (8 m)
|
|
Engine (Since 2025)
|
70 hp (52 kw)
|
|
Operating Weight (Since 2025)
|
20,678 lbs (9,379 kg)
|
| Hydraulic System |
|
Auxiliary Circuit - Primary - Flow |
35 gpm (132 lpm)
|
|
Auxiliary Circuit - Primary - Pressure |
4,134 psi |
|
Auxiliary Circuit - Secondary - Flow |
9 gpm (34 lpm)
|
|
Auxiliary Circuit - Secondary - Pressure |
4,134 psi |
|
Digging Force - Bucket |
13,946 lbs (6,326 kg)
|
|
Digging Force - Stick - Long |
8,032 lbs (3,643 kg)
|
|
Digging Force - Stick - Standard |
9,509 lbs (4,313 kg)
|
|
Hydraulic System Type |
Load Sensing Hydraulics with Variable Displacement Piston Pump |
|
Operating Pressure - Equipment |
4,134 psi |
|
Operating Pressure - Swing |
3,626 psi |
|
Operating Pressure - Travel |
4,134 psi |
|
Pump Flow At 2,400 Rpm |
44 gpm (167 lpm)
|
| Service Refill Capacities |
|
Cooling System |
3 gal (10 l)
|
|
Engine Oil |
3 gal (11 l)
|
|
Fuel Tank |
39 gal (148 l)
|
|
Hydraulic System |
27 gal (102 l)
|
|
Hydraulic Tank |
14 gal (53 l)
|
| Sound |
|
Average Exterior Sound Pressure (Iso 6395:2008) |
99 dB(A) |
|
Note |
European Union Directive 2000/14/EC |
|
Operator Sound Pressure (Iso 6396:2008) |
72 dB(A) |
| Swing System |
|
Machine Swing Speed |
11 rpm |
| Travel System |
|
Gradeability - Maximum |
30 degrees |
|
Ground Pressure - Maximum Weight |
6 psi |
|
Ground Pressure - Minimum Weight |
5 psi |
|
Maximum Traction Force - High Speed |
6,250 lbs (2,835 kg)
|
|
Maximum Traction Force - Low Speed |
15,175 lbs (6,883 kg)
|
|
Travel Speed - High |
3 mph (5 kph)
|
|
Travel Speed - Low |
2 mph (3 kph)
|
| Weight Increase From Minimum Configuration |
|
Counterweight |
552 lbs (250 kg)
|
|
Long Stick |
146 lbs (66 kg)
|
|
Steel Tracks With Pads |
1,422 lbs (645 kg)
|
| Weights |
|
Maximum Operating Weight With Cab** |
20,678 lbs (9,379 kg)
|
|
Minimum Operating Weight With Cab* |
17,960 lbs (8,147 kg)
|
|
Note (1) |
*Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket. |
|
Note (2) |
**Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket. |
|
Operating Weight |
20,678 lbs (9,379 kg)
|
