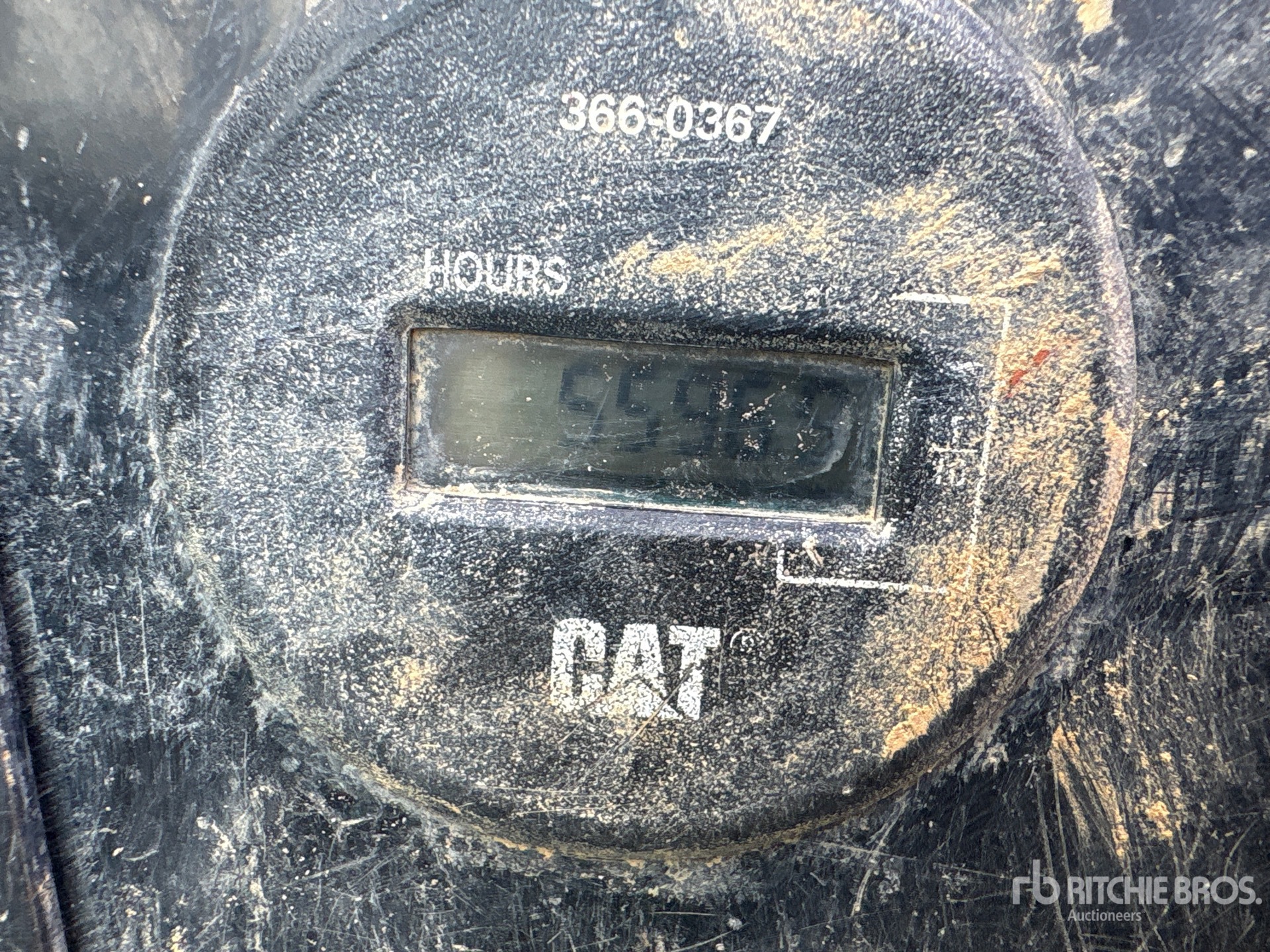

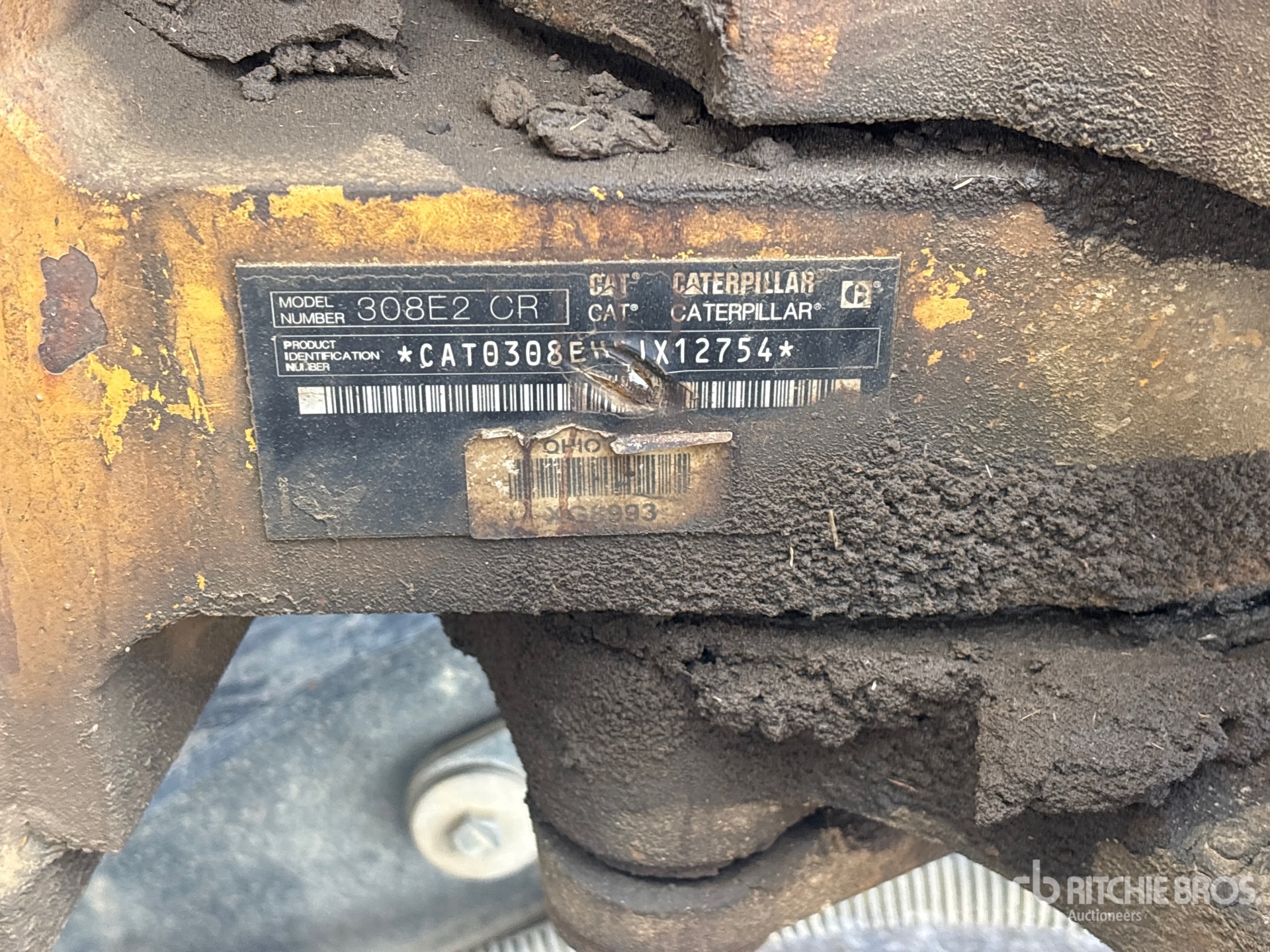

| Blade |
|
Blade Height |
18 in (45 cm)
|
|
Blade Width |
8 ft (2 m)
|
|
Dig Depth |
14 in (36 cm)
|
|
Height |
18 in (45 cm)
|
|
Lift Height |
15 in (38 cm)
|
|
Width |
8 ft (2 m)
|
| Buckets |
|
Maximum Bucket Capacity |
1 cu yd |
|
Minimum Bucket Capacity |
1 cu yd |

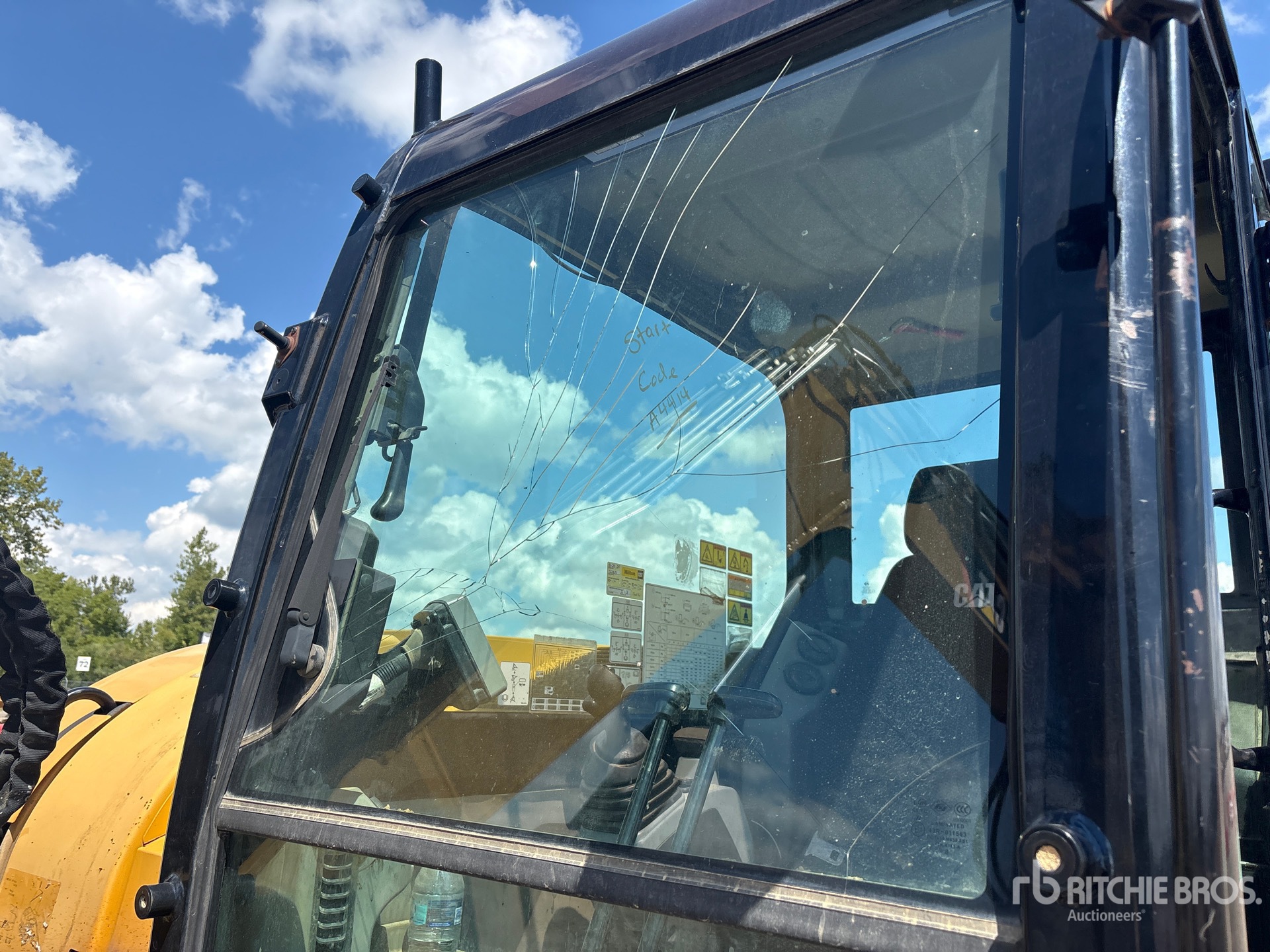

| Cab |
|
Average Exterior Sound Pressure |
99 dB(A) ISO 6395 Dynamic Test |
|
Dynamic Operator Sound Pressure |
70 dB(A) ISO 6396 |
| Dimensions |
|
Height |
8 ft (3 m)
|
|
Length |
21 ft (6 m)
|
|
Weight |
19,073 lbs (8,650 kg)
|
|
Width |
8 ft (2 m)
|
| Engine |
|
Aspiration |
Turbocharged |
|
Bore |
4 in (9 cm)
|
|
Displacement |
203 cu in (3,330 cu cm)
|
|
Emissions |
Meets U.S. EPA Tier 4 Final and EU Stage IIIB emission standards. |
|
Engine Make |
2,236 |
|
Engine Model |
Cat C3.3B |
|
Engine Model |
C3.3B |
|
Gross Power |
67 hp (50 kw)
|
|
Gross Power - Iso 14396 |
67 hp (50 kw)
|
|
Net Power |
65 hp (48 kw)
|
|
Net Power - Iso 9249 |
65 hp (48 kw)
|
|
Number Of Cylinders |
4 |
|
Power Measured @ |
2,400 rpm |
|
Rated Net Power - 2,400 Rpm - Iso 9249/Eec 80/1269 |
65 hp (48 kw)
|
|
Stroke |
5 in (12 cm)
|
| Hydraulic System |
|
Auxiliary Circuit - Primary (186 Bar/2,734 Psi) |
34 gpm (128 lpm)
|
|
Auxiliary Circuit - Secondary (174 Bar/2,524 Psi) |
17 gpm (64 lpm)
|
|
Digging Force - Bucket |
13,534 lbs (6,139 kg)
|
|
Digging Force - Stick - Long |
7,891 lbs (3,579 kg)
|
|
Digging Force - Stick - Standard |
9,015 lbs (4,089 kg)
|
|
Note |
Load sensing hydraulics with variable displacement piston pump. |
|
Operating Pressure - Equipment |
4,061 psi |
|
Operating Pressure - Swing |
3,481 psi |
|
Operating Pressure - Travel |
4,061 psi |
|
Pump Flow At 2,000 Rpm |
40 gpm (150 lpm)
|
| Operating Specifications |
|
Counterweight |
551 lbs (250 kg)
|
|
Machine Overhang |
11 in (28 cm)
|
|
Machine Overhang With Counterweight |
16 in (41 cm)
|
|
Maximum Dig Depth |
164 in (415 cm)
|
|
Stick Length - Long |
87 in (221 cm)
|
|
Stick Length - Standard |
66 in (168 cm)
|
| Operational |
|
Cooling System Fluid Capacity |
4 gal (14 l)
|
|
Engine Oil Capacity |
3 gal (11 l)
|
|
Fuel Capacity |
33 gal (125 l)
|
|
Hydraulic System Fluid Capacity |
22 gal (82 l)
|
|
Operating Weight |
18,519 lbs (8,400 kg)
|
| Service Refill Capacities |
|
Cooling System |
4 gal (14 l)
|
|
Engine Oil |
3 gal (11 l)
|
|
Fuel Tank |
33 gal (125 l)
|
|
Hydraulic System |
25 gal (94 l)
|
|
Hydraulic Tank |
22 gal (82 l)
|
| Swing Mechanism |
|
Swing Speed |
11 rpm |
| Swing System |
|
Boom Swing - Left |
60 degrees |
|
Machine Swing Speed |
11 rpm |
|
Note |
Automatic swing break, spring applied, hydraulic release. |
| Travel System |
|
Gradeability - Maximum |
30 degrees |
|
Ground Pressure |
5 psi |
|
Maximum Traction Force - High Speed |
8,408 lbs (3,814 kg)
|
|
Maximum Traction Force - Low Speed |
14,500 lbs (6,577 kg)
|
|
Note (1) |
Each track is driven by one independent 2-speed motor. |
|
Note (2) |
Drive modules are integrated into the roller frame for total protection. |
|
Note (3) |
Straight line travel when tracking and operating the front linkage simultaneously. |
|
Travel Speed - High |
3 mph (5 kph)
|
|
Travel Speed - Low |
2 mph (3 kph)
|
| Undercarriage |
|
Drawbar Pull |
20,720 lbs (9,398 kg)
|
|
Ground Pressure |
6 psi |
|
Max Travel Speed |
3 mph (6 kph)
|
|
Track Gauge |
7 ft (2 m)
|
| Weights |
|
Note (1) |
Weight with rubber tracks, bucket, operator (75 kg/165 lb), full fuel and auxiliary lines. |
|
Note (2) |
Weight varies depending on machine configuration. |
|
Operating Weight |
18,519 lbs (8,400 kg)
|
|
Operating Weight - With Cab |
18,519 lbs (8,400 kg)
|
