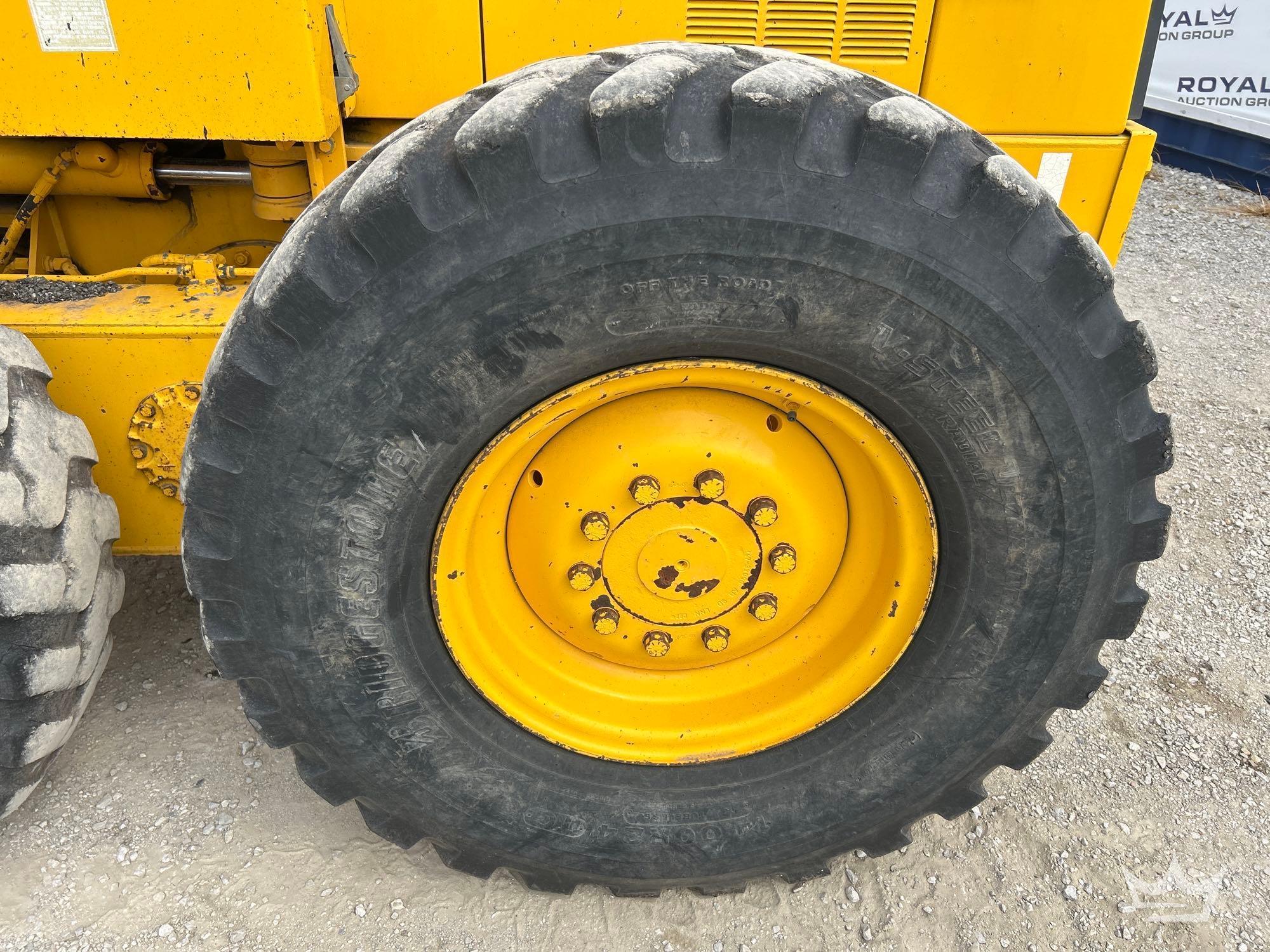

2002 Caterpillar 120H For Sale in Bowie, TX
Auction Pricing
Auction Info: Starting on 2026-08-06 Click here to place a bid Minimum Bid: $5
Machine Info:
Description:

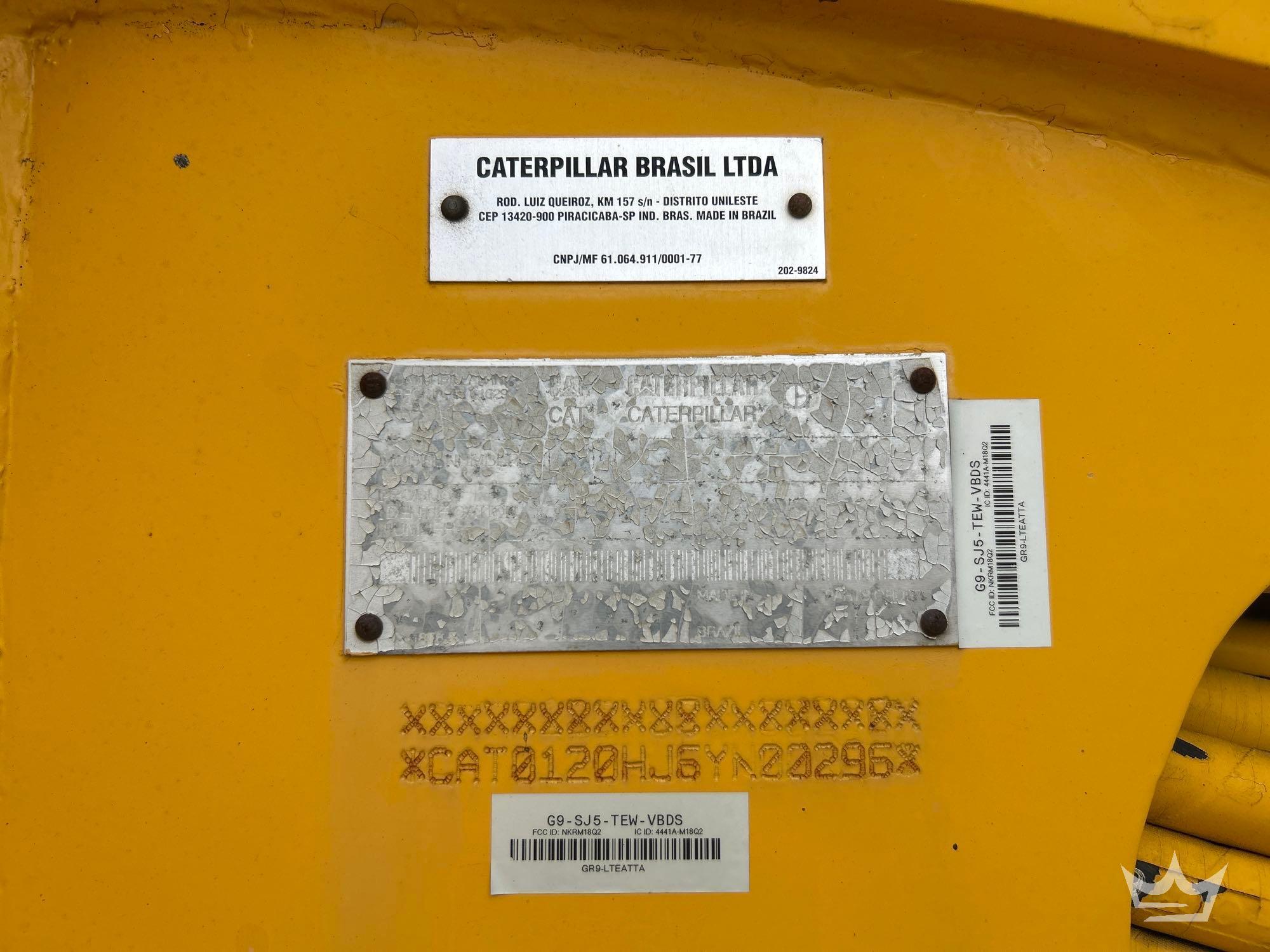

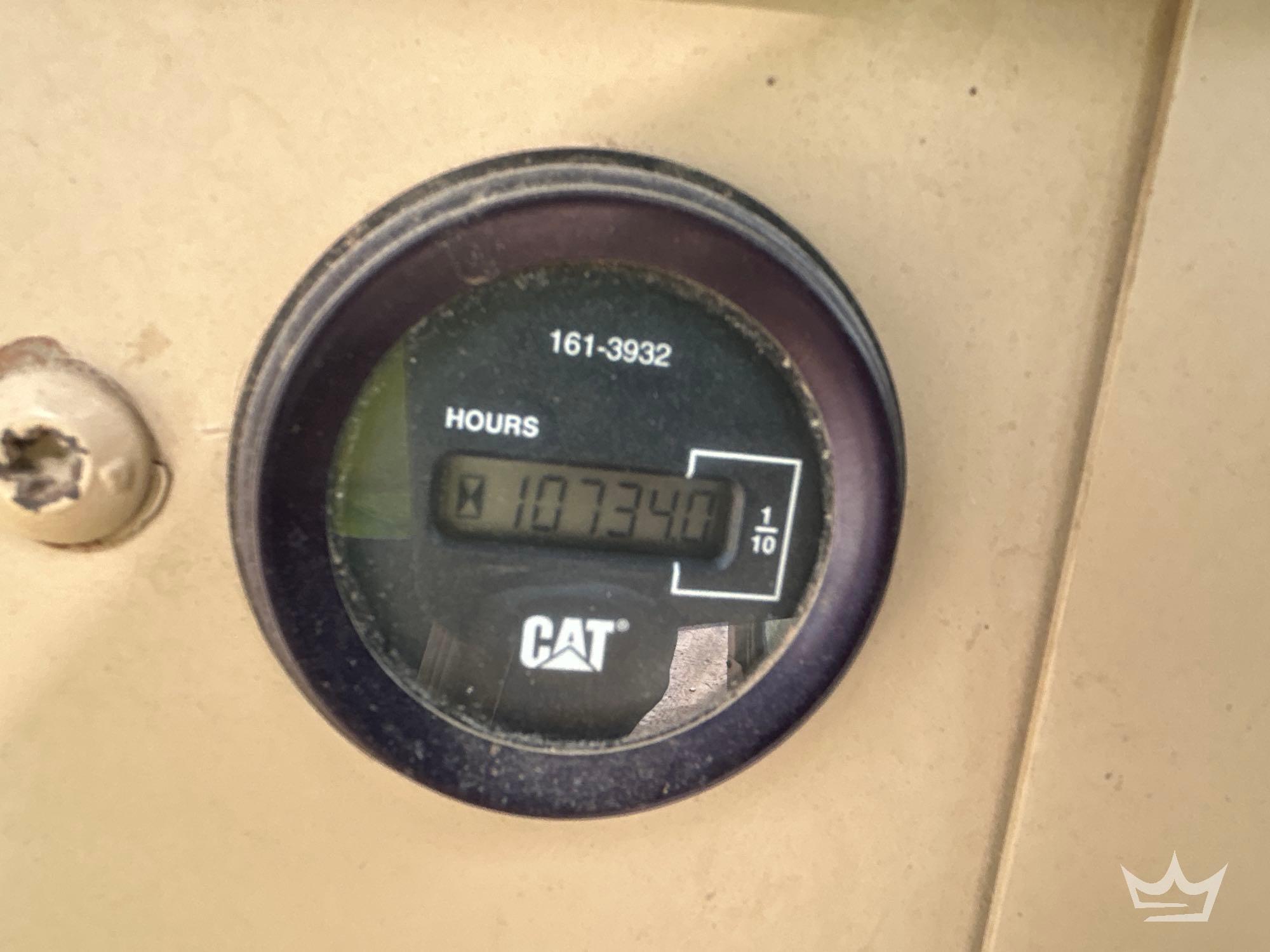

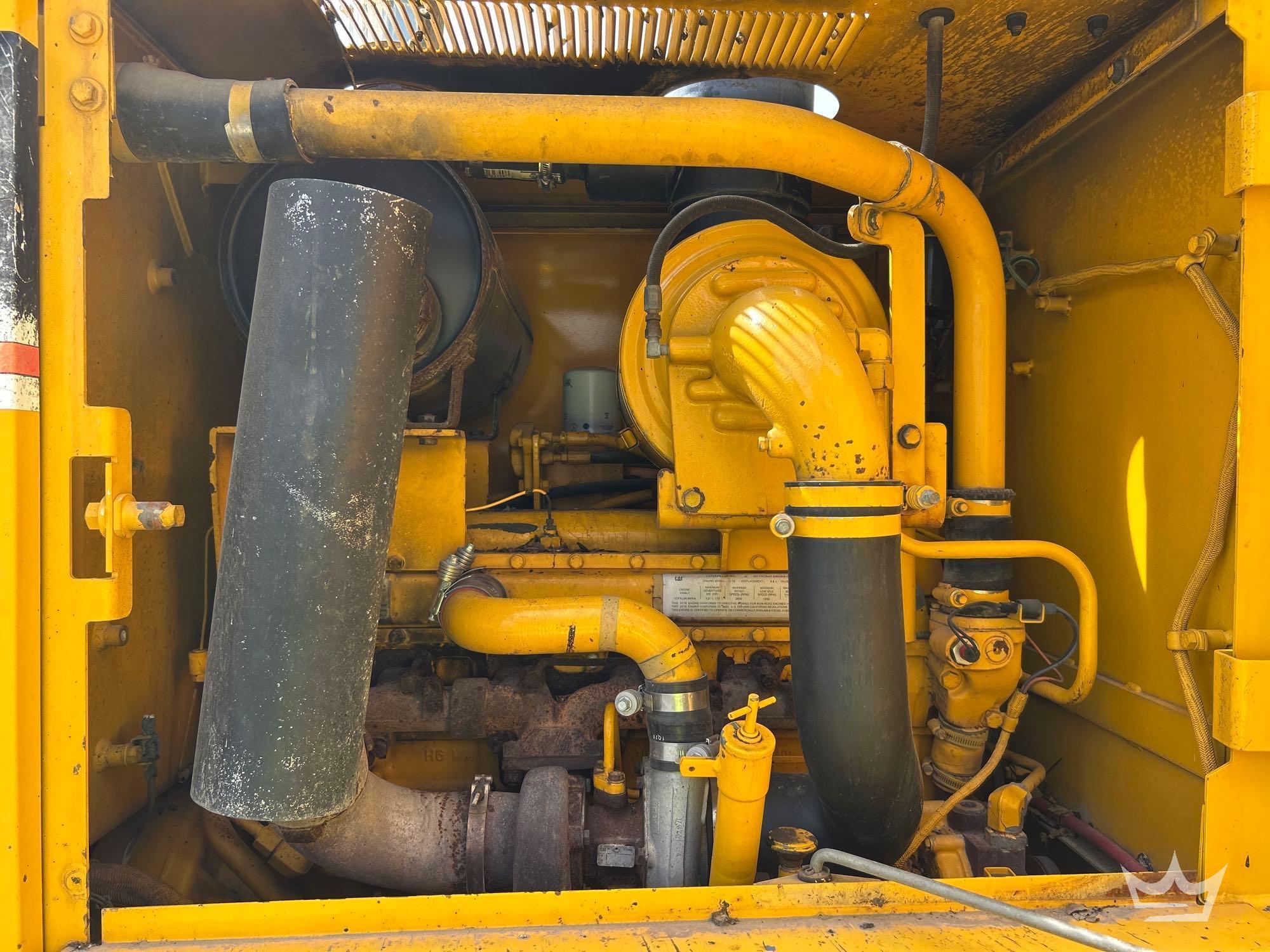

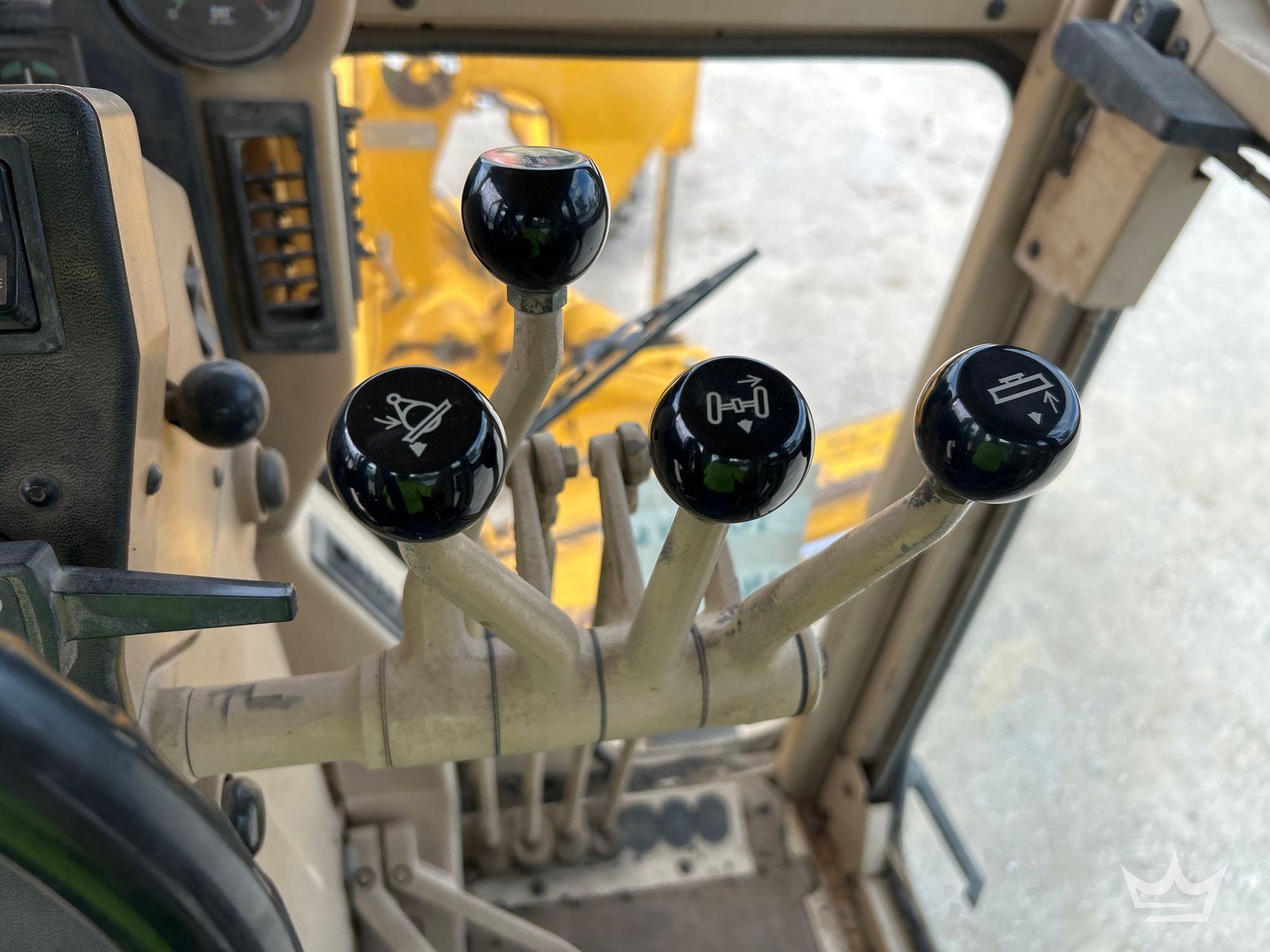

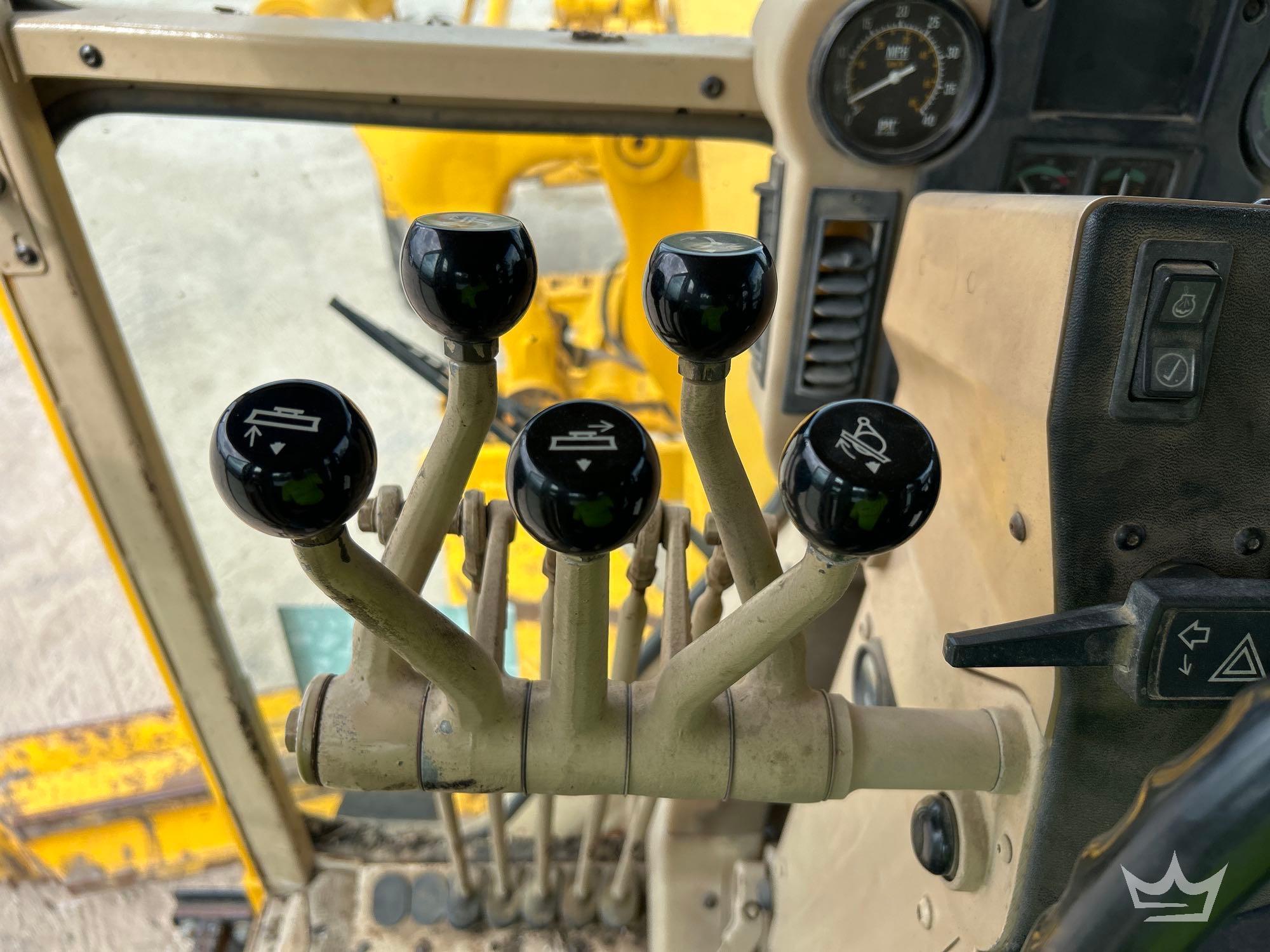

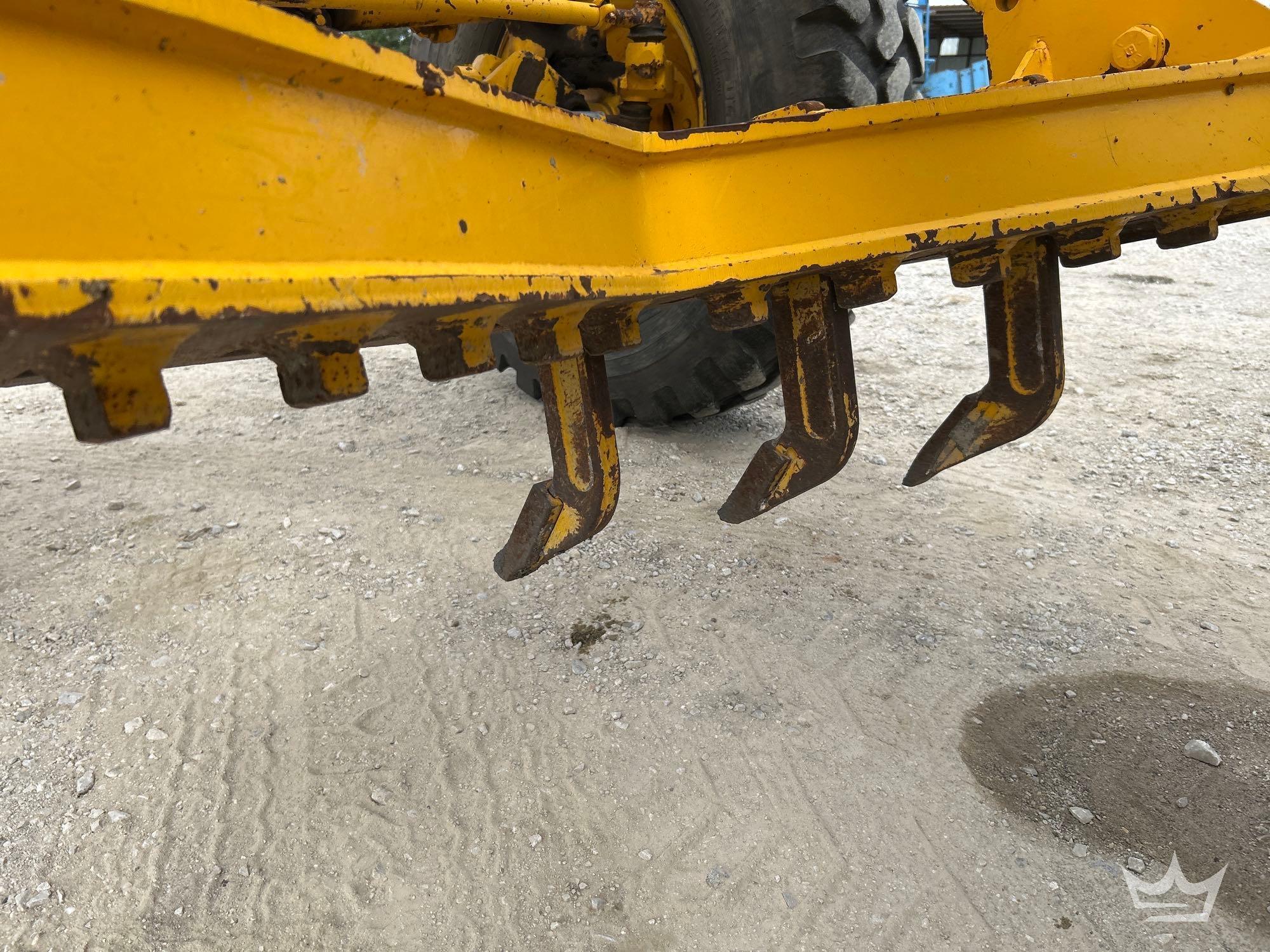

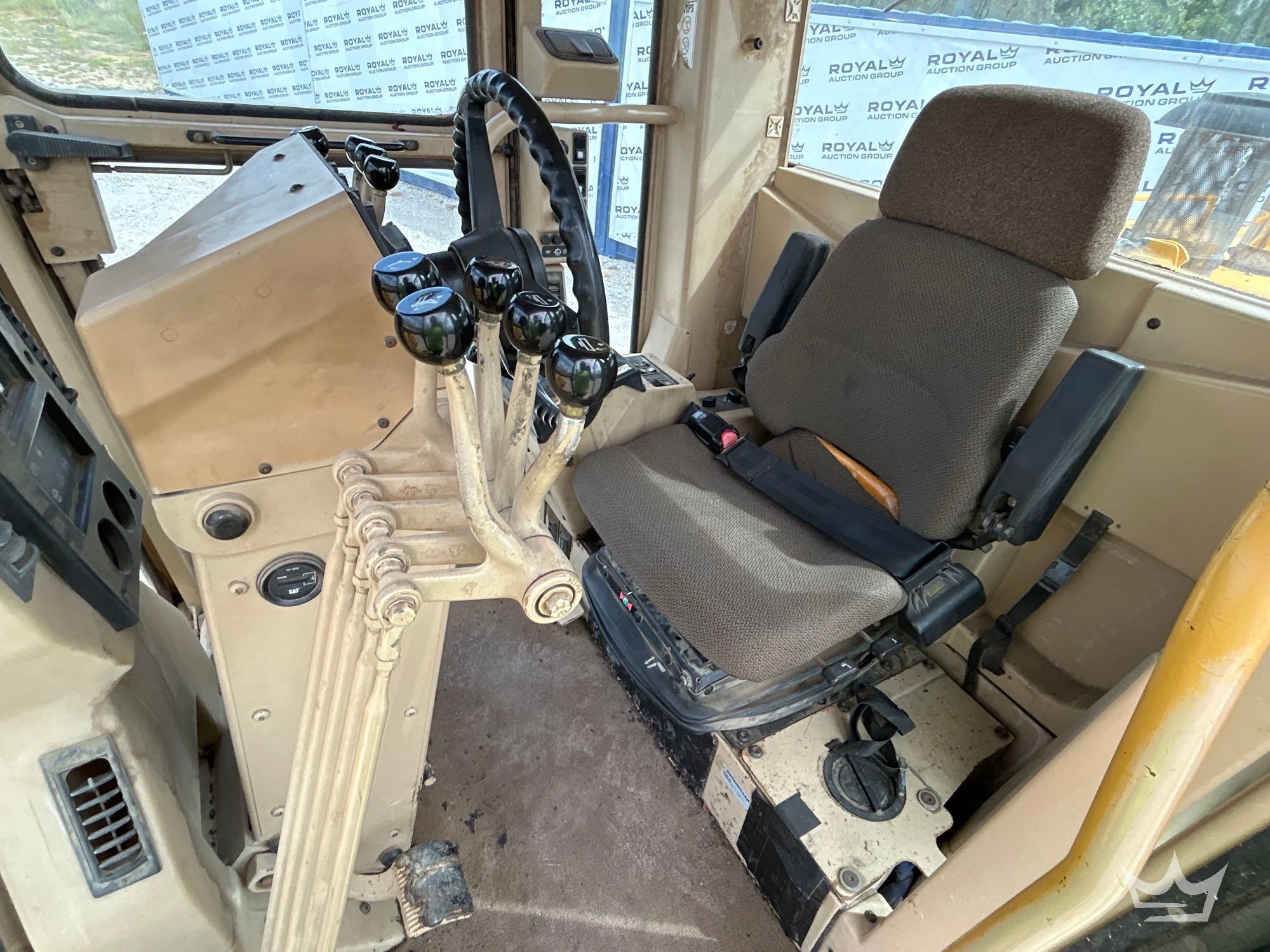

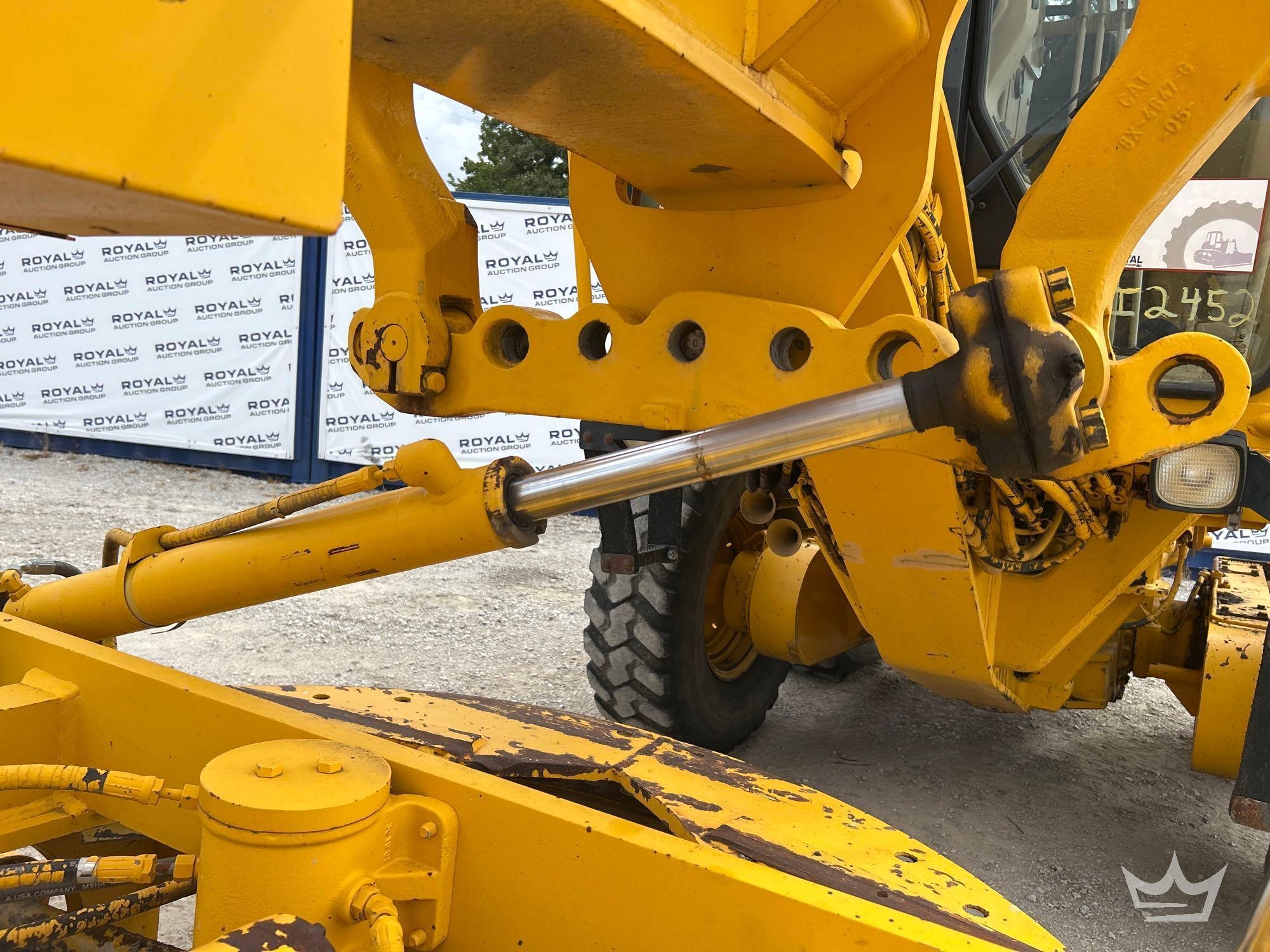

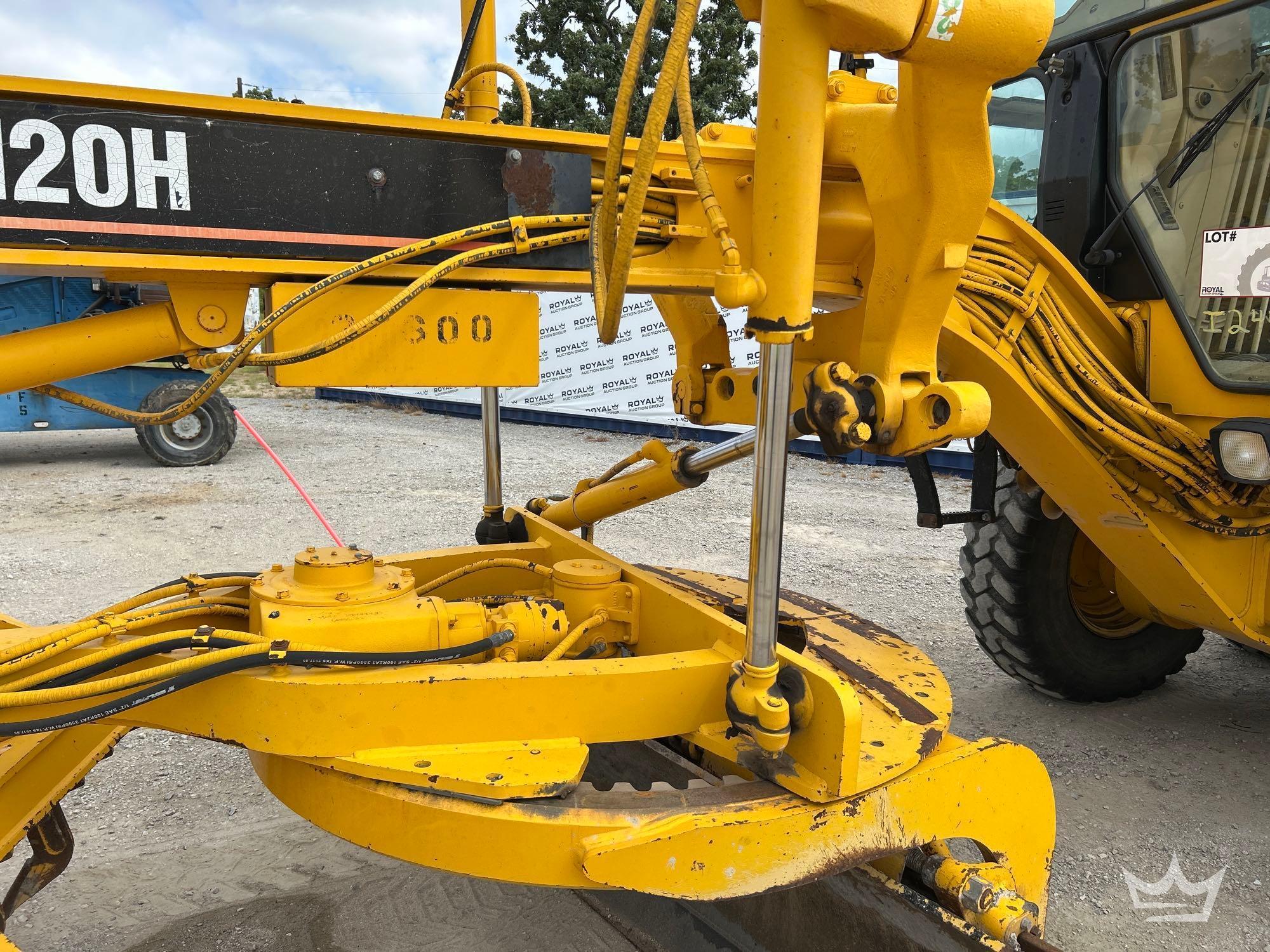

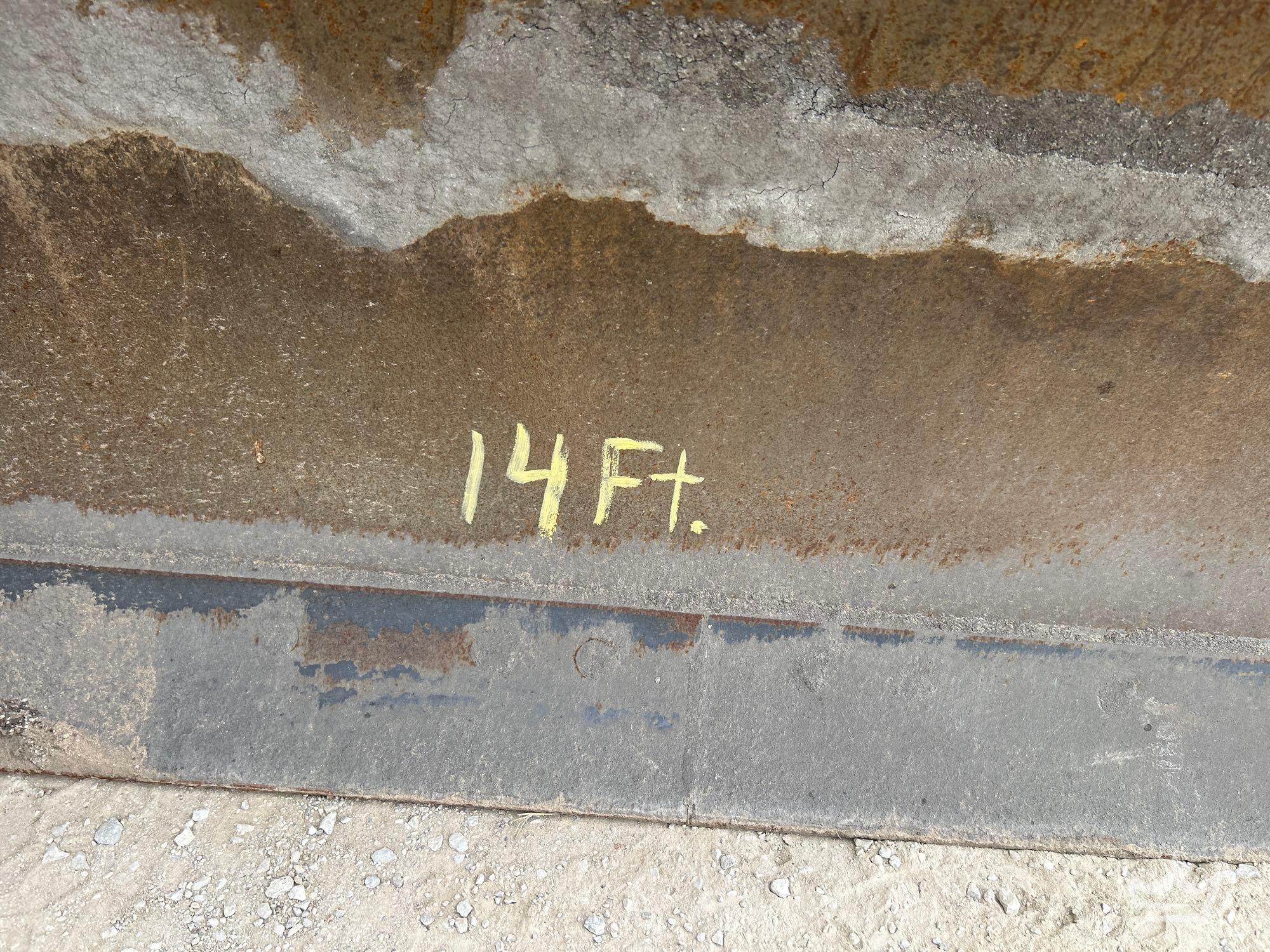

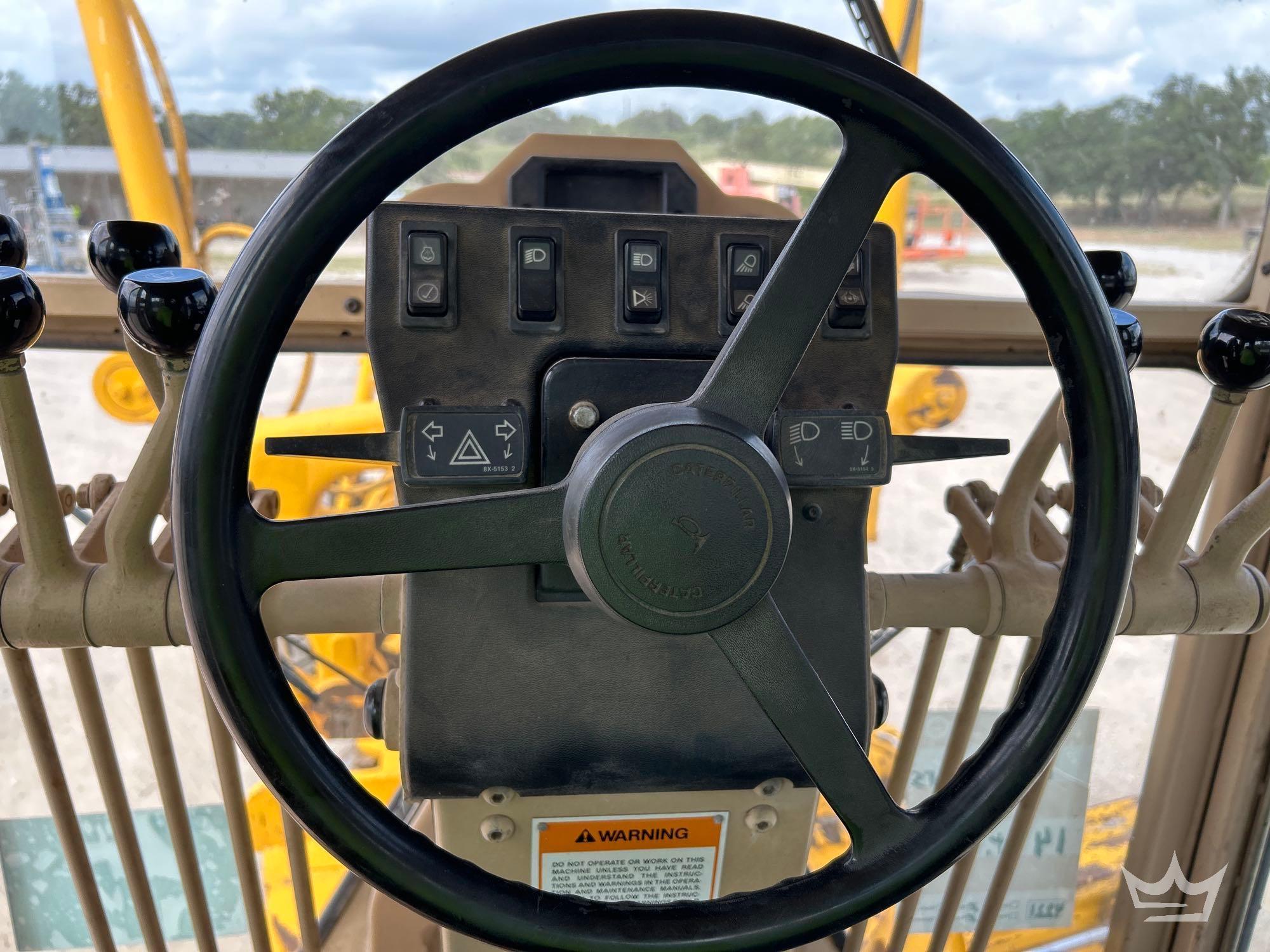

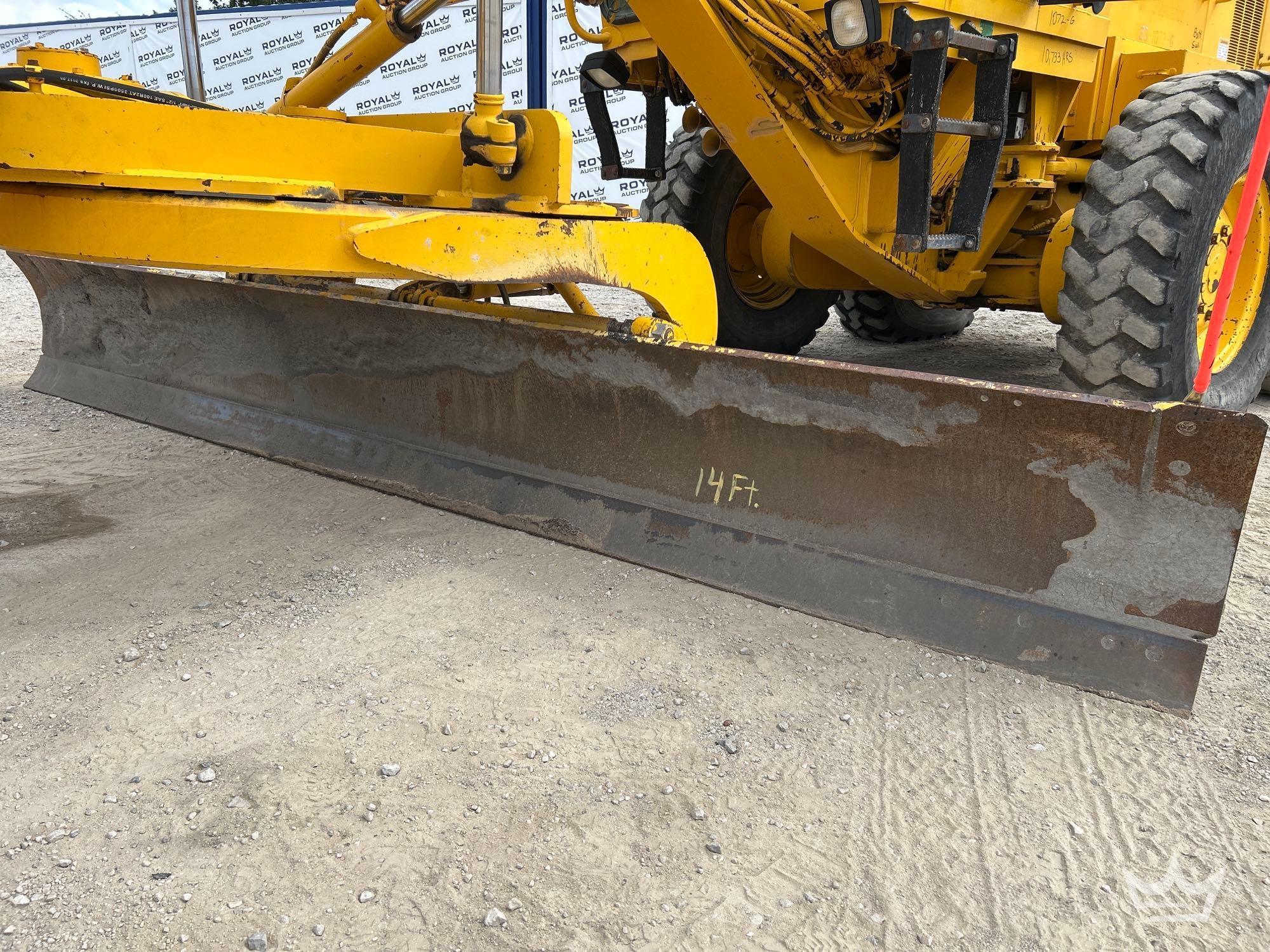

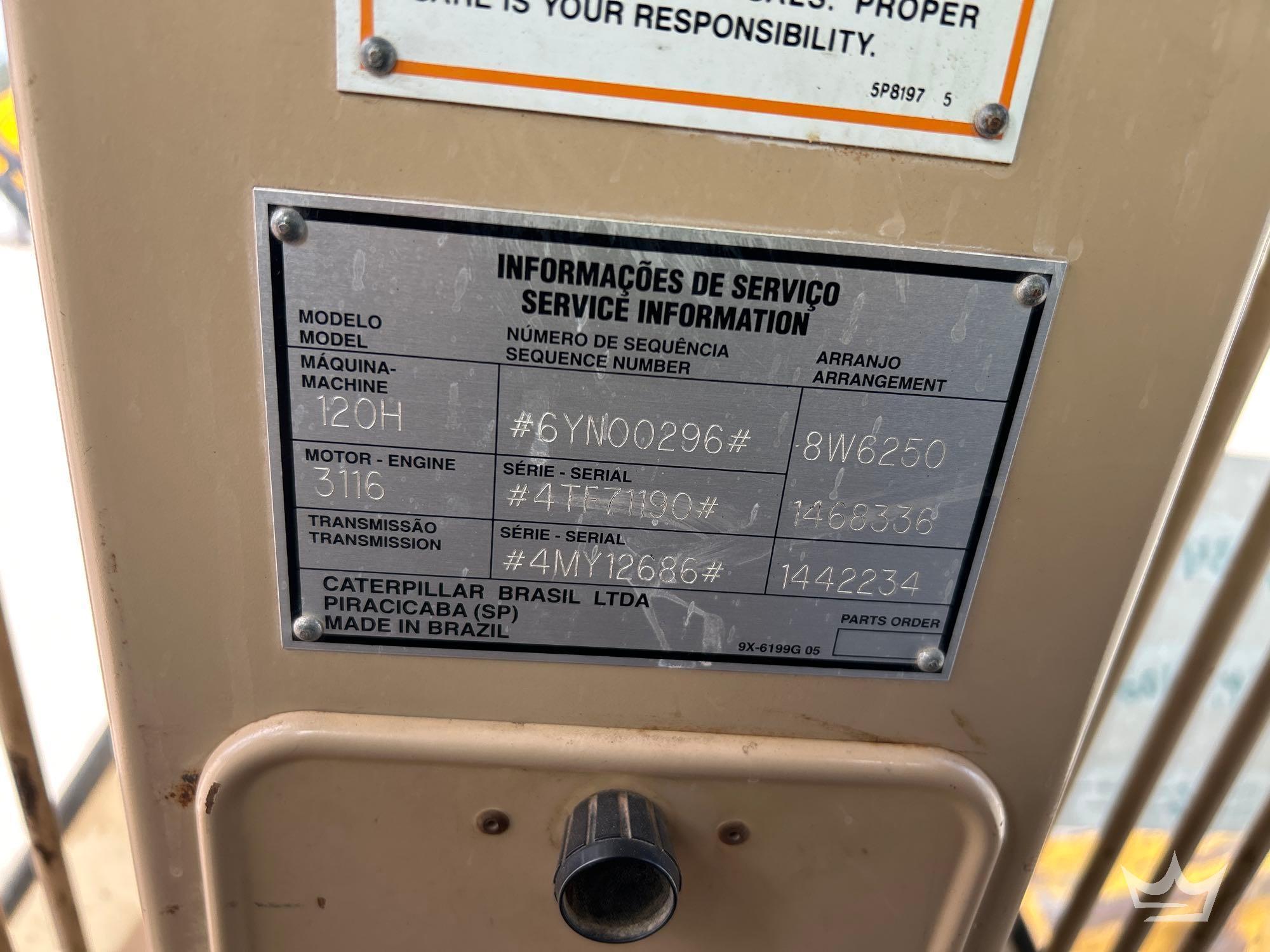

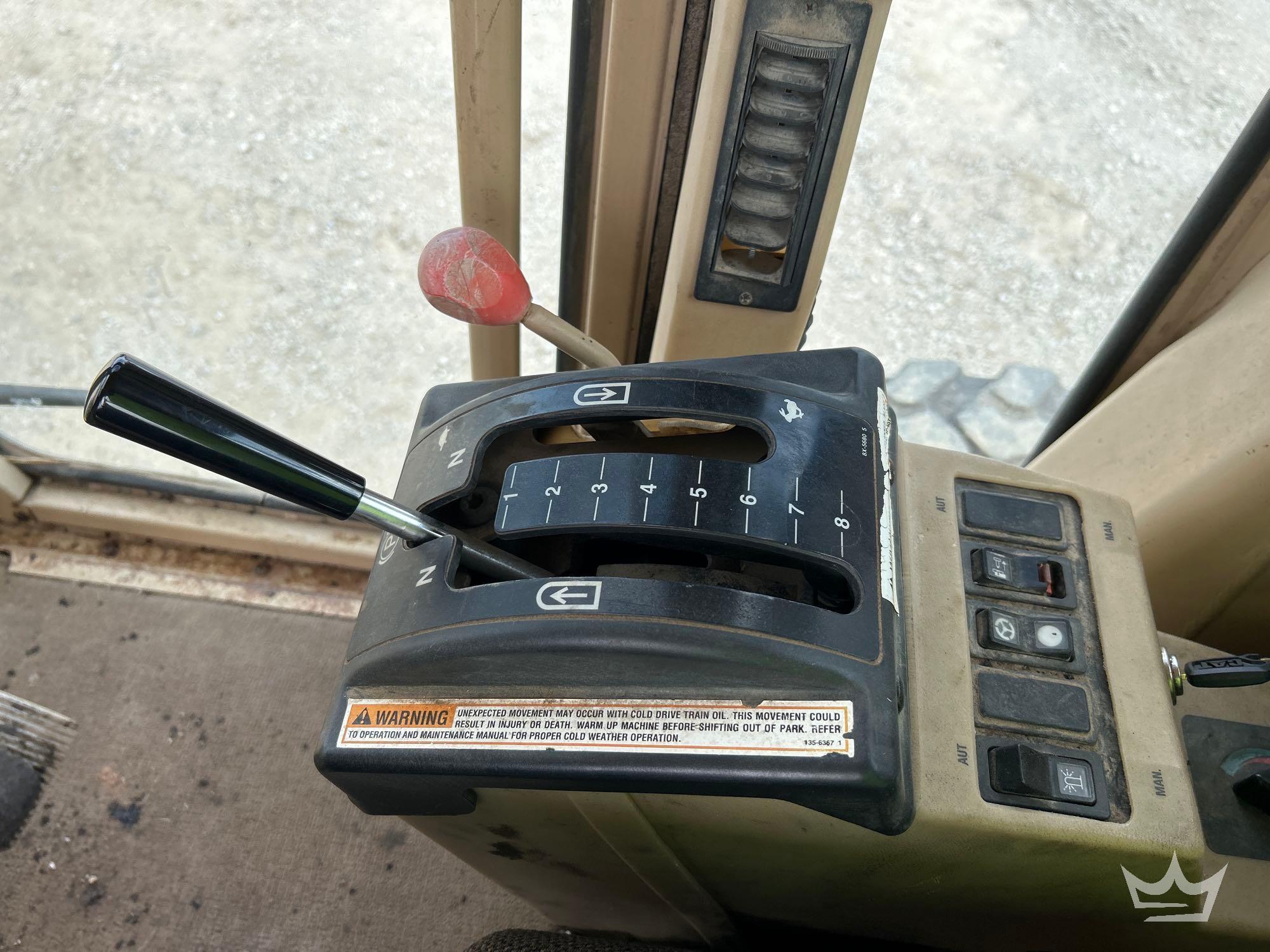

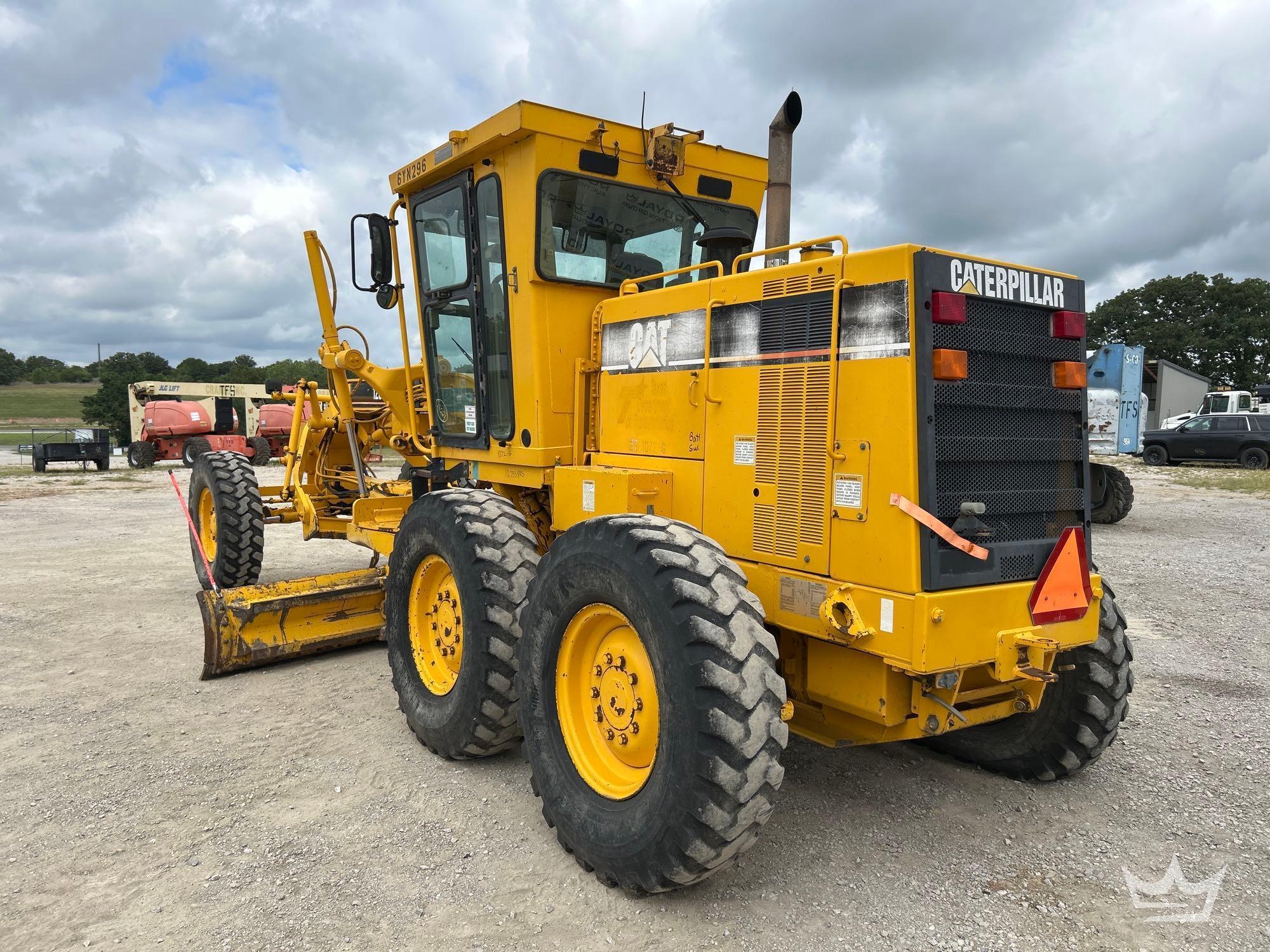

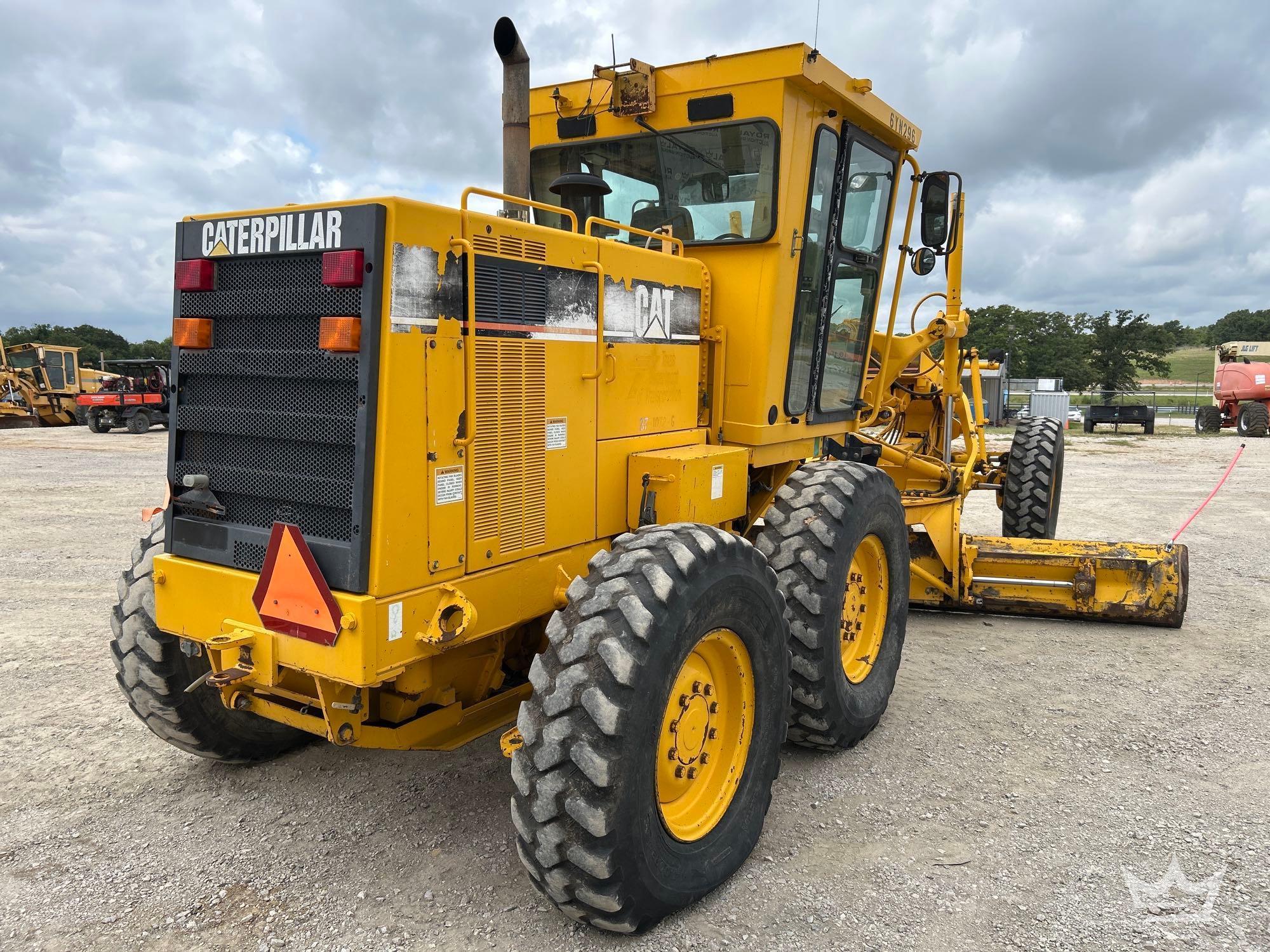

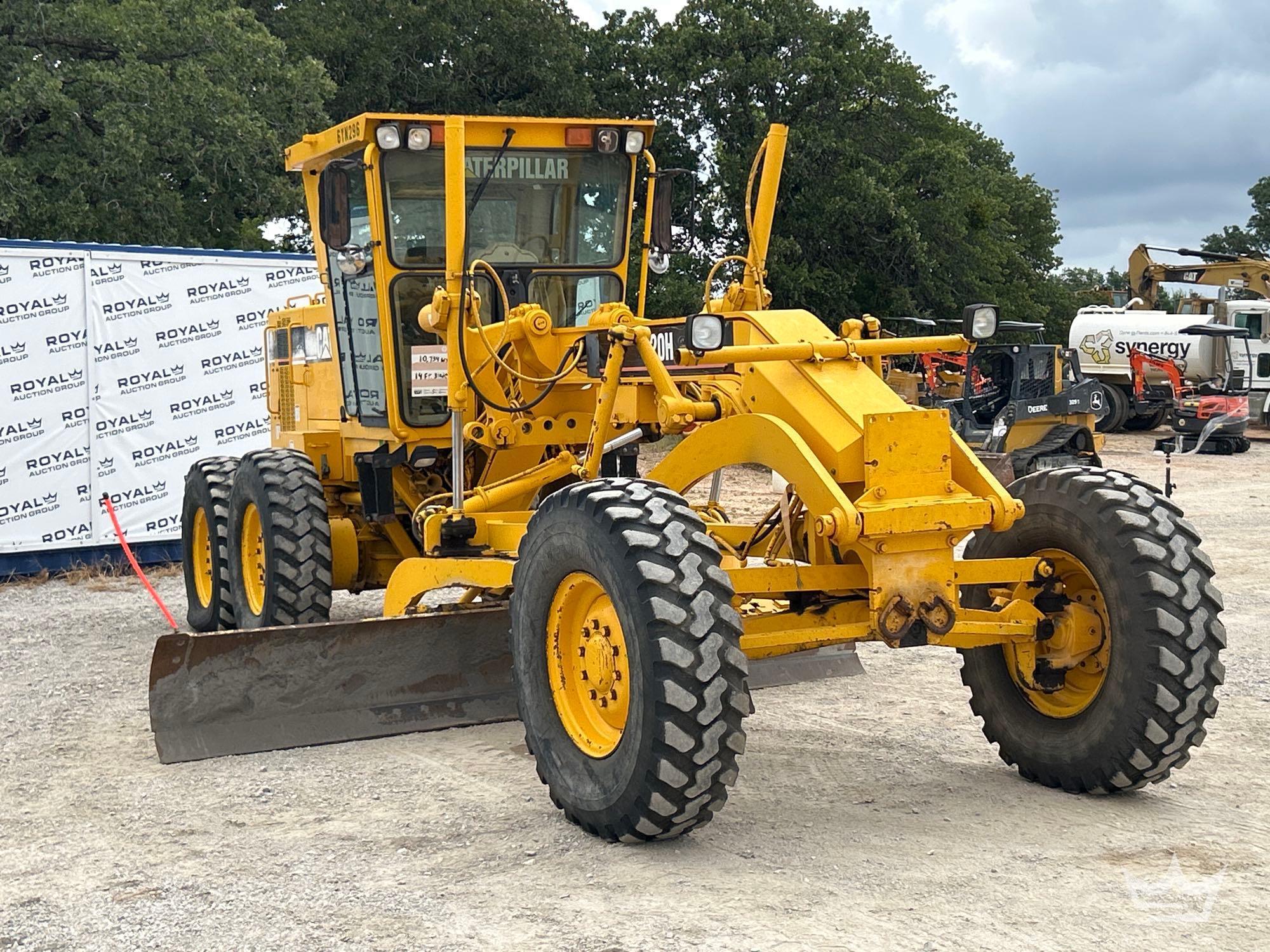

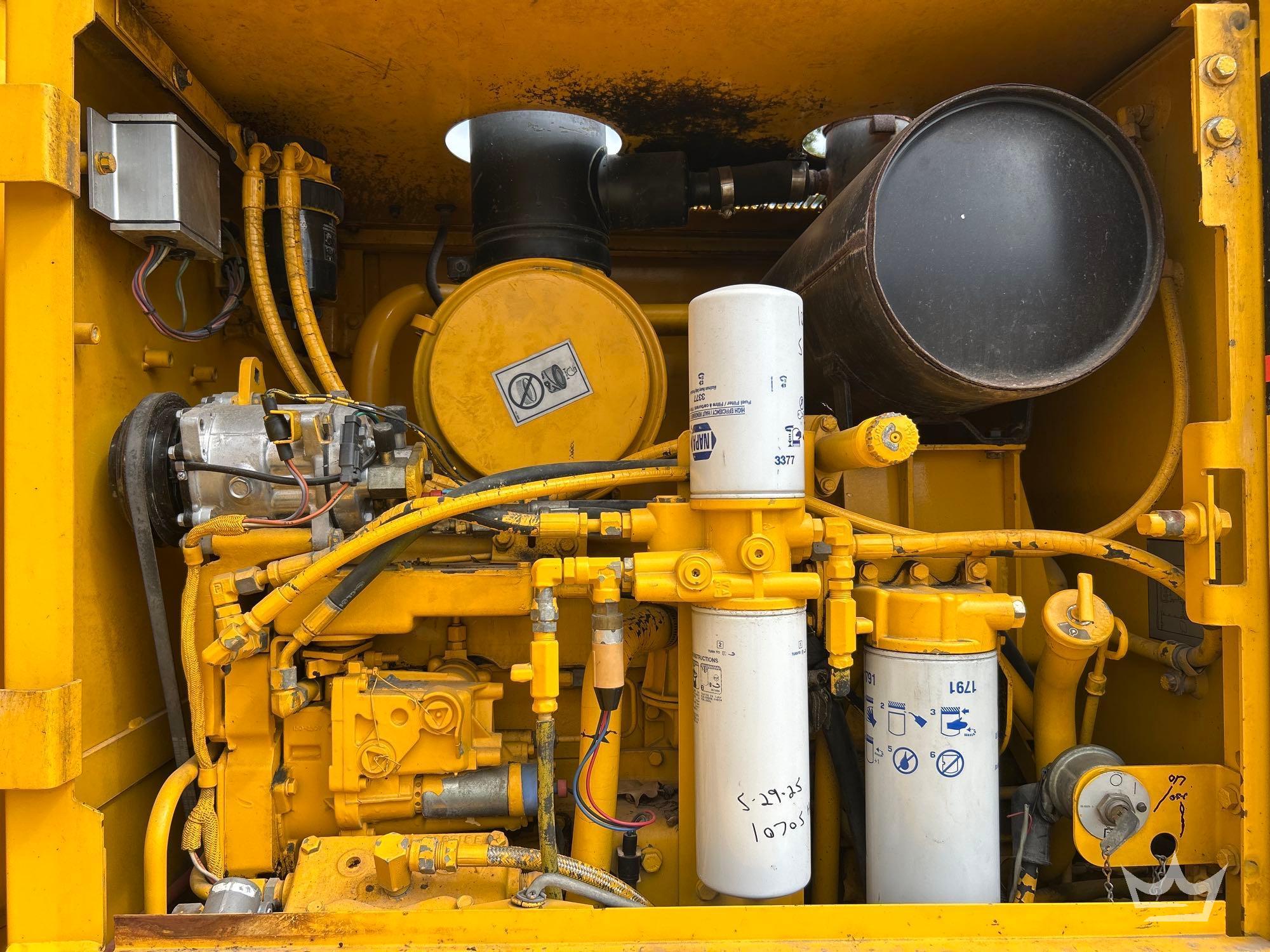

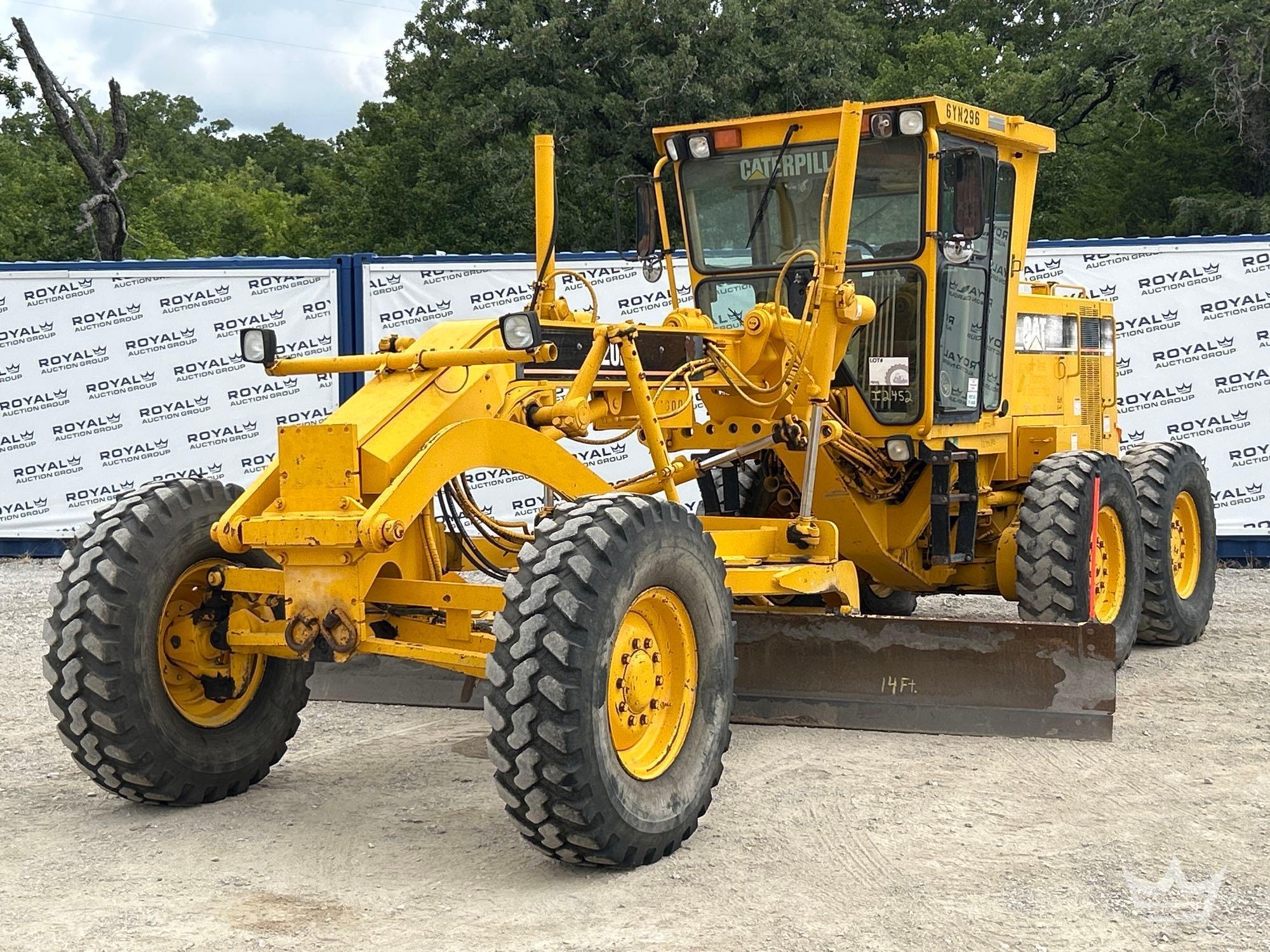

Location: Royal Auction Yard Bowie, TX. Government Fleet Asset, SN: CAT0120HJ6YN00296, Hours read 10,734 hours. Pwd. by 170HP CAT 3116 6.6L 6-cylinder diesel engine, powershift transmission with 8 forward speeds and 6 reverse speeds. Equipped with hydraulic 14ft. moldboard with 40 degree forward tilt and 5 degree back tilt, articulated frame, scarifier, 360 degree rotation, joystick blade side shift controls, joystick moldboard controls, EROPS, work lights, heat and a/c, 24v charger. Ran, drove and operated during limited function test at check in.
From the manufacturer:
Supplied by HeavyEquipmentData.com →
The Caterpillar 120H is a motor grader designed for road construction, maintenance, and site preparation. Built by Caterpillar, the 120H is known for its articulated frame, adjustable moldboard, and precise blade control, making it suitable for grading, ditching, and finishing work. It is commonly used in highway projects, municipal road maintenance, and earthmoving applications. The machine typically features a diesel engine, hydraulic controls, and a cab configured for operator visibility and control. As a Caterpillar motor grader, the 120H is part of a widely used equipment line for grading and surface shaping in construction and infrastructure work.
| Circle |
|
Blade Tip Angle - Front |
40 degrees |
|
Blade Tip Angle - Rear |
5 degrees |
|
Diameter |
60 in (153 cm)
|
|
Max Lift Above Ground |
18 in (46 cm)
|
|
Max Reach Outside Tires - Left |
73 in (184 cm)
|
|
Max Reach Outside Tires - Right |
75 in (191 cm)
|
|
Rotation |
360 degrees |
|
Shift Left |
25 in (63 cm)
|
|
Shift Right |
25 in (63 cm)
|
| Dimensions |
|
Blade Base |
9 ft (3 m)
|
|
Front Ground Clearance |
2 ft (1 m)
|
|
Height to Top of Isomount Cab |
10 ft (3 m)
|
|
Overall Length |
27 ft (8 m)
|
|
Tandem Axle Wheelbase |
5 ft (2 m)
|
|
Wheelbase |
19 ft (6 m)
|
|
Width Over Tires |
8 ft (2 m)
|
| Engine |
|
Aspiration |
turbocharged |
|
Displacement |
403 cu in (6,601 cu cm)
|
|
Engine Model |
3116 DITA |
|
Max Power |
140 hp (104 kw)
|
|
Net Power Gear 1-2 |
125 hp (93 kw)
|
|
Net Power Gear 4-6 |
125 hp (93 kw)
|
|
Net Power Gears 7-8 |
140 hp (104 kw)
|
|
Number of Cylinders |
6 |
|
Power Measured @ |
2,000 rpm |
|
Torque Measured @ |
1,400 rpm |
| Front Axle |
|
Ground Clearance |
2 ft (1 m)
|
|
Oscillation - Total |
32 degrees |
|
Wheel Lean |
18 degrees |
| Hydraulic System |
|
Pump Flow |
39 gpm (148 lpm)
|
|
Pump Type |
Axial Piston |
|
Relief Valve Pressure |
3,500 psi |
| Moldboard |
|
Blade Down Pressure |
20,062 lbs (9,098 kg)
|
|
Blade Pull at Max Weight |
23,504 lbs (10,659 kg)
|
|
Max Depth of Cut |
31 in (78 cm)
|
|
Moldboard Height |
24 in (61 cm)
|
|
Moldboard Thickness |
1 in (2 cm)
|
|
Moldboard Width |
12 ft (4 m)
|
|
Side Shift Left |
21 in (53 cm)
|
|
Side Shift Right |
26 in (66 cm)
|
| Operating Specifications |
|
Alternator Supplied Amperage |
50 amps |
|
Circle Gearbox Fluid Capacity |
2 gal (7 l)
|
|
Cooling System Fluid Capacity |
11 gal (40 l)
|
|
Hydraulic System Fluid Capacity |
18 gal (68 l)
|
|
Oil System Fluid Capacity |
6 gal (23 l)
|
|
Operating Voltage |
24 volts |
|
Rear Diff/Final Drive Fluid Capacity |
13 gal (47 l)
|
|
Std Operation Weight - Front Axle |
7,880 lbs (3,574 kg)
|
|
Std Operation Weight - Rear Axle |
19,720 lbs (8,943 kg)
|
|
Tandem Case Fluid Capacity (each) |
13 gal (49 l)
|
| Steering System |
|
Articulation Angle |
20 degrees |
|
Turning Radius |
24 ft (7 m)
|
| Transmission |
|
Max Speed - Forward |
27 mph (43 kph)
|
|
Max Speed - Reverse |
21 mph (34 kph)
|
|
Number of Gears - Forward |
8 |
|
Number of Gears - Reverse |
6 |
|
Transmission Type |
direct drive powershift |
