2016 Caterpillar 120M2 For Sale in Fort Worth, Tx

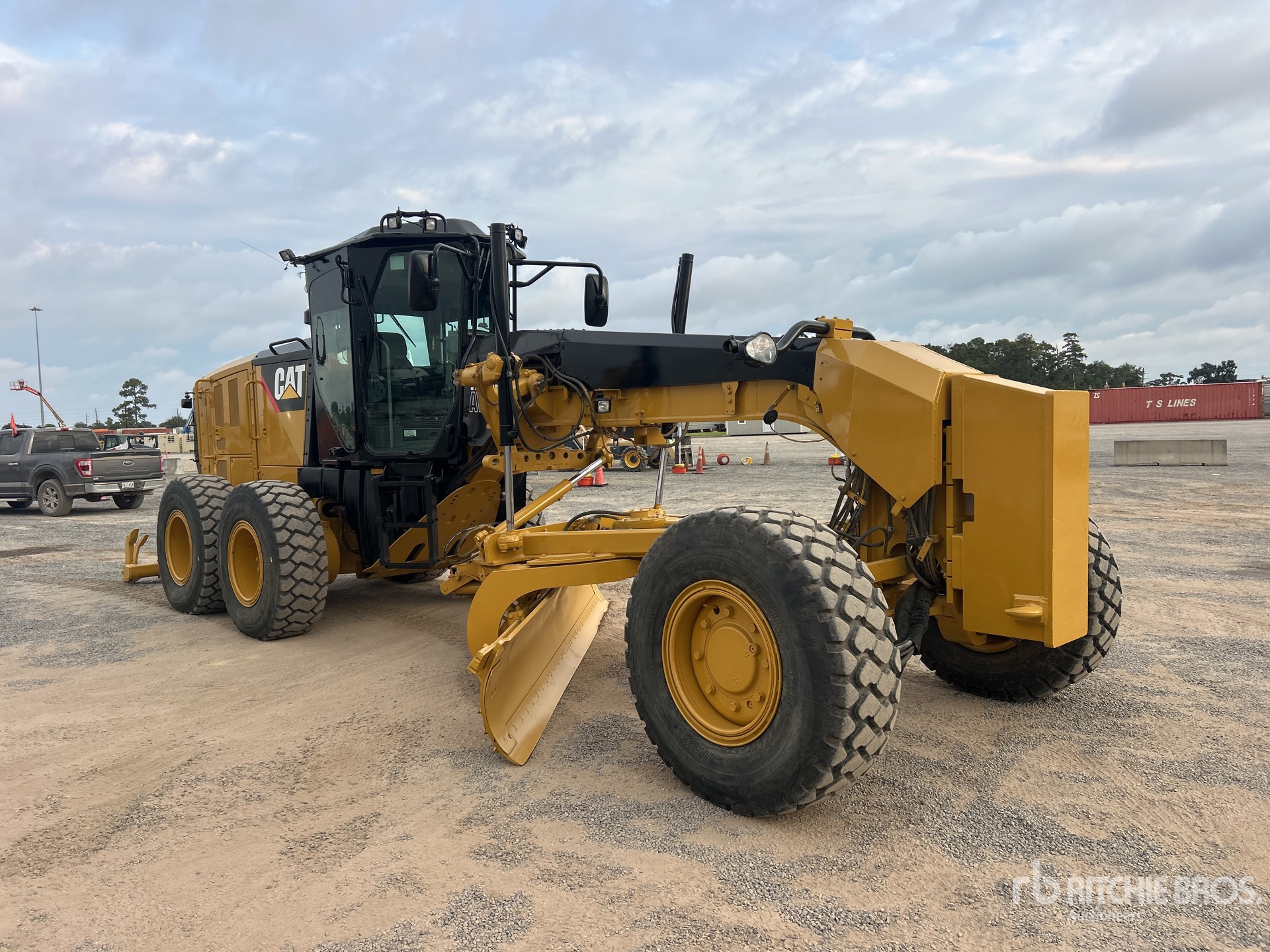

Name: 2016 Caterpillar 120M2
Brand: Caterpillar
SKU: 89075283
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-16 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

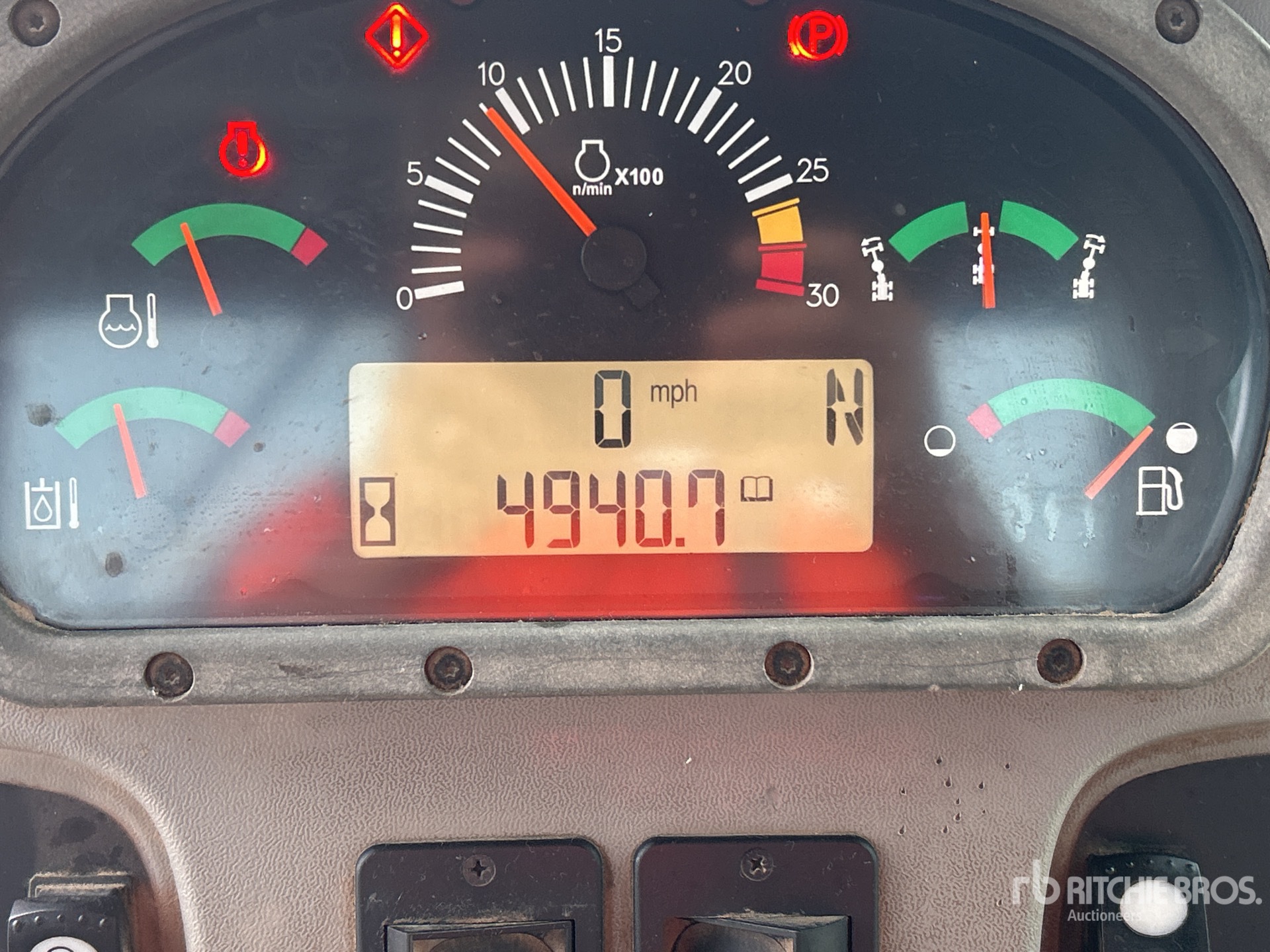

Hours:	4940

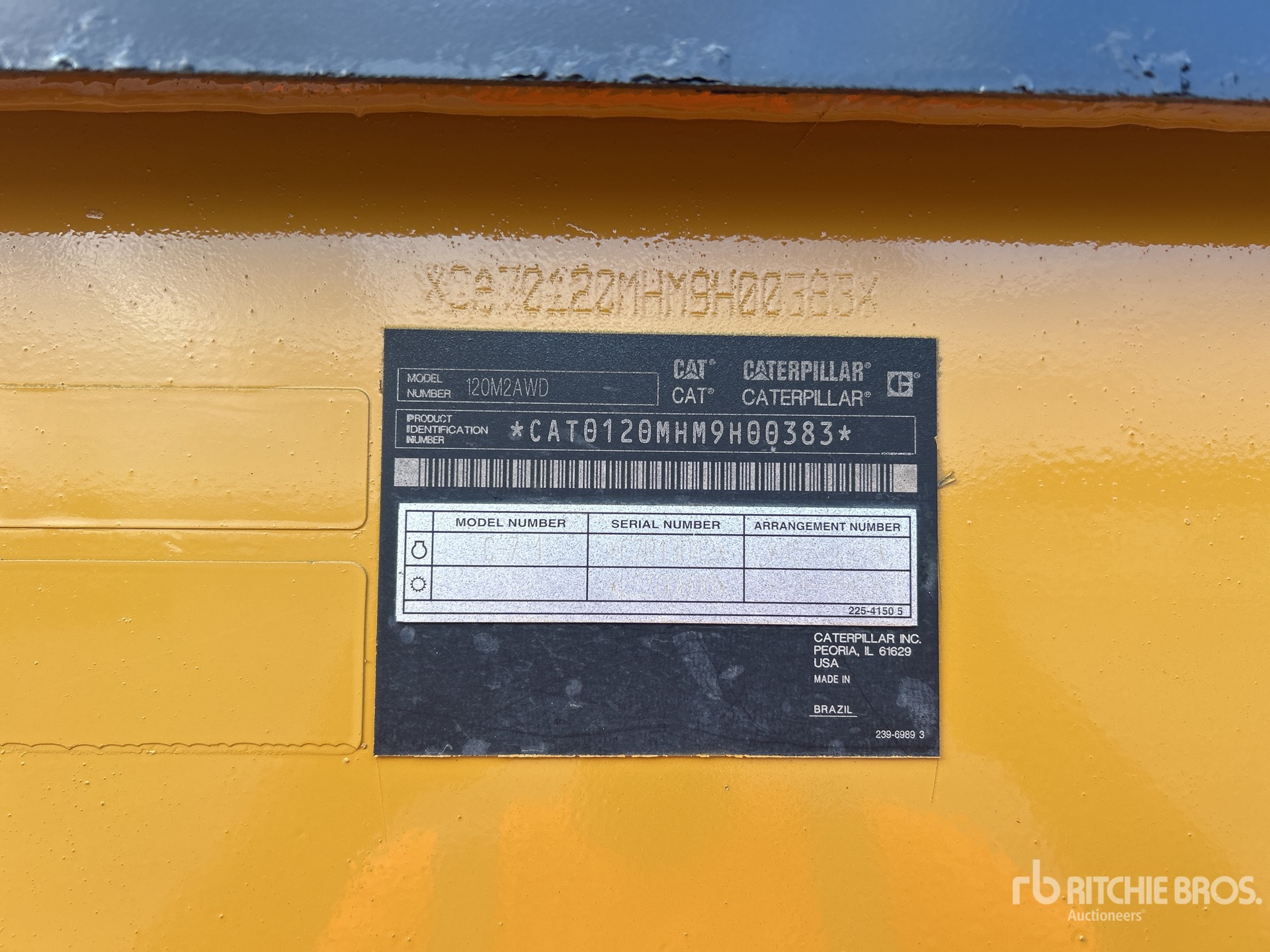

Serial Number:	CAT0120MHM9H00383
Machine Location:	FORT WORTH, TX

Description:

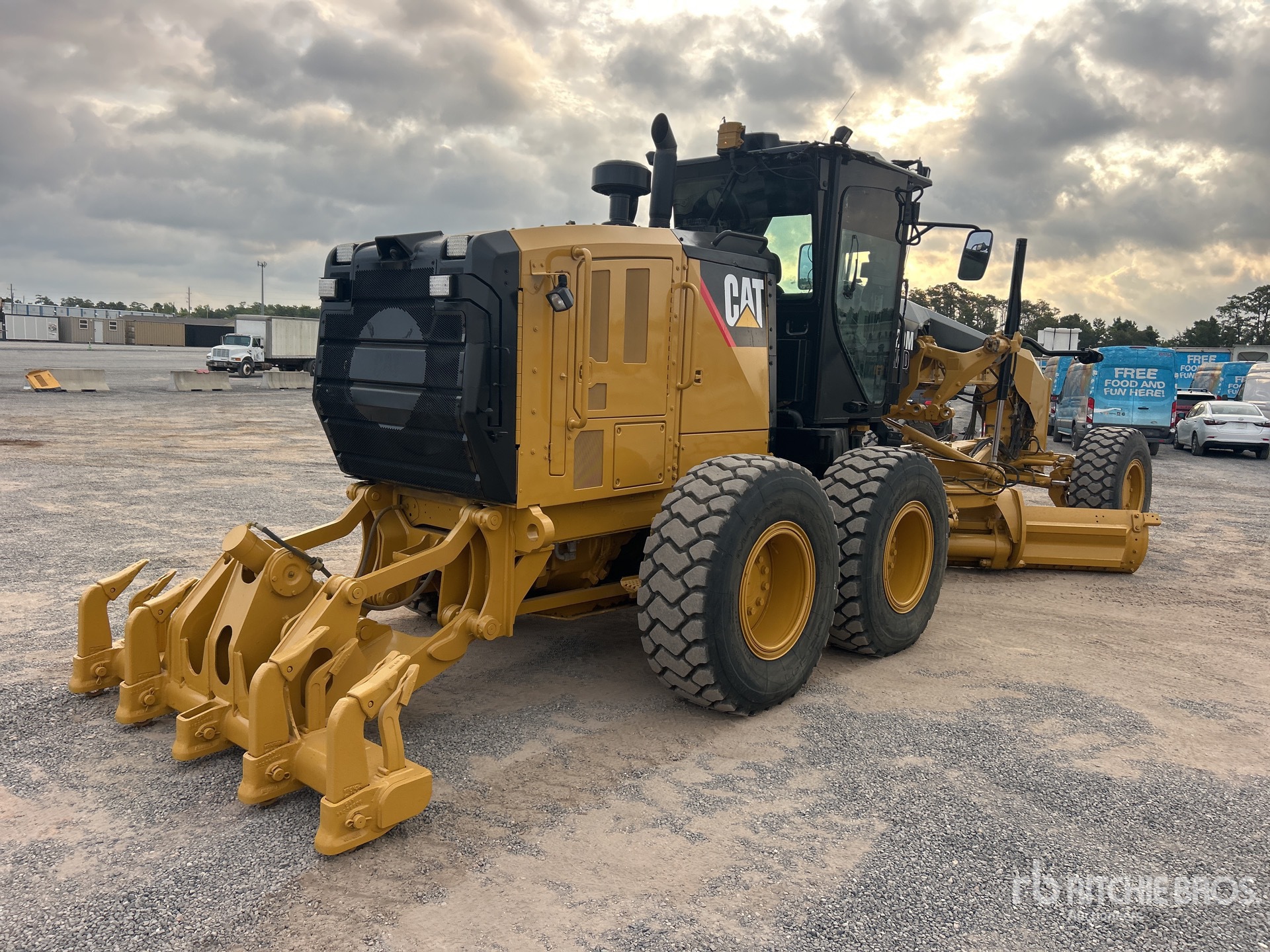

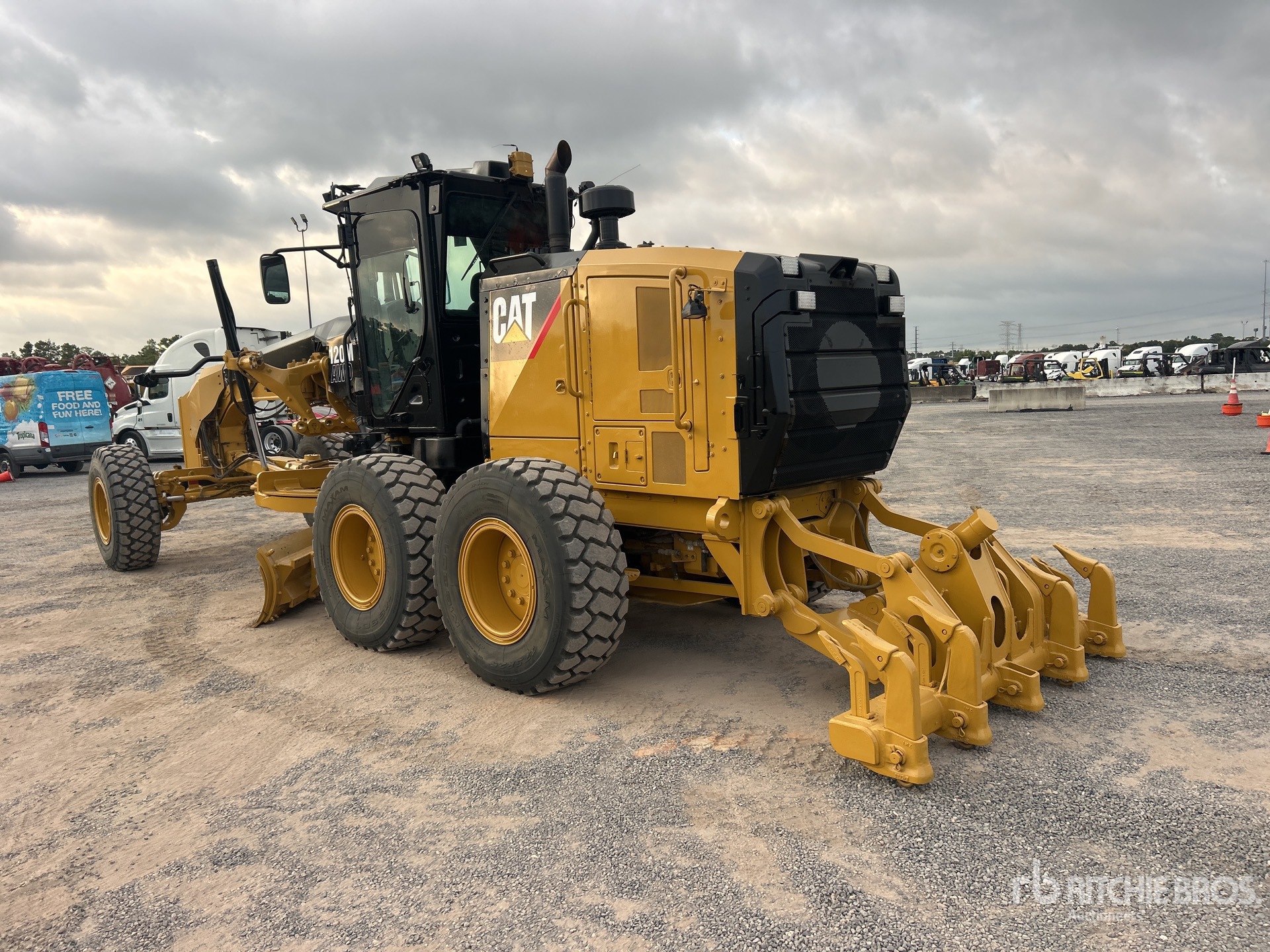

Located in Lane 8 Spot 7, Enclosed Cab, Air Conditioner, Air Ride Seat, Joystick Steering, Rear View Camera, Differential Lock, Pre-Wired for Grade Control, 14 ft / 4.27 m Moldboard, Push Block, Accumulators, Combination Ripper/Scarifier, 17.5R25 Tires Closing Time: 2026-09-16 10:54:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 120M2 is a motor grader designed for road construction, maintenance, and fine grading applications. It is part of Caterpillar's M Series grader lineup and is commonly used for shaping surfaces, ditching, snow removal, and general earthmoving work. The 120M2 typically features a front-mounted engine, articulated frame, and centrally positioned moldboard for precise blade control and visibility. It is used by contractors, municipalities, and road agencies in grading and site preparation tasks. The model is known for its balance of maneuverability, operator control, and compatibility with a range of grading attachments and worksite conditions.

Circle
Blade Tip Angle - Front	40 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	60 in (153 cm)
Max Lift Above Ground	17 in (43 cm)
Max Reach Outside Tires - Left	69 in (174 cm)
Max Reach Outside Tires - Right	75 in (191 cm)
Rotation	360 degrees
Shift Left	26 in (66 cm)
Shift Right	26 in (66 cm)
Dimensions
Blade Base	8 ft (3 m)
Height	11 ft (3 m)
Height To Top Of Isomount Cab	11 ft (3 m)
Length	29 ft (9 m)
Overall Length	29 ft (9 m)
Rear Ground Clearance	1 ft (0 m)
Tandem Axle Wheelbase	5 ft (2 m)
Weight	39,892 lbs (18,092 kg)
Wheelbase	19 ft (6 m)
Width	8 ft (2 m)
Width Over Tires	8 ft (3 m)
Engine
Bore	4 in (11 cm)
Displacement	428 cu in (7,010 cu cm)
Engine Model	C7.1 ACERT
Net Power Gear 1-2	145 hp (108 kw)
Number Of Cylinders	6
Power Measured @	2,100 rpm
Stroke	5 in (14 cm)
Torque	693 lbs ft (939 nm)
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	56 gpm (211 lpm)
Pump Type	Variable Piston
Relief Valve Pressure	3,500 psi
Moldboard
Blade Down Pressure	27,236 lbs (12,354 kg)
Blade Pull At Max Weight	29,981 lbs (13,599 kg)
Max Depth Of Cut	28 in (72 cm)
Moldboard Height	24 in (61 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	20 in (51 cm)
Side Shift Right	26 in (66 cm)
Operational
Circle Gearbox Fluid Capacity	2 gal (7 l)
Cooling System Fluid Capacity	13 gal (49 l)
Fuel Capacity	100 gal (378 l)
Hydraulic System Fluid Capacity	17 gal (64 l)
Max Operation Weight - Front Axle	15,675 lbs (7,110 kg)
Max Operation Weight - Rear Axle	33,312 lbs (15,110 kg)
Max Operation Weight - Total	48,987 lbs (22,220 kg)
Oil System Fluid Capacity	8 gal (30 l)
Rear Diff/Final Drive Fluid Capacity	17 gal (63 l)
Std Operation Weight - Front Axle	10,563 lbs (4,791 kg)
Std Operation Weight - Rear Axle	29,329 lbs (13,303 kg)
Std Operation Weight - Total	39,892 lbs (18,095 kg)
Tandem Case Fluid Capacity (Each)	16 gal (59 l)
Tire Size	17.5 R25
Steering
Articulation Angle	20 degrees
Turning Radius	24 ft (7 m)
Transmission
Max Speed - Forward	28 mph (46 kph)
Max Speed - Reverse	23 mph (36 kph)
Number Of Gears - Forward	8
Number Of Gears - Reverse	6
Transmission Type	Direct Drive, Powershift
