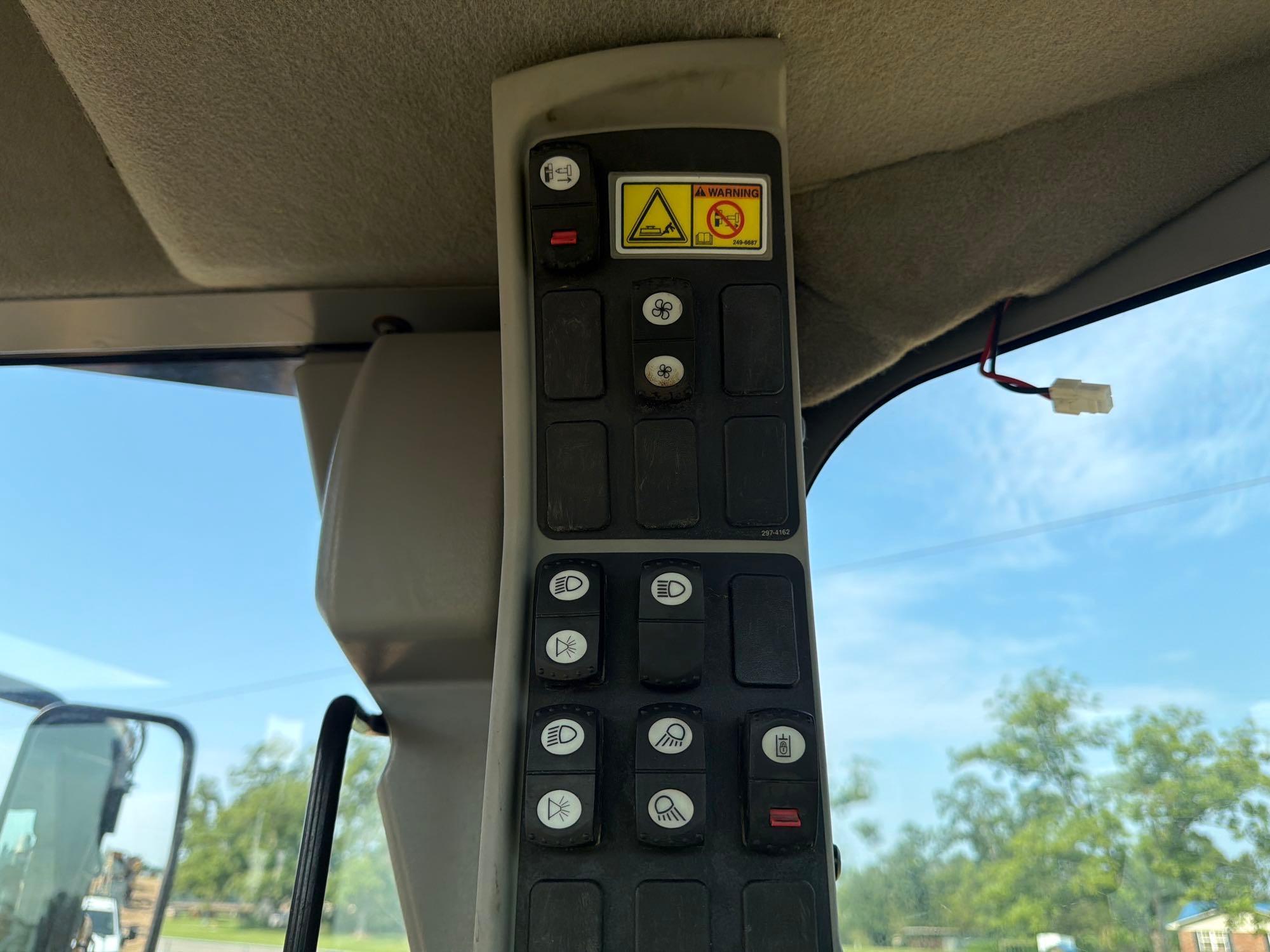

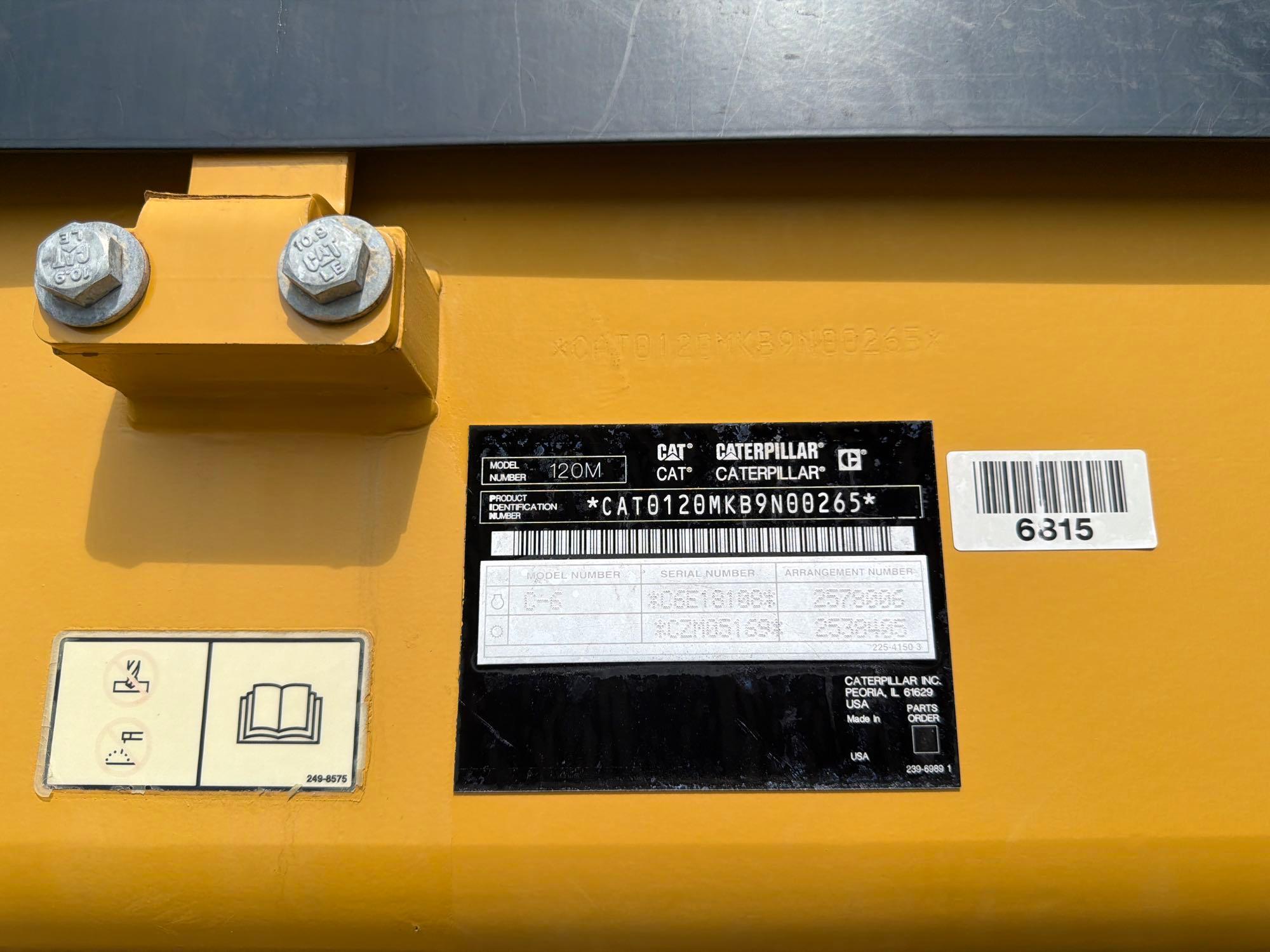

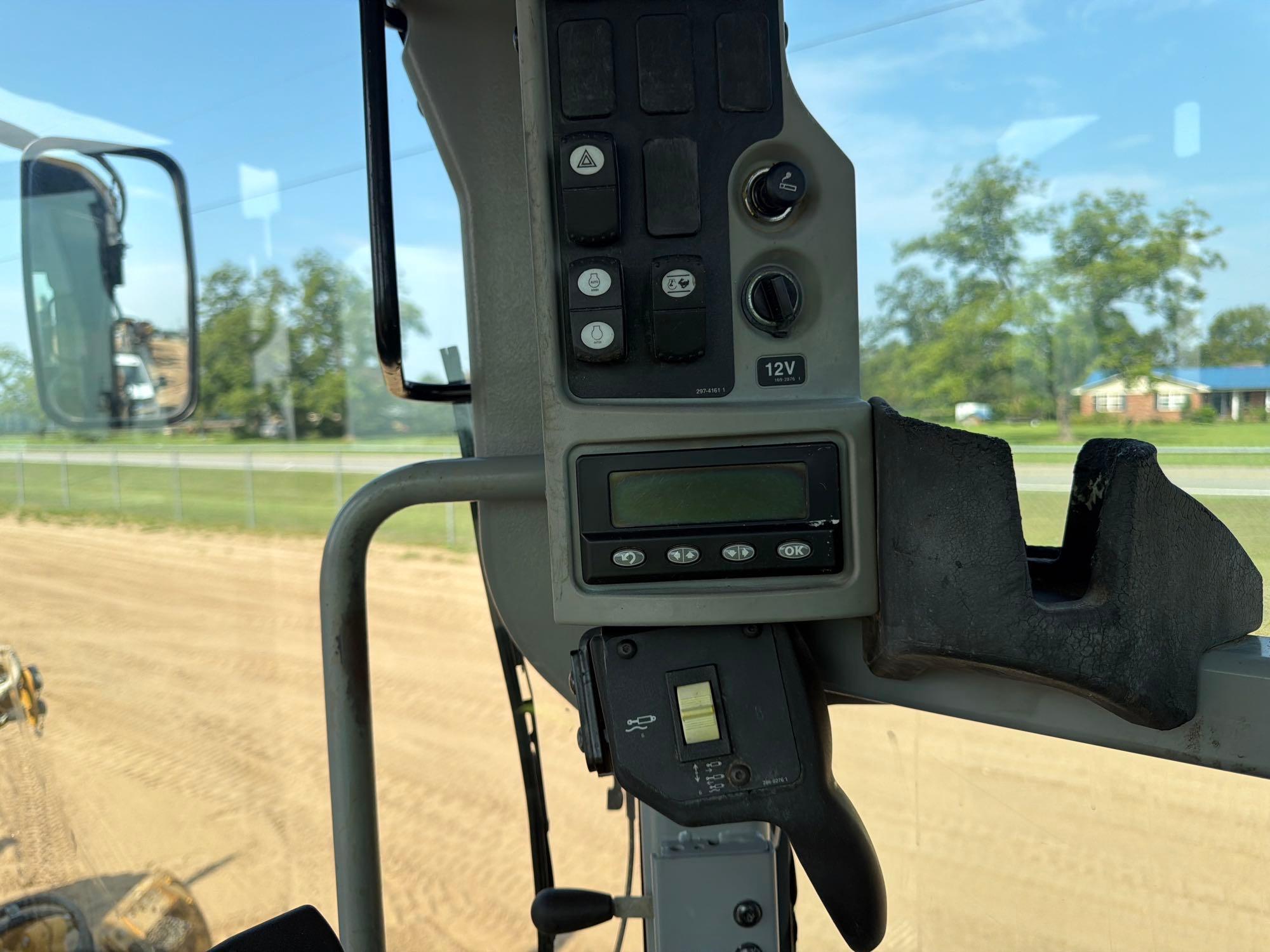

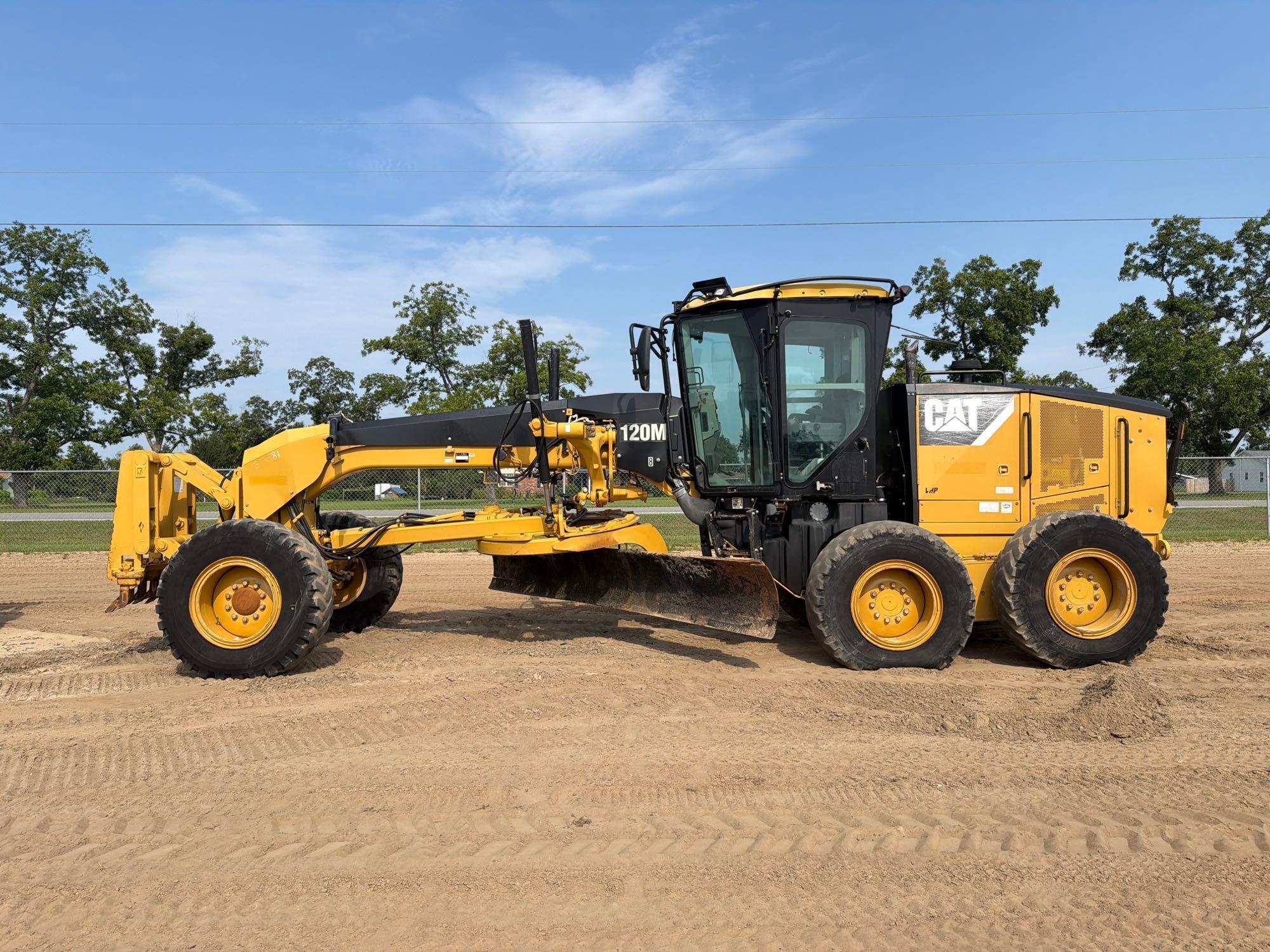

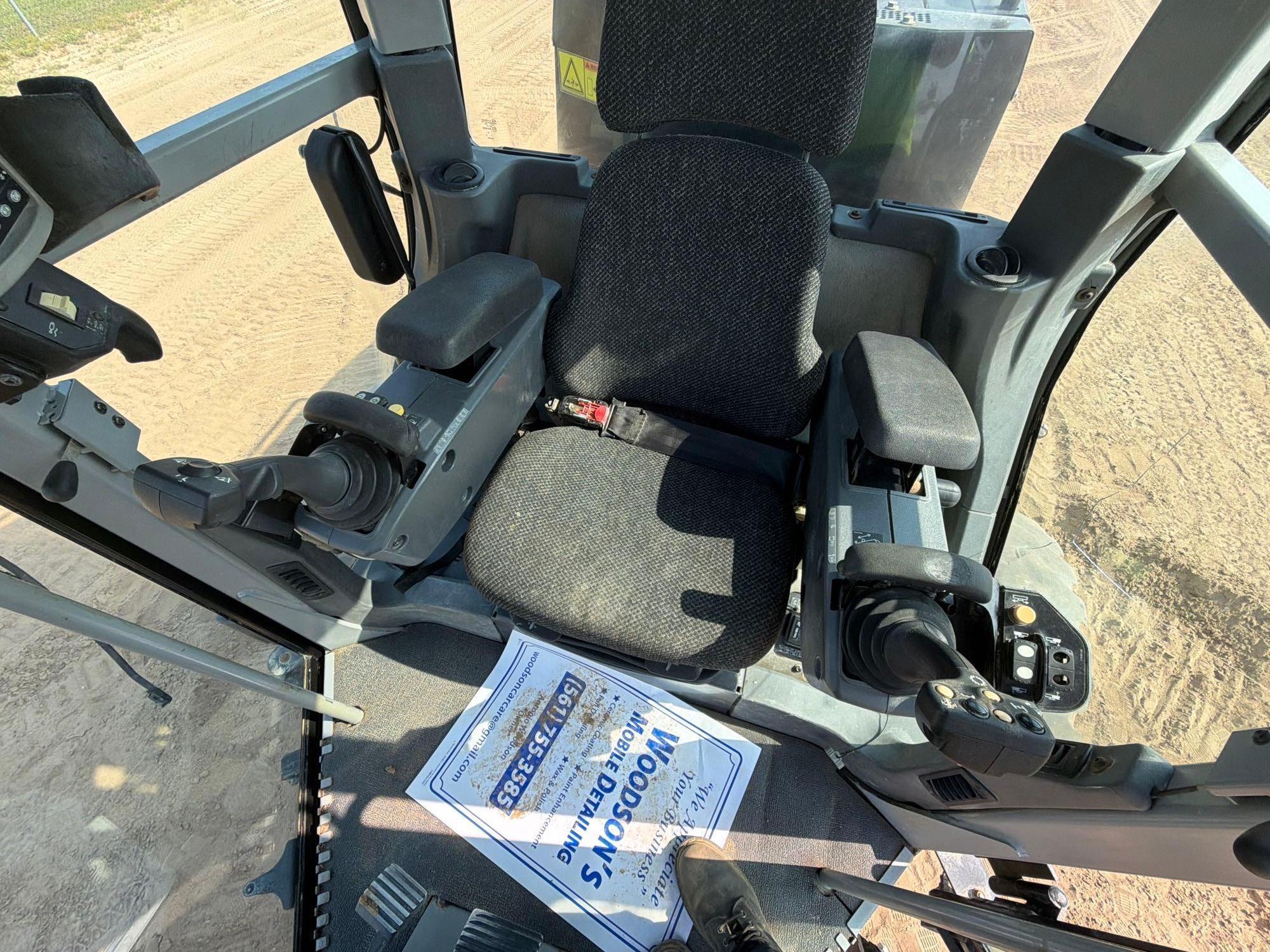

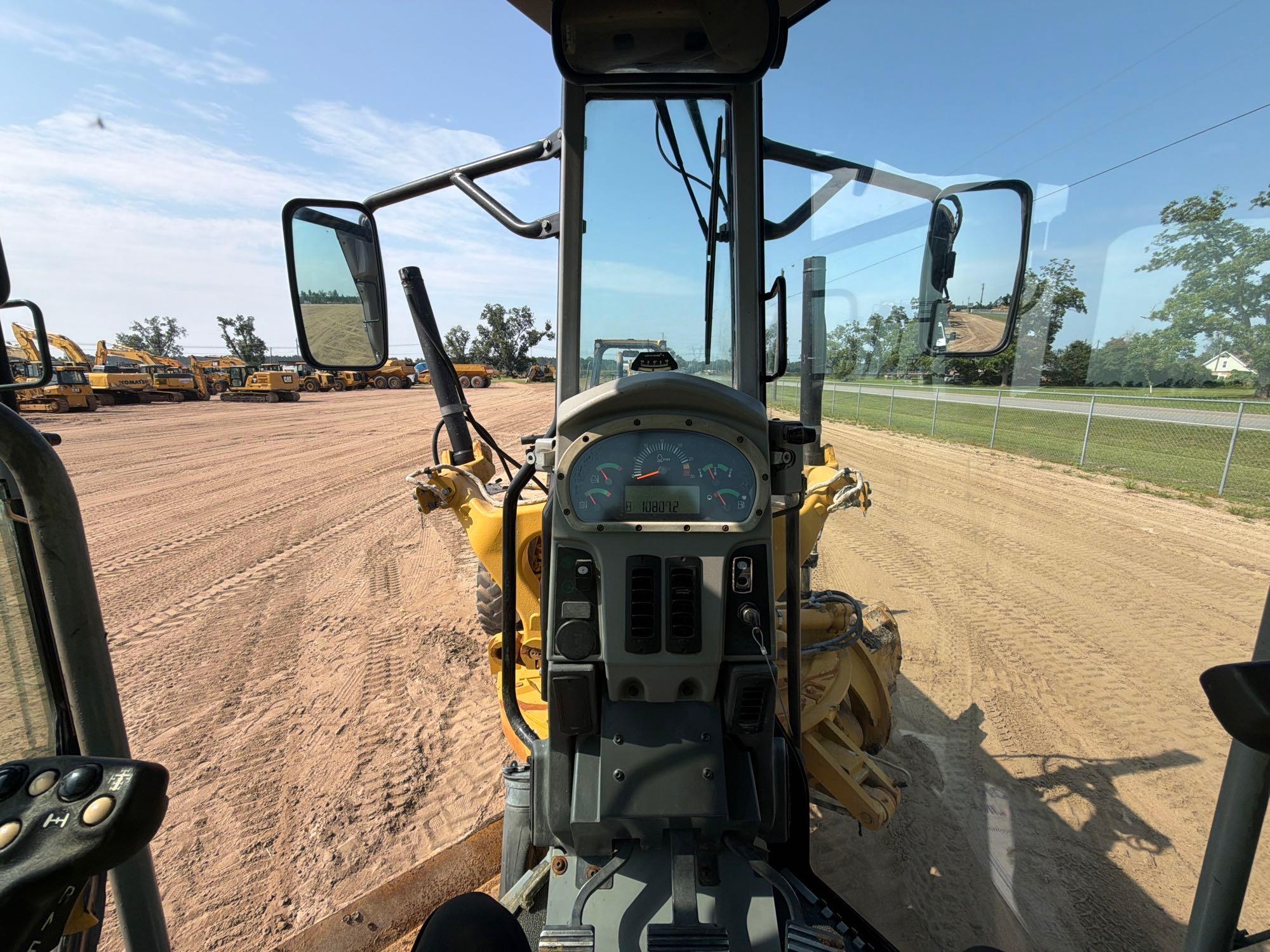

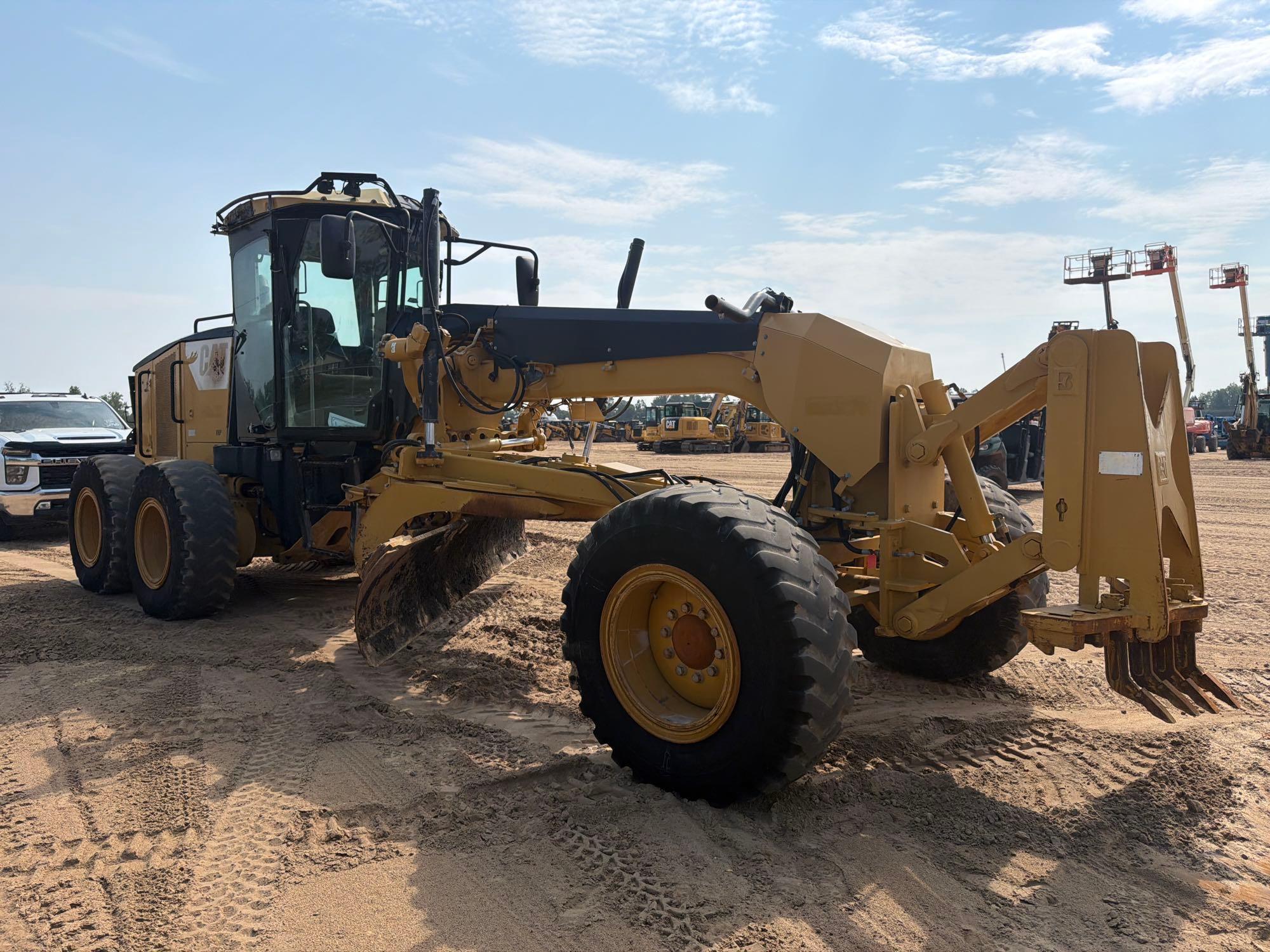

| Blade Range |
|
Blade Tip Range - Backward |
5 degrees |
|
Blade Tip Range - Forward |
40 degrees |
|
Circle Centershift - Left |
26 in (66 cm)
|
|
Circle Centershift - Right |
26 in (66 cm)
|
|
Maximum Blade Position Angle |
90 degrees |
|
Maximum Depth Of Cut |
28 in (72 cm)
|
|
Maximum Lift Above Ground |
17 in (43 cm)
|
|
Maximum Shoulder Reach Outside Of Tires - Left |
69 in (174 cm)
|
|
Maximum Shoulder Reach Outside Of Tires - Right |
75 in (191 cm)
|
|
Moldboard Sideshift - Left |
20 in (51 cm)
|
|
Moldboard Sideshift - Right |
26 in (66 cm)
|

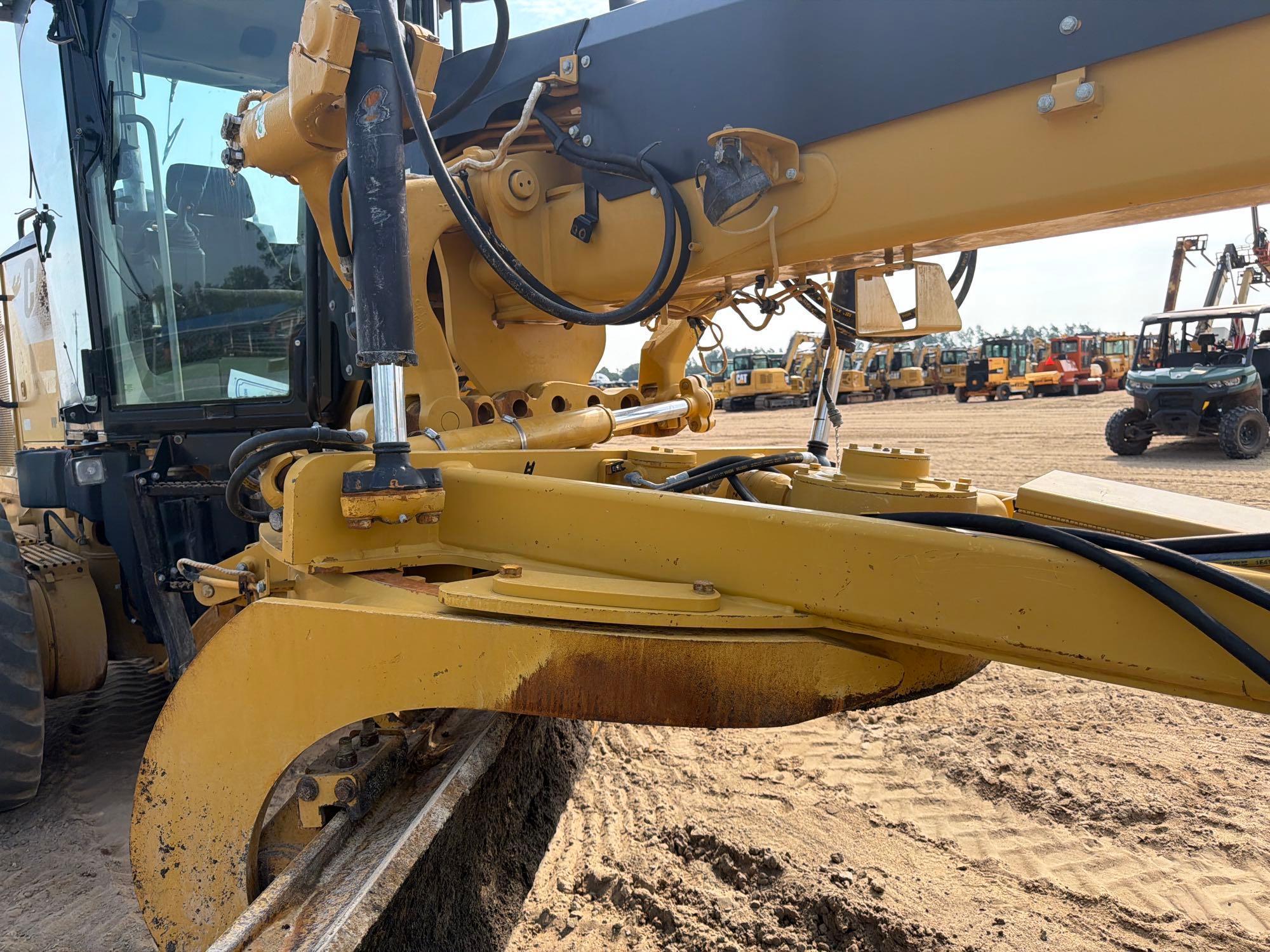

| Circle |
|
Blade Tip Angle - Front |
40 degrees |
|
Blade Tip Angle - Rear |
5 degrees |
|
Diameter |
60 in (153 cm)
|
|
Max Lift Above Ground |
17 in (43 cm)
|
|
Max Reach Outside Tires - Left |
69 in (174 cm)
|
|
Max Reach Outside Tires - Right |
75 in (191 cm)
|
|
Shift Left |
26 in (66 cm)
|
|
Shift Right |
26 in (66 cm)
|

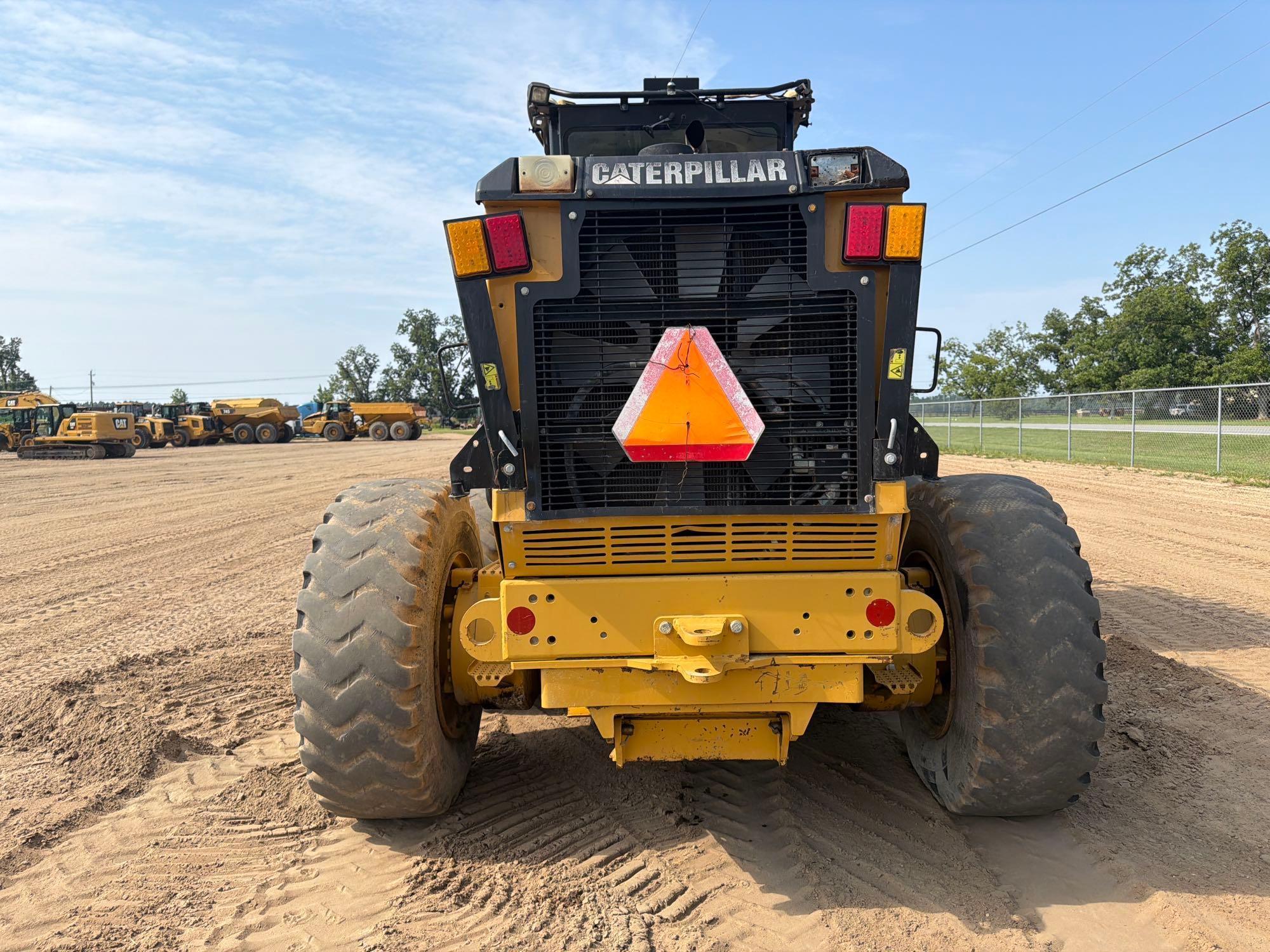

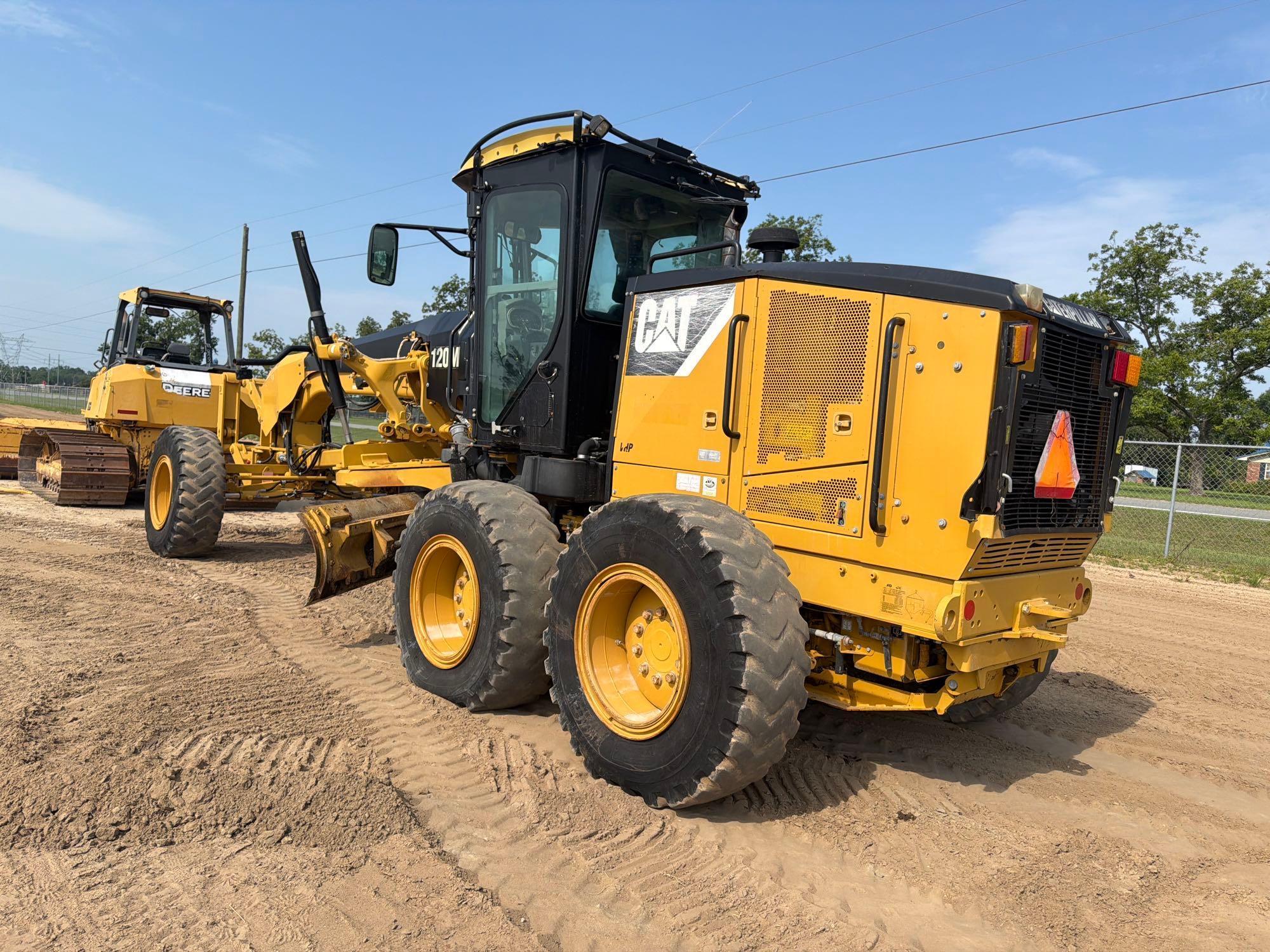

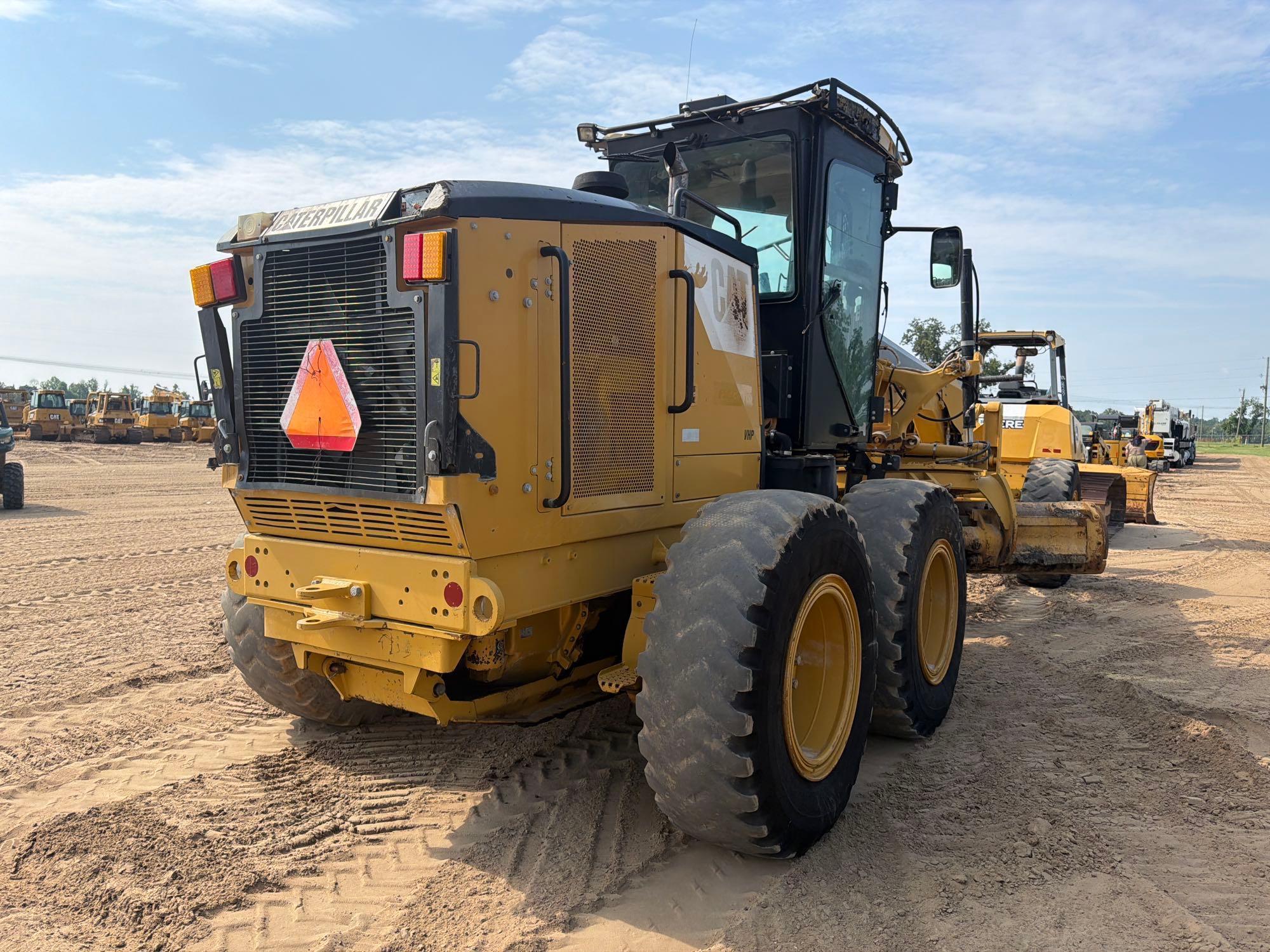

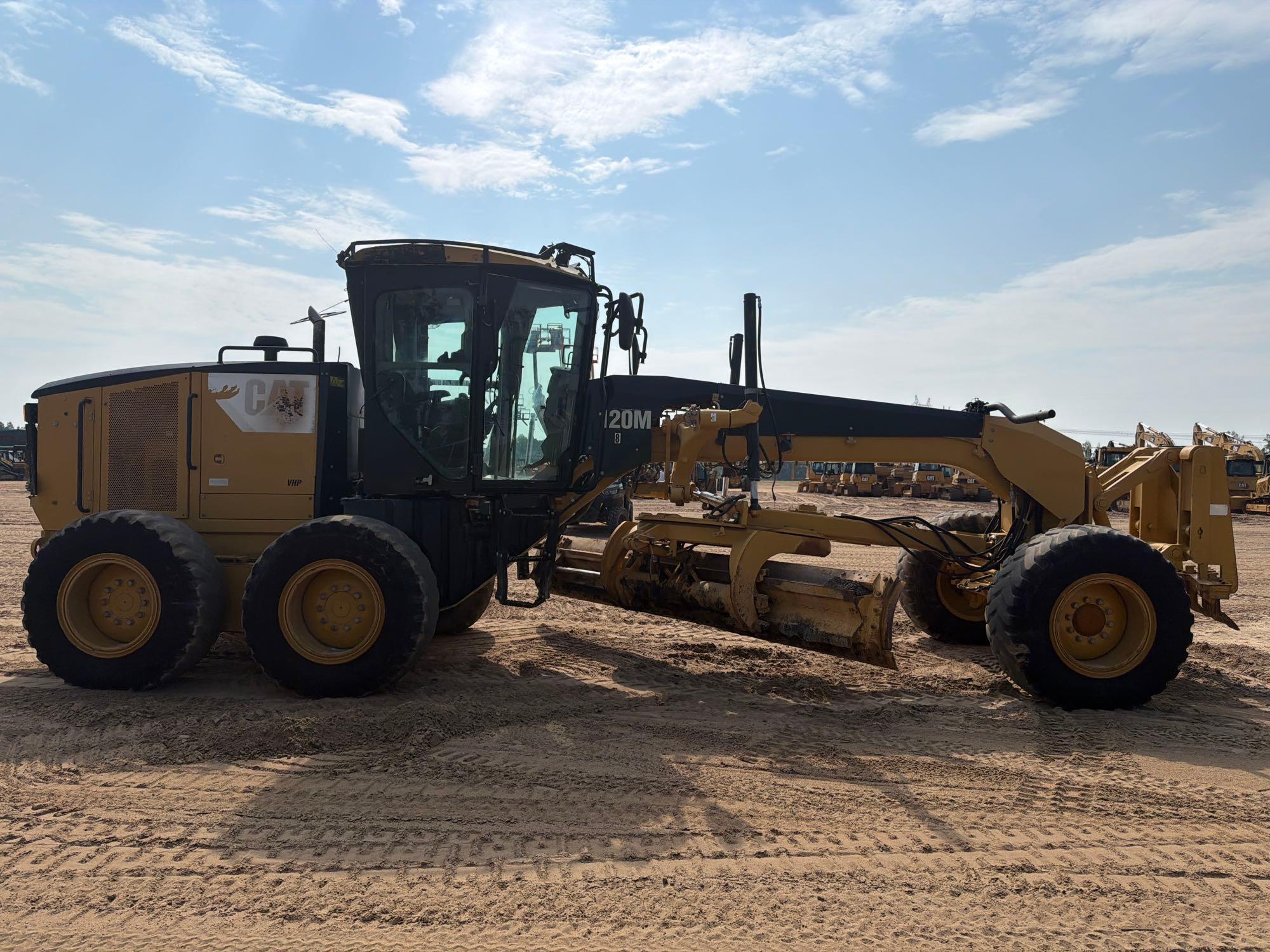

| Dimensions |
|
Blade Base |
8 ft (3 m)
|
|
Front Ground Clearance |
2 ft (1 m)
|
|
Ground Clearance - Rear Axle |
14 in (35 cm)
|
|
Height |
11 ft (3 m)
|
|
Height |
11 ft (3 m)
|
|
Height |
11 ft (3 m)
|
|
Height - Exhaust Stack |
112 in (286 cm)
|
|
Height - Front Axle Center |
23 in (57 cm)
|
|
Height - Top Of Cab |
11 ft (3 m)
|
|
Height - Top Of Cylinders |
114 in (289 cm)
|
|
Height To Top Of Isomount Cab |
11 ft (3 m)
|
|
Length |
33 ft (10 m)
|
|
Length |
33 ft (10 m)
|
|
Length |
33 ft (10 m)
|
|
Length - Between Tandem Axles |
60 in (151 cm)
|
|
Length - Counterweight To Ripper |
389 in (989 cm)
|
|
Length - Front Axle To Mid Tandem |
233 in (591 cm)
|
|
Length - Front Axle To Moldboard |
99 in (251 cm)
|
|
Length - Front Tire To Rear Of Machine |
334 in (849 cm)
|
|
Overall Length |
28 ft (8 m)
|
|
Rear Ground Clearance |
1 ft (0 m)
|
|
Tandem Axle Wheelbase |
5 ft (2 m)
|
|
Weight |
37,204 lbs (16,875 kg)
|
|
Weight |
41,859 lbs (18,987 kg)
|
|
Weight |
44,690 lbs (20,271 kg)
|
|
Wheelbase |
19 ft (6 m)
|
|
Width |
8 ft (3 m)
|
|
Width |
8 ft (3 m)
|
|
Width |
9 ft (3 m)
|
|
Width - Outside Front Tires |
98 in (248 cm)
|
|
Width - Outside Rear Tires |
98 in (248 cm)
|
|
Width - Tire Center Lines |
84 in (214 cm)
|
|
Width Over Tires |
8 ft (2 m)
|

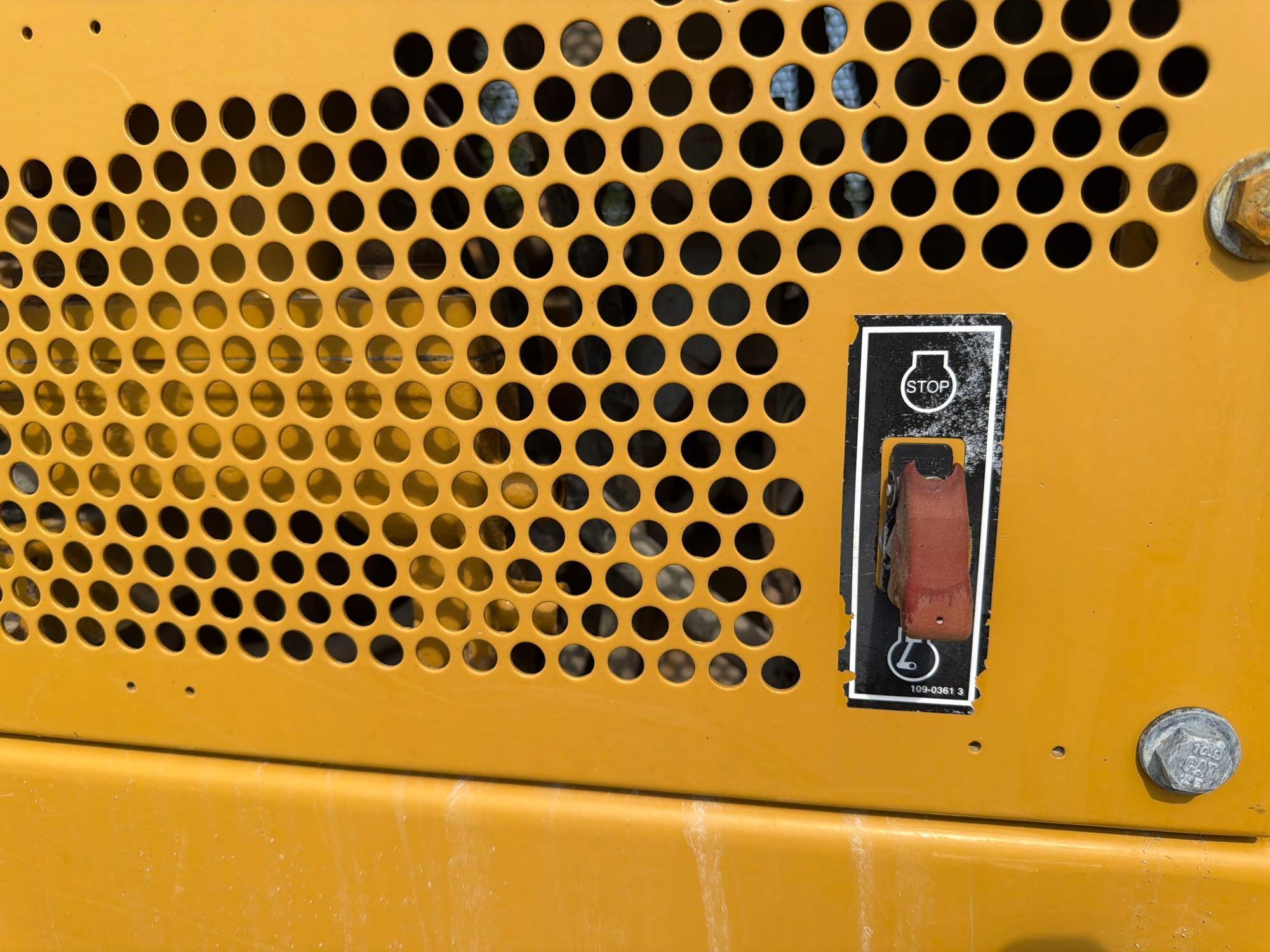

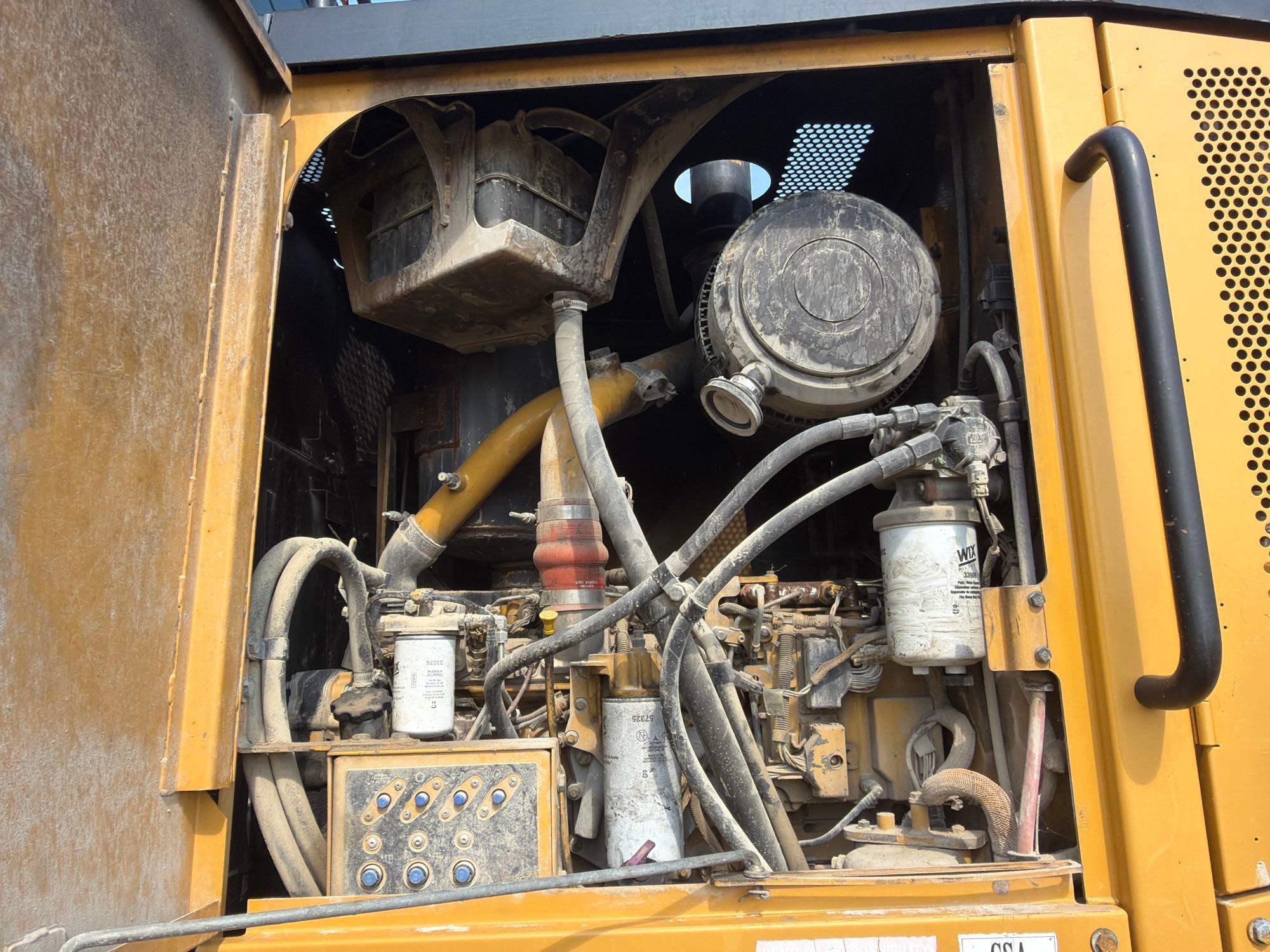

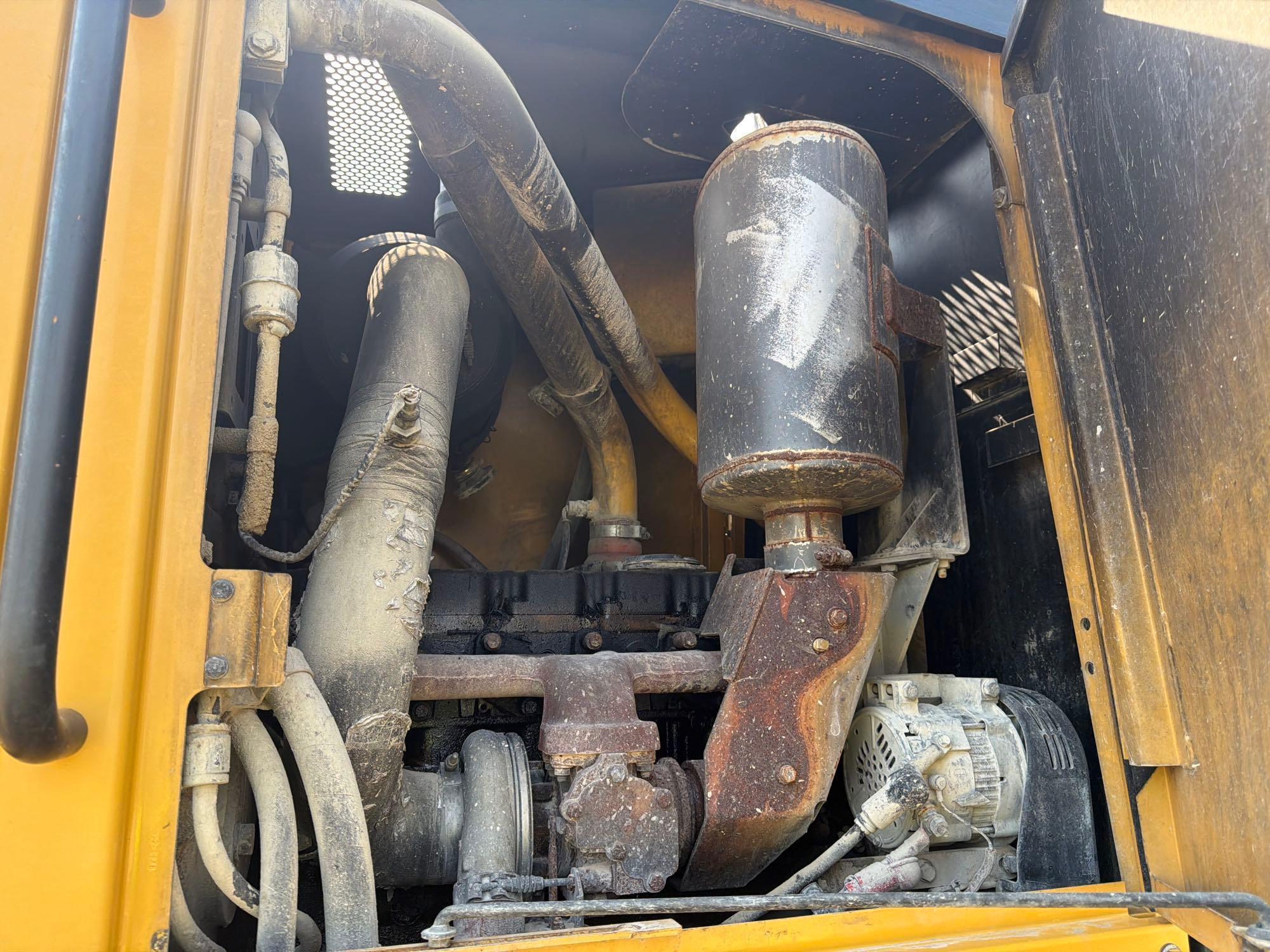

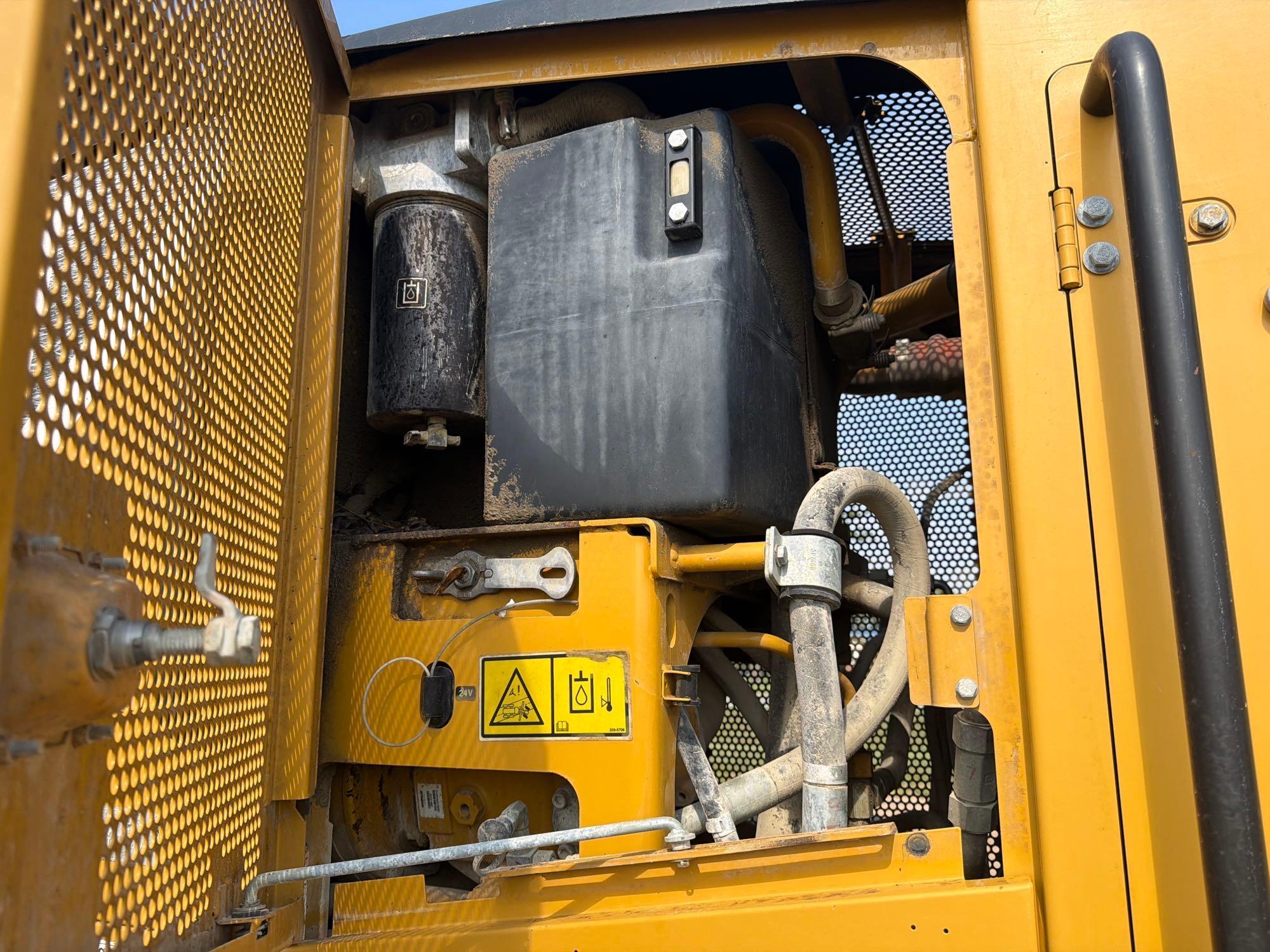

| Engine |
|
Base Power (1st Gear) - Net |
138 hp (103 kw)
|
|
Base Power (1st Gear) - Net - Metric |
140 hp (104 kw)
|
|
Base Power (All Gears) - Net |
138 hp (103 kw)
|
|
Bore |
4 in (11 cm)
|
|
Derating Altitude |
11,500 ft (3,505 m)
|
|
Displacement |
403 cu in (6,604 cu cm)
|
|
Emissions |
U.S. EPA Tier 3/EU Stage IIIA equivalent |
|
Engine Make |
2,236 |
|
Engine Model |
C6.6 ACERT VHP |
|
Engine Model |
Cat C6.6 ACERT |
|
High - Ambient Capability |
122 degrees |
|
High Ambient - Fan Speed - Maximum |
1,650 rpm |
|
High Ambient - Fan Speed - Minimum |
600 rpm |
|
Max Power |
138 hp (103 kw)
|
|
Maximum Torque |
690 lbs ft (936 nm)
|
|
Maximum Torque - Vhp Plus - Net |
668 lbs ft (906 nm)
|
|
Net Power Gears 7-8 |
138 hp (103 kw)
|
|
Note (1) |
Maximum torque (VHP Plus) measured at 1,400 rpm. |
|
Note (2) |
Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture. |
|
Note (3) |
Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan running at minimum speed, air cleaner, muffler and alternator. |
|
Note (4) |
Power as declared per ISO 14396: Rated Speed = 2,000 rpm; VHP Plus = 175 kW (234 hp) |
|
Note (5) |
No engine derating required up to 3048 m (10,000 ft). |
|
Number Of Cylinders |
6 |
|
Power Measured @ |
2,000 rpm |
|
Speed At Rated Power |
2,000 rpm |
|
Standard - Ambient Capability |
109 degrees |
|
Standard - Fan Speed - Maximum |
1,150 rpm |
|
Standard - Fan Speed - Minimum |
600 rpm |
|
Stroke |
5 in (13 cm)
|
|
Torque Rise - Vhp Plus |
40% |
|
Vhp Plus Range - Net |
103-136 kW (138-182 hp) |
|
Vhp Plus Range - Net - Metric |
103-136 kW (140-185 hp) |
|
Vhp Range - Net |
103-114 kW (138-153 hp) |

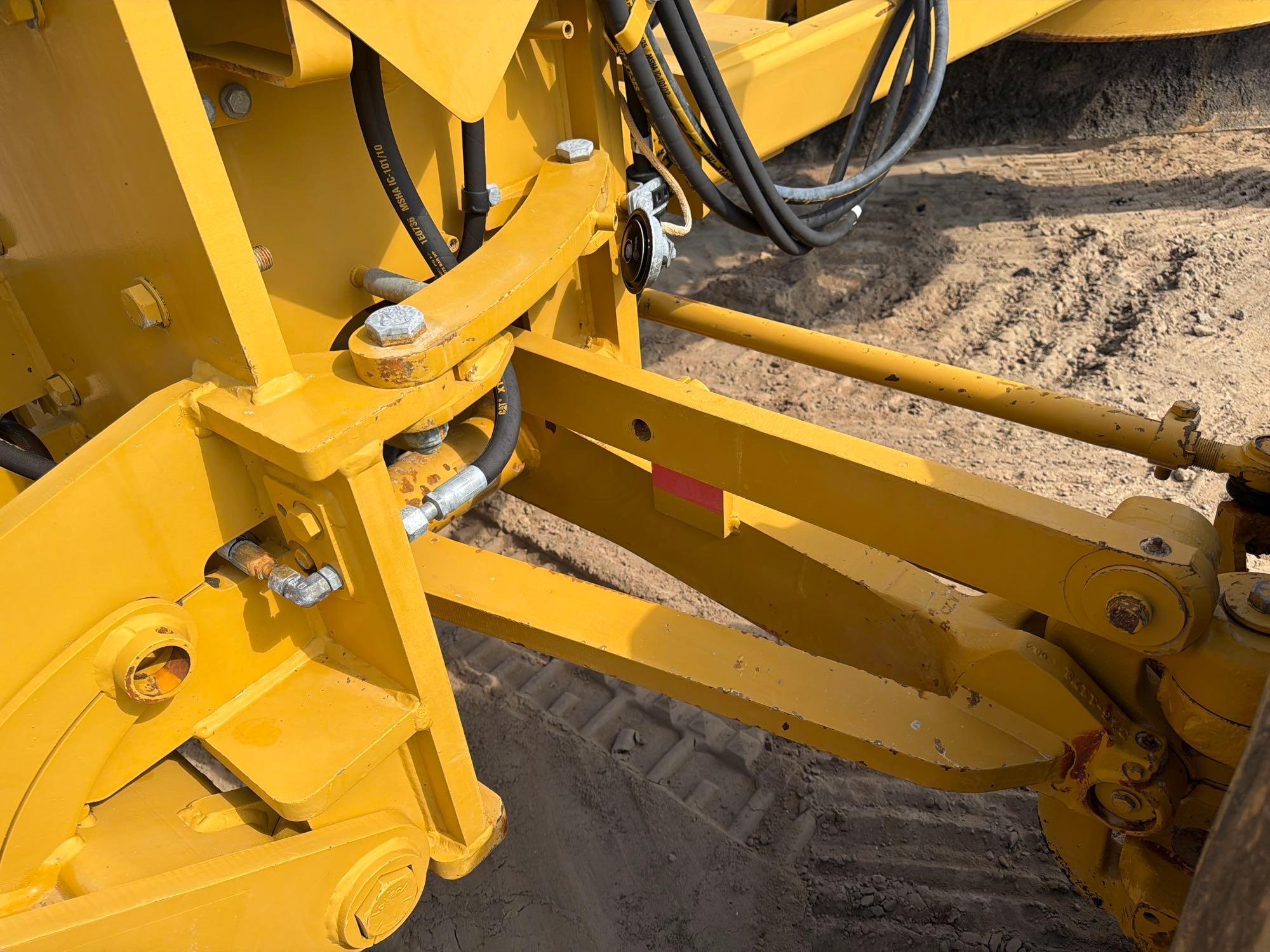

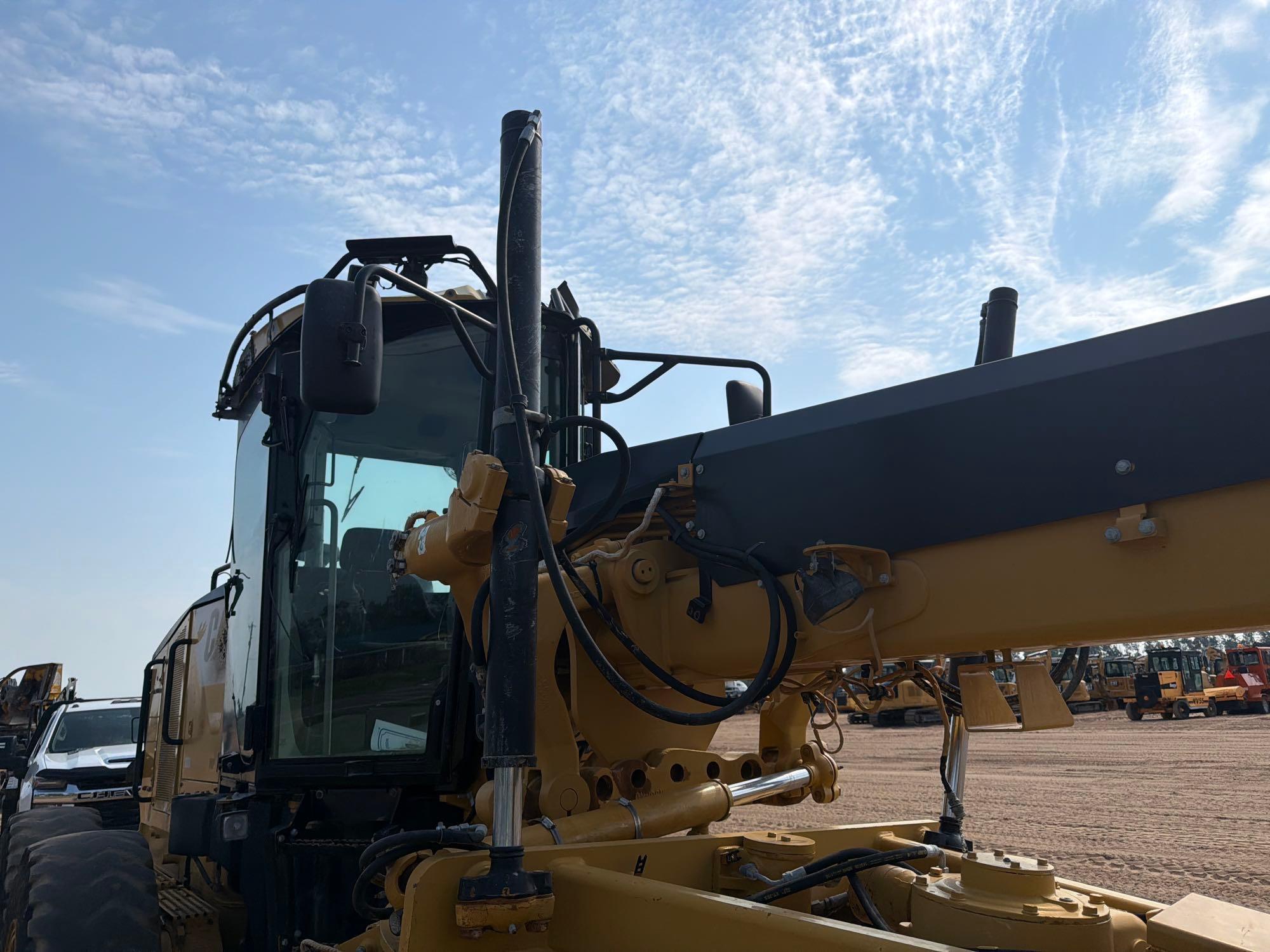

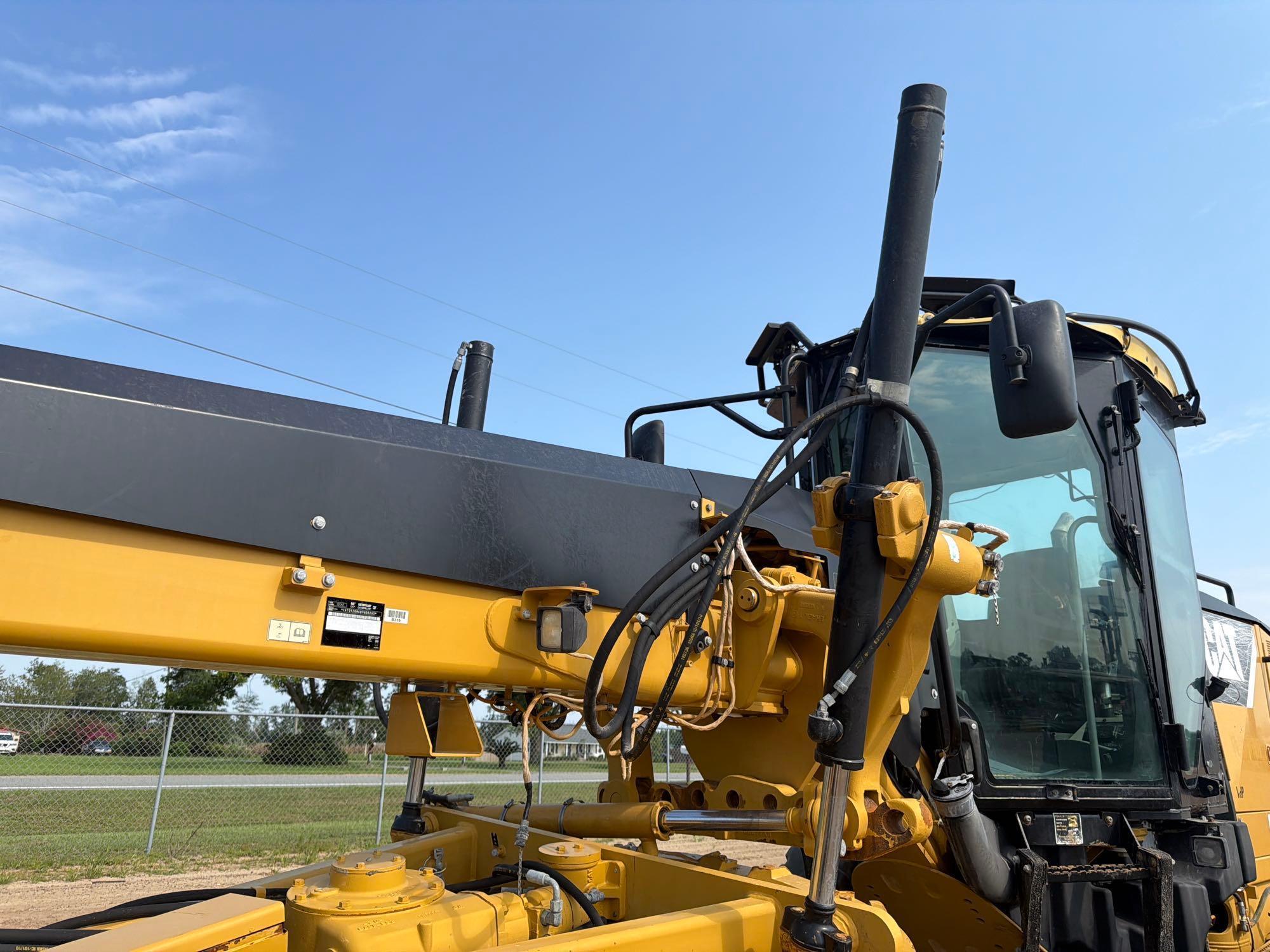

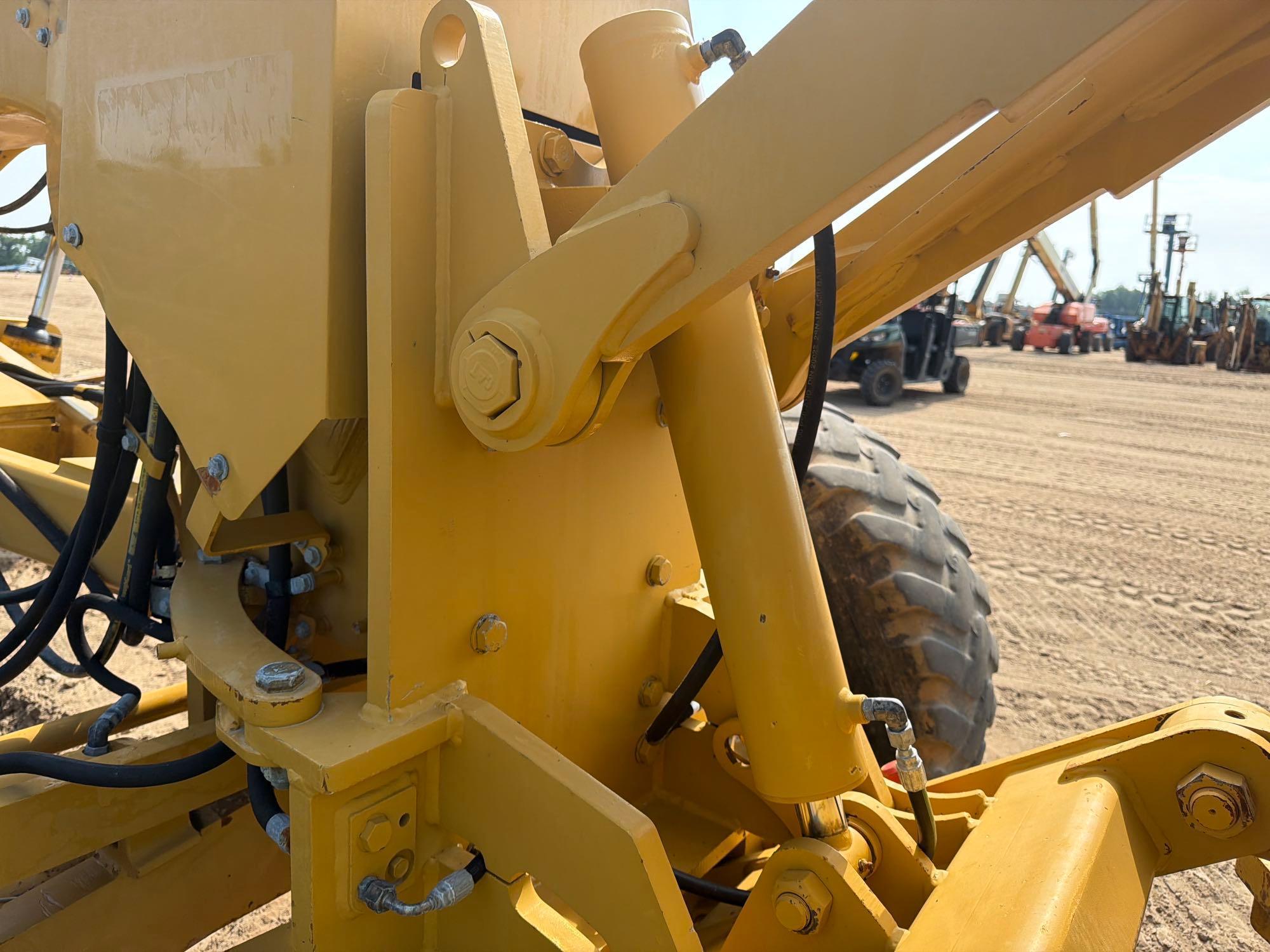

| Frame |
|
Circle - Blade Beam Thickness |
1 in (4 cm)
|
|
Circle - Diameter |
60 in (153 cm)
|
|
Drawbar - Height |
6 in (15 cm)
|
|
Drawbar - Thickness |
0 in (1 cm)
|
|
Drawbar - Width |
3 in (8 cm)
|
|
Drawbar - Yoke Bar Thickness |
1 in (2 cm)
|
|
Front Axle - Height To Center |
23 in (57 cm)
|
|
Front Axle - Total Oscillation Per Side |
32 degrees |
|
Front Axle - Wheel Lean - Left/Right |
18 degrees |
|
Front Frame Structure - Height |
1 ft (0 m)
|
|
Front Frame Structure - Thickness |
0 ft (0 m)
|
|
Front Frame Structure - Width |
1 ft (0 m)
|

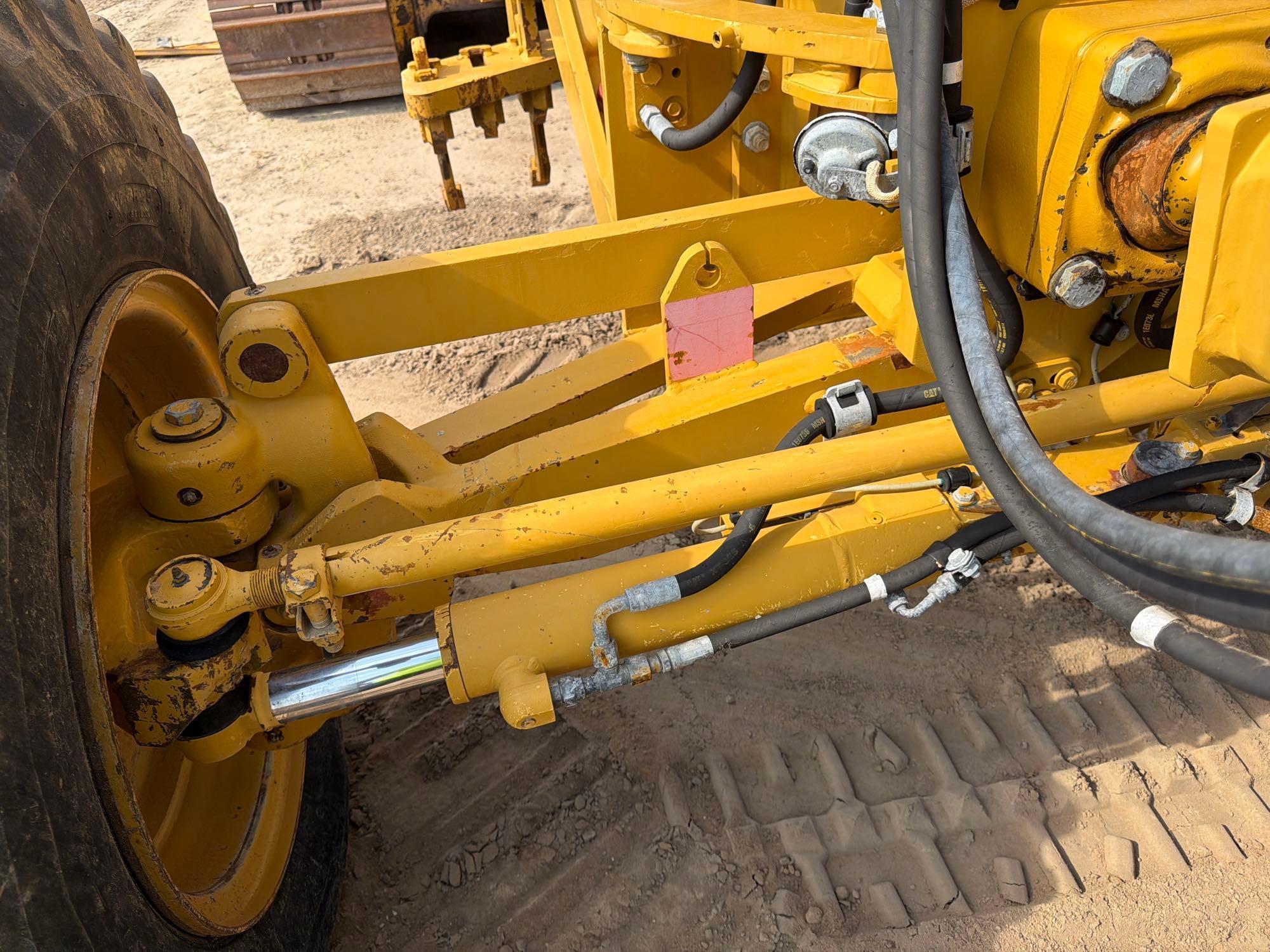

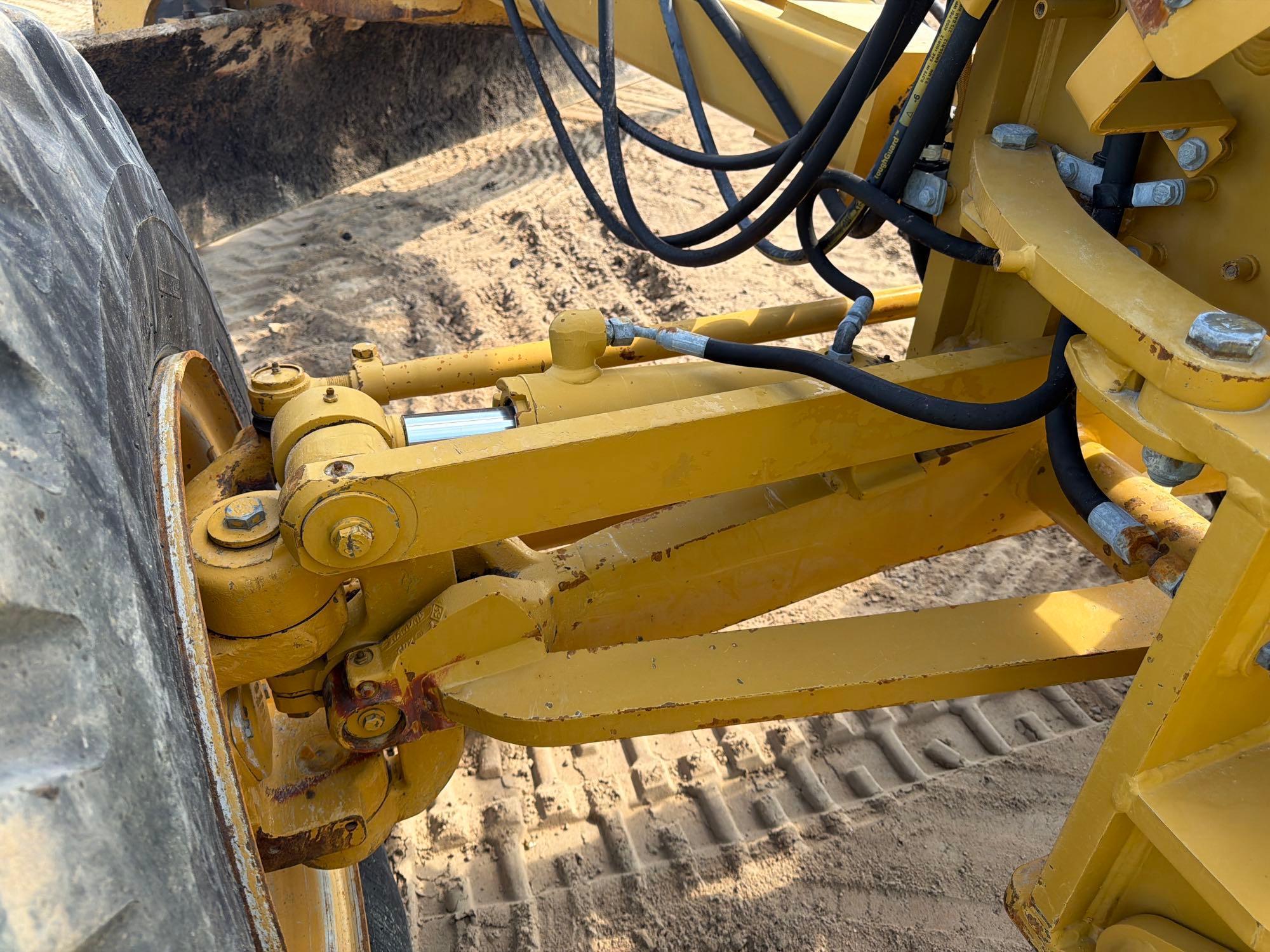

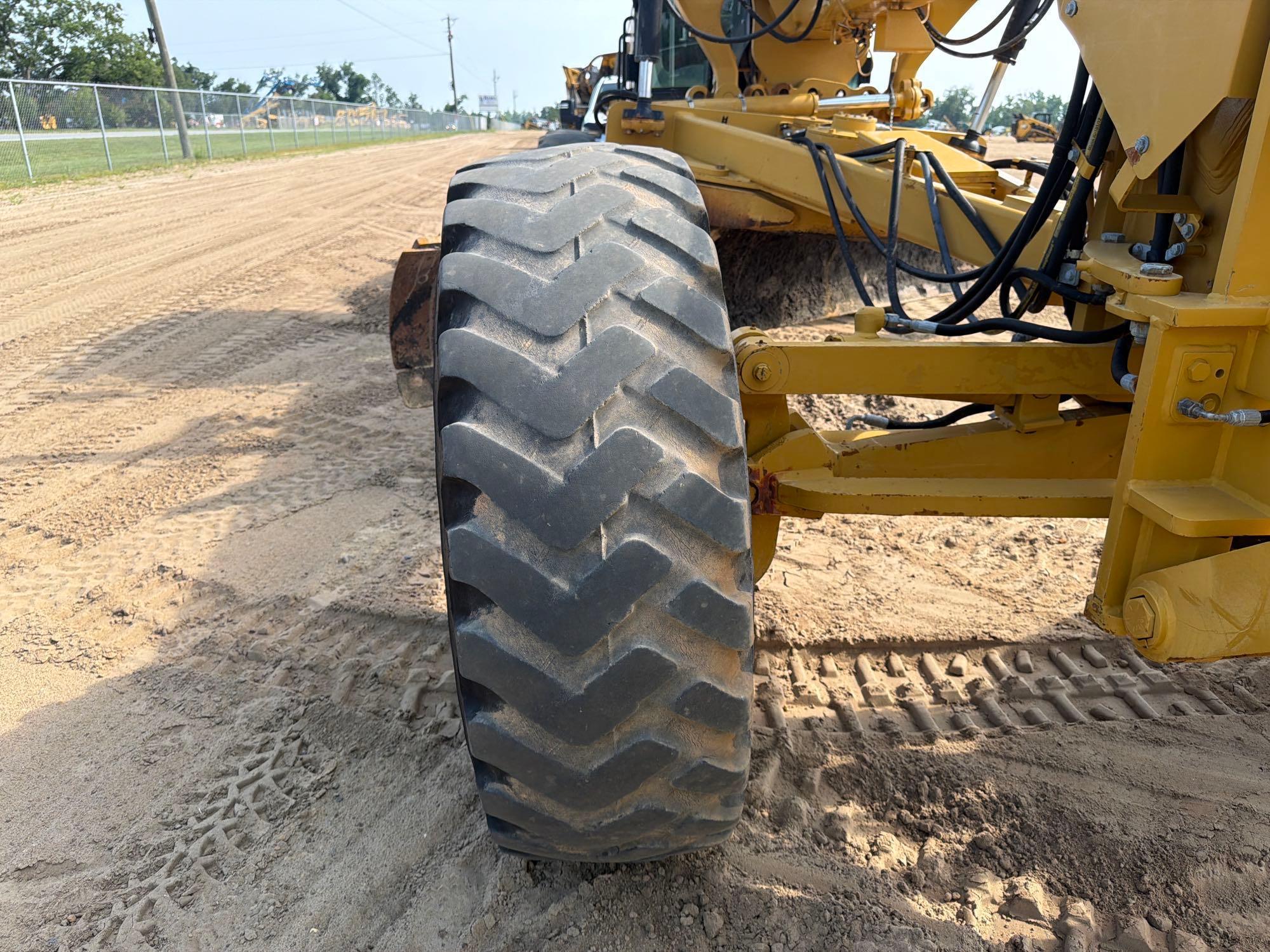

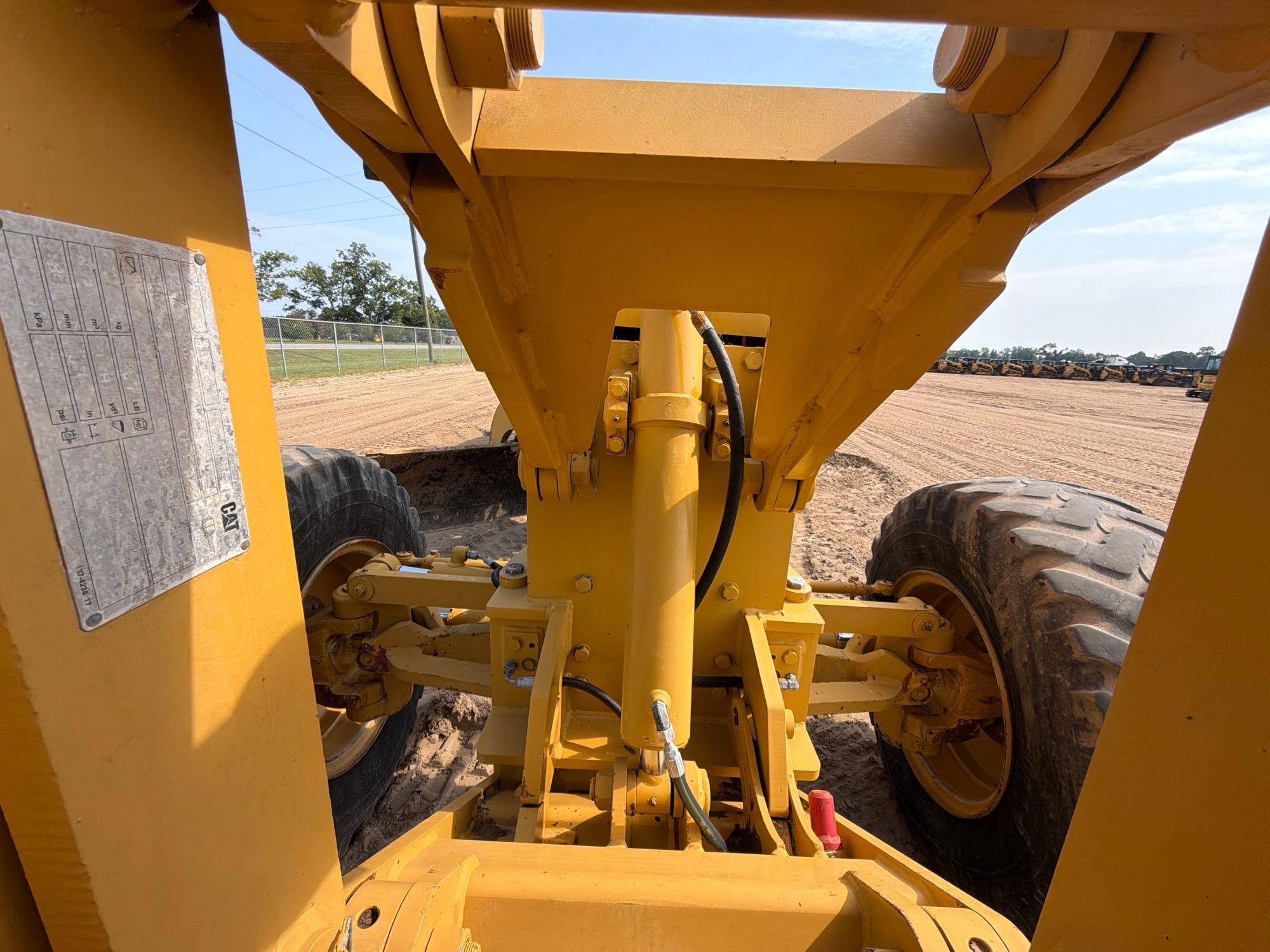

| Front Axle |
|
Ground Clearance |
2 ft (1 m)
|
|
Oscillation - Total |
32 degrees |
|
Wheel Lean |
18 degrees |
| General Specifications |
|
Base Power - Net (Since 2010)
|
138 hp (103 kw)
|
|
Base Power - Net (2012)
|
138 hp (103 kw)
|
|
Base Power - Net (2013)
|
138 hp (103 kw)
|
|
Base Power - Net (2015)
|
138 hp (103 kw)
|
|
Base Power - Net (2016)
|
138 hp (103 kw)
|
|
Base Power - Net (2017)
|
138 hp (103 kw)
|
|
Base Power - Net (2018)
|
138 hp (103 kw)
|
|
Base Power - Net (2019)
|
138 hp (103 kw)
|
|
Displacement (Since 2010)
|
403 cu in (6,604 cu cm)
|
|
Displacement (2012)
|
403 cu in (6,604 cu cm)
|
|
Displacement (2013)
|
403 cu in (6,604 cu cm)
|
|
Displacement (2015)
|
403 cu in (6,604 cu cm)
|
|
Displacement (2016)
|
403 cu in (6,604 cu cm)
|
|
Displacement (2017)
|
403 cu in (6,604 cu cm)
|
|
Displacement (2018)
|
403 cu in (6,604 cu cm)
|
|
Displacement (2019)
|
403 cu in (6,604 cu cm)
|
|
Electrical - Std. Alternator (Since 2010)
|
80 |
|
Electrical - Std. Alternator (2012)
|
80 |
|
Electrical - Std. Alternator (2013)
|
80 |
|
Electrical - Std. Alternator (2015)
|
80 |
|
Electrical - Std. Alternator (2016)
|
80 |
|
Electrical - Std. Alternator (2017)
|
80 |
|
Electrical - Std. Alternator (2018)
|
80 |
|
Electrical - Std. Alternator (2019)
|
80 |
|
Electrical - Std. Battery CCA @ 0° F (Since 2010)
|
880 |
|
Electrical - Std. Battery CCA @ 0° F (2012)
|
880 |
|
Electrical - Std. Battery CCA @ 0° F (Since 2013)
|
1,125 |
|
Electrical - Std. Battery CCA @ 0° F (2015)
|
1,125 |
|
Electrical - Std. Battery CCA @ 0° F (2016)
|
1,125 |
|
Electrical - Std. Battery CCA @ 0° F (2017)
|
1,125 |
|
Electrical - Std. Battery CCA @ 0° F (2018)
|
1,125 |
|
Electrical - Std. Battery CCA @ 0° F (2019)
|
1,125 |
|
Electrical - System Size (Since 2010)
|
24V |
|
Electrical - System Size (2012)
|
24V |
|
Electrical - System Size (2013)
|
24V |
|
Electrical - System Size (2015)
|
24V |
|
Electrical - System Size (2016)
|
24V |
|
Electrical - System Size (2017)
|
24V |
|
Electrical - System Size (2018)
|
24V |
|
Electrical - System Size (2019)
|
24V |
|
Engine Model (Since 2010)
|
C6.6 ACERT VHP |
|
Engine Model (2012)
|
C6.6 ACERT VHP |
|
Engine Model (2013)
|
C6.6 ACERT VHP |
|
Engine Model (Since 2015)
|
C6.6 ACERT |
|
Engine Model (2016)
|
C6.6 ACERT |
|
Engine Model (2017)
|
C6.6 ACERT |
|
Engine Model (2018)
|
C6.6 ACERT |
|
Engine Model (2019)
|
C6.6 ACERT |
|
Front Axle/Steering - Articulation Angle (Since 2010)
|
20 deg |
|
Front Axle/Steering - Articulation Angle (2012)
|
20 deg |
|
Front Axle/Steering - Articulation Angle (2013)
|
20 deg |
|
Front Axle/Steering - Articulation Angle (2015)
|
20 deg |
|
Front Axle/Steering - Articulation Angle (2016)
|
20 deg |
|
Front Axle/Steering - Articulation Angle (2017)
|
20 deg |
|
Front Axle/Steering - Articulation Angle (2018)
|
20 deg |
|
Front Axle/Steering - Articulation Angle (2019)
|
20 deg |
|
Front Axle/Steering - Minimum Turning Radius (Since 2010)
|
294 in (747 cm)
|
|
Front Axle/Steering - Minimum Turning Radius (Since 2012)
|
292 in (742 cm)
|
|
Front Axle/Steering - Minimum Turning Radius (2013)
|
292 in (742 cm)
|
|
Front Axle/Steering - Minimum Turning Radius (Since 2015)
|
289 in (734 cm)
|
|
Front Axle/Steering - Minimum Turning Radius (2016)
|
289 in (734 cm)
|
|
Front Axle/Steering - Minimum Turning Radius (2017)
|
289 in (734 cm)
|
|
Front Axle/Steering - Minimum Turning Radius (2018)
|
289 in (734 cm)
|
|
Front Axle/Steering - Minimum Turning Radius (2019)
|
289 in (734 cm)
|
|
Front Axle/Steering - Oscillation Angle (Since 2010)
|
32 deg |
|
Front Axle/Steering - Oscillation Angle (2012)
|
32 deg |
|
Front Axle/Steering - Oscillation Angle (2013)
|
32 deg |
|
Front Axle/Steering - Oscillation Angle (2015)
|
32 deg |
|
Front Axle/Steering - Oscillation Angle (2016)
|
32 deg |
|
Front Axle/Steering - Oscillation Angle (2017)
|
32 deg |
|
Front Axle/Steering - Oscillation Angle (2018)
|
32 deg |
|
Front Axle/Steering - Oscillation Angle (2019)
|
32 deg |
|
Front Axle/Steering - Steering Angle (Since 2010)
|
48 deg |
|
Front Axle/Steering - Steering Angle (2012)
|
48 deg |
|
Front Axle/Steering - Steering Angle (2013)
|
48 deg |
|
Front Axle/Steering - Steering Angle (2015)
|
48 deg |
|
Front Axle/Steering - Steering Angle (2016)
|
48 deg |
|
Front Axle/Steering - Steering Angle (2017)
|
48 deg |
|
Front Axle/Steering - Steering Angle (2018)
|
48 deg |
|
Front Axle/Steering - Steering Angle (2019)
|
48 deg |
|
Front Axle/Steering - Wheel Lean Angle (Since 2010)
|
18 deg |
|
Front Axle/Steering - Wheel Lean Angle (Since 2012)
|
18 deg |
|
Front Axle/Steering - Wheel Lean Angle (Since 2013)
|
18 deg |
|
Front Axle/Steering - Wheel Lean Angle (2015)
|
18 deg |
|
Front Axle/Steering - Wheel Lean Angle (2016)
|
18 deg |
|
Front Axle/Steering - Wheel Lean Angle (2017)
|
18 deg |
|
Front Axle/Steering - Wheel Lean Angle (2018)
|
18 deg |
|
Front Axle/Steering - Wheel Lean Angle (2019)
|
18 deg |
|
Fuel Tank Capacity (Since 2010)
|
90 US gal (340 L)
|
|
Fuel Tank Capacity (2012)
|
90 US gal (340 L)
|
|
Fuel Tank Capacity (2013)
|
90 US gal (340 L)
|
|
Fuel Tank Capacity (Since 2015)
|
100 US gal (378 L)
|
|
Fuel Tank Capacity (2016)
|
100 US gal (378 L)
|
|
Fuel Tank Capacity (2017)
|
100 US gal (378 L)
|
|
Fuel Tank Capacity (2018)
|
100 US gal (378 L)
|
|
Fuel Tank Capacity (2019)
|
100 US gal (378 L)
|
|
GENERAL DIMENSIONS - Blade Base (Since 2010)
|
99 in (251 cm)
|
|
GENERAL DIMENSIONS - Blade Base (2012)
|
99 in (251 cm)
|
|
GENERAL DIMENSIONS - Blade Base (2013)
|
99 in (251 cm)
|
|
GENERAL DIMENSIONS - Blade Base (Since 2015)
|
99 in (251 cm)
|
|
GENERAL DIMENSIONS - Blade Base (2016)
|
99 in (251 cm)
|
|
GENERAL DIMENSIONS - Blade Base (2017)
|
99 in (251 cm)
|
|
GENERAL DIMENSIONS - Blade Base (2018)
|
99 in (251 cm)
|
|
GENERAL DIMENSIONS - Blade Base (2019)
|
99 in (251 cm)
|
|
GENERAL DIMENSIONS - Height (Since 2010)
|
24 in (61 cm)
|
|
GENERAL DIMENSIONS - Height (2012)
|
24 in (61 cm)
|
|
GENERAL DIMENSIONS - Height (to top of ROPS) (Since 2010)
|
129 in (328 cm)
|
|
GENERAL DIMENSIONS - Height (to top of ROPS) (2012)
|
129 in (328 cm)
|
|
GENERAL DIMENSIONS - Height (to top of ROPS) (2013)
|
129 in (328 cm)
|
|
GENERAL DIMENSIONS - Height (to top of ROPS) (Since 2015)
|
130 in (331 cm)
|
|
GENERAL DIMENSIONS - Height (to top of ROPS) (2016)
|
130 in (331 cm)
|
|
GENERAL DIMENSIONS - Height (to top of ROPS) (2017)
|
130 in (331 cm)
|
|
GENERAL DIMENSIONS - Height (to top of ROPS) (2018)
|
130 in (331 cm)
|
|
GENERAL DIMENSIONS - Height (to top of ROPS) (2019)
|
130 in (331 cm)
|
|
GENERAL DIMENSIONS - Lift Above Ground (Since 2010)
|
17 in (43 cm)
|
|
GENERAL DIMENSIONS - Lift Above Ground (2012)
|
17 in (43 cm)
|
|
GENERAL DIMENSIONS - Lift Above Ground (2013)
|
17 in (43 cm)
|
|
GENERAL DIMENSIONS - Lift Above Ground (2015)
|
17 in (43 cm)
|
|
GENERAL DIMENSIONS - Lift Above Ground (2016)
|
17 in (43 cm)
|
|
GENERAL DIMENSIONS - Lift Above Ground (2017)
|
17 in (43 cm)
|
|
GENERAL DIMENSIONS - Lift Above Ground (2018)
|
17 in (43 cm)
|
|
GENERAL DIMENSIONS - Lift Above Ground (2019)
|
17 in (43 cm)
|
|
GENERAL DIMENSIONS - Overal Width (at top of front tires) (Since 2010)
|
98 in (249 cm)
|
|
GENERAL DIMENSIONS - Overal Width (at top of front tires) (2012)
|
98 in (249 cm)
|
|
GENERAL DIMENSIONS - Overall Length (Since 2010)
|
334 in (848 cm)
|
|
GENERAL DIMENSIONS - Overall Length (2012)
|
334 in (848 cm)
|
|
GENERAL DIMENSIONS - Overall Length (2013)
|
334 in (848 cm)
|
|
GENERAL DIMENSIONS - Overall Length (Since 2015)
|
332 in (844 cm)
|
|
GENERAL DIMENSIONS - Overall Length (2016)
|
332 in (844 cm)
|
|
GENERAL DIMENSIONS - Overall Length (2017)
|
332 in (844 cm)
|
|
GENERAL DIMENSIONS - Overall Length (2018)
|
332 in (844 cm)
|
|
GENERAL DIMENSIONS - Overall Length (2019)
|
332 in (844 cm)
|
|
GENERAL DIMENSIONS - Overall Width (at top of front tires) (Since 2013)
|
98 in (249 cm)
|
|
GENERAL DIMENSIONS - Overall Width (at top of front tires) (Since 2015)
|
98 in (249 cm)
|
|
GENERAL DIMENSIONS - Overall Width (at top of front tires) (2016)
|
98 in (249 cm)
|
|
GENERAL DIMENSIONS - Overall Width (at top of front tires) (2017)
|
98 in (249 cm)
|
|
GENERAL DIMENSIONS - Overall Width (at top of front tires) (2018)
|
98 in (249 cm)
|
|
GENERAL DIMENSIONS - Overall Width (at top of front tires) (2019)
|
98 in (249 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Height (Since 2013)
|
24 in (61 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Height (Since 2015)
|
24 in (61 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Height (2016)
|
24 in (61 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Height (2017)
|
24 in (61 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Height (2018)
|
24 in (61 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Height (2019)
|
24 in (61 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Length (Since 2010)
|
144 in (366 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Length (2012)
|
144 in (366 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Length (2013)
|
144 in (366 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Length (2015)
|
144 in (366 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Length (2016)
|
144 in (366 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Length (2017)
|
144 in (366 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Length (2018)
|
144 in (366 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Length (2019)
|
144 in (366 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Thickness (Since 2013)
|
1 in (2 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Thickness (2015)
|
1 in (2 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Thickness (2016)
|
1 in (2 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Thickness (2017)
|
1 in (2 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Thickness (2018)
|
1 in (2 cm)
|
|
GENERAL DIMENSIONS - Standard Blade: Thickness (2019)
|
1 in (2 cm)
|
|
GENERAL DIMENSIONS - Thickness (Since 2010)
|
1 in (2 cm)
|
|
GENERAL DIMENSIONS - Thickness (2012)
|
1 in (2 cm)
|
|
GENERAL DIMENSIONS - Wheelbase (Since 2010)
|
233 in (592 cm)
|
|
GENERAL DIMENSIONS - Wheelbase (2012)
|
233 in (592 cm)
|
|
GENERAL DIMENSIONS - Wheelbase (2013)
|
233 in (592 cm)
|
|
GENERAL DIMENSIONS - Wheelbase (Since 2015)
|
233 in (592 cm)
|
|
GENERAL DIMENSIONS - Wheelbase (2016)
|
233 in (592 cm)
|
|
GENERAL DIMENSIONS - Wheelbase (2017)
|
233 in (592 cm)
|
|
GENERAL DIMENSIONS - Wheelbase (2018)
|
233 in (592 cm)
|
|
GENERAL DIMENSIONS - Wheelbase (2019)
|
233 in (592 cm)
|
|
GENERAL DIMENSIONS - With Ripper and Pushplate (Since 2010)
|
389 in (988 cm)
|
|
GENERAL DIMENSIONS - With Ripper and Pushplate (2012)
|
389 in (988 cm)
|
|
GENERAL DIMENSIONS - With Ripper and Pushplate (2013)
|
389 in (988 cm)
|
|
GENERAL DIMENSIONS - With Ripper and Pushplate (Since 2015)
|
391 in (993 cm)
|
|
GENERAL DIMENSIONS - With Ripper and Pushplate (2016)
|
391 in (993 cm)
|
|
GENERAL DIMENSIONS - With Ripper and Pushplate (2017)
|
391 in (993 cm)
|
|
GENERAL DIMENSIONS - With Ripper and Pushplate (2018)
|
391 in (993 cm)
|
|
GENERAL DIMENSIONS - With Ripper and Pushplate (2019)
|
391 in (993 cm)
|
|
Hydraulics - Implement Pressure: Max. (Since 2010)
|
3,500 psi (24,150 kPa)
|
|
Hydraulics - Implement Pressure: Max. (2012)
|
3,500 psi (24,150 kPa)
|
|
Hydraulics - Implement Pressure: Max. (2013)
|
3,500 psi (24,150 kPa)
|
|
Hydraulics - Implement Pressure: Max. (2015)
|
3,500 psi (24,150 kPa)
|
|
Hydraulics - Implement Pressure: Max. (2016)
|
3,500 psi (24,150 kPa)
|
|
Hydraulics - Implement Pressure: Max. (2017)
|
3,500 psi (24,150 kPa)
|
|
Hydraulics - Implement Pressure: Max. (2018)
|
3,500 psi (24,150 kPa)
|
|
Hydraulics - Implement Pressure: Max. (2019)
|
3,500 psi (24,150 kPa)
|
|
Hydraulics - Implement Pressure: Min. (Since 2013)
|
450 psi (3,100 kPa)
|
|
Hydraulics - Implement Pressure: Min. (2015)
|
450 psi (3,100 kPa)
|
|
Hydraulics - Implement Pressure: Min. (2016)
|
450 psi (3,100 kPa)
|
|
Hydraulics - Implement Pressure: Min. (2017)
|
450 psi (3,100 kPa)
|
|
Hydraulics - Implement Pressure: Min. (2018)
|
450 psi (3,100 kPa)
|
|
Hydraulics - Implement Pressure: Min. (2019)
|
450 psi (3,100 kPa)
|
|
Hydraulics - Max. Pump Flow (Since 2010)
|
40 US gpm (151 L/min)
|
|
Hydraulics - Max. Pump Flow (2012)
|
40 US gpm (151 L/min)
|
|
Hydraulics - Max. Pump Flow (Since 2013)
|
56 US gpm (210 L)
|
|
Hydraulics - Max. Pump Flow (2015)
|
56 US gpm (210 L)
|
|
Hydraulics - Max. Pump Flow (2016)
|
56 US gpm (210 L)
|
|
Hydraulics - Max. Pump Flow (2017)
|
56 US gpm (210 L)
|
|
Hydraulics - Max. Pump Flow (2018)
|
56 US gpm (210 L)
|
|
Hydraulics - Max. Pump Flow (2019)
|
56 US gpm (210 L)
|
|
Hydraulics - Min. (Since 2010)
|
450 psi (3,100 kPa)
|
|
Hydraulics - Min. (2012)
|
450 psi (3,100 kPa)
|
|
Hydraulics - Pump Type (Since 2010)
|
Variable Piston |
|
Hydraulics - Pump Type (2012)
|
Variable Piston |
|
Hydraulics - Pump Type (2013)
|
Variable Piston |
|
Hydraulics - Pump Type (2015)
|
Variable Piston |
|
Hydraulics - Pump Type (2016)
|
Variable Piston |
|
Hydraulics - Pump Type (2017)
|
Variable Piston |
|
Hydraulics - Pump Type (2018)
|
Variable Piston |
|
Hydraulics - Pump Type (2019)
|
Variable Piston |
|
Hydraulics - Tank Capacity (Since 2010)
|
16 US gal (60 L)
|
|
Hydraulics - Tank Capacity (2012)
|
16 US gal (60 L)
|
|
Hydraulics - Tank Capacity (2013)
|
16 US gal (60 L)
|
|
Hydraulics - Tank Capacity (Since 2015)
|
17 US gal (64 L)
|
|
Hydraulics - Tank Capacity (2016)
|
17 US gal (64 L)
|
|
Hydraulics - Tank Capacity (2017)
|
17 US gal (64 L)
|
|
Hydraulics - Tank Capacity (2018)
|
17 US gal (64 L)
|
|
Hydraulics - Tank Capacity (2019)
|
17 US gal (64 L)
|
|
Interior Sound Level/SAE J919 (Since 2010)
|
70 dB(A |
|
Interior Sound Level/SAE J919 (2012)
|
70 dB(A |
|
Interior Sound Level/SAE J919 (2013)
|
70 dB(A |
|
Interior Sound Level/SAE J919 (2015)
|
70 dB(A |
|
Interior Sound Level/SAE J919 (2016)
|
70 dB(A |
|
Interior Sound Level/SAE J919 (2017)
|
70 dB(A |
|
Interior Sound Level/SAE J919 (2018)
|
70 dB(A |
|
Interior Sound Level/SAE J919 (2019)
|
70 dB(A |
|
Max. Shoulder Reach: - Frame Straight - left (Since 2010)
|
69 in (174 cm)
|
|
Max. Shoulder Reach: - Frame Straight - left (2012)
|
69 in (174 cm)
|
|
Max. Shoulder Reach: - Frame Straight - left (2013)
|
69 in (174 cm)
|
|
Max. Shoulder Reach: - Frame Straight - left (2015)
|
69 in (174 cm)
|
|
Max. Shoulder Reach: - Frame Straight - Left (Since 2016)
|
69 in (174 cm)
|
|
Max. Shoulder Reach: - Frame Straight - Left (2017)
|
69 in (174 cm)
|
|
Max. Shoulder Reach: - Frame Straight - Left (2018)
|
69 in (174 cm)
|
|
Max. Shoulder Reach: - Frame Straight - Left (2019)
|
69 in (174 cm)
|
|
Max. Shoulder Reach: - Frame Straight - right (Since 2010)
|
75 in (191 cm)
|
|
Max. Shoulder Reach: - Frame Straight - right (2012)
|
75 in (191 cm)
|
|
Max. Shoulder Reach: - Frame Straight - right (2013)
|
75 in (191 cm)
|
|
Max. Shoulder Reach: - Frame Straight - right (2015)
|
75 in (191 cm)
|
|
Max. Shoulder Reach: - Frame Straight - Right (Since 2016)
|
75 in (191 cm)
|
|
Max. Shoulder Reach: - Frame Straight - Right (2017)
|
75 in (191 cm)
|
|
Max. Shoulder Reach: - Frame Straight - Right (2018)
|
75 in (191 cm)
|
|
Max. Shoulder Reach: - Frame Straight - Right (2019)
|
75 in (191 cm)
|
|
Max. Torque (Since 2010)
|
690 lb-ft (859 N-m)
|
|
Max. Torque (Since 2012)
|
668 lb-ft (906 N-m)
|
|
Max. Torque (2013)
|
668 lb-ft (906 N-m)
|
|
Max. Torque (2015)
|
668 lb-ft (906 N-m)
|
|
Max. Torque (2016)
|
668 lb-ft (906 N-m)
|
|
Max. Torque (2017)
|
668 lb-ft (906 N-m)
|
|
Max. Torque (2018)
|
668 lb-ft (906 N-m)
|
|
Max. Torque (2019)
|
668 lb-ft (906 N-m)
|
|
No. Circle Support Shoes (Since 2010)
|
4 |
|
No. Circle Support Shoes (2012)
|
4 |
|
No. Circle Support Shoes (2013)
|
4 |
|
No. Circle Support Shoes (2015)
|
4 |
|
No. Circle Support Shoes (2016)
|
4 |
|
No. Circle Support Shoes (2017)
|
4 |
|
No. Circle Support Shoes (2018)
|
4 |
|
No. Circle Support Shoes (2019)
|
4 |
|
No. of Cylinders (Since 2010)
|
6 |
|
No. of Cylinders (2012)
|
6 |
|
No. of Cylinders (2013)
|
6 |
|
No. of Cylinders (2015)
|
6 |
|
No. of Cylinders (2016)
|
6 |
|
No. of Cylinders (2017)
|
6 |
|
No. of Cylinders (2018)
|
6 |
|
No. of Cylinders (2019)
|
6 |
|
No. of Speeds Forward/Reverse (Since 2010)
|
8/6 |
|
No. of Speeds Forward/Reverse (Since 2012)
|
6-Aug |
|
No. of Speeds Forward/Reverse (Since 2013)
|
8/6 |
|
No. of Speeds Forward/Reverse (2015)
|
8/6 |
|
No. of Speeds Forward/Reverse (2016)
|
8/6 |
|
No. of Speeds Forward/Reverse (2017)
|
8/6 |
|
No. of Speeds Forward/Reverse (2018)
|
8/6 |
|
No. of Speeds Forward/Reverse (2019)
|
8/6 |
|
Operating Weight (Since 2010)
|
31,069 lbs (14,093 kg)
|
|
Operating Weight (Since 2012)
|
31,891 lbs (14,466 kg)
|
|
Operating Weight (Since 2013)
|
31,951 lbs (14,493 kg)
|
|
Operating Weight (2015)
|
31,951 lbs (14,493 kg)
|
|
Operating Weight (2016)
|
31,951 lbs (14,493 kg)
|
|
Operating Weight (2017)
|
31,951 lbs (14,493 kg)
|
|
Operating Weight (2018)
|
31,951 lbs (14,493 kg)
|
|
Operating Weight (2019)
|
31,951 lbs (14,493 kg)
|
|
Rated Engine RPM (Since 2010)
|
2,000 rpm |
|
Rated Engine RPM (2012)
|
2,000 rpm |
|
Rated Engine RPM (2013)
|
2,000 rpm |
|
Rated Engine RPM (2015)
|
2,000 rpm |
|
Rated Engine RPM (2016)
|
2,000 rpm |
|
Rated Engine RPM (2017)
|
2,000 rpm |
|
Rated Engine RPM (2018)
|
2,000 rpm |
|
Rated Engine RPM (2019)
|
2,000 rpm |
|
Reverse (Since 2010)
|
24 mph (38 kph)
|
|
Reverse (2012)
|
24 mph (38 kph)
|
|

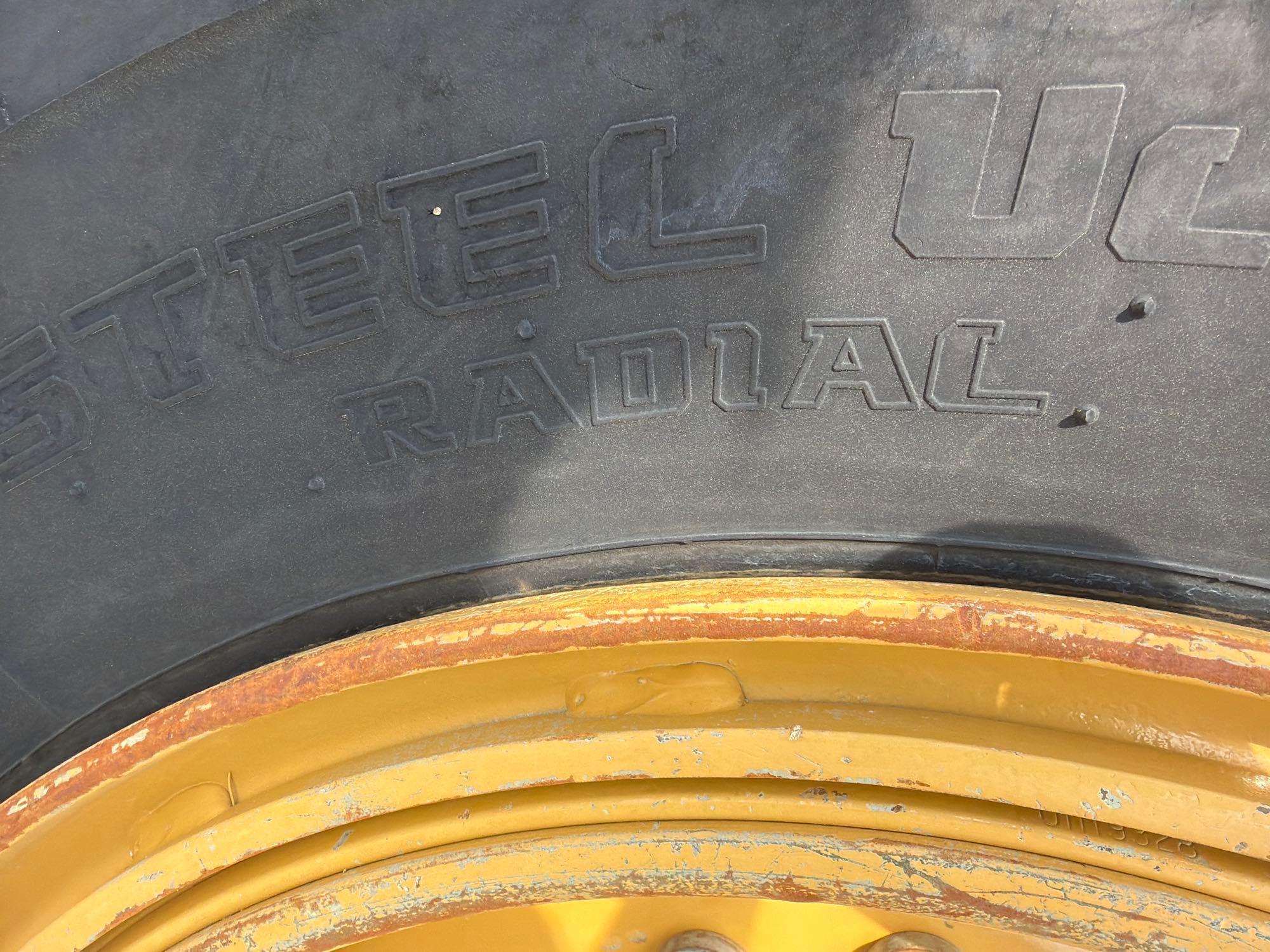

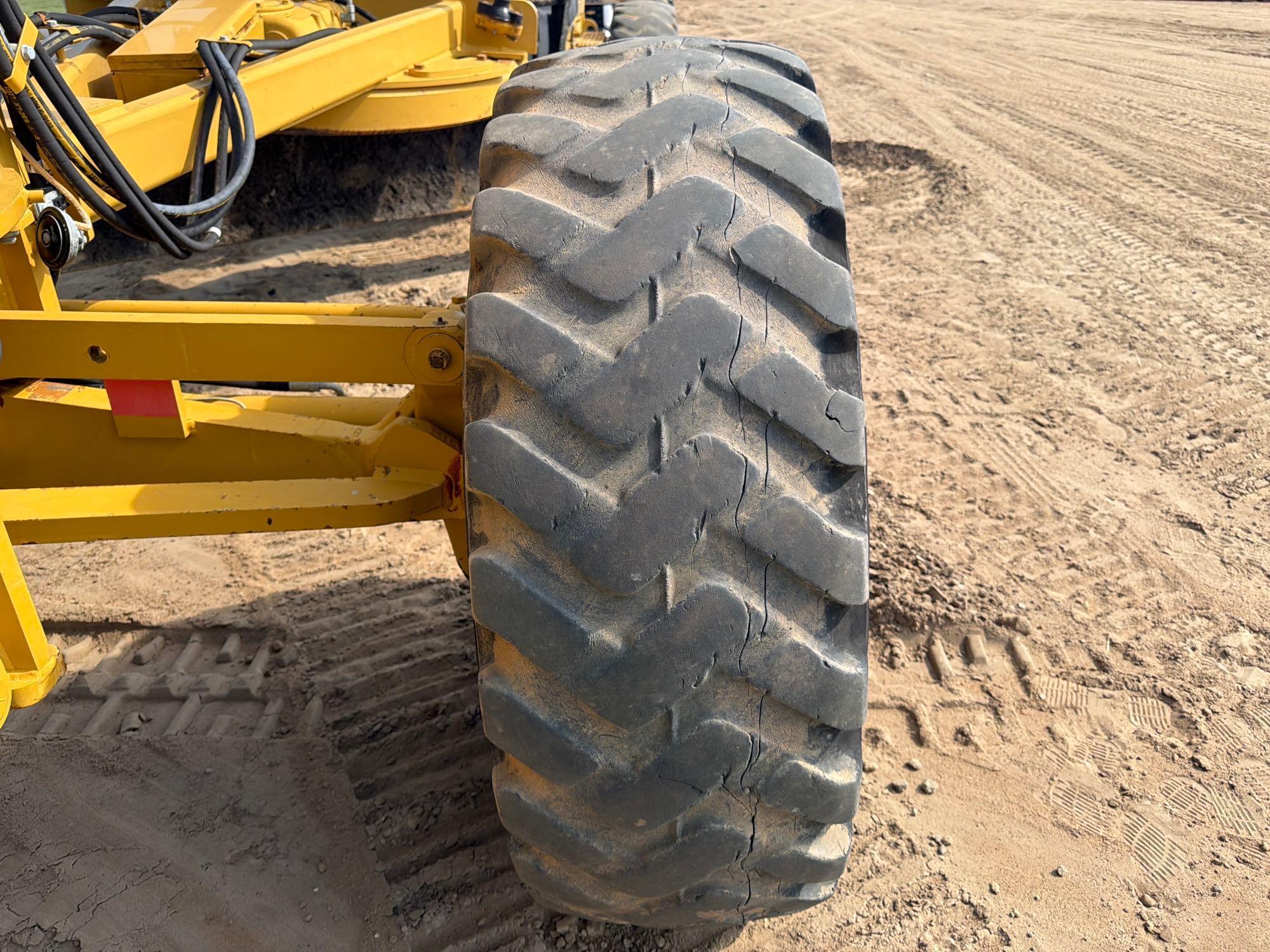

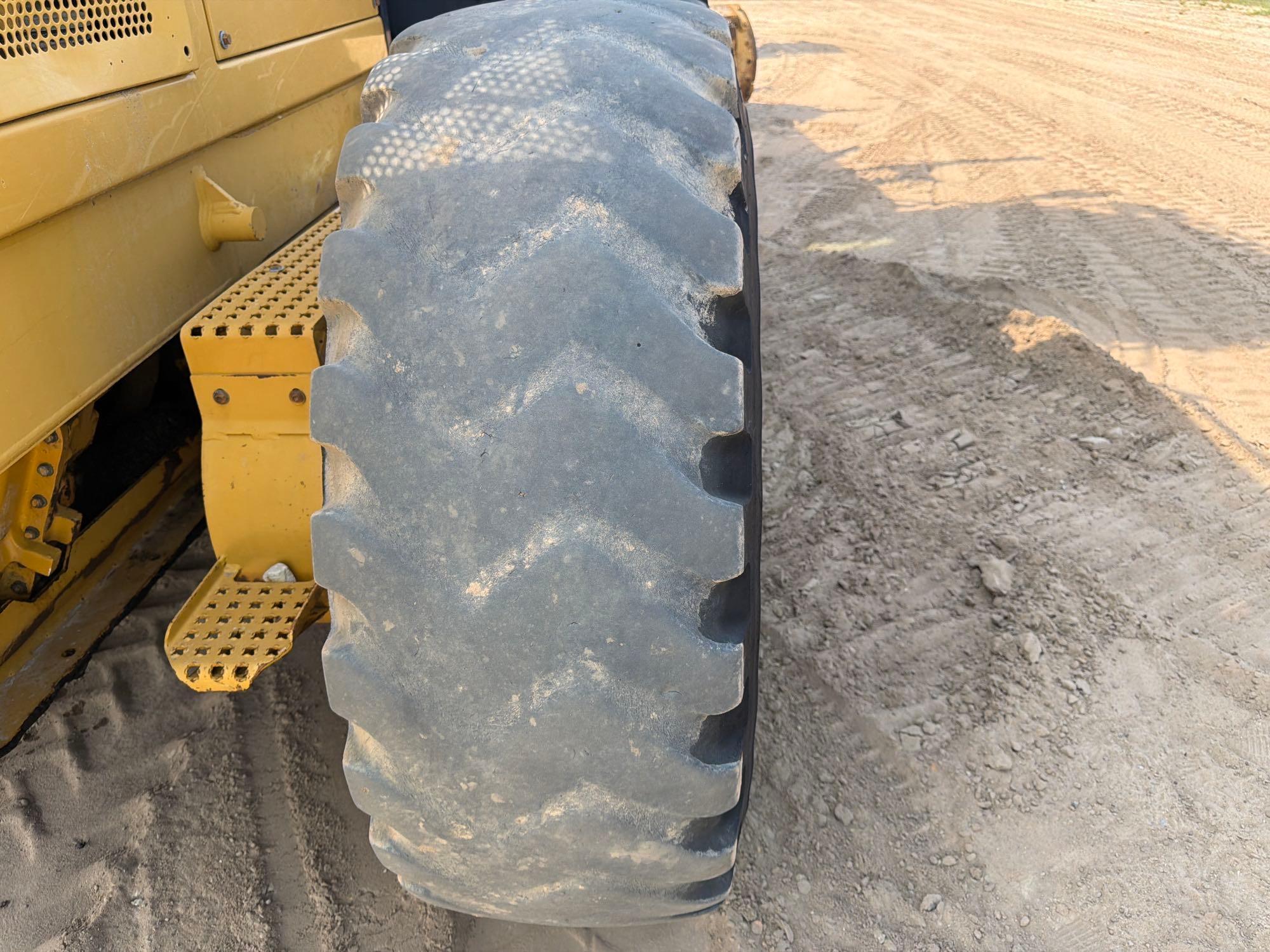

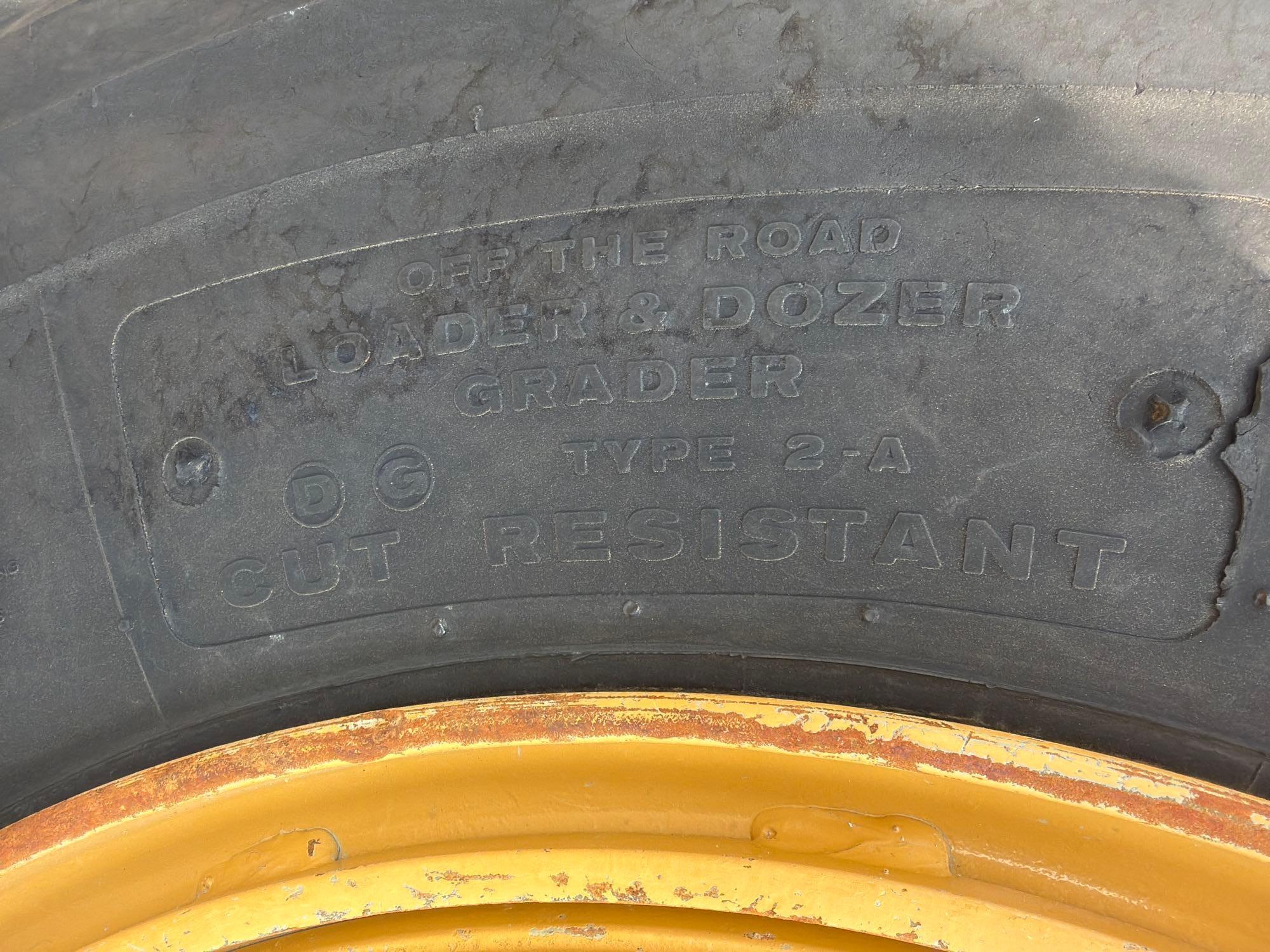

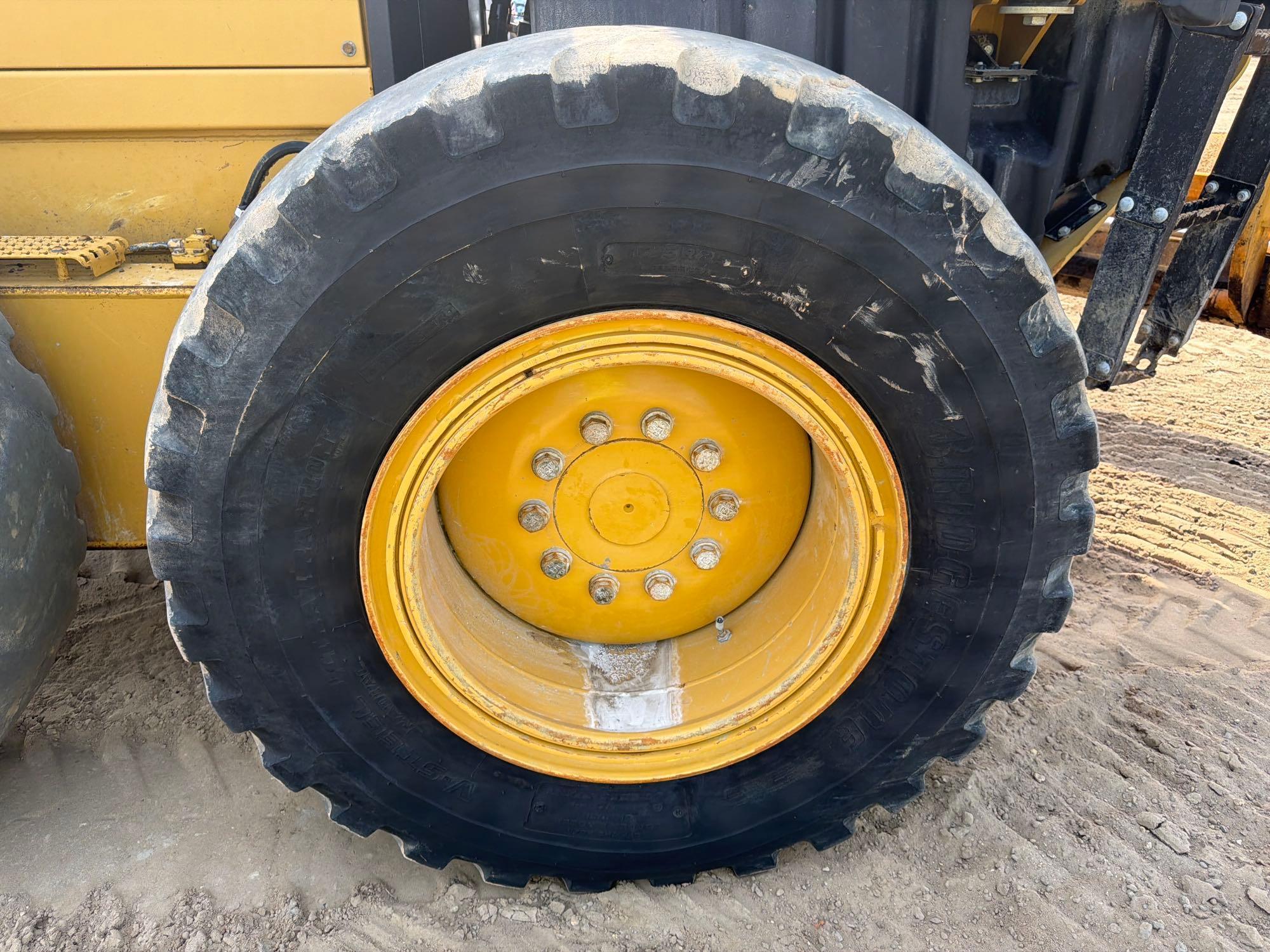

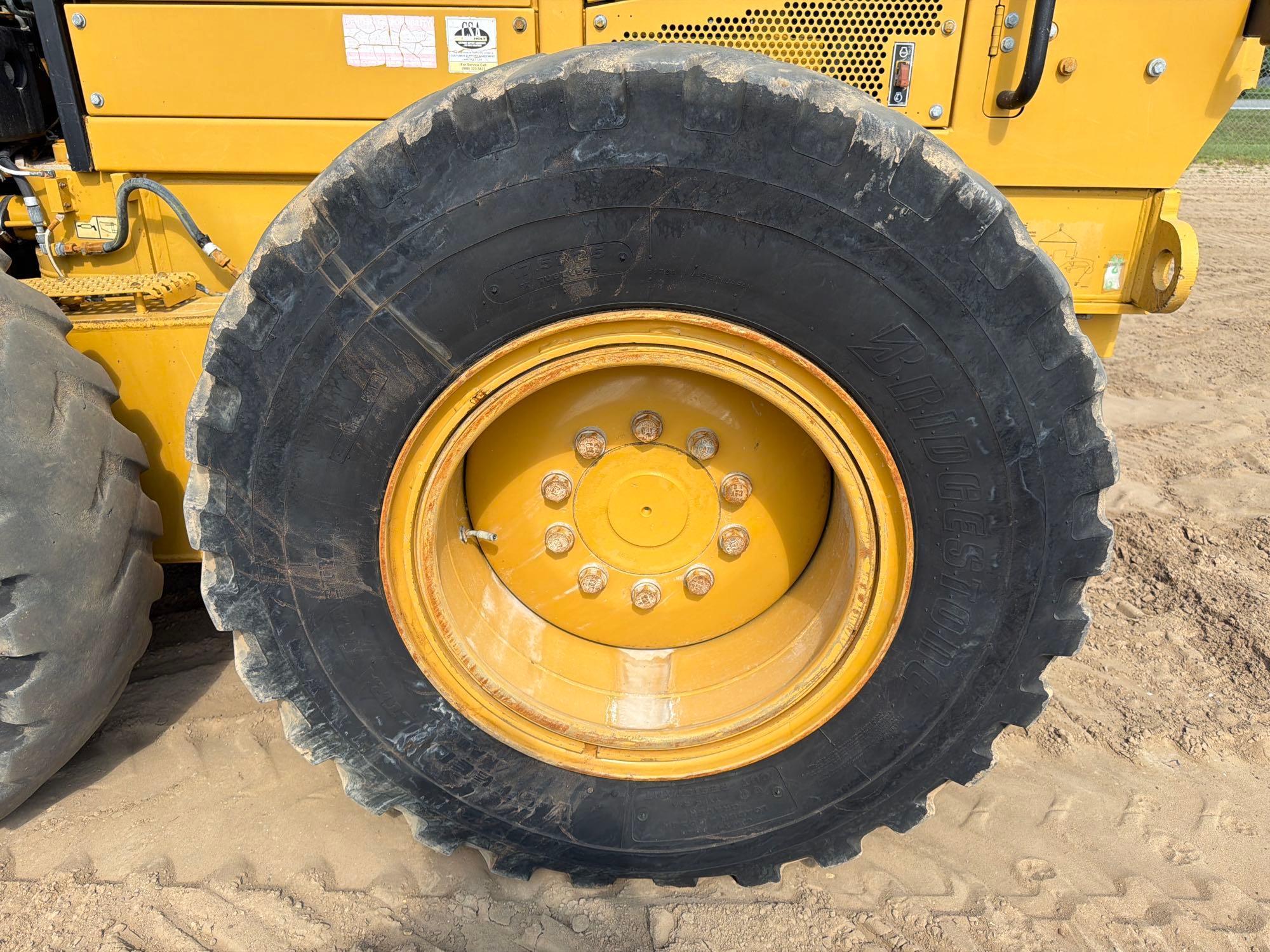

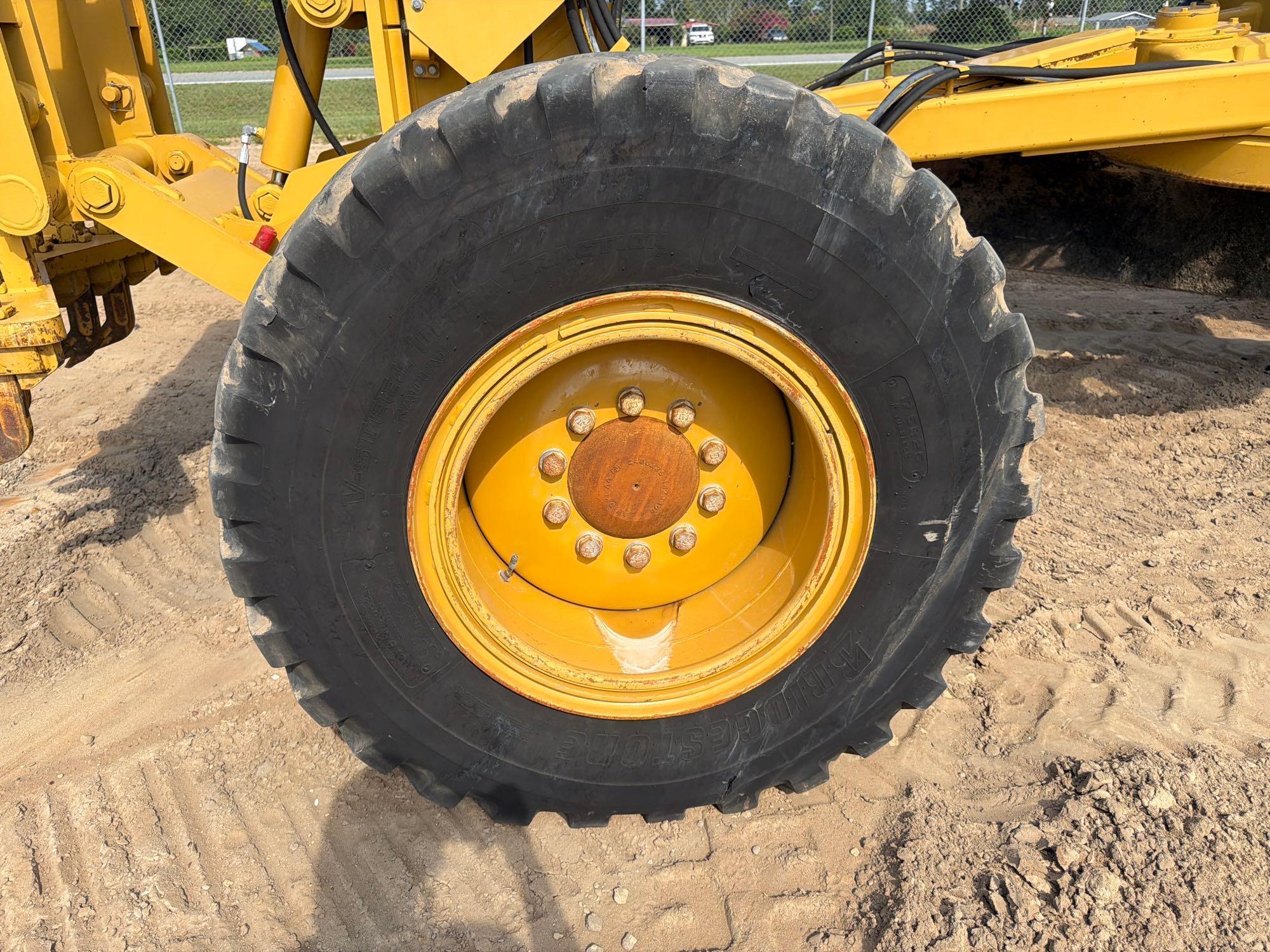

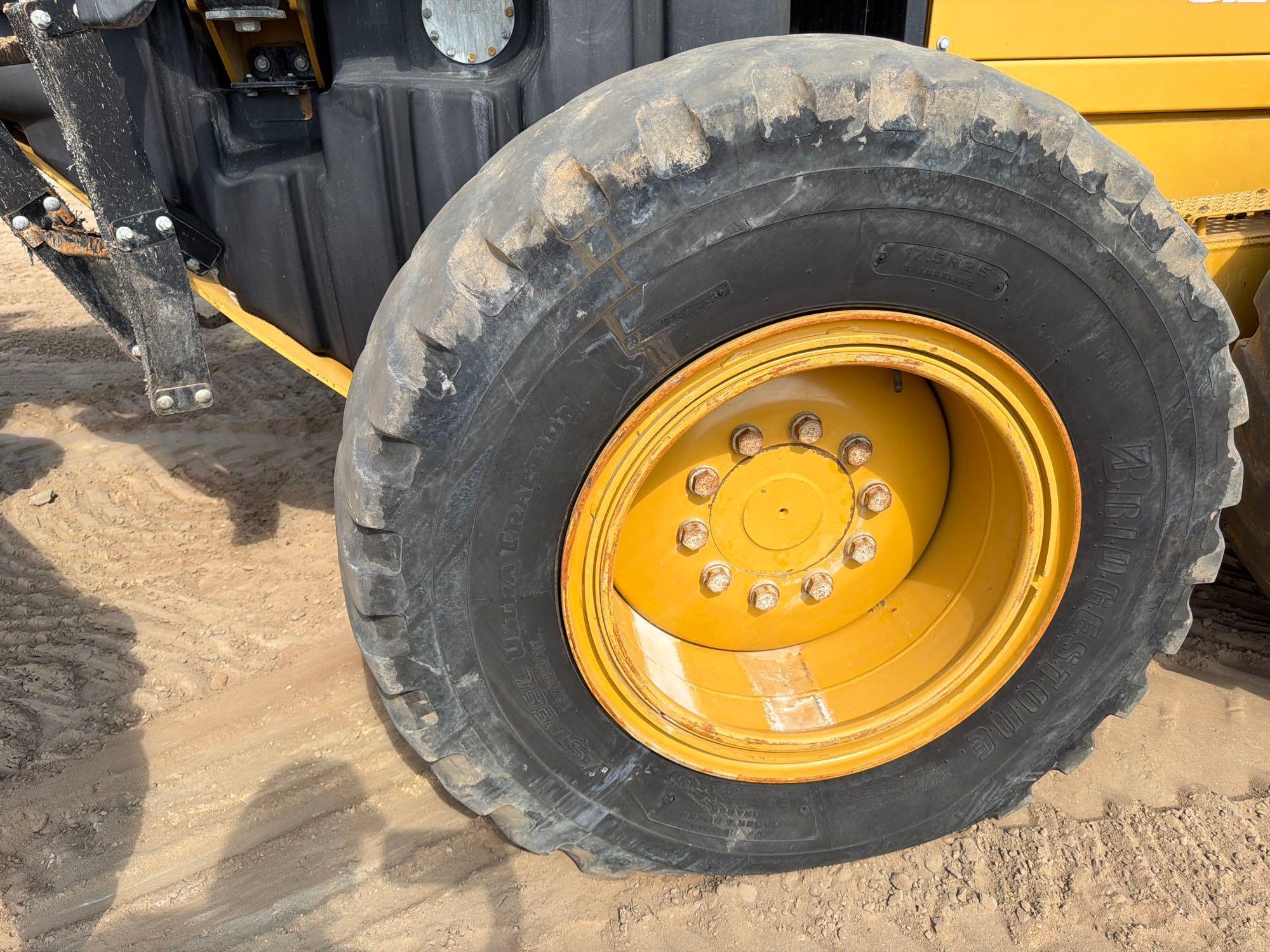

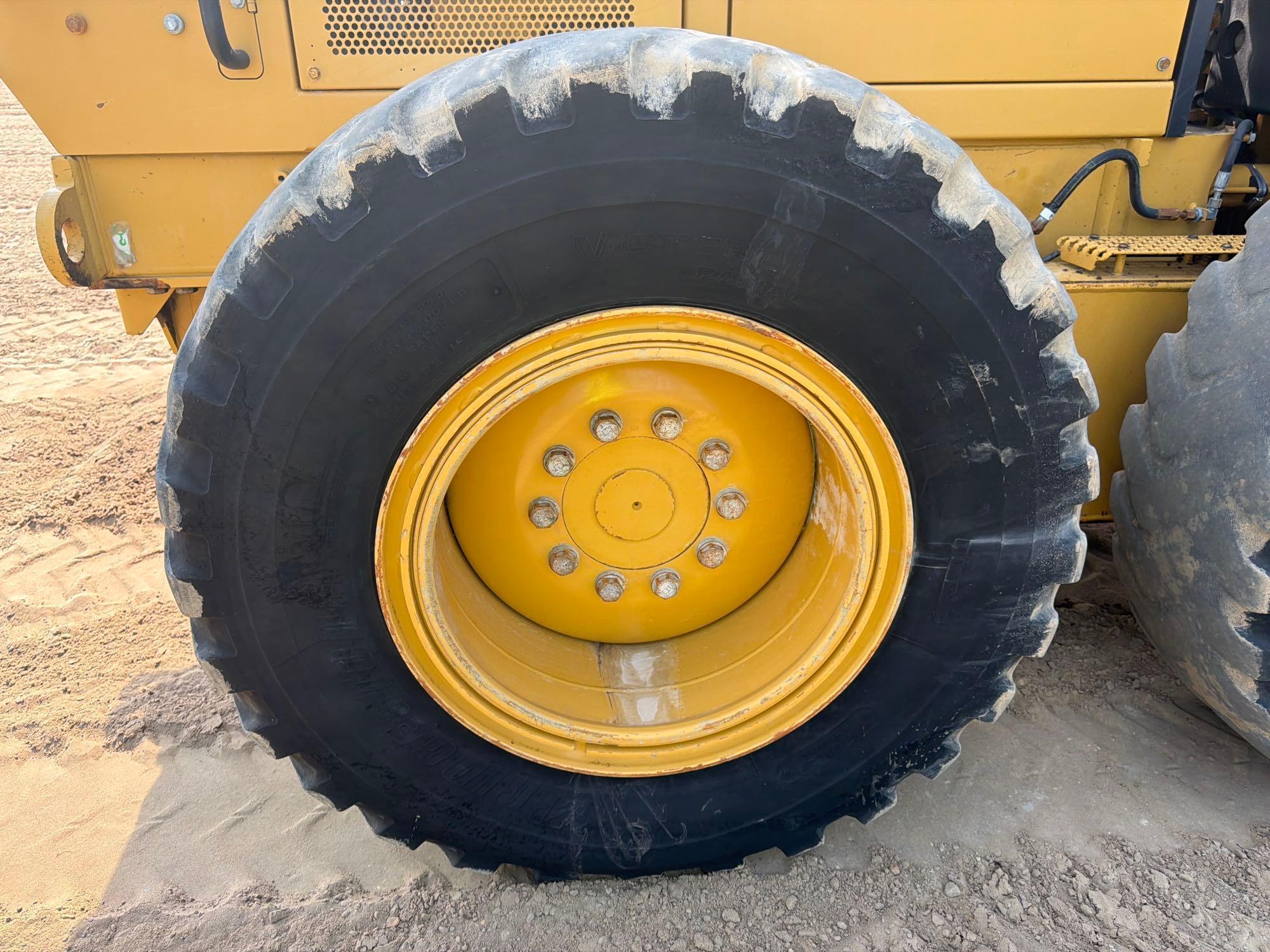

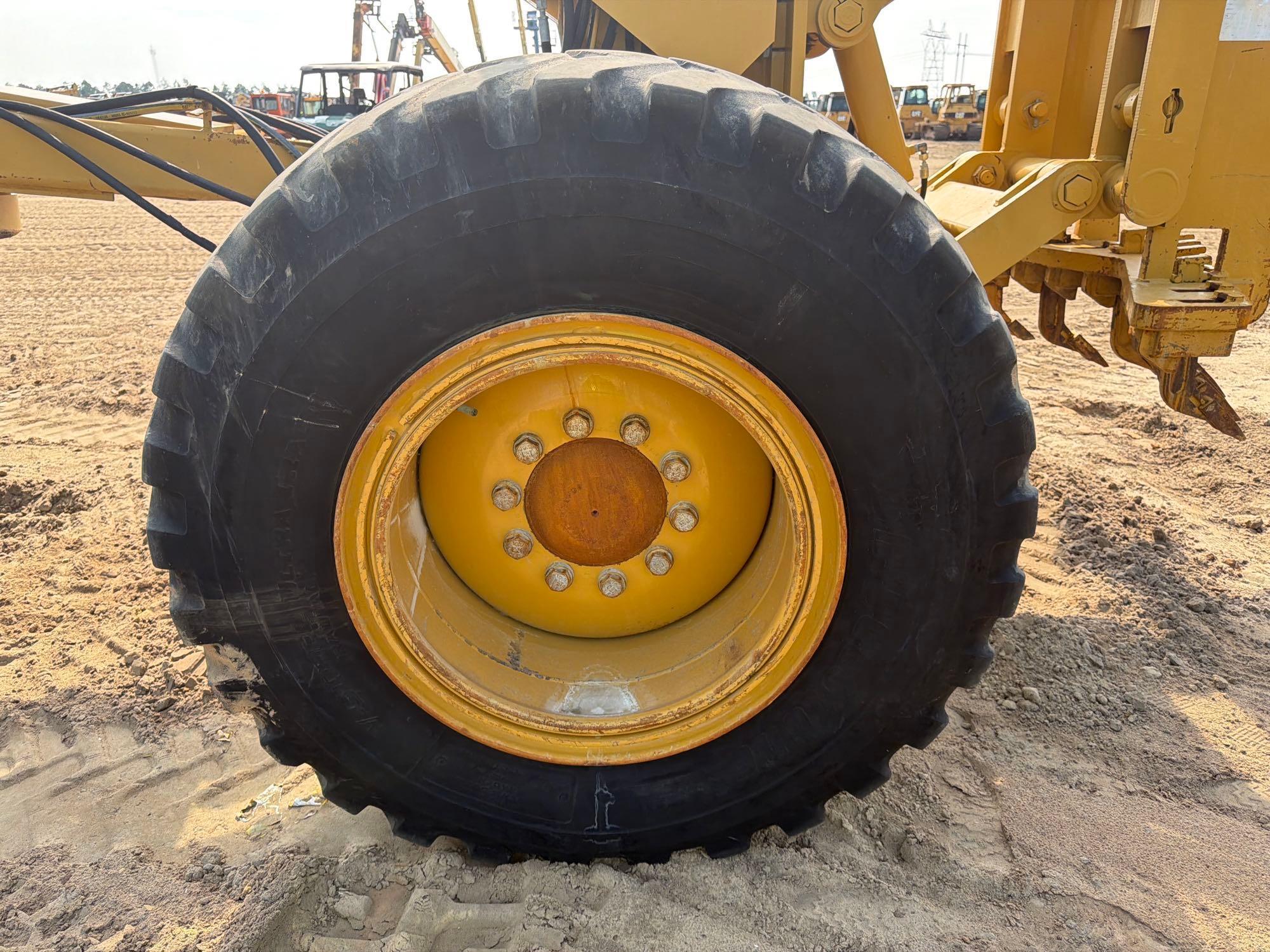

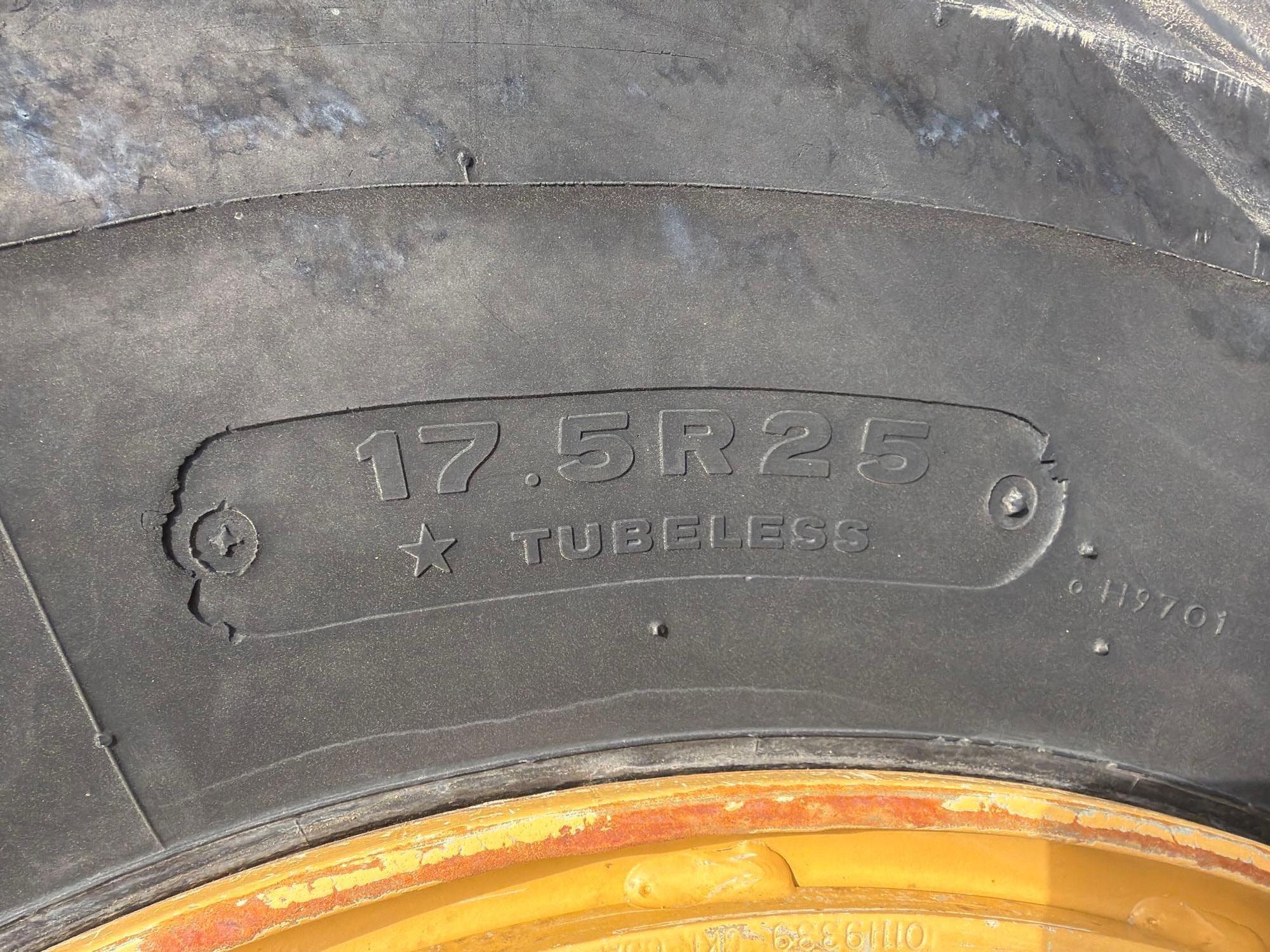

Std. Tires - Front and Rear (Since 2010)
|
13.00 24 (12 PR) (G-2 |
|
Std. Tires - Front and Rear (2012)
|
13.00 24 (12 PR) (G-2 |
|
Std. Tires - Front and Rear (2013)
|
13.00 24 (12 PR) (G-2 |
|
Std. Tires - Front and Rear (Since 2015)
|
14.00 24 (12 PR) (G-2 |
|
Std. Tires - Front and Rear (2016)
|
14.00 24 (12 PR) (G-2 |
|
Std. Tires - Front and Rear (2017)
|
14.00 24 (12 PR) (G-2 |
|
Std. Tires - Front and Rear (2018)
|
14.00 24 (12 PR) (G-2 |
|
Std. Tires - Front and Rear (2019)
|
14.00 24 (12 PR) (G-2 |
|
Top Speed: Forward (Since 2010)
|
28 mph (45 kph)
|
|
Top Speed: Forward (2012)
|
28 mph (45 kph)
|
|
Top Speed: Forward (2013)
|
28 mph (45 kph)
|
|
Top Speed: Forward (Since 2015)
|
30 mph (47 kph)
|
|
Top Speed: Forward (2016)
|
30 mph (47 kph)
|
|
Top Speed: Forward (2017)
|
30 mph (47 kph)
|
|
Top Speed: Forward (2018)
|
30 mph (47 kph)
|
|
Top Speed: Forward (2019)
|
30 mph (47 kph)
|
|
Top Speed: Reverse (Since 2013)
|
24 mph (38 kph)
|
|
Top Speed: Reverse (Since 2015)
|
23 mph (38 kph)
|
|
Top Speed: Reverse (2016)
|
23 mph (38 kph)
|
|
Top Speed: Reverse (2017)
|
23 mph (38 kph)
|
|
Top Speed: Reverse (2018)
|
23 mph (38 kph)
|
|
Top Speed: Reverse (2019)
|
23 mph (38 kph)
|
|
VHP Plus Range - Net (Since 2010)
|
138 - 173 hp (103 - 129 kw)
|
|
VHP Plus Range - Net (Since 2012)
|
138 - 182 hp (103 - 136 kw)
|
|
VHP Plus Range - Net (2013)
|
138 - 182 hp (103 - 136 kw)
|
|
VHP Plus Range - Net (2015)
|
138 - 182 hp (103 - 136 kw)
|
|
VHP Plus Range - Net (2016)
|
138 - 182 hp (103 - 136 kw)
|
|
VHP Plus Range - Net (2017)
|
138 - 182 hp (103 - 136 kw)
|
|
VHP Plus Range - Net (2018)
|
138 - 182 hp (103 - 136 kw)
|
|
VHP Plus Range - Net (2019)
|
138 - 182 hp (103 - 136 kw)
|
|
VHP Range - Net (Since 2010)
|
138 - 153 hp (103 - 114 kw)
|
|
VHP Range - Net (2012)
|
138 - 153 hp (103 - 114 kw)
|
|
VHP Range - Net (2013)
|
138 - 153 hp (103 - 114 kw)
|
|
VHP Range - Net (2015)
|
138 - 153 hp (103 - 114 kw)
|
|
VHP Range - Net (2016)
|
138 - 153 hp (103 - 114 kw)
|
|
VHP Range - Net (2017)
|
138 - 153 hp (103 - 114 kw)
|
|
VHP Range - Net (2018)
|
138 - 153 hp (103 - 114 kw)
|
|
VHP Range - Net (2019)
|
138 - 153 hp (103 - 114 kw)
|

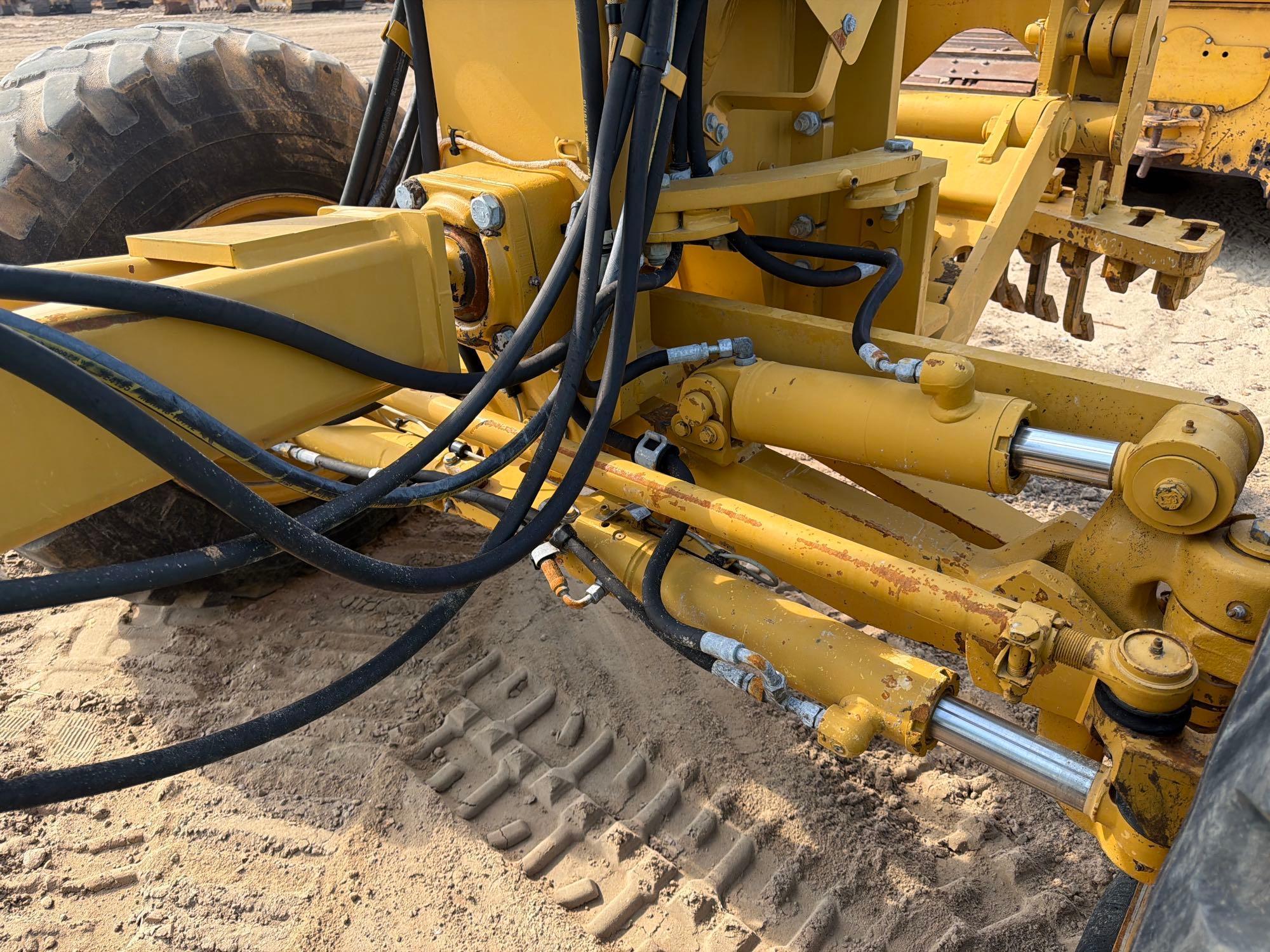

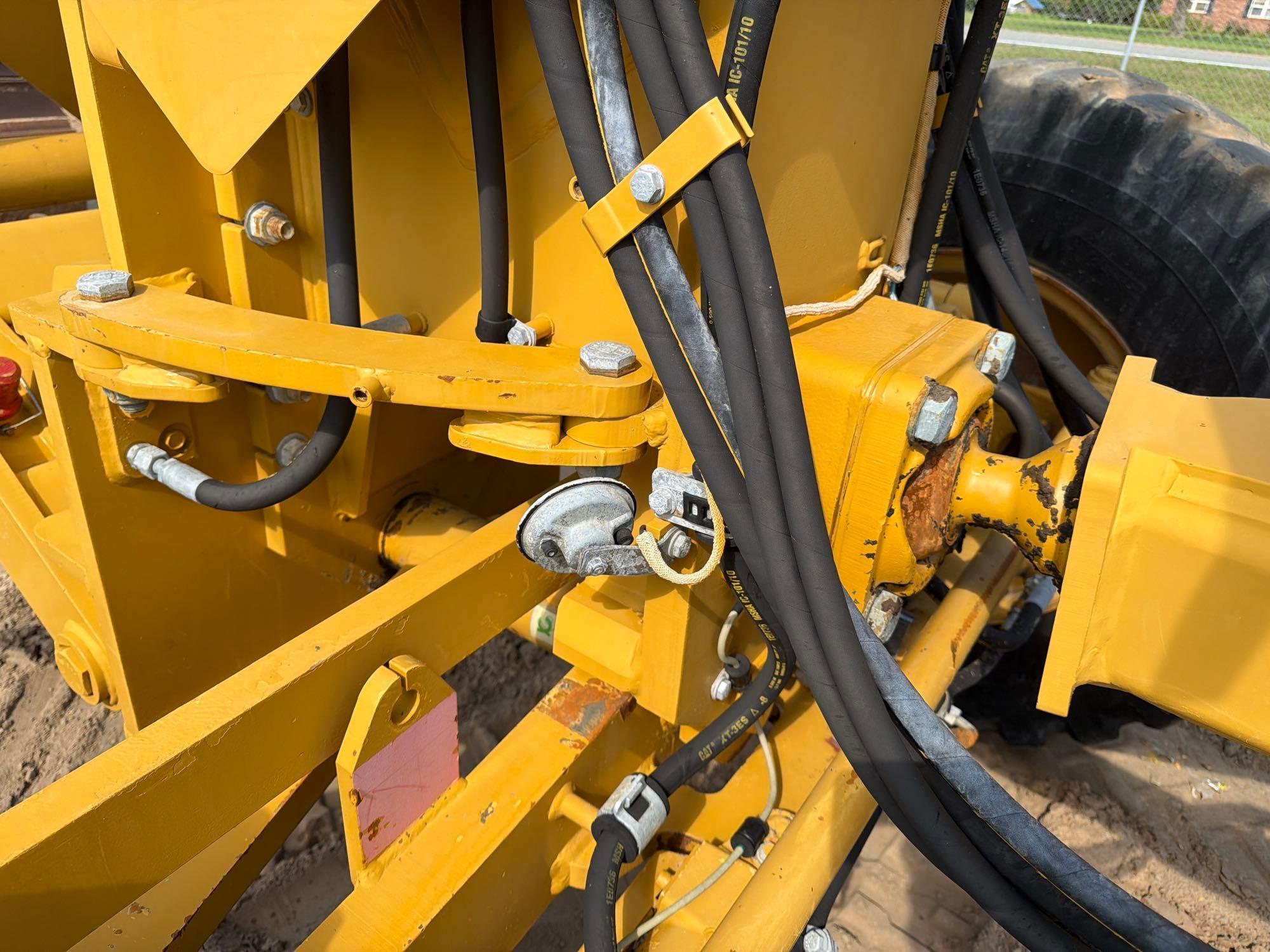

| Hydraulic System |
|
Circuit Type |
Electro-hydraulic load sensing, closed center |
|
Maximum System Pressure |
3,500 psi |
|
Pump Flow |
40 gpm (151 lpm)
|
|
Pump Output |
40 gpm (151 lpm)
|
|
Pump Type |
Variable piston |
|
Relief Valve Pressure |
3,500 psi |
|
Standby Pressure |
450 psi |

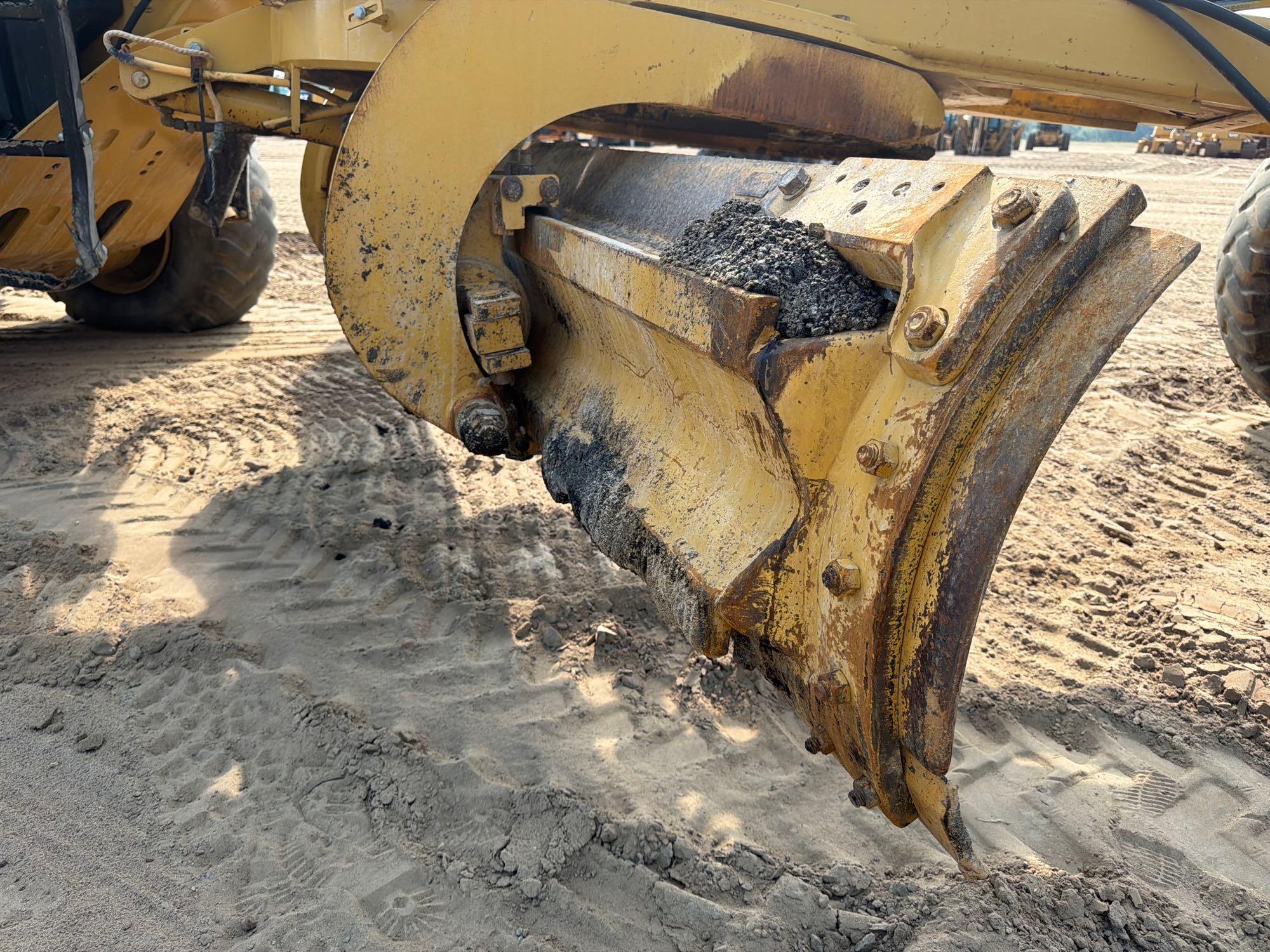

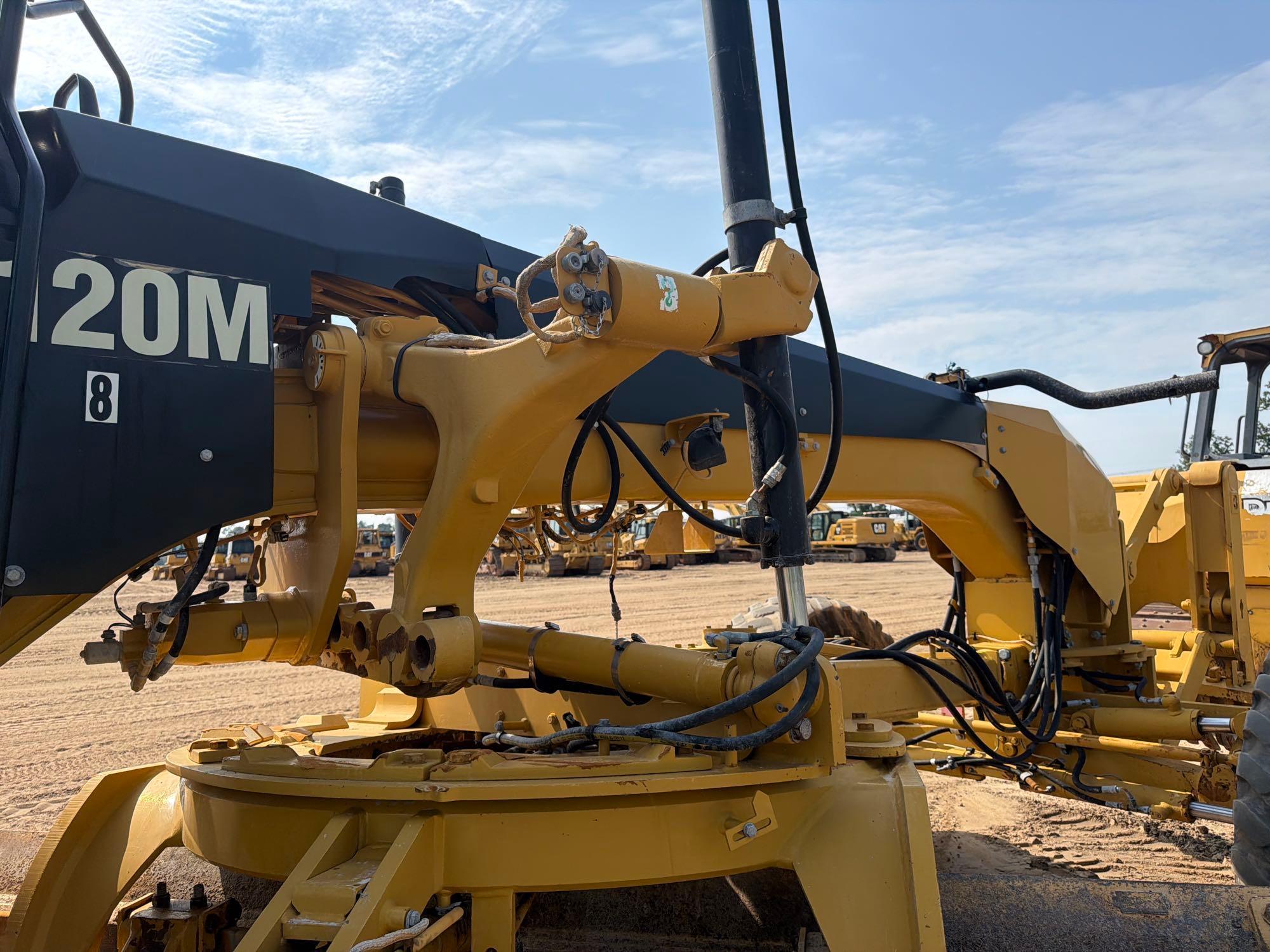

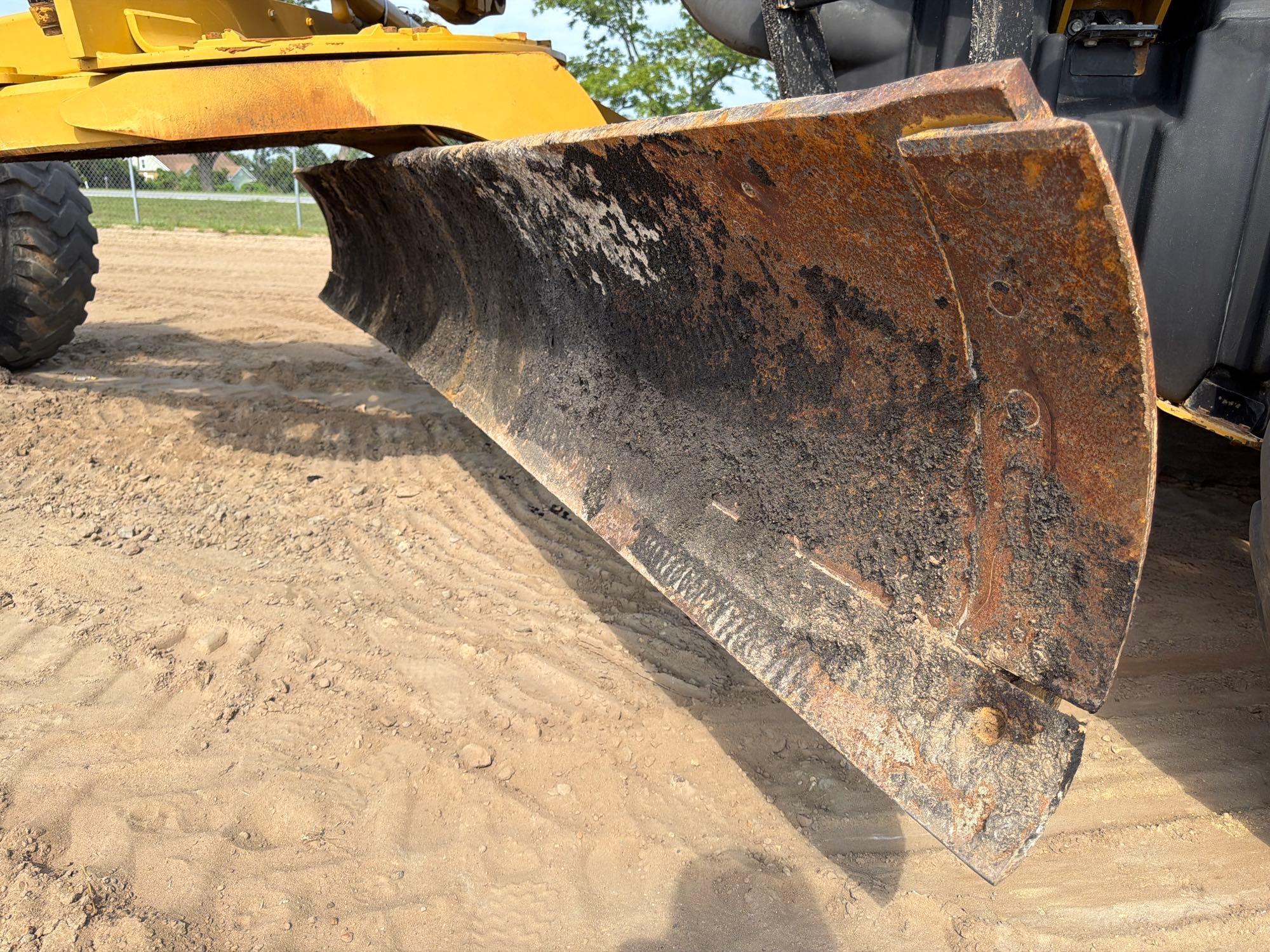

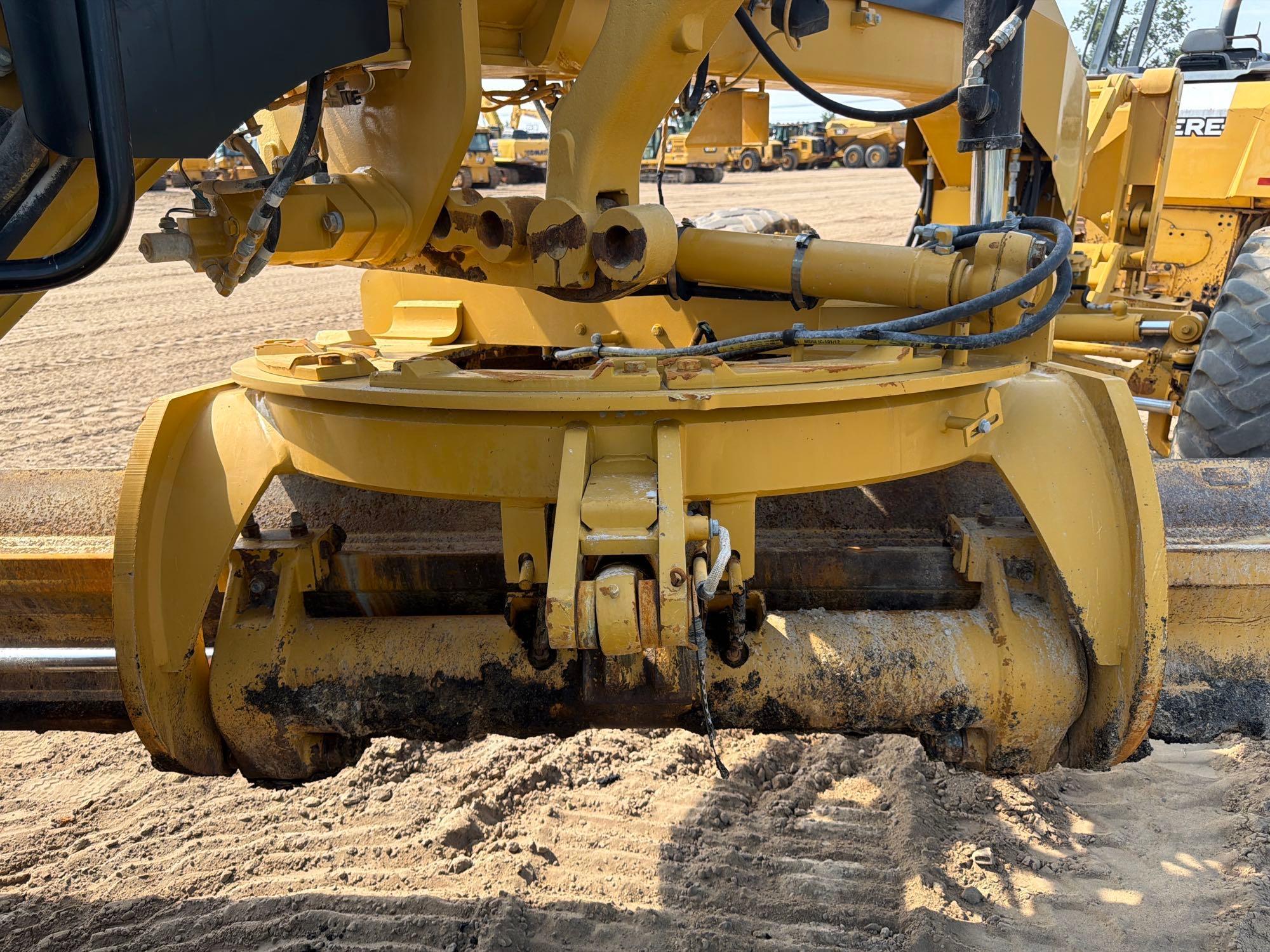

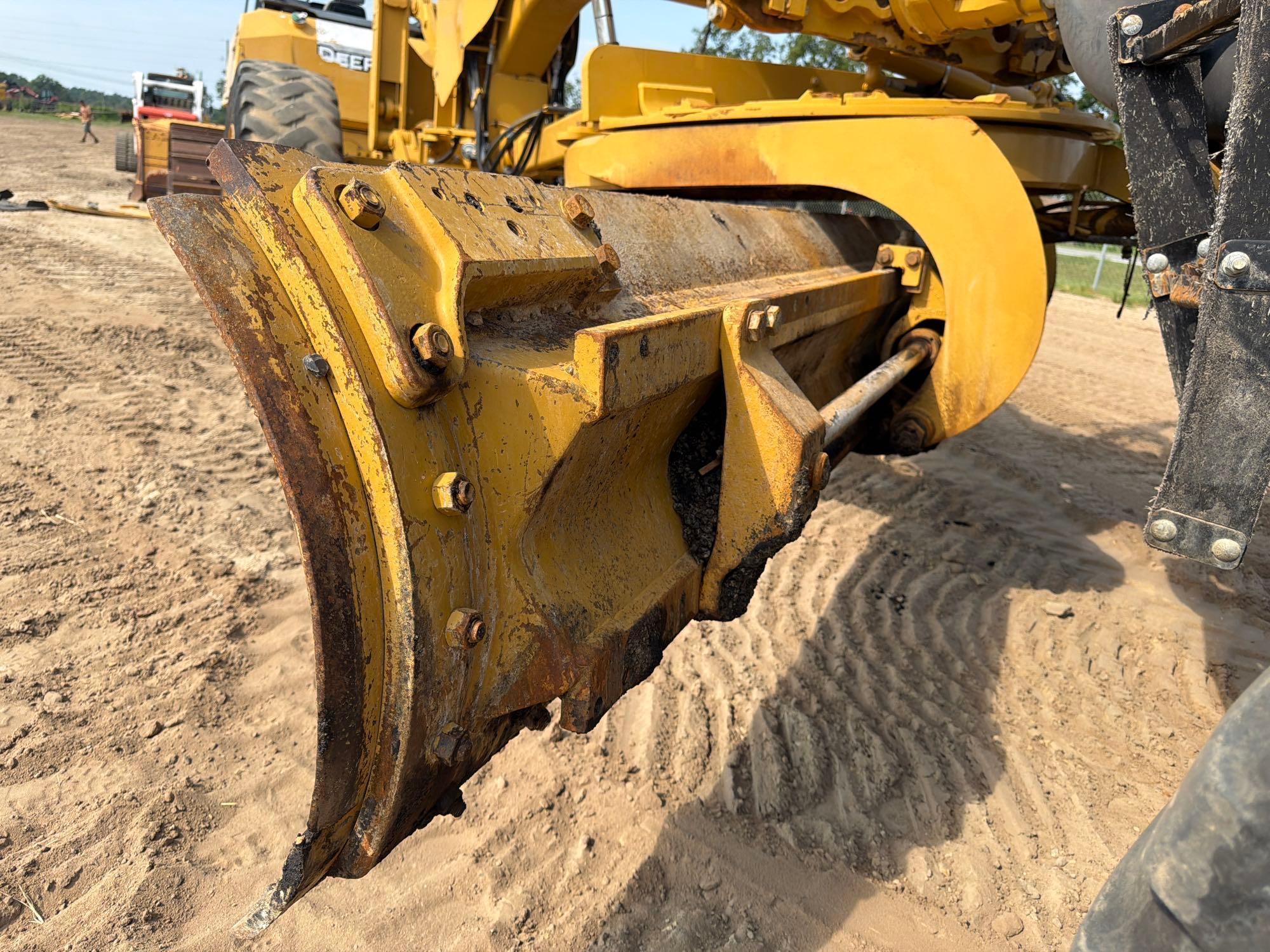

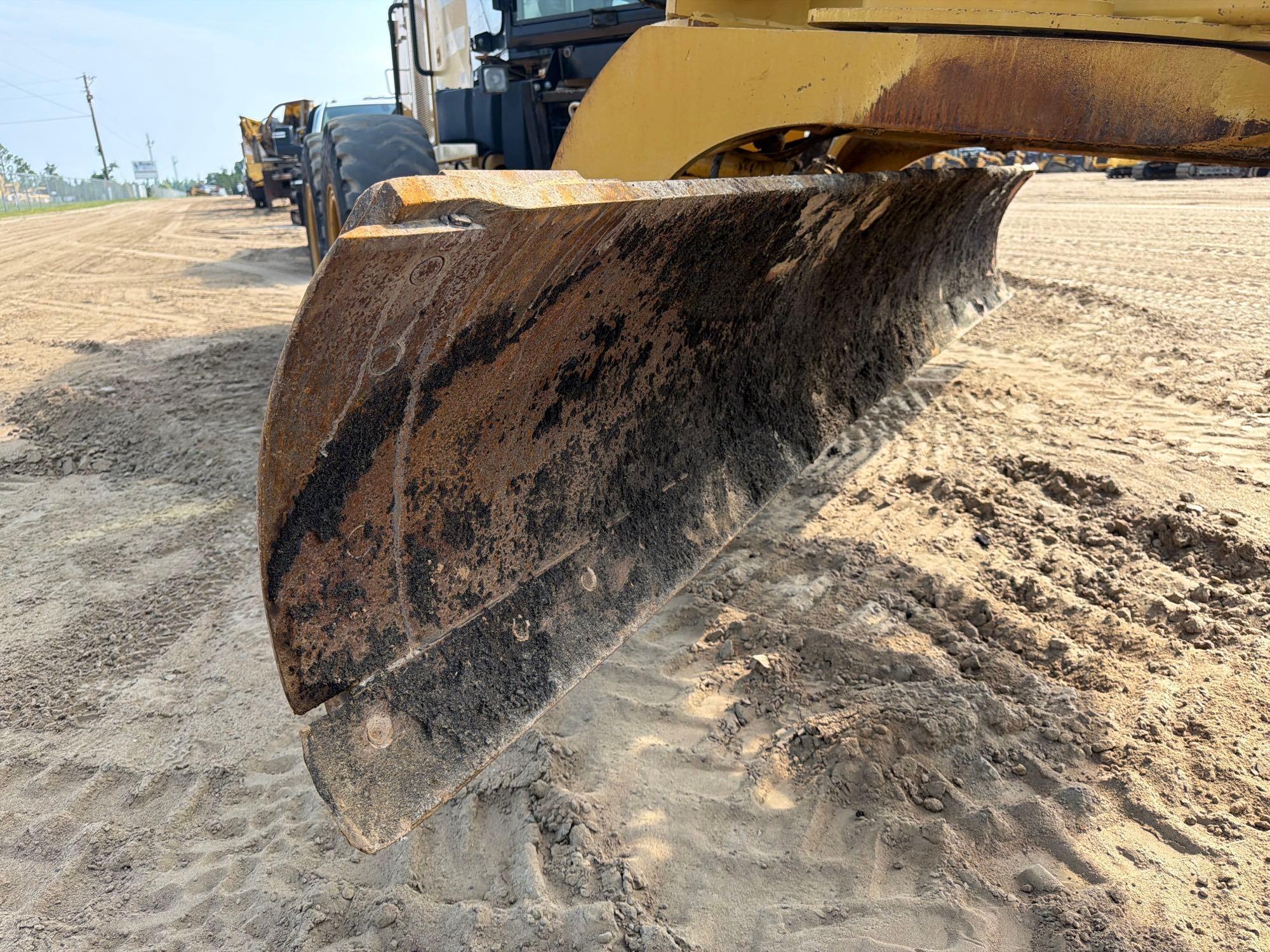

| Moldboard |
|
Arc Radius |
16 in (41 cm)
|
|
Blade Down Pressure |
28,887 lbs (13,103 kg)
|
|
Blade Down Pressure - Base Gvw |
16,435 lbs (7,455 kg)
|
|
Blade Down Pressure - Maximum Gvw |
29,125 lbs (13,211 kg)
|
|
Blade Pull - Base Gvw |
20,350 lbs (9,231 kg)
|
|
Blade Pull - Maximum Gvw |
24,218 lbs (10,985 kg)
|
|
Blade Pull At Max Weight |
40,221 lbs (18,244 kg)
|
|
Blade Width |
12 ft (4 m)
|
|
Cutting Edge Thickness |
1 in (2 cm)
|
|
Cutting Edge Width |
6 in (15 cm)
|
|
End Bit - Thickness |
1 in (2 cm)
|
|
End Bit - Width |
6 in (15 cm)
|
|
Max Depth Of Cut |
28 in (72 cm)
|
|
Moldboard - Height |
24 in (61 cm)
|
|
Moldboard - Thickness |
1 in (2 cm)
|
|
Moldboard - Width |
12 ft (4 m)
|
|
Moldboard Height |
24 in (61 cm)
|
|
Moldboard Thickness |
1 in (2 cm)
|
|
Moldboard Width |
12 ft (4 m)
|
|
Side Shift Left |
20 in (51 cm)
|
|
Side Shift Right |
26 in (66 cm)
|
|
Throat Clearance |
5 in (13 cm)
|

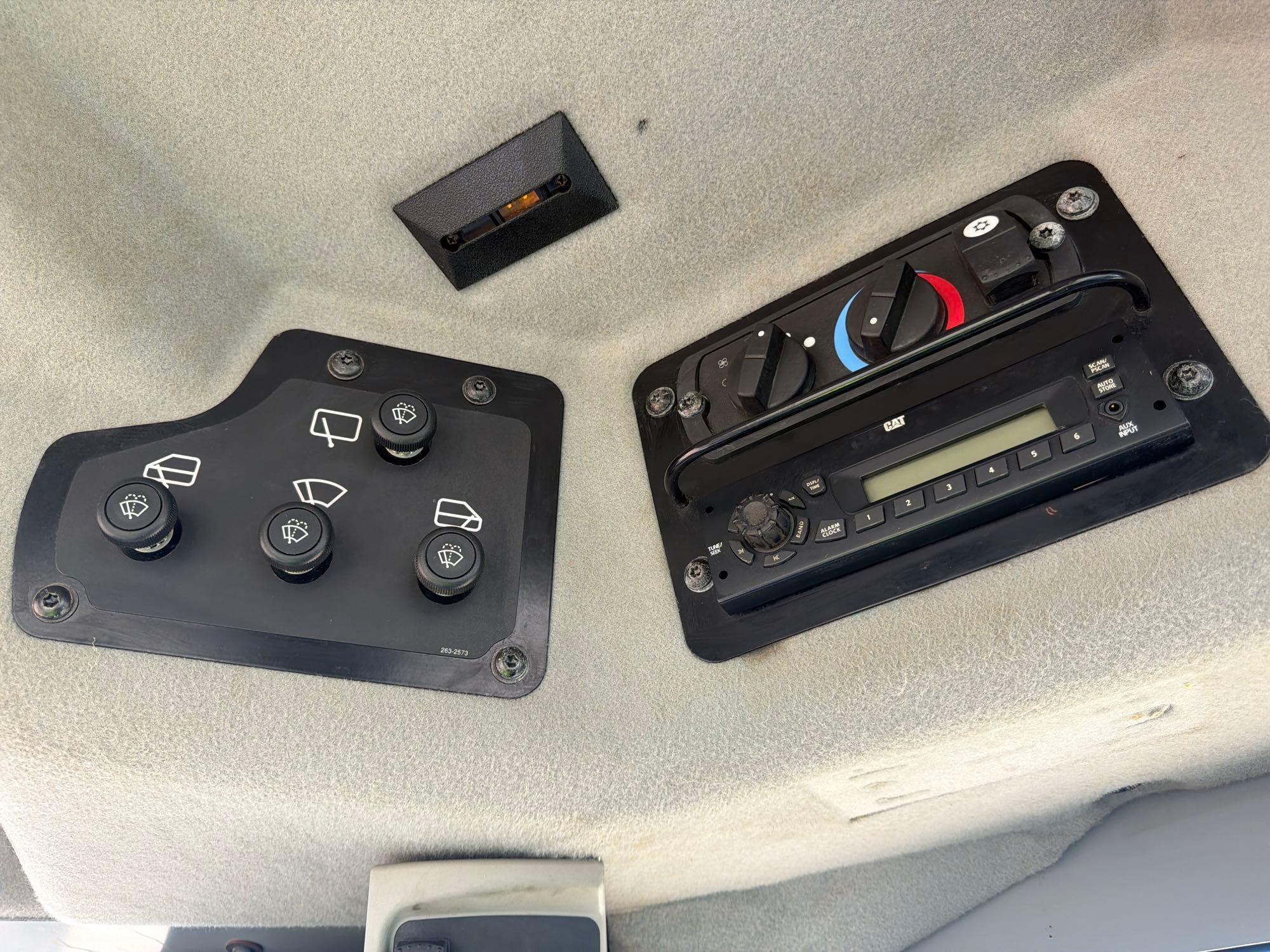

| Operating Specifications |
|
Articulation Angle - Left/Right |
20 degrees |
|
Forward - 1st |
2 mph (4 kph)
|
|
Forward - 2nd |
3 mph (5 kph)
|
|
Forward - 3rd |
5 mph (8 kph)
|
|
Forward - 4th |
7 mph (10 kph)
|
|
Forward - 5th |
10 mph (16 kph)
|
|
Forward - 6th |
14 mph (22 kph)
|
|
Forward - 7th |
19 mph (31 kph)
|
|
Forward - 8th |
28 mph (45 kph)
|
|
Reverse - 1st |
2 mph (3 kph)
|
|
Reverse - 2nd |
4 mph (6 kph)
|
|
Reverse - 3rd |
6 mph (9 kph)
|
|
Reverse - 4th |
9 mph (14 kph)
|
|
Reverse - 5th |
16 mph (26 kph)
|
|
Reverse - 6th |
24 mph (38 kph)
|
|
Steering Range - Left/Right |
48 degrees |
|
Top Speed - Forward |
28 mph (45 kph)
|
|
Top Speed - Reverse |
24 mph (38 kph)
|
|
Turning Radius - Outside Front Tires |
25 ft (7 m)
|

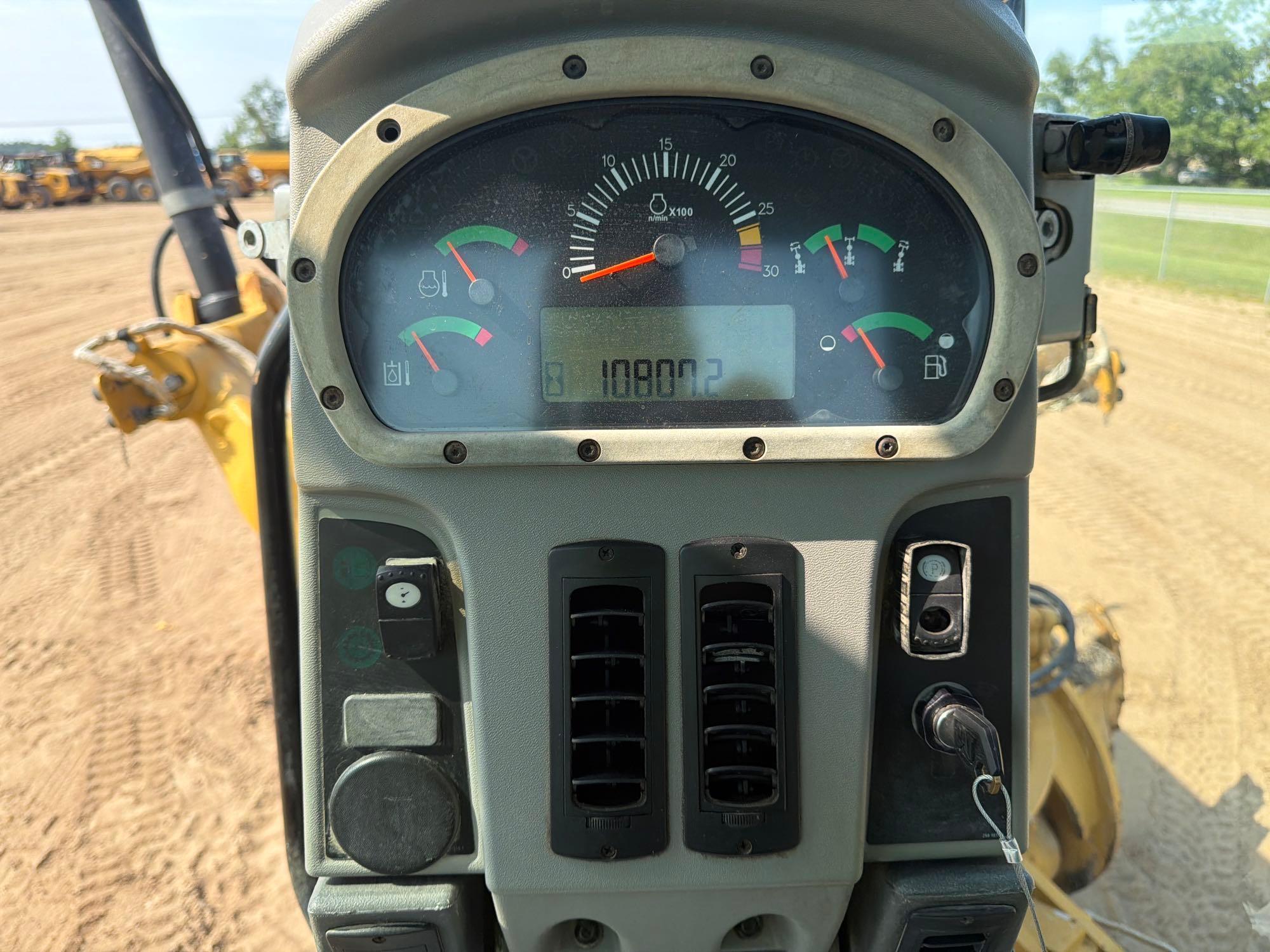

| Operational |
|
Circle Gearbox Fluid Capacity |
2 gal (7 l)
|
|
Cooling System Fluid Capacity |
10 gal (39 l)
|
|
Fuel Capacity |
90 gal (341 l)
|
|
Hydraulic System Fluid Capacity |
16 gal (60 l)
|
|
Max Operation Weight - Front Axle |
16,312 lbs (7,399 kg)
|
|
Max Operation Weight - Rear Axle |
28,378 lbs (12,872 kg)
|
|
Max Operation Weight - Total |
44,690 lbs (20,271 kg)
|
|
Rear Diff/Final Drive Fluid Capacity |
13 gal (50 l)
|
|
Std Operation Weight - Front Axle |
8,233 lbs (3,734 kg)
|
|
Std Operation Weight - Rear Axle |
22,836 lbs (10,358 kg)
|
|
Std Operation Weight - Total |
31,069 lbs (14,093 kg)
|
|
Tandem Case Fluid Capacity (Each) |
17 gal (64 l)
|

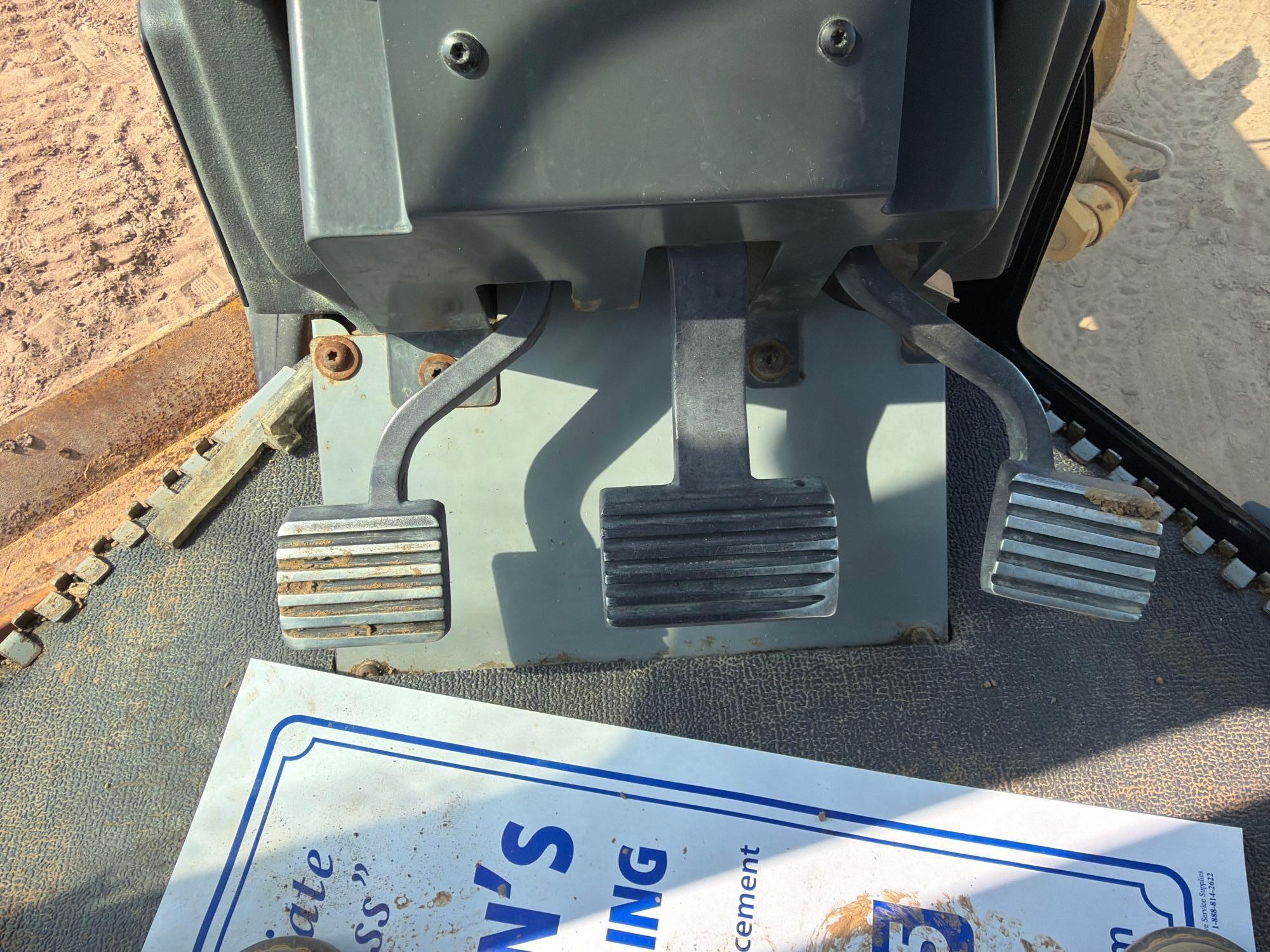

| Power Train |
|
Brakes - Parking |
Multiple oil disc |
|
Brakes - Secondary |
Dual circuit control system |
|
Brakes - Service |
Multiple oil-disc |
|
Brakes - Service - Surface Area |
3565 in2 |
|
Forward/Reverse Gears |
8 Fwd / 6 Rev |
|
Transmission |
Direct drive, power shift, countershaft |

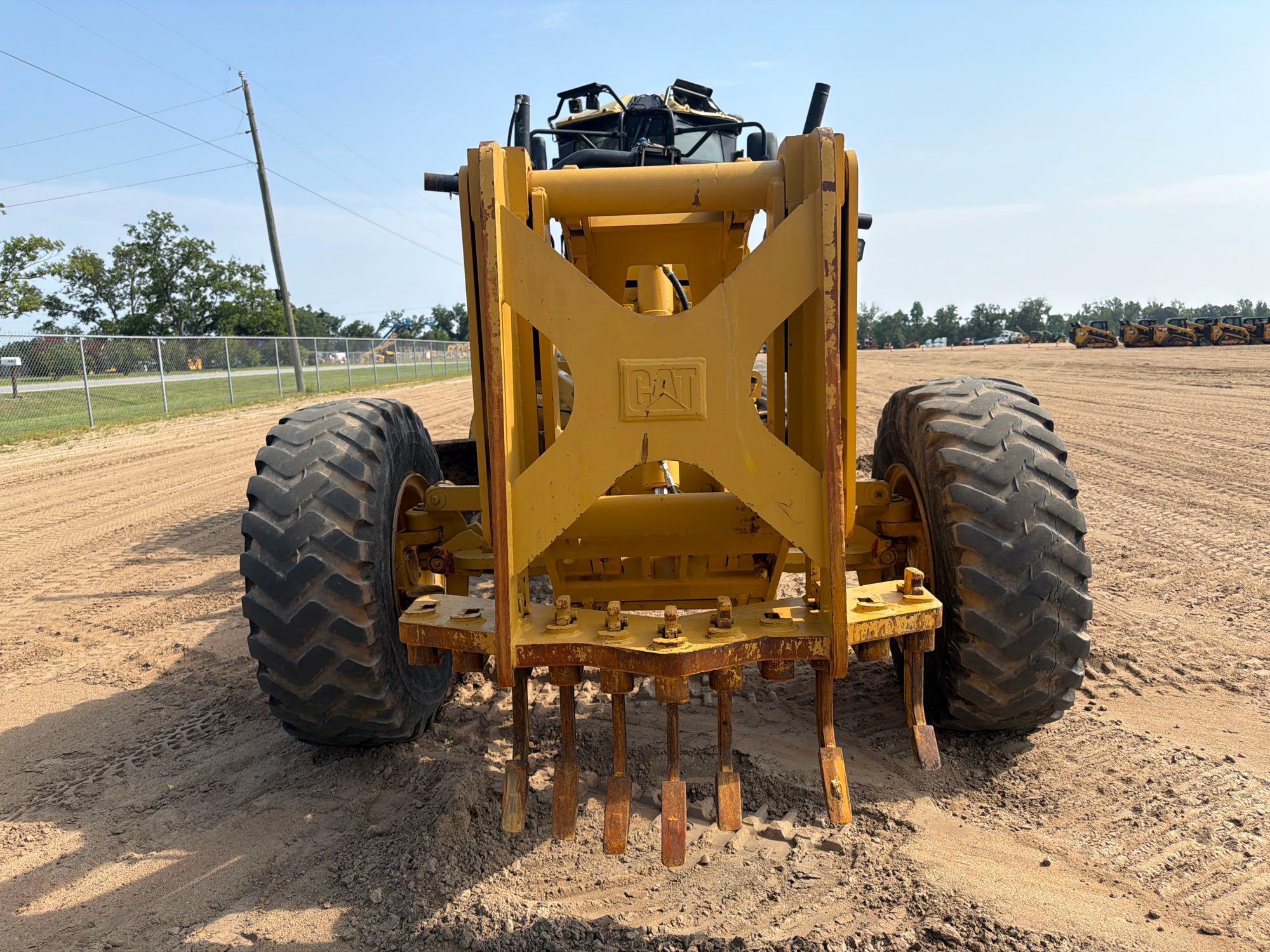

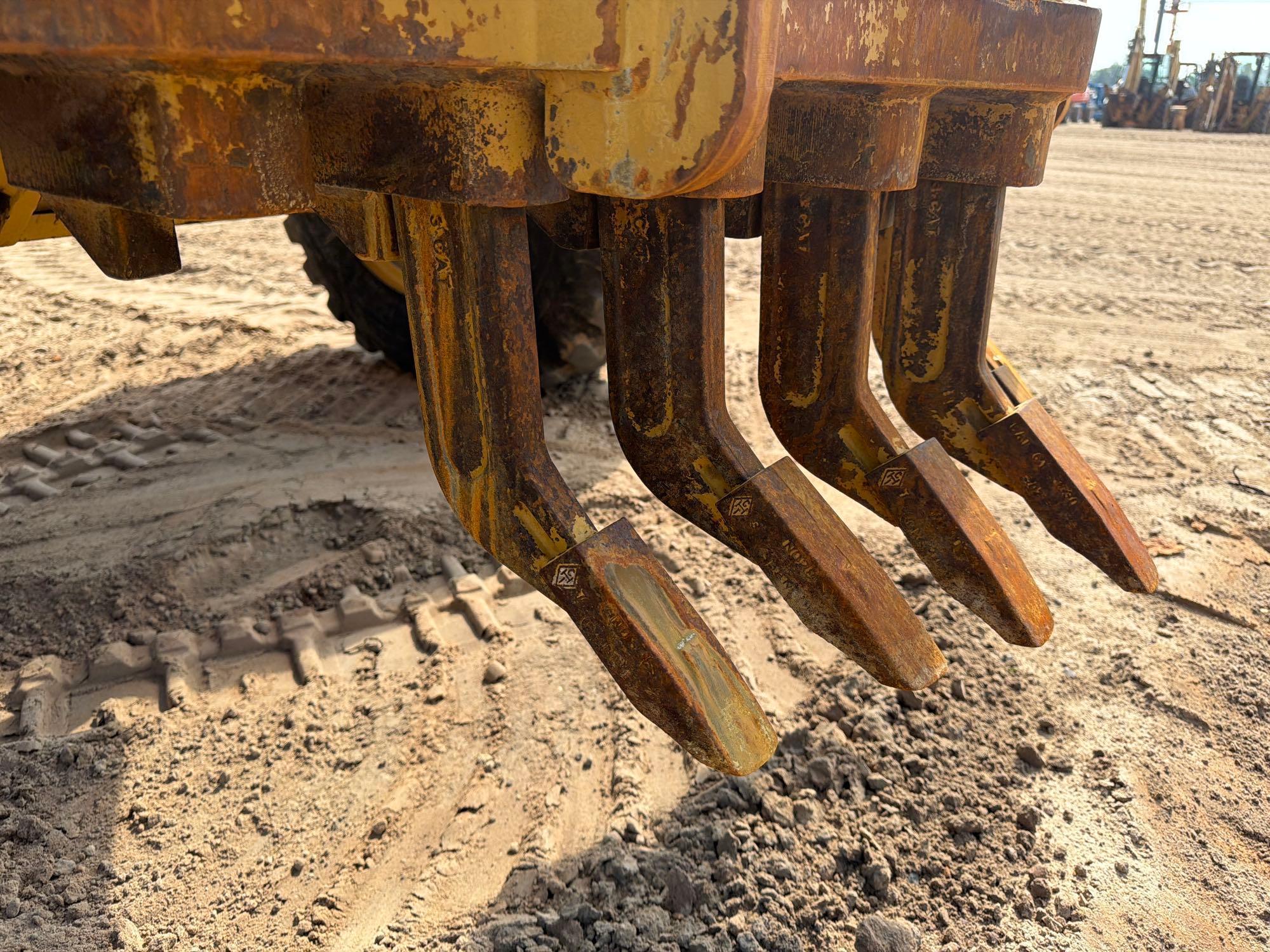

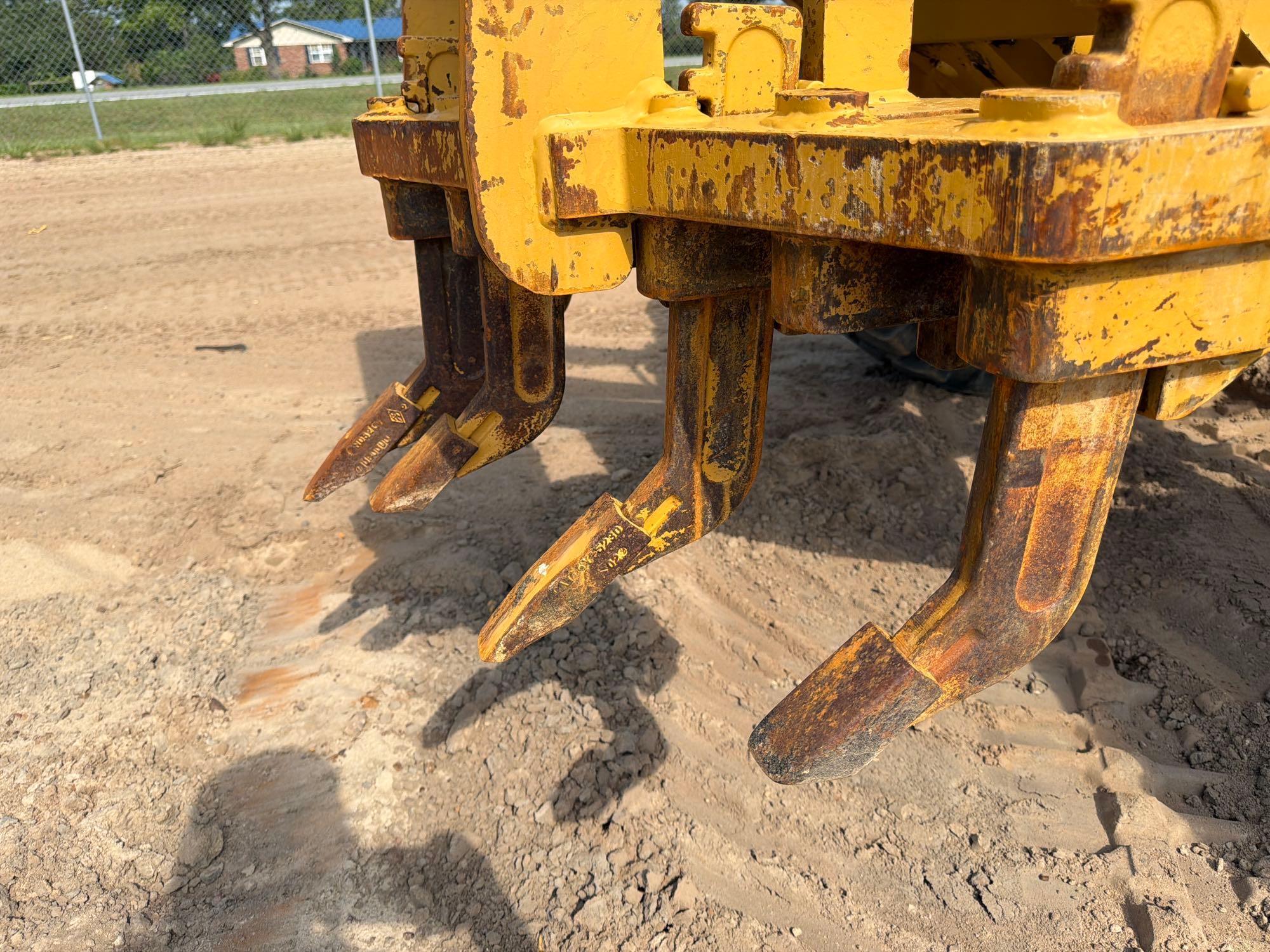

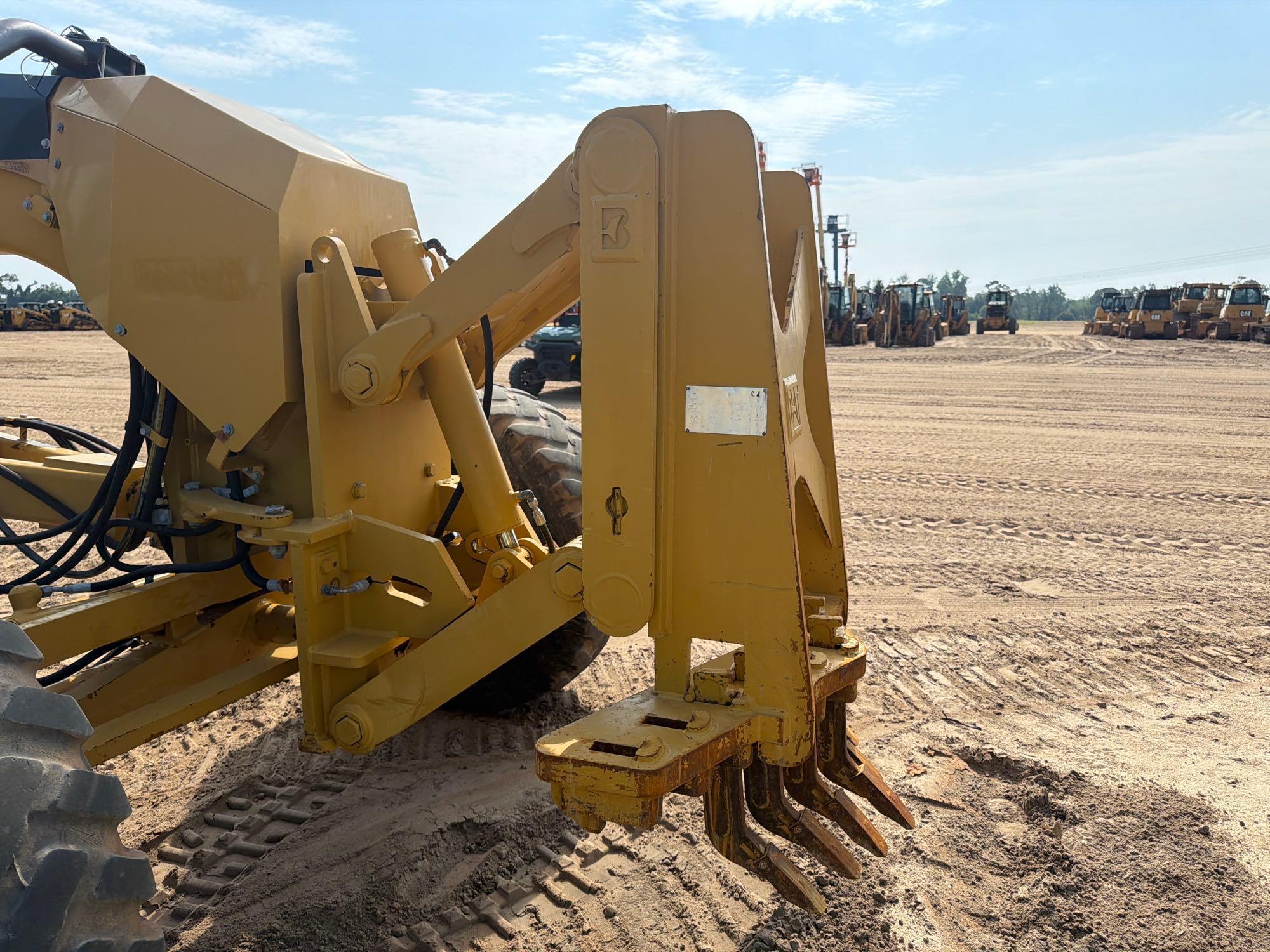

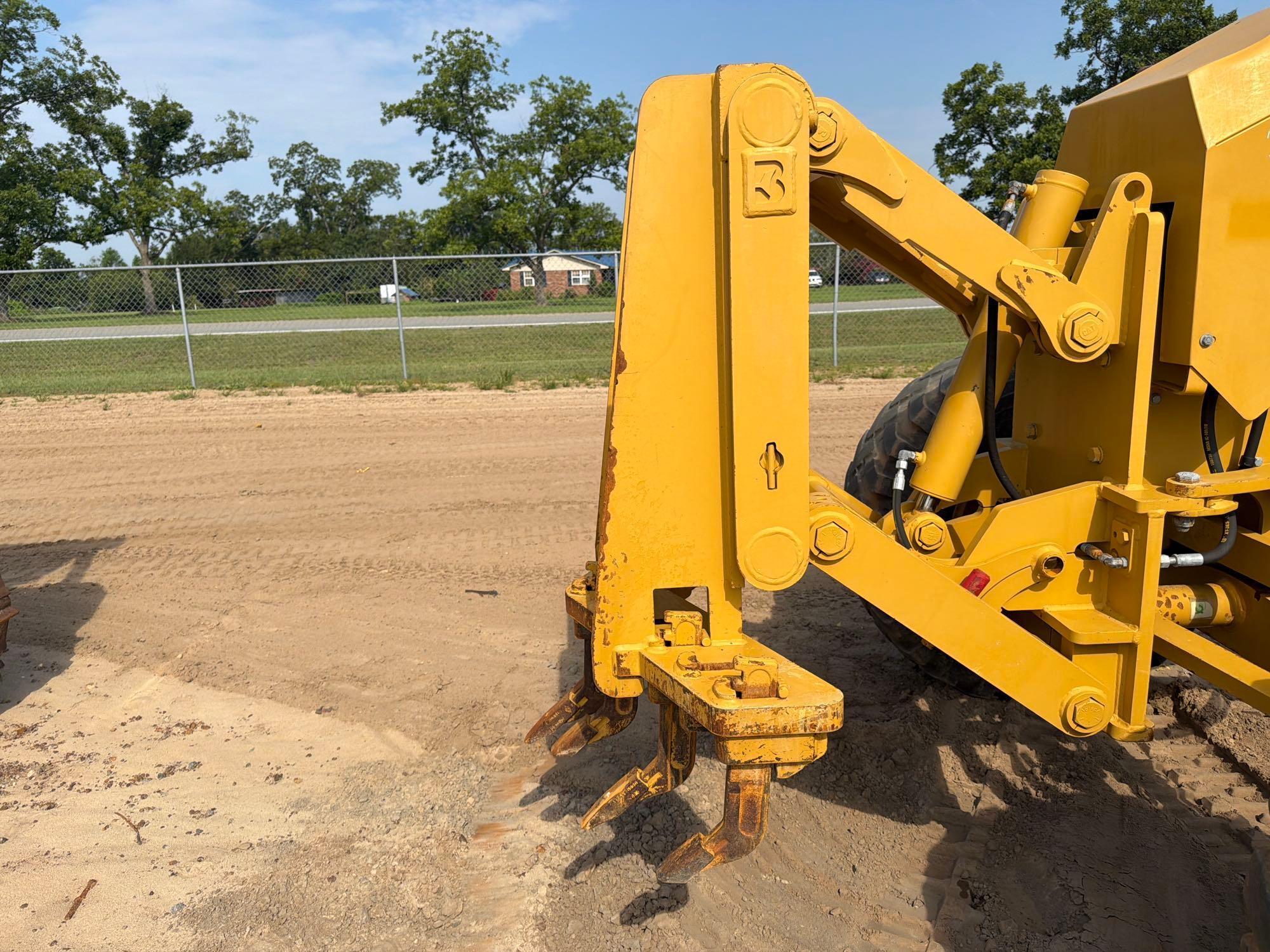

| Ripper |
|
Machine Length Increase, Beam Raised |
39 in (100 cm)
|
|
Penetration Force |
17,705 lbs (8,031 kg)
|
|
Pry-Out Force |
26,303 lbs (11,931 kg)
|
|
Ripper Shank Holder Spacing |
21 in (53 cm)
|
|
Ripper Shank Holders |
5 |
|
Ripping Depth - Maximum |
17 in (43 cm)
|

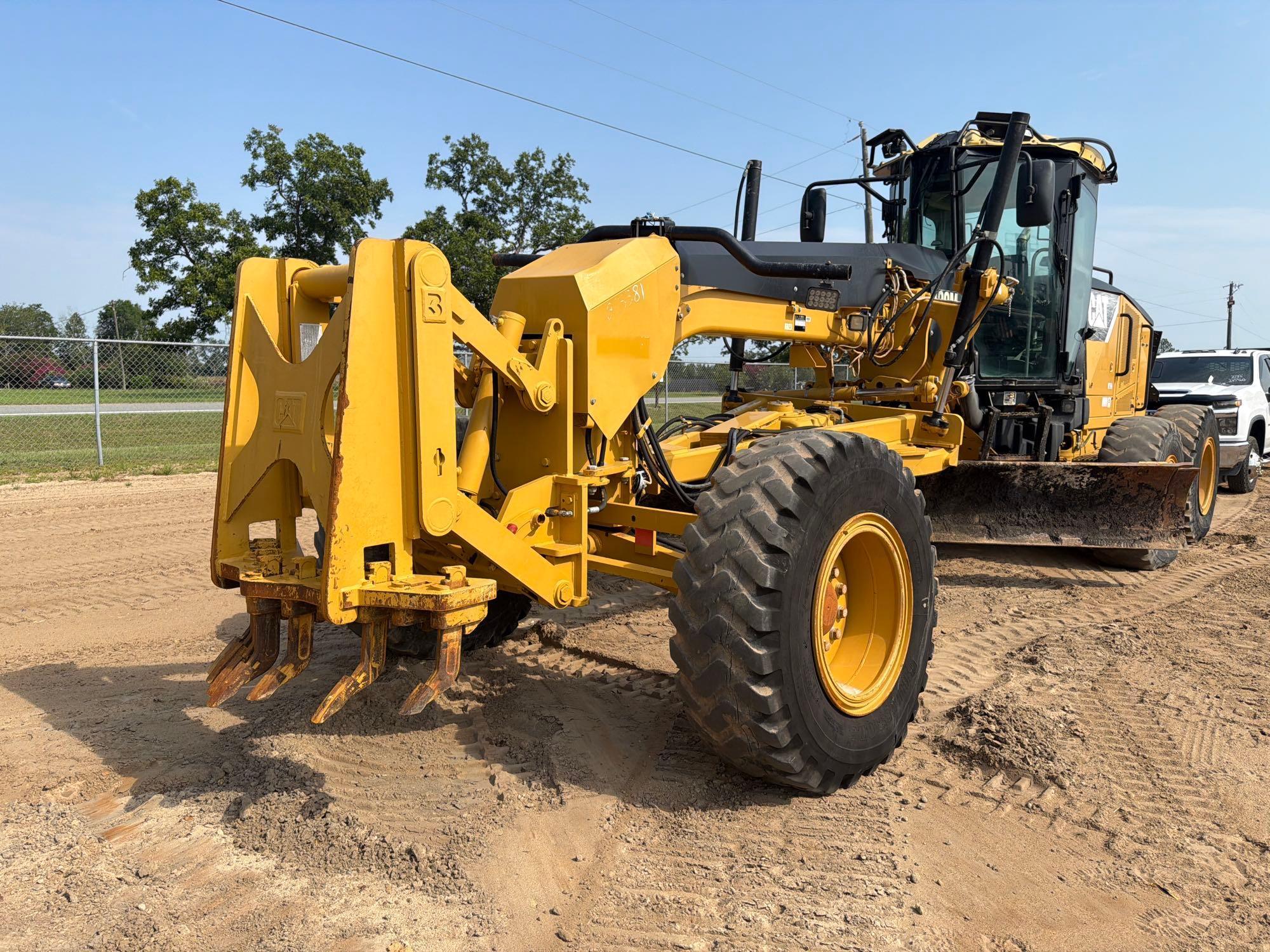

| Scarifier |
|
Front, V-Type, 5 Or 11 Tooth - Scarifier Shank Holder Spacing |
5 in (12 cm)
|
|
Front, V-Type, 5 Or 11 Tooth - Scarifier Shank Holders |
5 / 11 |
|
Front, V-Type, 5 Or 11 Tooth - Scarifying Depth, Maximum |
18 in (47 cm)
|
|
Front, V-Type, 5 Or 11 Tooth - Working Width |
47 in (120 cm)
|
|
Mid, Straight - Scarifier Shank Holder Spacing |
4 in (11 cm)
|
|
Mid, Straight - Scarifier Shank Holders |
17 |
|
Mid, Straight - Scarifying Depth, Maximum |
13 in (32 cm)
|
|
Mid, Straight - Working Width |
71 in (180 cm)
|
|
Mid, V-Type - Scarifier Shank Holder Spacing |
5 in (12 cm)
|
|
Mid, V-Type - Scarifier Shank Holders |
11 |
|
Mid, V-Type - Scarifying Depth, Maximum |
12 in (29 cm)
|
|
Mid, V-Type - Working Width |
47 in (118 cm)
|
|
Rear - Scarifier Shank Holder Spacing |
11 in (27 cm)
|
|
Rear - Scarifier Shank Holders |
9 |
|
Rear - Scarifying Depth, Maximum |
11 in (27 cm)
|
|
Rear - Working Width |
91 in (231 cm)
|
| Service Refill |
|

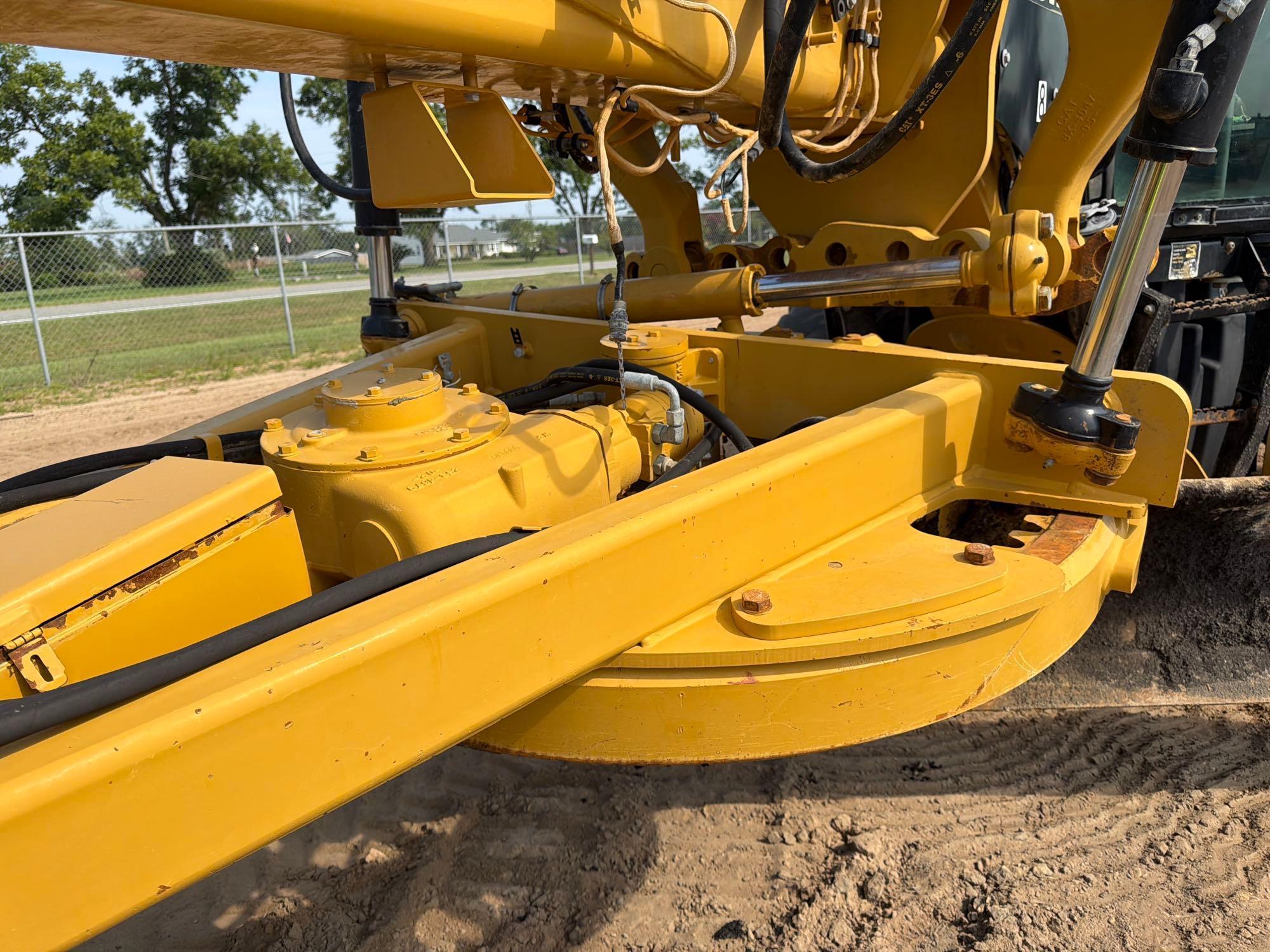

Circle Drive Housing |
2 gal (7 l)
|
|
Cooling System |
9 gal (33 l)
|
|
Engine Oil |
4 gal (14 l)
|
|
Front Wheel Spindle Bearing Housing |
0 gal (0 l)
|
|
Fuel Capacity |
90 gal (341 l)
|
|
Hydraulic System - Tank |
17 gal (64 l)
|
|
Tandem Housing - Each |
16 gal (59 l)
|
|
Transmission - Differential - Final Drives |
17 gal (62 l)
|
| Standards |
|
Brakes |
ISO 3450:1996 |
|
Rops/Fops |
ISO 3471:1992 / ISO 3449:1992 |
|
Sound |
ISO 6394:1998 / ISO 6395:1988 |
|
Steering |
ISO 5010:1992 |

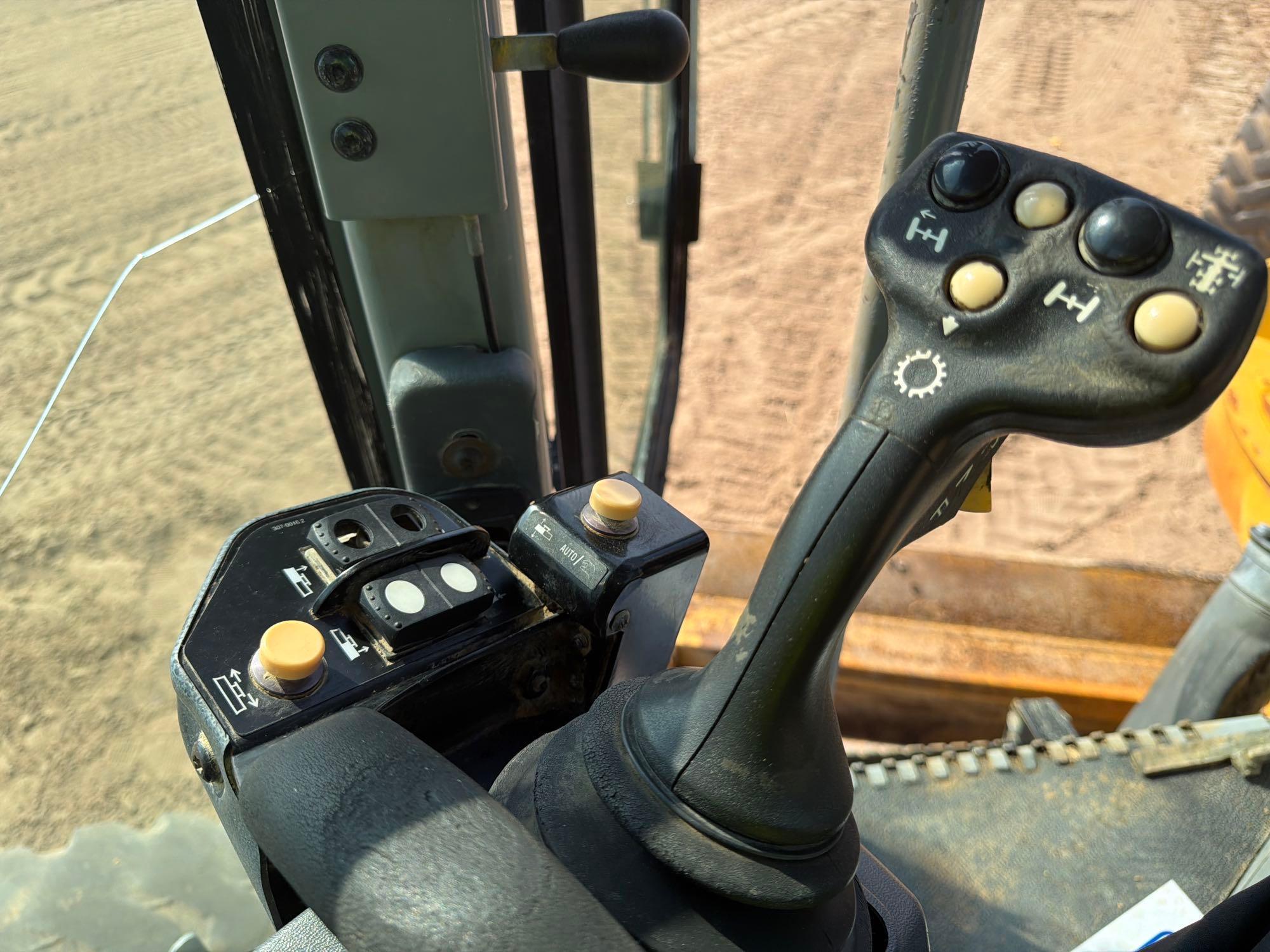

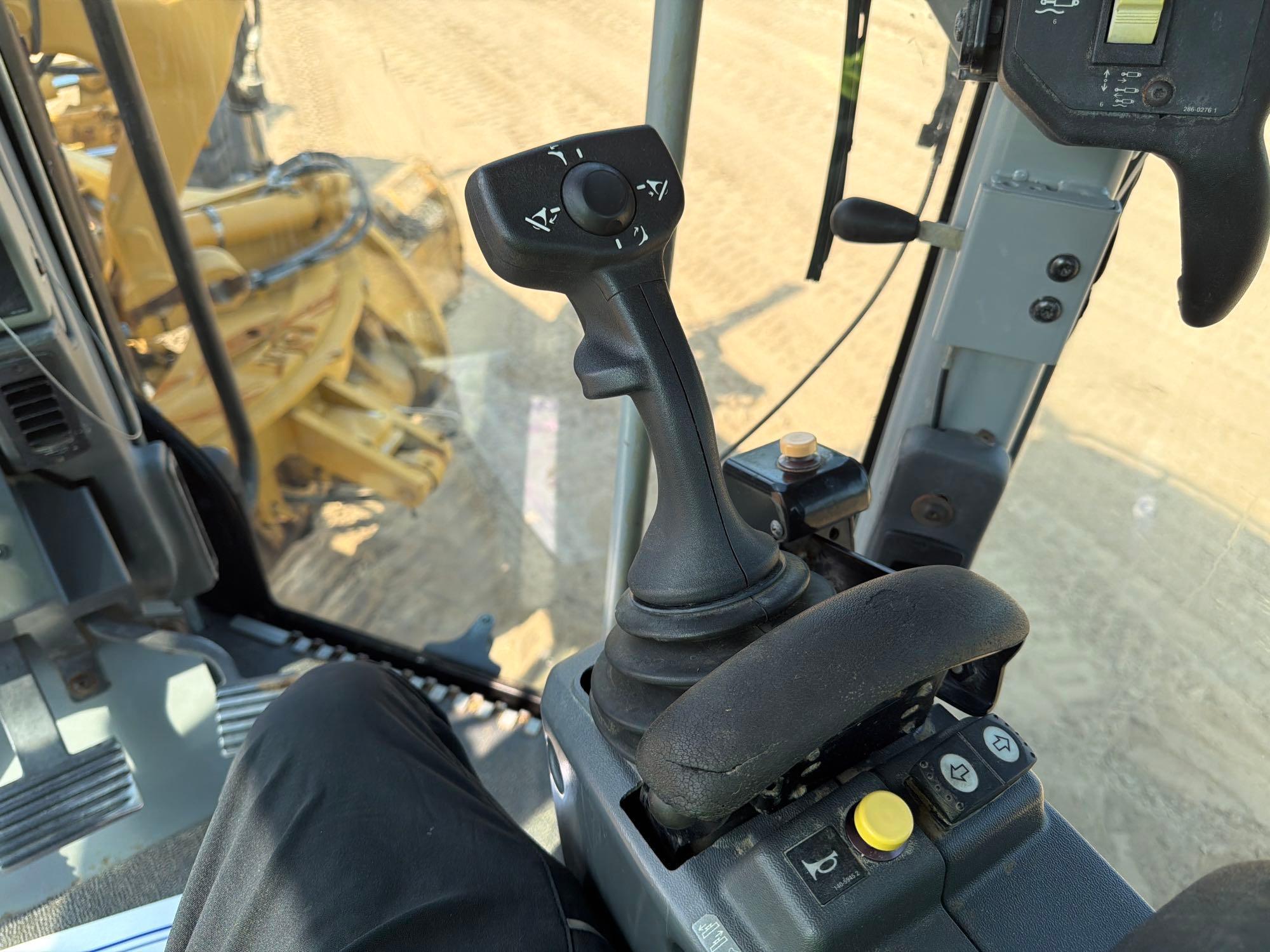

| Steering |
|
Articulation Angle |
20 degrees |
|
Turning Radius |
25 ft (7 m)
|

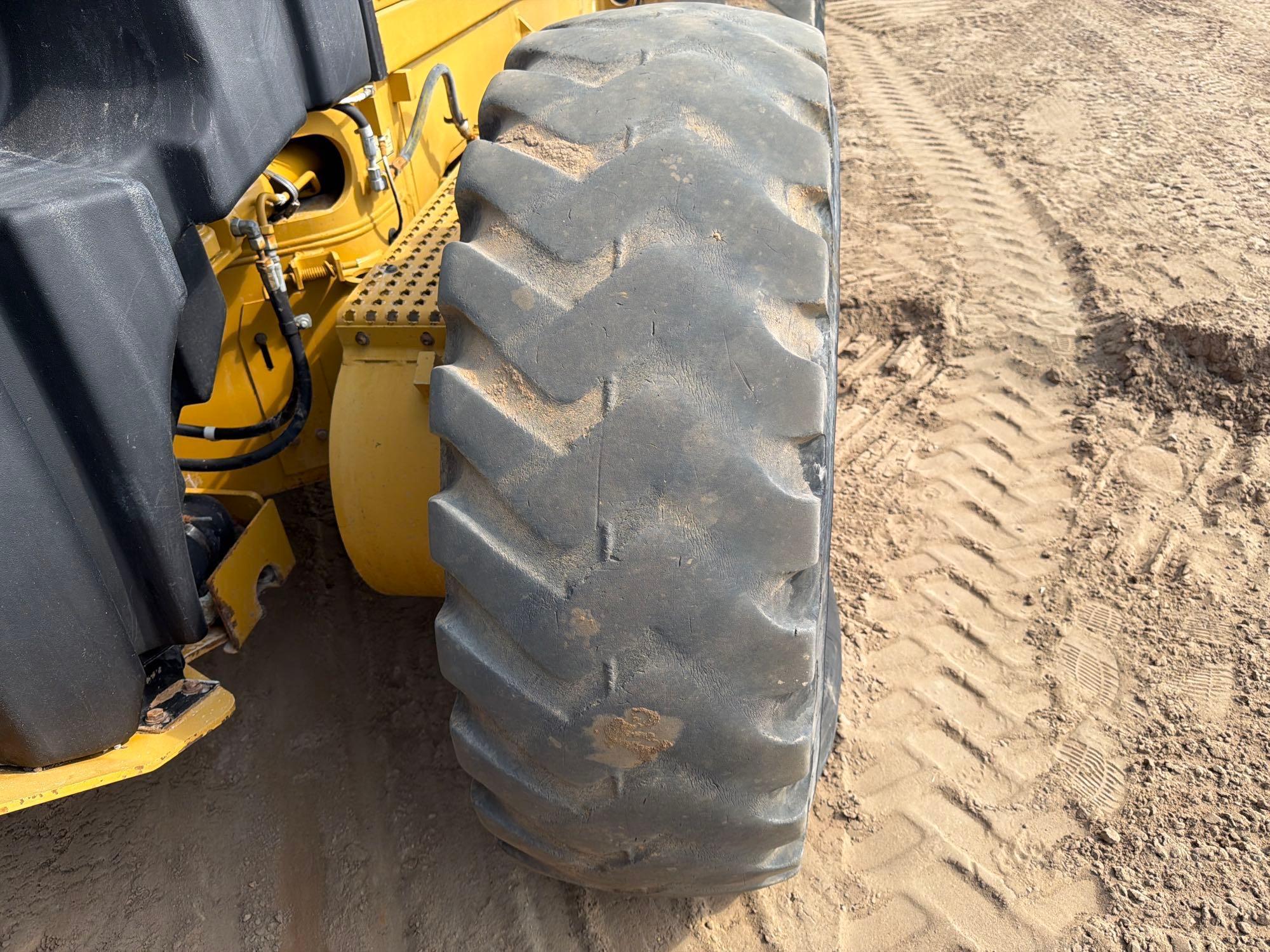

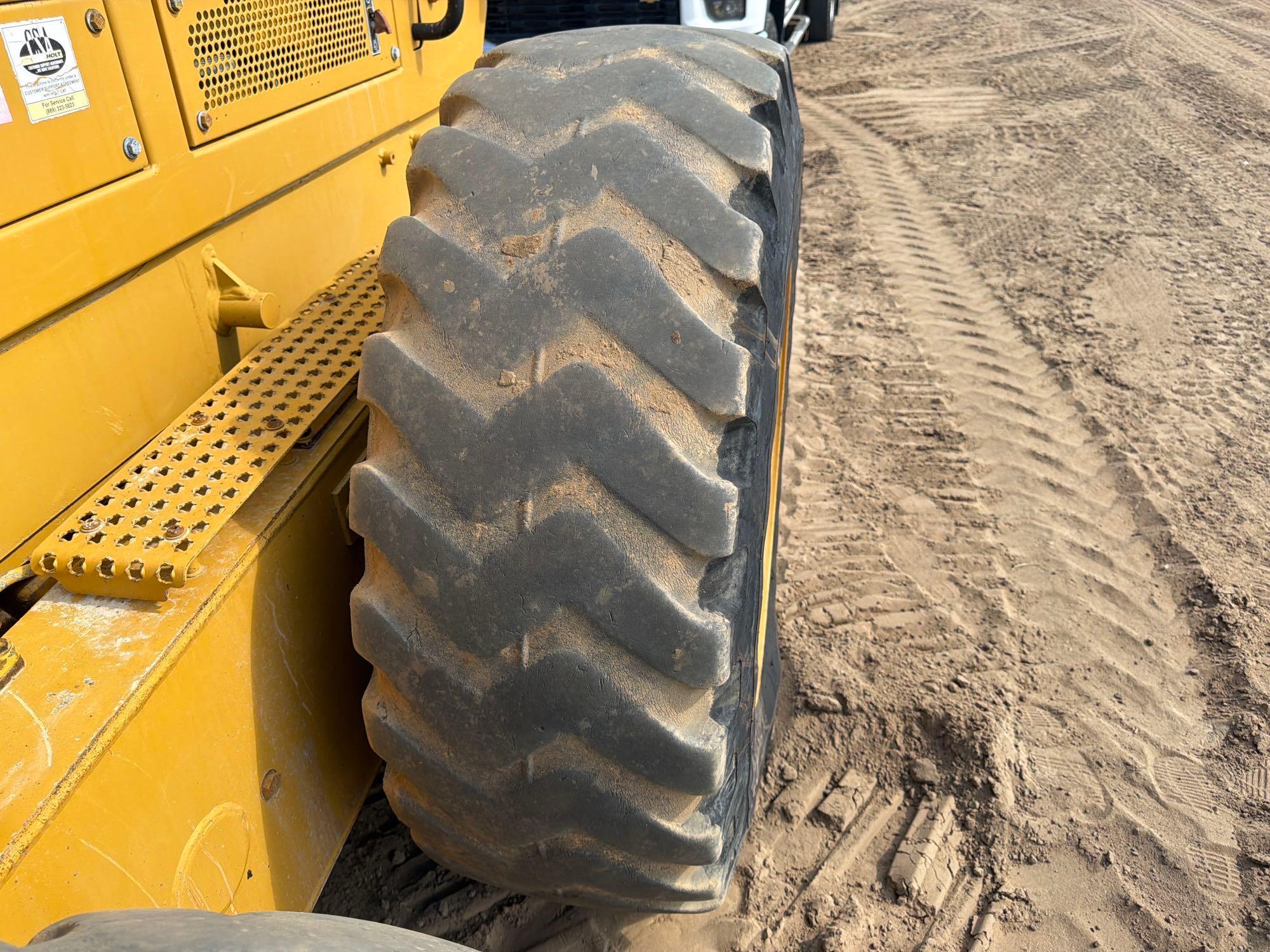

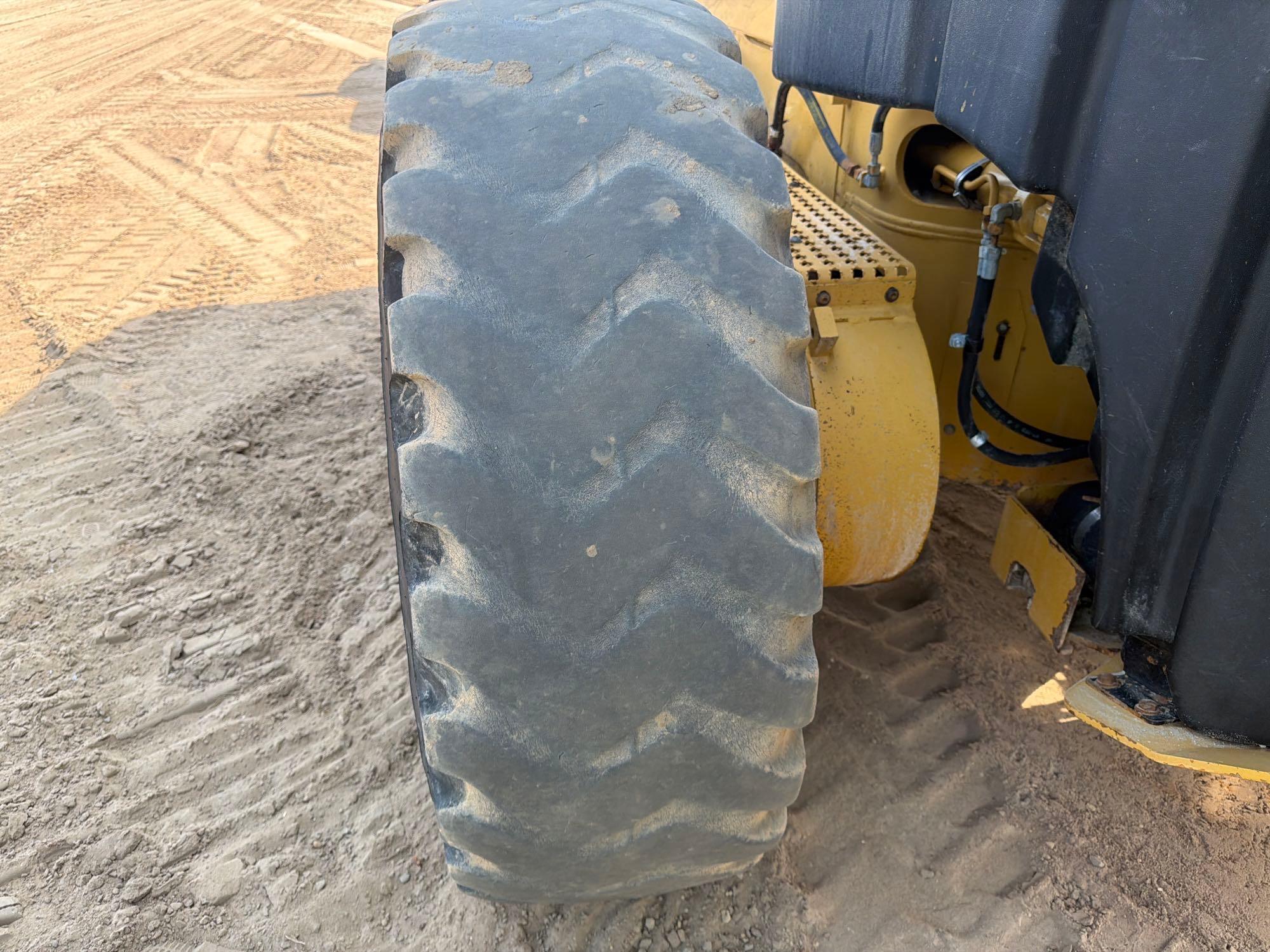

| Tandems |
|
Drive Chain Pitch |
2 in (5 cm)
|
|
Height |
20 in (50 cm)
|
|
Sidewall Thickness - Inner |
1 in (1 cm)
|
|
Sidewall Thickness - Outer |
1 in (2 cm)
|
|
Tandem Oscillation - Front Down |
25 degrees |
|
Tandem Oscillation - Front Up |
15 degrees |
|
Wheel Axle Spacing |
60 in (151 cm)
|
|
Width |
7 in (17 cm)
|
| Transmission |
|
Max Speed - Forward |
28 mph (45 kph)
|
|
Max Speed - Reverse |
24 mph (38 kph)
|
|
Number Of Gears - Forward |
8 |
|
Number Of Gears - Reverse |
6 |
|
Transmission Type |
direct drive, power shift, countershaft |
| Weights |
|
Gross Vehicle Weight - Base - Front Axle |
9,303 lbs (4,220 kg)
|
|
Gross Vehicle Weight - Base - Rear Axle |
26,479 lbs (12,011 kg)
|
|
Gross Vehicle Weight - Base - Total |
35,783 lbs (16,231 kg)
|
|
Gross Vehicle Weight - Maximum - Front Axle |
15,077 lbs (6,839 kg)
|
|
Gross Vehicle Weight - Maximum - Rear Axle |
33,523 lbs (15,206 kg)
|
|
Gross Vehicle Weight - Maximum - Total |
48,601 lbs (22,045 kg)
|
|
Gross Vehicle Weight - Typically Equipped - Front Axle |
11,221 lbs (5,090 kg)
|
|
Gross Vehicle Weight - Typically Equipped - Rear Axle |
29,343 lbs (13,310 kg)
|
|
Gross Vehicle Weight - Typically Equipped - Total |
40,565 lbs (18,400 kg)
|
|
Operating Weight - Typically Equipped |
40,565 lbs (18,400 kg)
|
