2000 Caterpillar 12H For Sale in North East, Md

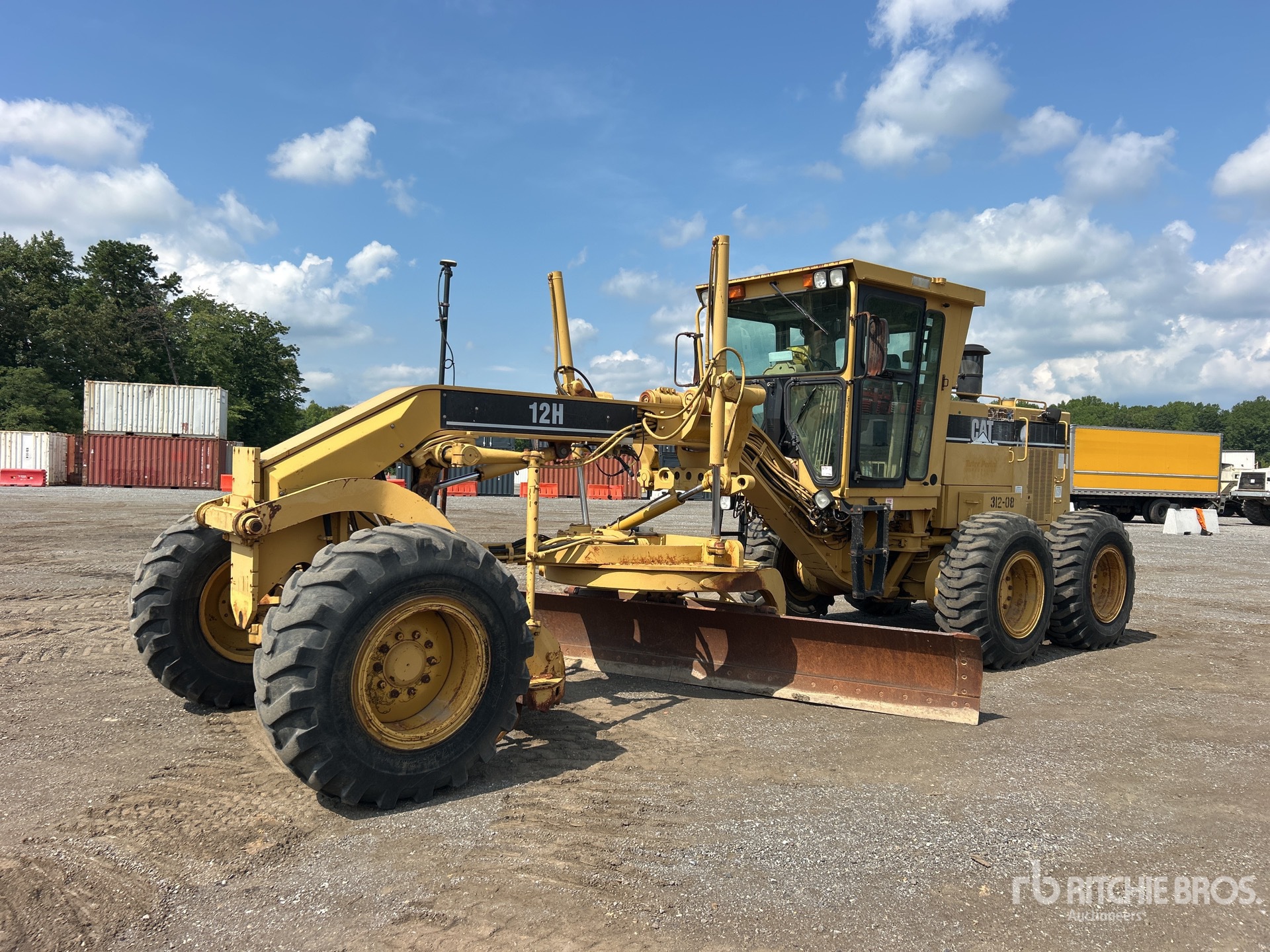

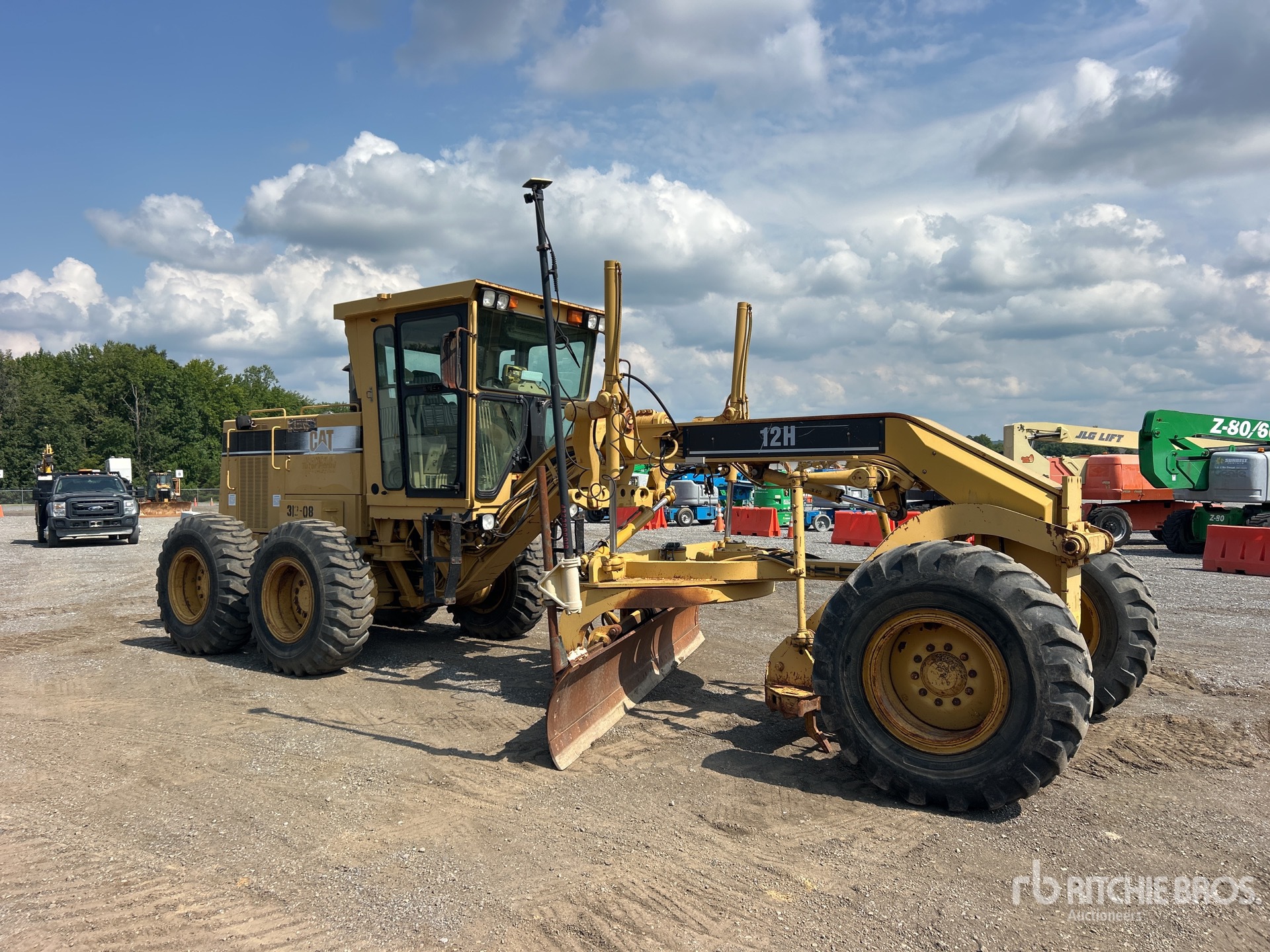

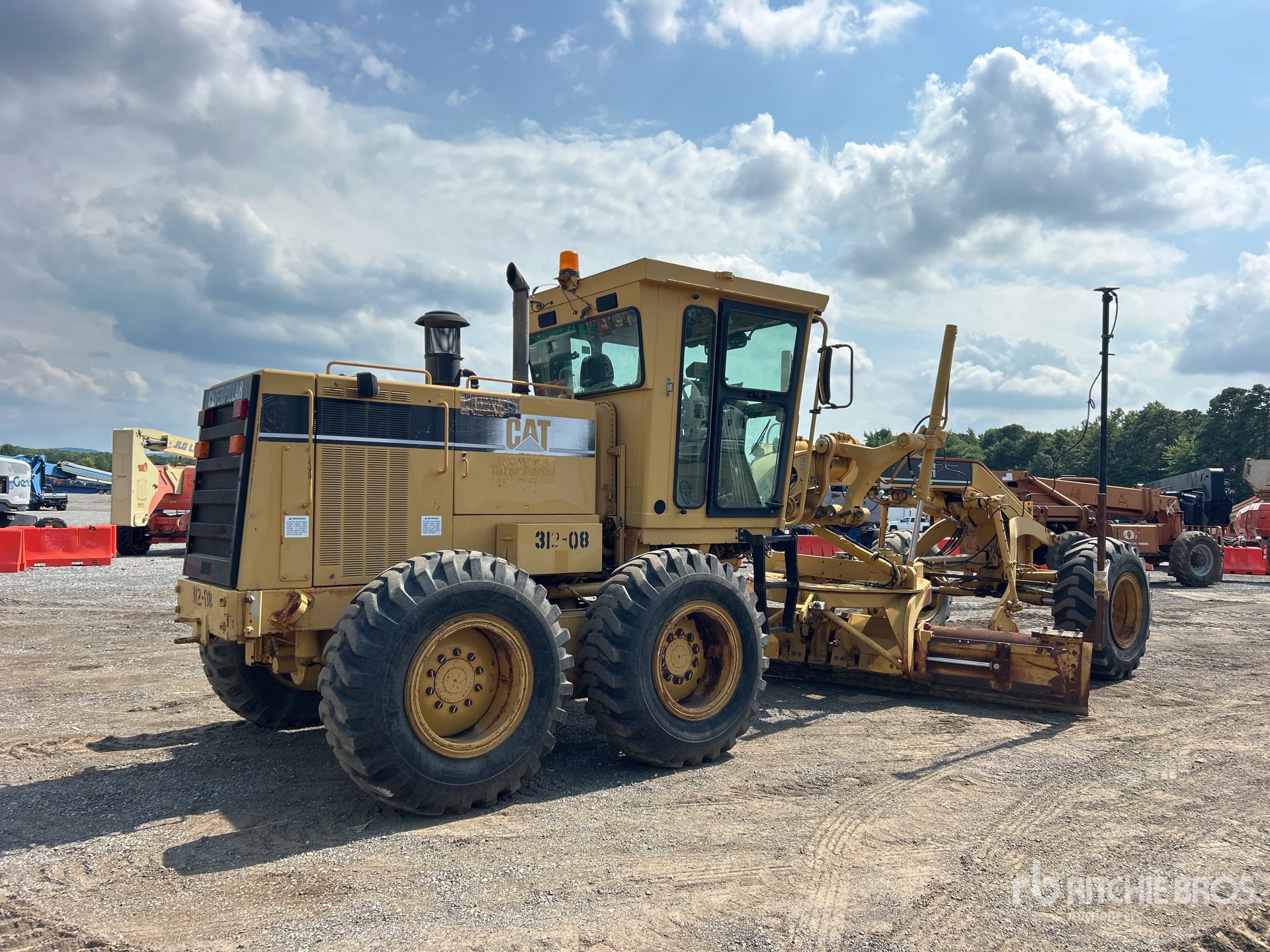

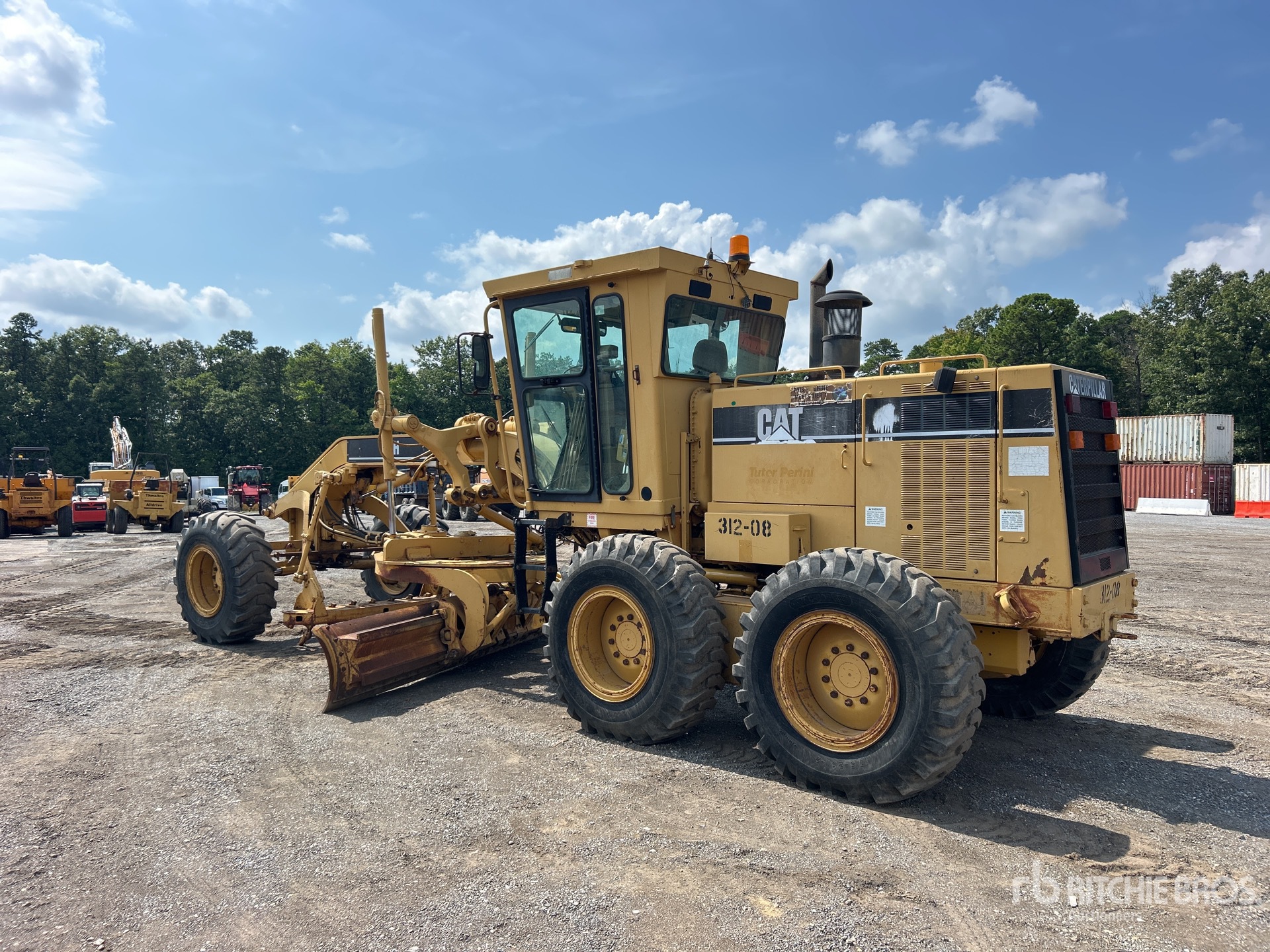

Name: 2000 Caterpillar 12H
Brand: Caterpillar
SKU: 89093775
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-15 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

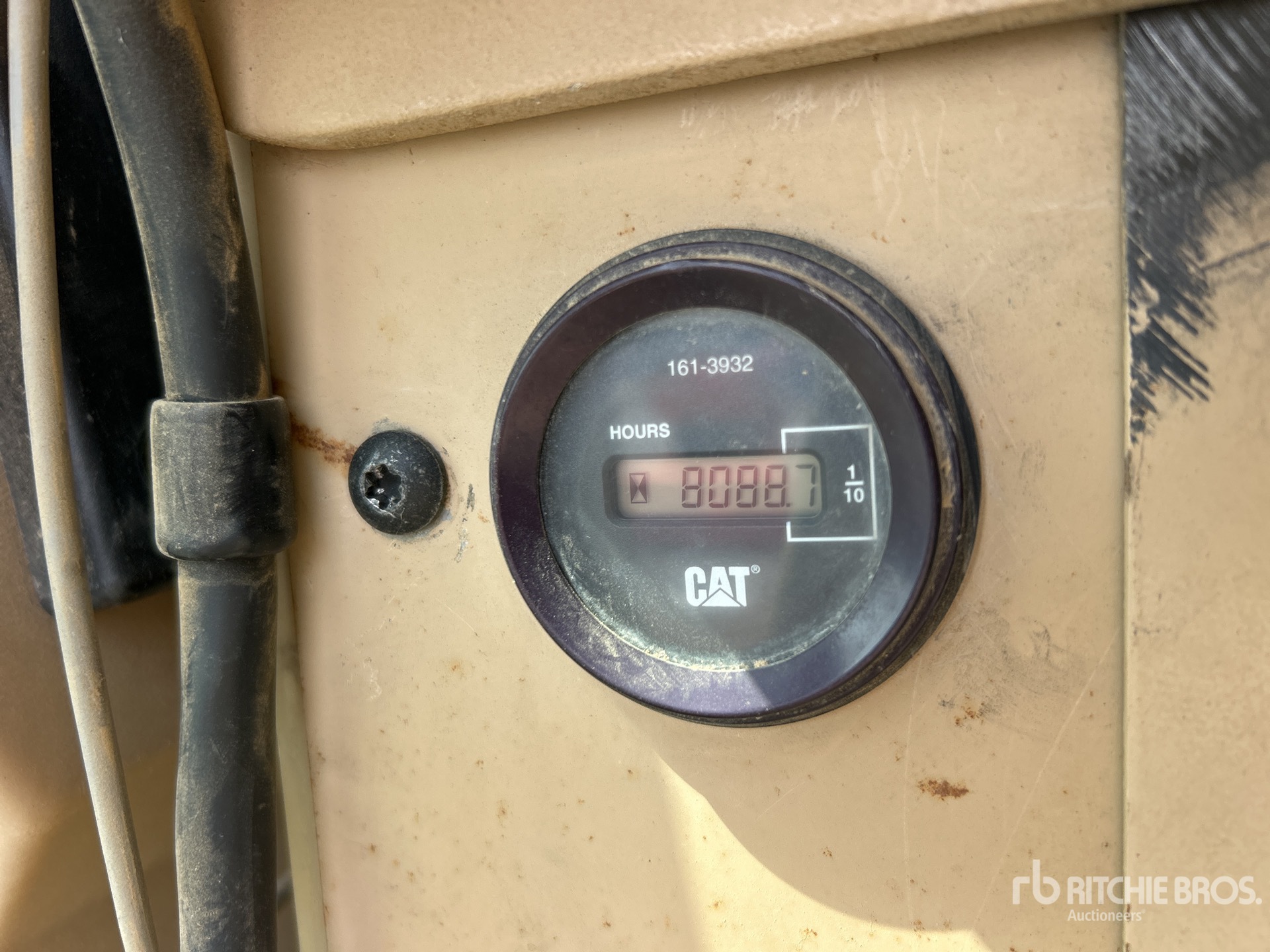

Hours:	8088

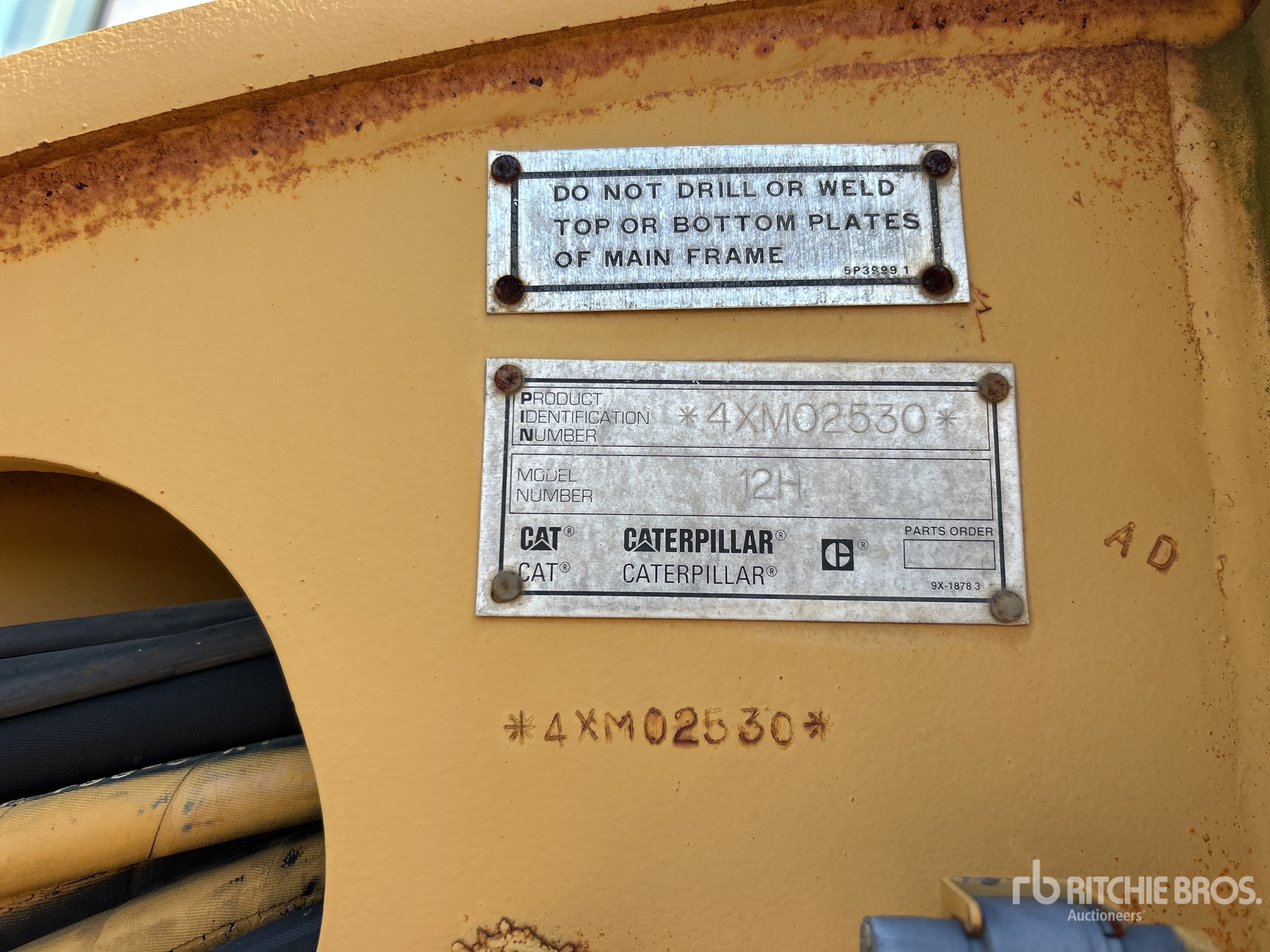

Serial Number:	4XM02530
Machine Location:	NORTH EAST, MD

Description:

Located in Lane 31 Spot 20, Enclosed Cab, Air Conditioner, Pre-Wired for Grade Control, 14 ft / 4.27 m Moldboard, Front Scarifier, 17.5-25 Tires Closing Time: 2026-09-15 09:26:10 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 12H is a motor grader designed for road construction, maintenance, and site preparation. Built by Caterpillar, the 12H is part of the company's H-series graders and is commonly used for grading, ditching, shaping, and fine leveling applications. It features a front-mounted moldboard, articulated frame, and rear tandem drive for controlled blade positioning and traction. The 12H is typically equipped with a diesel engine, hydraulic controls, and an operator cab designed for visibility and precision. It is used in municipal, mining, and construction environments where accurate surface finishing and material control are required.

Circle
Max Lift Above Ground	18 in (46 cm)
Max Lift Above Ground	19 in (48 cm)
Dimensions
Blade Base	8 ft (3 m)
Blade Base	8 ft (3 m)
Height To Top Of Isomount Cab	10 ft (3 m)
Height To Top Of Isomount Cab	10 ft (3 m)
Overall Length	28 ft (9 m)
Overall Length	28 ft (9 m)
Wheelbase	20 ft (6 m)
Wheelbase	20 ft (6 m)
Width Over Tires	8 ft (2 m)
Width Over Tires	8 ft (2 m)
Engine
Displacement	638 cu in (10,450 cu cm)
Displacement	638 cu in (10,450 cu cm)
Engine Make	2,236
Engine Make	2,236
Engine Model	3306 DIT
Engine Model	3306 DIT
Max Power	140 hp (104 kw)
Max Power	140 hp (104 kw)
Net Power Gears 7-8	140 hp (104 kw)
Net Power Gears 7-8	140 hp (104 kw)
Front Axle
Oscillation - Total	32 degrees
Oscillation - Total	32 degrees
Wheel Lean	18 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	55 gpm (206 lpm)
Pump Flow	52 gpm (196 lpm)
Pump Type	Axial Piston
Pump Type	Axial Piston
Relief Valve Pressure	3,500 psi
Relief Valve Pressure	3,500 psi
Moldboard
Moldboard Height	24 in (61 cm)
Moldboard Height	24 in (61 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Moldboard Width	12 ft (4 m)
Operational
Alternator Supplied Amperage	35 amps
Alternator Supplied Amperage	50 amps
Fuel Capacity	75 gal (284 l)
Fuel Capacity	75 gal (284 l)
Hydraulic System Fluid Capacity	18 gal (68 l)
Hydraulic System Fluid Capacity	21 gal (80 l)
Operating Voltage	24 V
Operating Voltage	24 V
Std Operation Weight - Total	31,412 lbs (14,246 kg)
Std Operation Weight - Total	31,409 lbs (14,245 kg)
Tire Size	12-24 10PR (G-2)
Tire Size	13-24 10PR (G-2)
Steering
Articulation Angle	20 degrees
Articulation Angle	20 degrees
Turning Radius	24 ft (7 m)
Turning Radius	24 ft (7 m)
Transmission
Max Speed - Forward	25 mph (40 kph)
Max Speed - Forward	25 mph (40 kph)
Max Speed - Reverse	20 mph (32 kph)
Max Speed - Reverse	20 mph (31 kph)
Number Of Gears - Forward	8
Number Of Gears - Forward	8
Number Of Gears - Reverse	6
Number Of Gears - Reverse	6
