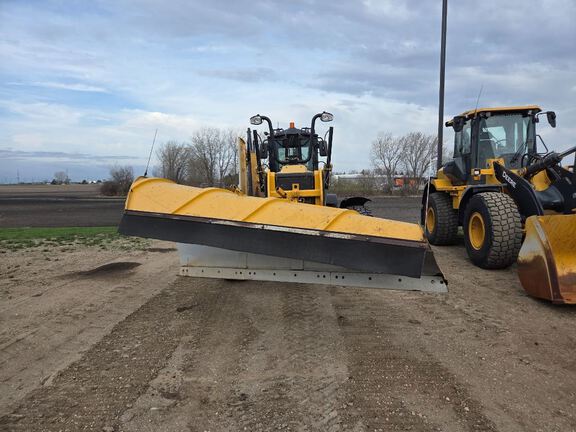

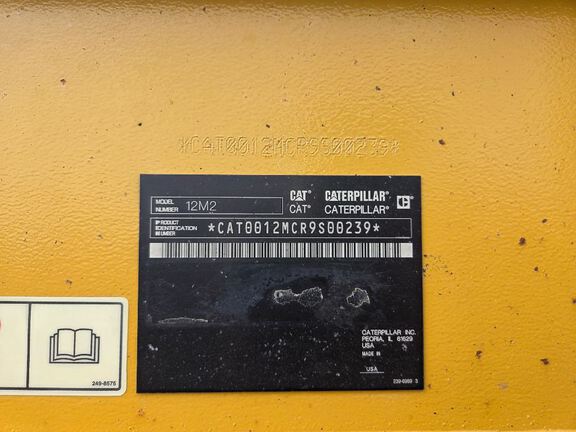

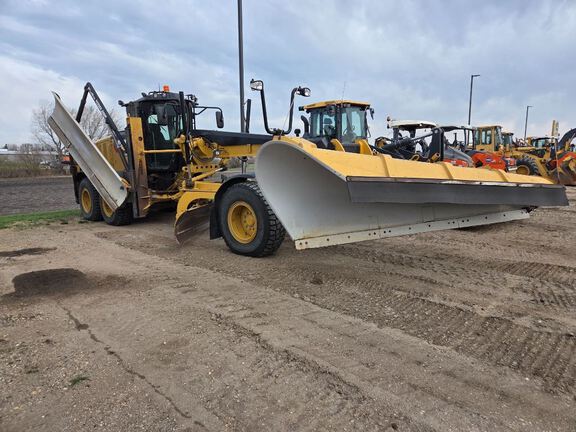

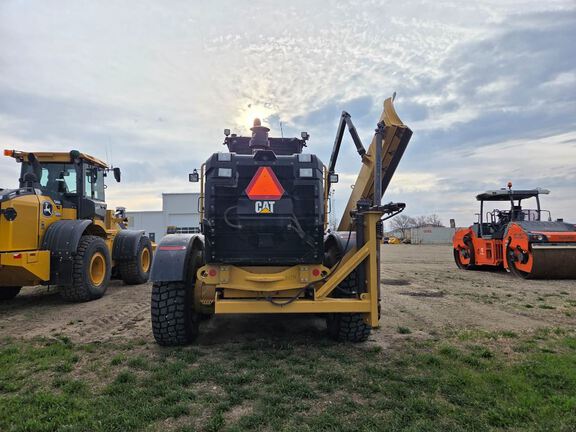

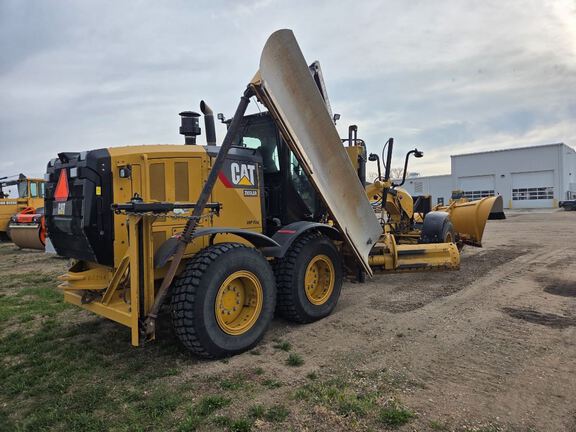

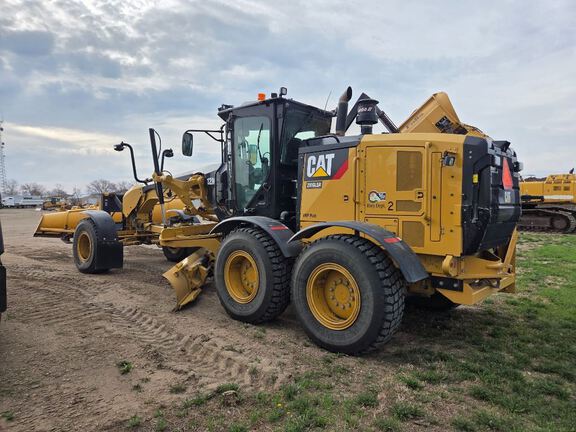

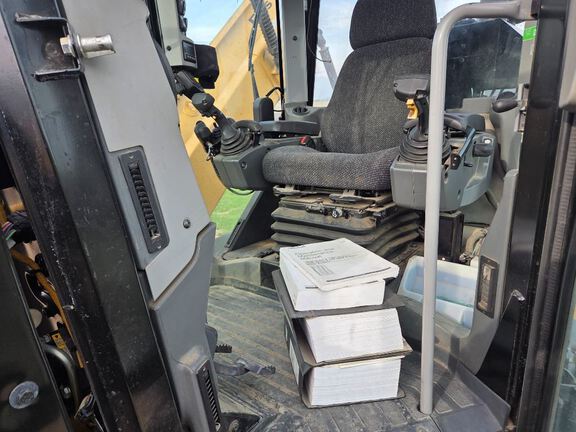

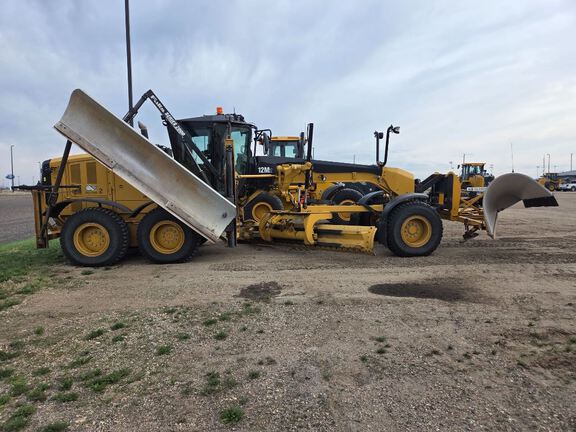

| Blade Range |
|
Blade Tip Range - Backward |
5 degrees |
|
Blade Tip Range - Forward |
40 degrees |
|
Circle Centershift - Left |
27 in (70 cm)
|
|
Circle Centershift - Right |
29 in (73 cm)
|
|
Maximum Blade Position Angle |
90 degrees |
|
Maximum Depth Of Cut |
28 in (71 cm)
|
|
Maximum Lift Above Ground |
19 in (48 cm)
|
|
Maximum Shoulder Reach Outside Of Tires - Left |
71 in (179 cm)
|
|
Maximum Shoulder Reach Outside Of Tires - Right |
78 in (198 cm)
|
|
Moldboard Sideshift - Left |
20 in (51 cm)
|
|
Moldboard Sideshift - Right |
26 in (66 cm)
|
| Engine |
|
Awd Range - Net |
136-181 kW (183-243 hp) |
|
Awd Range - Net - Metric |
136-181 kW (186-246 hp) |
|
Base Power (1st Gear) - Net |
173 hp (129 kw)
|
|
Base Power (1st Gear) - Net - Metric |
176 hp (131 kw)
|
|
Base Power (All Gears) - Net |
173 hp (129 kw)
|
|
Bore |
5 in (11 cm)
|
|
Derating Altitude |
10,000 ft (3,048 m)
|
|
Displacement |
568 cu in (9,300 cu cm)
|
|
Emissions |
U.S. Tier 4 Interim/EU Stage IIIB |
|
Engine Model |
Cat C9.3 ACERT |
|
High - Ambient Capability |
122 degrees |
|
High Ambient - Fan Speed - Maximum |
1,550 rpm |
|
High Ambient - Fan Speed - Minimum |
500 rpm |
|
High Ambient - Fan Speed - Standard |
1,400 rpm |
|
Maximum Torque |
839 lbs ft (1,138 nm)
|
|
Number Of Cylinders |
6 |
|
Speed At Rated Power |
2,100 rpm |
|
Standard Capability |
109 degrees |
|
Stroke |
6 in (15 cm)
|
|
Torque Rise |
50 % |
|
Vhp Plus - Gear 1f, Net |
173 hp (129 kw)
|
|
Vhp Plus - Gear 2f, Net |
183 hp (136 kw)
|
|
Vhp Plus - Gear 3f, Net |
193 hp (144 kw)
|
|
Vhp Plus - Gear 4f, Net |
203 hp (151 kw)
|
|
Vhp Plus - Gear 5f, Net |
208 hp (155 kw)
|
|
Vhp Plus - Gear 6f, Net |
213 hp (159 kw)
|
|
Vhp Plus - Gear 7f, Net |
218 hp (163 kw)
|
|
Vhp Plus - Gear 8f, Net |
223 hp (166 kw)
|
|
Vhp Plus Range - Net |
129-166 kW (173-223 hp) |
|
Vhp Plus Range - Net - Metric |
129-166 kW (176-226 hp) |
| Frame |
|
Circle - Blade Beam Thickness |
2 in (4 cm)
|
|
Circle - Diameter |
60 in (153 cm)
|
|
Drawbar - Height |
6 in (15 cm)
|
|
Drawbar - Thickness |
1 in (1 cm)
|
|
Drawbar - Width |
3 in (8 cm)
|
|
Front Axle - Height To Center |
24 in (60 cm)
|
|
Front Axle - Total Oscillation Per Side |
32 degrees |
|
Front Axle - Wheel Lean - Left/Right |
18 degrees |
|
Front Frame Structure - Height |
1 ft (0 m)
|
|
Front Frame Structure - Width |
1 ft (0 m)
|
|
Front-Top/Bottom Plate - Thickness |
1 in (2 cm)
|
|
Front-Top/Bottom Plate - Width |
12 in (30 cm)
|
| Hydraulic System |
|
Circuit Type |
Parallel |
|
Maximum System Pressure |
3,500 psi |
|
Pump Output |
56 gpm (211 lpm)
|
|
Pump Type |
Variable Piston |
|
Reservoir Tank Capacity |
16 gal (60 l)
|
|
Standby Pressure |
609 psi |

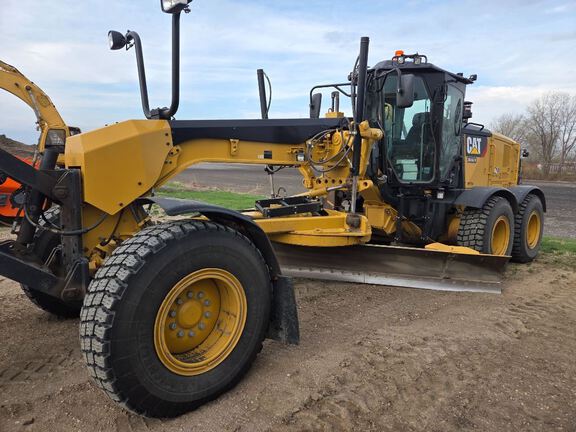

| Moldboard |
|
Arc Radius |
16 in (41 cm)
|
|
Blade Down Pressure - Base Gvw - Awd |
17,857 lbs (8,098 kg)
|
|
Blade Down Pressure - Maximum Gvw - Awd |
29,196 lbs (13,241 kg)
|
|
Blade Pull - Base Gvw - Awd |
35,439 lbs (16,072 kg)
|
|
Blade Pull - Maximum Gvw - Awd |
49,381 lbs (22,395 kg)
|
|
Blade Width |
12 ft (4 m)
|
|
Cutting Edge Thickness |
1 in (2 cm)
|
|
Cutting Edge Width |
6 in (15 cm)
|
|
End Bit - Thickness |
1 in (2 cm)
|
|
End Bit - Width |
6 in (15 cm)
|
|
Moldboard - Height |
24 in (61 cm)
|
|
Moldboard - Thickness |
1 in (2 cm)
|
|
Throat Clearance |
7 in (17 cm)
|
| Operating Specifications |
|
Articulation Angle - Left/Right |
20 degrees |
|
Forward - 1st |
3 mph (4 kph)
|
|
Forward - 2nd |
3 mph (5 kph)
|
|
Forward - 3rd |
5 mph (8 kph)
|
|
Forward - 4th |
7 mph (11 kph)
|
|
Forward - 5th |
11 mph (17 kph)
|
|
Forward - 6th |
15 mph (23 kph)
|
|
Forward - 7th |
20 mph (32 kph)
|
|
Forward - 8th |
29 mph (47 kph)
|
|
Reverse - 1st |
2 mph (3 kph)
|
|
Reverse - 2nd |
4 mph (6 kph)
|
|
Reverse - 3rd |
5 mph (9 kph)
|
|
Reverse - 4th |
8 mph (14 kph)
|
|
Reverse - 5th |
16 mph (25 kph)
|
|
Reverse - 6th |
23 mph (37 kph)
|
|
Steering Range - Left/Right |
48 degrees |
|
Top Speed - Forward |
29 mph (47 kph)
|
|
Top Speed - Reverse |
23 mph (37 kph)
|
|
Turning Radius - Outside Front Tires |
25 ft (8 m)
|
| Power Train |
|
Brakes - Parking |
Multiple Oil Disc |
|
Brakes - Secondary |
Dual Circuit |
|
Brakes - Service |
Multiple Oil Disc |
|
Brakes - Service - Surface Area |
3565 in2 |
|
Forward/Reverse Gears |
8 Fwd/6 Rev |
|
Transmission |
Direct Drive, Powershift |
| Ripper |
|
Machine Length Increase, Beam Raised |
41 in (103 cm)
|
|
Penetration Force |
20,693 lbs (9,385 kg)
|
|
Pry-Out Force |
27,655 lbs (12,542 kg)
|
|
Ripper Shank Holder Spacing |
21 in (53 cm)
|
|
Ripper Shank Holders |
5 |
|
Ripping Depth - Maximum |
17 in (43 cm)
|
| Scarifier |
|
Front, V-Type - Scarifier Shank Holder Spacing |
18 in (47 cm)
|
|
Front, V-Type - Scarifier Shank Holders |
5/11 |
|
Front, V-Type - Scarifying Depth, Maximum |
41 in (103 cm)
|
|
Front, V-Type - Working Width |
47 in (120 cm)
|
|
Front, V-Type, 5 Or 11 Tooth - Scarifier Shank Holder Spacing |
5 in (12 cm)
|
|
Front, V-Type, 5 Or 11 Tooth - Scarifier Shank Holders |
5/11 |
|
Front, V-Type, 5 Or 11 Tooth - Scarifying Depth, Maximum |
18 in (47 cm)
|
|
Front, V-Type, 5 Or 11 Tooth - Working Width |
41 in (103 cm)
|
|
Mid, V-Type - Scarifier Shank Holder Spacing |
5 in (12 cm)
|
|
Mid, V-Type - Scarifier Shank Holders |
11 |
|
Mid, V-Type - Scarifying Depth, Maximum |
12 in (29 cm)
|
|
Mid, V-Type - Working Width |
47 in (118 cm)
|
|
Rear - Ripping Depth, Maximum |
17 in (43 cm)
|
|
Rear - Scarifier Shank Holder Spacing |
11 in (27 cm)
|
|
Rear - Scarifier Shank Holders |
9 |
|
Rear - Scarifying Depth, Maximum |
17 in (43 cm)
|
|
Rear - Working Width |
84 in (213 cm)
|
| Service Refill |
|
Circle Drive Housing |
2 gal (7 l)
|
|
Cooling System |
15 gal (56 l)
|
|
Engine Oil |
8 gal (30 l)
|
|
Front Wheel Spindle Bearing Housing |
0 gal (1 l)
|
|
Fuel Capacity |
110 gal (416 l)
|
|
Hydraulic System - Tank |
17 gal (64 l)
|
|
Hydraulic System - Total |
26 gal (100 l)
|
|
Tandem Housing - Each |
17 gal (64 l)
|
|
Transmission - Differential - Final Drives |
17 gal (65 l)
|
| Standards |
|
Brakes |
ISO 3450, ISO 10265 |
|
Rops/Fops |
ISO 3471/ISO 3499 |
|
Sound |
ISO 6394; ISO 6395 |
|
Steering |
ISO 5010 |
| Tandems |
|
Drive Chain Pitch |
2 in (5 cm)
|
|
Height |
20 in (51 cm)
|
|
Sidewall Thickness - Inner |
1 in (2 cm)
|
|
Sidewall Thickness - Outer |
1 in (2 cm)
|
|
Tandem Oscillation - Front Down |
25 degrees |
|
Tandem Oscillation - Front Up |
15 degrees |
|
Wheel Axle Spacing |
60 in (152 cm)
|
|
Width |
8 in (21 cm)
|
| Weights |
|
Gross Vehicle Weight - Base - Front Axle |
10,403 lbs (4,718 kg)
|
|
Gross Vehicle Weight - Base - Rear Axle |
28,930 lbs (13,120 kg)
|
|
Gross Vehicle Weight - Base - Total |
39,334 lbs (17,839 kg)
|
|
Gross Vehicle Weight - Maximum - Front Axle |
17,009 lbs (7,714 kg)
|
|
Gross Vehicle Weight - Maximum - Rear Axle |
37,860 lbs (17,170 kg)
|
|
Gross Vehicle Weight - Maximum - Total |
54,869 lbs (24,884 kg)
|
|
Operating Weight - Typically Equipped |
44,349 lbs (20,113 kg)
|
|
Operating Weight - Typically Equipped - Front Axle |
13,040 lbs (5,914 kg)
|
|
Operating Weight - Typically Equipped - Rear Axle |
31,309 lbs (14,199 kg)
|
|
Operating Weight - Typically Equipped - Total |
44,349 lbs (20,113 kg)
|
