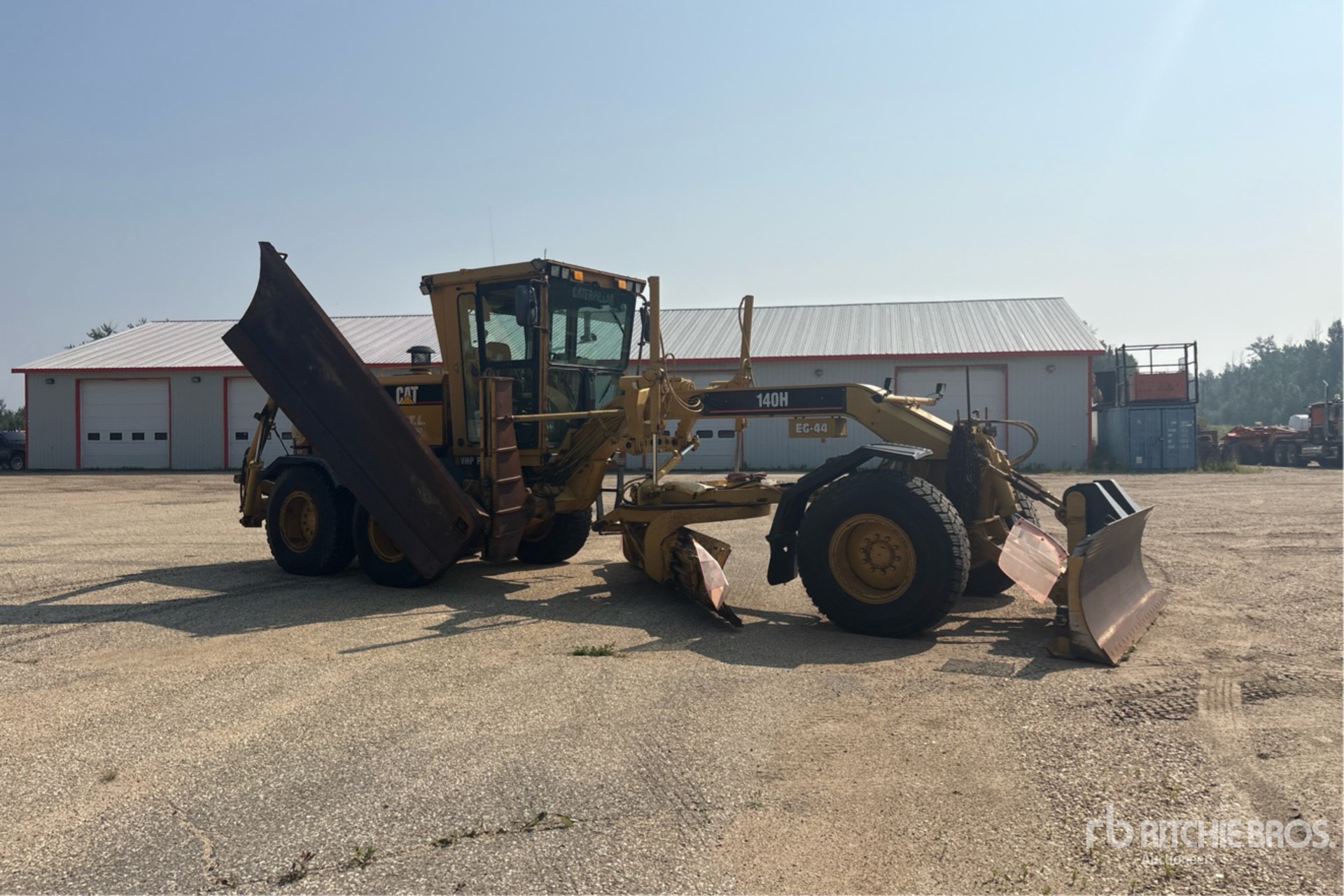

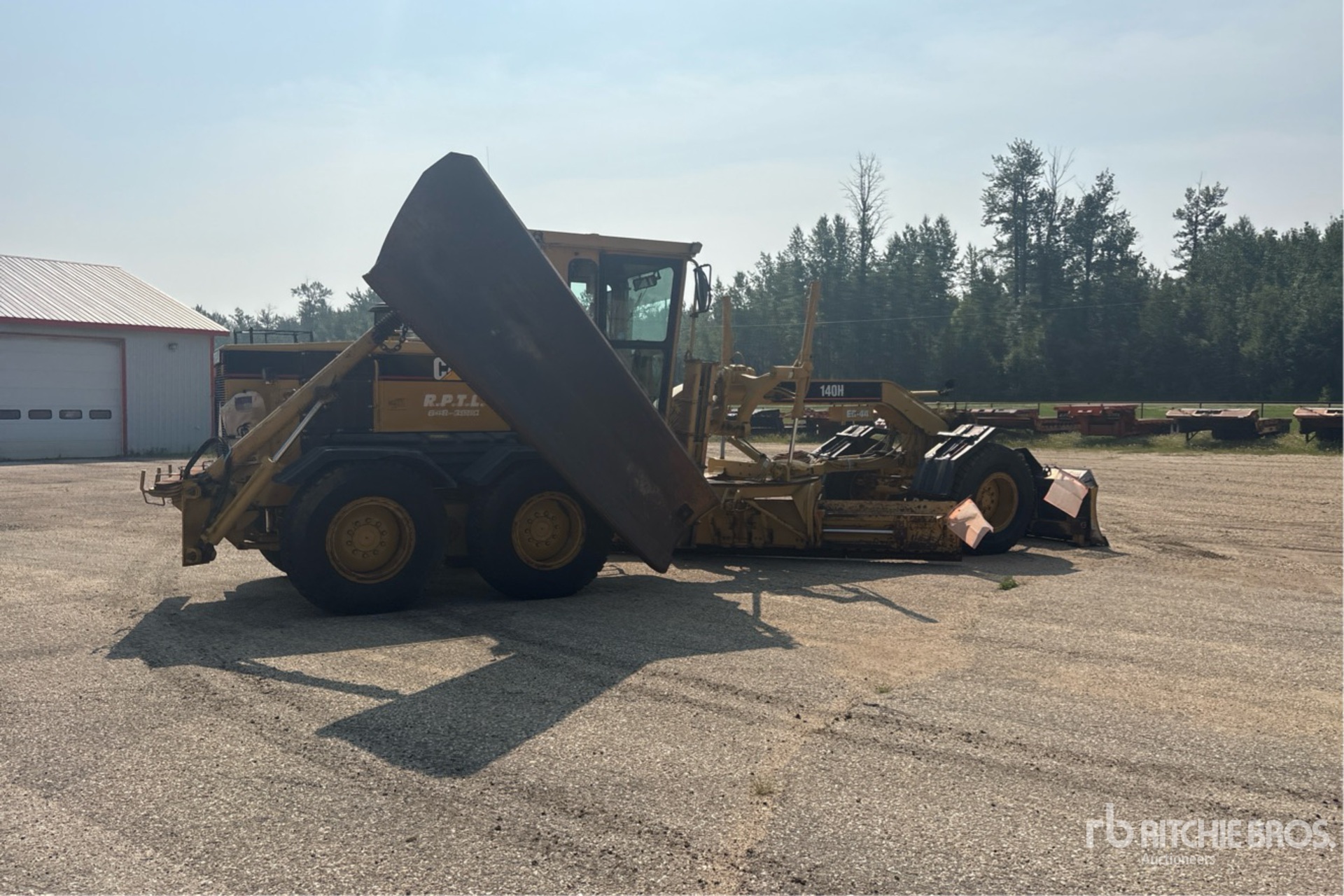

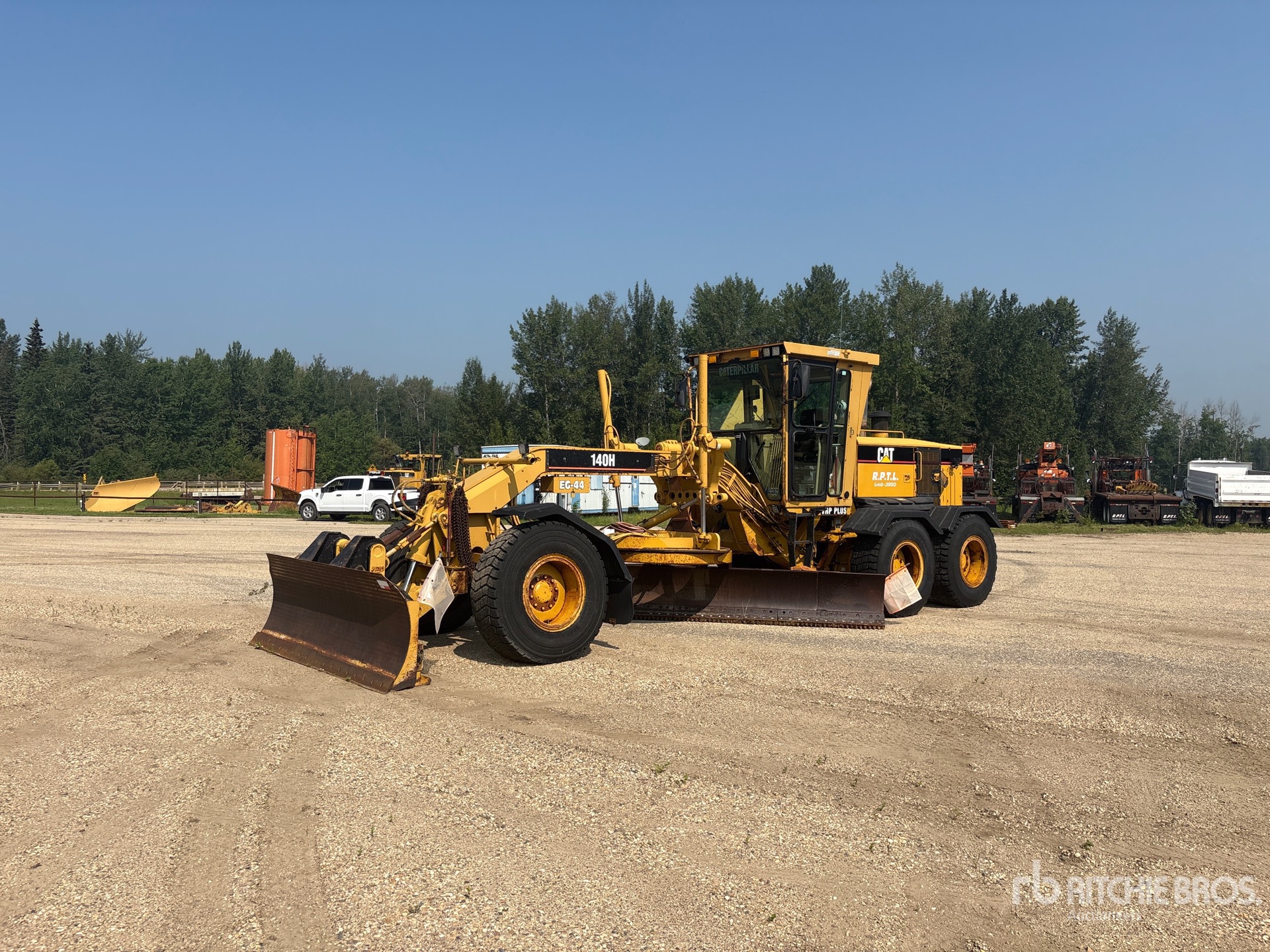

2005 Caterpillar 140H VHP PLUS For Sale in Edmonton, Ab

Name: 2005 Caterpillar 140H VHP PLUS
Brand: Caterpillar
SKU: 88849152
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-22 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

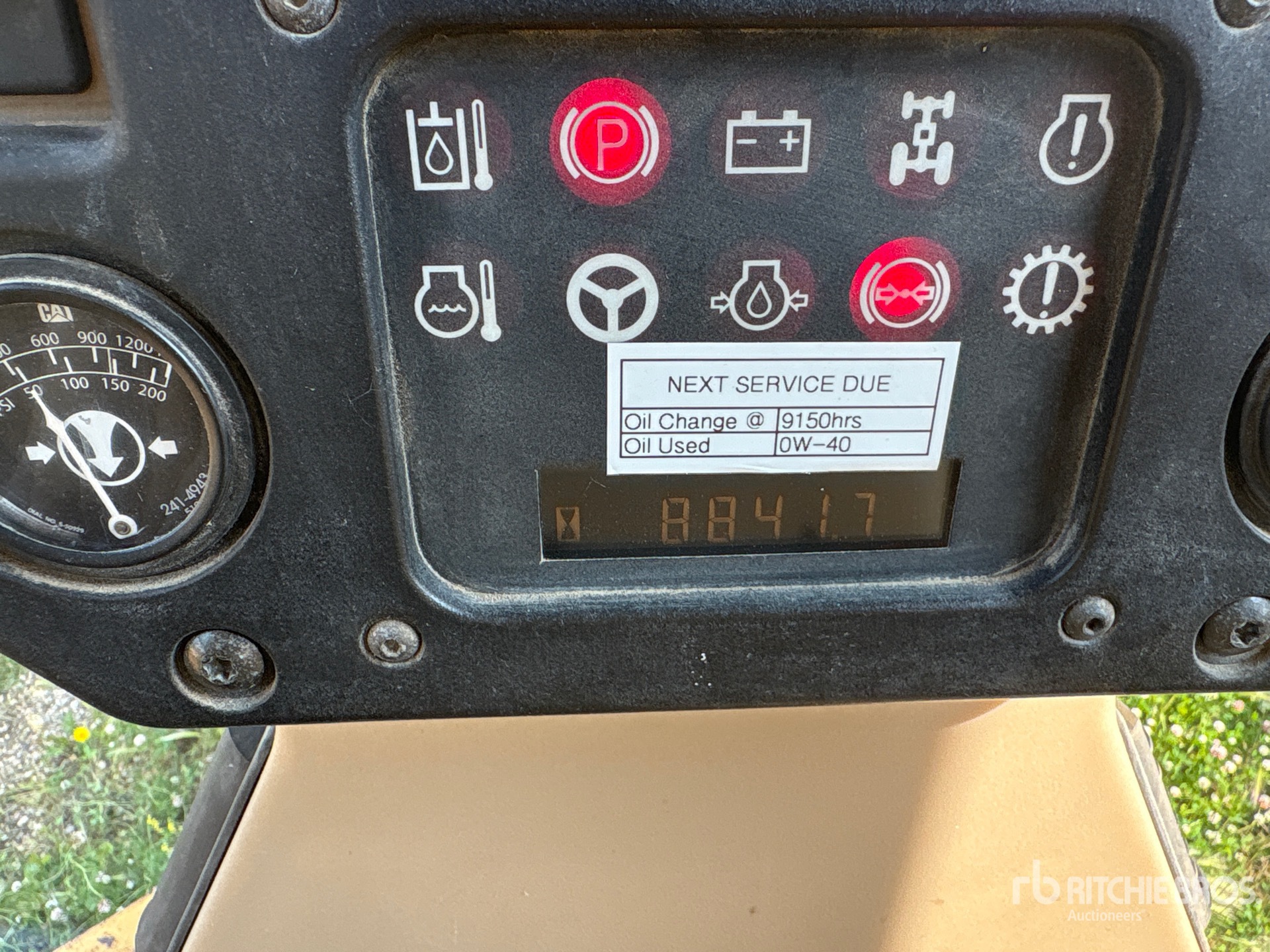

Hours:	8841

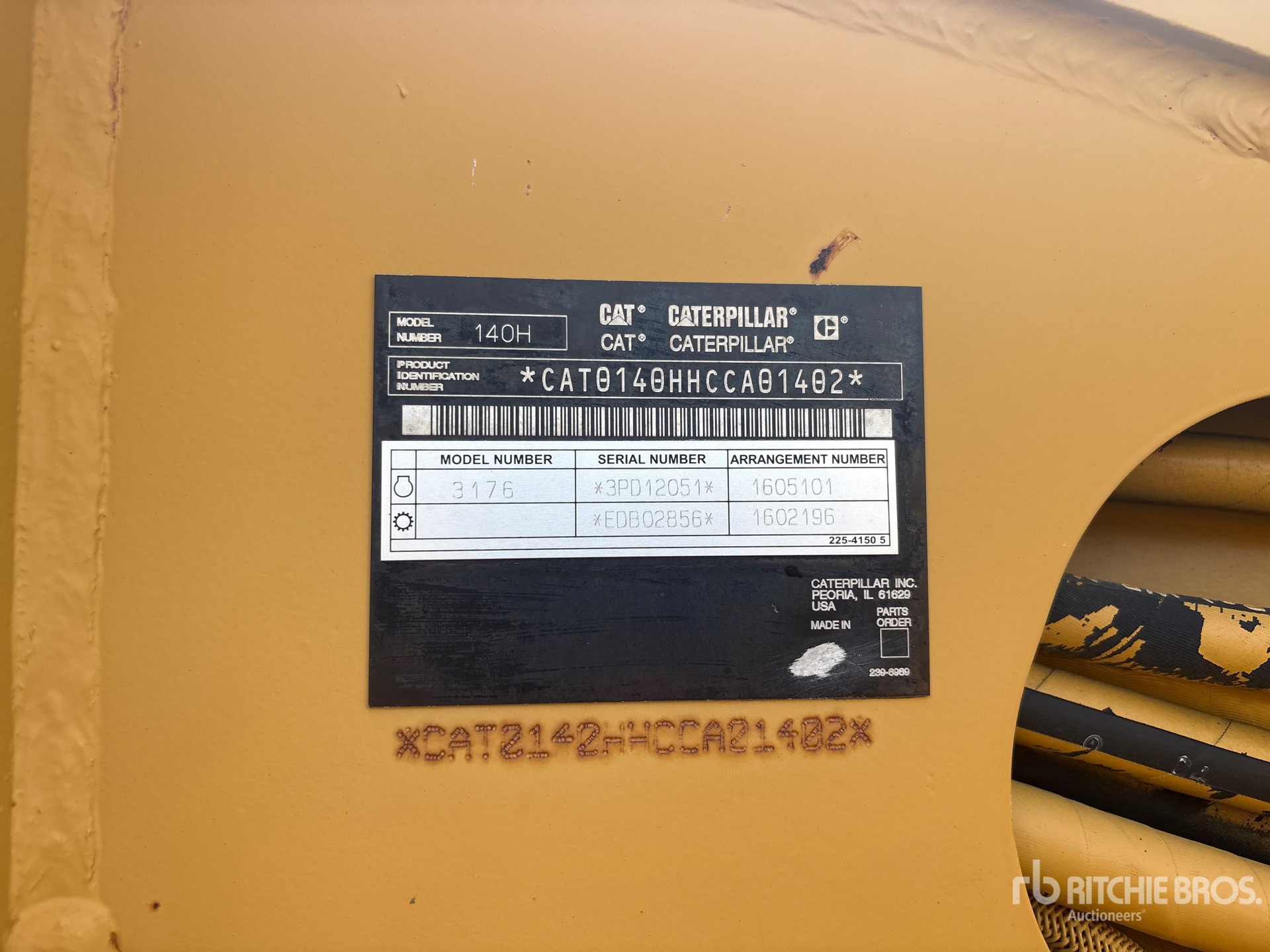

Serial Number:	CAT0140HHCCA01402
Machine Location:	EDMONTON, AB

Description:

Enclosed Cab, Air Conditioner, Air Ride Seat, Differential Lock, Engine Coolant Heater, 13.8 ft Moldboard w/ 2 ft Extension, Front Auxiliary Hydraulics, Lift Group, Straight Front Blade, Snow Wing, 17.5R25 Tires Additional information available - Maintenance history,, Complete Dispersal for R.P.T.L., - For inquires contact Perry @ 780.898.8841 Closing Time: 2026-09-22 09:55:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 140H is a motor grader designed for road construction, maintenance, and grading applications. It is part of Caterpillar's H-series lineup and is commonly used for shaping surfaces, maintaining haul roads, and fine grading work. The 140H typically features a diesel engine, articulated frame, and moldboard blade for precise material control. It is known for its balance of maneuverability, visibility, and grading performance in municipal, highway, and site preparation tasks. The model is widely recognized in the used equipment market and remains a reference machine in the motor grader category for general earthmoving and surface finishing applications.

Circle
Max Lift Above Ground	19 in (48 cm)
Dimensions
Blade Base	8 ft (3 m)
Height	11 ft (3 m)
Height To Top Of Isomount Cab	10 ft (3 m)
Length	31 ft (9 m)
Overall Length	28 ft (9 m)
Weight	44,000 lbs (19,958 kg)
Wheelbase	20 ft (6 m)
Width	9 ft (3 m)
Width Over Tires	8 ft (2 m)
Engine
Displacement	638 cu in (10,450 cu cm)
Engine Make	2,236
Engine Model	3306 DIT
Max Power	185 hp (138 kw)
Net Power Gear 4-6	165 hp (123 kw)
Net Power Gears 7-8	185 hp (138 kw)
Front Axle
Oscillation - Total	32 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	55 gpm (206 lpm)
Pump Type	Axial Piston
Relief Valve Pressure	3,500 psi
Moldboard
Moldboard Height	24 in (61 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Operational
Alternator Supplied Amperage	50 amps
Fuel Capacity	90 gal (341 l)
Hydraulic System Fluid Capacity	21 gal (80 l)
Operating Voltage	24 V
Std Operation Weight - Total	32,461 lbs (14,722 kg)
Tire Size	14-24 10PR (G-2)
Steering
Articulation Angle	20 degrees
Turning Radius	24 ft (7 m)
Transmission
Max Speed - Forward	26 mph (41 kph)
Max Speed - Reverse	20 mph (33 kph)
Number Of Gears - Forward	8
Number Of Gears - Reverse	6
