This machine has been sold or is not currently for sale.

2007 Caterpillar 14H

2007 Caterpillar 14H
2007 Caterpillar 14H
2007 Caterpillar 14H
2007 Caterpillar 14H
2007 Caterpillar 14H
2007 Caterpillar 14H
2007 Caterpillar 14H 2007 Caterpillar 14H 2007 Caterpillar 14H 2007 Caterpillar 14H 2007 Caterpillar 14H 2007 Caterpillar 14H

/ Save to Watch List
Apply for Financing

MACHINE SOLD

   Auction Info: Starting on 2026-08-25   Click here to place a bid


Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info
Ritchie Bros. Auctioneers Website
Click here to email Ritchie Bros. Auctioneers.

Request an equipment inspection

Get shipping quotes
Click for Phone Number


Machine Info:

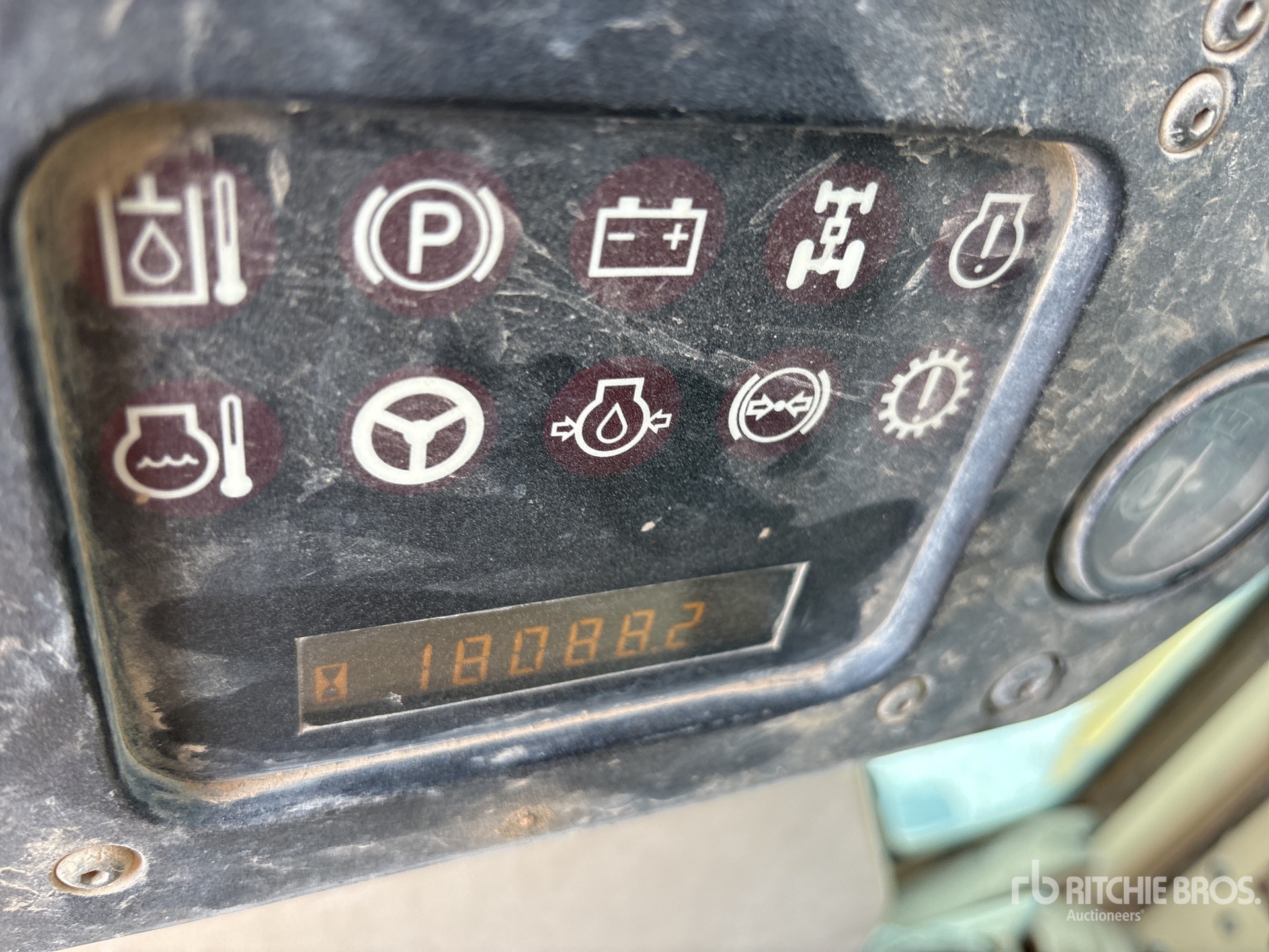

Hours:18088

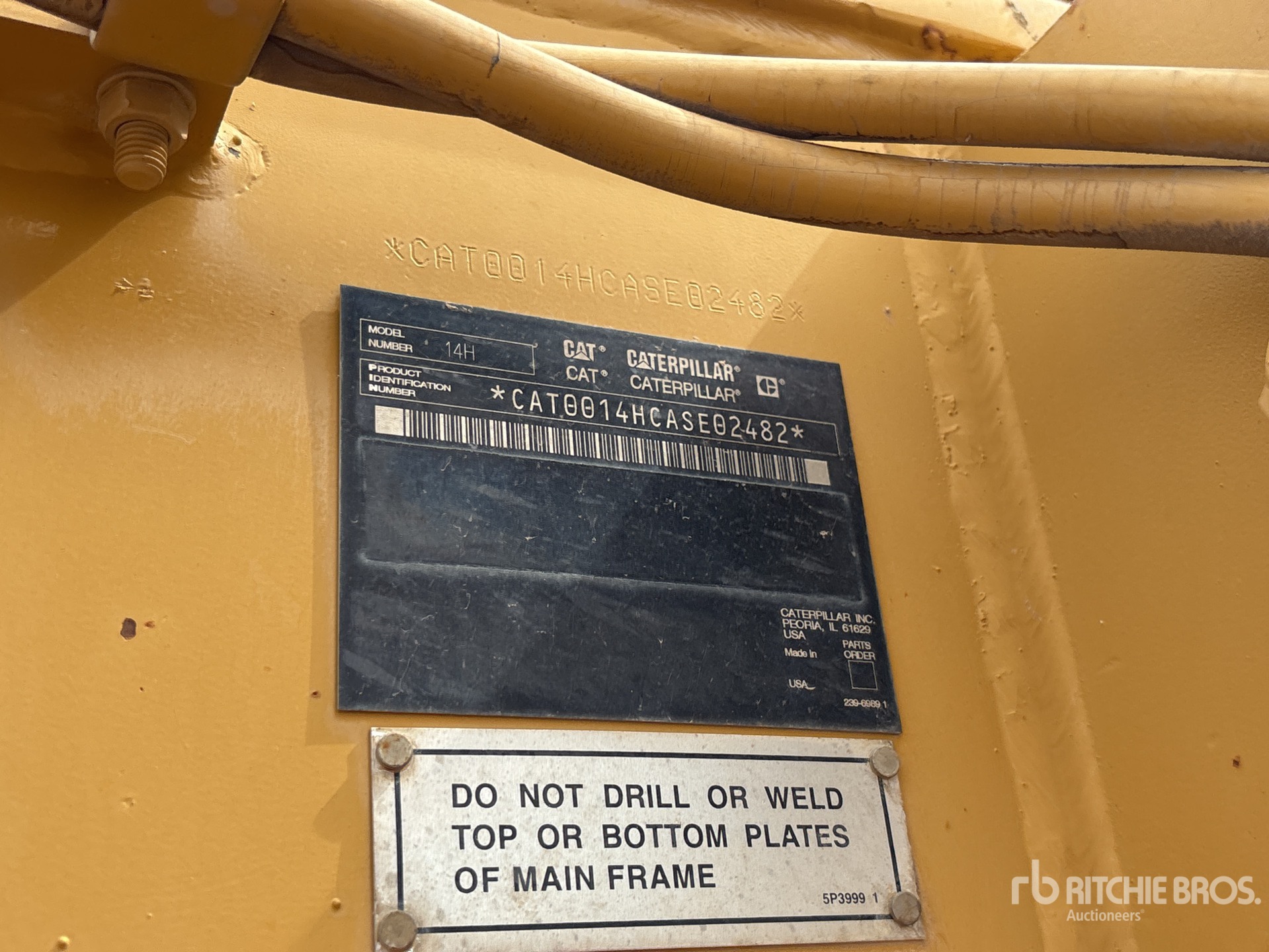

Serial Number:CAT0014HCASE02482
Machine Location:PHOENIX, AZ

Description:

Located in Lane 2 Spot 7, Enclosed Cab, Air Conditioner, 14 ft / 4.27 m Moldboard w/ Extension, Rear Scarifier, 20.5R25 Tires Closing Time: 2026-08-25 09:15:10 AM


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Caterpillar 14H is a motor grader designed for road construction, maintenance, and earthmoving applications. Built for grading, shaping, and surface finishing, the 14H is part of Caterpillar's heavy equipment lineup used in highway work, site preparation, and municipal operations. It features a long wheelbase, articulated frame, and moldboard system for precise blade control and material movement. The machine is commonly used for ditching, slope work, snow removal, and gravel road maintenance. As a Caterpillar motor grader, the 14H is recognized for its role in fine grading and general-purpose grading tasks across construction and infrastructure projects.
Circle
Blade Tip Angle - Front 40 degrees
Blade Tip Angle - Rear 5 degrees
Diameter 72 in (182 cm)
Max Lift Above Ground 17 in (42 cm)
Max Reach Outside Tires - Left 81 in (206 cm)
Max Reach Outside Tires - Right 82 in (208 cm)
Shift Left 26 in (65 cm)
Shift Right 21 in (52 cm)
Dimensions
Front Ground Clearance 2 ft (1 m)
Height to Top of Isomount Cab 11 ft (3 m)
Rear Ground Clearance 1 ft (0 m)
Tandem Axle Wheelbase 6 ft (2 m)
Wheelbase 21 ft (6 m)
Width Over Tires 9 ft (3 m)
Engine
Net Power Gear 1-2 220 hp (164 kw)
Net Power Gear 4-6 240 hp (179 kw)
Net Power Gear 5-6 240 hp (179 kw)
Number of Cylinders 6
Power Measured @ 2,000 rpm
Front Axle
Ground Clearance 2 ft (1 m)
Oscillation - Total 32 degrees
Wheel Lean 18 degrees
Hydraulic System
Pump Type axial piston
Relief Valve Pressure 3,500 psi
Moldboard
Blade Down Pressure 34,518 lbs (15,657 kg)
Blade Pull at Max Weight 52,660 lbs (23,886 kg)
Max Depth of Cut 17 in (44 cm)
Moldboard Height 27 in (69 cm)
Moldboard Thickness 1 in (3 cm)
Side Shift Left 26 in (65 cm)
Side Shift Right 31 in (79 cm)
Operating Specifications
Alternator Supplied Amperage 50 amps
Circle Gearbox Fluid Capacity 2 gal (6 l)
Cooling System Fluid Capacity 13 gal (48 l)
Max Operation Weight - Front Axle 19,425 lbs (8,811 kg)
Max Operation Weight - Rear Axle 39,084 lbs (17,728 kg)
Max Operation Weight - Total 58,509 lbs (26,539 kg)
Operating Voltage 24 volts
Std Operation Weight - Front Axle 11,695 lbs (5,305 kg)
Std Operation Weight - Rear Axle 29,770 lbs (13,503 kg)
Tandem Case Fluid Capacity (each) 26 gal (97 l)
Tire Size 16-24 12PR (G-2)
Transmission Fluid Capacity 22 gal (82 l)
Steering System
Articulation Angle 20 degrees
Transmission
Max Speed - Forward 27 mph (43 kph)
Max Speed - Reverse 29 mph (47 kph)
Number of Gears - Forward 8
Number of Gears - Reverse 8
Transmission Type direct drive power shift planetary
