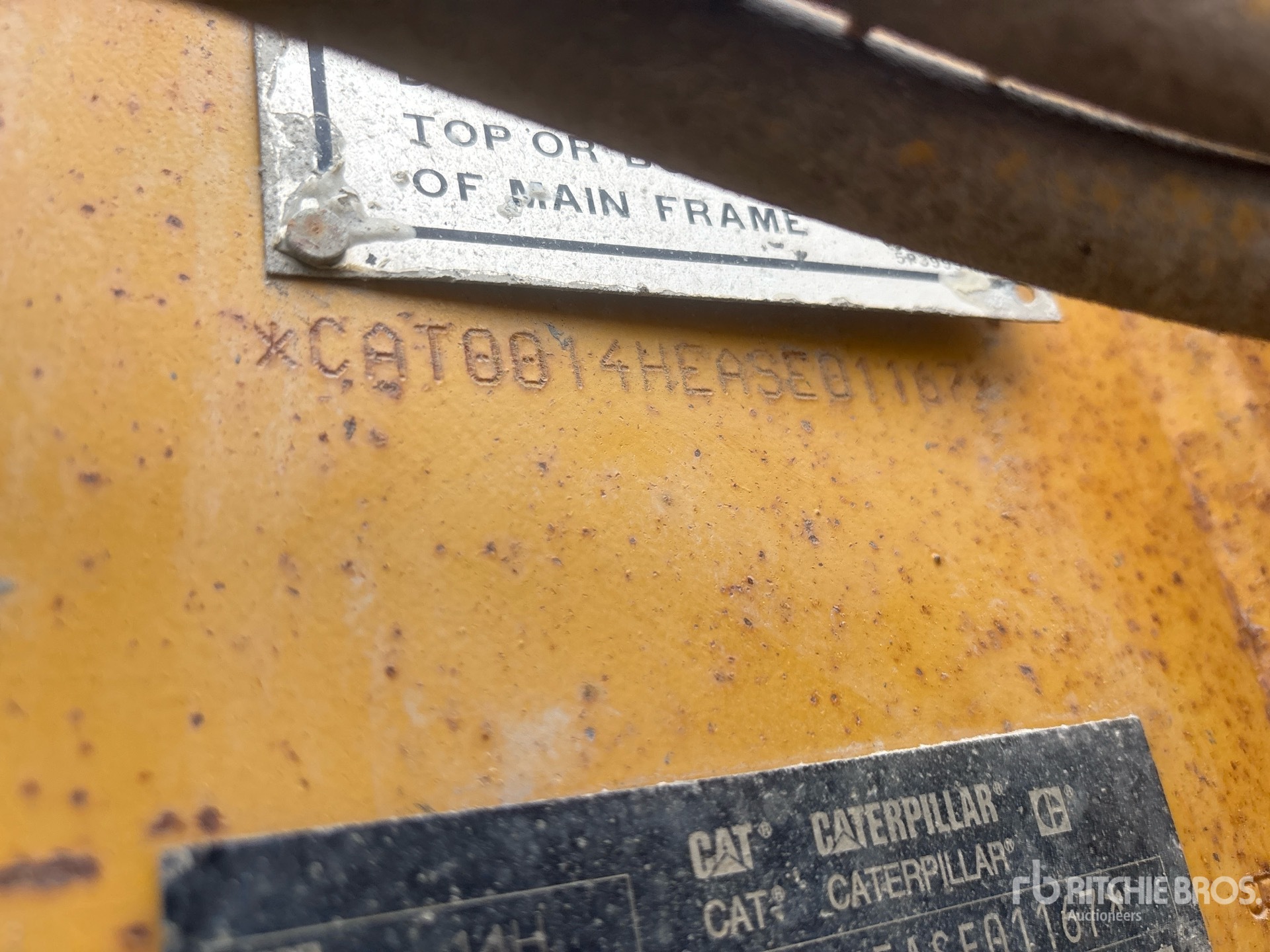

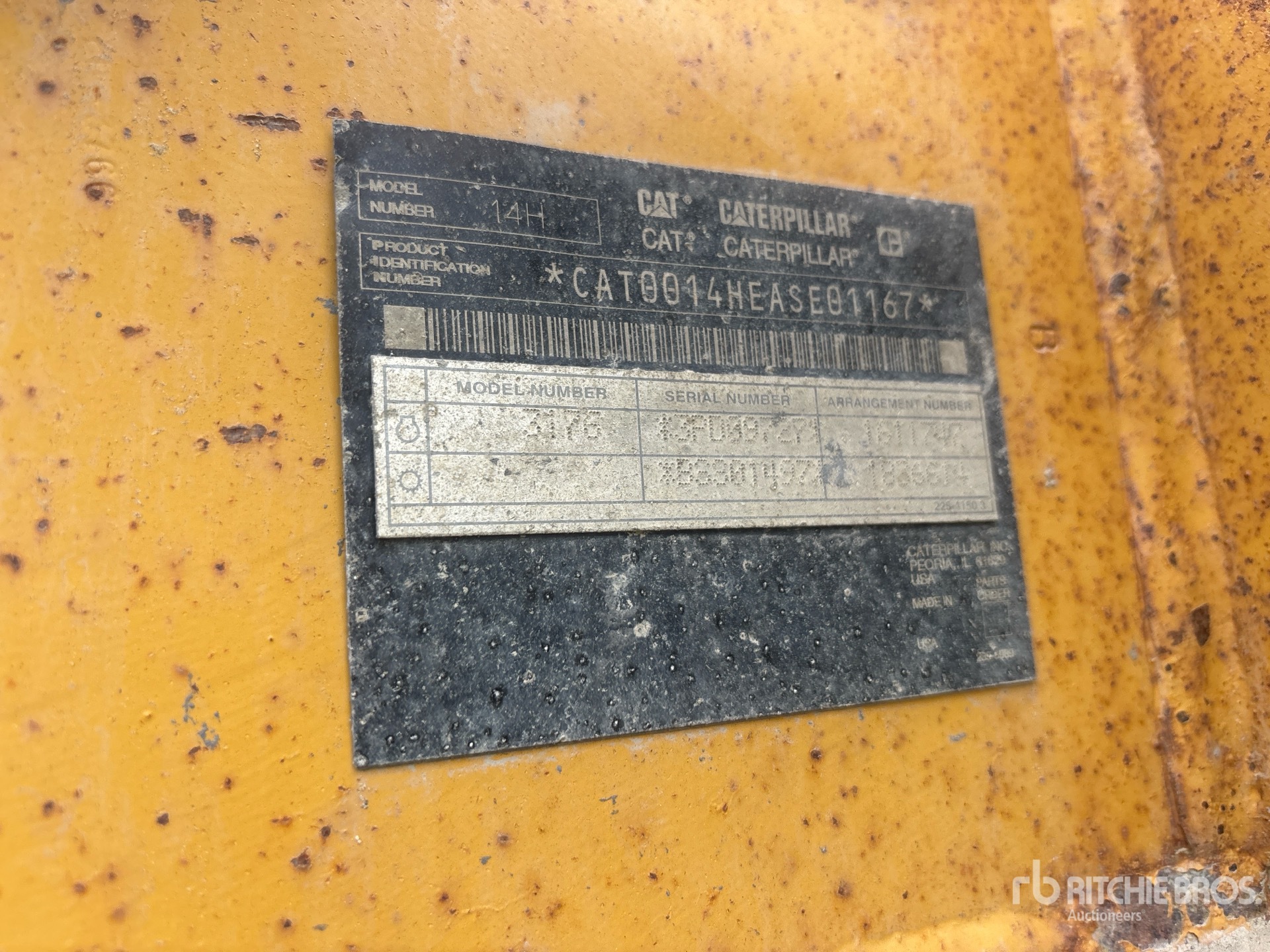

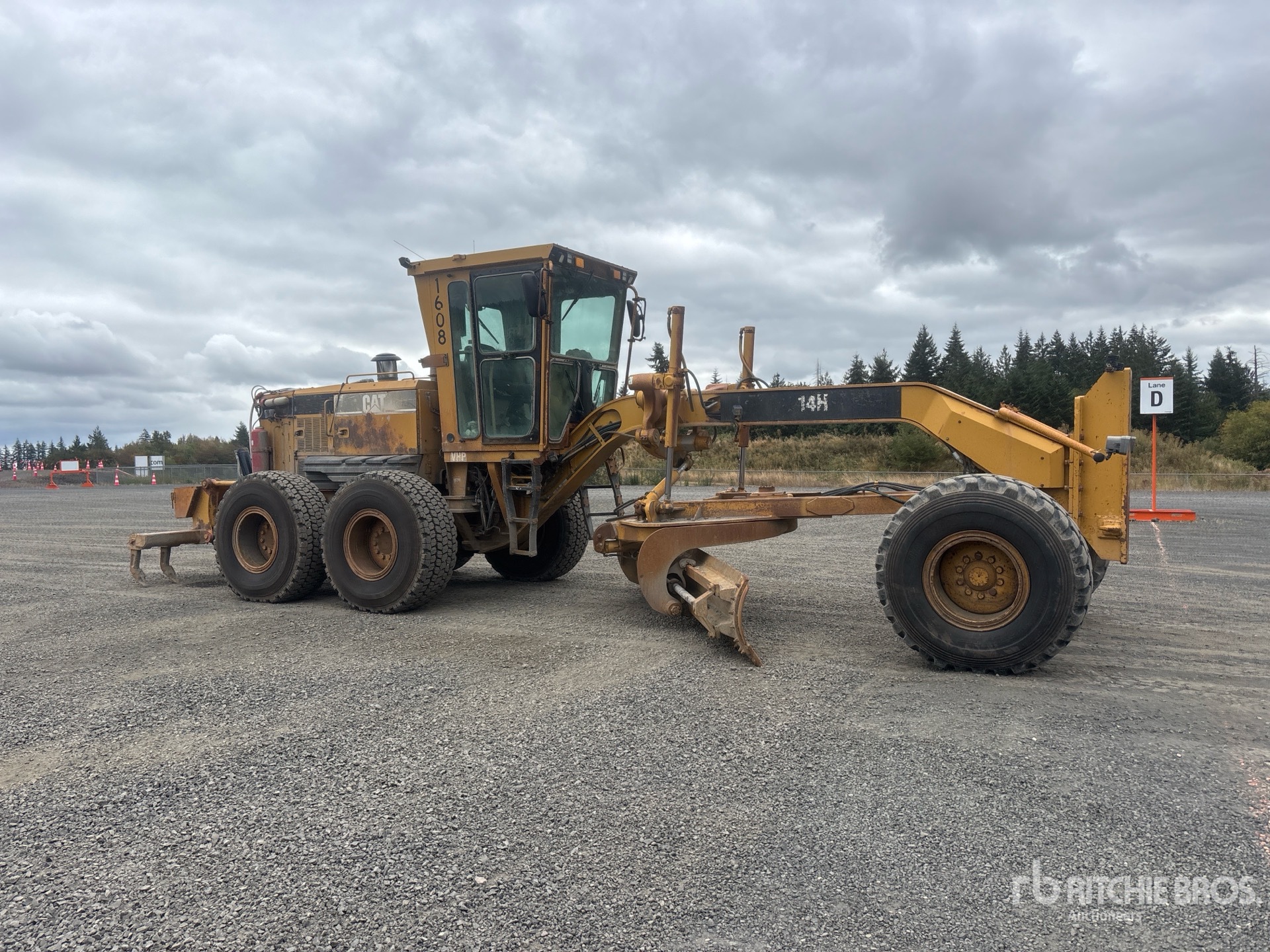

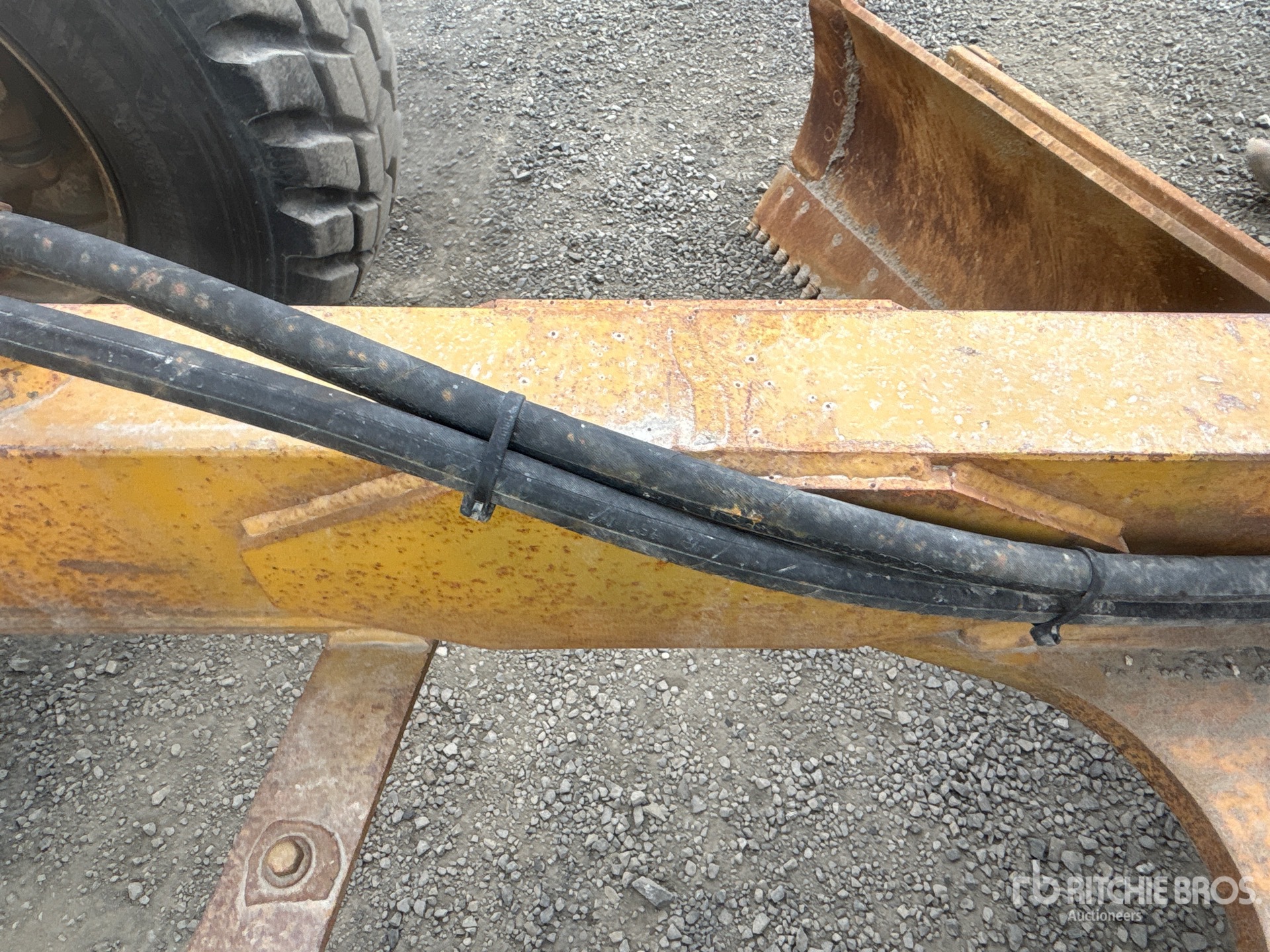

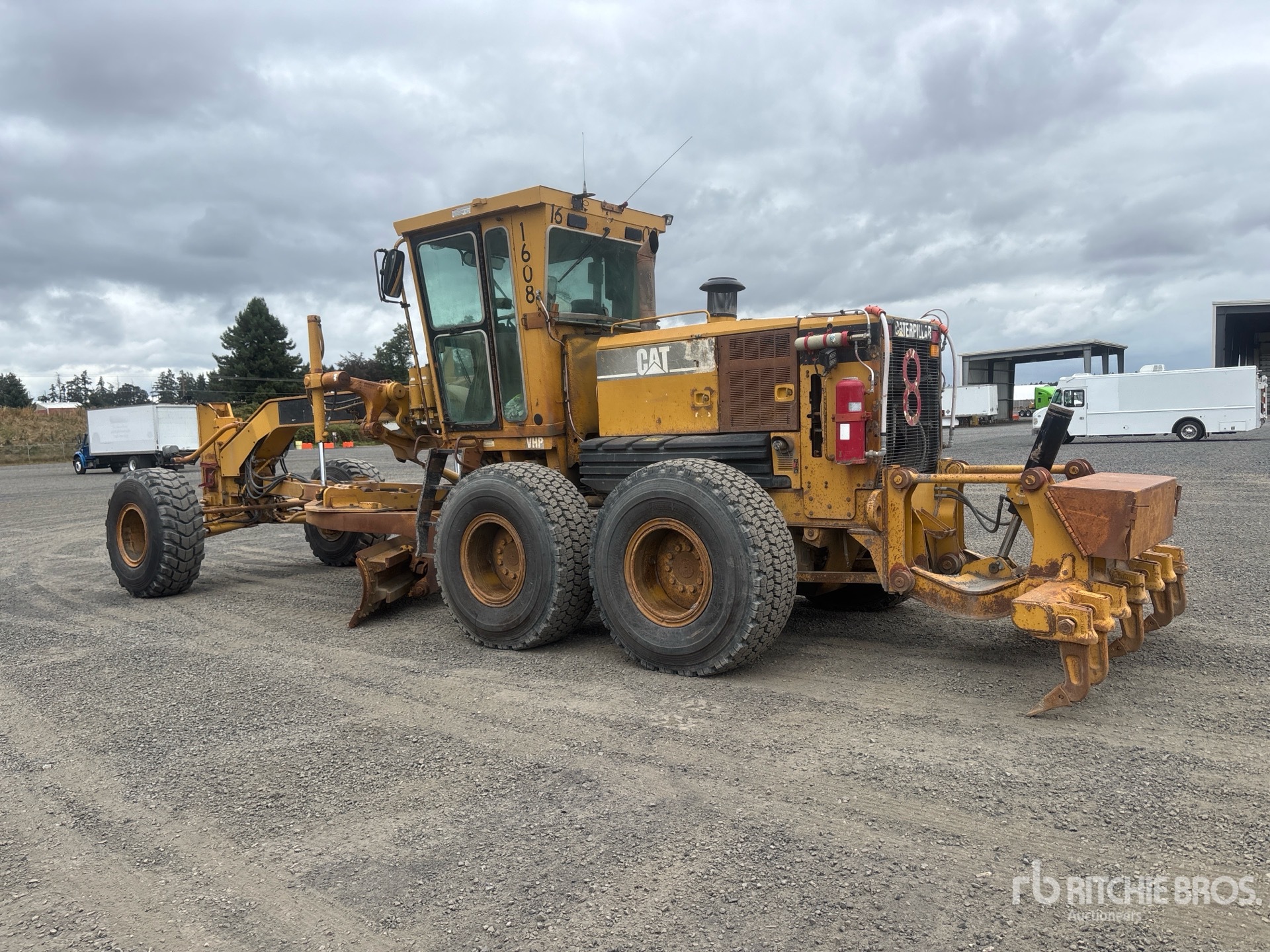

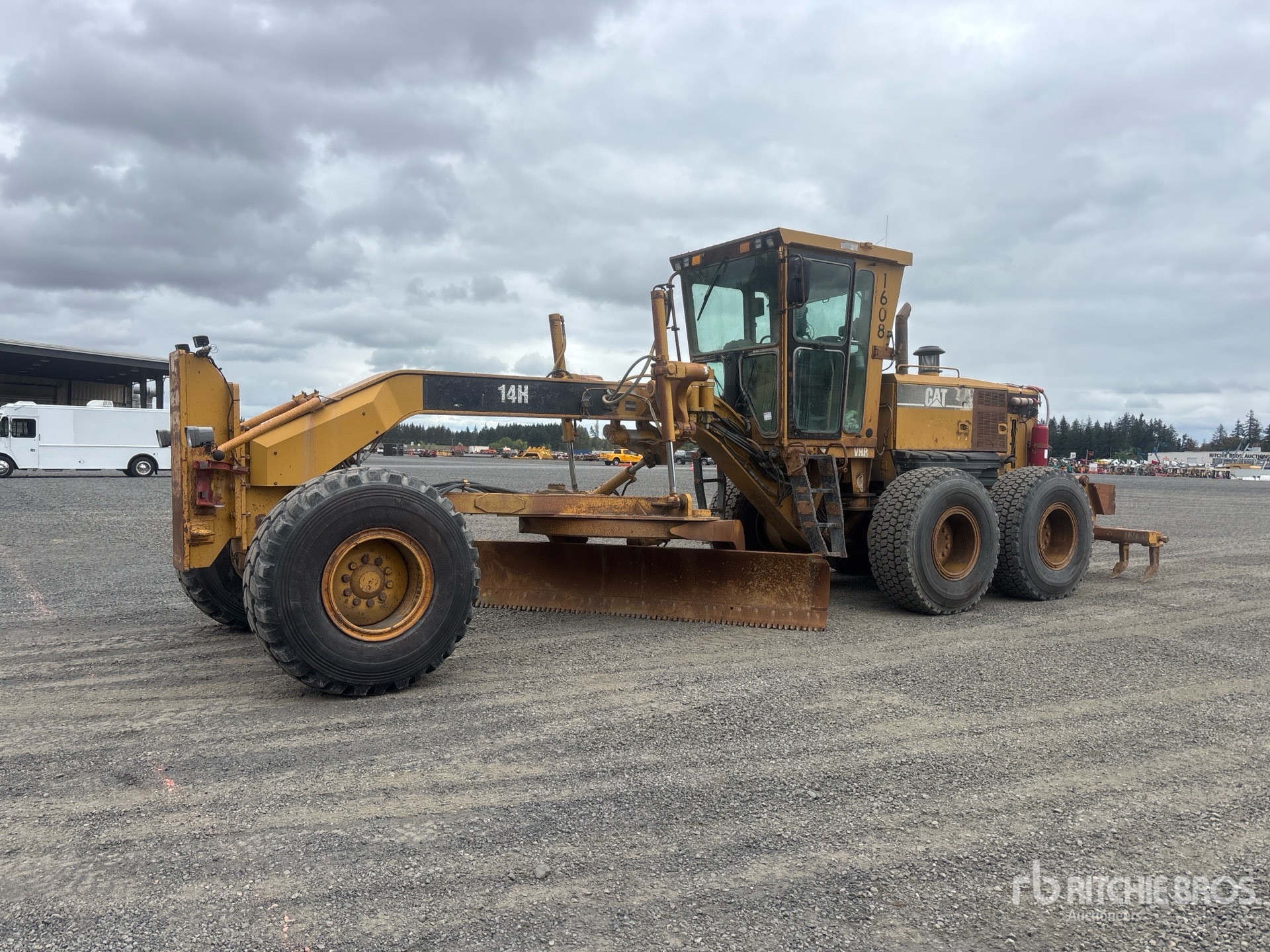

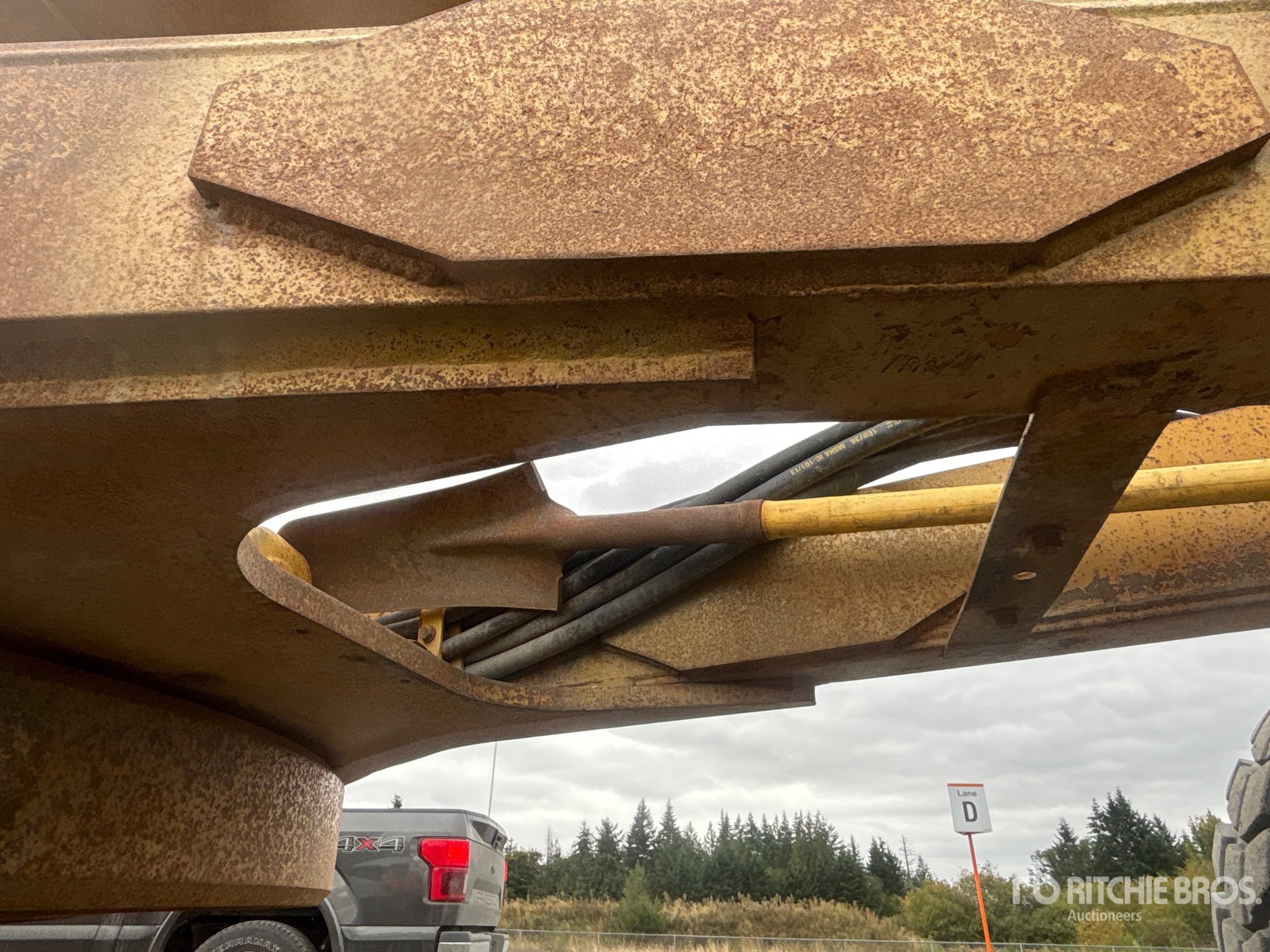

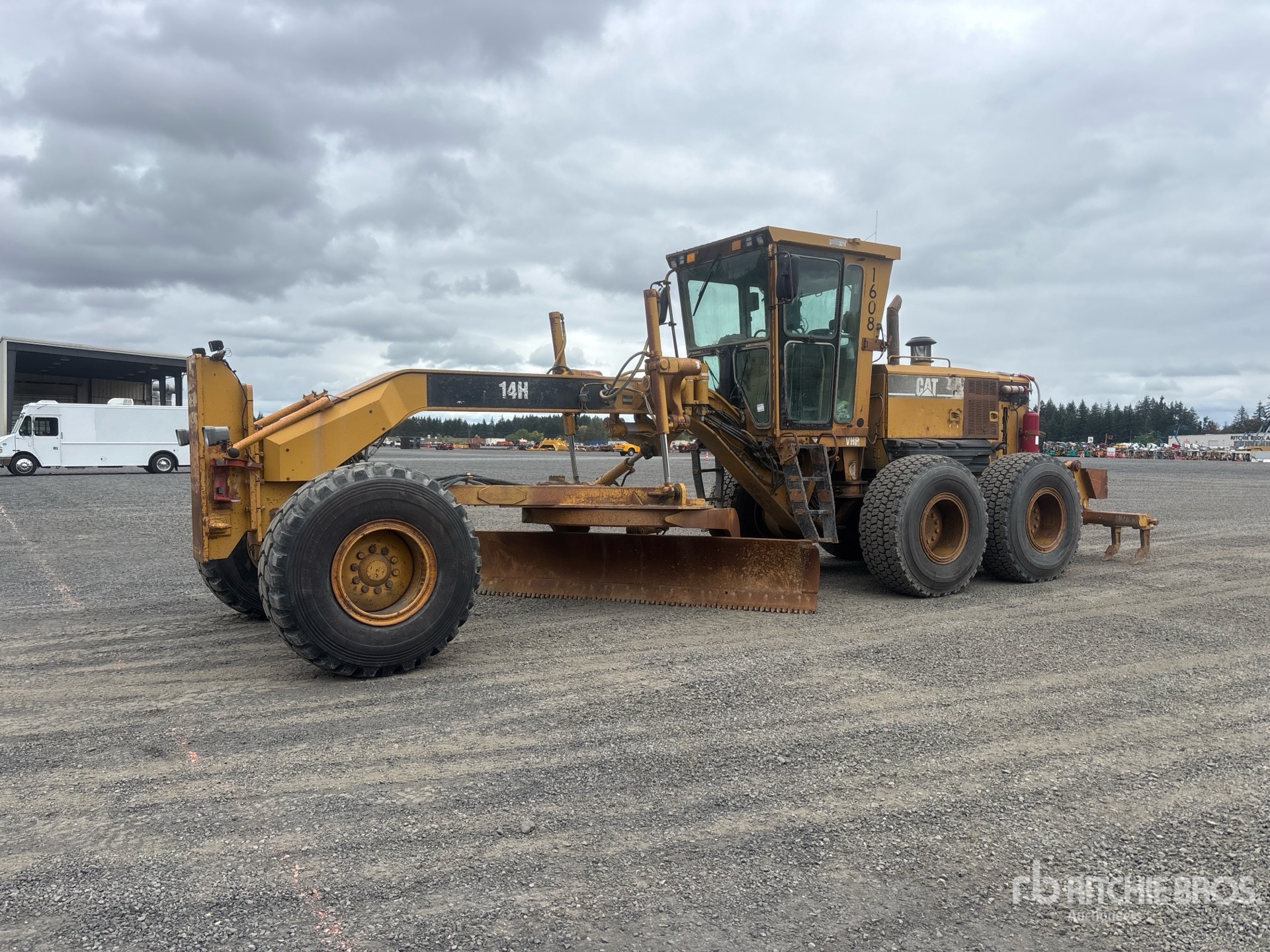

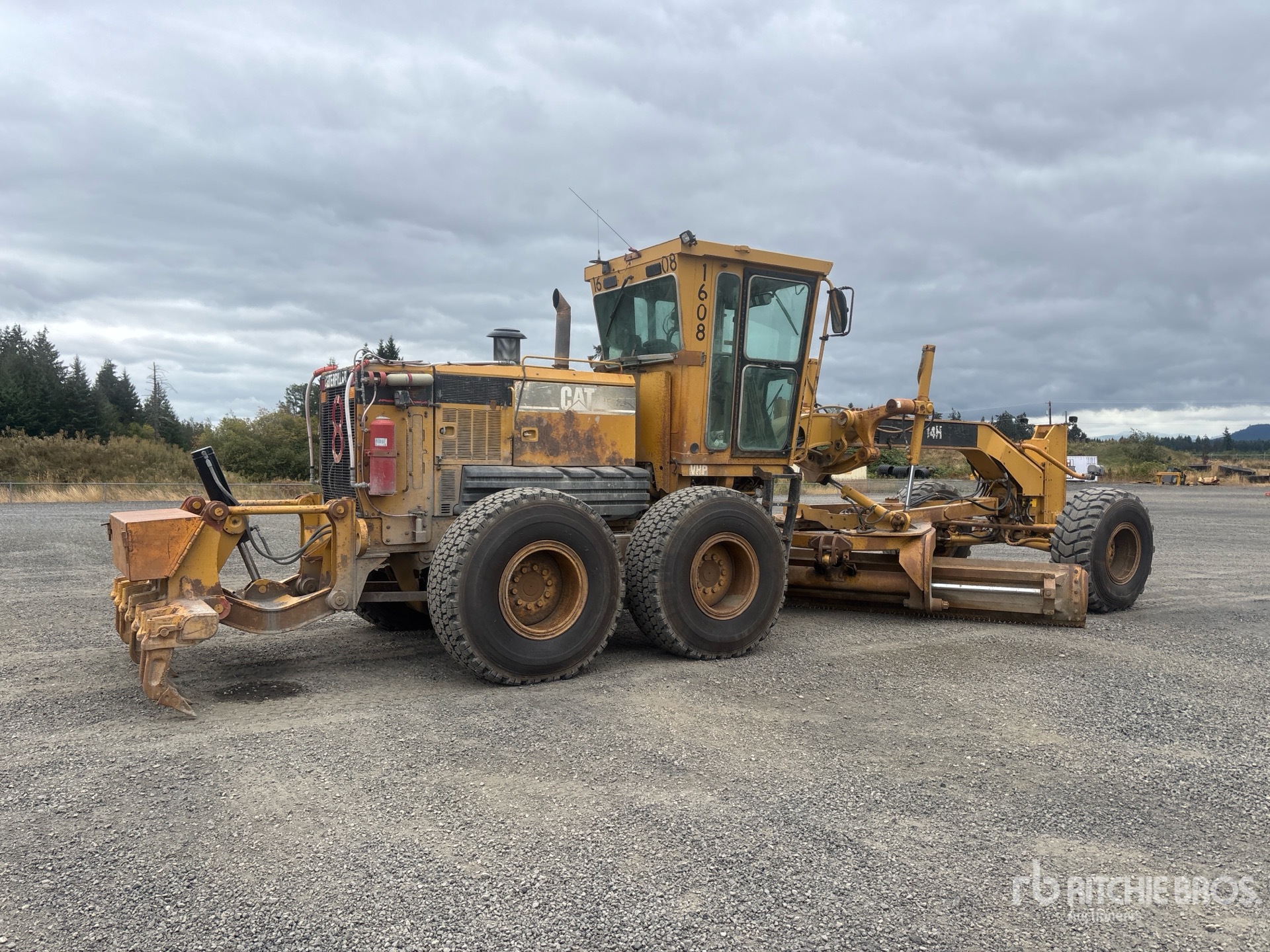

| Circle |
|
Blade Tip Angle - Front |
40 degrees |
|
Blade Tip Angle - Rear |
5 degrees |
|
Diameter |
72 in (182 cm)
|
|
Max Lift Above Ground |
17 in (42 cm)
|
|
Max Reach Outside Tires - Left |
81 in (206 cm)
|
|
Max Reach Outside Tires - Right |
82 in (208 cm)
|
|
Shift Left |
26 in (65 cm)
|
|
Shift Right |
21 in (52 cm)
|
| Dimensions |
|
Blade Base |
9 ft (3 m)
|
|
Blade Base |
9 ft (3 m)
|
|
Front Ground Clearance |
2 ft (1 m)
|
|
Height |
11 ft (3 m)
|
|
Height To Top Of Isomount Cab |
11 ft (3 m)
|
|
Height To Top Of Isomount Cab |
11 ft (3 m)
|
|
Length |
31 ft (9 m)
|
|
Overall Length |
31 ft (9 m)
|
|
Overall Length |
30 ft (9 m)
|
|
Rear Ground Clearance |
1 ft (0 m)
|
|
Tandem Axle Wheelbase |
5 ft (2 m)
|
|
Weight |
44,000 lbs (19,958 kg)
|
|
Wheelbase |
21 ft (6 m)
|
|
Wheelbase |
21 ft (6 m)
|
|
Width |
9 ft (3 m)
|
|
Width Over Tires |
9 ft (3 m)
|
|
Width Over Tires |
9 ft (3 m)
|
| Engine |
|
Displacement |
629 cu in (10,307 cu cm)
|
|
Displacement |
638 cu in (10,450 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Make |
2,236 |
|
Engine Model |
3176 ATAAC |
|
Engine Model |
3306 DITA |
|
Max Power |
240 hp (179 kw)
|
|
Max Power |
215 hp (160 kw)
|
|
Net Power Gear 1-2 |
220 hp (164 kw)
|
|
Net Power Gear 4-6 |
240 hp (179 kw)
|
|
Net Power Gear 5-6 |
240 hp (179 kw)
|
|
Net Power Gears 7-8 |
240 hp (179 kw)
|
|
Net Power Gears 7-8 |
215 hp (160 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
2,000 rpm |
| Front Axle |
|
Ground Clearance |
2 ft (1 m)
|
|
Oscillation - Total |
32 degrees |
|
Oscillation - Total |
32 degrees |
|
Wheel Lean |
18 degrees |
|
Wheel Lean |
18 degrees |
| Hydraulic System |
|
Pump Flow |
64 gpm (243 lpm)
|
|
Pump Flow |
64 gpm (243 lpm)
|
|
Pump Type |
axial piston |
|
Pump Type |
Axial Piston |
|
Relief Valve Pressure |
3,500 psi |
|
Relief Valve Pressure |
3,500 psi |
| Moldboard |
|
Blade Down Pressure |
34,518 lbs (15,654 kg)
|
|
Blade Pull At Max Weight |
52,660 lbs (23,882 kg)
|
|
Max Depth Of Cut |
17 in (44 cm)
|
|
Moldboard Height |
27 in (69 cm)
|
|
Moldboard Height |
27 in (69 cm)
|
|
Moldboard Thickness |
1 in (3 cm)
|
|
Moldboard Thickness |
1 in (3 cm)
|
|
Moldboard Width |
14 ft (4 m)
|
|
Moldboard Width |
14 ft (4 m)
|
|
Side Shift Left |
26 in (65 cm)
|
|
Side Shift Right |
31 in (79 cm)
|

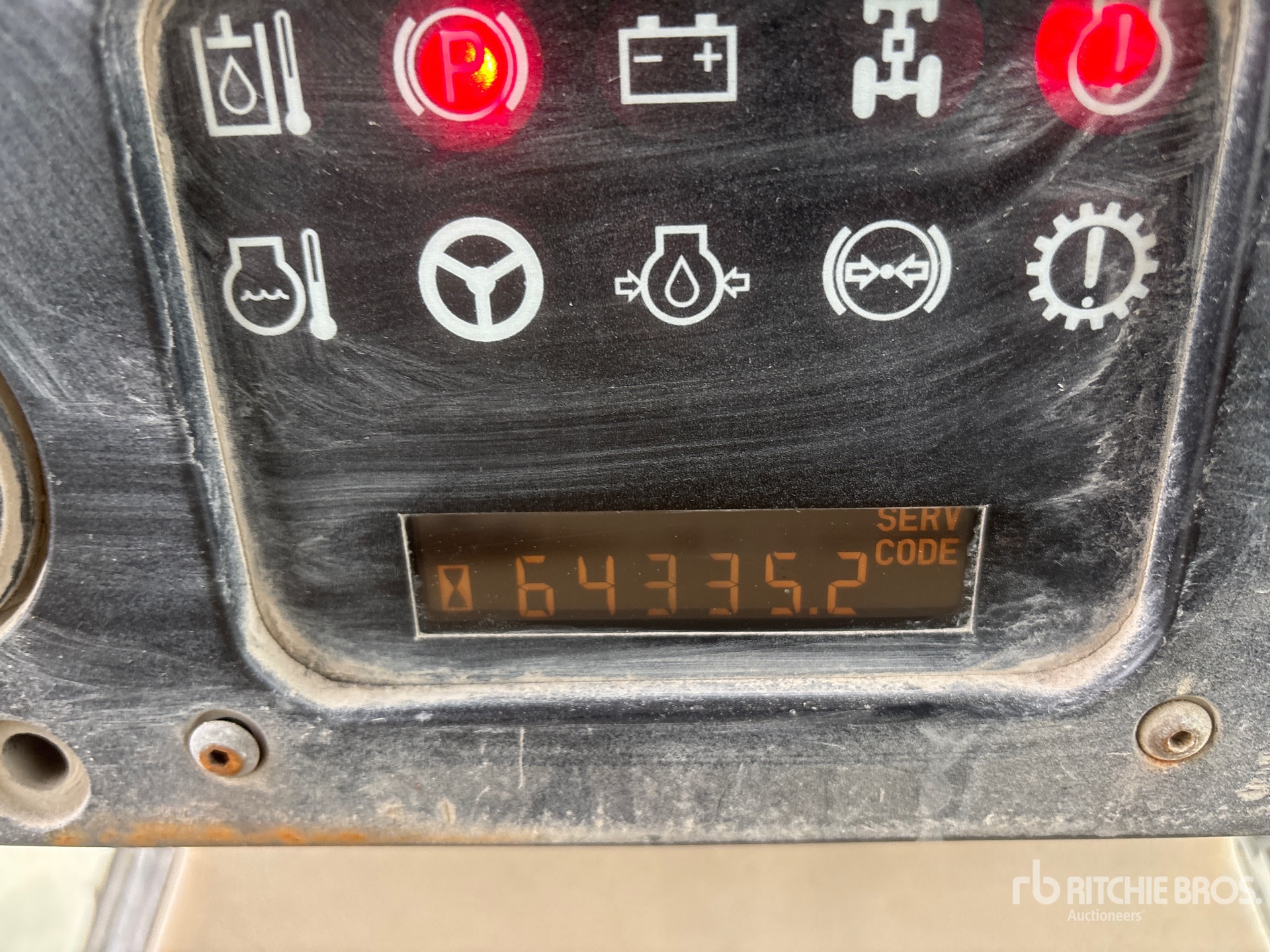

| Operational |
|
Alternator Supplied Amperage |
50 amps |
|
Circle Gearbox Fluid Capacity |
2 gal (6 l)
|
|
Cooling System Fluid Capacity |
13 gal (48 l)
|
|
Fuel Capacity |
100 gal (379 l)
|
|
Fuel Capacity |
110 gal (416 l)
|
|
Hydraulic System Fluid Capacity |
33 gal (125 l)
|
|
Hydraulic System Fluid Capacity |
33 gal (123 l)
|
|
Max Operation Weight - Front Axle |
19,425 lbs (8,810 kg)
|
|
Max Operation Weight - Rear Axle |
39,084 lbs (17,725 kg)
|
|
Max Operation Weight - Total |
58,509 lbs (26,535 kg)
|
|
Operating Voltage |
24 V |
|
Std Operation Weight - Front Axle |
11,695 lbs (5,304 kg)
|
|
Std Operation Weight - Rear Axle |
29,770 lbs (13,501 kg)
|
|
Std Operation Weight - Total |
41,412 lbs (18,781 kg)
|
|
Std Operation Weight - Total |
41,465 lbs (18,805 kg)
|
|
Tandem Case Fluid Capacity (Each) |
26 gal (97 l)
|
|
Tire Size |
16-24 12PR (G-2) |
|
Transmission Fluid Capacity |
22 gal (82 l)
|
| Steering |
|
Articulation Angle |
20 degrees |
|
Articulation Angle |
20 degrees |
|
Turning Radius |
26 ft (8 m)
|
|
Turning Radius |
26 ft (8 m)
|
| Transmission |
|
Max Speed - Forward |
27 mph (43 kph)
|
|
Max Speed - Forward |
27 mph (43 kph)
|
|
Max Speed - Reverse |
29 mph (47 kph)
|
|
Max Speed - Reverse |
29 mph (47 kph)
|
|
Number Of Gears - Forward |
8 |
|
Number Of Gears - Forward |
8 |
|
Number Of Gears - Reverse |
8 |
|
Number Of Gears - Reverse |
8 |
|
Transmission Type |
direct drive, power shift, planetary |
