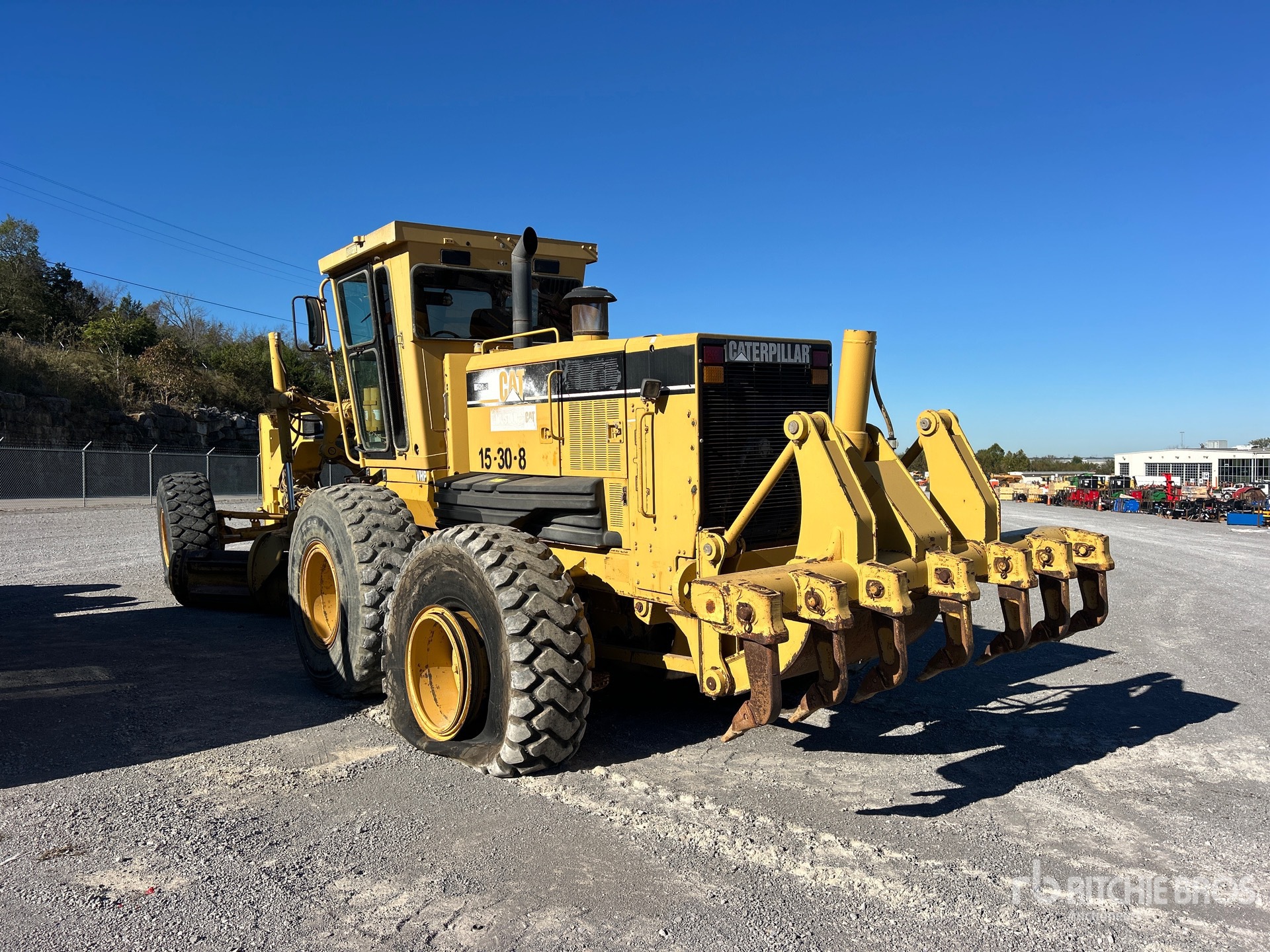

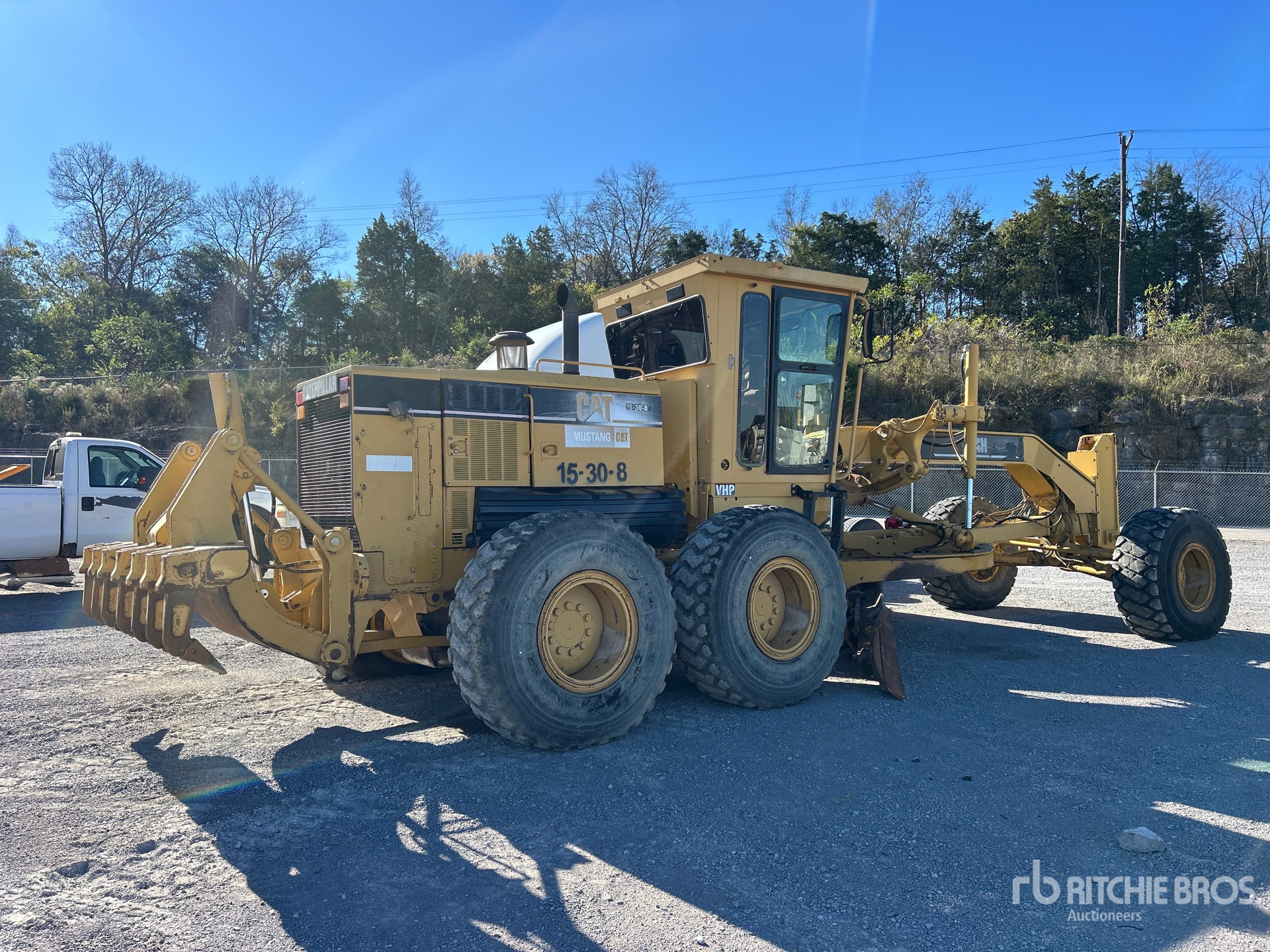

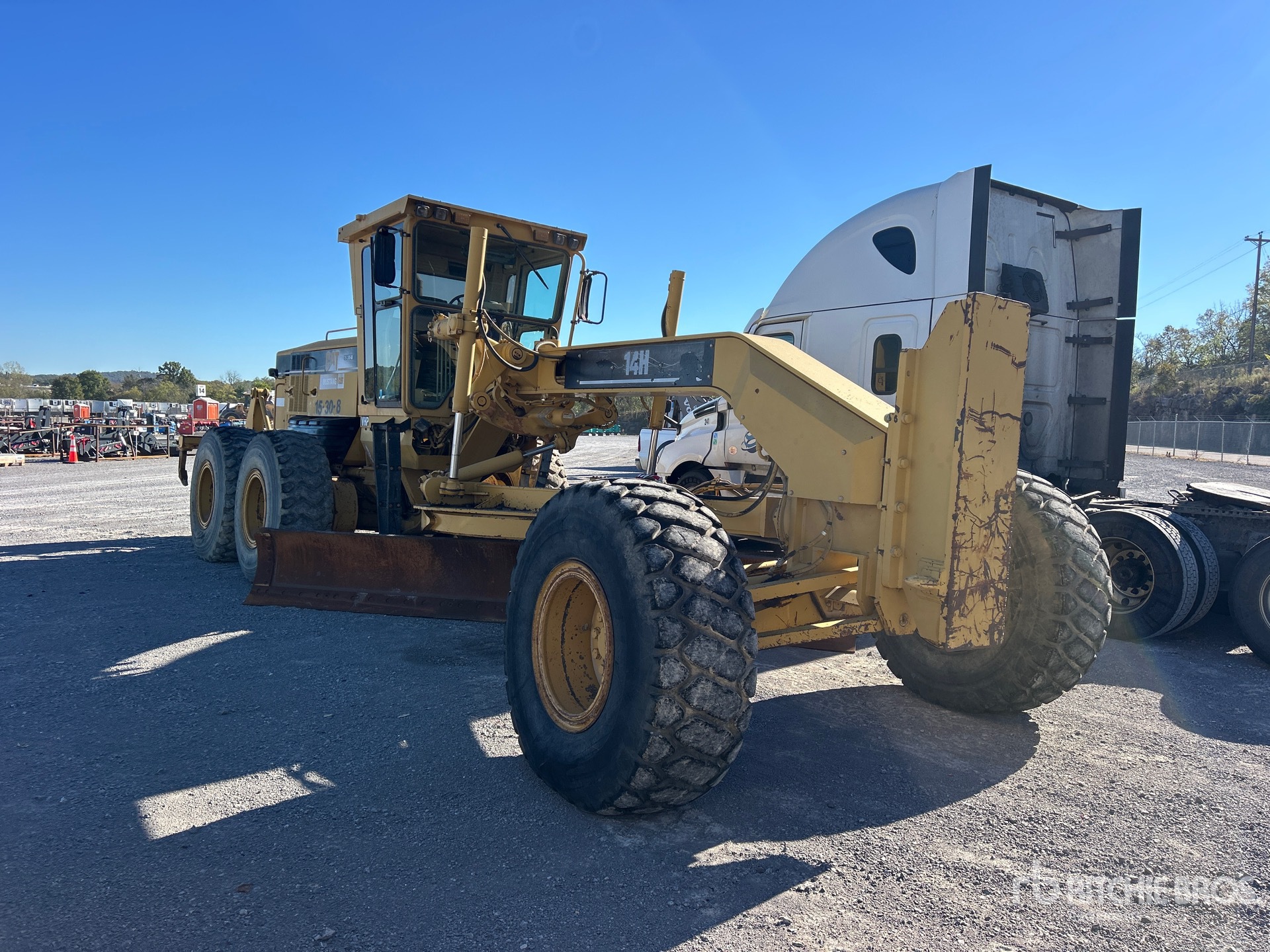

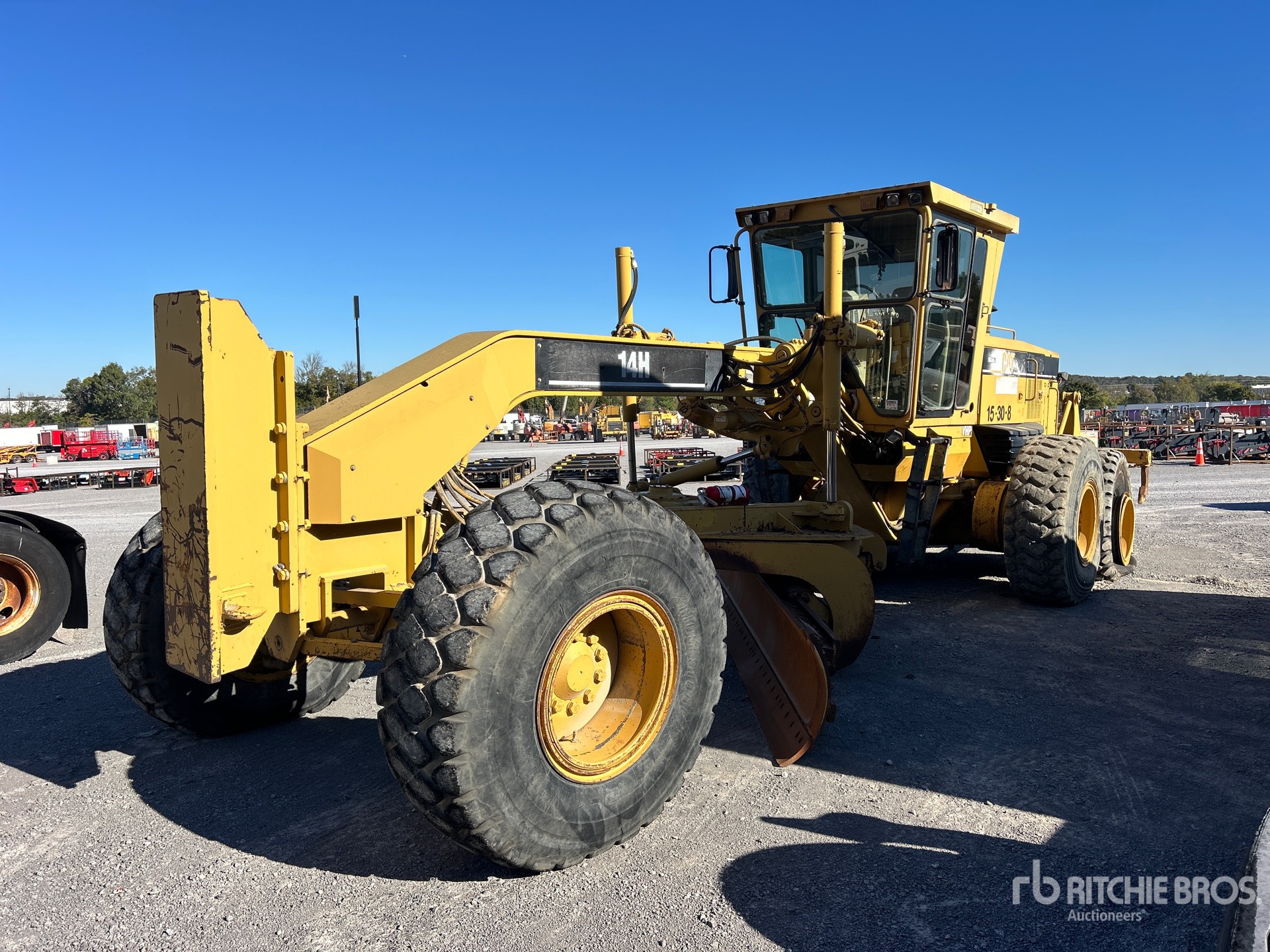

2007 Caterpillar 14H For Sale in Atlanta, Ga

Name: 2007 Caterpillar 14H
Brand: Caterpillar
SKU: 89546563
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-12-17 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	10963
Serial Number:	ASE02376
Machine Location:	ATLANTA, GA

Description:

Enclosed Cab, 16 ft / 4.88 m Moldboard, Ripper, 20.5-25 Tires Closing Time: 2026-12-17 07:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 14H is a heavy-duty motor grader designed for road construction, maintenance, and earthmoving applications. Built by Caterpillar, the 14H is part of the company's H-series grader lineup and is known for its articulated frame, moldboard control, and balanced grading performance. It is commonly used for shaping surfaces, maintaining haul roads, ditching, and fine grading on job sites. The machine typically features a diesel engine, hydraulic blade controls, and a cab configured for operator visibility and control. The Caterpillar 14H remains a recognized model in the used equipment market for grading and site preparation work.

Circle
Blade Tip Angle - Front	40 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	72 in (182 cm)
Max Lift Above Ground	17 in (42 cm)
Max Reach Outside Tires - Left	81 in (206 cm)
Max Reach Outside Tires - Right	82 in (208 cm)
Shift Left	26 in (65 cm)
Shift Right	21 in (52 cm)
Dimensions
Blade Base	9 ft (3 m)
Blade Base	9 ft (3 m)
Front Ground Clearance	2 ft (1 m)
Height	11 ft (3 m)
Height To Top Of Isomount Cab	11 ft (3 m)
Height To Top Of Isomount Cab	11 ft (3 m)
Length	31 ft (9 m)
Overall Length	30 ft (9 m)
Overall Length	31 ft (9 m)
Rear Ground Clearance	1 ft (0 m)
Tandem Axle Wheelbase	5 ft (2 m)
Weight	44,000 lbs (19,958 kg)
Wheelbase	21 ft (6 m)
Wheelbase	21 ft (6 m)
Width	9 ft (3 m)
Width Over Tires	9 ft (3 m)
Width Over Tires	9 ft (3 m)
Engine
Displacement	638 cu in (10,450 cu cm)
Displacement	629 cu in (10,307 cu cm)
Engine Make	2,236
Engine Make	2,236
Engine Model	3306 DITA
Engine Model	3176 ATAAC
Max Power	215 hp (160 kw)
Max Power	240 hp (179 kw)
Net Power Gear 1-2	220 hp (164 kw)
Net Power Gear 4-6	240 hp (179 kw)
Net Power Gear 5-6	240 hp (179 kw)
Net Power Gears 7-8	215 hp (160 kw)
Net Power Gears 7-8	240 hp (179 kw)
Number Of Cylinders	6
Power Measured @	2,000 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Oscillation - Total	32 degrees
Wheel Lean	18 degrees
Wheel Lean	18 degrees
General Specifications
Approx. Ship Wt. (Since 1995)	41,410 lbs (18,783 kg)
Approx. Ship Wt. (1996)	41,410 lbs (18,783 kg)
Approx. Ship Wt. (1997)	41,410 lbs (18,783 kg)
Approx. Ship Wt. (1998)	41,410 lbs (18,783 kg)
Approx. Ship Wt. (1999)	41,410 lbs (18,783 kg)
Approx. Ship Wt. (2000)	41,410 lbs (18,783 kg)
Approx. Ship Wt. (2001)	41,410 lbs (18,783 kg)
Approx. Ship Wt. (2002)	41,410 lbs (18,783 kg)
Approx. Ship Wt. (Since 2002)	41,465 lbs (18,808 kg)
Approx. Ship Wt. (Since 2003)	41,410 lbs (18,783 kg)
Approx. Ship Wt. (Since 2003)	41,465 lbs (18,808 kg)
Approx. Ship Wt. (Since 2004)	41,410 lbs (18,783 kg)
Approx. Ship Wt. (Since 2004)	41,465 lbs (18,808 kg)
Approx. Ship Wt. (2005)	41,465 lbs (18,808 kg)
Approx. Ship Wt. (Since 2005)	41,410 lbs (18,783 kg)
Approx. Ship Wt. (2006)	41,410 lbs (18,783 kg)
Approx. Ship Wt. (Since 2006)	41,465 lbs (18,808 kg)
Approx. Ship Wt. (2007)	41,465 lbs (18,808 kg)
Approx. Ship Wt. (Since 2007)	41,410 lbs (18,783 kg)
Controls (Since 1995)	Hyd.
Controls (1996)	Hyd.
Controls (1997)	Hyd.
Controls (1998)	Hyd.
Controls (1999)	Hyd.
Controls (2000)	Hyd.
Controls (2001)	Hyd.
Controls (2002)	Hyd.
Controls (2003)	Hyd.
Controls (2004)	Hyd.
Controls (2005)	Hyd.
Controls (2006)	Hyd.
Controls (2007)	Hyd.
Displacement (Since 1998)	638 cu in (10,455 cu cm)
Displacement (2001)	638 cu in (10,455 cu cm)
Displacement (Since 2006)	628 cu in (10,291 cu cm)
Electrical - Std. Alternator (Since 1998)	50 amp
Electrical - Std. Alternator (2001)	50 amp
Electrical - Std. Alternator (Since 2006)	75 amp
Electrical - Std. Battery CCA @ 0° F (Since 1998)	950
Electrical - Std. Battery CCA @ 0° F (2001)	950
Electrical - Std. Battery CCA @ 0° F (Since 2006)	1,100
Electrical - System Size (Since 1998)	24V
Electrical - System Size (2001)	24V
Electrical - System Size (2006)	24V
Engine Model (Since 1998)	3306 DITA
Engine Model (2001)	3306 DITA
Engine Model (Since 2006)	3176C
Front Axle/Steering - Articulation Angle (Since 1998)	20 deg
Front Axle/Steering - Articulation Angle (2001)	20 deg
Front Axle/Steering - Articulation Angle (2006)	20 deg
Front Axle/Steering - Minimum Turning Radius (Since 1998)	311 in (790 cm)
Front Axle/Steering - Minimum Turning Radius (2001)	311 in (790 cm)
Front Axle/Steering - Minimum Turning Radius (Since 2006)	315 in (800 cm)
Front Axle/Steering - Oscillation Angle (Since 1998)	32 deg
Front Axle/Steering - Oscillation Angle (2001)	32 deg
Front Axle/Steering - Oscillation Angle (2006)	32 deg
Front Axle/Steering - Steering Angle (Since 1998)	50 deg
Front Axle/Steering - Steering Angle (2001)	50 deg
Front Axle/Steering - Steering Angle (2006)	50 deg
Front Axle/Steering - Wheel Lean Angle (Since 1998)	18 deg
Front Axle/Steering - Wheel Lean Angle (2001)	18 deg
Front Axle/Steering - Wheel Lean Angle (2006)	18 deg
Front Frame Section Modulus - Max. (Since 1998)	310 cu in (5,080 cu cm)
Front Frame Section Modulus - Max. (2001)	310 cu in (5,080 cu cm)
Front Frame Section Modulus - Max. (2006)	310 cu in (5,080 cu cm)
Front Frame Section Modulus - Min. (Since 1998)	162 cu in (2,655 cu cm)
Front Frame Section Modulus - Min. (2001)	162 cu in (2,655 cu cm)
Front Frame Section Modulus - Min. (2006)	162 cu in (2,655 cu cm)
Fuel Tank Capacity (Since 1998)	100 US gal (379 L)
Fuel Tank Capacity (2001)	100 US gal (379 L)
Fuel Tank Capacity (Since 2006)	110 US gal (416 L)
GENERAL DIMENSIONS - Blade Base (Since 1998)	113 in (287 cm)
GENERAL DIMENSIONS - Blade Base (2001)	113 in (287 cm)
GENERAL DIMENSIONS - Blade Base (2006)	113 in (287 cm)
GENERAL DIMENSIONS - Height (Since 2006)	27 in (69 cm)
GENERAL DIMENSIONS - Height (stripped top) (Since 1998)	112 in (284 cm)
GENERAL DIMENSIONS - Height (stripped top) (2001)	112 in (284 cm)
GENERAL DIMENSIONS - Height (stripped top) (2006)	112 in (284 cm)
GENERAL DIMENSIONS - Height (to top of ROPS) (Since 1998)	131 in (333 cm)
GENERAL DIMENSIONS - Height (to top of ROPS) (2001)	131 in (333 cm)
GENERAL DIMENSIONS - Height (to top of ROPS) (2006)	131 in (333 cm)
GENERAL DIMENSIONS - Lift Above Ground (Since 1998)	17 in (42 cm)
GENERAL DIMENSIONS - Lift Above Ground (2001)	17 in (42 cm)
GENERAL DIMENSIONS - Lift Above Ground (2006)	17 in (42 cm)
GENERAL DIMENSIONS - Overall Length (Since 1998)	362 in (919 cm)
GENERAL DIMENSIONS - Overall Length (2001)	362 in (919 cm)
GENERAL DIMENSIONS - Overall Length (Since 2006)	368 in (935 cm)
GENERAL DIMENSIONS - Overall Width (at top of front tires) (Since 1998)	111 in (282 cm)
GENERAL DIMENSIONS - Overall Width (at top of front tires) (2001)	111 in (282 cm)
GENERAL DIMENSIONS - Overall Width (at top of front tires) (2006)	111 in (282 cm)
GENERAL DIMENSIONS - Standard Blade: Height (Since 1998)	27 in (69 cm)
GENERAL DIMENSIONS - Standard Blade: Height (2001)	27 in (69 cm)
GENERAL DIMENSIONS - Standard Blade: Length (Since 1998)	168 in (427 cm)
GENERAL DIMENSIONS - Standard Blade: Length (2001)	168 in (427 cm)
GENERAL DIMENSIONS - Standard Blade: Length (2006)	168 in (427 cm)
GENERAL DIMENSIONS - Standard Blade: Thickness (Since 1998)	1 in (3 cm)
GENERAL DIMENSIONS - Standard Blade: Thickness (2001)	1 in (3 cm)
GENERAL DIMENSIONS - Thickness (Since 2006)	1 in (3 cm)
GENERAL DIMENSIONS - Wheelbase (Since 1998)	254 in (645 cm)
GENERAL DIMENSIONS - Wheelbase (2001)	254 in (645 cm)
GENERAL DIMENSIONS - Wheelbase (Since 2006)	258 in (655 cm)
GENERAL DIMENSIONS - With Ripper & Pushplate (Since 1998)	430 in (1,092 cm)
GENERAL DIMENSIONS - With Ripper & Pushplate (Since 2001)	420 in (1,067 cm)
GENERAL DIMENSIONS - With Ripper & Pushplate (Since 2006)	424 in (1,077 cm)
Horse- power, Rated (Since 1995)	215 hp (160 kw)
Horse- power, Rated (1996)	215 hp (160 kw)
Horse- power, Rated (1997)	215 hp (160 kw)
Horse- power, Rated (1998)	215 hp (160 kw)
Horse- power, Rated (1999)	215 hp (160 kw)
Horse- power, Rated (2000)	215 hp (160 kw)
Horse- power, Rated (2001)	215 hp (160 kw)
Horse- power, Rated (2002)	215 hp (160 kw)
Horse- power, Rated (Since 2002)	220/240 hp
Horse- power, Rated (2003)	220/240 hp
Horse- power, Rated (Since 2003)	215 hp (160 kw)
Horse- power, Rated (2004)	215 hp (160 kw)
Horse- power, Rated (Since 2004)	220/240 hp
Horse- power, Rated (2005)	220/240 hp
Horse- power, Rated (Since 2005)	215 hp (160 kw)
Horse- power, Rated (2006)	215 hp (160 kw)
Horse- power, Rated (Since 2006)	220/240 hp
Horse- power, Rated (2007)	220/240 hp
Horse- power, Rated (Since 2007)	215 hp (160 kw)
Hydraulics: Pump Type (Since 1998)	Axial Piston
Hydraulics: Pump Type (2001)	Axial Piston
Hydraulics: Pump Type (2006)	Axial Piston
Implement Pressure: Max. (Since 1998)	3,500 psi (24,150 kPa)
Implement Pressure: Max. (2001)	3,500 psi (24,150 kPa)
Implement Pressure: Max. (2006)	3,500 psi (24,150 kPa)
Implement Pressure: Min. (Since 1998)	450 psi (3,100 kPa)
Implement Pressure: Min. (2001)	450 psi (3,100 kPa)
Interior Sound Level (Since 1998)	80 dBA
Interior Sound Level/SAE J919 (Since 2001)	80 dBA
Interior Sound Level/SAE J919 (2006)	80 dBA
Length (Since 1995)	362 in (919 cm)
Length (1996)	362 in (919 cm)
Length (1997)	362 in (919 cm)
Length (1998)	362 in (919 cm)
Length (1999)	362 in (919 cm)
Length (2000)	362 in (919 cm)
Length (2001)	362 in (919 cm)
Length (2002)	362 in (919 cm)
Length (Since 2002)	368 in (935 cm)
Length (2003)	368 in (935 cm)
Length (Since 2003)	362 in (919 cm)
Length (2004)	362 in (919 cm)
Length (Since 2004)	368 in (935 cm)
Length (2005)	368 in (935 cm)
Length (Since 2005)	362 in (919 cm)
Length (2006)	362 in (919 cm)
Length (Since 2006)	368 in (935 cm)
Length (2007)	368 in (935 cm)
Length (Since 2007)	362 in (919 cm)
Max. Pump Flow (Since 1998)	64 US gpm (243 L/min)
Max. Pump Flow (2001)	64 US gpm (243 L/min)
Max. Pump Flow (2006)	64 US gpm (243 L/min)
Max. Shoulder Reach: (cid:3) - Articulated Position (Since 2006)	121 in (307 cm)
Max. Shoulder Reach: (cid:3) - Frame Straight (Since 2006)	82 in (208 cm)
Max. Shoulder Reach: § - Articulated Position (Since 1998)	121 in (307 cm)
Max. Shoulder Reach: § - Articulated Position (2001)	121 in (307 cm)
Max. Shoulder Reach: § - Frame Straight (Since 1998)	82 in (208 cm)
Max. Shoulder Reach: § - Frame Straight (2001)	82 in (208 cm)
Max. Torque Rise (Since 1998)	30 %
Max. Torque Rise (2001)	30 %
Max.Torque Rise (Since 2006)	50 %
Maximum Forward Speed (Since 1995)	27 mph (43 kph)
Maximum Forward Speed (1996)	27 mph (43 kph)
Maximum Forward Speed (1997)	27 mph (43 kph)
Maximum Forward Speed (1998)	27 mph (43 kph)
Maximum Forward Speed (1999)	27 mph (43 kph)
Maximum Forward Speed (2000)	27 mph (43 kph)
Maximum Forward Speed (2001)	27 mph (43 kph)
Maximum Forward Speed (2002)	27 mph (43 kph)
Maximum Forward Speed (Since 2002)	29 mph (46 kph)
Maximum Forward Speed (2003)	29 mph (46 kph)
Maximum Forward Speed (Since 2003)	27 mph (43 kph)
Maximum Forward Speed (2004)	27 mph (43 kph)
Maximum Forward Speed (Since 2004)	29 mph (46 kph)
Maximum Forward Speed (2005)	29 mph (46 kph)
Maximum Forward Speed (Since 2005)	27 mph (43 kph)
Maximum Forward Speed (2006)	27 mph (43 kph)
Maximum Forward Speed (Since 2006)	29 mph (46 kph)
Maximum Forward Speed (2007)	29 mph (46 kph)
Maximum Forward Speed (Since 2007)	27 mph (43 kph)
Maximum Reverse Speed (Since 1995)	29 mph (47 kph)
Maximum Reverse Speed (1996)	29 mph (47 kph)
Maximum Reverse Speed (1997)	29 mph (47 kph)
Maximum Reverse Speed (1998)	29 mph (47 kph)
Maximum Reverse Speed (1999)	29 mph (47 kph)
Maximum Reverse Speed (2000)	29 mph (47 kph)
Maximum Reverse Speed (2001)	29 mph (47 kph)
Maximum Reverse Speed (2002)	29 mph (47 kph)
Maximum Reverse Speed (Since 2002)	32 mph (51 kph)
Maximum Reverse Speed (2003)	32 mph (51 kph)
Maximum Reverse Speed (Since 2003)	29 mph (47 kph)
Maximum Reverse Speed (2004)	29 mph (47 kph)
Maximum Reverse Speed (Since 2004)	32 mph (51 kph)
Maximum Reverse Speed (2005)	32 mph (51 kph)
Maximum Reverse Speed (Since 2005)	29 mph (47 kph)
Maximum Reverse Speed (2006)	29 mph (47 kph)
Maximum Reverse Speed (Since 2006)	32 mph (51 kph)
Maximum Reverse Speed (2007)	32 mph (51 kph)
Maximum Reverse Speed (Since 2007)	29 mph (47 kph)
Min. (Since 2006)	450 psi (3,100 kPa)
Mold- board Length (Since 1995)	168 in (427 cm)
Mold- board Length (1996)	168 in (427 cm)
Mold- board Length (1997)	168 in (427 cm)
Mold- board Length (1998)	168 in (427 cm)
Mold- board Length (1999)	168 in (427 cm)
Mold- board Length (2000)	168 in (427 cm)
Mold- board Length (2001)	168 in (427 cm)
Mold- board Length (2002)	168 in (427 cm)
Mold- board Length (2003)	168 in (427 cm)
Mold- board Length (2004)	168 in (427 cm)
Mold- board Length (2005)	168 in (427 cm)
Mold- board Length (2006)	168 in (427 cm)
Mold- board Length (2007)	168 in (427 cm)
Net Flywheel Power (Since 1998)	215 hp (160 kw)
Net Flywheel Power (2001)	215 hp (160 kw)
Net Flywheel Power (Since 2006)	220 hp (164 kw)
No. Circle Support Shoes (Since 1998)	6
No. Circle Support Shoes (2001)	6
No. Circle Support Shoes (2006)	6
No. of Cylinders (Since 1998)	6
No. of Cylinders (2001)	6
No. of Cylinders (2006)	6
No. of Speeds Forward/Reverse (Since 1998)	8/8
No. of Speeds Forward/Reverse (2001)	8/8
No. of Speeds Forward/Reverse (2006)	8/8
Operating Weight (Since 1998)	41,410 lbs (18,783 kg)
Operating Weight (2001)	41,410 lbs (18,783 kg)
Operating Weight (Since 2006)	41,010 lbs (18,602 kg)
Product Identification Prefix (Since 1995)	7WJ(U.S.)
Product Identification Prefix (1996)	7WJ(U.S.)
Product Identification Prefix (1997)	7WJ(U.S.)
Product Identification Prefix (1998)	7WJ(U.S.)
Product Identification Prefix (1999)	7WJ(U.S.)
Product Identification Prefix (2000)	7WJ(U.S.)
Product Identification Prefix (2001)	7WJ(U.S.)
Product Identification Prefix (2002)	7WJ(U.S.)
Product Identification Prefix (Since 2002)	ASE(U.S.)
Product Identification Prefix (2003)	ASE(U.S.)
Product Identification Prefix (2004)	ASE(U.S.)
Product Identification Prefix (2005)	ASE(U.S.)
Product Identification Prefix (2006)	ASE(U.S.)
Product Identification Prefix (2007)	ASE(U.S.)
Rated Engine RPM (Since 1998)	1,850 rpm
Rated Engine RPM (2001)	1,850 rpm
Rated Engine RPM (Since 2006)	2,000 rpm
Reverse (Since 2006)	32 mph (51 kph)
Std. Tires - Front & Rear (Since 1998)	16.00-24 (12 PR) (G-2
Std. Tires - Front & Rear (2001)	16.00-24 (12 PR) (G-2
Std.Tires - Front & Rear (Since 2006)	16.00-24 (12 PR) (G-2
System Capacity (Since 1998)	33 US gal (125 L)
System Capacity (2001)	33 US gal (125 L)
System Capacity (2006)	33 US gal (125 L)
Top Speed Forward (Since 1998)	27 mph (43 kph)
Top Speed Reverse (Since 1998)	29 mph (47 kph)
Top Speed: Forward (Since 2001)	27 mph (43 kph)
Top Speed: Forward (Since 2006)	29 mph (46 kph)
Top Speed: Reverse (Since 2001)	29 mph (47 kph)
Turning Radius (Since 1995)	311 in (790 cm)
Turning Radius (1996)	311 in (790 cm)
Turning Radius (1997)	311 in (790 cm)
Turning Radius (1998)	311 in (790 cm)
Turning Radius (1999)	311 in (790 cm)
Turning Radius (2000)	311 in (790 cm)
Turning Radius (2001)	311 in (790 cm)
Turning Radius (2002)	311 in (790 cm)
Turning Radius (Since 2002)	316 in (803 cm)
Turning Radius (2003)	316 in (803 cm)
Turning Radius (Since 2003)	311 in (790 cm)
Turning Radius (2004)	311 in (790 cm)
Turning Radius (Since 2004)	316 in (803 cm)
Turning Radius (2005)	316 in (803 cm)
Turning Radius (Since 2005)	311 in (790 cm)
Turning Radius (2006)	311 in (790 cm)
Turning Radius (Since 2006)	316 in (803 cm)
Turning Radius (2007)	316 in (803 cm)
Turning Radius (Since 2007)	311 in (790 cm)
Variable Horsepower: Gears 4-8 (Since 2006)	240 hp (179 kw)
Wheel- base (Since 1995)	254 in (645 cm)
Wheel- base (1996)	254 in (645 cm)
Wheel- base (1997)	254 in (645 cm)
Wheel- base (1998)	254 in (645 cm)
Wheel- base (1999)	254 in (645 cm)
Wheel- base (2000)	254 in (645 cm)
Wheel- base (2001)	254 in (645 cm)
Wheel- base (2002)	254 in (645 cm)
Wheel- base (Since 2002)	258 in (655 cm)
Wheel- base (2003)	258 in (655 cm)
Wheel- base (Since 2003)	254 in (645 cm)
Wheel- base (2004)	254 in (645 cm)
Wheel- base (Since 2004)	258 in (655 cm)
Wheel- base (2005)	258 in (655 cm)
Wheel- base (Since 2005)	254 in (645 cm)
Wheel- base (2006)	254 in (645 cm)
Wheel- base (Since 2006)	258 in (655 cm)
Wheel- base (2007)	258 in (655 cm)
Wheel- base (Since 2007)	254 in (645 cm)
Width (Since 1995)	106 in (269 cm)
Width (1996)	106 in (269 cm)
Width (1997)	106 in (269 cm)
Width (1998)	106 in (269 cm)
Width (1999)	106 in (269 cm)
Width (2000)	106 in (269 cm)
Width (2001)	106 in (269 cm)
Width (2002)	106 in (269 cm)
Width (Since 2002)	111 in (282 cm)
Width (2003)	111 in (282 cm)
Width (Since 2003)	106 in (269 cm)
Width (2004)	106 in (269 cm)
Width (Since 2004)	111 in (282 cm)
Width (2005)	111 in (282 cm)
Width (Since 2005)	106 in (269 cm)
Width (2006)	106 in (269 cm)
Width (Since 2006)	111 in (282 cm)
Width (2007)	111 in (282 cm)
Width (Since 2007)	106 in (269 cm)
Years Built (Since 1995)	1,995 - 2,002
Years Built (1996)	1,995 - 2,002
Years Built (1997)	1,995 - 2,002
Years Built (1998)	1,995 - 2,002
Years Built (1999)	1,995 - 2,002
Years Built (2000)	1,995 - 2,002
Years Built (2001)	1,995 - 2,002
Years Built (2002)	1,995 - 2,002
Years Built (Since 2002)	2,002 - 2,007
Years Built (2003)	2,002 - 2,007
Years Built (2004)	2,002 - 2,007
Years Built (2005)	2,002 - 2,007
Years Built (2006)	2,002 - 2,007
Years Built (2007)	2,002 - 2,007
Hydraulic System
Pump Flow	64 gpm (243 lpm)
Pump Flow	64 gpm (243 lpm)
Pump Type	Axial Piston
Pump Type	axial piston
Relief Valve Pressure	3,500 psi
Relief Valve Pressure	3,500 psi
Moldboard
Blade Down Pressure	34,518 lbs (15,657 kg)
Blade Pull At Max Weight	52,660 lbs (23,886 kg)
Max Depth Of Cut	17 in (44 cm)
Moldboard Height	27 in (69 cm)
Moldboard Height	27 in (69 cm)
Moldboard Thickness	1 in (3 cm)
Moldboard Thickness	1 in (3 cm)
Moldboard Width	14 ft (4 m)
Moldboard Width	14 ft (4 m)
Side Shift Left	26 in (65 cm)
Side Shift Right	31 in (79 cm)
Operational
Alternator Supplied Amperage	50 amps
Circle Gearbox Fluid Capacity	2 gal (6 l)
Cooling System Fluid Capacity	13 gal (48 l)
Fuel Capacity	100 gal (379 l)
Fuel Capacity	110 gal (416 l)
Hydraulic System Fluid Capacity	33 gal (125 l)
Hydraulic System Fluid Capacity	33 gal (123 l)
Max Operation Weight - Front Axle	19,425 lbs (8,811 kg)
Max Operation Weight - Rear Axle	39,084 lbs (17,728 kg)
Max Operation Weight - Total	58,509 lbs (26,539 kg)
Operating Voltage	24 V
Std Operation Weight - Front Axle	11,695 lbs (5,305 kg)
Std Operation Weight - Rear Axle	29,770 lbs (13,503 kg)
Std Operation Weight - Total	41,412 lbs (18,784 kg)
Std Operation Weight - Total	41,465 lbs (18,808 kg)
Tandem Case Fluid Capacity (Each)	26 gal (97 l)
Tire Size	16-24 12PR (G-2)
Transmission Fluid Capacity	22 gal (82 l)
Steering
Articulation Angle	20 degrees
Articulation Angle	20 degrees
Turning Radius	26 ft (8 m)
Turning Radius	26 ft (8 m)
Transmission
Max Speed - Forward	27 mph (43 kph)
Max Speed - Forward	27 mph (43 kph)
Max Speed - Reverse	29 mph (47 kph)
Max Speed - Reverse	29 mph (47 kph)
Number Of Gears - Forward	8
Number Of Gears - Forward	8
Number Of Gears - Reverse	8
Number Of Gears - Reverse	8
Transmission Type	direct drive, power shift, planetary
