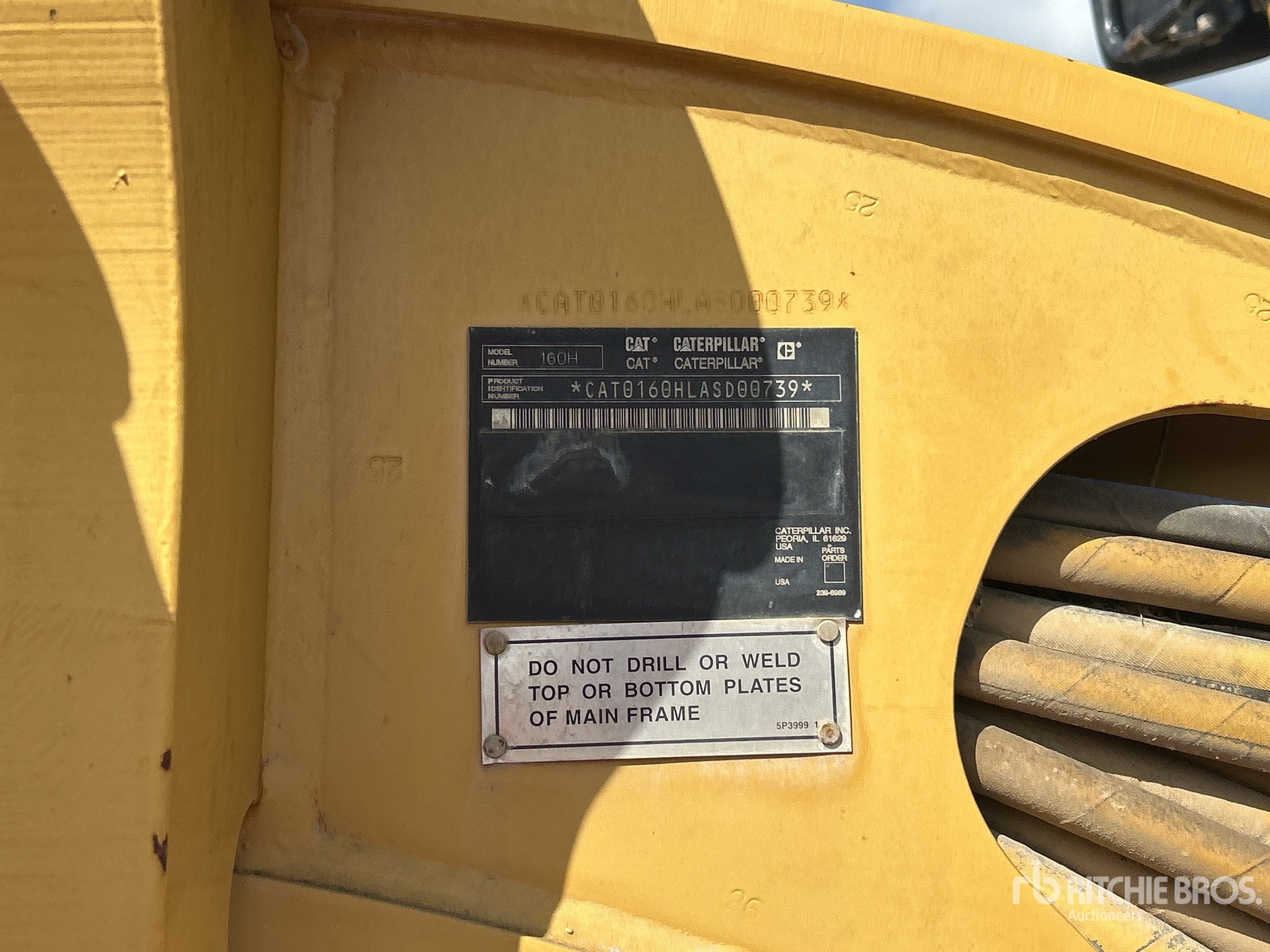

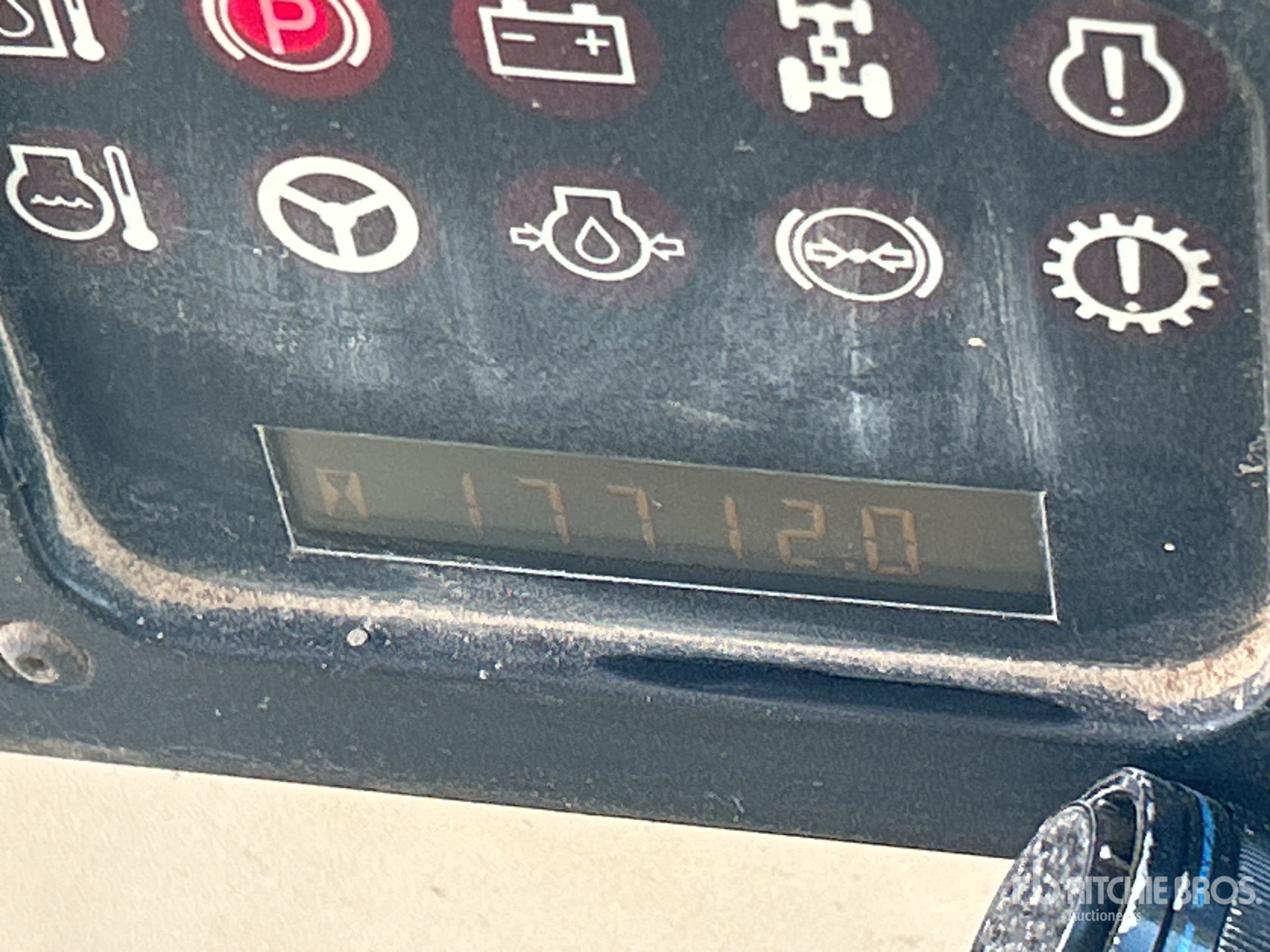

| Circle |
|
Blade Tip Angle - Front |
40 degrees |
|
Blade Tip Angle - Rear |
5 degrees |
|
Max Lift Above Ground |
17.8 in |
|
Max Lift Above Ground |
17.8 in |
|
Max Reach Outside Tires - Left |
87.6 in |
|
Max Reach Outside Tires - Right |
89.1 in |
|
Shift Left |
33.4 in |
|
Shift Right |
34.7 in |
| Dimensions |
|
Blade Base |
8.27 ft in |
|
Height To Top Of Isomount Cab |
10.24 ft in |
|
Height To Top Of Isomount Cab |
11.02 ft in |
|
Overall Length |
33.13 ft in |
|
Overall Length |
28.22 ft in |
|
Tandem Axle Wheelbase |
5 ft in |
|
Wheelbase |
19.99 ft in |
|
Wheelbase |
20.24 ft in |
|
Width Over Tires |
8.14 ft in |
|
Width Over Tires |
8.08 ft in |
| Engine |
|
Displacement |
637.7 cu in |
|
Displacement |
628.6 cu in |
|
Engine Make |
2,236 |
|
Engine Make |
2,236 |
|
Engine Model |
3306 DITA |
|
Engine Model |
3176C ATAAC |
|
Max Power |
200 hp |
|
Max Power |
200 hp |
|
Net Power Gear 1-2 |
180 hp |
|
Net Power Gear 4-6 |
180 hp |
|
Net Power Gear 4-6 |
200 hp |
|
Net Power Gear 5-6 |
200 hp |
|
Net Power Gears 7-8 |
200 hp |
|
Net Power Gears 7-8 |
200 hp |
|
Net Torque Gears 7-8 |
840.9 lb ft |
|
Number Of Cylinders |
6 |
|
Power Measured @ |
2000 rpm |
|
Torque Measured @ |
1000 rpm |
| Front Axle |
|
Oscillation - Total |
32 degrees |
|
Oscillation - Total |
32 degrees |
|
Wheel Lean |
18 degrees |
|
Wheel Lean |
18 degrees |
| Hydraulic System |
|
Pump Flow |
68.7 gal/min |
|
Pump Flow |
54.5 gal/min |
|
Pump Type |
Axial Piston |
|
Pump Type |
Axial Piston |
|
Relief Valve Pressure |
3502.7 psi |
|
Relief Valve Pressure |
3500 psi |
| Moldboard |
|
Blade Down Pressure |
30441.5 lb |
|
Blade Pull At Max Weight |
44249 lb |
|
Max Depth Of Cut |
30.4 in |
|
Moldboard Height |
27.1 in |
|
Moldboard Height |
27.1 in |
|
Moldboard Thickness |
1 in |
|
Moldboard Thickness |
1 in |
|
Moldboard Width |
23.9 ft in |
|
Moldboard Width |
14 ft in |
|
Side Shift Left |
33.6 in |
|
Side Shift Right |
37.2 in |
| Operational |
|
Alternator Supplied Amperage |
35 amps |
|
Alternator Supplied Amperage |
50 amps |
|
Circle Gearbox Fluid Capacity |
1.9 gal |
|
Cooling System Fluid Capacity |
10.1 gal |
|
Fuel Capacity |
90.1 gal |
|
Fuel Capacity |
104.9 gal |
|
Hydraulic System Fluid Capacity |
21.2 gal |
|
Hydraulic System Fluid Capacity |
21.2 gal |
|
Max Operation Weight - Front Axle |
18322.7 lb |
|
Max Operation Weight - Rear Axle |
33003.2 lb |
|
Max Operation Weight - Total |
51325.9 lb |
|
Operating Voltage |
24 V |
|
Operating Voltage |
24 V |
|
Rear Diff/Final Drive Fluid Capacity |
12.5 gal |
|
Std Operation Weight - Front Axle |
10117.1 lb |
|
Std Operation Weight - Rear Axle |
25774.3 lb |
|
Std Operation Weight - Total |
34361.3 lb |
|
Std Operation Weight - Total |
35891.3 lb |
|
Tandem Case Fluid Capacity (Each) |
17 gal |
|
Tire Size |
14-24 12PR (G-2) |
|
Tire Size |
10-24 12PR |
| Steering |
|
Articulation Angle |
20 degrees |
|
Articulation Angle |
20 degrees |
|
Turning Radius |
24.3 ft in |
|
Turning Radius |
24.3 ft in |
| Transmission |
|
Max Speed - Forward |
25.3 mph |
|
Max Speed - Forward |
27.1 mph |
|
Max Speed - Reverse |
21.4 mph |
|
Max Speed - Reverse |
20 mph |
|
Number Of Gears - Forward |
8 |
|
Number Of Gears - Forward |
8 |
|
Number Of Gears - Reverse |
6 |
|
Number Of Gears - Reverse |
6 |
