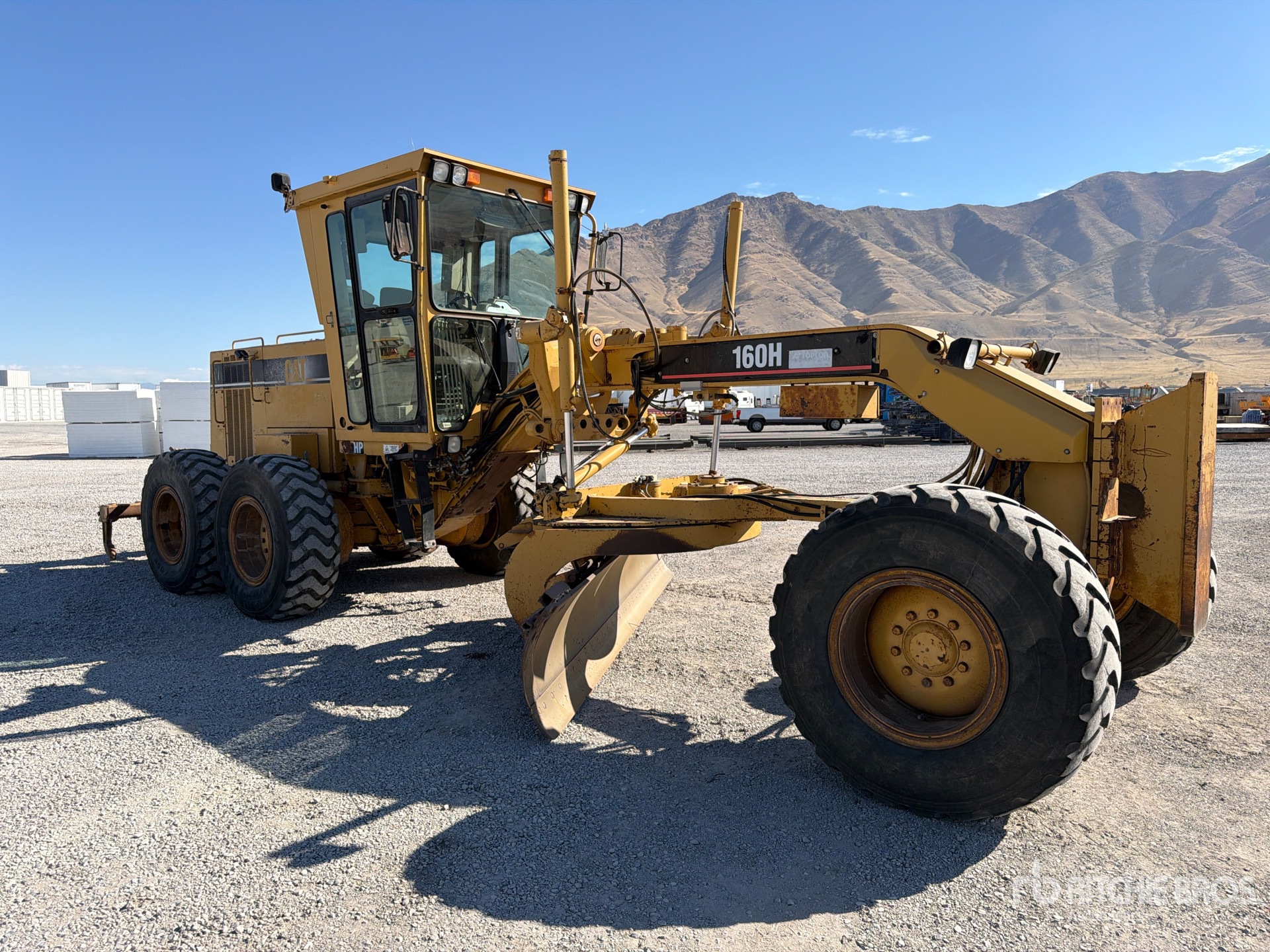

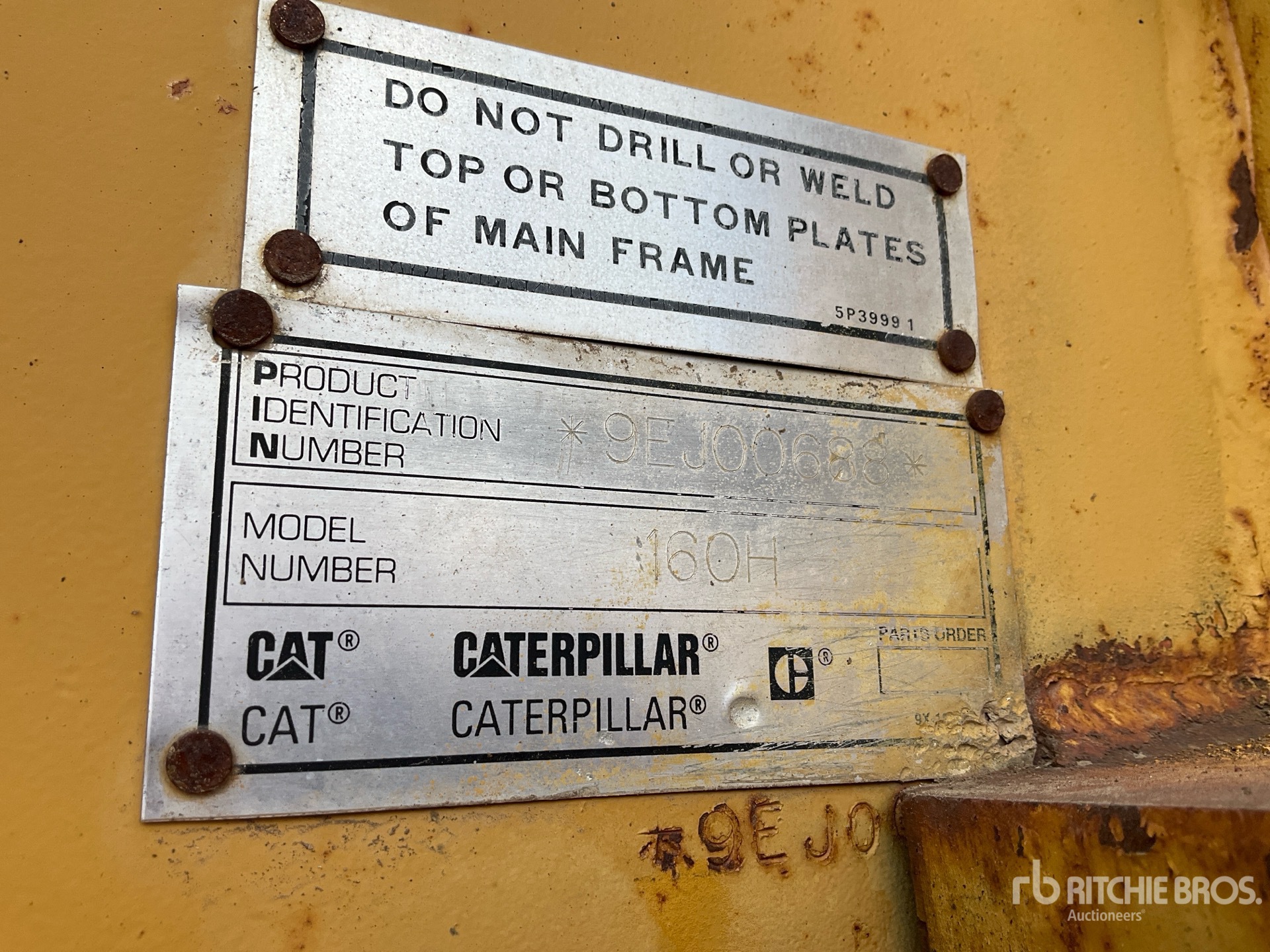

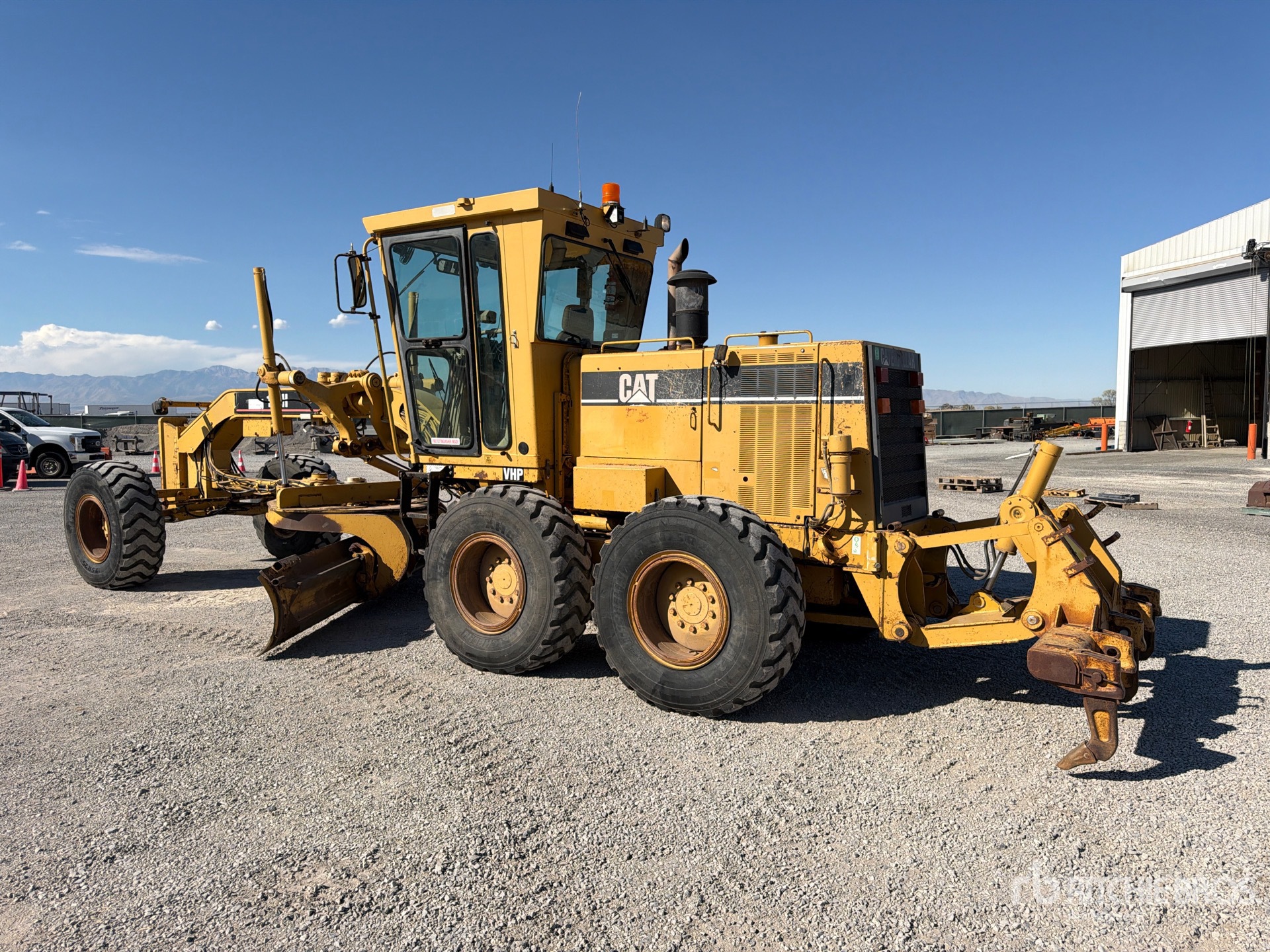

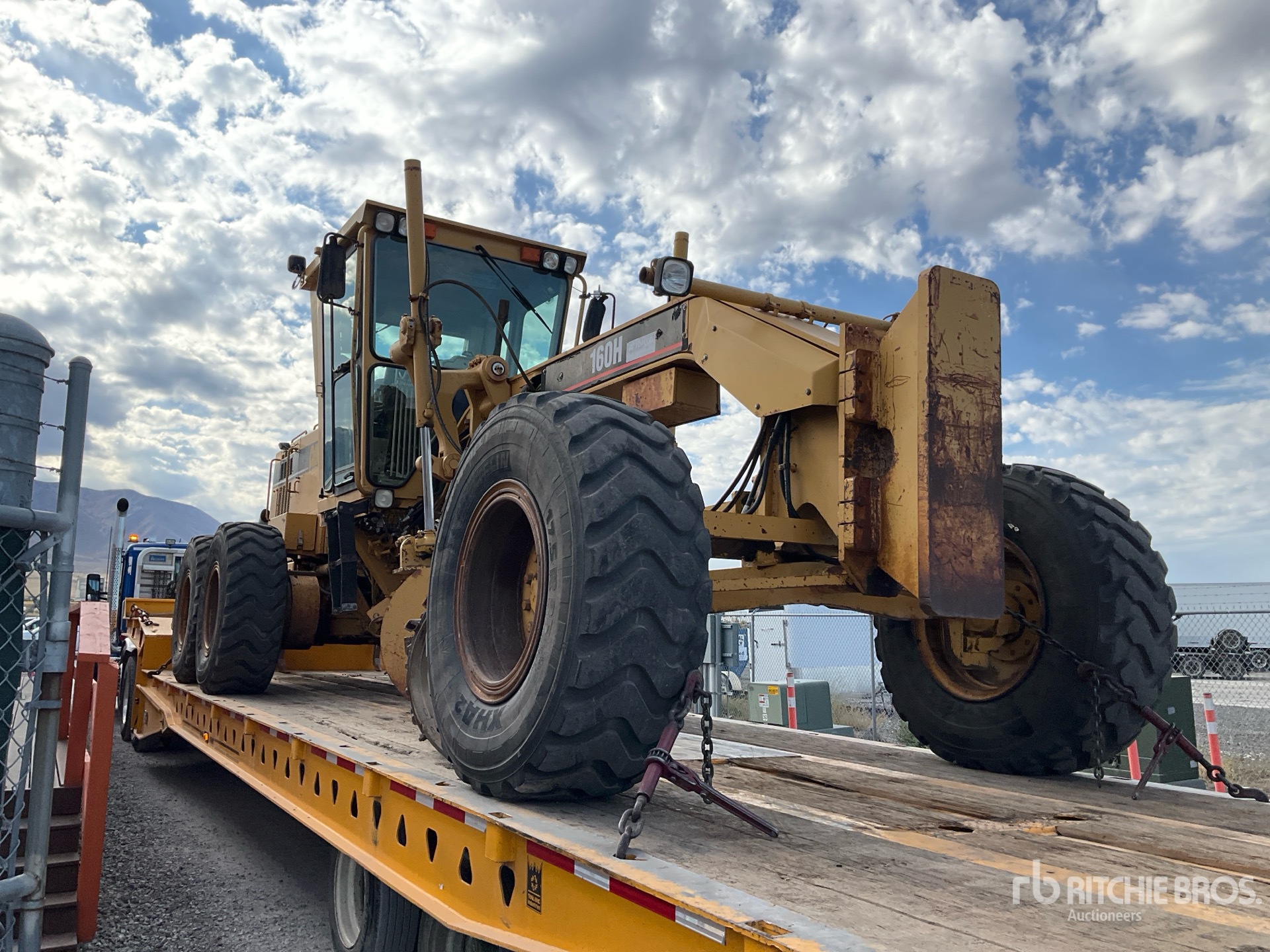

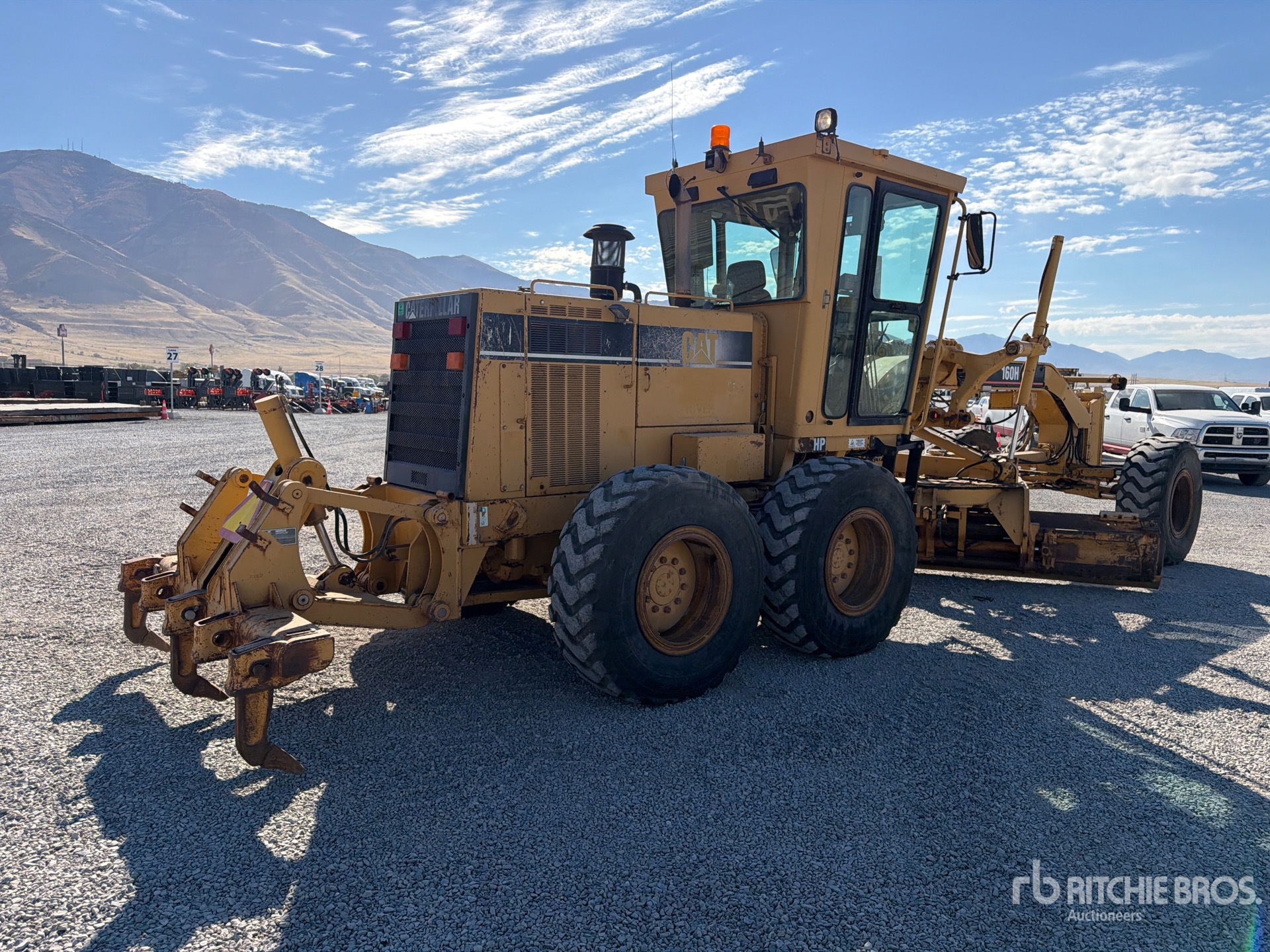

| Circle |
|
Blade Tip Angle - Front |
40 degrees |
|
Blade Tip Angle - Rear |
5 degrees |
|
Max Lift Above Ground |
18 in (45 cm)
|
|
Max Lift Above Ground |
18 in (45 cm)
|
|
Max Reach Outside Tires - Left |
88 in (223 cm)
|
|
Max Reach Outside Tires - Right |
89 in (226 cm)
|
|
Shift Left |
33 in (85 cm)
|
|
Shift Right |
35 in (88 cm)
|
| Dimensions |
|
Blade Base |
8 ft (3 m)
|
|
Height |
10 ft (3 m)
|
|
Height |
11 ft (3 m)
|
|
Height To Top Of Isomount Cab |
10 ft (3 m)
|
|
Height To Top Of Isomount Cab |
11 ft (3 m)
|
|
Length |
28 ft (9 m)
|
|
Length |
33 ft (10 m)
|
|
Overall Length |
33 ft (10 m)
|
|
Overall Length |
28 ft (9 m)
|
|
Tandem Axle Wheelbase |
5 ft (2 m)
|
|
Weight |
34,361 lbs (15,586 kg)
|
|
Weight |
34,360 lbs (15,585 kg)
|
|
Wheelbase |
20 ft (6 m)
|
|
Wheelbase |
20 ft (6 m)
|
|
Width |
8 ft (2 m)
|
|
Width |
8 ft (2 m)
|
|
Width Over Tires |
8 ft (2 m)
|
|
Width Over Tires |
8 ft (2 m)
|
| Engine |
|
Displacement |
638 cu in (10,450 cu cm)
|
|
Displacement |
629 cu in (10,301 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Make |
2,236 |
|

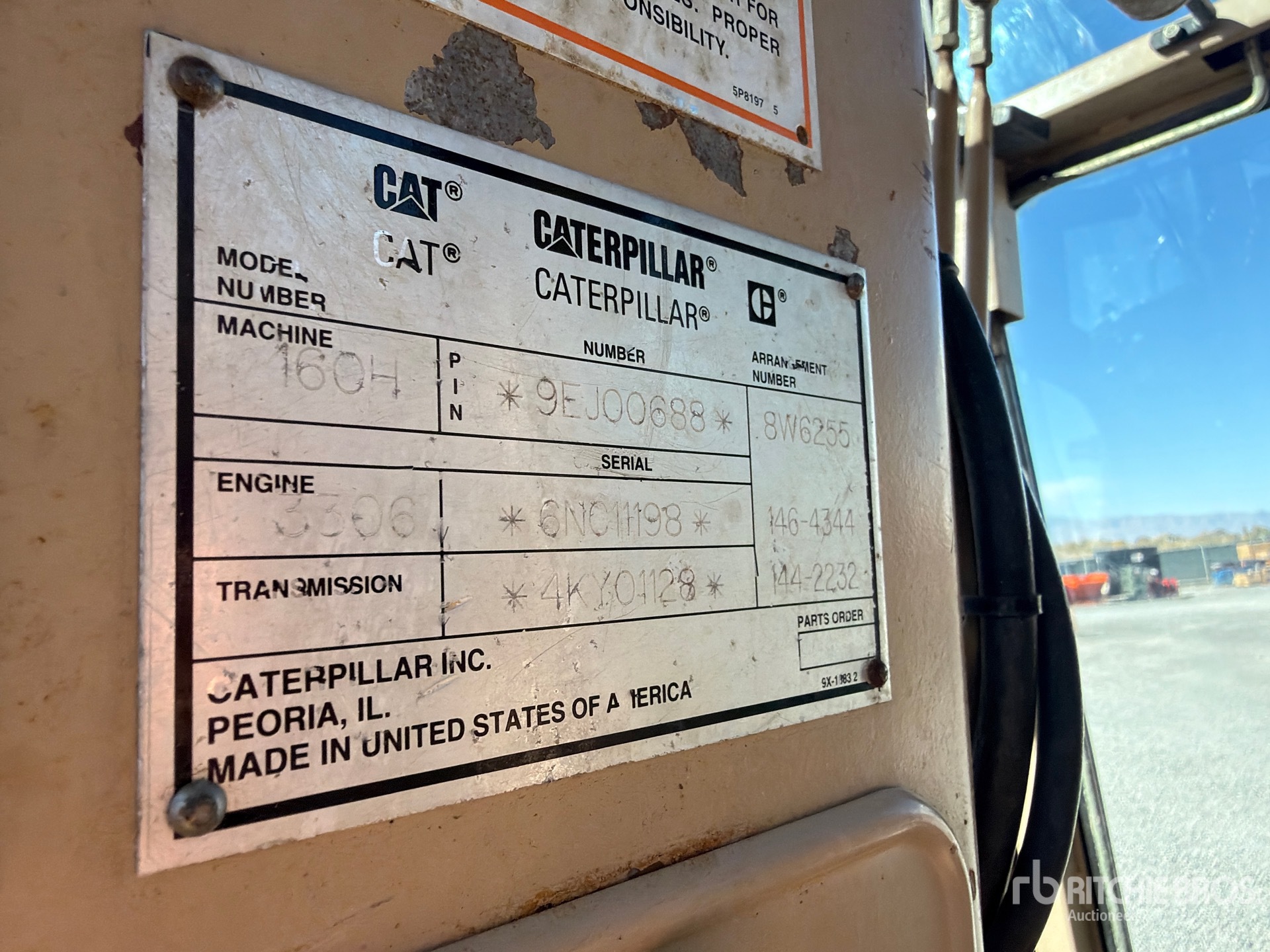

Engine Model |
3176C ATAAC |
|
Engine Model |
3306 DITA |
|
Max Power |
200 hp (149 kw)
|
|
Max Power |
200 hp (149 kw)
|
|
Net Power Gear 1-2 |
180 hp (134 kw)
|
|
Net Power Gear 4-6 |
180 hp (134 kw)
|
|
Net Power Gear 4-6 |
200 hp (149 kw)
|
|
Net Power Gear 5-6 |
200 hp (149 kw)
|
|
Net Power Gears 7-8 |
200 hp (149 kw)
|
|
Net Power Gears 7-8 |
200 hp (149 kw)
|
|
Net Torque Gears 7-8 |
841 lbs ft (1,140 nm)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
2,000 rpm |
|
Torque Measured @ |
1,000 rpm |
| Front Axle |
|
Oscillation - Total |
32 degrees |
|
Oscillation - Total |
32 degrees |
|
Wheel Lean |
18 degrees |
|
Wheel Lean |
18 degrees |
| Hydraulic System |
|
Pump Flow |
55 gpm (206 lpm)
|
|
Pump Flow |
69 gpm (260 lpm)
|
|
Pump Type |
Axial Piston |
|
Pump Type |
Axial Piston |
|
Relief Valve Pressure |
3,500 psi |
|
Relief Valve Pressure |
3,503 psi |
| Moldboard |
|
Blade Down Pressure |
30,442 lbs (13,808 kg)
|
|
Blade Pull At Max Weight |
44,249 lbs (20,071 kg)
|
|
Max Depth Of Cut |
30 in (77 cm)
|
|
Moldboard Height |
27 in (69 cm)
|
|
Moldboard Height |
27 in (69 cm)
|
|
Moldboard Thickness |
1 in (3 cm)
|
|
Moldboard Thickness |
1 in (3 cm)
|
|
Moldboard Width |
24 ft (7 m)
|
|
Moldboard Width |
14 ft (4 m)
|
|
Side Shift Left |
34 in (85 cm)
|
|
Side Shift Right |
37 in (94 cm)
|
| Operational |
|
Alternator Supplied Amperage |
35 amps |
|
Alternator Supplied Amperage |
50 amps |
|
Circle Gearbox Fluid Capacity |
2 gal (7 l)
|
|
Cooling System Fluid Capacity |
10 gal (38 l)
|
|
Fuel Capacity |
90 gal (341 l)
|
|
Fuel Capacity |
105 gal (397 l)
|
|
Hydraulic System Fluid Capacity |
21 gal (80 l)
|
|
Hydraulic System Fluid Capacity |
21 gal (80 l)
|
|
Max Operation Weight - Front Axle |
18,323 lbs (8,311 kg)
|
|
Max Operation Weight - Rear Axle |
33,003 lbs (14,970 kg)
|
|
Max Operation Weight - Total |
51,326 lbs (23,281 kg)
|
|
Operating Voltage |
24 V |
|
Operating Voltage |
24 V |
|
Rear Diff/Final Drive Fluid Capacity |
13 gal (47 l)
|
|
Std Operation Weight - Front Axle |
10,117 lbs (4,589 kg)
|
|
Std Operation Weight - Rear Axle |
25,774 lbs (11,691 kg)
|
|
Std Operation Weight - Total |
35,891 lbs (16,280 kg)
|
|
Std Operation Weight - Total |
34,361 lbs (15,586 kg)
|
|
Tandem Case Fluid Capacity (Each) |
17 gal (64 l)
|
|
Tire Size |
14-24 12PR (G-2) |
|
Tire Size |
10-24 12PR |
| Steering |
|
Articulation Angle |
20 degrees |
|
Articulation Angle |
20 degrees |
|
Turning Radius |
24 ft (7 m)
|
|
Turning Radius |
24 ft (7 m)
|
| Transmission |
|
Max Speed - Forward |
27 mph (44 kph)
|
|
Max Speed - Forward |
25 mph (41 kph)
|
|
Max Speed - Reverse |
20 mph (32 kph)
|
|
Max Speed - Reverse |
21 mph (34 kph)
|
|
Number Of Gears - Forward |
8 |
|
Number Of Gears - Forward |
8 |
|
Number Of Gears - Reverse |
6 |
|
Number Of Gears - Reverse |
6 |
