2010 Caterpillar 160M For Sale in Ocana, Esp

Name: 2010 Caterpillar 160M
Brand: Caterpillar
SKU: 89129845
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-16

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

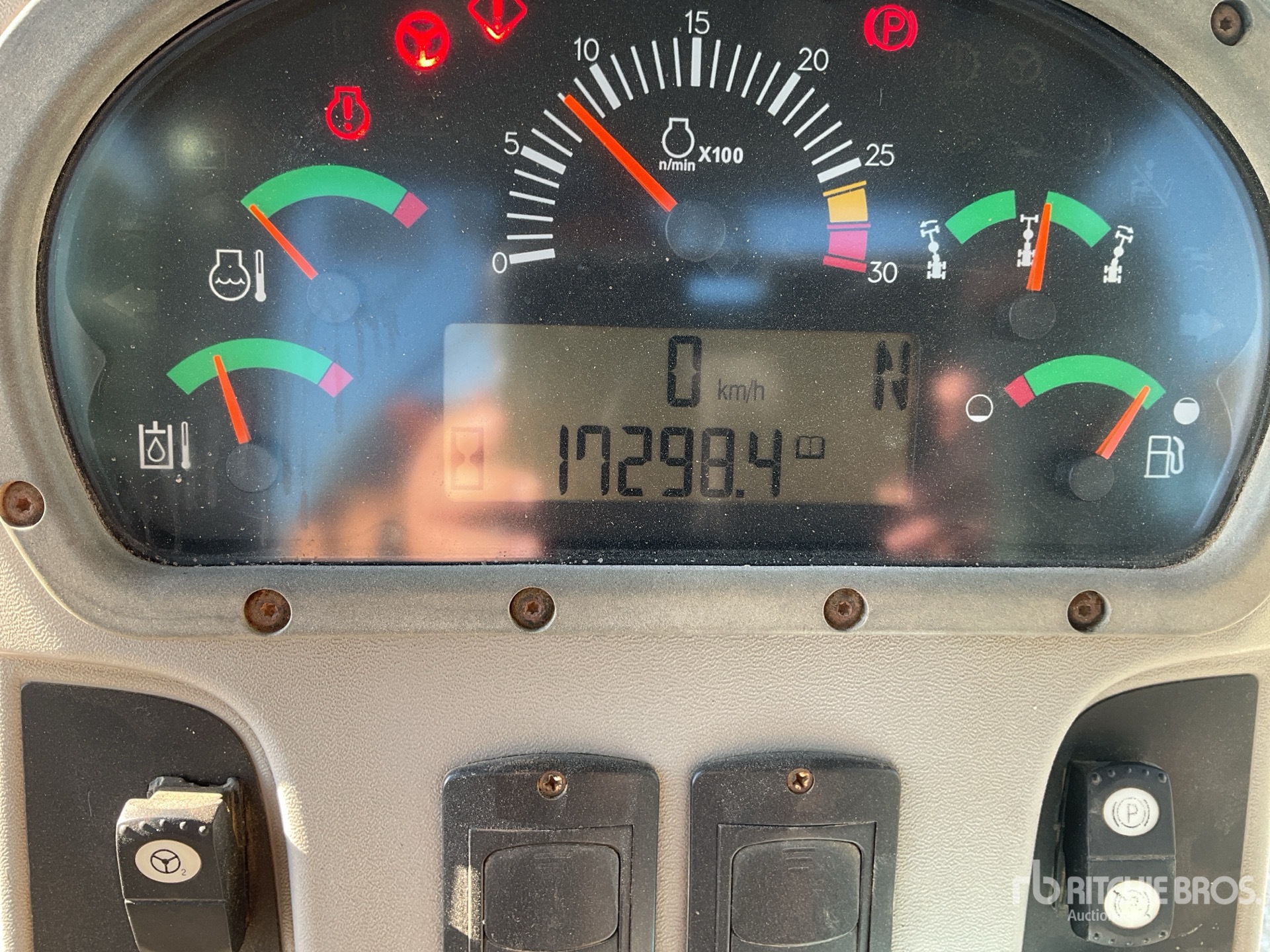

Hours:	17298

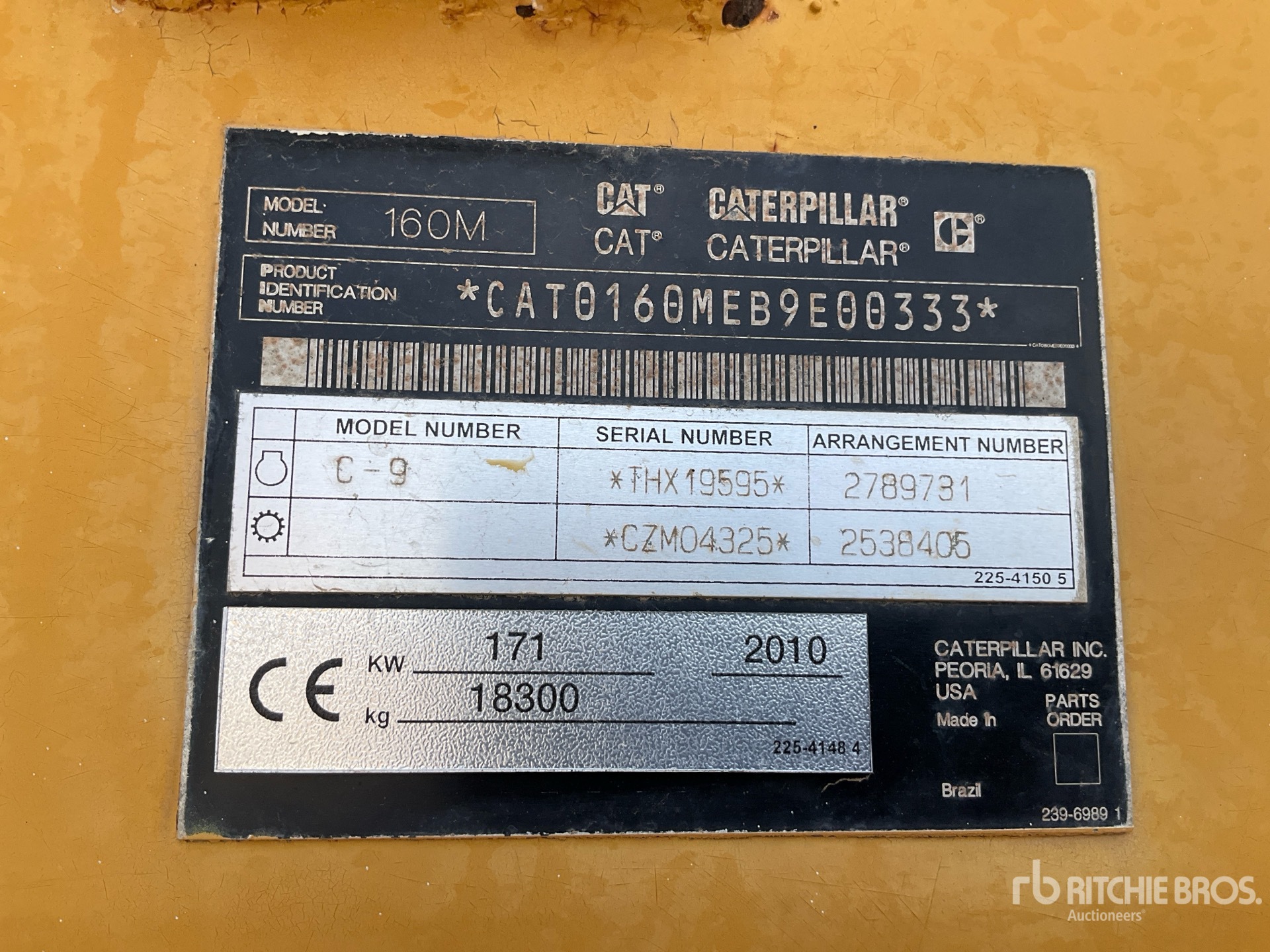

Serial Number:	CAT0160MEB9E00333
Machine Location:	OCANA, ESP

Description:

Enclosed Cab, Air Conditioner, Air Ride Seat, Joystick Steering, Pre-Wired for Grade Control, 14 ft / 4.27 m Moldboard, Front Mounted Snow Plow, Accumulators, Ripper, 17.5R25 Tires, Emergency Steering, 2700mm Front Blade **COPIA CERTIFICADO CE DISPONIBLE/ COPY CE CERTIFICATE AVAILABLE** Closing Time: 2026-09-16 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 160M is a motor grader designed for road construction, maintenance, and grading applications. It is part of Caterpillar's M Series lineup and is commonly used for shaping surfaces, maintaining haul roads, ditching, and fine grading work. The 160M features a diesel engine, articulated frame, and moldboard control systems intended to support precise blade positioning and material movement. It is used in municipal, mining, and construction environments where accurate grade control is required. The model is known for its operator visibility, hydraulic responsiveness, and compatibility with a range of grading attachments and worksite conditions.

Circle
Blade Tip Angle - Front	40 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	61 in (155 cm)
Max Lift Above Ground	18 in (45 cm)
Max Reach Outside Tires - Left	82 in (209 cm)
Max Reach Outside Tires - Right	90 in (228 cm)
Shift Left	27 in (70 cm)
Shift Right	29 in (73 cm)
Dimensions
Blade Base	9 ft (3 m)
Front Ground Clearance	2 ft (1 m)
Height To Top Of Isomount Cab	11 ft (3 m)
Overall Length	29 ft (9 m)
Rear Ground Clearance	1 ft (0 m)
Tandem Axle Wheelbase	5 ft (2 m)
Wheelbase	20 ft (6 m)
Width Over Tires	8 ft (2 m)
Engine
Displacement	537 cu in (8,800 cu cm)
Engine Make	2,236
Engine Model	C9 ACERT VHP
Max Power	213 hp (159 kw)
Net Power Gears 7-8	213 hp (159 kw)
Net Torque Gears 7-8	912 lbs ft (1,237 nm)
Number Of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	2,000 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	56 gpm (211 lpm)
Pump Type	variable piston
Relief Valve Pressure	3,500 psi
Moldboard
Blade Pull At Max Weight	32,904 lbs (14,922 kg)
Max Depth Of Cut	30 in (75 cm)
Moldboard Height	27 in (69 cm)
Moldboard Thickness	1 in (3 cm)
Moldboard Width	14 ft (4 m)
Side Shift Left	32 in (82 cm)
Side Shift Right	37 in (95 cm)
Operational
Circle Gearbox Fluid Capacity	2 gal (7 l)
Cooling System Fluid Capacity	11 gal (40 l)
Fuel Capacity	105 gal (397 l)
Hydraulic System Fluid Capacity	17 gal (64 l)
Max Operation Weight - Front Axle	18,478 lbs (8,380 kg)
Max Operation Weight - Rear Axle	34,317 lbs (15,563 kg)
Max Operation Weight - Total	52,795 lbs (23,943 kg)
Rear Diff/Final Drive Fluid Capacity	17 gal (65 l)
Std Operation Weight - Front Axle	9,677 lbs (4,389 kg)
Std Operation Weight - Rear Axle	25,383 lbs (11,512 kg)
Std Operation Weight - Total	35,060 lbs (15,900 kg)
Tandem Case Fluid Capacity (Each)	21 gal (80 l)
Steering
Articulation Angle	20 degrees
Turning Radius	25 ft (8 m)
Transmission
Max Speed - Forward	30 mph (47 kph)
Max Speed - Reverse	23 mph (38 kph)
Number Of Gears - Forward	8
Number Of Gears - Reverse	6
Transmission Type	direct drive, power shift, countershaft
