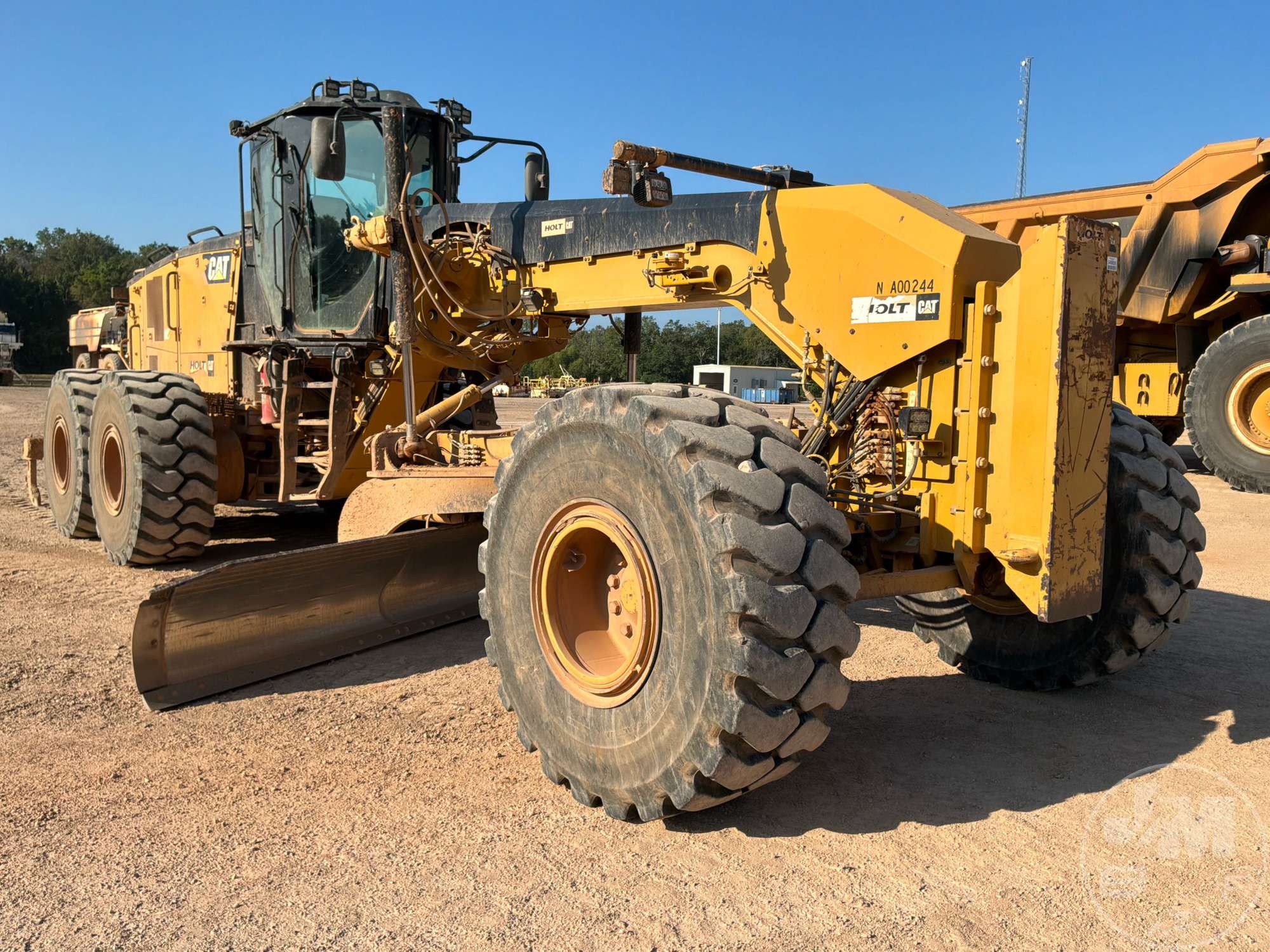

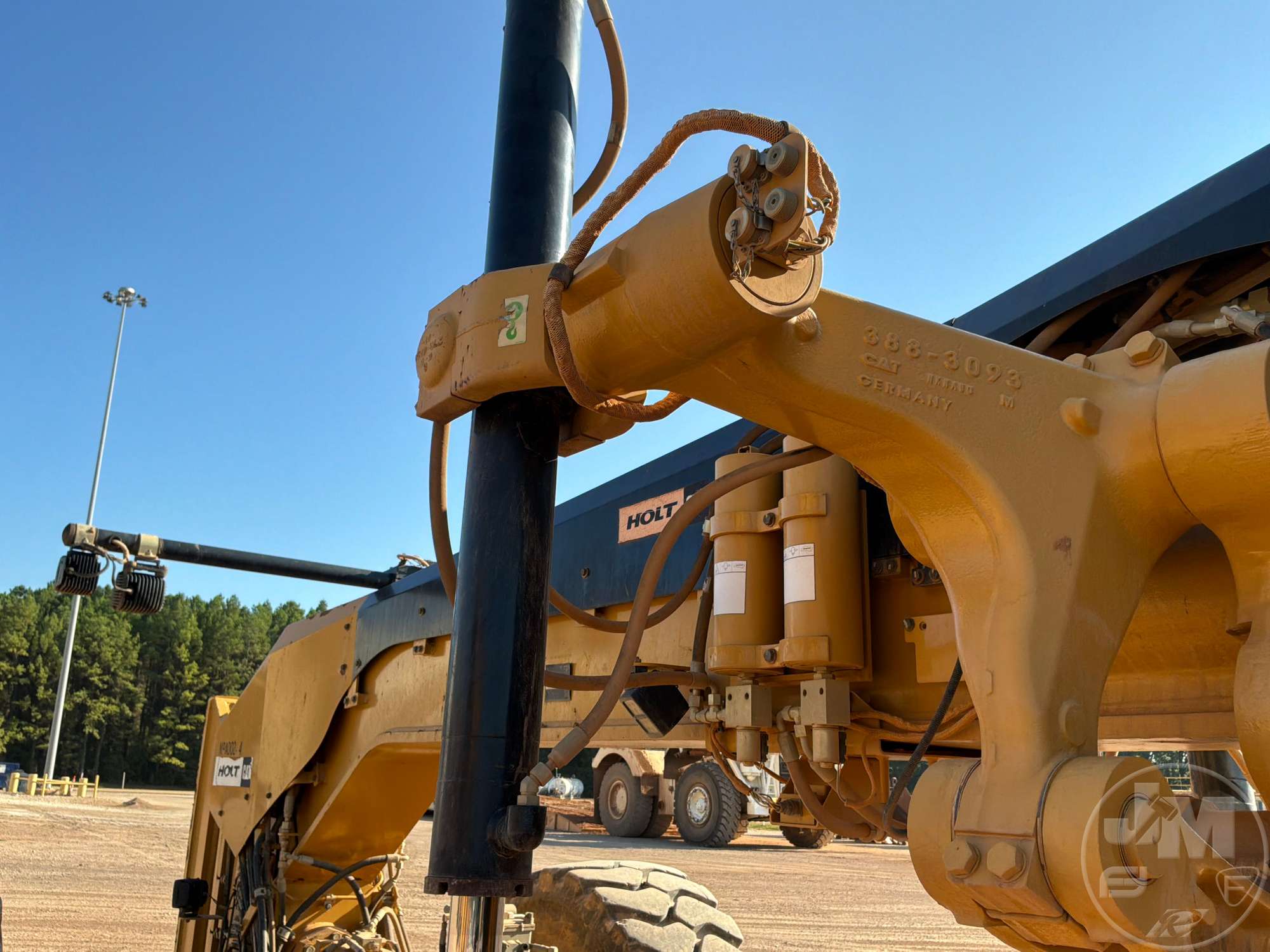

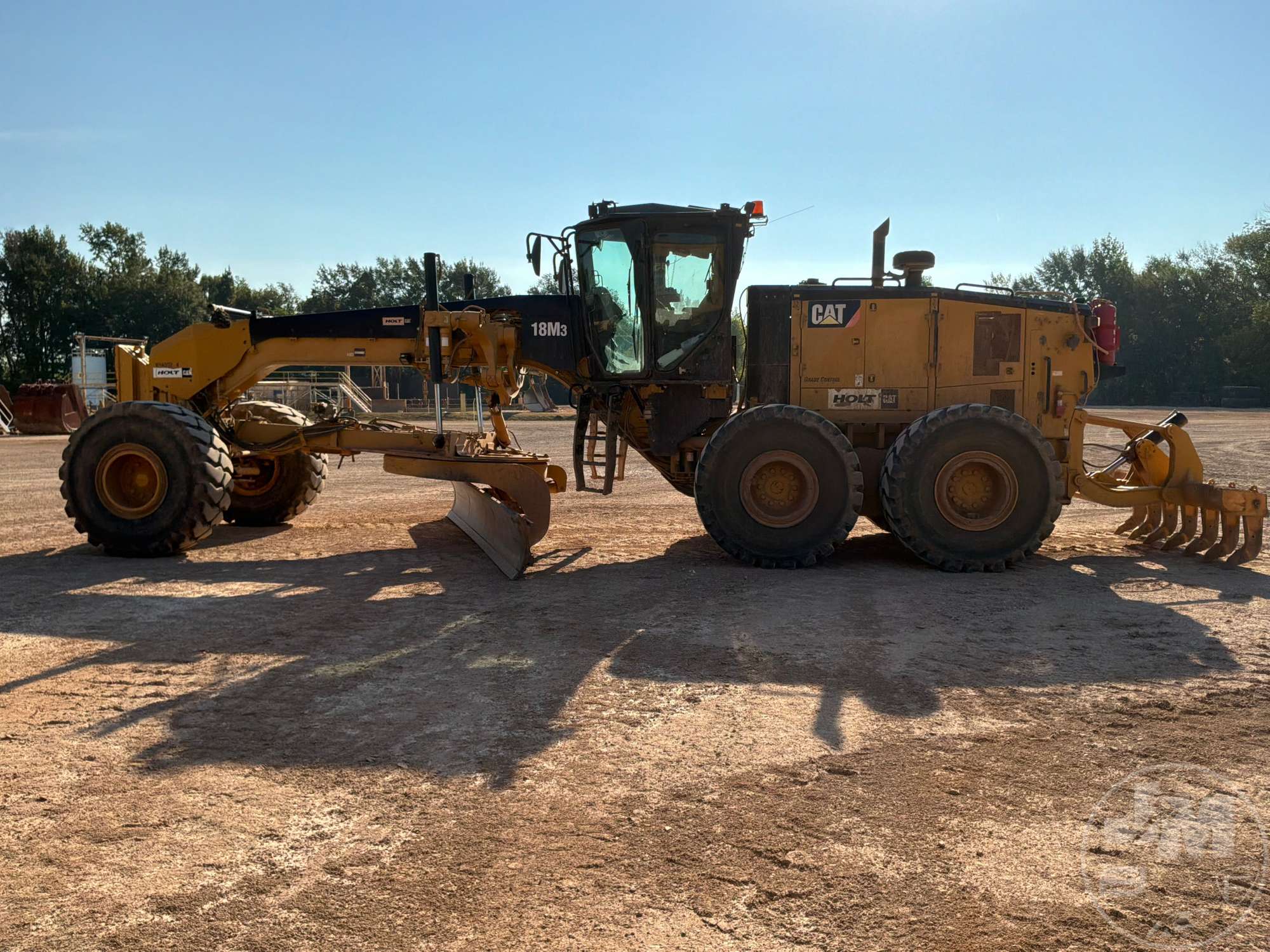

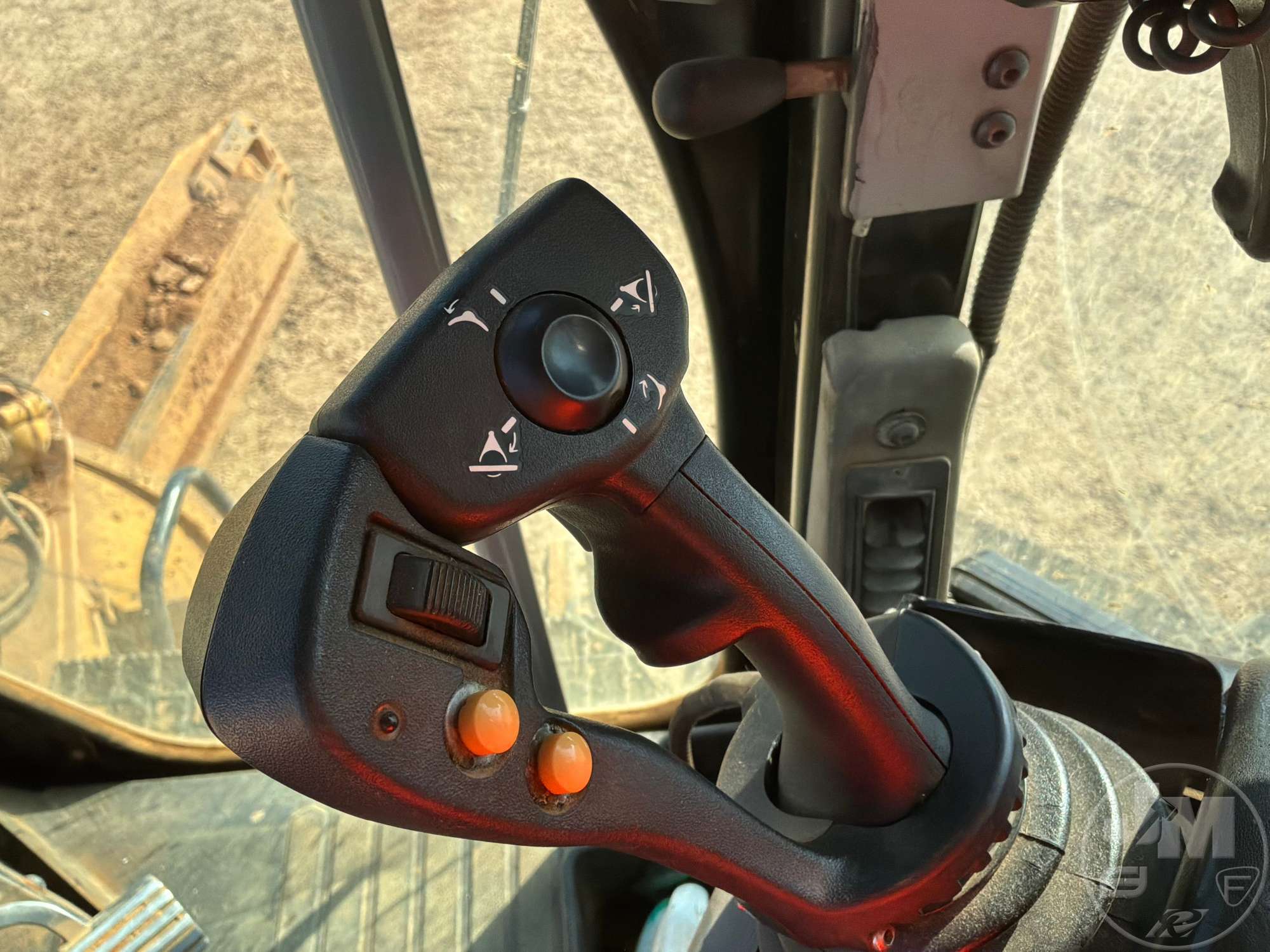

| Blade Range |
|
Blade Tip Range - Backward |
5 degrees |
|
Blade Tip Range - Forward |
40 degrees |
|
Circle Centershift - Left |
27 in (69 cm)
|
|
Circle Centershift - Right |
22 in (56 cm)
|
|
Maximum Blade Position Angle |
65 degrees |
|
Maximum Depth Of Cut |
19 in (47 cm)
|
|
Maximum Lift Above Ground |
16 in (40 cm)
|
|
Maximum Shoulder Reach Outside Of Tires - Left |
103 in (262 cm)
|
|
Maximum Shoulder Reach Outside Of Tires - Right |
103 in (262 cm)
|
|

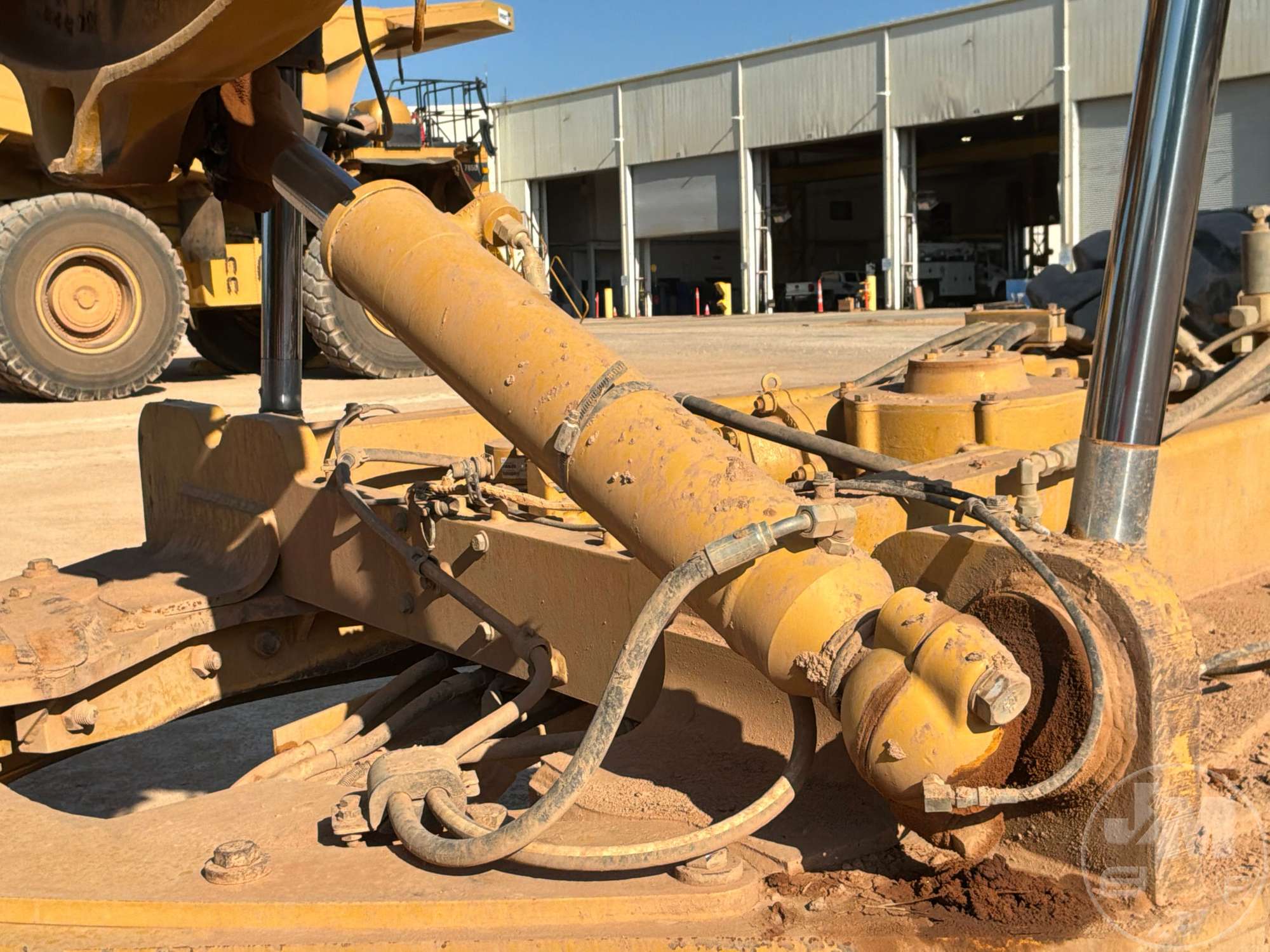

Moldboard Sideshift - Left |
29 in (74 cm)
|
|
Moldboard Sideshift - Right |
31 in (79 cm)
|

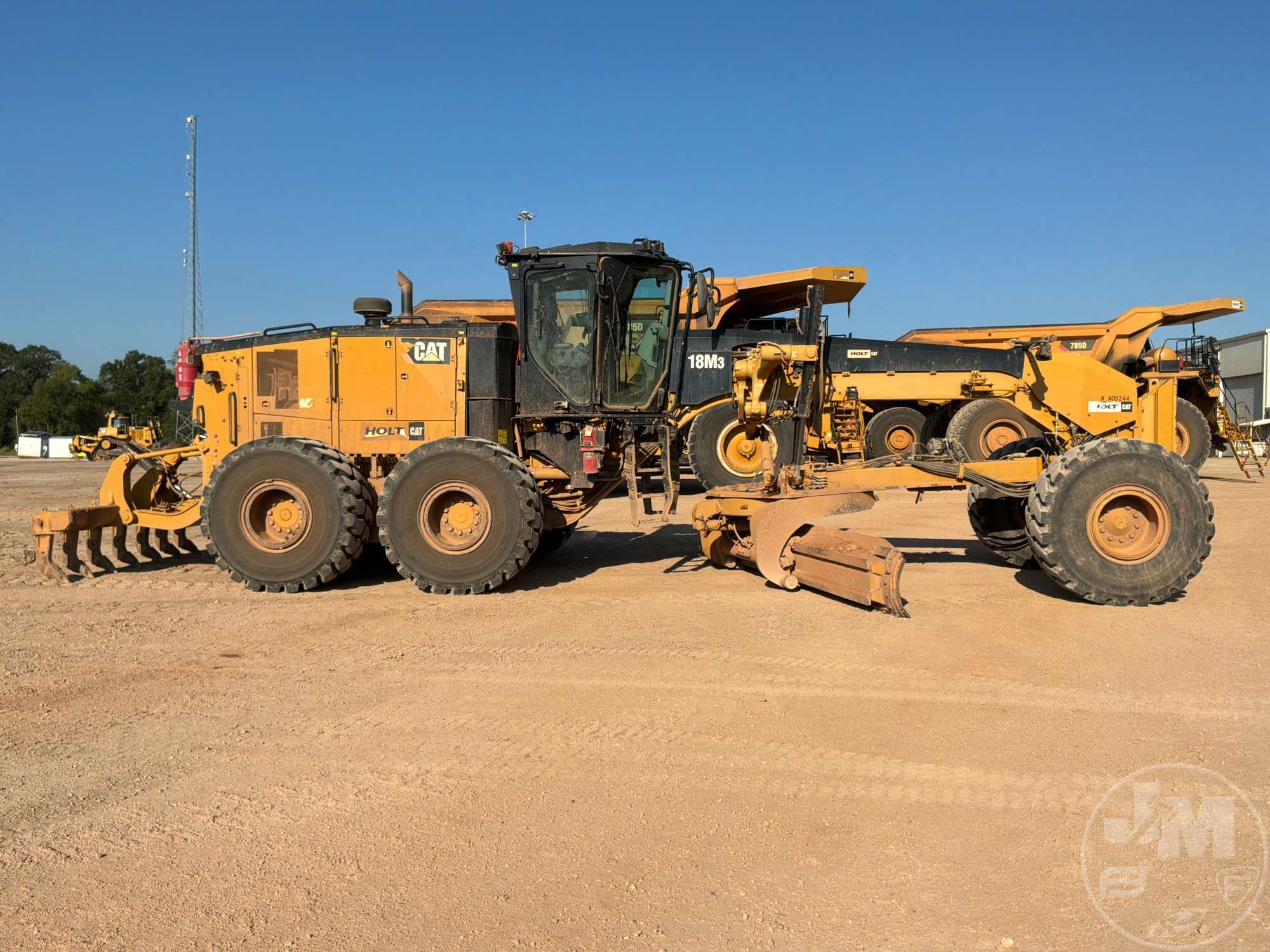

| Dimensions (Approximate) |
|
Ground Clearance - Rear Axle |
17 in (42 cm)
|
|
Height - Exhaust Stack |
141 in (358 cm)
|
|
Height - Front Axle Center |
30 in (76 cm)
|
|
Height - Top Of Cab |
12 ft (4 m)
|
|
Height - Top Of Cylinders |
123 in (311 cm)
|
|
Length - Between Tandem Axles |
73 in (184 cm)
|
|
Length - Counterweight To Ripper |
474 in (1,205 cm)
|
|
Length - Front Axle To Mid Tandem |
290 in (737 cm)
|
|
Length - Front Axle To Moldboard |
121 in (307 cm)
|
|
Length - Front Tire To Rear Of Machine - Including Tow Hitch |
417 in (1,059 cm)
|
|
Width - Outside Front Tires |
134 in (341 cm)
|
|
Width - Outside Rear Tires |
134 in (341 cm)
|
|
Width - Tire Center Lines |
106 in (270 cm)
|
| Engine |
|
Base Power (1st Gear) - Net |
304 hp (227 kw)
|
|
Base Power (1st Gear) - Net - Metric |
309 hp (230 kw)
|
|
Bore |
5 in (13 cm)
|
|
Derating Altitude - Tier 2/Stage Ii/Japan 2001 (Tier 2) Equivalent |
12,973 ft (3,954 m)
|
|
Derating Altitude - Tier 3/Stage Iiia/Japan 2006 (Tier 3) Equivalent |
12,176 ft (3,711 m)
|
|
Derating Altitude - Tier 4/Stage Iv/Japan 2014 (Tier 4 Final) |
12,500 ft (3,810 m)
|
|
Displacement |
763 cu in (12,503 cu cm)
|
|
Emissions (1) |
U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final) |
|
Emissions (2) |
Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent Emission Standards |
|
Emissions (3) |
Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent Emission Standards |
|

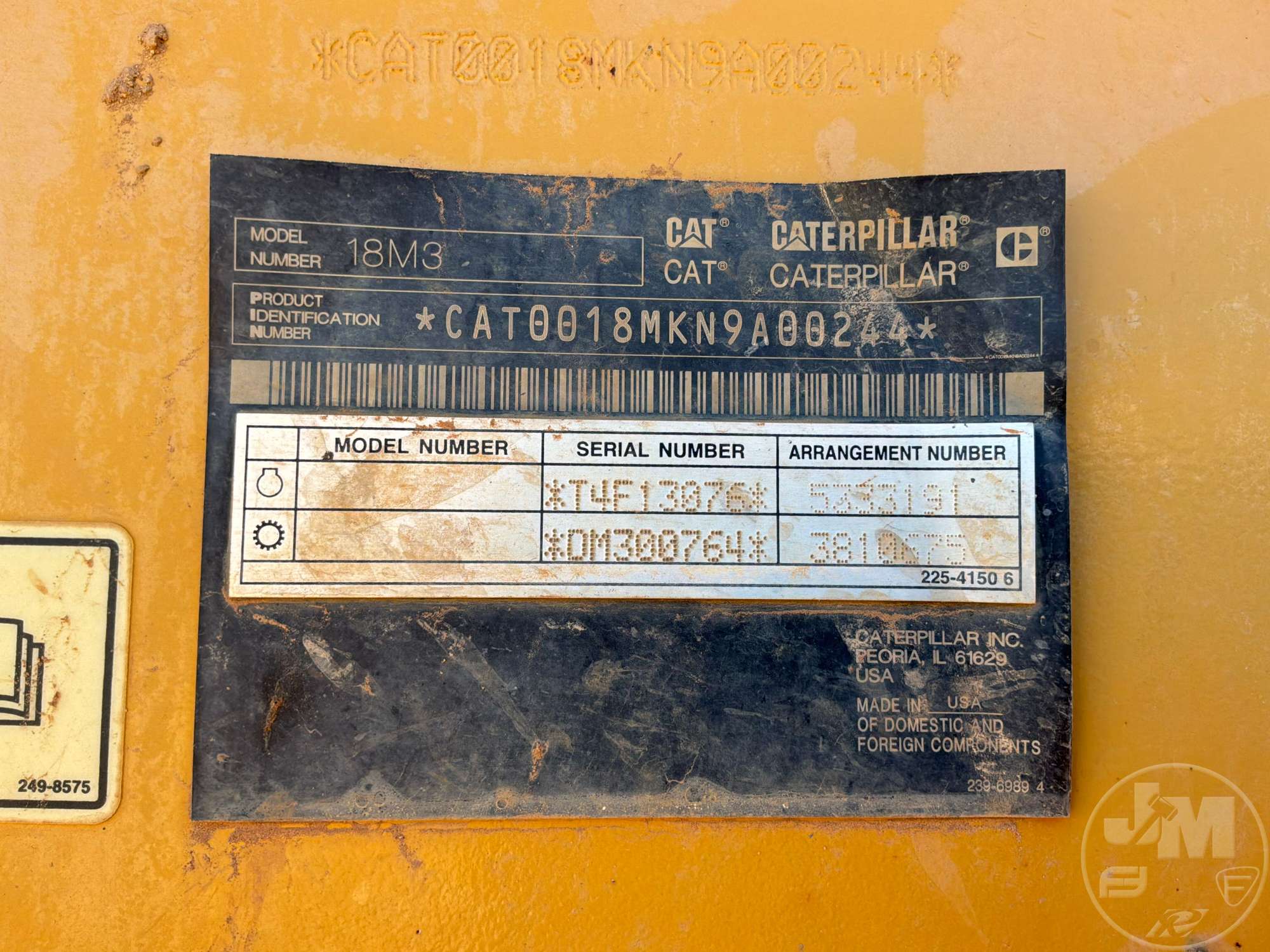

Engine Model |
Cat C13 ACERT VHP |
|
Maximum Torque - Iso 9249 - Tier 2/Stage Ii/Japan 2001 (Tier 2) Equivalent |
1,270 lbs ft (1,722 nm)
|
|
Maximum Torque - Iso 9249 - Tier 3/Stage Iiia/Japan 2006 (Tier 3) Equivalent |
1,270 lbs ft (1,722 nm)
|
|
Maximum Torque - Iso 9249 - Tier 4/Stage Iv/Japan 2014 (Tier 4 Final) |
1,306 lbs ft (1,771 nm)
|
|
Number Of Cylinders |
6 |
|
Optimized Vhp Range - Net |
227-266 kW (304-357 hp) |
|
Speed At Rated Power |
2,000 rpm |
|
Standard - Ambient Capability |
122 degrees |
|
Standard - Fan Speed - Maximum |
1,450 rpm |
|
Standard - Fan Speed - Minimum |
550 rpm |
|
Stroke |
6 in (16 cm)
|
|
Torque Rise - Tier 2/Stage Ii/Japan 2001 (Tier 2) Equivalent |
38% |
|
Torque Rise - Tier 3/Stage Iiia/Japan 2006 (Tier 3) Equivalent |
38% |
|
Torque Rise - Tier 4/Stage Iv/Japan 2014 (Tier 4 Final) |
40% |
|
Vhp Range - Net |
227-266 kW (304-357 hp) |
|
Vhp Range - Net - Metric |
227-266 kW (309-362 hp) |

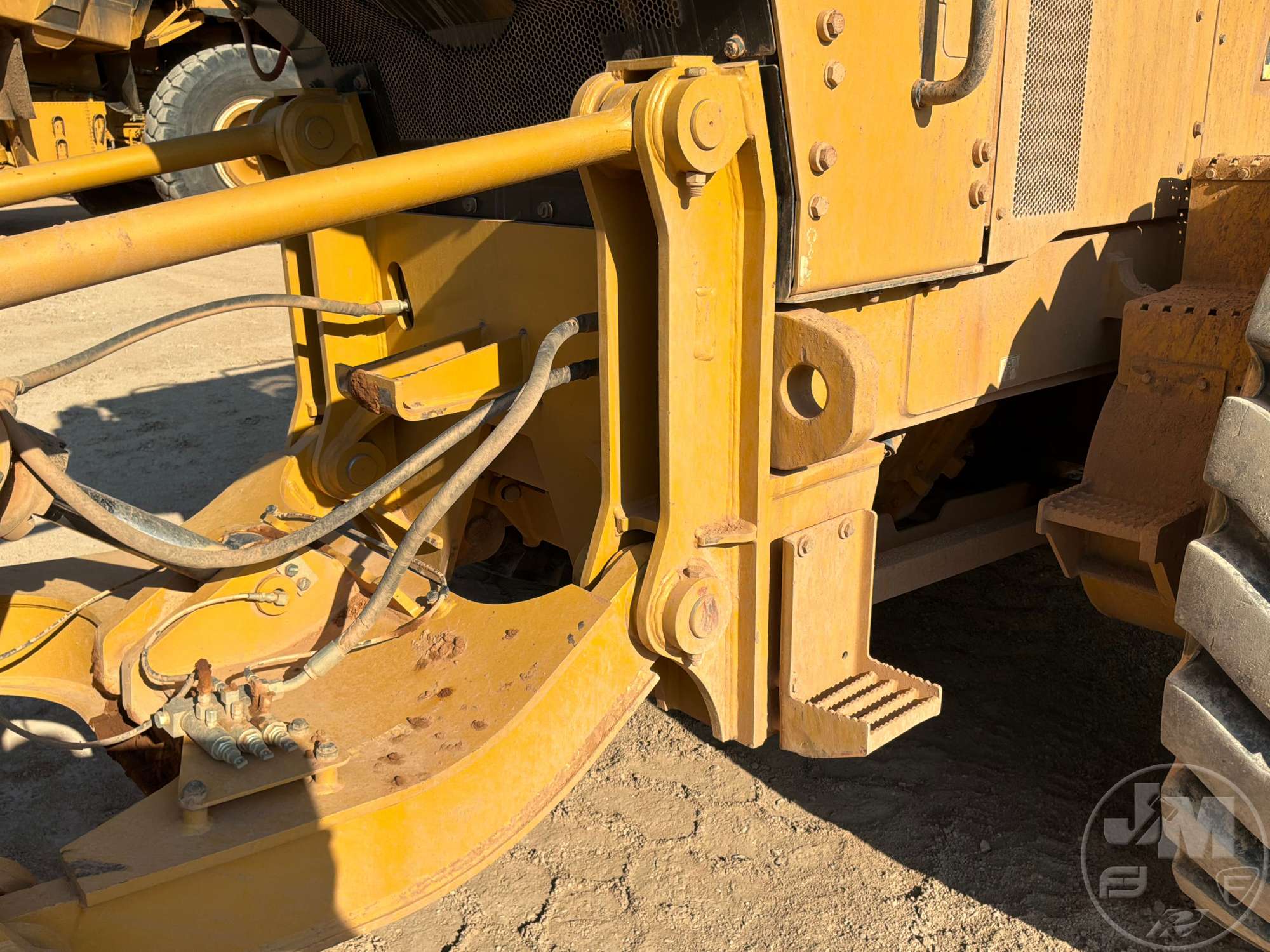

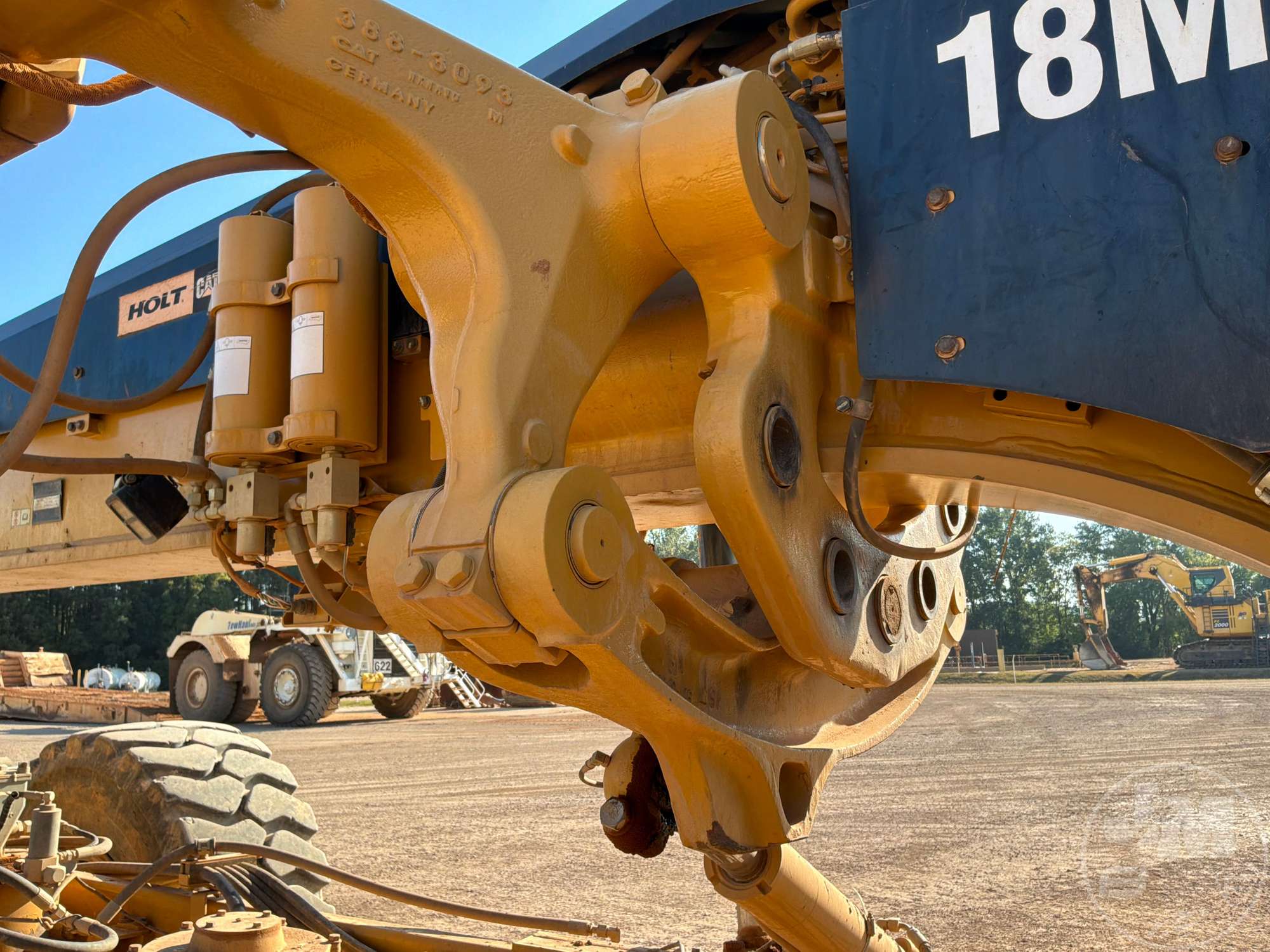

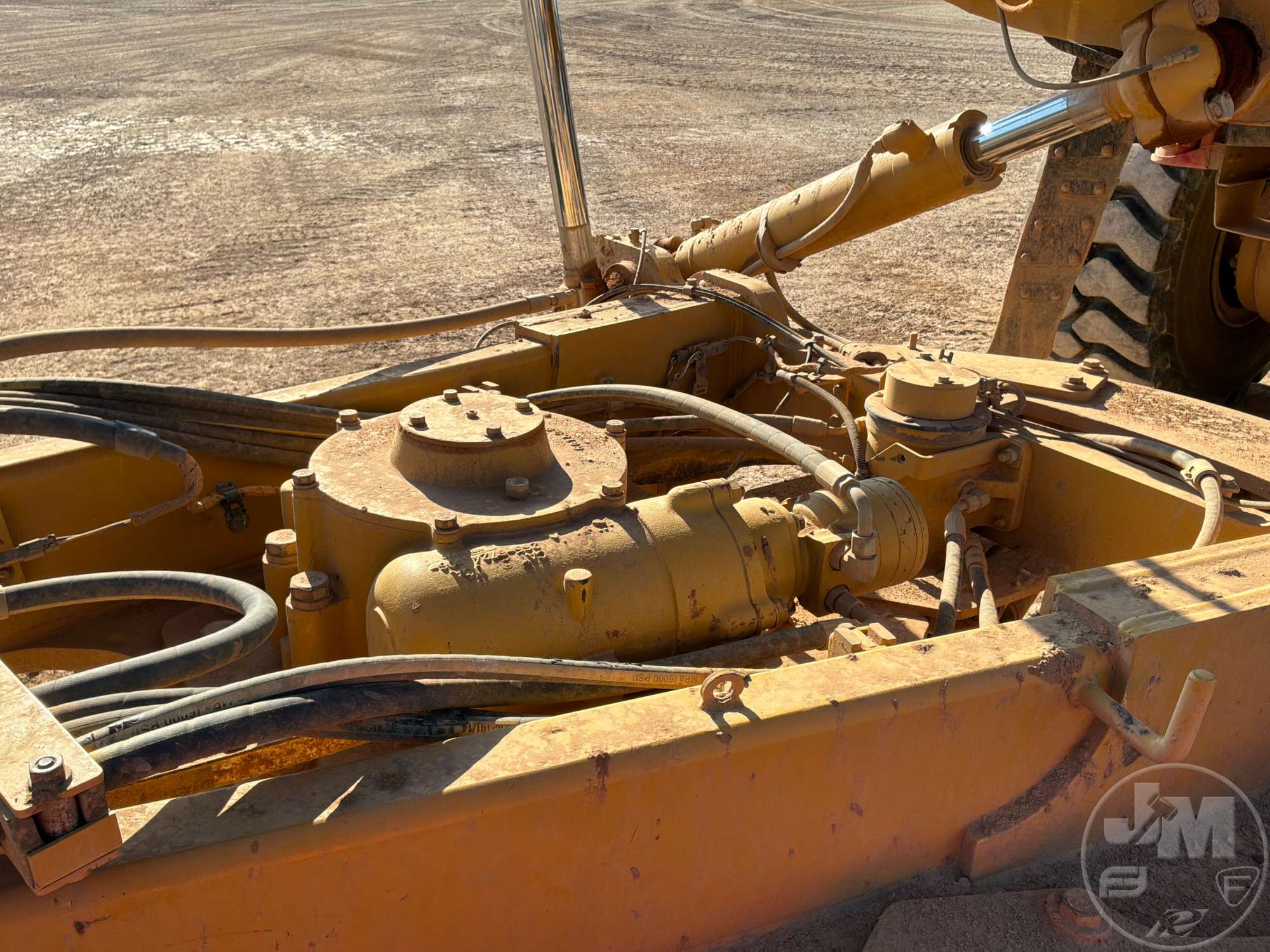

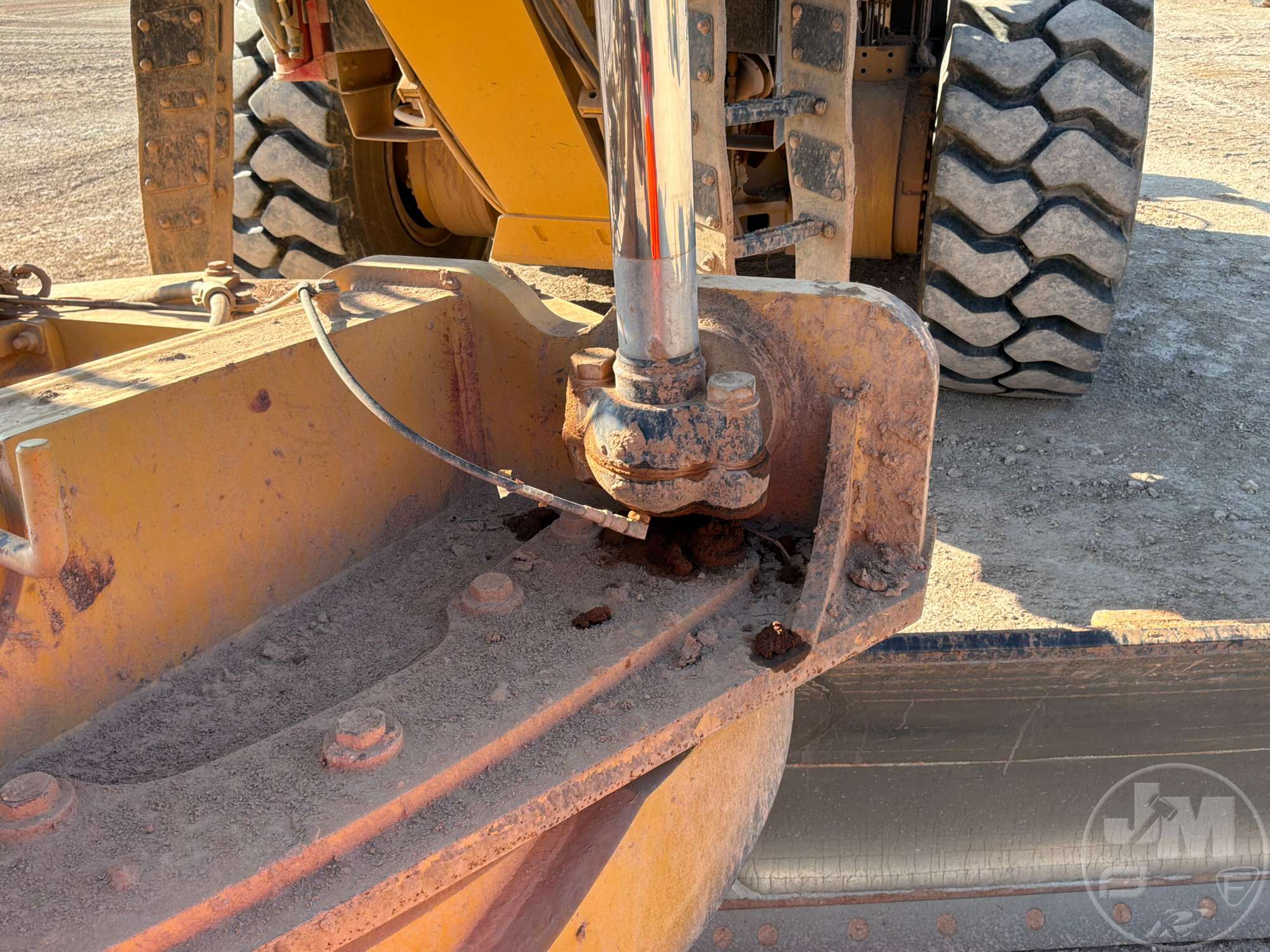

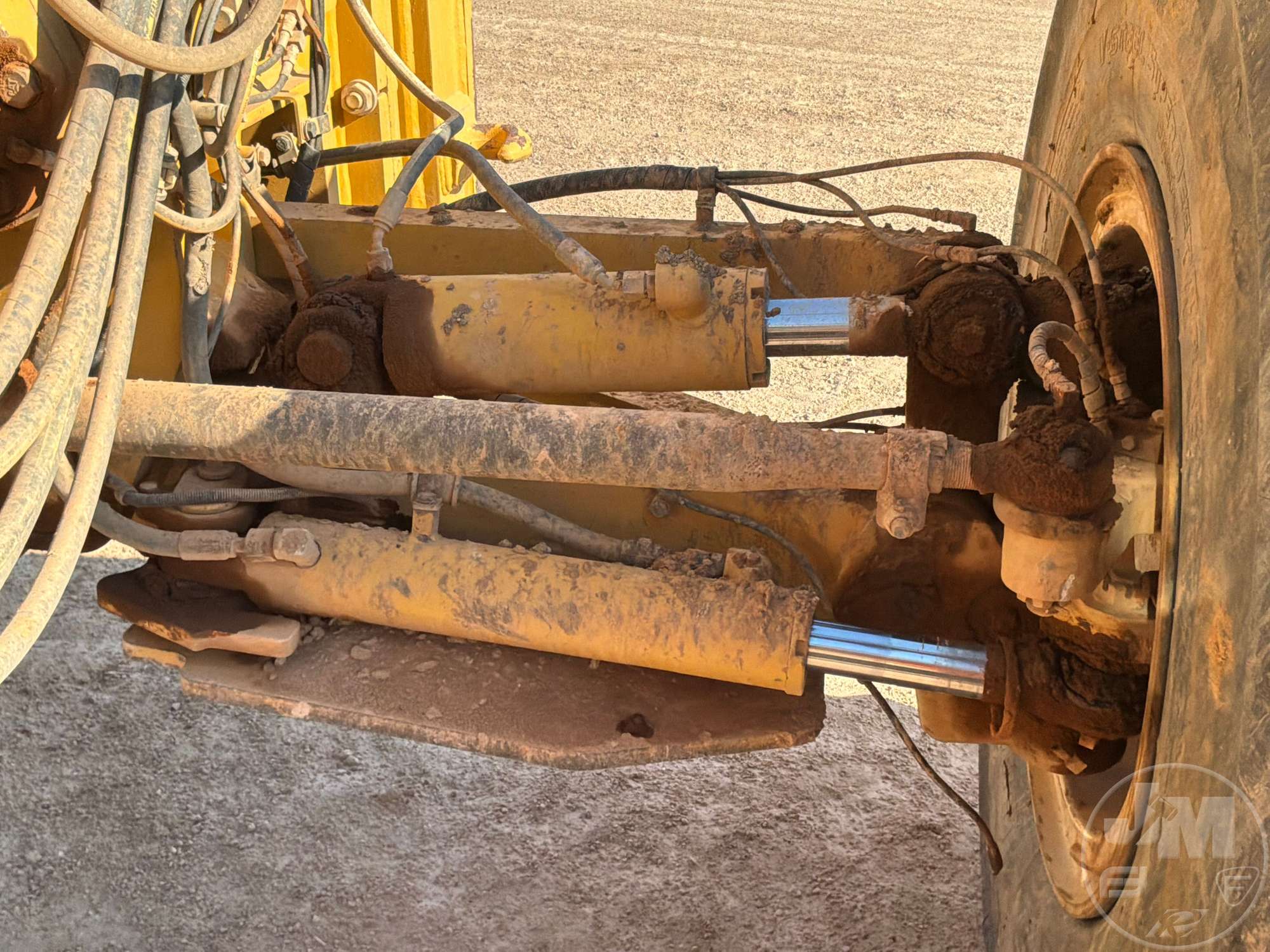

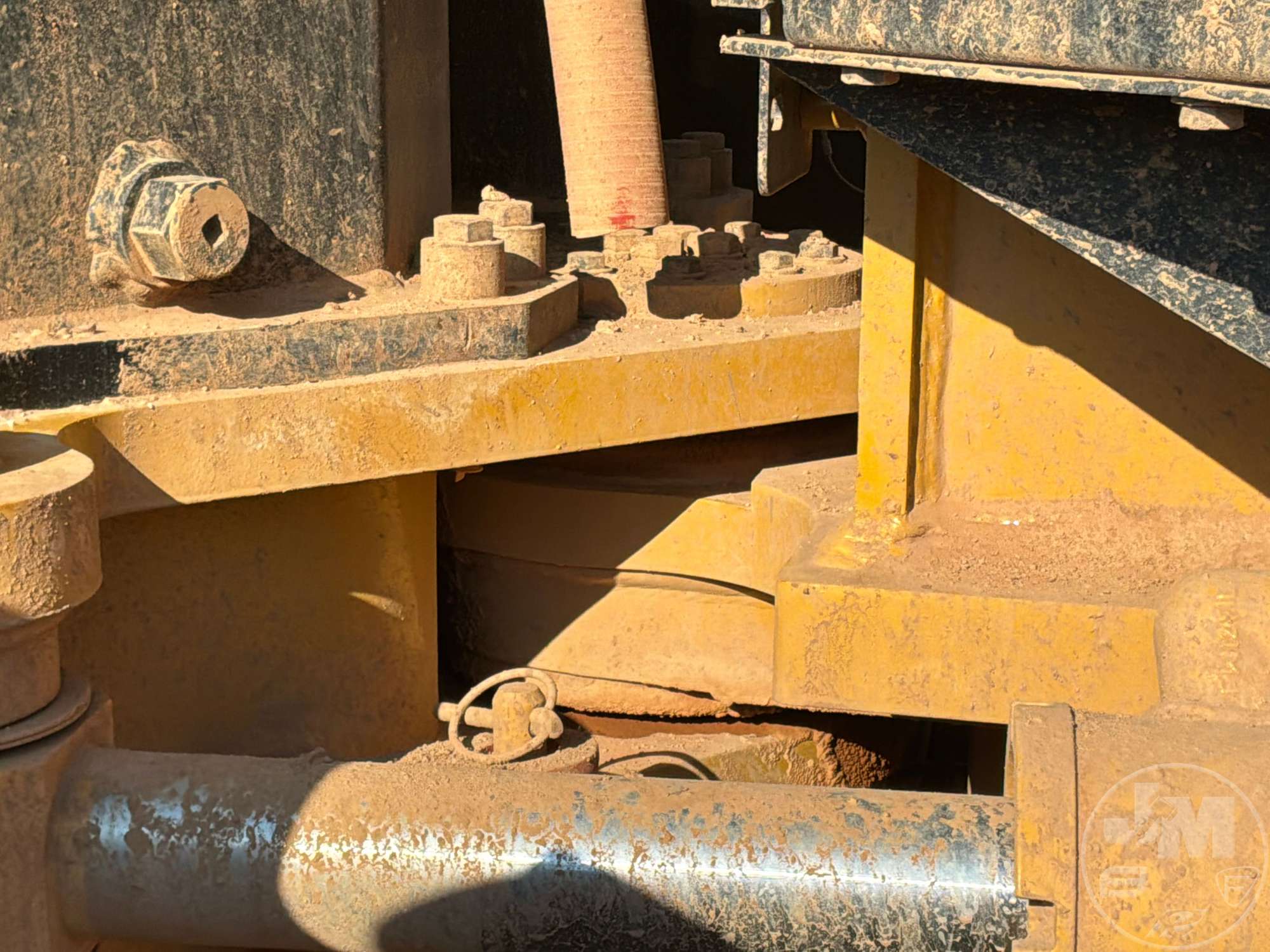

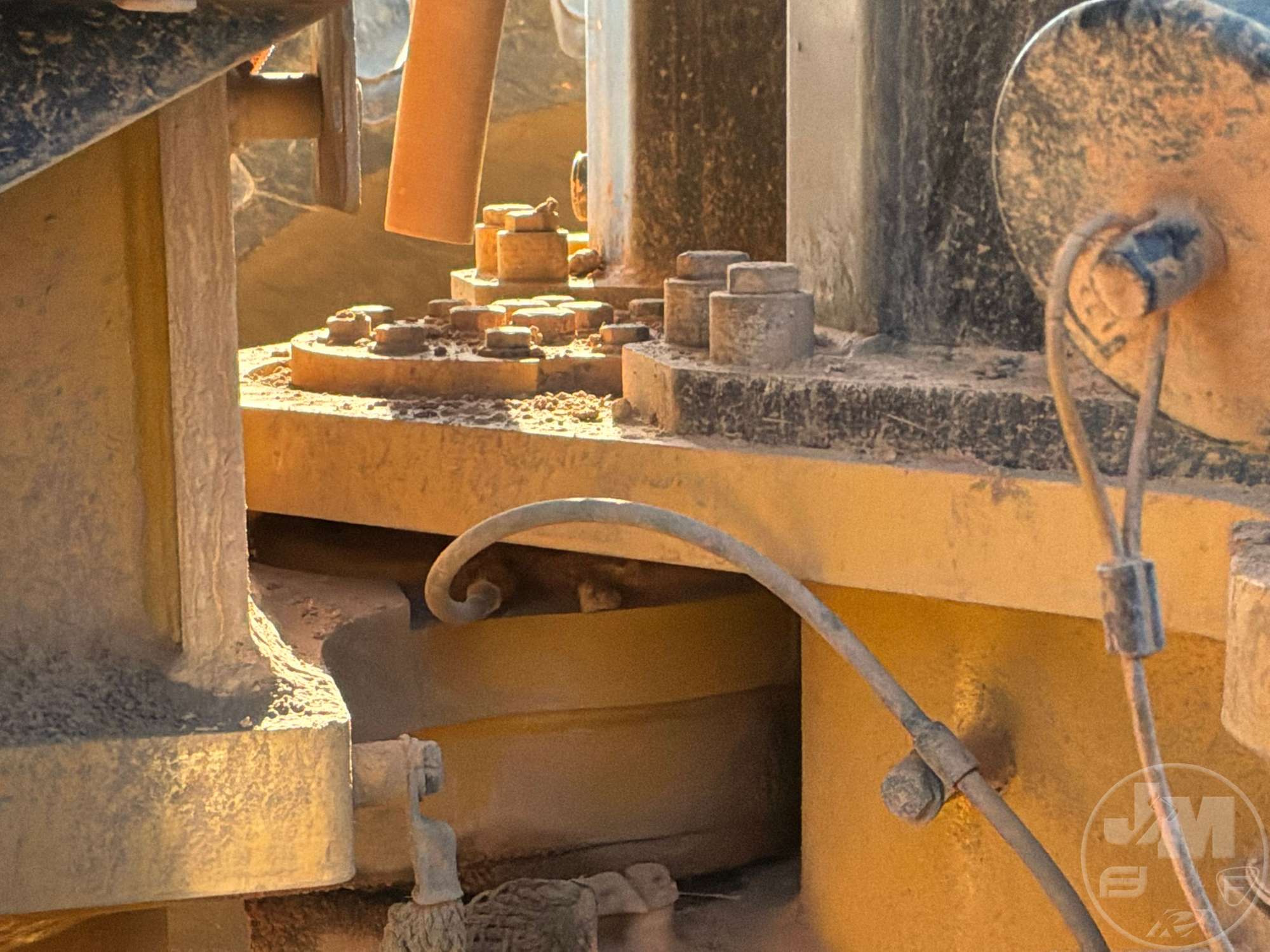

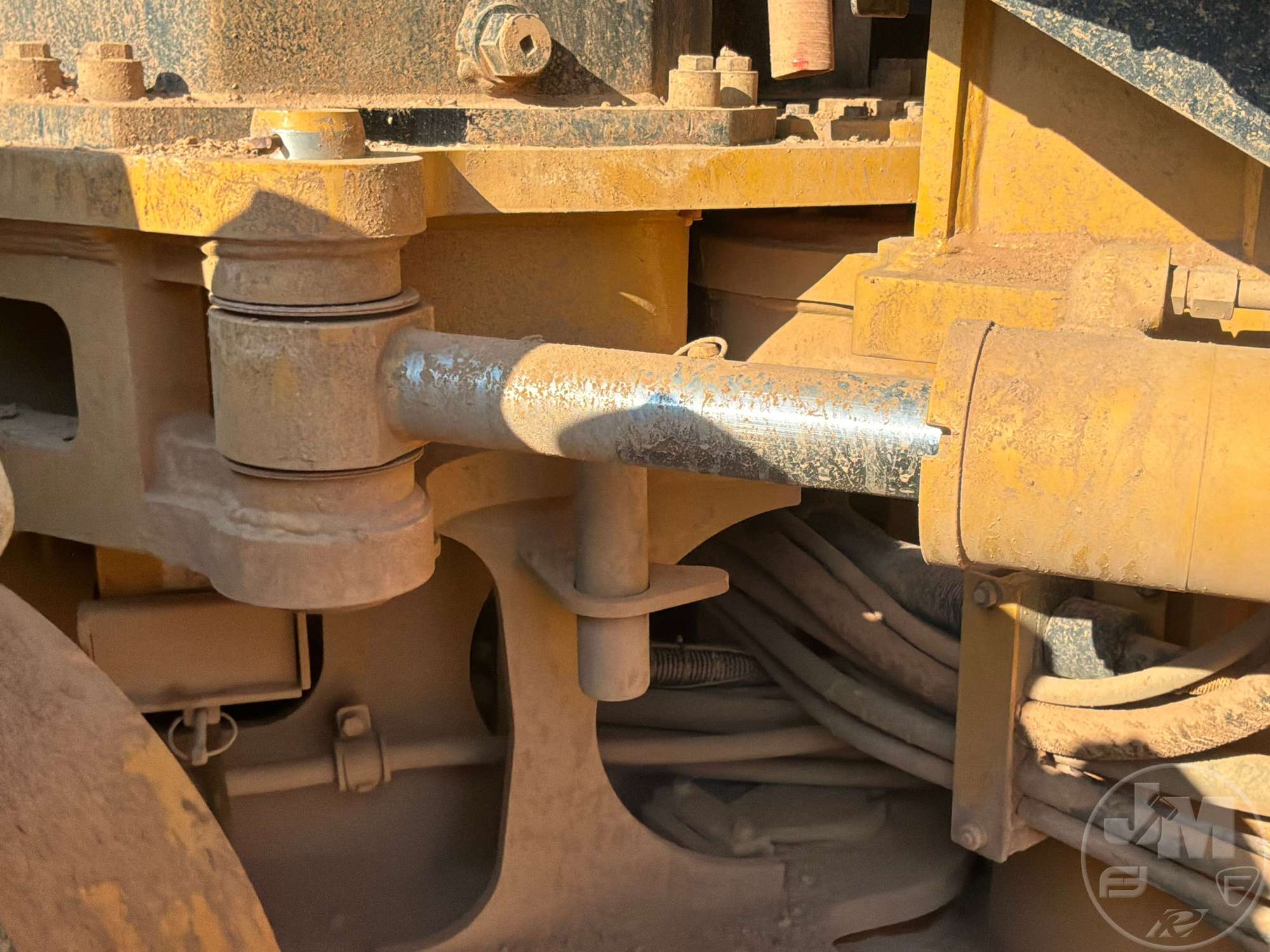

| Frame |
|
Circle - Blade Beam Thickness |
2 in (5 cm)
|
|
Circle - Diameter |
72 in (182 cm)
|
|
Drawbar - Height |
8 in (20 cm)
|
|
Drawbar - Width |
3 in (8 cm)
|
|

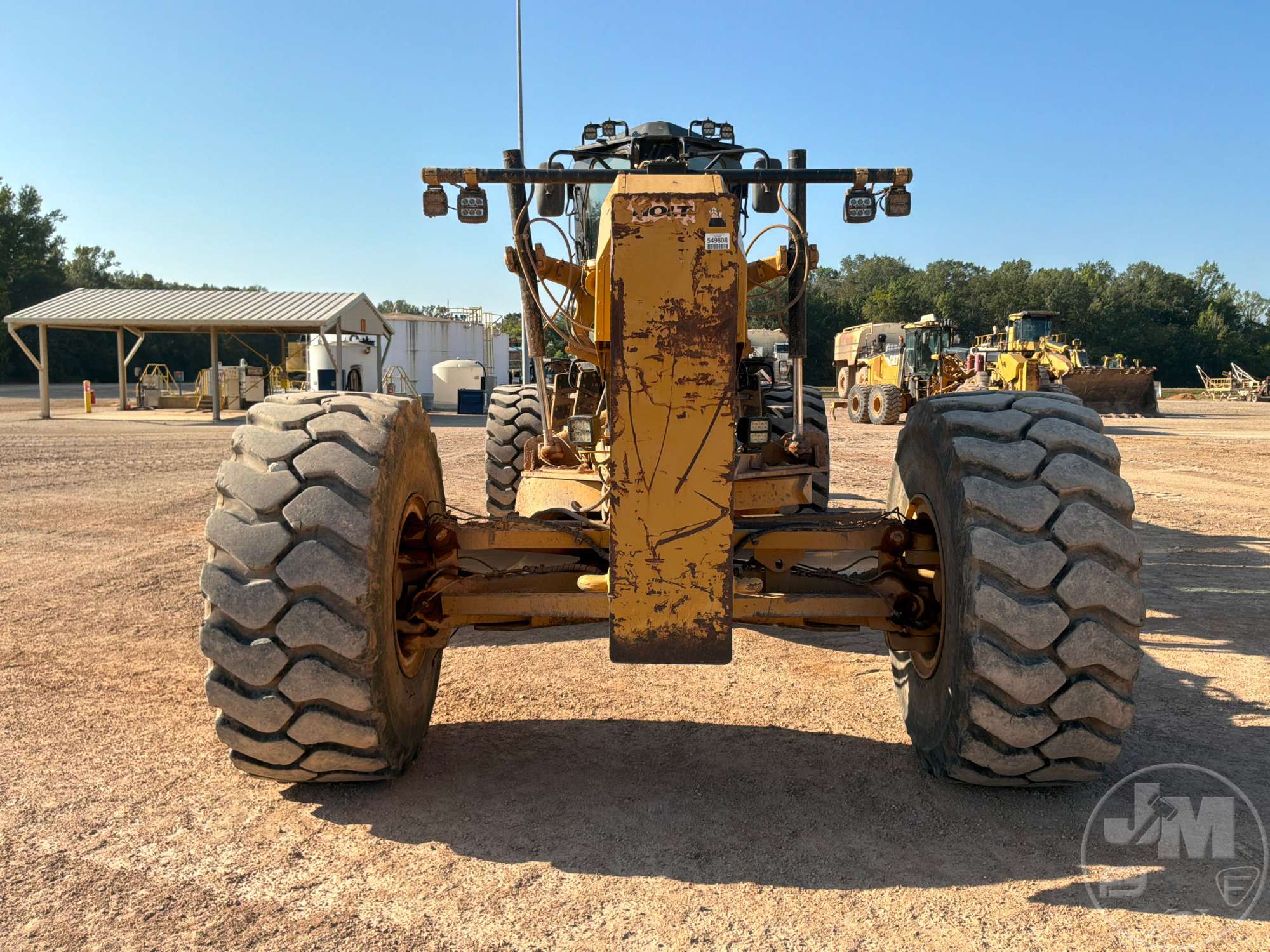

Front Axle - Height To Center |
26 in (67 cm)
|
|
Front Axle - Total Oscillation Per Side |
35 degrees |
|
Front Axle - Wheel Lean |
18 degrees Left/17 degrees Right |
|
Front Frame Structure - Height |
2 ft (0 m)
|
|
Front Frame Structure - Thickness |
0 ft (0 m)
|
|
Front Frame Structure - Width |
1 ft (0 m)
|

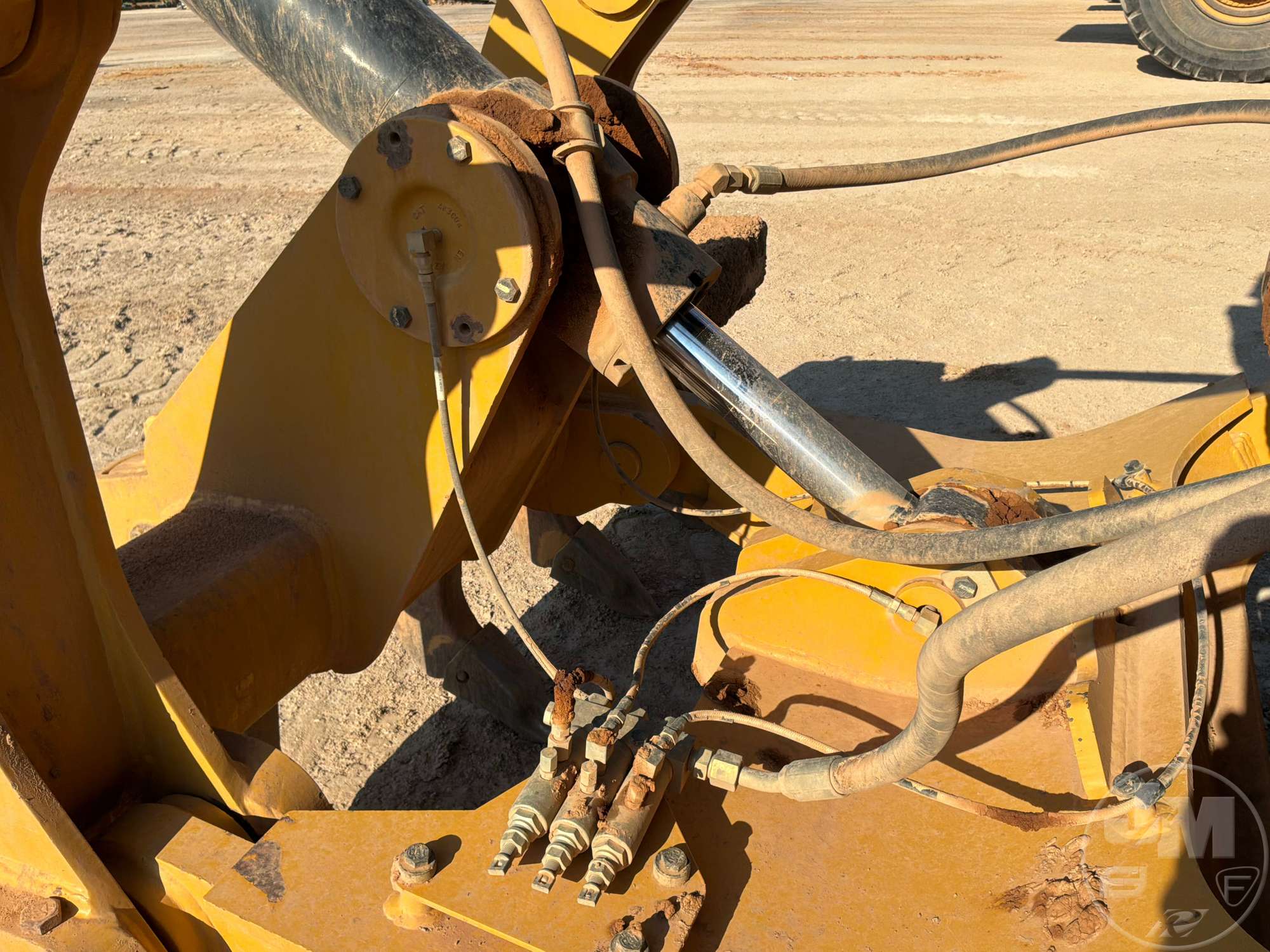

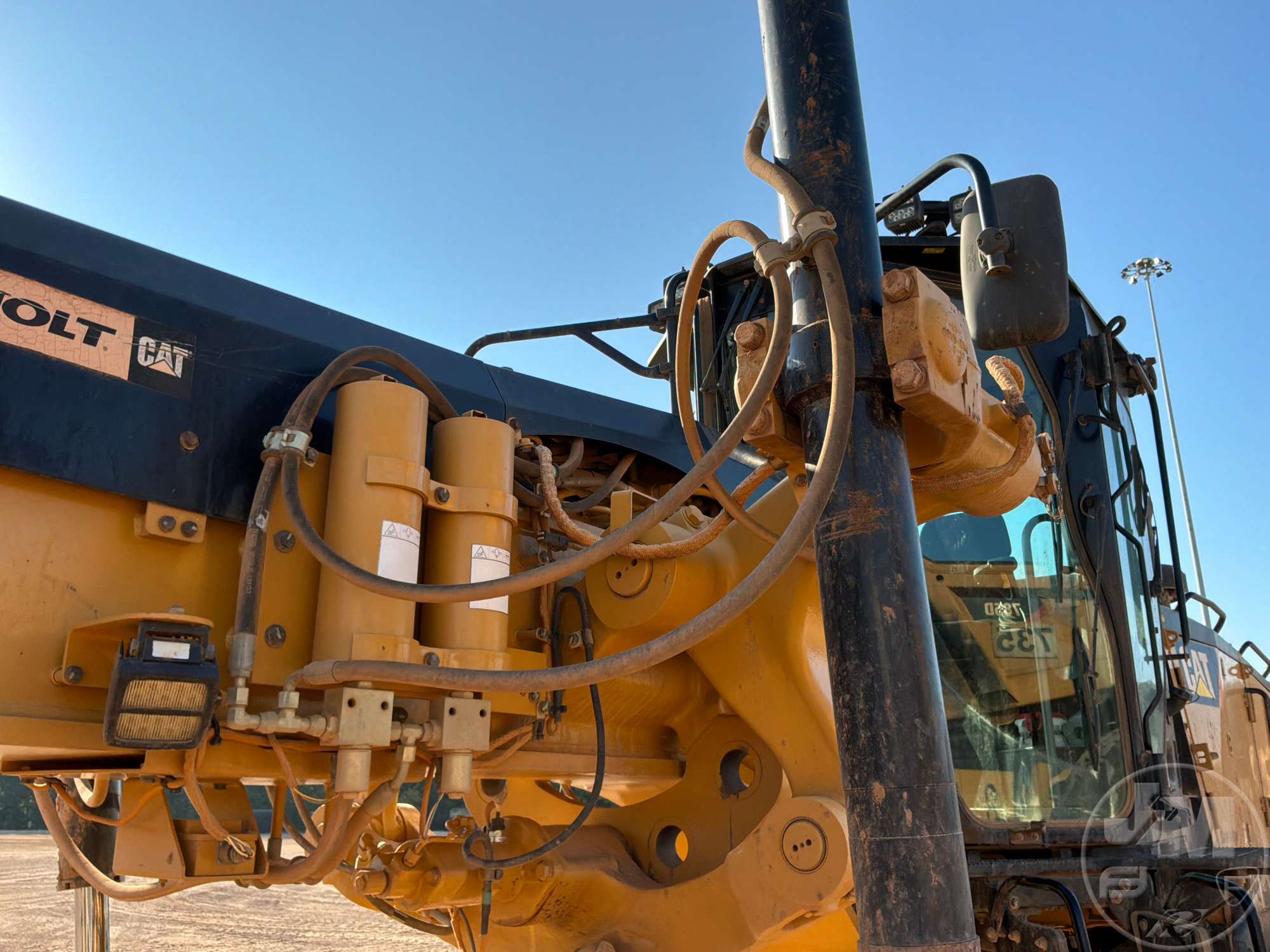

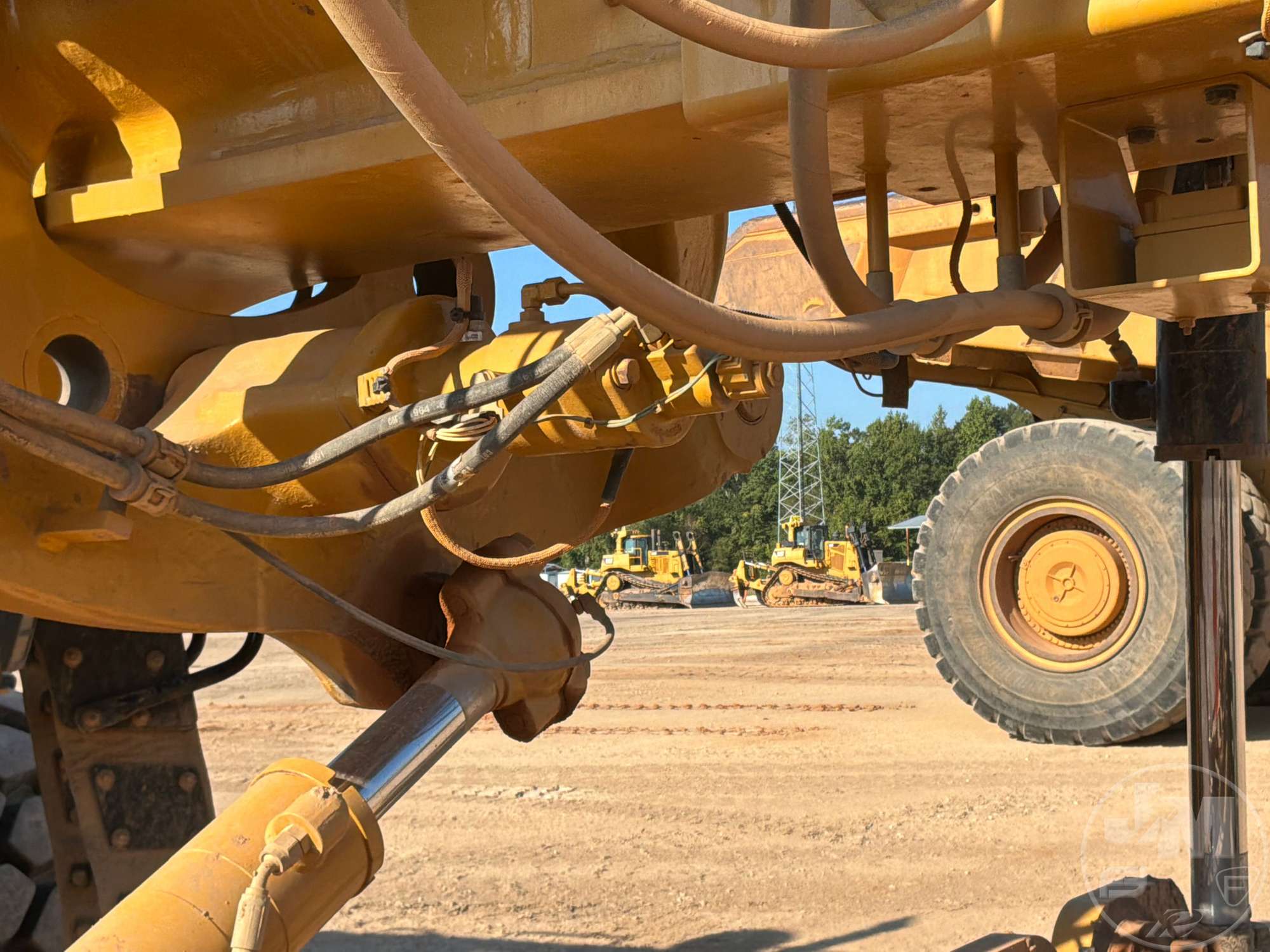

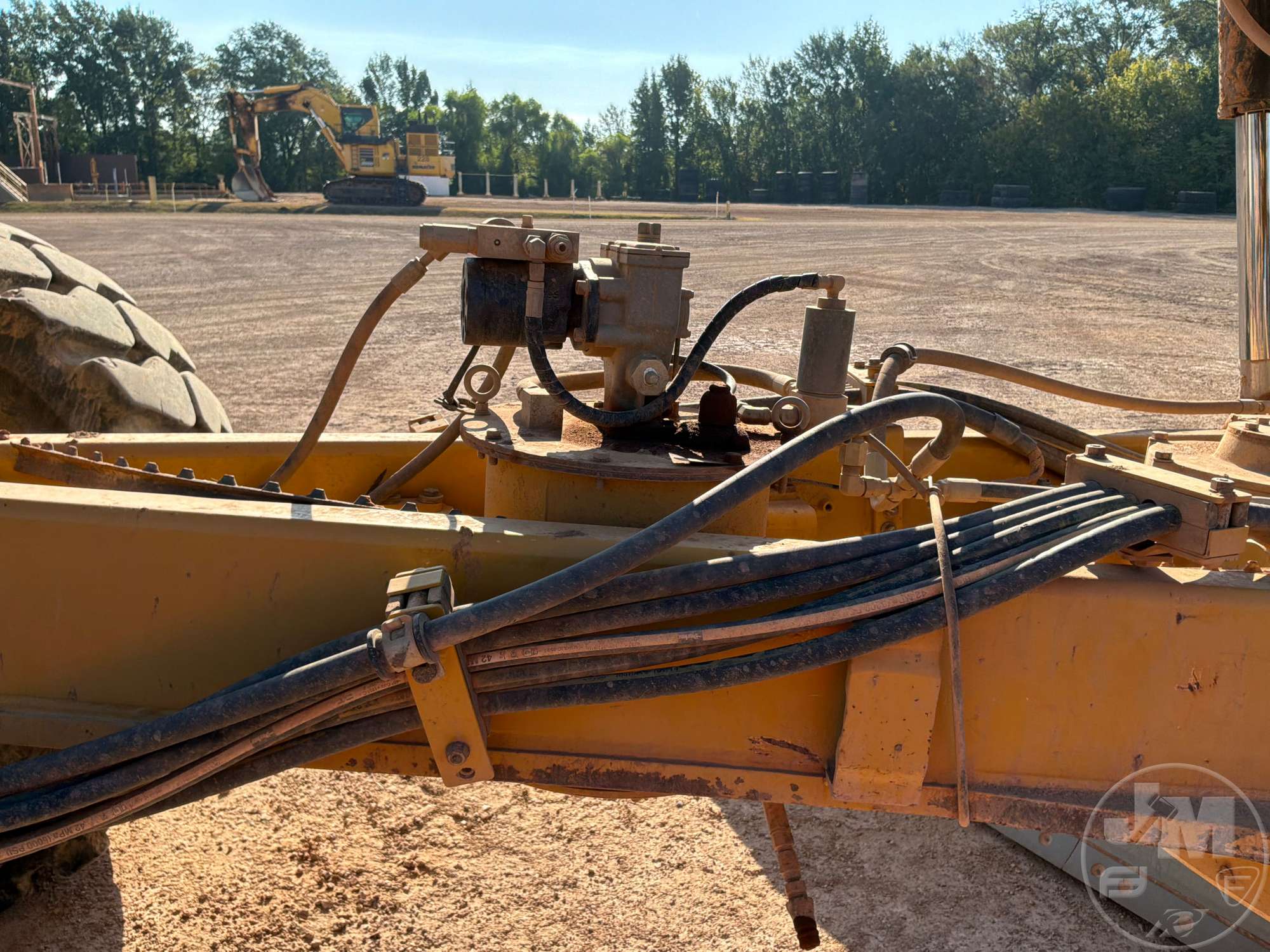

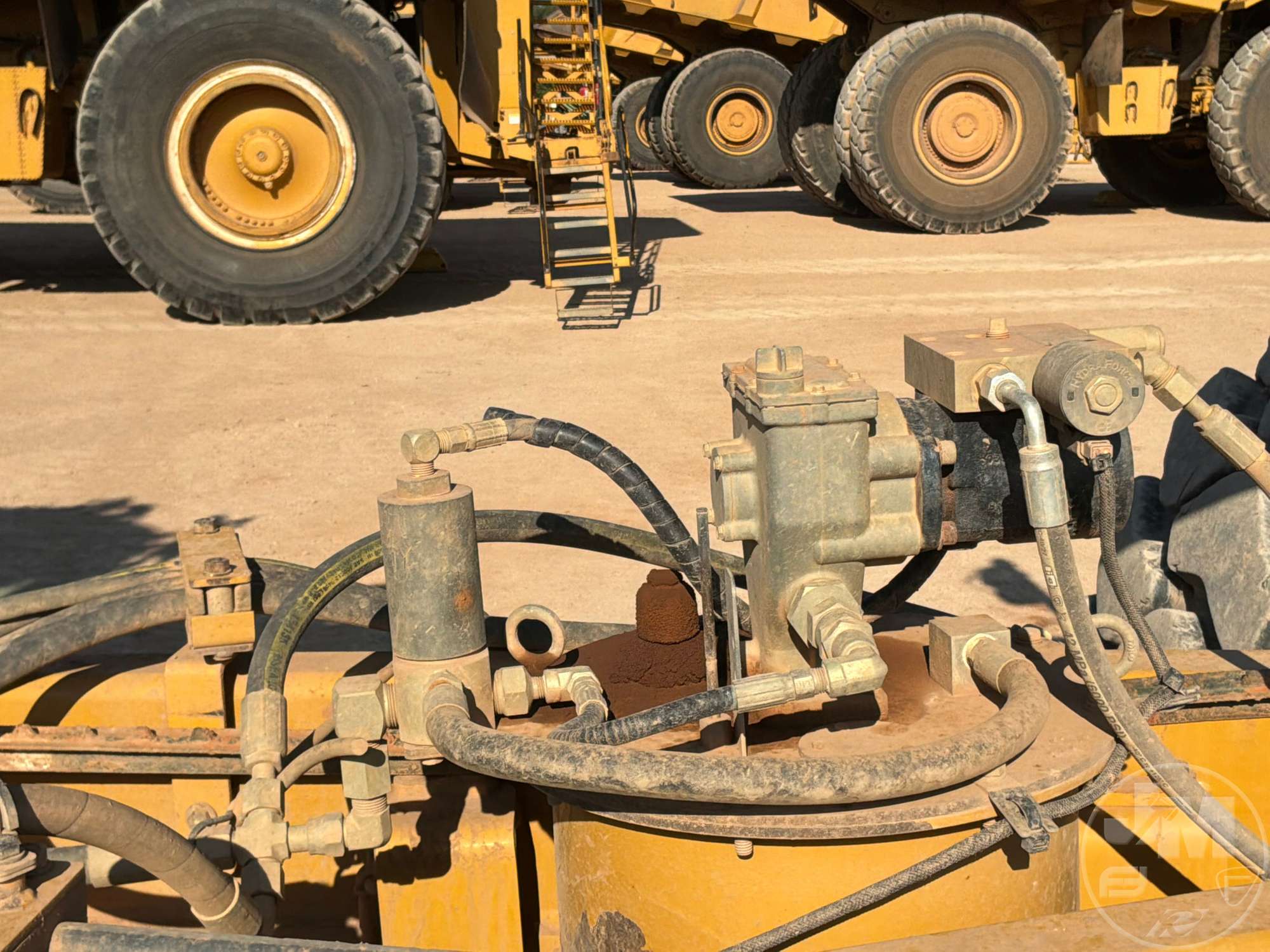

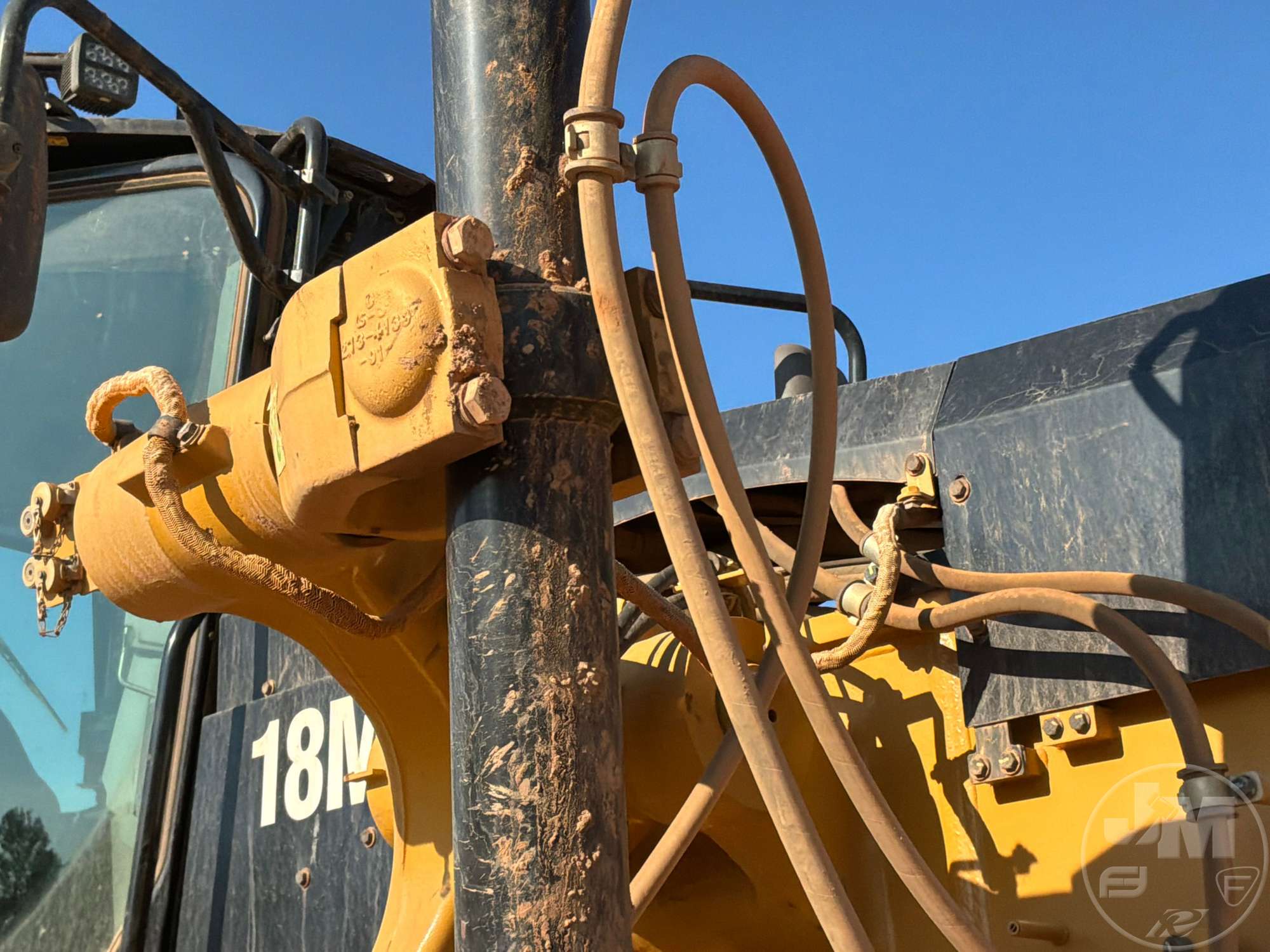

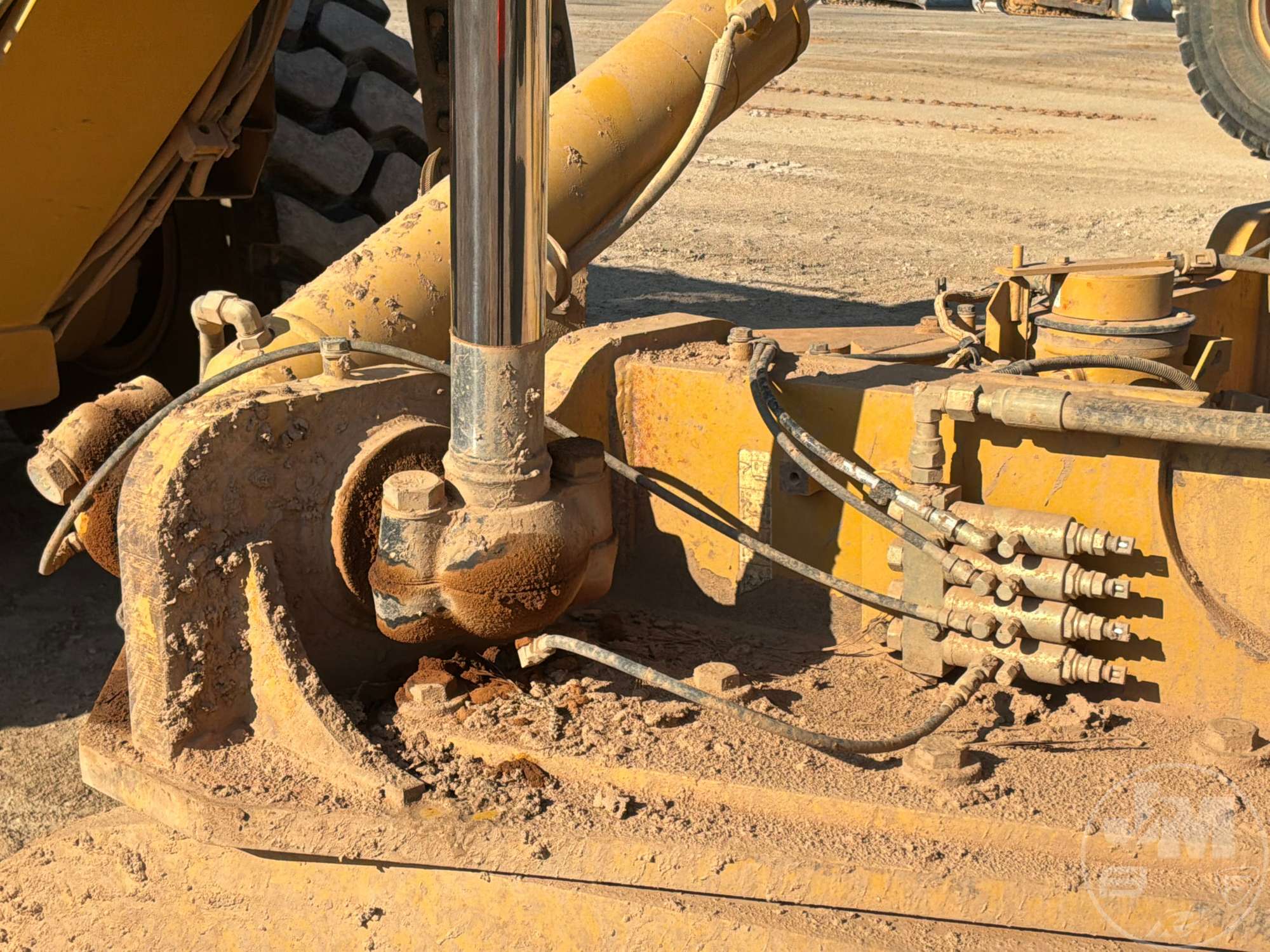

| Hydraulic System |
|
Circuit Type |
Electro-hydraulic load sensing, closed center |
|
Maximum System Pressure |
3,590 psi |
|
Note |
*Pump output measured at 2,150 rpm. |
|
Pump Output* |
74 gpm (280 lpm)
|
|
Pump Type |
Variable piston |
|
Standby Pressure |
856 psi |

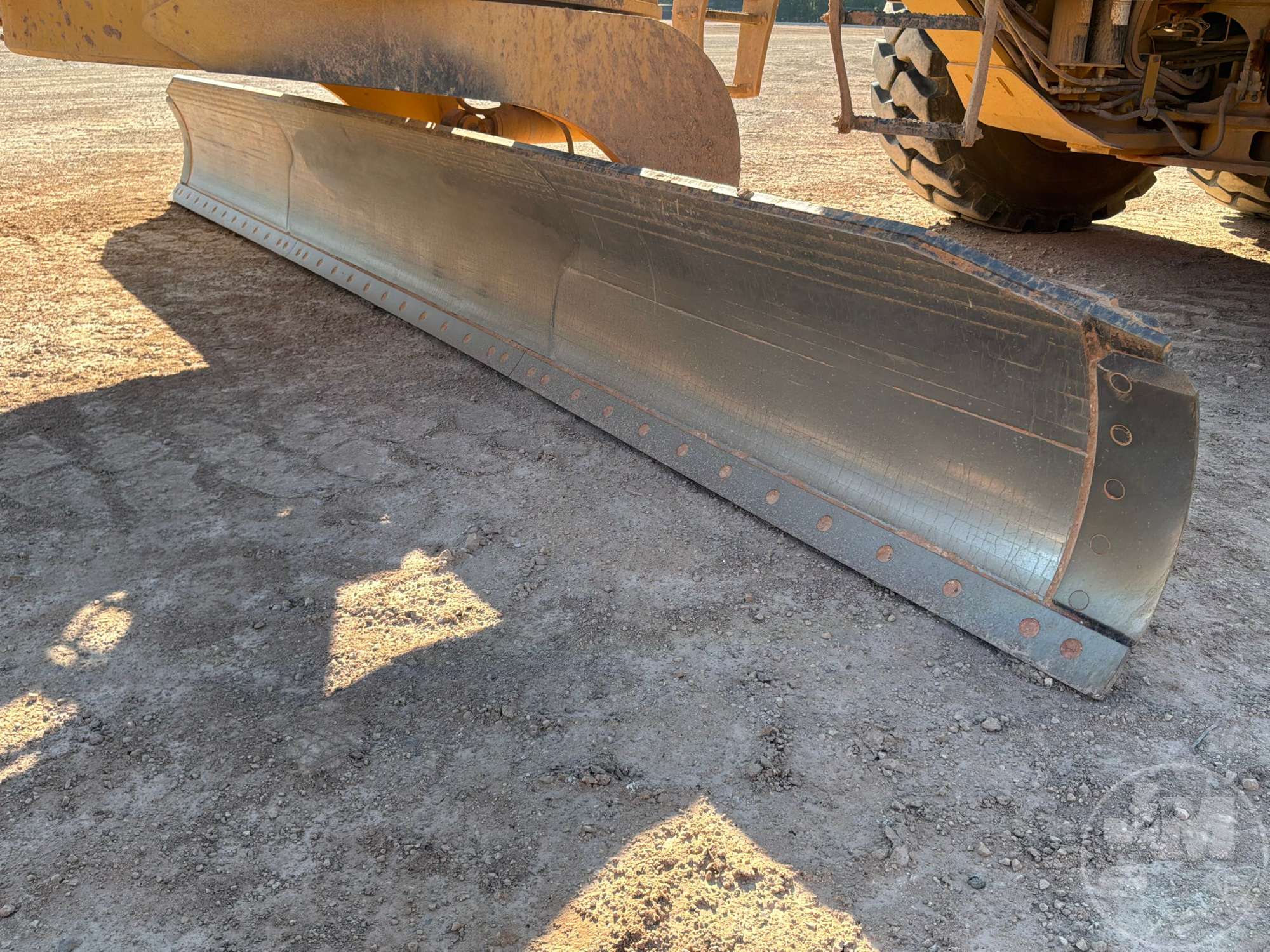

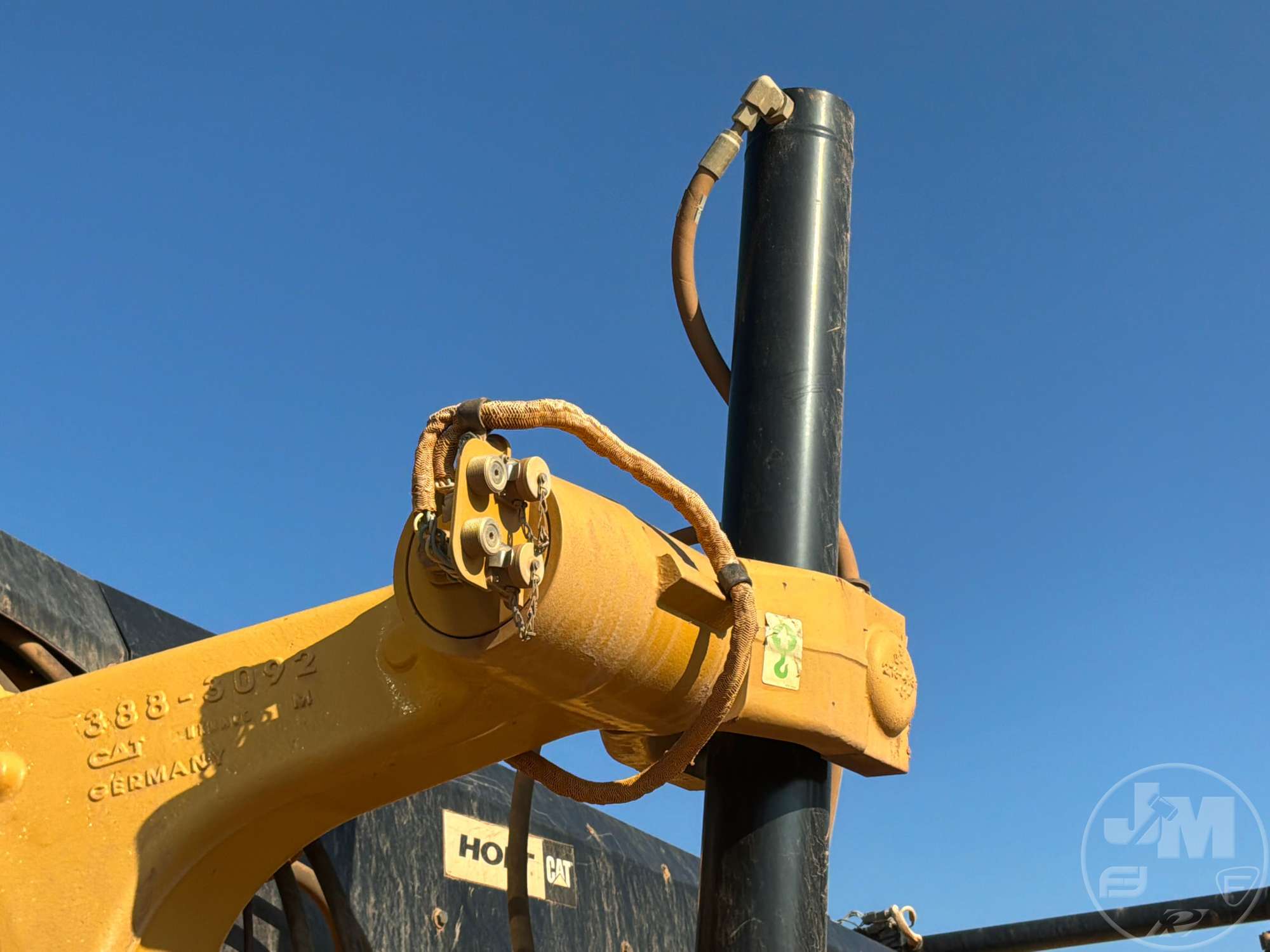

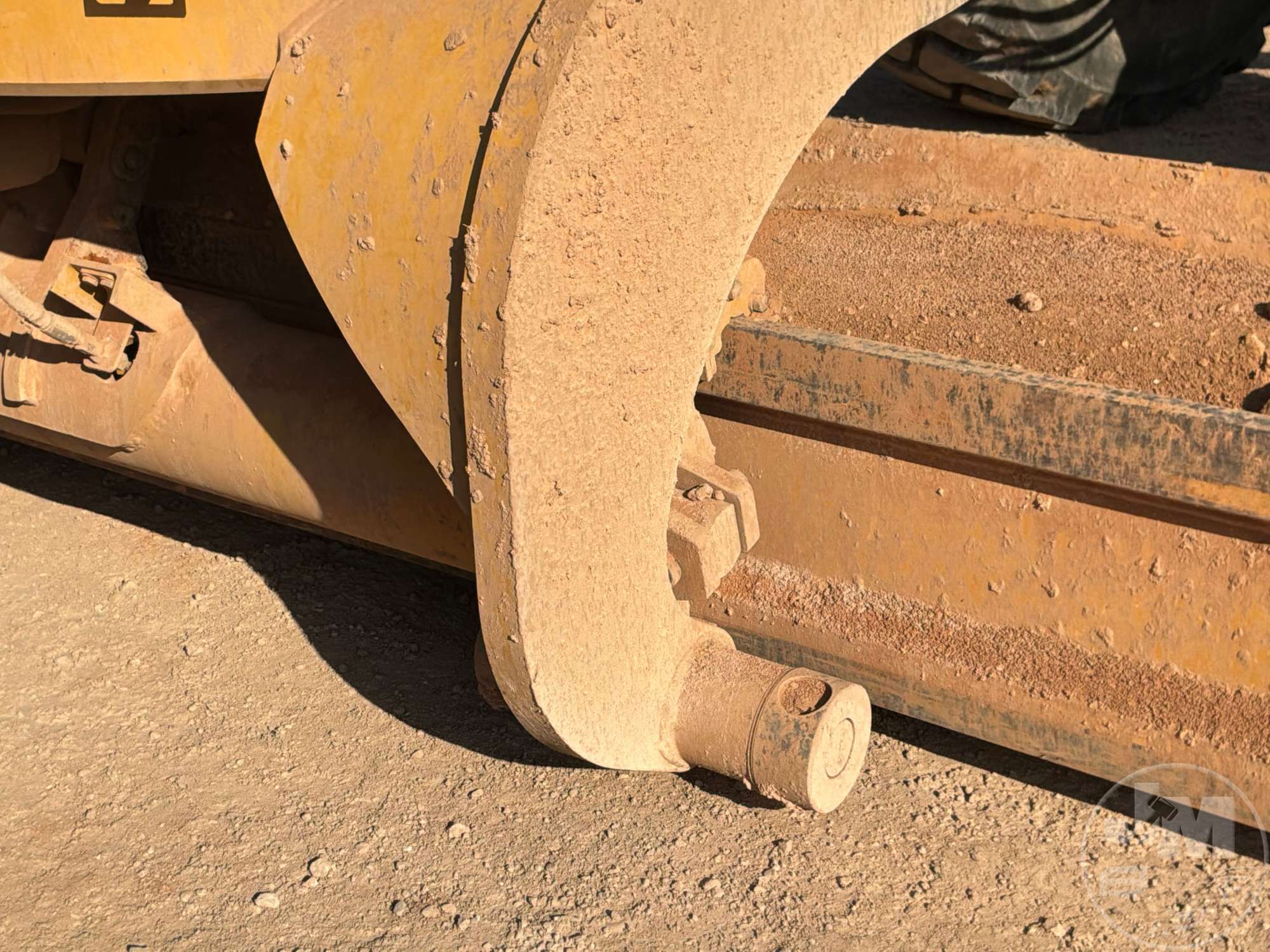

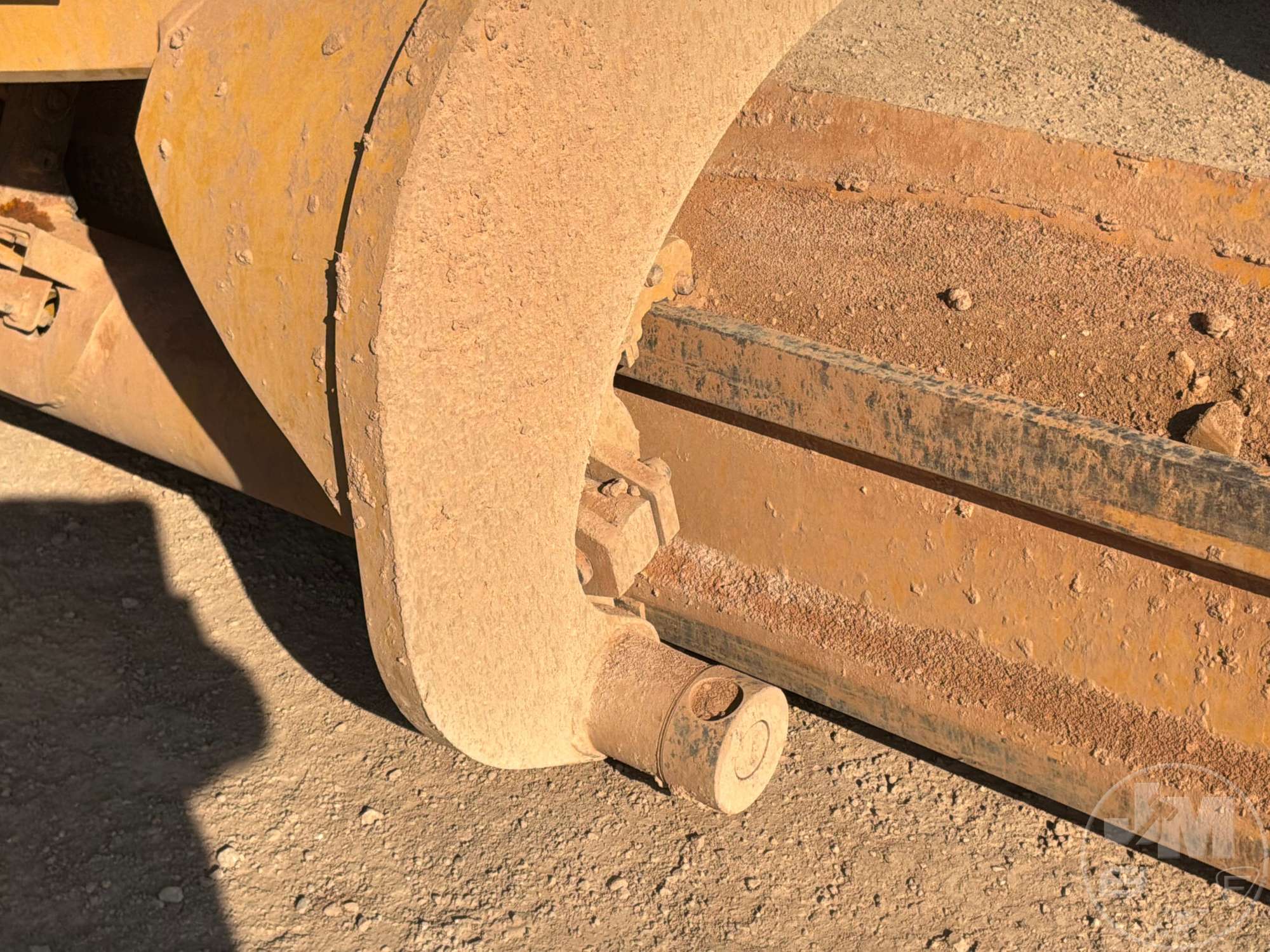

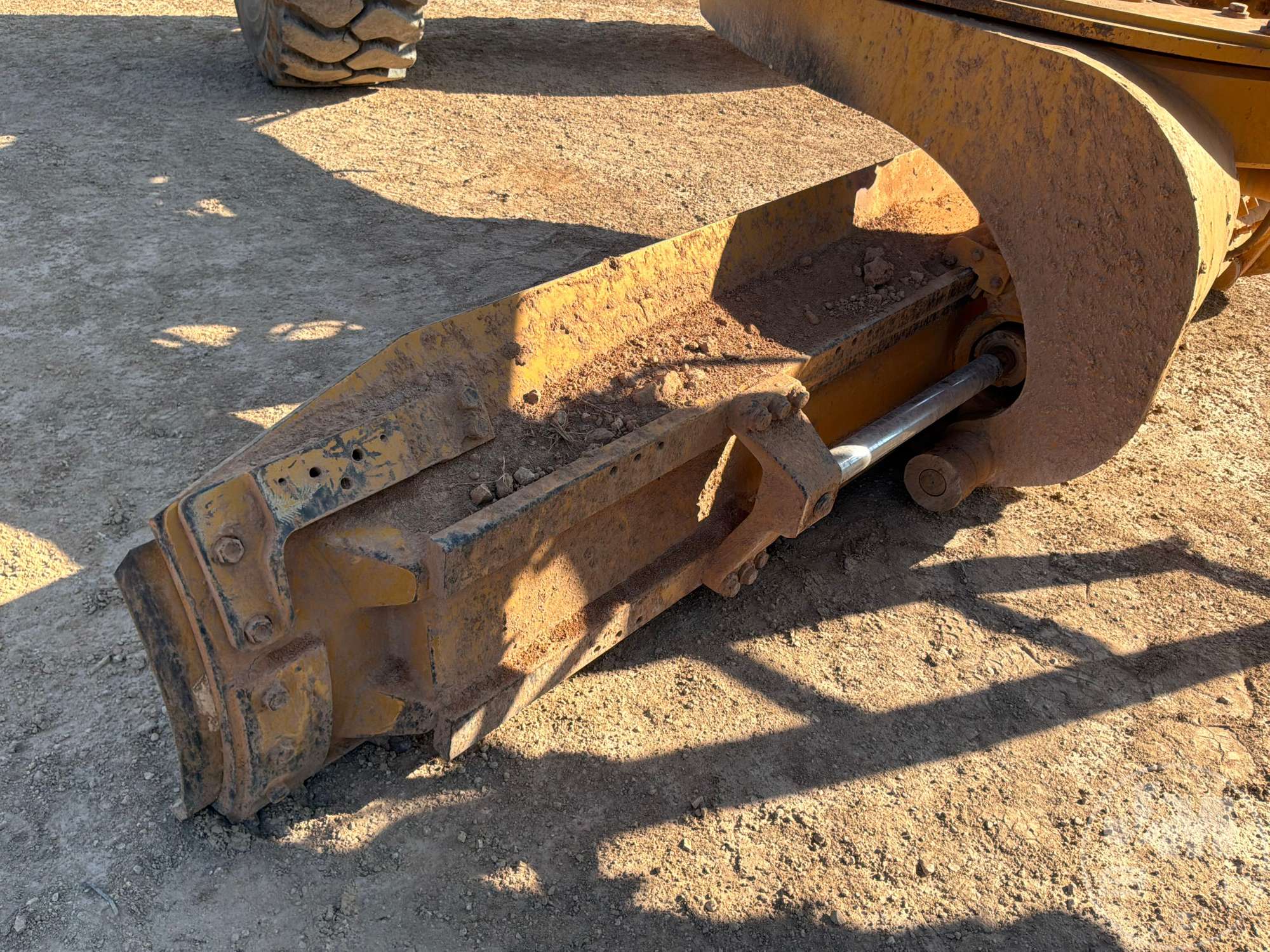

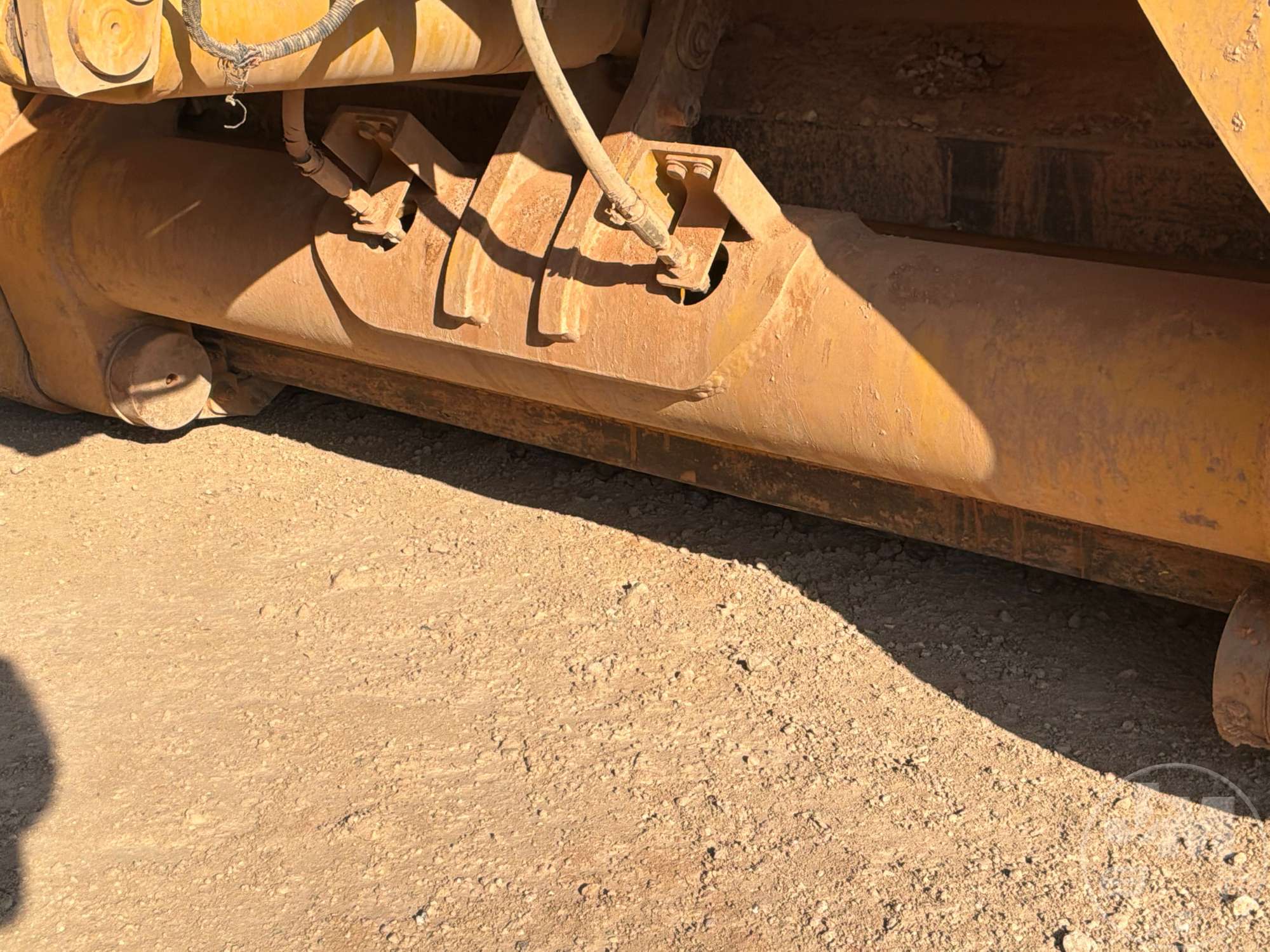

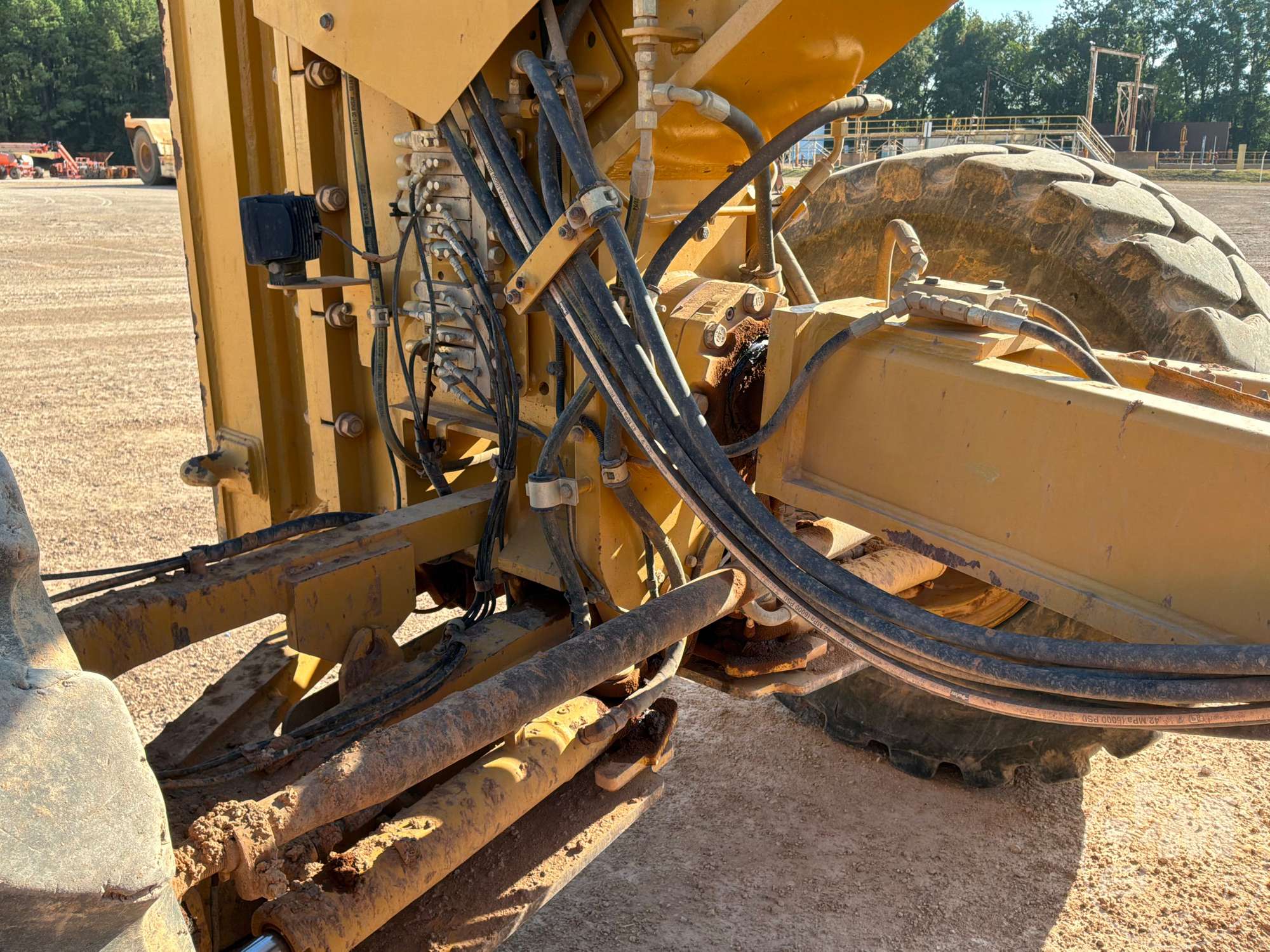

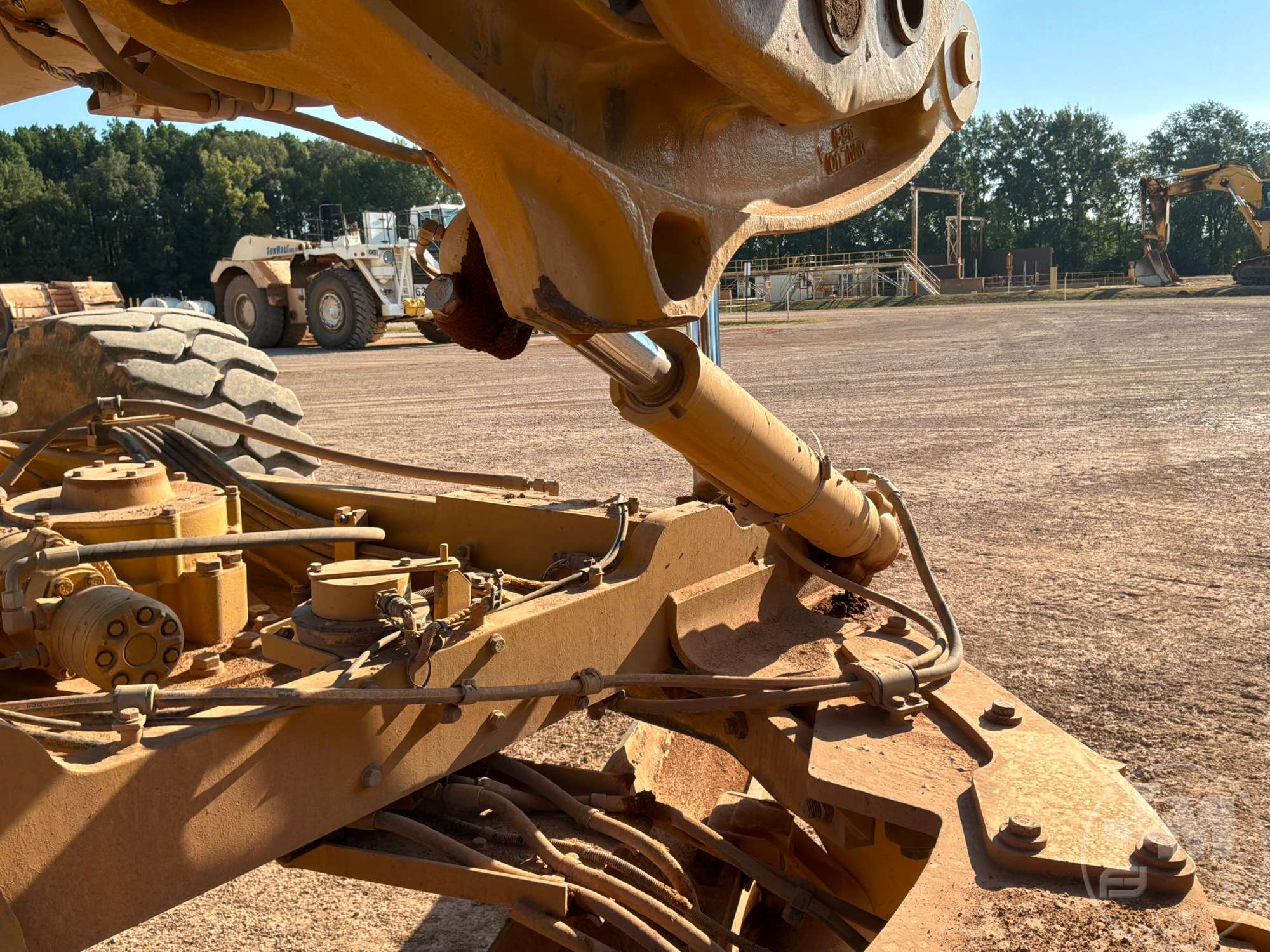

| Moldboard |
|
Arc Radius |
16 in (41 cm)
|
|
Blade Pull* - Base Gvw |
47,216 lbs (21,417 kg)
|
|
Blade Pull* - Maximum Gvw |
52,878 lbs (23,985 kg)
|
|
Blade Width |
18 ft (5 m)
|
|
Cutting Edge Thickness |
1 in (4 cm)
|
|
Cutting Edge Width |
10 in (25 cm)
|
|
Down Force - Base Gvw |
34,008 lbs (15,426 kg)
|
|
Down Force - Maximum Gvw |
43,861 lbs (19,895 kg)
|
|
End Bit - Thickness |
1 in (2 cm)
|
|
End Bit - Width |
6 in (15 cm)
|
|
Height |
31 in (79 cm)
|
|
Note |
*Blade pull calculated at 0.9 traction coefficient, which is equal to ideal no-slip conditions, and Gross Machine Weight. |
|
Thickness |
1 in (3 cm)
|
|
Throat Clearance |
5 in (13 cm)
|
|
Width |
18 ft (5 m)
|

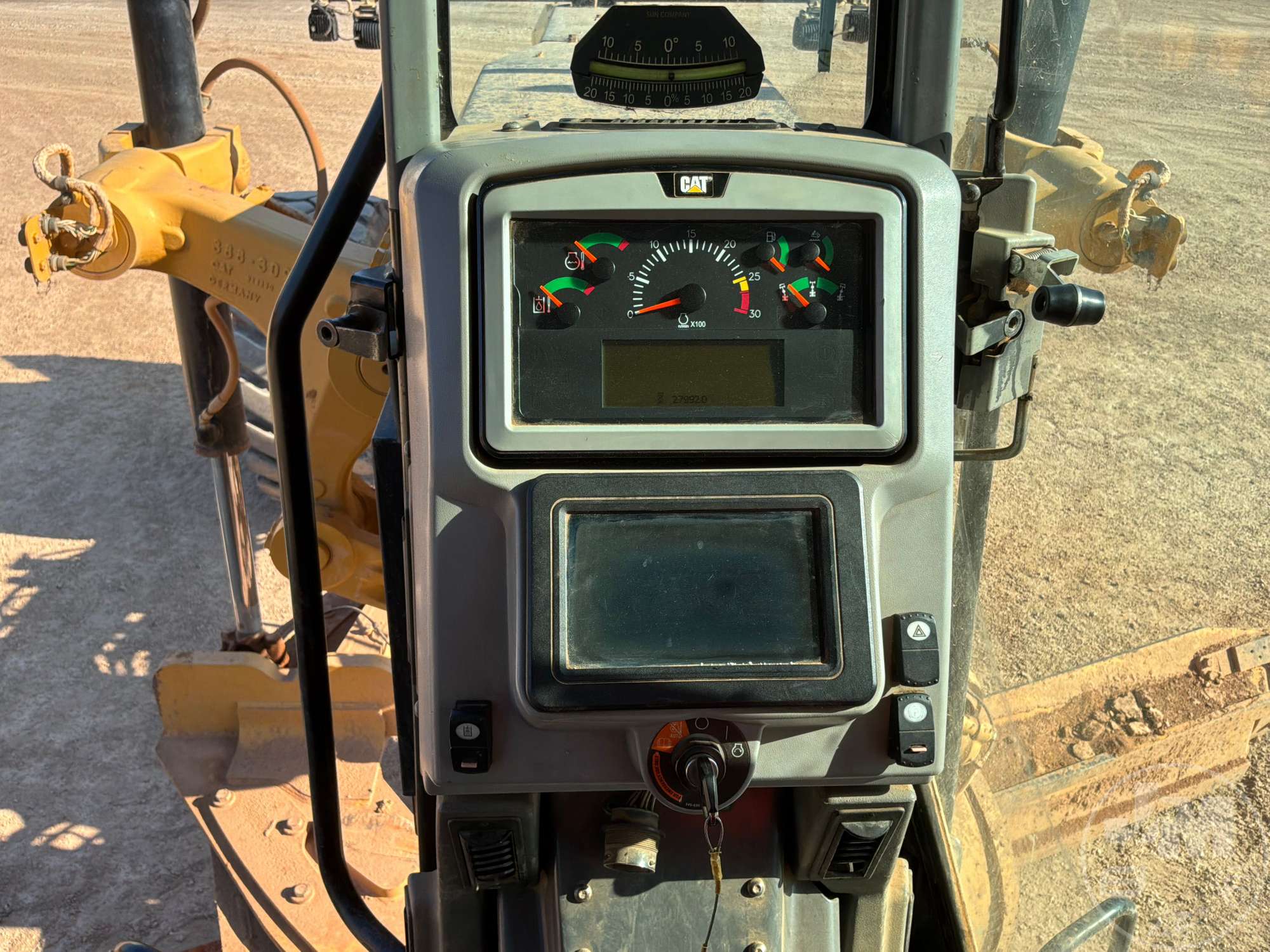

| Operating Specifications |
|

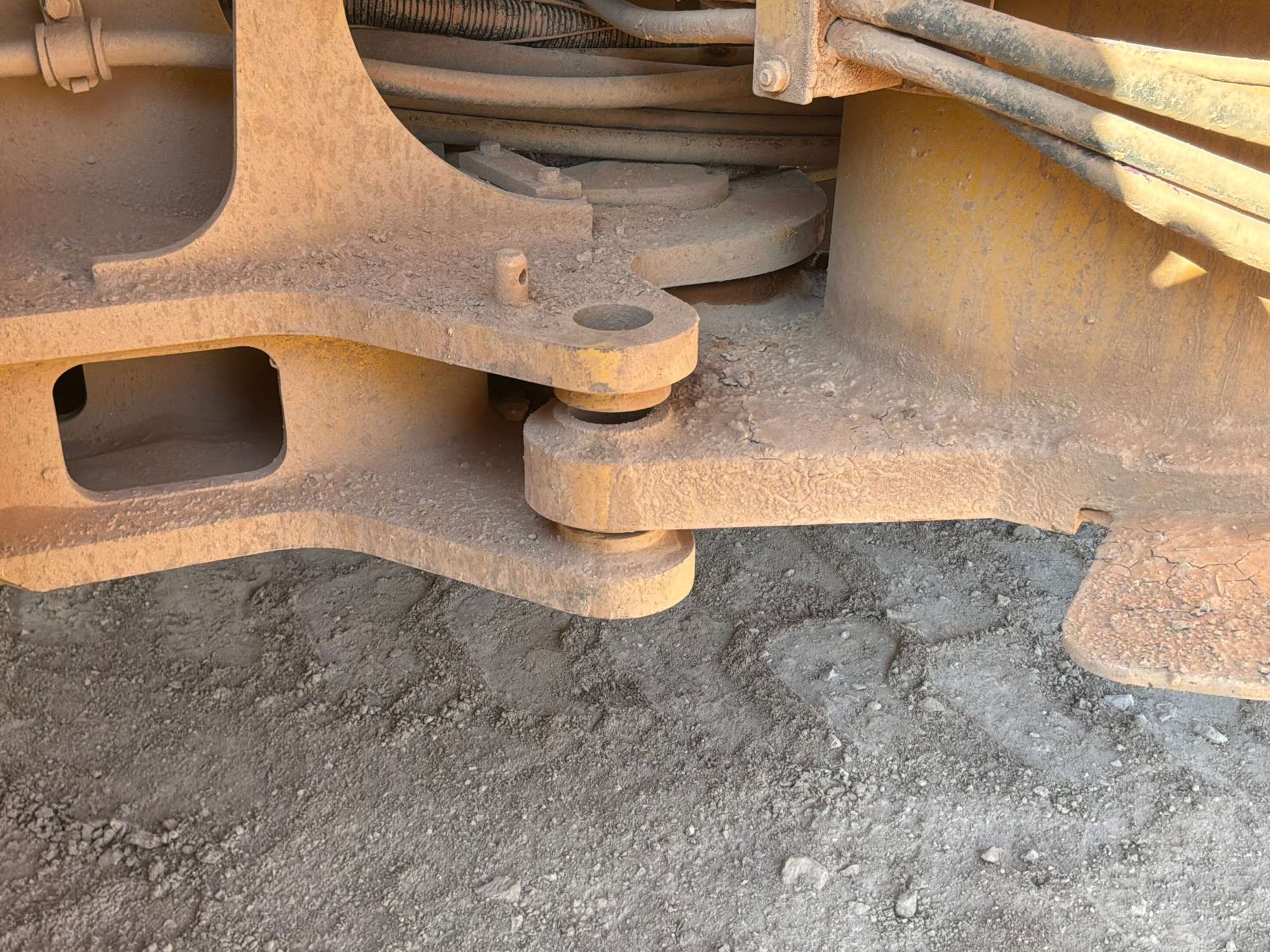

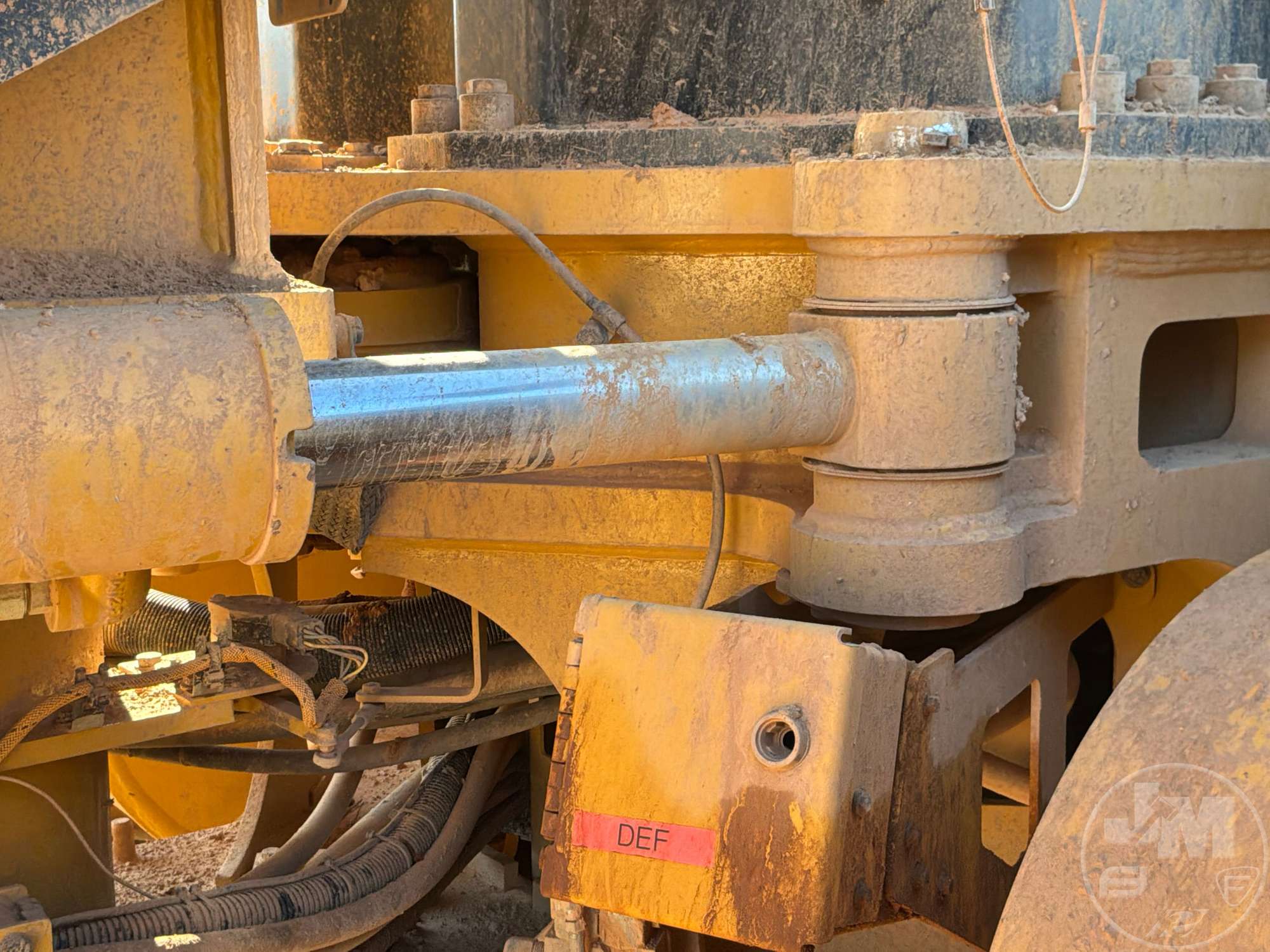

Articulation Angle - Left/Right |
20 degrees |
|
Forward - 1st |
3 mph (5 kph)
|
|
Forward - 2nd |
4 mph (6 kph)
|
|
Forward - 3rd |
6 mph (9 kph)
|
|
Forward - 4th |
8 mph (12 kph)
|
|
Forward - 5th |
12 mph (19 kph)
|
|
Forward - 6th |
16 mph (26 kph)
|
|
Forward - 7th |
22 mph (35 kph)
|
|
Forward - 8th |
32 mph (52 kph)
|
|
Note |
Calculated with no slip and 23.5R25 L-3 tires. |
|
Reverse - 1st |
2 mph (4 kph)
|
|
Reverse - 2nd |
4 mph (7 kph)
|
|
Reverse - 3rd |
6 mph (10 kph)
|
|
Reverse - 4th |
9 mph (15 kph)
|
|
Reverse - 5th |
17 mph (28 kph)
|
|
Reverse - 6th |
25 mph (41 kph)
|
|
Steering Range - Left/Right |
48 degrees |
|
Top Speed - Forward |
32 mph (52 kph)
|
|
Top Speed - Reverse |
25 mph (41 kph)
|
|
Turning Radius - Outside Front Tires |
31 ft (9 m)
|
| Optional Tire Arrangements |
|
Wheel Group - 19.525 Mp (1) |
Tires: 23.5R25 Bridgestone VKT 2 Star |
|
Wheel Group - 19.525 Mp (2) |
Tires: 23.5R25 Bridgestone VKT 1 Star |
|
Wheel Group - 19.525 Mp (3) |
Tires: 23.5R25 Bridgestone VJT 1 Star |
|
Wheel Group - 19.525 Mp (4) |
Tires: 23.5R25 Michelin XHA 2 Star |
|
Wheel Group - 19.525 Mp (5) |
Tires: 23.5R25 Michelin XLDD 2 Star L5 |
| Power Train |
|
Brakes - Dynamic Brake Torque Per Wheel |
27,069 lbs ft (36,701 nm)
|
|
Brakes - Parking |
Spring applied, hydraulically released |
|
Brakes - Secondary |
Oil-actuated, oil-disc |
|
Brakes - Service |
Oil-actuated, oil disc |
|
Forward/Reverse Gears |
8 Forward/6 Reverse |
|
Transmission |
Direct drive, power shift, countershaft |

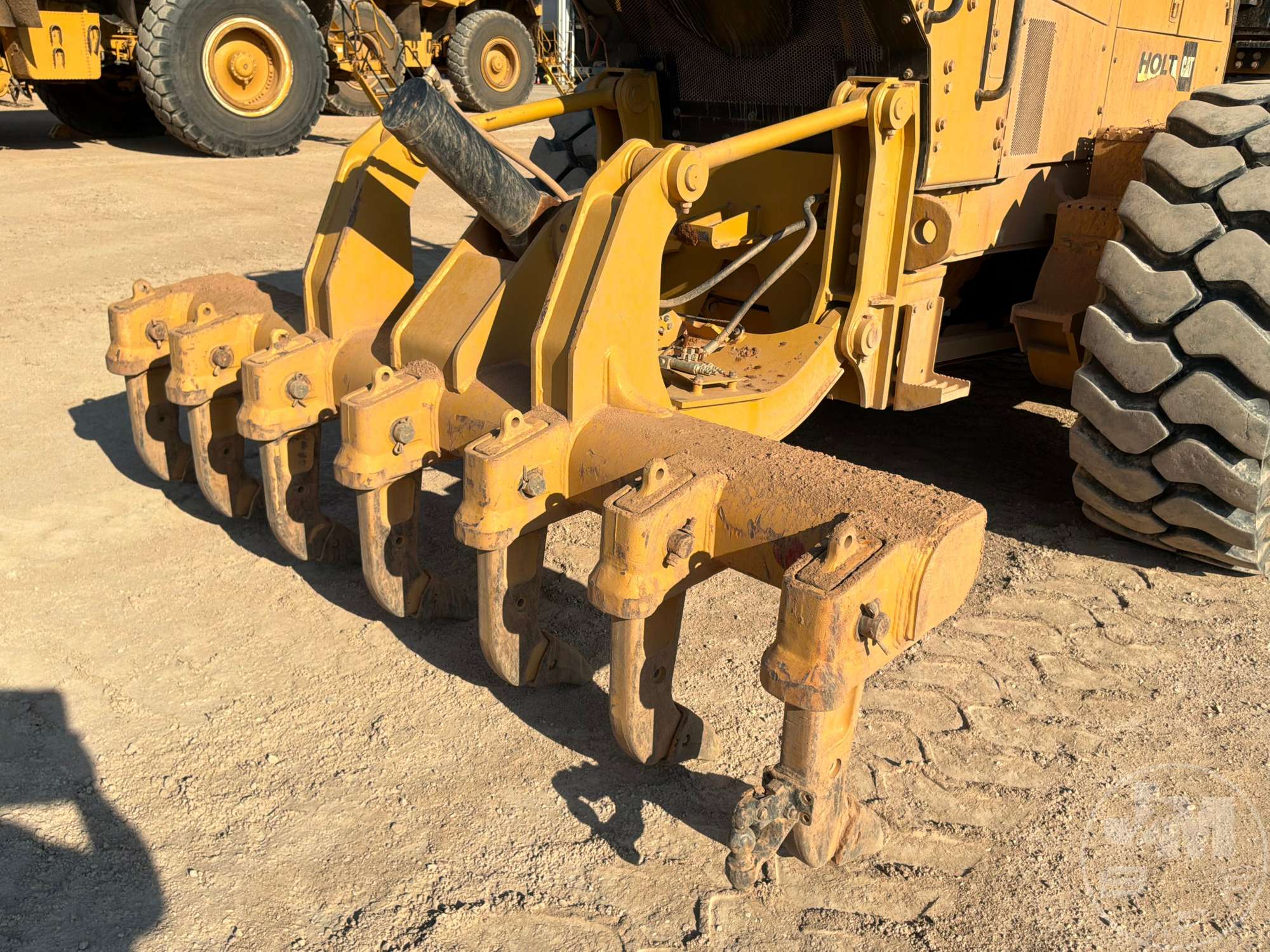

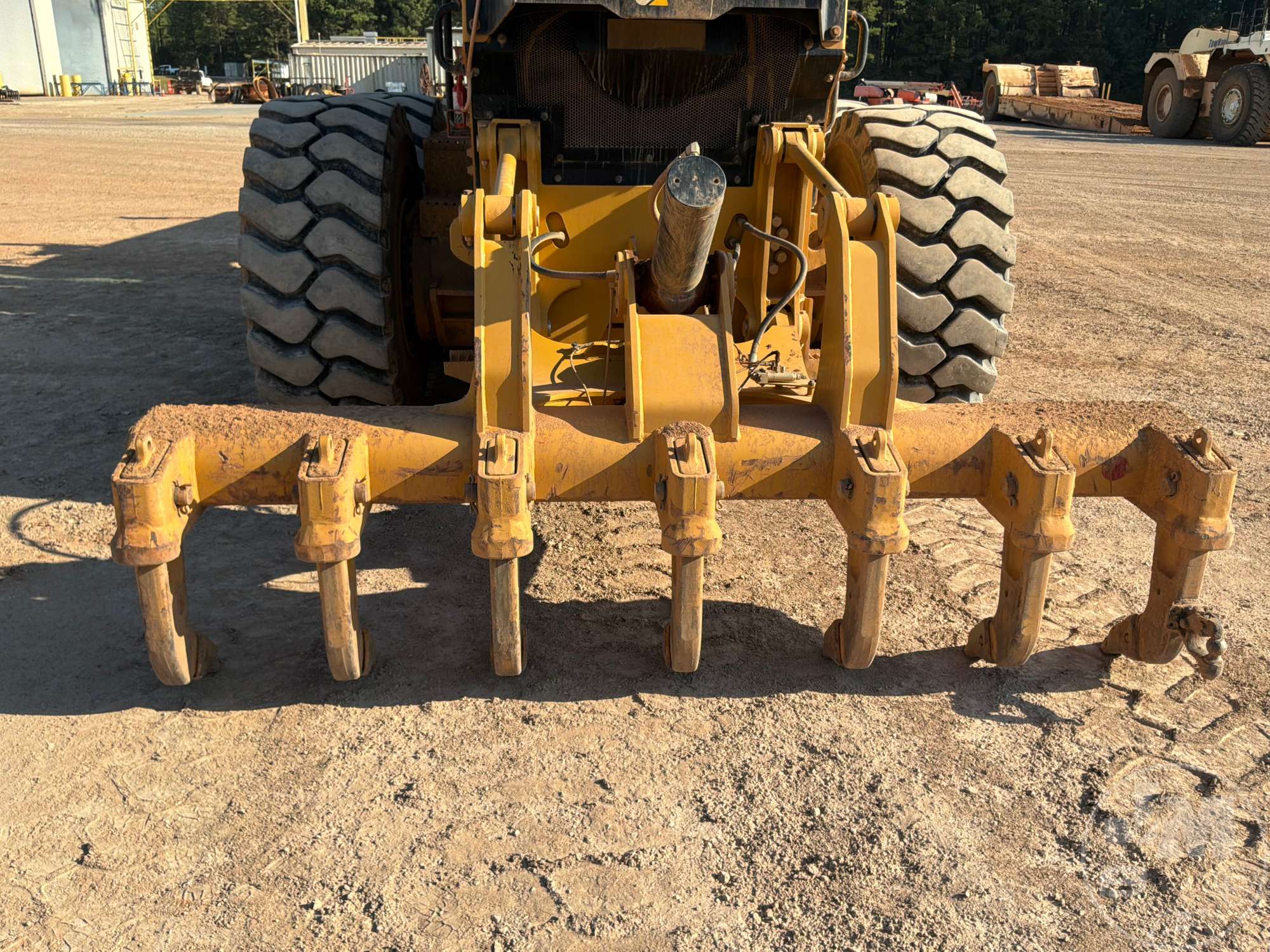

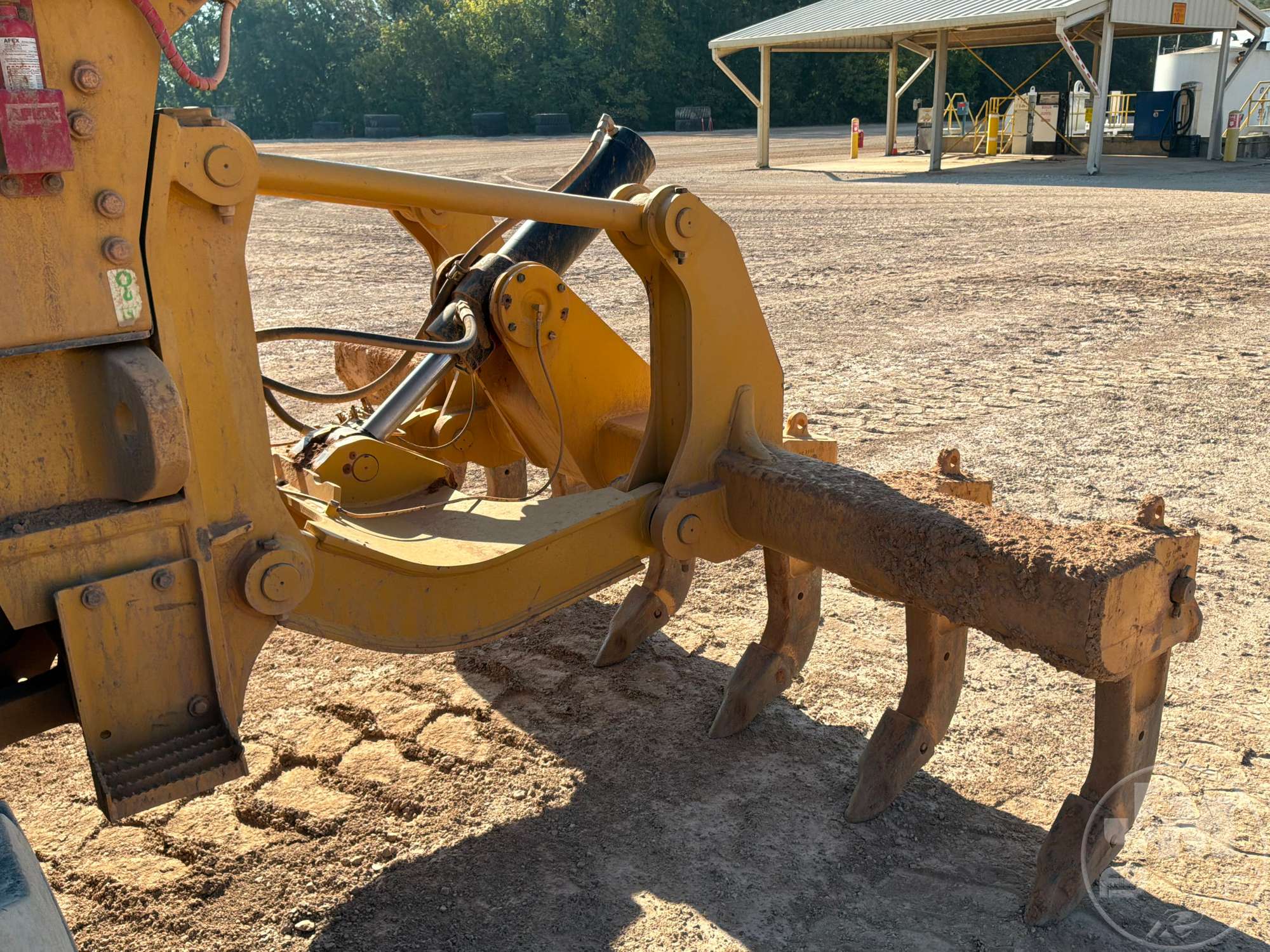

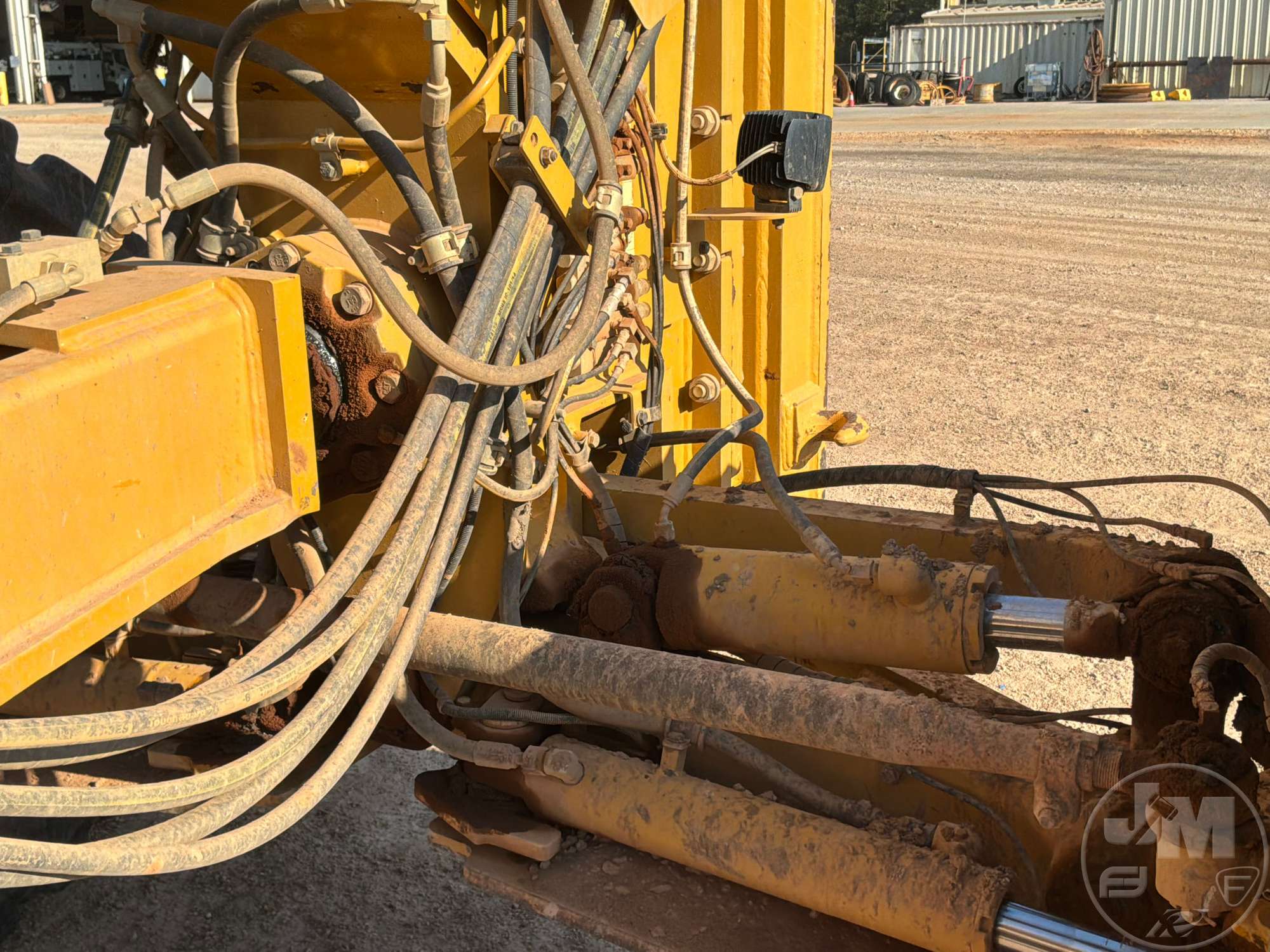

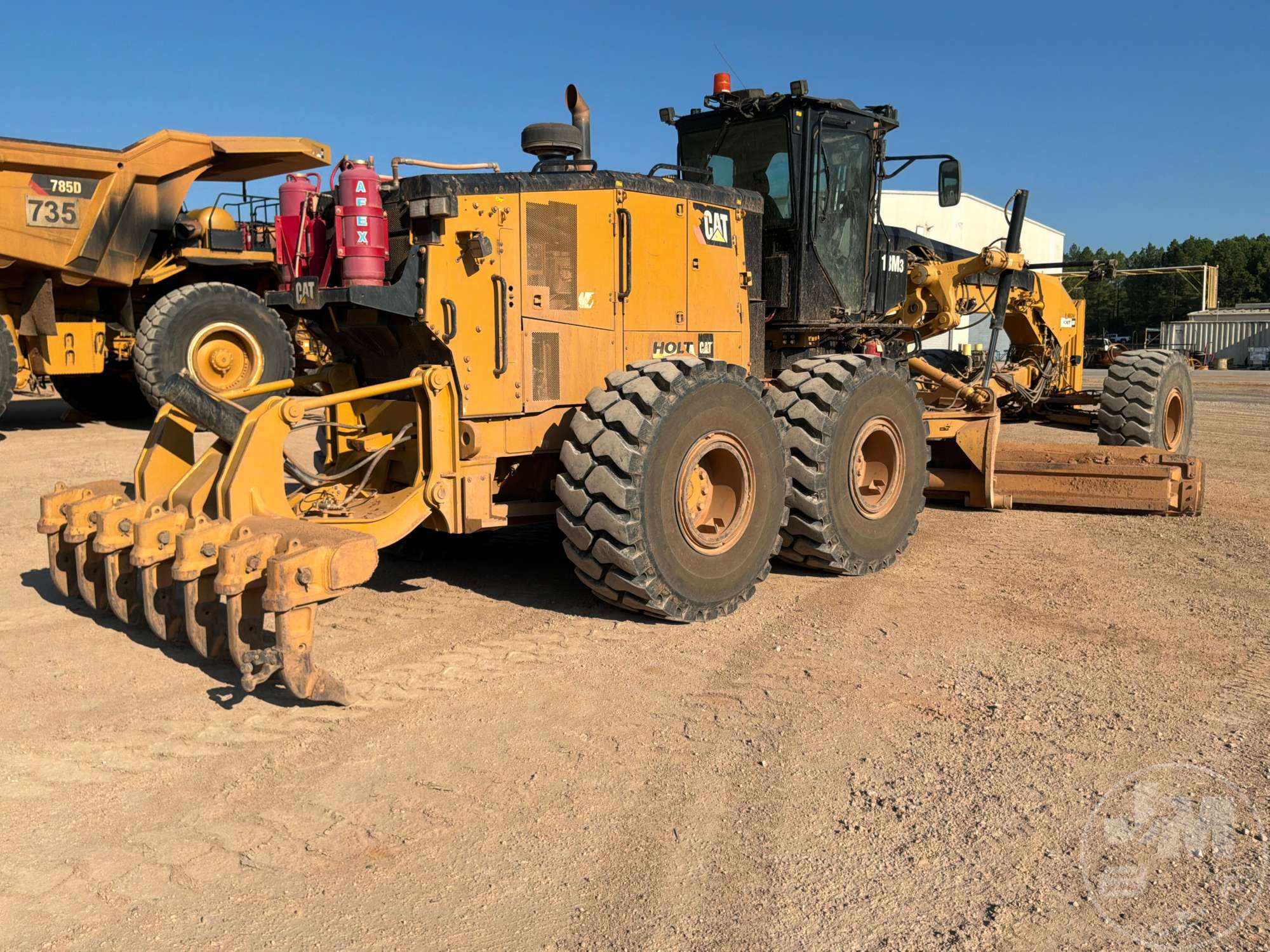

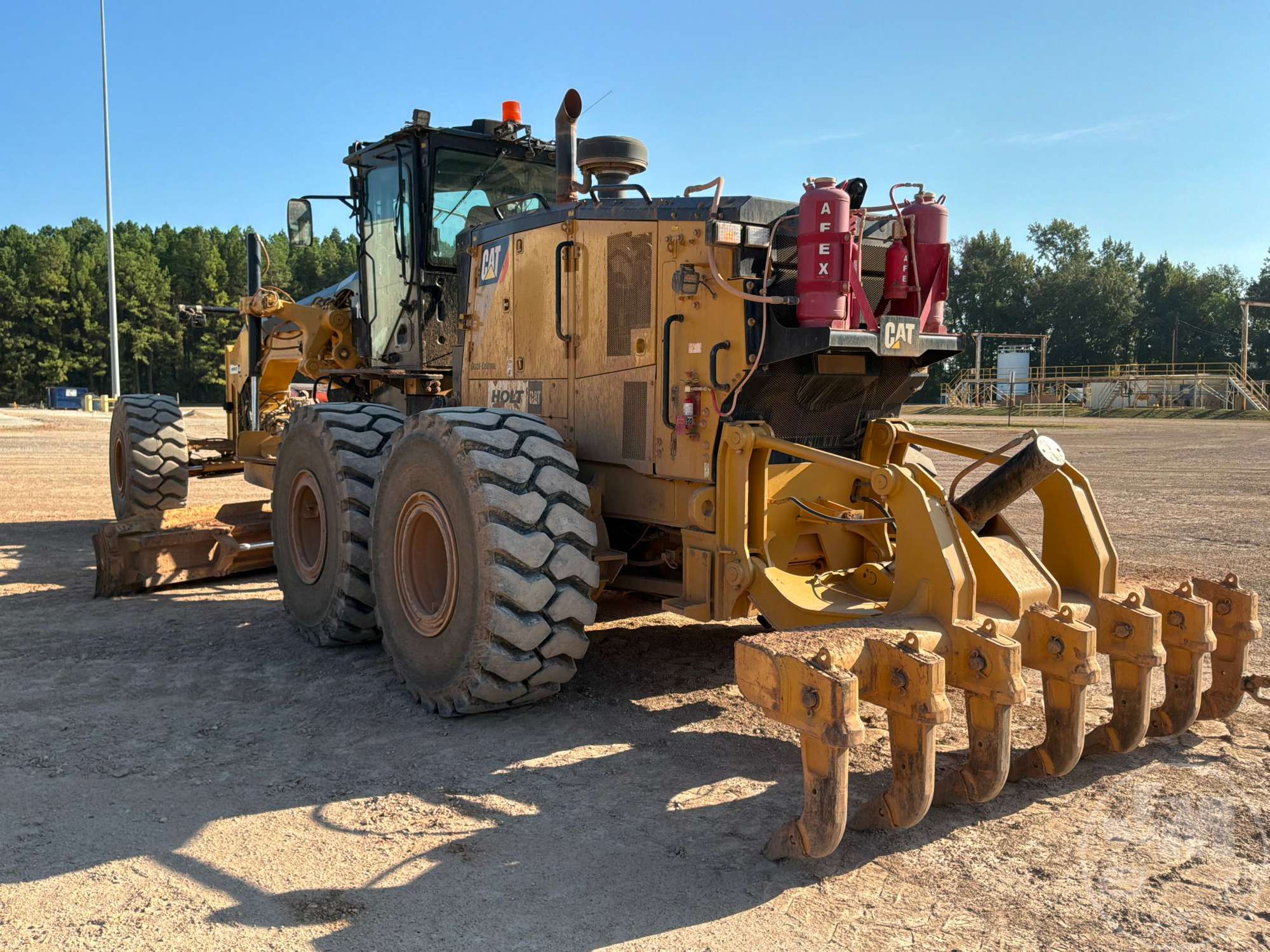

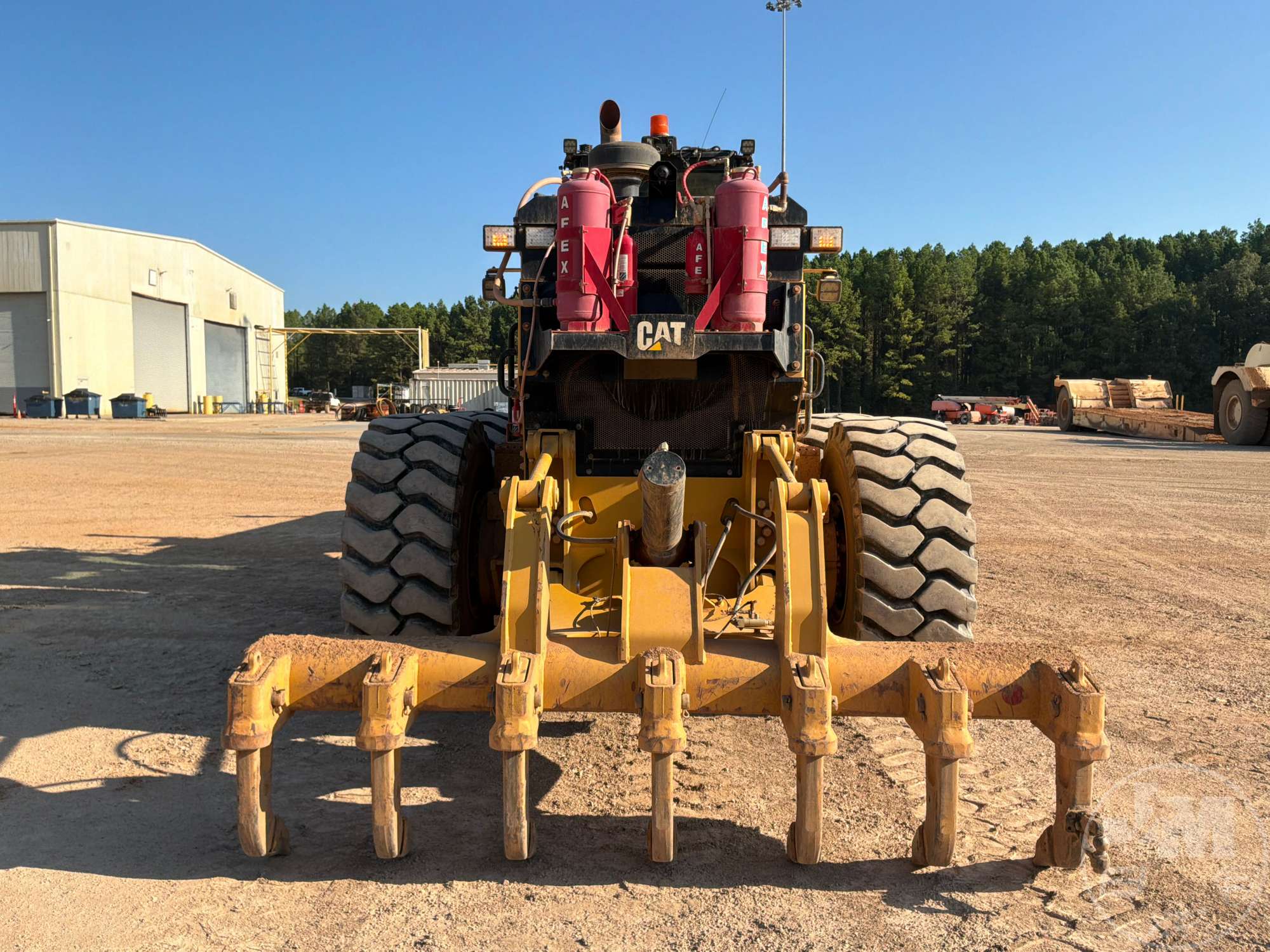

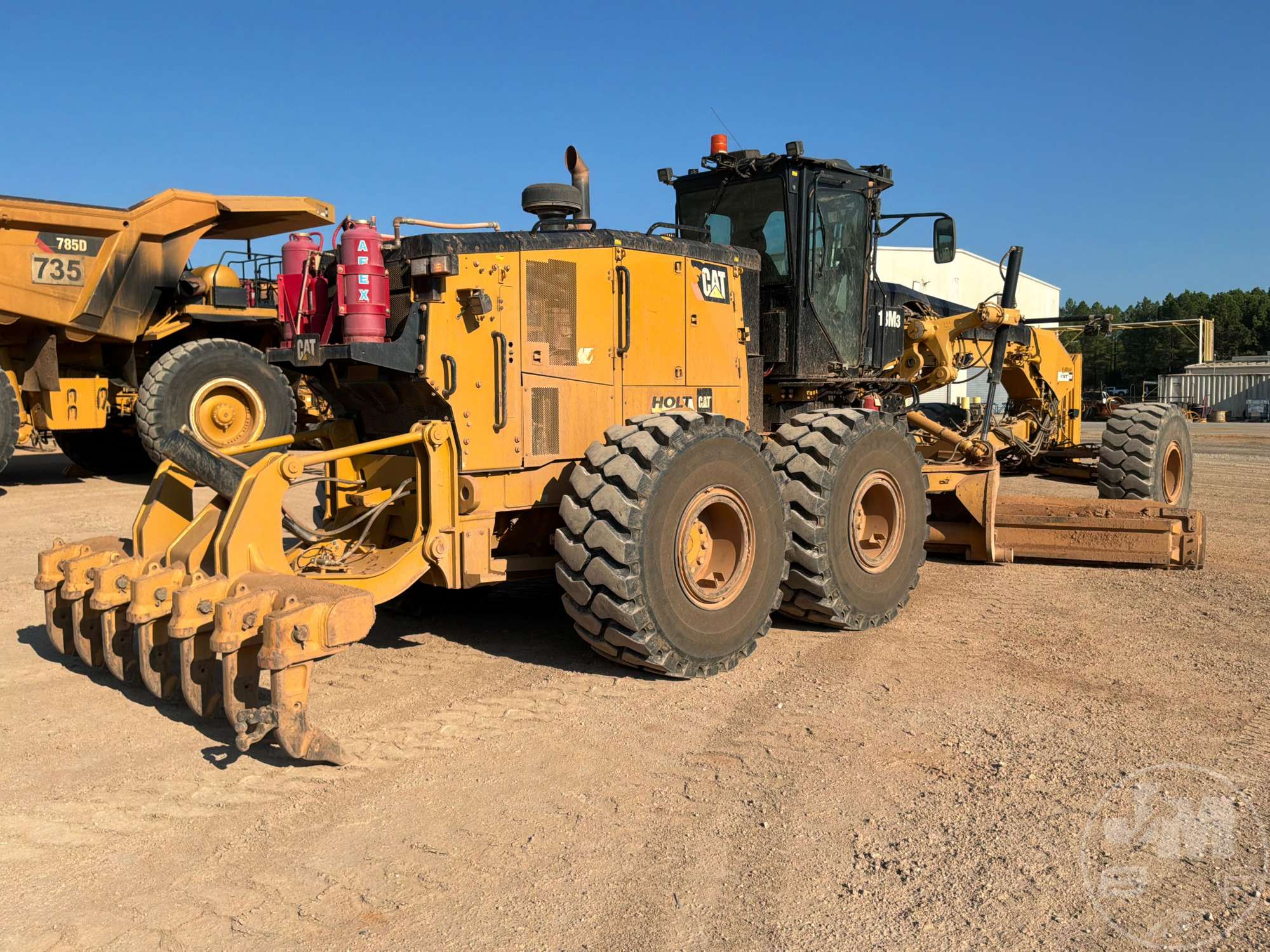

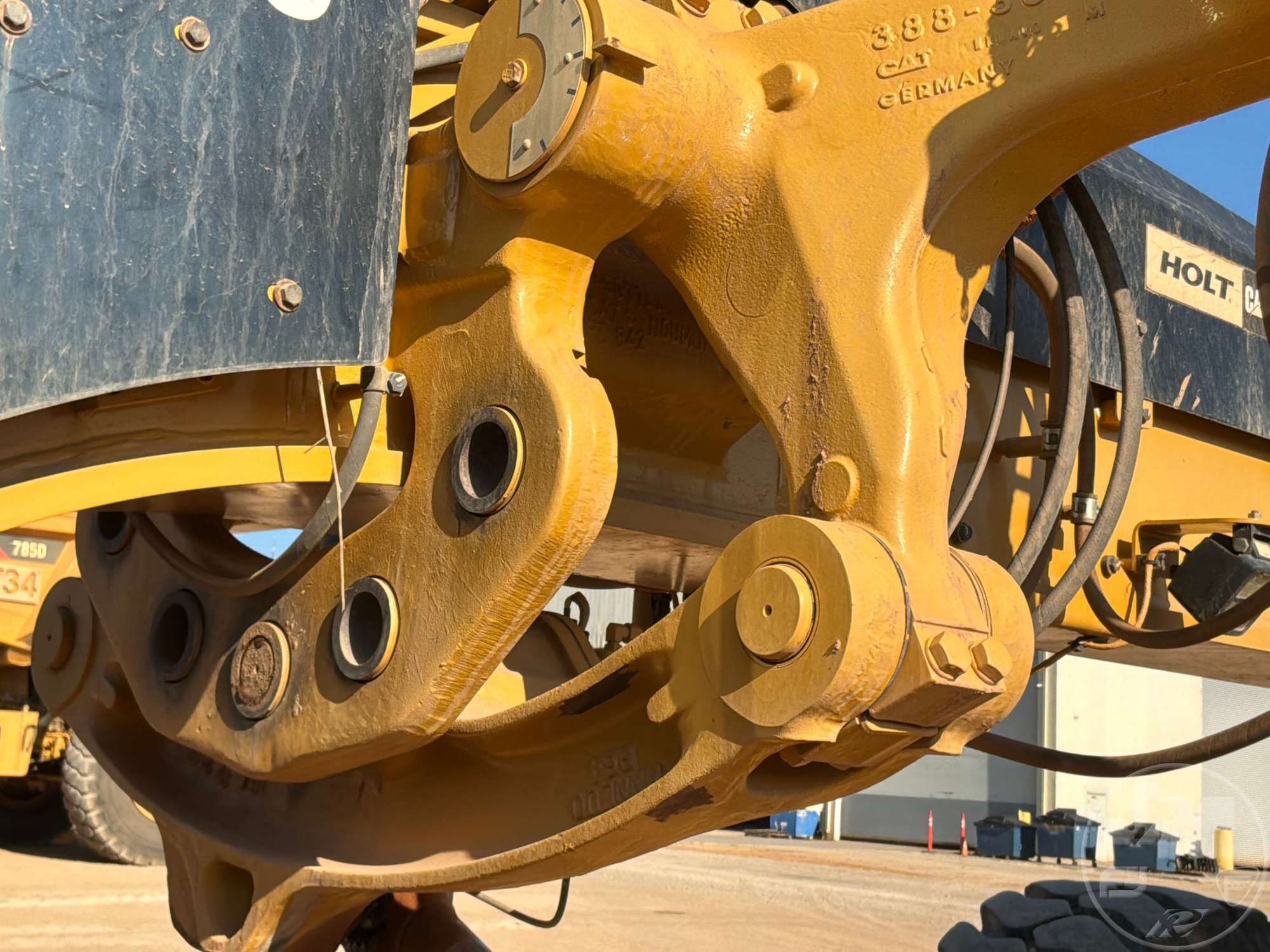

| Ripper |
|
Machine Length Increase, Beam Raised |
63 in (161 cm)
|
|
Penetration Force |
30,311 lbs (13,749 kg)
|
|
Pry-Out Force |
43,700 lbs (19,822 kg)
|
|
Ripper Shank Holders |
7 |
|
Ripping Depth - Maximum |
18 in (45 cm)
|
|
Shank Holder Spacing - Maximum |
20 in (51 cm)
|
|
Shank Holder Spacing - Minimum |
18 in (44 cm)
|
| Service Refill |
|

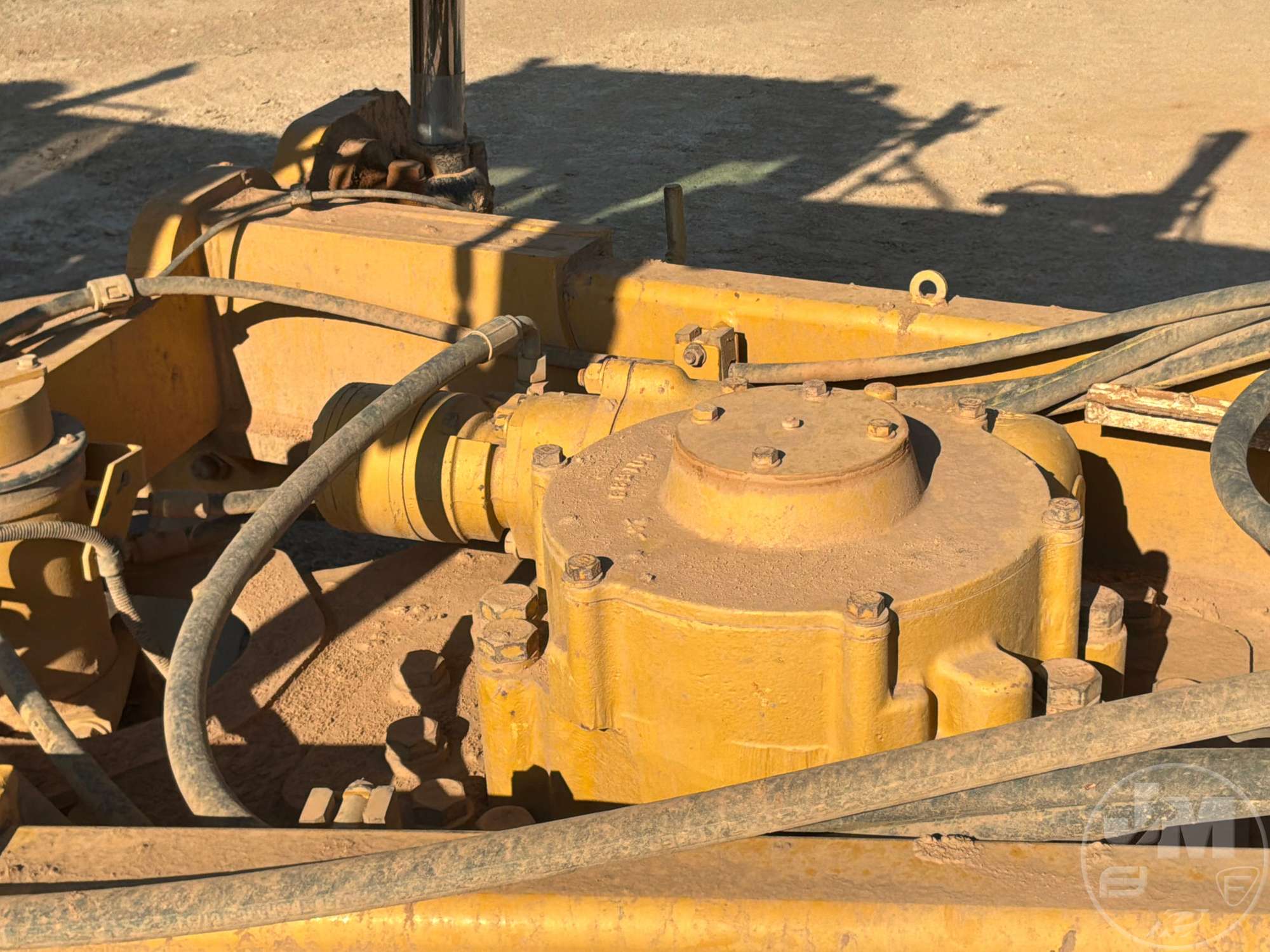

Circle Drive Housing |
3 gal (10 l)
|
|
Cooling System |
19 gal (70 l)
|
|
Def Tank |
4 gal (16 l)
|
|
Engine Oil |
10 gal (36 l)
|
|
Front Wheel Spindle Bearing Housing |
0 gal (1 l)
|
|
Fuel Capacity |
131 gal (496 l)
|
|
Hydraulic System - Tank |
19 gal (70 l)
|
|
Hydraulic System - Total |
39 gal (146 l)
|
|
Tandem Housing - Each |
34 gal (129 l)
|
|
Transmission - Differential - Final Drives |
26 gal (98 l)
|
| Standards |
|
Brakes |
ISO 3450: 2011 |
|
Rops/Fops |
ISO 3471: 2008/ISO 3449: 2005 |
|
Sound |
ISO 6394: 2008/ISO 6395: 2008/ISO 6396: 2008 |
|
Steering |
ISO 5010: 2007 |
| Tandems |
|
Drive Chain Pitch |
3 in (6 cm)
|
|
Height |
26 in (65 cm)
|
|
Sidewall Thickness - Inner |
1 in (2 cm)
|
|
Sidewall Thickness - Outer |
1 in (2 cm)
|
|
Tandem Oscillation - Front Down |
25 degrees |
|
Tandem Oscillation - Front Up |
15 degrees |
|
Wheel Axle Spacing |
73 in (184 cm)
|
|
Width |
9 in (24 cm)
|
| Variable Power Tier 4 Final/Stage Iv/Japan 2014 (Tier 4 Final), Tier 3/Stage Iiia/Japan 2006 (Tier 3) Equivalent Or Tier 2/Stage Ii/Japan 2001 (Tier 2) Equivalent Emission Standards - Metric |
|
Gear - Forward 1st |
309 hp (230 kw)
|
|
Gear - Forward 2nd |
309 hp (230 kw)
|
|
Gear - Forward 3rd |
315 hp (235 kw)
|
|
Gear - Forward 4th |
325 hp (242 kw)
|
|
Gear - Forward 5th |
332 hp (248 kw)
|
|
Gear - Forward 6th |
341 hp (254 kw)
|
|
Gear - Forward 7th |
347 hp (259 kw)
|
|
Gear - Forward 8th |
362 hp (270 kw)
|
|
Gear - Reverse 1st |
309 hp (230 kw)
|
|
Gear - Reverse 2nd |
309 hp (230 kw)
|
|
Gear - Reverse 3rd-6th |
315 hp (235 kw)
|
| Variable Power Tier 4 Final/Stage Iv/Japan 2014 (Tier 4 Final), Tier 3/Stage Iiia/Japan 2006 (Tier 3) Equivalent Or Tier 2/Stage Ii/Japan 2001 (Tier 2) Equivalent Emission Standards - Net |
|
Gear - Forward 1st |
304 hp (227 kw)
|
|
Gear - Forward 2nd |
304 hp (227 kw)
|
|
Gear - Forward 3rd |
311 hp (232 kw)
|
|
Gear - Forward 4th |
321 hp (239 kw)
|
|
Gear - Forward 5th |
327 hp (244 kw)
|
|
Gear - Forward 6th |
337 hp (251 kw)
|
|
Gear - Forward 7th |
342 hp (255 kw)
|
|
Gear - Forward 8th |
357 hp (266 kw)
|
|
Gear - Reverse 1st |
304 hp (227 kw)
|
|
Gear - Reverse 2nd |
304 hp (227 kw)
|
|
Gear - Reverse 3rd-6th |
311 hp (232 kw)
|
| Weights |
|
Operating Weight - Typically Equipped |
74,324 lbs (33,713 kg)
|
| Weights Tier 4 Final/Stage Iv/Japan 2014 (Tier 4 Final)* |
|
Gross Vehicle Weight - Base** - Front Axle |
19,837 lbs (8,998 kg)
|
|
Gross Vehicle Weight - Base** - Rear Axle |
52,461 lbs (23,796 kg)
|
|
Gross Vehicle Weight - Base** - Total |
72,298 lbs (32,794 kg)
|
|
Gross Vehicle Weight - Maximum Tested - Front Axle |
26,125 lbs (11,850 kg)
|
|
Gross Vehicle Weight - Maximum Tested - Rear Axle |
58,753 lbs (26,650 kg)
|
|
Gross Vehicle Weight - Maximum Tested - Total |
84,877 lbs (38,500 kg)
|
|
Gross Vehicle Weight - Typically Equipped - Front Axle |
20,494 lbs (9,296 kg)
|
|
Gross Vehicle Weight - Typically Equipped - Rear Axle |
53,830 lbs (24,417 kg)
|
|
Gross Vehicle Weight - Typically Equipped - Total |
74,324 lbs (33,713 kg)
|
|
Note (1) |
*No Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) emission engine: subtract 150 kg (331 lb) from rear axle wt. & total wt. |
|
Note (2) |
**Base operating weight calculated on standard machine configuration with 23.5R25 tires, full fuel tank operator and rops cab. |
