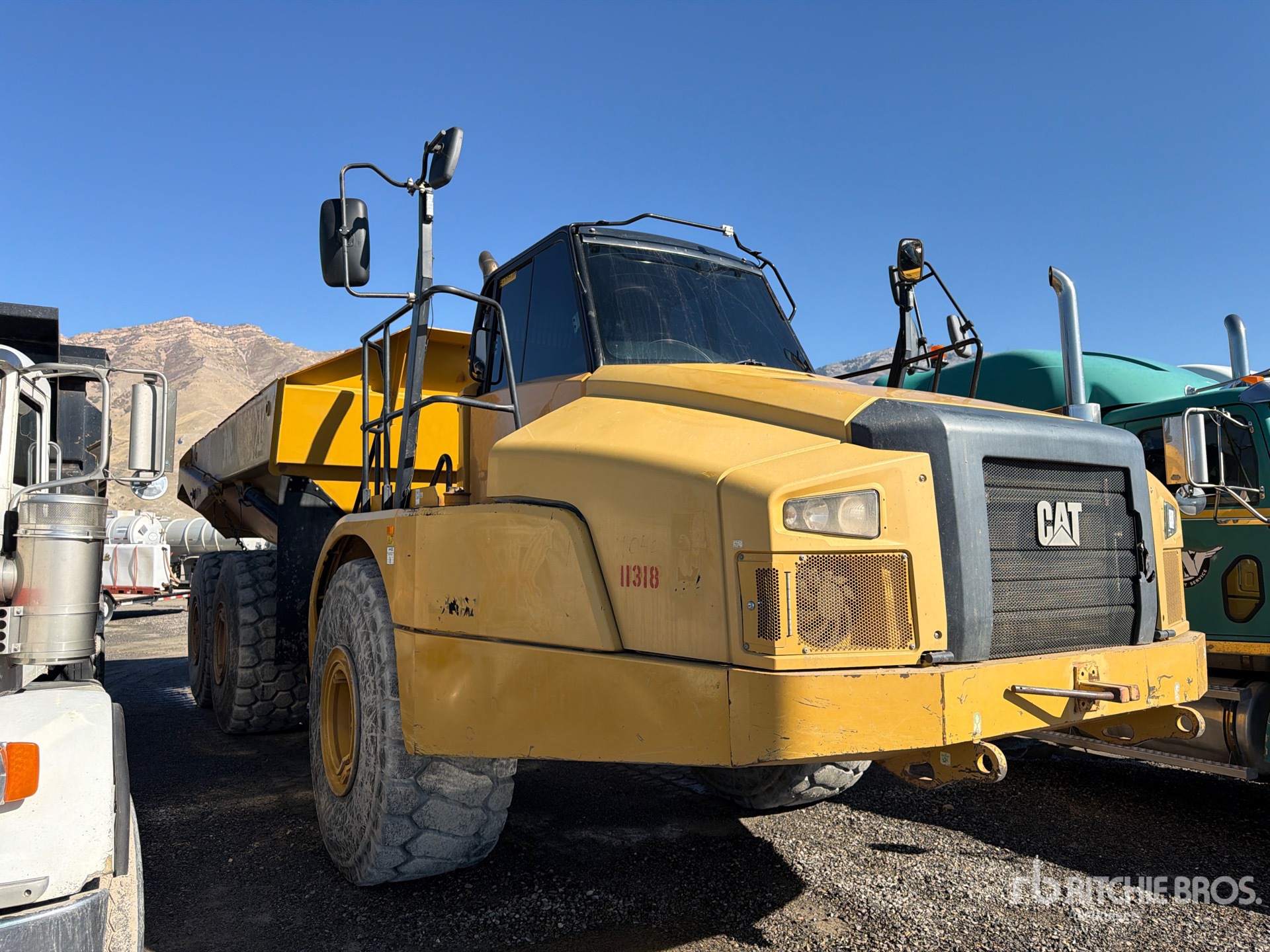

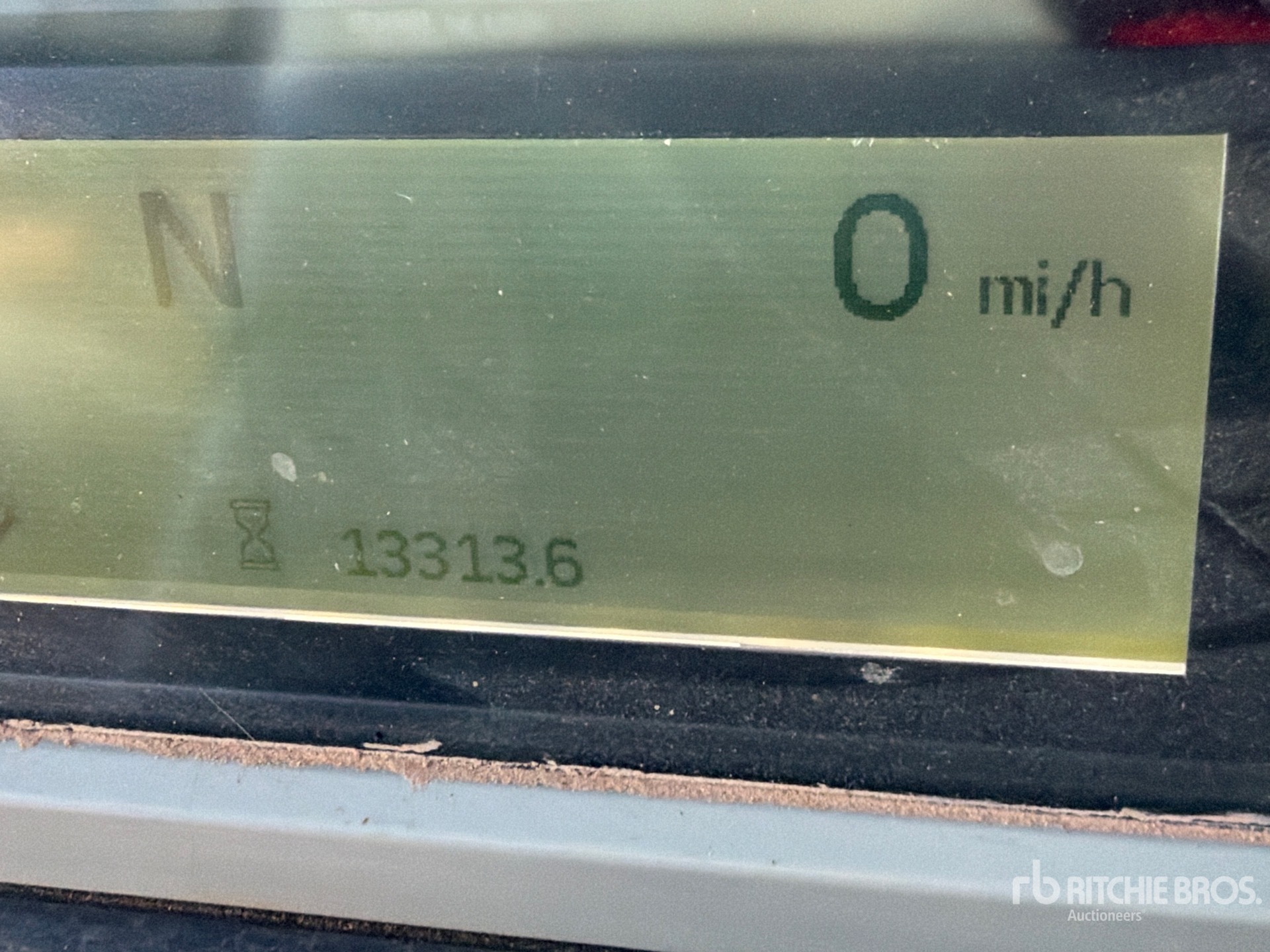

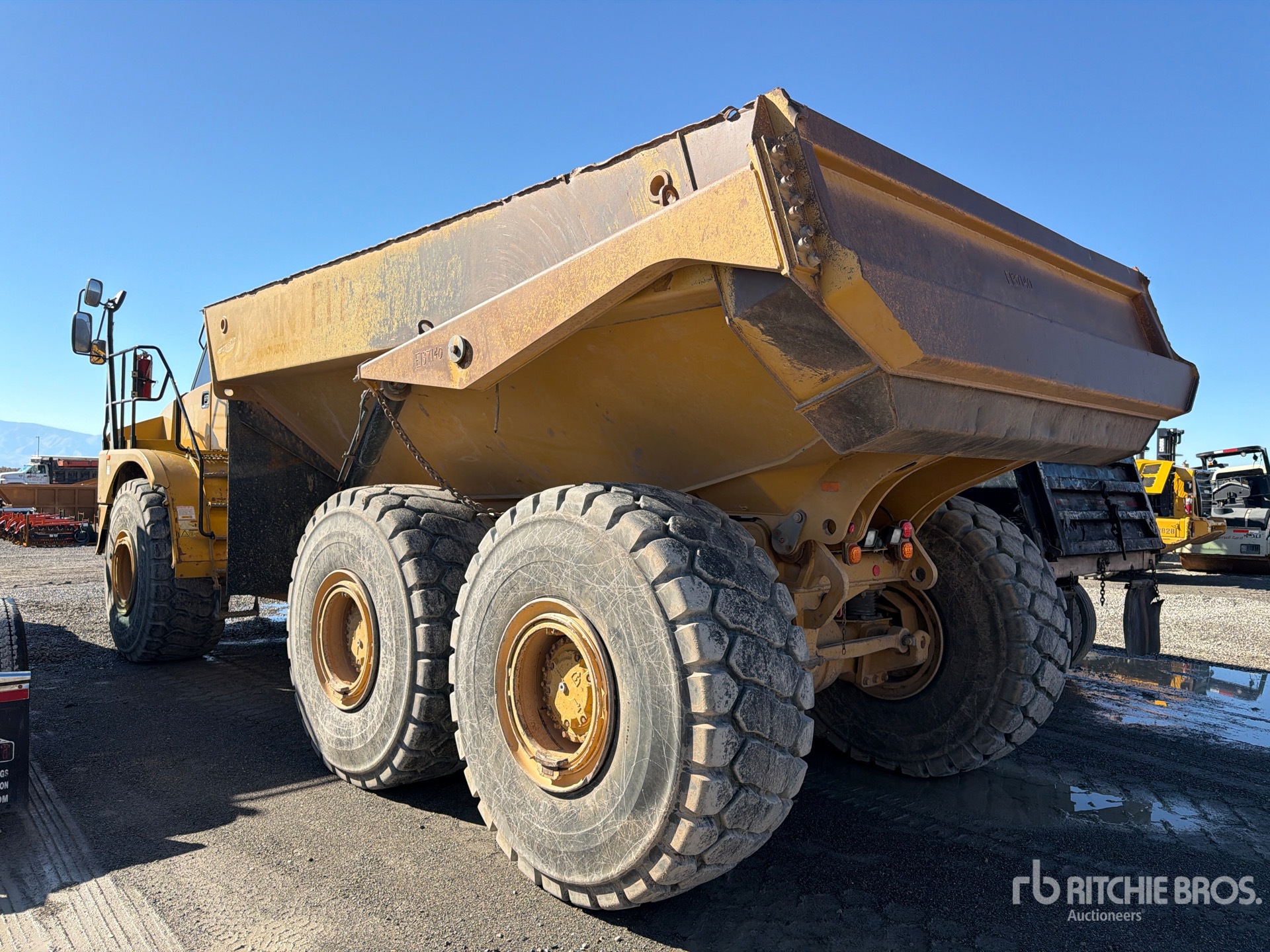

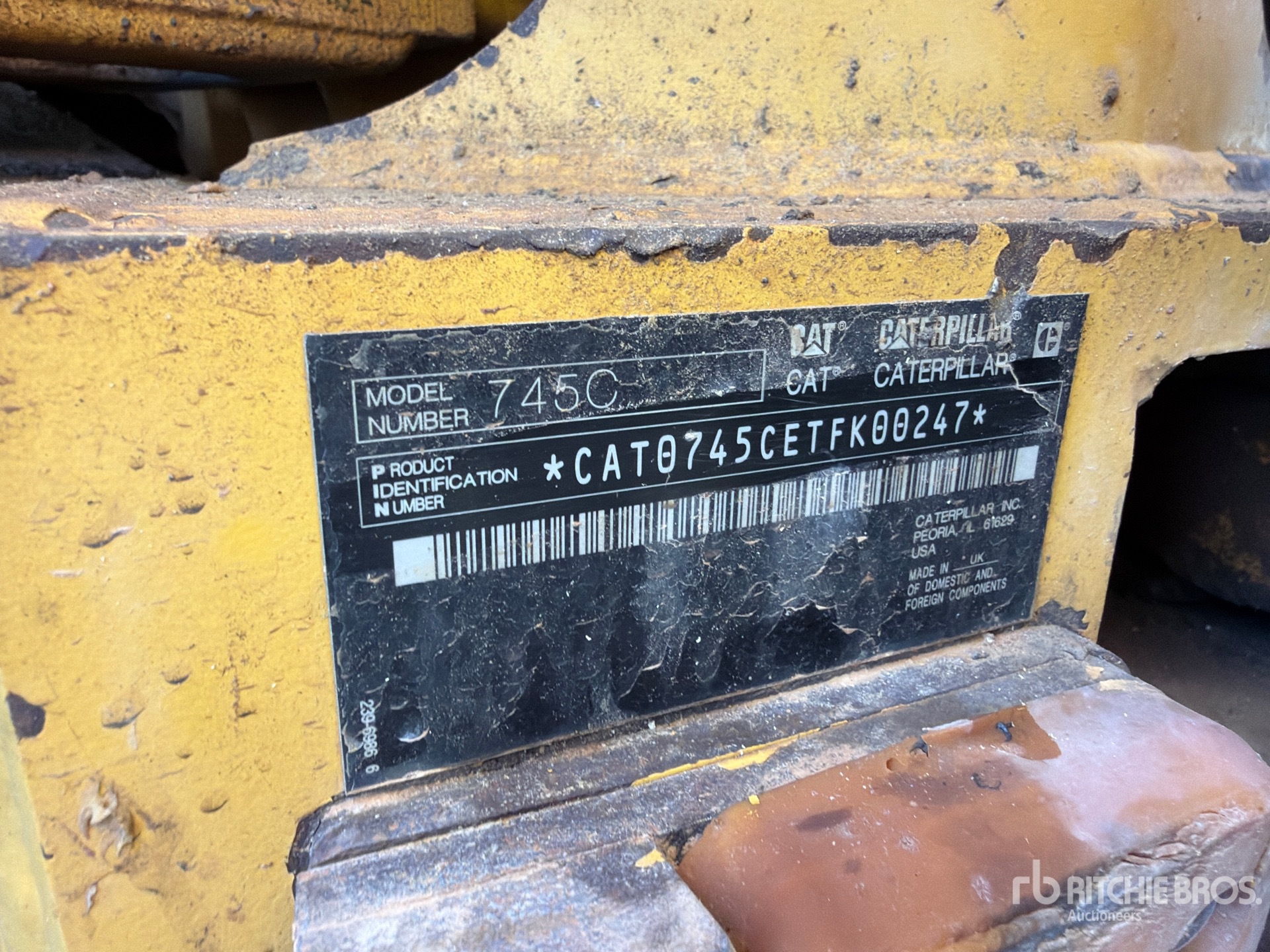

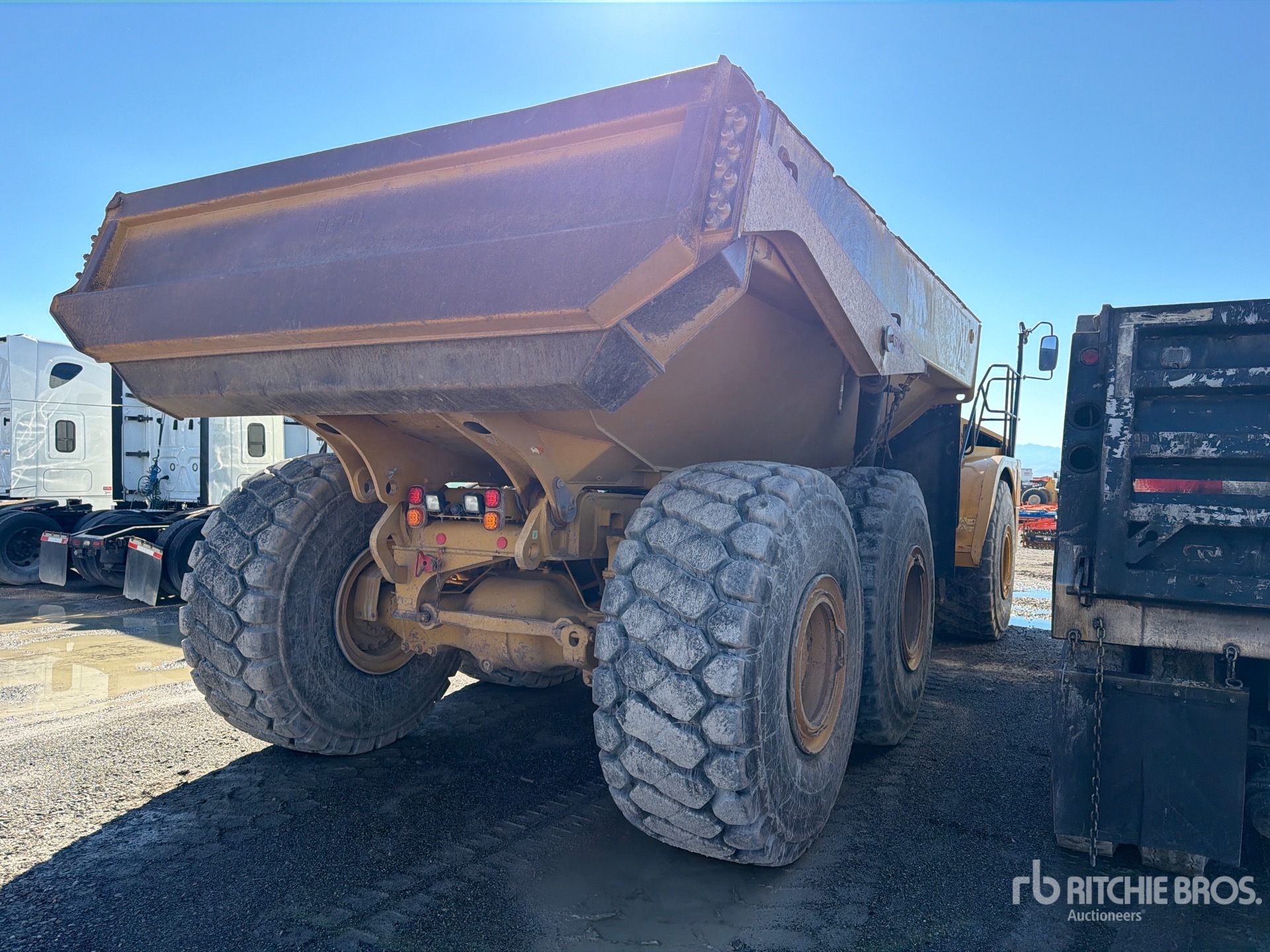

| Body Capacities |
|
Heaped (Sae 2:1) |
33 cu yd |
|
Struck |
24 cu yd |
|
Tailgate Heaped Sae 2:1 |
35 cu yd |
|
Tailgate Struck |
26 cu yd |
| Body Hoist |
|
Lower Time |
8 s |
|
Raise Time |
12 s |
| Body Plate |
|
Body Plate Type |
High strength Brinell HB450 wear resistant steel |
| Dimensions |
|
Height |
13 ft (4 m)
|
|
Length |
38 ft (12 m)
|
|
Weight |
73,634 lbs (33,400 kg)
|
|
Width |
12 ft (4 m)
|
| Dump |
|
Capacity - Heaped |
33 cu yd |
|
Capacity - Struck |
24 cu yd |
|
Lower Time |
8 sec |
|
Raise Time |
12 sec |
|
Rated Payload |
99,649 lbs (45,200 kg)
|
|
Rated Payload |
90,400 lbs (41,005 kg)
|
| Engine |
|
Bore |
6 in (14 cm)
|
|
Bore |
6 in (14 cm)
|
|
Displacement |
1,106 cu in (18,124 cu cm)
|
|
Displacement |
1,106 cu in (18,124 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
Cat C18 ACERT |
|
Engine Model |
C18 Acert |
|
Engine Model |
Cat C18 ACERT |
|
Engine Model - U.S. Epa Tier 4 Final/Eu Stage Iv/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final |
Cat C18 ACERT |
|
Engine Model - U.S. Epa Tier 4 Final/Eu Stage Iv/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final |
Cat C18 ACERT |
|
Gross Power |
511 hp (381 kw)
|
|
Gross Power - Sae J1995 |
511 hp (381 kw)
|
|
Gross Power - Sae J1995 |
511 hp (381 kw)
|
|
Net Power |
496 hp (370 kw)
|
|
Net Power - Iso 14396 |
504 hp (376 kw)
|
|
Net Power - Iso 14396 |
504 hp (376 kw)
|
|
Net Power - Sae J1349 |
496 hp (370 kw)
|
|
Net Power - Sae J1349 |
496 hp (370 kw)
|
|
No Engine De-Rating Required Below |
10,000 ft (3,048 m)
|
|
No Engine De-Rating Required Below |
10,000 ft (3,048 m)
|
|
Peak Engine Torque Gross (Sae J1995) |
1,931 lbs ft (2,618 nm)
|
|
Peak Engine Torque Gross (Sae J1995) |
1,931 lbs ft (2,618 nm)
|
|
Peak Engine Torque Net (Sae J1349) |
1,887 lbs ft (2,558 nm)
|
|
Peak Engine Torque Net (Sae J1349) |
1,887 lbs ft (2,558 nm)
|
|
Peak Engine Torque Speed |
1,200 rpm |
|
Peak Engine Torque Speed |
1,200 rpm |
|
Stroke |
7 in (18 cm)
|
|
Stroke |
7 in (18 cm)
|
|
Torque Measured @ |
1,200 rpm |
| Operating Weights |
|
Center Axle - Empty |
15,300 lbs (6,940 kg)
|
|
Center Axle - Loaded |
53,991 lbs (24,490 kg)
|
|
Center Axle - Rated Load |
38,691 lbs (17,550 kg)
|
|
Front Axle - Empty |
43,585 lbs (19,770 kg)
|
|
Front Axle - Loaded |
56,593 lbs (25,670 kg)
|
|
Front Axle - Rated Load |
13,007 lbs (5,900 kg)
|
|
Rear Axle - Empty |
14,749 lbs (6,690 kg)
|
|
Rear Axle - Loaded |
53,440 lbs (24,240 kg)
|
|
Rear Axle - Rated Load |
38,691 lbs (17,550 kg)
|
|
Total - Empty |
73,634 lbs (33,400 kg)
|
|
Total - Loaded |
164,024 lbs (74,400 kg)
|
|
Total - Rated Load |
90,389 lbs (41,000 kg)
|
| Operational |
|
Cooling System Fluid Capacity |
24 gal (90 l)
|
|
Fuel Capacity |
145 gal (550 l)
|
|
Hydraulic System Fluid Capacity |
37 gal (140 l)
|
|
Transmission Fluid Capacity |
20 gal (75 l)
|
| Service Refill Capacities |
|
Axles - Each |
16 gal (60 l)
|
|
Axles - Each |
16 gal (60 l)
|
|
Brake Cooling Tank |
18 gal (67 l)
|
|
Brake Cooling Tank |
18 gal (67 l)
|
|
Cooling System |
24 gal (90 l)
|
|
Cooling System |
24 gal (90 l)
|
|
Def Tank |
7 gal (25 l)
|
|
Def Tank |
7 gal (25 l)
|
|
Engine Crankcase |
14 gal (52 l)
|
|
Engine Crankcase |
14 gal (52 l)
|
|
Final Drive - Each |
1 gal (5 l)
|
|
Final Drive - Each |
1 gal (5 l)
|
|
Fuel Tank |
145 gal (550 l)
|
|
Fuel Tank |
145 gal (550 l)
|
|
Steering/Hoist Hydraulic System |
37 gal (140 l)
|
|
Steering/Hoist Hydraulic System |
37 gal (140 l)
|
|
Transmission - Otg |
20 gal (75 l)
|
|
Transmission - Otg |
20 gal (75 l)
|
| Sound Levels |
|
Interior Cab |
79 dB(A) |
| Standards |
|
Brakes |
ISO 3450 2011 |
|
Brakes |
ISO 3450 2011 |
|
Cab - Fops |
ISO 3449 Level II 2005 |
|
Cab - Fops |
ISO 3449 Level II 2005 |
|
Cab - Rops |
ISO 3471 2008 |
|
Cab - Rops |
ISO 3471 2008 |
|
Steering |
ISO 5010 2007 |
|
Steering |
ISO 5010 2007 |
| Steering |
|
Lock To Lock |
4.8 seconds @ 60 rpm |
|
Lock To Lock |
4.8 seconds @ 60 rpm |
| Transmission |
|
Forward - 1 |
4 mph (6 kph)
|
|
Forward - 1 |
4 mph (6 kph)
|
|
Forward - 2 |
5 mph (8 kph)
|
|
Forward - 2 |
5 mph (8 kph)
|
|
Forward - 3 |
7 mph (11 kph)
|
|
Forward - 3 |
7 mph (11 kph)
|
|
Forward - 4 |
9 mph (14 kph)
|
|
Forward - 4 |
9 mph (14 kph)
|
|
Forward - 5 |
12 mph (19 kph)
|
|
Forward - 5 |
12 mph (19 kph)
|
|
Forward - 6 |
14 mph (23 kph)
|
|
Forward - 6 |
14 mph (23 kph)
|
|
Forward - 7 |
20 mph (32 kph)
|
|
Forward - 7 |
20 mph (32 kph)
|
|
Forward - 8 |
24 mph (38 kph)
|
|
Forward - 8 |
24 mph (38 kph)
|
|
Forward - 9 |
34 mph (55 kph)
|
|
Forward - 9 |
34 mph (55 kph)
|
|
Number Of Forward Gears |
9 |
|
Number Of Reverse Gears |
2 |
|
Reverse - 1 |
4 mph (6 kph)
|
|
Reverse - 1 |
4 mph (6 kph)
|
|
Reverse - 2 |
9 mph (15 kph)
|
|
Reverse - 2 |
9 mph (15 kph)
|
| Turning Circle |
|
Note |
Dimensions are for machines equipped with 29.5R25 tires. |
|
Note |
Dimensions are for machines equipped with 29.5R25 tires. |
|
Turning Dimensions - Aisle Width |
235 in (597 cm)
|
|
Turning Dimensions - Aisle Width |
235 in (597 cm)
|
|
Turning Dimensions - Clearance Radius |
358 in (909 cm)
|
|
Turning Dimensions - Clearance Radius |
358 in (909 cm)
|
|
Turning Dimensions - Inside Radius |
174 in (442 cm)
|
|
Turning Dimensions - Inside Radius |
174 in (442 cm)
|
|
Turning Dimensions - Sae Turning Radius |
340 in (864 cm)
|
|
Turning Dimensions - Sae Turning Radius |
340 in (864 cm)
|
| Weights |
|
Center Axle - Empty |
15300 % |
|
Center Axle - Loaded |
53991 % |
|
Front Axle - Empty |
43,585 lbs (19,770 kg)
|
|
Front Axle - Loaded |
56593 % |
|
Rear Axle - Empty |
14,749 lbs (6,690 kg)
|
|
Rear Axle - Loaded |
53,440 lbs (24,240 kg)
|
|
Total Empty |
73,634 lbs (33,400 kg)
|
|
Total Loaded |
90,389 lbs (41,000 kg)
|
| Wheel Base Length |
|
Long Wheel Base |
228 in (580 cm)
|
|
Standard Wheel Base |
181 in (459 cm)
|
