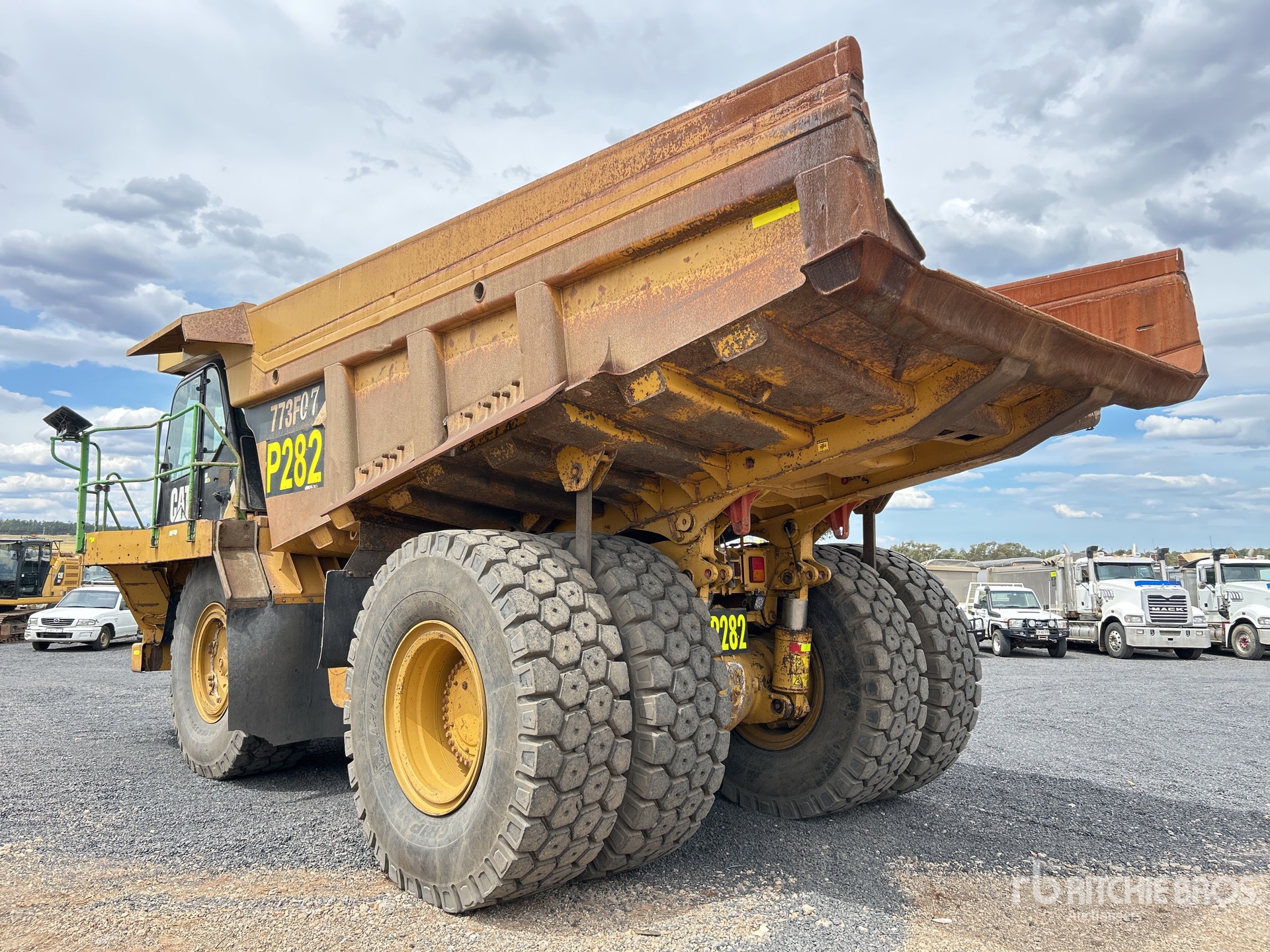

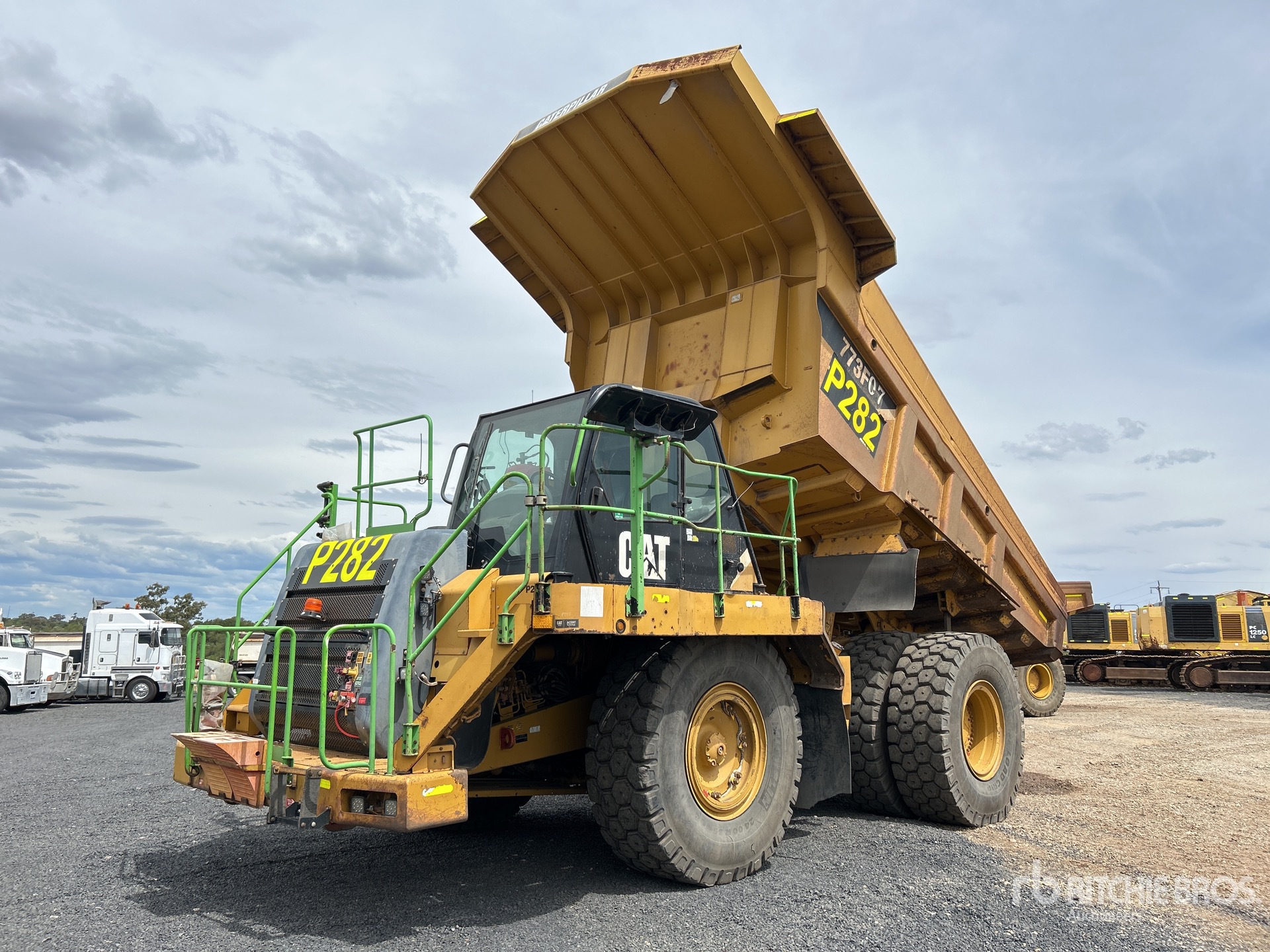

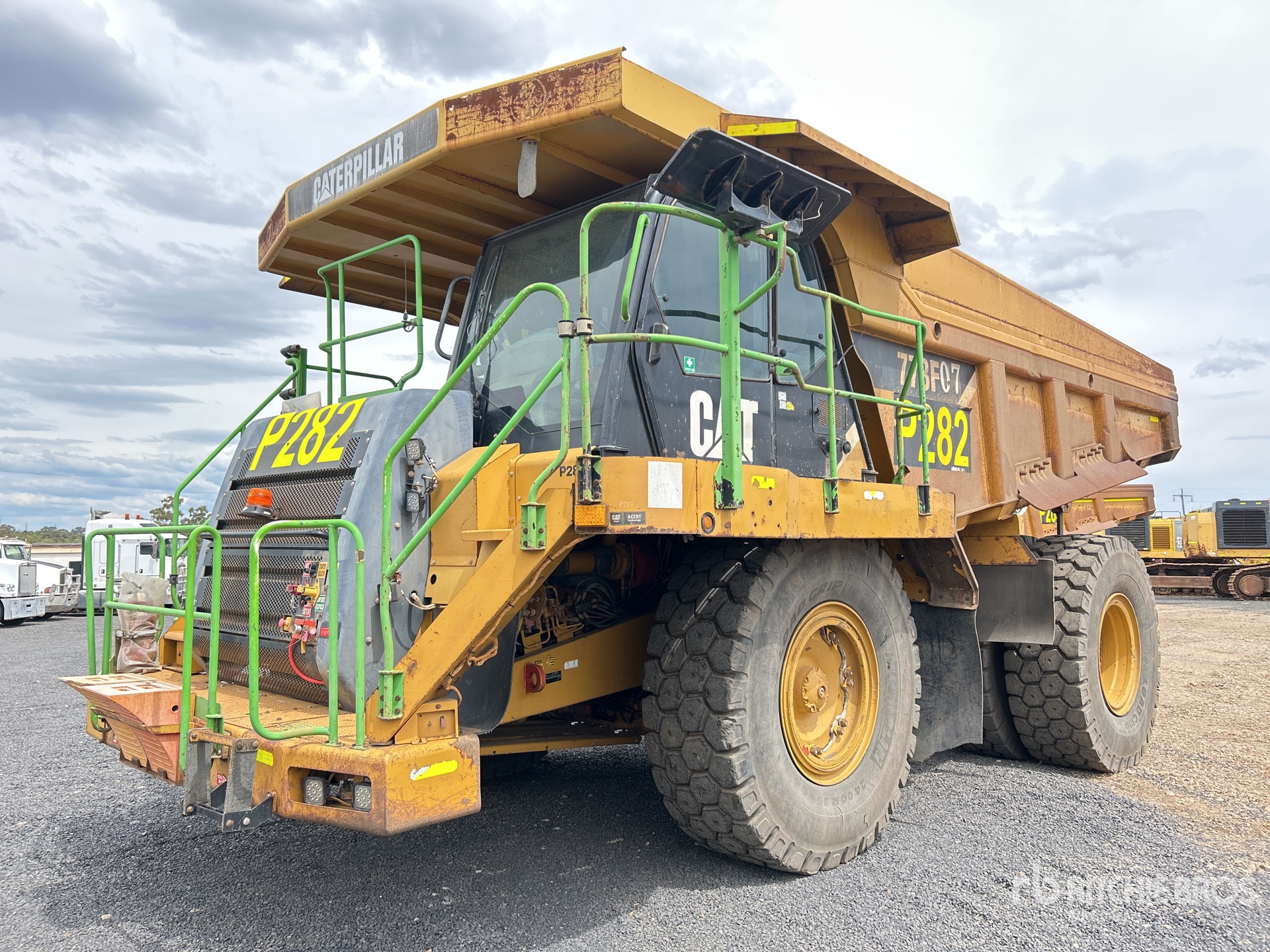

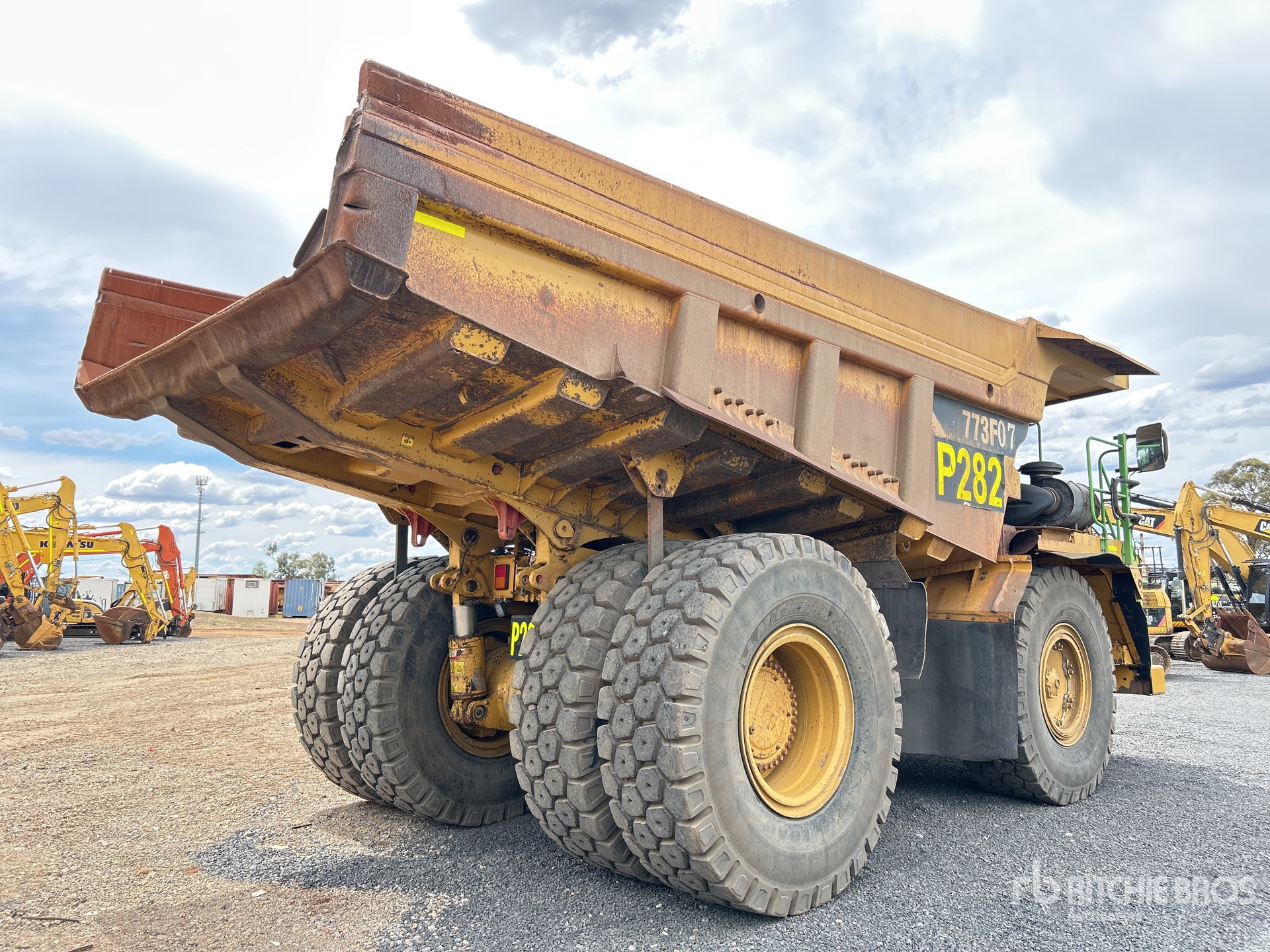

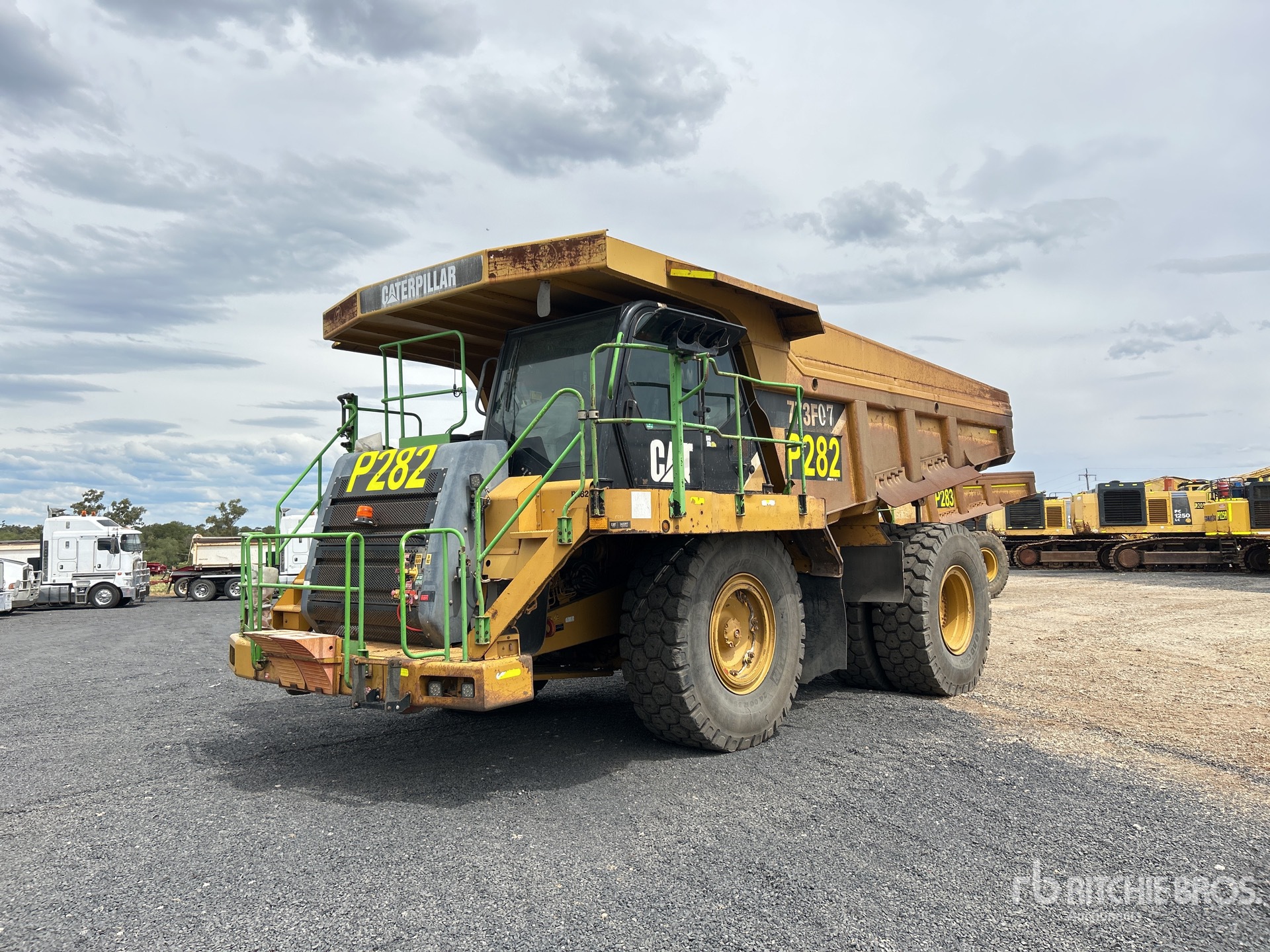

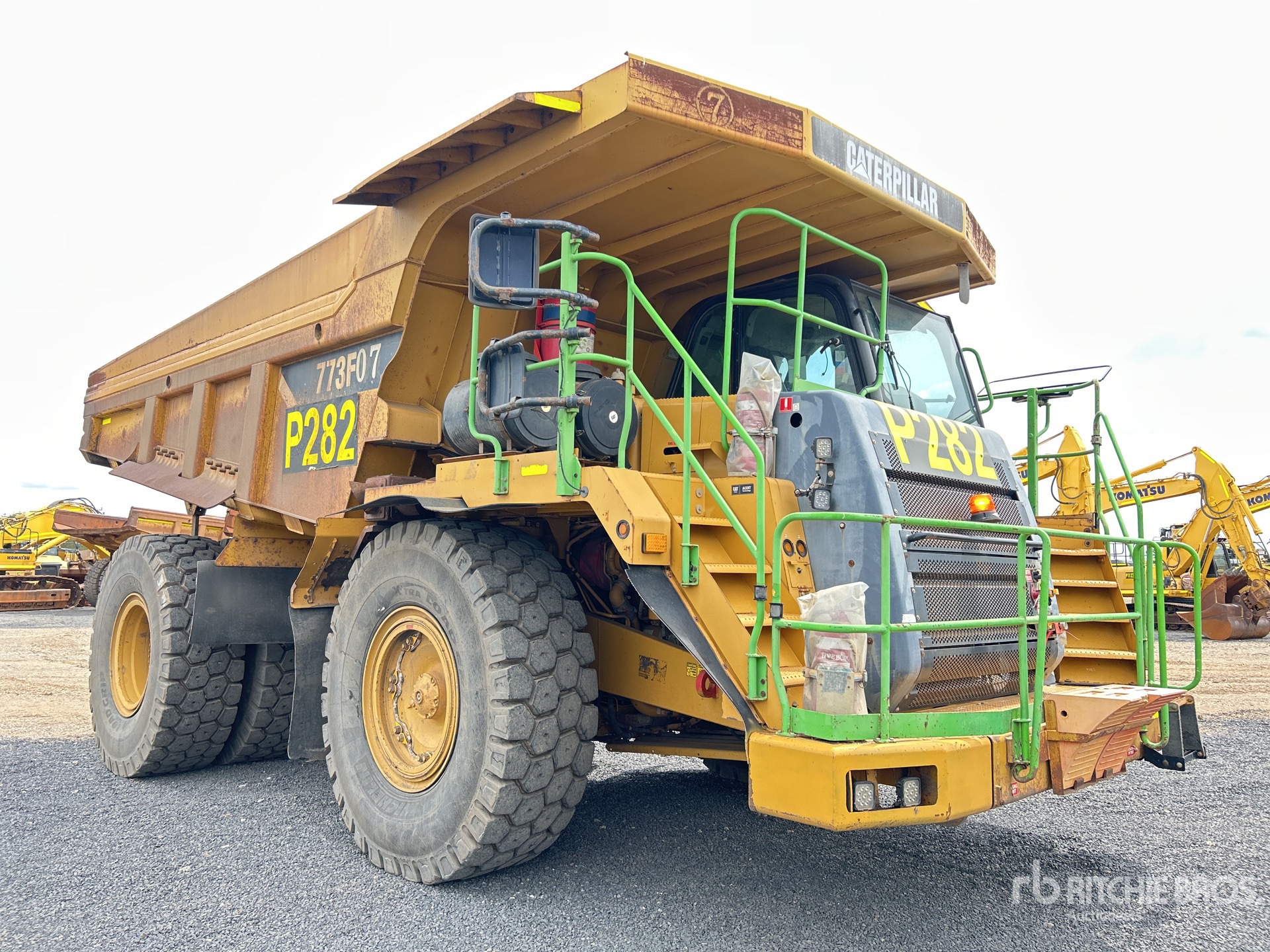

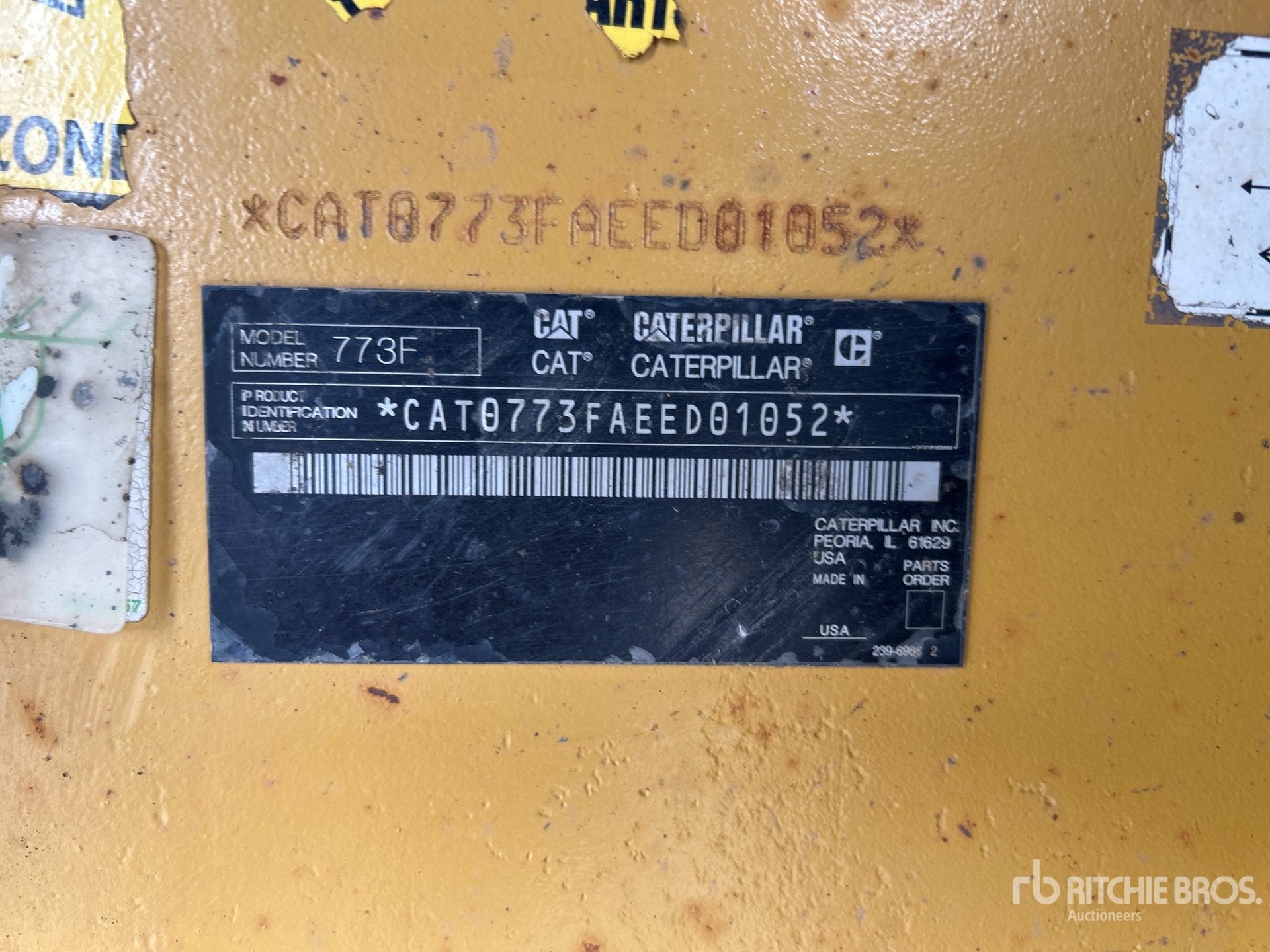

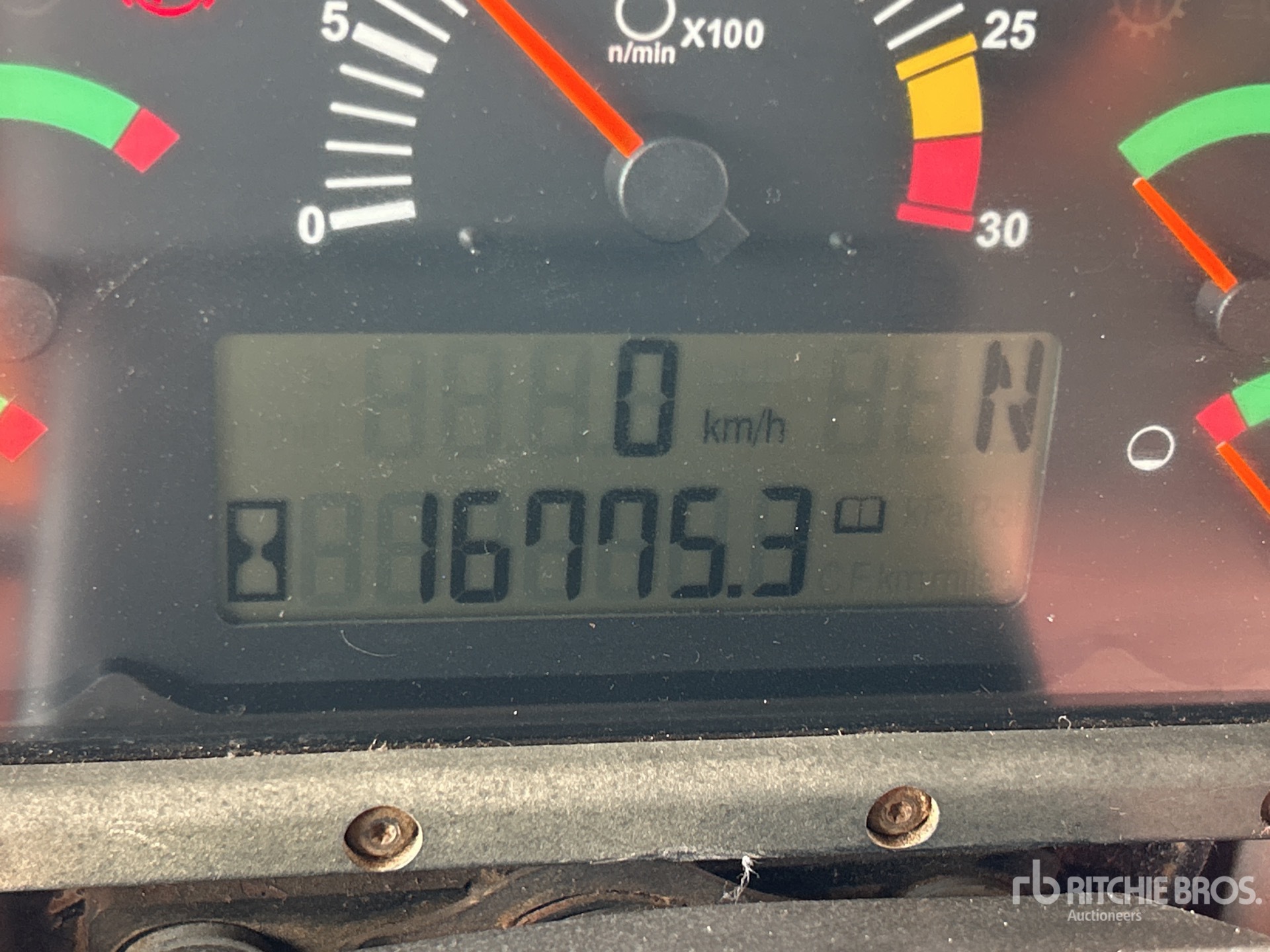

| Approximate Weights - Dual Slope |
|
Body |
28,574 lbs (12,961 kg)
|
| Approximate Weights - Flat Floor |
|
Body |
28,451 lbs (12,905 kg)
|
| Body Hoists |
|
Body Lower Time - Float |
12.5 s |
|
Body Raise Time - High Idle |
9.5 s |
|
Pump Flow - High Idle |
148 gpm (560 lpm)
|
|
Relief Valve Setting - Lower |
500 psi |
|
Relief Valve Setting - Raise |
2,500 psi |
| Brakes |
|
Brake Standards |
ISO 3450: 1996 |
|
Brake Surface - Front |
216 in2 |
|
Brake Surface - Rear |
9497 in2 |
| Capacity - Dual Slope - 100% Fill Factor |
|
Heaped 2:1 (Sae) |
47 cu yd |
|
Struck |
35 cu yd |
| Capacity - Flat Floor - 100% Fill Factor |
|
Heaped 2:1 (Sae) |
46 cu yd |
|
Struck |
34 cu yd |
| Dimensions |
|
Centerline Front Tire Width |
11 ft (3 m)
|
|
Centerline Of Rear Dual Tire Width |
10 ft (3 m)
|
|
Dump Clearance |
2 ft (1 m)
|
|
Dump Ground Clearance |
2 ft (1 m)
|
|
Dump Height |
30 ft (9 m)
|
|
Engine Guard Clearance |
2 ft (1 m)
|
|
Front Canopy Height |
15 ft (4 m)
|
|
Ground Clearance |
3 ft (1 m)
|
|
Height - Top Of Rops |
14 ft (4 m)
|
|
Inside Body Depth - Maximum |
6 ft (2 m)
|
|
Inside Body Length |
21 ft (6 m)
|
|
Inside Body Width |
12 ft (4 m)
|
|
Loading Height - Empty |
13 ft (4 m)
|
|
Operating Width |
18 ft (5 m)
|
|
Outside Body Width |
13 ft (4 m)
|
|
Overall Body Length |
30 ft (9 m)
|
|
Overall Canopy Width |
16 ft (5 m)
|
|
Overall Height |
15 ft (4 m)
|
|
Overall Height - Body Raised |
30 ft (9 m)
|
|
Overall Length |
34 ft (10 m)
|
|
Overall Tire Width |
15 ft (4 m)
|
|
Overall Width |
18 ft (5 m)
|
|
Rear Axle - Clearance |
2 ft (1 m)
|
|
Rear Axle - Tail |
9 ft (3 m)
|
|
Wheel Base |
14 ft (4 m)
|
|
Wheelbase |
14 ft (4 m)
|
| Dump |
|
Dump Angle |
60 degrees |
|
Load Capacity - Heaped |
46 cu yd |
|
Load Capacity - Struck |
34 cu yd |
|
Lower Time |
13 sec |
|
Raise Time |
10 sec |
|
Rated Payload |
120,000 lbs (54,431 kg)
|
| Engine |
|
Aspiration |
Turbocharged |
|
Bore |
5 in (14 cm)
|
|
Displacement |
1,649 cu in (27,022 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
C27 ACERT |
|
Engine Model |
Cat C27 ACERT |
|
Flywheel Power |
703 hp (524 kw)
|
|
Gross Power |
740 hp (552 kw)
|
|
Gross Power - Sae J1995 |
740 hp (552 kw)
|
|
Max Torque |
2,507 lbs ft (3,399 nm)
|
|
Net Power |
703 hp (524 kw)
|
|
Net Power - 80/1269/Eec |
703 hp (524 kw)
|
|
Net Power - Cat |
703 hp (524 kw)
|
|
Net Power - Iso 9249 |
703 hp (524 kw)
|
|
Net Power - Sae J1349 |
703 hp (524 kw)
|
|
Number Of Cylinders |
12 |
|
Peak Torque |
2,507 lbs ft (3,399 nm)
|
|
Power Measured @ |
1,800 rpm |
|
Rated Engine Speed |
1,800 rpm |
|
Stroke |
6 in (15 cm)
|
| Final Drives |
|
Differential Ratio |
3.64:1 |
|
Planetary Ratio |
4.80:1 |
|
Total Reduction Ratio |
17.49:1 |
| Operating Specifications |
|
Body Capacity - Sae 2:1 |
46 cu yd |
|
Lower Time |
12.5 s |
|
Maximum Capacity |
107,080 lbs (48,571 kg)
|
|
Maximum Working Payload (110%) |
134,000 lbs (60,781 kg)
|
|
Nominal Payload Class (100%) |
122,000 lbs (55,338 kg)
|
|
Not To Exceed Payload (120%)* |
146,000 lbs (66,225 kg)
|
|
Raise Time |
9.5 s |
|
Steer Angle |
31 degrees |
|
Top Speed - Loaded |
42 mph (67 kph)
|
|
Turning Diameter - Front |
77 ft (24 m)
|
| Operational |
|
Brake/Hoist System Fluid Capacity |
81 gal (307 l)
|
|
Cooling System Fluid Capacity |
46 gal (174 l)
|
|
Diff And Final Drive Fluid Capacity |
41 gal (155 l)
|
|
Engine Oil Capacity |
19 gal (72 l)
|
|
Fuel Capacity |
185 gal (700 l)
|
|
Hydraulic System Fluid Capacity |
19 gal (72 l)
|
|
Steering System Fluid Capacity |
16 gal (61 l)
|
|
Tire Size |
24.00R35(E4) |
| Rops |
|
Rops/Fops Standards |
SAE J1040 MAY94, ISO 3471:1994 ROPS and ISO 3449:1992 Level II FOPS |
| Service Refill Capacities |
|
Brake / Hoist / Fan Hydraulic Tank |
35 gal (132 l)
|
|
Brake Hoist System - Includes Tank |
81 gal (307 l)
|
|
Cooling System |
46 gal (174 l)
|
|
Crankcase |
25 gal (95 l)
|
|
Differential - Final Drives |
41 gal (155 l)
|
|
Fuel Tank |
185 gal (700 l)
|
|
Steering System - Including Tank |
16 gal (61 l)
|
|
Steering Tank |
9 gal (34 l)
|
|
Torque Converter - Transmission System |
14 gal (53 l)
|
|
Torque Converter - Transmission System - Including Sump |
19 gal (72 l)
|
| Sound |
|
Sound Standards |
.ANSI/SAE J1166 MAY90 |
| Steering |
|
Steer Angle |
31 degrees |
|
Steering Standards |
SAE J1511 FEB94 ISO 5010:1992 |
|
Turning Circle - Clearance Diameter |
86 ft (26 m)
|
|
Turning Diameter - Front |
77 ft (24 m)
|
| Suspension |
|
Effective Cylinder Stroke - Front |
9 in (24 cm)
|
|
Effective Cylinder Stroke - Rear |
6 in (15 cm)
|
|
Rear Axle - Oscillation |
8 degrees |
| Tires |
|
Standard Tire |
24.00R35 (E4) |
| Transmission |
|
Forward - 1 |
7 mph (11 kph)
|
|
Forward - 2 |
9 mph (15 kph)
|
|
Forward - 3 |
13 mph (20 kph)
|
|
Forward - 4 |
17 mph (27 kph)
|
|
Forward - 5 |
23 mph (37 kph)
|
|
Forward - 6 |
31 mph (50 kph)
|
|
Forward - 7 |
42 mph (67 kph)
|
|
Max Speed |
42 mph (67 kph)
|
|
Number Of Gears - Forward |
7 |
|
Number Of Gears - Reverse |
1 |
|
Reverse |
8.8 mile/h |
|
Transmission Type |
Gear |
| Weight Distributions - Approximate |
|
Front Axle - Empty |
51 % |
|
Front Axle - Loaded |
35 % |
|
Rear Axle - Empty |
49 % |
|
Rear Axle - Loaded |
65 % |
| Weights |
|
Empty Weight |
98,312 lbs (44,594 kg)
|
|
Loaded Weight |
222,000 lbs (100,698 kg)
|
|
Weight Distribution Front - Empty |
51 % |
|
Weight Distribution Front - Loaded |
35 % |
|
Weight Distribution Rear - Empty |
49 % |
|
Weight Distribution Rear - Loaded |
65 % |
| Weights - Approximate |
|
Target Gross Machine Operating Weight |
222,001 lbs (100,698 kg)
|
