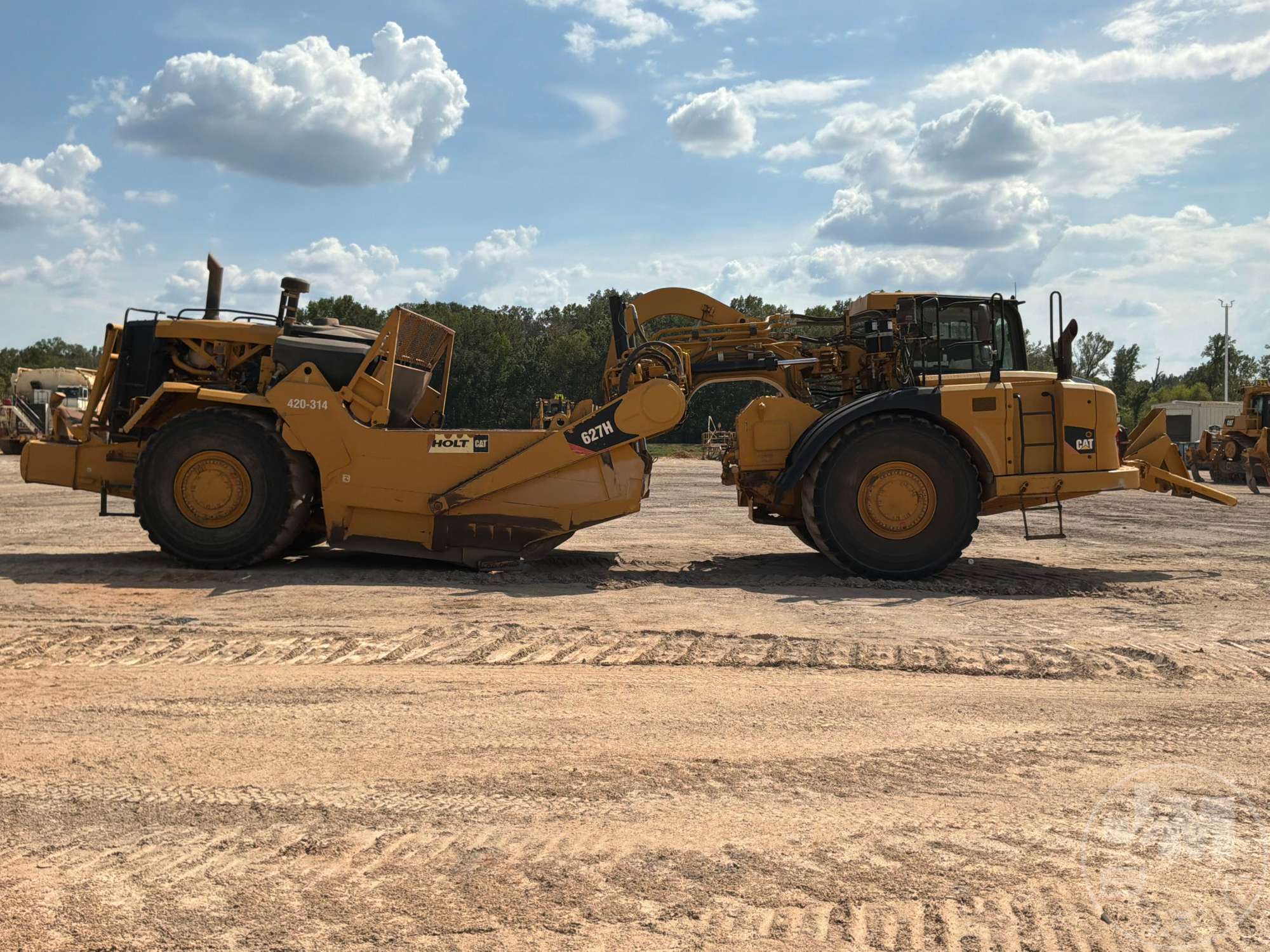

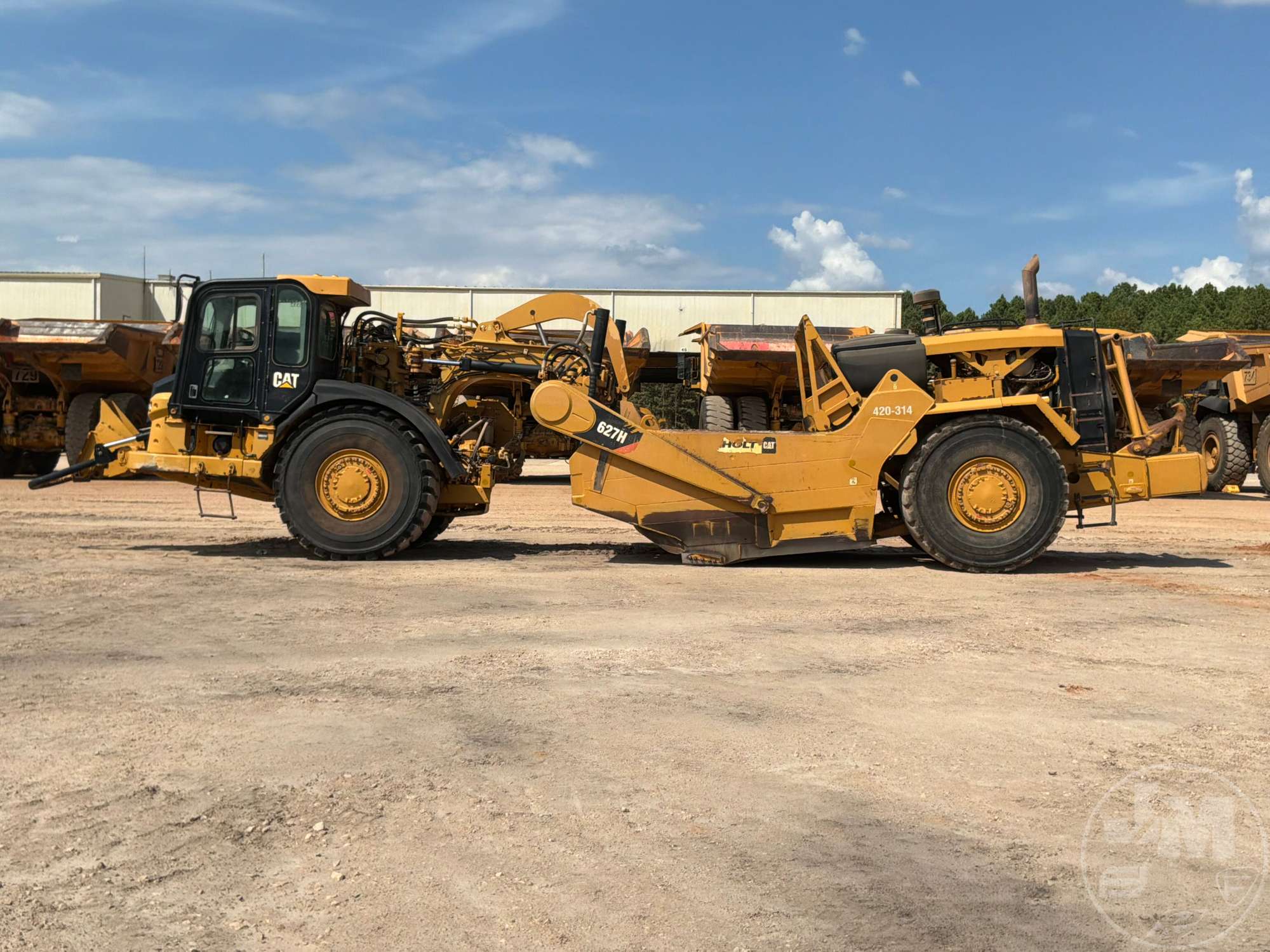

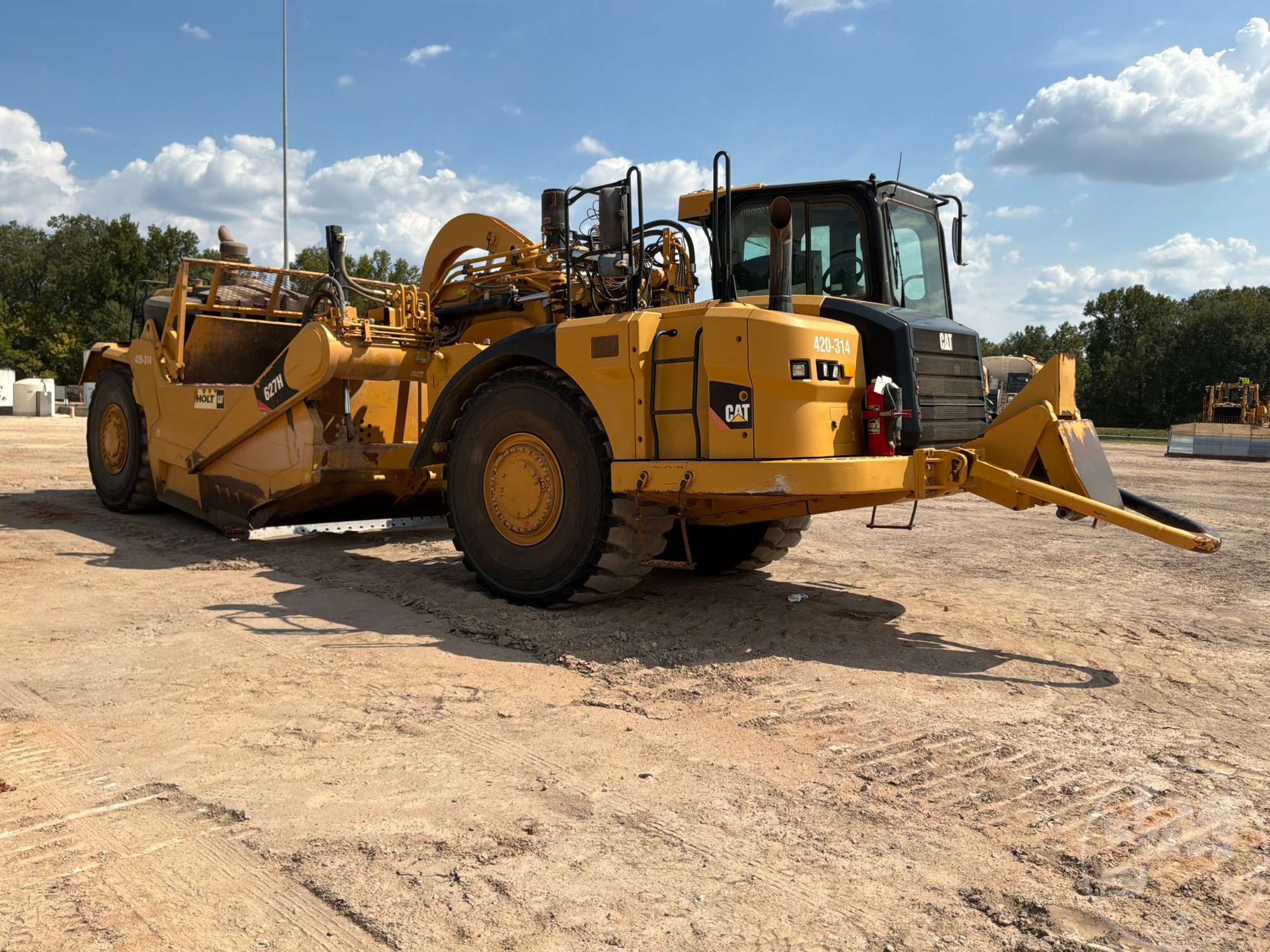

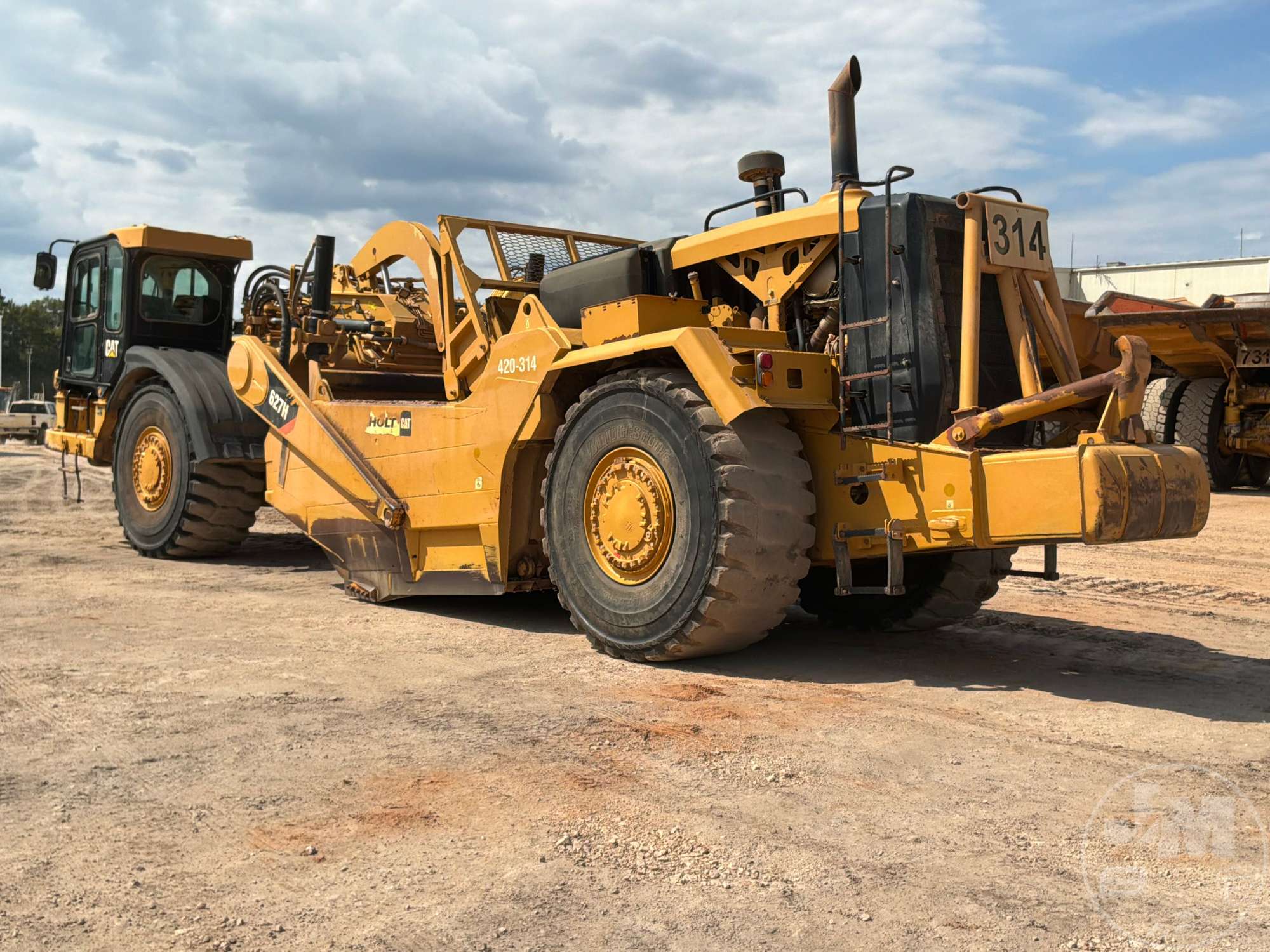

| Bowl |
|
Heaped Capacity |
24 cu yd |
|
Max Depth Of Cut |
12 in (32 cm)
|
|
Struck Capacity |
17 cu yd |
|
Width Of Cut |
124 ft (38 m)
|

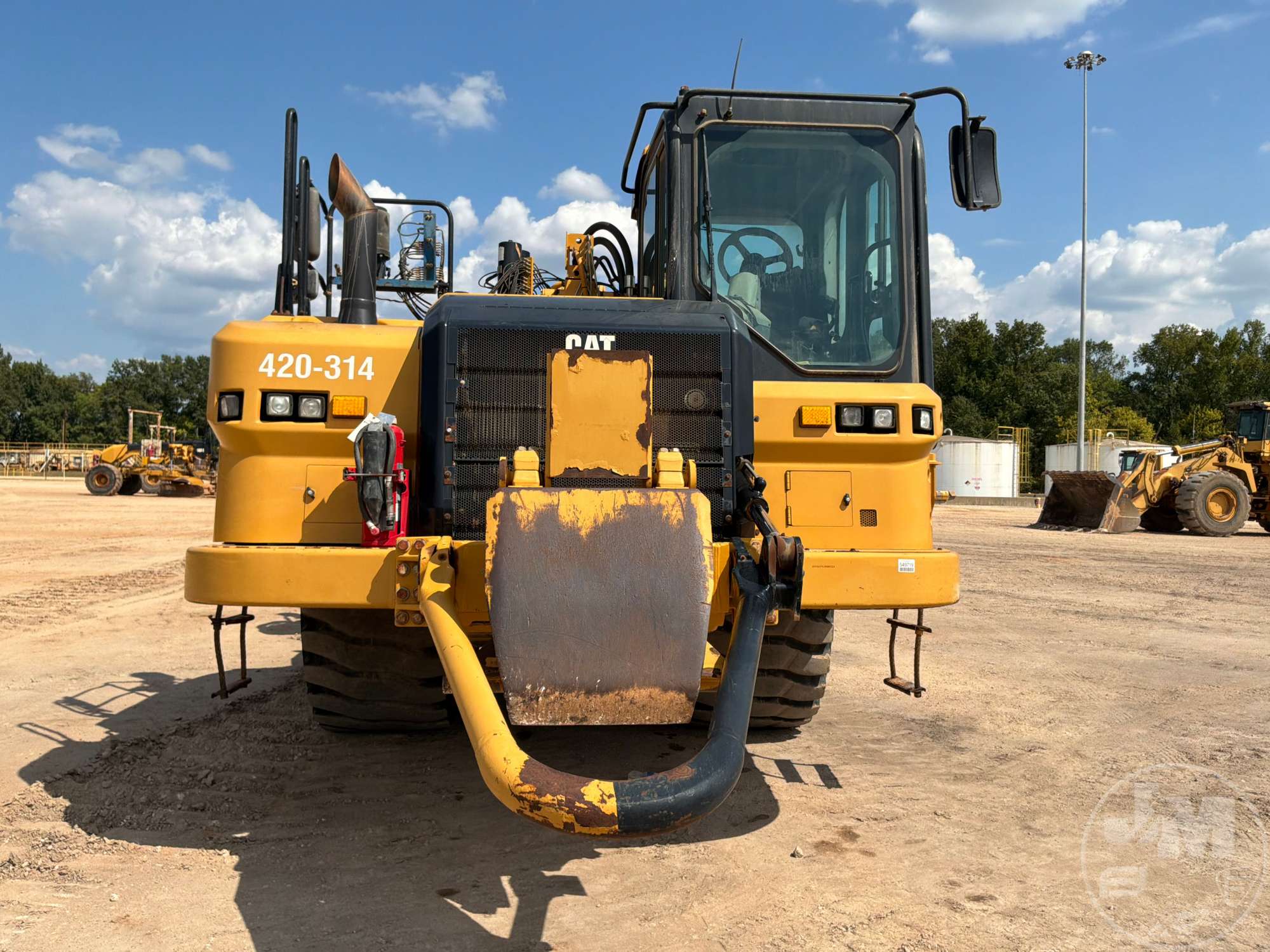

| Dimensions |
|
Height |
13 ft (4 m)
|
|
Length |
46 ft (14 m)
|
|
Weight |
87,962 lbs (39,899 kg)
|
|
Width |
12 ft (4 m)
|

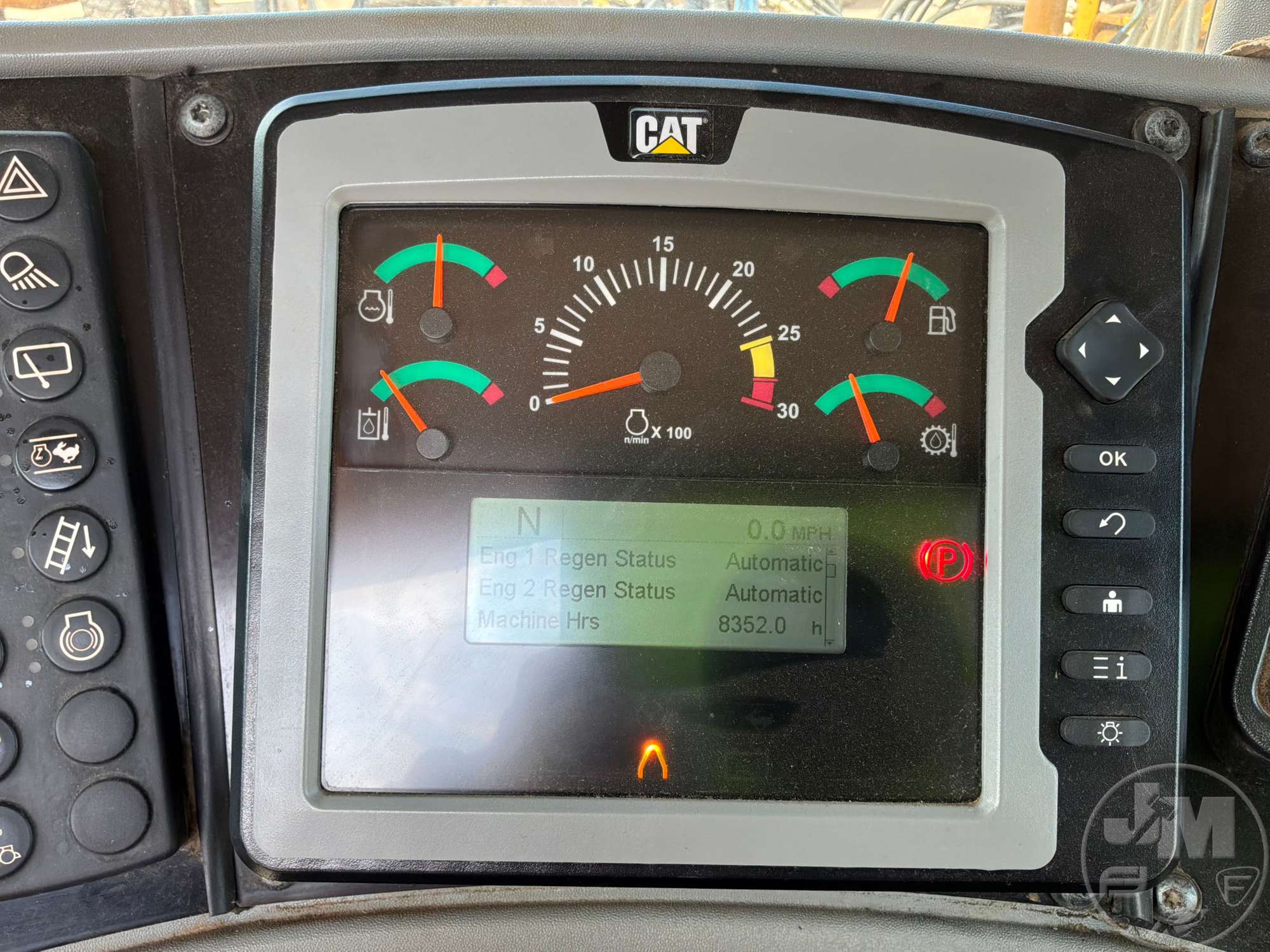

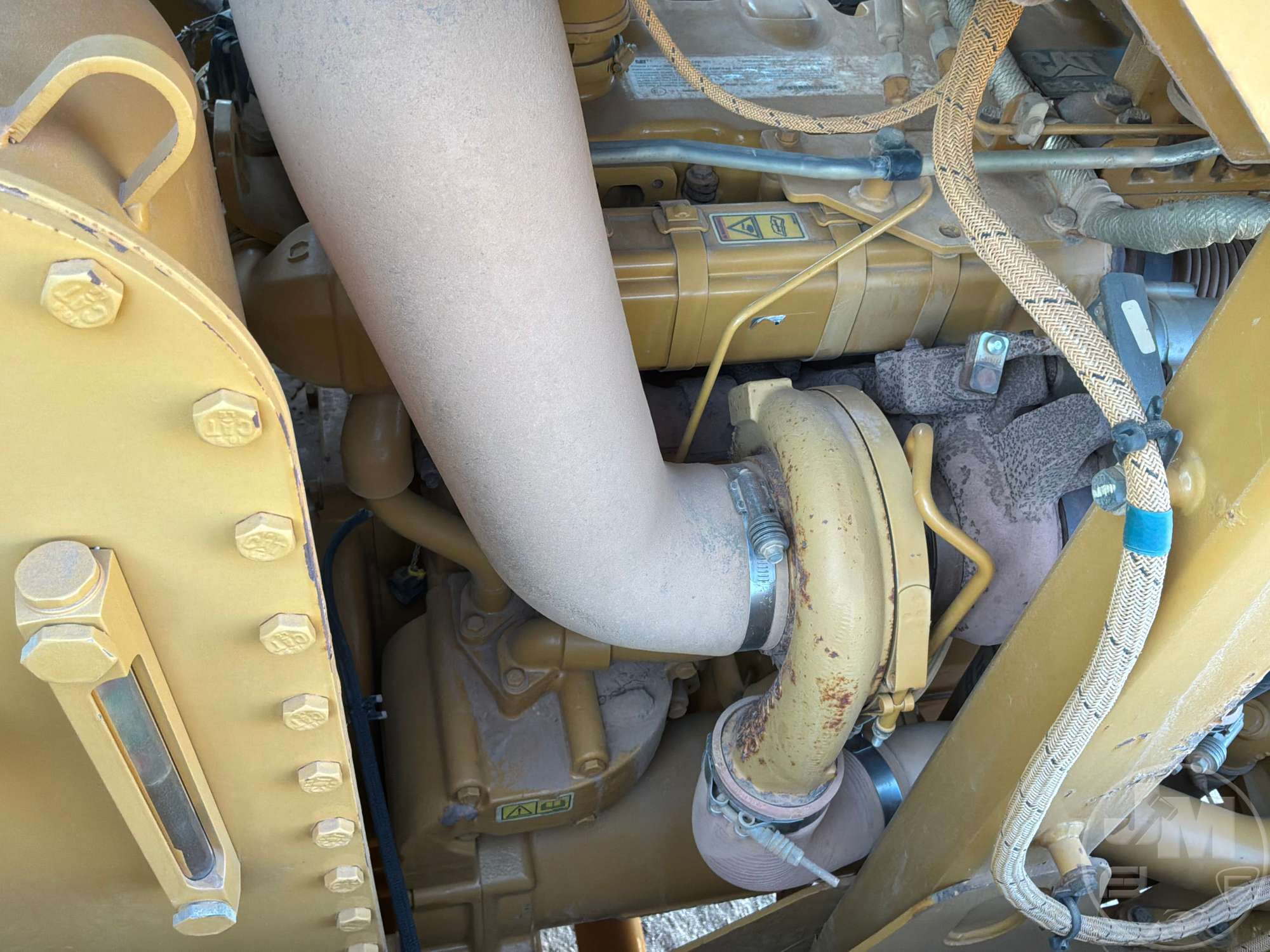

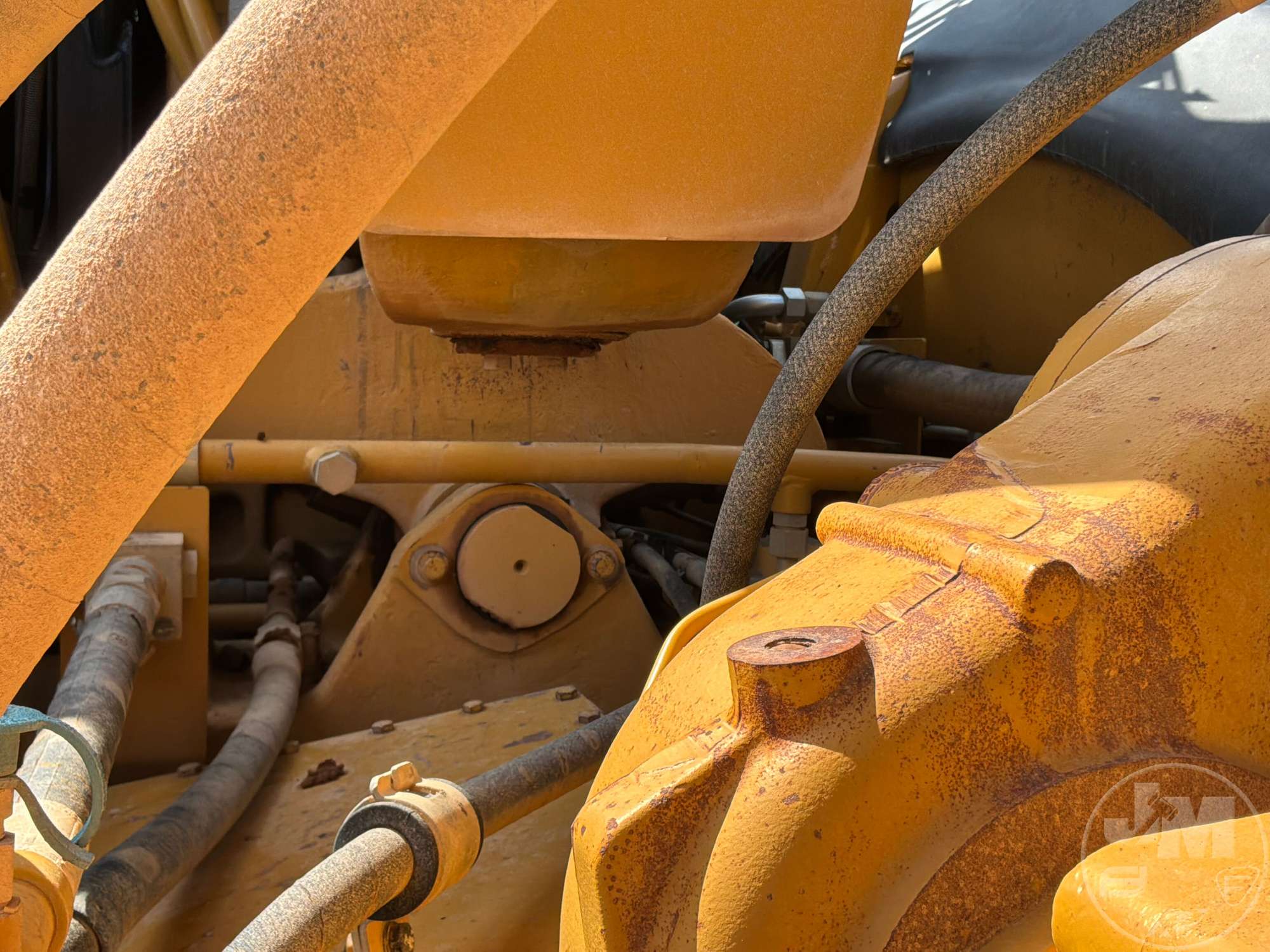

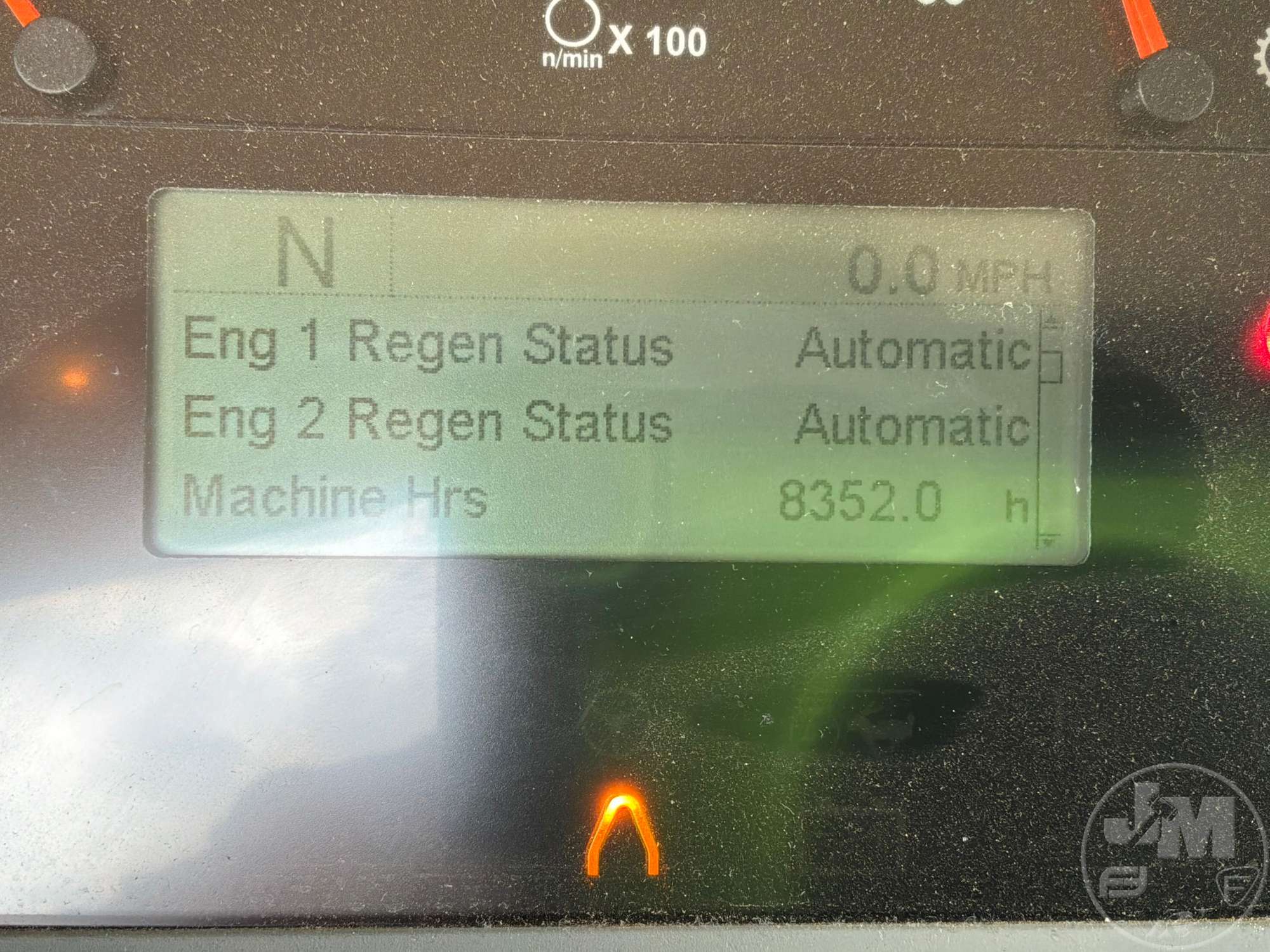

| Engine |
|

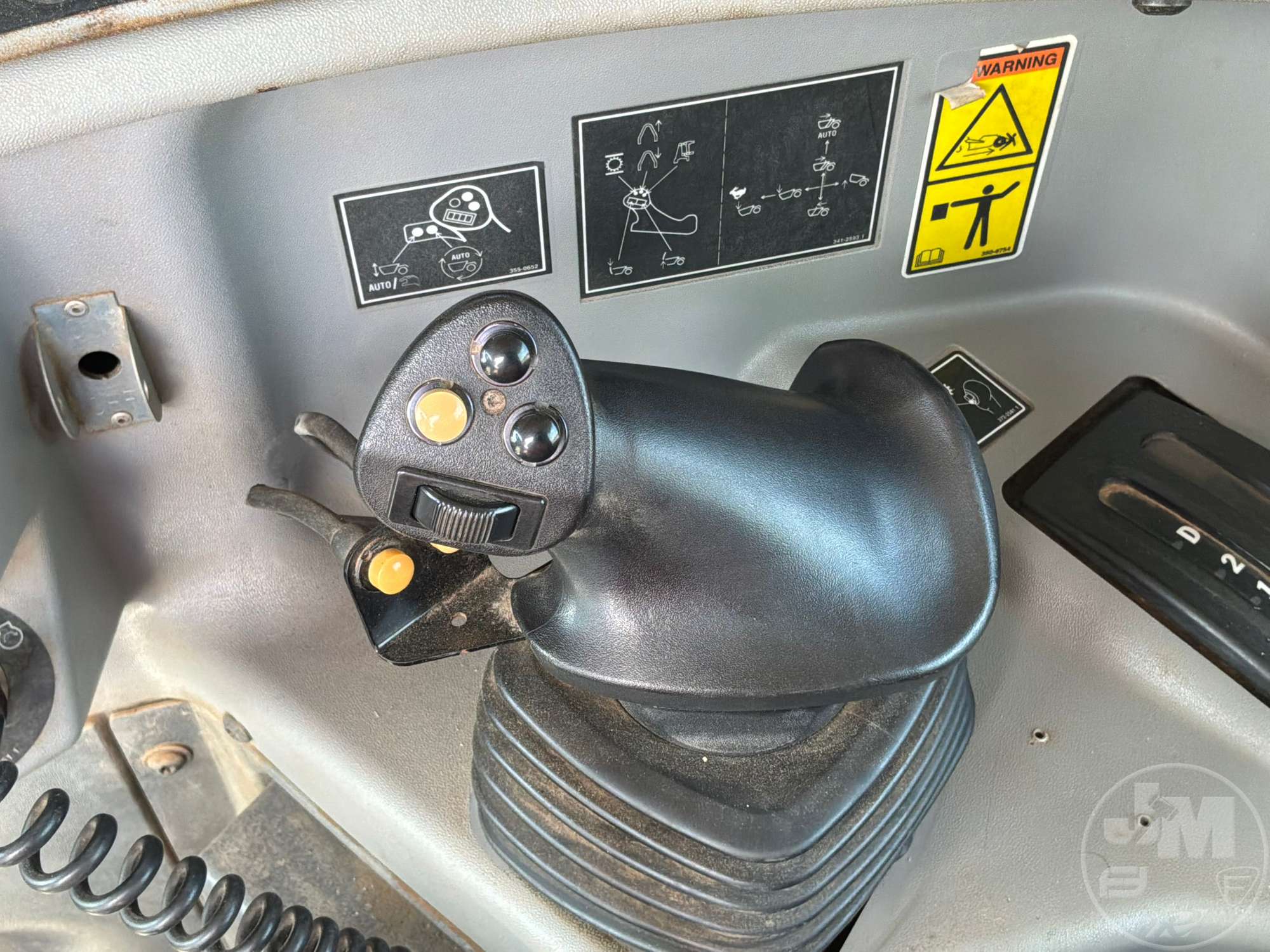

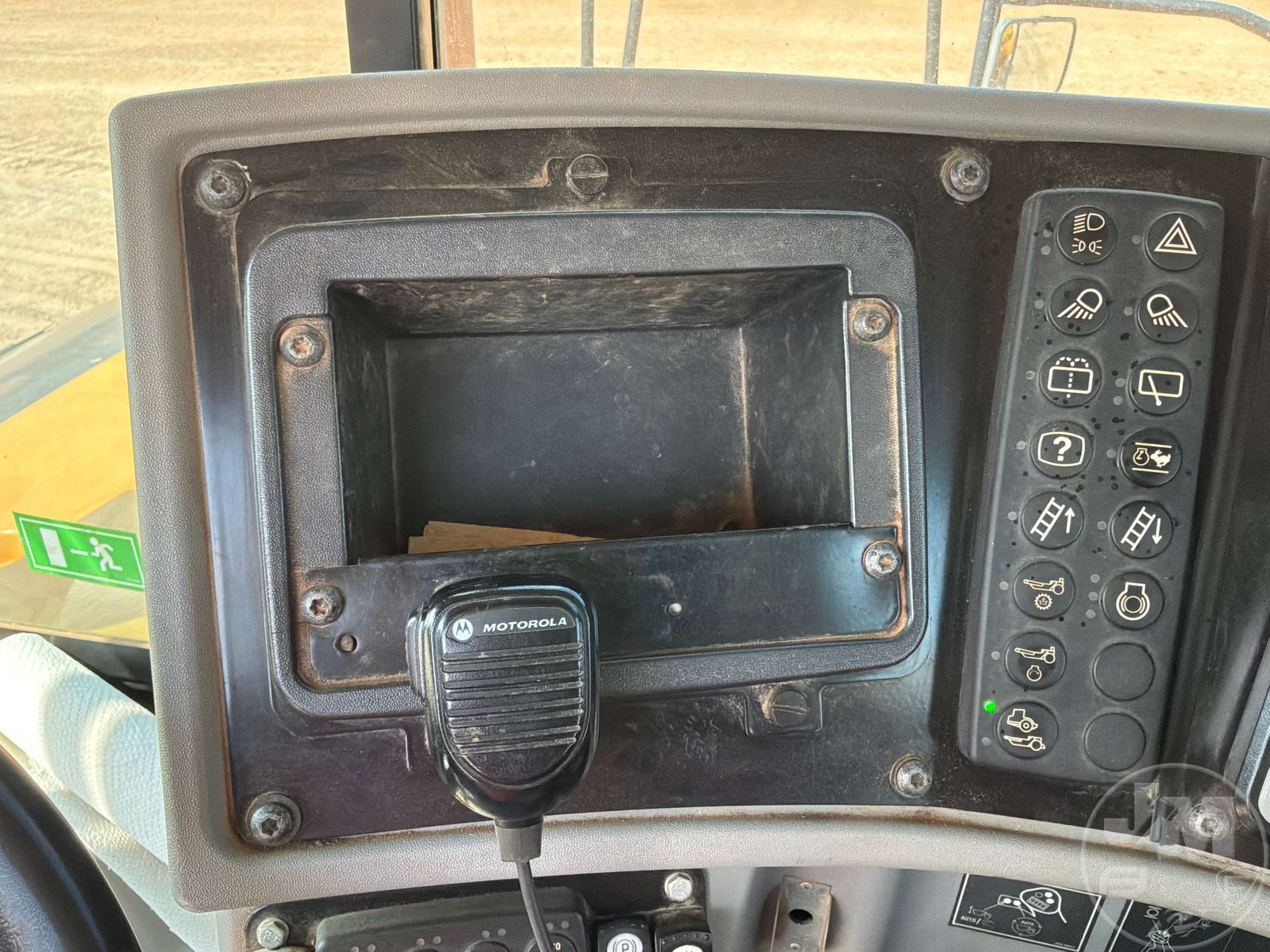

Scraper |
Cat C9.3 ACERT |
|
Tractor |
Cat C13 ACERT |

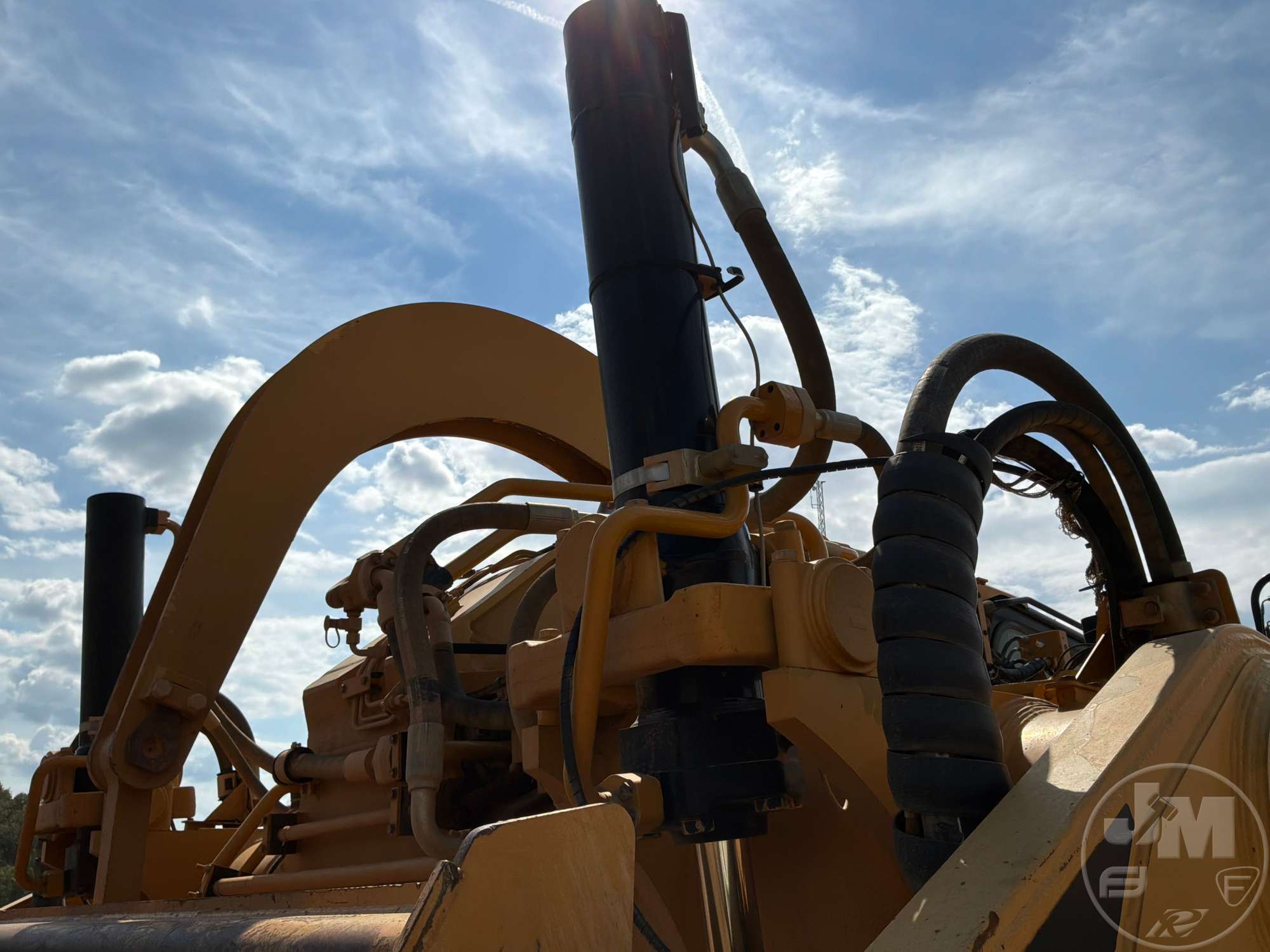

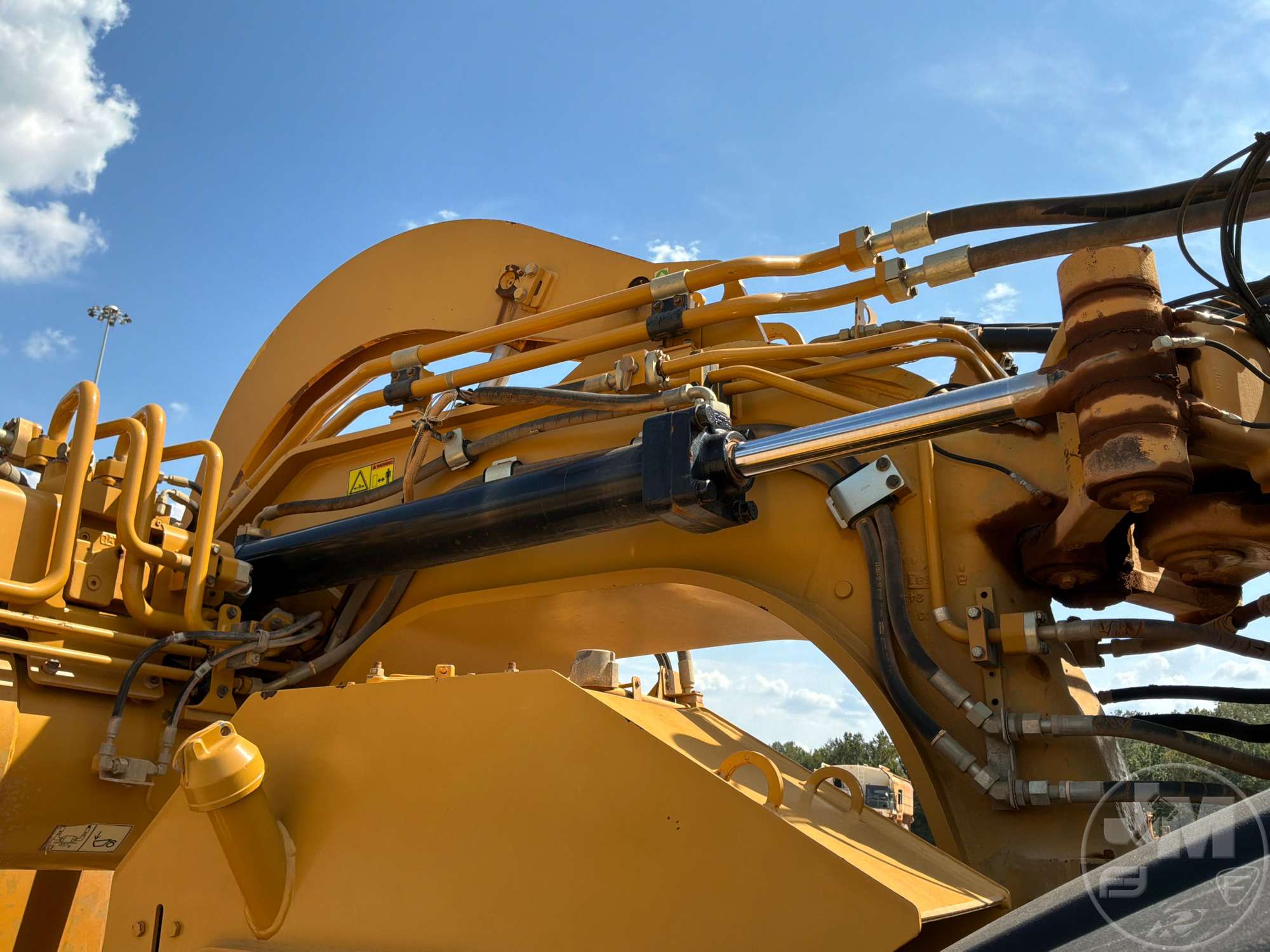

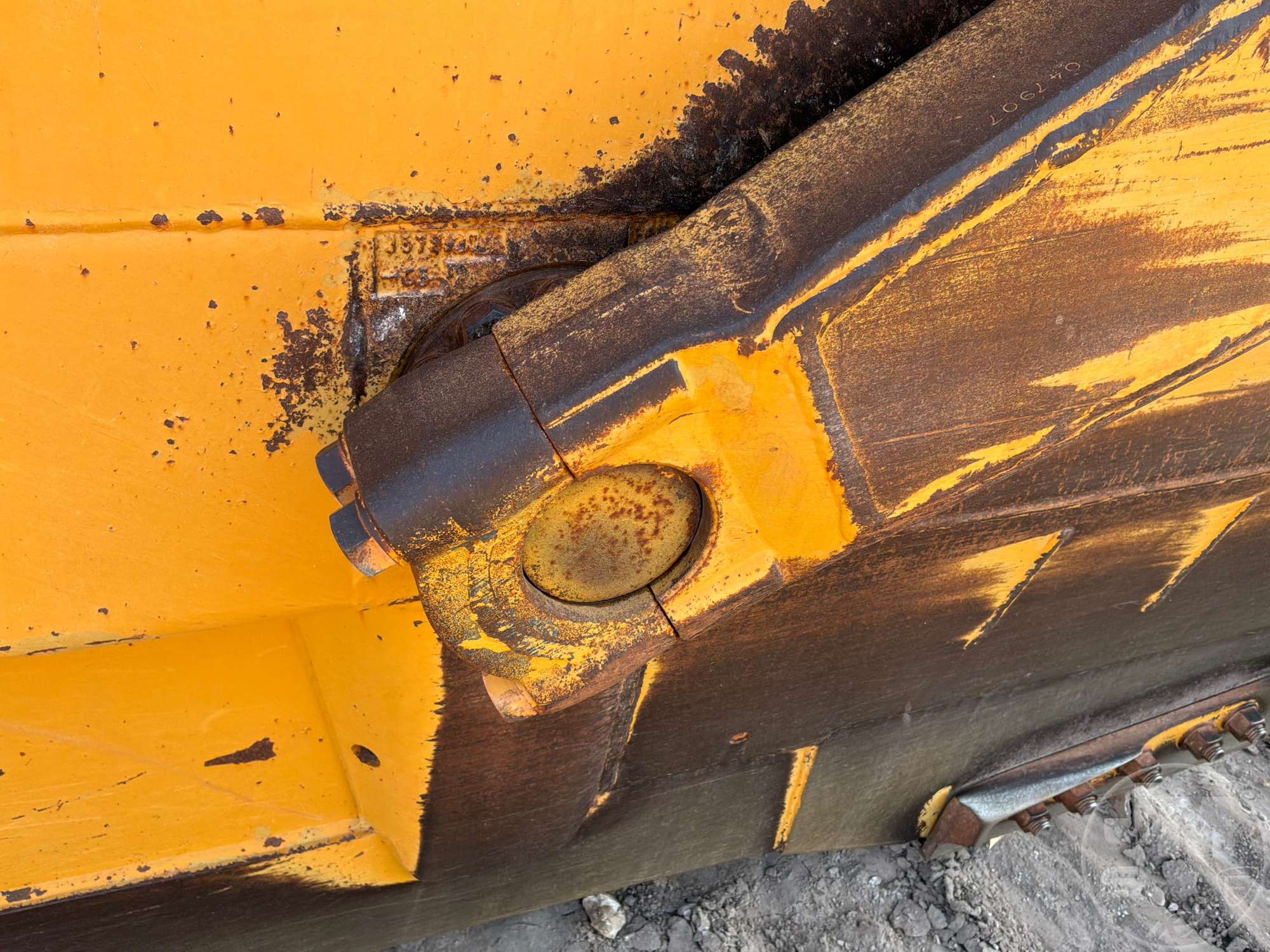

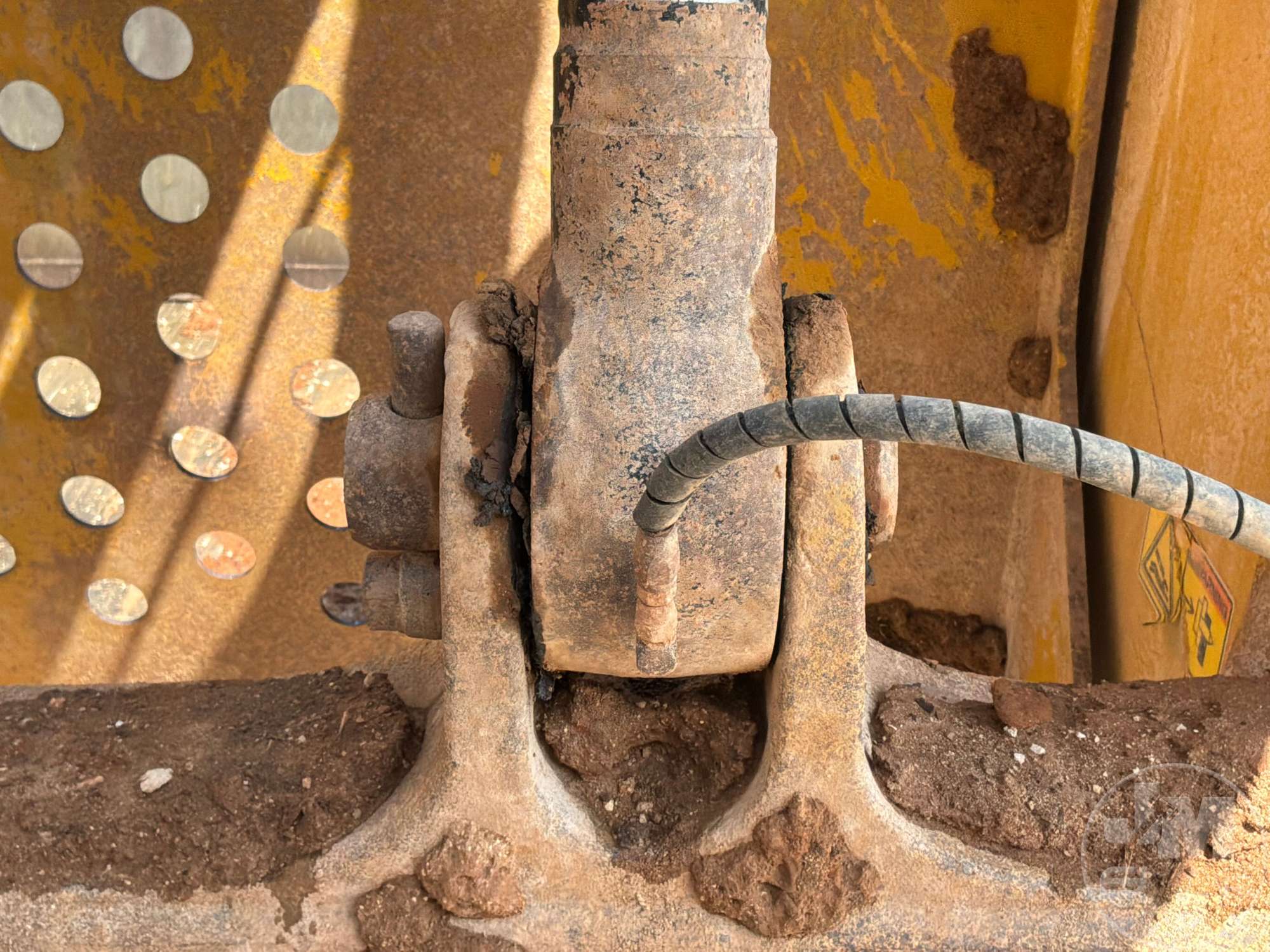

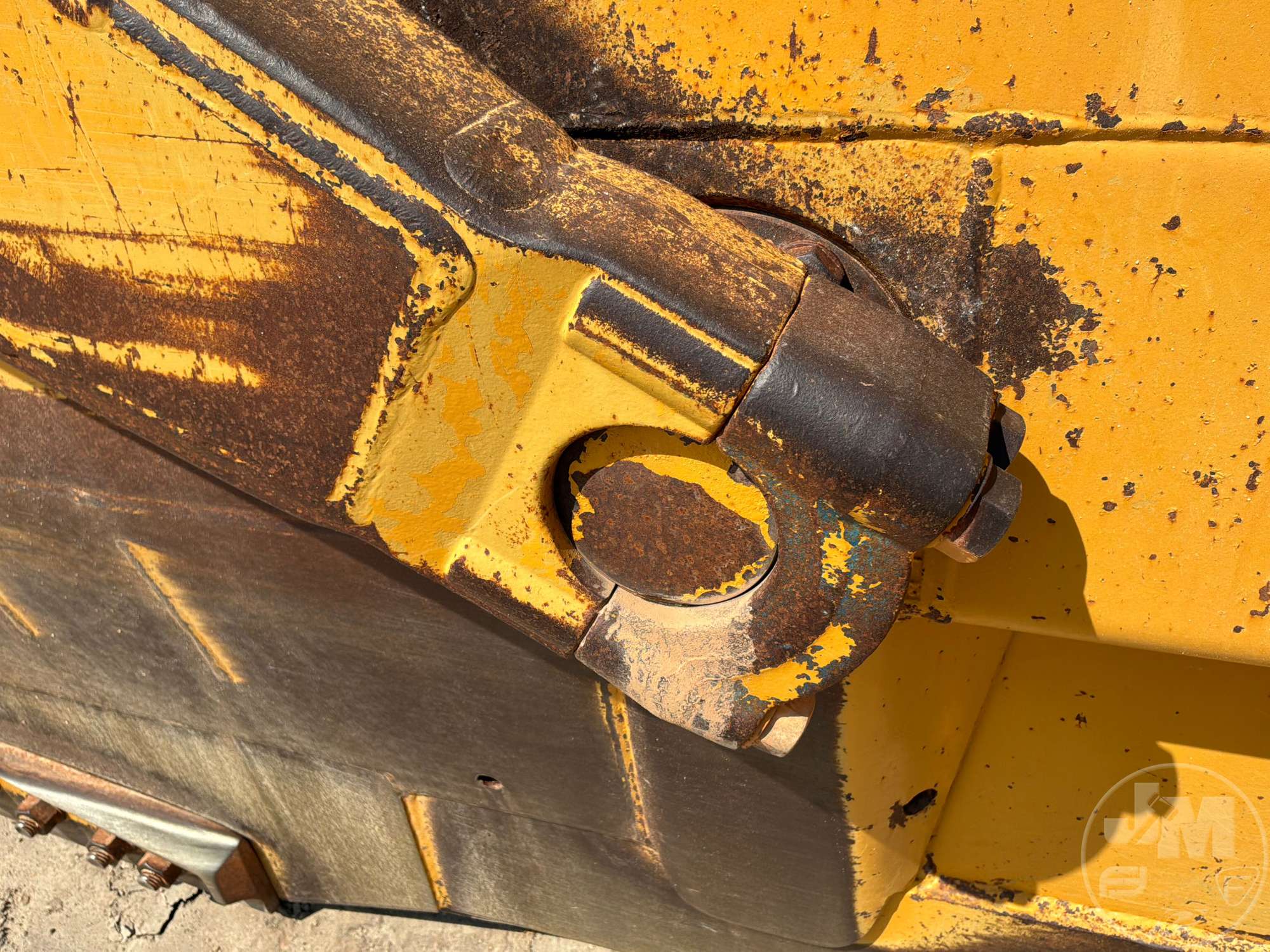

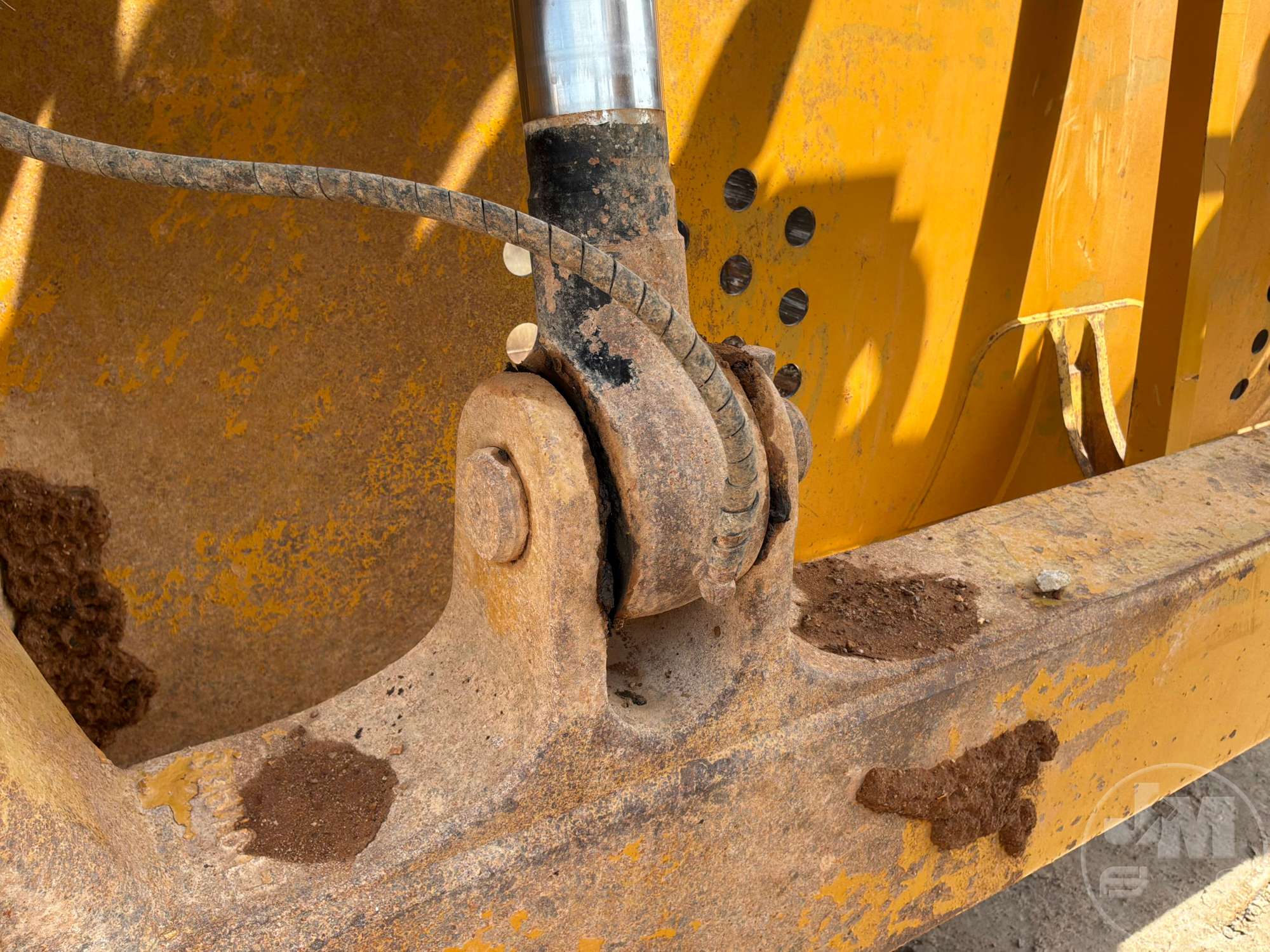

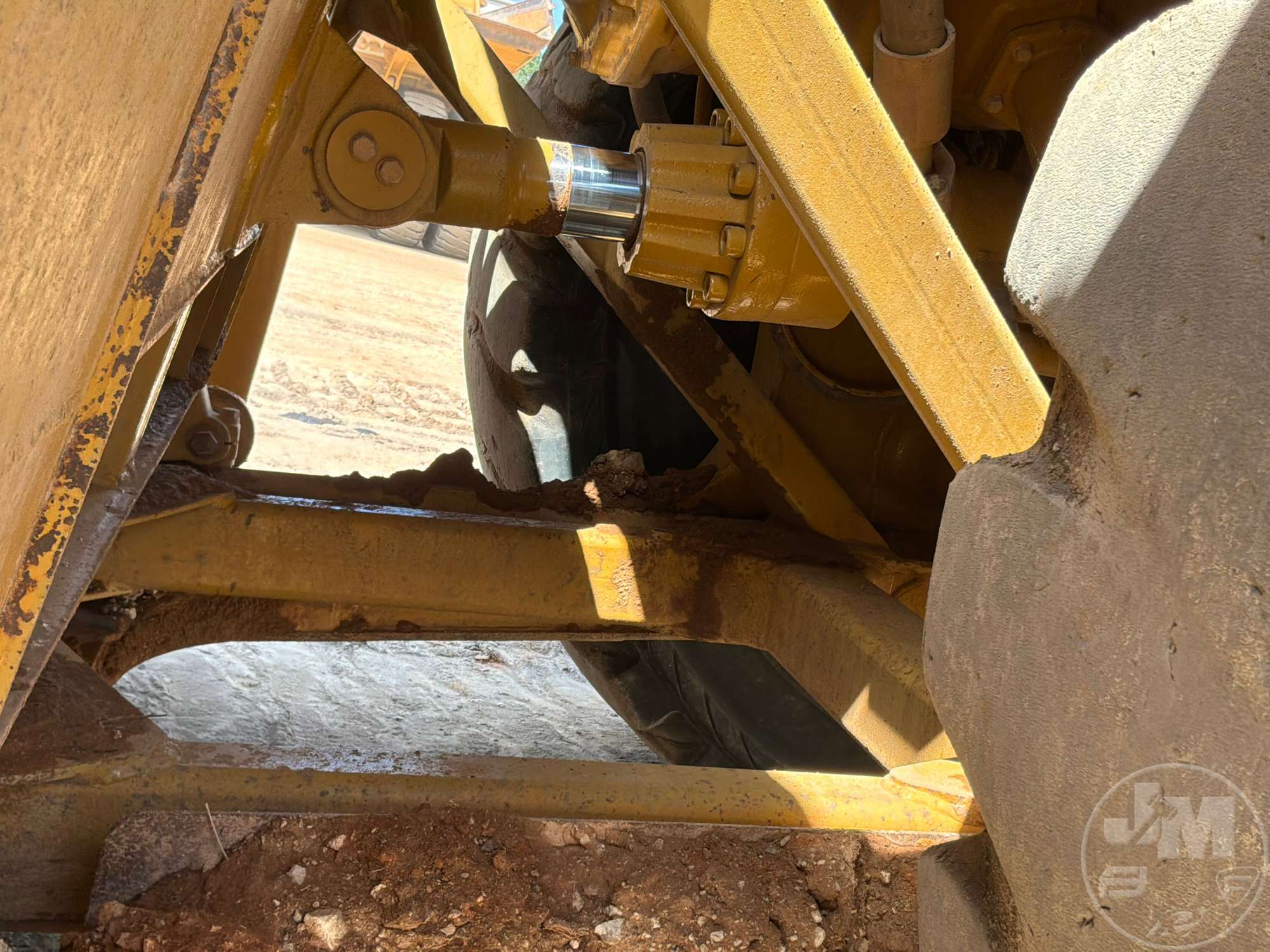

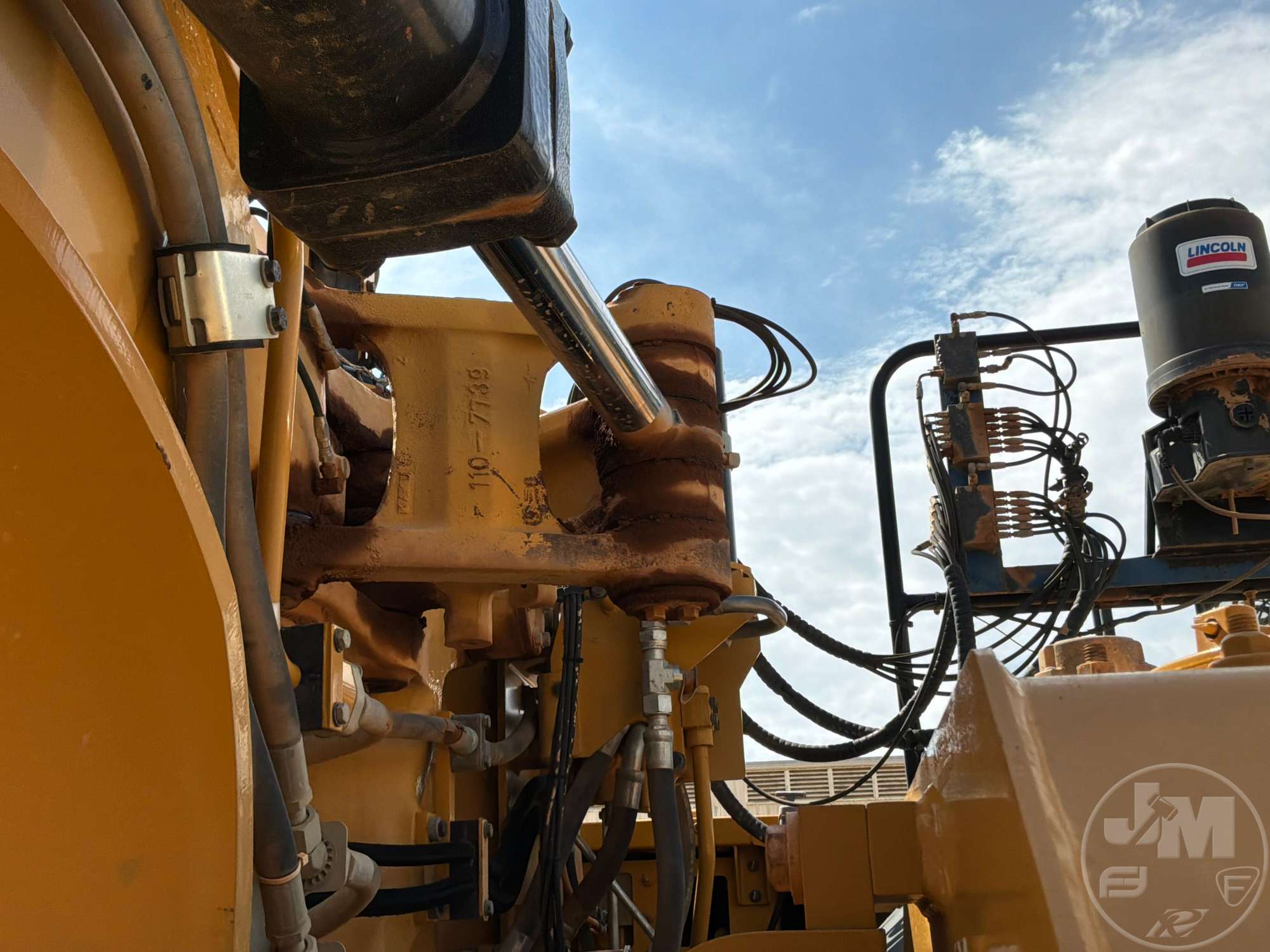

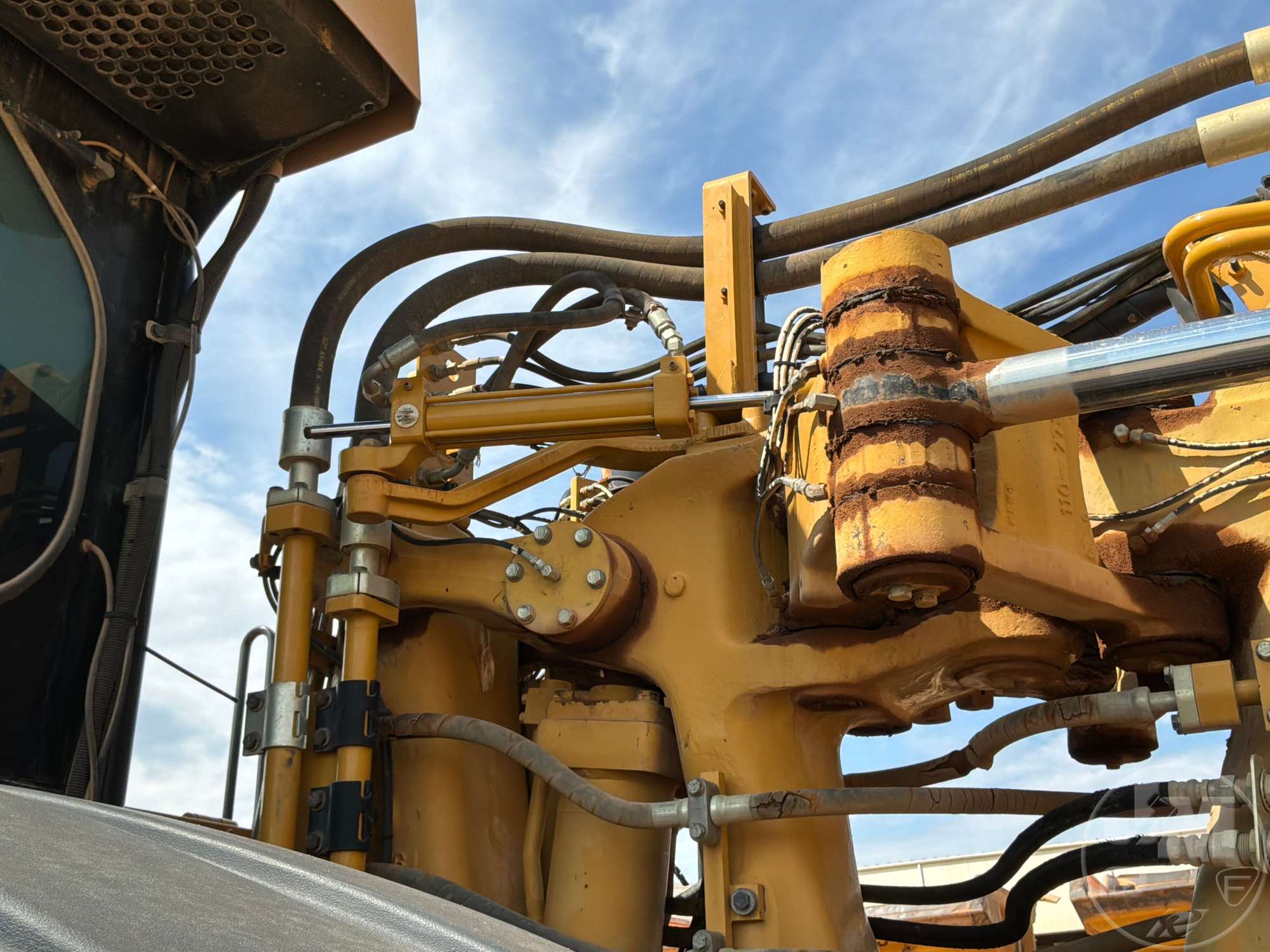

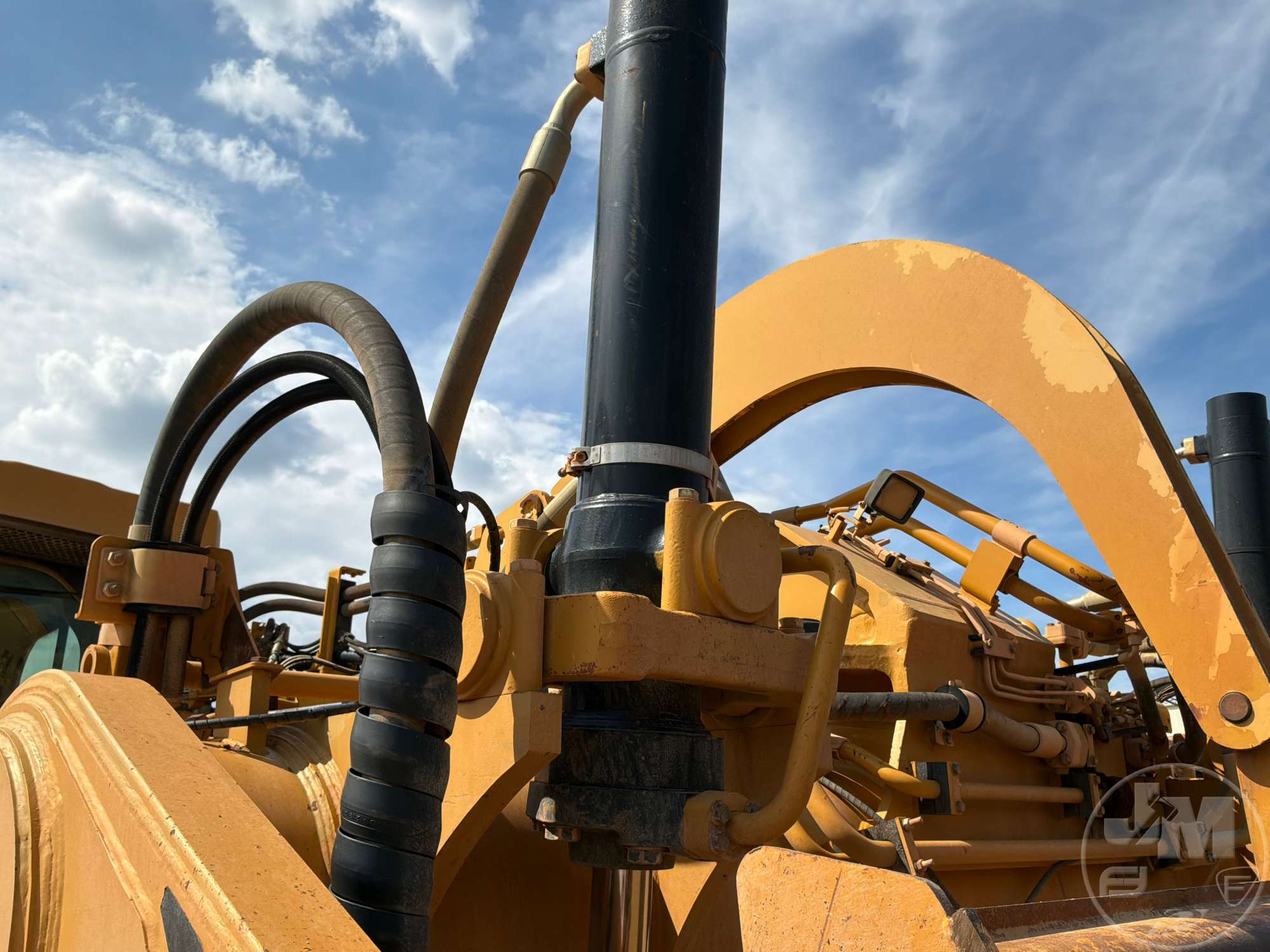

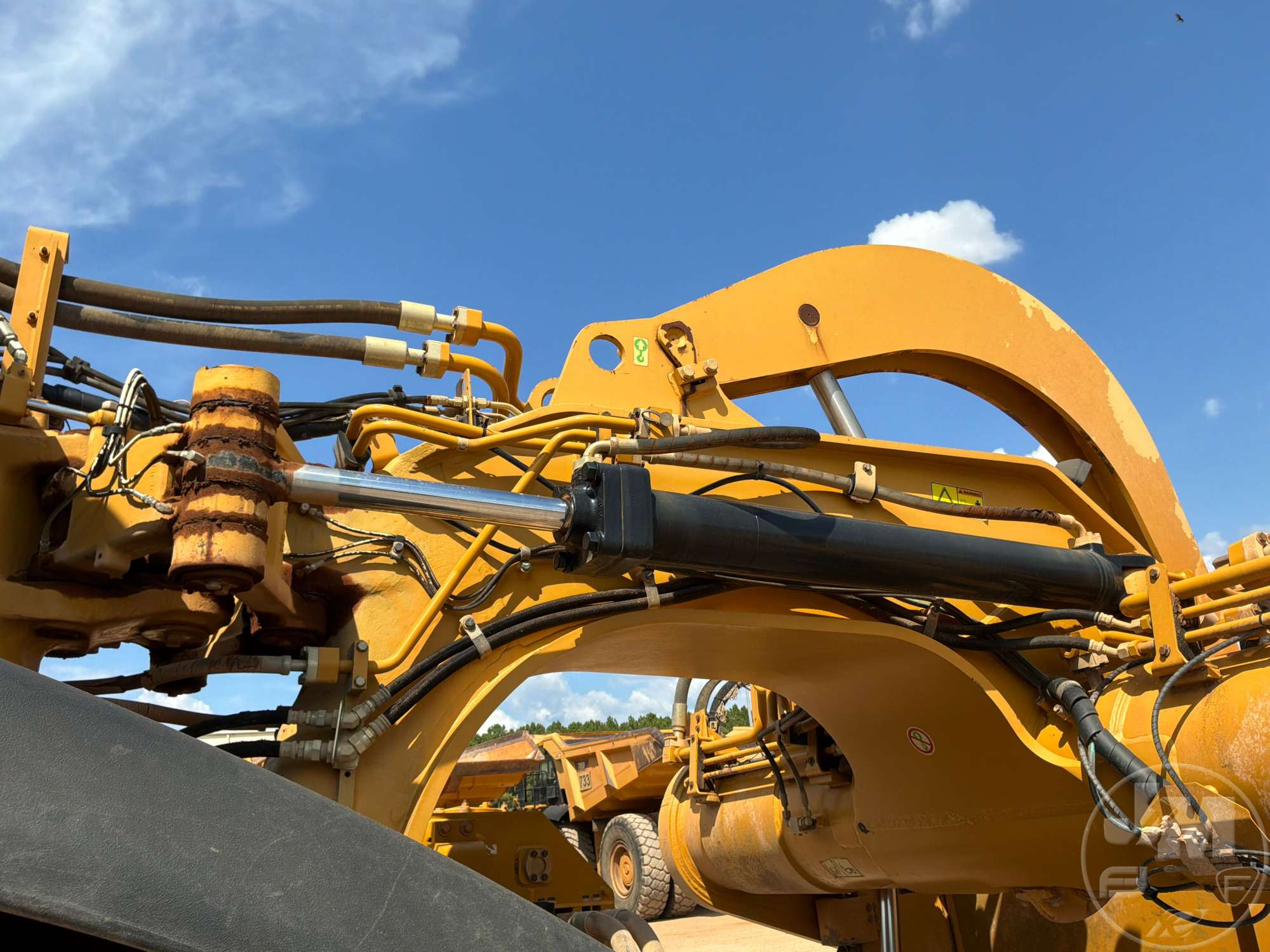

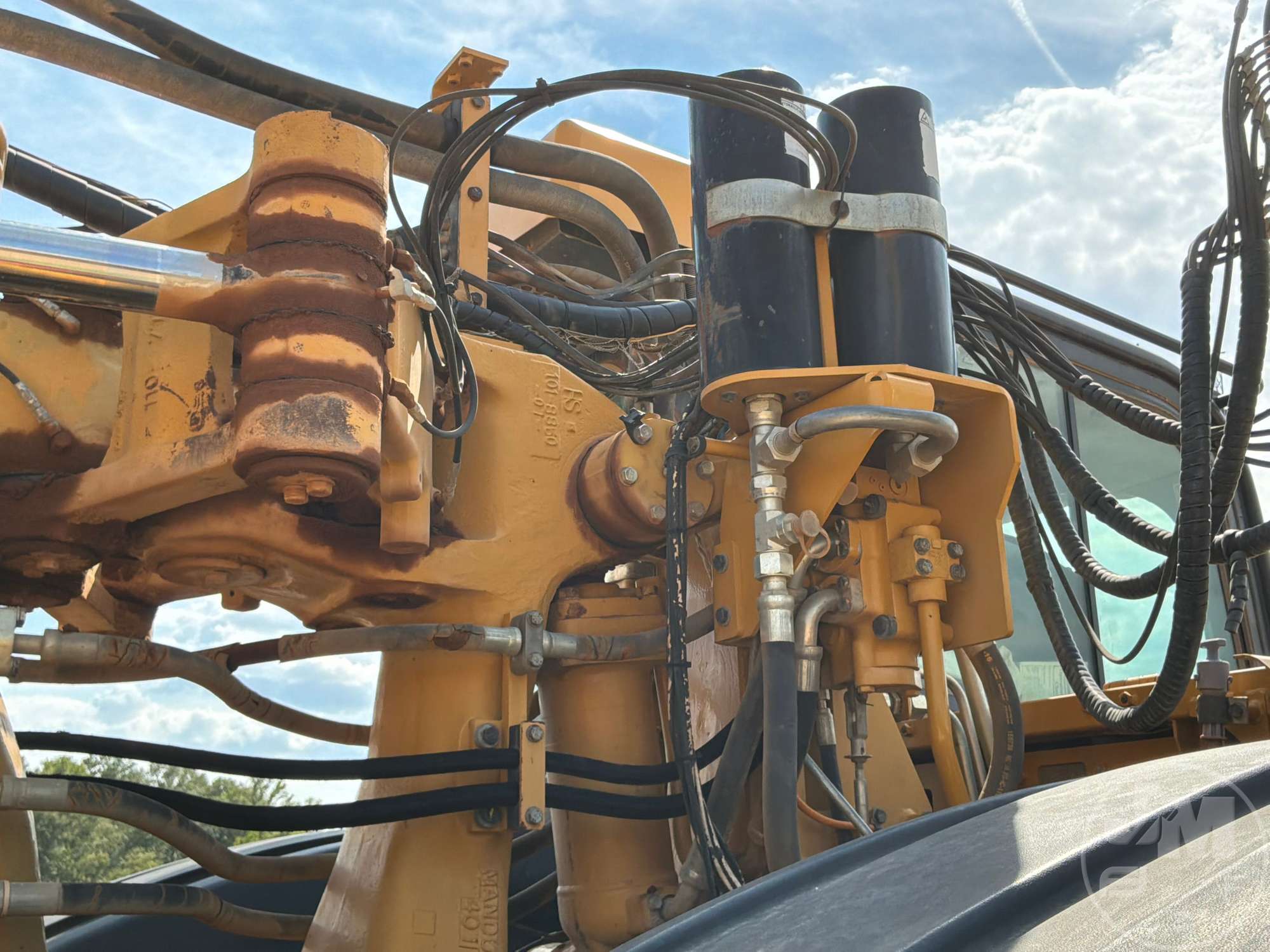

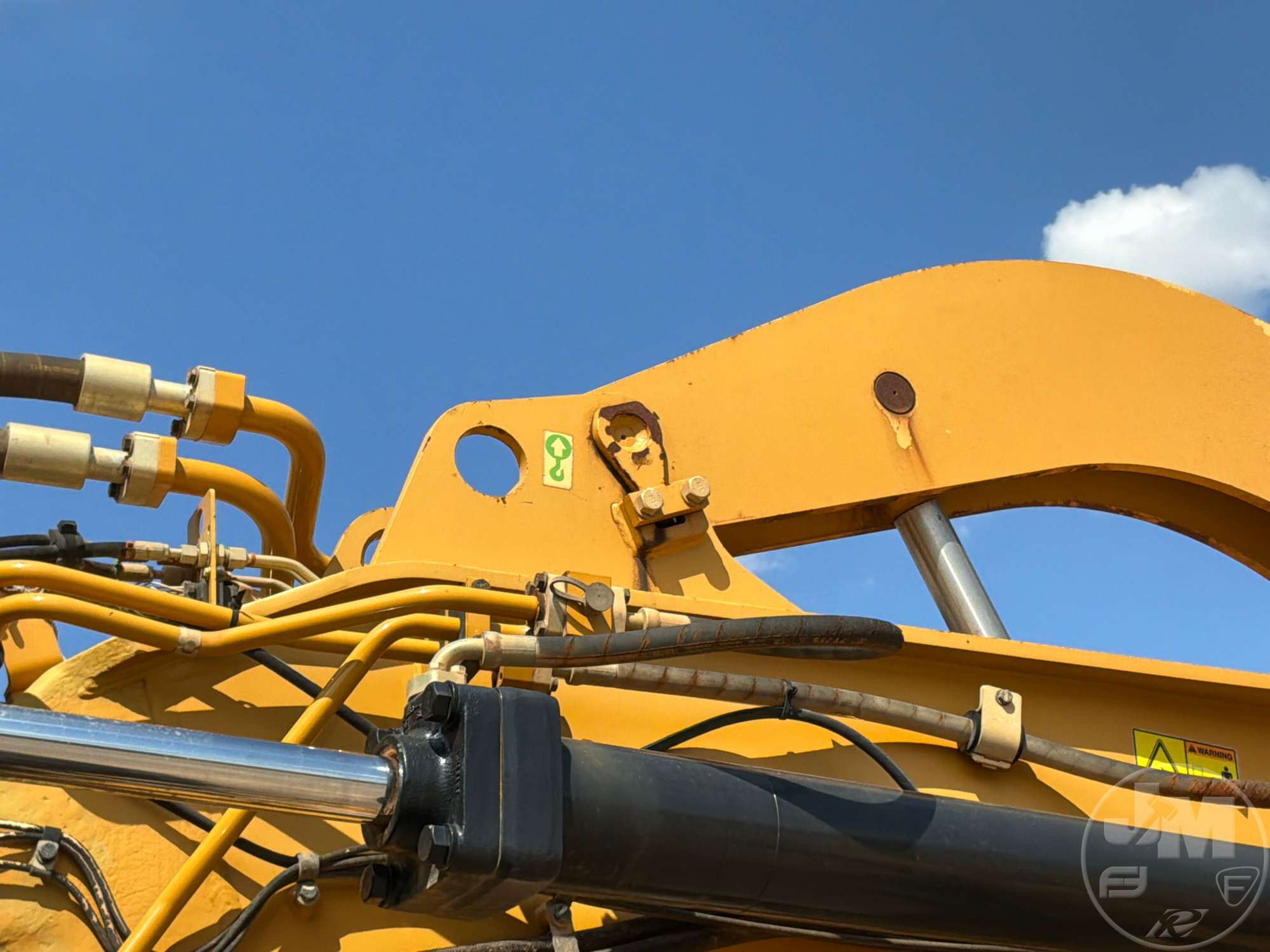

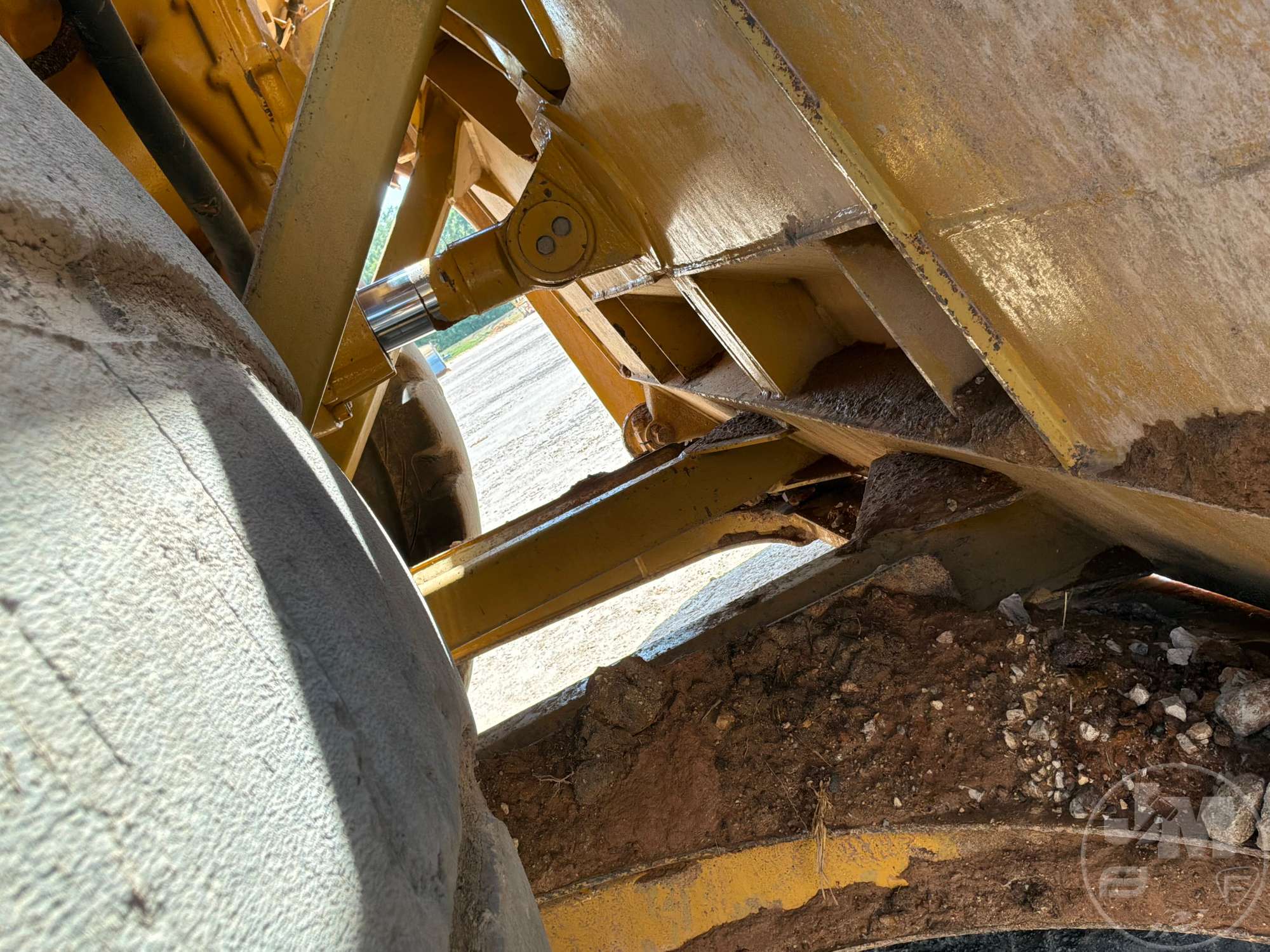

| Hydraulics |
|
Apron Cylinder Bore |
6 in (15 cm)
|
|
Apron Cylinder Stroke |
22 in (56 cm)
|
|
Bowl Cylinder Bore |
6 in (14 cm)
|
|
Bowl Cylinder Stroke |
33 in (85 cm)
|
|
Cushion Hitch Circuit Flow |
11 gpm (40 lpm)
|
|
Ejector Cylinder Bore |
6 in (14 cm)
|
|
Ejector Cylinder Stroke |
61 in (155 cm)
|
|

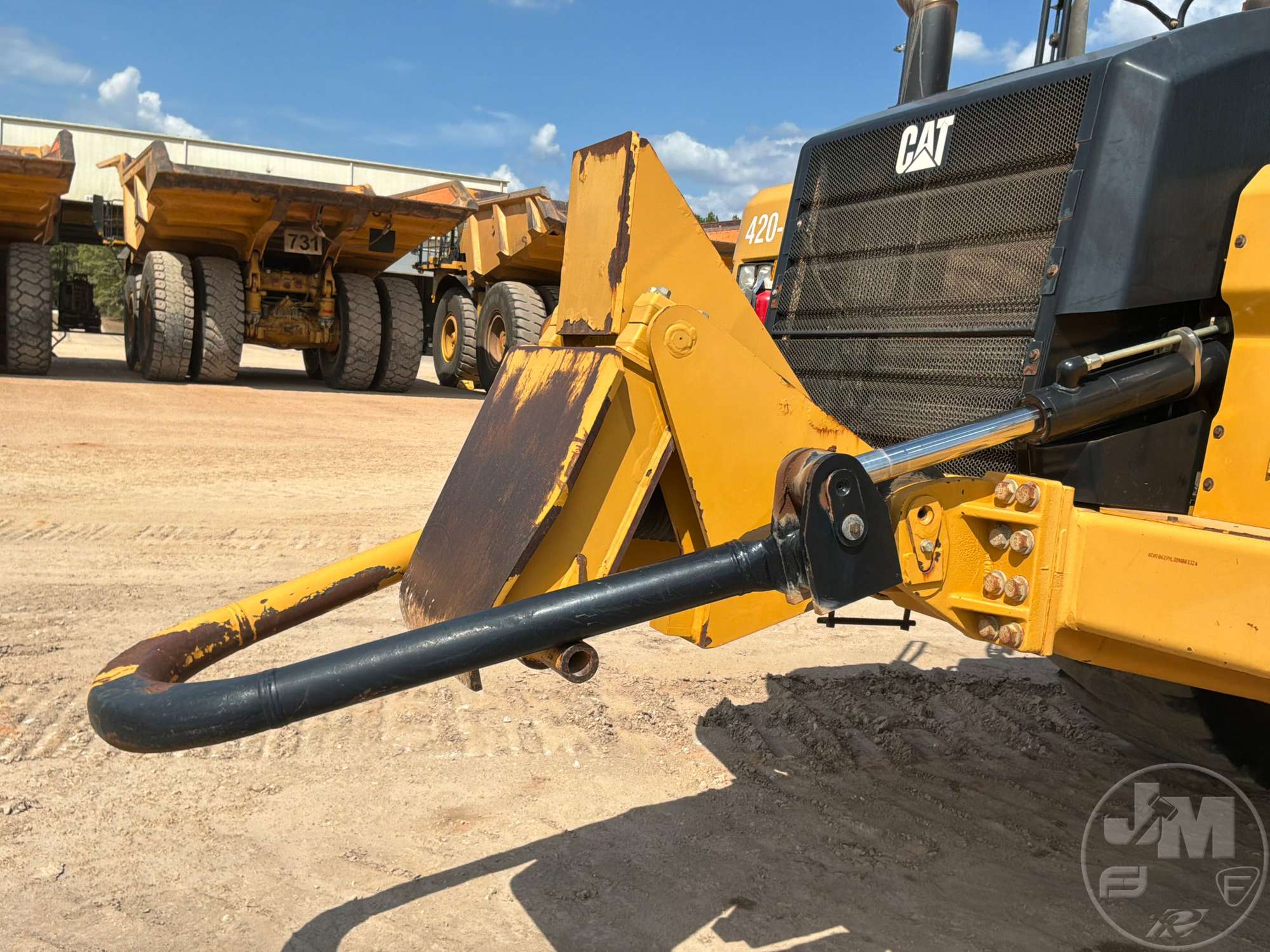

Push/Pull Bail Cylinder Bore |
4 in (9 cm)
|
|
Push/Pull Bail Cylinder Stroke |
16 in (41 cm)
|
|
Scraper Circuit Flow |
66 gpm (250 lpm)
|
|
Secondary Steering Circuit Flow |
10 gpm (39 lpm)
|
|
Steering Circuit Flow |
62 gpm (234 lpm)
|
| Operational |
|
Cooling System Fluid Capacity |
19 gal (72 l)
|
|
Differential Fluid Capacity |
14 gal (53 l)
|
|
Engine Oil Fluid Capacity |
8 gal (28 l)
|
|
Fuel Capacity |
336 gal (1,272 l)
|
|
Transmission Fluid Capacity |
13 gal (49 l)
|

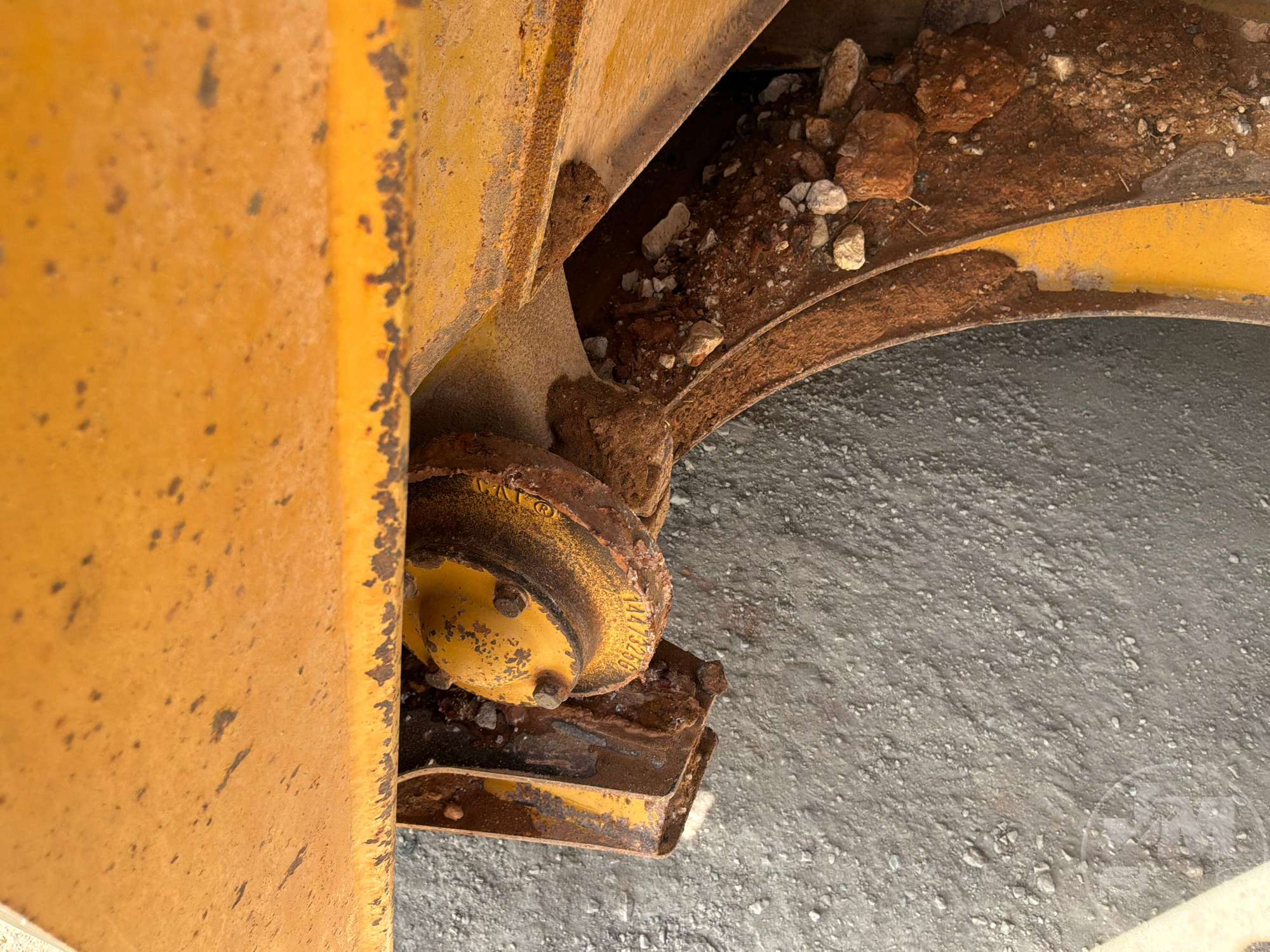

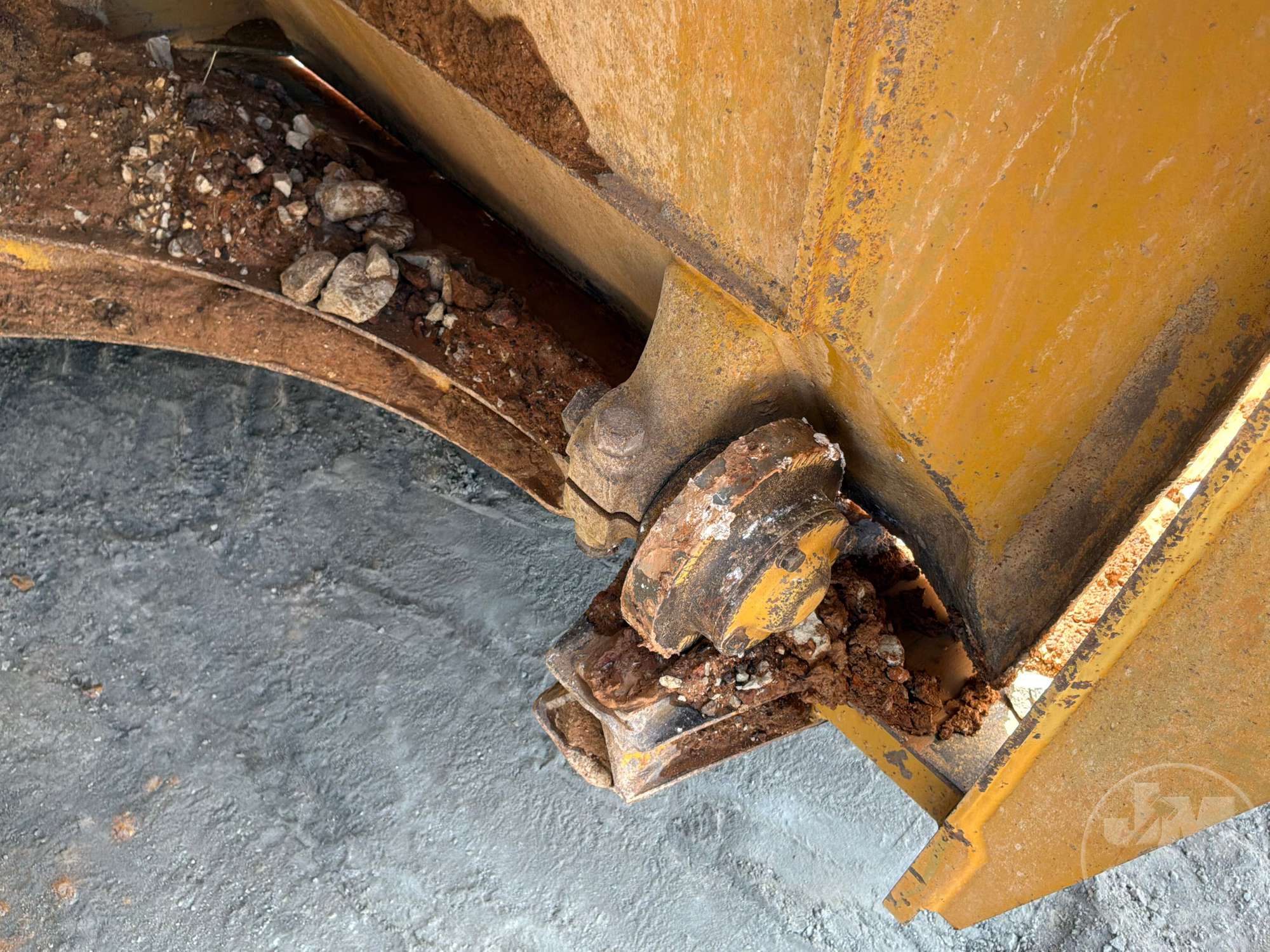

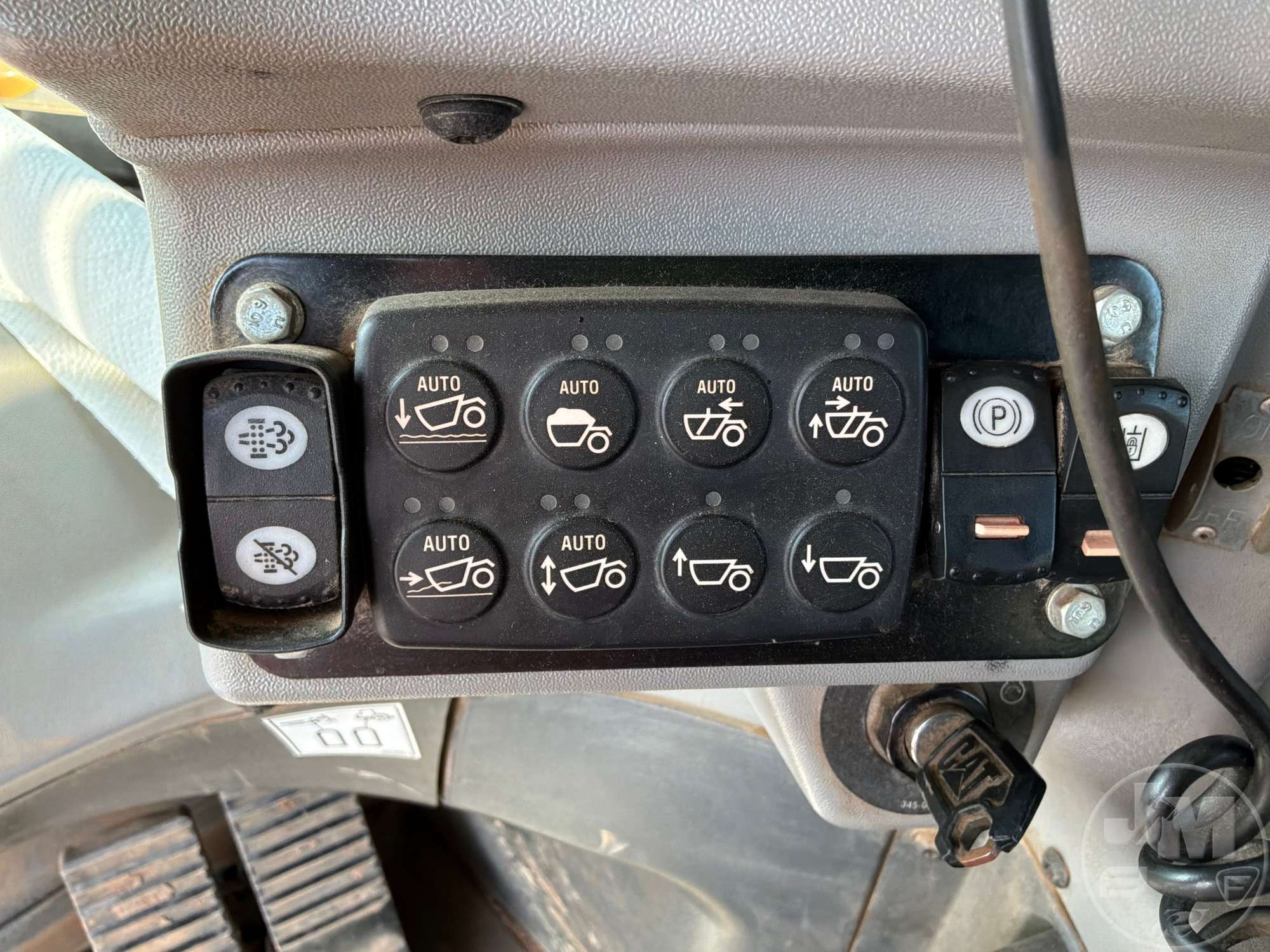

| Scraper Bowl |
|
Heaped Capacity |
24 cu yd |
|
Maximum Apron Closure Force |
50,580 lbs (22,943 kg)
|
|
Maximum Apron Opening |
70 in (177 cm)
|
|
Maximum Depth Of Cut |
12 in (32 cm)
|
|
Maximum Depth Of Spread |
21 in (54 cm)
|
|
Maximum Ground Clearance At Cutting Edge |
23 in (59 cm)
|
|
Maximum Hydraulic Penetration Force |
130,390 lbs (59,144 kg)
|
|
Rated Load |
57,600 lbs (26,127 kg)
|
|
Scraper Capacity - Heaped |
24 cu yd |
|
Struck Capacity |
17 cu yd |
|
Thickness - Cutting Edge |
1 in (2 cm)
|
|
Width - Cut - Outside Router Bits |
124 in (314 cm)
|

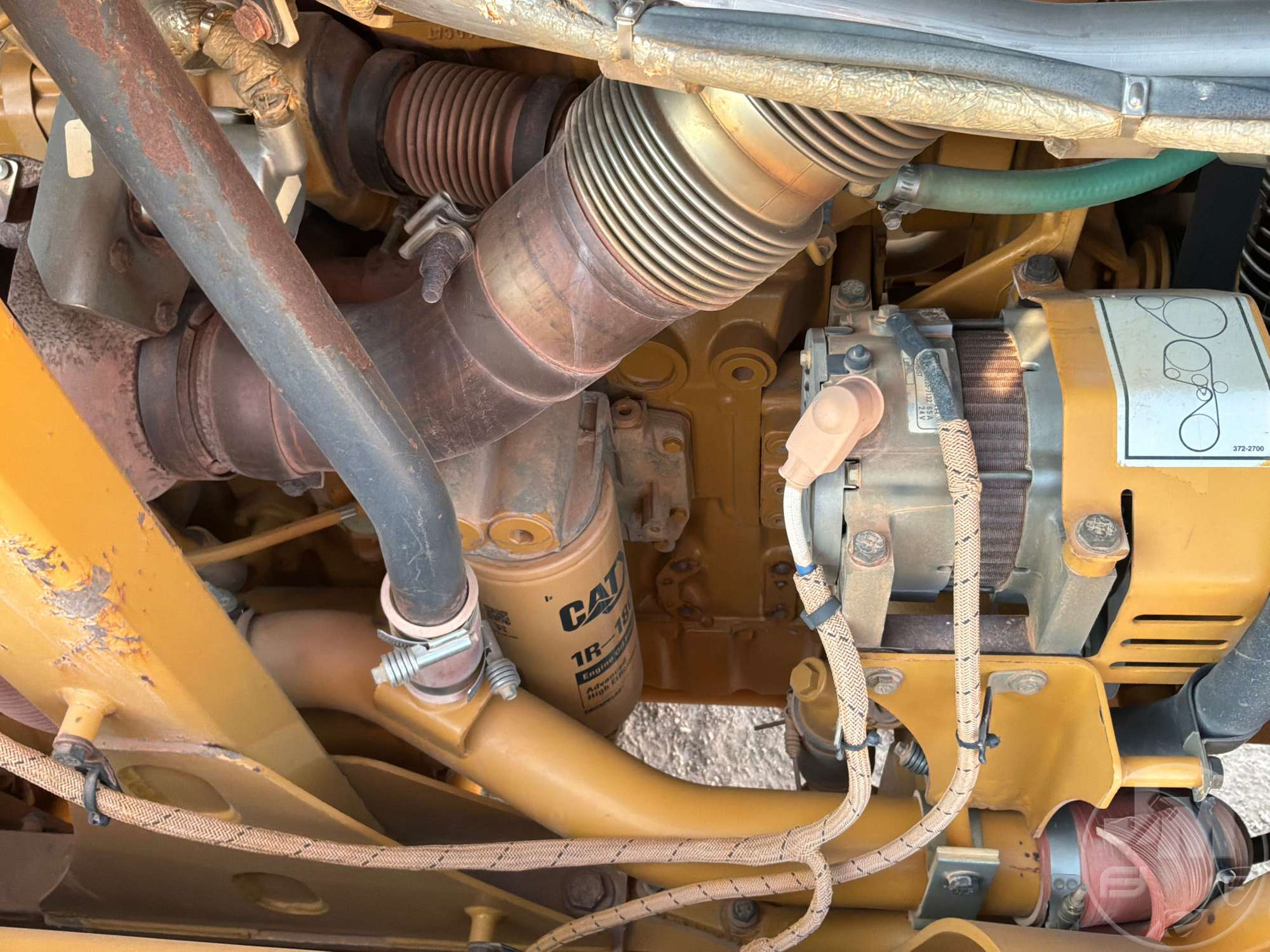

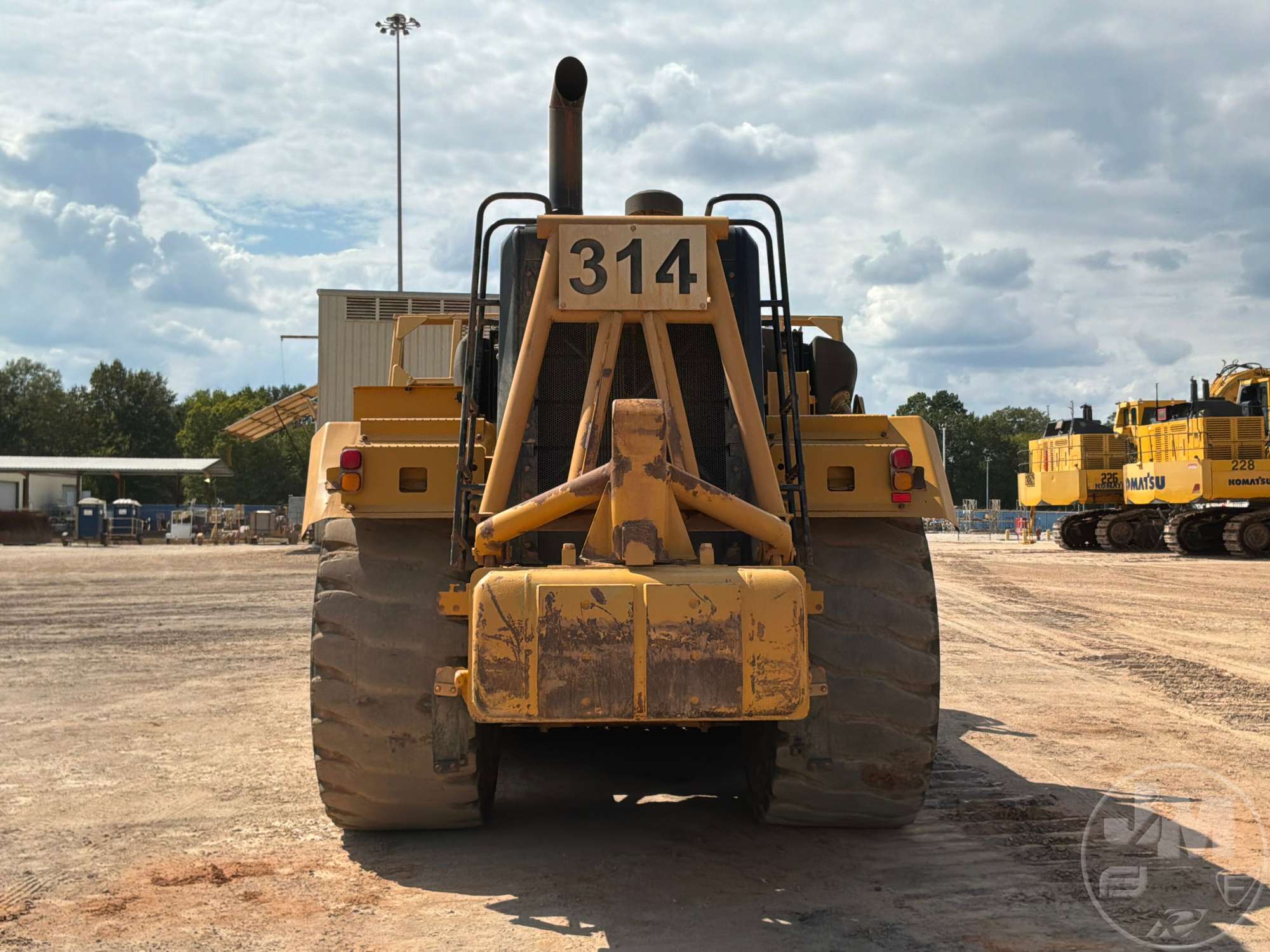

| Scraper Engine |
|
Gross Power |
290 hp (216 kw)
|
|
Make |
Caterpillar |
|
Maximum Power |
290 hp (216 kw)
|
| Scraper Engine - Prior U.S. Epa Tier 3/Eu Stage Iiia Configuration* |
|
Bore |
5 in (11 cm)
|
|
Displacement |
567 cu in (9,291 cu cm)
|
|
Maximum Power - All Gears - Iso 14396 |
290 hp (216 kw)
|
|
Maximum Power Reference Engine Speed |
1,900 rpm |
|
Stroke |
6 in (15 cm)
|
|
Tractor Engine |
Cat C9 ACERT |
| Scraper Engine - U.S. Epa Tier 4 Interim/Eu Stage Iiib |
|
Bore |
5 in (11 cm)
|
|
Displacement |
567 cu in (9,291 cu cm)
|
|
Maximum Power - All Gears - Iso 14396 |
290 hp (216 kw)
|
|
Maximum Power Reference Engine Speed |
1,900 rpm |
|
Stroke |
6 in (15 cm)
|
|
Tractor Engine |
Cat C9.3 ACERT |
| Service Refill Capacities - Scraper |
|
Cooling System |
19 gal (72 l)
|
|
Differential |
14 gal (53 l)
|
|
Engine Crankcase |
8 gal (28 l)
|
|
Final Drive - Each |
5 gal (19 l)
|
|
Fuel Tank |
336 gal (1,272 l)
|
|
Transmission |
13 gal (49 l)
|
| Service Refill Capacities - Tractor |
|
Cooling System |
17 gal (64 l)
|
|
Differential |
46 gal (173 l)
|
|
Engine Crankcase |
9 gal (33 l)
|
|
Final Drive - Each |
5 gal (19 l)
|
|
Hydraulic Reservoir |
22 gal (83 l)
|
|
Transmission |
19 gal (70 l)
|
|
Windshield Washer Reservoir |
1 gal (5 l)
|

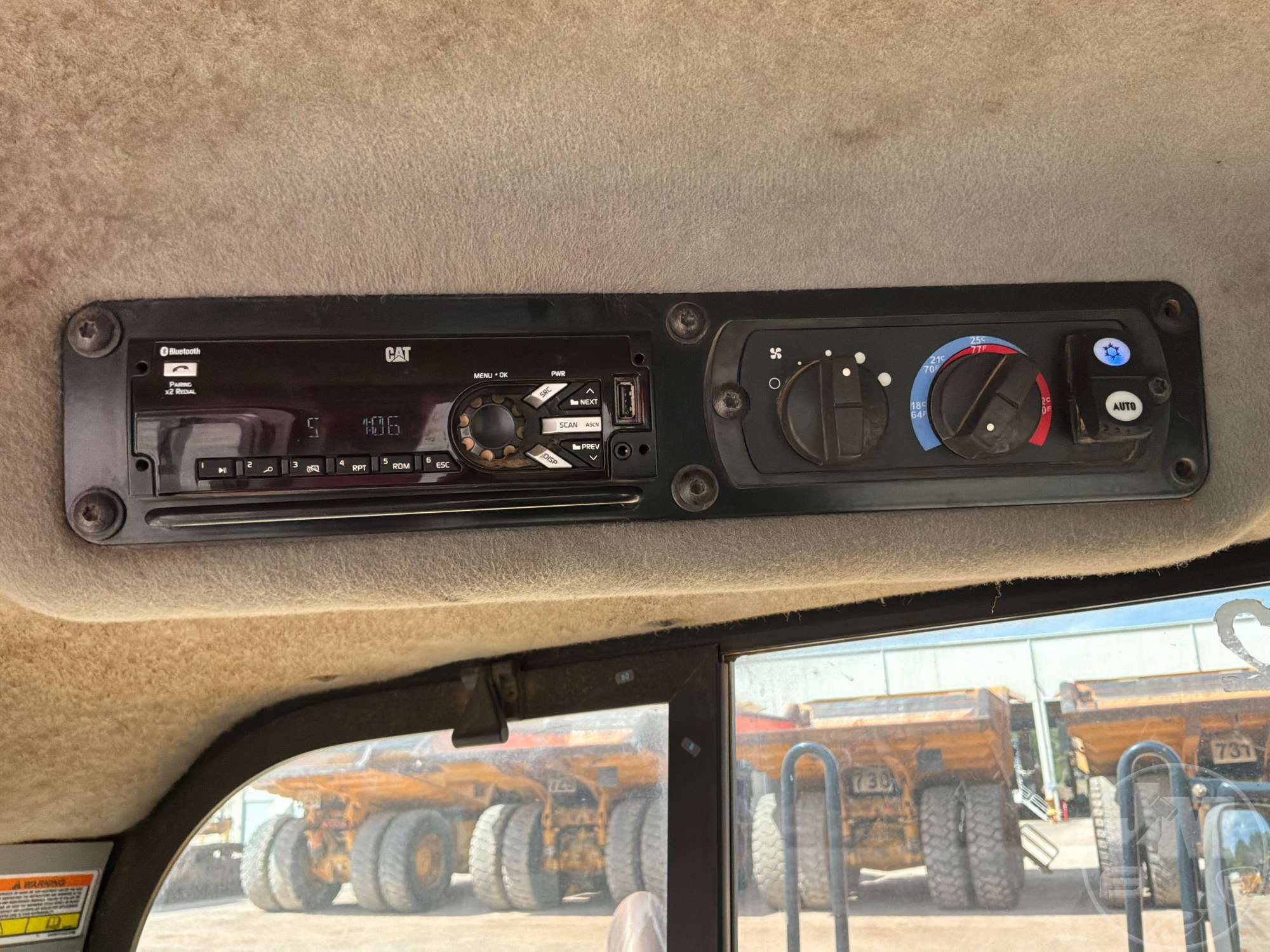

| Standards |
|
Standards |
Standards |

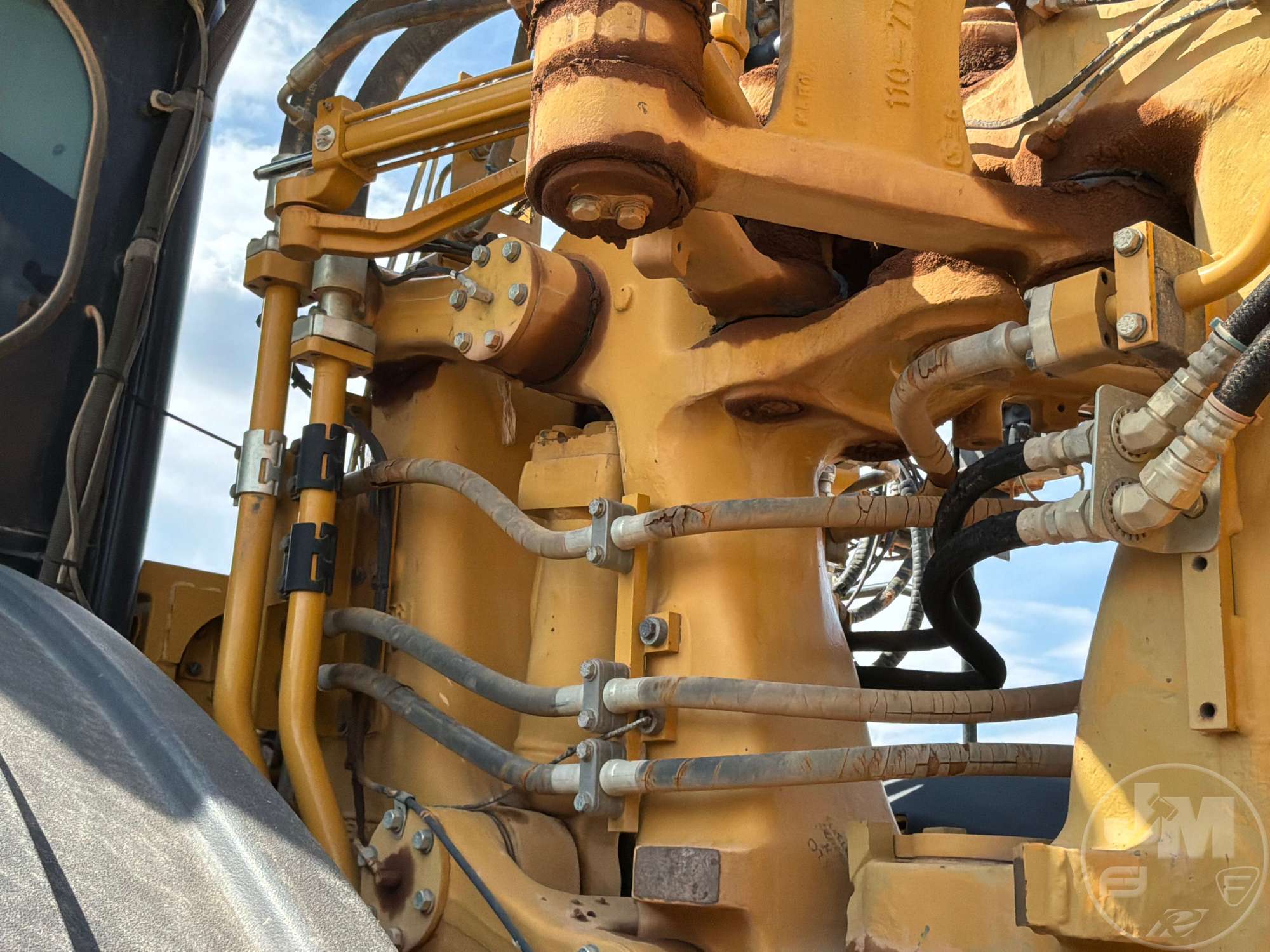

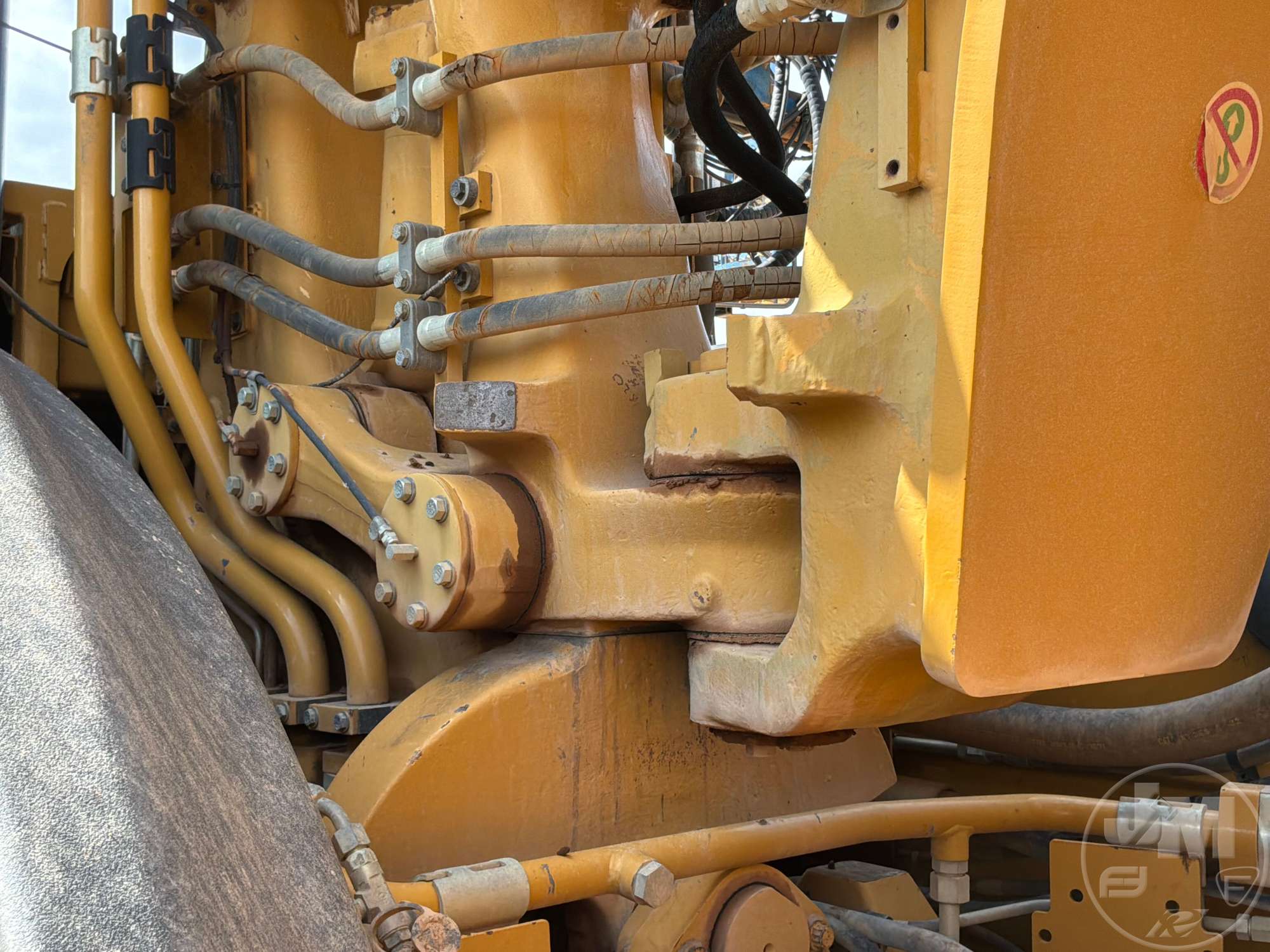

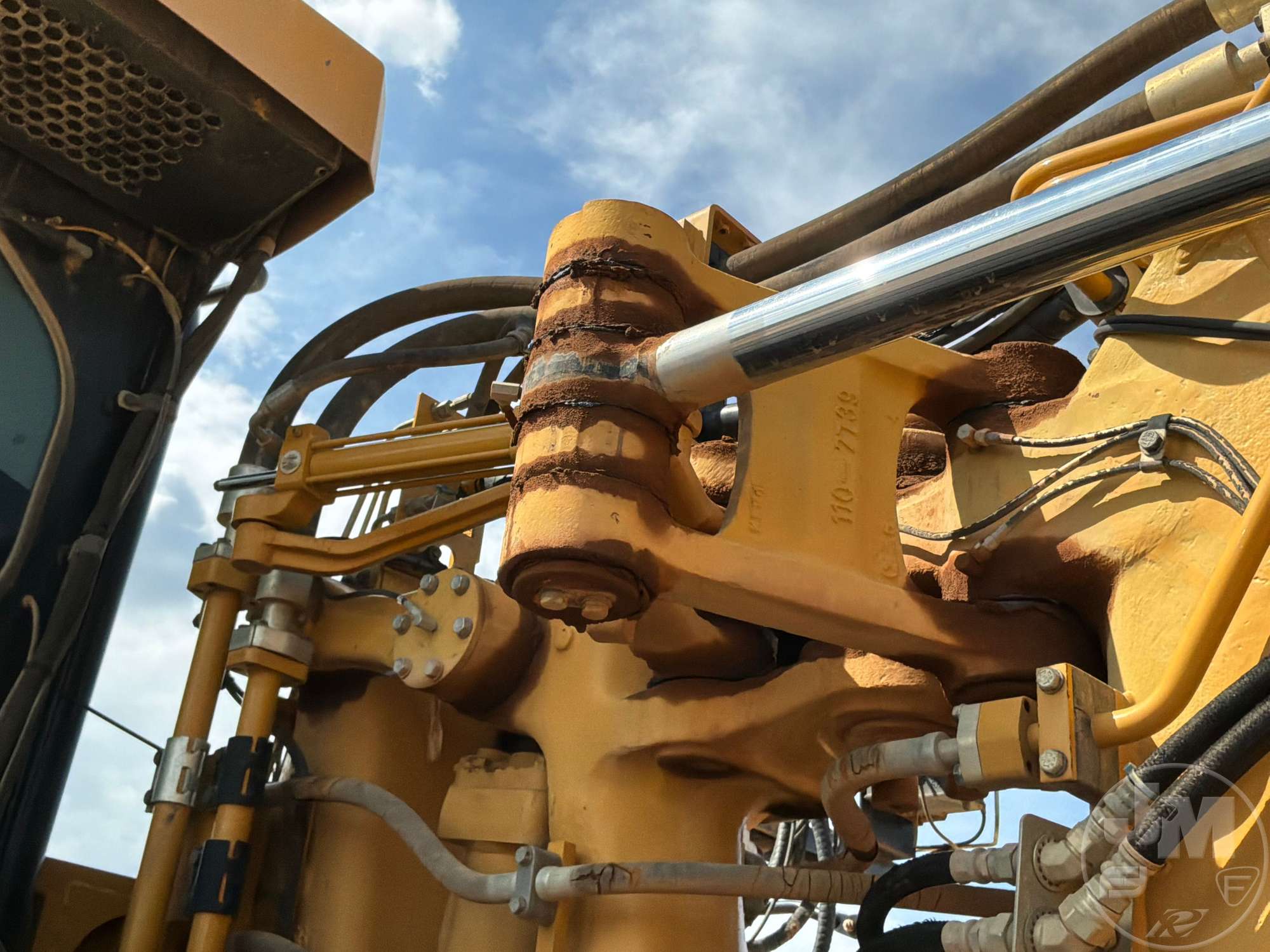

| Steering |
|
Steering Angle - Left |
82 |
|
Steering Angle - Right |
85 |

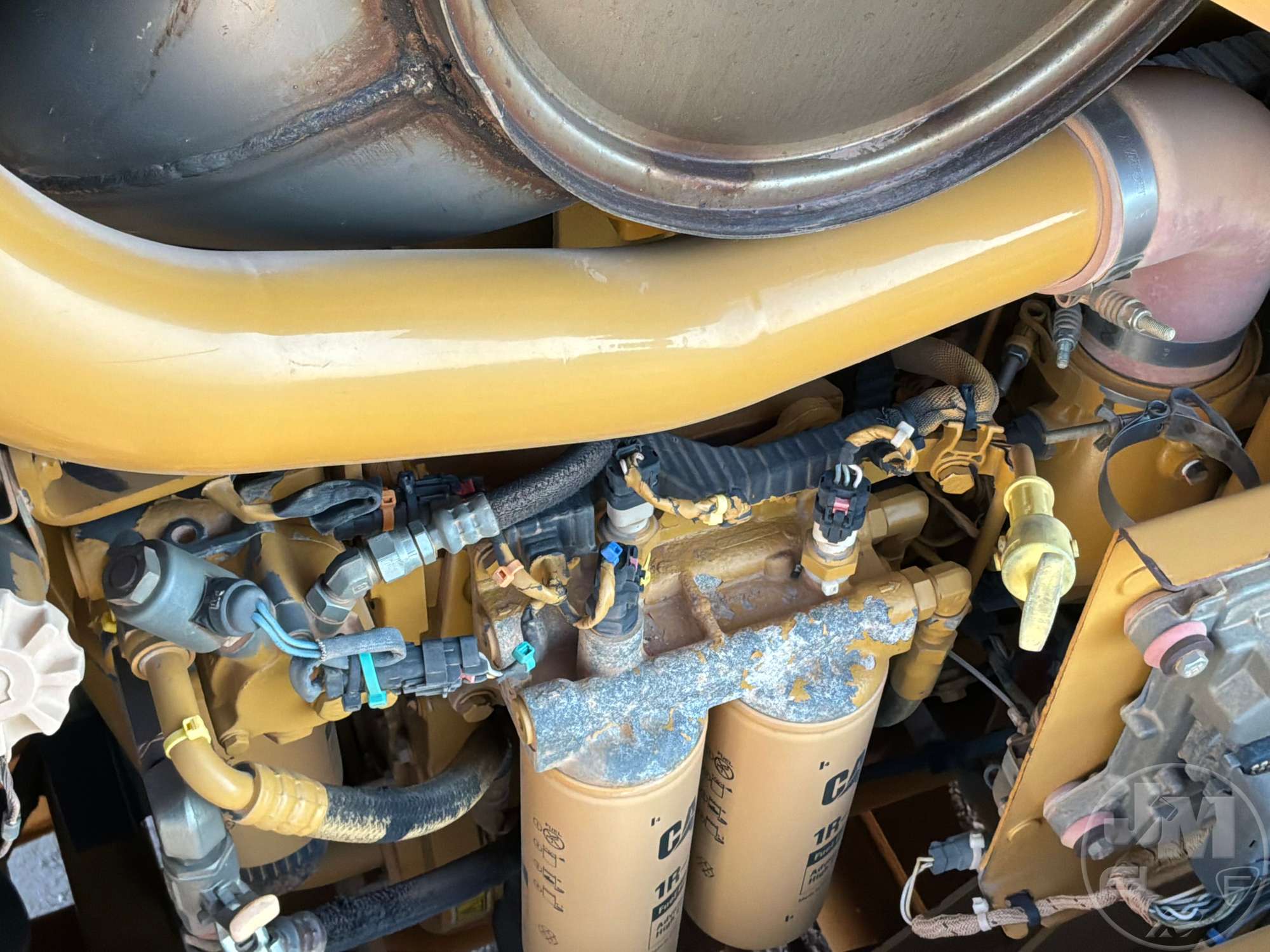

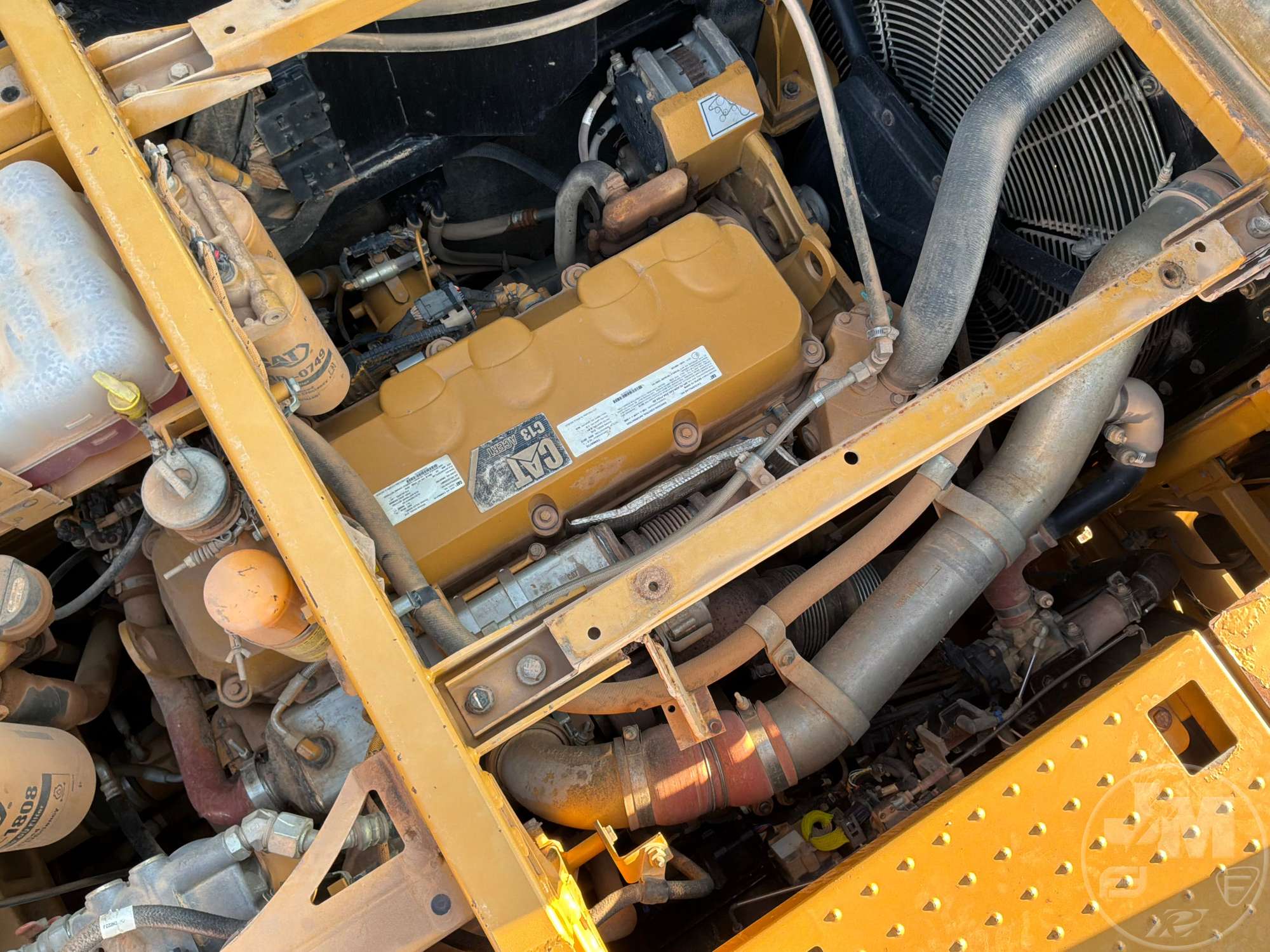

| Tractor Engine |
|
Displacement |
763 cu in (12,503 cu cm)
|
|
Flywheel Power - Tractor/Scraper |
304 kW (407 hp)/216 kW (290 hp) |
|
Gross Power |
407 hp (304 kw)
|
|
Make |
Caterpillar |
|
Maximum Power |
407 hp (304 kw)
|
|
Power Measured @ |
1,700 rpm |
| Tractor Engine - Prior U.S. Epa Tier 3/Eu Stage Iiia Configuration* |
|
Bore |
5 in (13 cm)
|
|
Displacement |
763 cu in (12,503 cu cm)
|
|
Maximum Power - All Gears - Iso 14396 |
407 hp (304 kw)
|
|
Maximum Power Reference Engine Speed |
1,700 rpm |
|
Stroke |
6 in (16 cm)
|
|
Tractor Engine |
Cat C13 ACERT |
| Tractor Engine - U.S. Epa Tier 4 Interim/Eu Stage Iiib |
|
Bore |
5 in (13 cm)
|
|
Displacement |
763 cu in (12,503 cu cm)
|
|
Maximum Power - All Gears - Iso 14396 |
407 hp (304 kw)
|
|
Maximum Power Reference Engine Speed |
1,700 rpm |
|
Stroke |
6 in (16 cm)
|
|
Tractor Engine |
Cat C13 ACERT |

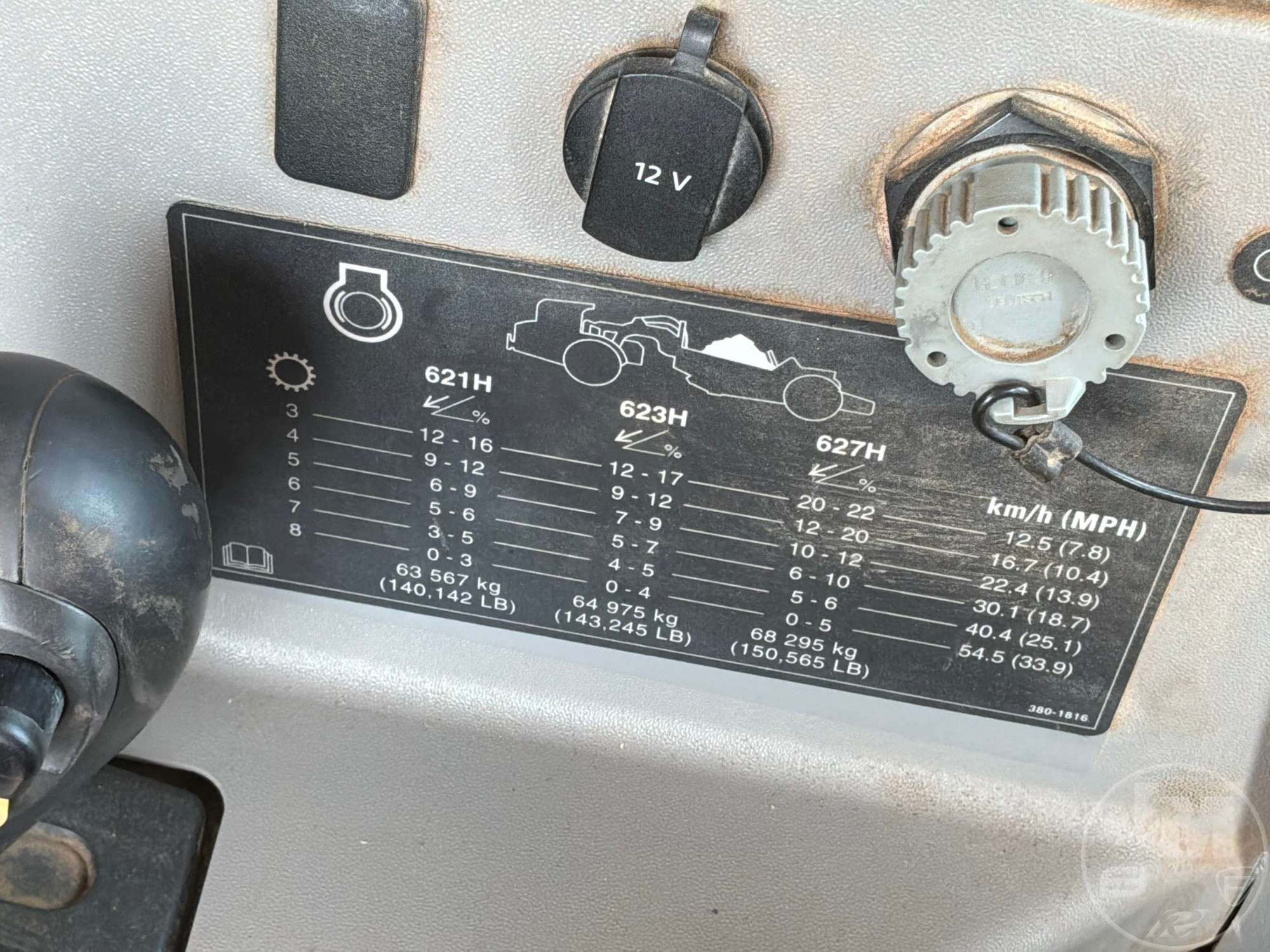

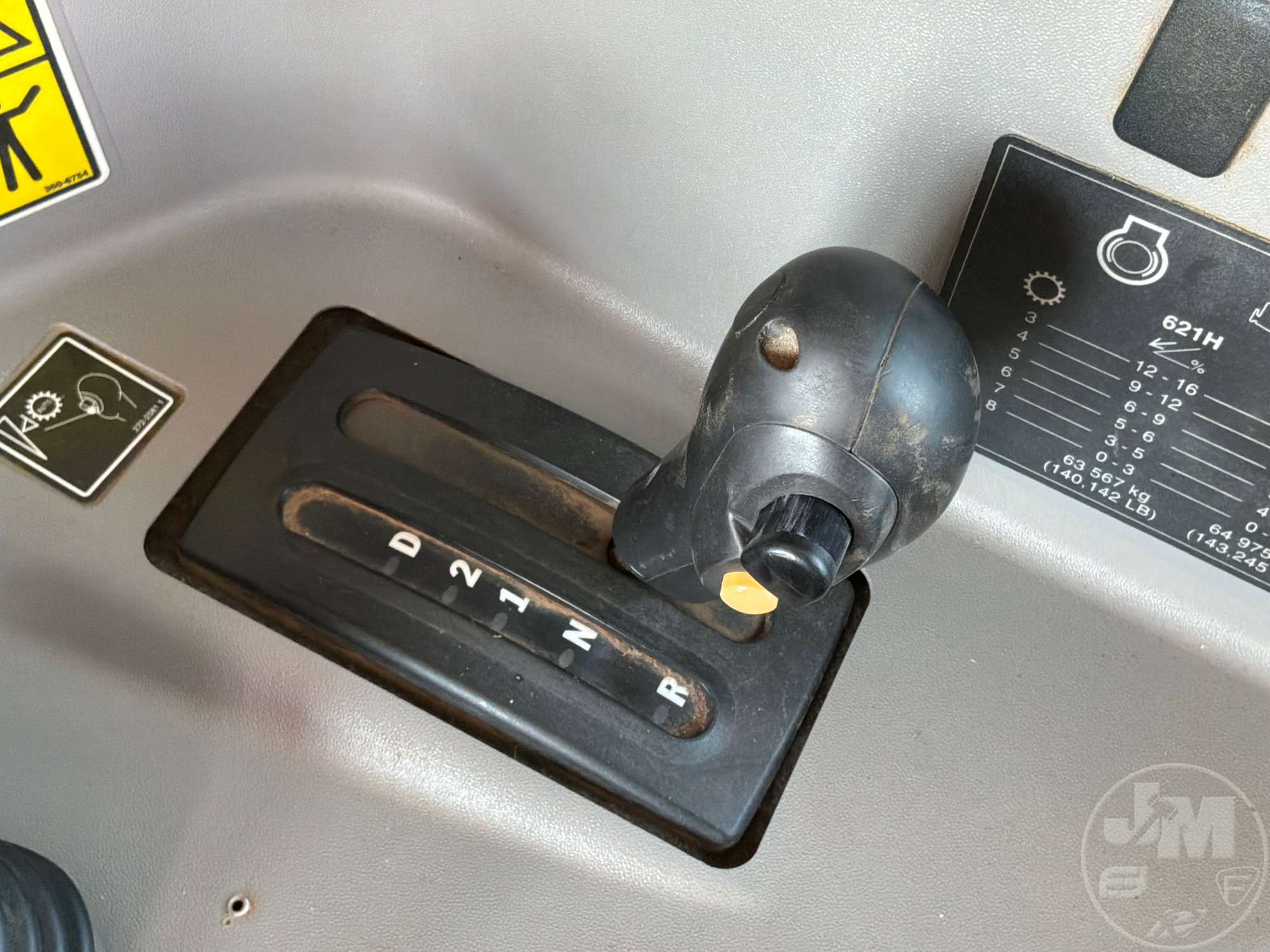

| Transmission |
|
1 Forward |
3 mph (5 kph)
|
|
2 Forward |
6 mph (9 kph)
|
|
3 Forward |
8 mph (12 kph)
|
|
4 Forward |
10 mph (16 kph)
|
|
5 Forward |
14 mph (22 kph)
|
|
6 Forward |
18 mph (30 kph)
|
|
7 Forward |
25 mph (40 kph)
|
|
8 Forward |
34 mph (54 kph)
|
|
Max Speed Forward |
34 mph (54 kph)
|
|
Max Speed Reverse |
6 mph (9 kph)
|
|
Number Of Forward Gears |
8 |
|
Number Of Reverse Gears |
1 |
|
Reverse |
5.7 mile/h |
|
Top Speed - Loaded |
34 mph (54 kph)
|
| Weights - Machines Achieving Prior U.S. Epa Tier 3/Eu Stage Iiia Emission Levels |
|
Push-Pull - Loaded - Based On A Rated Load |
149,654 lbs (67,882 kg)
|
|
Push-Pull - Operating Weight - Full Fuel Tanks |
91,981 lbs (41,722 kg)
|
|
Push-Pull - Shipping Weight - 10% Fuel |
89,818 lbs (40,741 kg)
|
|
Standard - Loaded, Based On A Rated Load |
146,887 lbs (66,627 kg)
|
|
Standard - Operating Weight - Full Fuel Tanks |
89,287 lbs (40,500 kg)
|
|
Standard - Shipping Weight - 10% Fuel |
87,052 lbs (39,486 kg)
|
| Weights - Machines Meeting U.S. Epa Tier 4 Interim/Eu Stage Iiib Emission Standards |
|
Push-Pull - Loaded - Based On A Rated Load |
150,565 lbs (68,295 kg)
|
|
Push-Pull - Operating Weight - Full Fuel Tanks |
92,964 lbs (42,168 kg)
|
|
Push-Pull - Shipping Weight - 10% Fuel |
90,729 lbs (41,154 kg)
|
|
Standard - Loaded, Based On A Rated Load |
147,798 lbs (67,040 kg)
|
|
Standard - Operating Weight - Full Fuel Tanks |
90,198 lbs (40,913 kg)
|
|
Standard - Shipping Weight - 10% Fuel |
87,962 lbs (39,899 kg)
|
