2003 Caterpillar 216 For Sale in Atlanta, Ga

Name: 2003 Caterpillar 216
Brand: Caterpillar
SKU: 89040410
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-02 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	5212

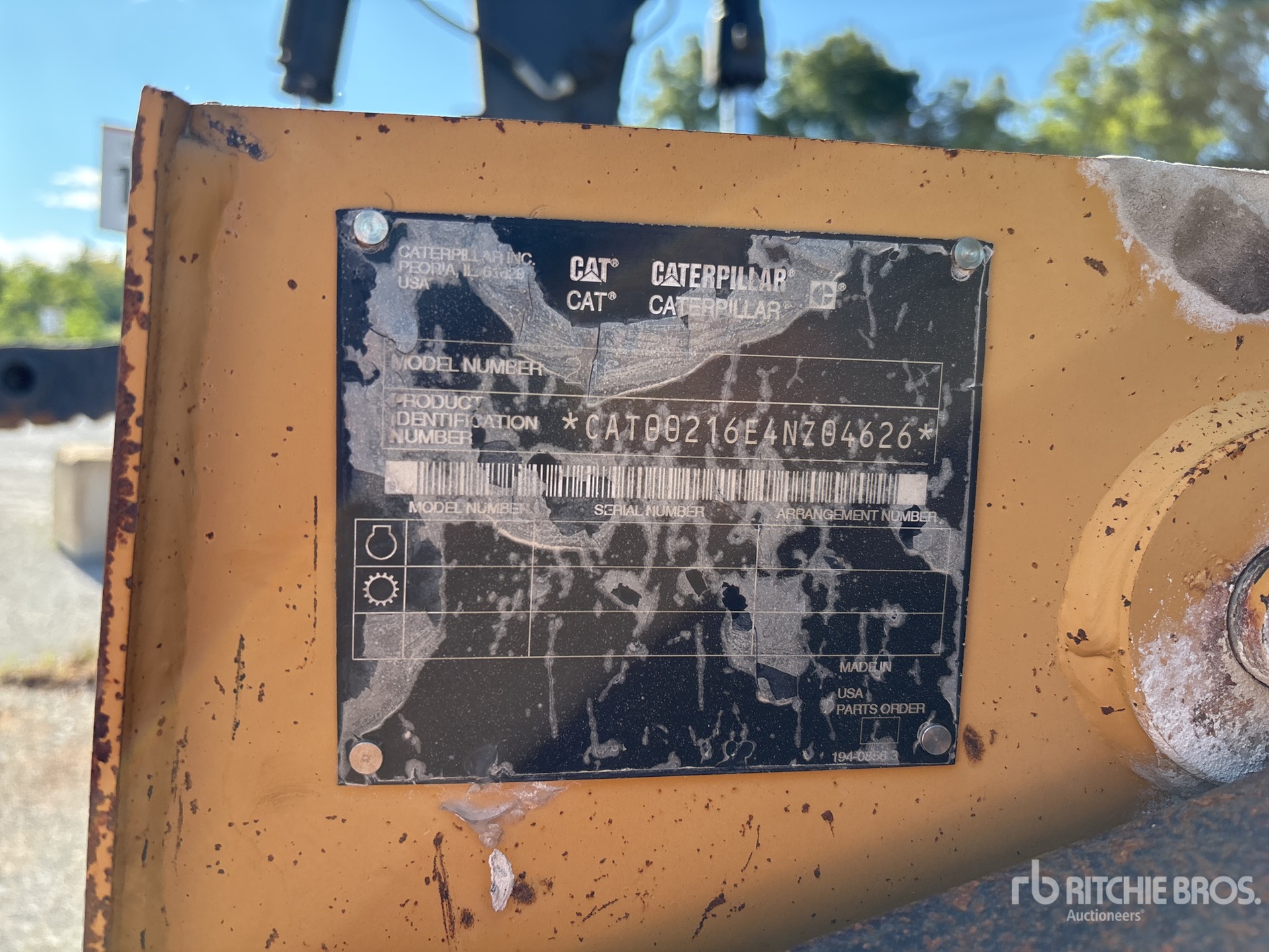

Serial Number:	CAT00216E4NZ04626
Machine Location:	ATLANTA, GA

Description:

Open Operator Station, 62 in Bucket multiple wires pulled and sitting on seat - Buyer's responsibility for removal of this item Closing Time: 2026-09-02 12:01:12 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Cab
FOPS	SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I
FOPS Level II	SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional)
ROPS	SAE J1040 MAY94 and ISO3471:1994
Dimensions
Bucket Pin Height - Carry Position	9 in (24 cm)
Bucket Pin Height - Maximum Lift	9 ft (3 m)
Bumper Overhang - Rear Axle	38 in (97 cm)
Clearance at Max Lift and Dump	7 ft (2 m)
Clearance at Maximum Lift and Dump	85 in (217 cm)
Ground Clearance	8 in (20 cm)
Length - With Bucket on Ground	127 in (323 cm)
Length - Without Bucket	99 in (251 cm)
Length w/o Bucket	8 ft (3 m)
Length with Bucket	11 ft (3 m)
Maximum Overall Height	146 in (371 cm)
Reach - Maximum Lift/Dump	20 in (51 cm)
Reach at Max Lift and Dump	22 in (55 cm)
Turning Radius from Center - inc bucket	79 in (202 cm)
Vehicle Width over Tires	60 in (152 cm)
Wheel Base	3 ft (1 m)
Wheelbase	3 ft (1 m)
Width Over Tires	6 ft (2 m)
Engine
Bore	3 in (9 cm)
Displacement	134 cu in (2,196 cu cm)
Engine Make	Caterpillar
Engine Model	Cat 3024C
Net Flywheel Power	48 hp (36 kw)
Number of Cylinders	4
Power Measured @	3,000 rpm
Stroke	4 in (10 cm)
Hydraulic
Hydraulic Flow	Standard flow
Loader Hydraulic Flow	15 gpm (56 lpm)
Loader Hydraulic Pressure	3,100 psi
Pump Flow Capacity	15 gpm (58 lpm)
Loader
Bucket Capacity	1 cu yd (0 cu m)
Operating Load Rating	1,400 lbs (635 kg)
Tipping Angle	2,600 degrees
Operational
Breakout Force - Lift Cylinder	2,873 lbs (1,303 kg)
Breakout Force - Tilt Cylinder	3,612 lbs (1,638 kg)
Fuel Capacity	17 gal (65 l)
Hydraulic System Fluid Capacity	15 gal (55 l)
Max Speed	7 mph (11 kph)
Operating Speed	7 mph (11 kph)
Operational Weight	5,740 lbs (2,604 kg)
Rated Operating Capacity	1,400 lbs (635 kg)
Rated Operating Capacity with Optional Counterweight	1,500 lbs (680 kg)
Tipping Load	2,800 lbs (1,270 kg)
Service Refill Capacities
Chain Box - Each Side	2 gal (6 l)
Cooling System	2 gal (9 l)
Engine Crankcase	2 gal (8 l)
Fuel Tank	17 gal (64 l)
Hydraulic System	15 gal (55 l)
Hydraulic Tank	9 gal (35 l)
Weights
Operating Weight	5,490 lbs (2,490 kg)
