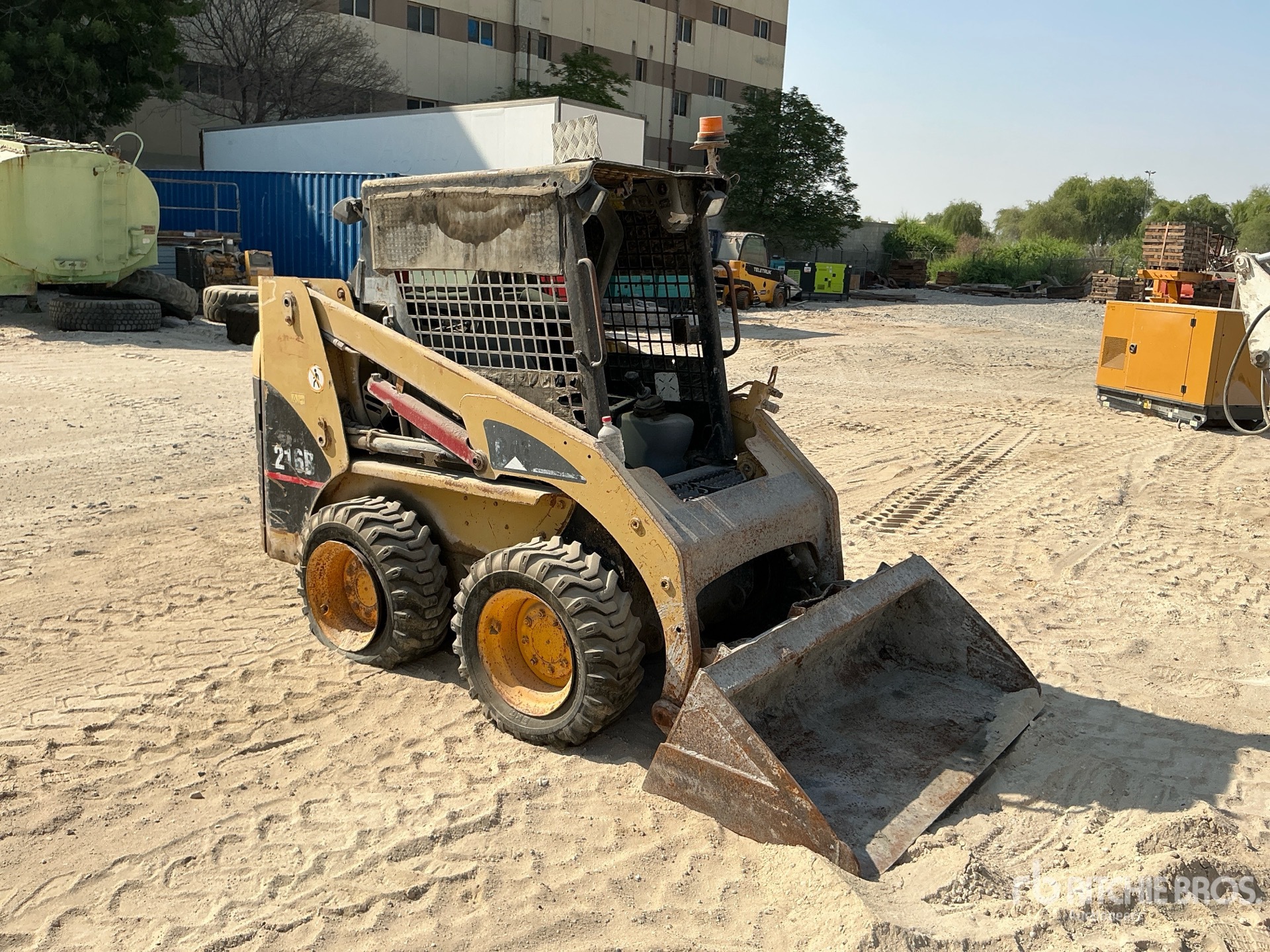

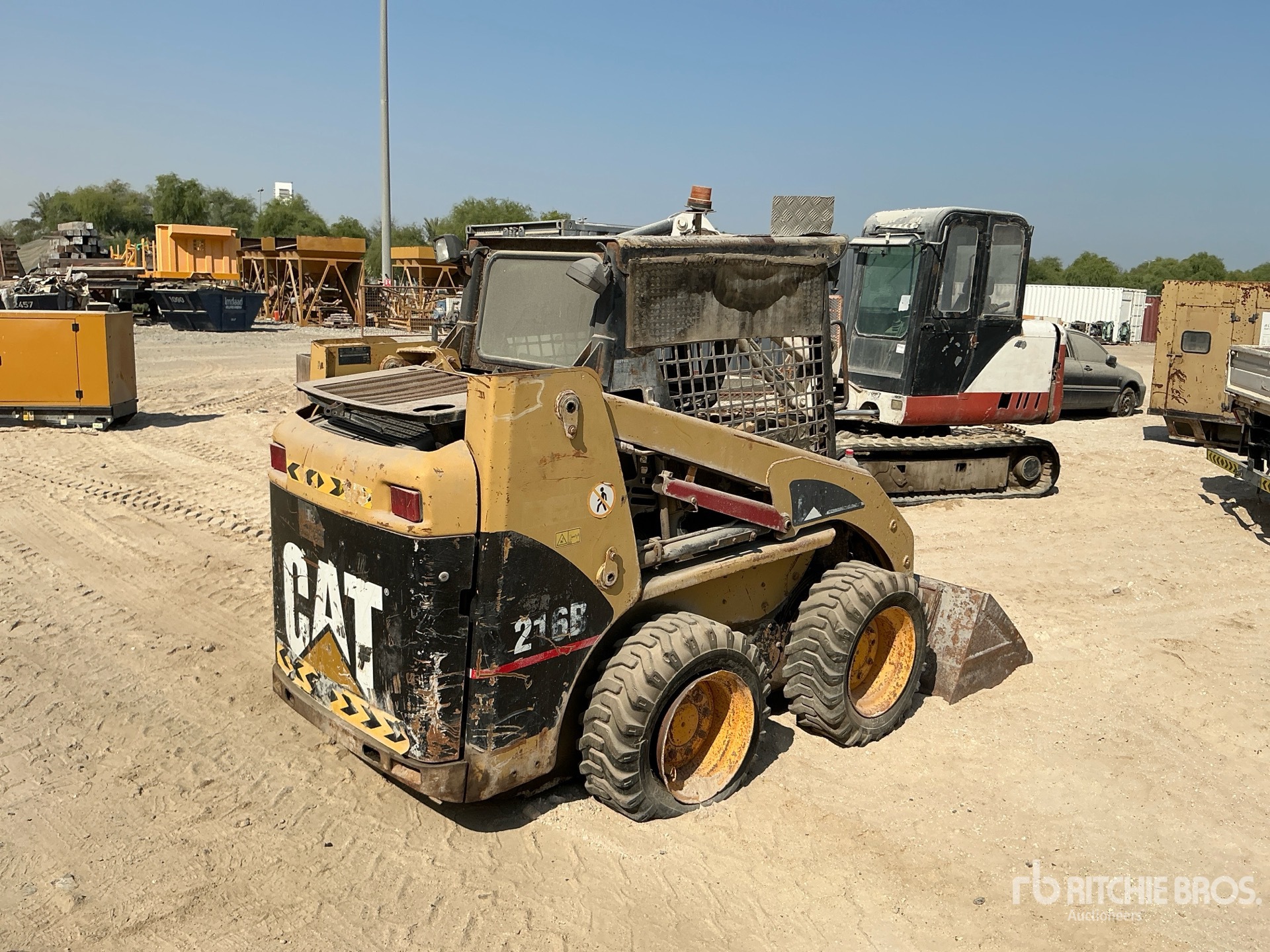

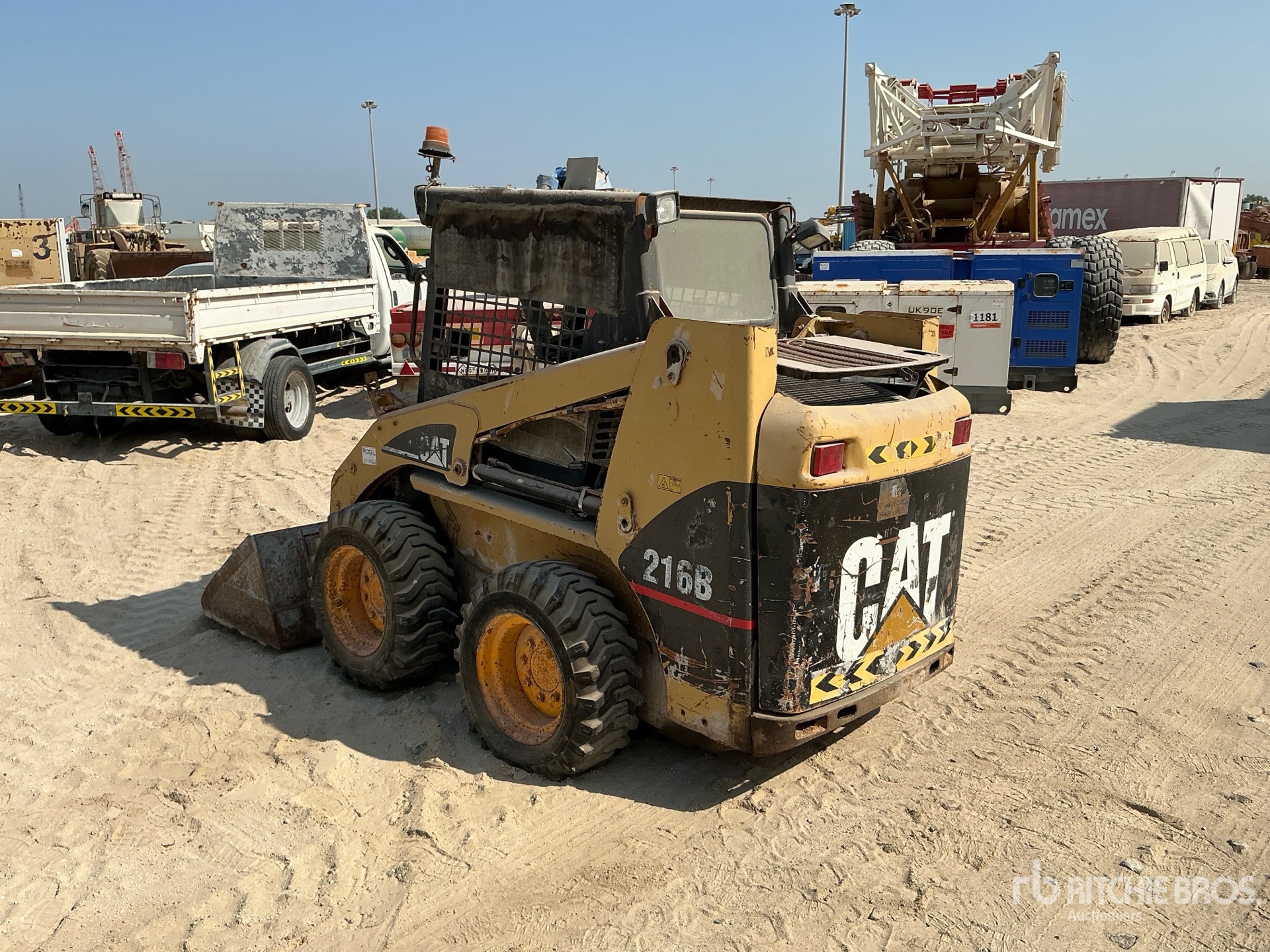

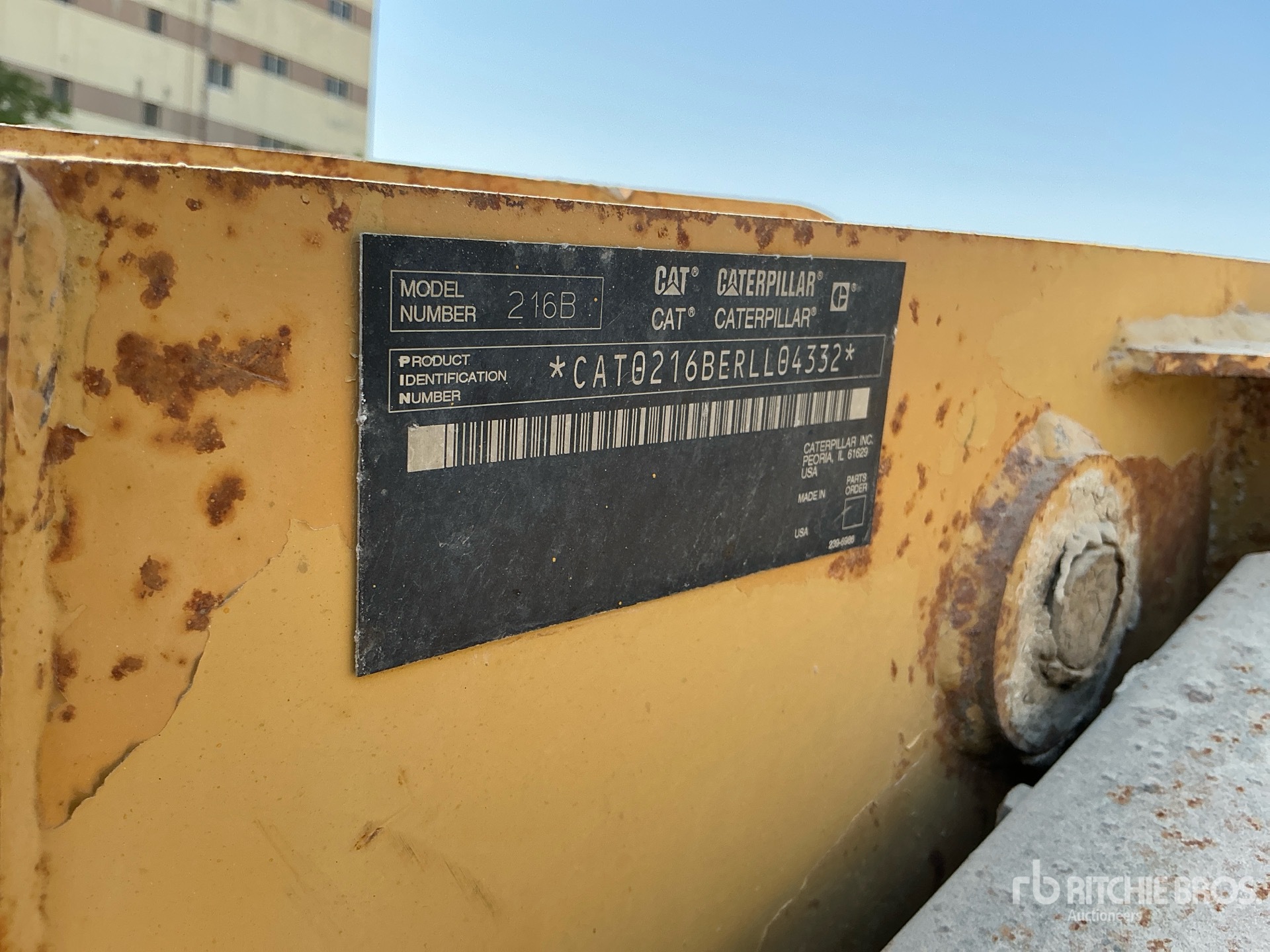

| Cab |
|
Fops |
SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I |
|
Fops Level Ii |
SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional) |
|
Rops |
SAE J1040 MAY94 and ISO3471:1994 |
| Dimensions |
|
Bucket Pin Height - Carry Position |
9 in (24 cm)
|
|
Bucket Pin Height - Maximum Lift |
9 ft (3 m)
|
|
Bumper Overhang - Rear Axle |
38 in (97 cm)
|
|
Clearance At Max Lift And Dump |
7 ft (2 m)
|
|
Clearance At Maximum Lift And Dump |
85 in (216 cm)
|
|
Ground Clearance |
8 in (20 cm)
|
|
Height |
12 ft (4 m)
|
|
Height - Top Of Cab |
6 ft (2 m)
|
|
Height To Top Of Cab |
6 ft (2 m)
|
|
Length |
11 ft (3 m)
|
|
Length - With Bucket On Ground |
127 in (323 cm)
|
|
Length - Without Bucket |
99 in (251 cm)
|
|
Length W/O Bucket |
8 ft (3 m)
|
|
Length With Bucket |
11 ft (3 m)
|
|
Maximum Overall Height |
146 in (371 cm)
|
|
Maximum Reach - With Arms Parallel |
50 in (128 cm)
|
|
Reach - Maximum Lift/Dump |
20 in (51 cm)
|
|
Reach At Max Lift And Dump |
20 in (51 cm)
|
|
Turn Radius From Center - Bucket |
76 in (194 cm)
|
|
Turn Radius From Center - Coupler |
47 in (120 cm)
|
|
Turn Radius From Center - Rear |
59 in (149 cm)
|
|
Turning Radius From Center - Inc Bucket |
76 in (194 cm)
|
|
Turning Radius From Center - Machine Rear |
58 in (149 cm)
|
|
Vehicle Width Over Tires |
60 in (152 cm)
|
|
Weight |
5,709 lbs (2,590 kg)
|
|
Wheel Base |
3 ft (1 m)
|
|
Wheelbase |
3 ft (1 m)
|
|
Width |
5 ft (2 m)
|
|
Width Over Tires |
5 ft (2 m)
|
| Engine |
|
Bore |
3 in (8 cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
3024C |
|
Engine Model |
Cat 3024C |
|
Engine Power - Iso 14396 |
51 hp (38 kw)
|
|
Gross Power |
52 hp (39 kw)
|
|
Gross Power - Sae J1995 |
52 hp (39 kw)
|
|
Net Flywheel Power |
49 hp (37 kw)
|
|
Net Power |
50 hp (37 kw)
|
|
Net Power - Eec 80/1269 |
50 hp (37 kw)
|
|
Net Power - Iso 9249 Eec |
50 hp (37 kw)
|
|
Net Power - Sae 1349 |
49 hp (37 kw)
|
|
Stroke |
4 in (10 cm)
|
| Hydraulic |
|
Pump Flow Capacity |
16 gpm (60 lpm)
|
|
Relief Valve Pressure |
3,104 psi |
| Hydraulic System |
|
Hydraulic Flow |
Standard flow |
|
Hydraulic Power |
28 hp (21 kw)
|
|
Loader Hydraulic Flow |
16 gpm (59 lpm)
|
|
Loader Hydraulic Pressure |
3,100 psi |
| Loader |
|
Breakout Force |
3,785 lbs (1,717 kg)
|
|
Operating Load Rating |
1,400 lbs (635 kg)
|
|
Tipping Angle |
2,800 degrees |
| Operating Specifications |
|
Breakout Force - Lift Cylinder |
3,057 lbs (1,387 kg)
|
|
Breakout Force - Tilt Cylinder |
3,787 lbs (1,718 kg)
|
|
Rated Operating Capacity |
1,400 lbs (635 kg)
|
|
Rated Operating Capacity With Optional Counterweight |
1,500 lbs (680 kg)
|
|
Tipping Load |
2,800 lbs (1,270 kg)
|
| Operational |
|
Alternator Supplied Amperage |
65 amps |
|
Chain Box Fluid Capacity - Each Side |
2 gal (6 l)
|
|
Cooling System Fluid Capacity |
3 gal (10 l)
|
|
Engine Oil Fluid Capacity |
2 gal (8 l)
|
|
Fuel Capacity |
17 gal (65 l)
|
|
Hydraulic System Fluid Capacity |
15 gal (55 l)
|
|
Max Speed |
8 mph (13 kph)
|
|
Operating Voltage |
12 V |
|
Operational Weight |
5,708 lbs (2,589 kg)
|
|
Tire Size |
10x16.5 6PR |
| Power Train |
|
Travel Speed Forward |
8 mph (13 kph)
|
|
Travel Speed Reverse |
8 mph (13 kph)
|
| Service Refill Capacities |
|
Chain Box - Each Side |
2 gal (6 l)
|
|
Cooling System |
3 gal (10 l)
|
|
Engine Crankcase |
2 gal (8 l)
|
|
Fuel Tank |
17 gal (64 l)
|
|
Hydraulic System |
15 gal (55 l)
|
|
Hydraulic Tank |
9 gal (35 l)
|
| Weights |
|
Operating Weight |
5,709 lbs (2,590 kg)
|
