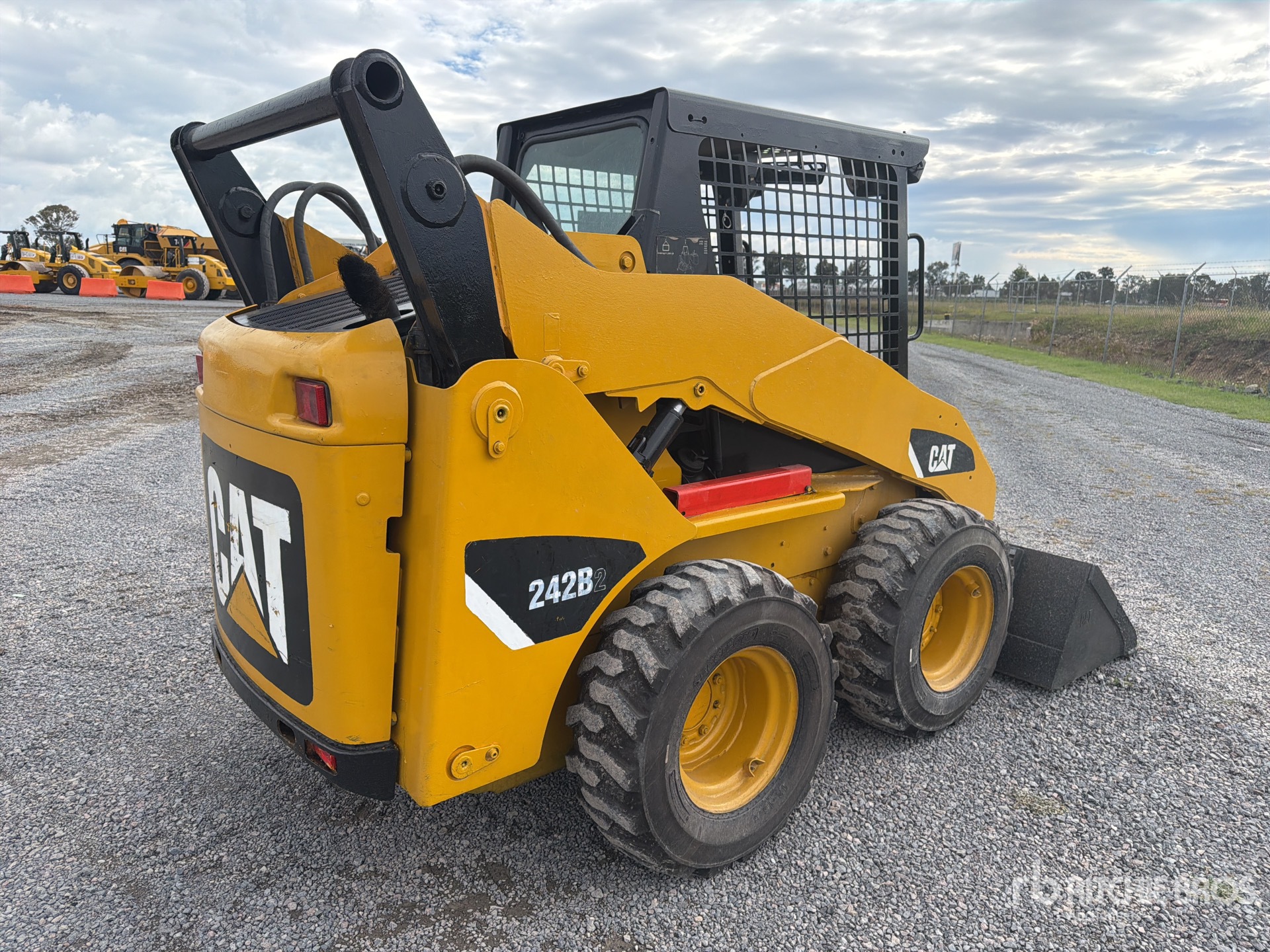

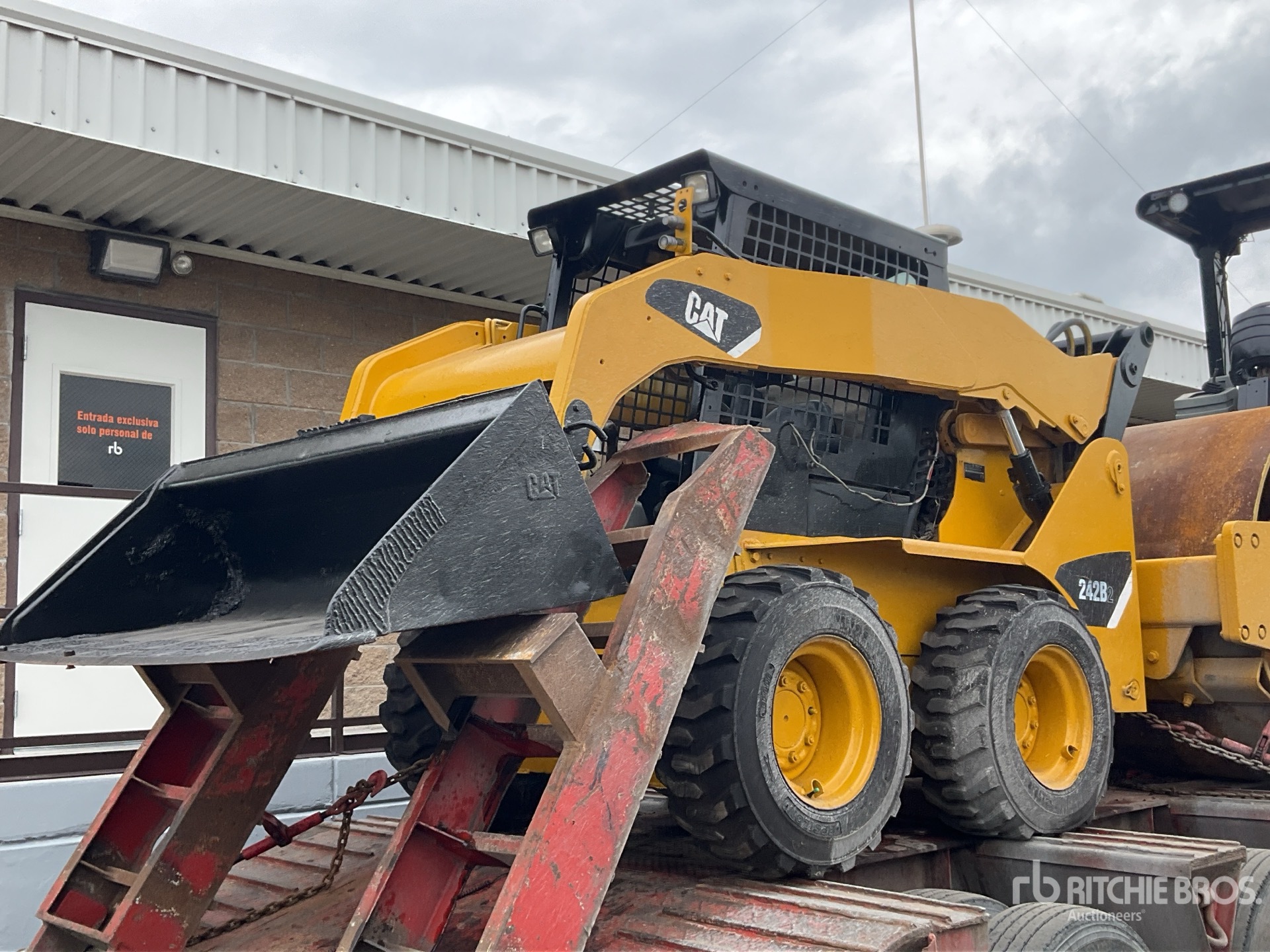

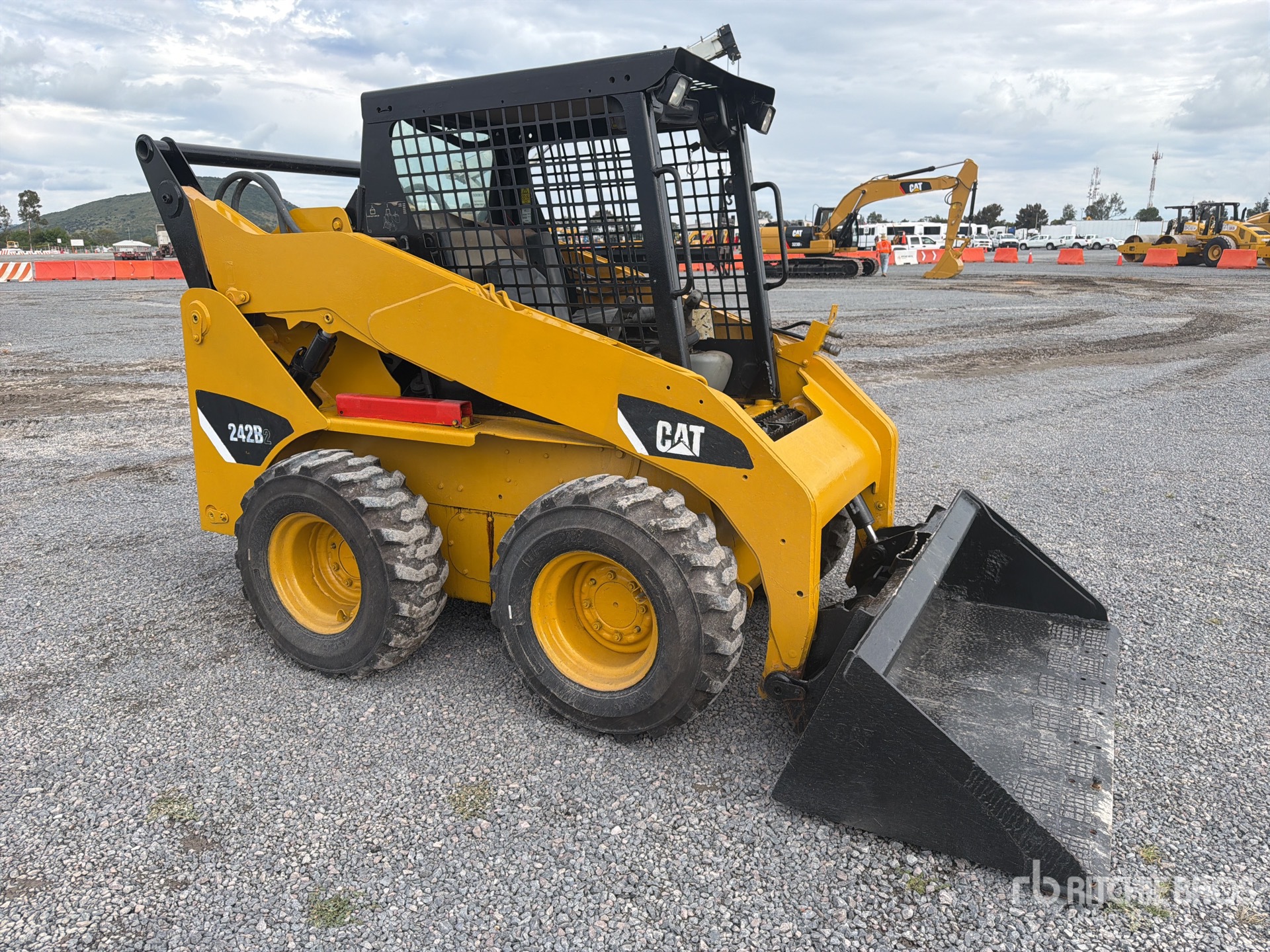

| Cab |
|
Fops |
SAE J1043 SEPT87, ISO 3449:1992 Level I |
|
Fops Level Ii |
SAE J231 JAN81, ISO 3449:1992 Level II |
|
Rops |
SAE J1040 MAY94, ISO 3471:1994 |
| Dimensions |
|
Bucket Pin Height - Carry Position |
12 in (30 cm)
|
|
Bucket Pin Height - Maximum Lift |
10 ft (3 m)
|
|
Bucket Pin Reach - Maximum Lift |
11 in (28 cm)
|
|
Bumper Overhang - Rear Axle |
39 in (99 cm)
|
|
Clearance At Max Lift And Dump |
7 ft (2 m)
|
|
Clearance At Maximum Lift And Dump |
88 in (224 cm)
|
|
Departure Angle |
28 degrees |
|
Ground Clearance |
7 in (18 cm)
|
|
Height |
6 ft (2 m)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Height To Top Of Cab |
7 ft (2 m)
|
|
Length |
11 ft (3 m)
|
|
Length - With Bucket On Ground |
135 in (344 cm)
|
|
Length - Without Bucket |
109 in (276 cm)
|
|
Length W/O Bucket |
9 ft (3 m)
|
|
Length With Bucket |
11 ft (3 m)
|
|
Maximum Dump Angle |
50 degrees |
|
Maximum Overall Height |
155 in (393 cm)
|
|
Maximum Reach - With Arms Parallel |
48 in (123 cm)
|
|
Rack Back Angle - Maximum Height |
87 degrees |
|
Reach - Maximum Lift/Dump |
30 in (77 cm)
|
|
Reach At Max Lift And Dump |
30 in (77 cm)
|
|
Turn Radius From Center - Bucket |
87 in (222 cm)
|
|
Turn Radius From Center - Coupler |
57 in (144 cm)
|
|
Turn Radius From Center - Rear |
61 in (154 cm)
|
|
Turning Radius From Center - Inc Bucket |
87 in (222 cm)
|
|
Turning Radius From Center - Machine Rear |
61 in (154 cm)
|
|
Vehicle Width Over Tires |
66 in (168 cm)
|
|
Weight |
6,802 lbs (3,085 kg)
|
|
Wheel Base |
4 ft (1 m)
|
|
Wheelbase |
4 ft (1 m)
|
|
Width |
6 ft (2 m)
|
|
Width Over Tires |
6 ft (2 m)
|
| Engine |
|
Bore |
3 in (8 cm)
|
|
Displacement |
134 cu in (2,196 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
3024C T |
|
Engine Model |
Cat C2.2 T |
|
Gross Power |
61 hp (45 kw)
|
|
Gross Power - Sae J1995 |
61 hp (45 kw)
|
|
Net Flywheel Power |
56 hp (42 kw)
|
|
Net Power |
57 hp (43 kw)
|
|
Net Power - Sae 1349 |
56 hp (42 kw)
|
|
Number Of Cylinders |
4 |
|
Power Measured @ |
2,600 rpm |
|
Stroke |
4 in (10 cm)
|
| Hydraulic |
|
Pump Flow Capacity |
16 gpm (59 lpm)
|
|
Relief Valve Pressure |
3,335 psi |
| Hydraulic System |
|
Hydraulic Flow (1) |
Standard |
|
Hydraulic Flow (2) |
High Flow |
|
Hydraulic Power |
30 hp (23 kw)
|
|
Loader Hydraulic Flow |
16 gpm (59 lpm)
|
|
Loader Hydraulic Pressure |
3,335 psi |
|
Maximum Loader Hydraulic Flow |
26 gpm (98 lpm)
|
|
Maximum Loader Hydraulic Pressure |
3,335 psi |
| Loader |
|
Breakout Force |
4,060 lbs (1,842 kg)
|
|
Bucket Capacity |
1 cu yd |
|
Operating Load Rating |
2,100 lbs (953 kg)
|
|
Tipping Angle |
4,200 degrees |
| Operating Specifications |
|
Breakout Force - Tilt Cylinder |
4,060 lbs (1,842 kg)
|
|
Rated Operating Capacity |
2,100 lbs (953 kg)
|
|
Tipping Load |
4,200 lbs (1,905 kg)
|
| Operational |
|
Alternator Supplied Amperage |
85 amps |
|
Chain Box Fluid Capacity - Each Side |
2 gal (6 l)
|
|
Cooling System Fluid Capacity |
3 gal (10 l)
|
|
Engine Oil Fluid Capacity |
3 gal (10 l)
|
|
Fuel Capacity |
15 gal (58 l)
|
|
Hydraulic System Fluid Capacity |
15 gal (55 l)
|
|
Max Speed |
7 mph (11 kph)
|
|
Operating Voltage |
12 V |
|
Operational Weight |
6,914 lbs (3,136 kg)
|
| Power Train |
|
Travel Speed Forward |
7 mph (11 kph)
|
|
Travel Speed Reverse |
7 mph (11 kph)
|
| Service Refill Capacities |
|
Chain Box - Each Side |
2 gal (6 l)
|
|
Cooling System |
3 gal (10 l)
|
|
Engine Crankcase |
3 gal (10 l)
|
|
Fuel Tank |
15 gal (58 l)
|
|
Hydraulic System |
15 gal (55 l)
|
|
Hydraulic Tank |
9 gal (35 l)
|
| Weights |
|
Operating Weight |
6,914 lbs (3,136 kg)
|
