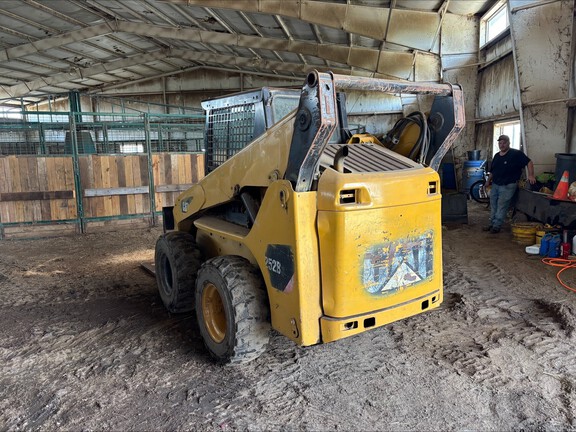

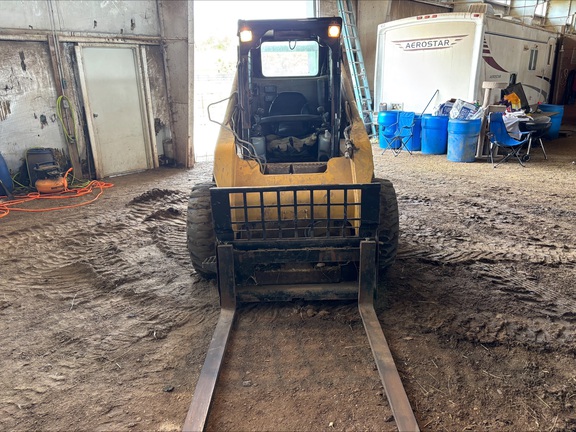

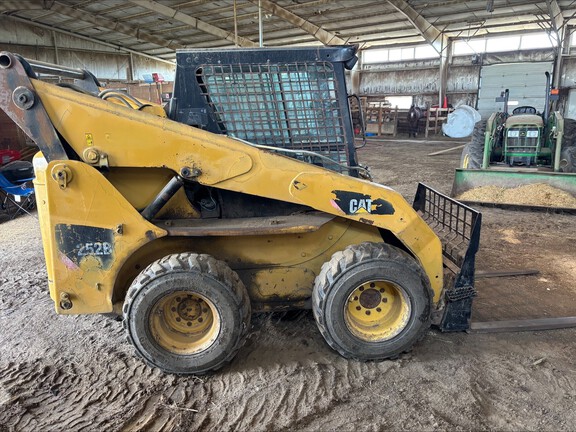

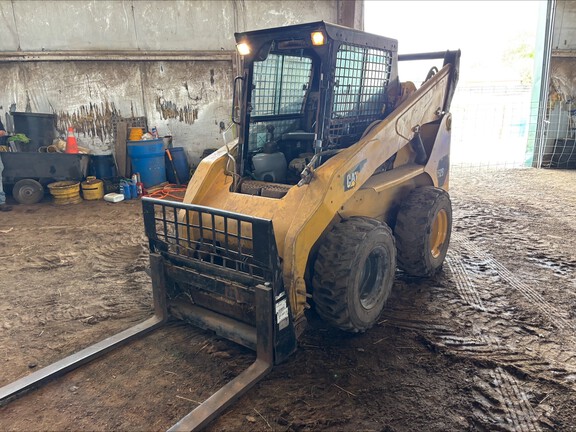

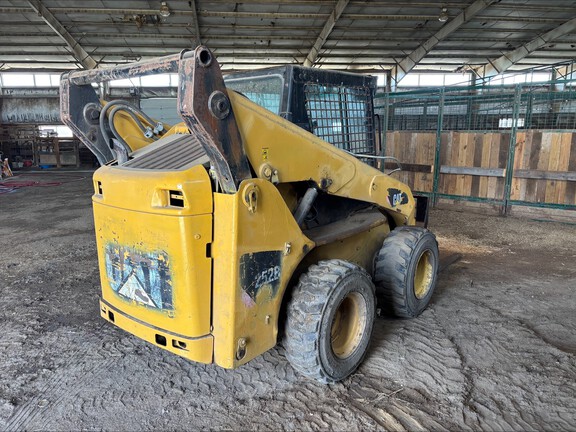

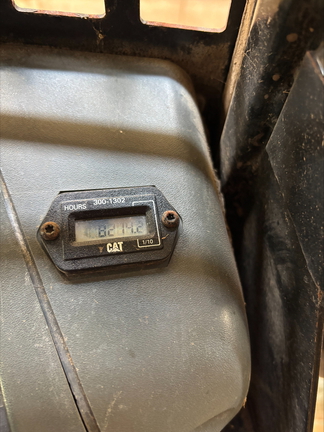

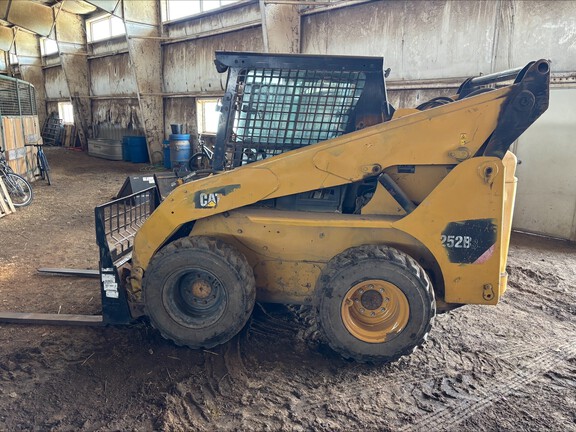

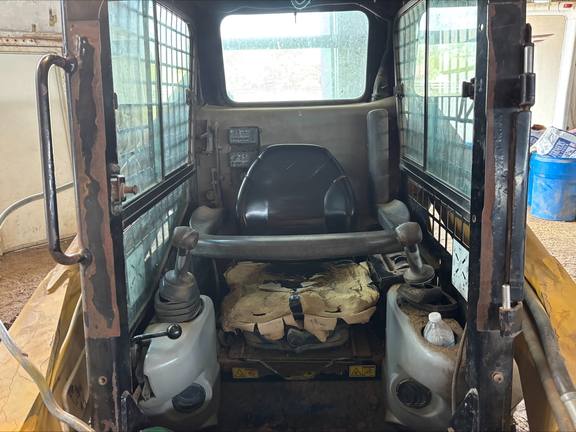

| Cab |
|
Fops |
SAE J/ISO 3449 APR98 Level I and ISO3449:1992 Level I |
|
Fops Level Ii |
SAE J/ISO 3449 APR98 Level II and ISO 3449:1992 Level II (optional) |
|
Rops |
SAE J1040 MAY94 and ISO3471:1994 |
| Dimensions |
|
Bucket Pin Height - Carry Position |
8 in (21 cm)
|
|
Bucket Pin Height - Maximum Lift |
11 ft (3 m)
|
|
Bucket Pin Reach - Maximum Lift |
14 in (35 cm)
|
|
Bumper Overhang - Rear Axle |
41 in (104 cm)
|
|
Clearance At Maximum Lift And Dump |
95 in (241 cm)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
7 ft (2 m)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Length |
12 ft (4 m)
|
|
Length - With Bucket On Ground |
142 in (361 cm)
|
|
Length - Without Bucket |
114 in (290 cm)
|
|
Maximum Overall Height |
160 in (406 cm)
|
|
Maximum Reach - With Arms Parallel |
52 in (132 cm)
|
|
Reach - Maximum Lift/Dump |
33 in (84 cm)
|
|
Turn Radius From Center - Bucket |
86 in (218 cm)
|
|
Turn Radius From Center - Coupler |
52 in (132 cm)
|
|
Turn Radius From Center - Rear |
67 in (170 cm)
|
|
Vehicle Width Over Tires |
72 in (183 cm)
|
|
Weight |
7,860 lbs (3,565 kg)
|
|
Wheel Base |
4 ft (1 m)
|
|
Width |
6 ft (2 m)
|

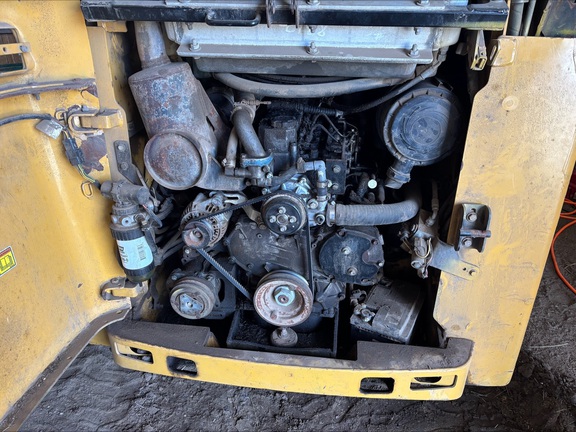

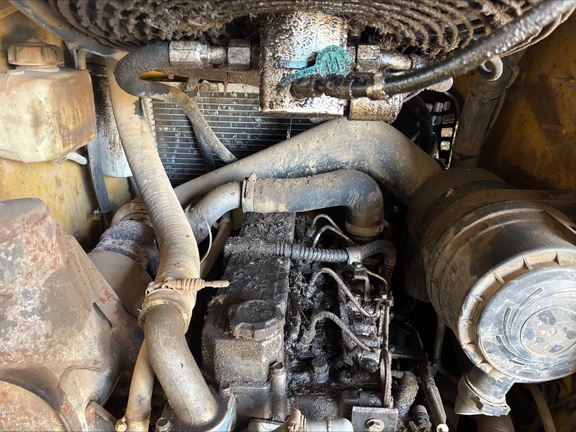

| Engine |
|
Bore |
4 in (9 cm)
|
|
Displacement |
201 cu in (3,294 cu cm)
|
|
Engine Model |
Cat 3044C DIT |
|
Engine Power - Iso 14396 |
71 hp (53 kw)
|
|
Gross Power |
73 hp (54 kw)
|
|
Gross Power - Sae J1995 |
73 hp (54 kw)
|
|
Net Flywheel Power |
70 hp (52 kw)
|
|
Net Power - Eec 80/1269 |
71 hp (53 kw)
|
|
Net Power - Iso 9249 Eec |
71 hp (53 kw)
|
|
Net Power - Sae 1349 |
70 hp (52 kw)
|
|
Stroke |
5 in (12 cm)
|
| General Specifications |
|
A Height to top of ROPS (Since 2006)
|
80 in (203 cm)
|
|
Approx. Machine Weight (Since 2004)
|
7,832 lbs (3,553 kg)
|
|
Approx. Machine Weight (2005)
|
7,832 lbs (3,553 kg)
|
|
Approx. Machine Weight (2006)
|
7,832 lbs (3,553 kg)
|
|
Approx. Machine Weight (2007)
|
7,832 lbs (3,553 kg)
|
|
B Length to coupler (Since 2006)
|
113 in (287 cm)
|
|
Blade surface height at level lift arms (Since 2006)
|
67 in (169 cm)
|
|
Blade surface height at maximum height (Since 2006)
|
123 in (312 cm)
|
|
Blade surface height at minimum lift (Since 2006)
|
3 in (8 cm)
|
|
Bore (Since 2006)
|
4 in (9 cm)
|
|
Bucket overall width (Since 2006)
|
68 in (173 cm)
|
|
C Length with bucket on ground (Since 2006)
|
141 in (358 cm)
|
|
Capacity at 50% with counter- weight (Since 2004)
|
2,500 lbs (1,134 kg)
|
|
Capacity at 50% with counter- weight (2005)
|
2,500 lbs (1,134 kg)
|
|
Capacity at 50% with counter- weight (2006)
|
2,500 lbs (1,134 kg)
|
|
Capacity at 50% with counter- weight (2007)
|
2,500 lbs (1,134 kg)
|
|
Carriage height above blade top (Since 2006)
|
36 in (92 cm)
|
|
Carriage overall width without step (Since 2006)
|
45 in (114 cm)
|
|
Carriage step additional width (Since 2006)
|
4 in (11 cm)
|
|
Clearance at maximum lift/level bucket (Since 2006)
|
119 in (303 cm)
|
|
Clearance at maximum lift/level bucket (Since 2006)
|
119 in (303 cm)
|
|
Clearance at maximum lift/level bucket (Since 2006)
|
120 in (304 cm)
|
|
D Maximum overall height (Since 2006)
|
160 in (406 cm)
|
|
Dig depth with level bucket (Since 2006)
|
1 in (2 cm)
|
|
Dig depth with level bucket (Since 2006)
|
0 in (0 cm)
|
|
Dig depth with level bucket (Since 2006)
|
0 in |
|
Displacement (Since 2006)
|
201 cu in (3,294 cu cm)
|
|
Dump clearance at maximum lift/dump (Since 2006)
|
94 in (240 cm)
|
|
Dump clearance at maximum lift/dump (Since 2006)
|
91 in (232 cm)
|
|
Dump clearance at maximum lift/dump (Since 2006)
|
96 in (244 cm)
|
|
Dump clearance at maximum lift/dump (Since 2006)
|
94 in (239 cm)
|
|
Dump clearance at maximum lift/dump (Since 2006)
|
96 in (244 cm)
|
|
Dump clearance at maximum lift/dump (Since 2006)
|
95 in (240 cm)
|
|
Dump clearance at maximum lift/dump (Since 2006)
|
91 in (232 cm)
|
|
E Ground clearance (Since 2006)
|
8 in (20 cm)
|
|
Engine Model (Since 2004)
|
3044C DIT |
|
Engine Model (2005)
|
3044C DIT |
|
Engine Model (2006)
|
3044C DIT |
|
Engine Model (2007)
|
3044C DIT |
|
F Departure angle (Since 2006)
|
27 deg |
|
Floor angle at maximum lift/dump (Since 2006)
|
51 deg |
|
Floor angle at maximum lift/rack (Since 2006)
|
87 deg |
|
Flywheel Power: Net (Since 2006)
|
68 hp (51 kw)
|
|
Front clearance circle radius (w/bucket) (Since 2006)
|
88 in (224 cm)
|
|
Front clearance circle radius (w/bucket) (Since 2006)
|
91 in (230 cm)
|
|
Front clearance circle radius (w/bucket) (Since 2006)
|
86 in (219 cm)
|
|
Front clearance circle radius (w/bucket) (Since 2006)
|
89 in (226 cm)
|
|
Front clearance circle radius (w/bucket) (Since 2006)
|
87 in (222 cm)
|
|
Front clearance circle radius (w/bucket) (Since 2006)
|
88 in (224 cm)
|
|
Front clearance circle radius (w/bucket) (Since 2006)
|
86 in (219 cm)
|
|
Front clearance circle radius (w/bucket) (Since 2006)
|
92 in (232 cm)
|
|
Front clearance circle radius (w/bucket) (Since 2006)
|
86 in (219 cm)
|
|
Front clearance circle radius (w/bucket) (Since 2006)
|
85 in (216 cm)
|
|
Front clearance circle radius (w/bucket) (Since 2006)
|
88 in (222 cm)
|
|
Front clearance circle radius (w/bucket) (Since 2006)
|
86 in (219 cm)
|
|
Front clearance circle radius (w/bucket) (Since 2006)
|
91 in (230 cm)
|
|
Front clearance circle radius (w/bucket) (Since 2006)
|
89 in (227 cm)
|
|
Front clearance circle radius (w/bucket) (Since 2006)
|
92 in (233 cm)
|
|
Fuel Tank Capacity (Since 2006)
|
24 US gal (90 L)
|
|
G Wheelbase (Since 2006)
|
48 in (122 cm)
|
|
Gross (Since 2006)
|
71 hp (53 kw)
|
|
Ground Clearance (Since 2006)
|
8 in (20 cm)
|
|
H Bumper overhang from axle (Since 2006)
|
40 in (102 cm)
|
|
Height to Top of Cab (Since 2004)
|
81 in (206 cm)
|
|
Height to Top of Cab (2005)
|
81 in (206 cm)
|
|
Height to Top of Cab (2006)
|
81 in (206 cm)
|
|
Height to Top of Cab (2007)
|
81 in (206 cm)
|
|
Hinge pin height at carry position (Since 2006)
|
8 in (20 cm)
|
|
Hinge pin height at maximum lift (Since 2006)
|
127 in (323 cm)
|
|
Hydraulic Pump Capacity (Since 2006)
|
22 US gpm (83 L/min)
|
|
Hydraulic System Capacity - (includes tank) (Since 2006)
|
14 US gal (53 L)
|
|
Hydraulic Tank Capacity (Since 2006)
|
9 US gal (35 L)
|
|
J Clearance at maximum lift/dump (Since 2006)
|
96 in (244 cm)
|
|
K Clearance at maximum lift/level (Since 2006)
|
120 in (305 cm)
|
|
L Hinge pin height at maximum lift (Since 2006)
|
126 in (320 cm)
|
|
Length to Coupler (Since 2004)
|
114 in (290 cm)
|
|
Length to Coupler (2005)
|
114 in (290 cm)
|
|
Length to Coupler (2006)
|
114 in (290 cm)
|
|
Length to Coupler (2007)
|
114 in (290 cm)
|
|
M Reach at level lift arm/bucket (Since 2006)
|
64 in (163 cm)
|
|
Maximum floor angle - at carry position (Since 2006)
|
27 deg |
|
Maximum overall height (Since 2006)
|
163 in (413 cm)
|
|
Maximum overall height (Since 2006)
|
167 in (423 cm)
|
|
Maximum overall height (Since 2006)
|
161 in (409 cm)
|
|
Maximum overall height (Since 2006)
|
163 in (414 cm)
|
|
Maximum overall height (Since 2006)
|
161 in (410 cm)
|
|
Maximum overall height (Since 2006)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2006)
|
161 in (408 cm)
|
|
Maximum overall height (Since 2006)
|
167 in (423 cm)
|
|
Maximum overall height (Since 2006)
|
163 in (414 cm)
|
|
Net Power (Since 2004)
|
70 hp (52 kw)
|
|
Net Power (2005)
|
70 hp (52 kw)
|
|
Net Power (2006)
|
70 hp (52 kw)
|
|
Net Power (2007)
|
70 hp (52 kw)
|
|
No. Cylinders (Since 2006)
|
4 |
|
Overall length at minimum lift, level tine (Since 2006)
|
163 in (415 cm)
|
|
Overall length at minimum lift, level tine (Since 2006)
|
169 in (430 cm)
|
|
Overall length at minimum lift, level tine (Since 2006)
|
157 in (399 cm)
|
|
Overall length with bucket on ground (Since 2006)
|
144 in (367 cm)
|
|
Overall length with bucket on ground (Since 2006)
|
148 in (377 cm)
|
|
Overall length with bucket on ground (Since 2006)
|
143 in (363 cm)
|
|
Overall length with bucket on ground (Since 2006)
|
145 in (367 cm)
|
|
Overall length with bucket on ground (Since 2006)
|
143 in (363 cm)
|
|
Overall length with bucket on ground (Since 2006)
|
144 in (364 cm)
|
|
Overall length with bucket on ground (Since 2006)
|
142 in (362 cm)
|
|
Overall length with bucket on ground (Since 2006)
|
149 in (377 cm)
|
|

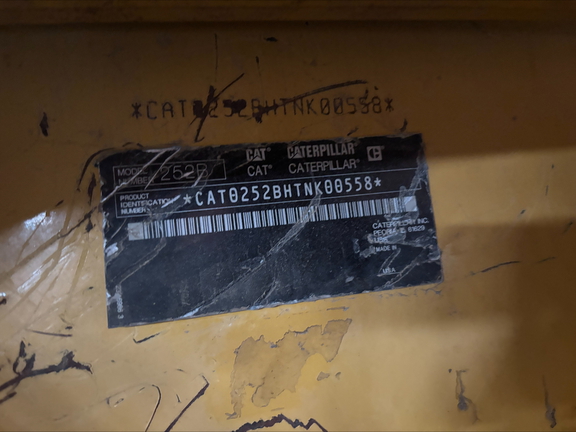

Product Identification Prefix (Since 2004)
|
SCP |
|
Product Identification Prefix (2005)
|
SCP |
|
Product Identification Prefix (2006)
|
SCP |
|
Product Identification Prefix (2007)
|
SCP |
|
Rated bucket capacity (Since 2006)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2006)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2006)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2006)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2006)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2006)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2006)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2006)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2006)
|
0 cu yd (0 cu m)
|
|
Rated Engine RPM (Since 2006)
|
2,600 rpm |
|
Rated operating capacity (Since 2006)
|
2,500 lbs (1,134 kg)
|
|
Rated Operating Capacity at 50% (Since 2004)
|
2,500 lbs (1,134 kg)
|
|
Rated Operating Capacity at 50% (2005)
|
2,500 lbs (1,134 kg)
|
|
Rated Operating Capacity at 50% (2006)
|
2,500 lbs (1,134 kg)
|
|
Rated Operating Capacity at 50% (2007)
|
2,500 lbs (1,134 kg)
|
|
Reach at level lift arm/bucket (Since 2006)
|
52 in (133 cm)
|
|
Reach at level lift arm/bucket (Since 2006)
|
56 in (143 cm)
|
|
Reach at level lift arm/bucket (Since 2006)
|
51 in (129 cm)
|
|
Reach at level lift arm/bucket (Since 2006)
|
52 in (133 cm)
|
|
Reach at level lift arm/bucket (Since 2006)
|
51 in (130 cm)
|
|
Reach at level lift arm/bucket (Since 2006)
|
66 in (166 cm)
|
|
Reach at level lift arm/bucket (Since 2006)
|
64 in (163 cm)
|
|
Reach at level lift arm/bucket (2006)
|
64 in (163 cm)
|
|
Reach at level lift arm/bucket (Since 2006)
|
56 in (143 cm)
|
|
Reach at maximum lift/dump (Since 2006)
|
31 in (78 cm)
|
|
Reach at maximum lift/dump (Since 2006)
|
33 in (84 cm)
|
|
Reach at maximum lift/dump (Since 2006)
|
30 in (77 cm)
|
|
Reach at maximum lift/dump (Since 2006)
|
31 in (78 cm)
|
|
Reach at maximum lift/dump (Since 2006)
|
30 in (77 cm)
|
|
Reach at maximum lift/dump (Since 2006)
|
30 in (75 cm)
|
|
Reach at maximum lift/dump (Since 2006)
|
29 in (75 cm)
|
|
Reach at maximum lift/dump (Since 2006)
|
33 in (85 cm)
|
|
Shank front face reach at level lift arms (Since 2006)
|
29 in (74 cm)
|
|
Shank front face reach at maximum height (Since 2006)
|
26 in (67 cm)
|
|
Shank front face reach at minimum lift (Since 2006)
|
15 in (39 cm)
|
|
Speeds Reverse - Dump (Since 2006)
|
2 |
|
Speeds Reverse - Lower (Empty, Float Down) (Since 2006)
|
4 |
|
Speeds Reverse - Raise (Since 2006)
|
5 |
|
Speeds Reverse - Total (Since 2006)
|
11 |
|
Stroke (Since 2006)
|
5 in (12 cm)
|
|
Struck capacity (Since 2006)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2006)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2006)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2006)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2006)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2006)
|
0 cu yd (0 cu m)
|
|
Top Travel Speed km/h (mph (Since 2004)
|
11.2/17.8 (6.9/11.0 |
|
Top Travel Speed km/h (mph (2005)
|
11.2/17.8 (6.9/11.0 |
|
Top Travel Speed km/h (mph (2006)
|
11.2/17.8 (6.9/11.0 |
|
Top Travel Speed km/h (mph (2007)
|
11.2/17.8 (6.9/11.0 |
|
Tread Width (Since 2006)
|
60 in (152 cm)
|
|
Width (Since 2006)
|
68 in (173 cm)
|
|
Width (2006)
|
68 in (173 cm)
|
|
Width (Since 2006)
|
75 in (191 cm)
|
|
Width (Since 2006)
|
74 in (188 cm)
|
|
Width (Since 2006)
|
69 in (175 cm)
|
|
Width (Since 2006)
|
62 in (157 cm)
|
|
Width (2006)
|
62 in (157 cm)
|
|
Width (Since 2006)
|
69 in (175 cm)
|
|
Width (Since 2006)
|
75 in (191 cm)
|
|
Width over Tires (Since 2004)
|
72 in (183 cm)
|
|
Width over Tires (2005)
|
72 in (183 cm)
|
|
Width Over Tires (Since 2006)
|
72 in (183 cm)
|
|
Width over Tires (Since 2006)
|
72 in (183 cm)
|
|
Width over Tires (2007)
|
72 in (183 cm)
|
|
Years Built (Since 2004)
|
2,004 - 2,007 |
|
Years Built (2005)
|
2,004 - 2,007 |
|
Years Built (2006)
|
2,004 - 2,007 |
|
Years Built (2007)
|
2,004 - 2,007 |
| Hydraulic System |
|
Hydraulic Flow |
Standard flow |
|
Hydraulic Power |
43 hp (32 kw)
|
|
Loader Hydraulic Flow |
22 gpm (83 lpm)
|
|
Loader Hydraulic Pressure |
3,335 psi |
| Operating Specifications |
|
Breakout Force - Lift Cylinder |
5,229 lbs (2,372 kg)
|
|
Breakout Force - Tilt Cylinder |
5,508 lbs (2,498 kg)
|
|
Rated Operating Capacity |
2,500 lbs (1,134 kg)
|
|
Rated Operating Capacity With Optional Counterweight |
2,550 lbs (1,157 kg)
|
|
Tipping Load |
5,000 lbs (2,268 kg)
|
| Power Train |
|
Travel Speed Forward |
7 mph (11 kph)
|
|
Travel Speed Forward - 2-Speed Option |
11 mph (18 kph)
|
|
Travel Speed Reverse |
7 mph (11 kph)
|
|
Travel Speed Reverse - 2-Speed Option |
11 mph (18 kph)
|
| Service Refill Capacities |
|
Chain Box - Each Side |
2 gal (8 l)
|
|
Cooling System |
3 gal (10 l)
|
|
Engine Crankcase |
3 gal (10 l)
|
|
Fuel Tank |
24 gal (90 l)
|
|
Hydraulic System |
14 gal (53 l)
|
|
Hydraulic Tank |
9 gal (35 l)
|
| Weights |
|
Operating Weight |
7,832 lbs (3,553 kg)
|
