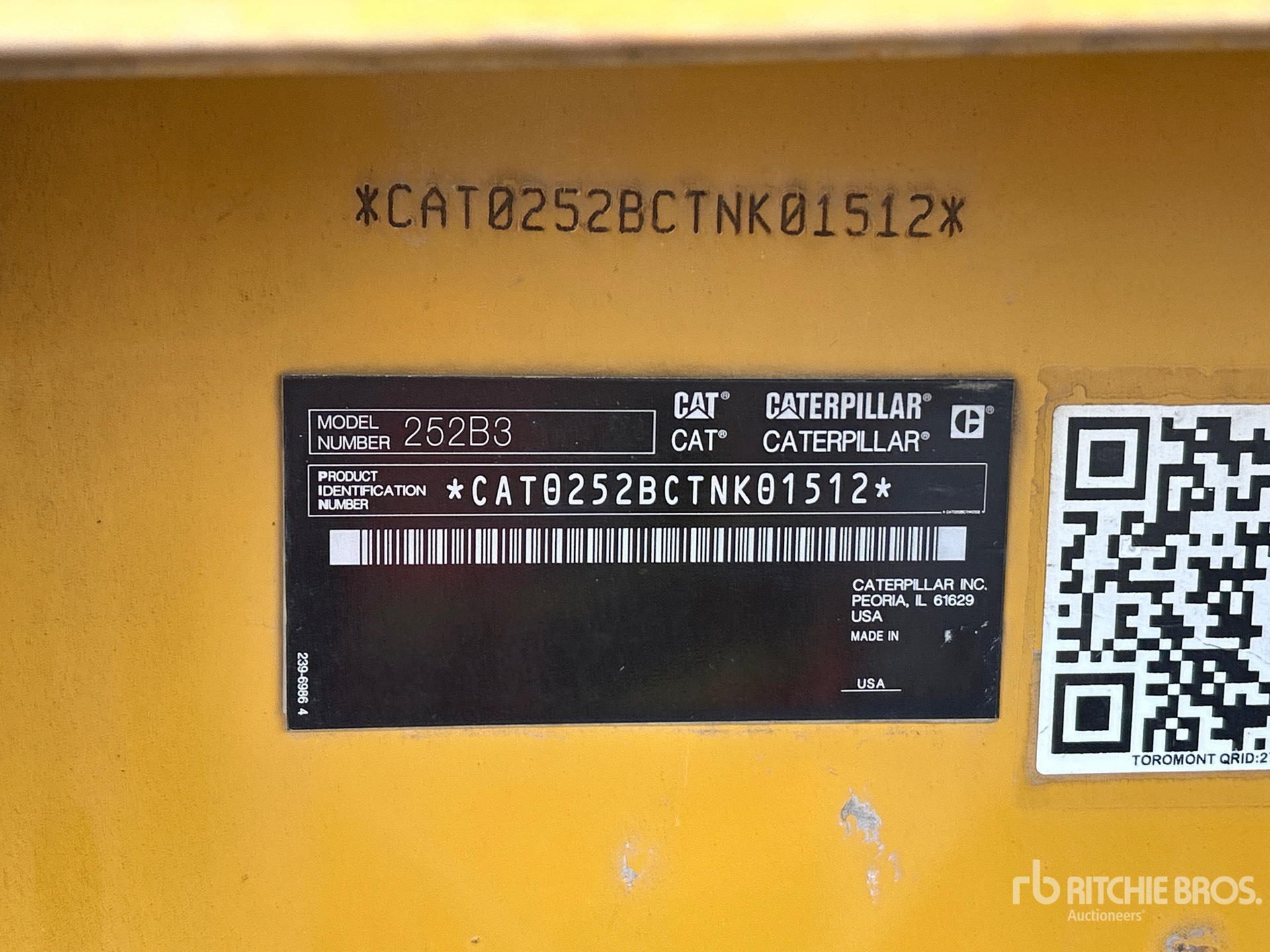

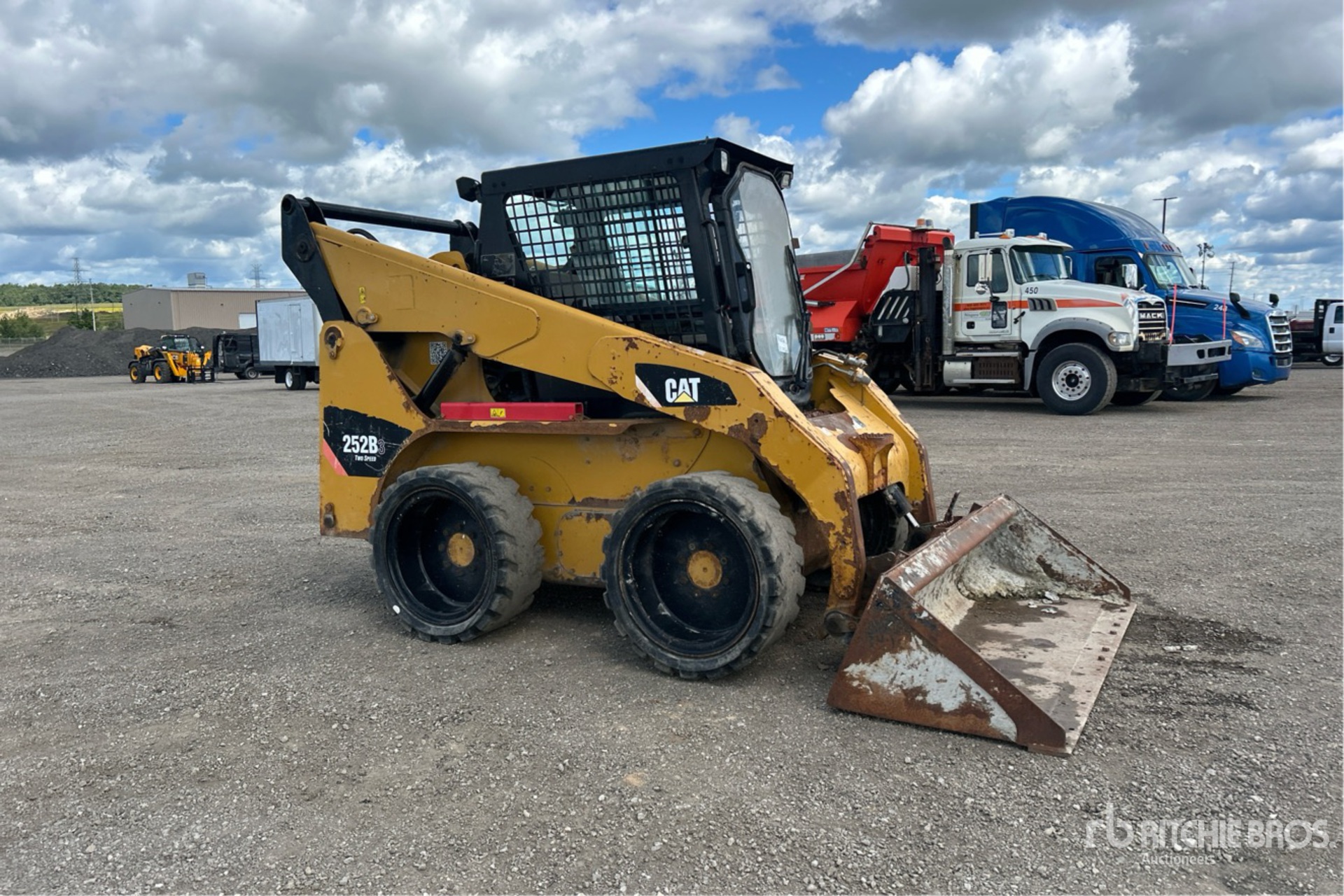

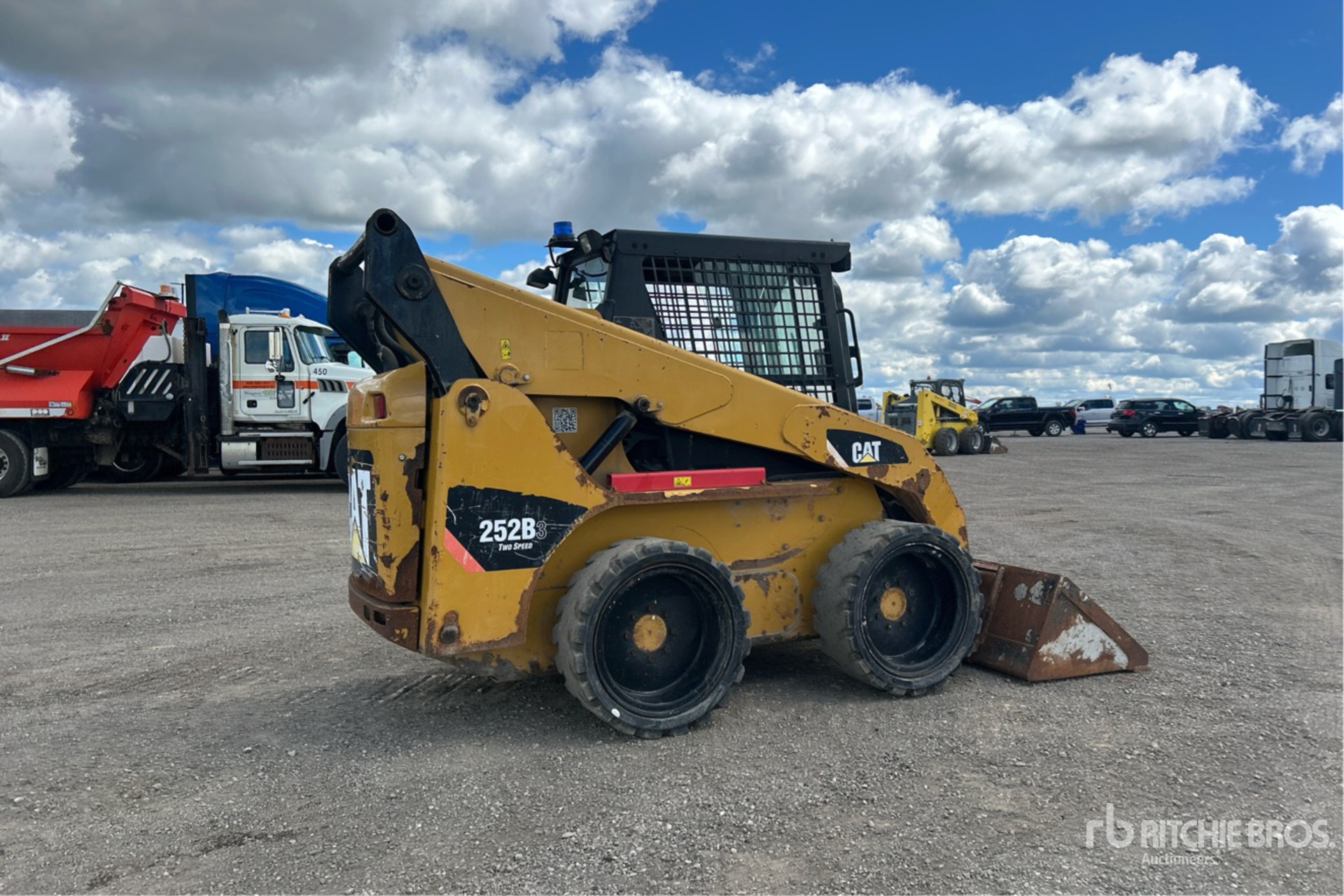

| Cab |
|
FOPS |
SAE J1043 SEPT87 ISO 3449:1992 Level I |
|
FOPS Level II |
SAE J231 JAN81 ISO 3449:1992 Level II |
|
ROPS |
SAE J1040 MAY94 ISO 3471:1994 |
| Dimensions |
|
Bucket Pin Height - Carry Position |
8 in (21 cm)
|
|
Bucket Pin Height - Maximum Lift |
11 ft (3 m)
|
|
Bucket Pin Reach - Maximum Lift |
14 in (35 cm)
|
|
Bumper Overhang - Rear Axle |
41 in (104 cm)
|
|
Clearance at Max Lift and Dump |
8 ft (2 m)
|
|
Clearance at Maximum Lift and Dump |
95 in (241 cm)
|
|
Departure Angle |
26 degrees |
|
Ground Clearance |
8 in (20 cm)
|
|
Length - With Bucket on Ground |
142 in (361 cm)
|
|
Length - Without Bucket |
114 in (290 cm)
|
|
Length w/o Bucket |
10 ft (3 m)
|
|
Length with Bucket |
12 ft (4 m)
|
|
Maximum Dump Angle |
51 degrees |
|
Maximum Overall Height |
160 in (406 cm)
|
|
Maximum Reach - With Arms Parallel |
50 in (127 cm)
|
|
Rack Back Angle - Maximum Height |
88 degrees |
|
Reach - Maximum Lift/Dump |
33 in (84 cm)
|
|
Reach at Max Lift and Dump |
33 in (83 cm)
|
|
Turn Radius from Center - Bucket |
85 in (216 cm)
|
|
Turn Radius from Center - Coupler |
54 in (137 cm)
|
|
Turn Radius from Center - Rear |
66 in (168 cm)
|
|
Turning Radius from Center - inc bucket |
85 in (217 cm)
|
|
Turning Radius from Center - machine rear |
66 in (168 cm)
|
|
Vehicle Width over Tires |
72 in (183 cm)
|
|
Wheel Base |
4 ft (1 m)
|
|
Wheelbase |
4 ft (1 m)
|
|
Width Over Tires |
6 ft (2 m)
|
| Engine |
|
Bore |
4 in (9 cm)
|
|
Displacement |
201 cu in (3,294 cu cm)
|
|
Engine Make |
Caterpillar |
|
Engine Model |
Cat C3.4 DIT |
|
Gross Power - SAE J1995 |
74 hp (55 kw)
|
|
Net Flywheel Power |
71 hp (53 kw)
|
|
Net Power - ISO 9249 EEC |
71 hp (53 kw)
|
|
Net Power - SAE 1349 |
71 hp (53 kw)
|
|
Stroke |
5 in (12 cm)
|
| Hydraulic System |
|
Hydraulic Flow |
Standard |
|
Hydraulic Power |
43 hp (32 kw)
|
|
Loader Hydraulic Flow |
22 gpm (83 lpm)
|
|
Loader Hydraulic Pressure |
3,335 psi |
|
Pump Flow Capacity |
22 gpm (83 lpm)
|
|
Relief Valve Pressure |
3,335 psi |
| Loader |
|
Breakout Force |
5,508 psi |
|
Operating Load Rating |
2,650 lbs (1,202 kg)
|
|
Operating Width |
72 in (183 cm)
|
|
Tipping Angle |
5,300 degrees |
| Operating Specifications |
|
Alternator Supplied Amperage |
90 amps |
|
Breakout Force - Tilt Cylinder |
5,508 lbs (2,498 kg)
|
|
Chain Box Fluid Capacity - each side |
2 gal (8 l)
|
|
Cooling System Fluid Capacity |
3 gal (10 l)
|
|
Engine Oil Fluid Capacity |
2 gal (9 l)
|
|
Fuel Capacity |
24 gal (90 l)
|
|
Hydraulic System Fluid Capacity |
14 gal (53 l)
|
|
Max Speed |
11 mph (18 kph)
|
|
Operating Speed |
7 mph (12 kph)
|
|
Operating Voltage |
12 volts |
|
Operational Weight |
7,861 lbs (3,565 kg)
|
|
Rated Operating Capacity |
2,650 lbs (1,202 kg)
|
|
Rated Operating Capacity with Optional Counterweight |
2,700 lbs (1,224 kg)
|
|
Tipping Load |
5,300 lbs (2,404 kg)
|
| Power Train |
|
Travel Speed Forward |
7 mph (12 kph)
|
|
Travel Speed Forward - 2-Speed Option |
11 mph (18 kph)
|
|
Travel Speed Reverse |
7 mph (12 kph)
|
|
Travel Speed Reverse - 2-Speed Option |
11 mph (18 kph)
|
| Service Refill Capacities |
|
Chain Box - Each Side |
2 gal (8 l)
|
|
Cooling System |
3 gal (10 l)
|
|
Engine Crankcase |
2 gal (9 l)
|
|
Fuel Tank |
24 gal (90 l)
|
|
Hydraulic System |
14 gal (53 l)
|
|
Hydraulic Tank |
9 gal (35 l)
|
| Weights |
|
Operating Weight |
7,861 lbs (3,565 kg)
|
