| Cab |
|
Fops |
SAE J/ISO 3449 APR98 Level I and ISO3449:1992 Level I |
|
Fops Level Ii |
SAE J/ISO 3449 APR98 Level II and ISO 3449:1992 Level II (optional) |
|
Rops |
SAE J1040 MAY94 and ISO3471:1994 |
| Dimensions |
|
Bucket Pin Height - Carry Position |
8 in (21 cm)
|
|
Bucket Pin Height - Maximum Lift |
11 ft (3 m)
|
|
Bucket Pin Reach - Maximum Lift |
14 in (35 cm)
|
|
Bumper Overhang - Rear Axle |
41 in (104 cm)
|
|
Clearance At Max Lift And Dump |
8 ft (2 m)
|
|
Clearance At Maximum Lift And Dump |
95 in (241 cm)
|
|
Ground Clearance |
8 in (20 cm)
|
|
Height |
8 ft (2 m)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Height To Top Of Cab |
7 ft (2 m)
|
|
Length |
13 ft (4 m)
|
|
Length - With Bucket On Ground |
142 in (361 cm)
|
|
Length - Without Bucket |
114 in (290 cm)
|
|
Length W/O Bucket |
10 ft (3 m)
|
|
Length With Bucket |
12 ft (4 m)
|
|
Maximum Overall Height |
160 in (406 cm)
|
|
Maximum Reach - With Arms Parallel |
52 in (132 cm)
|
|
Reach - Maximum Lift/Dump |
33 in (84 cm)
|
|
Reach At Max Lift And Dump |
33 in (83 cm)
|
|
Turn Radius From Center - Bucket |
86 in (218 cm)
|
|
Turn Radius From Center - Coupler |
52 in (132 cm)
|
|
Turn Radius From Center - Rear |
67 in (170 cm)
|
|
Turning Radius From Center - Inc Bucket |
86 in (218 cm)
|
|
Turning Radius From Center - Machine Rear |
67 in (170 cm)
|
|
Vehicle Width Over Tires |
72 in (183 cm)
|
|
Weight |
7,861 lbs (3,566 kg)
|
|
Wheel Base |
4 ft (1 m)
|
|
Wheelbase |
4 ft (1 m)
|
|
Width |
7 ft (2 m)
|
|
Width Over Tires |
6 ft (2 m)
|

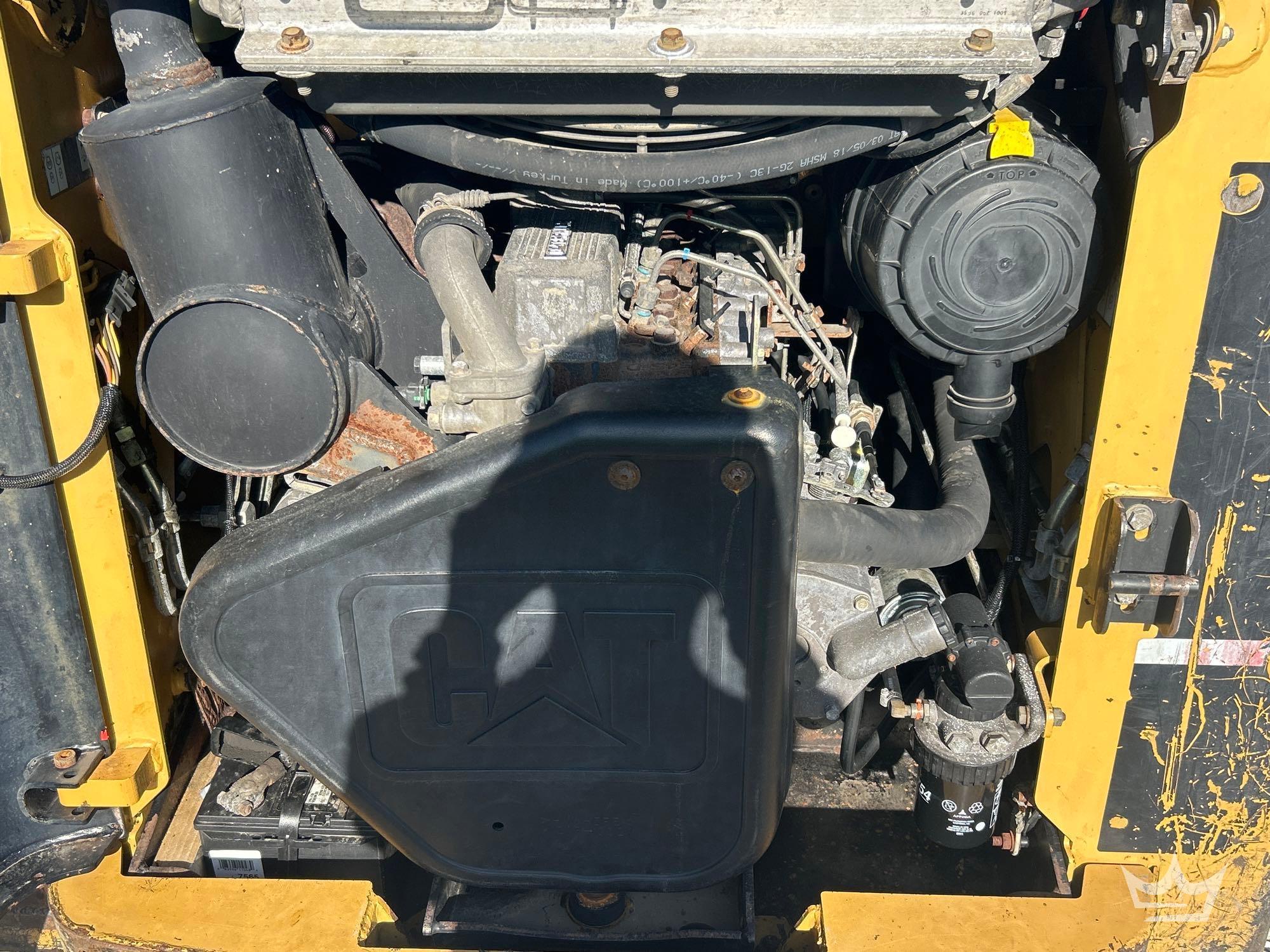

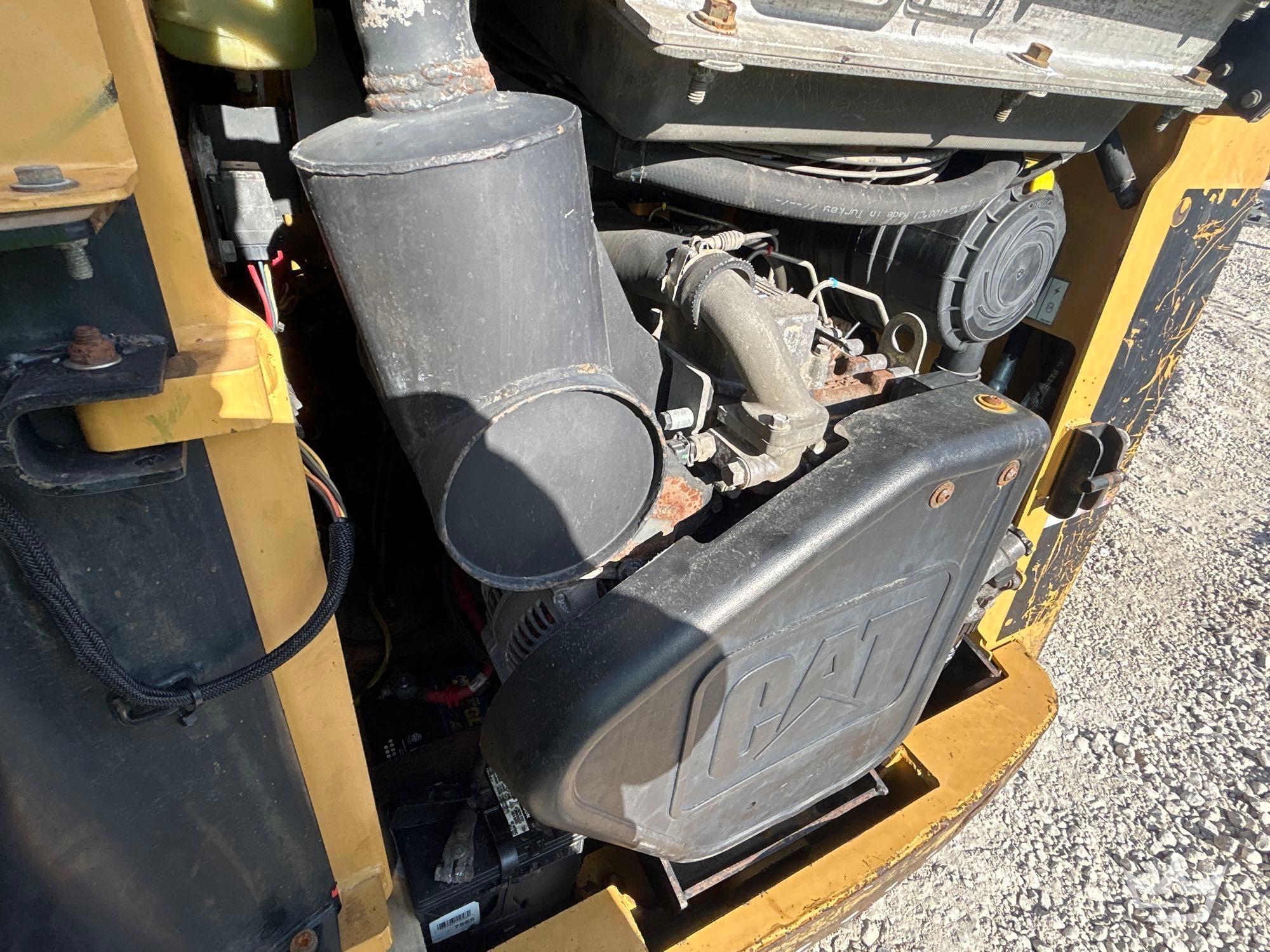

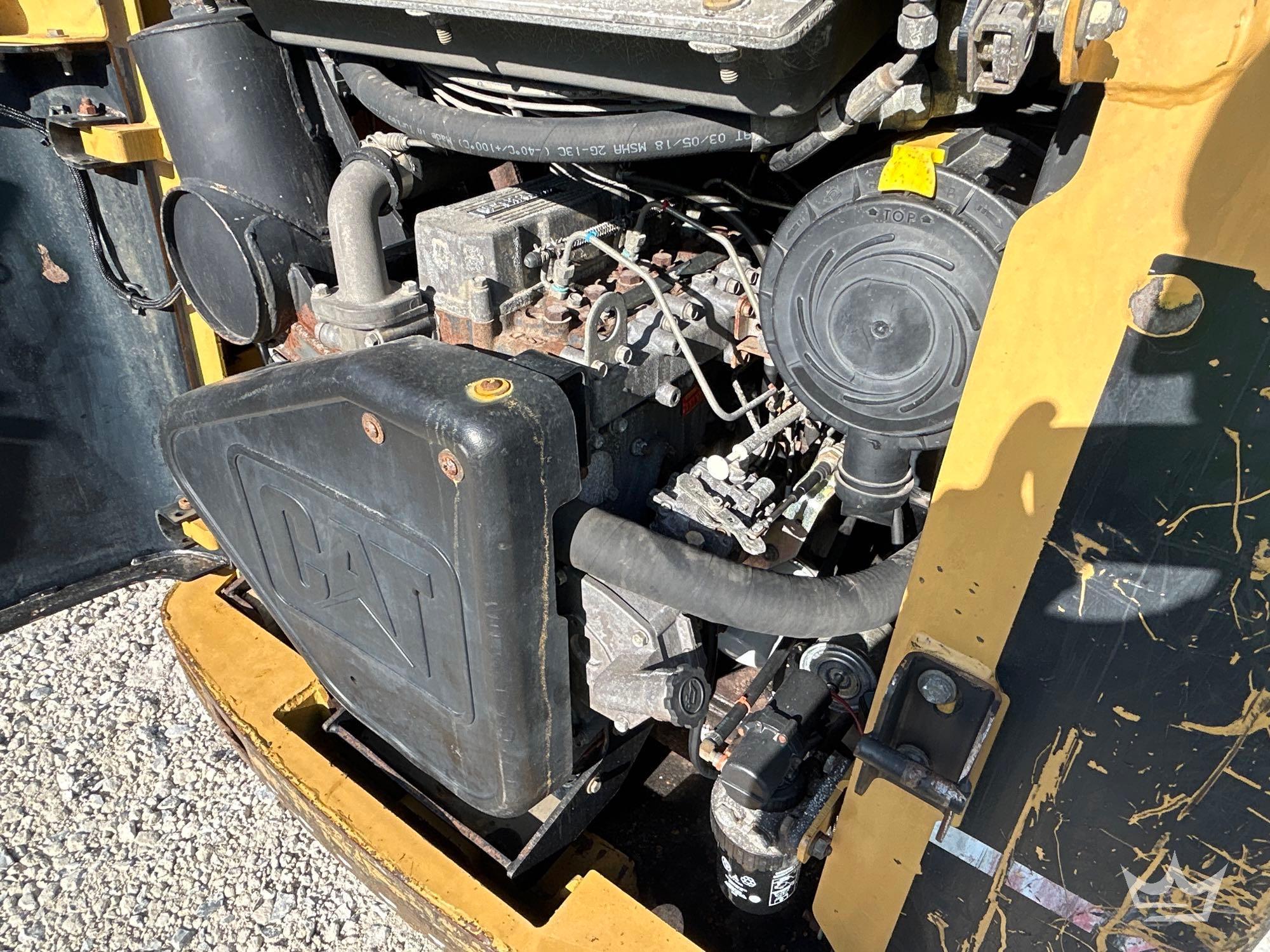

| Engine |
|
Aspiration |
turbocharged |
|
Bore |
4 in (9 cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
3044C DIT |
|
Engine Model |
Cat 3044C DIT |
|
Engine Power - Iso 14396 |
80 hp (60 kw)
|
|
Gross Power |
82 hp (61 kw)
|
|
Gross Power - Sae J1995 |
82 hp (61 kw)
|
|
Net Flywheel Power |
78 hp (58 kw)
|
|
Net Power |
79 hp (59 kw)
|
|
Net Power - Eec 80/1269 |
78 hp (58 kw)
|
|
Net Power - Iso 9249 Eec |
78 hp (58 kw)
|
|
Net Power - Sae 1349 |
78 hp (58 kw)
|
|
Stroke |
5 in (12 cm)
|
| Hydraulic |
|
Pump Flow Capacity |
22 gpm (83 lpm)
|
|
Relief Valve Pressure |
3,336 psi |
| Hydraulic System |
|
Hydraulic Flow (1) |
Standard flow |
|
Hydraulic Flow (2) |
Standard |
|
Hydraulic Power |
43 hp (32 kw)
|
|
Loader Hydraulic Flow |
22 gpm (83 lpm)
|
|
Loader Hydraulic Pressure |
3,335 psi |
|
Maximum Loader Hydraulic Flow |
21 gpm (81 lpm)
|
|
Maximum Loader Hydraulic Pressure |
3,336 psi |
| Loader |
|
Breakout Force |
5,507 lbs (2,498 kg)
|
|
Operating Load Rating |
2,699 lbs (1,224 kg)
|
|
Tipping Angle |
5,399 degrees |
| Operating Specifications |
|
Breakout Force - Lift Cylinder |
5,229 lbs (2,372 kg)
|
|
Breakout Force - Tilt Cylinder |
5,508 lbs (2,498 kg)
|
|
Rated Operating Capacity |
2,700 lbs (1,225 kg)
|
|
Rated Operating Capacity With Optional Counterweight |
2,750 lbs (1,247 kg)
|
|
Tipping Load |
5,613 lbs (2,546 kg)
|
| Operational |
|
Alternator Supplied Amperage |
90 amps |
|
Chain Box Fluid Capacity - Each Side |
2 gal (8 l)
|
|
Cooling System Fluid Capacity |
3 gal (10 l)
|
|
Engine Oil Fluid Capacity |
3 gal (10 l)
|
|
Fuel Capacity |
24 gal (90 l)
|
|
Hydraulic System Fluid Capacity |
14 gal (53 l)
|
|
Max Speed |
7 mph (12 kph)
|
|
Operating Voltage |
12 V |
|
Operational Weight |
7,860 lbs (3,565 kg)
|
|

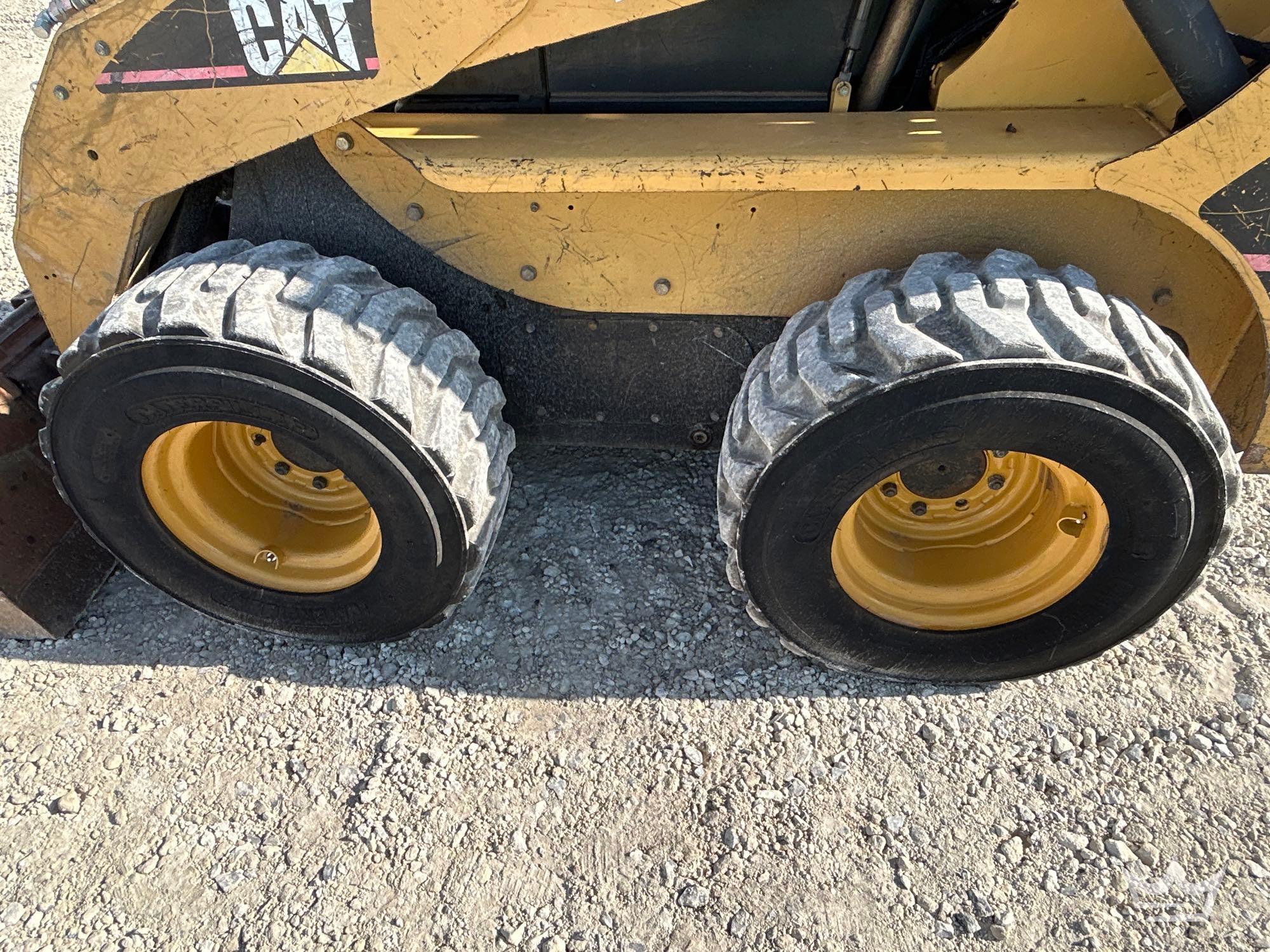

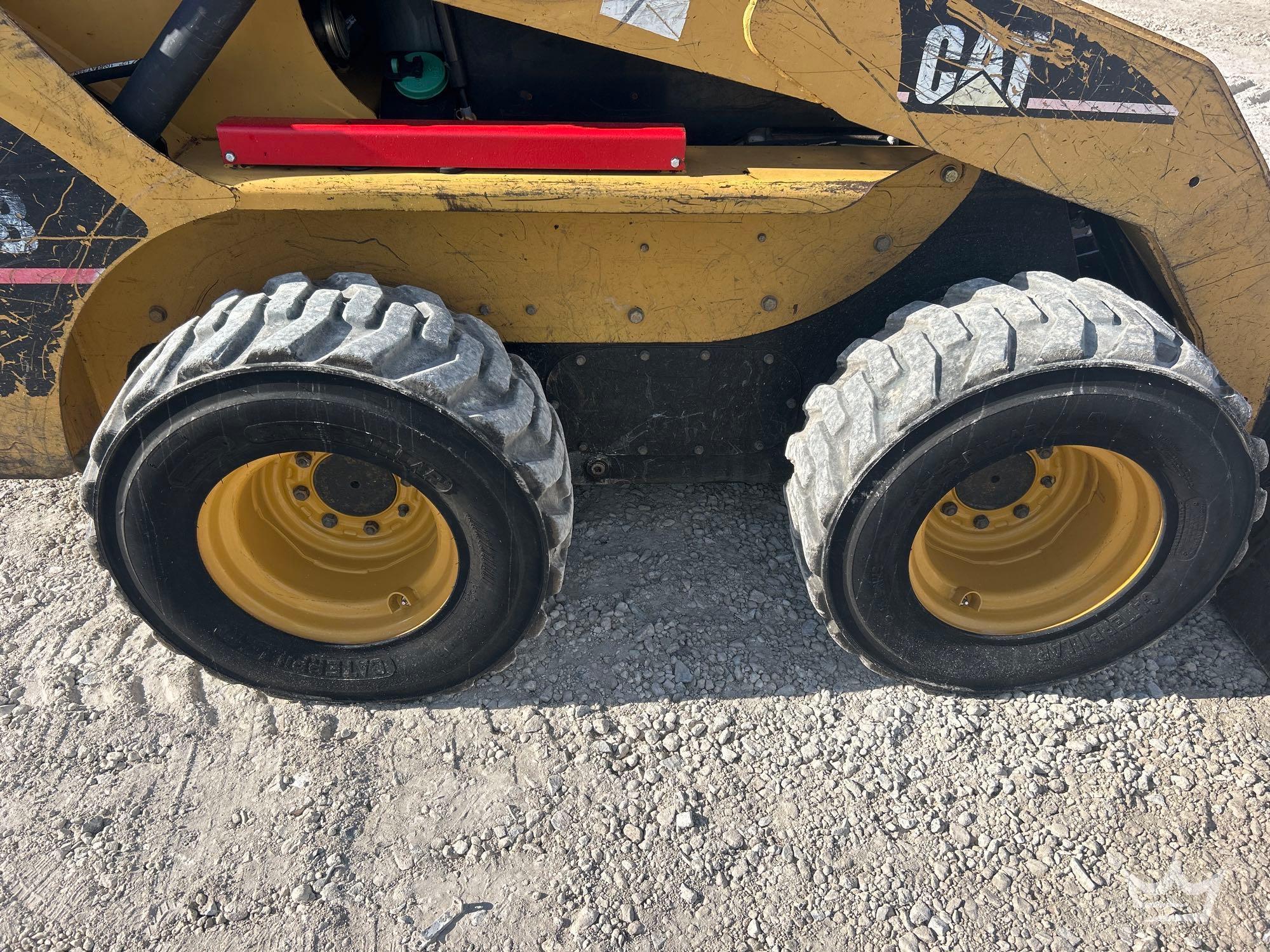

Tire Size |
12x16.5 10PR |
| Power Train |
|
Travel Speed Forward |
7 mph (12 kph)
|
|
Travel Speed Forward - 2-Speed Option |
11 mph (18 kph)
|
|
Travel Speed Reverse |
7 mph (12 kph)
|
|
Travel Speed Reverse - 2-Speed Option |
11 mph (18 kph)
|
| Service Refill Capacities |
|
Chain Box - Each Side |
2 gal (8 l)
|
|
Cooling System |
3 gal (10 l)
|
|
Engine Crankcase |
3 gal (10 l)
|
|
Fuel Tank |
24 gal (90 l)
|
|
Hydraulic System |
14 gal (53 l)
|
|
Hydraulic Tank |
9 gal (35 l)
|
| Weights |
|
Operating Weight |
7,861 lbs (3,566 kg)
|
