| Cab |
|
Fops |
SAE J1043 SEPT87, ISO 3449:1992 Level I |
|
Fops Level Ii |
SAE J231 JAN81, ISO 3449:1992 Level II |
|
Rops |
SAE J1040 MAY94, ISO 3471:1994 |
| Dimensions |
|
Bucket Pin Height - Carry Position |
8 in (20 cm)
|
|
Bucket Pin Height - Maximum Lift |
11 ft (3 m)
|
|
Bucket Pin Reach - Maximum Lift |
15 in (37 cm)
|
|
Bumper Overhang - Rear Axle |
43 in (109 cm)
|
|
Clearance At Max Lift And Dump |
8 ft (2 m)
|
|
Clearance At Maximum Lift And Dump |
96 in (245 cm)
|
|
Departure Angle |
26 degrees |
|
Ground Clearance |
9 in (22 cm)
|
|
Height |
7 ft (2 m)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Height To Top Of Cab |
7 ft (2 m)
|
|
Length |
12 ft (4 m)
|
|
Length - With Bucket On Ground |
145 in (368 cm)
|
|
Length - Without Bucket |
117 in (297 cm)
|
|
Length W/O Bucket |
10 ft (3 m)
|
|
Length With Bucket |
12 ft (4 m)
|
|
Maximum Dump Angle |
50 degrees |
|
Maximum Overall Height |
160 in (407 cm)
|
|
Maximum Reach - With Arms Parallel |
51 in (128 cm)
|
|
Rack Back Angle - Maximum Height |
85 degrees |
|
Reach - Maximum Lift/Dump |
31 in (78 cm)
|
|
Reach At Max Lift And Dump |
31 in (78 cm)
|
|
Turn Radius From Center - Bucket |
85 in (217 cm)
|
|
Turn Radius From Center - Coupler |
55 in (139 cm)
|
|
Turn Radius From Center - Rear |
68 in (173 cm)
|
|
Turning Radius From Center - Inc Bucket |
98 in (248 cm)
|
|
Turning Radius From Center - Machine Rear |
57 in (144 cm)
|
|
Vehicle Width Over Tires |
66 in (168 cm)
|
|
Weight |
7,968 lbs (3,614 kg)
|
|
Wheel Base |
4 ft (1 m)
|
|
Wheelbase |
4 ft (1 m)
|
|
Width |
6 ft (2 m)
|
|
Width Over Tires |
6 ft (2 m)
|
| Engine |
|
Bore |
4 in (9 cm)
|
|
Displacement |
201 cu in (3,294 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
3044C DIT |
|
Engine Model |
Cat C3.4 DIT |
|
Engine Power - Iso 14396 |
83 hp (62 kw)
|
|
Gross Power |
84 hp (63 kw)
|
|
Gross Power - Sae J1995 |
84 hp (63 kw)
|
|
Net Flywheel Power |
82 hp (61 kw)
|
|
Net Power |
82 hp (61 kw)
|
|
Net Power - Eec 80/1269 |
83 hp (62 kw)
|
|
Net Power - Iso 9249 Eec |
83 hp (62 kw)
|
|
Net Power - Sae 1349 |
82 hp (61 kw)
|
|
Number Of Cylinders |
4 |
|
Power Measured @ |
2,500 rpm |
|
Stroke |
5 in (12 cm)
|
| General Specifications |
|
A Height to top of ROPS (Since 2010)
|
83 in (211 cm)
|
|
A Height to top of ROPS (2012)
|
83 in (211 cm)
|
|
A Height to top of ROPS (2013)
|
83 in (211 cm)
|
|
Approx. Machine Weight (Since 2008)
|
7,968 lbs (3,614 kg)
|
|
Approx. Machine Weight (2009)
|
7,968 lbs (3,614 kg)
|
|
Approx. Machine Weight (2010)
|
7,968 lbs (3,614 kg)
|
|
Approx. Machine Weight (2011)
|
7,968 lbs (3,614 kg)
|
|
Approx. Machine Weight (2012)
|
7,968 lbs (3,614 kg)
|
|
Approx. Machine Weight (2013)
|
7,968 lbs (3,614 kg)
|
|
B Length to coupler (Since 2010)
|
117 in (297 cm)
|
|
B Length to coupler (2012)
|
117 in (297 cm)
|
|
B Length to coupler (2013)
|
117 in (297 cm)
|
|
Blade surface height at level lift arms (Since 2010)
|
63 in (161 cm)
|
|
Blade surface height at level lift arms (2012)
|
63 in (161 cm)
|
|
Blade surface height at level lift arms (2013)
|
63 in (161 cm)
|
|
Blade surface height at maximum height (Since 2010)
|
123 in (313 cm)
|
|
Blade surface height at maximum height (2012)
|
123 in (313 cm)
|
|
Blade surface height at maximum height (2013)
|
123 in (313 cm)
|
|
Blade surface height at minimum lift (Since 2010)
|
4 in (9 cm)
|
|
Blade surface height at minimum lift (2012)
|
4 in (9 cm)
|
|
Blade surface height at minimum lift (2013)
|
4 in (9 cm)
|
|
Bore (Since 2010)
|
4 in (9 cm)
|
|
Bore (2012)
|
4 in (9 cm)
|
|
Bore (2013)
|
4 in (9 cm)
|
|
Breakout force - lift (Since 2010)
|
5,229 lbs (2,372 kg)
|
|
Breakout force - lift (Since 2010)
|
5,322 lbs (2,414 kg)
|
|
Breakout force - lift (Since 2010)
|
5,357 lbs (2,430 kg)
|
|
Breakout force - lift (Since 2010)
|
5,201 lbs (2,359 kg)
|
|
Breakout force - lift (Since 2010)
|
5,298 lbs (2,403 kg)
|
|
Breakout force - lift (Since 2010)
|
5,333 lbs (2,419 kg)
|
|
Breakout force - lift (Since 2010)
|
5,176 lbs (2,348 kg)
|
|
Breakout force - lift (Since 2010)
|
5,271 lbs (2,391 kg)
|
|
Breakout force - lift (Since 2010)
|
5,311 lbs (2,409 kg)
|
|
Breakout force - lift (Since 2010)
|
5,101 lbs (2,314 kg)
|
|
Breakout force - lift (Since 2010)
|
4,954 lbs (2,247 kg)
|
|
Breakout force - lift (Since 2010)
|
5,055 lbs (2,293 kg)
|
|
Breakout force - lift (Since 2010)
|
5,095 lbs (2,311 kg)
|
|
Breakout force - lift (Since 2010)
|
4,976 lbs (2,257 kg)
|
|
Breakout force - lift (Since 2010)
|
5,066 lbs (2,298 kg)
|
|
Breakout force - lift (Since 2010)
|
4,936 lbs (2,239 kg)
|
|
Breakout force - lift (Since 2010)
|
5,031 lbs (2,282 kg)
|
|
Breakout force - lift (Since 2010)
|
5,359 lbs (2,431 kg)
|
|
Breakout force - lift (Since 2010)
|
5,329 lbs (2,417 kg)
|
|
Breakout force - lift (Since 2010)
|
5,463 lbs (2,478 kg)
|
|
Breakout force - lift (Since 2010)
|
5,265 lbs (2,388 kg)
|
|
Breakout force - lift (Since 2010)
|
5,439 lbs (2,467 kg)
|
|
Breakout force - lift (Since 2010)
|
5,489 lbs (2,490 kg)
|
|
Breakout force - lift (Since 2010)
|
4,899 lbs (2,222 kg)
|
|
Breakout force - lift (Since 2010)
|
4,991 lbs (2,264 kg)
|
|
Breakout force - lift (Since 2012)
|
5,229 lbs (2,372 kg)
|
|
Breakout force - lift (Since 2012)
|
5,322 lbs (2,414 kg)
|
|
Breakout force - lift (Since 2012)
|
5,357 lbs (2,430 kg)
|
|
Breakout force - lift (Since 2012)
|
5,201 lbs (2,359 kg)
|
|
Breakout force - lift (Since 2012)
|
5,298 lbs (2,403 kg)
|
|
Breakout force - lift (Since 2012)
|
5,333 lbs (2,419 kg)
|
|
Breakout force - lift (Since 2012)
|
5,176 lbs (2,348 kg)
|
|
Breakout force - lift (Since 2012)
|
5,271 lbs (2,391 kg)
|
|
Breakout force - lift (Since 2012)
|
5,311 lbs (2,409 kg)
|
|
Breakout force - lift (Since 2012)
|
5,101 lbs (2,314 kg)
|
|
Breakout force - lift (Since 2012)
|
4,954 lbs (2,247 kg)
|
|
Breakout force - lift (Since 2012)
|
5,055 lbs (2,293 kg)
|
|
Breakout force - lift (Since 2012)
|
5,095 lbs (2,311 kg)
|
|
Breakout force - lift (Since 2012)
|
4,976 lbs (2,257 kg)
|
|
Breakout force - lift (Since 2012)
|
5,066 lbs (2,298 kg)
|
|
Breakout force - lift (Since 2012)
|
4,936 lbs (2,239 kg)
|
|
Breakout force - lift (Since 2012)
|
5,031 lbs (2,282 kg)
|
|
Breakout force - lift (Since 2012)
|
5,359 lbs (2,431 kg)
|
|
Breakout force - lift (Since 2012)
|
5,329 lbs (2,417 kg)
|
|
Breakout force - lift (Since 2012)
|
5,463 lbs (2,478 kg)
|
|
Breakout force - lift (Since 2012)
|
5,265 lbs (2,388 kg)
|
|
Breakout force - lift (Since 2012)
|
5,439 lbs (2,467 kg)
|
|
Breakout force - lift (Since 2012)
|
5,489 lbs (2,490 kg)
|
|
Breakout force - lift (Since 2012)
|
4,899 lbs (2,222 kg)
|
|
Breakout force - lift (Since 2012)
|
4,991 lbs (2,264 kg)
|
|
Breakout force - lift (Since 2013)
|
5,229 lbs (2,372 kg)
|
|
Breakout force - lift (Since 2013)
|
5,322 lbs (2,414 kg)
|
|
Breakout force - lift (Since 2013)
|
5,357 lbs (2,430 kg)
|
|
Breakout force - lift (Since 2013)
|
5,201 lbs (2,359 kg)
|
|
Breakout force - lift (Since 2013)
|
5,298 lbs (2,403 kg)
|
|
Breakout force - lift (Since 2013)
|
5,333 lbs (2,419 kg)
|
|
Breakout force - lift (Since 2013)
|
5,176 lbs (2,348 kg)
|
|
Breakout force - lift (Since 2013)
|
5,271 lbs (2,391 kg)
|
|
Breakout force - lift (Since 2013)
|
5,311 lbs (2,409 kg)
|
|
Breakout force - lift (Since 2013)
|
5,101 lbs (2,314 kg)
|
|
Breakout force - lift (Since 2013)
|
4,954 lbs (2,247 kg)
|
|
Breakout force - lift (Since 2013)
|
5,055 lbs (2,293 kg)
|
|
Breakout force - lift (Since 2013)
|
5,095 lbs (2,311 kg)
|
|
Breakout force - lift (Since 2013)
|
4,976 lbs (2,257 kg)
|
|
Breakout force - lift (Since 2013)
|
5,066 lbs (2,298 kg)
|
|
Breakout force - lift (Since 2013)
|
4,936 lbs (2,239 kg)
|
|
Breakout force - lift (Since 2013)
|
5,031 lbs (2,282 kg)
|
|
Breakout force - lift (Since 2013)
|
5,359 lbs (2,431 kg)
|
|
Breakout force - lift (Since 2013)
|
5,329 lbs (2,417 kg)
|
|
Breakout force - lift (Since 2013)
|
5,463 lbs (2,478 kg)
|
|
Breakout force - lift (Since 2013)
|
5,265 lbs (2,388 kg)
|
|
Breakout force - lift (Since 2013)
|
5,439 lbs (2,467 kg)
|
|
Breakout force - lift (Since 2013)
|
5,489 lbs (2,490 kg)
|
|
Breakout force - lift (Since 2013)
|
4,899 lbs (2,222 kg)
|
|
Breakout force - lift (Since 2013)
|
4,991 lbs (2,264 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,473 lbs (2,936 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,788 lbs (3,079 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,825 lbs (3,096 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,453 lbs (2,927 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,773 lbs (3,072 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,810 lbs (3,089 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,444 lbs (2,923 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,762 lbs (3,067 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,803 lbs (3,086 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,627 lbs (3,006 kg)
|
|
Breakout force - tilt (Since 2010)
|
5,739 lbs (2,603 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,008 lbs (2,725 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,047 lbs (2,743 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,285 lbs (2,851 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,590 lbs (2,989 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,263 lbs (2,841 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,572 lbs (2,981 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,607 lbs (2,997 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,931 lbs (3,144 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,909 lbs (3,134 kg)
|
|
Breakout force - tilt (Since 2010)
|
7,313 lbs (3,317 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,898 lbs (3,129 kg)
|
|
Breakout force - tilt (Since 2010)
|
7,306 lbs (3,314 kg)
|
|
Breakout force - tilt (Since 2010)
|
7,328 lbs (3,324 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,239 lbs (2,830 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,545 lbs (2,969 kg)
|
|
Breakout force - tilt (Since 2010)
|
6,587 lbs (2,988 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,473 lbs (2,936 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,788 lbs (3,079 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,825 lbs (3,096 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,453 lbs (2,927 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,773 lbs (3,072 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,810 lbs (3,089 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,444 lbs (2,923 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,762 lbs (3,067 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,803 lbs (3,086 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,627 lbs (3,006 kg)
|
|
Breakout force - tilt (Since 2012)
|
5,739 lbs (2,603 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,008 lbs (2,725 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,047 lbs (2,743 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,285 lbs (2,851 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,590 lbs (2,989 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,263 lbs (2,841 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,572 lbs (2,981 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,607 lbs (2,997 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,931 lbs (3,144 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,909 lbs (3,134 kg)
|
|
Breakout force - tilt (Since 2012)
|
7,313 lbs (3,317 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,898 lbs (3,129 kg)
|
|
Breakout force - tilt (Since 2012)
|
7,306 lbs (3,314 kg)
|
|
Breakout force - tilt (Since 2012)
|
7,328 lbs (3,324 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,239 lbs (2,830 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,545 lbs (2,969 kg)
|
|
Breakout force - tilt (Since 2012)
|
6,587 lbs (2,988 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,473 lbs (2,936 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,788 lbs (3,079 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,825 lbs (3,096 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,453 lbs (2,927 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,773 lbs (3,072 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,810 lbs (3,089 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,444 lbs (2,923 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,762 lbs (3,067 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,803 lbs (3,086 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,627 lbs (3,006 kg)
|
|
Breakout force - tilt (Since 2013)
|
5,739 lbs (2,603 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,008 lbs (2,725 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,047 lbs (2,743 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,285 lbs (2,851 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,590 lbs (2,989 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,263 lbs (2,841 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,572 lbs (2,981 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,607 lbs (2,997 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,931 lbs (3,144 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,909 lbs (3,134 kg)
|
|
Breakout force - tilt (Since 2013)
|
7,313 lbs (3,317 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,898 lbs (3,129 kg)
|
|
Breakout force - tilt (Since 2013)
|
7,306 lbs (3,314 kg)
|
|
Breakout force - tilt (Since 2013)
|
7,328 lbs (3,324 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,239 lbs (2,830 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,545 lbs (2,969 kg)
|
|
Breakout force - tilt (Since 2013)
|
6,587 lbs (2,988 kg)
|
|
Bucket overall width (Since 2010)
|
72 in (183 cm)
|
|
Bucket overall width (2012)
|
72 in (183 cm)
|
|
Bucket overall width (2013)
|
72 in (183 cm)
|
|
C Length with bucket on ground (Since 2010)
|
145 in (368 cm)
|
|
C Length with bucket on ground (2012)
|
145 in (368 cm)
|
|
C Length with bucket on ground (2013)
|
145 in (368 cm)
|
|
Capacity at 50% with counter- weight (Since 2008)
|
2,945 lbs (1,336 kg)
|
|
Capacity at 50% with counter- weight (2009)
|
2,945 lbs (1,336 kg)
|
|
Capacity at 50% with counter- weight (2010)
|
2,945 lbs (1,336 kg)
|
|
Capacity at 50% with counter- weight (2011)
|
2,945 lbs (1,336 kg)
|
|
Capacity at 50% with counter- weight (2012)
|
2,945 lbs (1,336 kg)
|
|
Capacity at 50% with counter- weight (2013)
|
2,945 lbs (1,336 kg)
|
|
Carriage height above blade top (Since 2010)
|
37 in (93 cm)
|
|
Carriage height above blade top (2012)
|
37 in (93 cm)
|
|
Carriage height above blade top (2013)
|
37 in (93 cm)
|
|
Carriage overall width without step (Since 2010)
|
46 in (116 cm)
|
|
Carriage overall width without step (2012)
|
46 in (116 cm)
|
|
Carriage overall width without step (2013)
|
46 in (116 cm)
|
|
Carriage step additional width (Since 2010)
|
4 in (11 cm)
|
|
Carriage step additional width (2012)
|
4 in (11 cm)
|
|
Carriage step additional width (2013)
|
4 in (11 cm)
|
|
Clearance at maximum lift/level bucket (Since 2010)
|
120 in (304 cm)
|
|
Clearance at maximum lift/level bucket (Since 2010)
|
120 in (304 cm)
|
|
Clearance at maximum lift/level bucket (Since 2010)
|
119 in (302 cm)
|
|
Clearance at maximum lift/level bucket (Since 2012)
|
120 in (304 cm)
|
|
Clearance at maximum lift/level bucket (Since 2012)
|
120 in (304 cm)
|
|
Clearance at maximum lift/level bucket (Since 2012)
|
119 in (302 cm)
|
|
Clearance at maximum lift/level bucket (Since 2012)
|
120 in (304 cm)
|
|
Clearance at maximum lift/level bucket (Since 2012)
|
119 in (302 cm)
|
|
Clearance at maximum lift/level bucket (Since 2013)
|
120 in (304 cm)
|
|
Clearance at maximum lift/level bucket (Since 2013)
|
120 in (304 cm)
|
|
Clearance at maximum lift/level bucket (Since 2013)
|
119 in (302 cm)
|
|
Clearance at maximum lift/level bucket (Since 2013)
|
120 in (304 cm)
|
|
Clearance at maximum lift/level bucket (Since 2013)
|
119 in (302 cm)
|
|
D Maximum overall height (Since 2010)
|
160 in (406 cm)
|
|
D Maximum overall height (2012)
|
160 in (406 cm)
|
|
D Maximum overall height (2013)
|
160 in (406 cm)
|
|
Dig depth with level bucket (Since 2010)
|
1 in (3 cm)
|
|
Dig depth with level bucket (Since 2010)
|
0 in (1 cm)
|
|
Dig depth with level bucket (Since 2010)
|
1 in (2 cm)
|
|
Dig depth with level bucket (Since 2010)
|
1 in (3 cm)
|
|
Dig depth with level bucket (Since 2012)
|
1 in (3 cm)
|
|
Dig depth with level bucket (Since 2012)
|
0 in (1 cm)
|
|
Dig depth with level bucket (Since 2012)
|
1 in (2 cm)
|
|
Dig depth with level bucket (Since 2012)
|
1 in (3 cm)
|
|
Dig depth with level bucket (Since 2013)
|
1 in (3 cm)
|
|
Dig depth with level bucket (Since 2013)
|
0 in (1 cm)
|
|
Dig depth with level bucket (Since 2013)
|
1 in (2 cm)
|
|
Dig depth with level bucket (Since 2013)
|
1 in (3 cm)
|
|
Displacement (Since 2010)
|
201 cu in (3,294 cu cm)
|
|
Displacement (2012)
|
201 cu in (3,294 cu cm)
|
|
Displacement (2013)
|
201 cu in (3,294 cu cm)
|
|
Dump clearance at maximum lift/dump (Since 2010)
|
95 in (241 cm)
|
|
Dump clearance at maximum lift/dump (Since 2010)
|
94 in (237 cm)
|
|
Dump clearance at maximum lift/dump (Since 2010)
|
96 in (243 cm)
|
|
Dump clearance at maximum lift/dump (Since 2010)
|
95 in (242 cm)
|
|
Dump clearance at maximum lift/dump (Since 2010)
|
95 in (241 cm)
|
|
Dump clearance at maximum lift/dump (Since 2010)
|
93 in (237 cm)
|
|
Dump clearance at maximum lift/dump (Since 2010)
|
96 in (244 cm)
|
|
Dump clearance at maximum lift/dump (Since 2010)
|
97 in (245 cm)
|
|
Dump clearance at maximum lift/dump (Since 2012)
|
95 in (241 cm)
|
|
Dump clearance at maximum lift/dump (Since 2012)
|
94 in (237 cm)
|
|
Dump clearance at maximum lift/dump (Since 2012)
|
96 in (243 cm)
|
|
Dump clearance at maximum lift/dump (Since 2012)
|
95 in (242 cm)
|
|
Dump clearance at maximum lift/dump (Since 2012)
|
95 in (240 cm)
|
|
Dump clearance at maximum lift/dump (Since 2012)
|
96 in (243 cm)
|
|
Dump clearance at maximum lift/dump (Since 2012)
|
96 in (243 cm)
|
|
Dump clearance at maximum lift/dump (Since 2012)
|
95 in (241 cm)
|
|
Dump clearance at maximum lift/dump (Since 2012)
|
93 in (237 cm)
|
|
Dump clearance at maximum lift/dump (Since 2012)
|
96 in (244 cm)
|
|
Dump clearance at maximum lift/dump (Since 2012)
|
97 in (245 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
95 in (241 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
94 in (237 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
96 in (243 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
95 in (242 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
95 in (240 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
96 in (243 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
96 in (243 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
95 in (241 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
93 in (237 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
96 in (244 cm)
|
|
Dump clearance at maximum lift/dump (Since 2013)
|
97 in (245 cm)
|
|
E Ground clearance (Since 2010)
|
9 in (23 cm)
|
|
E Ground clearance (2012)
|
9 in (23 cm)
|
|
E Ground clearance (2013)
|
9 in (23 cm)
|
|
Engine Model (Since 2008)
|
Cat C3.4 DIT |
|
Engine Model (2009)
|
Cat C3.4 DIT |
|
Engine Model (2010)
|
Cat C3.4 DIT |
|
Engine Model (Since 2010)
|
C3.4 DIT |
|
Engine Model (Since 2011)
|
Cat C3.4 DIT |
|
Engine Model (2012)
|
Cat C3.4 DIT |
|
Engine Model (Since 2012)
|
C3.4 DIT |
|
Engine Model (2013)
|
C3.4 DIT |
|
Engine Model (Since 2013)
|
Cat C3.4 DIT |
|
F Departure angle (Since 2010)
|
26 deg |
|
F Departure angle (2012)
|
26 deg |
|
F Departure angle (2013)
|
26 deg |
|
Floor angle at maximum lift/dump (Since 2010)
|
39 deg |
|
Floor angle at maximum lift/dump (Since 2010)
|
40 deg |
|
Floor angle at maximum lift/dump (Since 2013)
|
39 deg |
|
Floor angle at maximum lift/dump (Since 2013)
|
40 deg |
|
Floor angle at maximum lift/dump (Since 2013)
|
40 deg |
|
Floor angle at maximum lift/rack back (Since 2010)
|
85 deg |
|
Floor angle at maximum lift/rack back (Since 2010)
|
95 deg |
|
Floor angle at maximum lift/rack back (Since 2013)
|
85 deg |
|
Floor angle at maximum lift/rack back (Since 2013)
|
85 deg |
|
Floor angle at maximum lift/rack back (Since 2013)
|
95 deg |
|
Flywheel Power: Gross (Since 2013)
|
84 hp (63 kw)
|
|
Flywheel Power: Net (Since 2010)
|
82 hp (61 kw)
|
|
Flywheel Power: Net (2012)
|
82 hp (61 kw)
|
|
Flywheel Power: Net (2013)
|
82 hp (61 kw)
|
|
Front clearance circle radius (with bucket) (Since 2010)
|
99 in (252 cm)
|
|
Front clearance circle radius (with bucket) (Since 2010)
|
101 in (257 cm)
|
|
Front clearance circle radius (with bucket) (Since 2010)
|
98 in (248 cm)
|
|
Front clearance circle radius (with bucket) (Since 2010)
|
100 in (255 cm)
|
|
Front clearance circle radius (with bucket) (Since 2010)
|
102 in (260 cm)
|
|
Front clearance circle radius (with bucket) (Since 2010)
|
99 in (252 cm)
|
|
Front clearance circle radius (with bucket) (Since 2010)
|
102 in (258 cm)
|
|
Front clearance circle radius (with bucket) (Since 2010)
|
104 in (263 cm)
|
|
Front clearance circle radius (with bucket) (Since 2010)
|
101 in (255 cm)
|
|
Front clearance circle radius (with bucket) (Since 2010)
|
100 in (253 cm)
|
|
Front clearance circle radius (with bucket) (Since 2010)
|
103 in (262 cm)
|
|
Front clearance circle radius (with bucket) (Since 2010)
|
99 in (251 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
99 in (252 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
101 in (257 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
98 in (248 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
100 in (255 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
102 in (260 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
99 in (252 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
102 in (258 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
104 in (263 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
101 in (255 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
87 in (220 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
94 in (240 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
93 in (237 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
93 in (236 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
88 in (223 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
87 in (220 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
89 in (226 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
88 in (224 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
100 in (253 cm)
|
|
Front clearance circle radius (with bucket) (Since 2012)
|
103 in (262 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
99 in (252 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
101 in (257 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
98 in (248 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
100 in (255 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
102 in (260 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
99 in (252 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
102 in (258 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
104 in (263 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
101 in (255 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
87 in (220 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
94 in (240 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
93 in (237 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
93 in (236 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
88 in (223 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
87 in (220 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
89 in (226 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
88 in (224 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
100 in (253 cm)
|
|
Front clearance circle radius (with bucket) (Since 2013)
|
103 in (262 cm)
|
|
Fuel Tank Capacity (Since 2010)
|
26 US gal (98 L)
|
|
Fuel Tank Capacity (2012)
|
26 US gal (98 L)
|
|
Fuel Tank Capacity (2013)
|
26 US gal (98 L)
|
|
G Wheelbase (Since 2010)
|
49 in (124 cm)
|
|
G Wheelbase (2012)
|
49 in (124 cm)
|
|
G Wheelbase (2013)
|
49 in (124 cm)
|
|
Gross (Since 2010)
|
84 hp (63 kw)
|
|
Gross (2012)
|
84 hp (63 kw)
|
|
Ground Clearance (Since 2010)
|
9 in (23 cm)
|
|
Ground Clearance (2012)
|
9 in (23 cm)
|
|
Ground Clearance (2013)
|
9 in (23 cm)
|
|
H Bumper overhang from axle (Since 2010)
|
43 in (109 cm)
|
|
H Bumper overhang from axle (2012)
|
43 in (109 cm)
|
|
H Bumper overhang from axle (2013)
|
43 in (109 cm)
|
|
Height to Top of Cab (Since 2008)
|
83 in (210 cm)
|
|
Height to Top of Cab (2009)
|
83 in (210 cm)
|
|
Height to Top of Cab (2010)
|
83 in (210 cm)
|
|
Height to Top of Cab (2011)
|
83 in (210 cm)
|
|
Height to Top of Cab (2012)
|
83 in (210 cm)
|
|
Height to Top of Cab (2013)
|
83 in (210 cm)
|
|
Hinge pin height at carry position (Since 2010)
|
8 in (20 cm)
|
|
Hinge pin height at carry position (2012)
|
8 in (20 cm)
|
|
Hinge pin height at carry position (2013)
|
8 in (20 cm)
|
|
Hinge pin height at maximum lift (Since 2010)
|
127 in (323 cm)
|
|
Hinge pin height at maximum lift (2012)
|
127 in (323 cm)
|
|
Hinge pin height at maximum lift (2013)
|
127 in (323 cm)
|
|
Hydraulic Cycle Time, - Empty Bucket - Dump (HF) (Since 2010)
|
3 sec (3 Seconds)
|
|
Hydraulic Cycle Time, - Empty Bucket - Dump (HF) (2012)
|
3 sec (3 Seconds)
|
|
Hydraulic Cycle Time, - Empty Bucket - Lower (Empty, - Float Down) (HF) (Since 2010)
|
5 sec (5 Seconds)
|
|
Hydraulic Cycle Time, - Empty Bucket - Lower (Empty, - Float Down) (HF) (2012)
|
5 sec (5 Seconds)
|
|
Hydraulic Cycle Time, - Empty Bucket - Raise (HF) (Since 2010)
|
5 sec (5 Seconds)
|
|
Hydraulic Cycle Time, - Empty Bucket - Raise (HF) (2012)
|
5 sec (5 Seconds)
|
|
Hydraulic Cycle Time, - Empty Bucket - Total (HF) (Since 2010)
|
12 sec (12 Seconds)
|
|
Hydraulic Cycle Time, - Empty Bucket - Total (HF) (2012)
|
12 sec (12 Seconds)
|
|
Hydraulic Cycle Time, Empty - Bucket, Standard (Optional) - Dump (Since 2013)
|
3 sec (3 Seconds)
|
|
Hydraulic Cycle Time, Empty - Bucket, Standard (Optional) - Lower (Empty, Float Down) (Since 2013)
|
5 sec (5 Seconds)
|
|
Hydraulic Cycle Time, Empty - Bucket, Standard (Optional) - Raise (Since 2013)
|
5 sec (5 Seconds)
|
|
Hydraulic Cycle Time, Empty - Bucket, Standard (Optional) - Total (Since 2013)
|
12 sec (12 Seconds)
|
|
Hydraulic Pressure - Standard (Since 2013)
|
3,335 psi (23,000 kPa)
|
|
Hydraulic Pressure - XPS (Since 2013)
|
4,061 psi (28,000 kPa)
|
|
Hydraulic Pump Capacity (Since 2010)
|
22 US gpm (84 L/min)
|
|
Hydraulic Pump Capacity (2012)
|
22 US gpm (84 L/min)
|
|
Hydraulic Pump Capacity - Standard (Since 2013)
|
22 US gpm (84 L/min)
|
|
Hydraulic Pump Capacity - XPS (Since 2013)
|
33 US gpm (125 L/min)
|
|
Hydraulic System Capacity - (includes tank) (Since 2010)
|
15 US gal (57 L)
|
|
Hydraulic System Capacity - (includes tank) (2012)
|
15 US gal (57 L)
|
|
Hydraulic System Capacity - (includes tank) (2013)
|
15 US gal (57 L)
|
|
Hydraulic Tank Capacity (Since 2010)
|
11 US gal (42 L)
|
|
Hydraulic Tank Capacity (2012)
|
11 US gal (42 L)
|
|
Hydraulic Tank Capacity (2013)
|
11 US gal (42 L)
|
|
J Clearance at maximum lift/dump (Since 2010)
|
96 in (244 cm)
|
|
J Clearance at maximum lift/dump (2012)
|
96 in (244 cm)
|
|
J Clearance at maximum lift/dump (2013)
|
96 in (244 cm)
|
|
K Floor angle at maximum lift/dump (Since 2010)
|
50 deg |
|
K Floor angle at maximum lift/dump (2012)
|
50 deg |
|
K Floor angle at maximum lift/dump (2013)
|
50 deg |
|
L Floor angle at maximum lift/rack (Since 2010)
|
85 deg |
|
L Floor angle at maximum lift/rack (2012)
|
85 deg |
|
L Floor angle at maximum lift/rack (2013)
|
85 deg |
|
Length to Coupler (Since 2008)
|
117 in (298 cm)
|
|
Length to Coupler (2009)
|
117 in (298 cm)
|
|
Length to Coupler (2010)
|
117 in (298 cm)
|
|
Length to Coupler (2011)
|
117 in (298 cm)
|
|
Length to Coupler (2012)
|
117 in (298 cm)
|
|
Length to Coupler (2013)
|
117 in (298 cm)
|
|
M Clearance at maximum lift/level (Since 2010)
|
120 in (305 cm)
|
|
M Clearance at maximum lift/level (2012)
|
120 in (305 cm)
|
|
M Clearance at maximum lift/level (2013)
|
120 in (305 cm)
|
|
Maximum floor angle - at carry position (Since 2010)
|
26 deg |
|
Maximum floor angle - at carry position (2012)
|
26 deg |
|
Maximum floor angle - at carry position (2013)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2010)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2010)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2010)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2013)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2013)
|
26 deg |
|
Maximum floor angle at minimum lift (Since 2013)
|
26 deg |
|
Maximum overall height (Since 2010)
|
161 in (409 cm)
|
|
Maximum overall height (Since 2010)
|
162 in (413 cm)
|
|
Maximum overall height (Since 2010)
|
160 in (407 cm)
|
|
Maximum overall height (Since 2010)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2010)
|
163 in (413 cm)
|
|
Maximum overall height (Since 2010)
|
165 in (420 cm)
|
|
Maximum overall height (Since 2012)
|
161 in (409 cm)
|
|
Maximum overall height (Since 2012)
|
162 in (413 cm)
|
|
Maximum overall height (Since 2012)
|
160 in (407 cm)
|
|
Maximum overall height (Since 2012)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2012)
|
167 in (425 cm)
|
|
Maximum overall height (Since 2012)
|
167 in (423 cm)
|
|
Maximum overall height (Since 2012)
|
166 in (422 cm)
|
|
Maximum overall height (Since 2012)
|
163 in (413 cm)
|
|
Maximum overall height (Since 2012)
|
165 in (420 cm)
|
|
Maximum overall height (Since 2013)
|
161 in (409 cm)
|
|
Maximum overall height (Since 2013)
|
162 in (413 cm)
|
|
Maximum overall height (Since 2013)
|
160 in (407 cm)
|
|
Maximum overall height (Since 2013)
|
162 in (410 cm)
|
|
Maximum overall height (Since 2013)
|
167 in (425 cm)
|
|
Maximum overall height (Since 2013)
|
167 in (423 cm)
|
|
Maximum overall height (Since 2013)
|
166 in (422 cm)
|
|
Maximum overall height (Since 2013)
|
163 in (413 cm)
|
|
Maximum overall height (Since 2013)
|
165 in (420 cm)
|
|
N Hinge pin height at maximum lift (Since 2010)
|
127 in (323 cm)
|
|
N Hinge pin height at maximum lift (2012)
|
127 in (323 cm)
|
|
N Hinge pin height at maximum lift (2013)
|
127 in (323 cm)
|
|
Net Power (Since 2008)
|
82 hp (61 kw)
|
|
Net Power (2009)
|
82 hp (61 kw)
|
|
Net Power (2010)
|
82 hp (61 kw)
|
|
Net Power (2011)
|
82 hp (61 kw)
|
|
Net Power (2012)
|
82 hp (61 kw)
|
|
Net Power (2013)
|
82 hp (61 kw)
|
|
No. Cylinders (Since 2010)
|
4 |
|
No. Cylinders (2012)
|
4 |
|
No. Cylinders (2013)
|
4 |
|
O Reach at level lift arm/bucket (Since 2010)
|
51 in (130 cm)
|
|
O Reach at level lift arm/bucket (2012)
|
51 in (130 cm)
|
|
O Reach at level lift arm/bucket (2013)
|
51 in (130 cm)
|
|
One Speed Forward (Since 2010)
|
0 - 8 mph |
|
One Speed Forward (2012)
|
0 - 8 mph |
|
One Speed Forward (2013)
|
0 - 8 mph |
|
One Speed Reverse (Since 2010)
|
0 - 8 mph |
|
One Speed Reverse (2012)
|
0 - 8 mph |
|
One Speed Reverse (2013)
|
0 - 8 mph |
|
Operating weight (Since 2010)
|
8,051 lbs (3,652 kg)
|
|
Operating weight (Since 2010)
|
8,014 lbs (3,635 kg)
|
|
Operating weight (Since 2010)
|
7,978 lbs (3,619 kg)
|
|
Operating weight (Since 2010)
|
8,084 lbs (3,667 kg)
|
|
Operating weight (Since 2010)
|
8,042 lbs (3,648 kg)
|
|
Operating weight (Since 2010)
|
8,007 lbs (3,632 kg)
|
|
Operating weight (Since 2010)
|
8,117 lbs (3,682 kg)
|
|
Operating weight (Since 2010)
|
8,076 lbs (3,663 kg)
|
|
Operating weight (Since 2010)
|
8,036 lbs (3,645 kg)
|
|
Operating weight (Since 2010)
|
8,274 lbs (3,753 kg)
|
|
Operating weight (Since 2010)
|
8,207 lbs (3,723 kg)
|
|
Operating weight (Since 2010)
|
8,155 lbs (3,699 kg)
|
|
Operating weight (Since 2010)
|
8,115 lbs (3,681 kg)
|
|
Operating weight (Since 2010)
|
8,344 lbs (3,785 kg)
|
|
Operating weight (Since 2010)
|
8,309 lbs (3,769 kg)
|
|
Operating weight (Since 2010)
|
8,395 lbs (3,808 kg)
|
|
Operating weight (Since 2010)
|
8,353 lbs (3,789 kg)
|
|
Operating weight (Since 2010)
|
8,316 lbs (3,772 kg)
|
|
Operating weight (Since 2010)
|
8,001 lbs (3,629 kg)
|
|
Operating weight (Since 2010)
|
7,959 lbs (3,610 kg)
|
|
Operating weight (Since 2010)
|
7,987 lbs (3,623 kg)
|
|
Operating weight (Since 2010)
|
7,928 lbs (3,596 kg)
|
|
Operating weight (Since 2010)
|
8,461 lbs (3,838 kg)
|
|
Operating weight (Since 2010)
|
8,397 lbs (3,809 kg)
|
|
Operating weight (Since 2010)
|
8,358 lbs (3,791 kg)
|
|
Operating weight (Since 2010)
|
7,926 lbs (3,595 kg)
|
|
Operating weight (Since 2010)
|
7,945 lbs (3,604 kg)
|
|
Operating weight (Since 2010)
|
7,904 lbs (3,585 kg)
|
|
Operating weight (Since 2012)
|
8,051 lbs (3,652 kg)
|
|
Operating weight (Since 2012)
|
8,014 lbs (3,635 kg)
|
|
Operating weight (Since 2012)
|
7,978 lbs (3,619 kg)
|
|
Operating weight (Since 2012)
|
8,084 lbs (3,667 kg)
|
|
Operating weight (Since 2012)
|
8,042 lbs (3,648 kg)
|
|
Operating weight (Since 2012)
|
8,007 lbs (3,632 kg)
|
|
Operating weight (Since 2012)
|
8,117 lbs (3,682 kg)
|
|
Operating weight (Since 2012)
|
8,076 lbs (3,663 kg)
|
|
Operating weight (Since 2012)
|
8,036 lbs (3,645 kg)
|
|
Operating weight (Since 2012)
|
8,274 lbs (3,753 kg)
|
|
Operating weight (Since 2012)
|
8,207 lbs (3,723 kg)
|
|
Operating weight (Since 2012)
|
8,155 lbs (3,699 kg)
|
|
Operating weight (Since 2012)
|
8,115 lbs (3,681 kg)
|
|
Operating weight (Since 2012)
|
8,344 lbs (3,785 kg)
|
|
Operating weight (Since 2012)
|
8,309 lbs (3,769 kg)
|
|
Operating weight (Since 2012)
|
8,395 lbs (3,808 kg)
|
|
Operating weight (Since 2012)
|
8,353 lbs (3,789 kg)
|
|
Operating weight (Since 2012)
|
8,316 lbs (3,772 kg)
|
|
Operating weight (Since 2012)
|
8,001 lbs (3,629 kg)
|
|
Operating weight (Since 2012)
|
7,959 lbs (3,610 kg)
|
|
Operating weight (Since 2012)
|
7,987 lbs (3,623 kg)
|
|
Operating weight (Since 2012)
|
7,928 lbs (3,596 kg)
|
|
Operating weight (Since 2012)
|
8,461 lbs (3,838 kg)
|
|
Operating weight (Since 2012)
|
8,397 lbs (3,809 kg)
|
|
Operating weight (Since 2012)
|
8,358 lbs (3,791 kg)
|
|
Operating weight (Since 2012)
|
7,926 lbs (3,595 kg)
|
|
Operating weight (Since 2012)
|
7,945 lbs (3,604 kg)
|
|
Operating weight (Since 2012)
|
7,904 lbs (3,585 kg)
|
|
Operating weight (Since 2013)
|
8,051 lbs (3,652 kg)
|
|
Operating weight (Since 2013)
|
8,014 lbs (3,635 kg)
|
|
Operating weight (Since 2013)
|
7,978 lbs (3,619 kg)
|
|
Operating weight (Since 2013)
|
8,084 lbs (3,667 kg)
|
|
Operating weight (Since 2013)
|
8,042 lbs (3,648 kg)
|
|
Operating weight (Since 2013)
|
8,007 lbs (3,632 kg)
|
|
Operating weight (Since 2013)
|
8,117 lbs (3,682 kg)
|
|
Operating weight (Since 2013)
|
8,076 lbs (3,663 kg)
|
|
Operating weight (Since 2013)
|
8,036 lbs (3,645 kg)
|
|
Operating weight (Since 2013)
|
8,274 lbs (3,753 kg)
|
|
Operating weight (Since 2013)
|
8,207 lbs (3,723 kg)
|
|
Operating weight (Since 2013)
|
8,155 lbs (3,699 kg)
|
|
Operating weight (Since 2013)
|
8,115 lbs (3,681 kg)
|
|
Operating weight (Since 2013)
|
8,344 lbs (3,785 kg)
|
|
Operating weight (Since 2013)
|
8,309 lbs (3,769 kg)
|
|
Operating weight (Since 2013)
|
8,395 lbs (3,808 kg)
|
|
Operating weight (Since 2013)
|
8,353 lbs (3,789 kg)
|
|
Operating weight (Since 2013)
|
8,316 lbs (3,772 kg)
|
|
Operating weight (Since 2013)
|
8,001 lbs (3,629 kg)
|
|
Operating weight (Since 2013)
|
7,959 lbs (3,610 kg)
|
|
Operating weight (Since 2013)
|
7,987 lbs (3,623 kg)
|
|
Operating weight (Since 2013)
|
7,928 lbs (3,596 kg)
|
|
Operating weight (Since 2013)
|
8,461 lbs (3,838 kg)
|
|
Operating weight (Since 2013)
|
8,397 lbs (3,809 kg)
|
|
Operating weight (Since 2013)
|
8,358 lbs (3,791 kg)
|
|
Operating weight (Since 2013)
|
7,926 lbs (3,595 kg)
|
|
Operating weight (Since 2013)
|
7,945 lbs (3,604 kg)
|
|
Operating weight (Since 2013)
|
7,904 lbs (3,585 kg)
|
|
Optional (Since 2013)
|
60 in (152 cm)
|
|
Overall length at minimum lift, level tine (Since 2010)
|
160 in (406 cm)
|
|
Overall length at minimum lift, level tine (Since 2012)
|
160 in (406 cm)
|
|
Overall length at minimum lift, level tine (Since 2013)
|
160 in (406 cm)
|
|
Overall length with bucket on ground (Since 2010)
|
147 in (372 cm)
|
|
Overall length with bucket on ground (Since 2010)
|
149 in (379 cm)
|
|
Overall length with bucket on ground (Since 2010)
|
145 in (369 cm)
|
|
Overall length with bucket on ground (Since 2010)
|
148 in (375 cm)
|
|
Overall length with bucket on ground (Since 2010)
|
149 in (378 cm)
|
|
Overall length with bucket on ground (Since 2010)
|
152 in (385 cm)
|
|
Overall length with bucket on ground (Since 2012)
|
147 in (372 cm)
|
|
Overall length with bucket on ground (Since 2012)
|
149 in (379 cm)
|
|
Overall length with bucket on ground (Since 2012)
|
145 in (369 cm)
|
|
Overall length with bucket on ground (Since 2012)
|
148 in (375 cm)
|
|
Overall length with bucket on ground (Since 2012)
|
152 in (387 cm)
|
|
Overall length with bucket on ground (Since 2012)
|
151 in (385 cm)
|
|
Overall length with bucket on ground (Since 2012)
|
151 in (384 cm)
|
|
Overall length with bucket on ground (Since 2012)
|
149 in (378 cm)
|
|
Overall length with bucket on ground (Since 2012)
|
152 in (385 cm)
|
|
Overall length with bucket on ground (Since 2013)
|
147 in (372 cm)
|
|
Overall length with bucket on ground (Since 2013)
|
149 in (379 cm)
|
|
Overall length with bucket on ground (Since 2013)
|
145 in (369 cm)
|
|
Overall length with bucket on ground (Since 2013)
|
148 in (375 cm)
|
|
Overall length with bucket on ground (Since 2013)
|
152 in (387 cm)
|
|
Overall length with bucket on ground (Since 2013)
|
151 in (385 cm)
|
|
Overall length with bucket on ground (Since 2013)
|
151 in (384 cm)
|
|
Overall length with bucket on ground (Since 2013)
|
149 in (378 cm)
|
|
Overall length with bucket on ground (Since 2013)
|
152 in (385 cm)
|
|

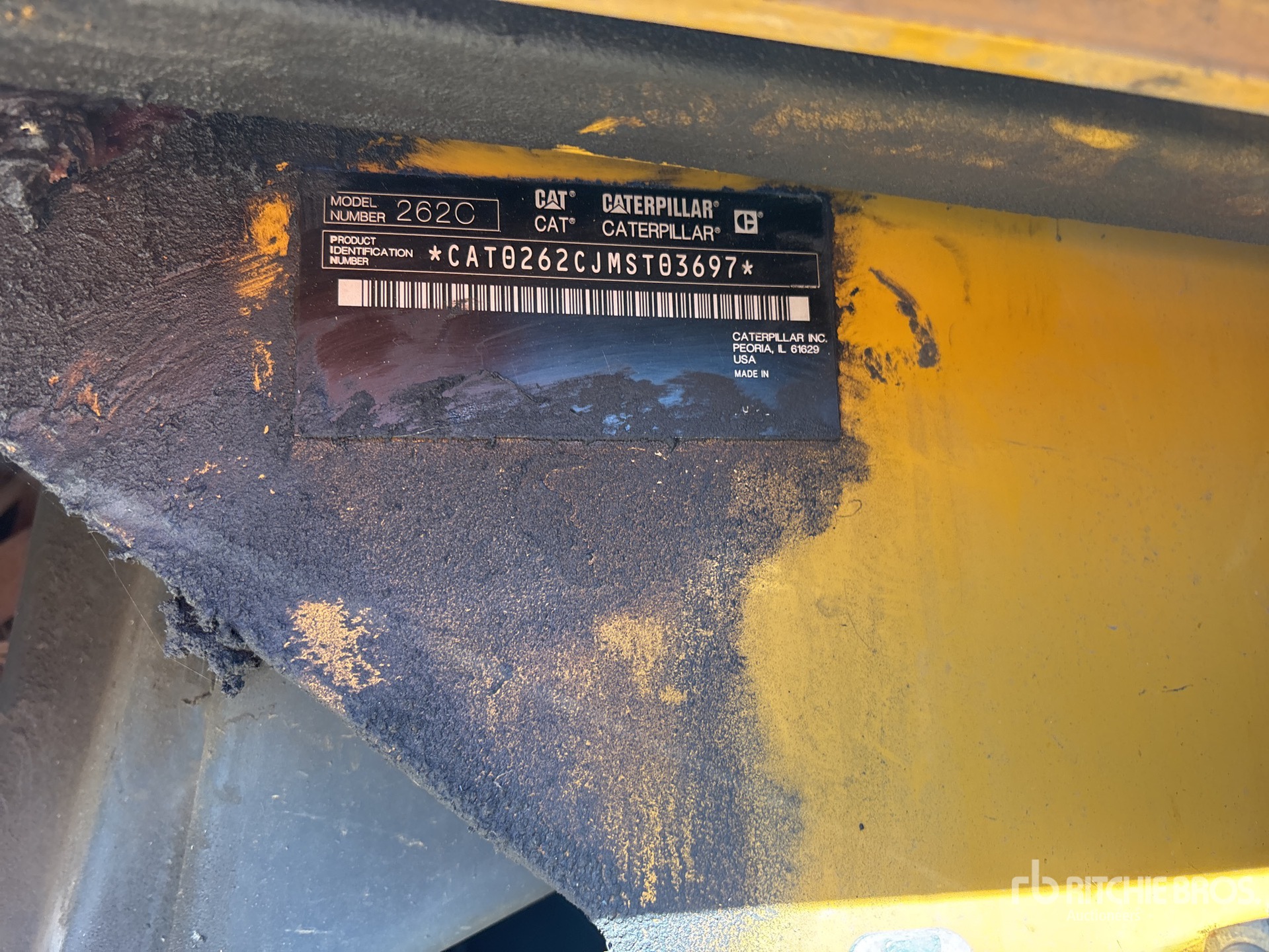

Product Identification Prefix (Since 2008)
|
MST |
|
Product Identification Prefix (2009)
|
MST |
|
Product Identification Prefix (2010)
|
MST |
|
Product Identification Prefix (2011)
|
MST |
|
Product Identification Prefix (2012)
|
MST |
|
Product Identification Prefix (2013)
|
MST |
|
Rated bucket capacity (Since 2010)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2010)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2010)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2010)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2010)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2010)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2010)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2010)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2010)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2010)
|
1 cu yd (1 cu m)
|
|
Rated bucket capacity (Since 2010)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2012)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2012)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2012)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2012)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2012)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2012)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2012)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2012)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2012)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2012)
|
1 cu yd (1 cu m)
|
|
Rated bucket capacity (Since 2012)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2013)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2013)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2013)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2013)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2013)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2013)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2013)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2013)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2013)
|
0 cu yd (0 cu m)
|
|
Rated bucket capacity (Since 2013)
|
1 cu yd (1 cu m)
|
|
Rated bucket capacity (Since 2013)
|
0 cu yd (0 cu m)
|
|
Rated Engine RPM (Since 2010)
|
2,500 rpm |
|
Rated Engine RPM (2012)
|
2,500 rpm |
|
Rated Engine RPM (2013)
|
2,500 rpm |
|
Rated operating capacity (Since 2010)
|
2,700 lbs (1,225 kg)
|
|
Rated operating capacity (2012)
|
2,700 lbs (1,225 kg)
|
|
Rated operating capacity (2013)
|
2,700 lbs (1,225 kg)
|
|
Rated Operating Capacity at 50% (Since 2008)
|
2,700 lbs (1,225 kg)
|
|
Rated Operating Capacity at 50% (2009)
|
2,700 lbs (1,225 kg)
|
|
Rated Operating Capacity at 50% (2010)
|
2,700 lbs (1,225 kg)
|
|
Rated Operating Capacity at 50% (2011)
|
2,700 lbs (1,225 kg)
|
|
Rated Operating Capacity at 50% (2012)
|
2,700 lbs (1,225 kg)
|
|
Rated Operating Capacity at 50% (2013)
|
2,700 lbs (1,225 kg)
|
|
Reach at level lift arm/bucket (Since 2010)
|
52 in (133 cm)
|
|
Reach at level lift arm/bucket (Since 2010)
|
55 in (140 cm)
|
|
Reach at level lift arm/bucket (Since 2010)
|
51 in (130 cm)
|
|
Reach at level lift arm/bucket (Since 2010)
|
53 in (134 cm)
|
|
Reach at level lift arm/bucket (Since 2010)
|
53 in (136 cm)
|
|
Reach at level lift arm/bucket (Since 2010)
|
51 in (129 cm)
|
|
Reach at level lift arm/bucket (Since 2010)
|
50 in (126 cm)
|
|
Reach at level lift arm/bucket (Since 2012)
|
52 in (133 cm)
|
|
Reach at level lift arm/bucket (Since 2012)
|
55 in (140 cm)
|
|
Reach at level lift arm/bucket (Since 2012)
|
51 in (130 cm)
|
|
Reach at level lift arm/bucket (Since 2012)
|
53 in (134 cm)
|
|
Reach at level lift arm/bucket (Since 2012)
|
57 in (144 cm)
|
|
Reach at level lift arm/bucket (Since 2012)
|
56 in (142 cm)
|
|
Reach at level lift arm/bucket (Since 2012)
|
56 in (141 cm)
|
|
Reach at level lift arm/bucket (Since 2012)
|
53 in (136 cm)
|
|
Reach at level lift arm/bucket (Since 2012)
|
51 in (129 cm)
|
|
Reach at level lift arm/bucket (Since 2012)
|
50 in (126 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
52 in (133 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
55 in (140 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
51 in (130 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
53 in (134 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
57 in (144 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
56 in (142 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
56 in (141 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
53 in (136 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
51 in (129 cm)
|
|
Reach at level lift arm/bucket (Since 2013)
|
50 in (126 cm)
|
|
Reach at maximum lift/dump (Since 2010)
|
33 in (84 cm)
|
|
Reach at maximum lift/dump (Since 2010)
|
34 in (87 cm)
|
|
Reach at maximum lift/dump (Since 2010)
|
33 in (83 cm)
|
|
Reach at maximum lift/dump (Since 2010)
|
32 in (81 cm)
|
|
Reach at maximum lift/dump (Since 2010)
|
32 in (82 cm)
|
|
Reach at maximum lift/dump (Since 2010)
|
34 in (86 cm)
|
|
Reach at maximum lift/dump (Since 2010)
|
31 in (80 cm)
|
|
Reach at maximum lift/dump (Since 2010)
|
31 in (78 cm)
|
|
Reach at maximum lift/dump (Since 2012)
|
33 in (84 cm)
|
|
Reach at maximum lift/dump (Since 2012)
|
34 in (87 cm)
|
|
Reach at maximum lift/dump (Since 2012)
|
33 in (83 cm)
|
|
Reach at maximum lift/dump (Since 2012)
|
32 in (81 cm)
|
|
Reach at maximum lift/dump (Since 2012)
|
39 in (100 cm)
|
|
Reach at maximum lift/dump (Since 2012)
|
39 in (99 cm)
|
|
Reach at maximum lift/dump (Since 2012)
|
39 in (98 cm)
|
|
Reach at maximum lift/dump (Since 2012)
|
32 in (82 cm)
|
|
Reach at maximum lift/dump (Since 2012)
|
34 in (86 cm)
|
|
Reach at maximum lift/dump (Since 2012)
|
31 in (80 cm)
|
|
Reach at maximum lift/dump (Since 2012)
|
31 in (78 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
33 in (84 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
34 in (87 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
33 in (83 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
32 in (81 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
39 in (100 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
39 in (99 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
39 in (98 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
32 in (82 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
34 in (86 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
31 in (80 cm)
|
|
Reach at maximum lift/dump (Since 2013)
|
31 in (78 cm)
|
|
Shank front face reach at level lift arms (Since 2010)
|
29 in (74 cm)
|
|
Shank front face reach at level lift arms (2012)
|
29 in (74 cm)
|
|
Shank front face reach at level lift arms (2013)
|
29 in (74 cm)
|
|
Shank front face reach at maximum height (Since 2010)
|
27 in (70 cm)
|
|
Shank front face reach at maximum height (2012)
|
27 in (70 cm)
|
|
Shank front face reach at maximum height (2013)
|
27 in (70 cm)
|
|
Shank front face reach at minimum lift (Since 2010)
|
16 in (41 cm)
|
|
Shank front face reach at minimum lift (2012)
|
16 in (41 cm)
|
|
Shank front face reach at minimum lift (2013)
|
16 in (41 cm)
|
|
Stroke (Since 2010)
|
5 in (12 cm)
|
|
Stroke (2012)
|
5 in (12 cm)
|
|
Stroke (2013)
|
5 in (12 cm)
|
|
Struck capacity (Since 2010)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2010)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2010)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2010)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2010)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2010)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2010)
|
1 cu yd (1 cu m)
|
|
Struck capacity (Since 2010)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2010)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2012)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2012)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2012)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2012)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2012)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2012)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2012)
|
1 cu yd (1 cu m)
|
|
Struck capacity (Since 2012)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2012)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2013)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2013)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2013)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2013)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2013)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2013)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2013)
|
1 cu yd (1 cu m)
|
|
Struck capacity (Since 2013)
|
0 cu yd (0 cu m)
|
|
Struck capacity (Since 2013)
|
0 cu yd (0 cu m)
|
|
Tipping load (Since 2010)
|
5,152 lbs (2,337 kg)
|
|
Tipping load (Since 2010)
|
5,243 lbs (2,378 kg)
|
|
Tipping load (Since 2010)
|
5,291 lbs (2,400 kg)
|
|
Tipping load (Since 2010)
|
5,115 lbs (2,320 kg)
|
|
Tipping load (Since 2010)
|
5,212 lbs (2,364 kg)
|
|
Tipping load (Since 2010)
|
5,262 lbs (2,387 kg)
|
|
Tipping load (Since 2010)
|
5,082 lbs (2,305 kg)
|
|
Tipping load (Since 2010)
|
5,179 lbs (2,349 kg)
|
|
Tipping load (Since 2010)
|
5,229 lbs (2,372 kg)
|
|
Tipping load (Since 2010)
|
4,943 lbs (2,242 kg)
|
|
Tipping load (Since 2010)
|
4,927 lbs (2,235 kg)
|
|
Tipping load (Since 2010)
|
5,024 lbs (2,279 kg)
|
|
Tipping load (Since 2010)
|
5,075 lbs (2,302 kg)
|
|
Tipping load (Since 2010)
|
4,813 lbs (2,183 kg)
|
|
Tipping load (Since 2010)
|
4,901 lbs (2,223 kg)
|
|
Tipping load (Since 2010)
|
4,762 lbs (2,160 kg)
|
|
Tipping load (Since 2010)
|
4,857 lbs (2,203 kg)
|
|
Tipping load (Since 2010)
|
5,335 lbs (2,420 kg)
|
|
Tipping load (Since 2010)
|
5,298 lbs (2,403 kg)
|
|
Tipping load (Since 2010)
|
5,465 lbs (2,479 kg)
|
|
Tipping load (Since 2010)
|
5,265 lbs (2,388 kg)
|
|
Tipping load (Since 2010)
|
5,439 lbs (2,467 kg)
|
|
Tipping load (Since 2010)
|
5,492 lbs (2,491 kg)
|
|
Tipping load (Since 2010)
|
4,740 lbs (2,150 kg)
|
|
Tipping load (Since 2010)
|
4,835 lbs (2,193 kg)
|
|
Tipping load (Since 2010)
|
4,888 lbs (2,217 kg)
|
|
Tipping load (Since 2010)
|
3,964 lbs (1,798 kg)
|
|
Tipping load (Since 2010)
|
3,779 lbs (1,714 kg)
|
|
Tipping load (Since 2010)
|
4,180 lbs (1,896 kg)
|
|
Tipping load (Since 2012)
|
5,152 lbs (2,337 kg)
|
|
Tipping load (Since 2012)
|
5,243 lbs (2,378 kg)
|
|
Tipping load (Since 2012)
|
5,291 lbs (2,400 kg)
|
|
Tipping load (Since 2012)
|
5,115 lbs (2,320 kg)
|
|
Tipping load (Since 2012)
|
5,212 lbs (2,364 kg)
|
|
Tipping load (Since 2012)
|
5,262 lbs (2,387 kg)
|
|
Tipping load (Since 2012)
|
5,082 lbs (2,305 kg)
|
|
Tipping load (Since 2012)
|
5,179 lbs (2,349 kg)
|
|
Tipping load (Since 2012)
|
5,229 lbs (2,372 kg)
|
|
Tipping load (Since 2012)
|
4,943 lbs (2,242 kg)
|
|
Tipping load (Since 2012)
|
4,927 lbs (2,235 kg)
|
|
Tipping load (Since 2012)
|
5,024 lbs (2,279 kg)
|
|
Tipping load (Since 2012)
|
5,095 lbs (2,311 kg)
|
|
Tipping load (Since 2012)
|
4,813 lbs (2,183 kg)
|
|
Tipping load (Since 2012)
|
4,901 lbs (2,223 kg)
|
|
Tipping load (Since 2012)
|
4,762 lbs (2,160 kg)
|
|
Tipping load (Since 2012)
|
4,857 lbs (2,203 kg)
|
|
Tipping load (Since 2012)
|
5,335 lbs (2,420 kg)
|
|
Tipping load (Since 2012)
|
5,298 lbs (2,403 kg)
|
|
Tipping load (Since 2012)
|
5,465 lbs (2,479 kg)
|
|
Tipping load (Since 2012)
|
5,265 lbs (2,388 kg)
|
|
Tipping load (Since 2012)
|
5,439 lbs (2,467 kg)
|
|
Tipping load (Since 2012)
|
5,492 lbs (2,491 kg)
|
|
Tipping load (Since 2012)
|
4,740 lbs (2,150 kg)
|
|
Tipping load (Since 2012)
|
4,835 lbs (2,193 kg)
|
|
Tipping load (Since 2012)
|
4,888 lbs (2,217 kg)
|
|
Tipping load (Since 2012)
|
3,964 lbs (1,798 kg)
|
|
Tipping load (Since 2012)
|
3,779 lbs (1,714 kg)
|
|
Tipping load (Since 2012)
|
4,180 lbs (1,896 kg)
|
|
Tipping load (Since 2013)
|
5,152 lbs (2,337 kg)
|
|
Tipping load (Since 2013)
|
5,243 lbs (2,378 kg)
|
|
Tipping load (Since 2013)
|
5,291 lbs (2,400 kg)
|
|
Tipping load (Since 2013)
|
5,115 lbs (2,320 kg)
|
|
Tipping load (Since 2013)
|
5,212 lbs (2,364 kg)
|
|
Tipping load (Since 2013)
|
5,262 lbs (2,387 kg)
|
|
Tipping load (Since 2013)
|
5,082 lbs (2,305 kg)
|
|
Tipping load (Since 2013)
|
5,179 lbs (2,349 kg)
|
|
Tipping load (Since 2013)
|
5,229 lbs (2,372 kg)
|
|
Tipping load (Since 2013)
|
4,943 lbs (2,242 kg)
|
|
Tipping load (Since 2013)
|
4,927 lbs (2,235 kg)
|
|
Tipping load (Since 2013)
|
5,024 lbs (2,279 kg)
|
|
Tipping load (Since 2013)
|
5,095 lbs (2,311 kg)
|
|
Tipping load (Since 2013)
|
4,813 lbs (2,183 kg)
|
|
Tipping load (Since 2013)
|
4,901 lbs (2,223 kg)
|
|
Tipping load (Since 2013)
|
4,762 lbs (2,160 kg)
|
|
Tipping load (Since 2013)
|
4,857 lbs (2,203 kg)
|
|
Tipping load (Since 2013)
|
5,335 lbs (2,420 kg)
|
|
Tipping load (Since 2013)
|
5,298 lbs (2,403 kg)
|
|
Tipping load (Since 2013)
|
5,465 lbs (2,479 kg)
|
|
Tipping load (Since 2013)
|
5,265 lbs (2,388 kg)
|
|
Tipping load (Since 2013)
|
5,439 lbs (2,467 kg)
|
|
Tipping load (Since 2013)
|
5,492 lbs (2,491 kg)
|
|
Tipping load (Since 2013)
|
4,740 lbs (2,150 kg)
|
|
Tipping load (Since 2013)
|
4,835 lbs (2,193 kg)
|
|
Tipping load (Since 2013)
|
4,888 lbs (2,217 kg)
|
|
Tipping load (Since 2013)
|
3,964 lbs (1,798 kg)
|
|
Tipping load (Since 2013)
|
3,779 lbs (1,714 kg)
|
|
Tipping load (Since 2013)
|
4,180 lbs (1,896 kg)
|
|
Top Travel Speed km/h (mph (Since 2008)
|
19.3 (12.0 |
|
Top Travel Speed km/h (mph (2009)
|
19.3 (12.0 |
|
Top Travel Speed km/h (mph (2010)
|
19.3 (12.0 |
|
Top Travel Speed km/h (mph (2011)
|
19.3 (12.0 |
|
Top Travel Speed km/h (mph (2012)
|
19.3 (12.0 |
|
Top Travel Speed km/h (mph (2013)
|
19.3 (12.0 |
|
Tread Width: Standard (Since 2013)
|
54 in (137 cm)
|
|
Two Speed Forward (Since 2010)
|
0 - 12 mph |
|
Two Speed Forward (2012)
|
0 - 12 mph |
|
Two Speed Forward (2013)
|
0 - 12 mph |
|
Two Speed Reverse (Since 2010)
|
0 - 12 mph |
|
Two Speed Reverse (2012)
|
0 - 12 mph |
|
Two Speed Reverse (2013)
|
0 - 12 mph |
|
Width (Since 2010)
|
69 in (174 cm)
|
|
Width (Since 2010)
|
68 in (173 cm)
|
|
Width (Since 2010)
|
75 in (189 cm)
|
|
Width (Since 2010)
|
74 in (188 cm)
|
|
Width (Since 2010)
|
81 in (204 cm)
|
|
Width (Since 2010)
|
80 in (203 cm)
|
|
Width (Since 2010)
|
87 in (220 cm)
|
|
Width (Since 2010)
|
86 in (219 cm)
|
|
Width (Since 2010)
|
66 in (169 cm)
|
|
Width (Since 2010)
|
72 in (184 cm)
|
|
Width (Since 2010)
|
72 in (183 cm)
|
|
Width (Since 2010)
|
78 in (199 cm)
|
|
Width (Since 2010)
|
78 in (198 cm)
|
|
Width (Since 2010)
|
66 in (168 cm)
|
|
Width (Since 2012)
|
69 in (174 cm)
|
|
Width (Since 2012)
|
68 in (173 cm)
|
|
Width (Since 2012)
|
75 in (189 cm)
|
|
Width (Since 2012)
|
74 in (188 cm)
|
|
Width (Since 2012)
|
81 in (204 cm)
|
|
Width (Since 2012)
|
80 in (203 cm)
|
|
Width (Since 2012)
|
87 in (220 cm)
|
|
Width (Since 2012)
|
86 in (219 cm)
|
|
Width (Since 2012)
|
66 in (169 cm)
|
|
Width (Since 2012)
|
72 in (184 cm)
|
|
Width (Since 2012)
|
72 in (183 cm)
|
|
Width (Since 2012)
|
78 in (199 cm)
|
|
Width (Since 2012)
|
78 in (198 cm)
|
|
Width (Since 2012)
|
66 in (168 cm)
|
|
Width (Since 2013)
|
69 in (174 cm)
|
|
Width (Since 2013)
|
68 in (173 cm)
|
|
Width (Since 2013)
|
75 in (189 cm)
|
|
Width (Since 2013)
|
74 in (188 cm)
|
|
Width (Since 2013)
|
81 in (204 cm)
|
|
Width (Since 2013)
|
80 in (203 cm)
|
|
Width (Since 2013)
|
87 in (220 cm)
|
|
Width (Since 2013)
|
86 in (219 cm)
|
|
Width (Since 2013)
|
66 in (169 cm)
|
|
Width (Since 2013)
|
72 in (184 cm)
|
|
Width (Since 2013)
|
72 in (183 cm)
|
|
Width (Since 2013)
|
78 in (199 cm)
|
|
Width (Since 2013)
|
78 in (198 cm)
|
|
Width (Since 2013)
|
66 in (168 cm)
|
|
Width over Tires (Since 2008)
|
66 in (168 cm)
|
|
Width over Tires (2009)
|
66 in (168 cm)
|
|
Width Over Tires (Since 2010)
|
66 in (168 cm)
|
|
Width over Tires (Since 2011)
|
66 in (168 cm)
|
|
Width Over Tires (Since 2012)
|
66 in (168 cm)
|
|
Width Over Tires (2013)
|
66 in (168 cm)
|
|
Years Built (Since 2008)
|
2,008 - 2,013 |
|
Years Built (2009)
|
2,008 - 2,013 |
|
Years Built (2010)
|
2,008 - 2,013 |
|
Years Built (2011)
|
2,008 - 2,013 |
|
Years Built (2012)
|
2,008 - 2,013 |
|
Years Built (2013)
|
2,008 - 2,013 |
| Hydraulic |
|
Pump Flow Capacity |
22 gpm (83 lpm)
|
|
Relief Valve Pressure |
3,335 psi |
| Hydraulic System |
|
Hydraulic Flow (1) |
Standard |
|
Hydraulic Flow (2) |
High Flow XPS |
|
Hydraulic Power |
43 hp (32 kw)
|
|
Loader Hydraulic Flow |
22 gpm (83 lpm)
|
|
Loader Hydraulic Pressure |
3,335 psi |
|
Maximum Loader Hydraulic Flow |
33 gpm (125 lpm)
|
|
Maximum Loader Hydraulic Pressure |
4,061 psi |
| Loader |
|
Breakout Force |
7,315 lbs (3,318 kg)
|
|
Bucket Capacity |
1 cu yd |
|
Operating Load Rating |
2,700 lbs (1,225 kg)
|
|
Tipping Angle |
5,400 degrees |
| Operating Specifications |
|
Breakout Force - Tilt Cylinder |
7,315 lbs (3,318 kg)
|
|
Rated Operating Capacity |
2,700 lbs (1,225 kg)
|
|
Rated Operating Capacity With Optional Counterweight |
2,945 lbs (1,336 kg)
|
|
Tipping Load |
5,400 lbs (2,449 kg)
|
| Operational |
|
Alternator Supplied Amperage |
90 amps |
|
Chain Box Fluid Capacity - Each Side |
3 gal (10 l)
|
|
Cooling System Fluid Capacity |
4 gal (14 l)
|
|
Engine Oil Fluid Capacity |
3 gal (10 l)
|
|
Fuel Capacity |
26 gal (98 l)
|
|
Hydraulic System Fluid Capacity |
15 gal (57 l)
|
|
Max Speed |
8 mph (12 kph)
|
|
Operating Voltage |
12 V |
|
Operational Weight |
7,968 lbs (3,614 kg)
|
| Power Train |
|
Travel Speed Forward |
8 mph (12 kph)
|
|
Travel Speed Forward - 2-Speed Option |
12 mph (19 kph)
|
|
Travel Speed Reverse |
8 mph (12 kph)
|
|
Travel Speed Reverse - 2-Speed Option |
12 mph (19 kph)
|
|
Xdp Option Speed - With Tires |
7 mph (10 kph)
|
|
Xdp Option Speed - With Vts Tracks |
5 mph (8 kph)
|
| Service Refill Capacities |
|
Chain Box - Each Side |
3 gal (10 l)
|
|
Cooling System |
4 gal (14 l)
|
|
Engine Crankcase |
3 gal (10 l)
|
|
Fuel Tank |
26 gal (98 l)
|
|
Hydraulic System |
15 gal (57 l)
|
|
Hydraulic Tank |
11 gal (42 l)
|
| Weights |
|
Operating Weight |
7,968 lbs (3,614 kg)
|
