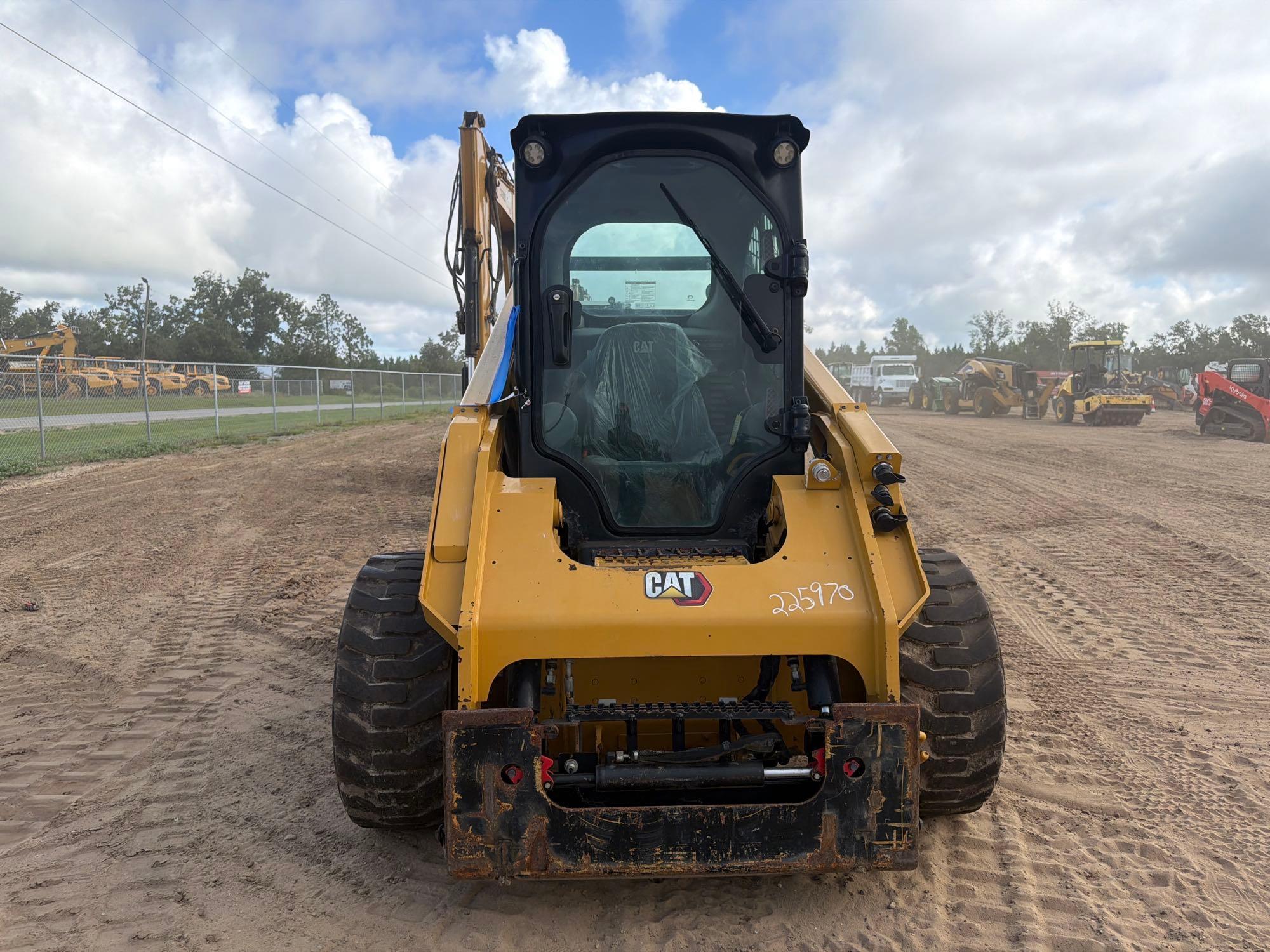

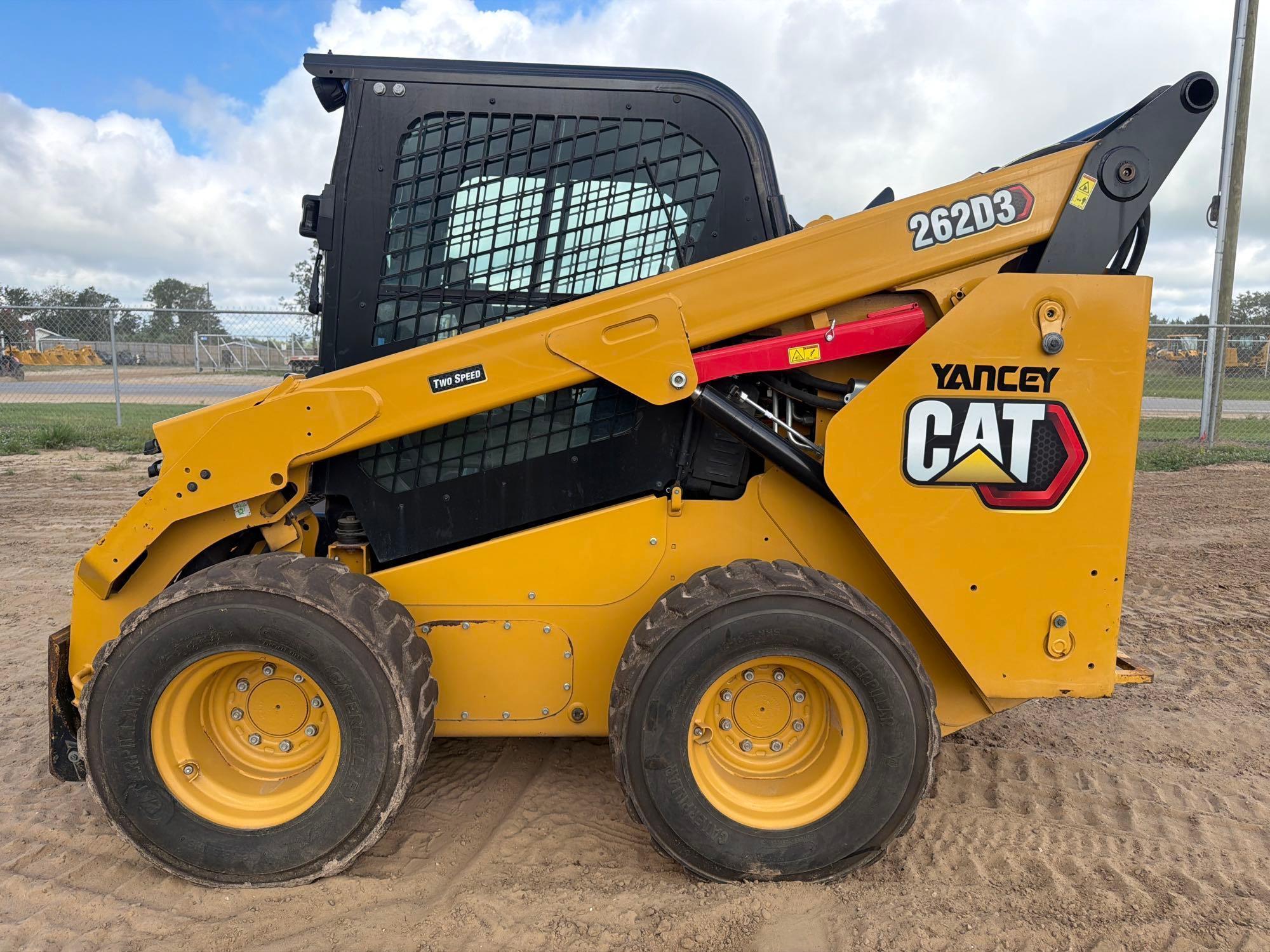

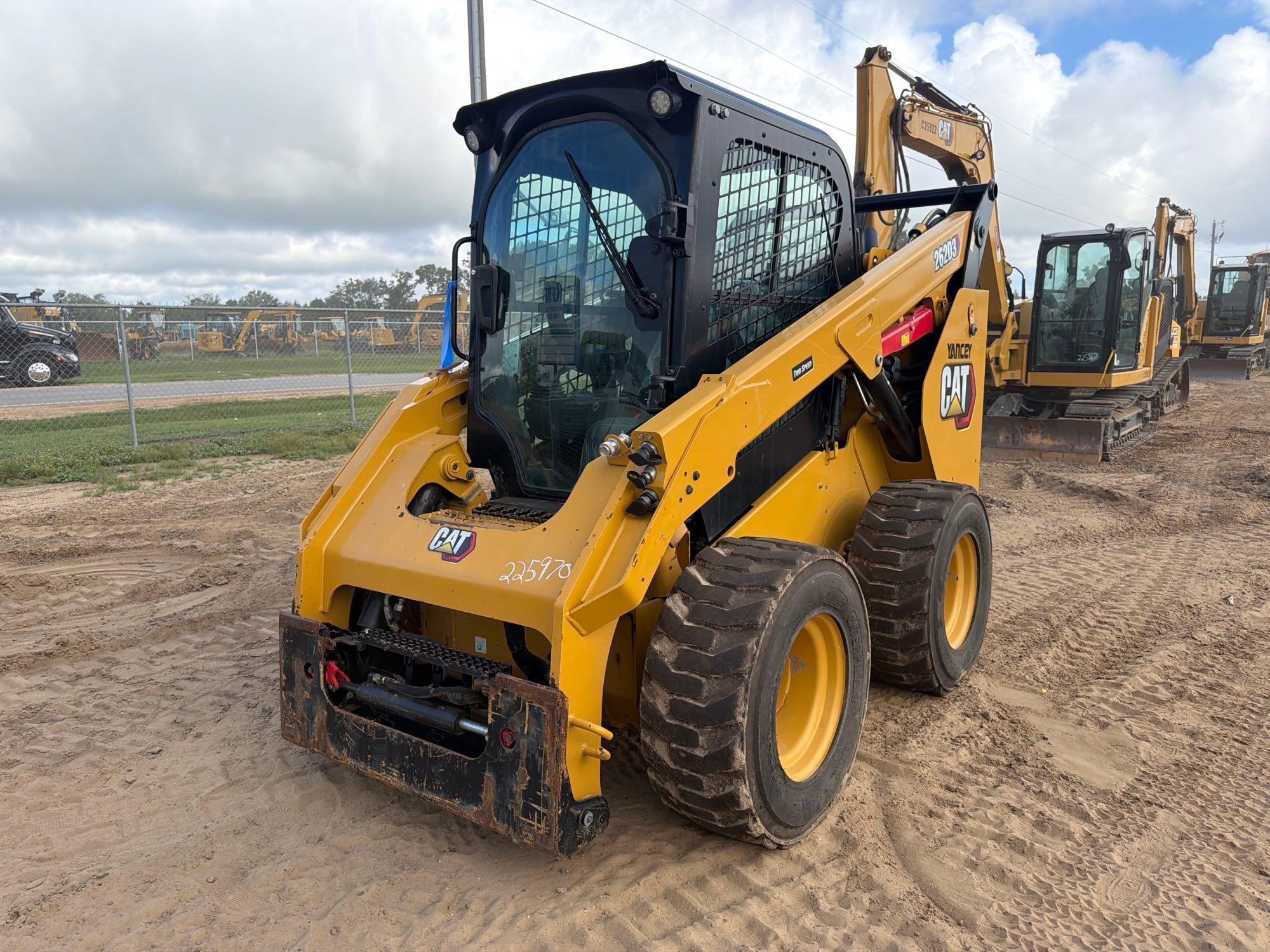

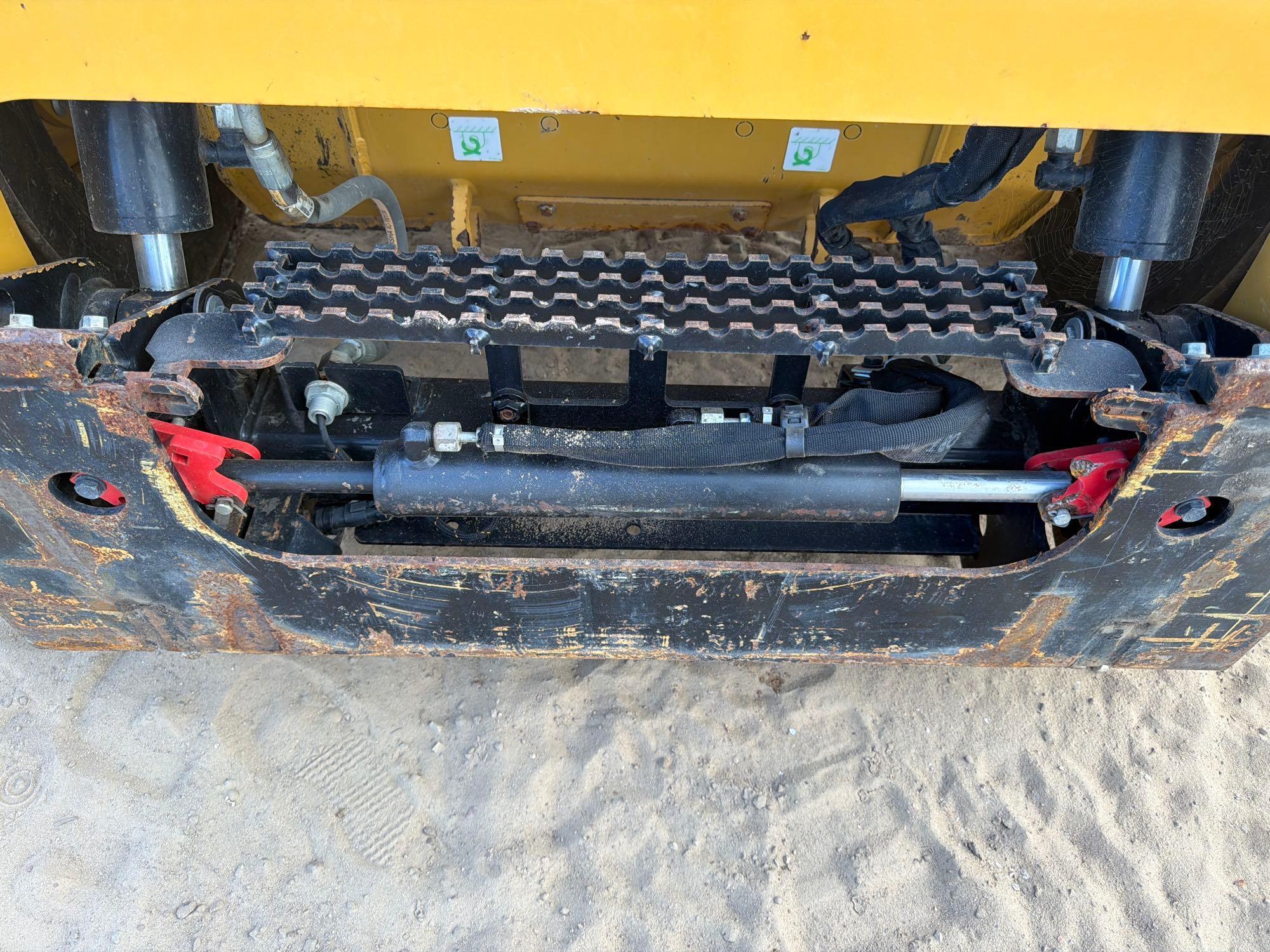

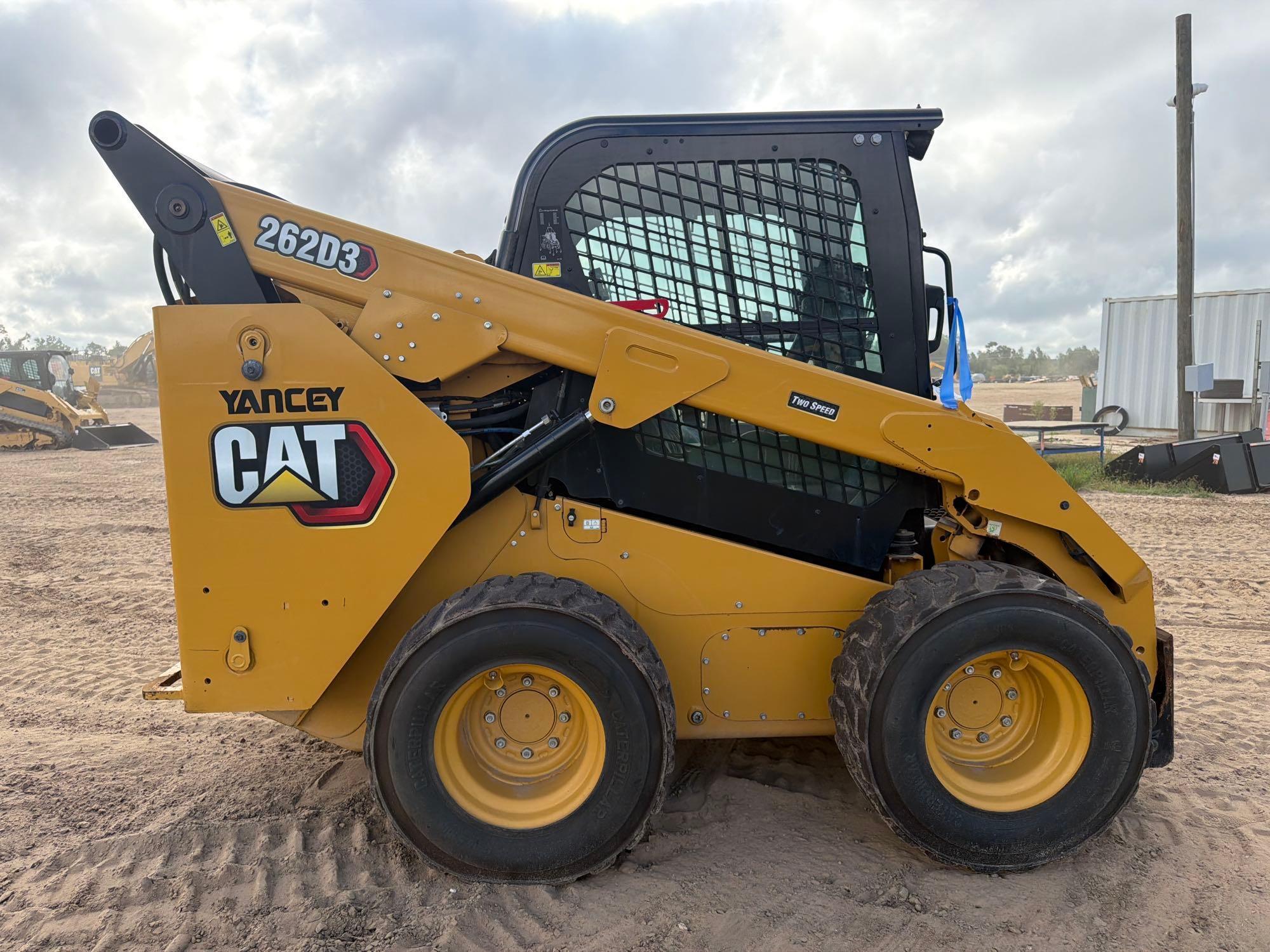

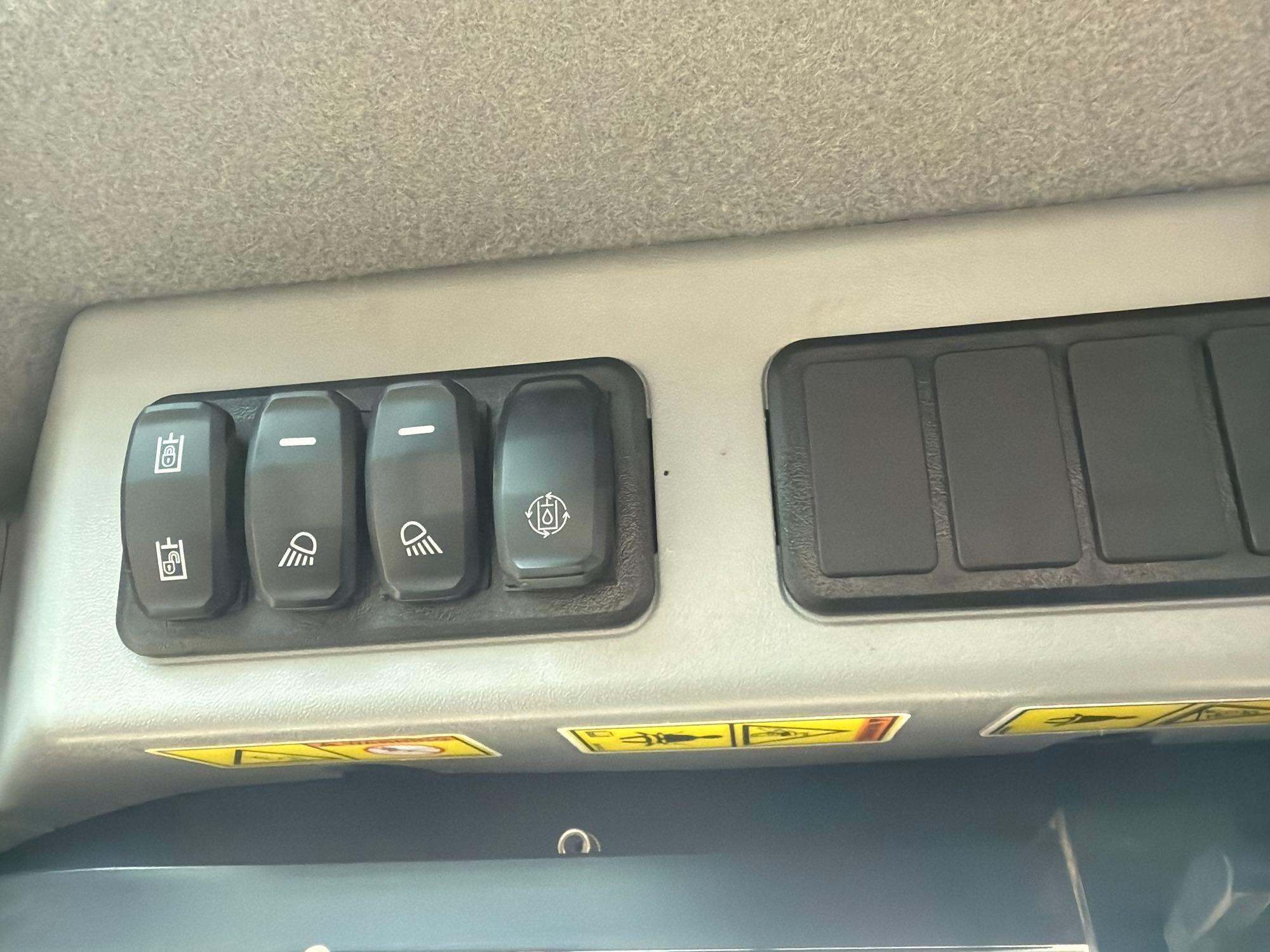

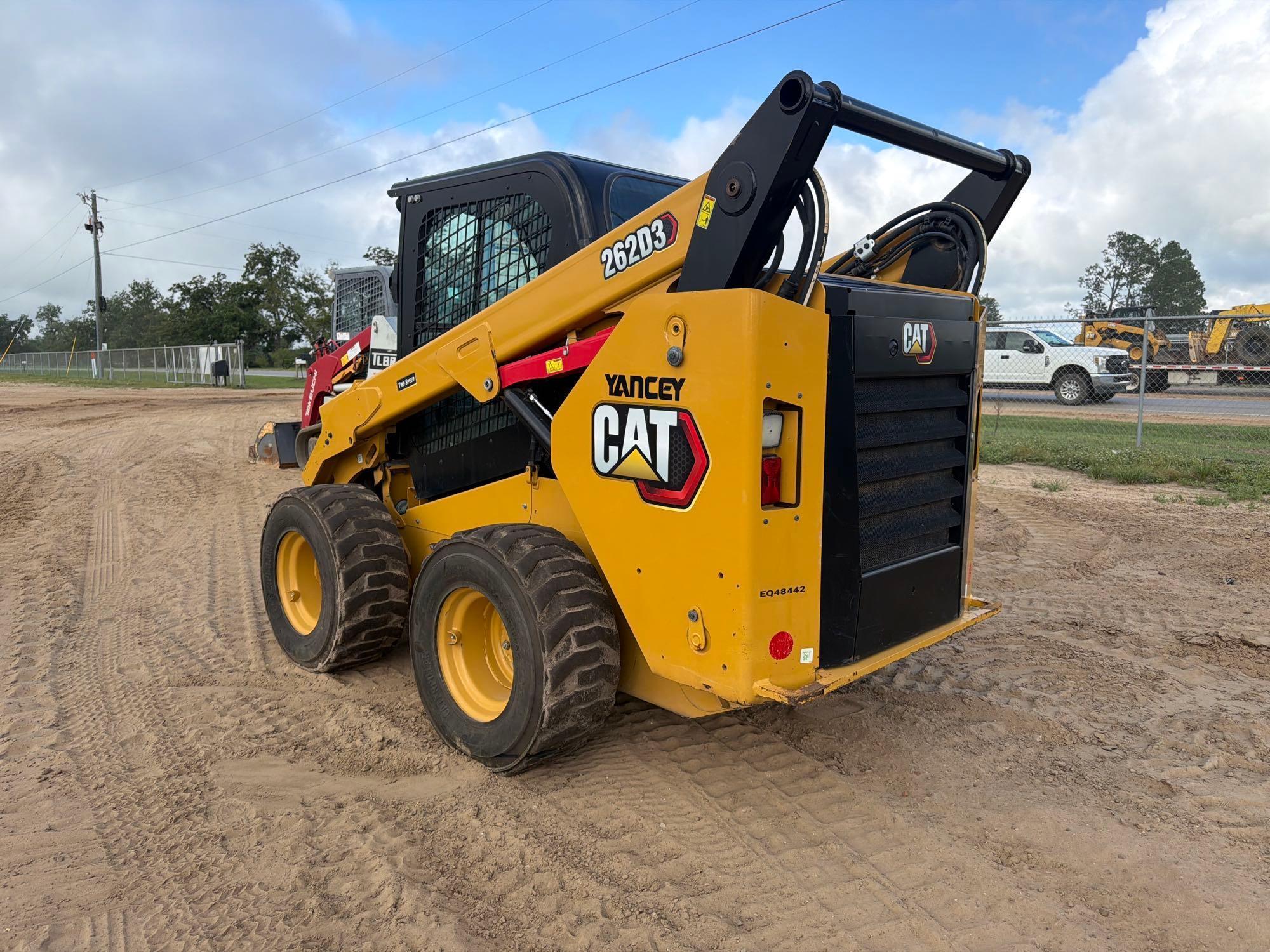

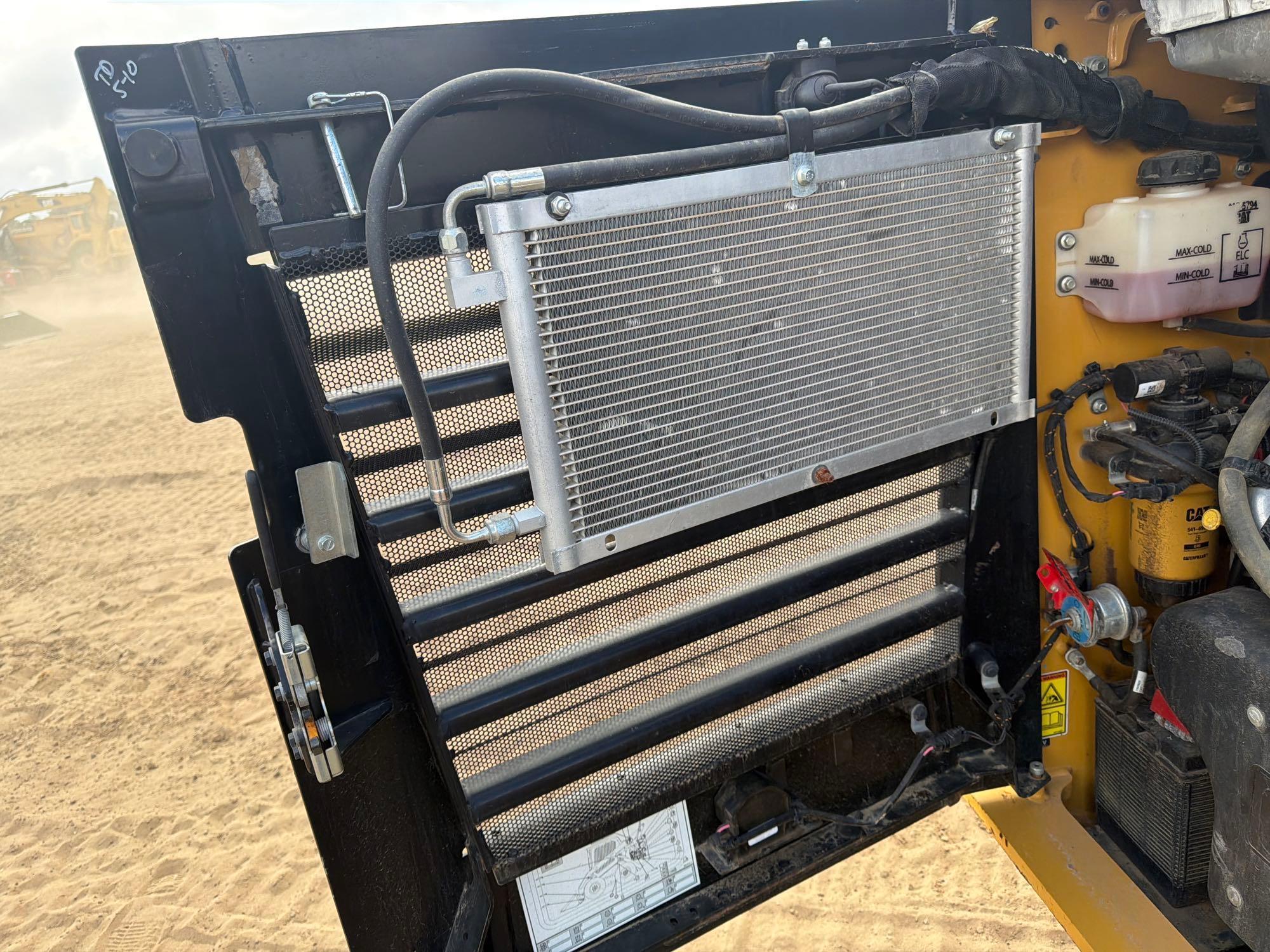

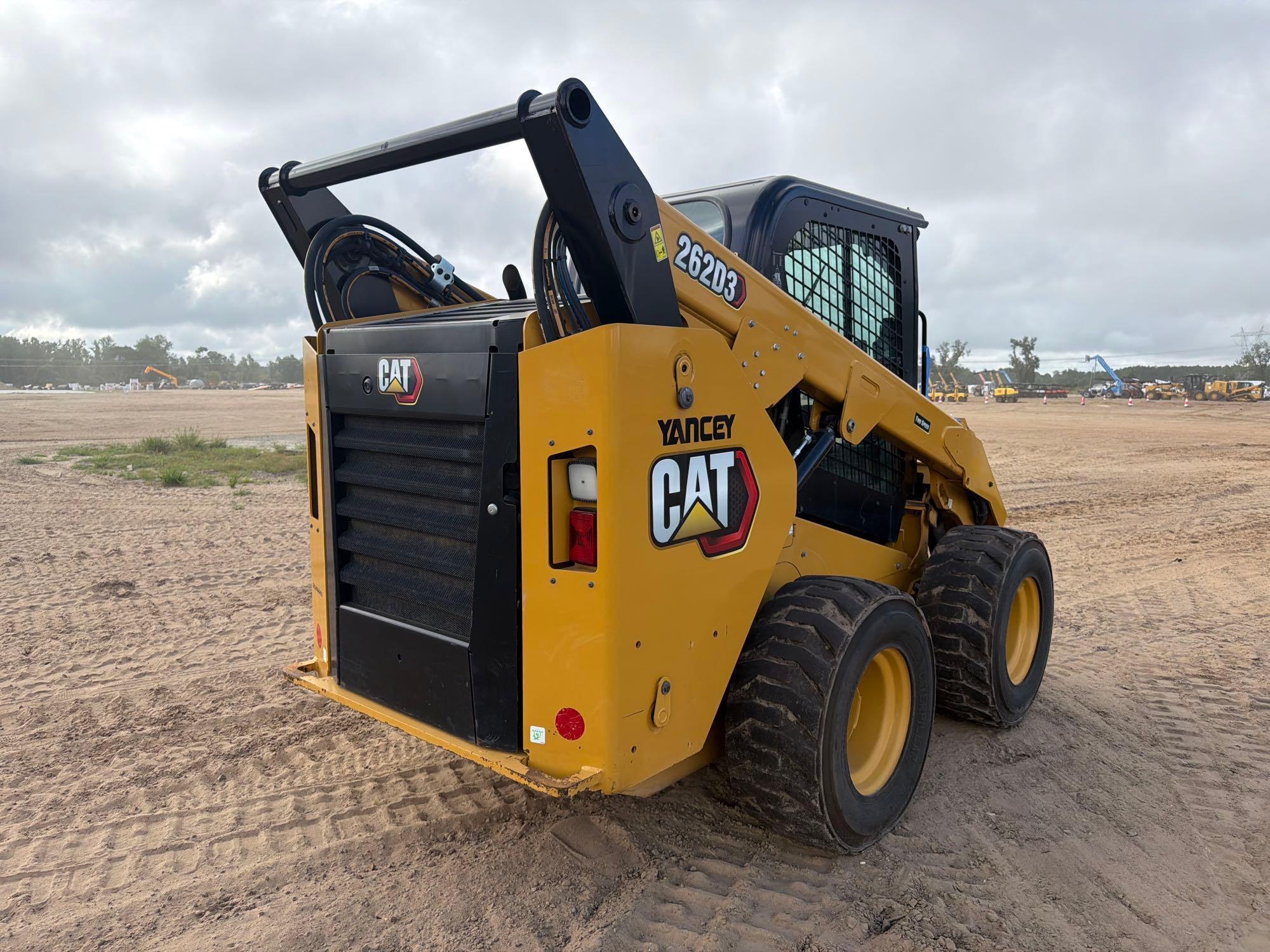

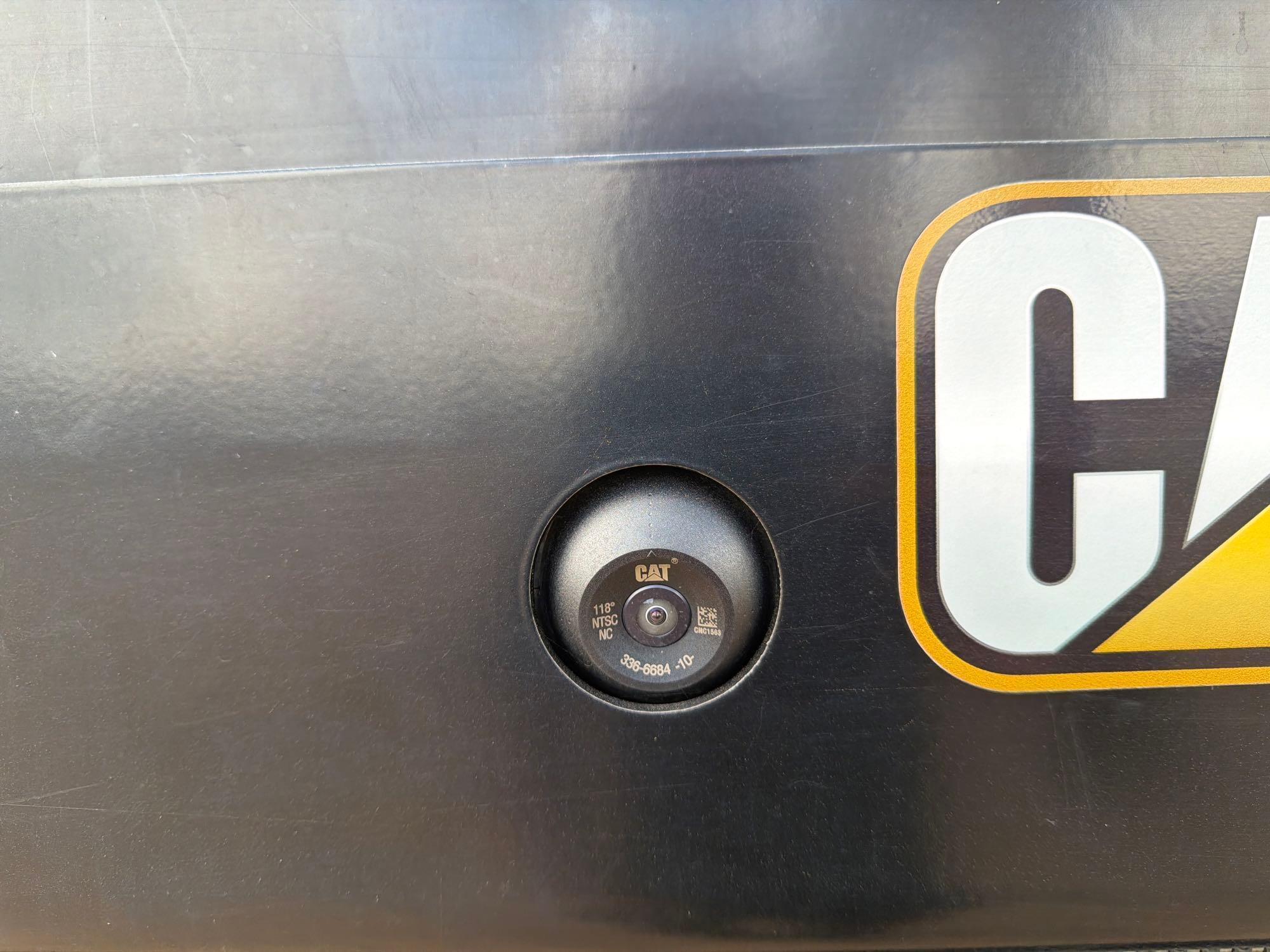

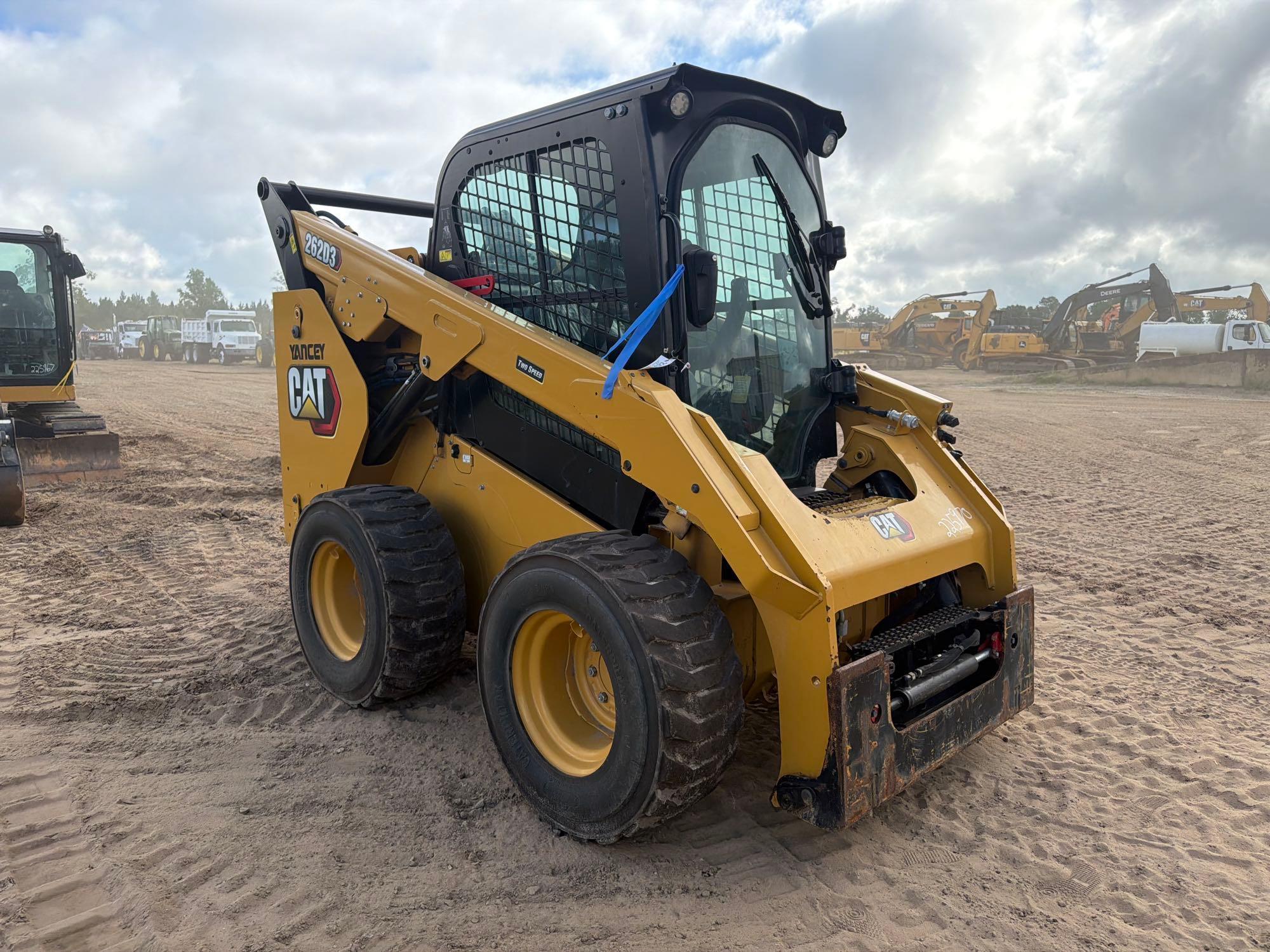

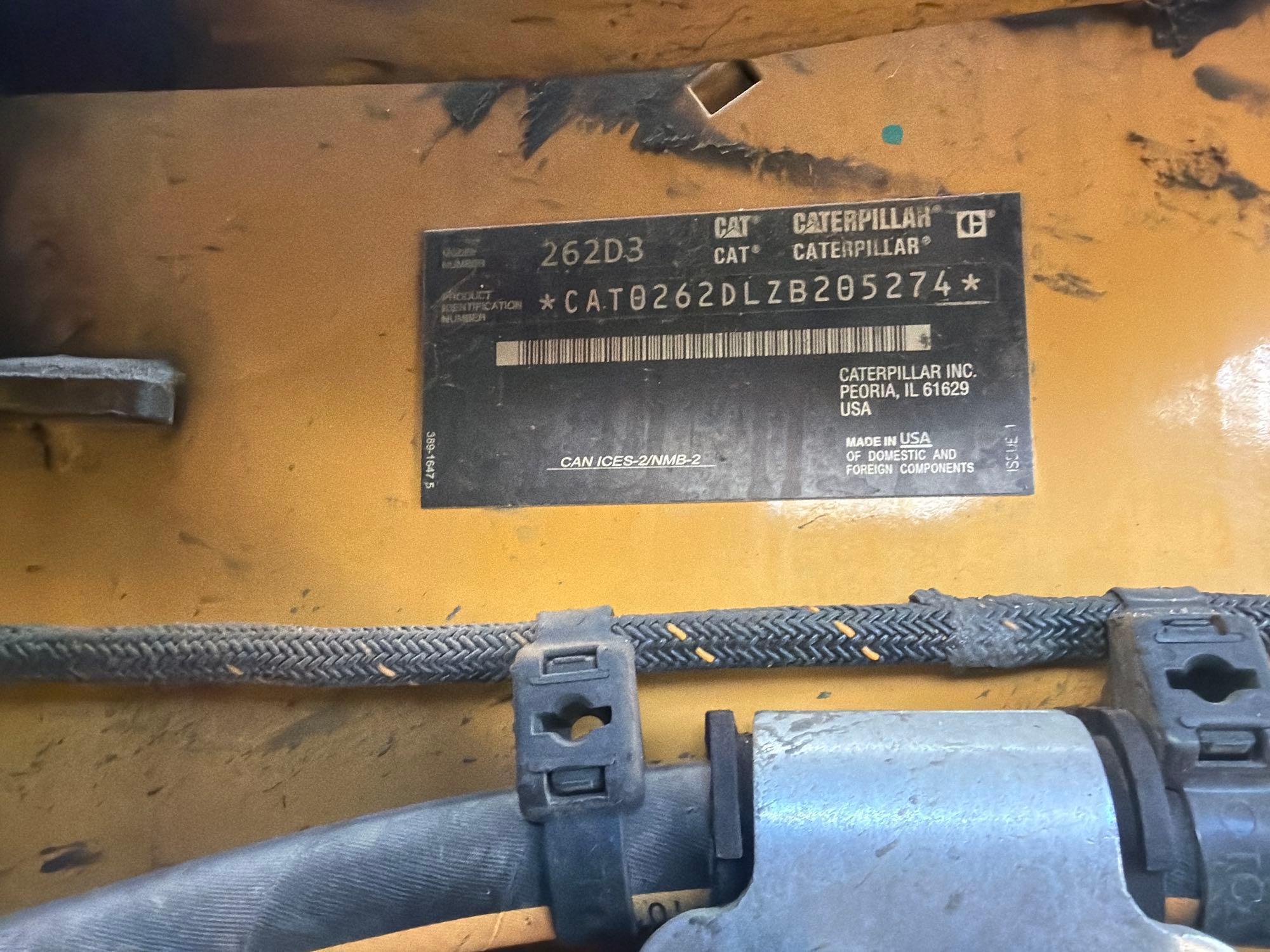

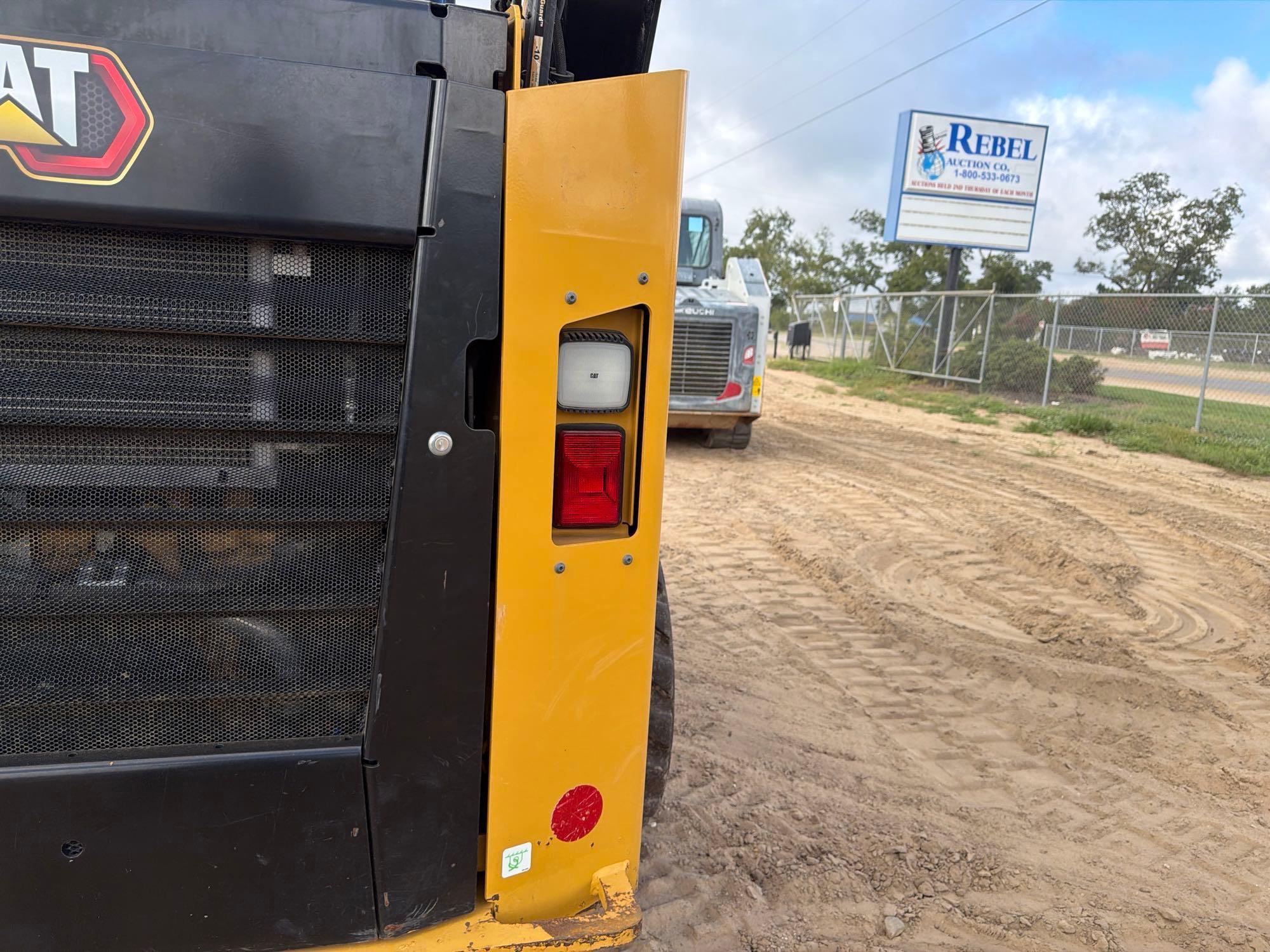

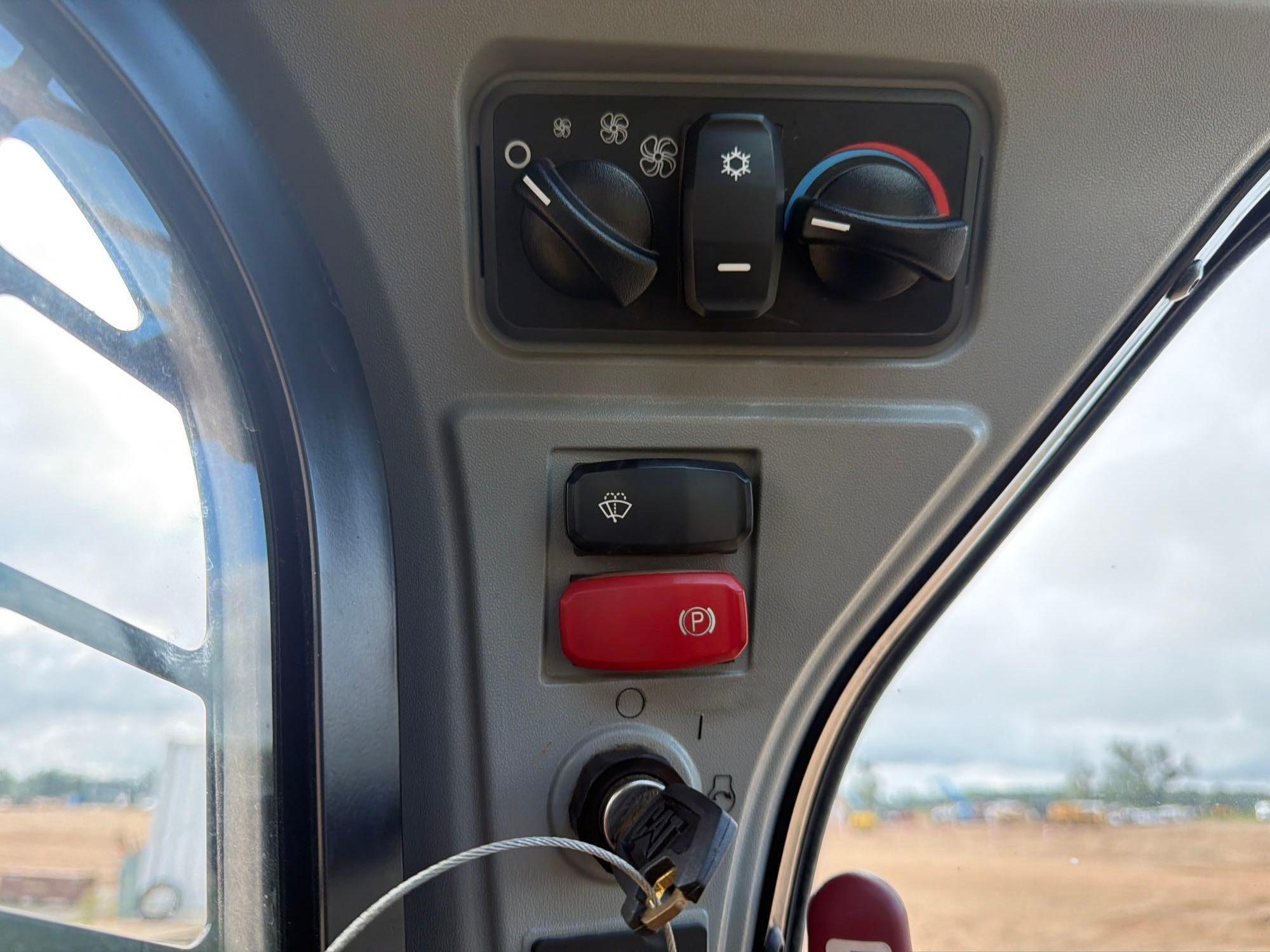

| Air Conditioning System |
|
Air Conditioning |
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes. |

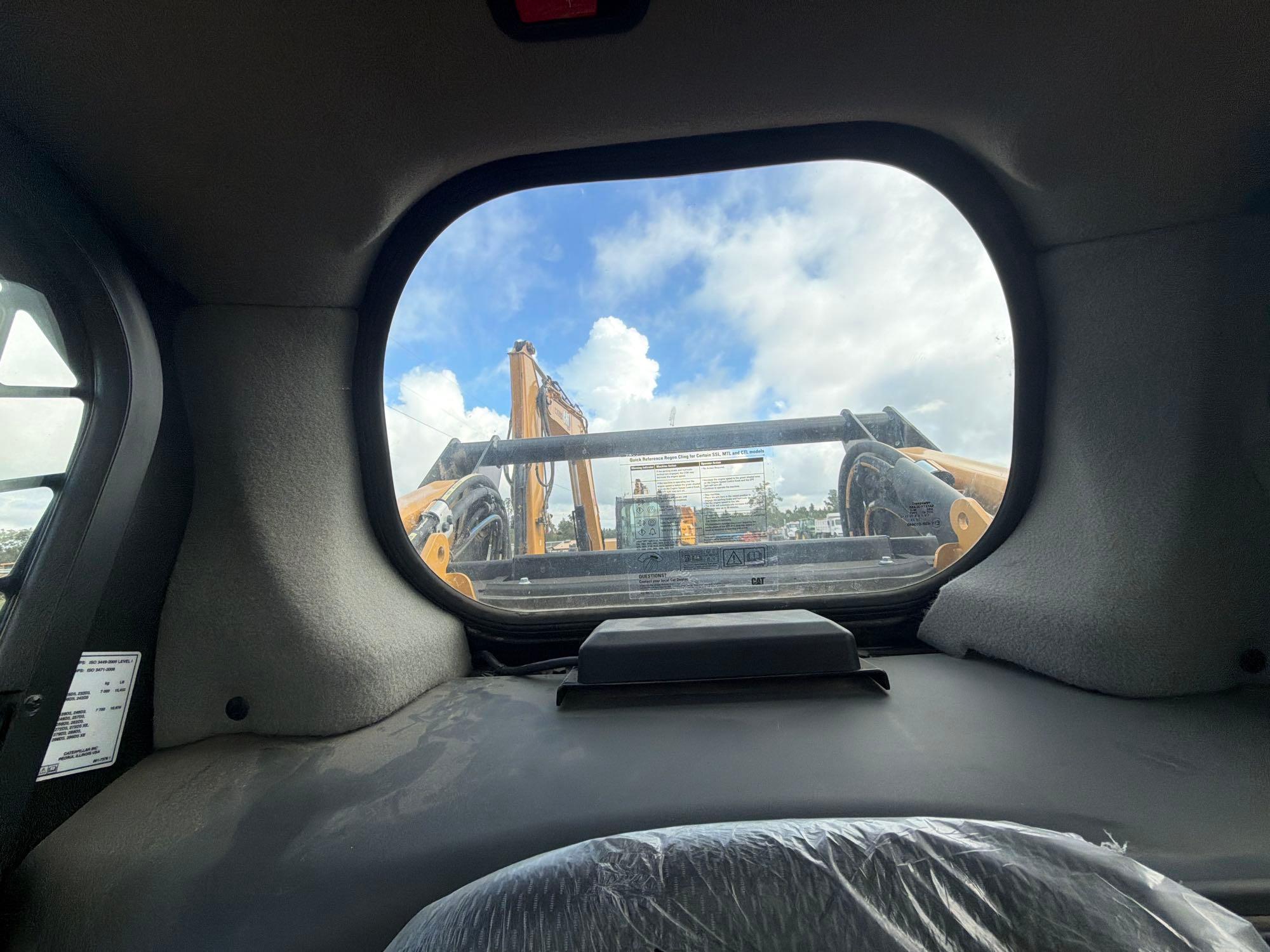

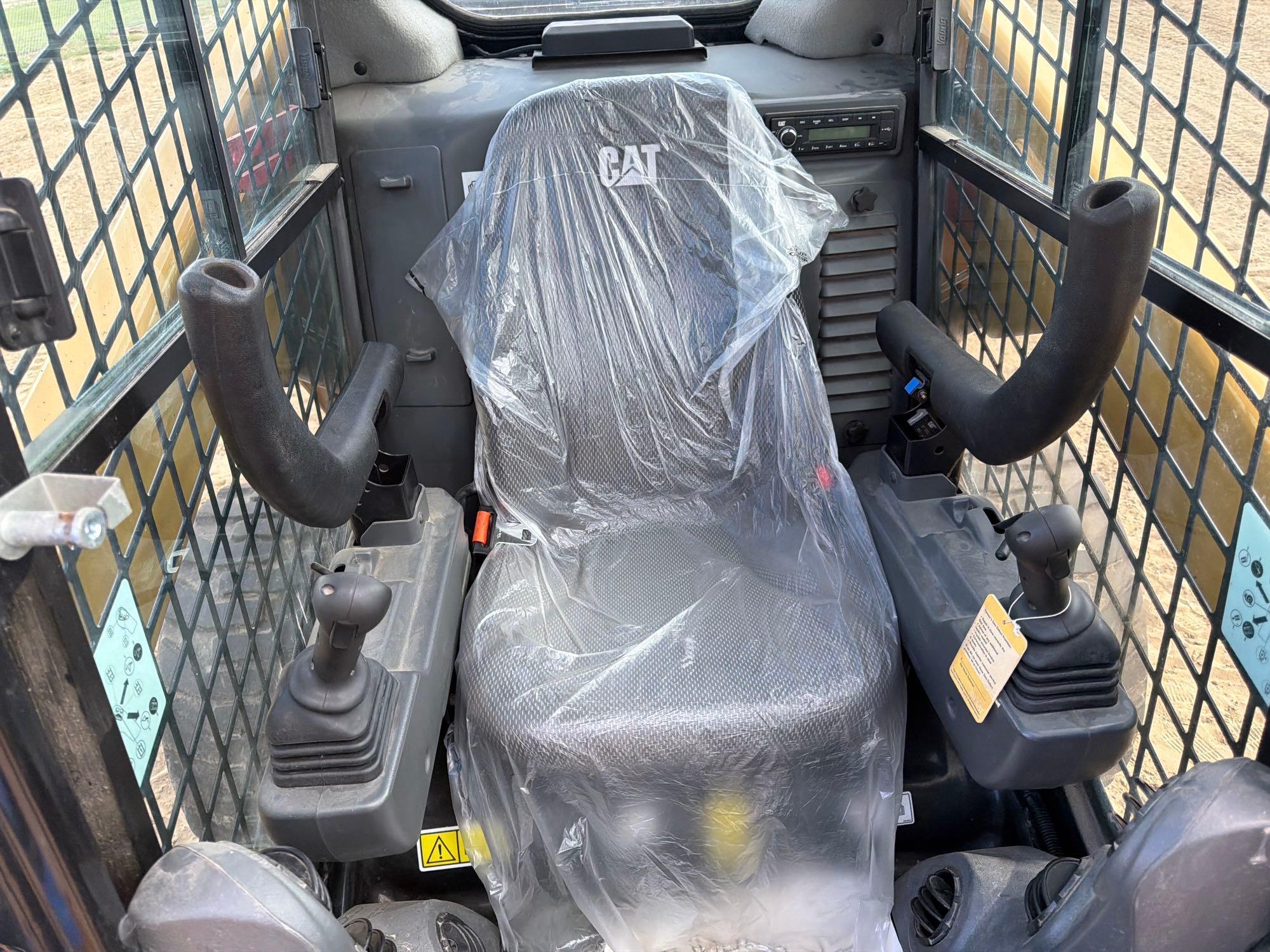

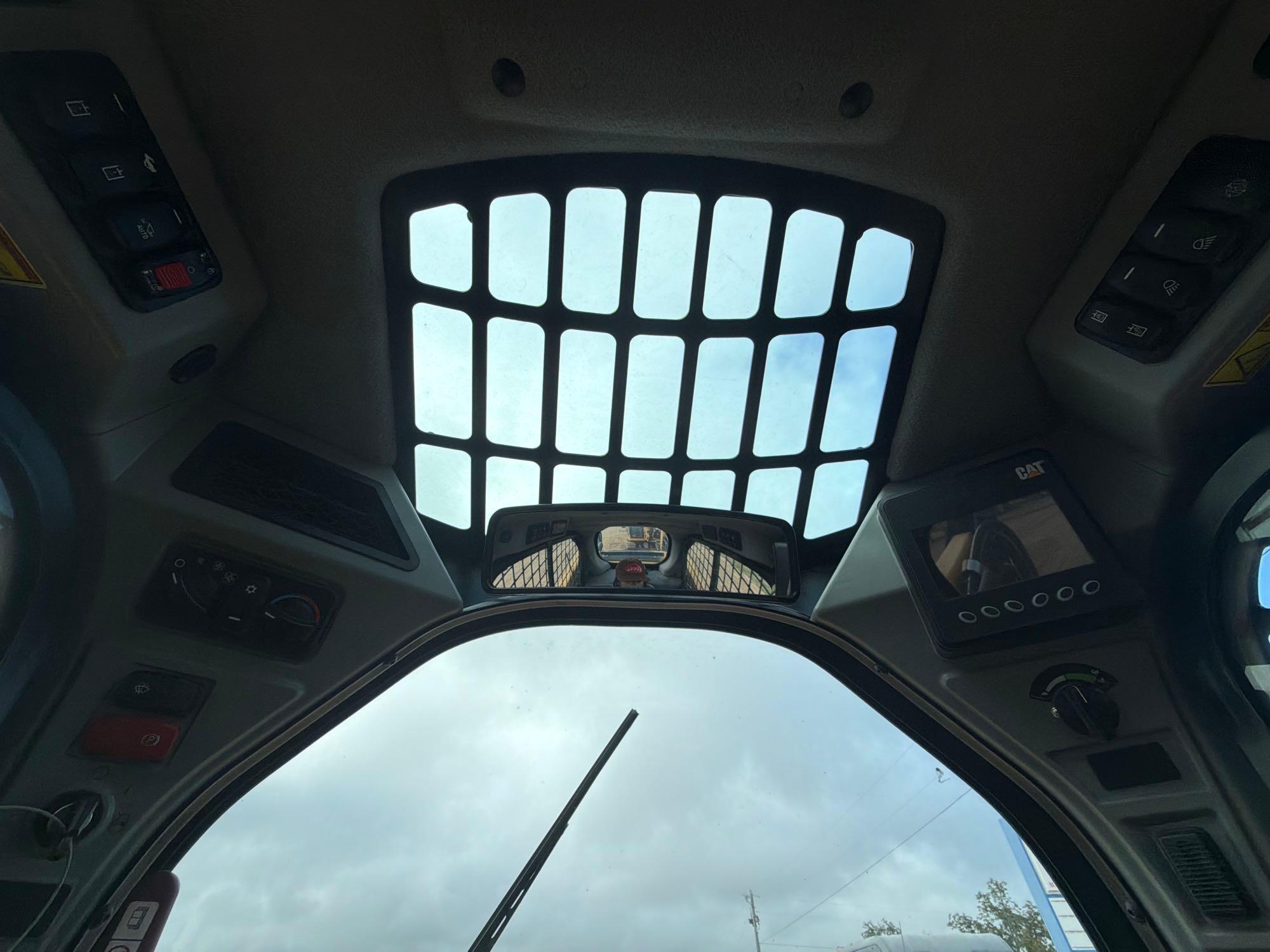

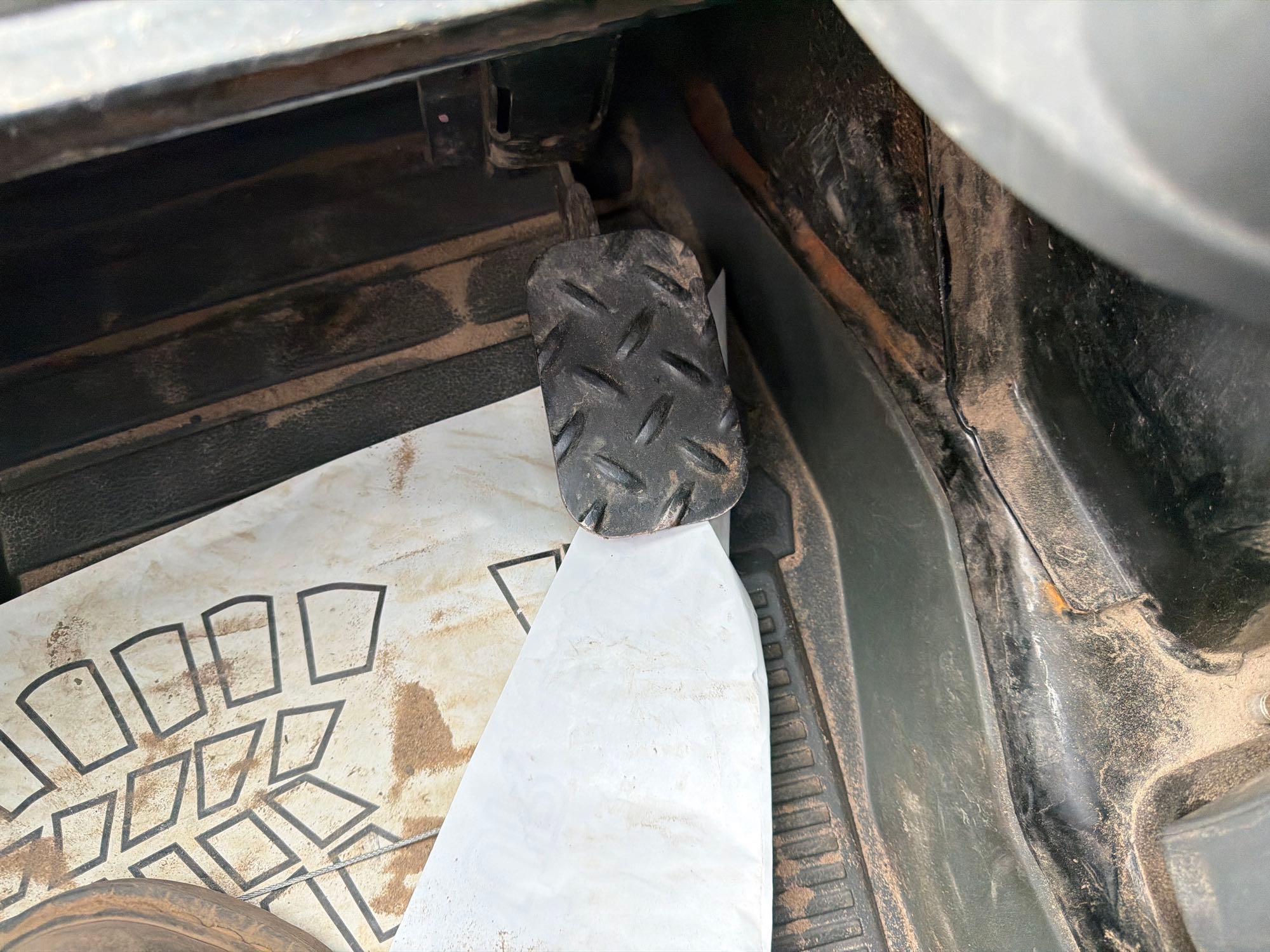

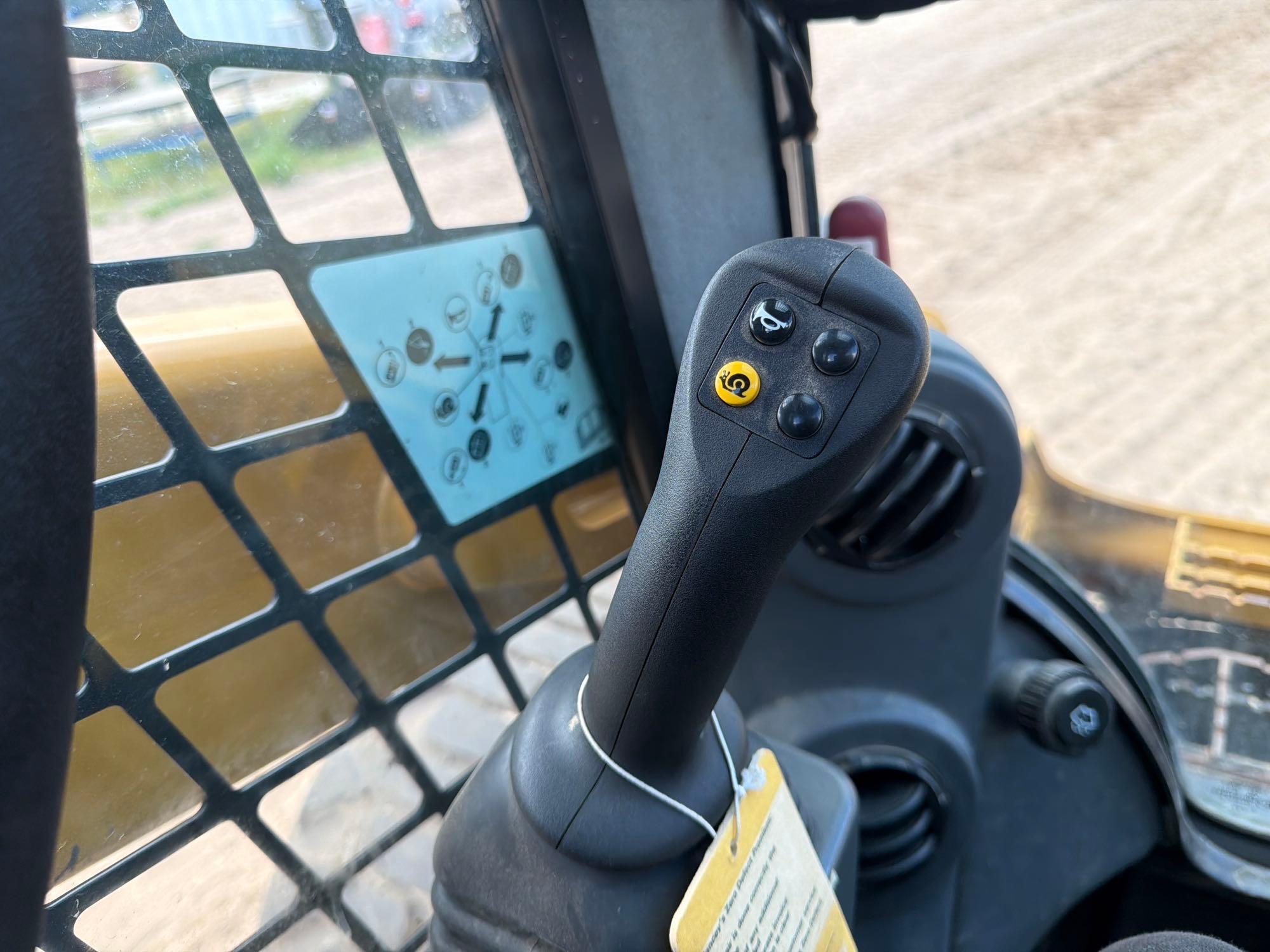

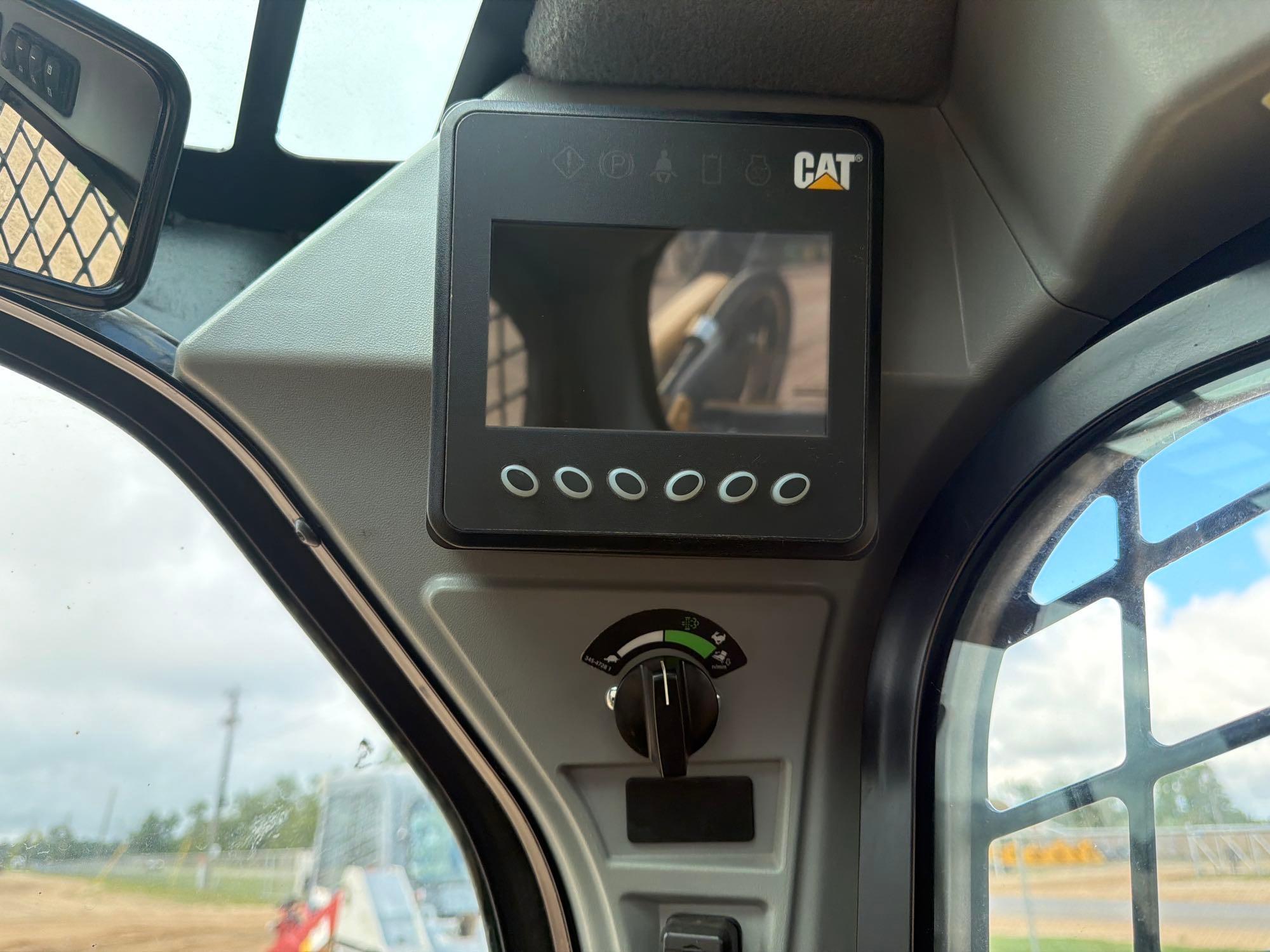

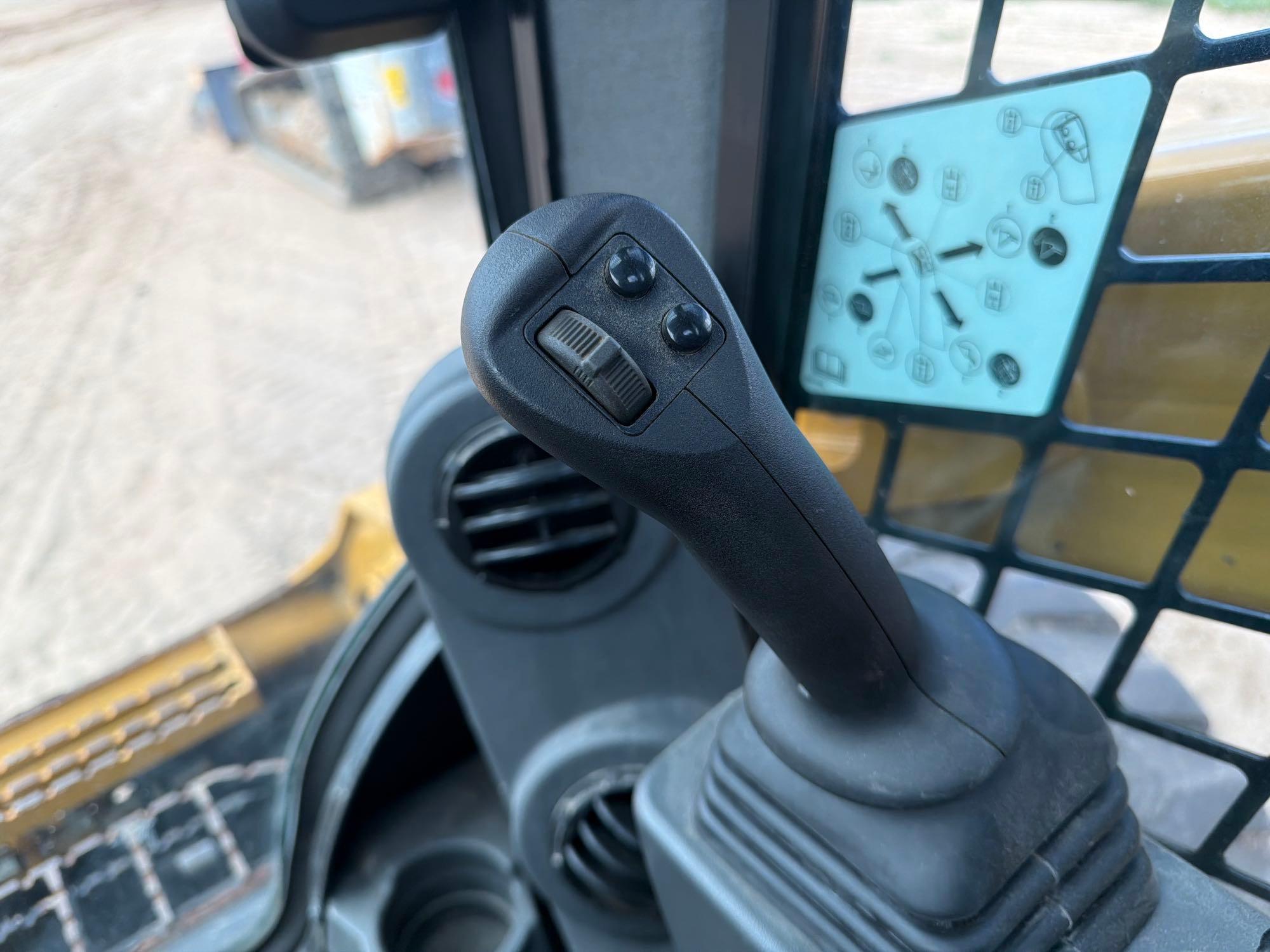

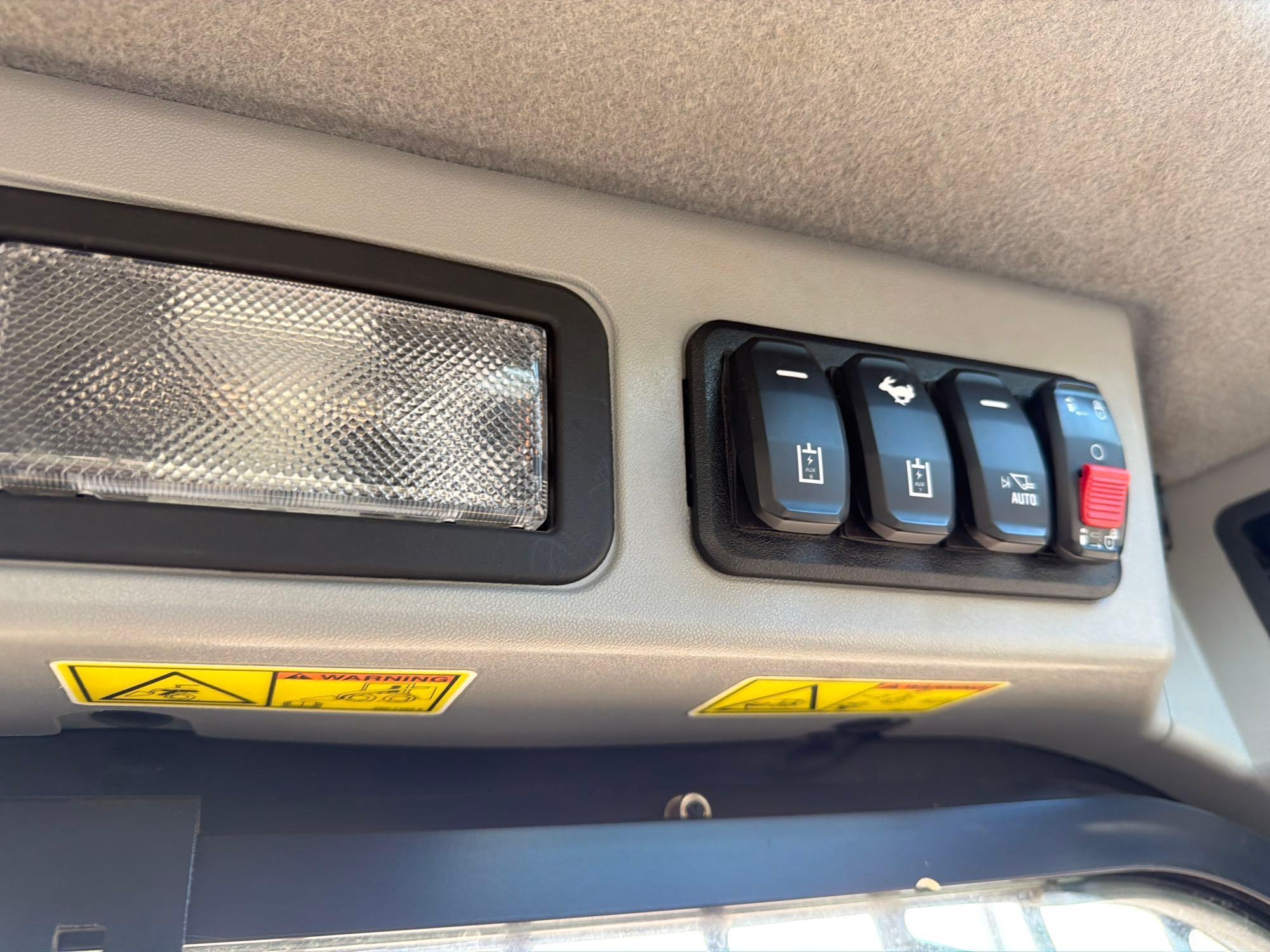

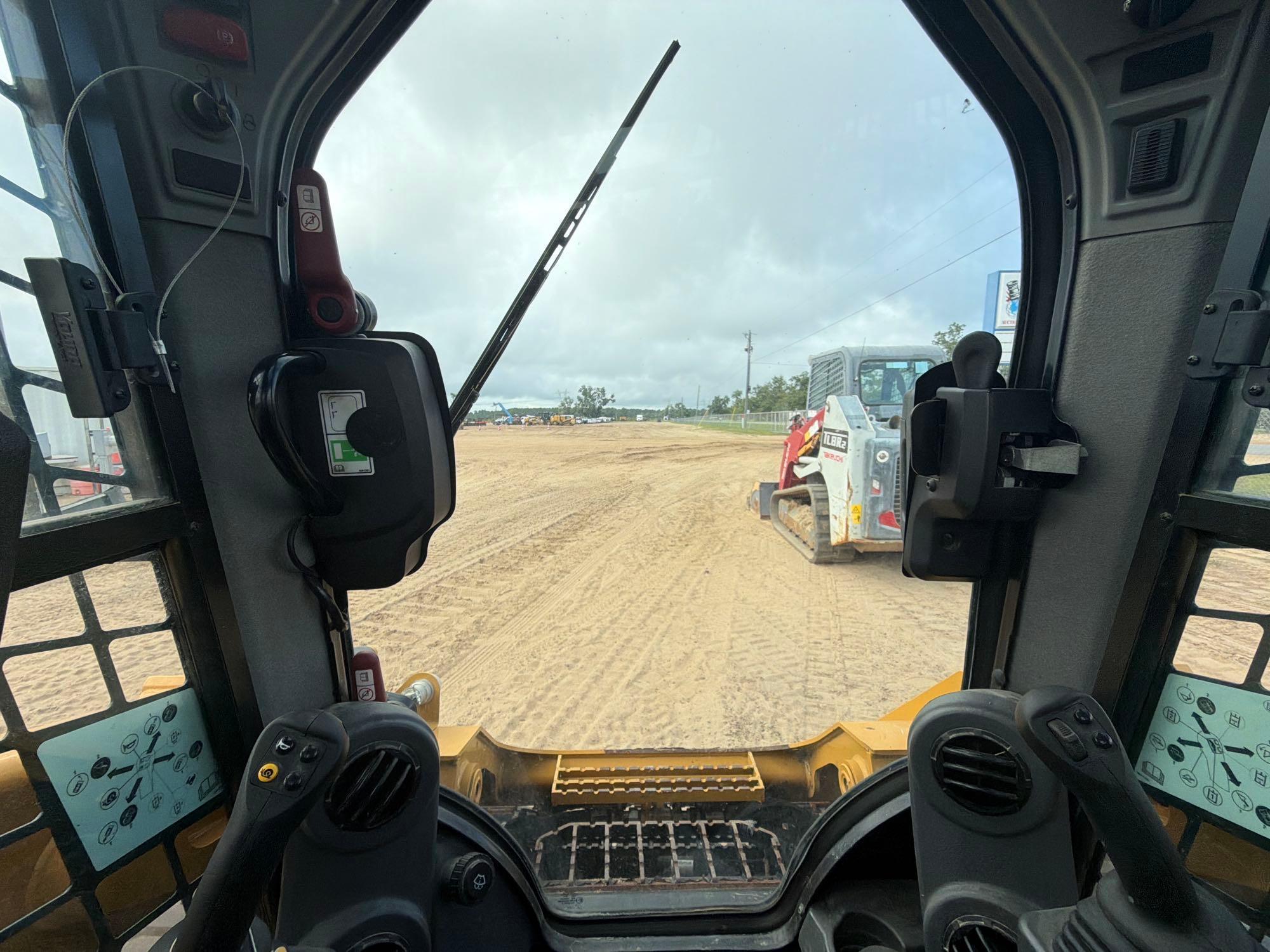

| Cab |
|
Fops |
ISO 3449:2005 Level I |
|
Fops Level Ii |
ISO 3449:2005 Level II |
|
Rops |
ISO 3471:2008 |

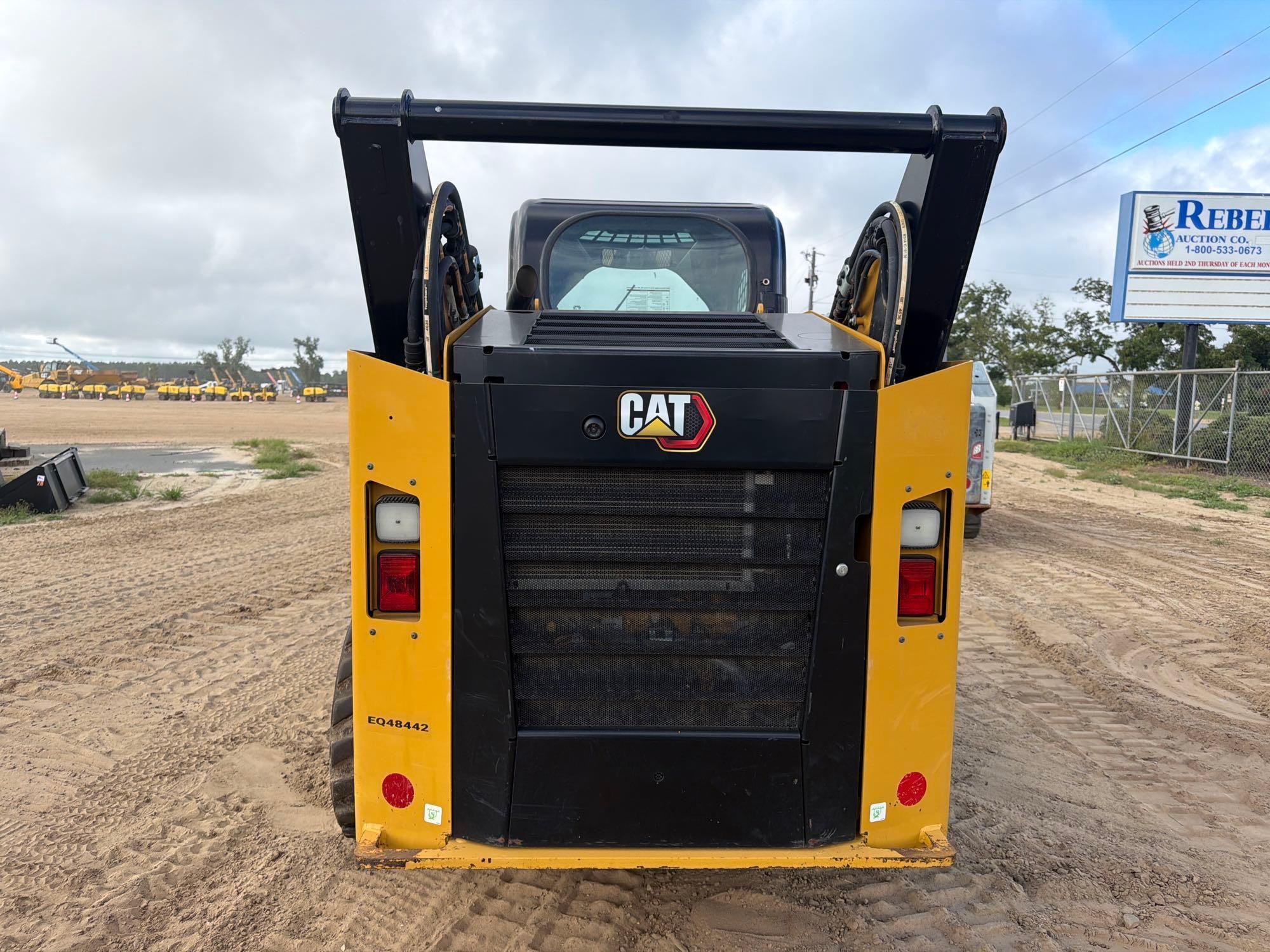

| Dimensions |
|
Bucket Pin Height - Carry Position |
8 in (20 cm)
|
|
Bucket Pin Height - Maximum Lift |
10 ft (3 m)
|
|
Bucket Pin Reach - Maximum Lift |
16 in (39 cm)
|
|
Bumper Overhang - Rear Axle |
43 in (108 cm)
|
|
Clearance At Max Lift And Dump |
8 ft (2 m)
|
|
Clearance At Maximum Lift And Dump |
94 in (238 cm)
|
|
Departure Angle |
26 degrees |
|
Ground Clearance |
9 in (23 cm)
|
|
Height |
7 ft (2 m)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Height To Top Of Cab |
7 ft (2 m)
|
|
Hinge Pin Height - Fully Raised |
125 in (317 cm)
|
|
Length |
12 ft (4 m)
|
|
Length - With Bucket On Ground |
146 in (371 cm)
|
|
Length - Without Bucket |
118 in (299 cm)
|
|
Length W/O Bucket |
10 ft (3 m)
|
|
Length With Bucket |
12 ft (4 m)
|
|
Maximum Dump Angle |
51 degrees |
|
Maximum Overall Height |
158 in (401 cm)
|
|
Maximum Reach - With Arms Parallel |
51 in (129 cm)
|
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1676 mm (66 in) dirt bucket, Cat PC 12 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
|
Rack Back Angle - Maximum Height |
84 degrees |
|
Reach - Maximum Lift/Dump |
31 in (78 cm)
|
|
Reach At Max Lift And Dump |
31 in (79 cm)
|
|
Turn Radius From Center - Bucket |
86 in (218 cm)
|
|
Turn Radius From Center - Coupler |
55 in (140 cm)
|
|
Turn Radius From Center - Rear |
71 in (181 cm)
|
|
Turning Radius From Center - Inc Bucket |
86 in (218 cm)
|
|
Turning Radius From Center - Machine Rear |
71 in (181 cm)
|
|
Vehicle Width Over Tires |
66 in (168 cm)
|
|
Weight |
8,011 lbs (3,634 kg)
|
|
Wheel Base |
4 ft (1 m)
|
|
Wheelbase |
4 ft (1 m)
|
|
Width |
6 ft (2 m)
|

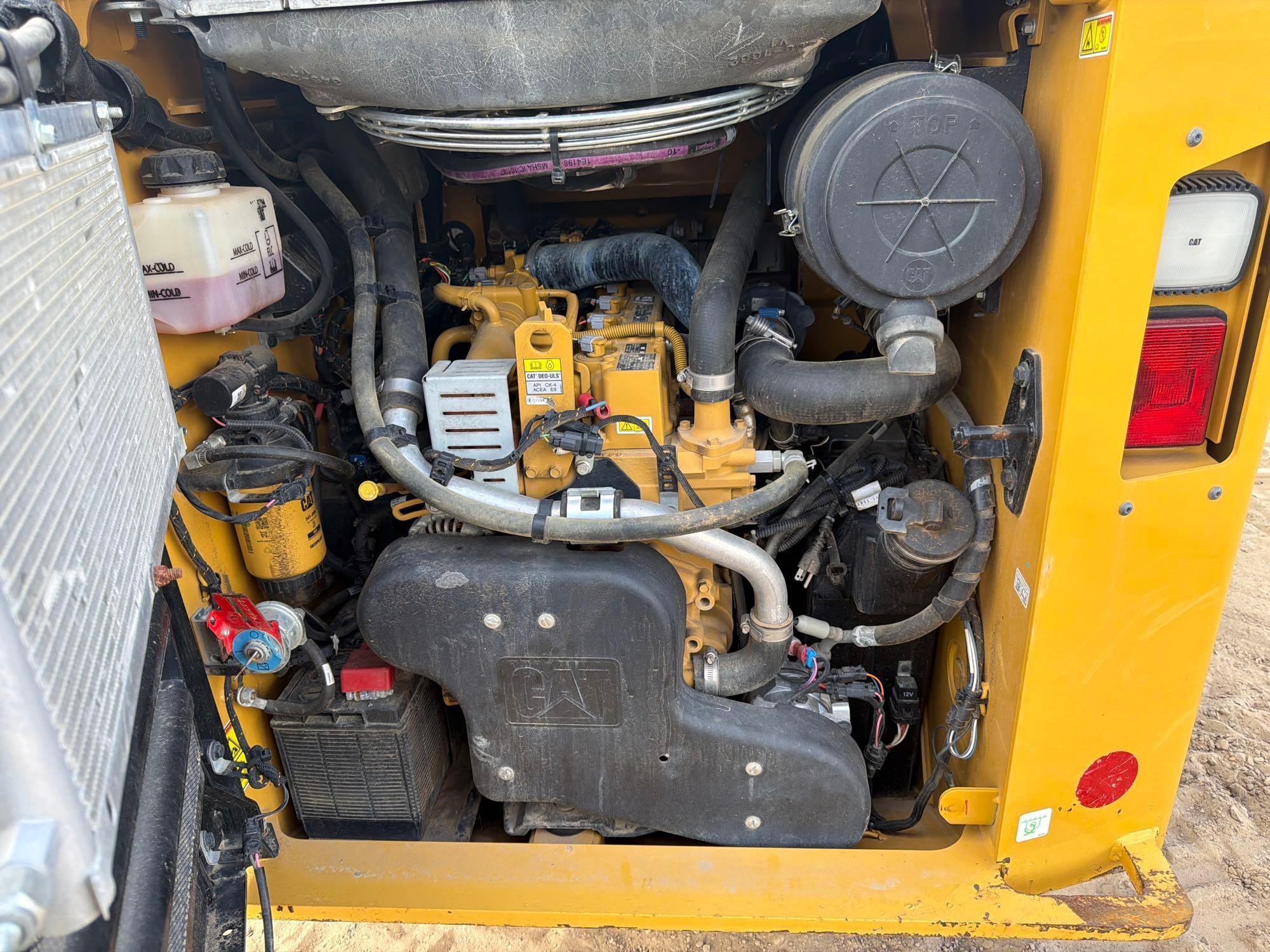

| Engine |
|
Bore |
4 in (9 cm)
|
|
Displacement |
203 cu in (3,327 cu cm)
|
|
Engine Model |
Cat C3.3B DIT (Turbo) |
|
Gross Power |
74 hp (55 kw)
|
|
Gross Power - Sae J1995 |
74 hp (55 kw)
|
|
Max Torque |
196 lbs ft (265 nm)
|
|
Net Flywheel Power |
73 hp (54 kw)
|
|
Net Power |
73 hp (54 kw)
|
|
Net Power - Iso 9249 Eec |
74 hp (55 kw)
|
|
Net Power - Sae 1349 |
73 hp (54 kw)
|
|
Stroke |
5 in (12 cm)
|
|
Torque Measured @ |
1,500 rpm |
| General Specifications |
|
A Wheelbase (Since 2015)
|
49 in (1,249 mm)
|
|
A Wheelbase (2016)
|
49 in (1,249 mm)
|
|
A Wheelbase (2017)
|
49 in (1,249 mm)
|
|
A Wheelbase (2018)
|
49 in (1,249 mm)
|
|
A Wheelbase (2019)
|
49 in (1,249 mm)
|
|
B Length without bucket (Since 2015)
|
118 in (2,995 mm)
|
|
B Length without bucket (2016)
|
118 in (2,995 mm)
|
|
B Length without bucket (2017)
|
118 in (2,995 mm)
|
|
B Length without bucket (2018)
|
118 in (2,995 mm)
|
|
B Length without bucket (2019)
|
118 in (2,995 mm)
|
|
Blade surface height at level lift arms (Since 2015)
|
59 in (1,495 mm)
|
|
Blade surface height at level lift arms (2016)
|
59 in (1,495 mm)
|
|
Blade surface height at level lift arms (2017)
|
59 in (1,495 mm)
|
|
Blade surface height at level lift arms (2018)
|
59 in (1,495 mm)
|
|
Blade surface height at level lift arms (2019)
|
59 in (1,495 mm)
|
|
Blade surface height at maximum height (Since 2015)
|
124 in (3,157 mm)
|
|
Blade surface height at maximum height (2016)
|
124 in (3,157 mm)
|
|
Blade surface height at maximum height (2017)
|
124 in (3,157 mm)
|
|
Blade surface height at maximum height (2018)
|
124 in (3,157 mm)
|
|
Blade surface height at maximum height (2019)
|
124 in (3,157 mm)
|
|
Blade surface height at minimum lift (Since 2015)
|
4 in (90 mm)
|
|
Blade surface height at minimum lift (2016)
|
4 in (90 mm)
|
|
Blade surface height at minimum lift (2017)
|
4 in (90 mm)
|
|
Blade surface height at minimum lift (2018)
|
4 in (90 mm)
|
|
Blade surface height at minimum lift (2019)
|
4 in (90 mm)
|
|
Bore (Since 2015)
|
4 in (94 mm)
|
|
Bore (2016)
|
4 in (94 mm)
|
|
Bore (2017)
|
4 in (94 mm)
|
|
Bore (2018)
|
4 in (94 mm)
|
|
Bore (2019)
|
4 in (94 mm)
|
|
Breakout force - lift (Since 2015)
|
5,342 lbf (24 kN)
|
|
Breakout force - lift (2016)
|
5,342 lbf (24 kN)
|
|
Breakout force - lift (Since 2017)
|
5,342 lbf (2,423 kgf)
|
|
Breakout force - lift (Since 2018)
|
5,342 lbf (24 kN)
|
|
Breakout force - lift (2019)
|
5,342 lbf (24 kN)
|
|
Breakout force - tilt (Since 2015)
|
6,925 lbf (31 kN)
|
|
Breakout force - tilt (2016)
|
6,925 lbf (31 kN)
|
|
Breakout force - tilt (Since 2017)
|
6,925 lbf (3,141 kgf)
|
|
Breakout force - tilt (Since 2018)
|
6,925 lbf (31 kN)
|
|
Breakout force - tilt (2019)
|
6,925 lbf (31 kN)
|
|
Breakout force, tilt cylinder (Since 2015)
|
7,355 lbf (33 kN)
|
|
Breakout force, tilt cylinder (2016)
|
7,355 lbf (33 kN)
|
|
Breakout force, tilt cylinder (Since 2017)
|
7,355 lbf (3,336 kgf)
|
|
Breakout force, tilt cylinder (Since 2018)
|
7,355 lbf (33 kN)
|
|
Breakout force, tilt cylinder (2019)
|
7,355 lbf (33 kN)
|
|
C Length with bucket on ground (Since 2015)
|
146 in (3,714 mm)
|
|
C Length with bucket on ground (2016)
|
146 in (3,714 mm)
|
|
C Length with bucket on ground (2017)
|
146 in (3,714 mm)
|
|
C Length with bucket on ground (2018)
|
146 in (3,714 mm)
|
|
C Length with bucket on ground (2019)
|
146 in (3,714 mm)
|
|
Carriage height above blade top (Since 2015)
|
37 in (926 mm)
|
|
Carriage height above blade top (2016)
|
37 in (926 mm)
|
|
Carriage height above blade top (2017)
|
37 in (926 mm)
|
|
Carriage height above blade top (2018)
|
37 in (926 mm)
|
|
Carriage height above blade top (2019)
|
37 in (926 mm)
|
|
Carriage overall width without step (Since 2015)
|
46 in (1,160 mm)
|
|
Carriage overall width without step (2016)
|
46 in (1,160 mm)
|
|
Carriage overall width without step (2017)
|
46 in (1,160 mm)
|
|
Carriage overall width without step (2018)
|
46 in (1,160 mm)
|
|
Carriage overall width without step (2019)
|
46 in (1,160 mm)
|
|
Carriage step additional width (Since 2015)
|
4 in (106 mm)
|
|
Carriage step additional width (2016)
|
4 in (106 mm)
|
|
Carriage step additional width (2017)
|
4 in (106 mm)
|
|
Carriage step additional width (2018)
|
4 in (106 mm)
|
|
Carriage step additional width (2019)
|
4 in (106 mm)
|
|
category (Since 2020)
|
SKID STEERS |
|
Clearance at maximum lift/level bucket (Since 2015)
|
117 in (2,963 mm)
|
|
Clearance at maximum lift/level bucket (2016)
|
117 in (2,963 mm)
|
|
Clearance at maximum lift/level bucket (2017)
|
117 in (2,963 mm)
|
|
Clearance at maximum lift/level bucket (2018)
|
117 in (2,963 mm)
|
|
Clearance at maximum lift/level bucket (2019)
|
117 in (2,963 mm)
|
|
D Height to top of cab (Since 2015)
|
83 in (2,110 mm)
|
|
D Height to top of cab (2016)
|
83 in (2,110 mm)
|
|
D Height to top of cab (2017)
|
83 in (2,110 mm)
|
|
D Height to top of cab (2018)
|
83 in (2,110 mm)
|
|
D Height to top of cab (2019)
|
83 in (2,110 mm)
|
|
Dig depth with level bucket (Since 2015)
|
0 in (-10 mm)
|
|
Dig depth with level bucket (2016)
|
0 in (-10 mm)
|
|
Dig depth with level bucket (2017)
|
0 in (-10 mm)
|
|
Dig depth with level bucket (2018)
|
0 in (-10 mm)
|
|
Dig depth with level bucket (2019)
|
0 in (-10 mm)
|
|
Displacement (Since 2015)
|
203 cu in (3 L)
|
|
Displacement (2016)
|
203 cu in (3 L)
|
|
Displacement (2017)
|
203 cu in (3 L)
|
|
Displacement (2018)
|
203 cu in (3 L)
|
|
Displacement (2019)
|
203 cu in (3 L)
|
|
Dump (Since 2015)
|
2 |
|
Dump (2016)
|
2 |
|
Dump (2017)
|
2 |
|
Dump (2018)
|
2 |
|
Dump (2019)
|
2 |
|
Dump clearance at maximum lift/dump (Since 2015)
|
93 in (2,354 mm)
|
|
Dump clearance at maximum lift/dump (2016)
|
93 in (2,354 mm)
|
|
Dump clearance at maximum lift/dump (2017)
|
93 in (2,354 mm)
|
|
Dump clearance at maximum lift/dump (2018)
|
93 in (2,354 mm)
|
|
Dump clearance at maximum lift/dump (2019)
|
93 in (2,354 mm)
|
|
Engine Model (Since 2015)
|
C3.3B DIT |
|
Engine Model (2016)
|
C3.3B DIT |
|
Engine Model (2017)
|
C3.3B DIT |
|
Engine Model (2018)
|
C3.3B DIT |
|
Engine Model (2019)
|
C3.3B DIT |
|
ENGINE POWER (Since 2016)
|
73 hp (54 kw)
|
|
ENGINE POWER (2017)
|
73 hp (54 kw)
|
|
ENGINE POWER (2019)
|
73 hp (54 kw)
|
|
ENGINE POWER (2020)
|
73 hp (54 kw)
|
|
F Bucket pin height at maximum lift (Since 2015)
|
125 in (3,172 mm)
|
|
F Bucket pin height at maximum lift (2016)
|
125 in (3,172 mm)
|
|
F Bucket pin height at maximum lift (2017)
|
125 in (3,172 mm)
|
|
F Bucket pin height at maximum lift (2018)
|
125 in (3,172 mm)
|
|
F Bucket pin height at maximum lift (2019)
|
125 in (3,172 mm)
|
|
Floor angle at maximum lift/dump (Since 2015)
|
-51 deg |
|
Floor angle at maximum lift/dump (2016)
|
-51 deg |
|
Floor angle at maximum lift/dump (2017)
|
-51 deg |
|
Floor angle at maximum lift/dump (2018)
|
-51 deg |
|
Floor angle at maximum lift/dump (2019)
|
-51 deg |
|
Floor angle at maximum lift/rack back (Since 2015)
|
85 deg |
|
Floor angle at maximum lift/rack back (2016)
|
85 deg |
|
Floor angle at maximum lift/rack back (2017)
|
85 deg |
|
Floor angle at maximum lift/rack back (2018)
|
85 deg |
|
Floor angle at maximum lift/rack back (2019)
|
85 deg |
|
Flywheel Power - Gross (SAE J1995) (Since 2015)
|
74 hp (55 kW)
|
|
Flywheel Power - Gross (SAE J1995) (2016)
|
74 hp (55 kW)
|
|
Flywheel Power - Gross (SAE J1995) (2017)
|
74 hp (55 kW)
|
|
Flywheel Power - Gross (SAE J1995) (2018)
|
74 hp (55 kW)
|
|
Flywheel Power - Gross (SAE J1995) (2019)
|
74 hp (55 kW)
|
|
Flywheel Power - Net (SAE 1349) (Since 2015)
|
72 hp (54 kW)
|
|
Flywheel Power - Net (SAE 1349) (Since 2016)
|
72 hp (54 kW)
|
|
Flywheel Power - Net (SAE 1349) (2017)
|
72 hp (54 kW)
|
|
Flywheel Power - Net (SAE 1349) (2018)
|
72 hp (54 kW)
|
|
Flywheel Power - Net (SAE 1349) (2019)
|
72 hp (54 kW)
|
|
Flywheel Power - Net (SAE 1349)# (Since 2016)
|
72 hp (54 kW)
|
|
Flywheel Power - Net (SAE 1349)# (2017)
|
72 hp (54 kW)
|
|
Flywheel Power - Net (SAE 1349)# (2018)
|
72 hp (54 kW)
|
|
Flywheel Power - Net (SAE 1349)# (2019)
|
72 hp (54 kW)
|
|
Flywheel Power - Net (SAE 1349)* (Since 2018)
|
73 hp (55 kW)
|
|
Front clearance circle radius (with bucket) (Since 2015)
|
90 in (2,277 mm)
|
|
Front clearance circle radius (with bucket) (2016)
|
90 in (2,277 mm)
|
|
Front clearance circle radius (with bucket) (2017)
|
90 in (2,277 mm)
|
|
Front clearance circle radius (with bucket) (2018)
|
90 in (2,277 mm)
|
|
Front clearance circle radius (with bucket) (2019)
|
90 in (2,277 mm)
|
|
Fuel Tank Capacity (Since 2015)
|
25 US gal (94 L)
|
|
Fuel Tank Capacity (2016)
|
25 US gal (94 L)
|
|
Fuel Tank Capacity (2017)
|
25 US gal (94 L)
|
|
Fuel Tank Capacity (2018)
|
25 US gal (94 L)
|
|
Fuel Tank Capacity (2019)
|
25 US gal (94 L)
|
|
G Bucket pin height at carry position (Since 2015)
|
8 in (200 mm)
|
|
G Bucket pin height at carry position (2016)
|
8 in (200 mm)
|
|
G Bucket pin height at carry position (2017)
|
8 in (200 mm)
|
|
G Bucket pin height at carry position (2018)
|
8 in (200 mm)
|
|
G Bucket pin height at carry position (2019)
|
8 in (200 mm)
|
|
Ground Clearance (Since 2015)
|
9 in (226 mm)
|
|
Ground Clearance (2016)
|
9 in (226 mm)
|
|
Ground Clearance (2017)
|
9 in (226 mm)
|
|
Ground Clearance (2018)
|
9 in (226 mm)
|
|
Ground Clearance (2019)
|
9 in (226 mm)
|
|
H Reach at maximum lift and dump (Since 2015)
|
31 in (786 mm)
|
|
H Reach at maximum lift and dump (2016)
|
31 in (786 mm)
|
|
H Reach at maximum lift and dump (2017)
|
31 in (786 mm)
|
|
H Reach at maximum lift and dump (2018)
|
31 in (786 mm)
|
|
H Reach at maximum lift and dump (2019)
|
31 in (786 mm)
|
|
Hinge pin height at maximum lift (Since 2015)
|
125 in (3,173 mm)
|
|
Hinge pin height at maximum lift (2016)
|
125 in (3,173 mm)
|
|
Hinge pin height at maximum lift (2017)
|
125 in (3,173 mm)
|
|
Hinge pin height at maximum lift (2018)
|
125 in (3,173 mm)
|
|
Hinge pin height at maximum lift (2019)
|
125 in (3,173 mm)
|
|
Hydraulic Pressure, Standard (Since 2015)
|
3,335 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (2016)
|
3,335 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (2017)
|
3,335 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (2018)
|
3,335 psi (23,000 kPa)
|
|
Hydraulic Pressure, Standard (2019)
|
3,335 psi (23,000 kPa)
|
|
Hydraulic Pressure, XPS (Since 2015)
|
4,061 psi (28,000 kPa)
|
|
Hydraulic Pressure, XPS (2016)
|
4,061 psi (28,000 kPa)
|
|
Hydraulic Pressure, XPS (2017)
|
4,061 psi (28,000 kPa)
|
|
Hydraulic Pressure, XPS (2018)
|
4,061 psi (28,000 kPa)
|
|
Hydraulic Pressure, XPS (2019)
|
4,061 psi (28,000 kPa)
|
|
Hydraulic Pump Capacity, Standard (Since 2015)
|
23 US gpm (86 L/min)
|
|
Hydraulic Pump Capacity, Standard (2016)
|
23 US gpm (86 L/min)
|
|
Hydraulic Pump Capacity, Standard (2017)
|
23 US gpm (86 L/min)
|
|
Hydraulic Pump Capacity, Standard (2018)
|
23 US gpm (86 L/min)
|
|
Hydraulic Pump Capacity, Standard (2019)
|
23 US gpm (86 L/min)
|
|
Hydraulic Pump Capacity, XPS (Since 2015)
|
32 US gpm (121 L/min)
|
|
Hydraulic Pump Capacity, XPS (2016)
|
32 US gpm (121 L/min)
|
|
Hydraulic Pump Capacity, XPS (2017)
|
32 US gpm (121 L/min)
|
|
Hydraulic Pump Capacity, XPS (2018)
|
32 US gpm (121 L/min)
|
|
Hydraulic Pump Capacity, XPS (2019)
|
32 US gpm (121 L/min)
|
|
Hydraulic System Capacity - (includes tank) (Since 2015)
|
14 US gal (52 L)
|
|
Hydraulic System Capacity - (includes tank) (2016)
|
14 US gal (52 L)
|
|
Hydraulic System Capacity - (includes tank) (2017)
|
14 US gal (52 L)
|
|
Hydraulic System Capacity - (includes tank) (2018)
|
14 US gal (52 L)
|
|
Hydraulic System Capacity - (includes tank) (2019)
|
14 US gal (52 L)
|
|
Hydraulic Tank Capacity (Since 2015)
|
10 US gal (39 L)
|
|
Hydraulic Tank Capacity (2016)
|
10 US gal (39 L)
|
|
Hydraulic Tank Capacity (2017)
|
10 US gal (39 L)
|
|
Hydraulic Tank Capacity (2018)
|
10 US gal (39 L)
|
|
Hydraulic Tank Capacity (2019)
|
10 US gal (39 L)
|
|
J Clearance at maximum lift and dump (Since 2015)
|
94 in (2,380 mm)
|
|
J Clearance at maximum lift and dump (2016)
|
94 in (2,380 mm)
|
|
J Clearance at maximum lift and dump (2017)
|
94 in (2,380 mm)
|
|
J Clearance at maximum lift and dump (2018)
|
94 in (2,380 mm)
|
|
J Clearance at maximum lift and dump (2019)
|
94 in (2,380 mm)
|
|
K Ground clearance (Since 2015)
|
9 in (226 mm)
|
|
K Ground clearance (2016)
|
9 in (226 mm)
|
|
K Ground clearance (2017)
|
9 in (226 mm)
|
|
K Ground clearance (2018)
|
9 in (226 mm)
|
|
K Ground clearance (2019)
|
9 in (226 mm)
|
|
L Departure angle (Since 2015)
|
26 deg |
|
L Departure angle (2016)
|
26 deg |
|
L Departure angle (2017)
|
26 deg |
|
L Departure angle (2018)
|
26 deg |
|
L Departure angle (2019)
|
26 deg |
|
Lower (Empty, Float Down) (Since 2015)
|
4 |
|
Lower (Empty, Float Down) (2016)
|
4 |
|
Lower (Empty, Float Down) (2017)
|
4 |
|
Lower (Empty, Float Down) (2018)
|
4 |
|
Lower (Empty, Float Down) (2019)
|
4 |
|
M Bumper overhang behind rear axle (Since 2015)
|
43 in (1,083 mm)
|
|
M Bumper overhang behind rear axle (2016)
|
43 in (1,083 mm)
|
|
M Bumper overhang behind rear axle (2017)
|
43 in (1,083 mm)
|
|
M Bumper overhang behind rear axle (2018)
|
43 in (1,083 mm)
|
|
M Bumper overhang behind rear axle (2019)
|
43 in (1,083 mm)
|
|
Maximum floor angle at minimum lift (Since 2015)
|
27 deg |
|
Maximum floor angle at minimum lift (2016)
|
27 deg |
|
Maximum floor angle at minimum lift (2017)
|
27 deg |
|
Maximum floor angle at minimum lift (2018)
|
27 deg |
|
Maximum floor angle at minimum lift (2019)
|
27 deg |
|
Maximum overall height (Since 2015)
|
158 in (4,008 mm)
|
|
Maximum overall height (2016)
|
158 in (4,008 mm)
|
|
Maximum overall height (2017)
|
158 in (4,008 mm)
|
|
Maximum overall height (2018)
|
158 in (4,008 mm)
|
|
Maximum overall height (2019)
|
158 in (4,008 mm)
|
|
MODEL (Since 2016)
|
262D |
|
MODEL (2017)
|
262D |
|
MODEL (2019)
|
262D |
|
MODEL (2020)
|
262D |
|
N Maximum dump angle (Since 2015)
|
51 deg |
|
N Maximum dump angle (2016)
|
51 deg |
|
N Maximum dump angle (2017)
|
51 deg |
|
N Maximum dump angle (2018)
|
51 deg |
|
N Maximum dump angle (2019)
|
51 deg |
|
No. Cylinders (Since 2015)
|
4 |
|
No. Cylinders (2016)
|
4 |
|
No. Cylinders (2017)
|
4 |
|
No. Cylinders (2018)
|
4 |
|
No. Cylinders (2019)
|
4 |
|
O Vehicle width over tires (Since 2015)
|
66 in (1,676 mm)
|
|
O Vehicle width over tires (2016)
|
66 in (1,676 mm)
|
|
O Vehicle width over tires (2017)
|
66 in (1,676 mm)
|
|
O Vehicle width over tires (2018)
|
66 in (1,676 mm)
|
|
O Vehicle width over tires (2019)
|
66 in (1,676 mm)
|
|
One Speed Forward (Since 2015)
|
0 - 8 mph |
|
One Speed Forward (2016)
|
0 - 8 mph |
|
One Speed Forward (2017)
|
0 - 8 mph |
|
One Speed Forward (2018)
|
0 - 8 mph |
|
One Speed Forward (2019)
|
0 - 8 mph |
|
One Speed Reverse (Since 2015)
|
0 - 8 mph |
|
One Speed Reverse (2016)
|
0 - 8 mph |
|
One Speed Reverse (2017)
|
0 - 8 mph |
|
One Speed Reverse (2018)
|
0 - 8 mph |
|
One Speed Reverse (2019)
|
0 - 8 mph |
|
OPERATING LOAD (Since 2016)
|
2,700 lbs (1,225 kg)
|
|
OPERATING LOAD (2017)
|
2,700 lbs (1,225 kg)
|
|
Operating weight (Since 2015)
|
8,011 lbs (3,634 kg)
|
|
Operating weight (2016)
|
8,011 lbs (3,634 kg)
|
|
Operating weight (2017)
|
8,011 lbs (3,634 kg)
|
|
Operating weight (2018)
|
8,011 lbs (3,634 kg)
|
|
Operating weight (2019)
|
8,011 lbs (3,634 kg)
|
|
OPERATING WIDTH (Since 2016)
|
66 in (168 cm)
|
|
OPERATING WIDTH (2017)
|
66 in (168 cm)
|
|
OPERATING WIDTH (2019)
|
66 in (168 cm)
|
|
OPERATING WIDTH (2020)
|
66 in (168 cm)
|
|
Overall length at minimum lift, level tine (Since 2015)
|
161 in (4,078 mm)
|
|
Overall length at minimum lift, level tine (2016)
|
161 in (4,078 mm)
|
|
Overall length at minimum lift, level tine (2017)
|
161 in (4,078 mm)
|
|
Overall length at minimum lift, level tine (2018)
|
161 in (4,078 mm)
|
|
Overall length at minimum lift, level tine (2019)
|
161 in (4,078 mm)
|
|
Overall length with bucket on ground (Since 2015)
|
147 in (3,740 mm)
|
|
Overall length with bucket on ground (2016)
|
147 in (3,740 mm)
|
|
Overall length with bucket on ground (2017)
|
147 in (3,740 mm)
|
|
Overall length with bucket on ground (2018)
|
147 in (3,740 mm)
|
|
Overall length with bucket on ground (2019)
|
147 in (3,740 mm)
|
|
P Turning radius from center - machine rear (Since 2015)
|
71 in (1,805 mm)
|
|
P Turning radius from center - machine rear (2016)
|
71 in (1,805 mm)
|
|
P Turning radius from center - machine rear (2017)
|
71 in (1,805 mm)
|
|
P Turning radius from center - machine rear (2018)
|
71 in (1,805 mm)
|
|
P Turning radius from center - machine rear (2019)
|
71 in (1,805 mm)
|
|
Q Turning radius from center - coupler (Since 2015)
|
55 in (1,401 mm)
|
|
Q Turning radius from center - coupler (2016)
|
55 in (1,401 mm)
|
|
Q Turning radius from center - coupler (2017)
|
55 in (1,401 mm)
|
|
Q Turning radius from center - coupler (2018)
|
55 in (1,401 mm)
|
|
Q Turning radius from center - coupler (2019)
|
55 in (1,401 mm)
|
|
R Turning radius from center - bucket (Since 2015)
|
86 in (2,181 mm)
|
|
R Turning radius from center - bucket (2016)
|
86 in (2,181 mm)
|
|
R Turning radius from center - bucket (2017)
|
86 in (2,181 mm)
|
|
R Turning radius from center - bucket (2018)
|
86 in (2,181 mm)
|
|
R Turning radius from center - bucket (2019)
|
86 in (2,181 mm)
|
|
Raise (Since 2015)
|
5 |
|
Raise (2016)
|
5 |
|
Raise (2017)
|
5 |
|
Raise (2018)
|
5 |
|
Raise (2019)
|
5 |
|
Rated bucket capacity (Since 2015)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (2016)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (2017)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (2018)
|
1 cu yd (0 cu m)
|
|
Rated bucket capacity (2019)
|
1 cu yd (0 cu m)
|
|
Rated Engine RPM (Since 2015)
|
2,400 rpm |
|
Rated Engine RPM (2016)
|
2,400 rpm |
|
Rated Engine RPM (2017)
|
2,400 rpm |
|
Rated Engine RPM (2018)
|
2,400 rpm |
|
Rated Engine RPM (2019)
|
2,400 rpm |
|
Rated operating capacity (Since 2015)
|
2,700 lbs (1,225 kg)
|
|
Rated operating capacity (2016)
|
2,700 lbs (1,225 kg)
|
|
Rated operating capacity (2017)
|
2,700 lbs (1,225 kg)
|
|
Rated operating capacity (2018)
|
2,700 lbs (1,225 kg)
|
|
Rated operating capacity (2019)
|
2,700 lbs (1,225 kg)
|
|
RATED OPERATING CAPACITY (50%) (Since 2019)
|
2,700 lbs (1,225 kg)
|
|
RATED OPERATING CAPACITY (50%) (2020)
|
2,700 lbs (1,225 kg)
|
|
Reach at level lift arm/bucket (Since 2015)
|
51 in (1,306 mm)
|
|
Reach at level lift arm/bucket (2016)
|
51 in (1,306 mm)
|
|
Reach at level lift arm/bucket (2017)
|
51 in (1,306 mm)
|
|
Reach at level lift arm/bucket (2018)
|
51 in (1,306 mm)
|
|
Reach at level lift arm/bucket (2019)
|
51 in (1,306 mm)
|
|
Reach at maximum lift/dump (Since 2015)
|
30 in (764 mm)
|
|
Reach at maximum lift/dump (2016)
|
30 in (764 mm)
|
|
Reach at maximum lift/dump (2017)
|
30 in (764 mm)
|
|
Reach at maximum lift/dump (2018)
|
30 in (764 mm)
|
|
Reach at maximum lift/dump (2019)
|
30 in (764 mm)
|
|
S Maximum reach with arms parallel to ground (Since 2015)
|
51 in (1,293 mm)
|
|
S Maximum reach with arms parallel to ground (2016)
|
51 in (1,293 mm)
|
|
S Maximum reach with arms parallel to ground (2017)
|
51 in (1,293 mm)
|
|
S Maximum reach with arms parallel to ground (2018)
|
51 in (1,293 mm)
|
|
S Maximum reach with arms parallel to ground (2019)
|
51 in (1,293 mm)
|
|
Shank front face reach at level lift arms (Since 2015)
|
29 in (737 mm)
|
|
Shank front face reach at level lift arms (2016)
|
29 in (737 mm)
|
|
Shank front face reach at level lift arms (2017)
|
29 in (737 mm)
|
|
Shank front face reach at level lift arms (2018)
|
29 in (737 mm)
|
|
Shank front face reach at level lift arms (2019)
|
29 in (737 mm)
|
|
Shank front face reach at maximum height (Since 2015)
|
27 in (672 mm)
|
|
Shank front face reach at maximum height (2016)
|
27 in (672 mm)
|
|
Shank front face reach at maximum height (2017)
|
27 in (672 mm)
|
|
Shank front face reach at maximum height (2018)
|
27 in (672 mm)
|
|
Shank front face reach at maximum height (2019)
|
27 in (672 mm)
|
|
Shank front face reach at minimum lift (Since 2015)
|
17 in (421 mm)
|
|
Shank front face reach at minimum lift (2016)
|
17 in (421 mm)
|
|
Shank front face reach at minimum lift (2017)
|
17 in (421 mm)
|
|
Shank front face reach at minimum lift (2018)
|
17 in (421 mm)
|
|
Shank front face reach at minimum lift (2019)
|
17 in (421 mm)
|
|
Stroke (Since 2015)
|
5 in (120 mm)
|
|
Stroke (2016)
|
5 in (120 mm)
|
|
Stroke (2017)
|
5 in (120 mm)
|
|
Stroke (2018)
|
5 in (120 mm)
|
|
Stroke (2019)
|
5 in (120 mm)
|
|
Struck capacity (Since 2015)
|
0 cu yd (0 cu m)
|
|
Struck capacity (2016)
|
0 cu yd (0 cu m)
|
|
Struck capacity (2017)
|
0 cu yd (0 cu m)
|
|
Struck capacity (2018)
|
0 cu yd (0 cu m)
|
|
Struck capacity (2019)
|
0 cu yd (0 cu m)
|
|
T Rack back angle at maximum height (Since 2015)
|
84 deg |
|
T Rack back angle at maximum height (2016)
|
84 deg |
|
T Rack back angle at maximum height (2017)
|
84 deg |
|
T Rack back angle at maximum height (2018)
|
84 deg |
|
T Rack back angle at maximum height (2019)
|
84 deg |
|
Tipping load (Since 2015)
|
5,400 lbs (2,449 kg)
|
|
Tipping load (2016)
|
5,400 lbs (2,449 kg)
|
|
Tipping load (2017)
|
5,400 lbs (2,449 kg)
|
|
Tipping load (2018)
|
5,400 lbs (2,449 kg)
|
|
Tipping load (2019)
|
5,400 lbs (2,449 kg)
|
|
Total (Since 2015)
|
11 |
|
Total (2016)
|
11 |
|
Total (2017)
|
11 |
|
Total (2018)
|
11 |
|
Total (2019)
|
11 |
|
Tread Width, Standard (Since 2015)
|
54 in (1,371 mm)
|
|
Tread Width, Standard (2016)
|
54 in (1,371 mm)
|
|
Tread Width, Standard (2017)
|
54 in (1,371 mm)
|
|
Tread Width, Standard (2018)
|
54 in (1,371 mm)
|
|
Tread Width, Standard (2019)
|
54 in (1,371 mm)
|
|

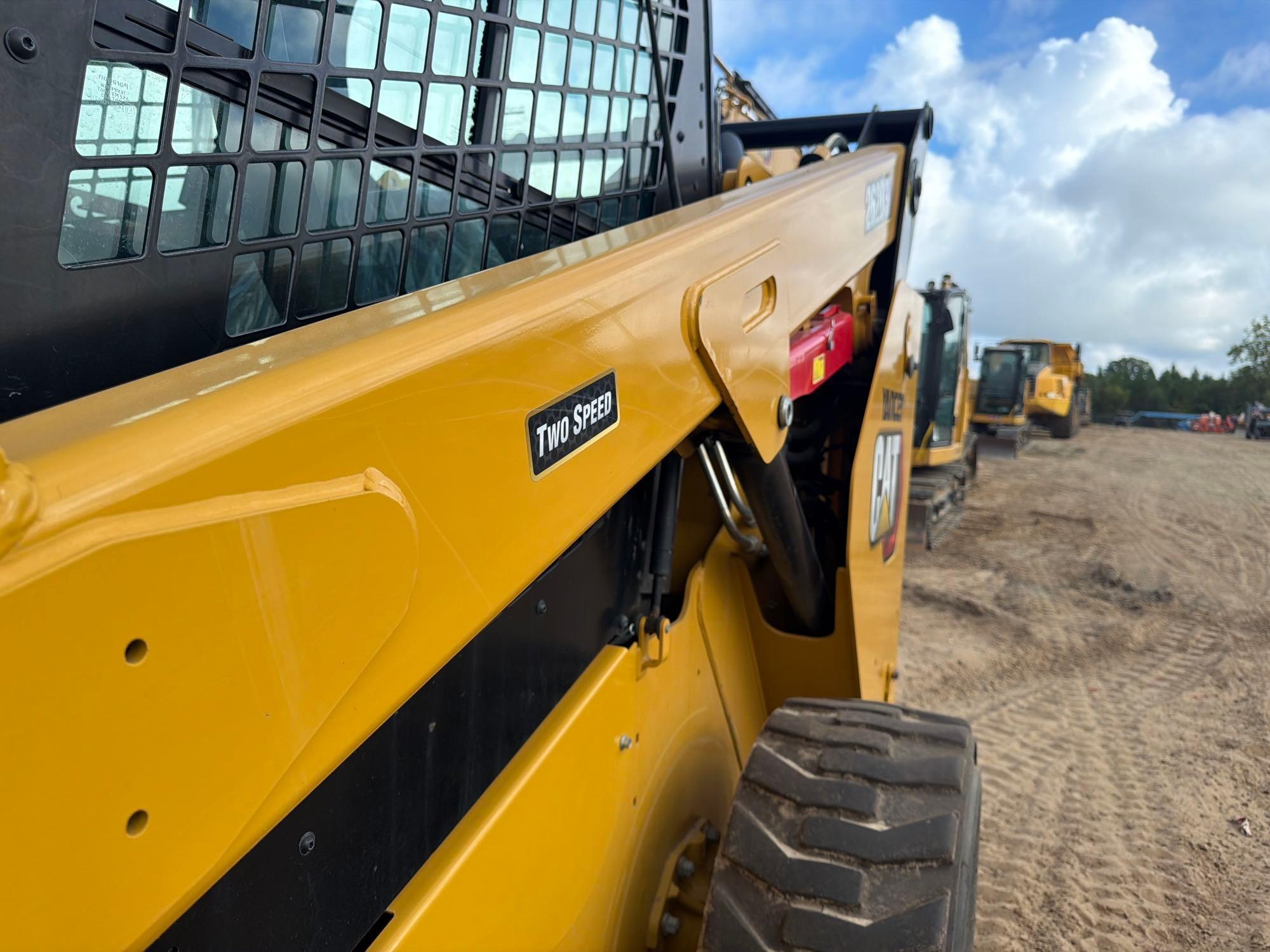

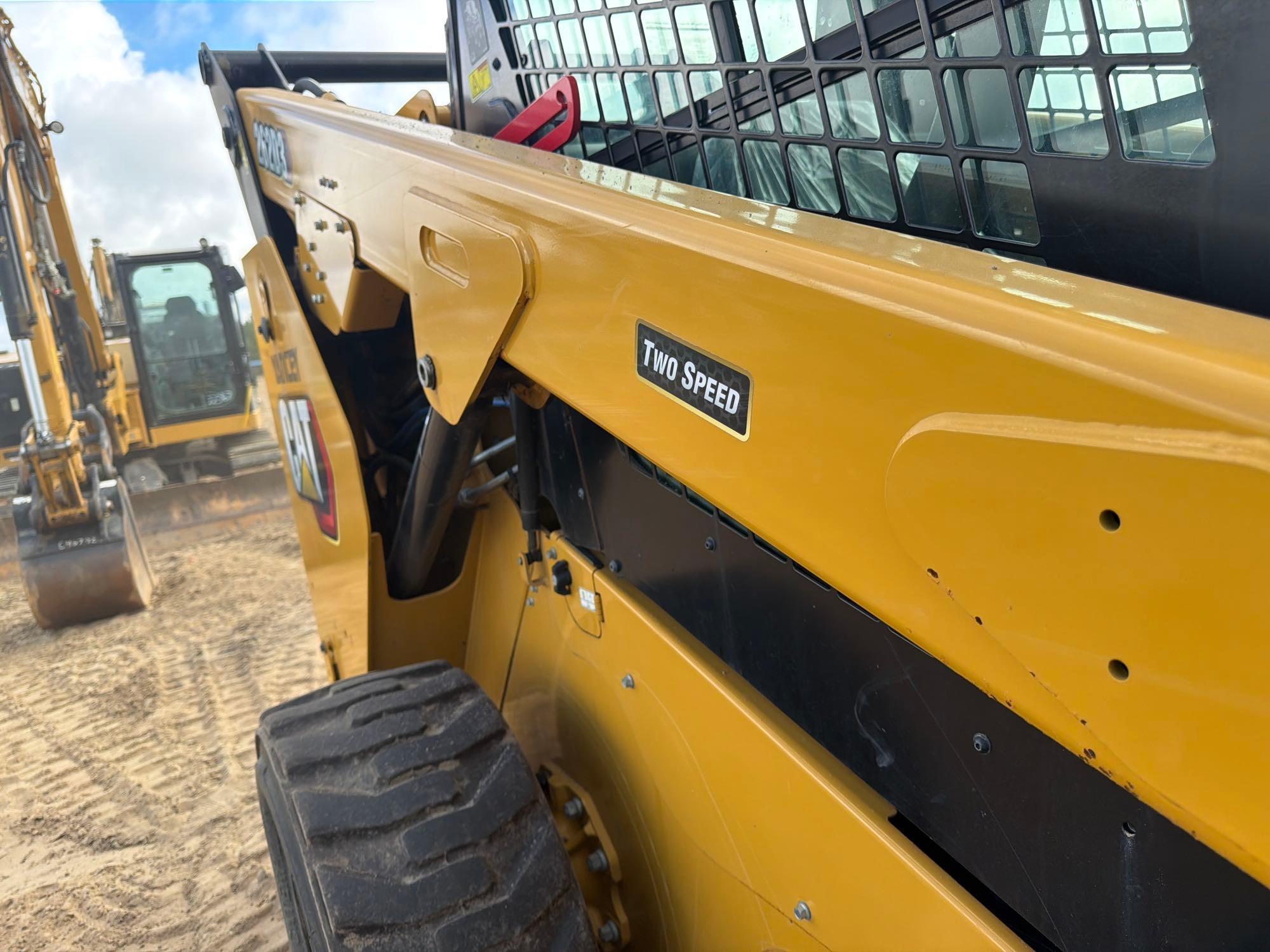

Two Speed Forward (Since 2015)
|
0 - 11 mph |
|
Two Speed Forward (2016)
|
0 - 11 mph |
|
Two Speed Forward (2017)
|
0 - 11 mph |
|
Two Speed Forward (2018)
|
0 - 11 mph |
|
Two Speed Forward (2019)
|
0 - 11 mph |
|
U Bucket pin reach at maximum lift (Since 2015)
|
16 in (393 mm)
|
|
U Bucket pin reach at maximum lift (2016)
|
16 in (393 mm)
|
|
U Bucket pin reach at maximum lift (2017)
|
16 in (393 mm)
|
|
U Bucket pin reach at maximum lift (2018)
|
16 in (393 mm)
|
|
U Bucket pin reach at maximum lift (2019)
|
16 in (393 mm)
|
|
Width (Since 2015)
|
75 in (1,902 mm)
|
|
Width (2016)
|
75 in (1,902 mm)
|
|
Width (2017)
|
75 in (1,902 mm)
|
|
Width (2018)
|
75 in (1,902 mm)
|
|
Width (2019)
|
75 in (1,902 mm)
|
|
Width Over Tires (Since 2015)
|
66 in (1,676 mm)
|
|
Width Over Tires (2016)
|
66 in (1,676 mm)
|
|
Width Over Tires (2017)
|
66 in (1,676 mm)
|
|
Width Over Tires (2018)
|
66 in (1,676 mm)
|
|
Width Over Tires (2019)
|
66 in (1,676 mm)
|

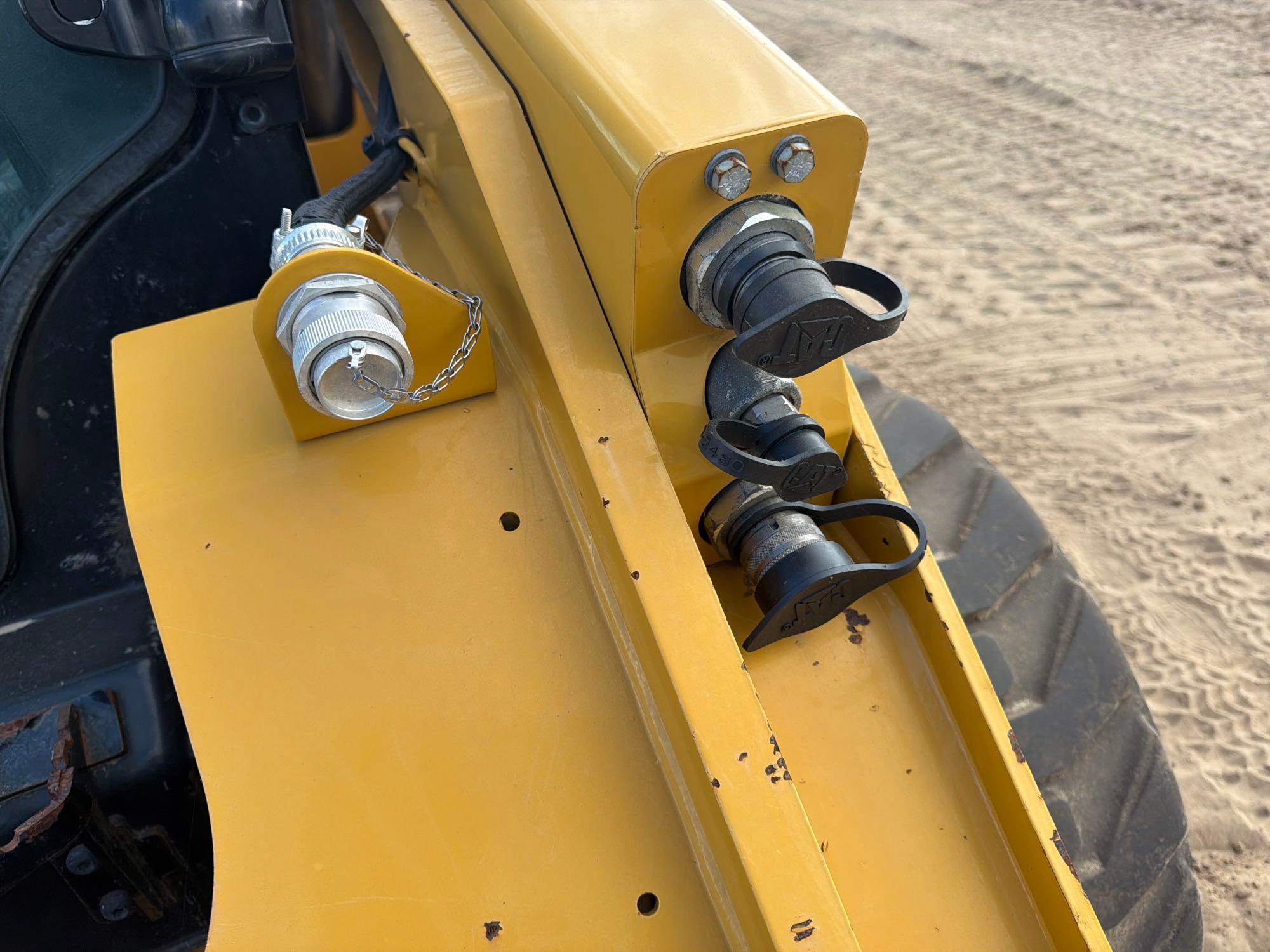

| Hydraulic |
|
Pump Flow Capacity |
32 gpm (121 lpm)
|
| Hydraulic System |
|
Hydraulic Flow (1) |
Standard |
|
Hydraulic Flow (2) |
High Flow XPS |
|
Hydraulic Power - Calculated (1) |
44 hp (33 kw)
|
|
Hydraulic Power - Calculated (2) |
76 hp (57 kw)
|
|
Loader Hydraulic Flow (1) |
23 gpm (87 lpm)
|
|
Loader Hydraulic Flow (2) |
32 gpm (121 lpm)
|
|
Loader Hydraulic Pressure (1) |
3,335 psi |
|
Loader Hydraulic Pressure (2) |
4,061 psi |
| Noise Level |
|
Inside Cab* |
81 dB(A) |
|
Note (1) |
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
|
Note (2) |
*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
|
Note (3) |
**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
|
Outside Cab** |
101 dB(A) |
| Operating Specifications |
|
Breakout Force - Tilt Cylinder |
7,355 lbs (3,336 kg)
|
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1676 mm (66 in) dirt bucket, Cat PC 12 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
|
Rated Operating Capacity |
2,700 lbs (1,225 kg)
|
|
Rated Operating Capacity With Optional Counterweight |
2,950 lbs (1,338 kg)
|
|
Tipping Load |
5,400 lbs (2,449 kg)
|
| Operational |
|
Alternator Supplied Amperage |
80 amps |
|
Chain Box Fluid Capacity - Each Side |
3 gal (13 l)
|
|
Cooling System Fluid Capacity |
4 gal (14 l)
|
|
Fuel Capacity |
25 gal (94 l)
|
|
Hydraulic System Fluid Capacity |
14 gal (52 l)
|
|
Max Speed |
8 mph (12 kph)
|
|
Operating Voltage |
12 V |
|
Operational Weight |
8,012 lbs (3,634 kg)
|
|

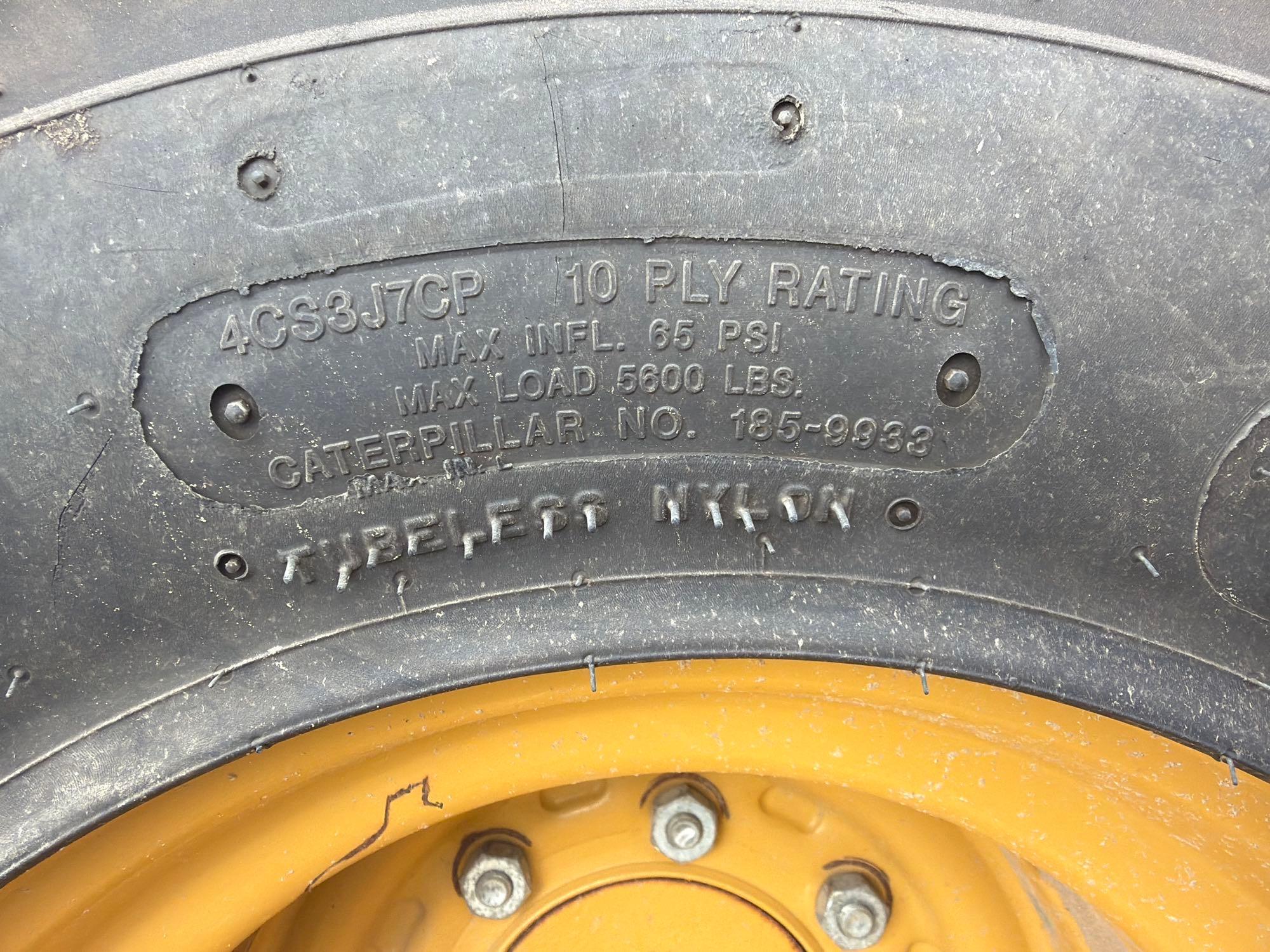

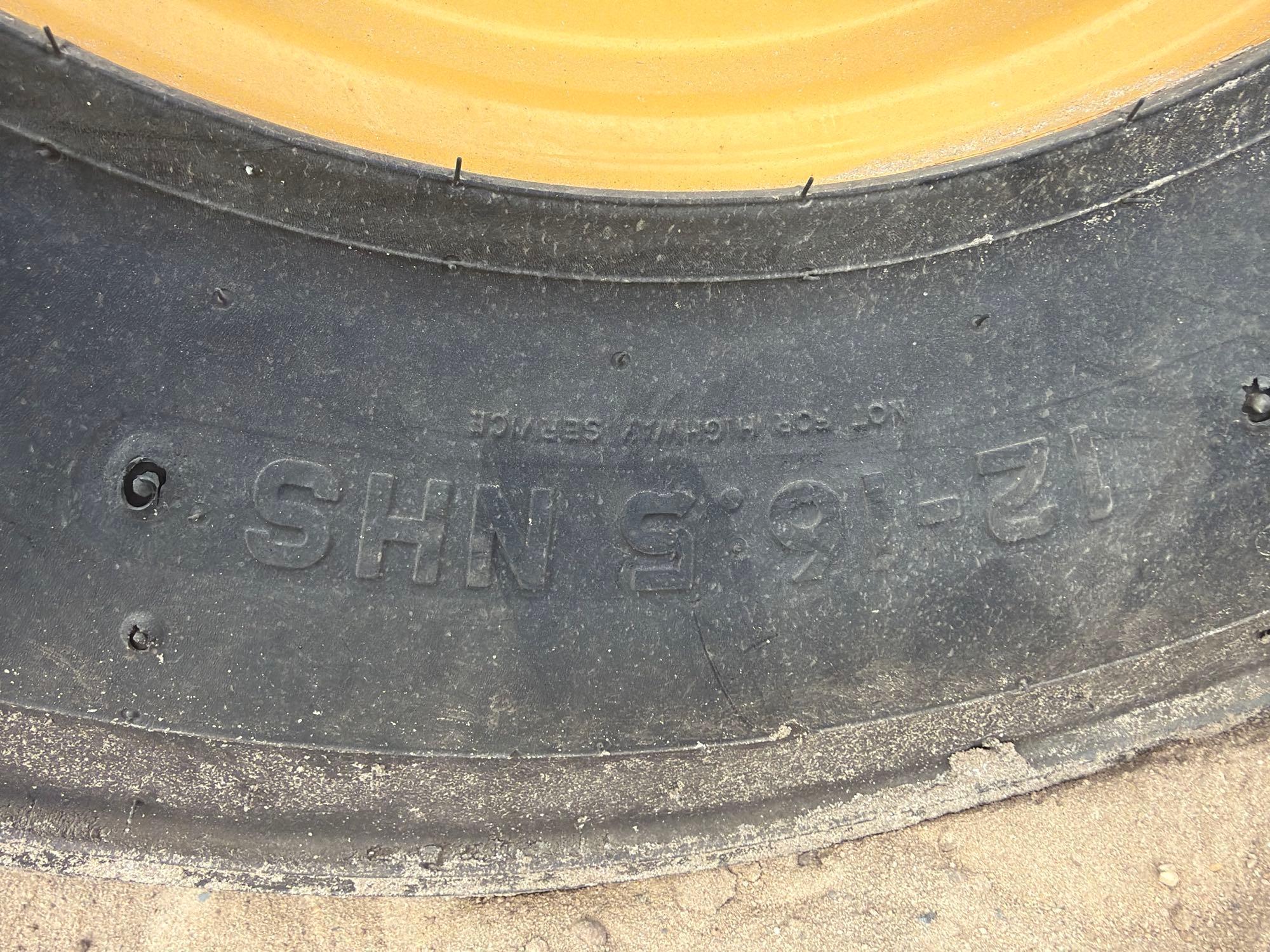

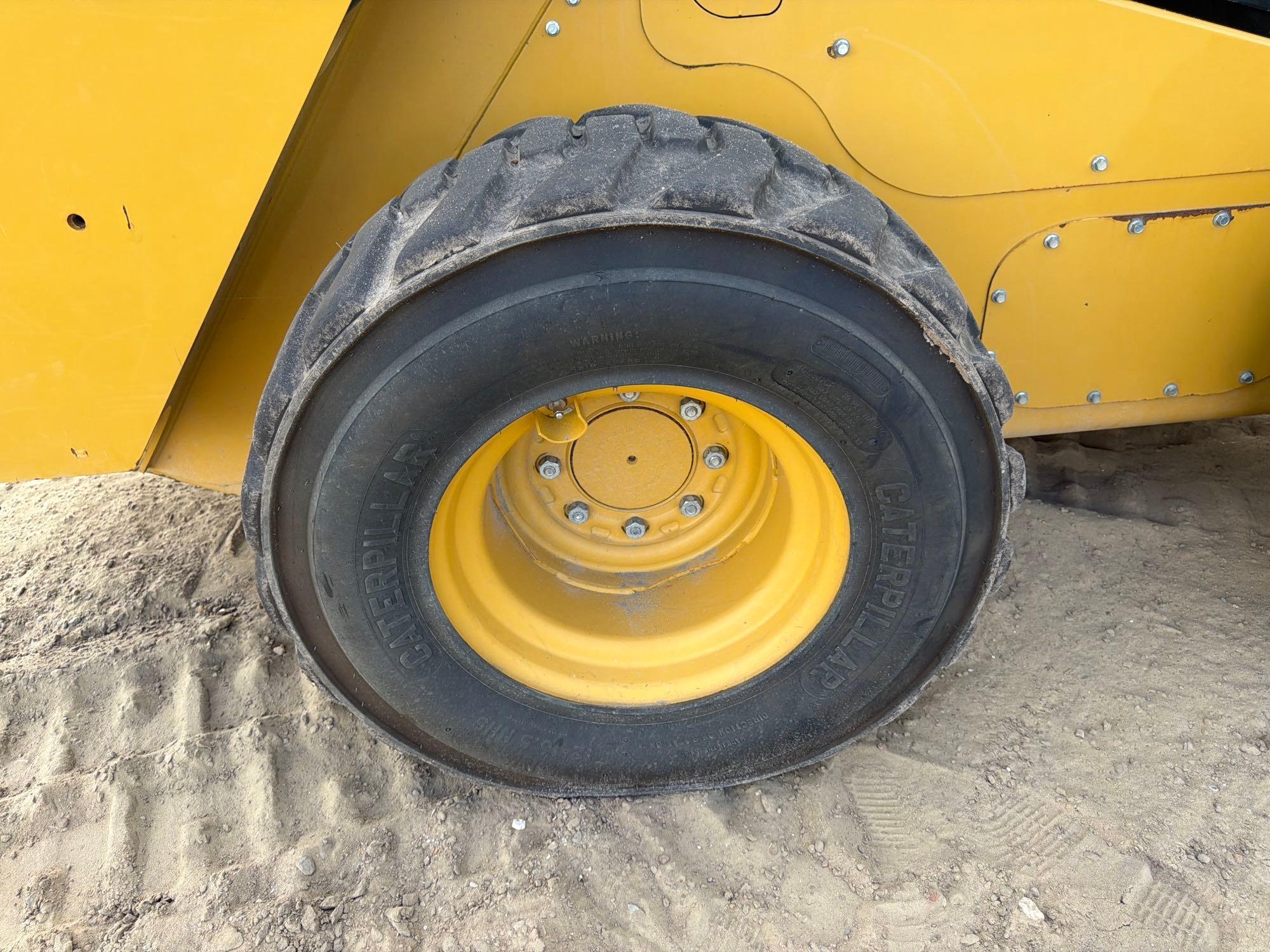

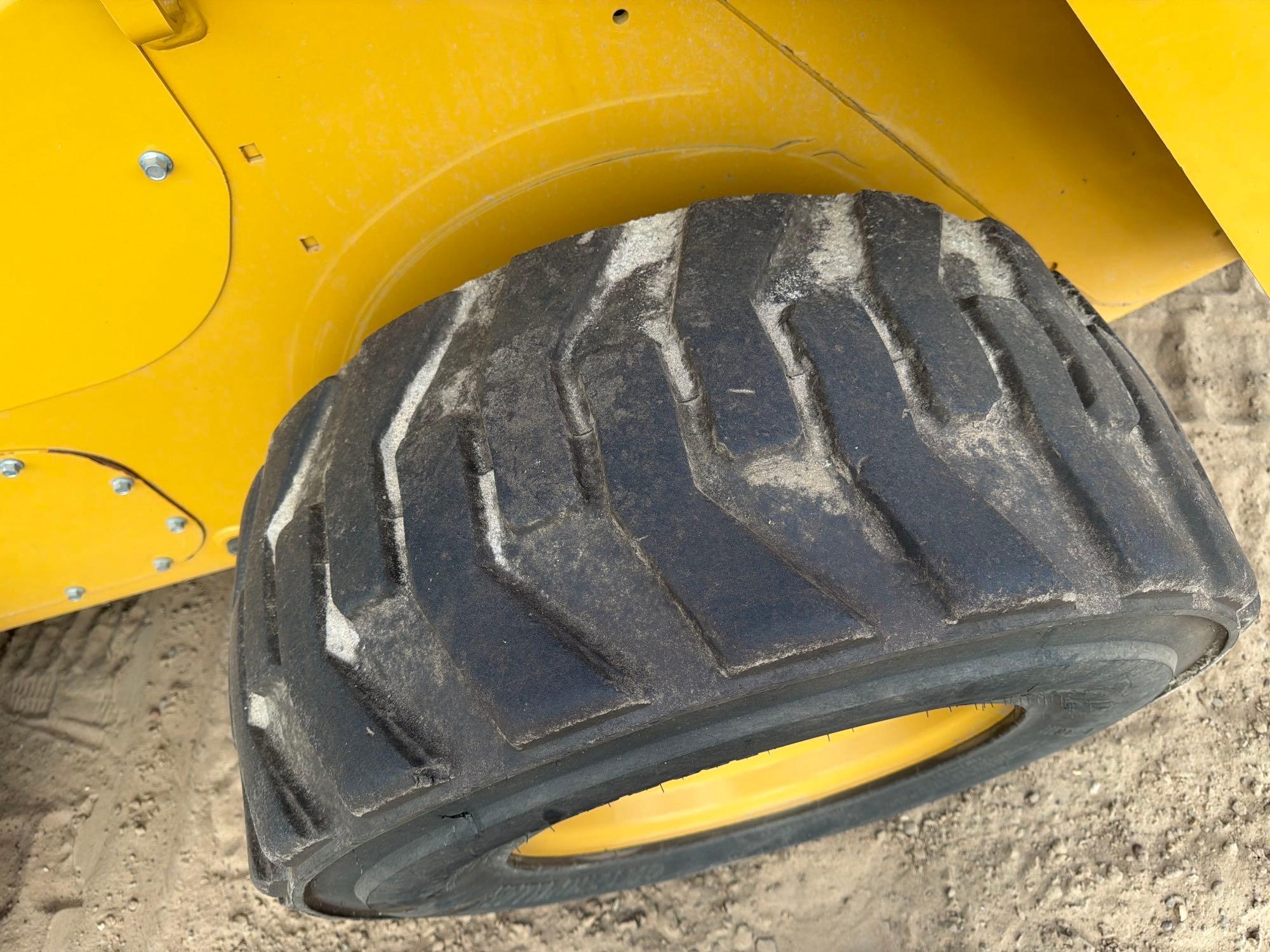

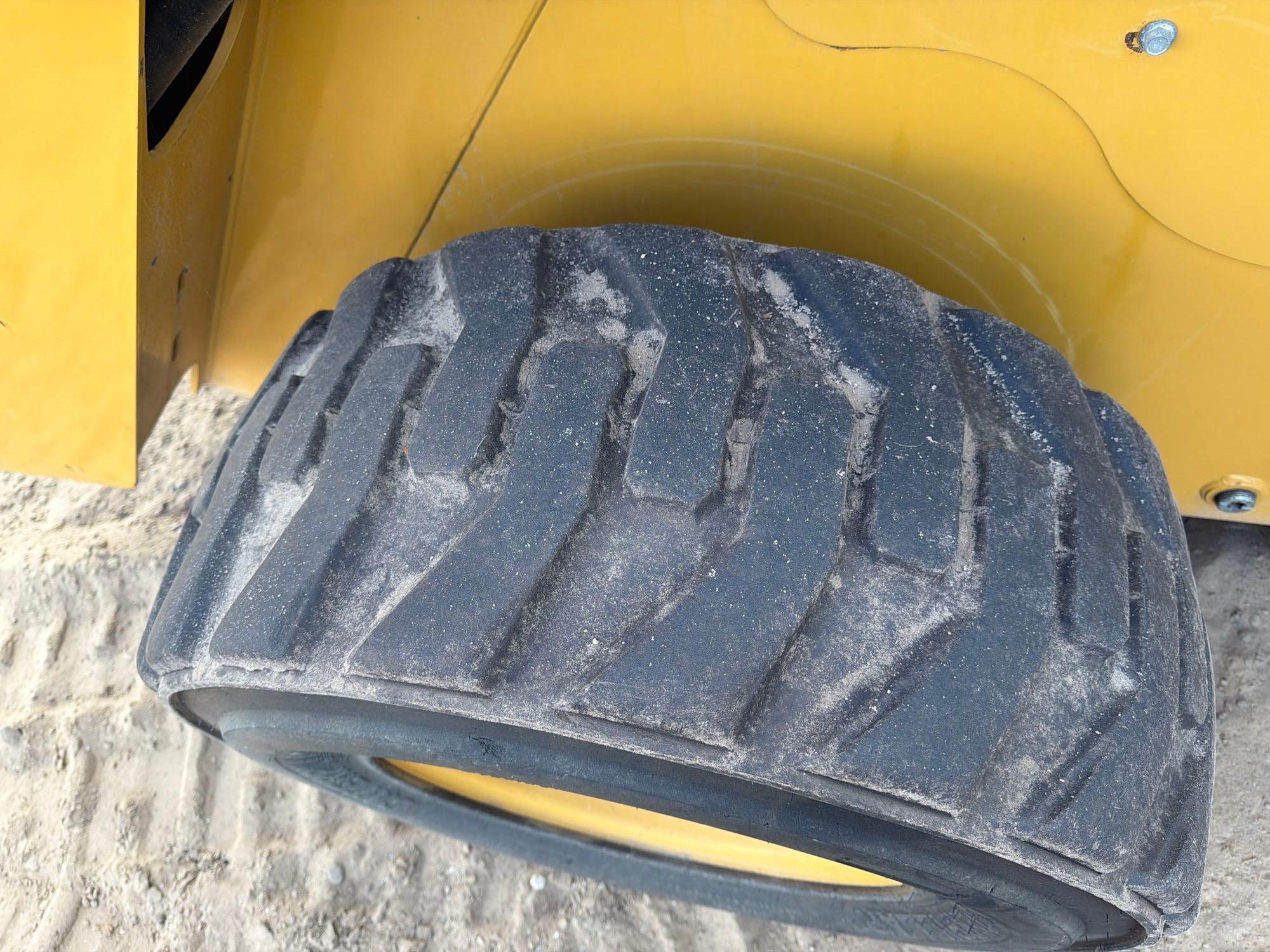

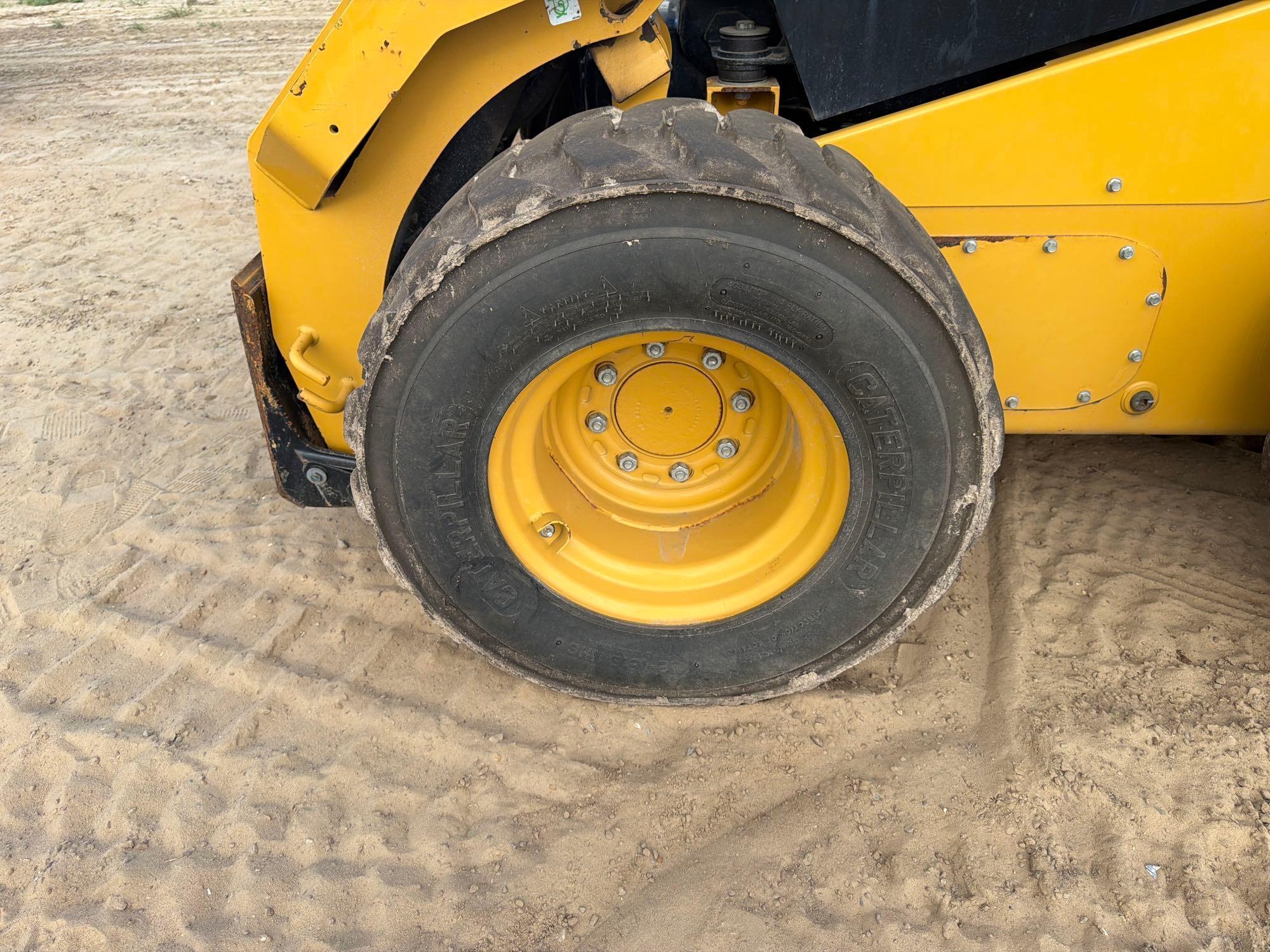

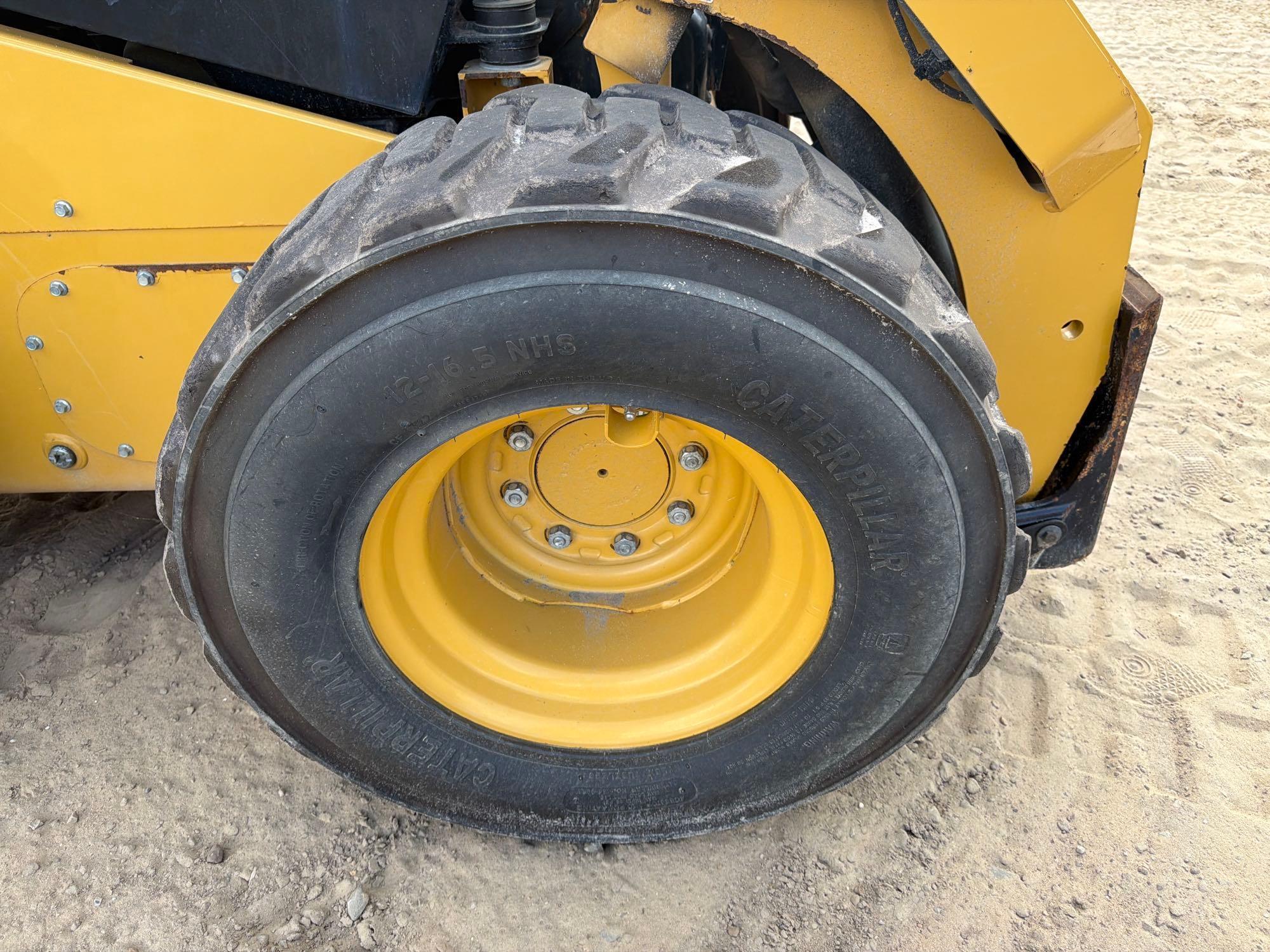

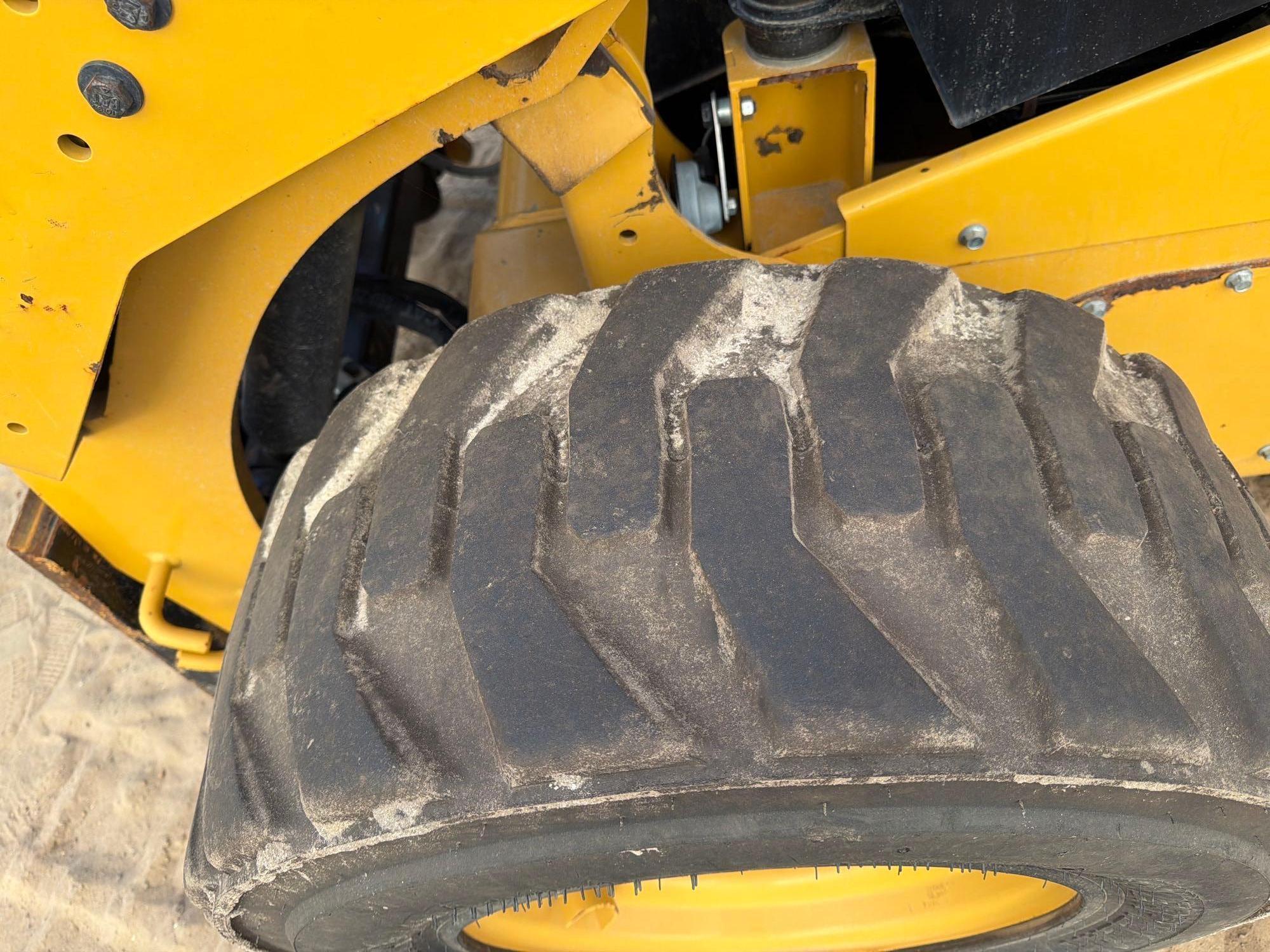

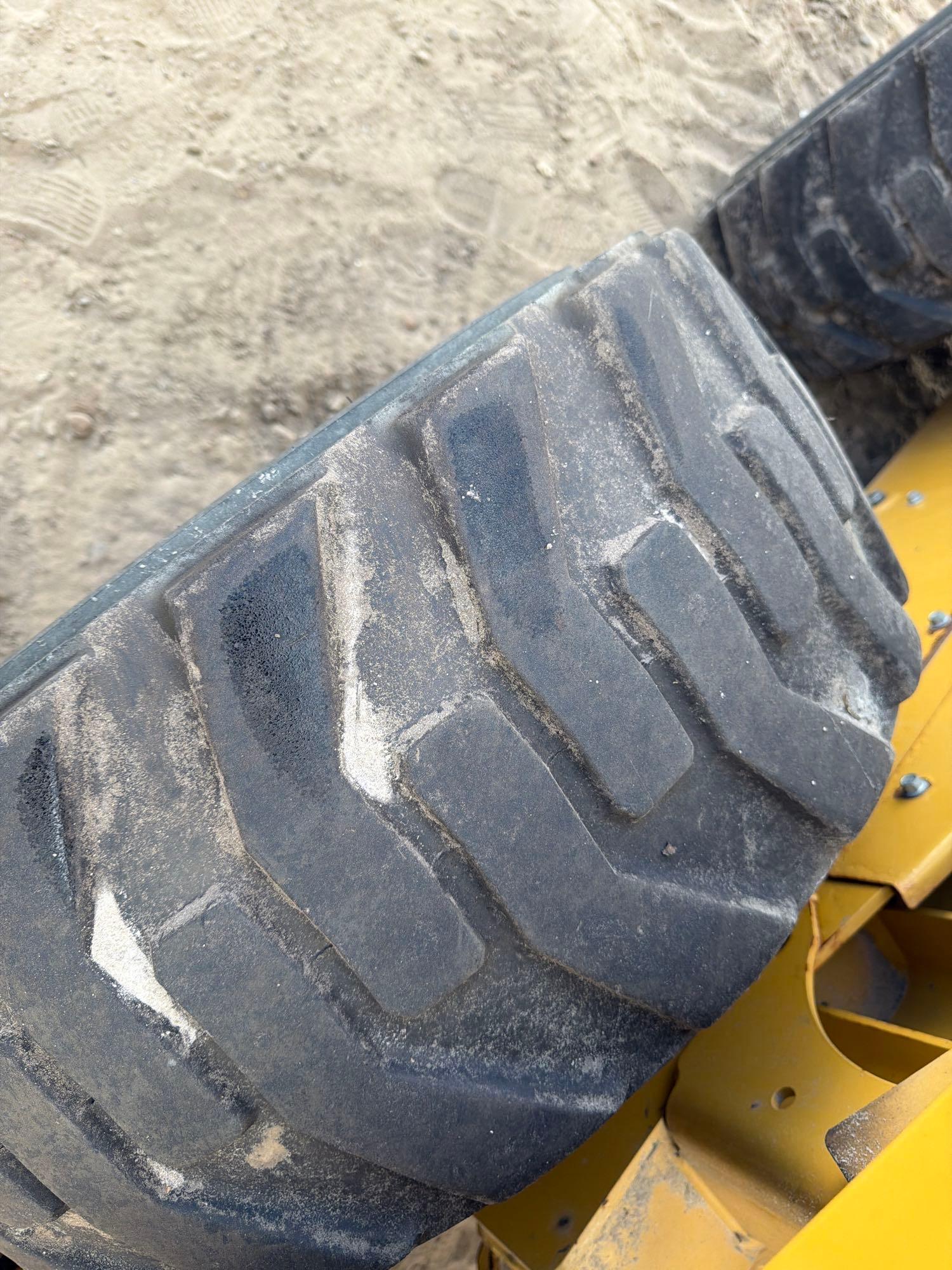

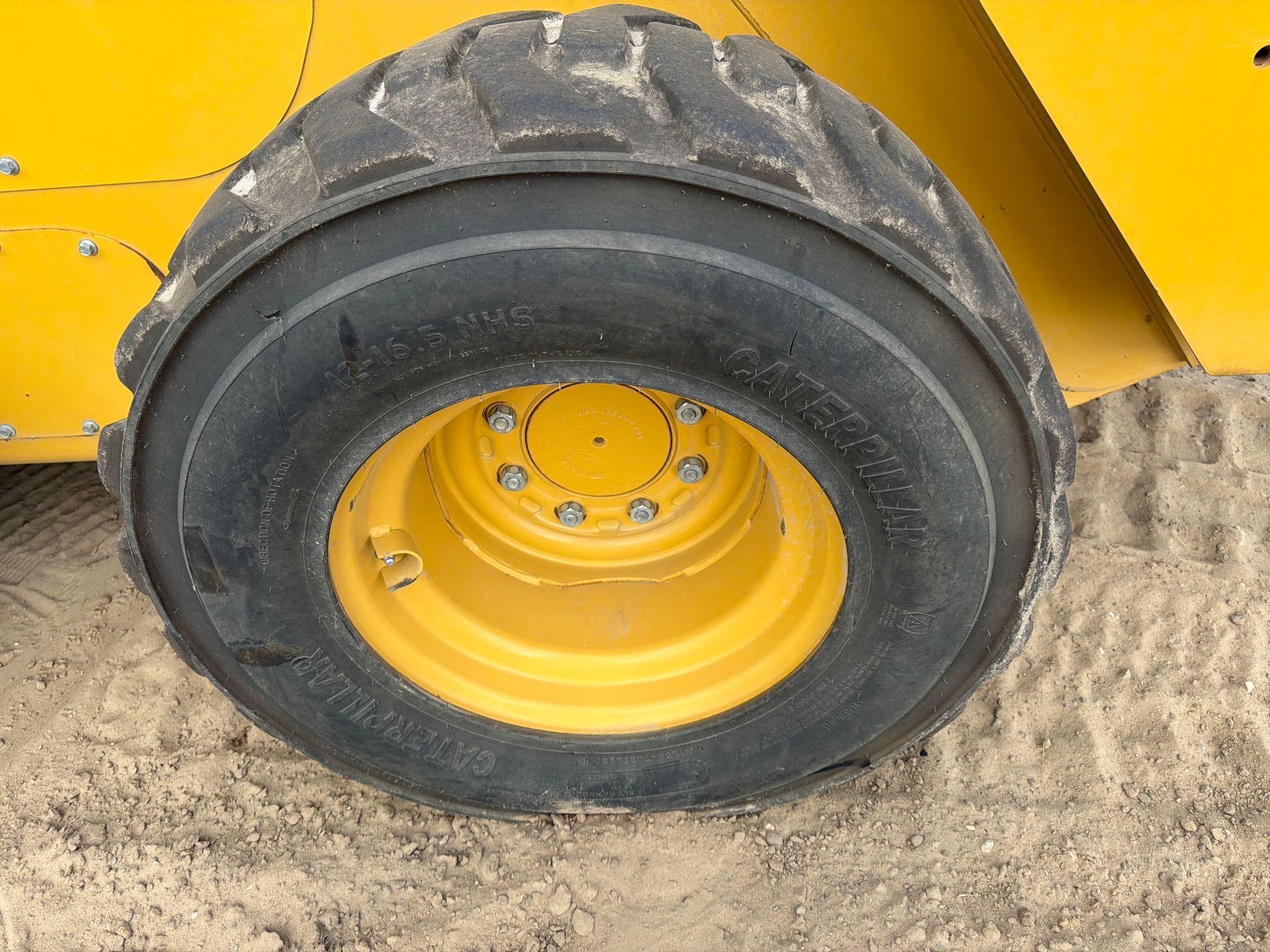

Tire Size |
12 × 16.5 |
| Power Train |
|
Travel Speed Forward |
8 mph (12 kph)
|
|
Travel Speed Forward - 2-Speed Option |
11 mph (18 kph)
|
|
Travel Speed Reverse |
8 mph (12 kph)
|
|
Travel Speed Reverse - 2-Speed Option |
11 mph (18 kph)
|
| Service Refill Capacities |
|
Chain Box - Each Side |
3 gal (12 l)
|
|
Cooling System |
4 gal (14 l)
|
|
Engine Crankcase |
3 gal (11 l)
|
|
Fuel Tank |
25 gal (94 l)
|
|
Hydraulic System |
14 gal (52 l)
|
|
Hydraulic Tank |
10 gal (39 l)
|
| Weights |
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1676 mm (66 in) dirt bucket, Cat PC 12 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
|
Operating Weight |
8,011 lbs (3,634 kg)
|
