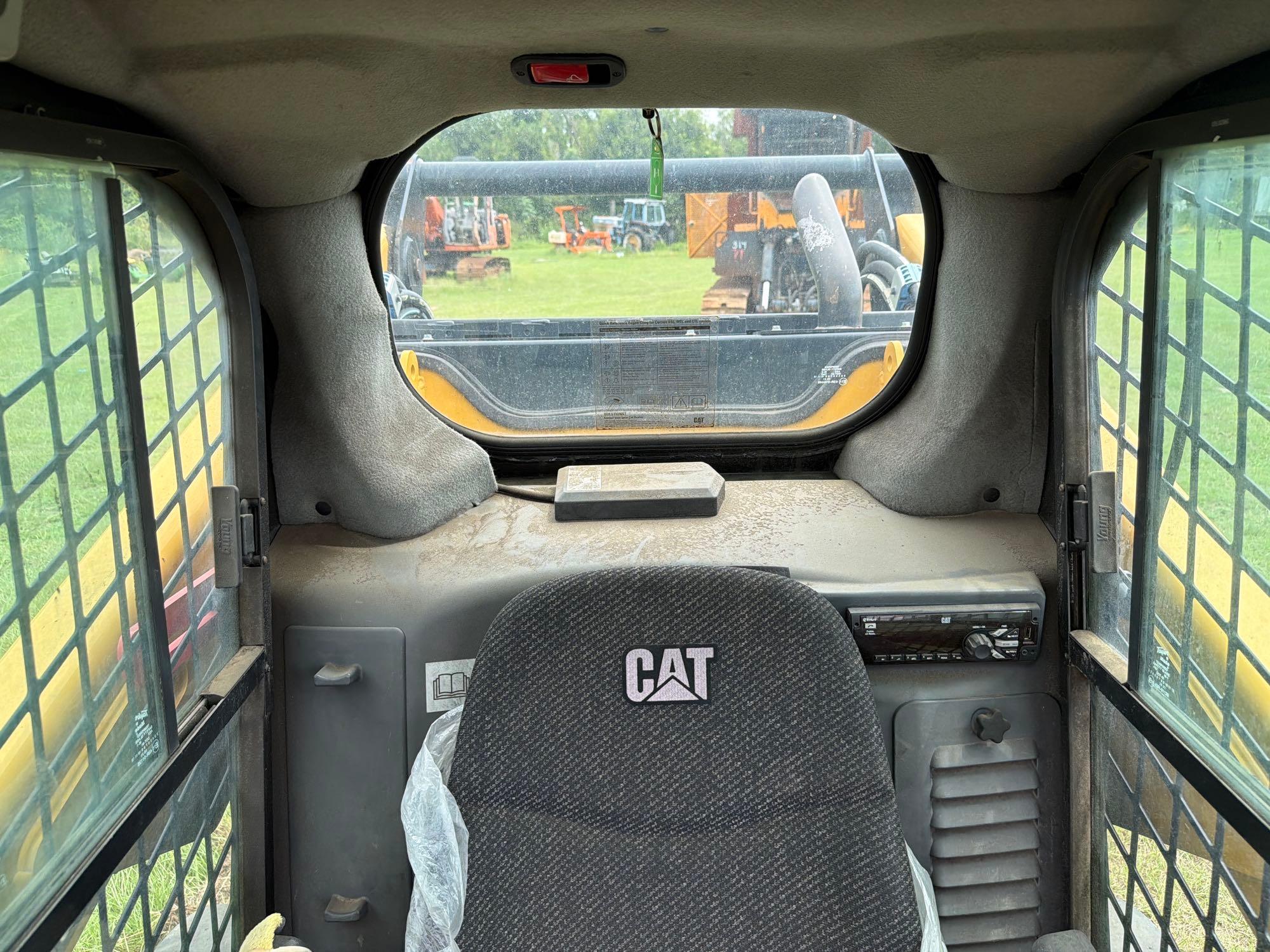

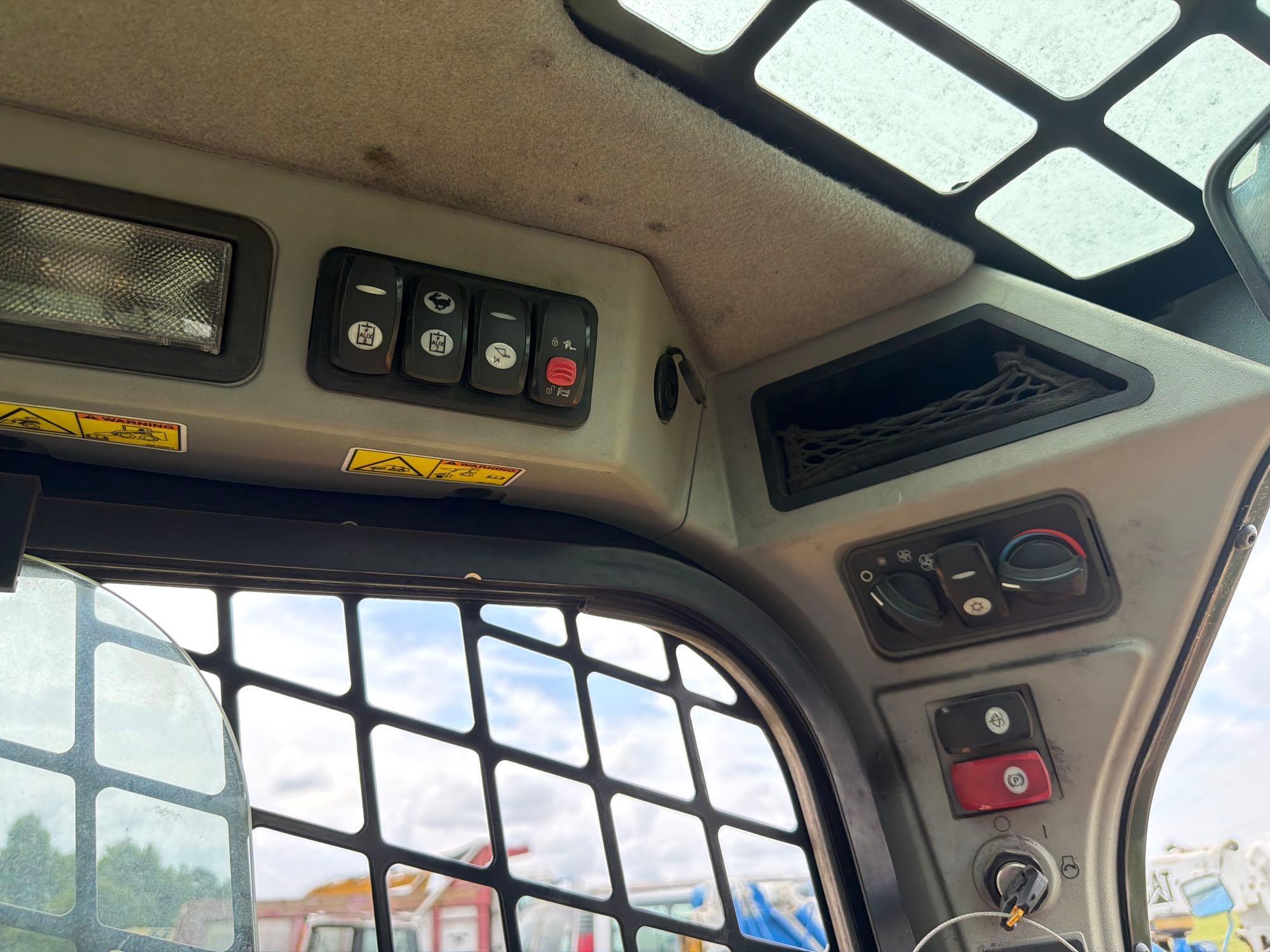

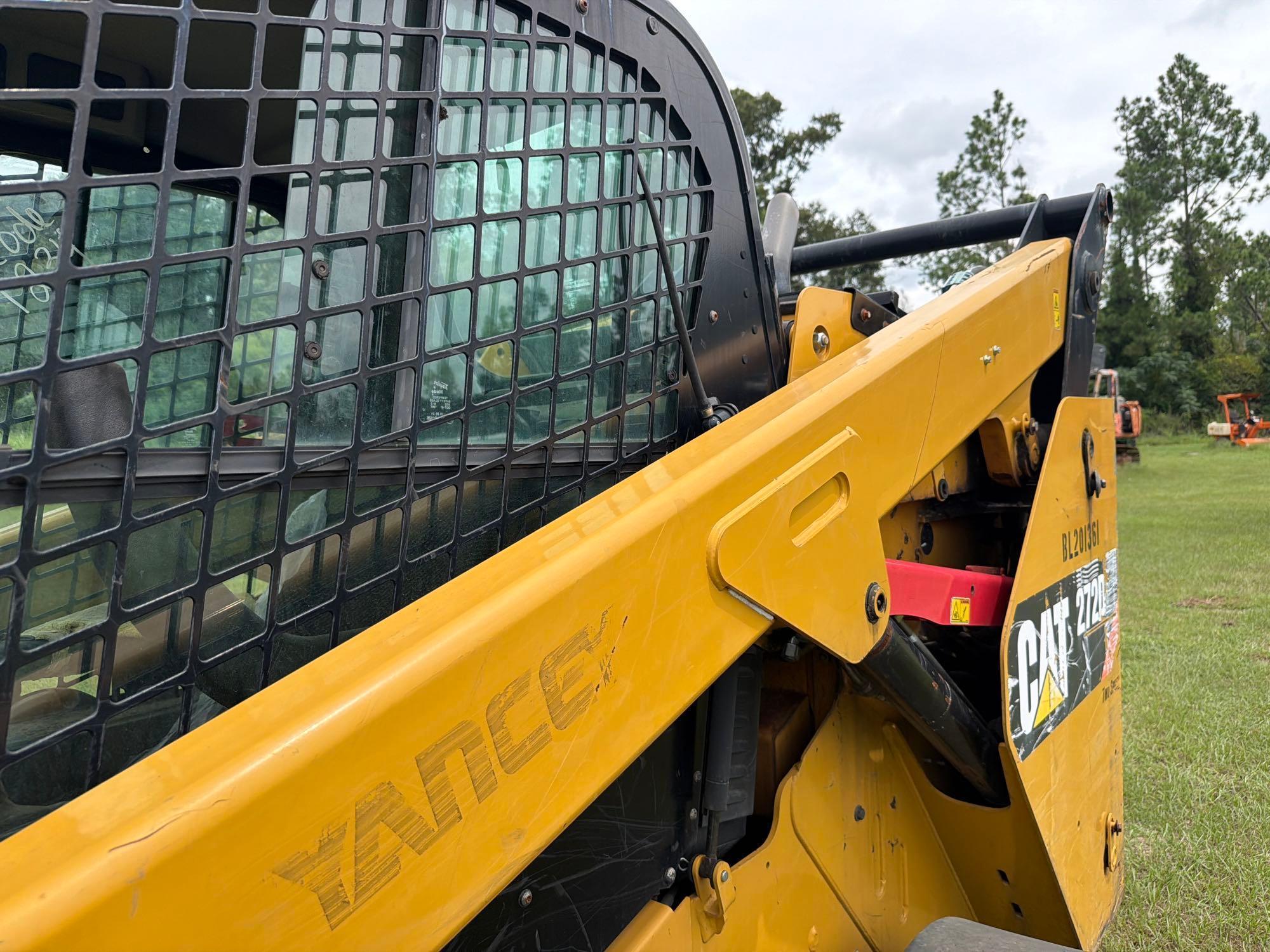

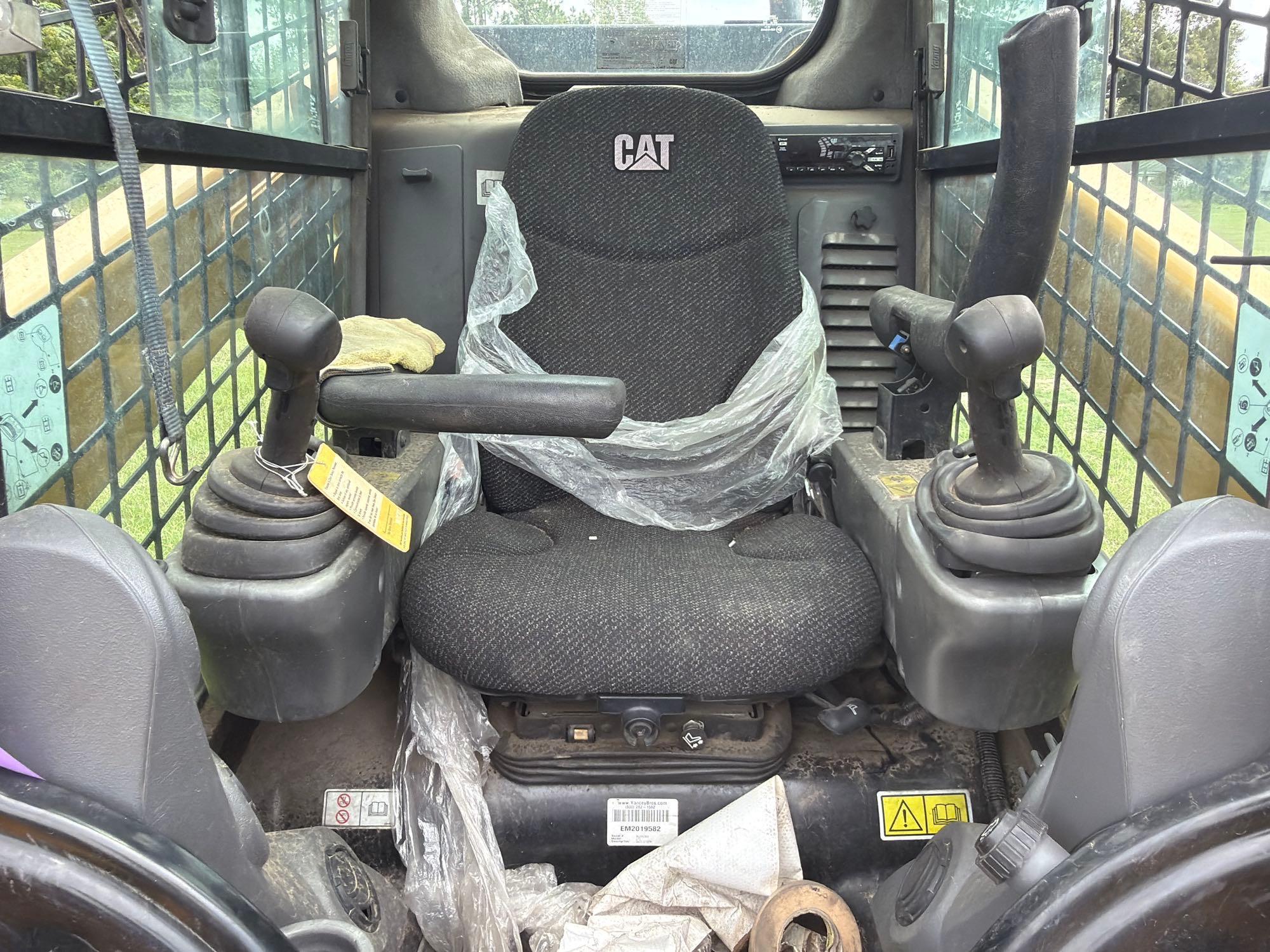

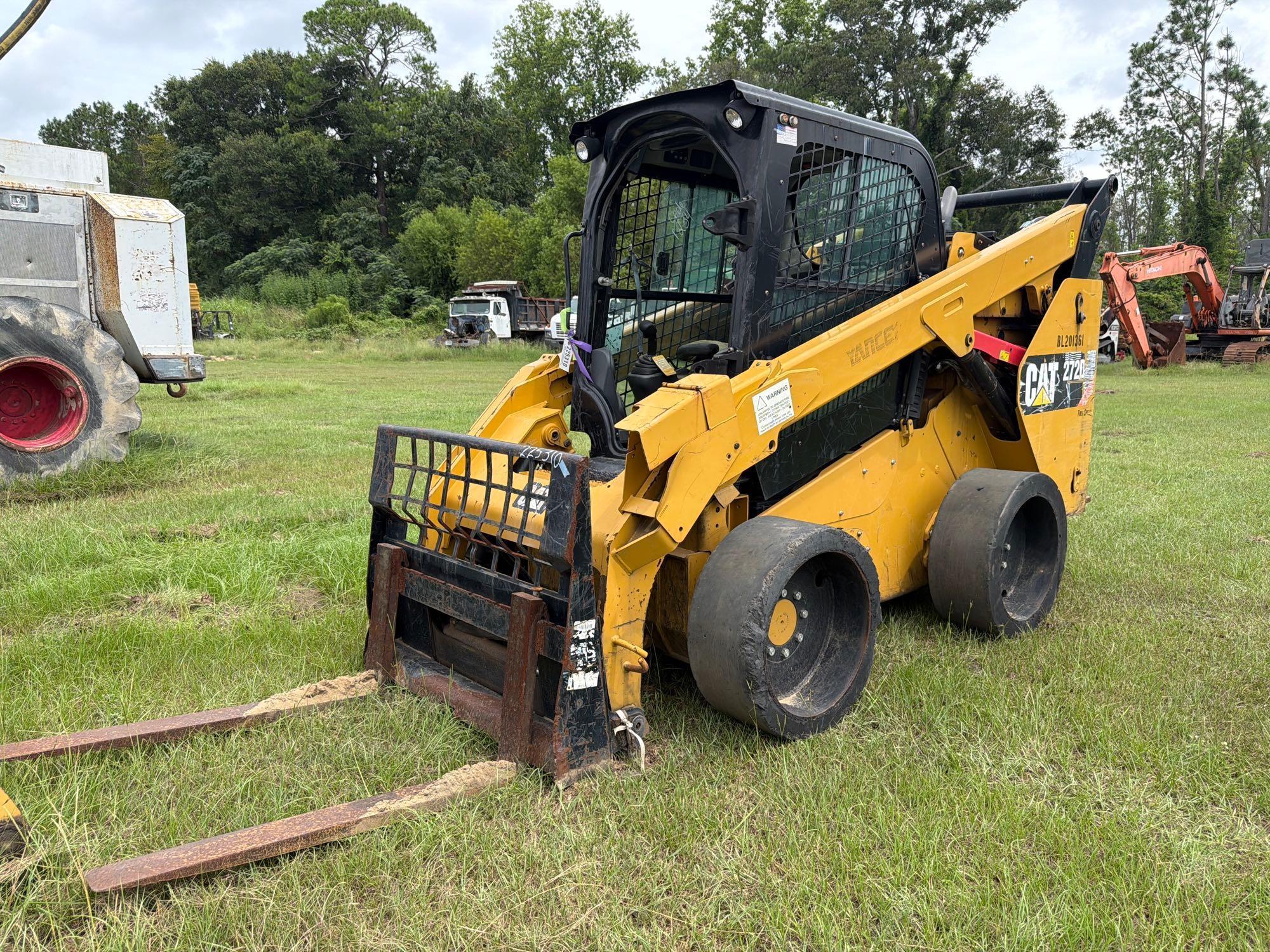

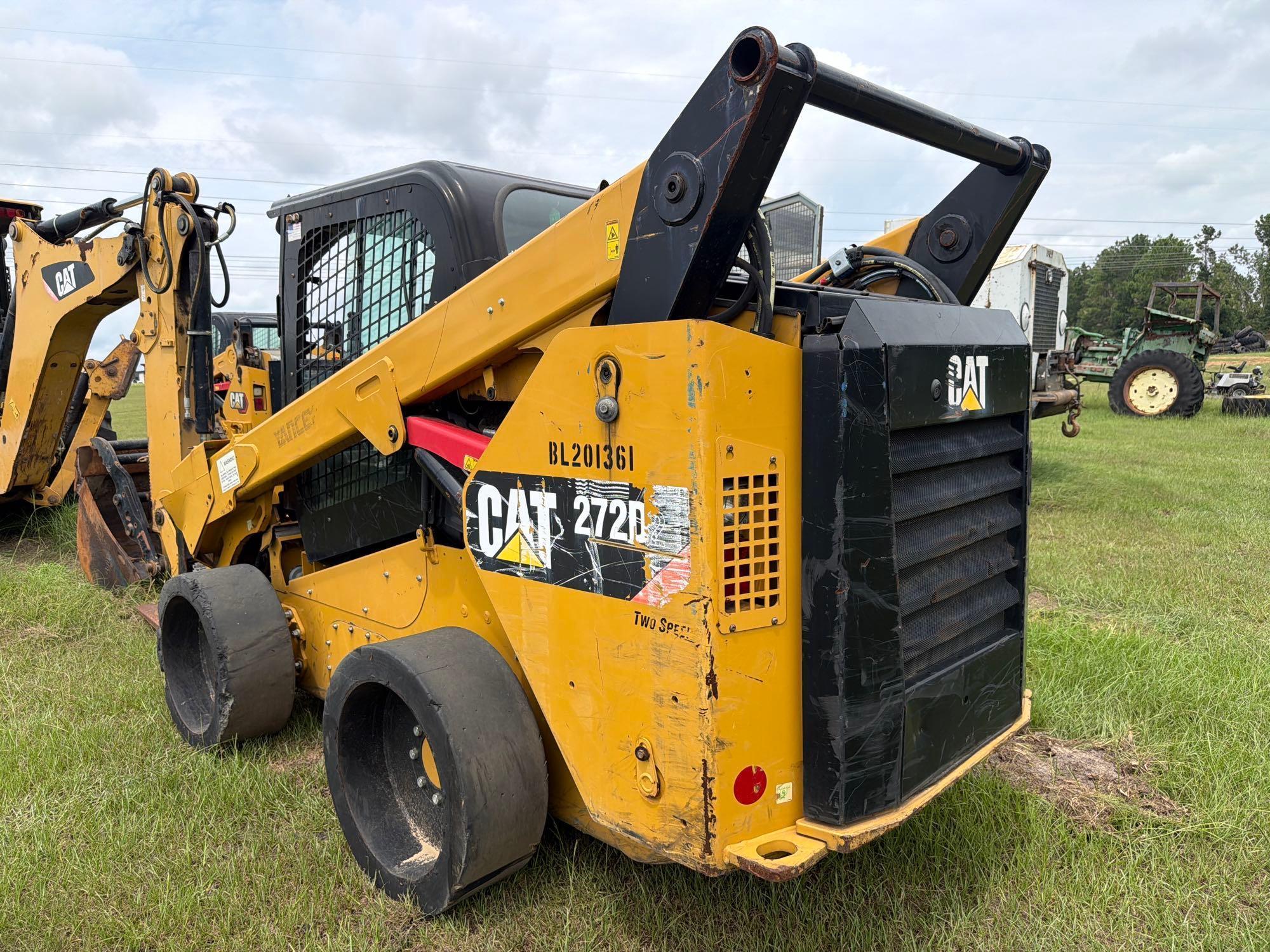

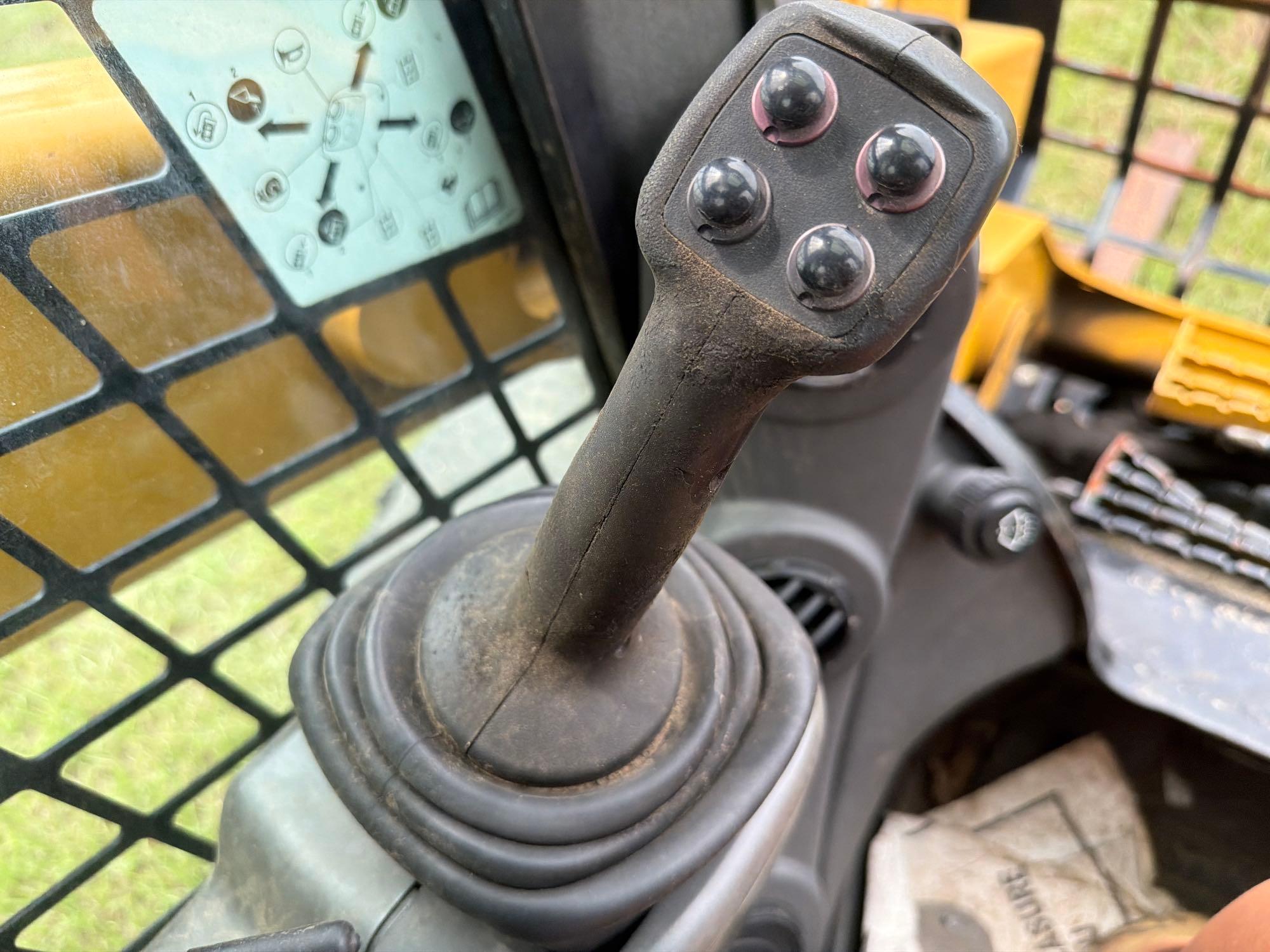

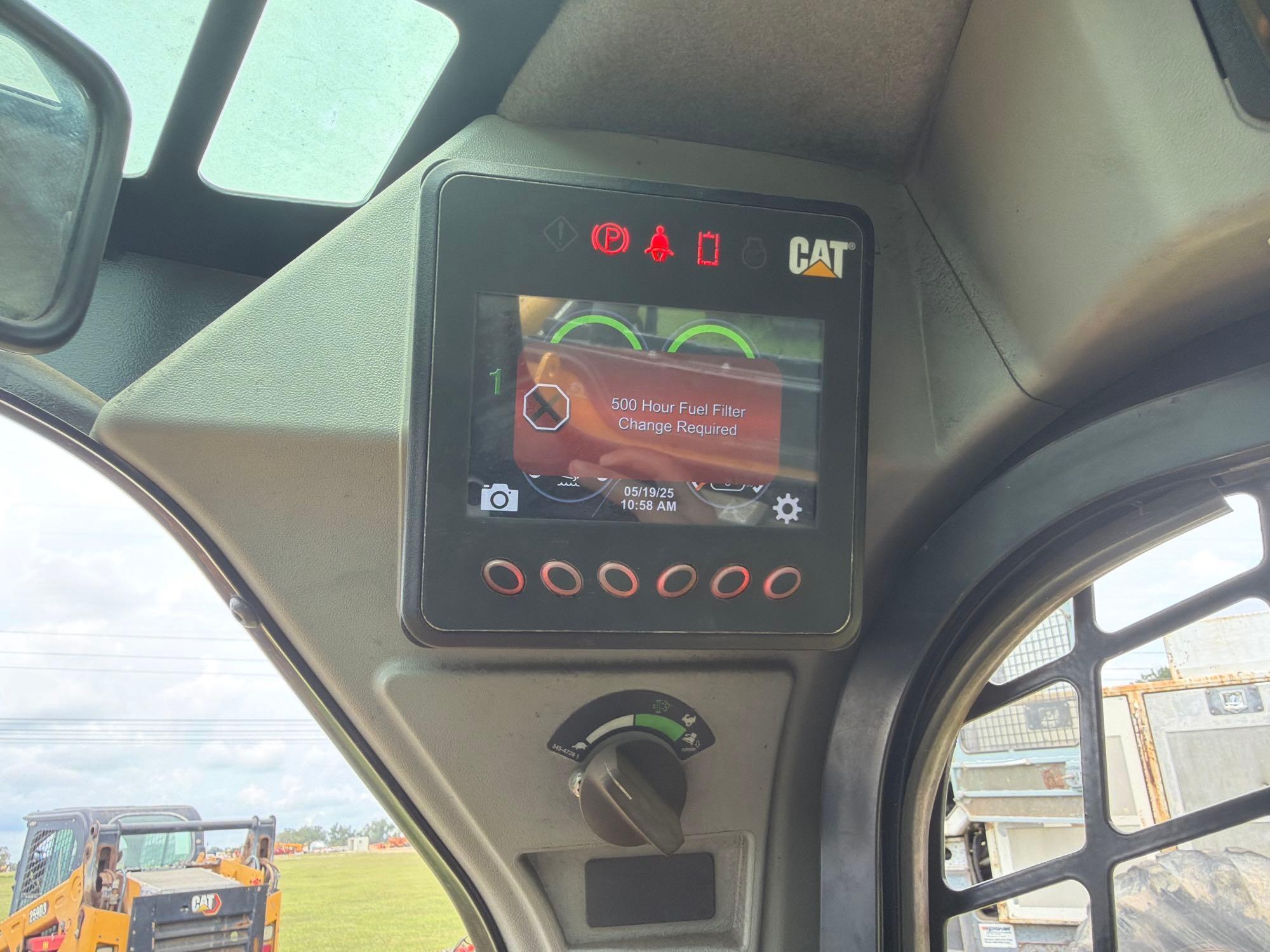

| Cab |
|
Fops |
SAE J1043 SEPT87, ISO 3449:1992 Level I |
|
Fops Level Ii |
SAE J231 JAN81, ISO 3449:1992 Level II |
|
Rops |
SAE J1040 MAY94, ISO 3471:1994 |

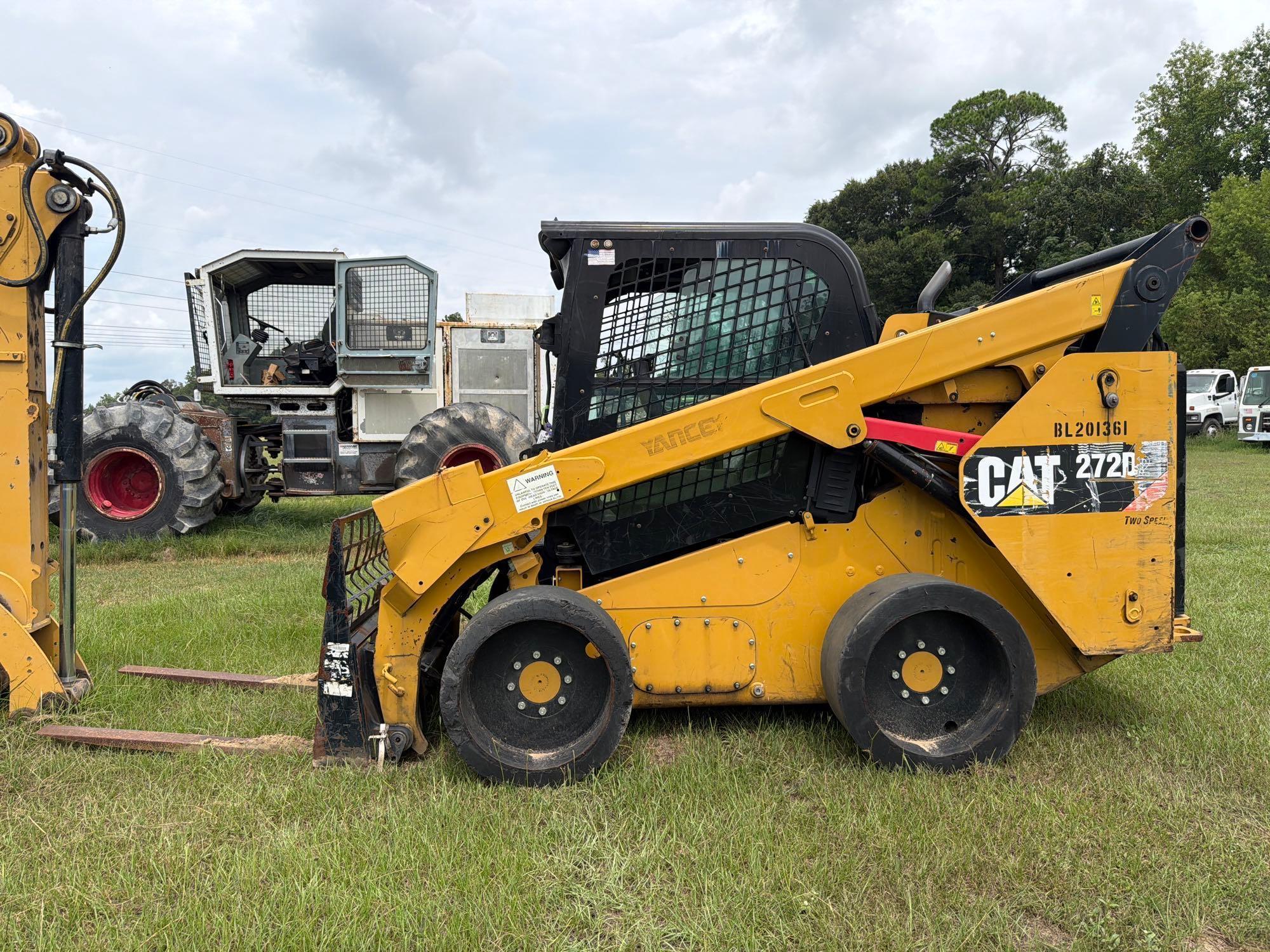

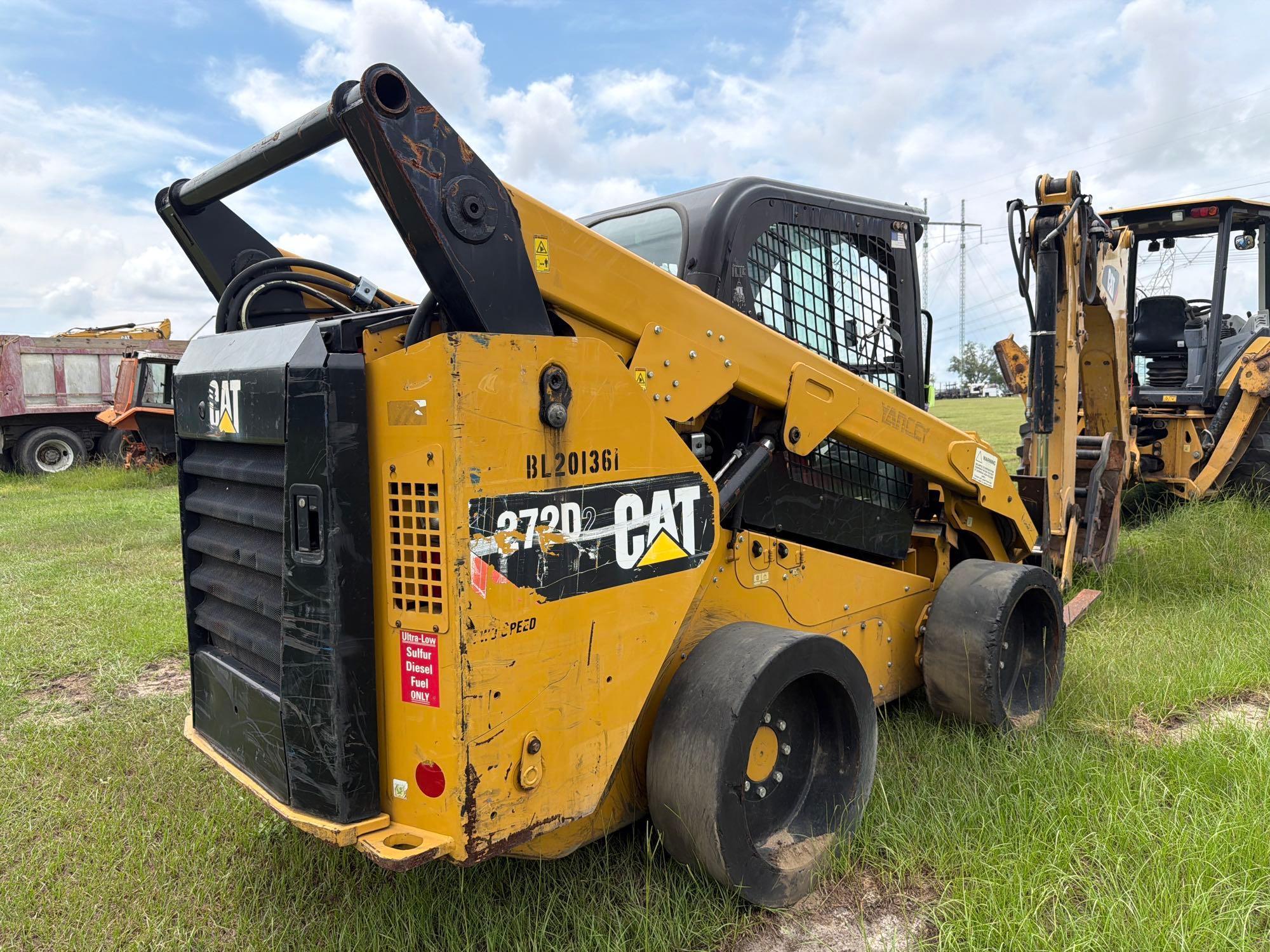

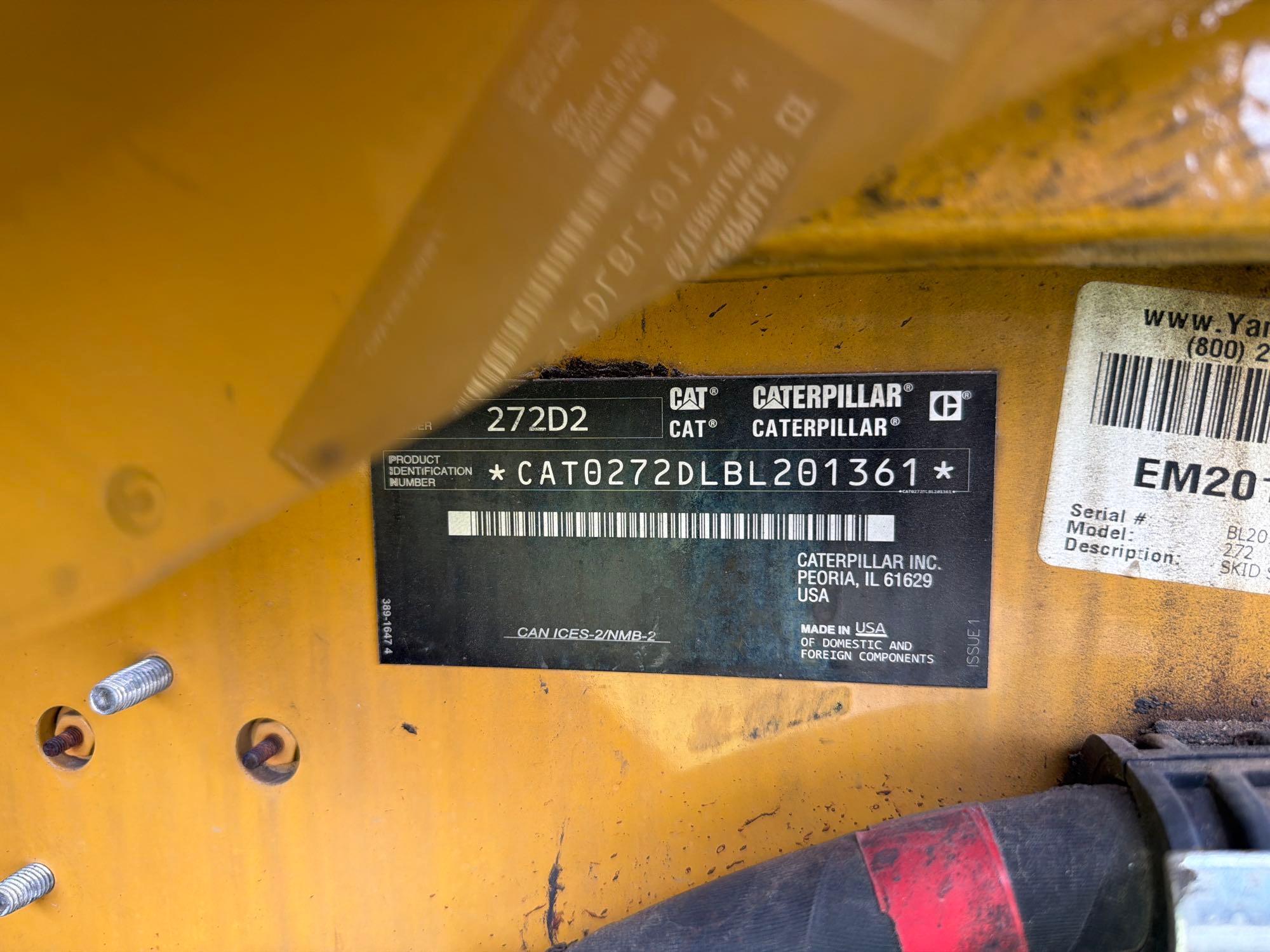

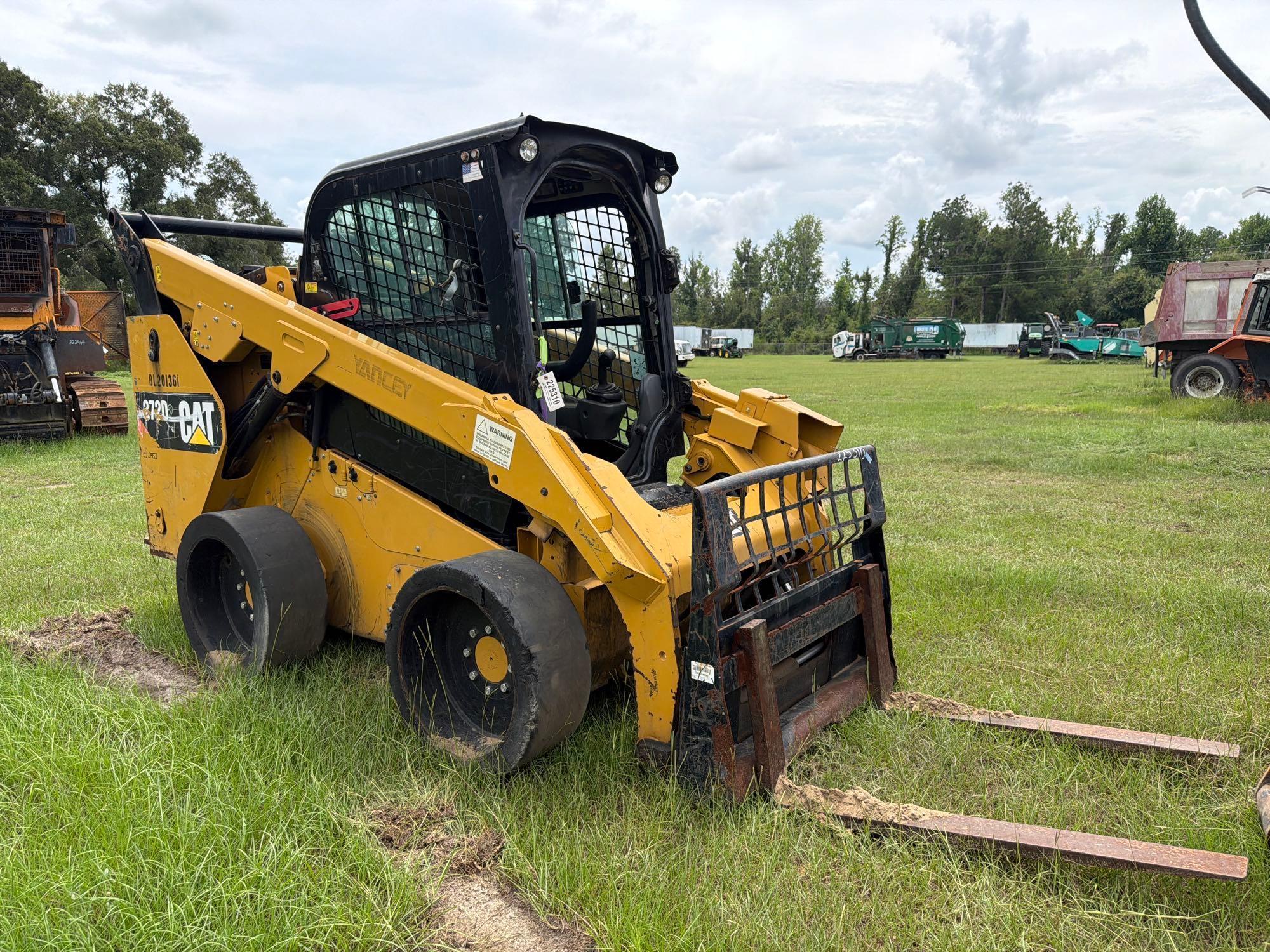

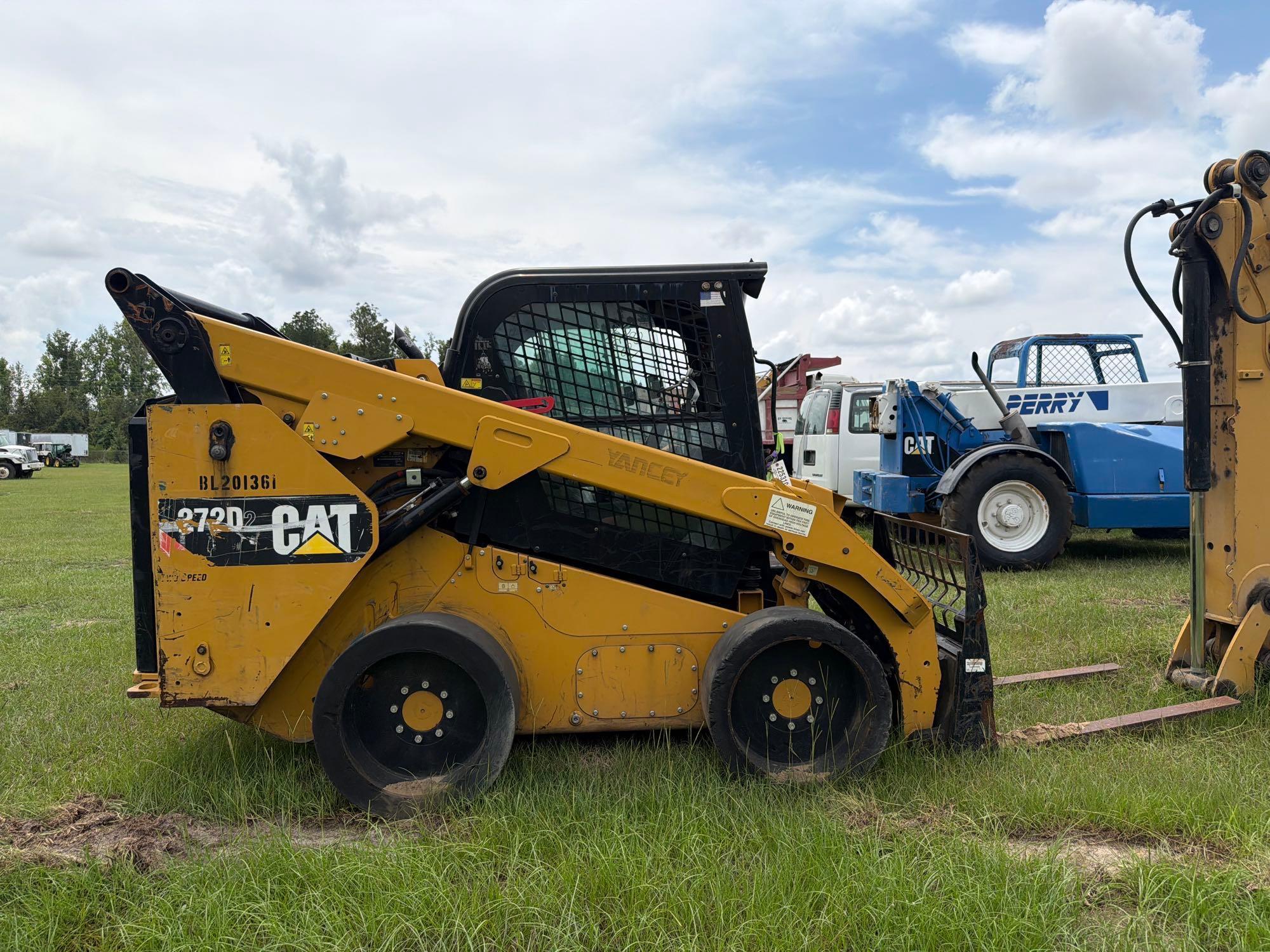

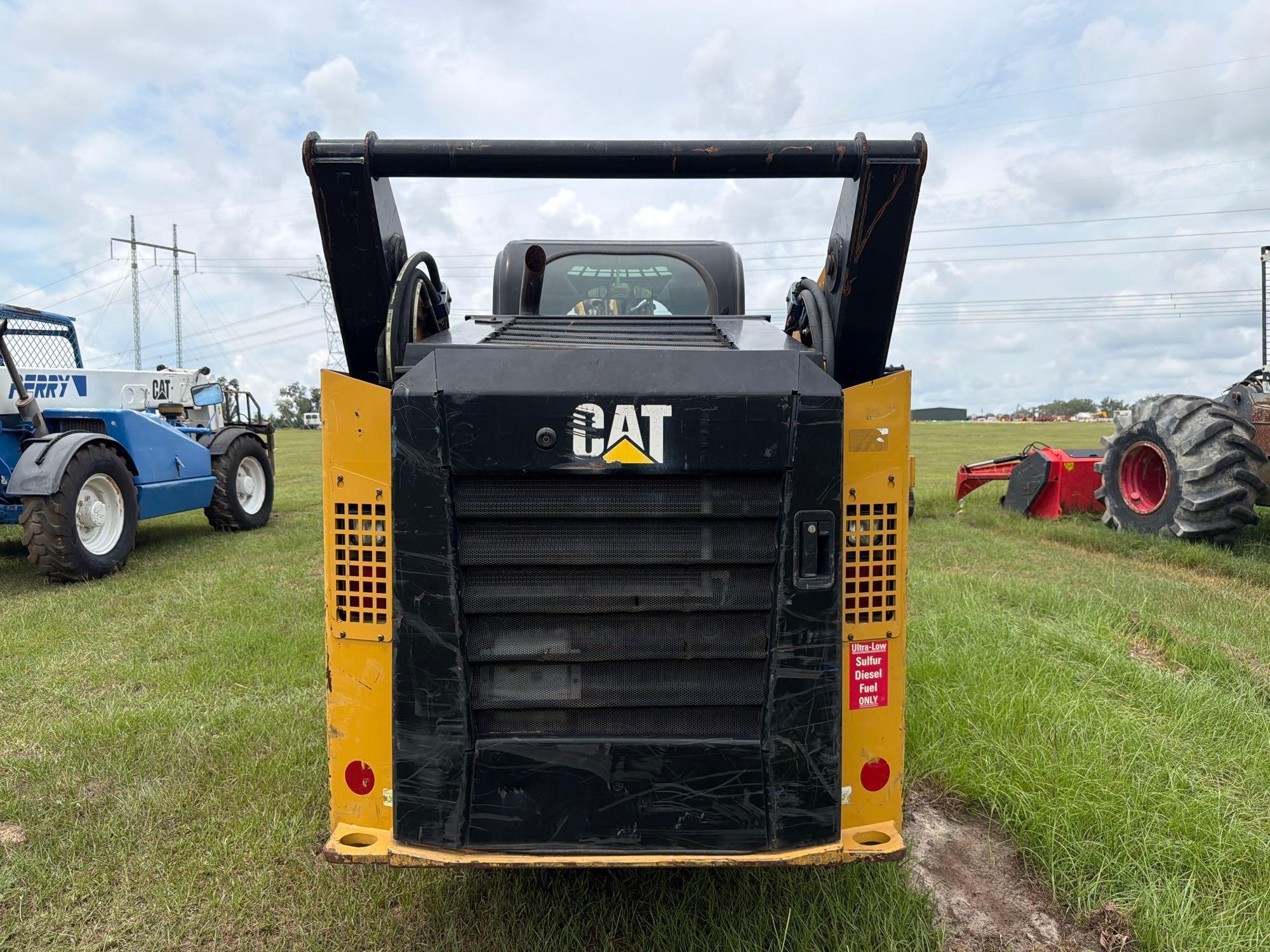

| Dimensions |
|
Bucket Pin Height - Carry Position |
8 in (20 cm)
|
|
Bucket Pin Height - Maximum Lift |
11 ft (3 m)
|
|
Bucket Pin Reach - Maximum Lift |
16 in (41 cm)
|
|
Bumper Overhang - Rear Axle |
43 in (108 cm)
|
|
Clearance At Max Lift And Dump |
8 ft (2 m)
|
|
Clearance At Maximum Lift And Dump |
95 in (242 cm)
|
|
Departure Angle |
25 degrees |
|
Ground Clearance |
9 in (23 cm)
|
|
Height |
7 ft (2 m)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Height To Top Of Cab |
7 ft (2 m)
|
|
Hinge Pin Height - Fully Raised |
127 in (322 cm)
|
|
Length |
13 ft (4 m)
|
|
Length - With Bucket On Ground |
152 in (385 cm)
|
|
Length - Without Bucket |
124 in (314 cm)
|
|
Length W/O Bucket |
10 ft (3 m)
|
|
Length With Bucket |
13 ft (4 m)
|
|
Maximum Dump Angle |
52 degrees |
|
Maximum Overall Height |
159 in (405 cm)
|
|
Maximum Reach - With Arms Parallel |
51 in (129 cm)
|
|
Rack Back Angle - Maximum Height |
83 degrees |
|
Reach - Maximum Lift/Dump |
31 in (78 cm)
|
|
Reach At Max Lift And Dump |
31 in (79 cm)
|
|
Turn Radius From Center - Bucket |
92 in (232 cm)
|
|
Turn Radius From Center - Coupler |
59 in (150 cm)
|
|
Turn Radius From Center - Rear |
74 in (187 cm)
|
|
Turning Radius From Center - Machine Rear |
74 in (187 cm)
|
|
Vehicle Width Over Tires |
76 in (193 cm)
|
|
Weight |
8,252 lbs (3,743 kg)
|
|
Wheel Base |
5 ft (1 m)
|
|
Wheelbase |
5 ft (1 m)
|
|
Width |
6 ft (2 m)
|
|
Width Over Tires |
6 ft (2 m)
|

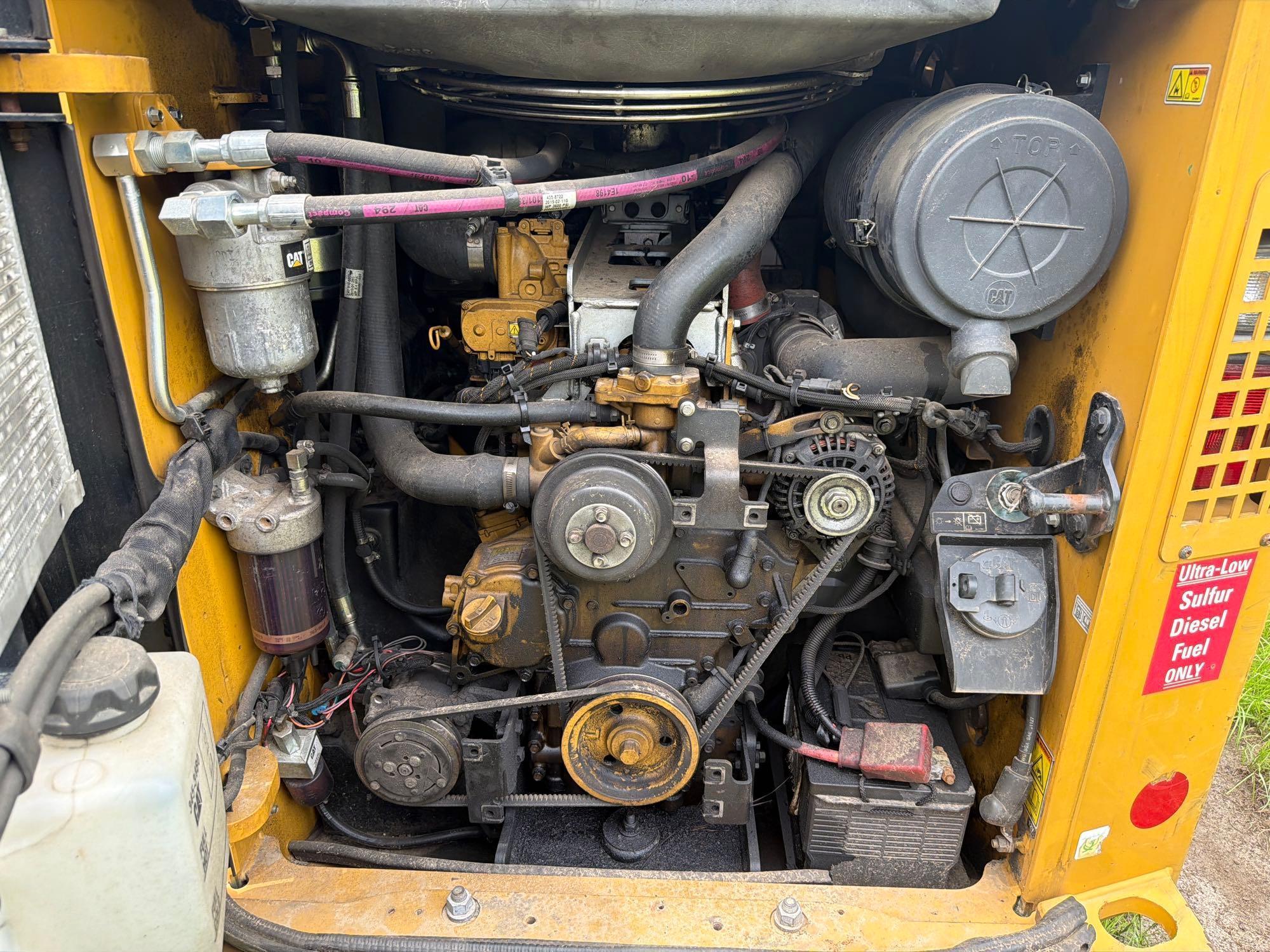

| Engine |
|
Bore |
4 in (10 cm)
|
|
Displacement |
232 cu in (3,802 cu cm)
|
|
Engine Model |
Cat C3.8 (turbocharged) |
|
Engine Model |
C3.8 (turbocharged) |
|
Gross Power |
98 hp (73 kw)
|
|
Gross Power - Sae J1995 |
98 hp (73 kw)
|
|
Net Flywheel Power |
95 hp (71 kw)
|
|
Net Power |
95 hp (71 kw)
|
|
Net Power - Iso 9249 Eec |
95 hp (71 kw)
|
|
Net Power - Sae 1349 |
95 hp (71 kw)
|
|
Stroke |
5 in (12 cm)
|
| Hydraulic System |
|
Hydraulic Flow (1) |
Standard |
|
Hydraulic Flow (2) |
High Flow XPS |
|
Hydraulic Power (1) |
44 hp (33 kw)
|
|
Hydraulic Power (2) |
76 hp (57 kw)
|
|
Hydraulic Power - Calculated (1) |
44 hp (33 kw)
|
|
Hydraulic Power - Calculated (2) |
76 hp (57 kw)
|
|
Loader Hydraulic Flow |
23 gpm (87 lpm)
|
|
Loader Hydraulic Flow (1) |
23 gpm (87 lpm)
|
|
Loader Hydraulic Flow (2) |
32 gpm (121 lpm)
|
|
Loader Hydraulic Pressure |
3,335 psi |
|
Loader Hydraulic Pressure (1) |
3,335 psi |
|
Loader Hydraulic Pressure (2) |
4,061 psi |
|
Maximum Loader Hydraulic Flow |
32 gpm (121 lpm)
|
|
Maximum Loader Hydraulic Pressure |
4,061 psi |

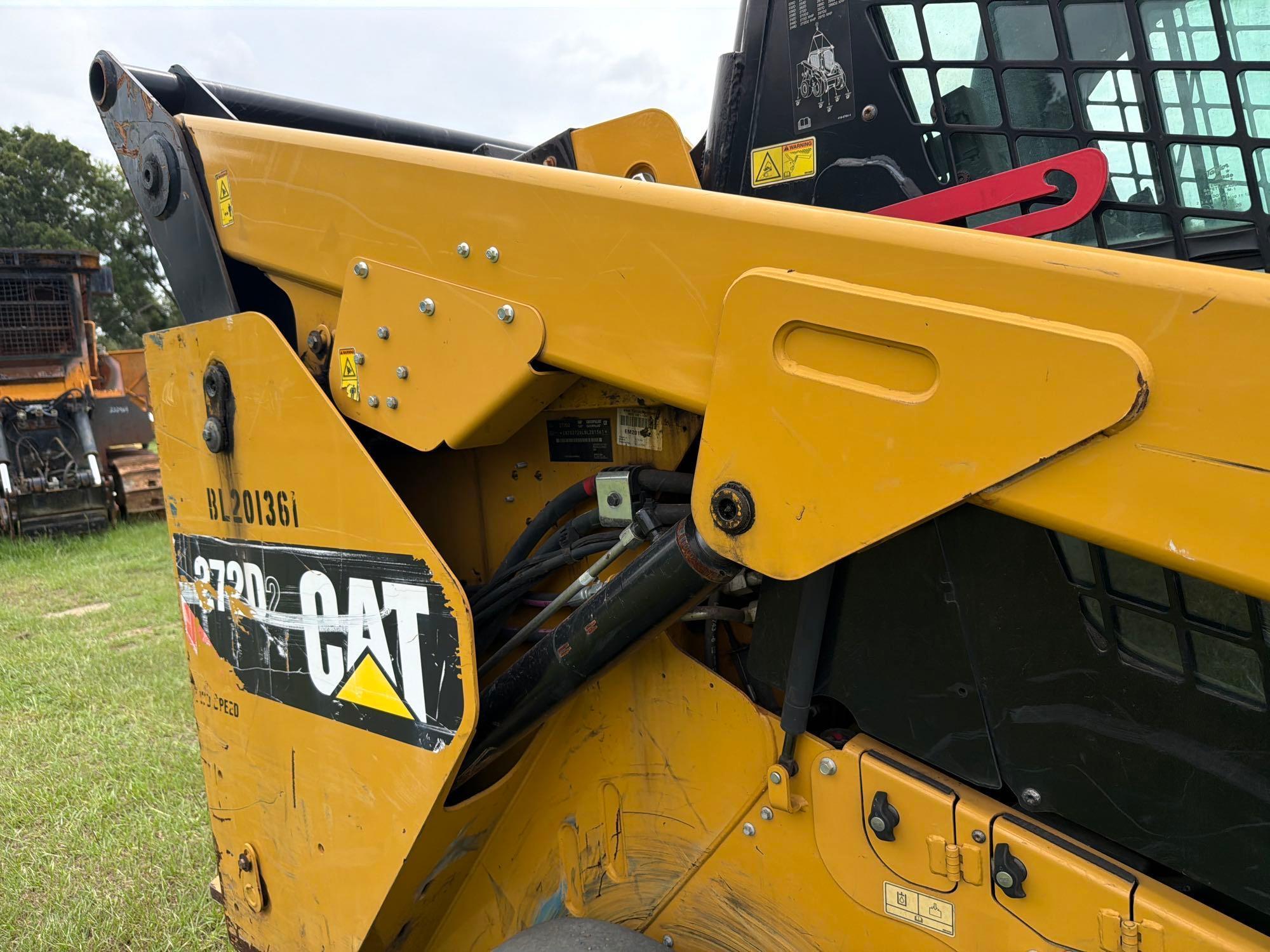

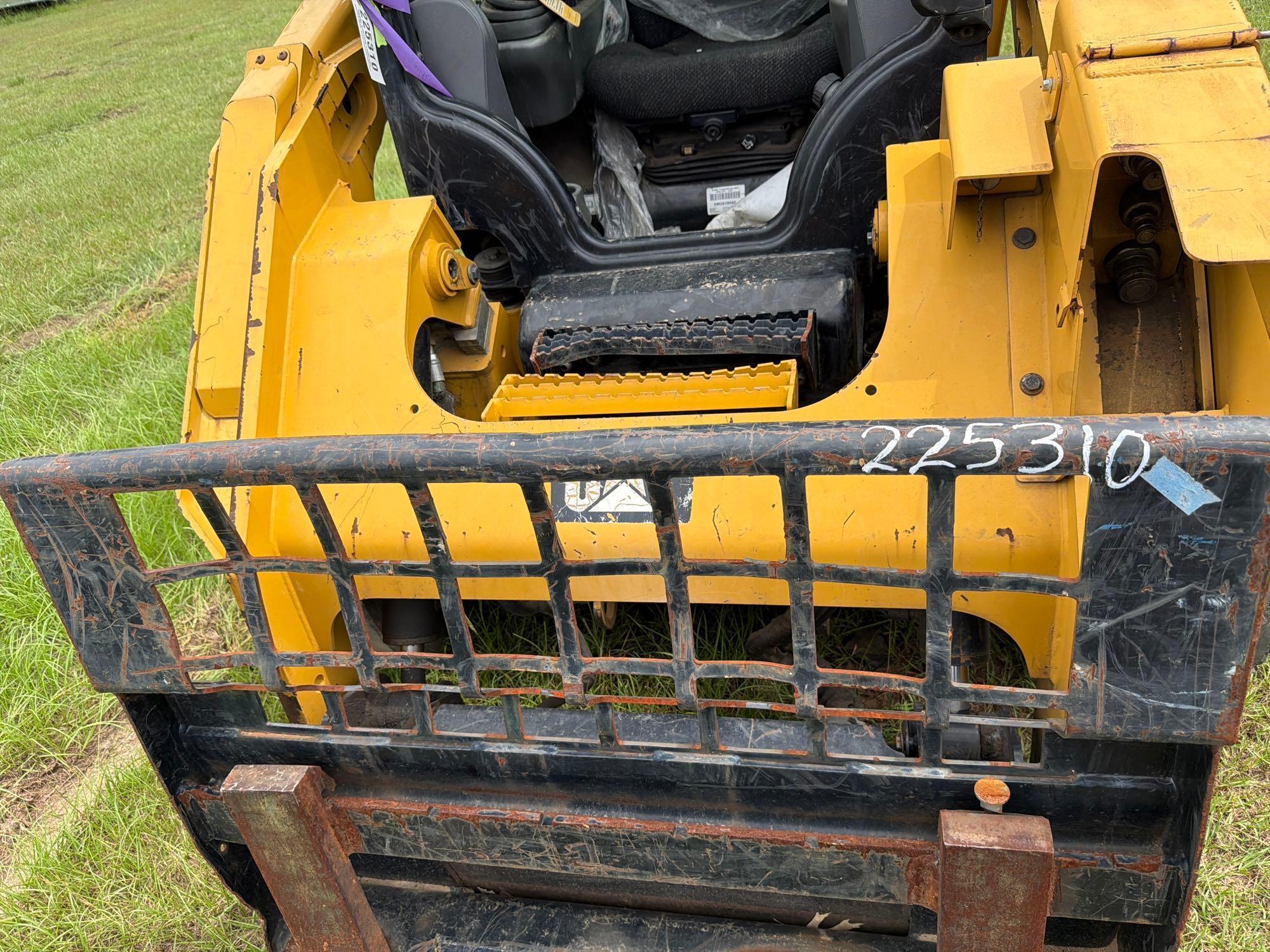

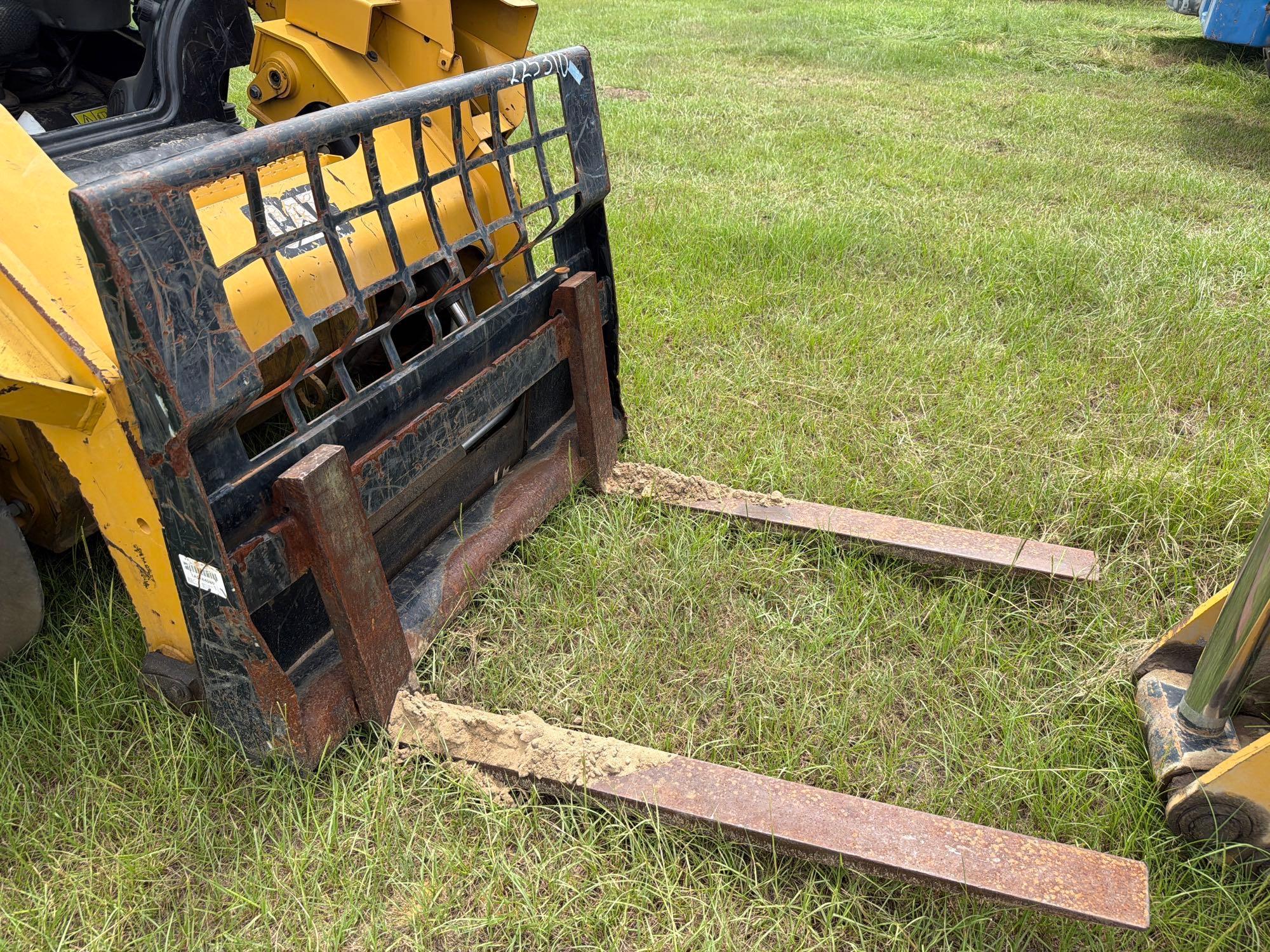

| Loader |
|
Tipping Load (Iso 14397) |
6,400 lbs (2,903 kg)
|
| Operating Specifications |
|
Breakout Force - Lift Cylinder |
6,100 lbs (2,766 kg)
|
|
Breakout Force - Tilt Cylinder |
7,405 lbs (3,358 kg)
|
|
Rated Operating Capacity |
3,200 lbs (1,451 kg)
|
|
Rated Operating Capacity With Optional Counterweight |
3,450 lbs (1,565 kg)
|
|
Tipping Load |
6,400 lbs (2,902 kg)
|

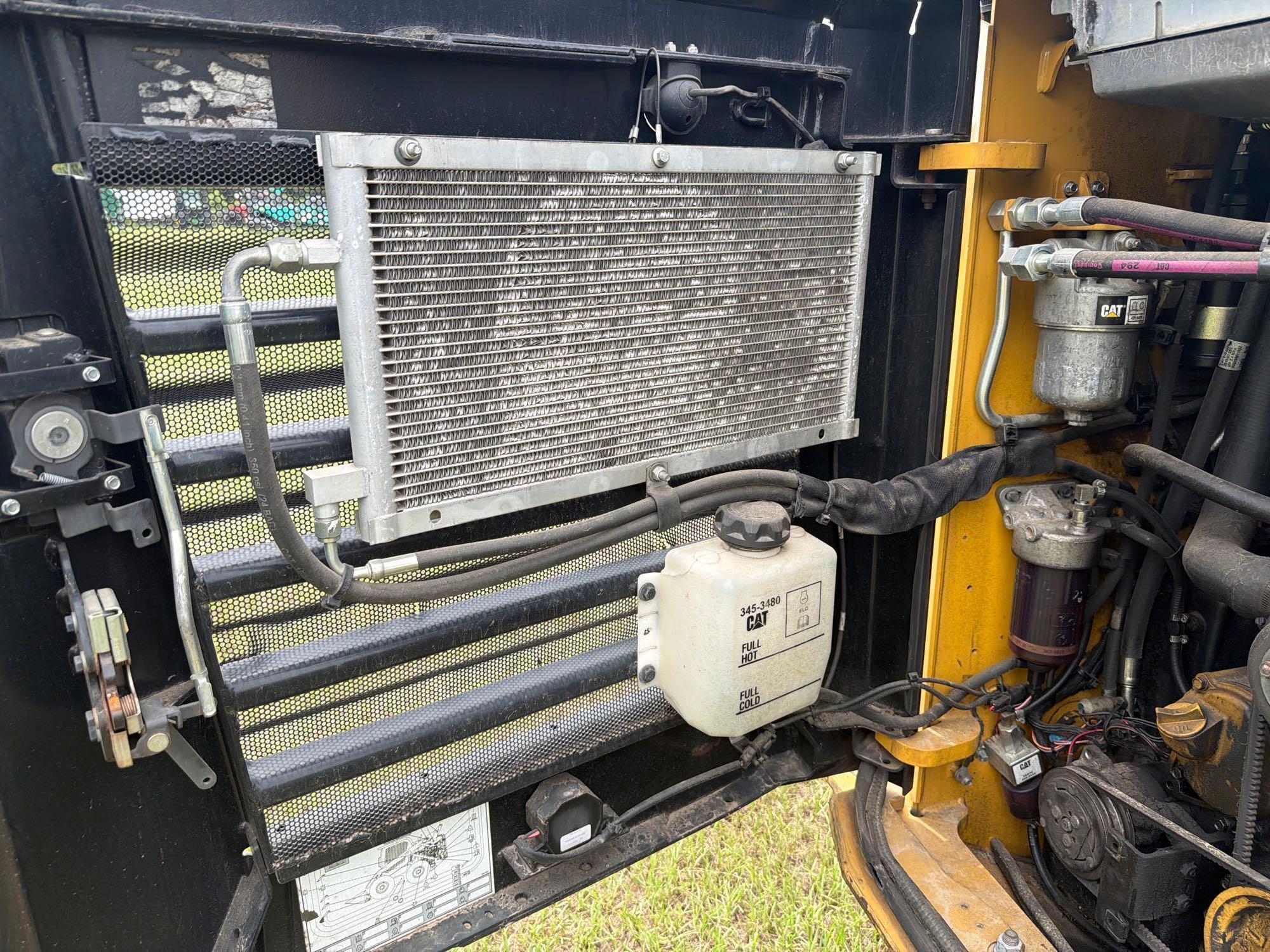

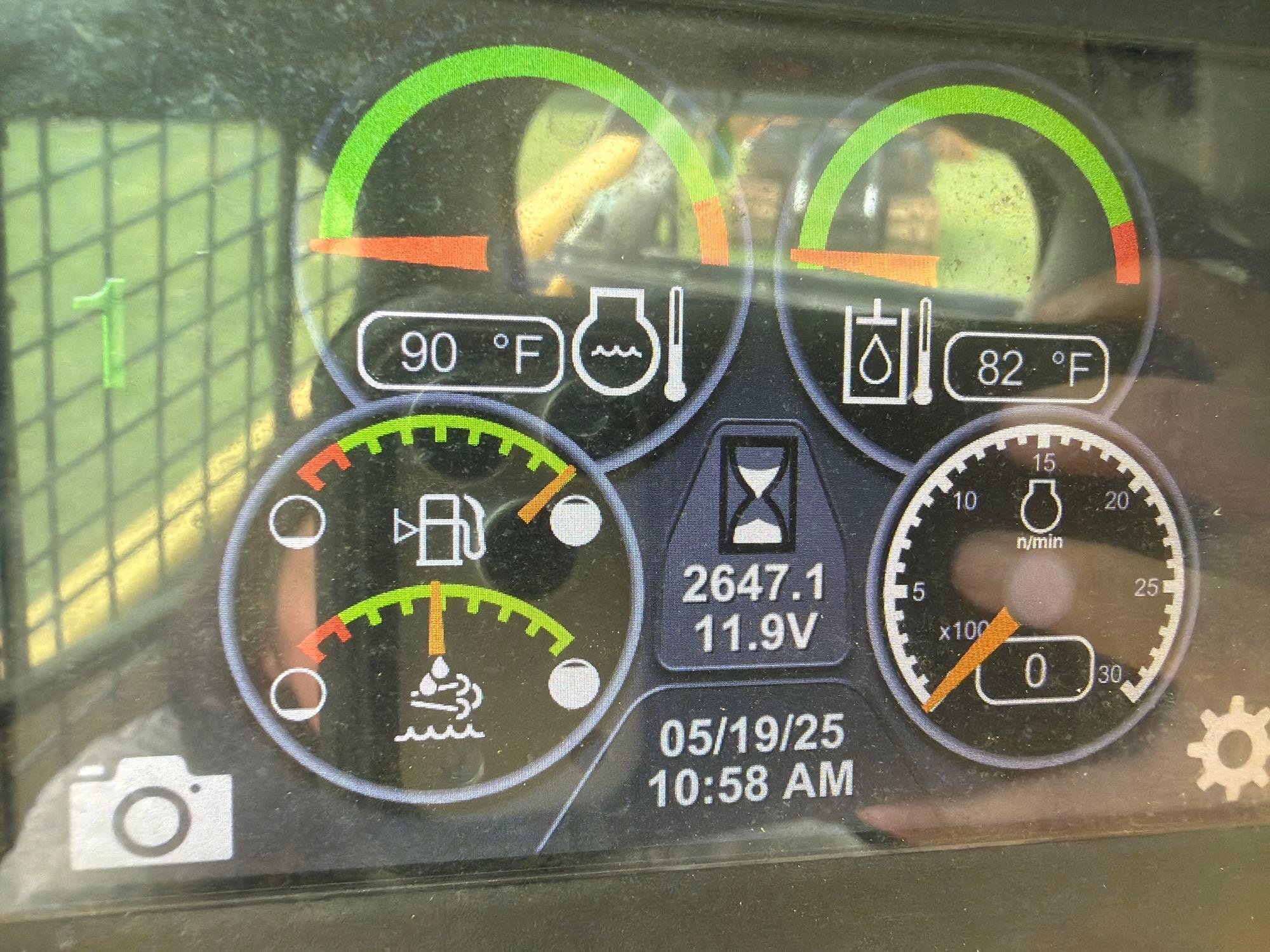

| Operational |
|
Alternator Supplied Amperage |
100 amps |
|
Chain Box Fluid Capacity - Each Side |
2 gal (9 l)
|
|
Cooling System Fluid Capacity |
4 gal (14 l)
|
|
Engine Oil Fluid Capacity |
3 gal (10 l)
|
|

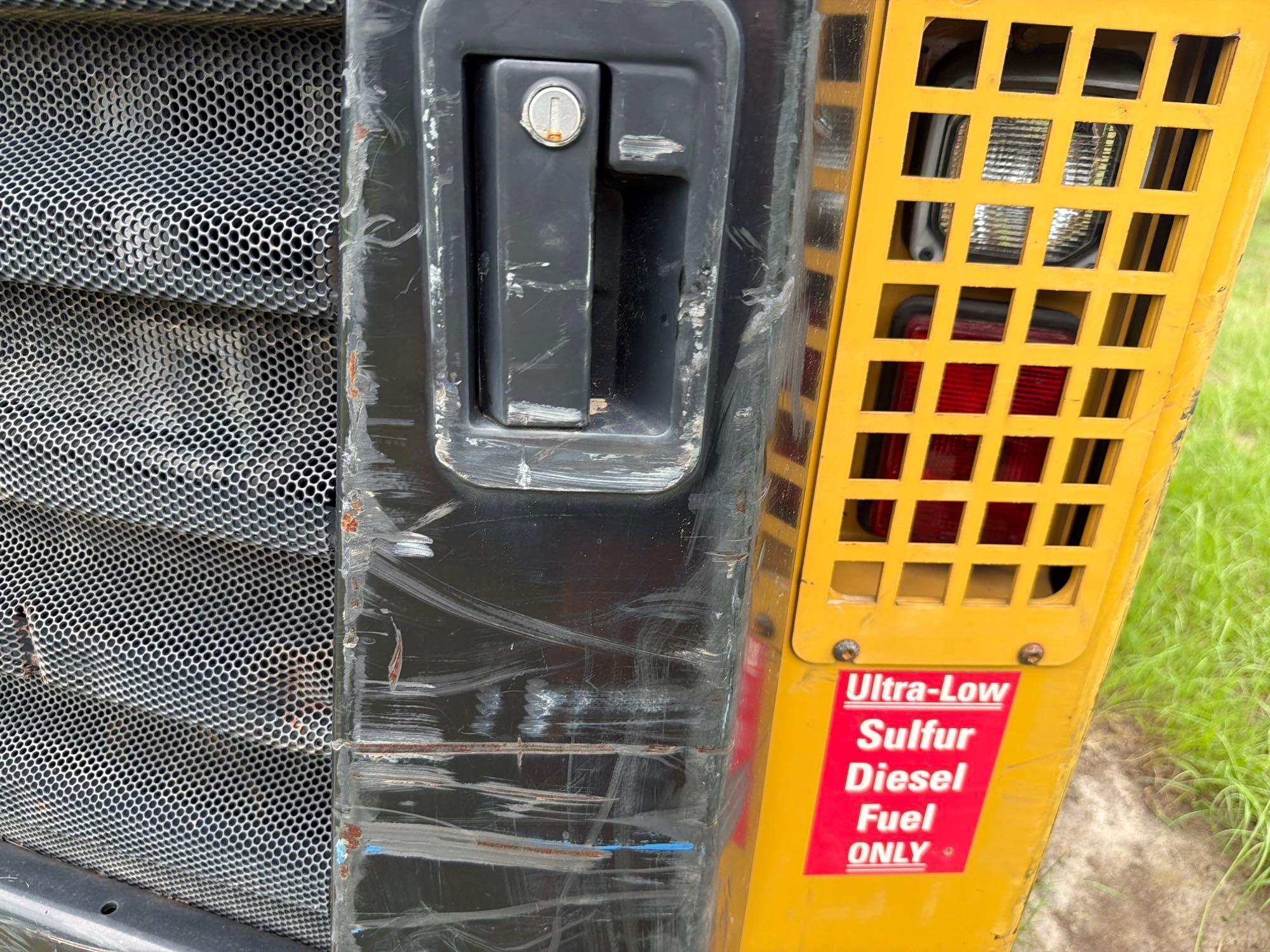

Fuel Capacity |
31 gal (117 l)
|
|
Hydraulic System Fluid Capacity |
16 gal (61 l)
|
|
Max Speed |
7 mph (11 kph)
|
|
Operating Voltage |
12 V |
|
Operational Weight |
18,528 lbs (8,403 kg)
|
|

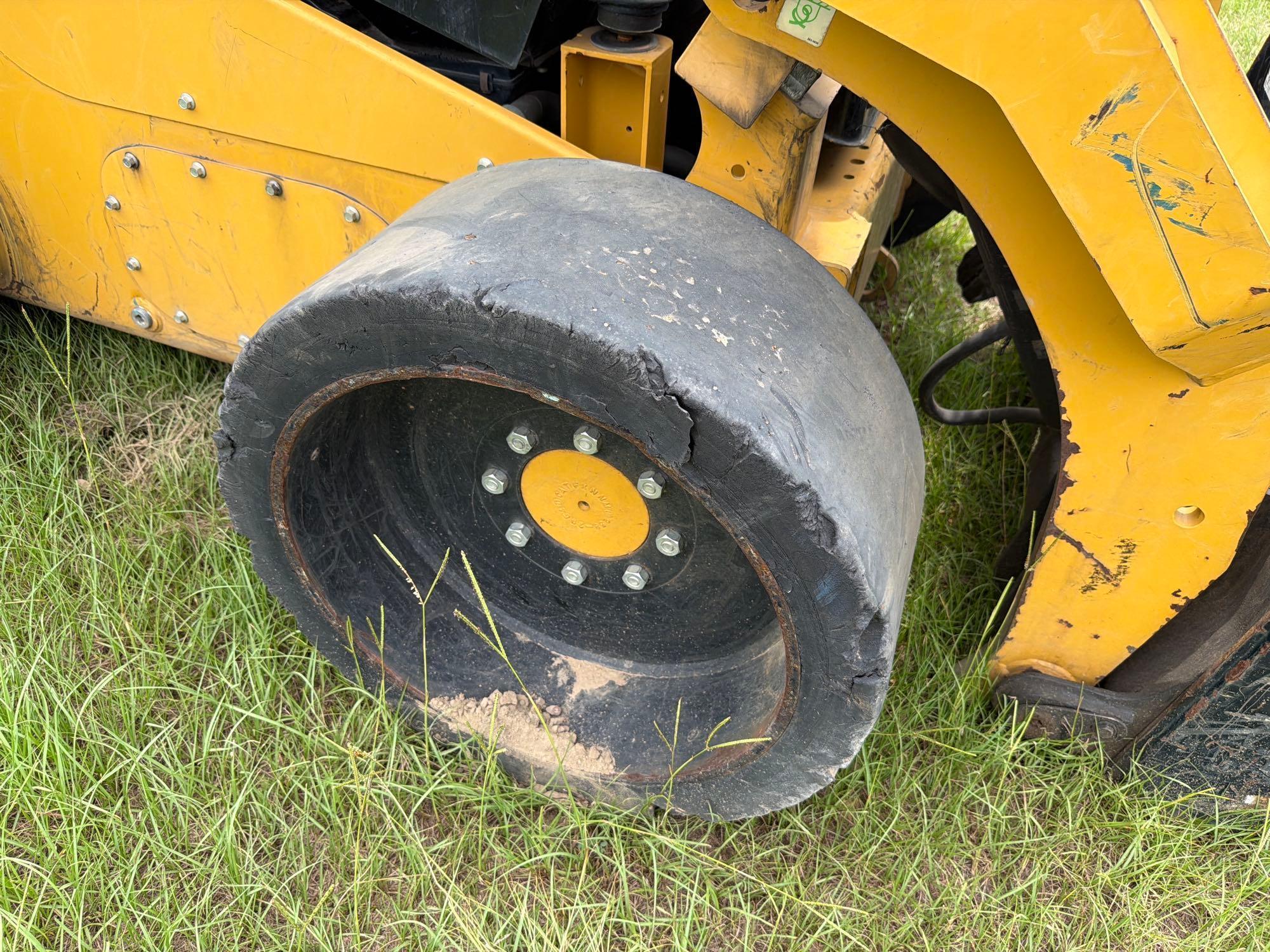

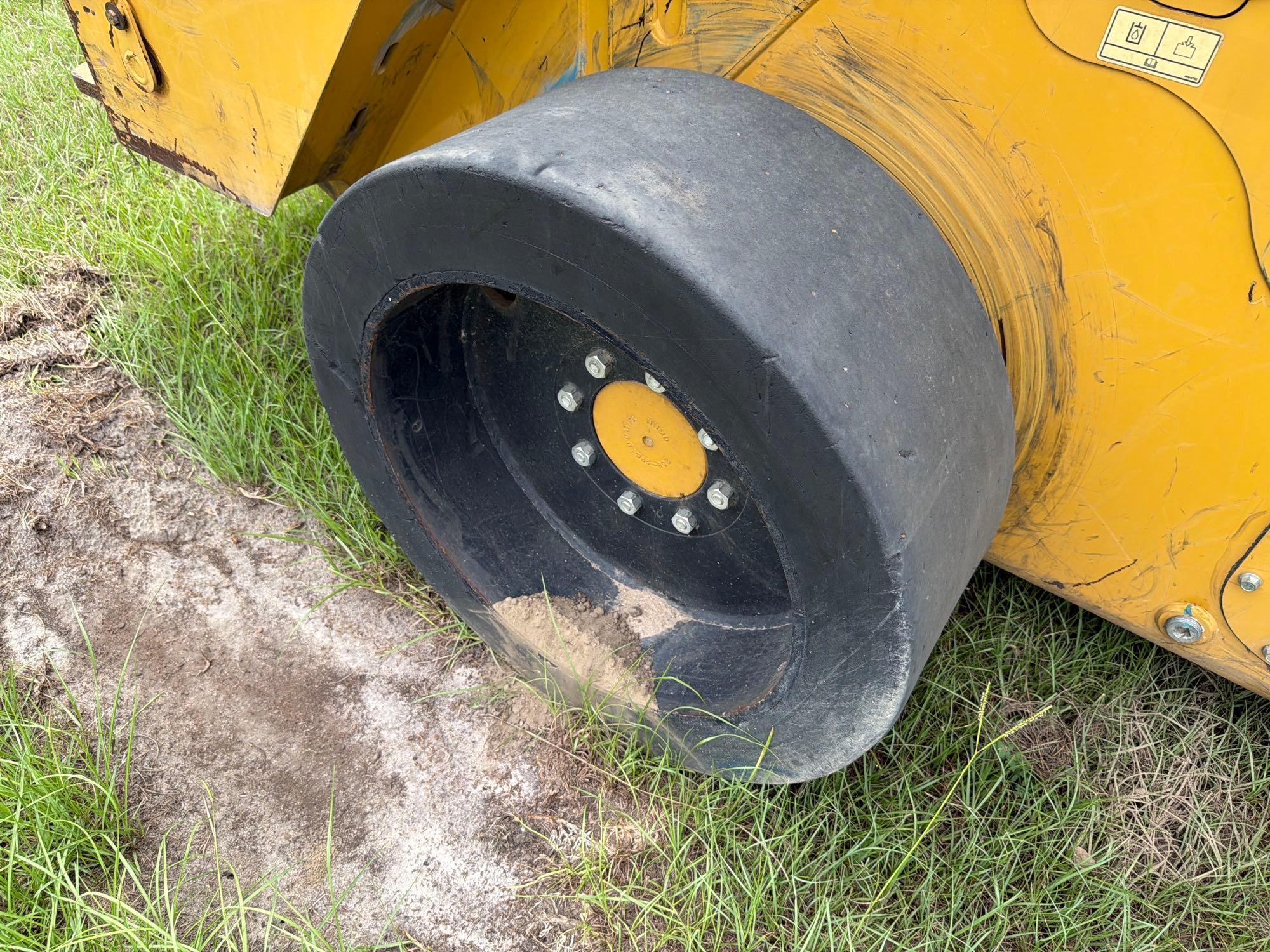

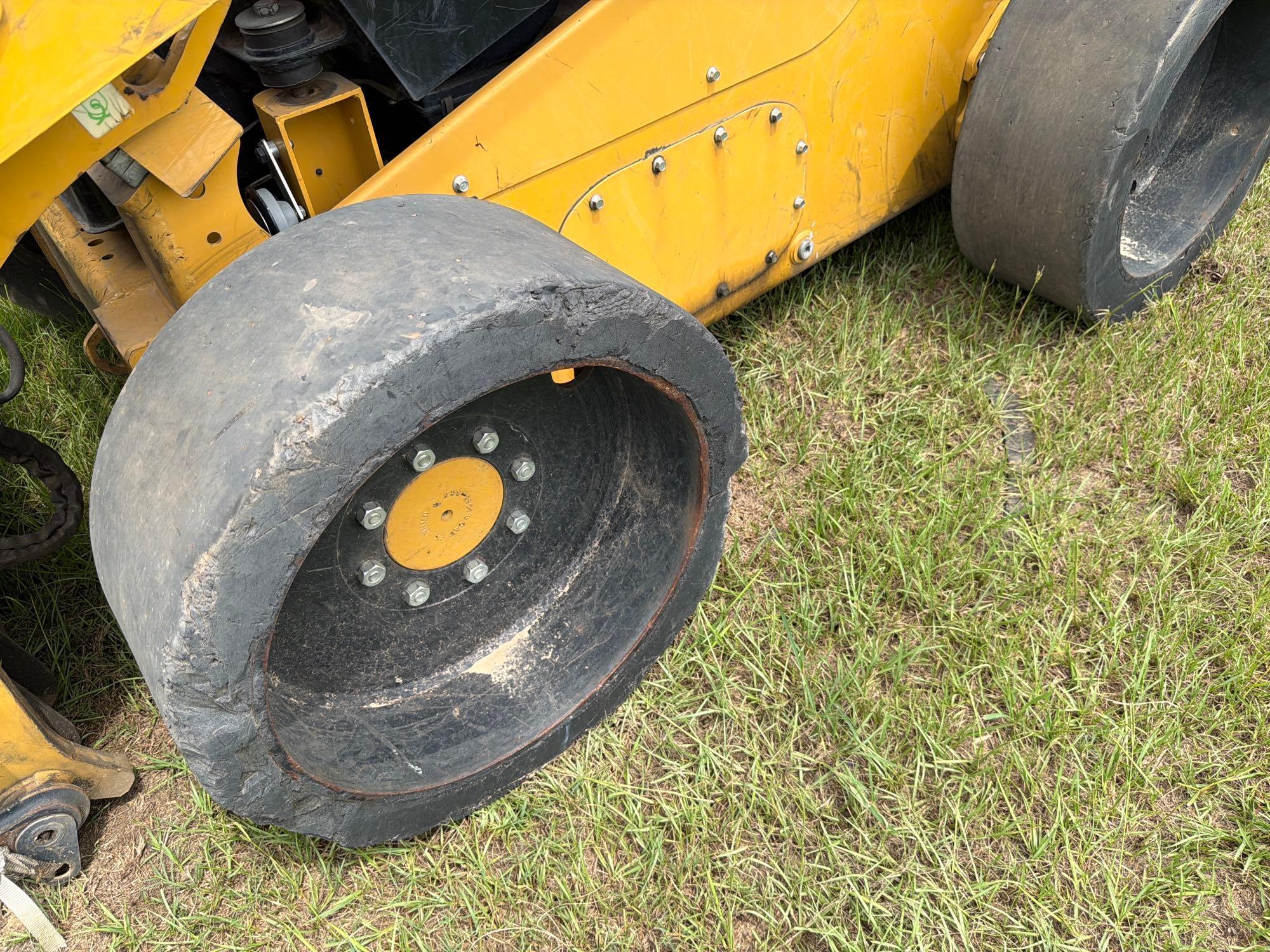

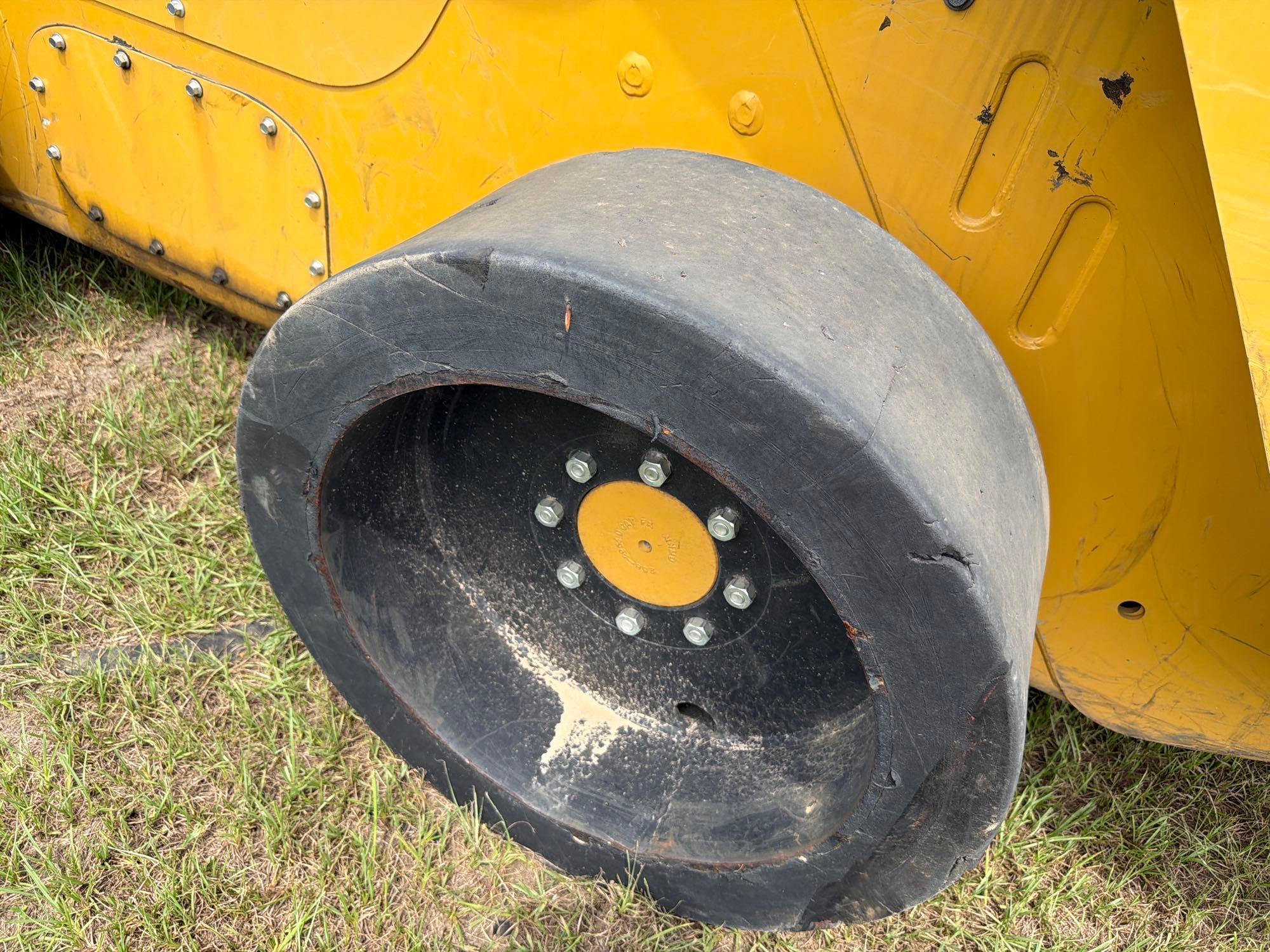

Tire Size |
14 x 17.5 |
| Power Train |
|
Travel Speed Forward |
7 mph (11 kph)
|
|
Travel Speed Forward - 2-Speed Option |
9 mph (15 kph)
|
|
Travel Speed Reverse |
7 mph (11 kph)
|
|
Travel Speed Reverse - 2-Speed Option |
9 mph (15 kph)
|
| Service Refill Capacities |
|
Chain Box - Each Side |
2 gal (9 l)
|
|
Cooling System |
4 gal (14 l)
|
|
Engine Crankcase |
3 gal (10 l)
|
|
Fuel Tank |
31 gal (117 l)
|
|
Hydraulic System |
16 gal (61 l)
|
|
Hydraulic Tank |
10 gal (39 l)
|
| Weights |
|
Operating Weight |
8,404 lbs (3,811 kg)
|
