| Air Conditioning System |
|
Air Conditioning |
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. |

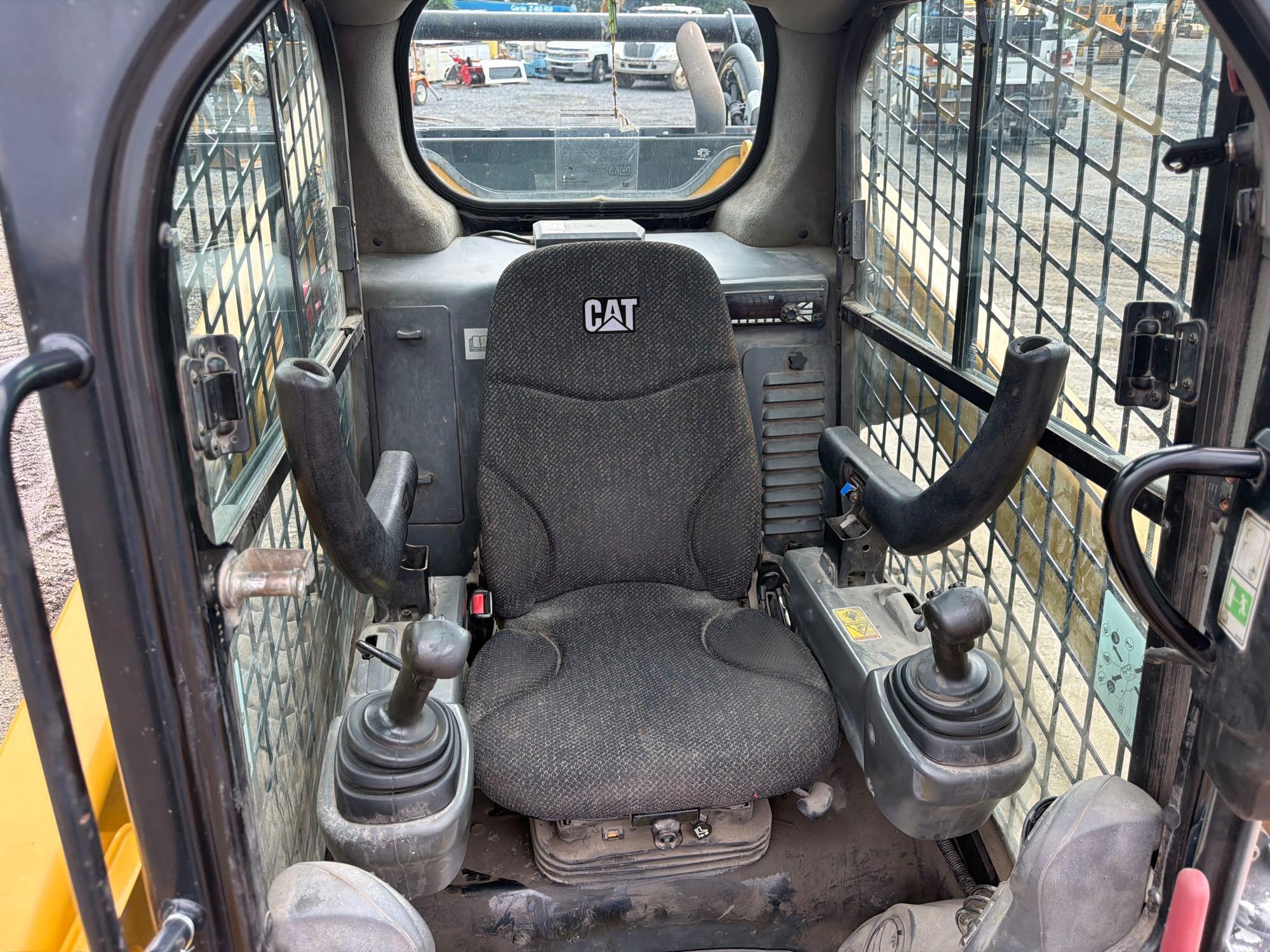

| Cab |
|
Fops |
ISO 3449:2005 Level I |
|
Fops Level Ii |
ISO 3449:2005 Level II |
|
Rops |
ISO 3471:2008 |
| Dimensions |
|
Bucket Pin Height - Carry Position |
8 in (20 cm)
|
|
Bucket Pin Height - Maximum Lift |
11 ft (3 m)
|
|
Bucket Pin Reach - Maximum Lift |
15 in (37 cm)
|
|
Bumper Overhang - Behind Rear Axle |
46 in (117 cm)
|
|
Clearance At Maximum Lift And Dump |
96 in (244 cm)
|
|
Departure Angle |
27 degrees |
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
7 ft (2 m)
|
|
Height - Top Of Cab |
7 ft (2 m)
|
|
Length |
13 ft (4 m)
|
|
Length - With Bucket On Ground |
156 in (395 cm)
|
|
Length - Without Bucket |
128 in (324 cm)
|
|
Maximum Dump Angle |
51 degrees |
|
Maximum Overall Height |
160 in (407 cm)
|
|
Maximum Reach - With Arms Parallel To Ground |
51 in (128 cm)
|
|
Rack Back Angle - Maximum Height |
84 degrees |
|
Reach - Maximum Lift/Dump |
30 in (77 cm)
|
|
Roll Back Angle |
28 degrees |
|
Turning Radius From Center - Bucket (Racked) |
90 in (228 cm)
|
|
Turning Radius From Center - Coupler |
58 in (148 cm)
|
|
Turning Radius From Center - Machine Rear |
75 in (190 cm)
|
|
Vehicle Width Over Tires |
72 in (183 cm)
|
|
Weight |
8,252 lbs (3,742 kg)
|
|
Wheel Base |
5 ft (1 m)
|
|
Width |
6 ft (2 m)
|

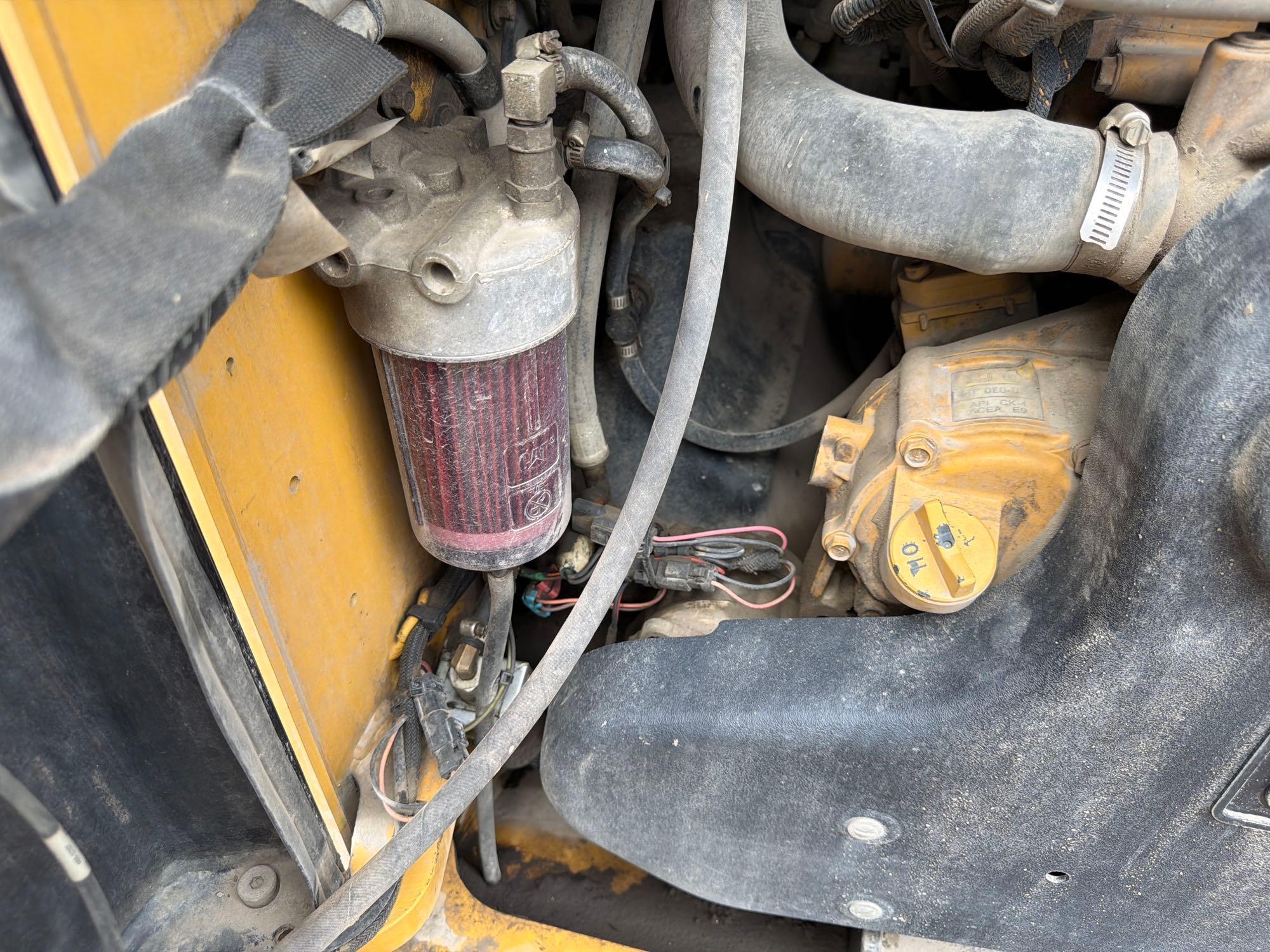

| Engine |
|
Bore |
4 in (10 cm)
|
|
Displacement |
232 cu in (3,802 cu cm)
|
|
Engine Model |
Cat C3.8 DIT (turbo) |
|
Gross Power - Sae J1995 |
98 hp (73 kw)
|
|
Net Flywheel Power |
95 hp (71 kw)
|
|
Net Power - Iso 9249 |
96 hp (72 kw)
|
|
Net Power - Sae 1349 |
95 hp (71 kw)
|
|
Peak Torque - 1,500 Rpm - Sae J1995 |
246 lbs ft (334 nm)
|
|
Stroke |
5 in (12 cm)
|
| General Specifications |
|
category (Since 2020)
|
SKID STEERS |
|
ENGINE POWER (Since 2016)
|
95 hp (71 kw)
|
|
ENGINE POWER (2017)
|
95 hp (71 kw)
|
|
ENGINE POWER (2019)
|
95 hp (71 kw)
|
|
ENGINE POWER (2020)
|
95 hp (71 kw)
|
|
MODEL (Since 2016)
|
272D2 |
|
MODEL (2017)
|
272D2 |
|
MODEL (2019)
|
272D2 |
|
MODEL (2020)
|
272D2 |
|
OPERATING LOAD (Since 2016)
|
3,400 lbs (1,542 kg)
|
|
OPERATING LOAD (2017)
|
3,400 lbs (1,542 kg)
|
|
OPERATING WIDTH (Since 2016)
|
72 in (183 cm)
|
|
OPERATING WIDTH (2017)
|
72 in (183 cm)
|
|
OPERATING WIDTH (2019)
|
72 in (183 cm)
|
|
OPERATING WIDTH (2020)
|
72 in (183 cm)
|
|
RATED OPERATING CAPACITY (50%) (Since 2019)
|
3,400 lbs (1,542 kg)
|
|
RATED OPERATING CAPACITY (50%) (2020)
|
3,400 lbs (1,542 kg)
|

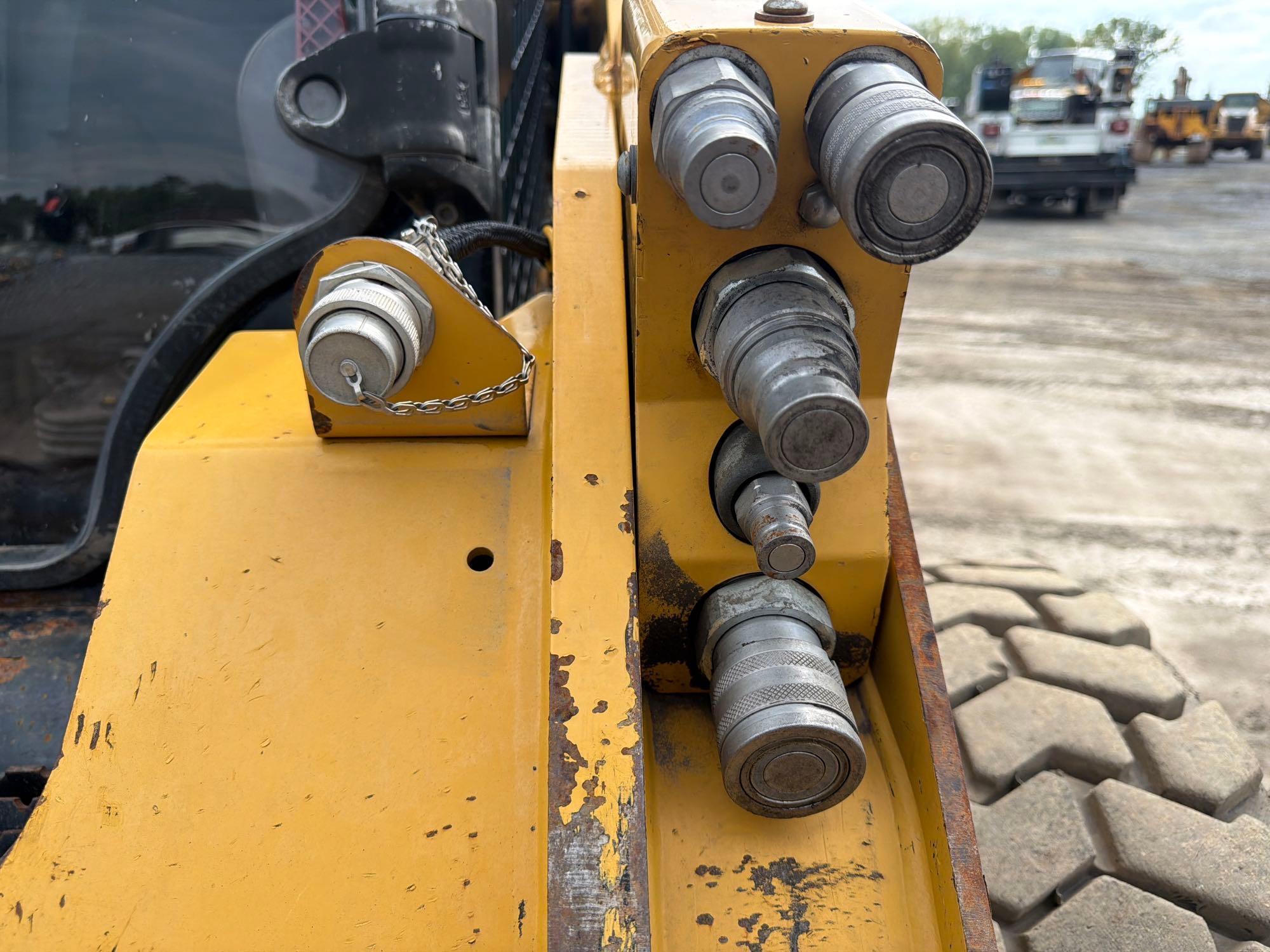

| Hydraulic System |
|
Hydraulic Flow - High Flow Xps - Hydraulic Power (Calculated) |
76 hp (57 kw)
|
|
Hydraulic Flow - High Flow Xps - Maximum Loader Hydraulic Flow |
32 gpm (121 lpm)
|
|
Hydraulic Flow - High Flow Xps - Maximum Loader Hydraulic Pressure |
4,061 psi |
|
Hydraulic Flow - Standard - Hydraulic Power (Calculated) |
44 hp (33 kw)
|
|
Hydraulic Flow - Standard - Loader Hydraulic Flow |
23 gpm (87 lpm)
|
|
Hydraulic Flow - Standard - Loader Hydraulic Pressure |
3,335 psi |
| Noise Level |
|
Inside Cab* |
83 dB(A) |
|
Note (1) |
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
|
Note (2) |
*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
|
Note (3) |
**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
|
Outside Cab** |
102 dB(A) |
| Operating Specifications |
|
Breakout Force - Lift Cylinder |
6,074 lbs (2,755 kg)
|
|
Breakout Force - Tilt Cylinder |
7,443 lbs (3,376 kg)
|
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, standard flow hydraulics, 880 CCA battery, 1829 mm (72 in) dirt bucket, no optional counterweights, Cat PC 12 16.5 tires and manual quick coupler (unless otherwise noted). |
|
Rated Operating Capacity |
3,400 lbs (1,542 kg)
|
|
Rated Operating Capacity With Optional Counterweight |
3,650 lbs (1,656 kg)
|
|
Tipping Load |
6,800 lbs (3,084 kg)
|
| Power Train |
|
Travel Speed - Forward Or Reverse - One Speed |
7 mph (11 kph)
|
|
Travel Speed - Forward Or Reverse - Two Speed Option |
9 mph (15 kph)
|
| Service Refill Capacities |
|
Chain Box - Each Side |
3 gal (10 l)
|
|
Cooling System |
4 gal (16 l)
|
|
Diesel Exhaust Fluid (Def) Tank |
5 gal (19 l)
|
|
Engine Crankcase |
4 gal (13 l)
|
|
Fuel Tank |
32 gal (122 l)
|
|
Hydraulic System |
15 gal (55 l)
|
|
Hydraulic Tank |
10 gal (39 l)
|
| Weights |
|
Note |
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, standard flow hydraulics, 880 CCA battery, 1829 mm (72 in) dirt bucket, no optional counterweights, Cat PC 12 16.5 tires and manual quick coupler (unless otherwise noted). |
|
Operating Weight |
8,768 lbs (3,977 kg)
|
