| Dimensions |
|
Height |
9 ft (3 m)
|
|
Length |
8 ft (2 m)
|
|
Weight |
5,754 lbs (2,610 kg)
|
|
Width |
4 ft (1 m)
|
| General Specifications |
|
1 3-cylinder configuration available with Cat (Since 2001)
|
@ 2800 rpm. |
|
Approx. Op. Weight (Since 1999)
|
5,750 lbs (2,608 kg)
|
|
Approx. Op. Weight (2000)
|
5,750 lbs (2,608 kg)
|
|
Approx. Op. Weight (2001)
|
5,750 lbs (2,608 kg)
|
|
Approx. Op. Weight (2002)
|
5,750 lbs (2,608 kg)
|
|
Approx. Op. Weight (2003)
|
5,750 lbs (2,608 kg)
|
|
Centrifugal Force (Since 1999)
|
6,700 lbf (3,039 kgf)
|
|
Centrifugal Force (2000)
|
6,700 lbf (3,039 kgf)
|
|
Centrifugal Force (2001)
|
6,700 lbf (3,039 kgf)
|
|
Centrifugal Force (2002)
|
6,700 lbf (3,039 kgf)
|
|
Centrifugal Force (2003)
|
6,700 lbf (3,039 kgf)
|
|
COMPACTORS Approx. Op. Weight (Since 1999)
|
5,750 lbs (2,608 kg)
|
|
COMPACTORS Approx. Op. Weight (2000)
|
5,750 lbs (2,608 kg)
|
|
COMPACTORS Approx. Op. Weight (2001)
|
5,750 lbs (2,608 kg)
|
|
COMPACTORS Approx. Op. Weight (2002)
|
5,750 lbs (2,608 kg)
|
|
COMPACTORS Approx. Op. Weight (2003)
|
5,750 lbs (2,608 kg)
|
|
Displacement (Since 2001)
|
91 cu in (1,491 cu cm)
|
|
Drive (Since 1999)
|
Hydraulic |
|
Drive (2000)
|
Hydraulic |
|
Drive (2001)
|
Hydraulic |
|
Drive (2002)
|
Hydraulic |
|
Drive (2003)
|
Hydraulic |
|
Drum Width (Since 1999)
|
47 in (120 cm)
|
|
Drum Width (2000)
|
47 in (120 cm)
|
|
Drum Width (2001)
|
47 in (120 cm)
|
|
Drum Width (2002)
|
47 in (120 cm)
|
|
Drum Width (2003)
|
47 in (120 cm)
|
|
Engine Model (Since 2001)
|
3,013 |
|
Flywheel (Since 1999)
|
32 hp (23 kw)
|
|
Flywheel (2000)
|
32 hp (23 kw)
|
|
Flywheel (2001)
|
32 hp (23 kw)
|
|
Flywheel (2002)
|
32 hp (23 kw)
|
|
Flywheel (2003)
|
32 hp (23 kw)
|
|
Flywheel Power (Since 2001)
|
32 hp (23 kw)
|
|
General Dimensions - Curb clearance (Since 2001)
|
21 in (53 cm)
|
|
General Dimensions - Drum diameter (Since 2001)
|
28 in (70 cm)
|
|
General Dimensions - Drum width (Since 2001)
|
47 in (120 cm)
|
|
General Dimensions - Ground clearance (Since 2001)
|
10 in (25 cm)
|
|
General Dimensions - Overall height (ROPS) (Since 2001)
|
102 in (259 cm)
|
|
General Dimensions - Overall length (Since 2001)
|
96 in (243 cm)
|
|
General Dimensions - Overall width (Since 2001)
|
51 in (130 cm)
|
|
General Dimensions - Wheelbase (Since 2001)
|
68 in (173 cm)
|
|
Max. Speed (For./Rev.) (Since 2001)
|
6 mph (10 kph)
|
|
Maximum Op. Speed km/h (mph (Since 1999)
|
10.0 (6.2 |
|
Maximum Op. Speed km/h (mph (Since 1999)
|
10 (6.2 |
|
Maximum Op. Speed km/h (mph (2000)
|
10 (6.2 |
|
Maximum Op. Speed km/h (mph (Since 2000)
|
10.0 (6.2 |
|
Maximum Op. Speed km/h (mph (Since 2001)
|
10 (6.2 |
|
Maximum Op. Speed km/h (mph (Since 2001)
|
10.0 (6.2 |
|
Maximum Op. Speed km/h (mph (Since 2002)
|
10 (6.2 |
|
Maximum Op. Speed km/h (mph (Since 2002)
|
10.0 (6.2 |
|
Maximum Op. Speed km/h (mph (Since 2003)
|
10 (6.2 |
|
Maximum Op. Speed km/h (mph (Since 2003)
|
10.0 (6.2 |
|
No. Cylinders (Since 2001)
|
3 |
|
Operating Weight (Since 2001)
|
5,750 lbs (2,608 kg)
|
|
Operatory Position(s) (Since 2001)
|
Sliding/bucket seat |
|

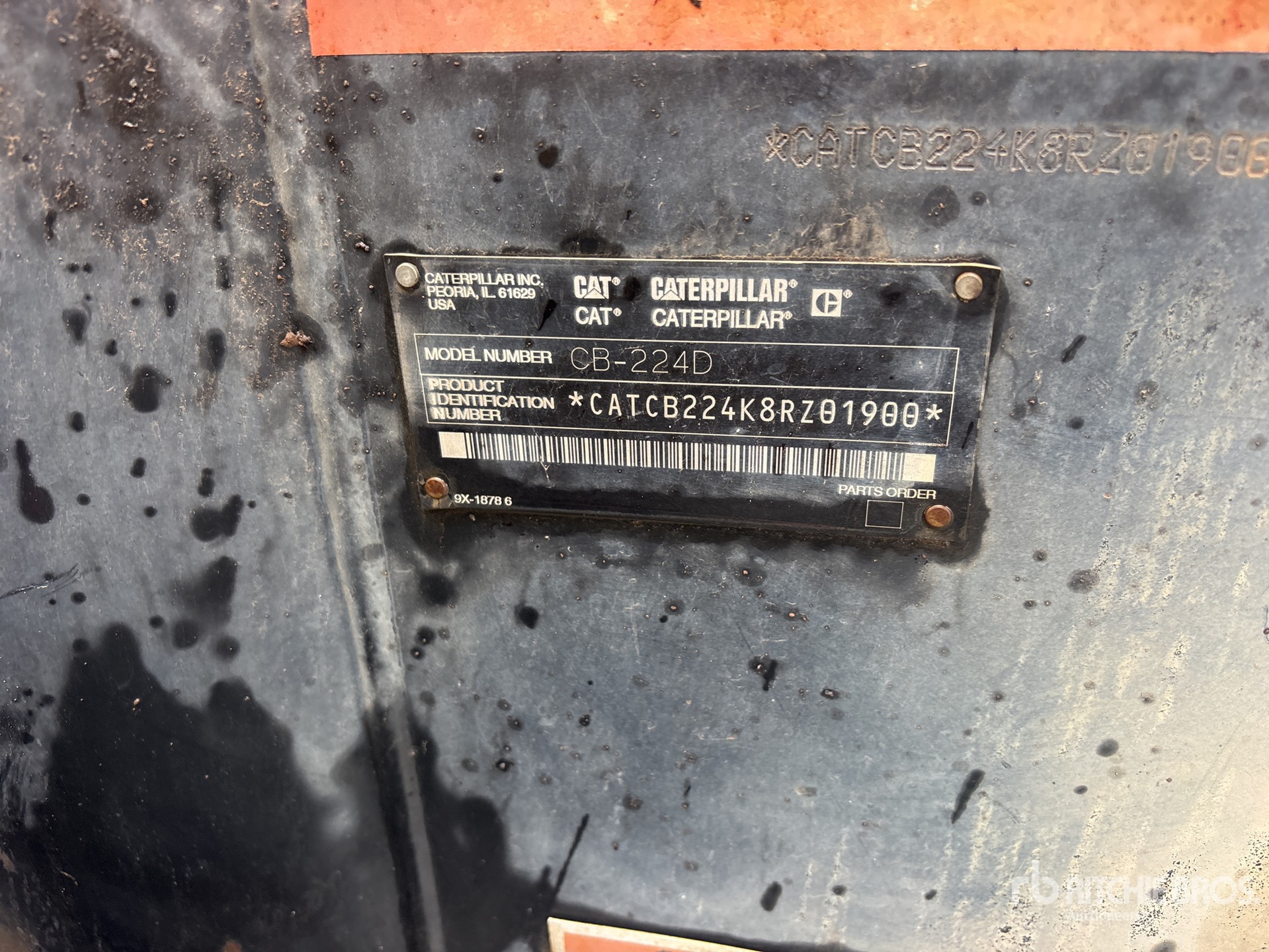

Product Identification Prefix (Since 1999)
|
8RZ |
|
Product Identification Prefix (2000)
|
8RZ |
|
Product Identification Prefix (2001)
|
8RZ |
|
Product Identification Prefix (2002)
|
8RZ |
|
Product Identification Prefix (2003)
|
8RZ |
|
Rated Engine RPM (Since 2001)
|
2,800 rpm |
|
Service Refill Capacities - Crankcase (Since 2001)
|
2 US gal (7 L)
|
|
Service Refill Capacities - Fuel tank (Since 2001)
|
10 US gal (36 L)
|
|
Service Refill Capacities - Hydraulic tank (Since 2001)
|
7 US gal (26 L)
|
|
Service Refill Capacities - Sprinkler water (Since 2001)
|
42 US gal (160 L)
|
|
Shipping Weight (Since 2001)
|
5,390 lbs (2,445 kg)
|
|
Speeds (Since 2001)
|
2 forward/2 reverse |
|
Steering - Inside radius (Since 2001)
|
95 in (241 cm)
|
|
Steering - Outside radius (Since 2001)
|
142 in (361 cm)
|
|
Steering - Steering angle (Since 2001)
|
±32 deg |
|
TIRE Flywheel (Since 1999)
|
32 hp (23 kw)
|
|
TIRE Flywheel (2000)
|
32 hp (23 kw)
|
|
TIRE Flywheel (2001)
|
32 hp (23 kw)
|
|
TIRE Flywheel (2002)
|
32 hp (23 kw)
|
|
TIRE Flywheel (2003)
|
32 hp (23 kw)
|
|
Vibratory System - Amplitude (Since 2001)
|
1 |
|
Vibratory System - Centrifugal Force - High Amplitude (Since 2001)
|
6,700 lbs (3,039 kg)
|
|
Vibratory System - Ecc.Weight Drive (Since 2001)
|
Hydraulic |
|
Vibratory System - Frequency (Max.) (Since 2001)
|
60 Hz 3600 vpm |
|
Vibratory System - High Amplitude (Since 2001)
|
0 in (0 cm)
|
|
Working Speed (Since 2001)
|
4 mph (6 kph)
|
|
Years Built (Since 1999)
|
1,999 - 2,003 |
|
Years Built (2000)
|
1,999 - 2,003 |
|
Years Built (2001)
|
1,999 - 2,003 |
|
Years Built (2002)
|
1,999 - 2,003 |
|
Years Built (2003)
|
1,999 - 2,003 |
