| Dimensions |
|
Height |
5 ft (2 m)
|
|
Length |
8 ft (2 m)
|
|
Weight |
5,335 lbs (2,420 kg)
|
|
Width |
4 ft (1 m)
|
| General Specifications |
|
Approx. Op. Weight (Since 1993)
|
5,335 lbs (2,420 kg)
|
|
Approx. Op. Weight (1994)
|
5,335 lbs (2,420 kg)
|
|
Approx. Op. Weight (1995)
|
5,335 lbs (2,420 kg)
|
|
Approx. Op. Weight (1996)
|
5,335 lbs (2,420 kg)
|
|
Approx. Op. Weight (1997)
|
5,335 lbs (2,420 kg)
|
|
Approx. Op. Weight (1998)
|
5,335 lbs (2,420 kg)
|
|
Approx. Op. Weight (1999)
|
5,335 lbs (2,420 kg)
|
|
Approx. Op. Weight (2000)
|
5,335 lbs (2,420 kg)
|
|
Centrifugal Force (Since 1993)
|
6,570 lbf (2,920 kgf)
|
|
Centrifugal Force (1994)
|
6,570 lbf (2,920 kgf)
|
|
Centrifugal Force (1995)
|
6,570 lbf (2,920 kgf)
|
|
Centrifugal Force (1996)
|
6,570 lbf (2,920 kgf)
|
|
Centrifugal Force (1997)
|
6,570 lbf (2,920 kgf)
|
|
Centrifugal Force (1998)
|
6,570 lbf (2,920 kgf)
|
|
Centrifugal Force (1999)
|
6,570 lbf (2,920 kgf)
|
|
Centrifugal Force (2000)
|
6,570 lbf (2,920 kgf)
|
|
COMPACTORS Approx. Op. Weight (Since 1993)
|
5,335 lbs (2,420 kg)
|
|
COMPACTORS Approx. Op. Weight (1994)
|
5,335 lbs (2,420 kg)
|
|
COMPACTORS Approx. Op. Weight (1995)
|
5,335 lbs (2,420 kg)
|
|
COMPACTORS Approx. Op. Weight (1996)
|
5,335 lbs (2,420 kg)
|
|
COMPACTORS Approx. Op. Weight (1997)
|
5,335 lbs (2,420 kg)
|
|
COMPACTORS Approx. Op. Weight (1998)
|
5,335 lbs (2,420 kg)
|
|
COMPACTORS Approx. Op. Weight (1999)
|
5,335 lbs (2,420 kg)
|
|
COMPACTORS Approx. Op. Weight (2000)
|
5,335 lbs (2,420 kg)
|
|
Displacement (Since 1998)
|
105 cu in (1,716 cu cm)
|
|
Drive (Since 1993)
|
Drum (2 |
|
Drive (1994)
|
Drum (2 |
|
Drive (1995)
|
Drum (2 |
|
Drive (1996)
|
Drum (2 |
|
Drive (1997)
|
Drum (2 |
|
Drive (Since 1998)
|
Hydraulic |
|
Drive (Since 1998)
|
Drum (2 |
|
Drive (1999)
|
Drum (2 |
|
Drive (2000)
|
Drum (2 |
|
Drum Width (Since 1993)
|
47 in (120 cm)
|
|
Drum Width (1994)
|
47 in (120 cm)
|
|
Drum Width (1995)
|
47 in (120 cm)
|
|
Drum Width (1996)
|
47 in (120 cm)
|
|
Drum Width (1997)
|
47 in (120 cm)
|
|
Drum Width (1998)
|
47 in (120 cm)
|
|
Drum Width (1999)
|
47 in (120 cm)
|
|
Drum Width (2000)
|
47 in (120 cm)
|
|
Dynamic Force (Since 1993)
|
6,570 lbf (2,920 kgf)
|
|
Dynamic Force (1994)
|
6,570 lbf (2,920 kgf)
|
|
Dynamic Force (1995)
|
6,570 lbf (2,920 kgf)
|
|
Dynamic Force (1996)
|
6,570 lbf (2,920 kgf)
|
|
Dynamic Force (1997)
|
6,570 lbf (2,920 kgf)
|
|
Dynamic Force (1998)
|
6,570 lbf (2,920 kgf)
|
|
Dynamic Force (1999)
|
6,570 lbf (2,920 kgf)
|
|
Dynamic Force (2000)
|
6,570 lbf (2,920 kgf)
|
|

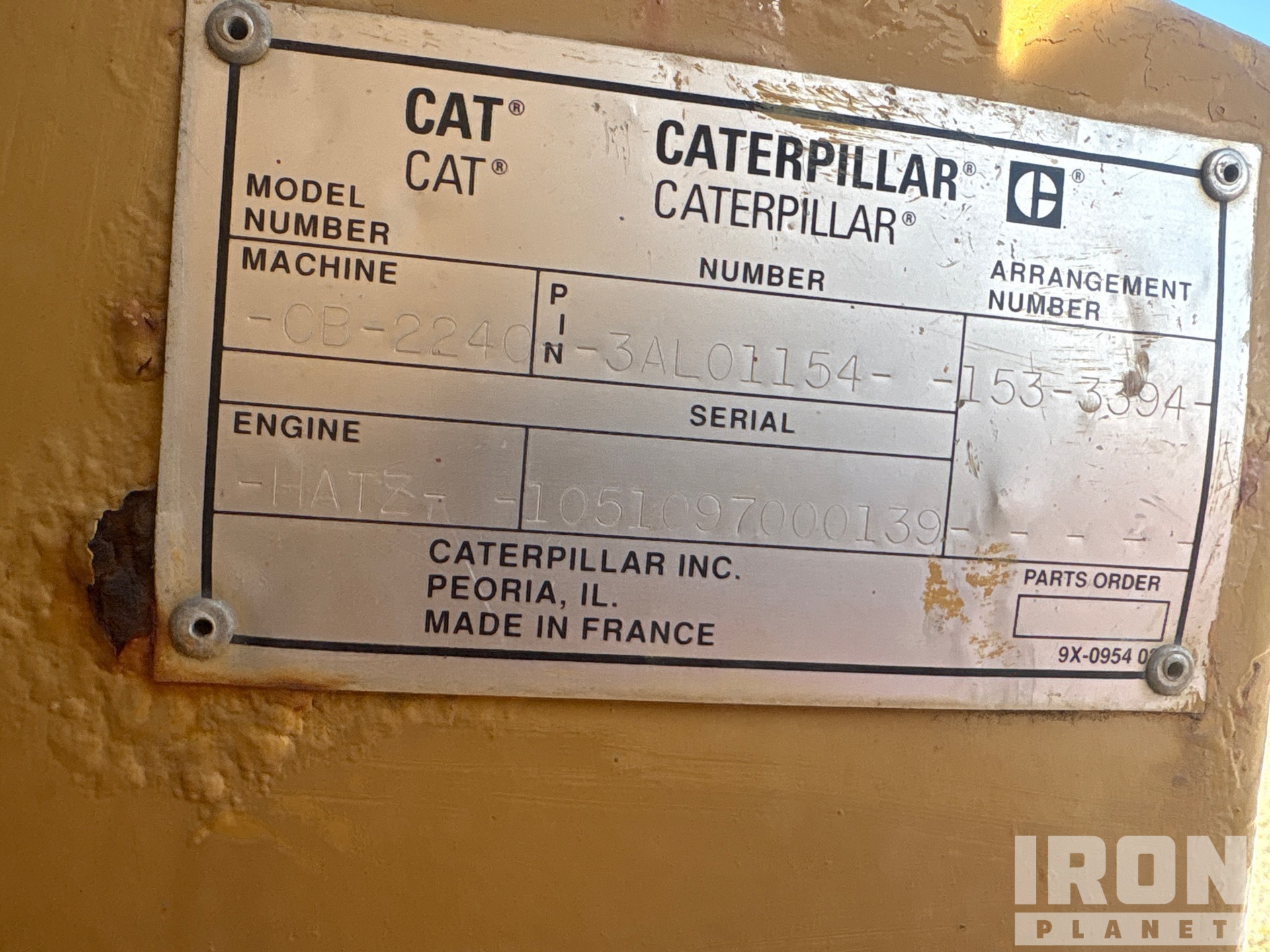

Engine Model (Since 1998)
|
Hatz 2M41 |
|
Flywheel (Since 1993)
|
33 hp (25 kw)
|
|
Flywheel (1994)
|
33 hp (25 kw)
|
|
Flywheel (1995)
|
33 hp (25 kw)
|
|
Flywheel (1996)
|
33 hp (25 kw)
|
|
Flywheel (1997)
|
33 hp (25 kw)
|
|
Flywheel (1998)
|
33 hp (25 kw)
|
|
Flywheel (1999)
|
33 hp (25 kw)
|
|
Flywheel (2000)
|
33 hp (25 kw)
|
|
Flywheel Power (Since 1998)
|
37 hp (28 kw)
|
|
General Dimensions - Curb clearance (Since 1998)
|
16 in (40 cm)
|
|
General Dimensions - Drum diameter (Since 1998)
|
28 in (70 cm)
|
|
General Dimensions - Drum width (Since 1998)
|
47 in (120 cm)
|
|
General Dimensions - Ground clearance (Since 1998)
|
10 in (25 cm)
|
|
General Dimensions - Height w/ROPS (Since 1998)
|
64 in (163 cm)
|
|
General Dimensions - Overall height (Since 1998)
|
64 in (163 cm)
|
|
General Dimensions - Overall length (Since 1998)
|
96 in (243 cm)
|
|
General Dimensions - Overall width (Since 1998)
|
51 in (130 cm)
|
|
General Dimensions - Wheelbase (Since 1998)
|
67 in (170 cm)
|
|
General Dimensions - Wheelbase (Since 1998)
|
67 in (170 cm)
|
|
Gradeability (Since 1998)
|
35 % |
|
Maximum Op. Speed km/h (mph (Since 1993)
|
10.5 (6.5 |
|
Maximum Op. Speed km/h (mph (1994)
|
10.5 (6.5 |
|
Maximum Op. Speed km/h (mph (1995)
|
10.5 (6.5 |
|
Maximum Op. Speed km/h (mph (1996)
|
10.5 (6.5 |
|
Maximum Op. Speed km/h (mph (1997)
|
10.5 (6.5 |
|
Maximum Op. Speed km/h (mph (1998)
|
10.5 (6.5 |
|
Maximum Op. Speed km/h (mph (1999)
|
10.5 (6.5 |
|
Maximum Op. Speed km/h (mph (2000)
|
10.5 (6.5 |
|
No. Cylinders (Since 1998)
|
2 |
|
Operating Weight (Since 1998)
|
5,335 lbs (2,420 kg)
|
|
Operator Position(s) (Since 1998)
|
Single/bucket seat |
|
Product Identification Prefix (Since 1993)
|
6LF |
|
Product Identification Prefix (1994)
|
6LF |
|
Product Identification Prefix (1995)
|
6LF |
|
Product Identification Prefix (1996)
|
6LF |
|
Product Identification Prefix (1997)
|
6LF |
|
Product Identification Prefix (1998)
|
6LF |
|
Product Identification Prefix (1999)
|
6LF |
|
Product Identification Prefix (2000)
|
6LF |
|
Rated Engine RPM (Since 1998)
|
2,400 rpm |
|
Service Refill Capacities - Crankcase (Since 1998)
|
1 US gal (5 L)
|
|
Service Refill Capacities - Fuel tank (Since 1998)
|
14 US gal (53 L)
|
|
Service Refill Capacities - Hydraulic tank (Since 1998)
|
8 US gal (29 L)
|
|
Service Refill Capacities - Sprinkler water (Since 1998)
|
42 US gal (160 L)
|
|
Shipping Weight (Since 1998)
|
4,872 lbs (2,210 kg)
|
|
Speeds - Forward (Since 1998)
|
1 |
|
Speeds - Reverse (Since 1998)
|
1 |
|
Steering - Inside radius (Since 1998)
|
96 in (243 cm)
|
|
Steering - Outside radius (Since 1998)
|
143 in (363 cm)
|
|
Steering - Steering angle (Since 1998)
|
±32 deg |
|
TIRE Flywheel (Since 1993)
|
33 hp (25 kw)
|
|
TIRE Flywheel (1994)
|
33 hp (25 kw)
|
|
TIRE Flywheel (1995)
|
33 hp (25 kw)
|
|
TIRE Flywheel (1996)
|
33 hp (25 kw)
|
|
TIRE Flywheel (1997)
|
33 hp (25 kw)
|
|
TIRE Flywheel (1998)
|
33 hp (25 kw)
|
|
TIRE Flywheel (1999)
|
33 hp (25 kw)
|
|
TIRE Flywheel (2000)
|
33 hp (25 kw)
|
|
Vibratory System - Amplitude Settings (Since 1998)
|
1 |
|
Vibratory System - Centrifugal Force - per drum (Max.) (Since 1998)
|
6,570 lbs (2,980 kg)
|
|
Vibratory System - Ecc. Weight Drive (Since 1998)
|
Hydraulic |
|
Vibratory System - Frequency (Since 1998)
|
60 Hz 3600 vpm |
|
Years Built (Since 1993)
|
1,993 - 2,000 |
|
Years Built (1994)
|
1,993 - 2,000 |
|
Years Built (1995)
|
1,993 - 2,000 |
|
Years Built (1996)
|
1,993 - 2,000 |
|
Years Built (1997)
|
1,993 - 2,000 |
|
Years Built (1998)
|
1,993 - 2,000 |
|
Years Built (1999)
|
1,993 - 2,000 |
|
Years Built (2000)
|
1,993 - 2,000 |
