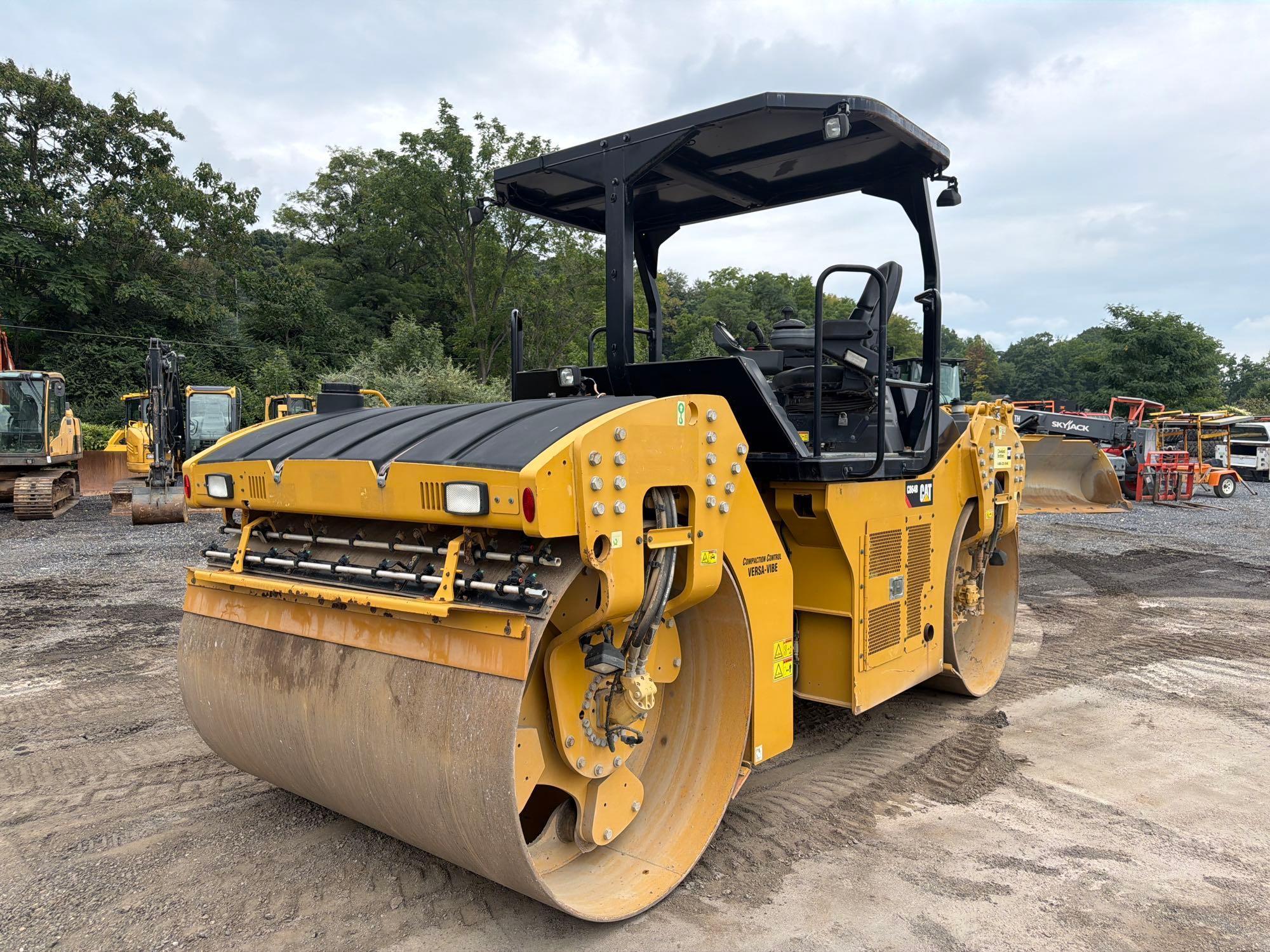

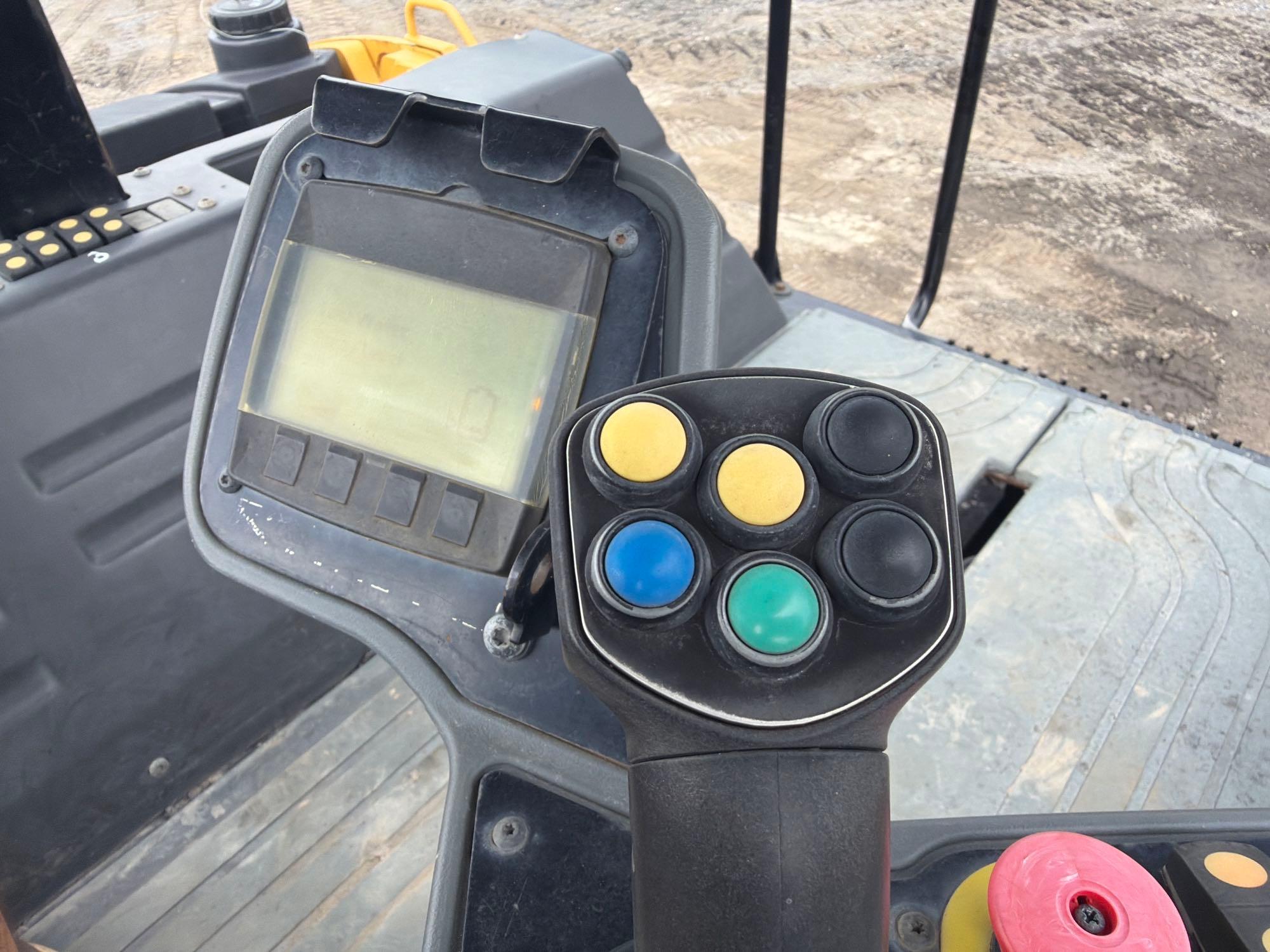

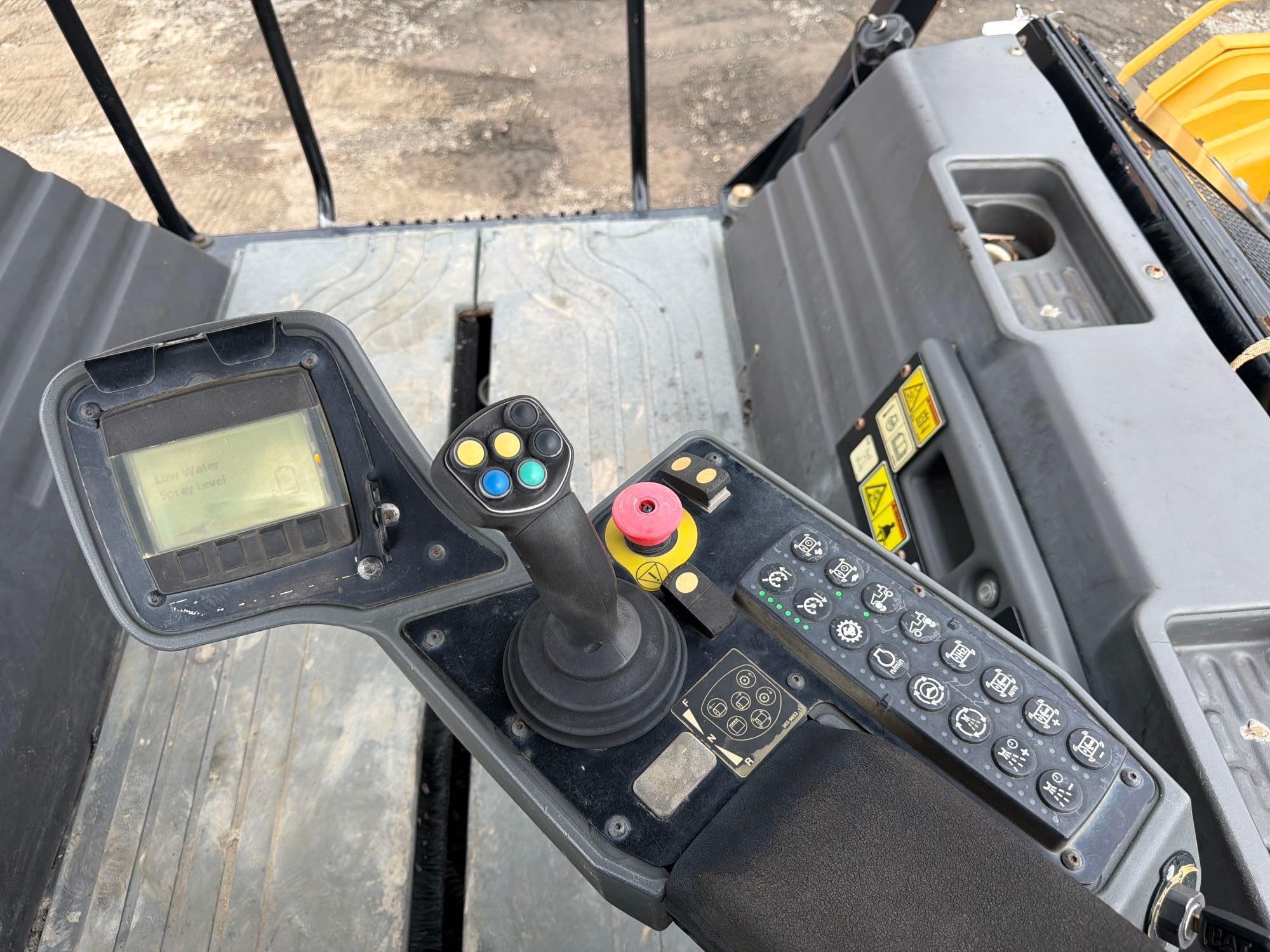

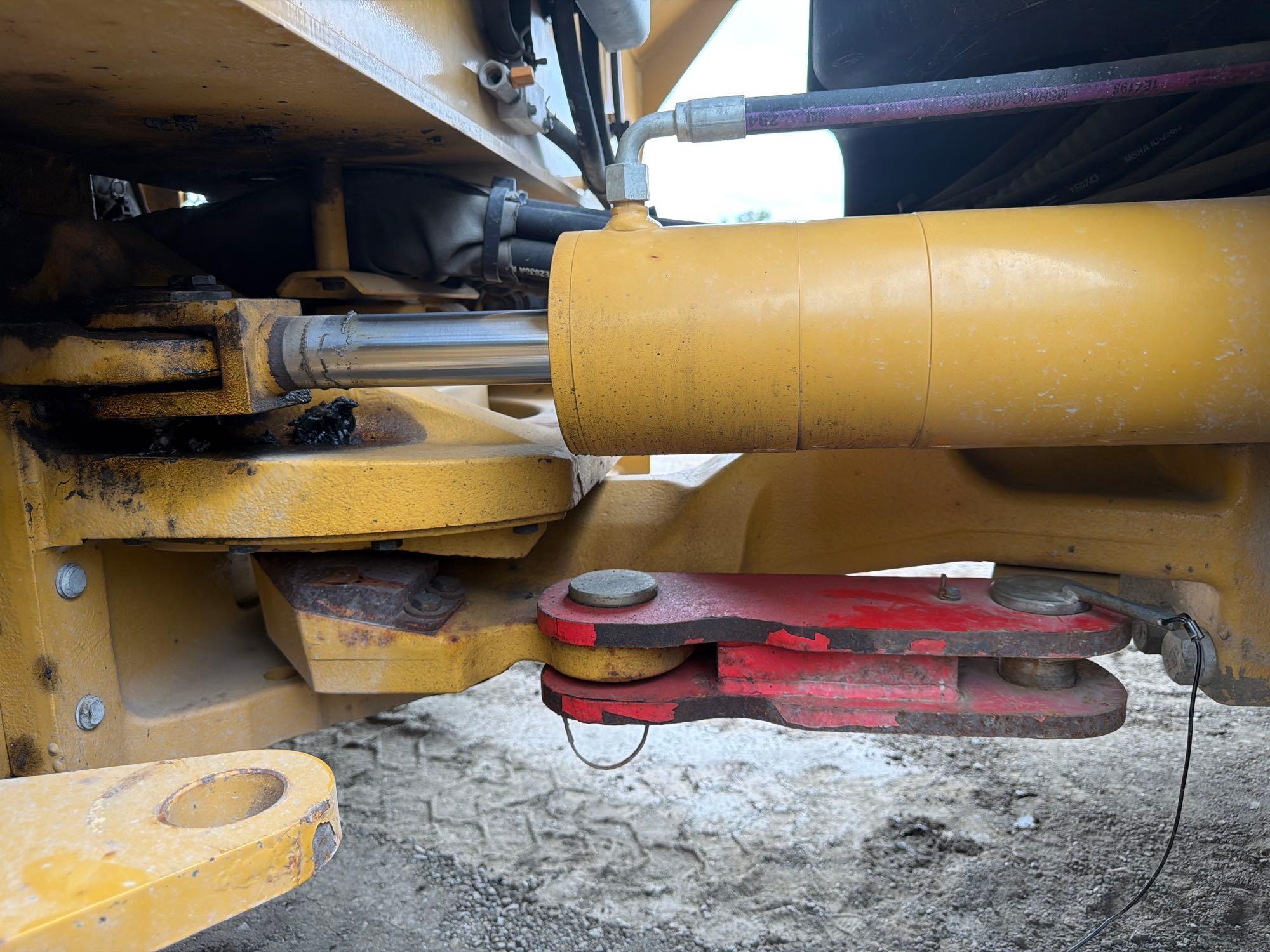

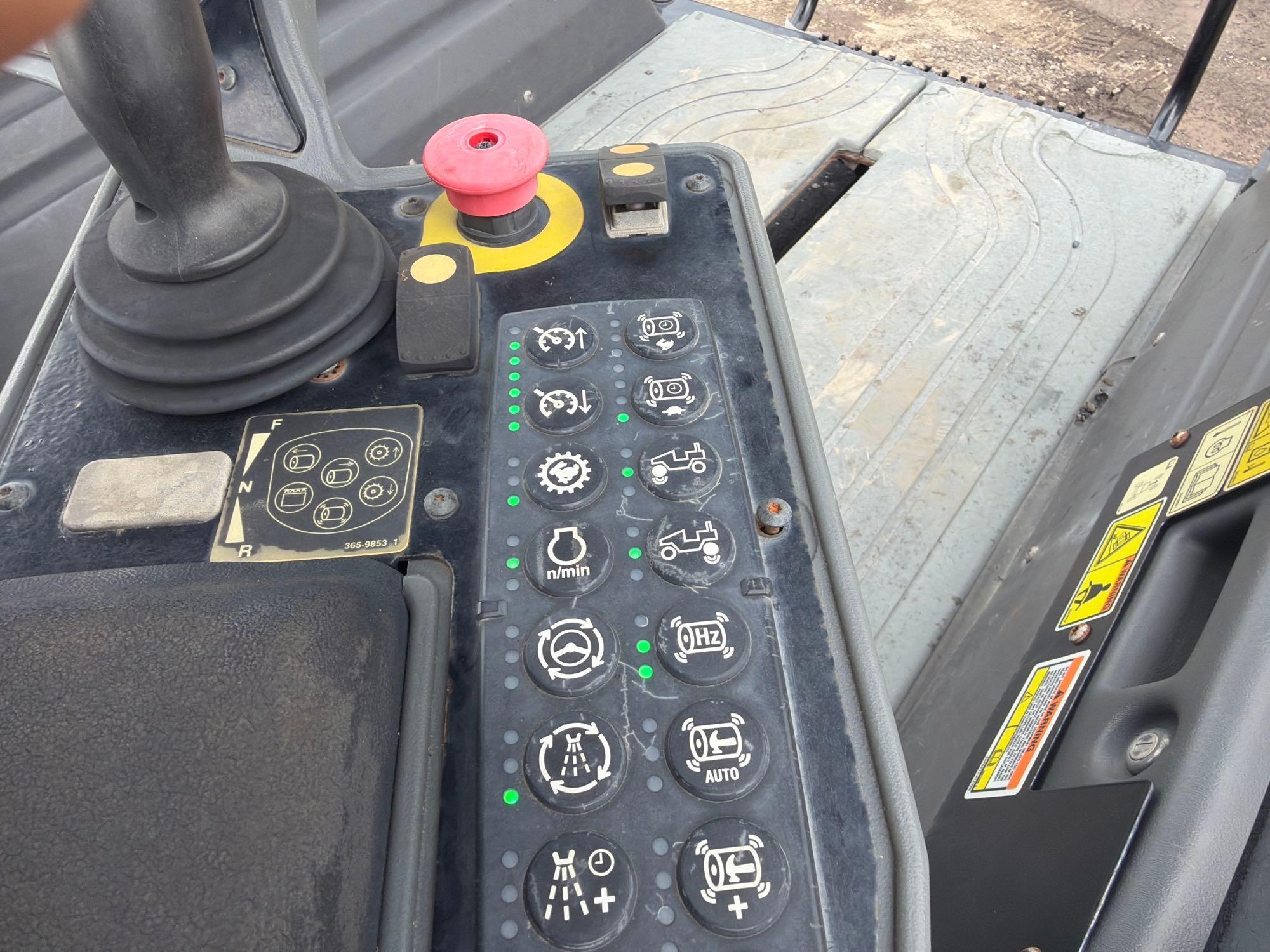

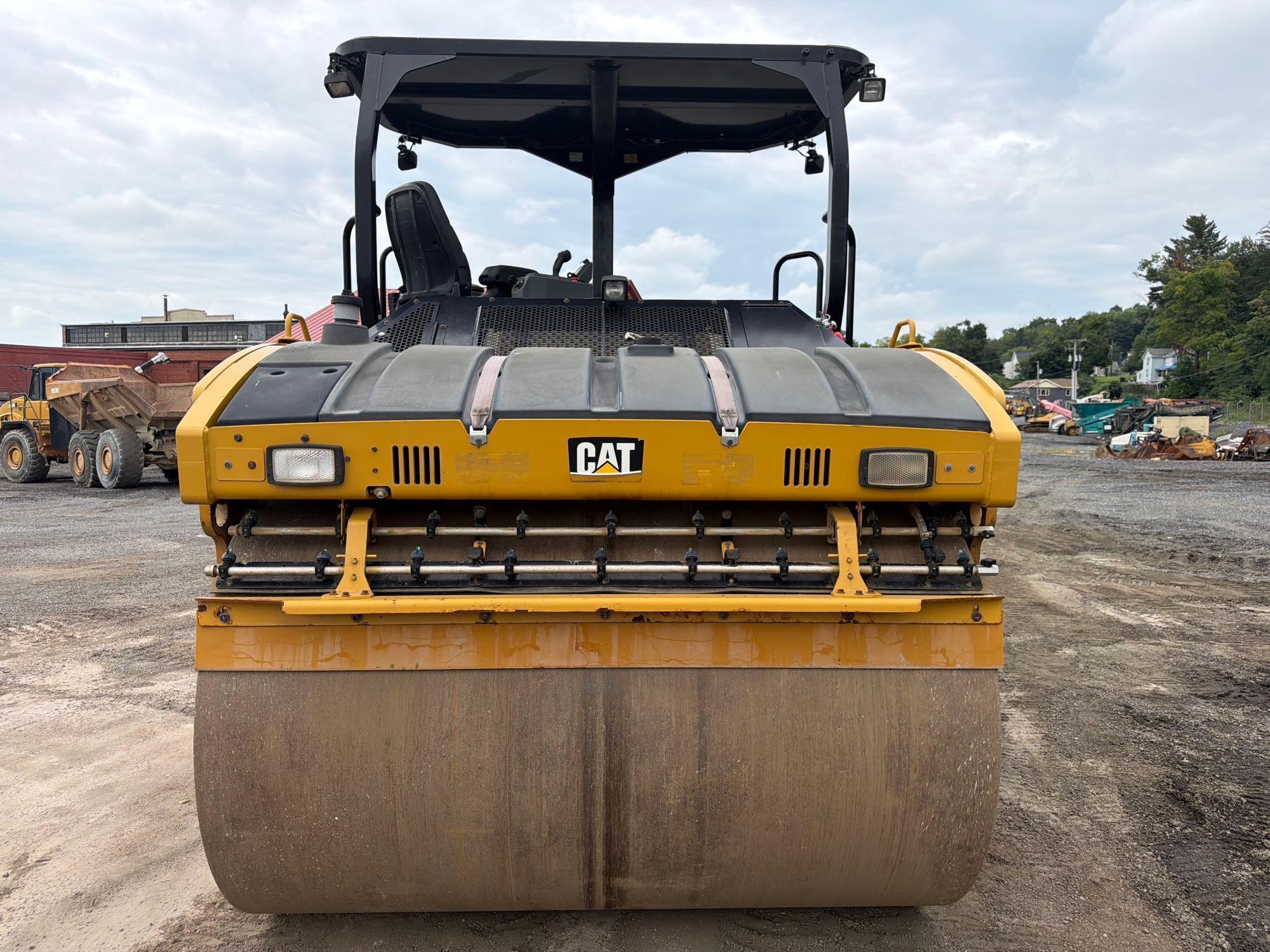

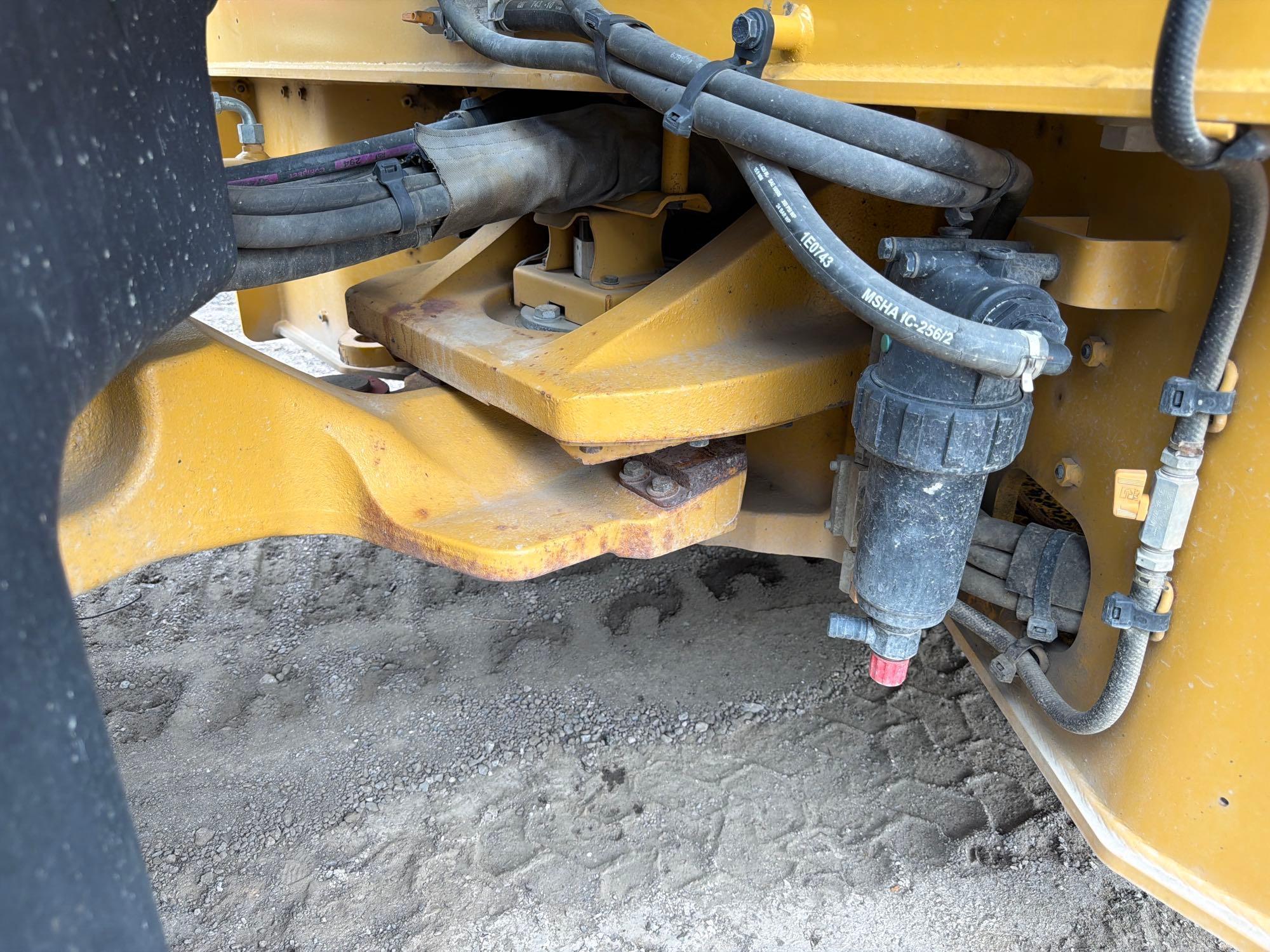

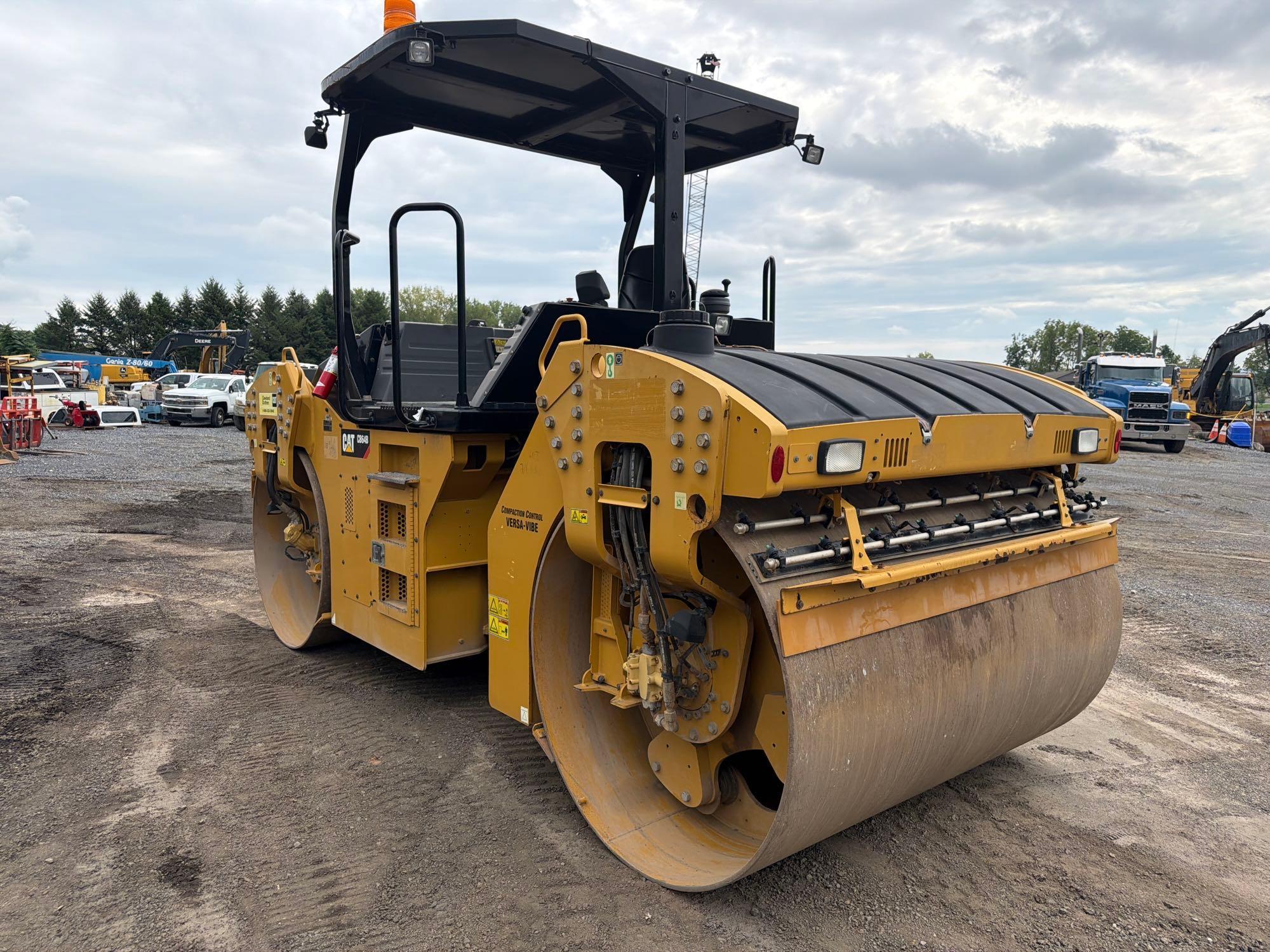

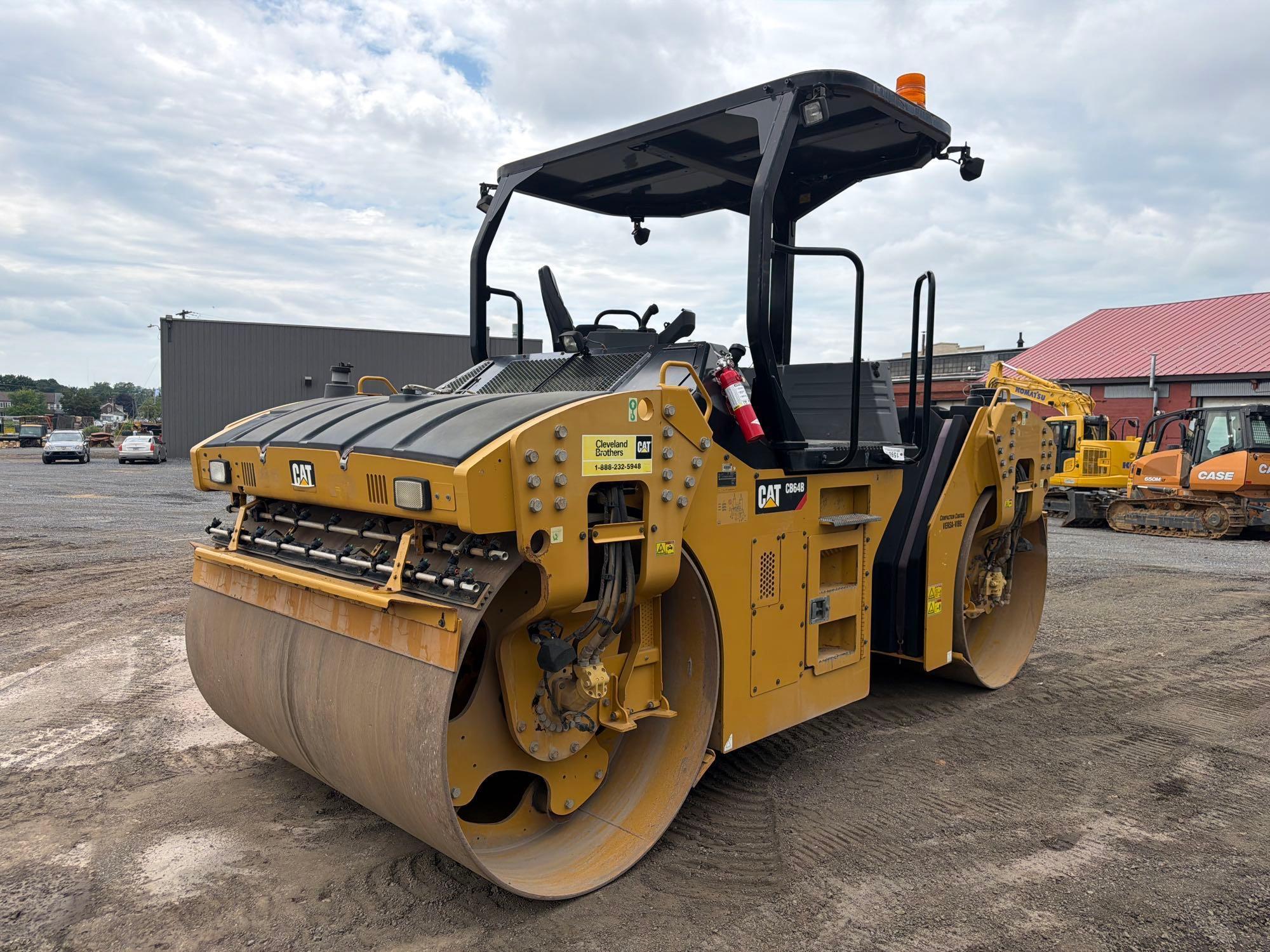

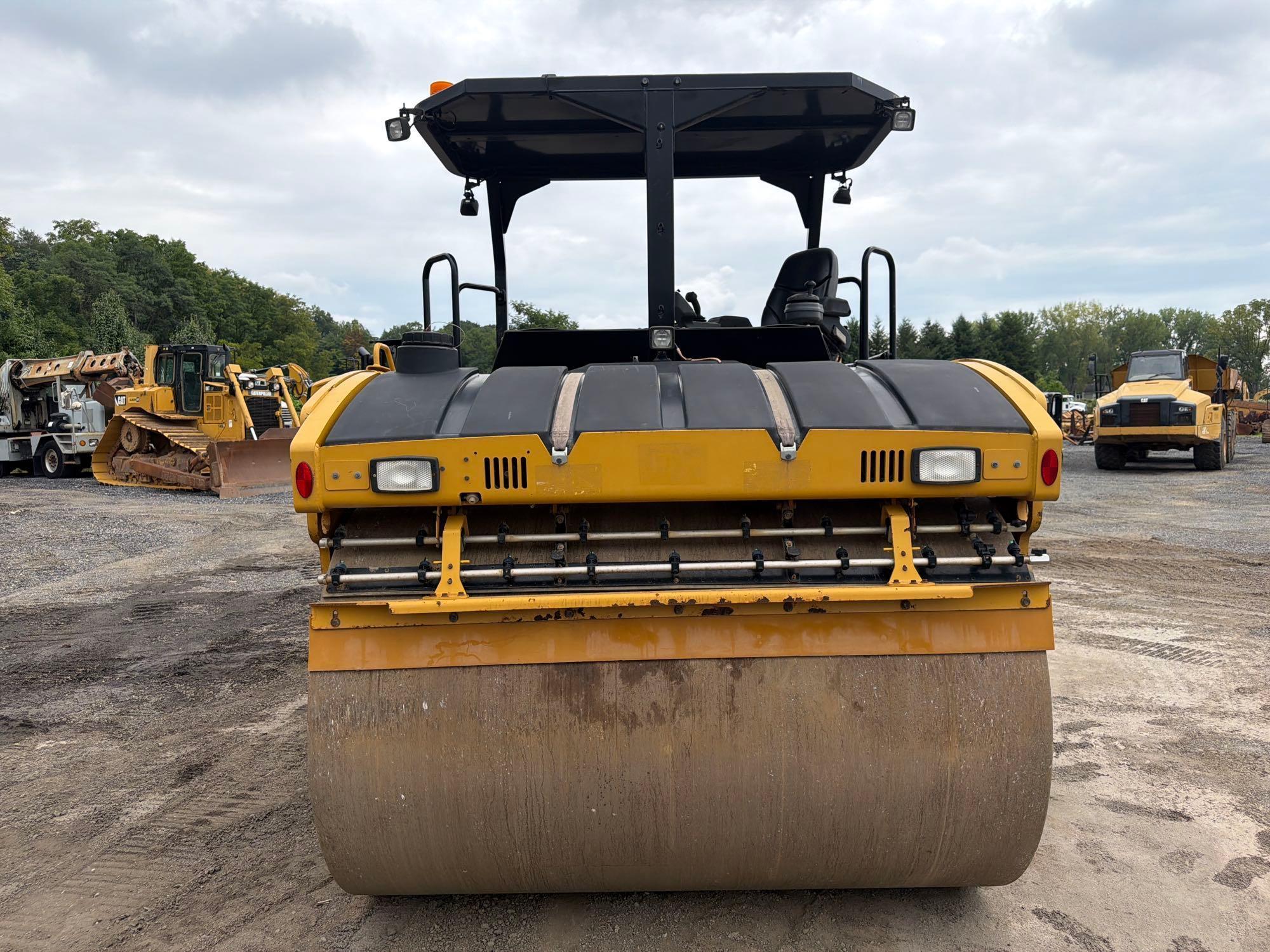

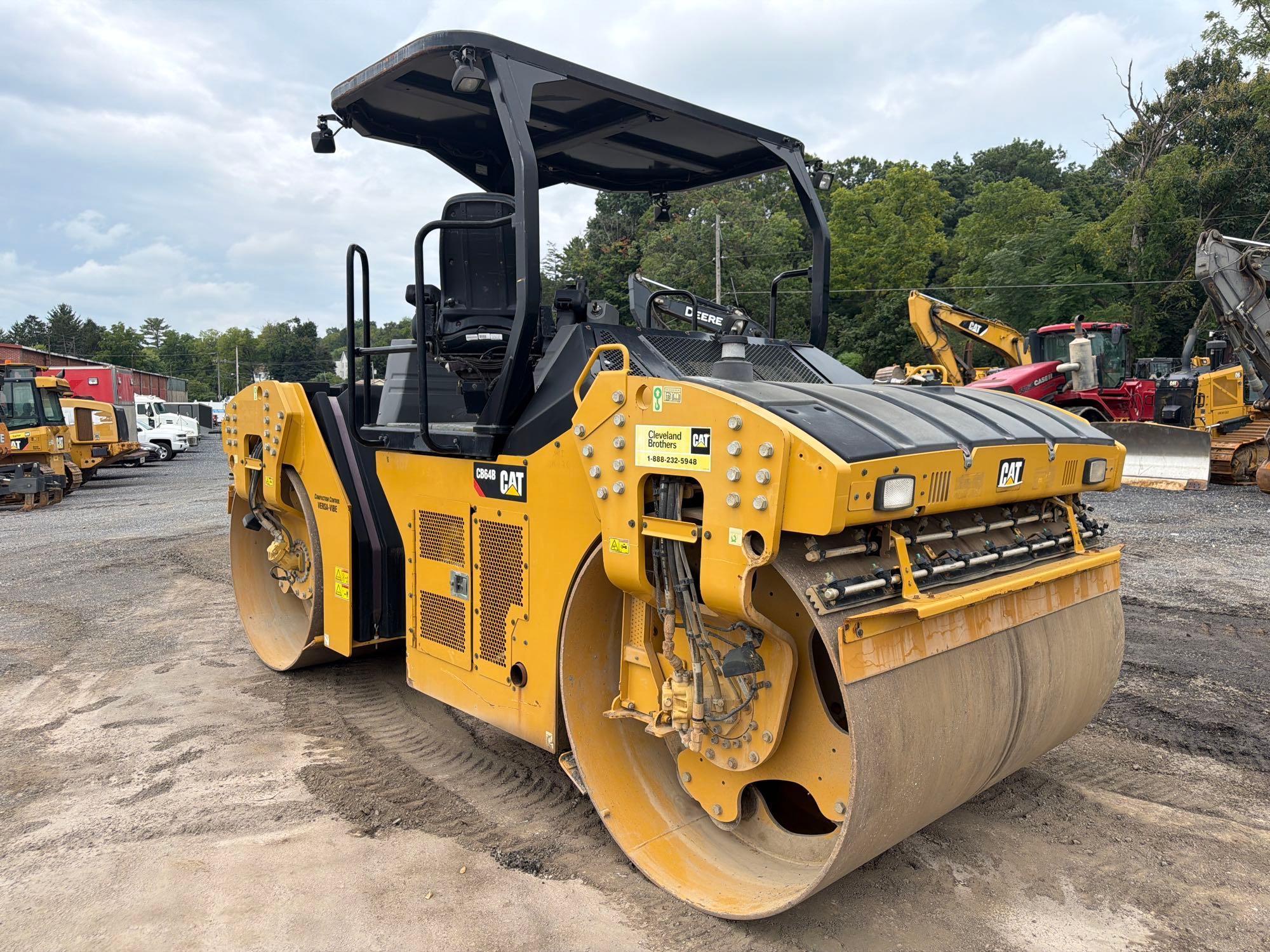

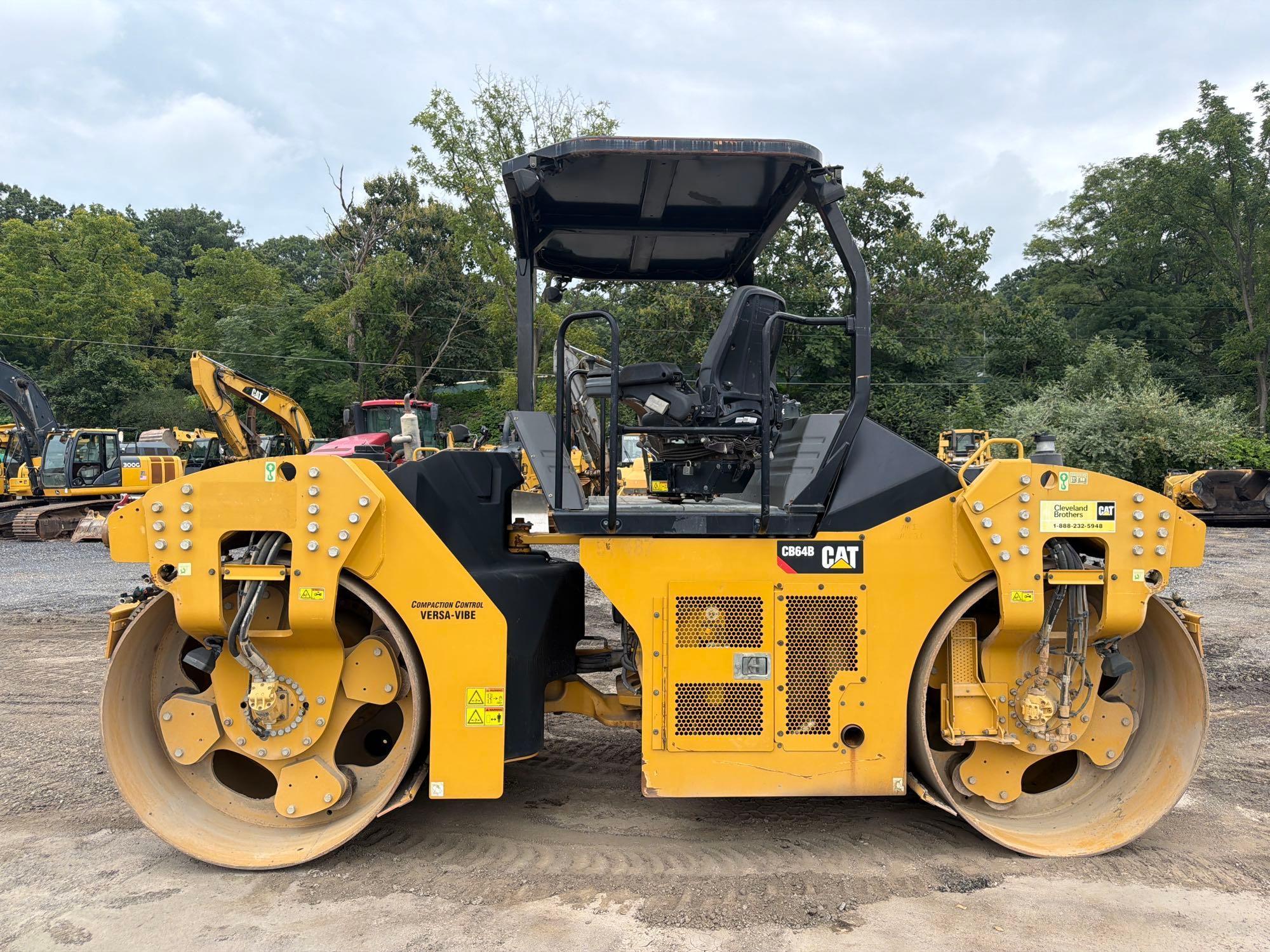

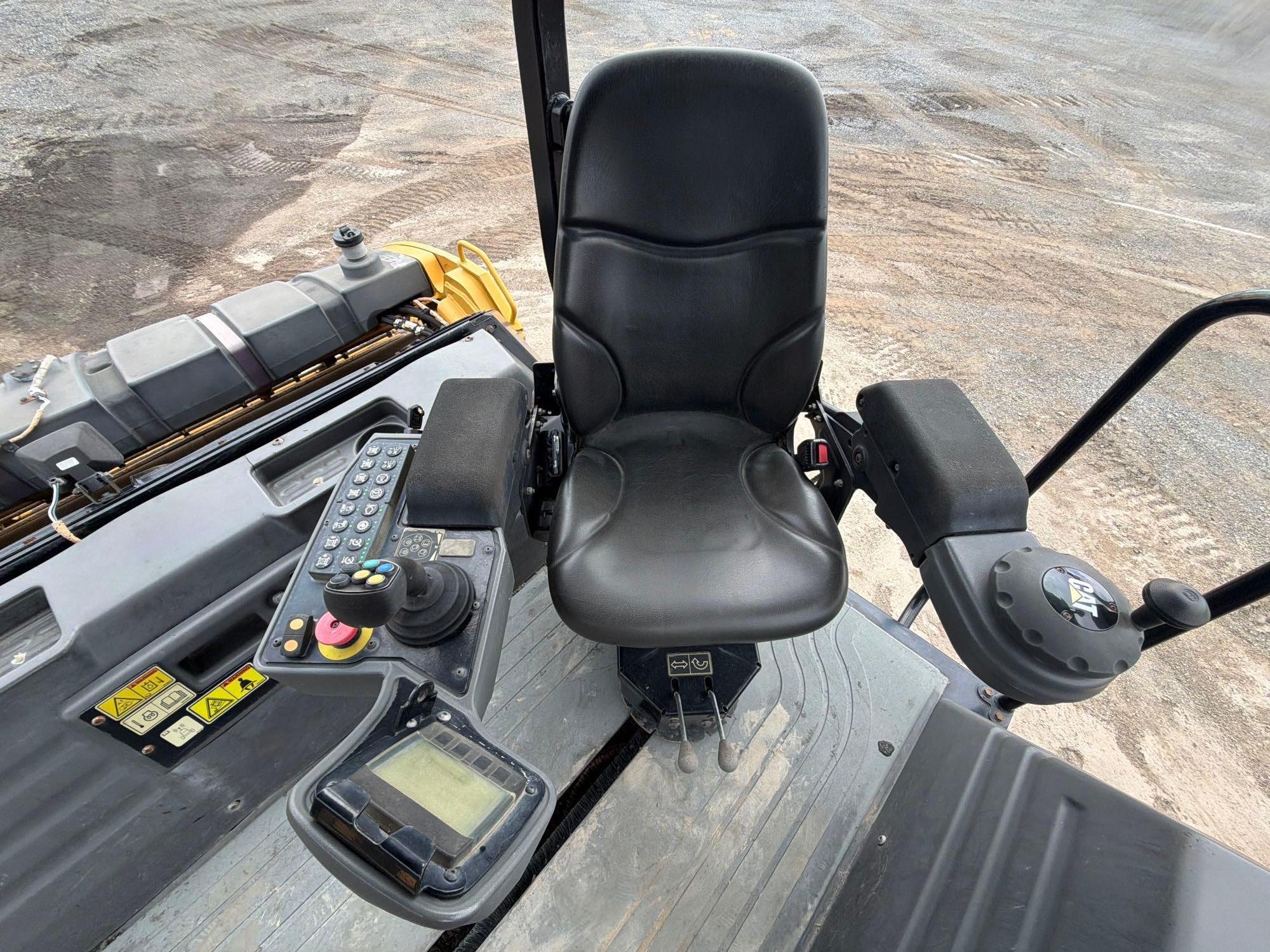

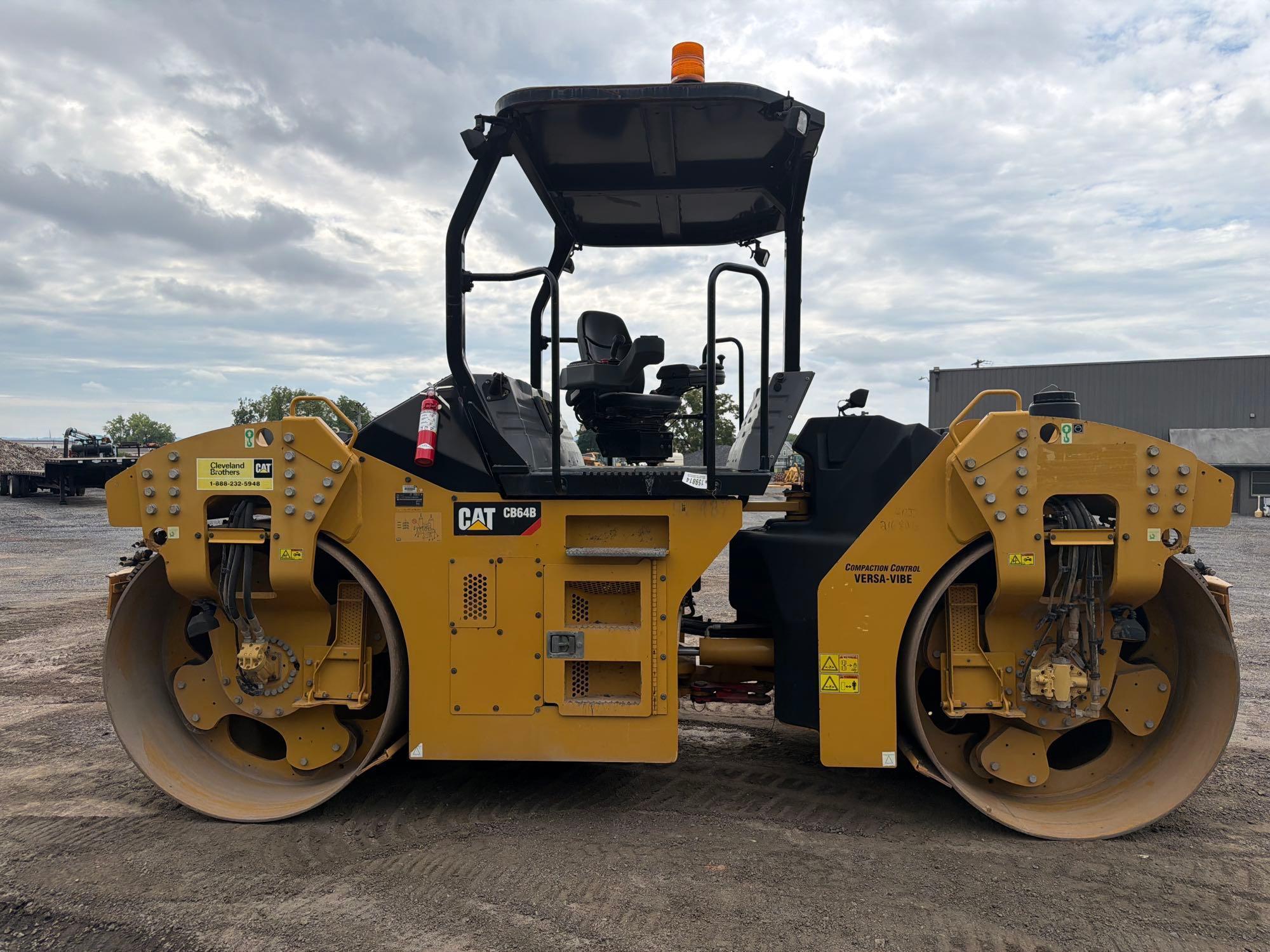

| Dimensions |
|
Height |
10 ft (3 m)
|
|
Height - With Rops/Fops |
120 in (305 cm)
|
|
Length |
16 ft (5 m)
|
|
Overall Length |
16 ft (5 m)
|
|
Overall Width |
8 ft (2 m)
|
|
Weight |
30,380 lbs (13,780 kg)
|
|
Wheel Base |
11 ft (3 m)
|
|
Width |
8 ft (2 m)
|

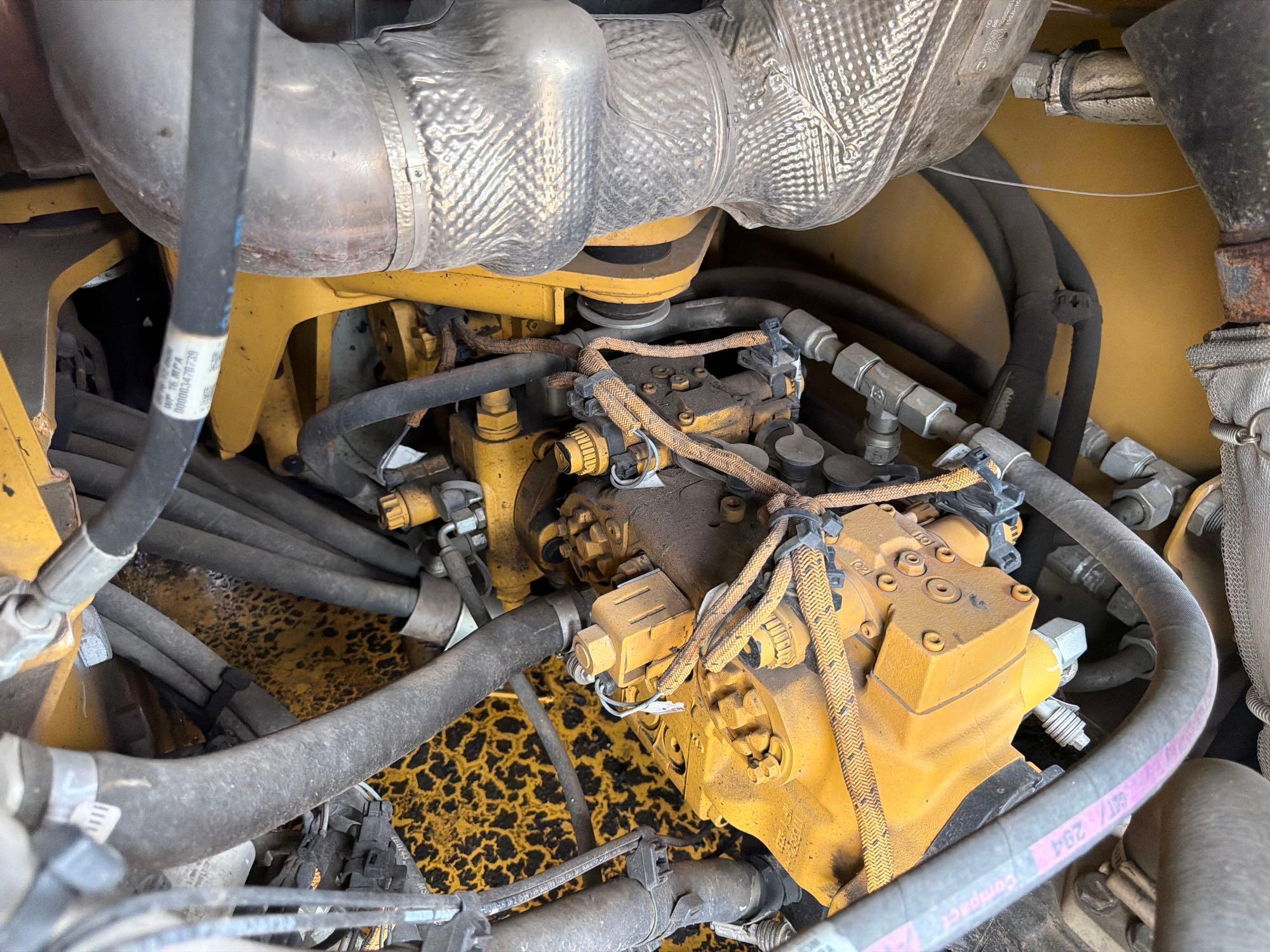

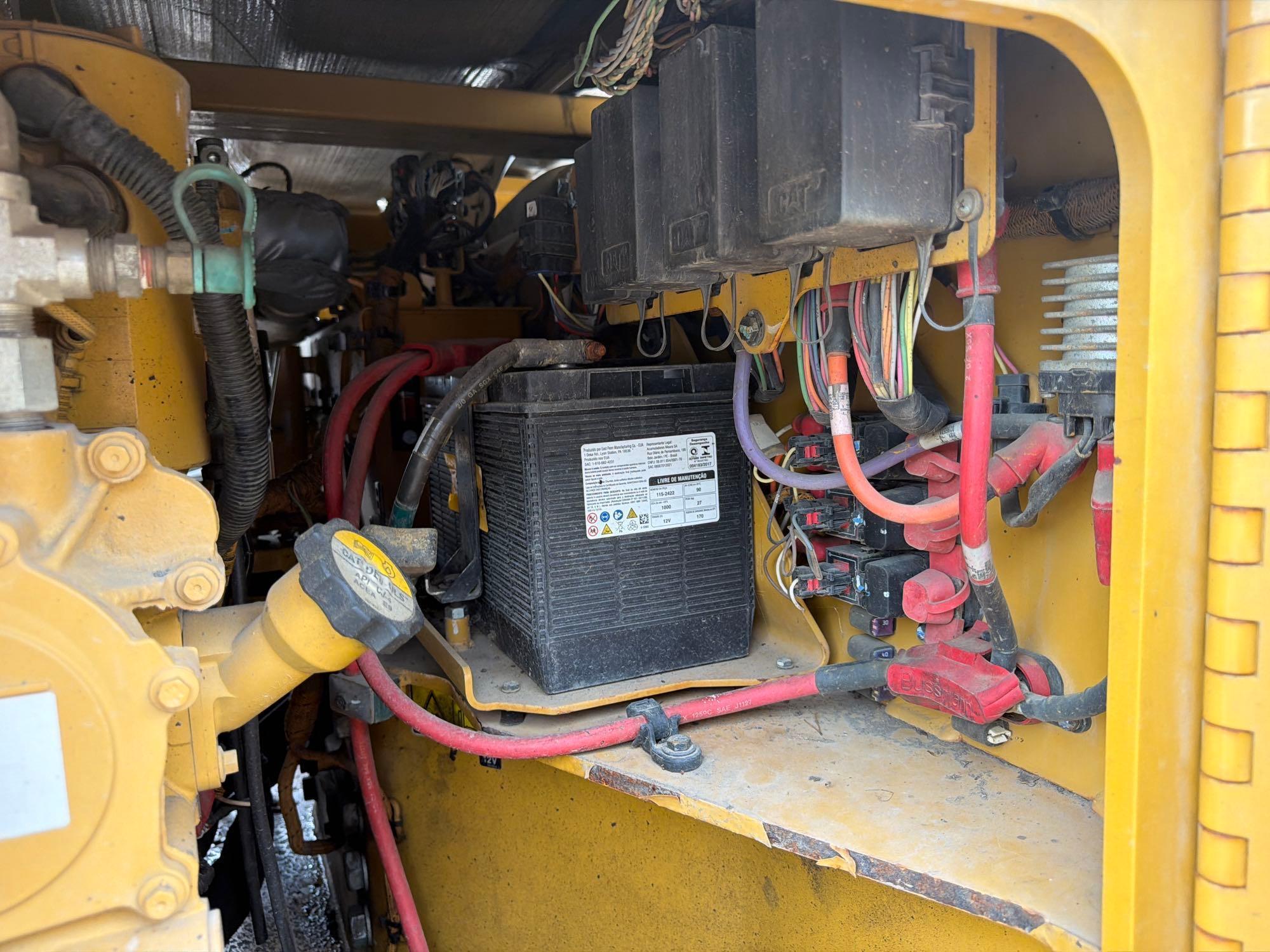

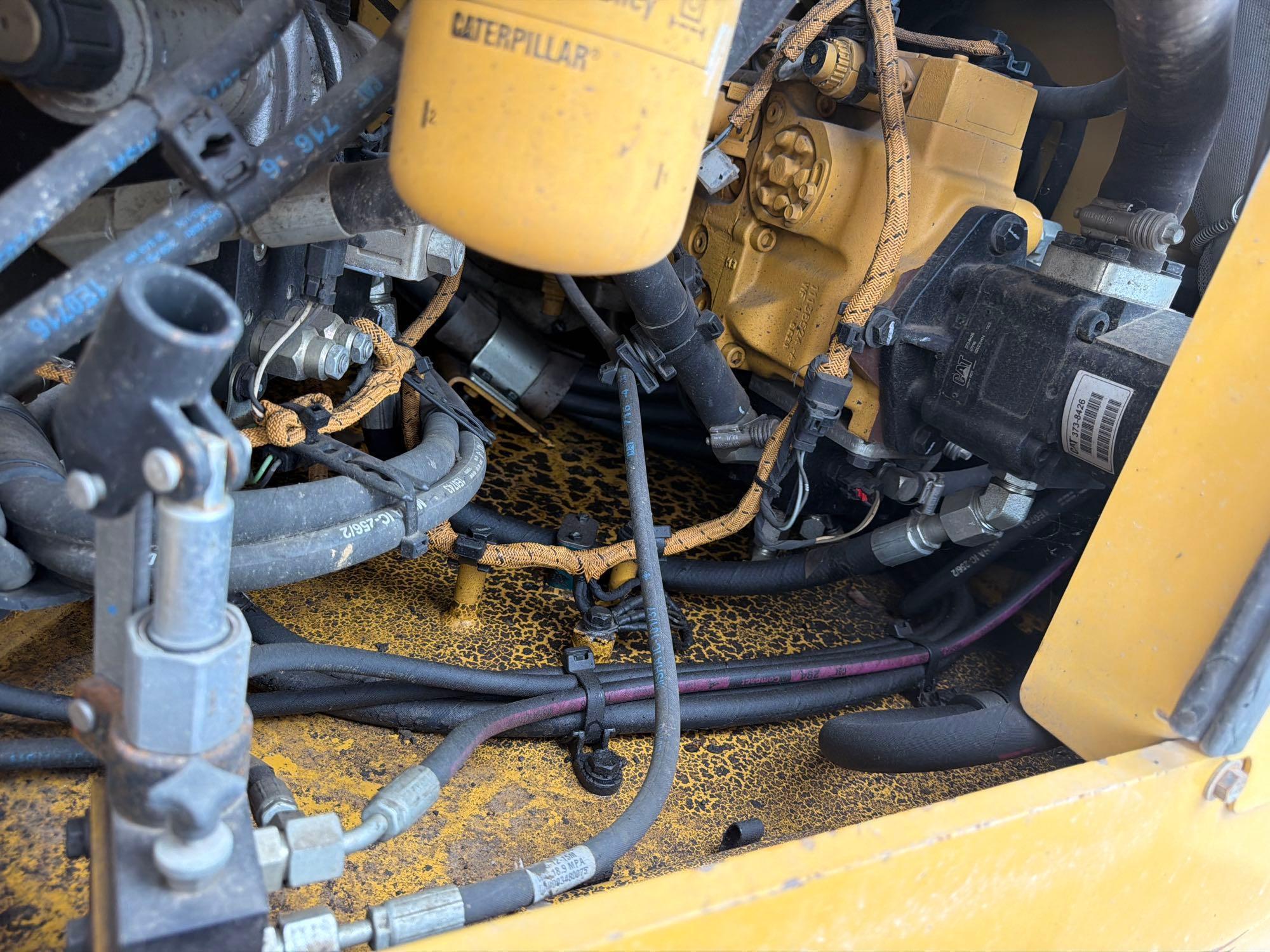

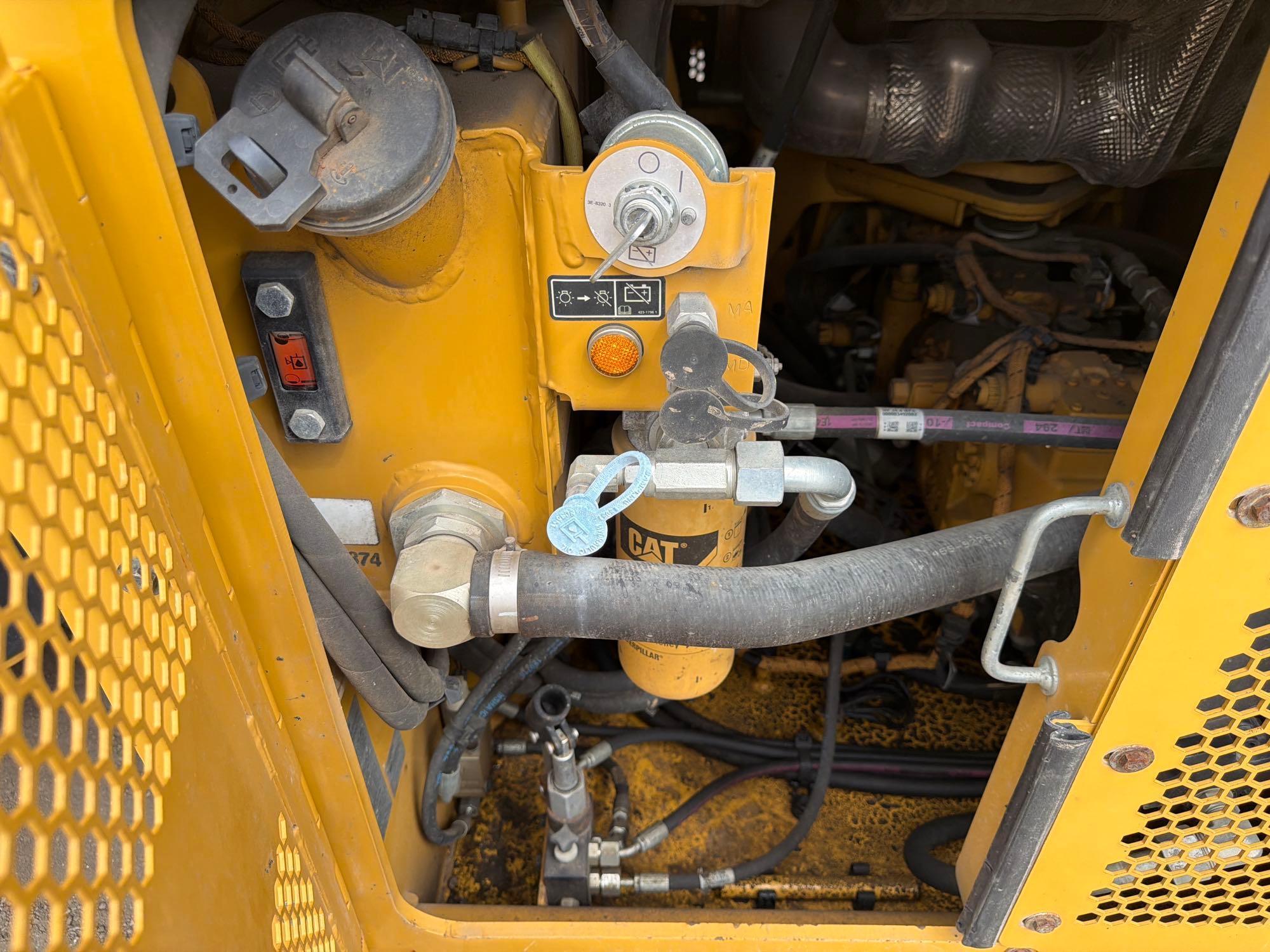

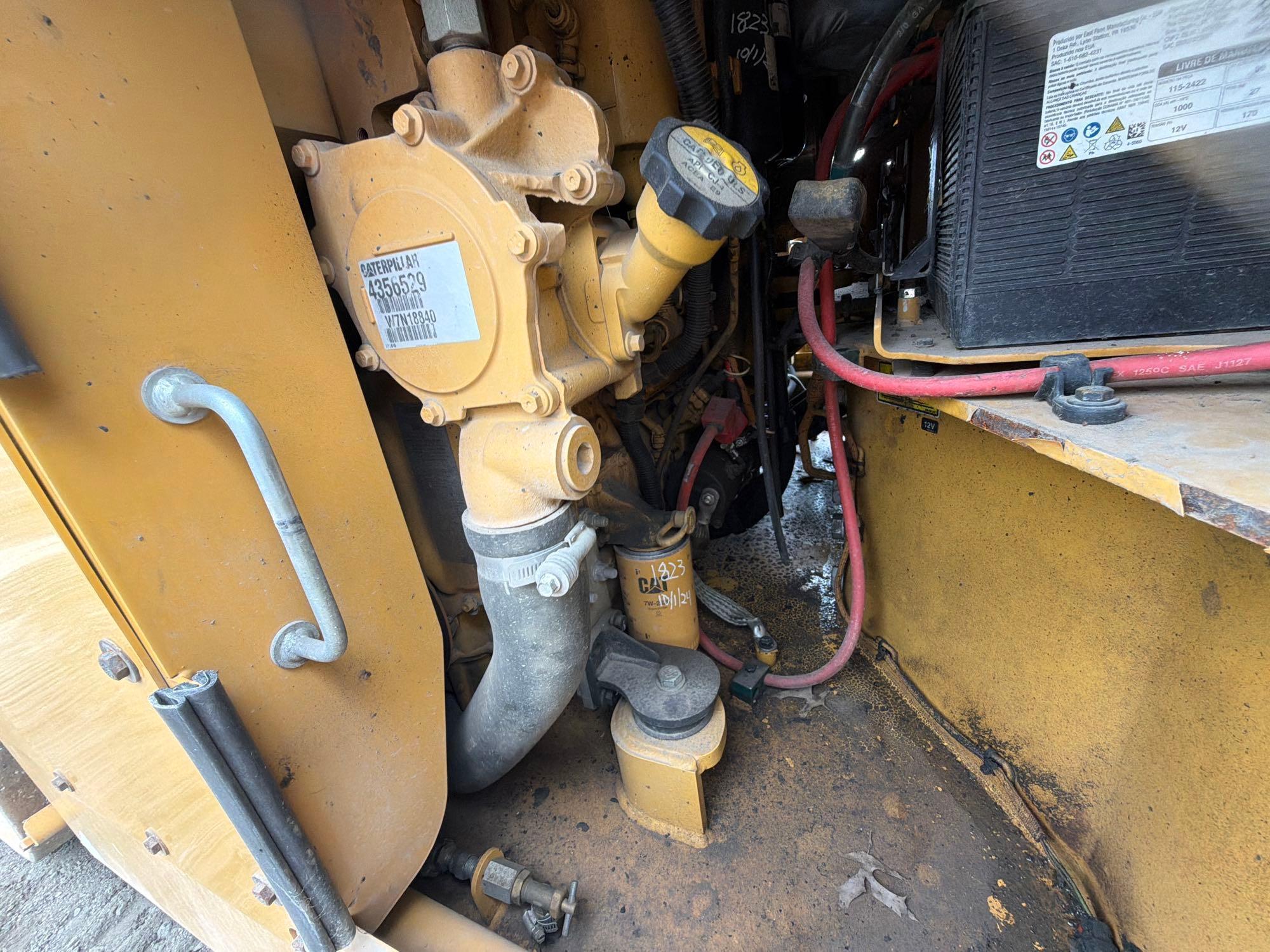

| Engine |
|
Engine Model |
Cat C4.4 with ACERT Technology |
|
Gross Power |
142 hp (106 kw)
|
| General Specifications |
|
Approximate Operating Weight (Since 2016)
|
26,455 lbs (12,000 kg)
|
|
Approximate Operating Weight (2017)
|
26,455 lbs (12,000 kg)
|
|
Approximate Operating Weight (2018)
|
26,455 lbs (12,000 kg)
|
|
Approximate Operating Weight (2019)
|
26,455 lbs (12,000 kg)
|
|
CATEGORY (Since 2018)
|
ASPHALT |
|
Displacement (Since 2016)
|
4 L (1 gal)
|
|
Displacement (2017)
|
4 L (1 gal)
|
|
Displacement (2018)
|
4 L (1 gal)
|
|
Displacement (2019)
|
4 L (1 gal)
|
|
Drive (Since 2016)
|
Hydraulic |
|
Drive (2017)
|
Hydraulic |
|
Drive (2018)
|
Hydraulic |
|
Drive (2019)
|
Hydraulic |
|

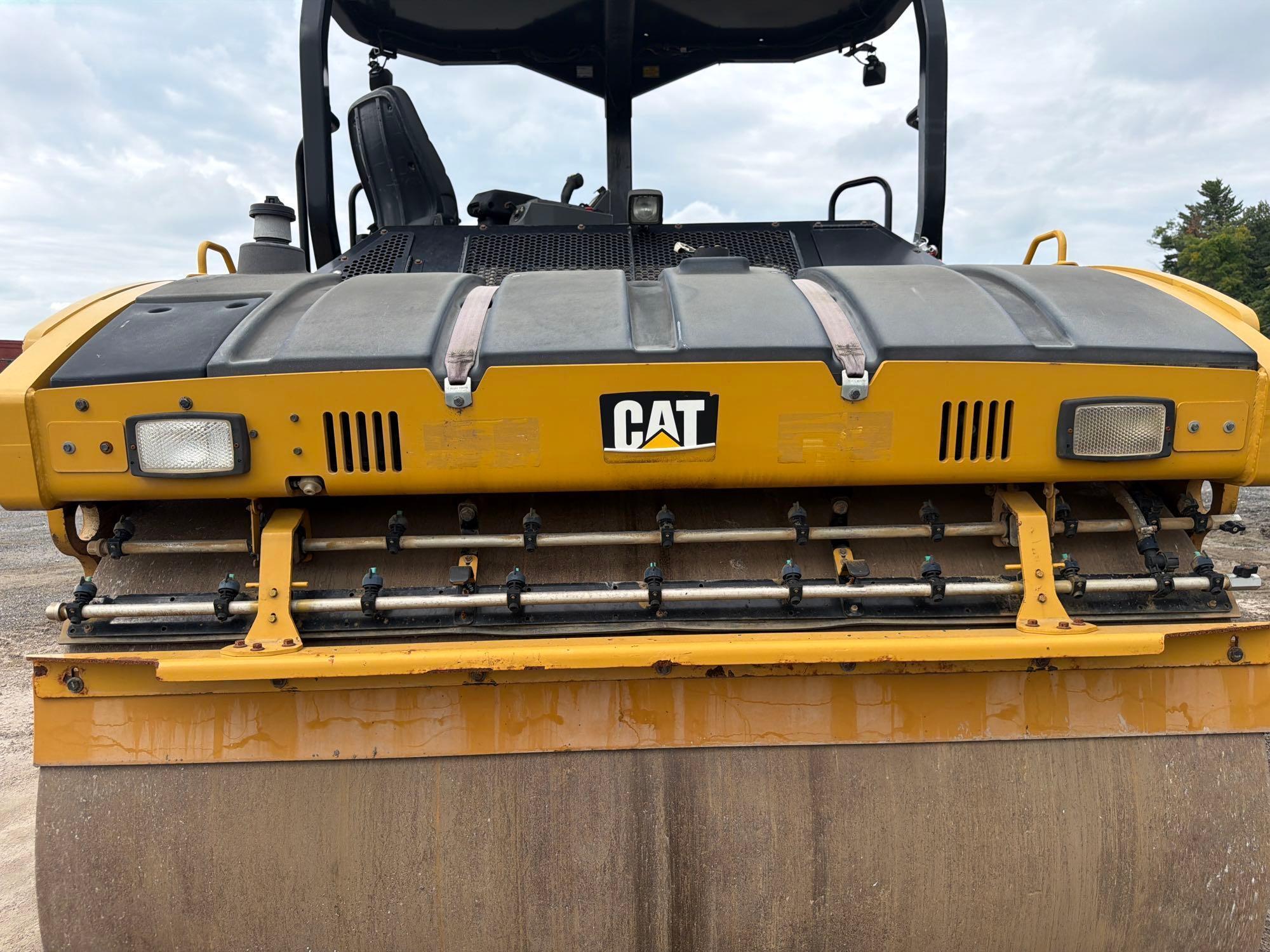

DRUM WIDTH (Since 2016)
|
79 in (201 cm)
|
|
DRUM WIDTH (2017)
|
79 in (201 cm)
|
|
DRUM WIDTH (2018)
|
79 in (201 cm)
|
|
Emission Standards (Since 2016)
|
Tier 4 Final/Stage IV |
|
Emission Standards (2017)
|
Tier 4 Final/Stage IV |
|
Emission Standards (2018)
|
Tier 4 Final/Stage IV |
|
Emission Standards (2019)
|
Tier 4 Final/Stage IV |
|
Engine Model (Since 2016)
|
C4.4 ACERT |
|
Engine Model (2017)
|
C4.4 ACERT |
|
Engine Model (2018)
|
C4.4 ACERT |
|
Engine Model (2019)
|
C4.4 ACERT |
|
ENGINE TYPE (Since 2016)
|
Cat |
|
ENGINE TYPE (2017)
|
Cat |
|
ENGINE TYPE (2018)
|
Cat |
|
FREQUENCY HZ (Since 2016)
|
42/63.3 |
|
FREQUENCY HZ (2017)
|
42/63.3 |
|
FREQUENCY HZ (2018)
|
42/63.3 |
|
General Dimensions - Curb Clearance (Since 2016)
|
29 in (72 cm)
|
|
General Dimensions - Curb Clearance (2017)
|
29 in (72 cm)
|
|
General Dimensions - Curb Clearance (2018)
|
29 in (72 cm)
|
|
General Dimensions - Curb Clearance (2019)
|
29 in (72 cm)
|
|

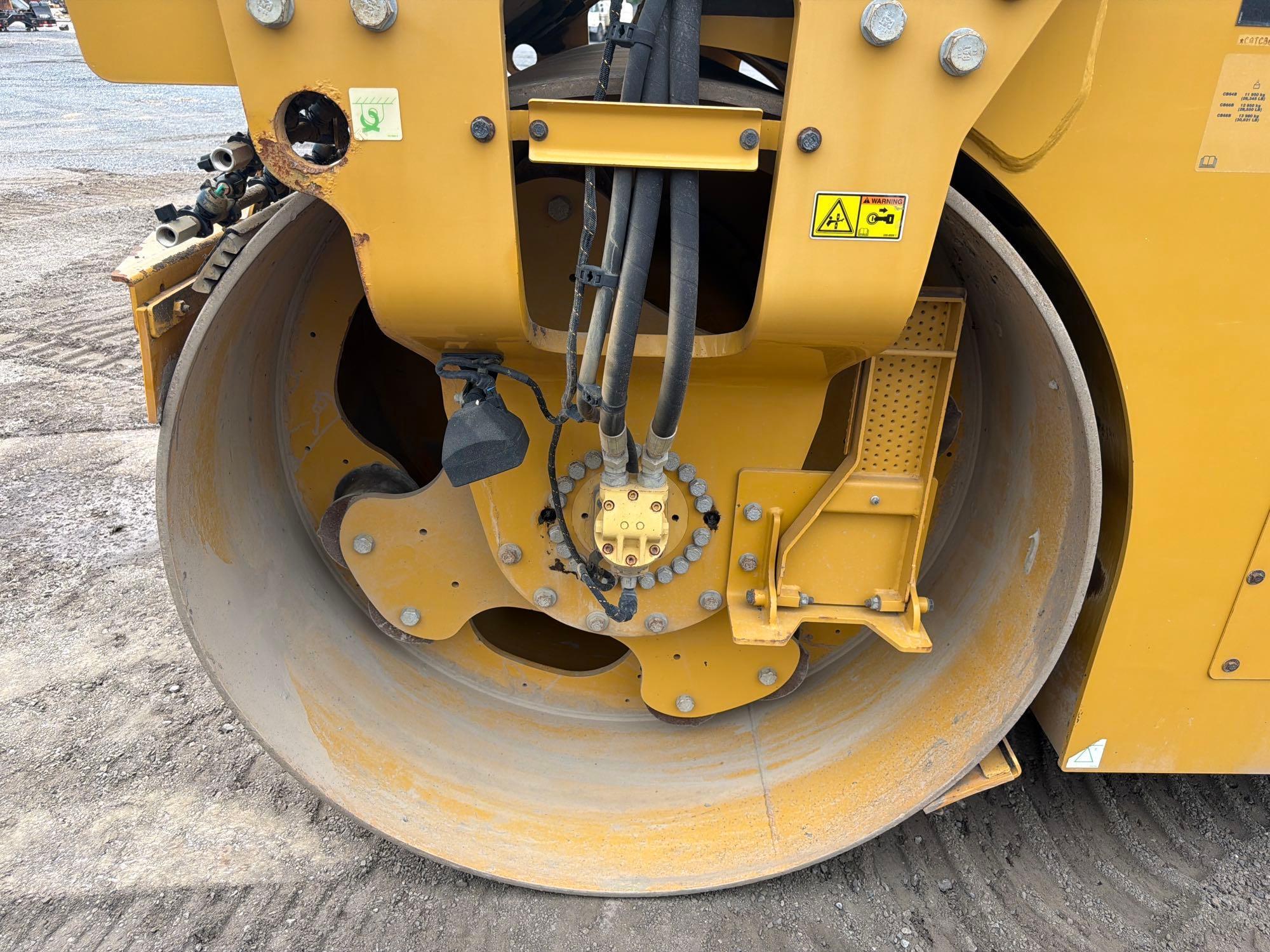

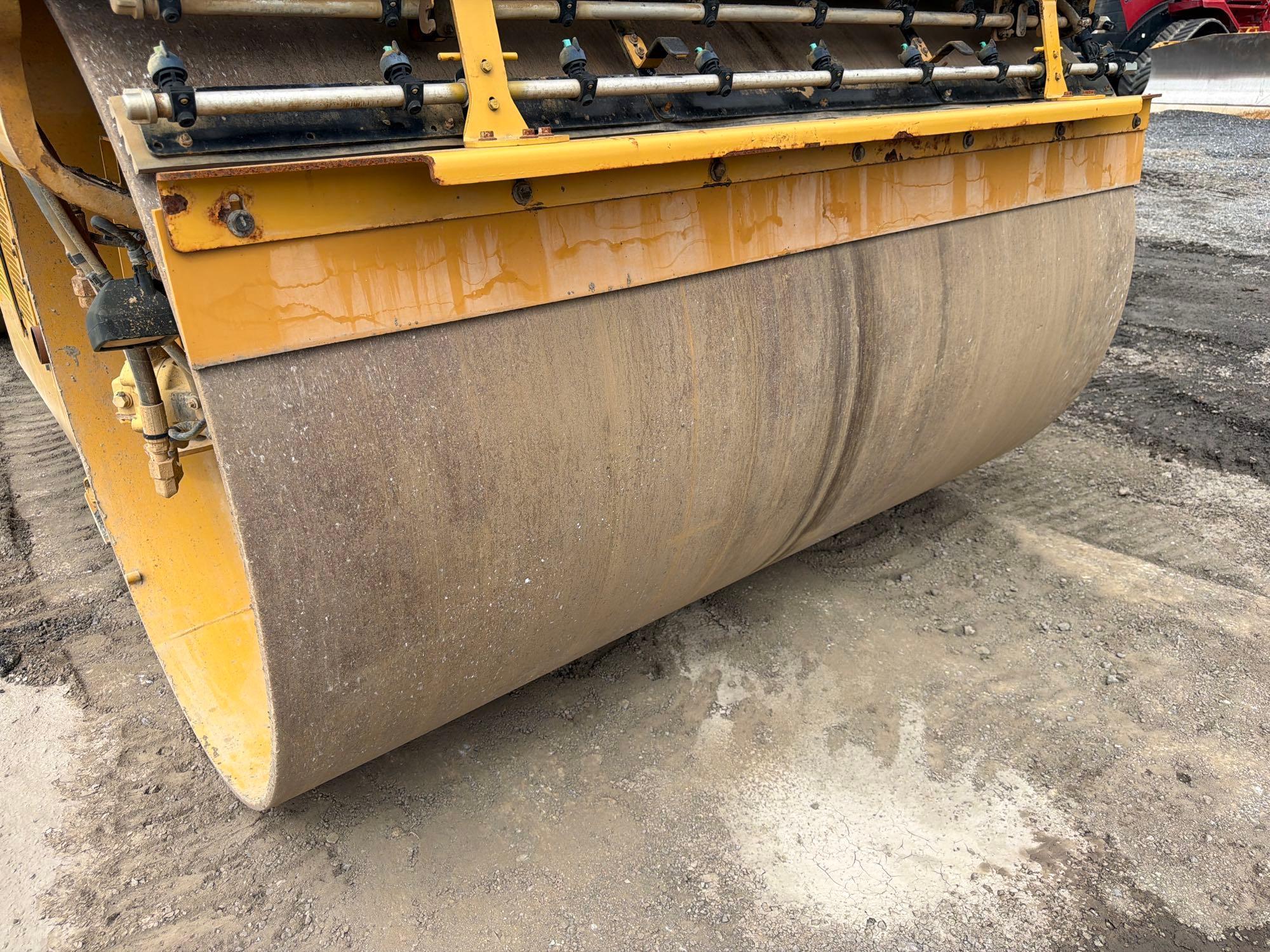

General Dimensions - Drum Diameter (Since 2016)
|
51 in (130 cm)
|
|
General Dimensions - Drum Diameter (2017)
|
51 in (130 cm)
|
|
General Dimensions - Drum Diameter (2018)
|
51 in (130 cm)
|
|
General Dimensions - Drum Diameter (2019)
|
51 in (130 cm)
|
|
General Dimensions - Drum Width (Since 2016)
|
79 in (201 cm)
|
|
General Dimensions - Drum Width (2017)
|
79 in (201 cm)
|
|
General Dimensions - Drum Width (2018)
|
79 in (201 cm)
|
|
General Dimensions - Drum Width (2019)
|
79 in (201 cm)
|
|
General Dimensions - Ground Clearance (Since 2016)
|
12 in (29 cm)
|
|
General Dimensions - Ground Clearance (2017)
|
12 in (29 cm)
|
|
General Dimensions - Ground Clearance (2018)
|
12 in (29 cm)
|
|
General Dimensions - Ground Clearance (2019)
|
12 in (29 cm)
|
|
General Dimensions - Overall Height (ROPS) (Since 2016)
|
120 in (305 cm)
|
|
General Dimensions - Overall Height (ROPS) (2017)
|
120 in (305 cm)
|
|
General Dimensions - Overall Height (ROPS) (2018)
|
120 in (305 cm)
|
|
General Dimensions - Overall Height (ROPS) (2019)
|
120 in (305 cm)
|
|
General Dimensions - Overall Length (Since 2016)
|
181 in (460 cm)
|
|
General Dimensions - Overall Length (2017)
|
181 in (460 cm)
|
|
General Dimensions - Overall Length (2018)
|
181 in (460 cm)
|
|
General Dimensions - Overall Length (2019)
|
181 in (460 cm)
|
|
General Dimensions - Overall Width (Since 2016)
|
92 in (234 cm)
|
|
General Dimensions - Overall Width (2017)
|
92 in (234 cm)
|
|
General Dimensions - Overall Width (2018)
|
92 in (234 cm)
|
|
General Dimensions - Overall Width (2019)
|
92 in (234 cm)
|
|
General Dimensions - Wheelbase (Since 2016)
|
136 in (345 cm)
|
|
General Dimensions - Wheelbase (2017)
|
136 in (345 cm)
|
|
General Dimensions - Wheelbase (2018)
|
136 in (345 cm)
|
|
General Dimensions - Wheelbase (2019)
|
136 in (345 cm)
|
|
Gross Power (Since 2016)
|
142 hp (106 kw)
|
|
Gross Power (2017)
|
142 hp (106 kw)
|
|
Gross Power (2018)
|
142 hp (106 kw)
|
|
Gross Power (2019)
|
142 hp (106 kw)
|
|
INSIDE TURN RADIUS (Since 2016)
|
170 in (432 cm)
|
|
INSIDE TURN RADIUS (2017)
|
170 in (432 cm)
|
|
INSIDE TURN RADIUS (2018)
|
170 in (432 cm)
|
|
Max. Speed (For./Rev.) (Since 2016)
|
8 mph (13 kph)
|
|
Max. Speed (For./Rev.) (2017)
|
8 mph (13 kph)
|
|
Max. Speed (For./Rev.) (2018)
|
8 mph (13 kph)
|
|
Max. Speed (For./Rev.) (2019)
|
8 mph (13 kph)
|
|
MODEL (Since 2016)
|
CB64B |
|
MODEL (2017)
|
CB64B |
|
MODEL (2018)
|
CB64B |
|
No. Cylinders (Since 2016)
|
4 |
|
No. Cylinders (2017)
|
4 |
|
No. Cylinders (2018)
|
4 |
|
No. Cylinders (2019)
|
4 |
|

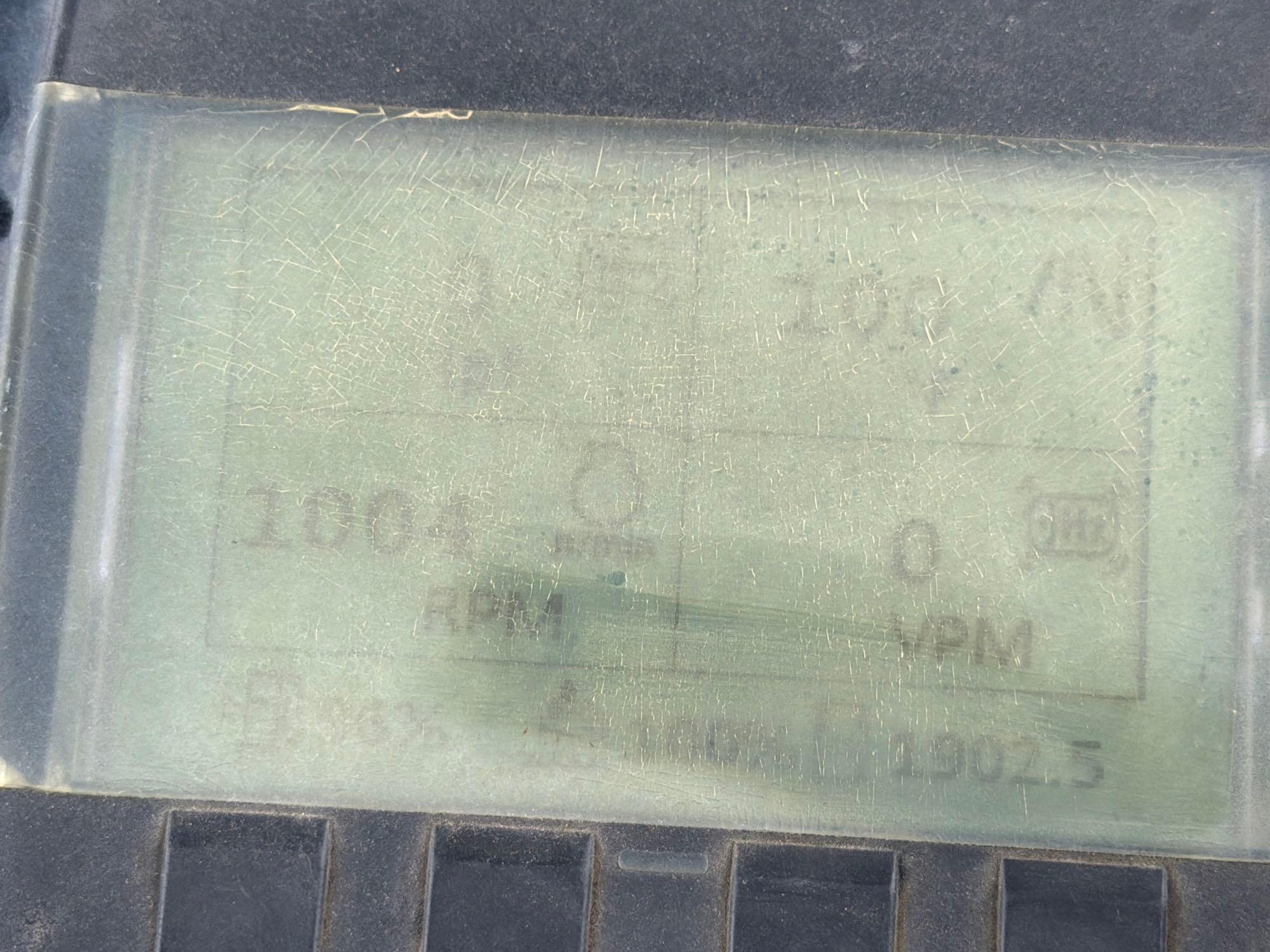

Rated Engine RPM (Since 2016)
|
2,200 rpm |
|
Rated Engine RPM (2017)
|
2,200 rpm |
|
Rated Engine RPM (2018)
|
2,200 rpm |
|
Rated Engine RPM (2019)
|
2,200 rpm |
|
Service Refill Capacities - Crankcase (Since 2016)
|
2 US gal (8 L)
|
|
Service Refill Capacities - Crankcase (2017)
|
2 US gal (8 L)
|
|
Service Refill Capacities - Crankcase (2018)
|
2 US gal (8 L)
|
|
Service Refill Capacities - Crankcase (2019)
|
2 US gal (8 L)
|
|
Service Refill Capacities - Diesel Exhaust Fluid Refill Capacity (Since 2017)
|
5 US gal (19 L)
|
|
Service Refill Capacities - Diesel Exhaust Fluid Refill Capacity (2018)
|
5 US gal (19 L)
|
|
Service Refill Capacities - Diesel Exhaust Fluid Refill Capacity (2019)
|
5 US gal (19 L)
|
|
Service Refill Capacities - Fuel Tank (Since 2016)
|
66 US gal (250 L)
|
|
Service Refill Capacities - Fuel Tank (2017)
|
66 US gal (250 L)
|
|
Service Refill Capacities - Fuel Tank (2018)
|
66 US gal (250 L)
|
|
Service Refill Capacities - Fuel Tank (2019)
|
66 US gal (250 L)
|
|
Service Refill Capacities - Hydraulic Tank (Since 2016)
|
10 US gal (36 L)
|
|
Service Refill Capacities - Hydraulic Tank (2017)
|
10 US gal (36 L)
|
|
Service Refill Capacities - Hydraulic Tank (2018)
|
10 US gal (36 L)
|
|
Service Refill Capacities - Hydraulic Tank (2019)
|
10 US gal (36 L)
|
|

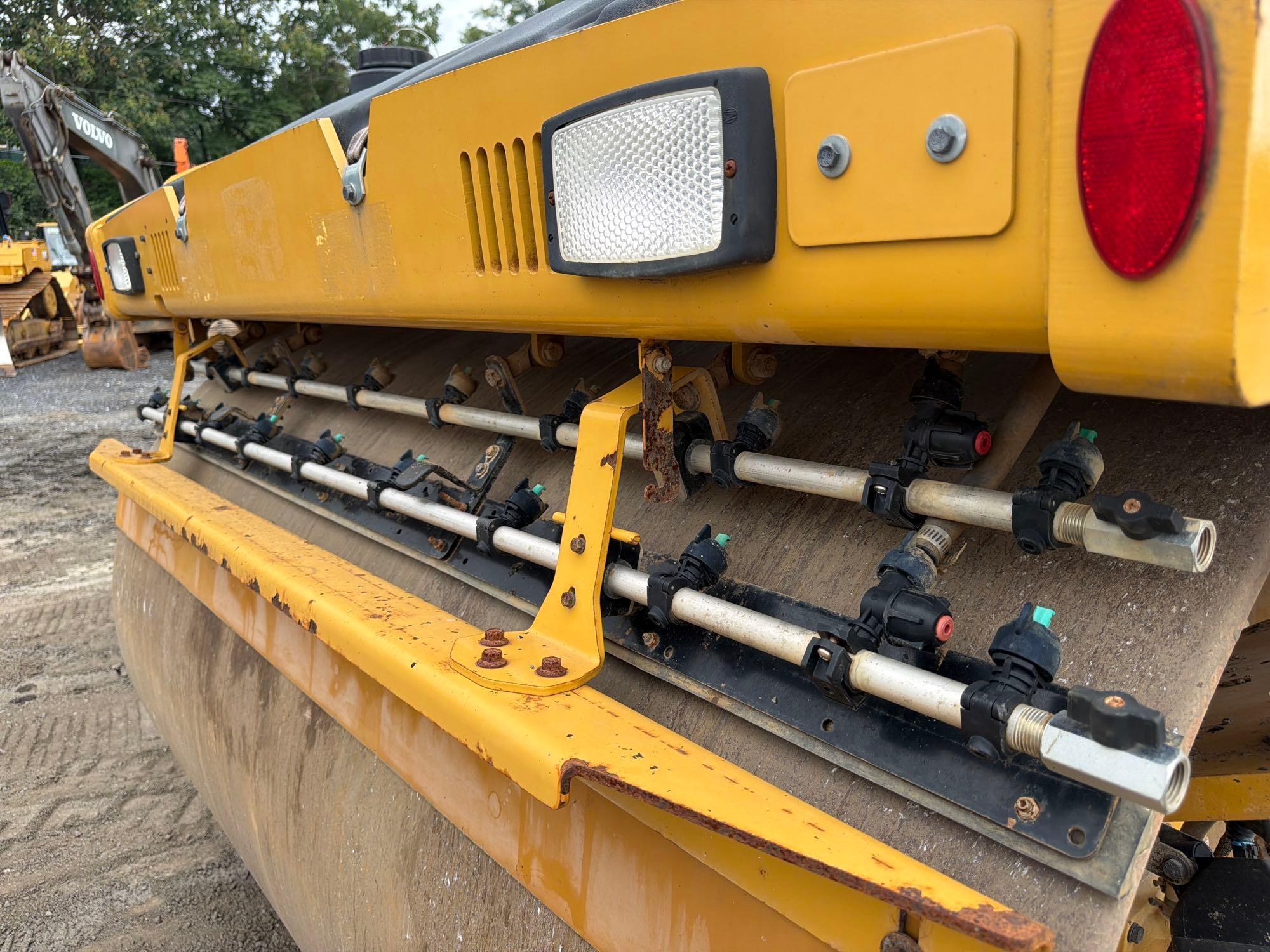

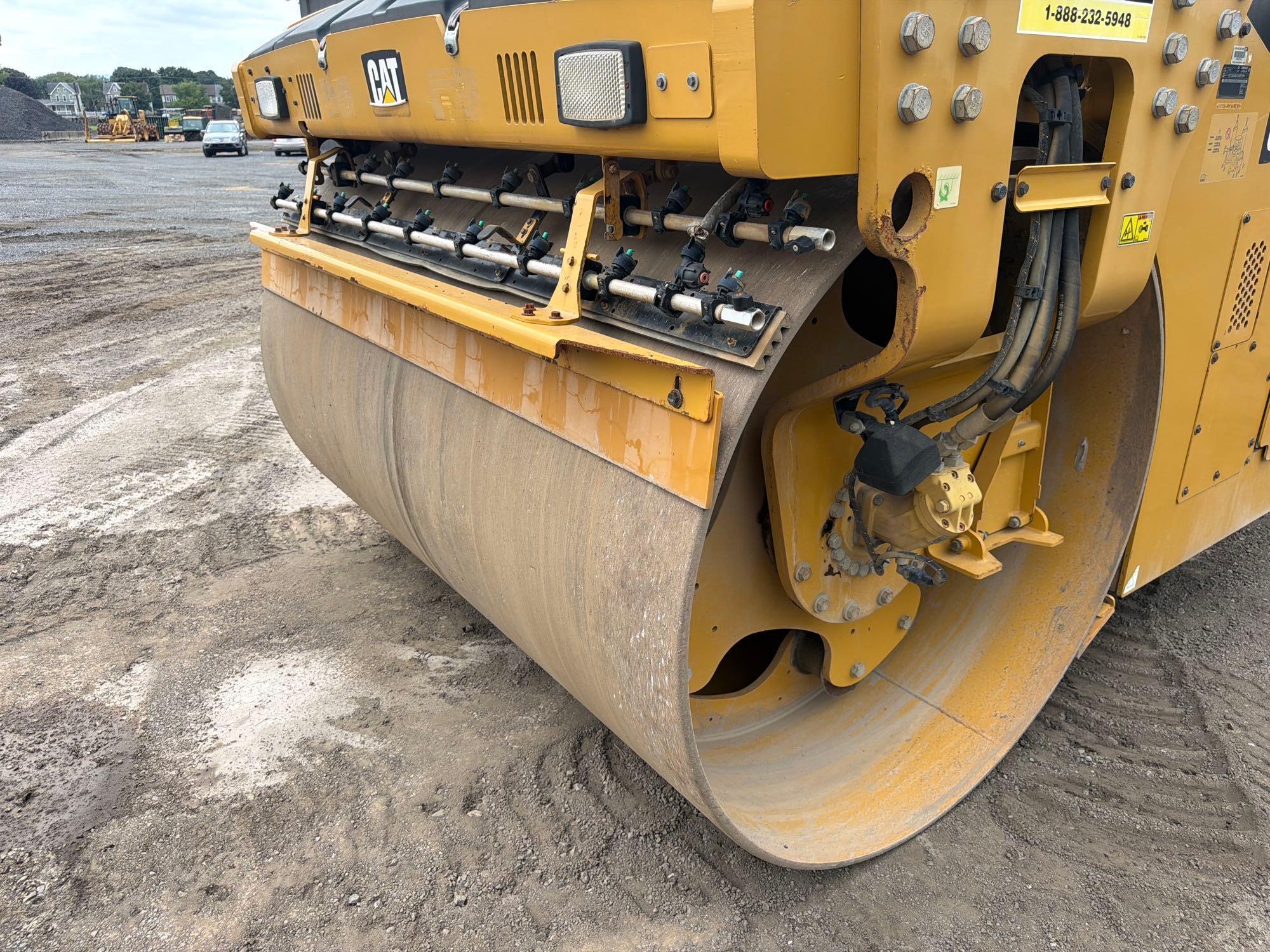

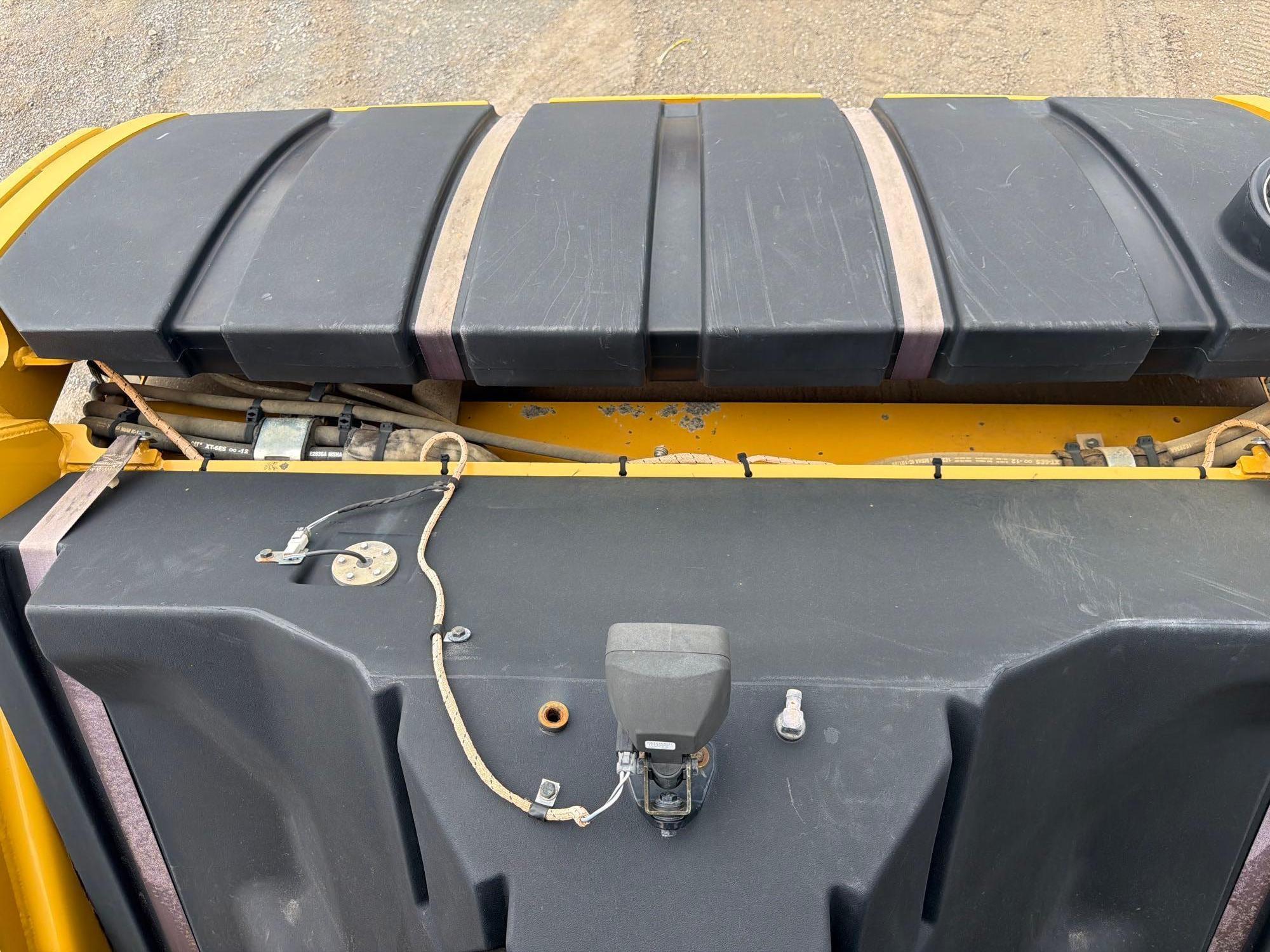

Service Refill Capacities - Sprinkler Water (Since 2016)
|
264 US gal (1,000 L)
|
|
Service Refill Capacities - Sprinkler Water (2017)
|
264 US gal (1,000 L)
|
|
Service Refill Capacities - Sprinkler Water (2018)
|
264 US gal (1,000 L)
|
|
Service Refill Capacities - Sprinkler Water (2019)
|
264 US gal (1,000 L)
|
|
Speeds (Since 2016)
|
2 forward/2 reverse |
|
Speeds (2017)
|
2 forward/2 reverse |
|
Speeds (2018)
|
2 forward/2 reverse |
|
Speeds (2019)
|
2 forward/2 reverse |
|
Steering - Inside Radius (Since 2016)
|
166 in (422 cm)
|
|
Steering - Inside Radius (2017)
|
166 in (422 cm)
|
|
Steering - Inside Radius (2018)
|
166 in (422 cm)
|
|
Steering - Inside Radius (2019)
|
166 in (422 cm)
|
|
Steering - Outside Radius (Since 2016)
|
245 in (622 cm)
|
|
Steering - Outside Radius (2017)
|
245 in (622 cm)
|
|
Steering - Outside Radius (2018)
|
245 in (622 cm)
|
|
Steering - Outside Radius (2019)
|
245 in (622 cm)
|
|
Steering - Steering Angle (Since 2016)
|
±36.5 deg |
|
Steering - Steering Angle (2017)
|
±36.5 deg |
|
Steering - Steering Angle (2018)
|
±36.5 deg |
|
Steering - Steering Angle (2019)
|
±36.5 deg |
|
Vibratory System - Amplitude - High Amplitude (Since 2016)
|
0 in (0 cm)
|
|
Vibratory System - Amplitude - High Amplitude (2017)
|
0 in (0 cm)
|
|
Vibratory System - Amplitude - High Amplitude (2018)
|
0 in (0 cm)
|
|
Vibratory System - Amplitude - High Amplitude (2019)
|
0 in (0 cm)
|
|
Vibratory System - Amplitude - Low Amplitude (Since 2016)
|
0 in (0 cm)
|
|
Vibratory System - Amplitude - Low Amplitude (2017)
|
0 in (0 cm)
|
|
Vibratory System - Amplitude - Low Amplitude (2018)
|
0 in (0 cm)
|
|
Vibratory System - Amplitude - Low Amplitude (2019)
|
0 in (0 cm)
|
|
Vibratory System - Centrifugal Force - High Amplitude (Since 2016)
|
24,728 lbf (110 kN)
|
|
Vibratory System - Centrifugal Force - High Amplitude (2017)
|
24,728 lbf (110 kN)
|
|
Vibratory System - Centrifugal Force - High Amplitude (2018)
|
24,728 lbf (110 kN)
|
|
Vibratory System - Centrifugal Force - High Amplitude (2019)
|
24,728 lbf (110 kN)
|
|
Vibratory System - Centrifugal Force - Low Amplitude (Since 2016)
|
7,800 lbf (35 kN)
|
|
Vibratory System - Centrifugal Force - Low Amplitude (2017)
|
7,800 lbf (35 kN)
|
|
Vibratory System - Centrifugal Force - Low Amplitude (2018)
|
7,800 lbf (35 kN)
|
|
Vibratory System - Centrifugal Force - Low Amplitude (2019)
|
7,800 lbf (35 kN)
|
|
Vibratory System - Ecc. Weight Drive (Since 2016)
|
Hydraulic |
|
Vibratory System - Ecc. Weight Drive (2017)
|
Hydraulic |
|
Vibratory System - Ecc. Weight Drive (2018)
|
Hydraulic |
|
Vibratory System - Ecc. Weight Drive (2019)
|
Hydraulic |
|
Vibratory System - Frequency (Since 2016)
|
42 Hz 2520 vpm |
|
Vibratory System - Frequency (2017)
|
42 Hz 2520 vpm |
|
Vibratory System - Frequency (2018)
|
42 Hz 2520 vpm |
|
Vibratory System - Frequency (2019)
|
42 Hz 2520 vpm |
|
WIDTH (Since 2016)
|
92 in (234 cm)
|
|
WIDTH (2017)
|
92 in (234 cm)
|
|
WIDTH (2018)
|
92 in (234 cm)
|
|
Working Speed (Since 2016)
|
0 - 8 mph |
|
Working Speed (2017)
|
0 - 8 mph |
|
Working Speed (2018)
|
0 - 8 mph |
|
Working Speed (2019)
|
0 - 8 mph |
| Operating Specifications |
|
Curb Clearance |
28 in (71 cm)
|
|
Drum Offset |
6 in (15 cm)
|
|
Ground Clearance |
1 ft (0 m)
|
|

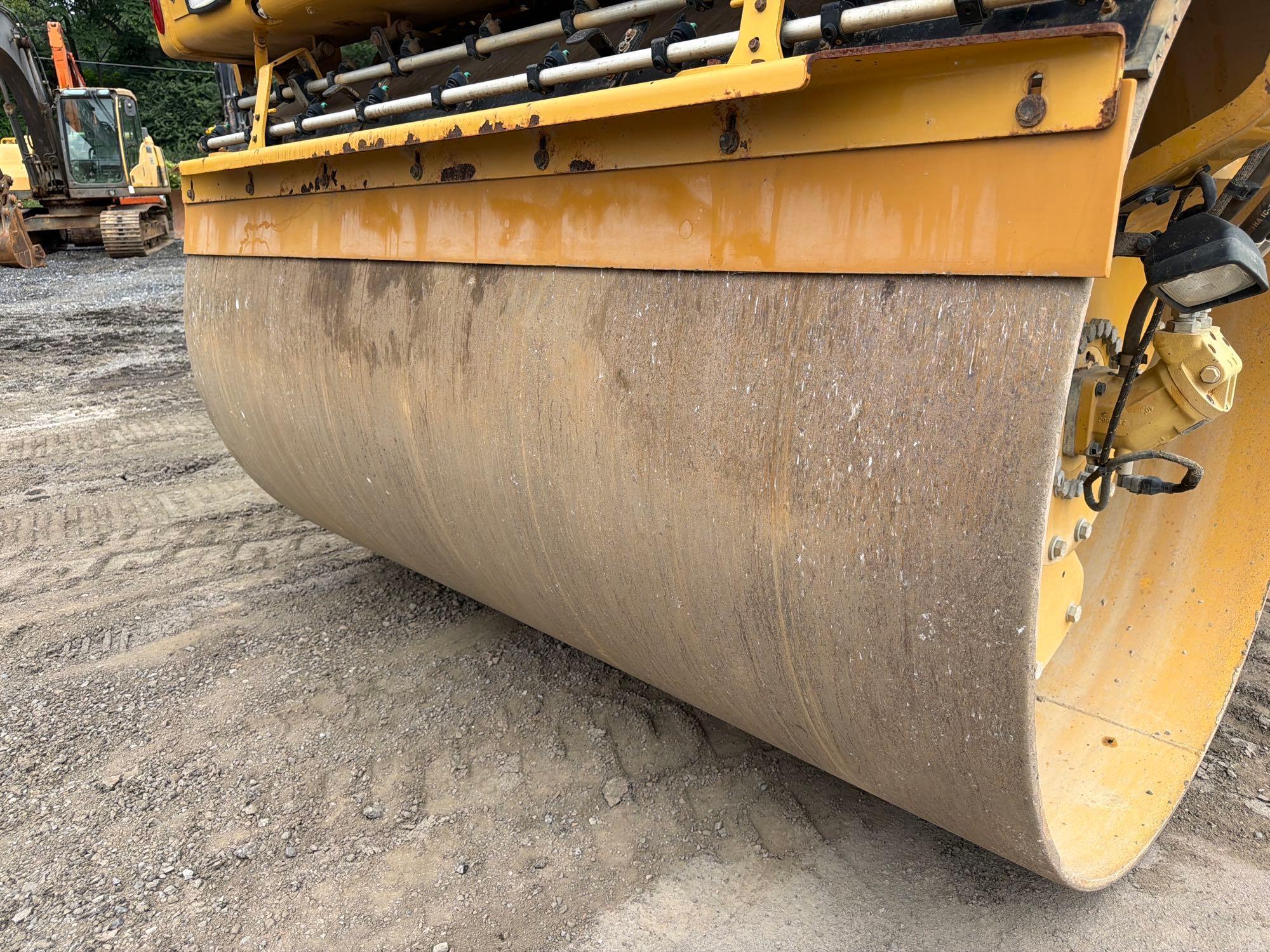

Maximum Compaction Width |
85 in (216 cm)
|
|
Standard Compaction Width |
79 in (201 cm)
|

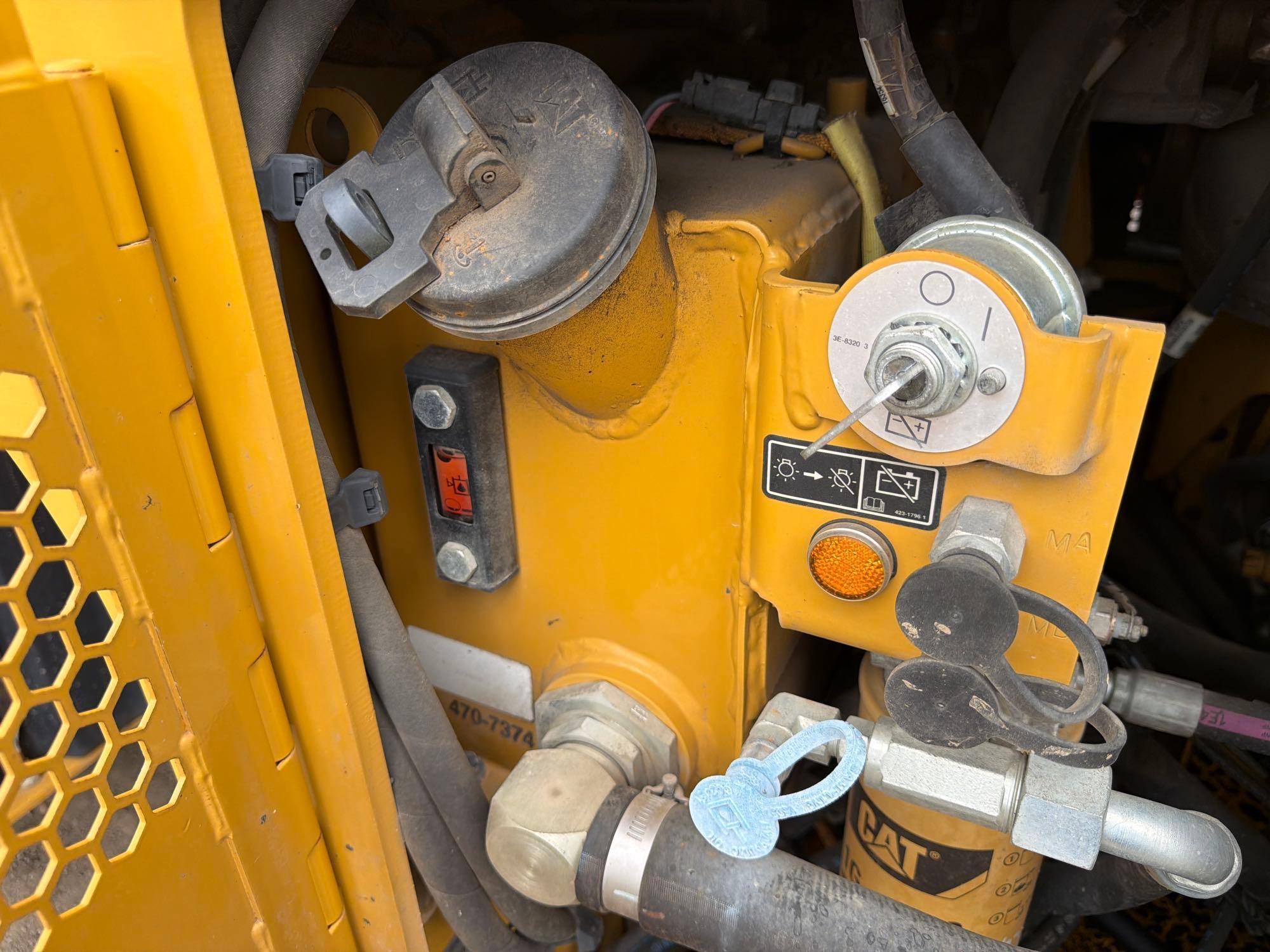

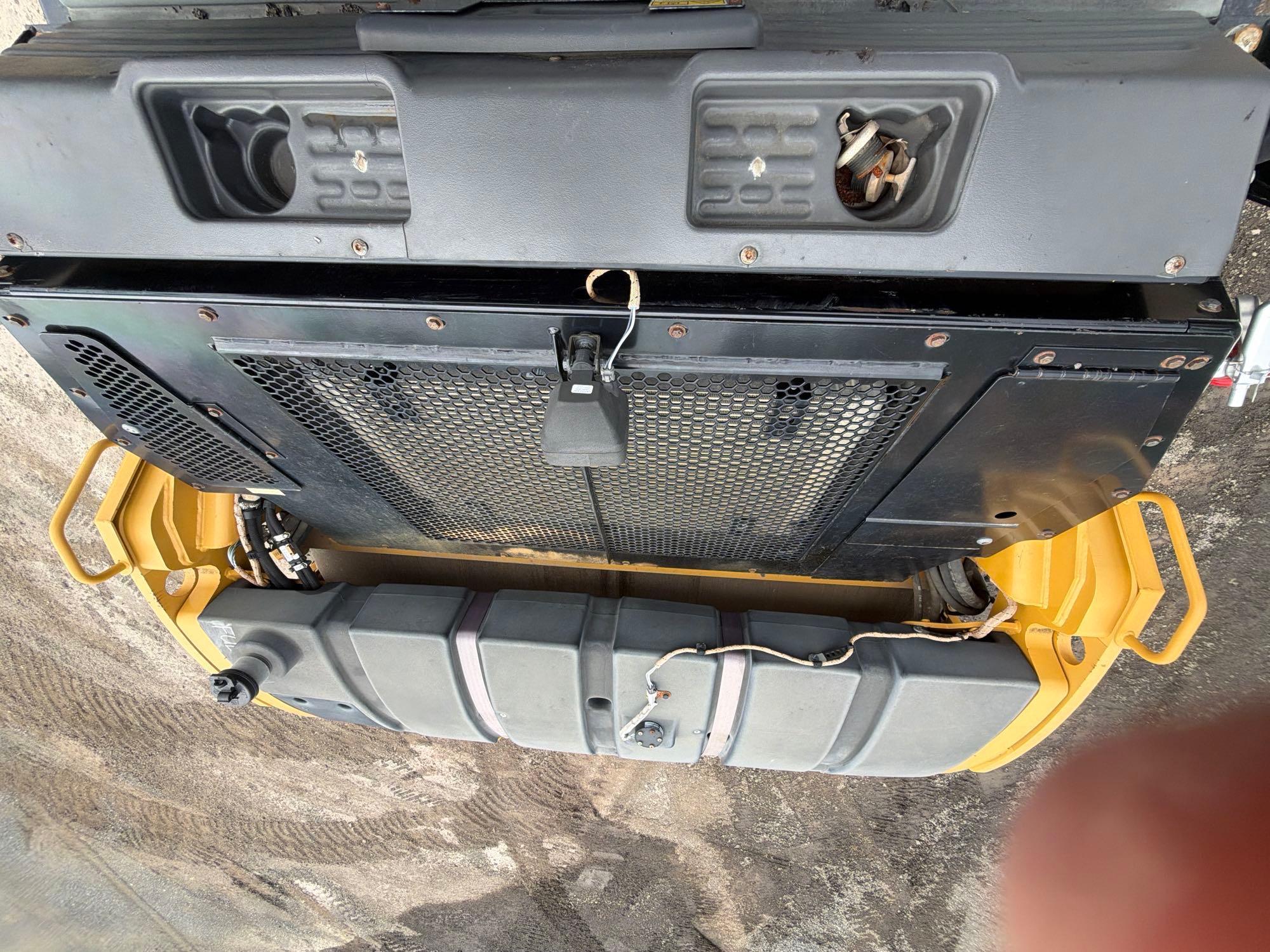

| Service Refill Capacities |
|
Fuel Tank Capacity |
66 gal (250 l)
|
|
Water Spray Tank Capacity |
264 gal (999 l)
|
| Travel Speeds |
|
High |
8 mph (13 kph)
|
|
Low |
5 mph (7 kph)
|

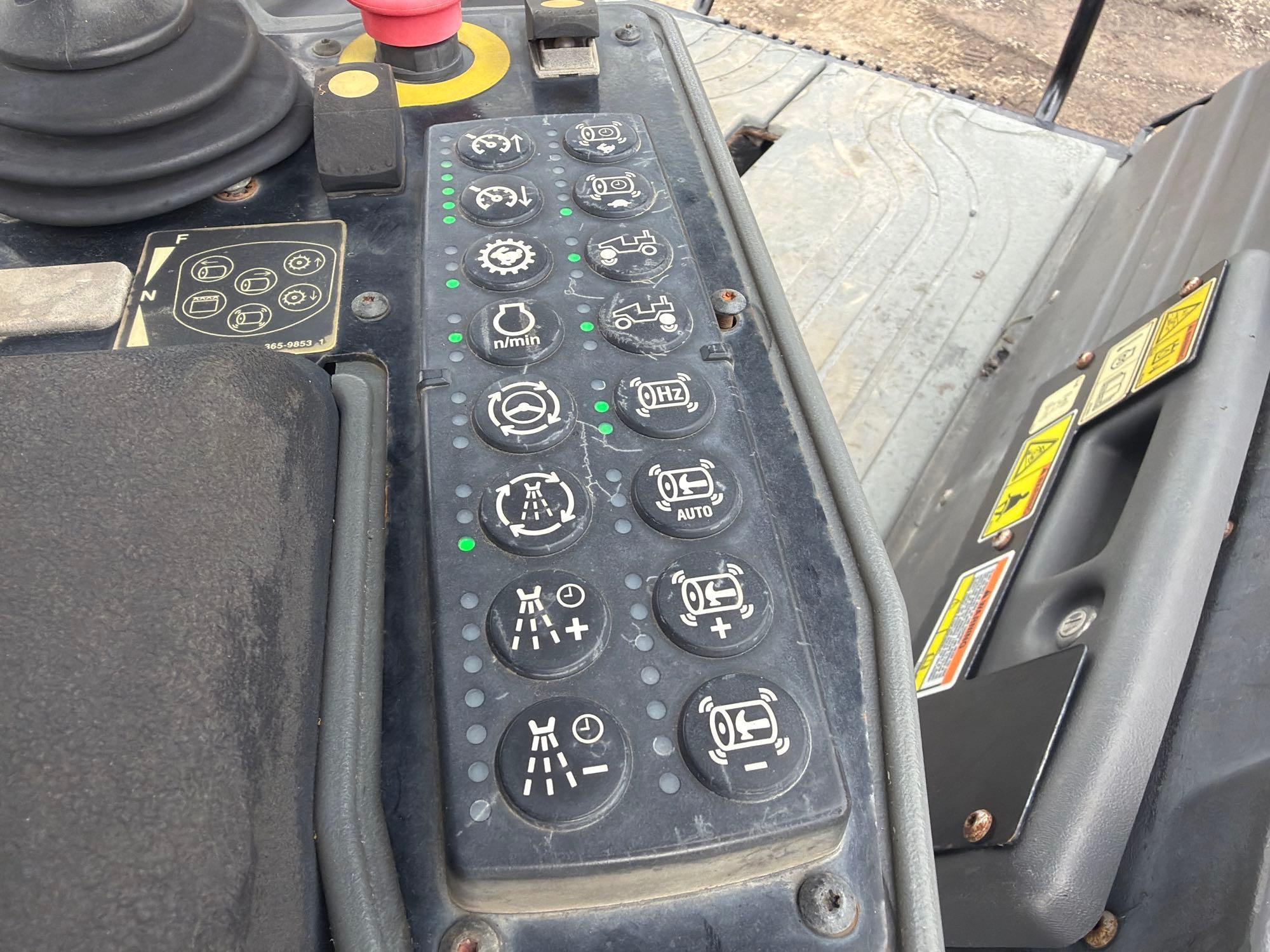

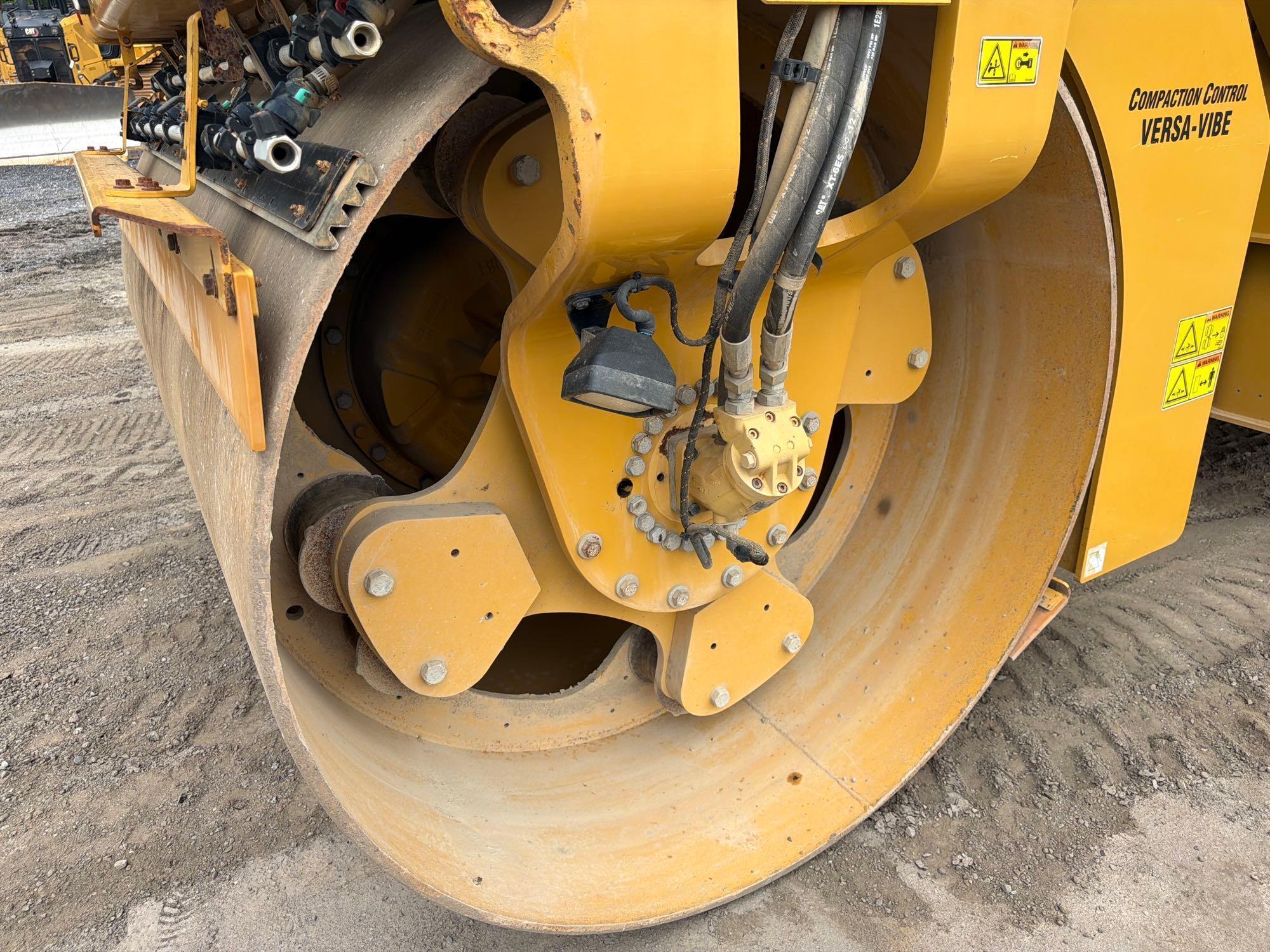

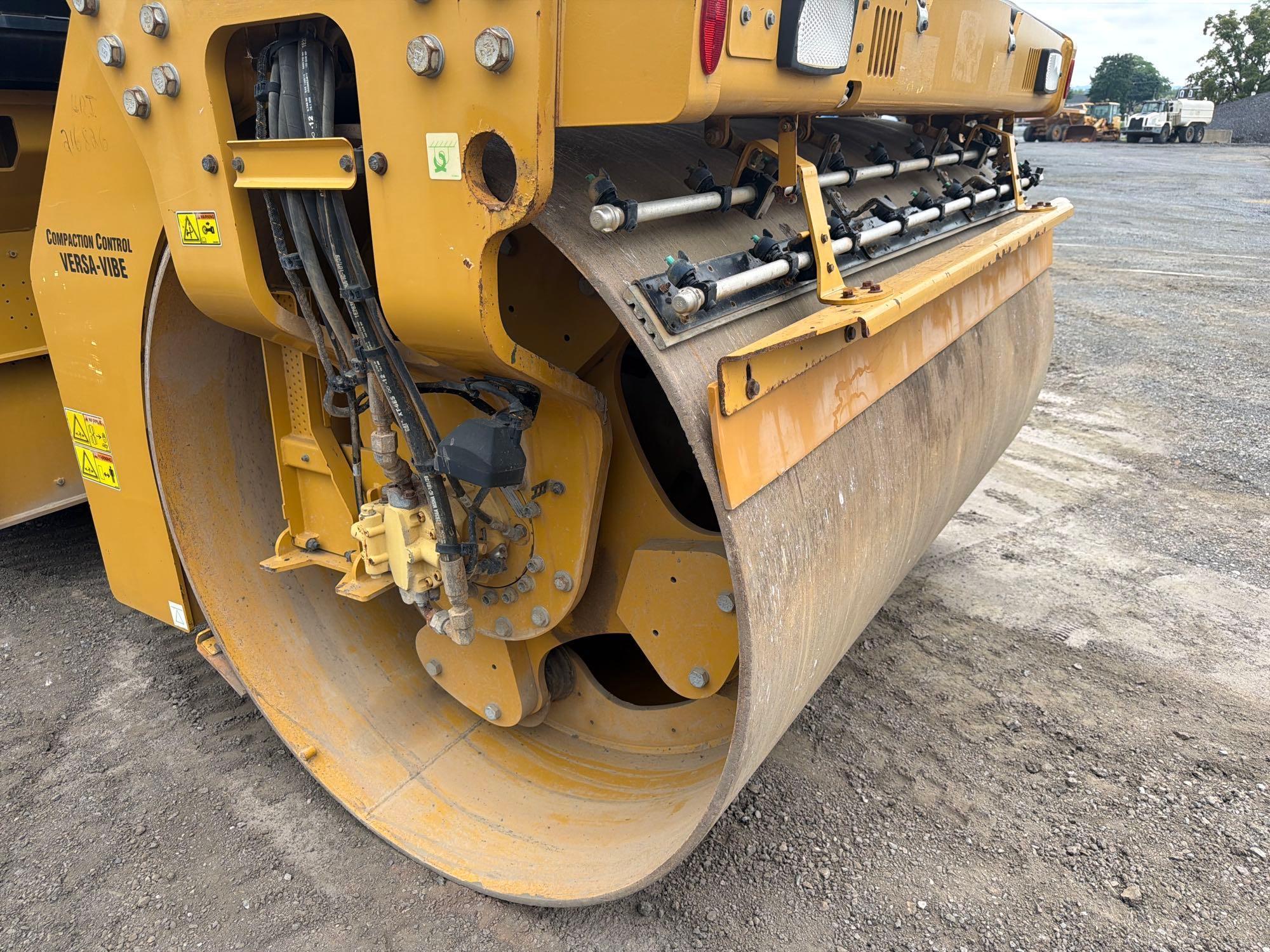

| Vibratory System |
|
Centrifugal Force Per Drum - Maximum |
24,728 lbs (11,216 kg)
|
|
Centrifugal Force Per Drum - Minimum |
7,800 lbs (3,538 kg)
|
|
Maximum Amplitude |
0 in (0 cm)
|
|
Maximum Frequency |
2520 V/m |
|
Minimum Amplitude |
0 in (0 cm)
|
|
Minimum Frequency |
2520 V/m |
|
Vibration Selection |
Independent per drum, front only, rear only, both |
| Weights |
|
Maximum Operating Weight |
30,380 lbs (13,780 kg)
|
|
Standard - Operating Weight |
26,852 lbs (12,180 kg)
|
|
Static Linear Load |
168 lb/in |
