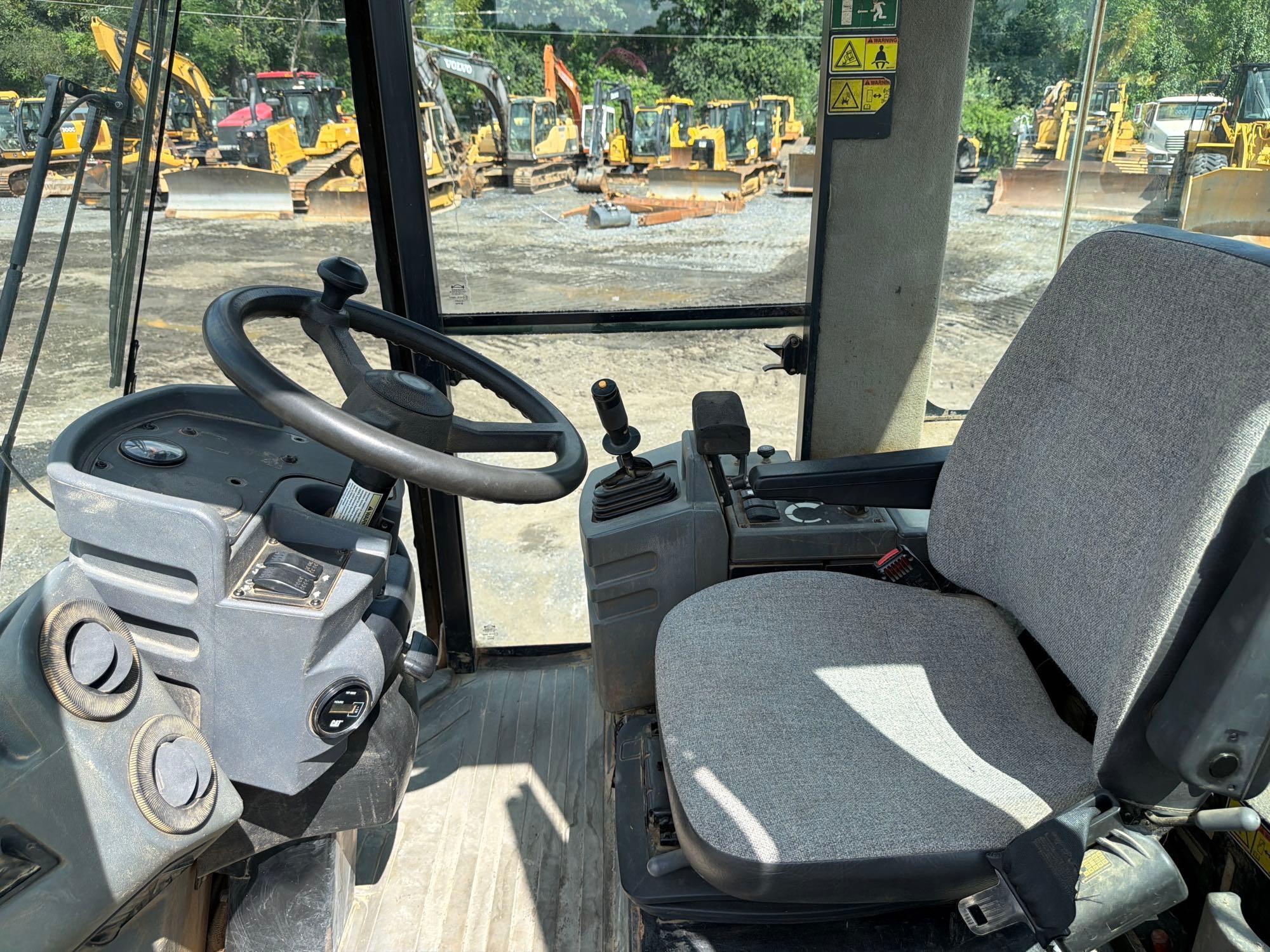

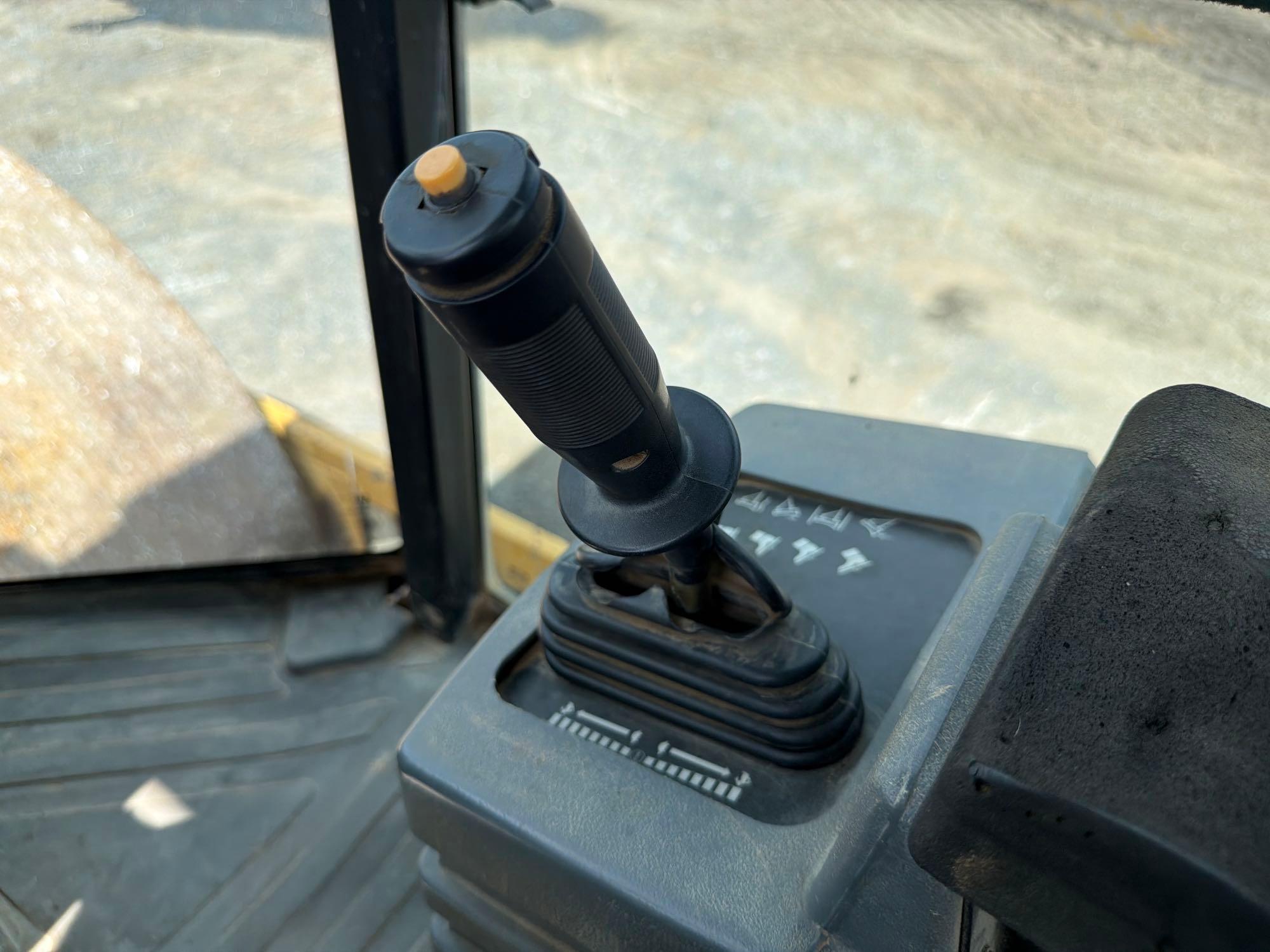

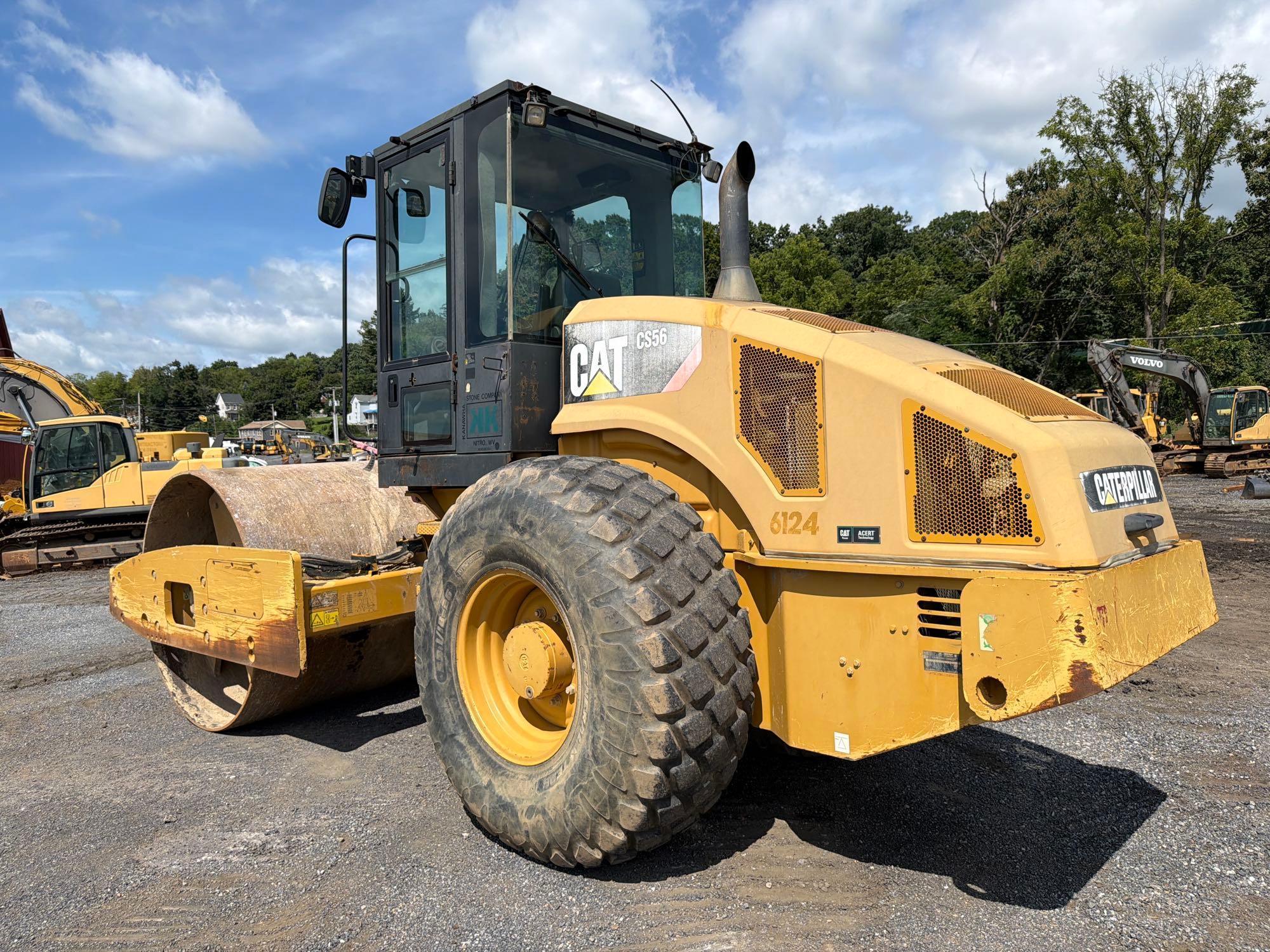

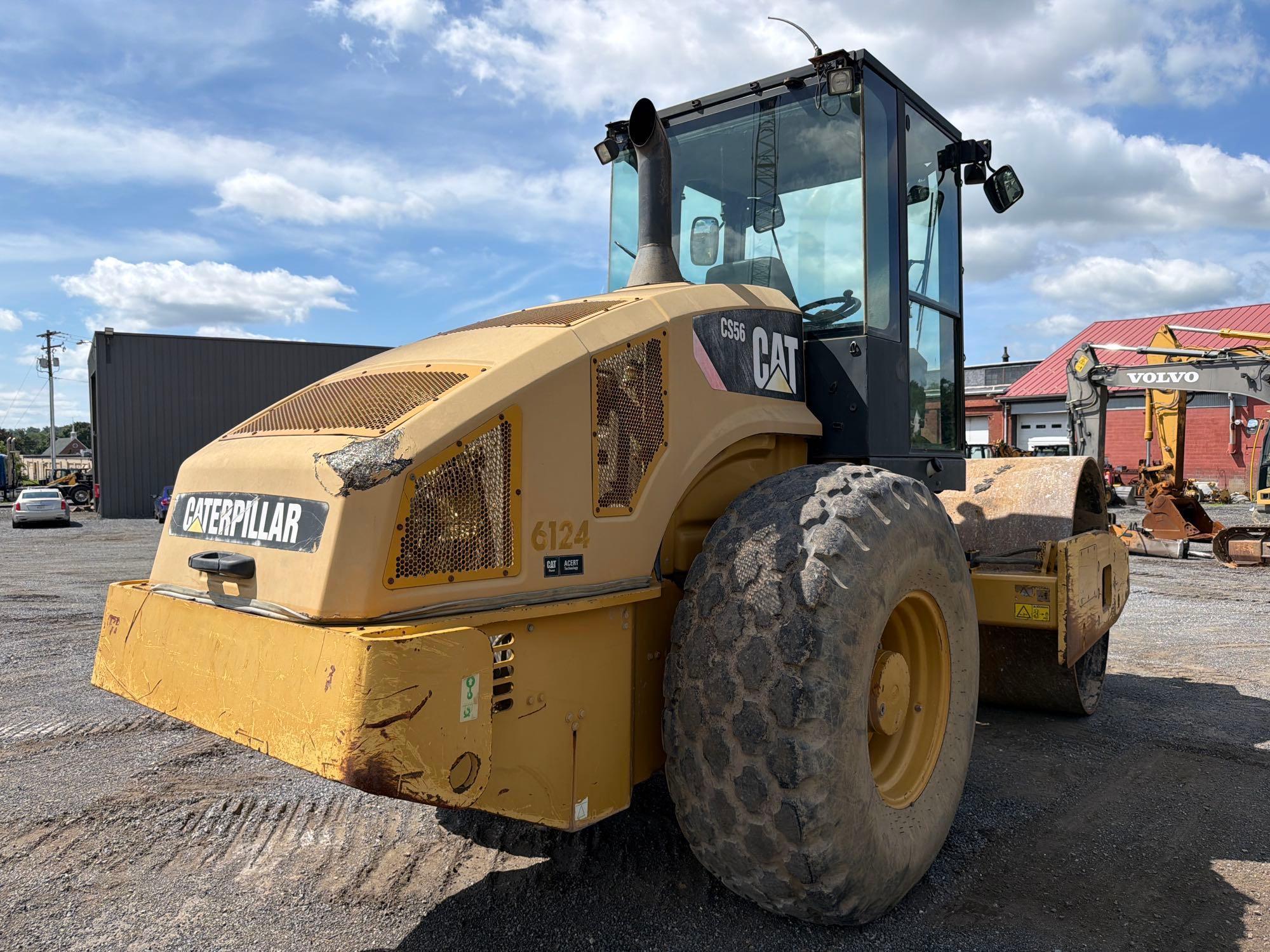

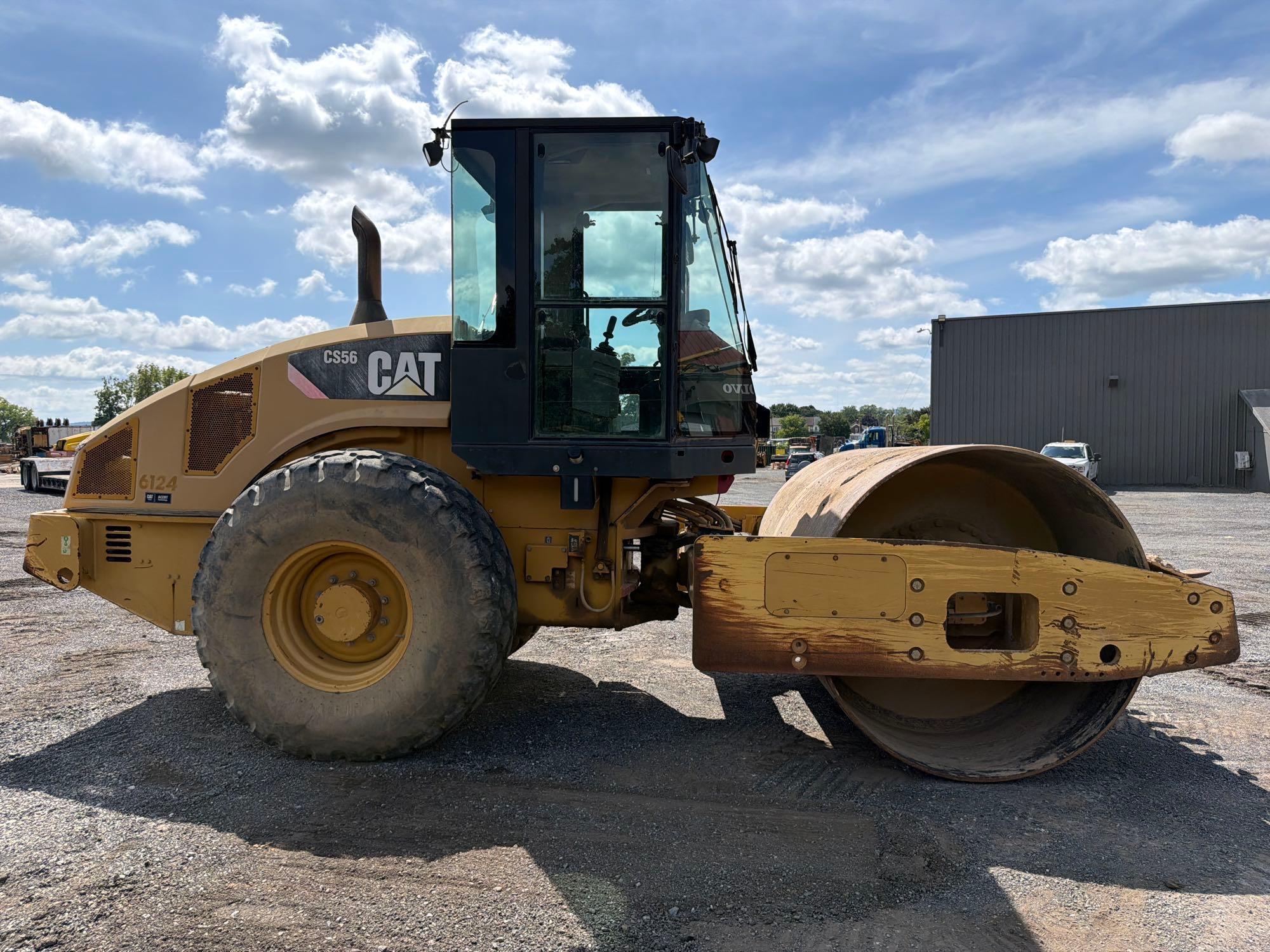

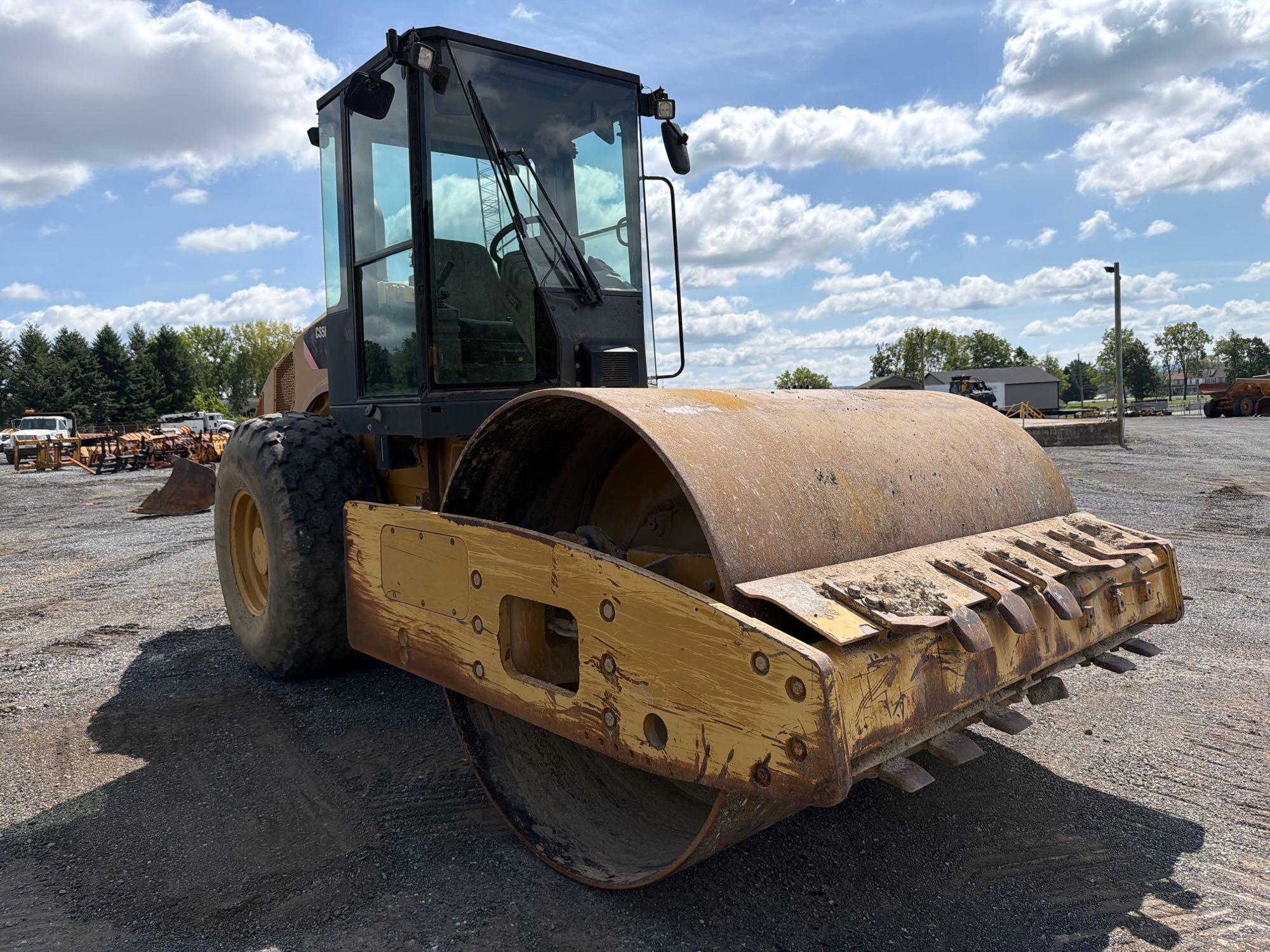

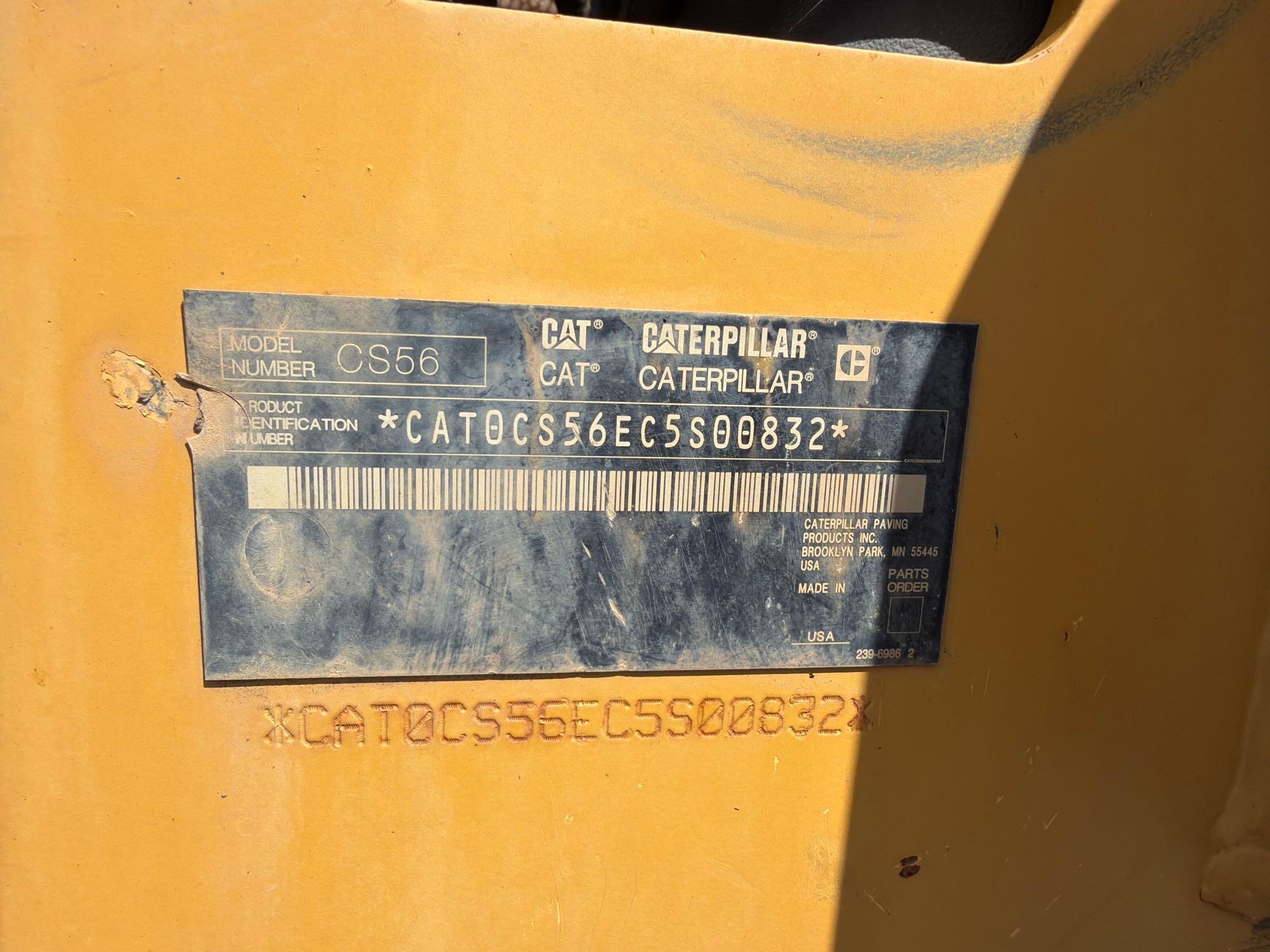

| Dimensions |
|
Drum Diameter |
60 in (152 cm)
|
|
Height |
10 ft (3 m)
|
|
Height - With Rops/Fops Or Cab |
10 ft (3 m)
|
|
Length |
21 ft (6 m)
|
|
Optional Blade Height |
27 in (69 cm)
|
|
Overall Length |
19 ft (6 m)
|
|
Overall Length - With Blade Option |
21 ft (6 m)
|
|
Overall Width |
8 ft (2 m)
|
|
Overall Width - With Blade Option |
8 ft (3 m)
|
|
Weight |
27,571 lbs (12,506 kg)
|
|
Wheel Base |
10 ft (3 m)
|
|
Width |
8 ft (2 m)
|

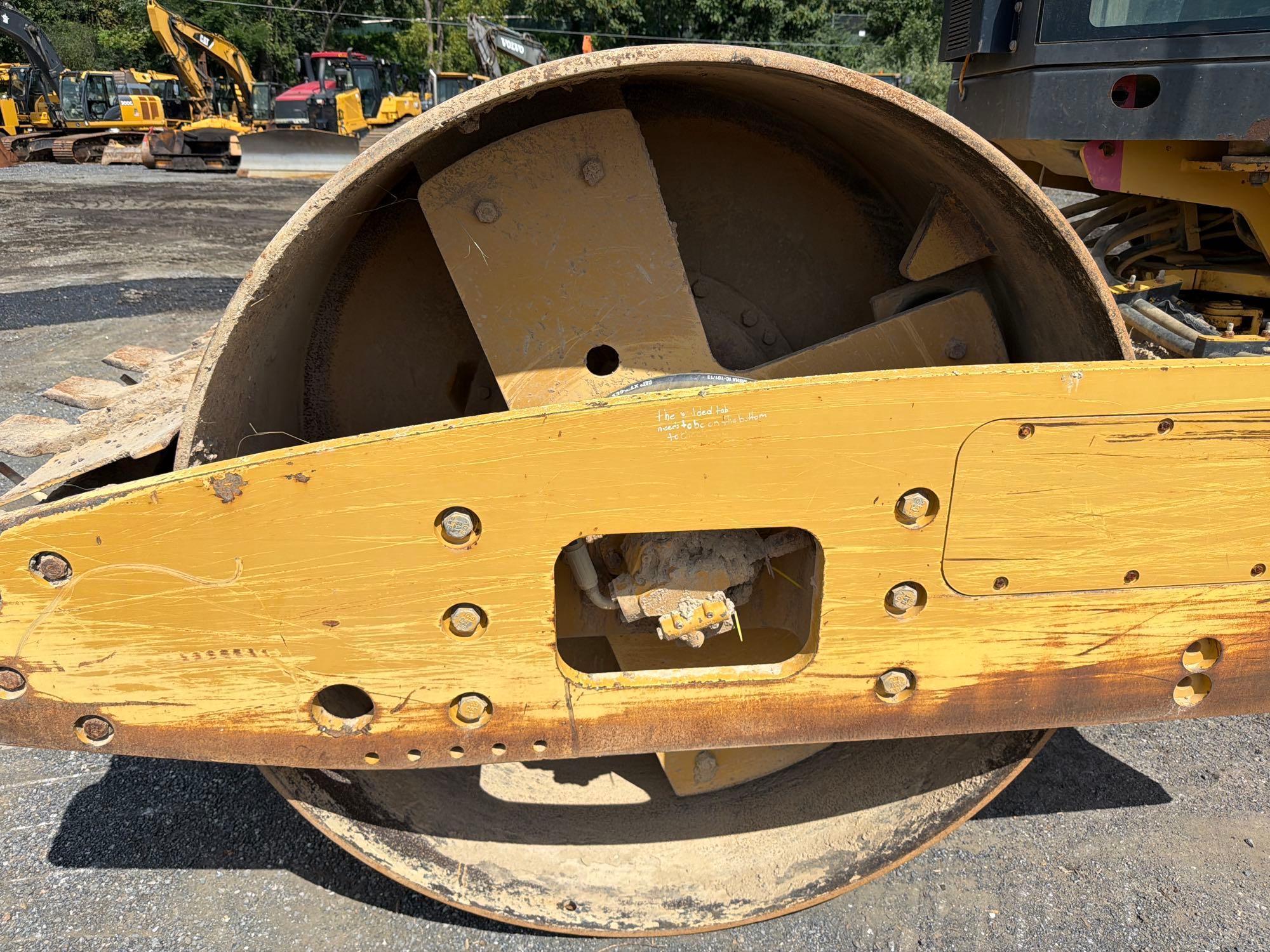

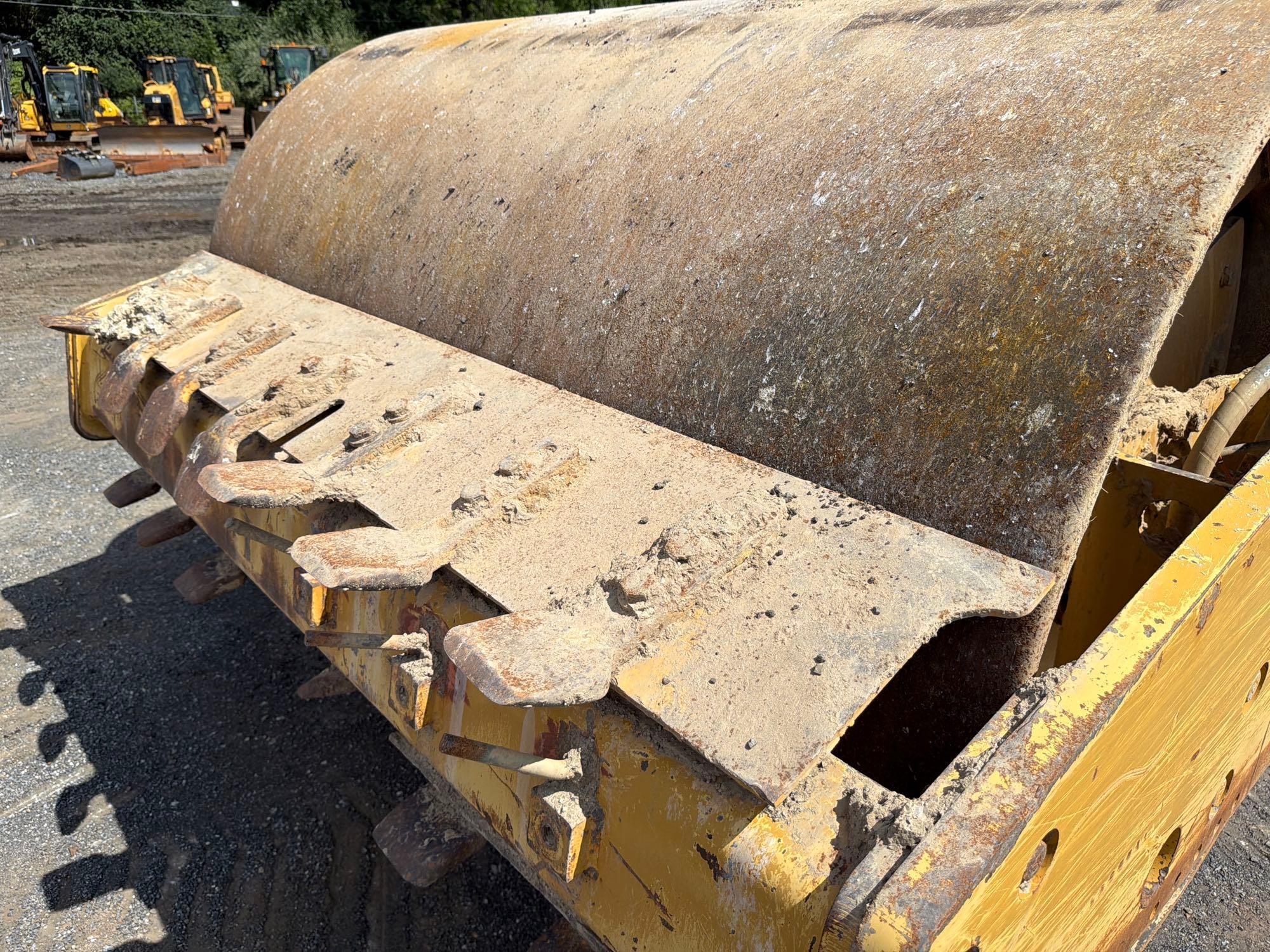

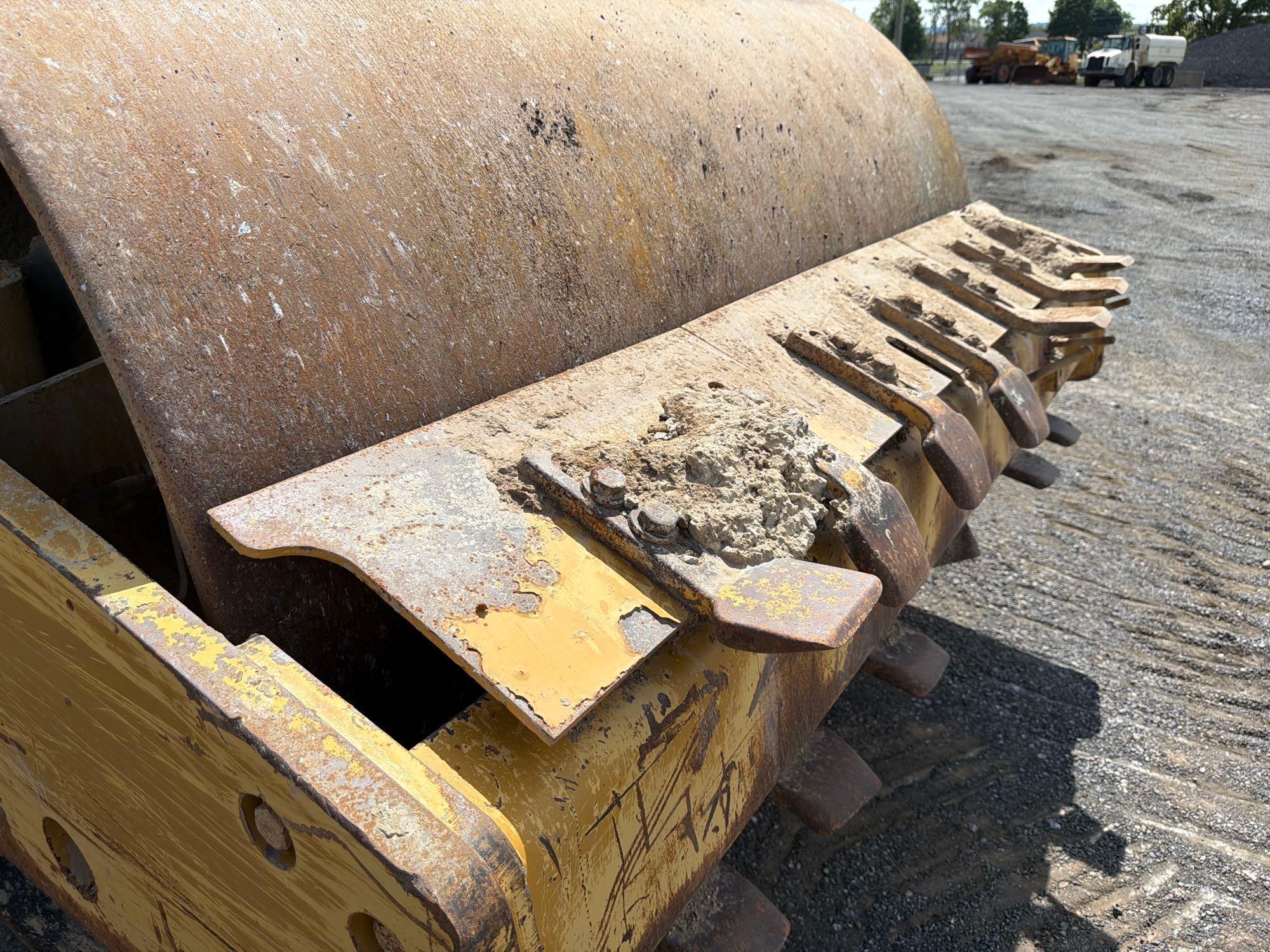

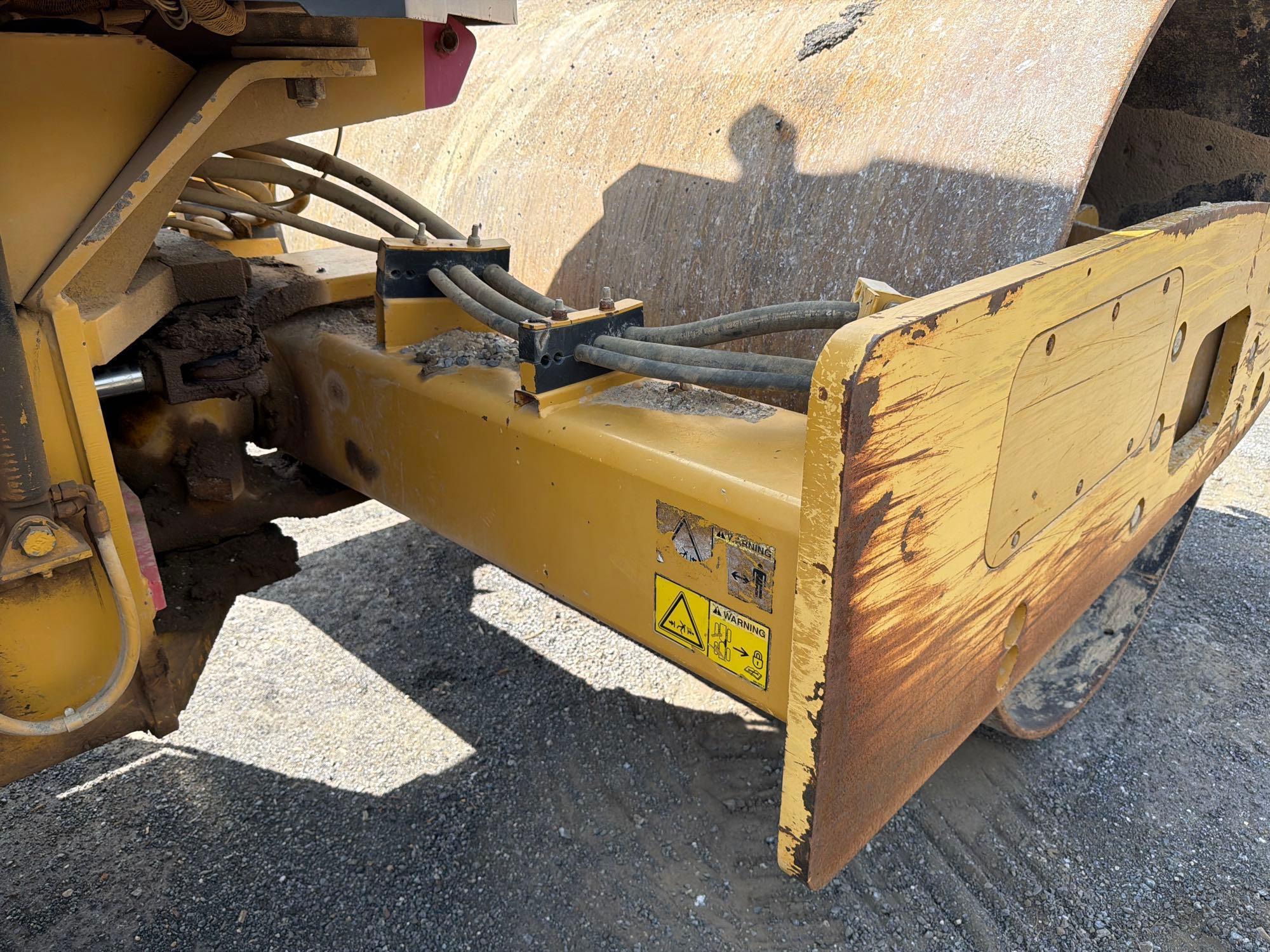

| Drum |
|
Drum Width |
84 in (213 cm)
|

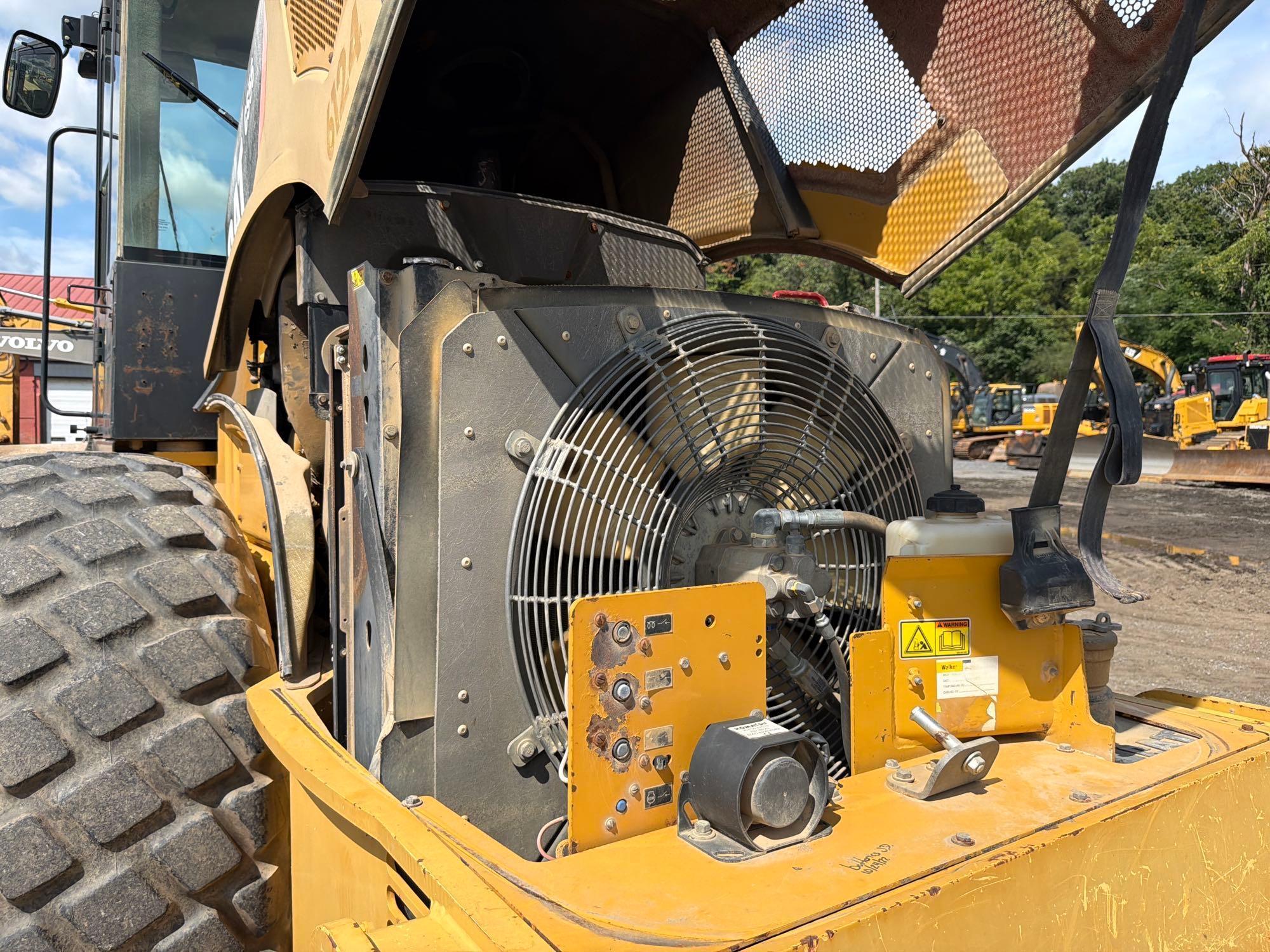

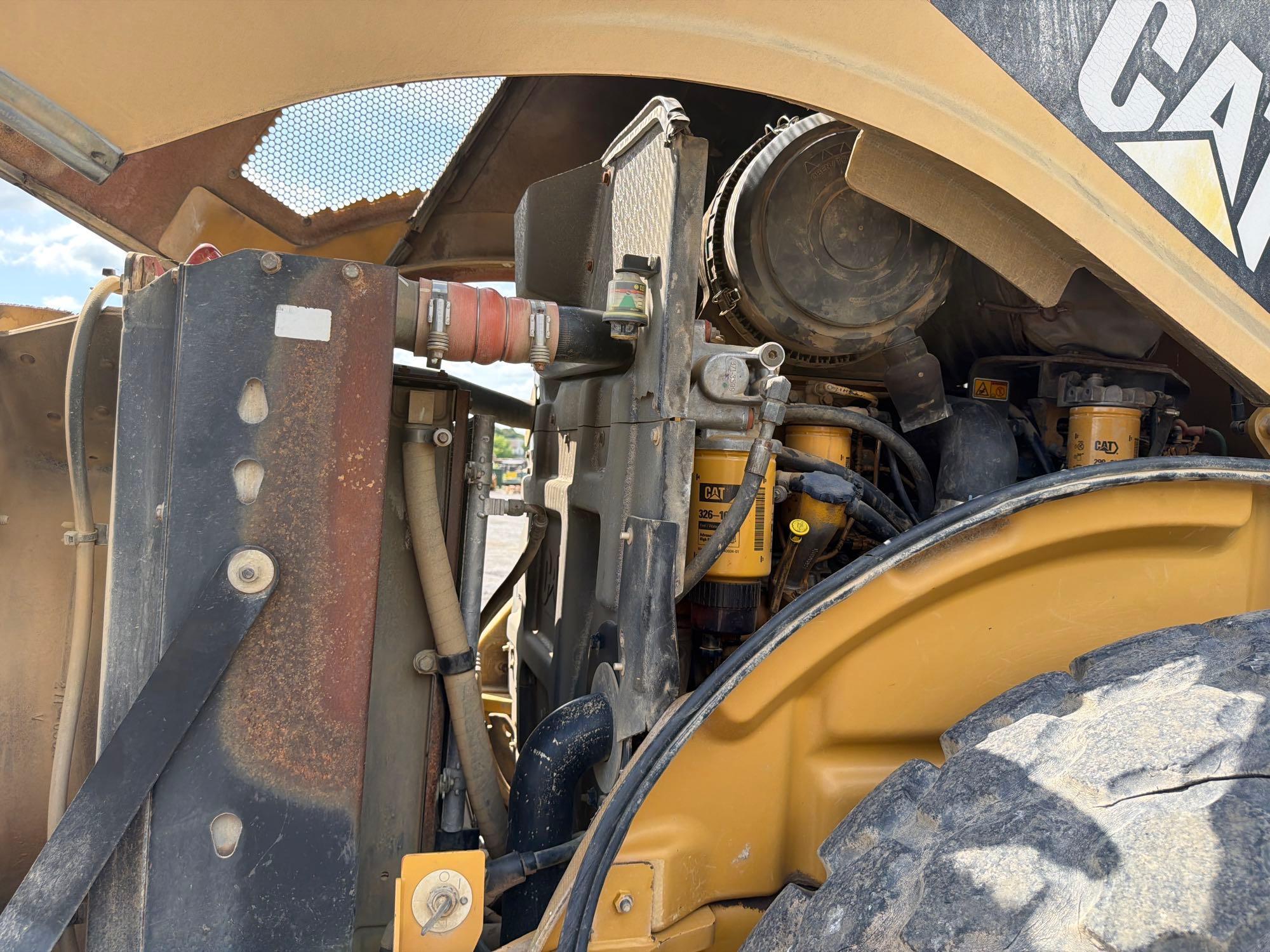

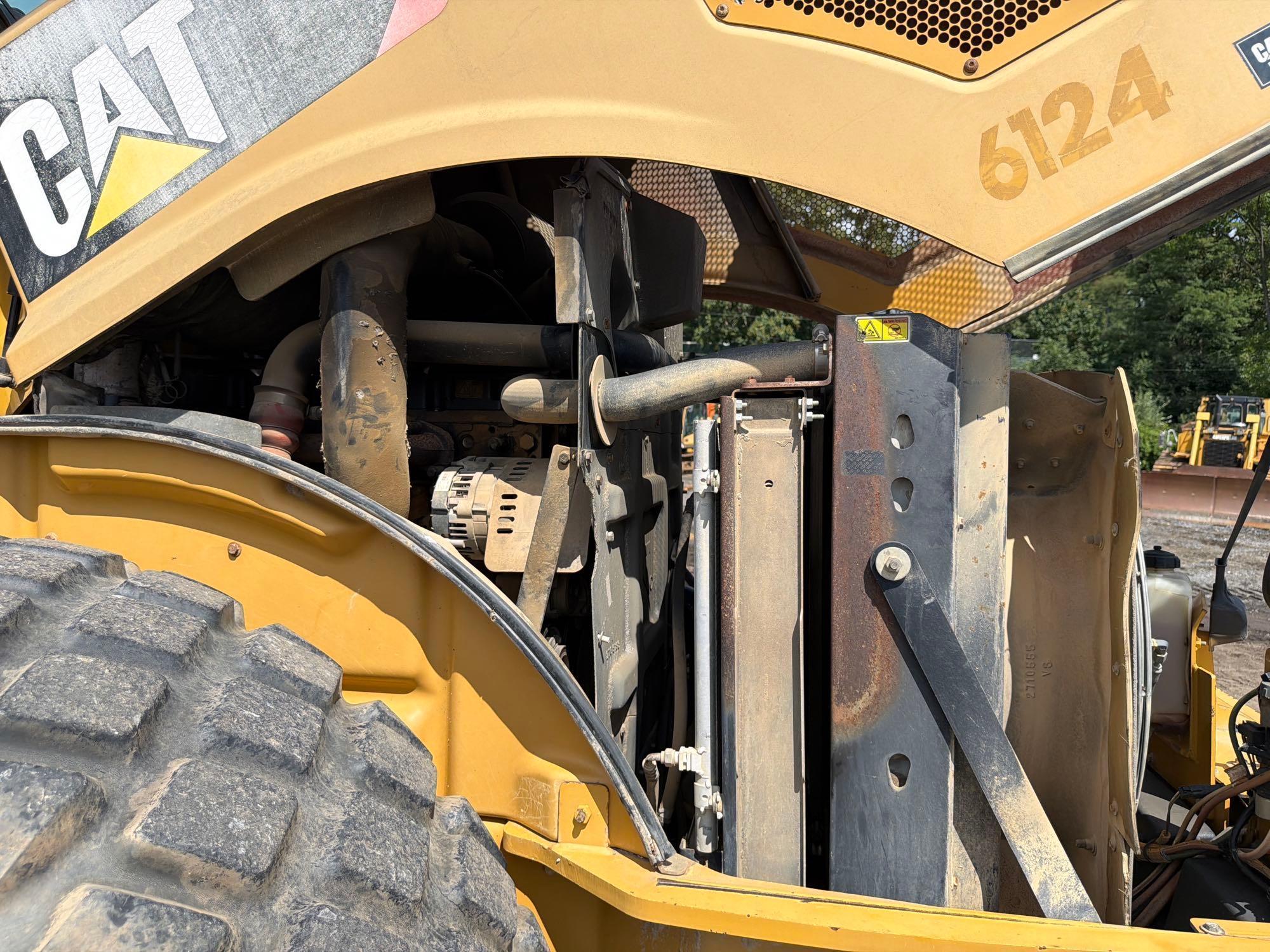

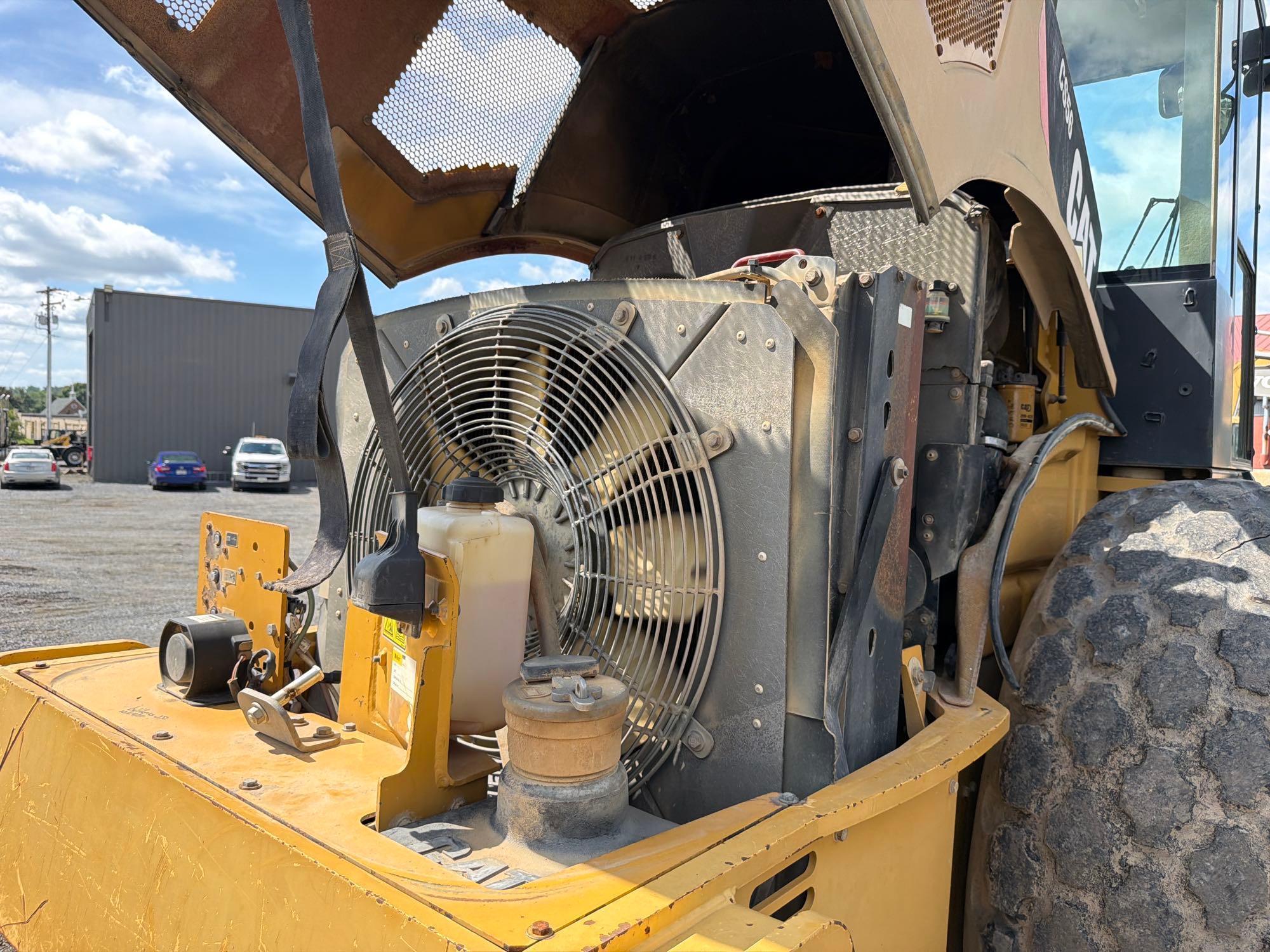

| Engine |
|
Engine Model |
Cat C6.6 |
|
Gross Power |
156 hp (116 kw)
|
| General Specifications |
|
Centrifugal Force (Since 2007)
|
63,300 lbf (28,712 kgf)
|
|
Centrifugal Force (2008)
|
63,300 lbf (28,712 kgf)
|
|
Centrifugal Force (2009)
|
63,300 lbf (28,712 kgf)
|
|
Centrifugal Force (2010)
|
63,300 lbf (28,712 kgf)
|
|
Centrifugal Force (2011)
|
63,300 lbf (28,712 kgf)
|
|
Centrifugal Force (2012)
|
63,300 lbf (28,712 kgf)
|
|
Centrifugal Force (2013)
|
63,300 lbf (28,712 kgf)
|
|
Compactors Approx. Op. Weight (Since 2007)
|
25,164 lbs (11,414 kg)
|
|
Compactors Approx. Op. Weight (2008)
|
25,164 lbs (11,414 kg)
|
|
Compactors Approx. Op. Weight (2009)
|
25,164 lbs (11,414 kg)
|
|
Compactors Approx. Op. Weight (2010)
|
25,164 lbs (11,414 kg)
|
|
Compactors Approx. Op. Weight (2011)
|
25,164 lbs (11,414 kg)
|
|
Compactors Approx. Op. Weight (2012)
|
25,164 lbs (11,414 kg)
|
|
Compactors Approx. Op. Weight (2013)
|
25,164 lbs (11,414 kg)
|
|
cont'd) Drive (Since 2007)
|
Wheel/ Drum |
|
cont'd) Drive (2008)
|
Wheel/ Drum |
|
cont'd) Drive (2009)
|
Wheel/ Drum |
|
cont'd) Drive (2010)
|
Wheel/ Drum |
|
cont'd) Drive (2011)
|
Wheel/ Drum |
|
cont'd) Drive (2012)
|
Wheel/ Drum |
|
cont'd) Drive (2013)
|
Wheel/ Drum |
|
Displacement (Since 2012)
|
403 cu in (6,604 cu cm)
|
|
Displacement (2013)
|
403 cu in (6,604 cu cm)
|
|
Displacement (2015)
|
403 cu in (6,604 cu cm)
|
|
Drive (Since 2012)
|
Drum/Rear Wheel |
|
Drive (2013)
|
Drum/Rear Wheel |
|
Drive (2015)
|
Drum/Rear Wheel |
|
Drum Width (Since 2007)
|
84 in (213 cm)
|
|
Drum Width (2008)
|
84 in (213 cm)
|
|
Drum Width (2009)
|
84 in (213 cm)
|
|
Drum Width (2010)
|
84 in (213 cm)
|
|
Drum Width (2011)
|
84 in (213 cm)
|
|
Drum Width (2012)
|
84 in (213 cm)
|
|
Drum Width (2013)
|
84 in (213 cm)
|
|
Engine Model (Since 2012)
|
C6.6 with ACERT Technology |
|
Engine Model (2013)
|
C6.6 with ACERT Technology |
|
Engine Model (Since 2015)
|
C6.6 ACERT |
|
General Dimensions - Curb Clearance (Since 2012)
|
19 in (49 cm)
|
|
General Dimensions - Curb Clearance (2013)
|
19 in (49 cm)
|
|
General Dimensions - Curb Clearance (2015)
|
19 in (49 cm)
|
|
General Dimensions - Drum Diameter (Since 2012)
|
60 in (152 cm)
|
|
General Dimensions - Drum Diameter (2013)
|
60 in (152 cm)
|
|
General Dimensions - Drum Diameter (2015)
|
60 in (152 cm)
|
|
General Dimensions - Drum Width (Since 2012)
|
84 in (213 cm)
|
|
General Dimensions - Drum Width (2013)
|
84 in (213 cm)
|
|
General Dimensions - Drum Width (2015)
|
84 in (213 cm)
|
|
General Dimensions - Overall Height (Since 2013)
|
121 in (307 cm)
|
|
General Dimensions - Overall Height (2015)
|
121 in (307 cm)
|
|
General Dimensions - Overall Height 5 (Since 2012)
|
121 in (307 cm)
|
|
General Dimensions - Overall Length (Since 2012)
|
231 in (587 cm)
|
|
General Dimensions - Overall Length (2013)
|
231 in (587 cm)
|
|
General Dimensions - Overall Length (2015)
|
231 in (587 cm)
|
|
General Dimensions - Overall Width w/Blade (Since 2012)
|
99 in (251 cm)
|
|
General Dimensions - Overall Width w/Blade (2013)
|
99 in (251 cm)
|
|
General Dimensions - Overall Width w/Blade (2015)
|
99 in (251 cm)
|
|
General Dimensions - Overall Width w/o Blade (Since 2012)
|
90 in (229 cm)
|
|
General Dimensions - Overall Width w/o Blade (2013)
|
90 in (229 cm)
|
|
General Dimensions - Overall Width w/o Blade (2015)
|
90 in (229 cm)
|
|
General Dimensions - Tires (Since 2012)
|
23.1 x 26-8 ply flotation |
|
General Dimensions - Tires (2013)
|
23.1 x 26-8 ply flotation |
|
General Dimensions - Tires (2015)
|
23.1 x 26-8 ply flotation |
|
General Dimensions - Wheel to Drum (Since 2012)
|
114 in (290 cm)
|
|
General Dimensions - Wheel to Drum (2013)
|
114 in (290 cm)
|
|
General Dimensions - Wheel to Drum (2015)
|
114 in (290 cm)
|
|
Gross Power (Since 2012)
|
156 hp (116 kw)
|
|
Gross Power (2013)
|
156 hp (116 kw)
|
|
Gross Power (2015)
|
156 hp (116 kw)
|
|
Max. Speed (For./Rev.) (Since 2012)
|
7 mph (11 kph)
|
|
Max. Speed (For./Rev.) (2013)
|
7 mph (11 kph)
|
|
Max. Speed (For./Rev.) (2015)
|
7 mph (11 kph)
|
|
Maximum Op. Speed km/h (mph (Since 2007)
|
11.4 (7.0 |
|
Maximum Op. Speed km/h (mph (2008)
|
11.4 (7.0 |
|
Maximum Op. Speed km/h (mph (2009)
|
11.4 (7.0 |
|
Maximum Op. Speed km/h (mph (2010)
|
11.4 (7.0 |
|
Maximum Op. Speed km/h (mph (2011)
|
11.4 (7.0 |
|
Maximum Op. Speed km/h (mph (2012)
|
11.4 (7.0 |
|
Maximum Op. Speed km/h (mph (2013)
|
11.4 (7.0 |
|
No. Cylinders (Since 2012)
|
6 |
|
No. Cylinders (2013)
|
6 |
|
No. Cylinders (2015)
|
6 |
|
Operating Weight (Since 2013)
|
25,164 lbs (11,414 kg)
|
|
Operating Weight (2015)
|
25,164 lbs (11,414 kg)
|
|
Operating Weight 4 (Since 2012)
|
25,164 lbs (11,414 kg)
|
|
Rated Engine RPM (Since 2012)
|
2,200 rpm |
|
Rated Engine RPM (2013)
|
2,200 rpm |
|
Rated Engine RPM (2015)
|
2,200 rpm |
|
Service Refill Capacities - Crankcase (Since 2012)
|
5 US gal (17 L)
|
|
Service Refill Capacities - Crankcase (2013)
|
5 US gal (17 L)
|
|
Service Refill Capacities - Crankcase (2015)
|
5 US gal (17 L)
|
|
Service Refill Capacities - Fuel Tank (Since 2012)
|
91 US gal (345 L)
|
|
Service Refill Capacities - Fuel Tank (2013)
|
91 US gal (345 L)
|
|
Service Refill Capacities - Fuel Tank (2015)
|
91 US gal (345 L)
|
|
Service Refill Capacities - Hydraulic Fluid (Since 2012)
|
24 US gal (90 L)
|
|
Service Refill Capacities - Hydraulic Fluid (2013)
|
24 US gal (90 L)
|
|
Service Refill Capacities - Hydraulic Fluid (2015)
|
24 US gal (90 L)
|
|
Shipping Weight (Since 2012)
|
24,989 lbs (11,335 kg)
|
|
Shipping Weight (2013)
|
24,989 lbs (11,335 kg)
|
|
Shipping Weight (2015)
|
24,989 lbs (11,335 kg)
|
|
Speeds (Since 2012)
|
2 forward/2 reverse |
|
Speeds (2013)
|
2 forward/2 reverse |
|
Speeds (2015)
|
2 forward/2 reverse |
|

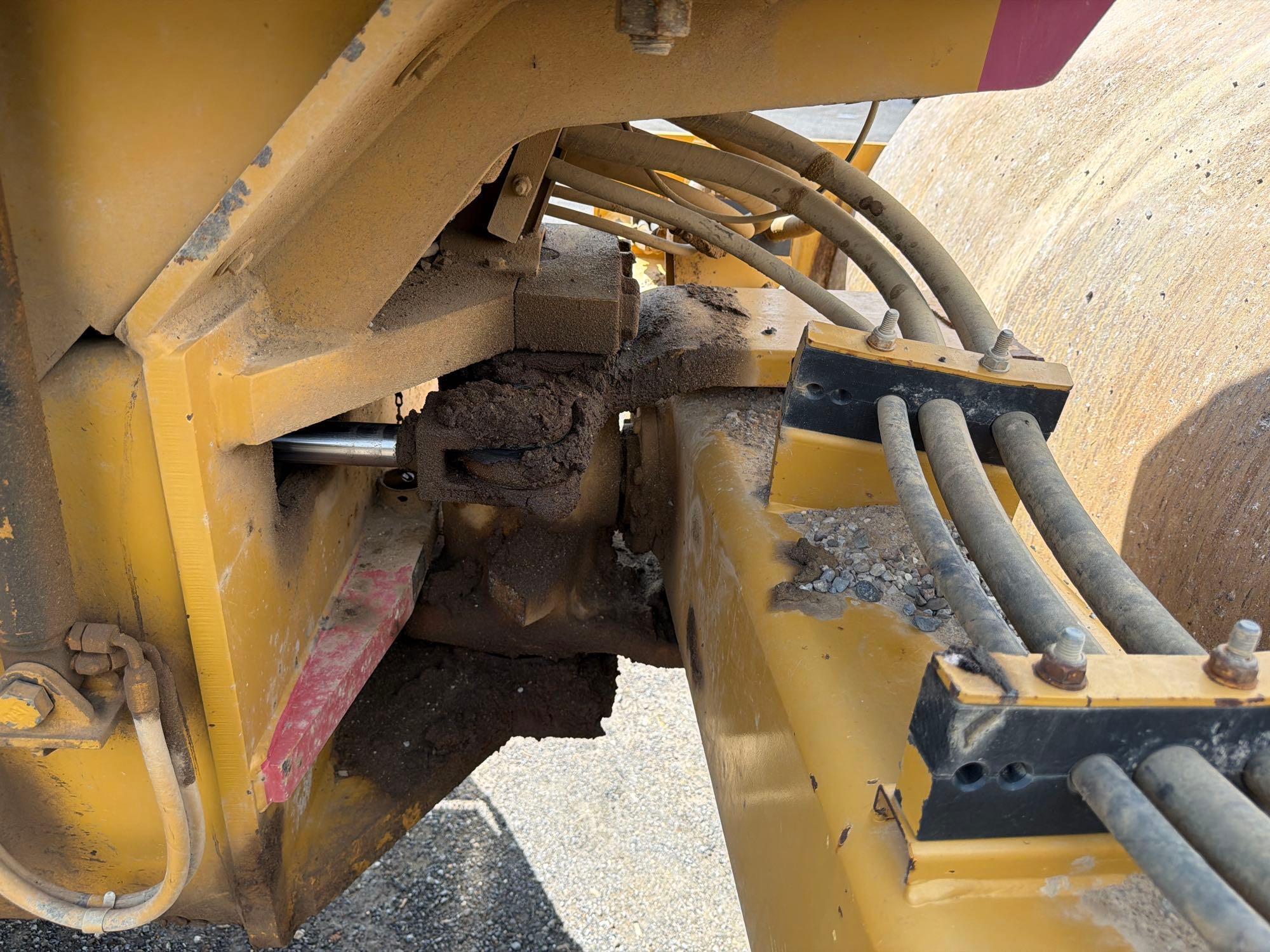

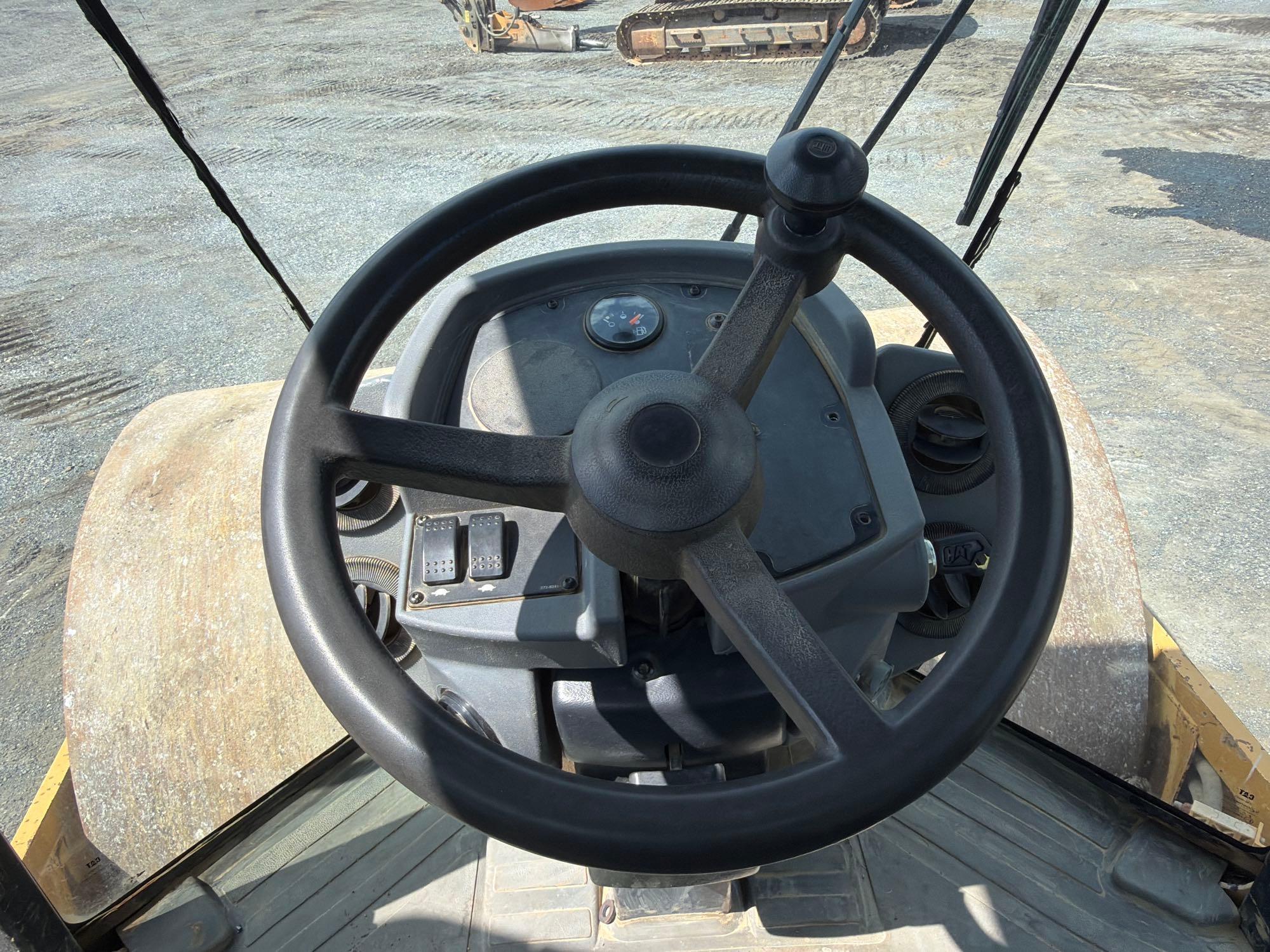

Steering - Inside Radius (Since 2012)
|
145 in (368 cm)
|
|
Steering - Inside Radius (2013)
|
145 in (368 cm)
|
|
Steering - Inside Radius (2015)
|
145 in (368 cm)
|
|
Steering - Outside Radius (Since 2012)
|
229 in (582 cm)
|
|
Steering - Outside Radius (2013)
|
229 in (582 cm)
|
|
Steering - Outside Radius (2015)
|
229 in (582 cm)
|
|
Steering - Steering Angle (Since 2012)
|
±34 deg |
|
Steering - Steering Angle (2013)
|
±34 deg |
|
Steering - Steering Angle (2015)
|
±34 deg |
|
Vibratory Flywheel (Since 2007)
|
156 hp (116 kw)
|
|
Vibratory Flywheel (2008)
|
156 hp (116 kw)
|
|
Vibratory Flywheel (2009)
|
156 hp (116 kw)
|
|
Vibratory Flywheel (2010)
|
156 hp (116 kw)
|
|
Vibratory Flywheel (2011)
|
156 hp (116 kw)
|
|
Vibratory Flywheel (2012)
|
156 hp (116 kw)
|
|
Vibratory Flywheel (2013)
|
156 hp (116 kw)
|
|
Vibratory System - Amplitude (Since 2012)
|
2 |
|
Vibratory System - Amplitude (2013)
|
2 |
|
Vibratory System - Amplitude (2015)
|
2 |
|
Vibratory System - Centrifugal Force - Maximum (Since 2012)
|
63,300 lbf (282 kN)
|
|
Vibratory System - Centrifugal Force - Maximum (2013)
|
63,300 lbf (282 kN)
|
|
Vibratory System - Centrifugal Force - Maximum (2015)
|
63,300 lbf (282 kN)
|
|
Vibratory System - Centrifugal Force - Minimum (Since 2012)
|
31,600 lbf (141 kN)
|
|
Vibratory System - Centrifugal Force - Minimum (2013)
|
31,600 lbf (141 kN)
|
|
Vibratory System - Centrifugal Force - Minimum (2015)
|
31,600 lbf (141 kN)
|
|
Vibratory System - Ecc. Weight Drive (Since 2012)
|
Hydraulic |
|
Vibratory System - Ecc. Weight Drive (2013)
|
Hydraulic |
|
Vibratory System - Ecc. Weight Drive (2015)
|
Hydraulic |
|
Vibratory System - Frequency (Since 2012)
|
31.9 Hz 1914 vpm |
|
Vibratory System - Frequency 3 (Since 2013)
|
31.9 Hz 1914 vpm |
|
Vibratory System - Frequency 3 (2015)
|
31.9 Hz 1914 vpm |
|
Vibratory System - High Amplitude (Since 2012)
|
0 in (0 cm)
|
|
Vibratory System - High Amplitude (2013)
|
0 in (0 cm)
|
|
Vibratory System - High Amplitude (2015)
|
0 in (0 cm)
|
|
Vibratory System - Low Amplitude (Since 2012)
|
0 in (0 cm)
|
|
Vibratory System - Low Amplitude (2013)
|
0 in (0 cm)
|
|
Vibratory System - Low Amplitude (2015)
|
0 in (0 cm)
|
|
Working Speed (Since 2012)
|
4 mph (6 kph)
|
|
Working Speed (2013)
|
4 mph (6 kph)
|
|
Working Speed (2015)
|
4 mph (6 kph)
|
|
Years Built (Since 2007)
|
2,007 - 2,013 |
|
Years Built (2008)
|
2,007 - 2,013 |
|
Years Built (2009)
|
2,007 - 2,013 |
|
Years Built (2010)
|
2,007 - 2,013 |
|
Years Built (2011)
|
2,007 - 2,013 |
|
Years Built (2012)
|
2,007 - 2,013 |
|
Years Built (2013)
|
2,007 - 2,013 |
| Operating Specifications |
|
Compaction Width |
84 in (213 cm)
|
|
Ground Clearance |
2 ft (1 m)
|
|
Static Linear Load - With Cab |
175.9 lb/in |
|
Static Linear Load - With Rops/Fops |
173.6 lb/in |
|
Travel Speed - Maximum |
7 mph (11 kph)
|
|
Turning Radius - Inside Drum Edge |
145 in (368 cm)
|
| Service Refill Capacities |
|
Fuel Tank Capacity |
91 gal (344 l)
|

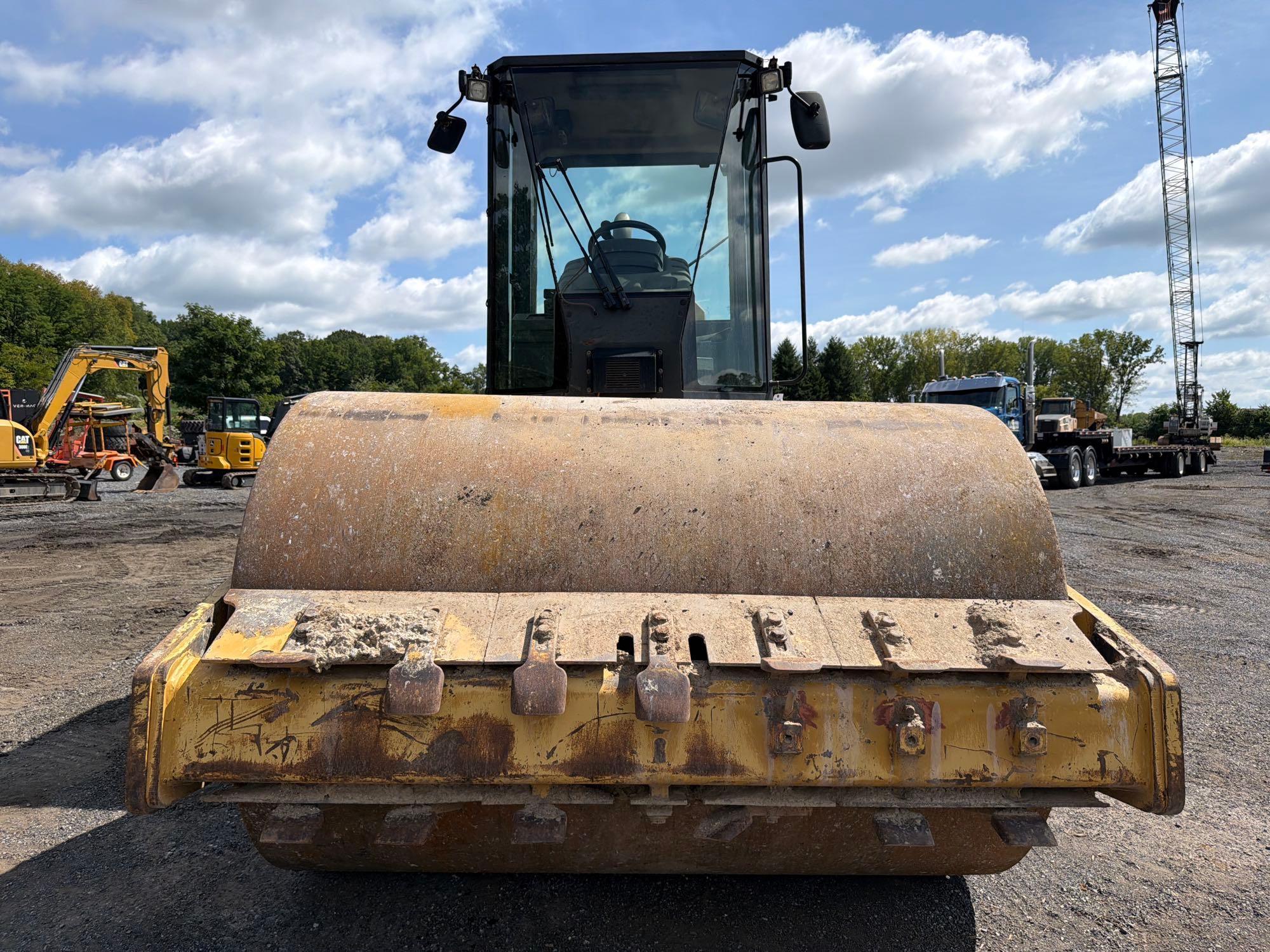

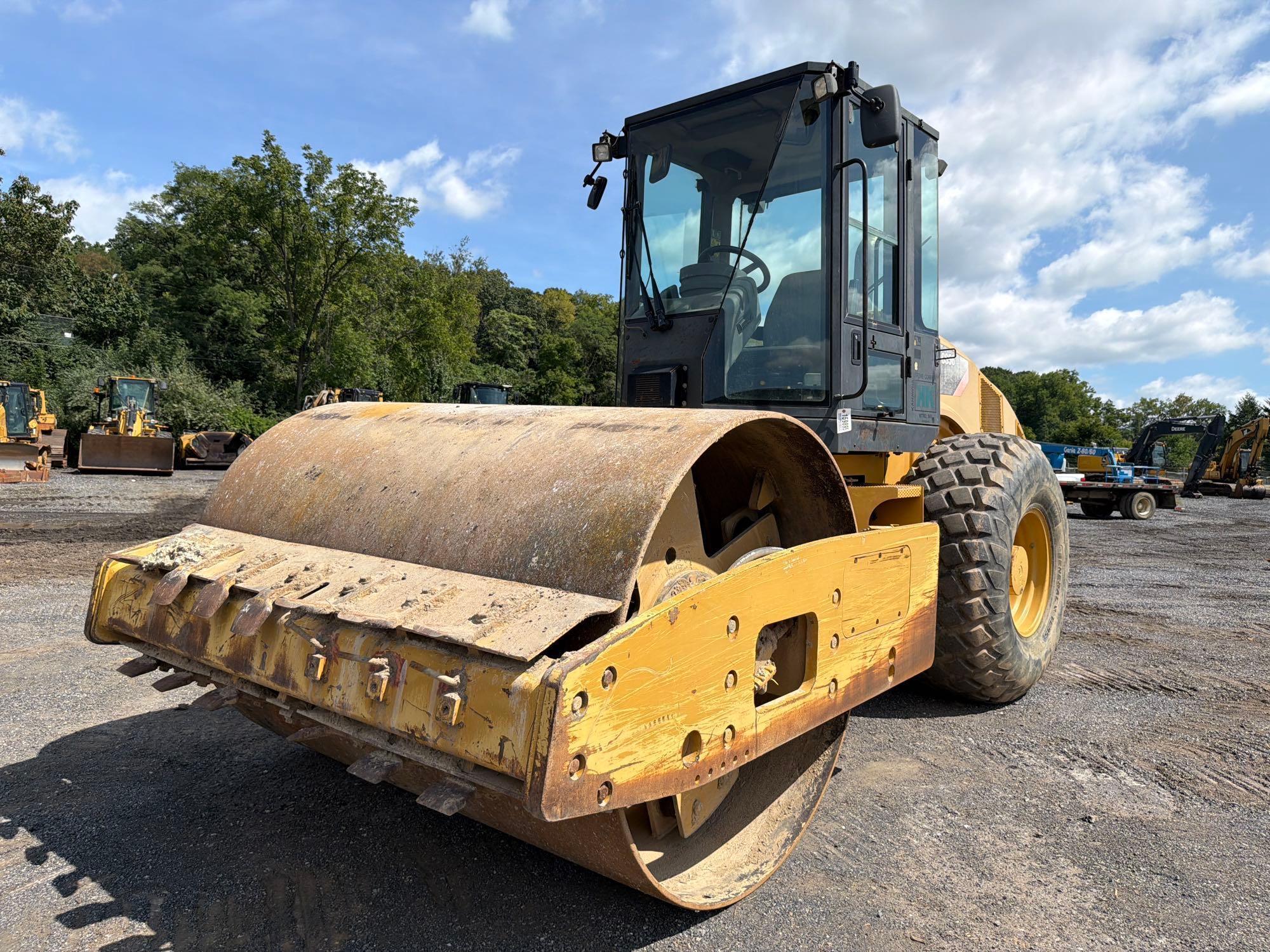

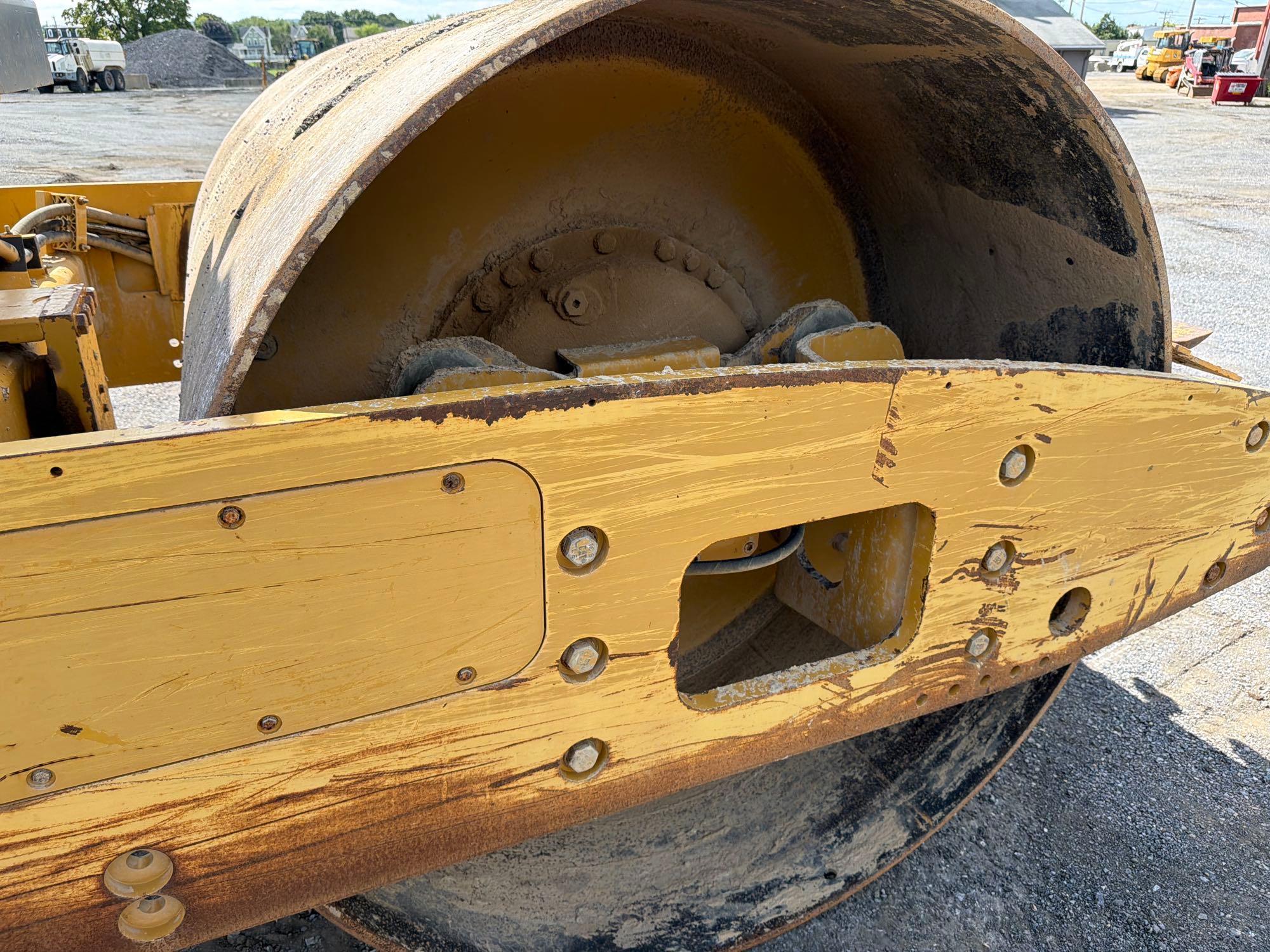

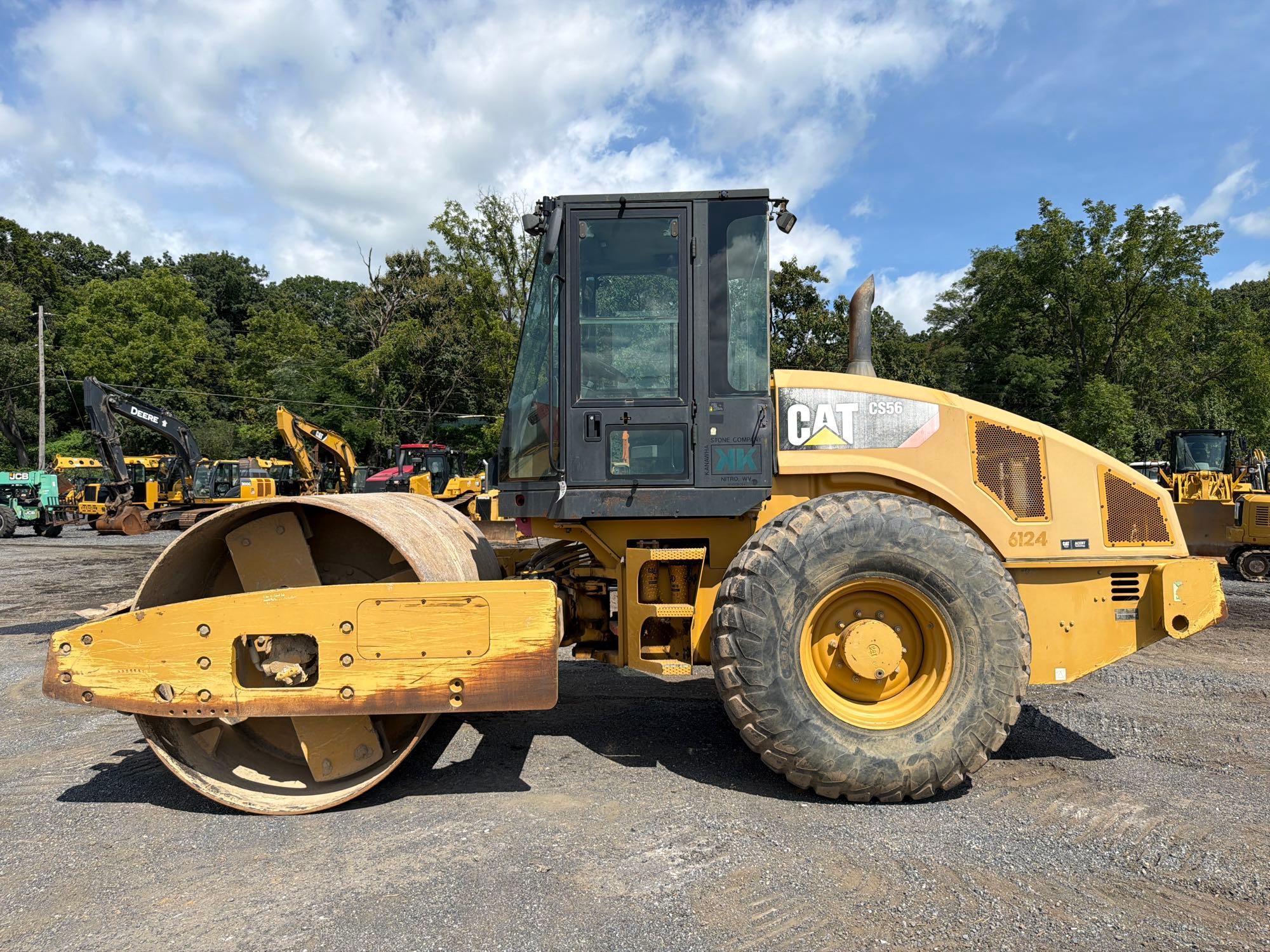

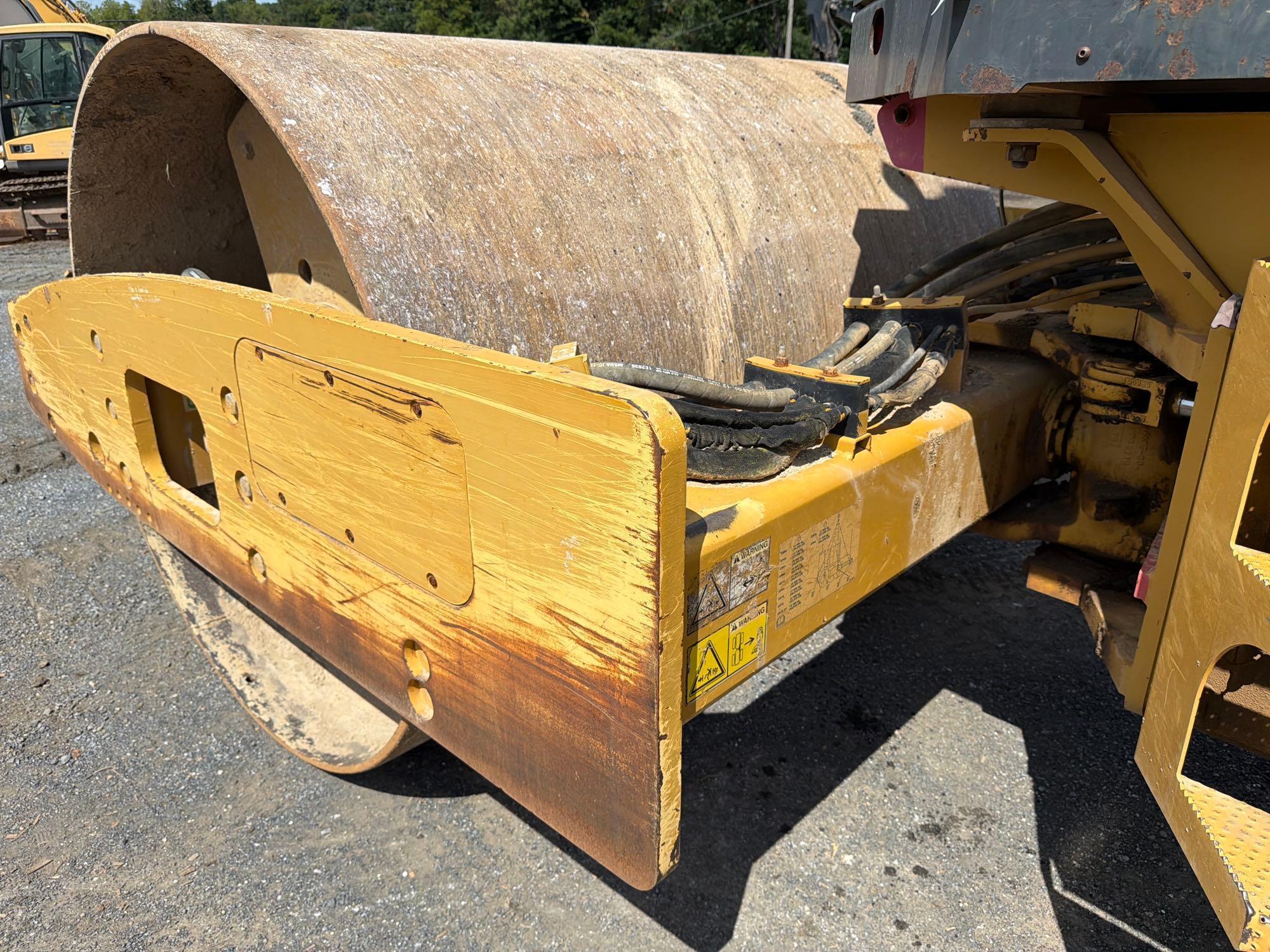

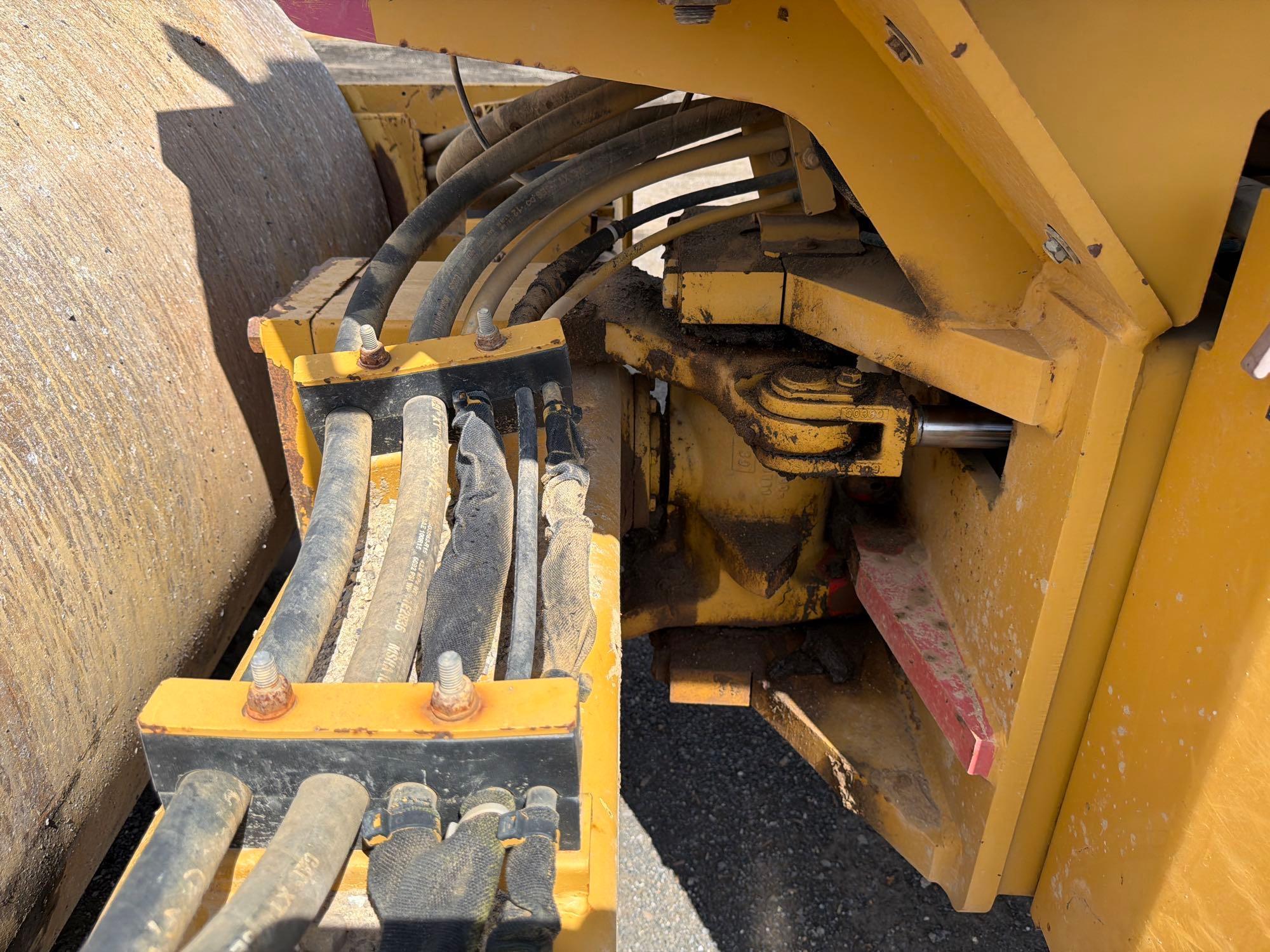

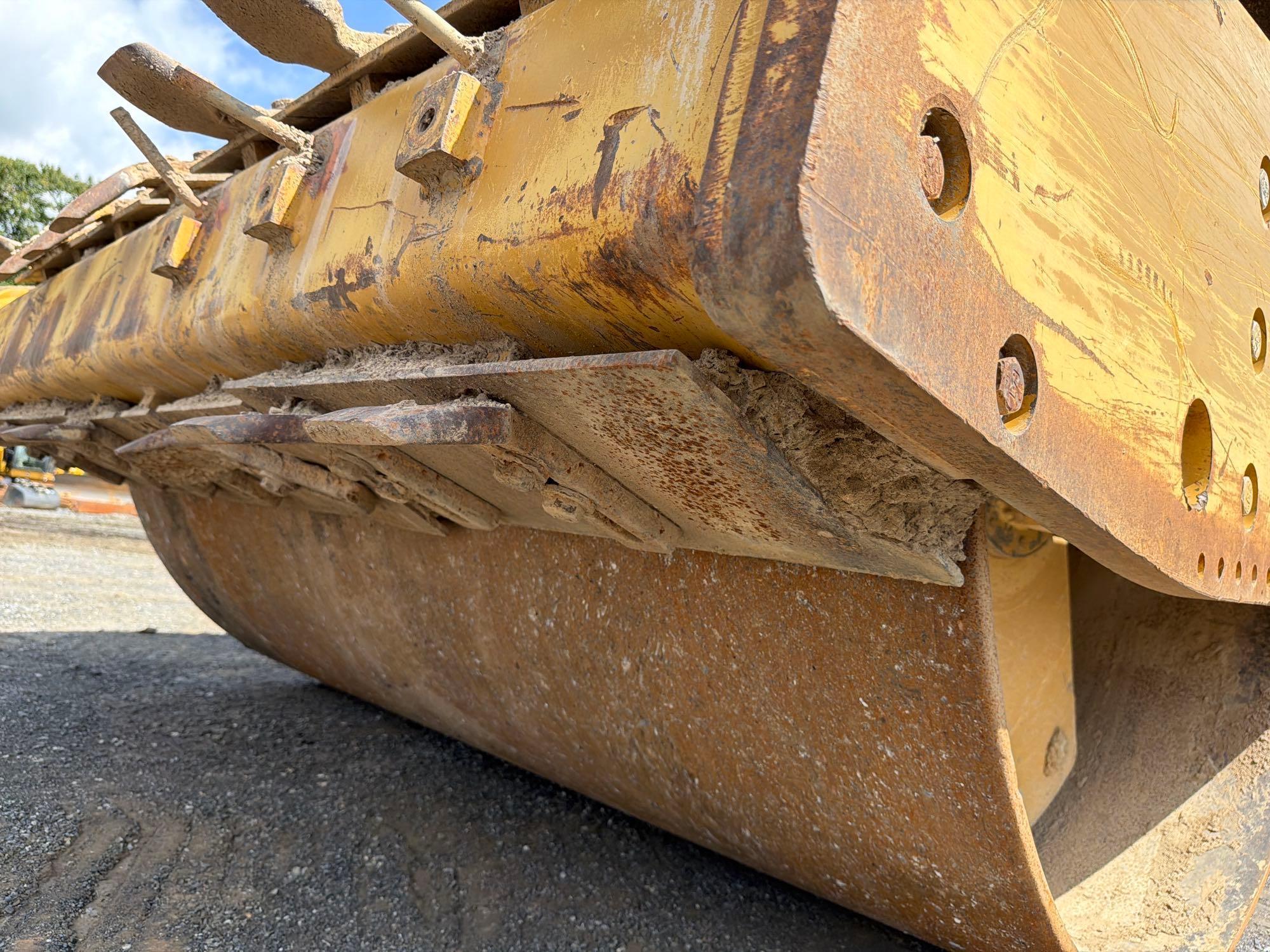

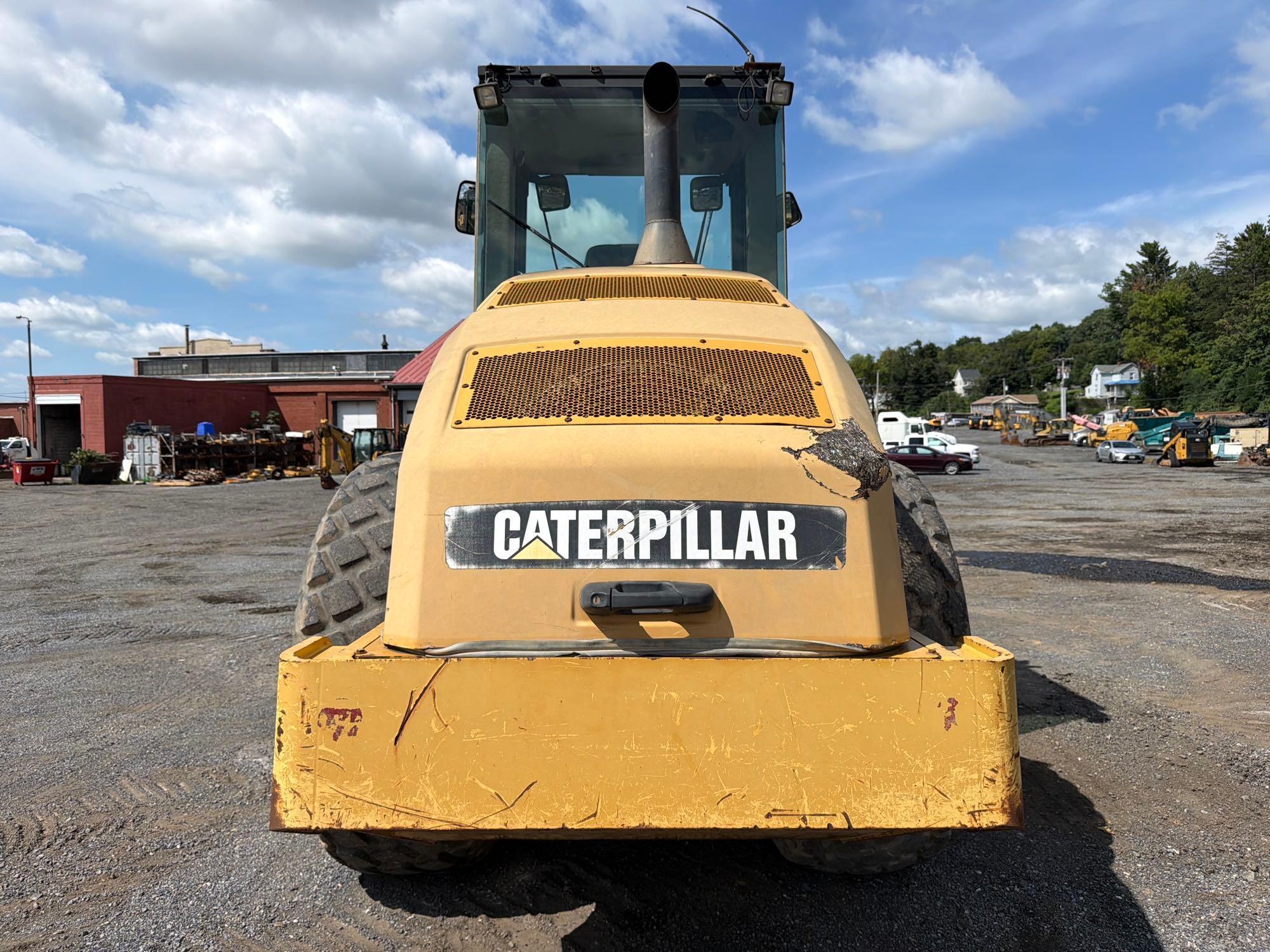

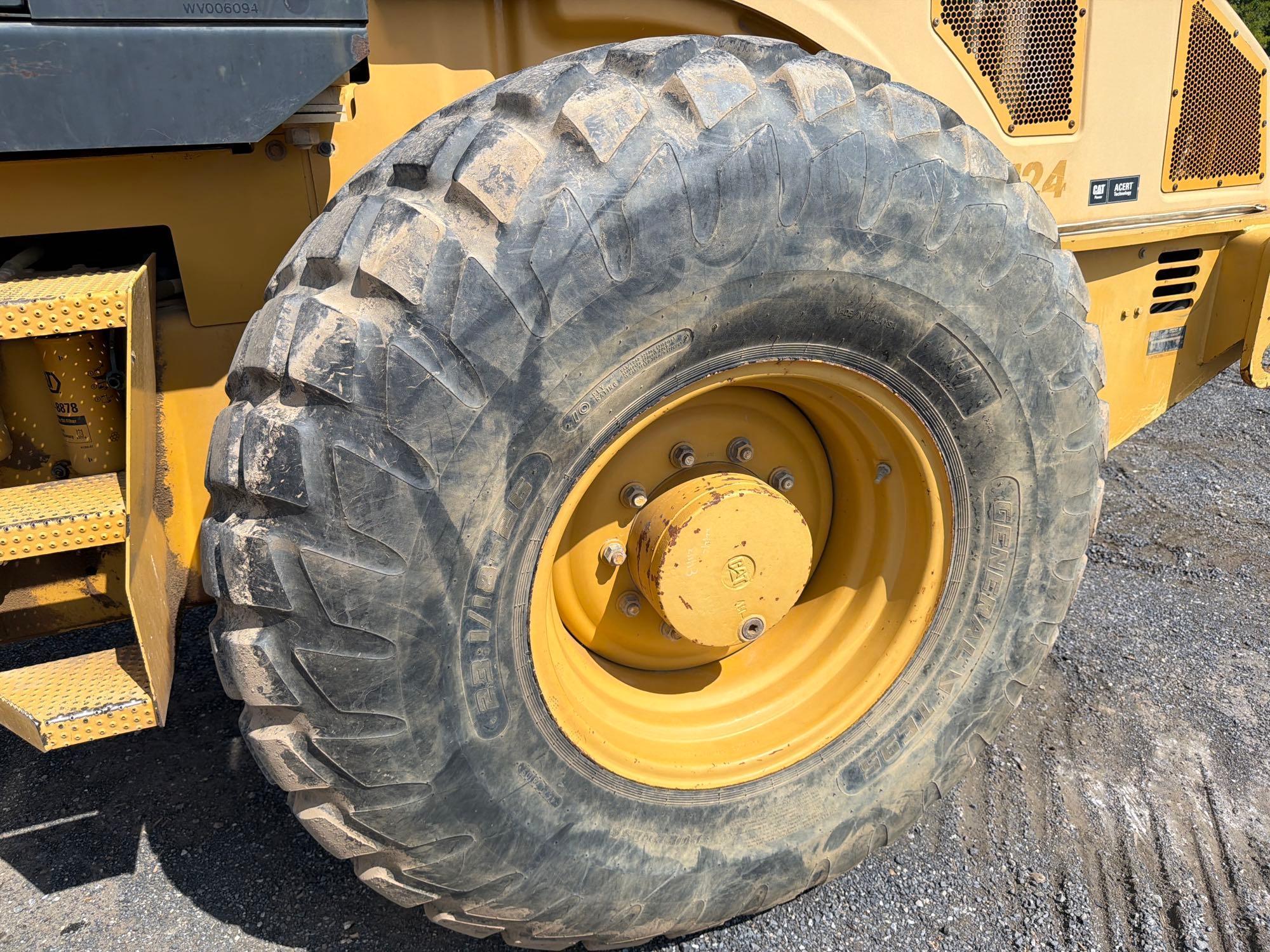

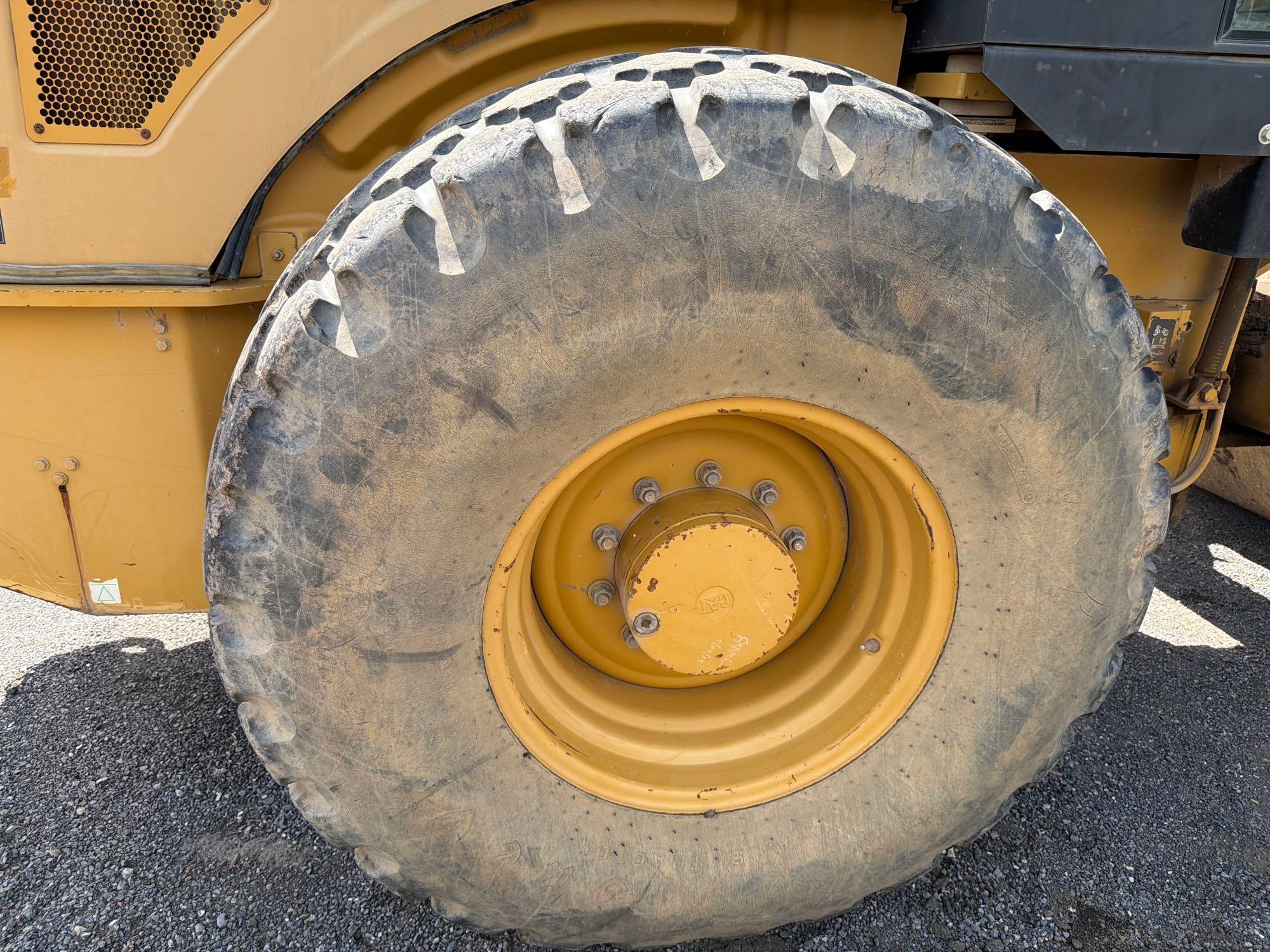

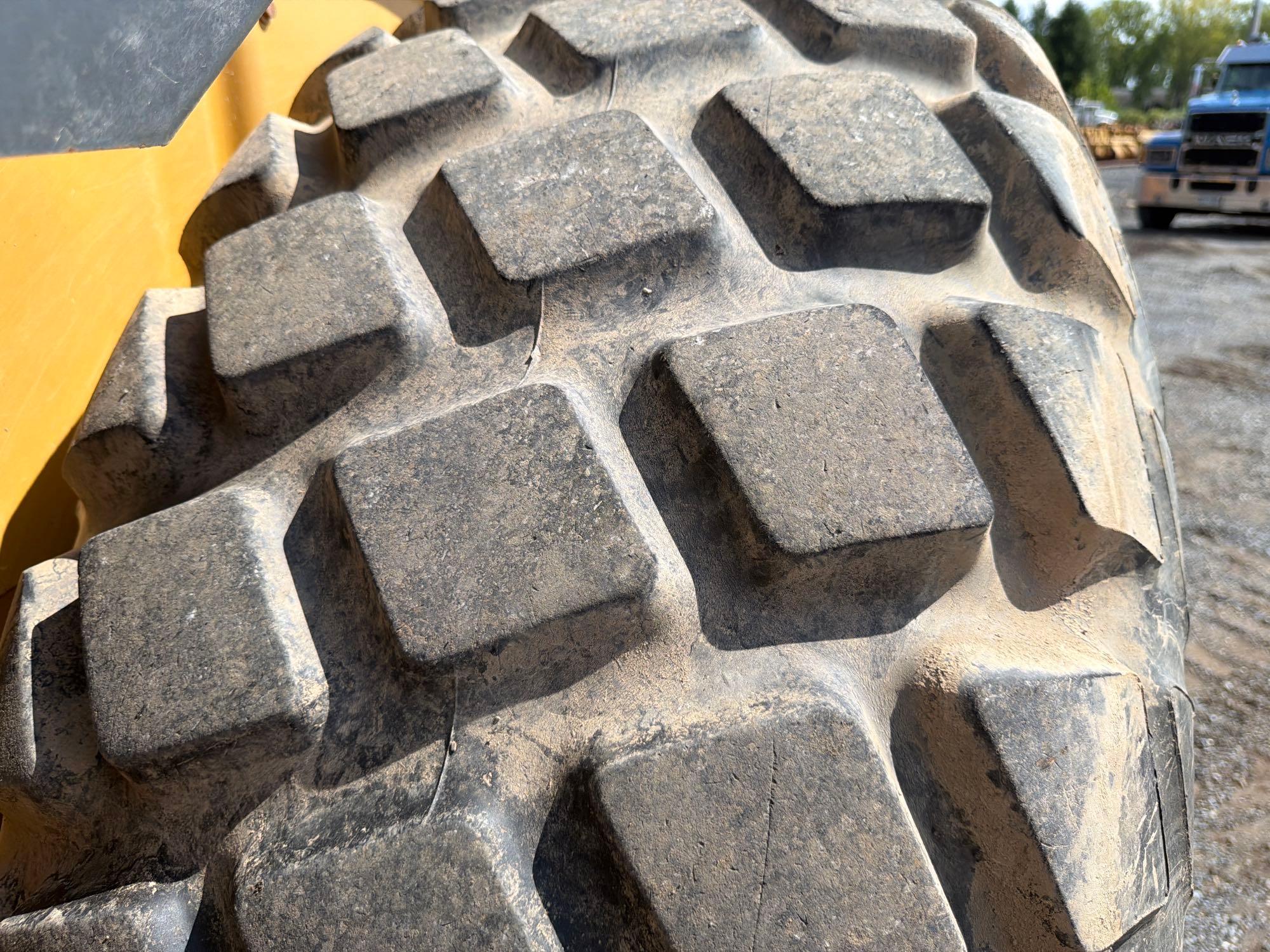

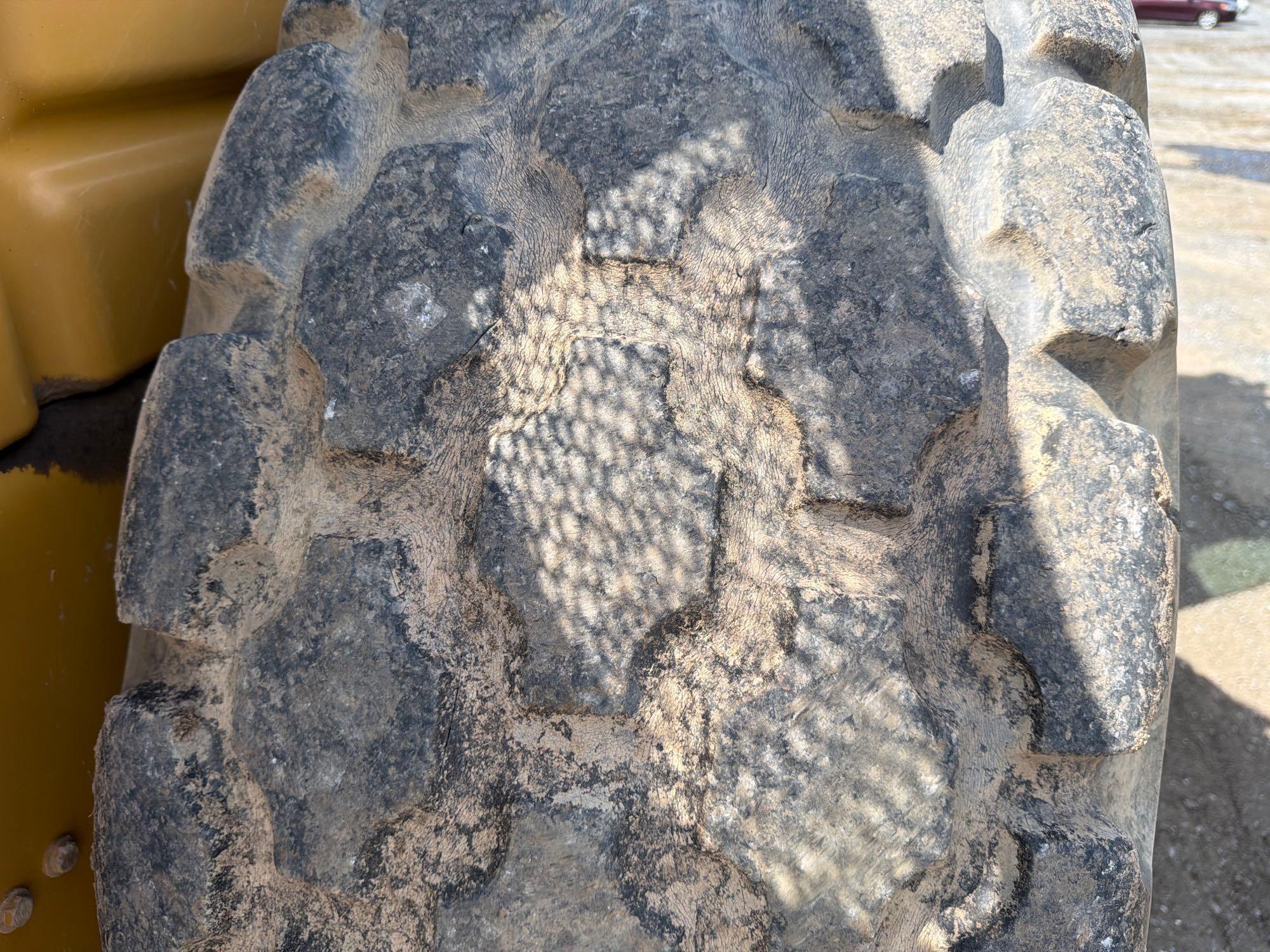

| Tires |
|
Tires |
23.1 26 8-ply flotation |

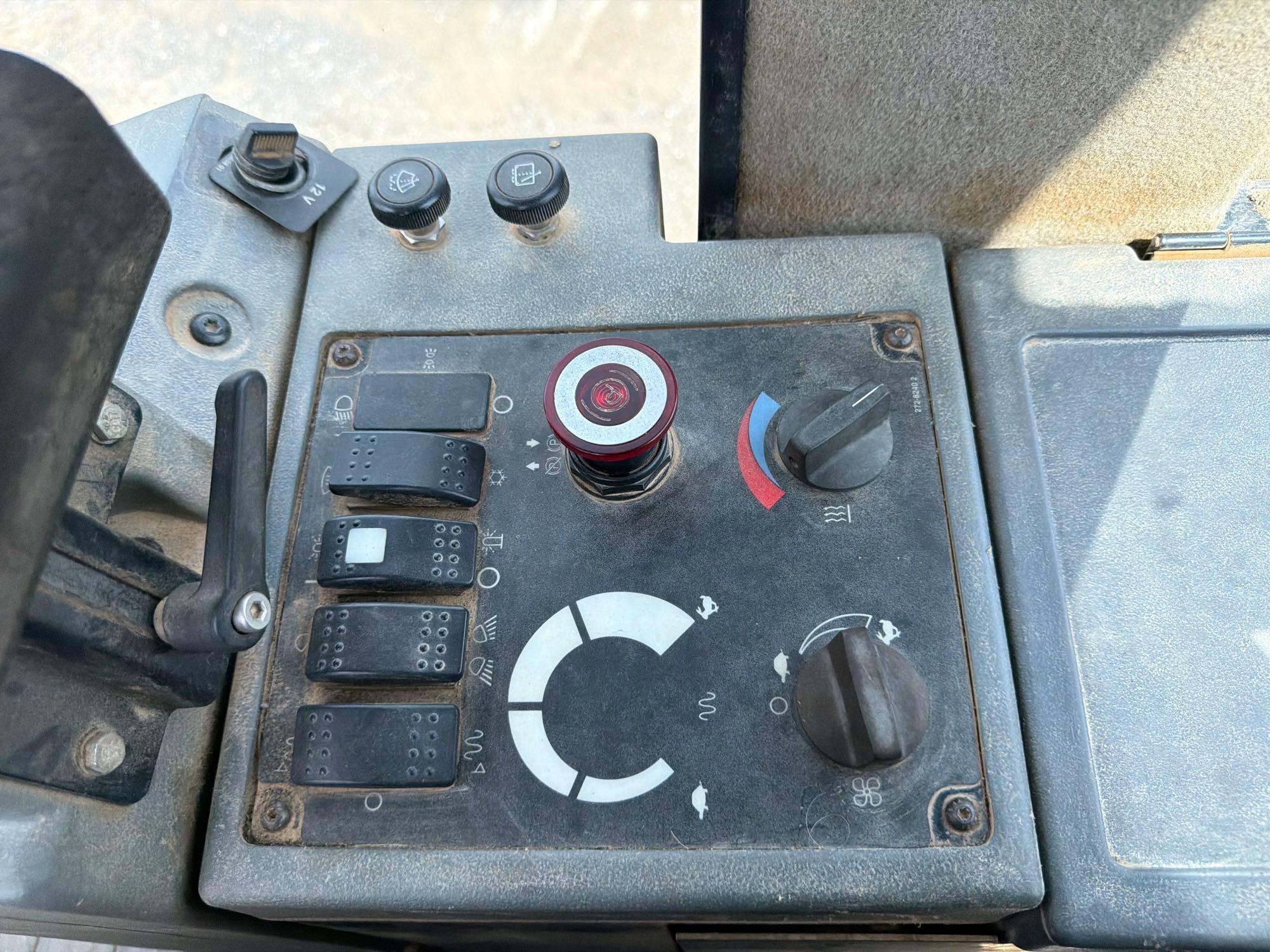

| Vibratory System |
|
Centrifugal Force - Maximum |
63,300 lbs (28,712 kg)
|
|
Centrifugal Force - Minimum |
31,600 lbs (14,334 kg)
|
|
Nominal Amplitude - High |
0 in (0 cm)
|
|
Nominal Amplitude - Low |
0 in (0 cm)
|
|
Variable Frequency Option Range |
23.3-31.9 Hz (1,400-1,914 vpm) |
|
Vibratory Frequency - Standard |
1914 V/m |
| Weights |
|
Operating Weight - With Cab |
27,571 lbs (12,506 kg)
|
|
Operating Weight - With Rops/Fops |
26,850 lbs (12,179 kg)
|
|
Weight - Drum With Cab |
14,775 lbs (6,702 kg)
|
|
Weight - Drum With Rops/Fops |
14,586 lbs (6,616 kg)
|
