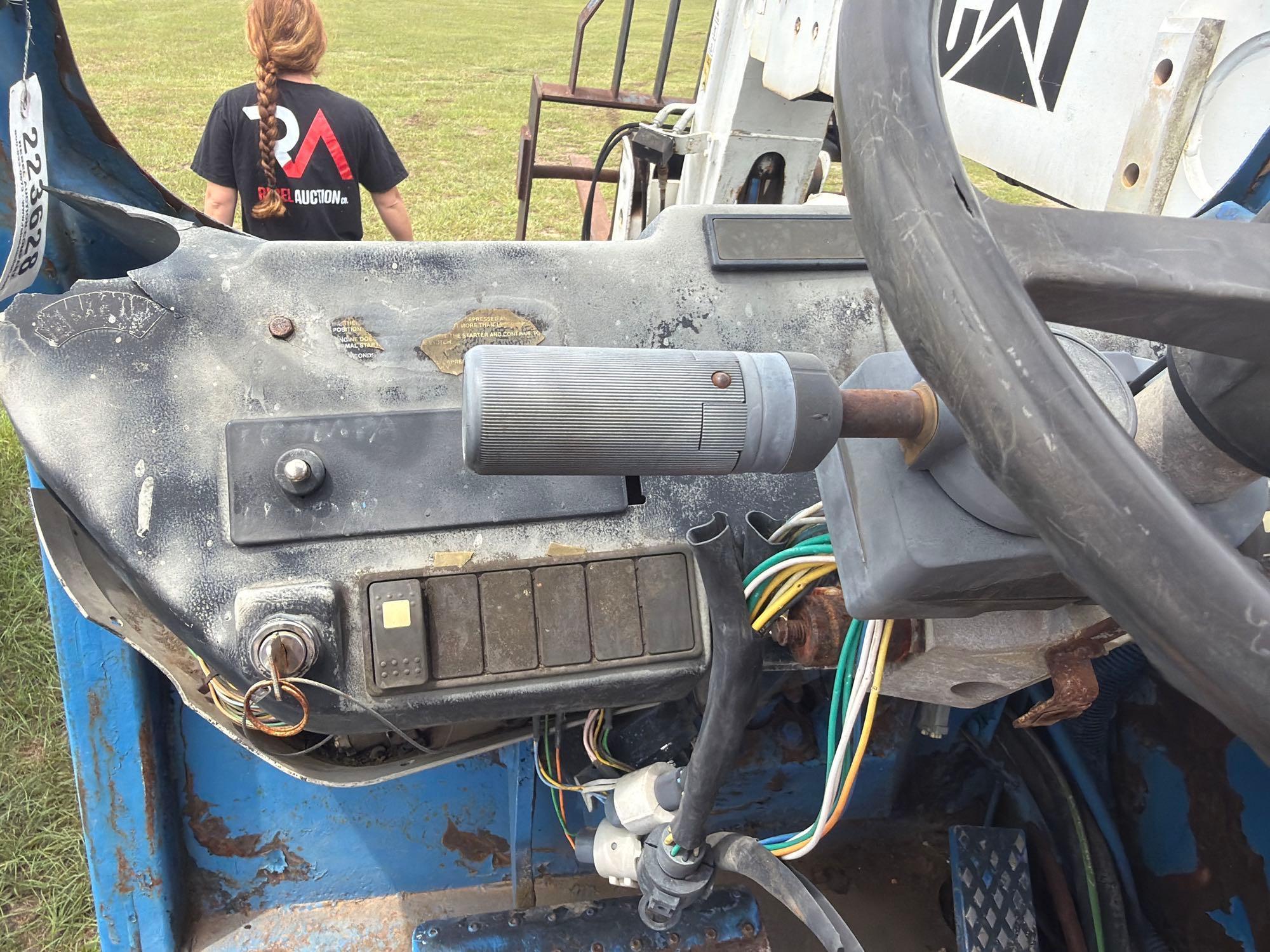

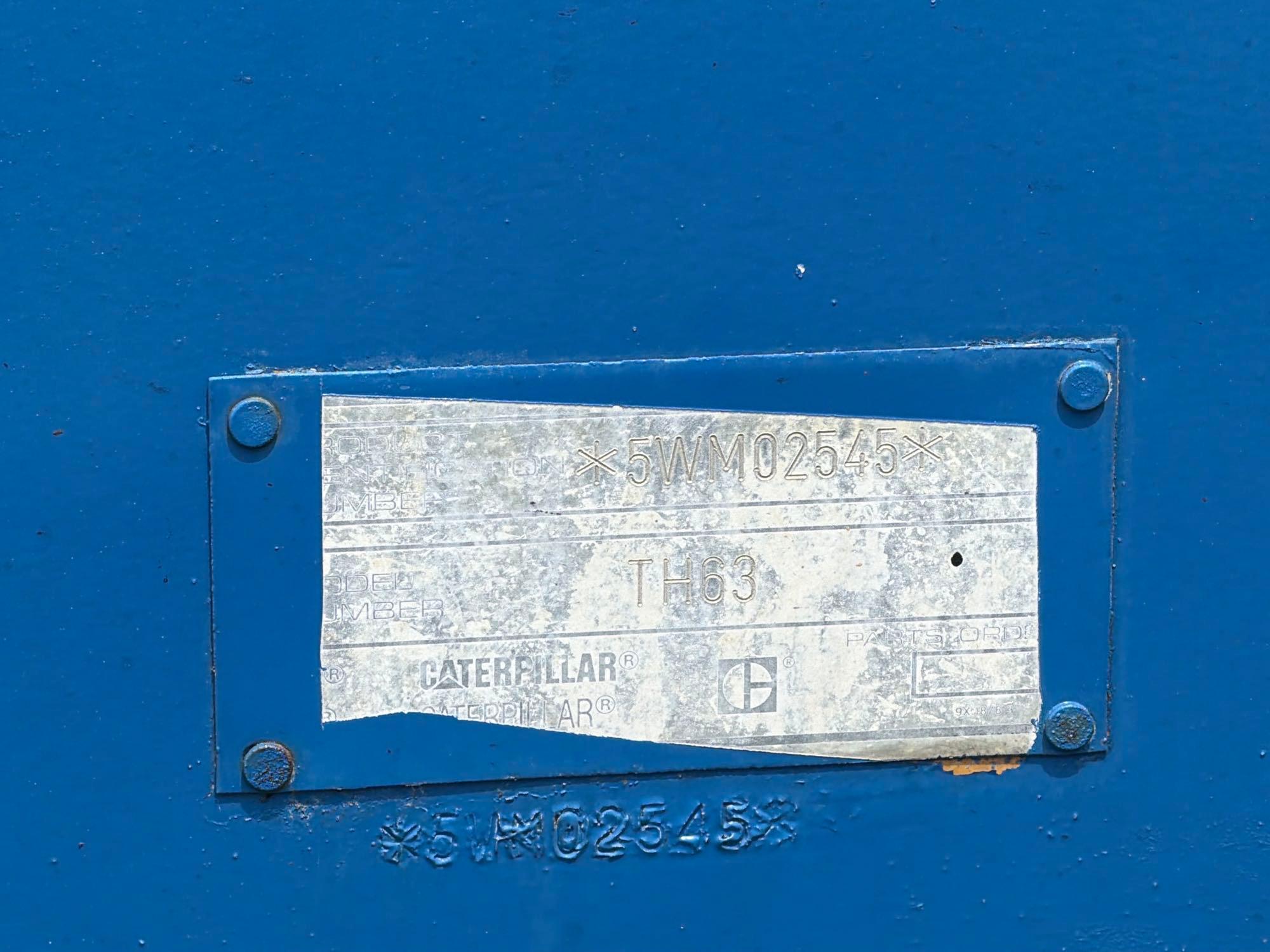

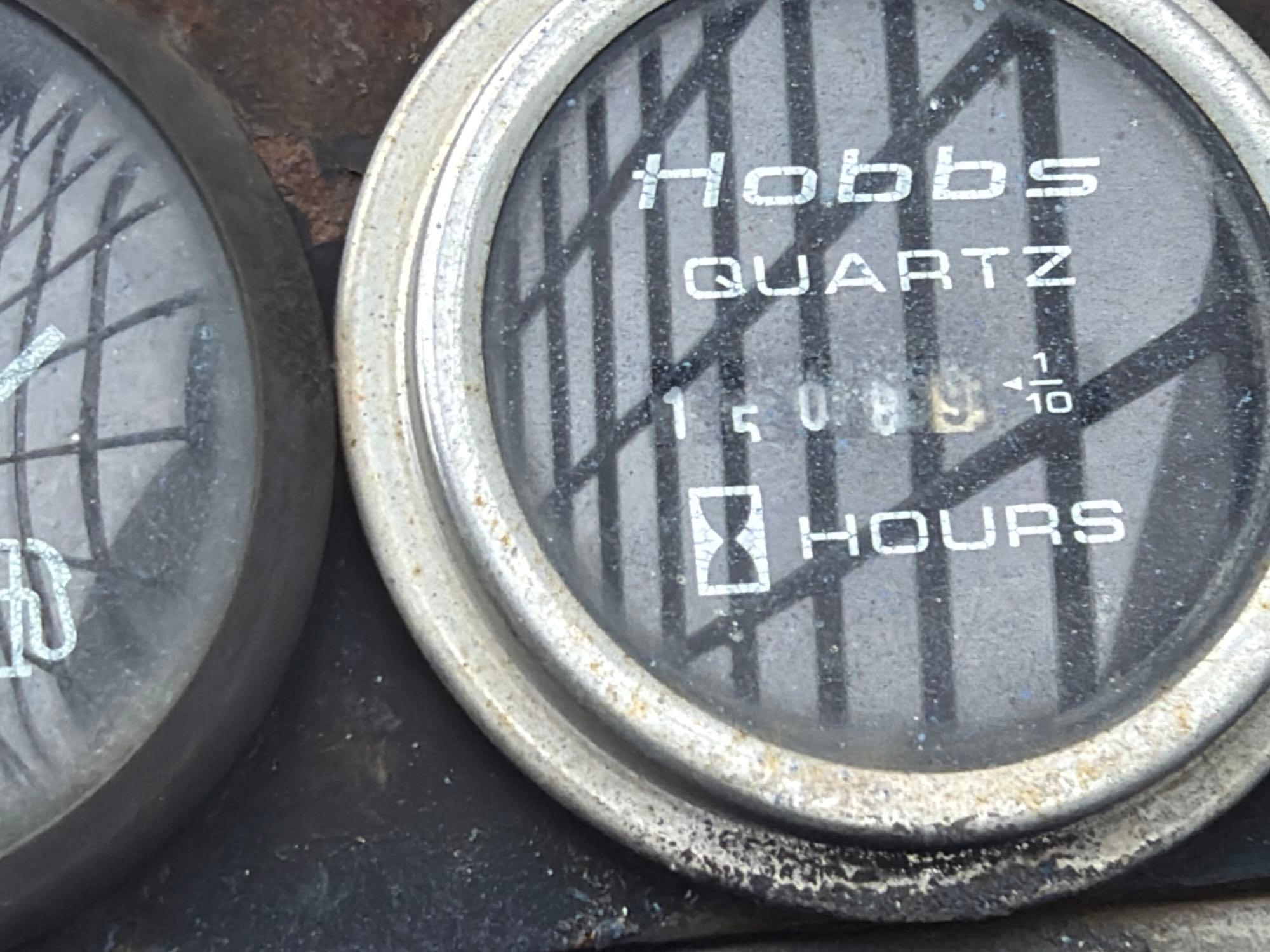

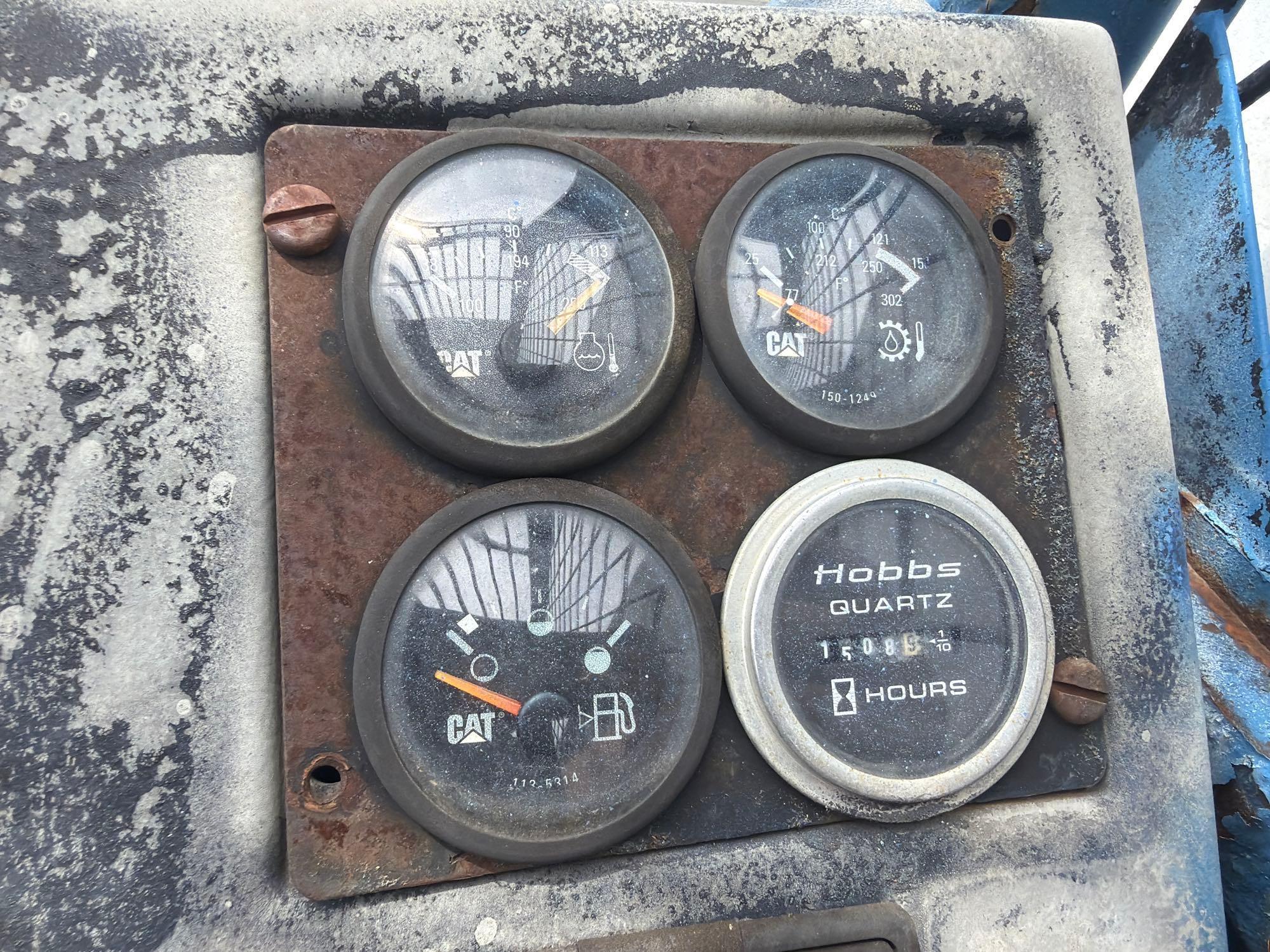

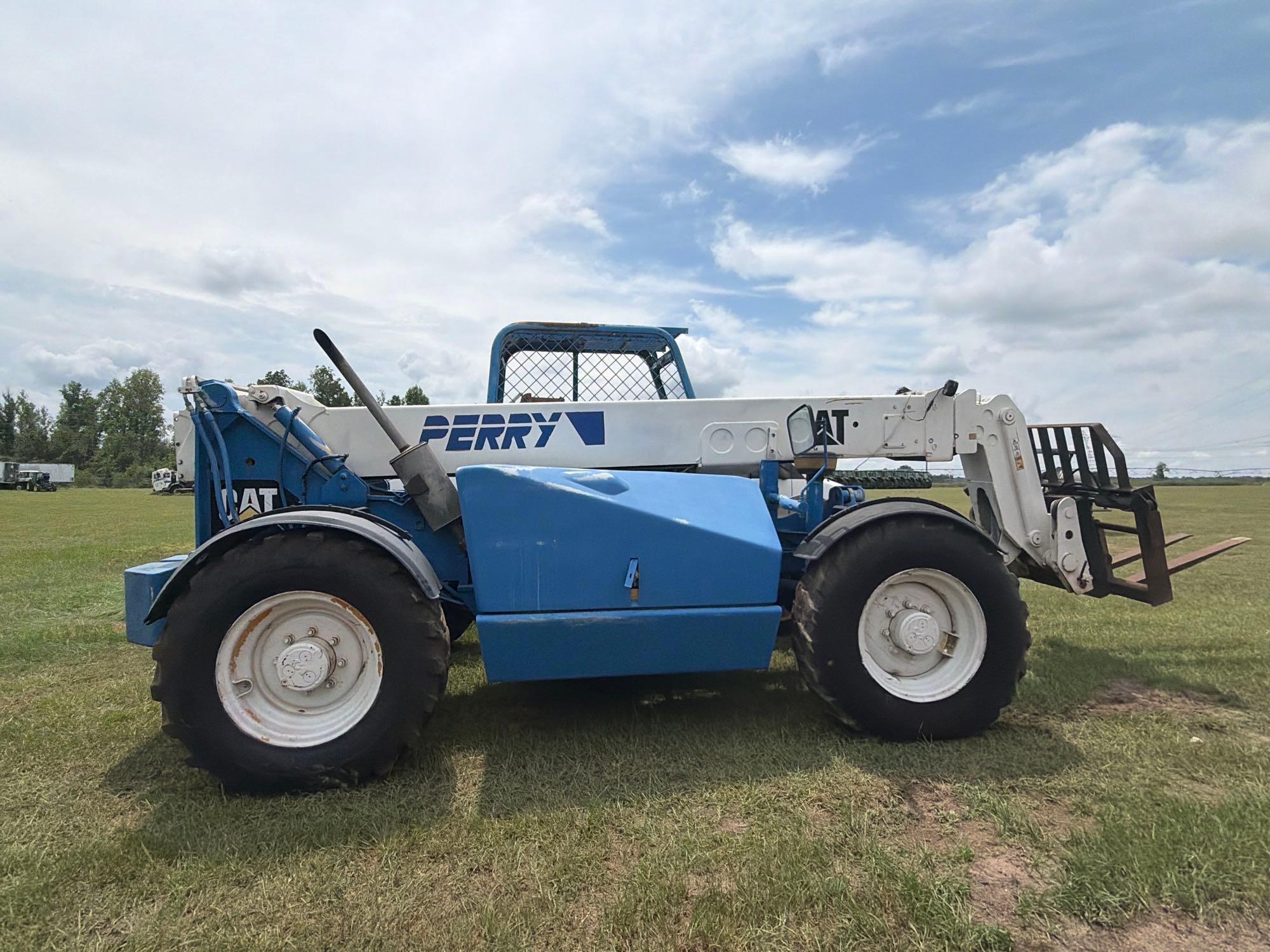

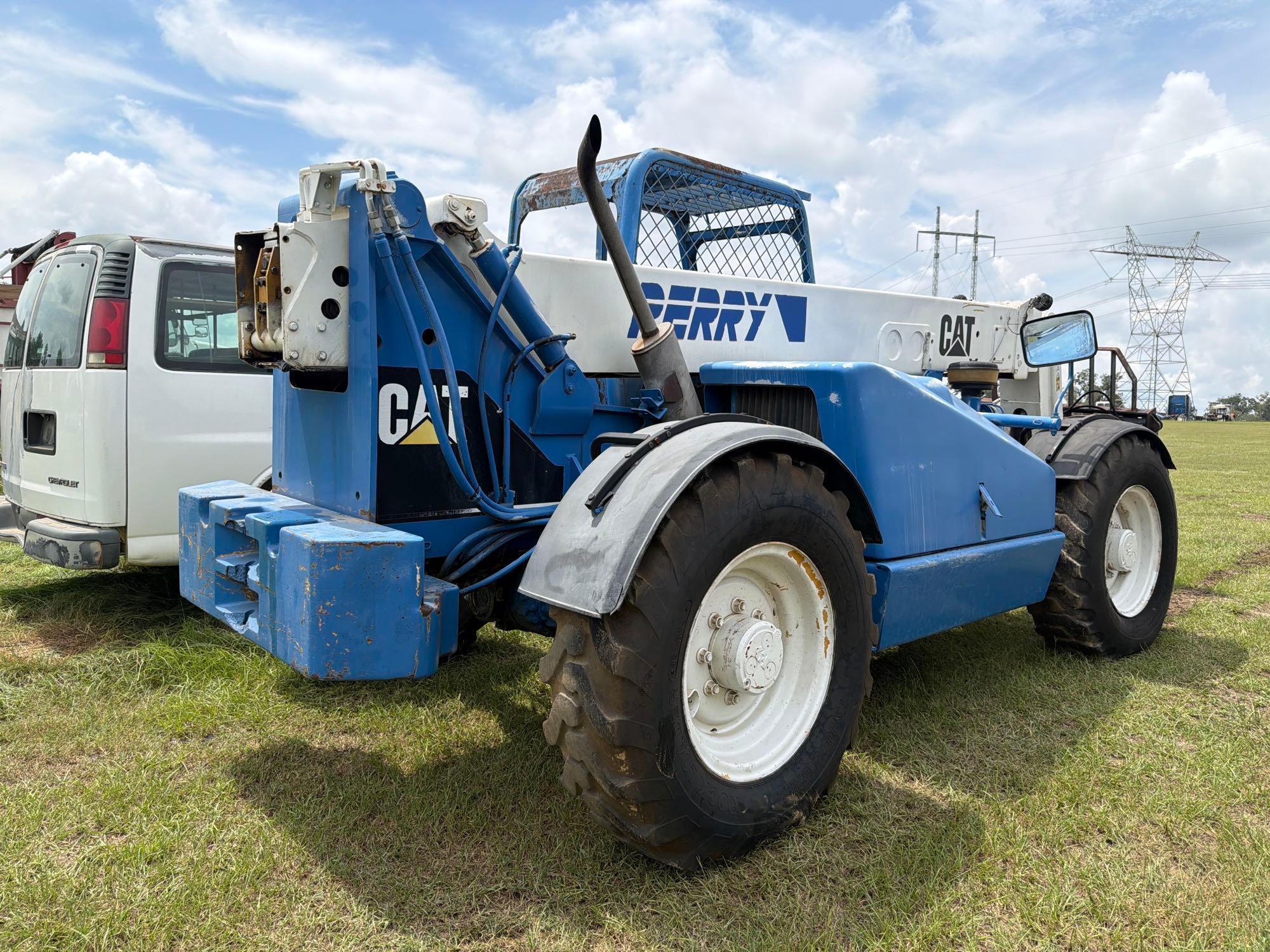

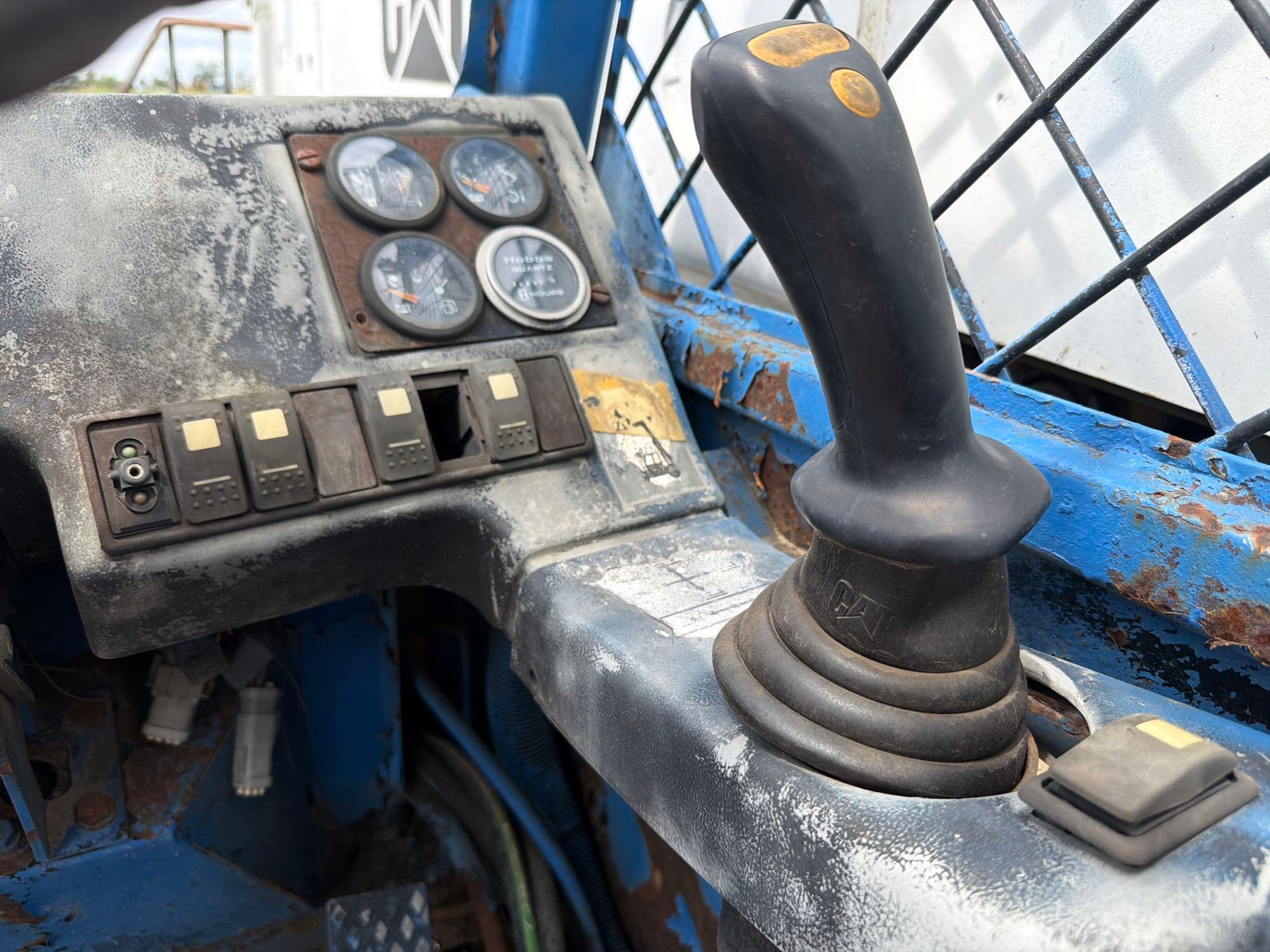

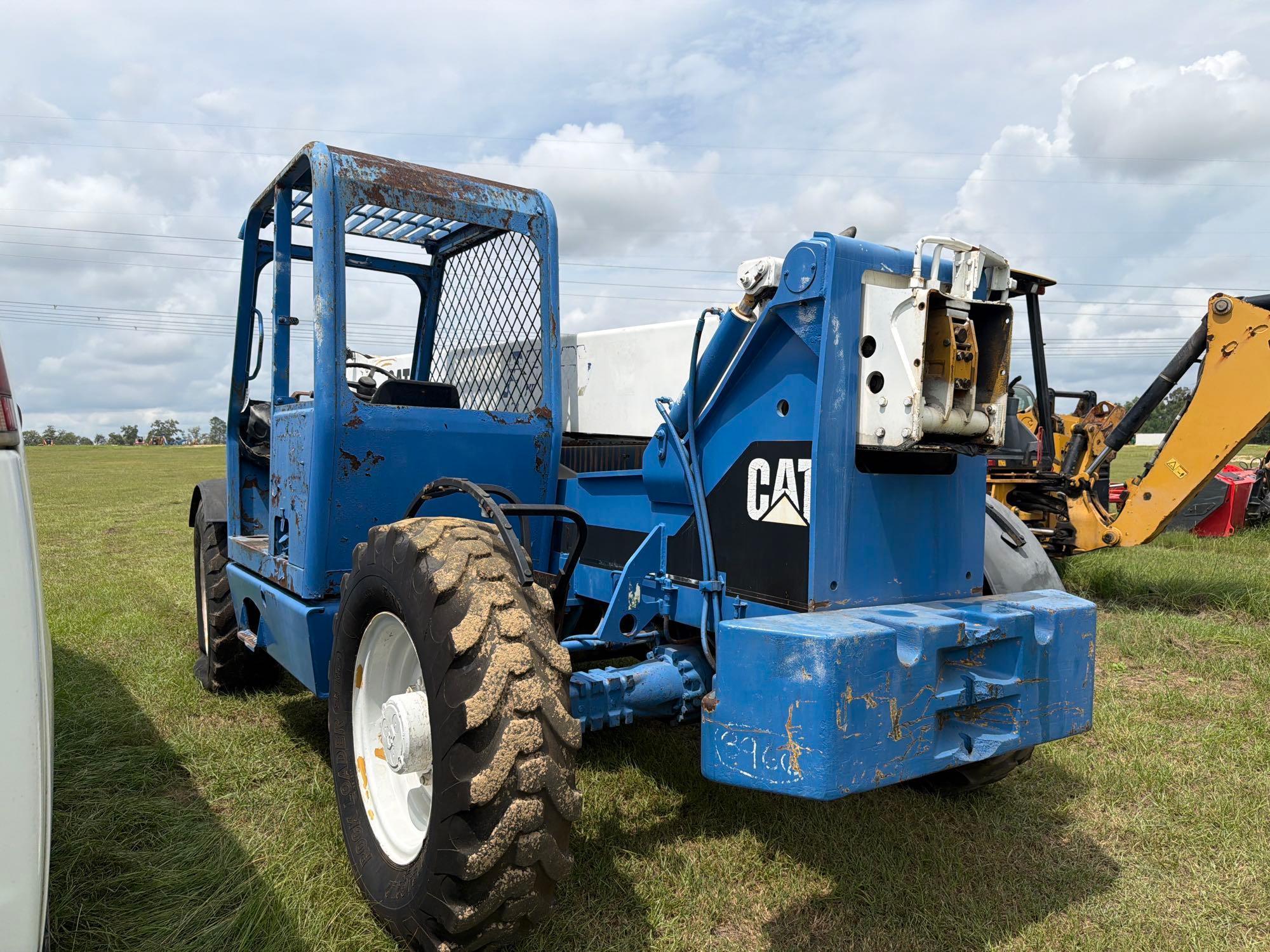

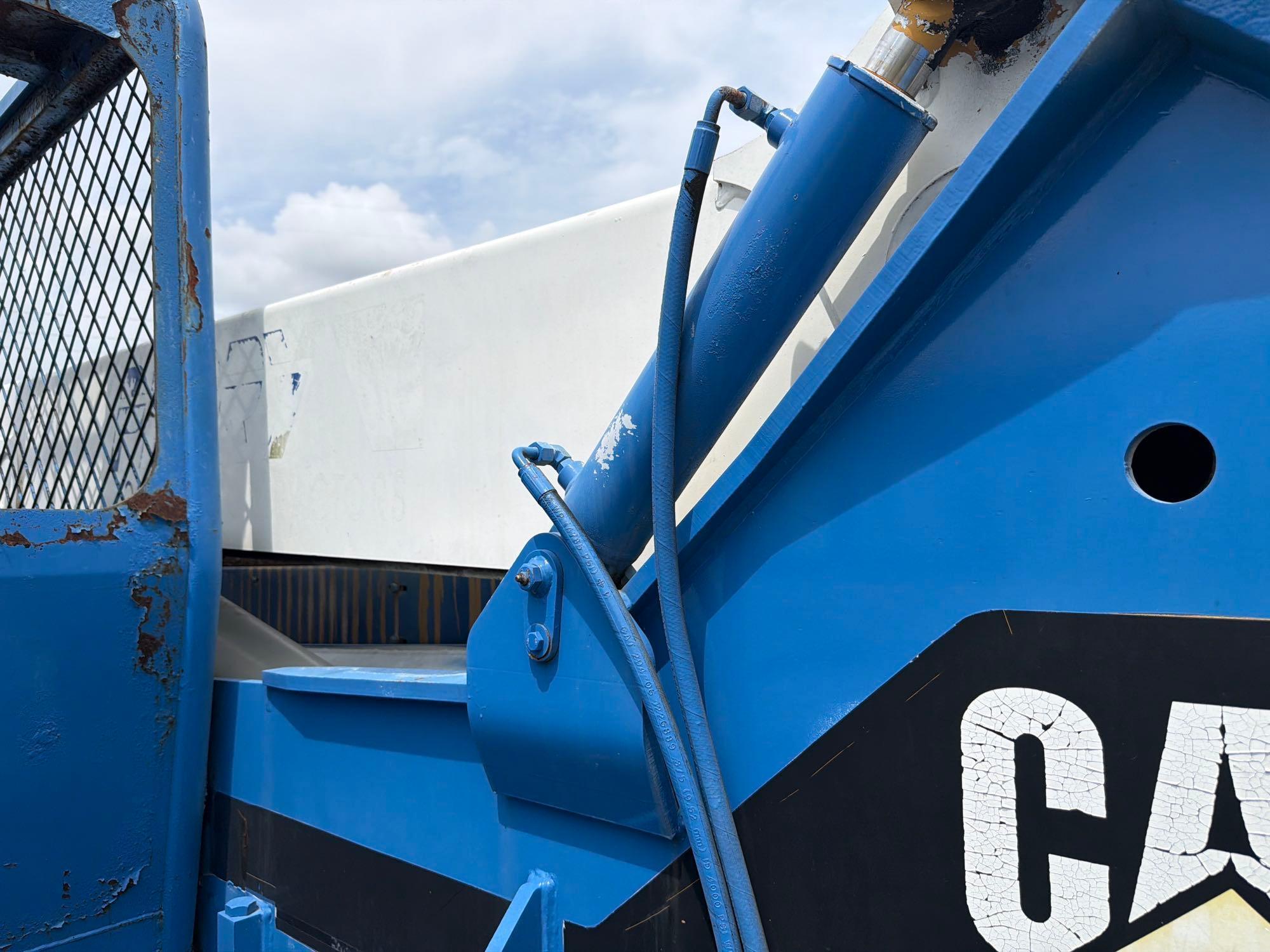

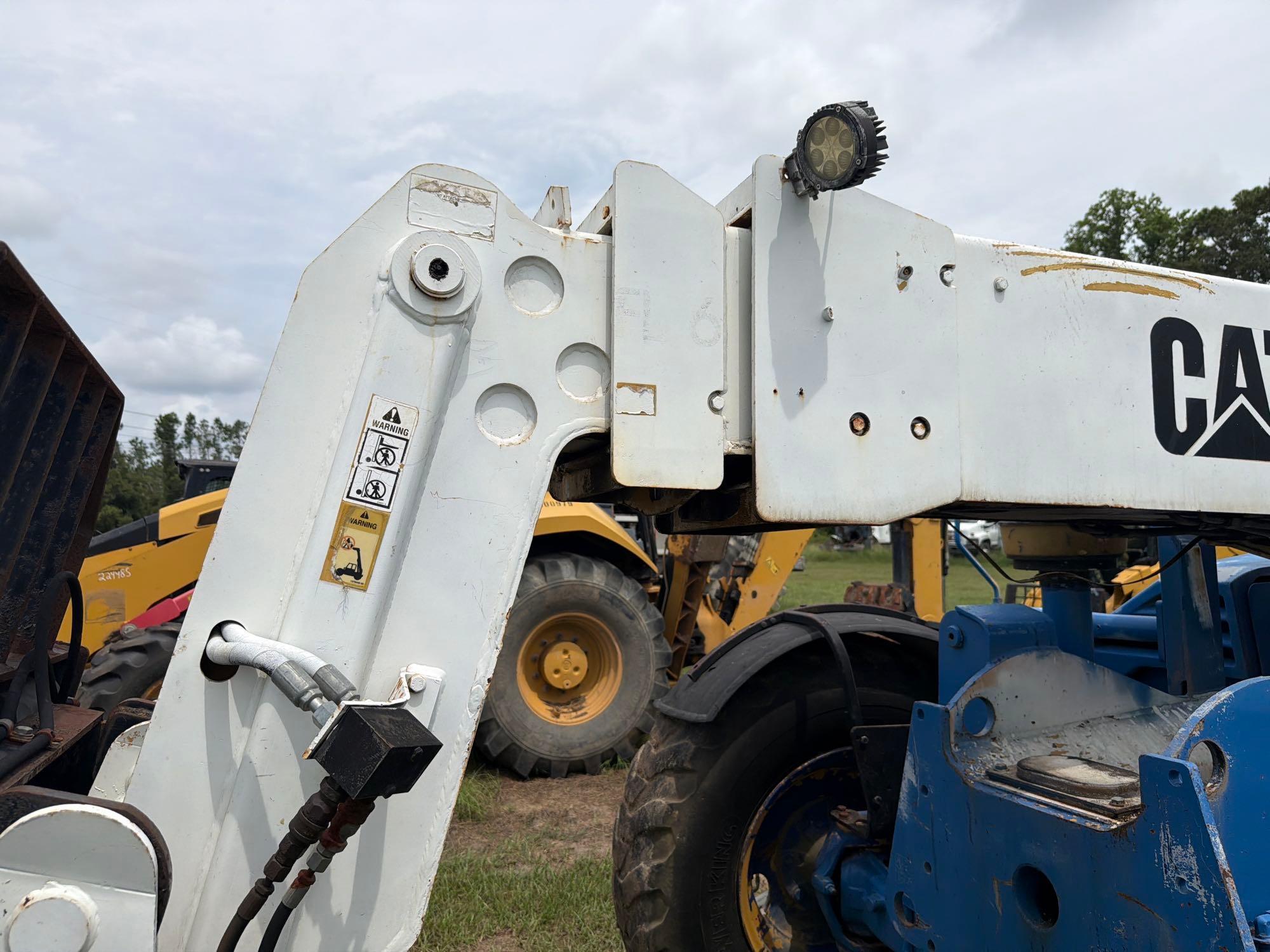

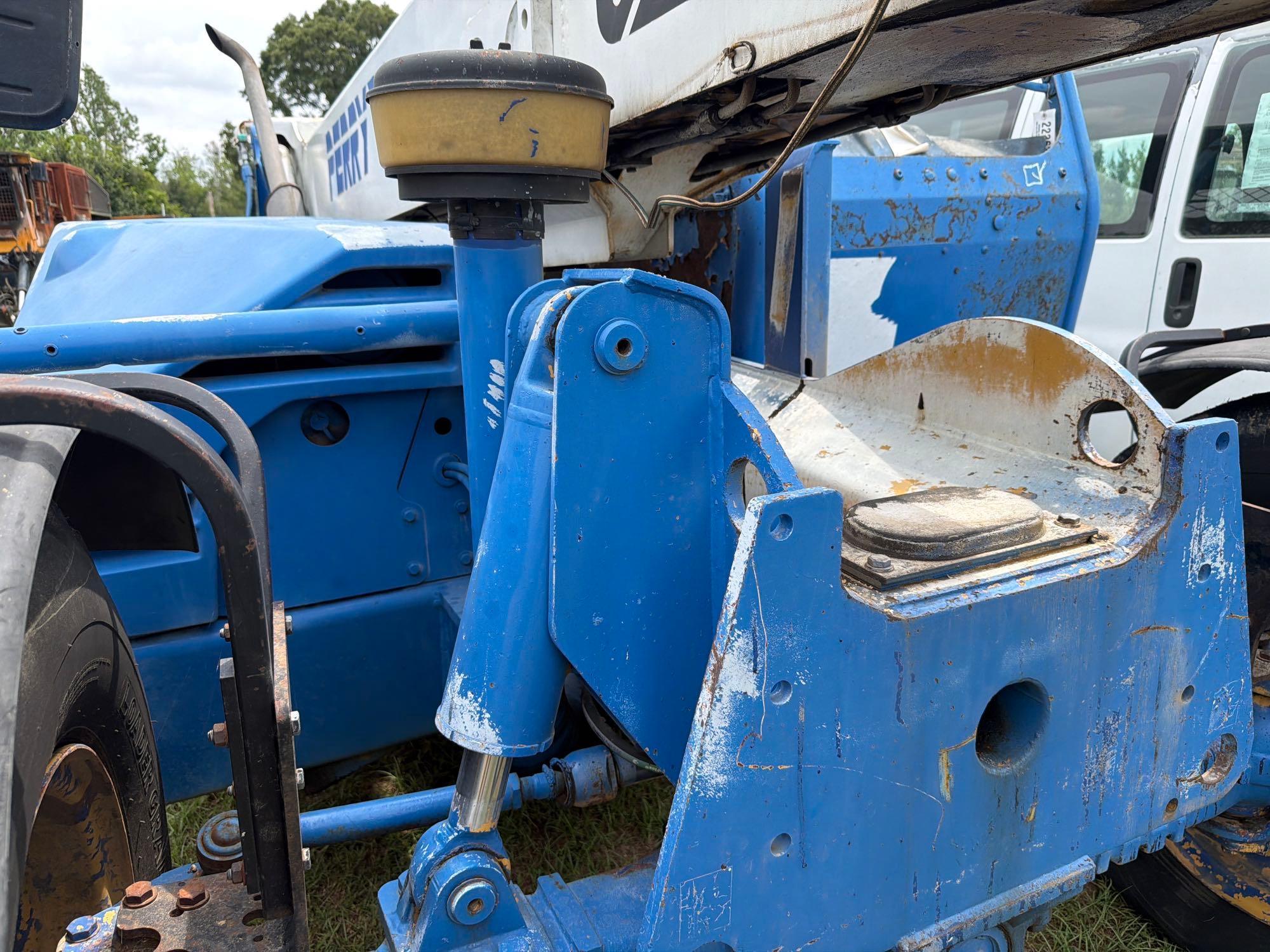

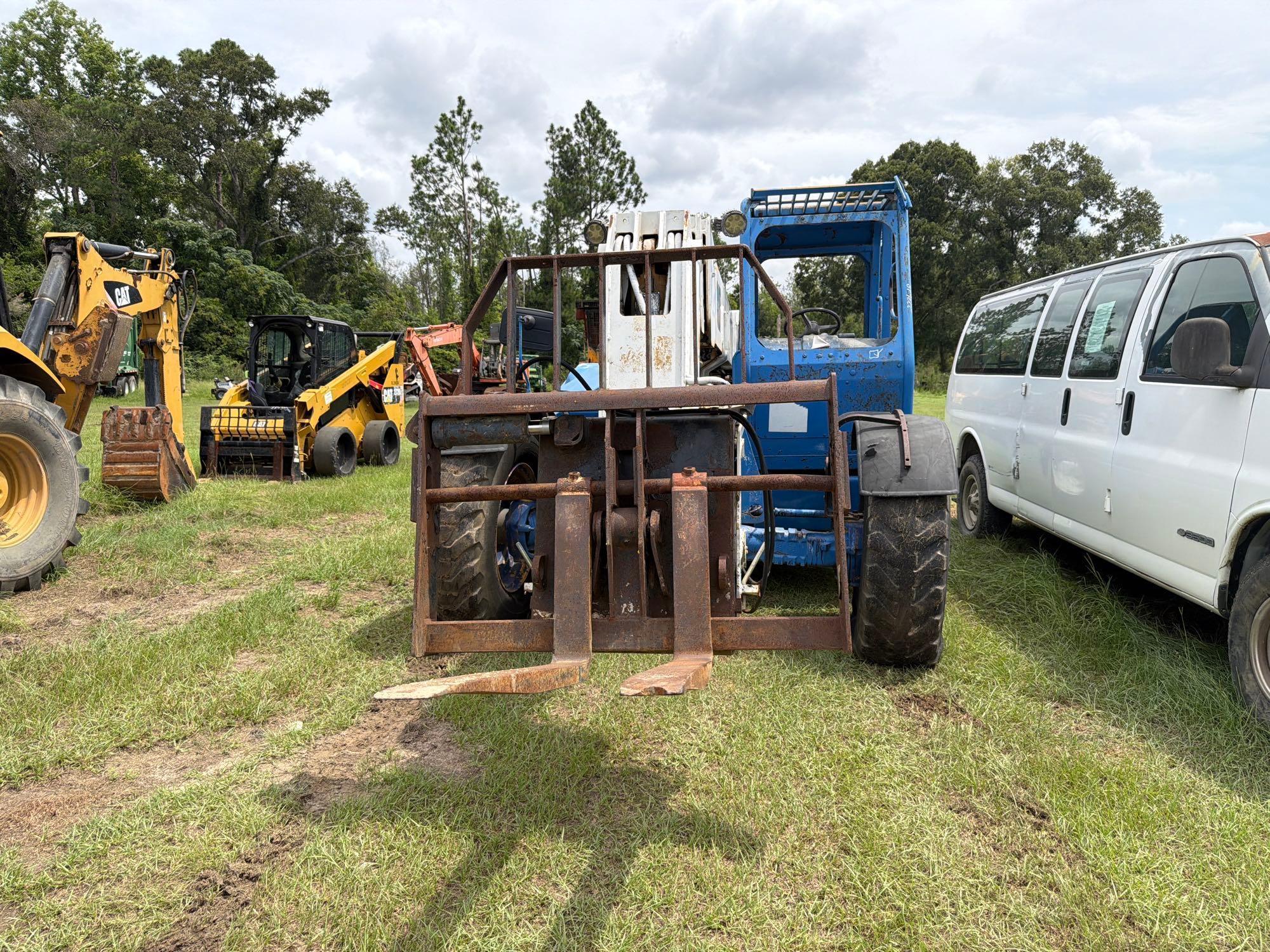

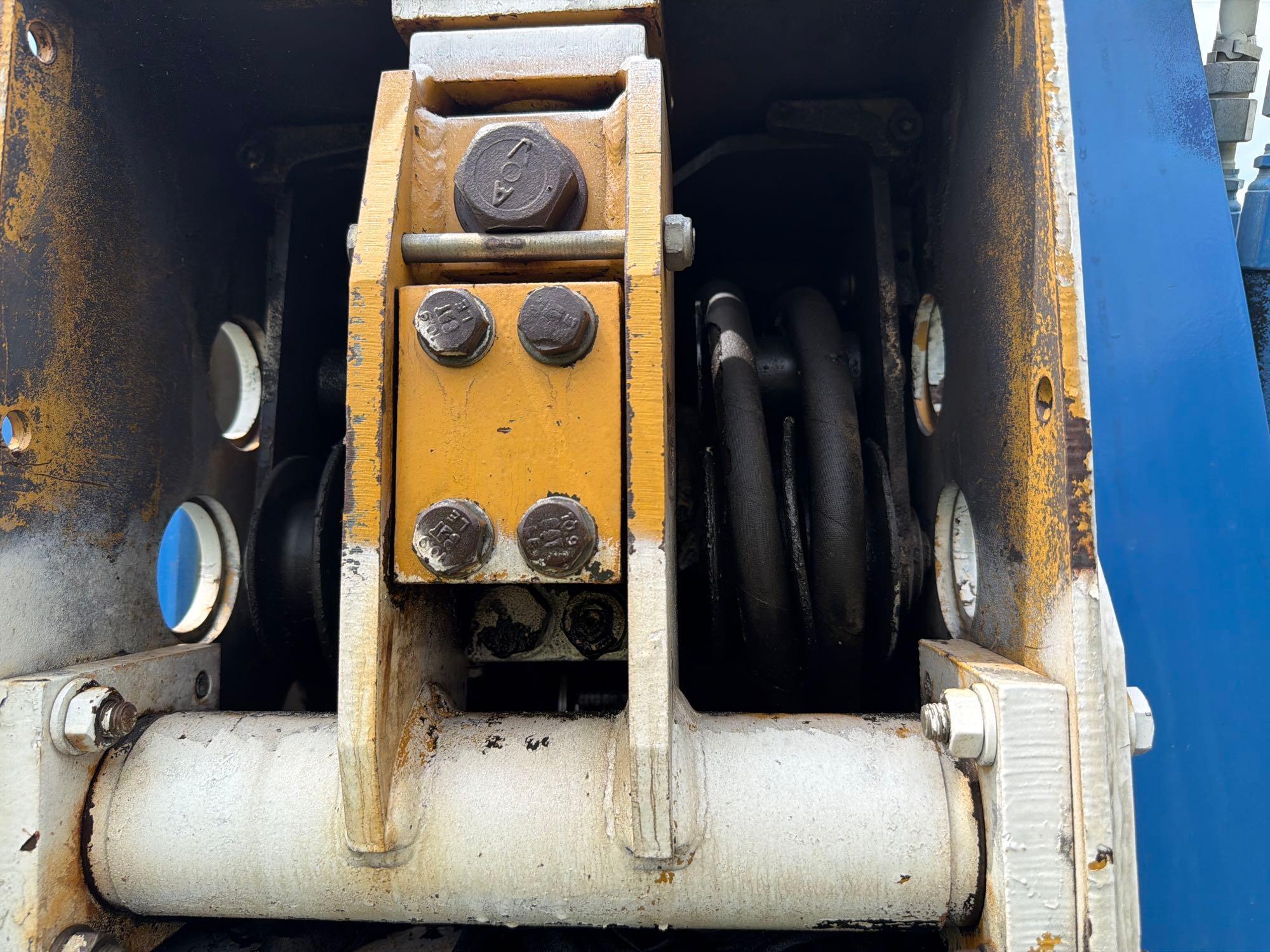

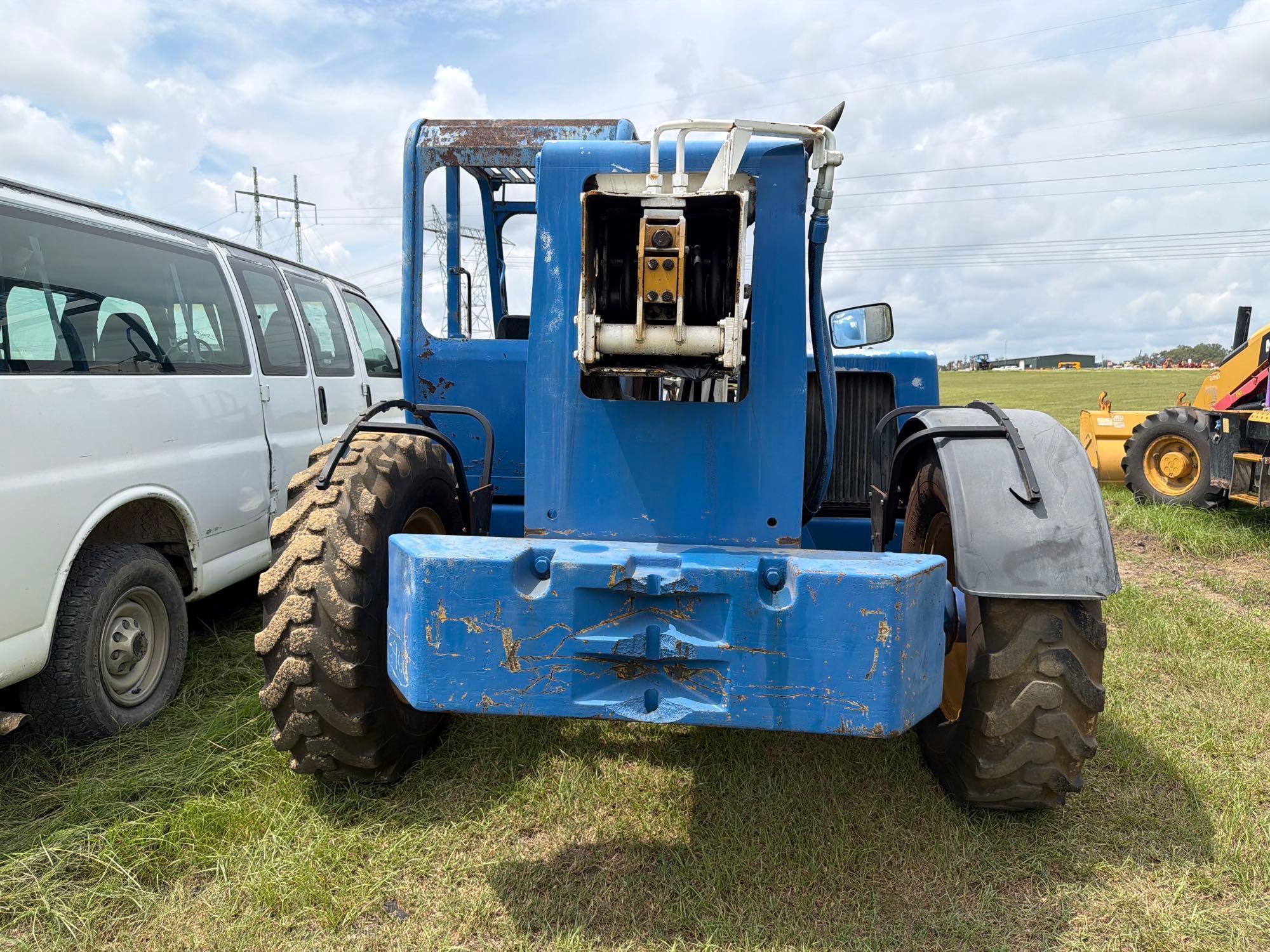

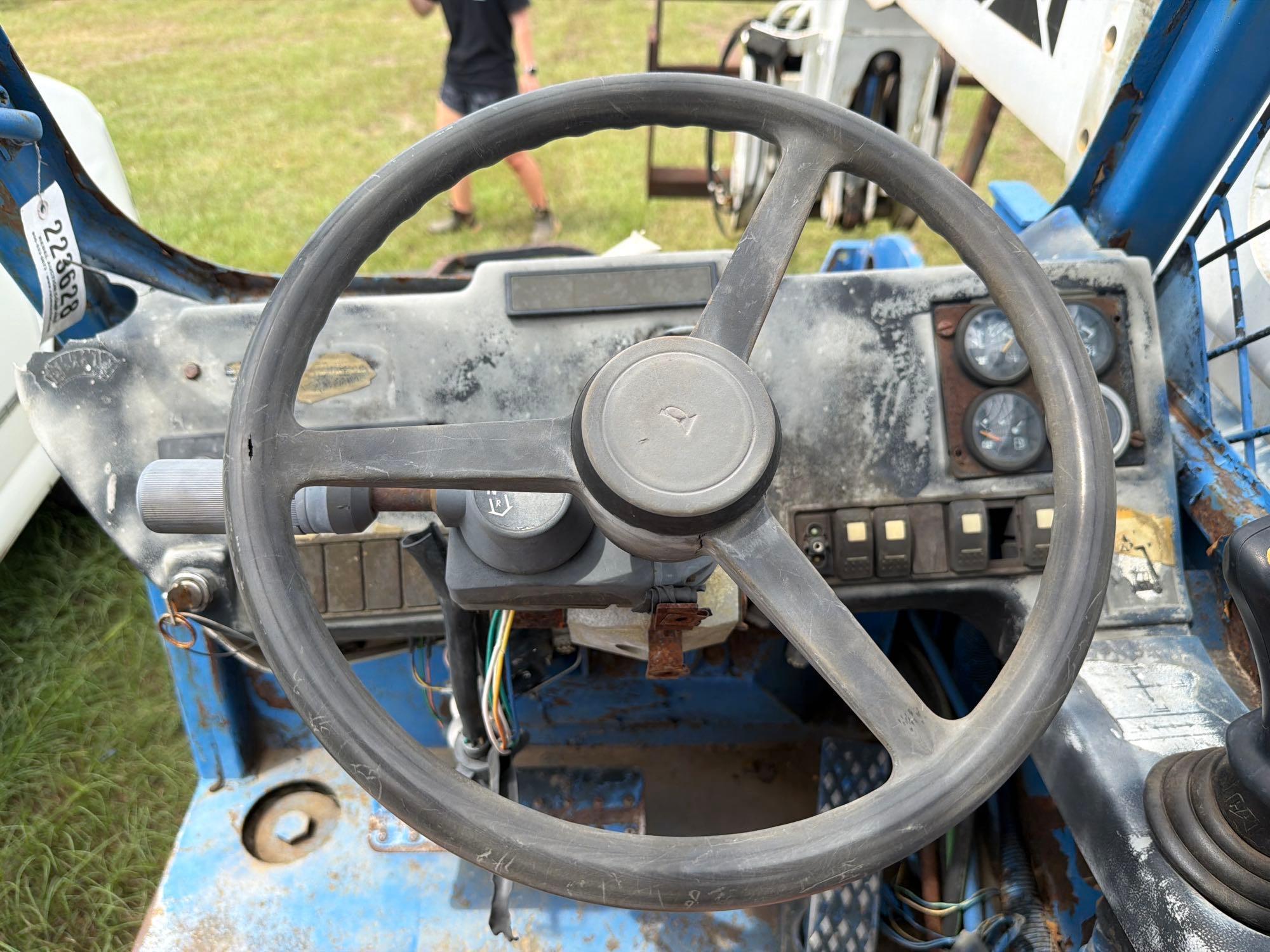

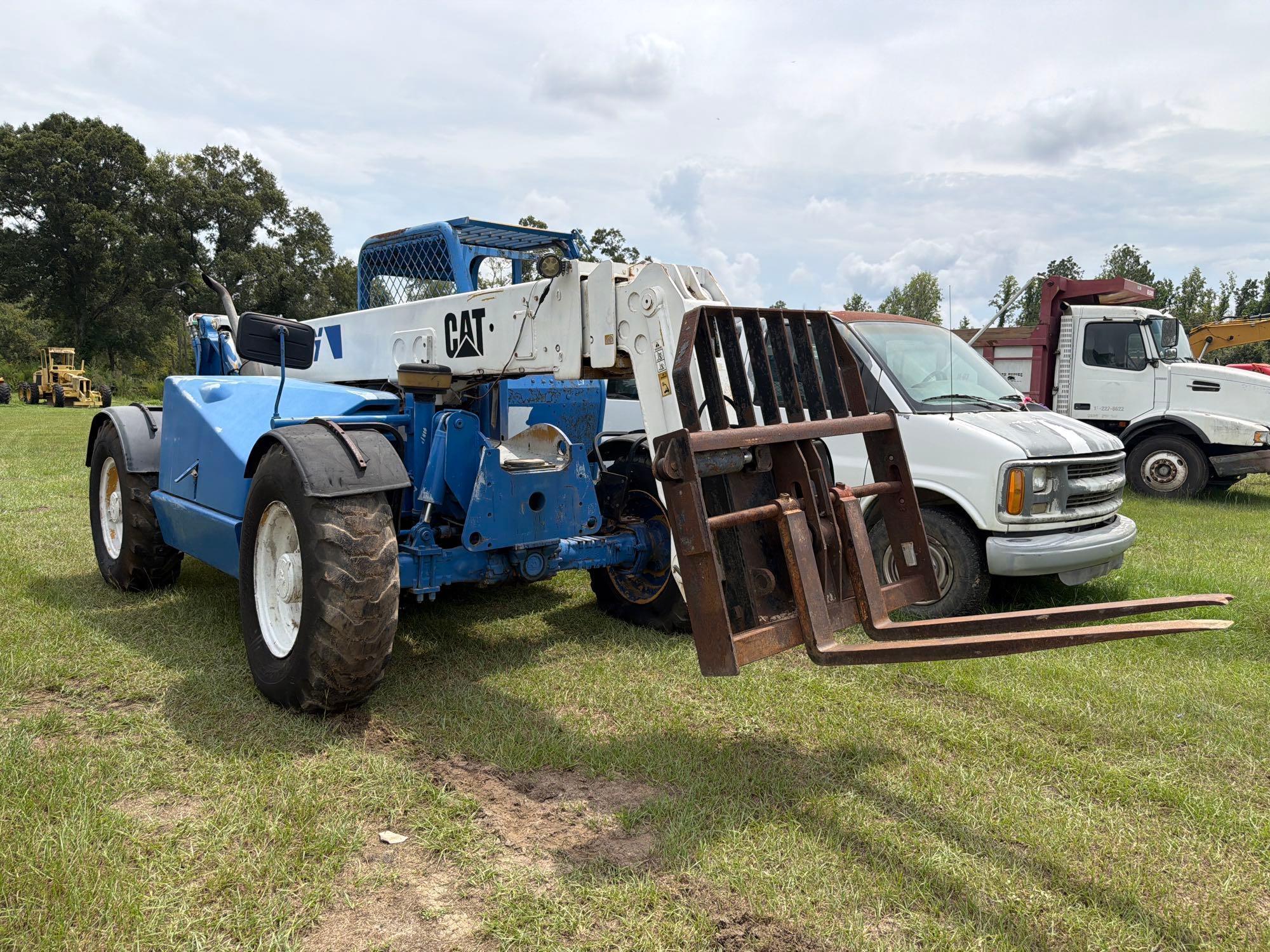

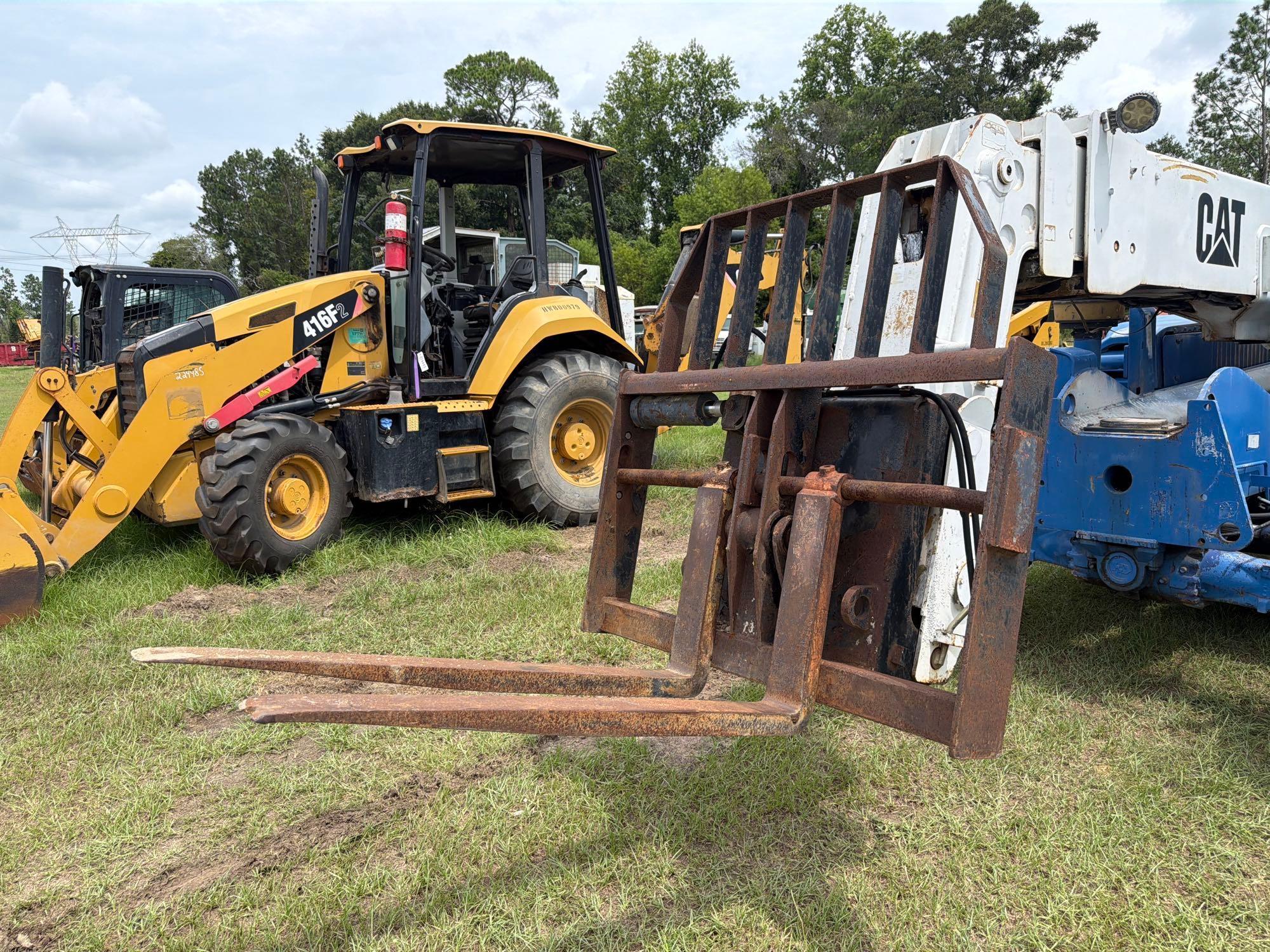

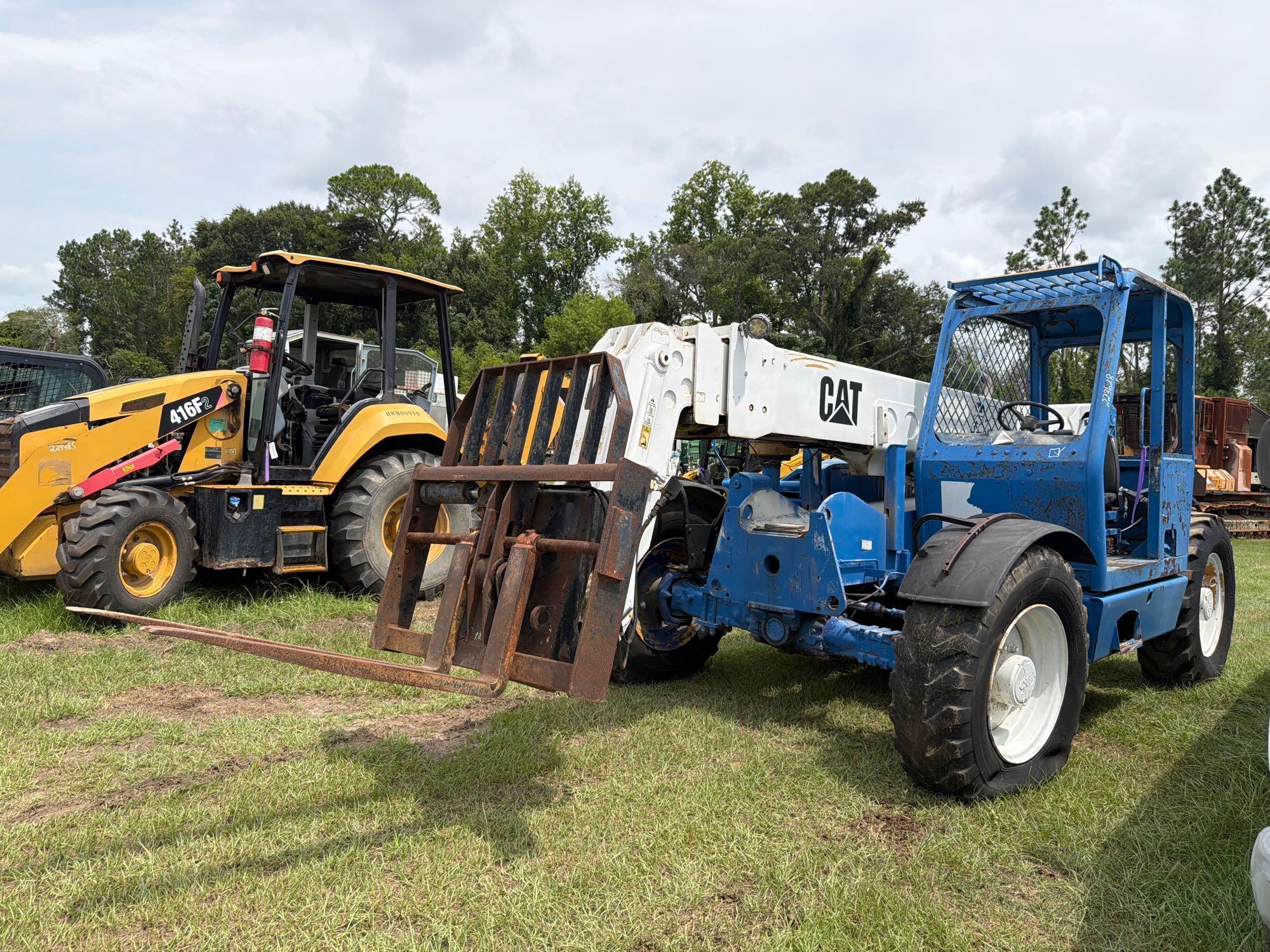

| Boom Performance |
|
Coupler - Fore/Aft Tilt |
140 degrees |

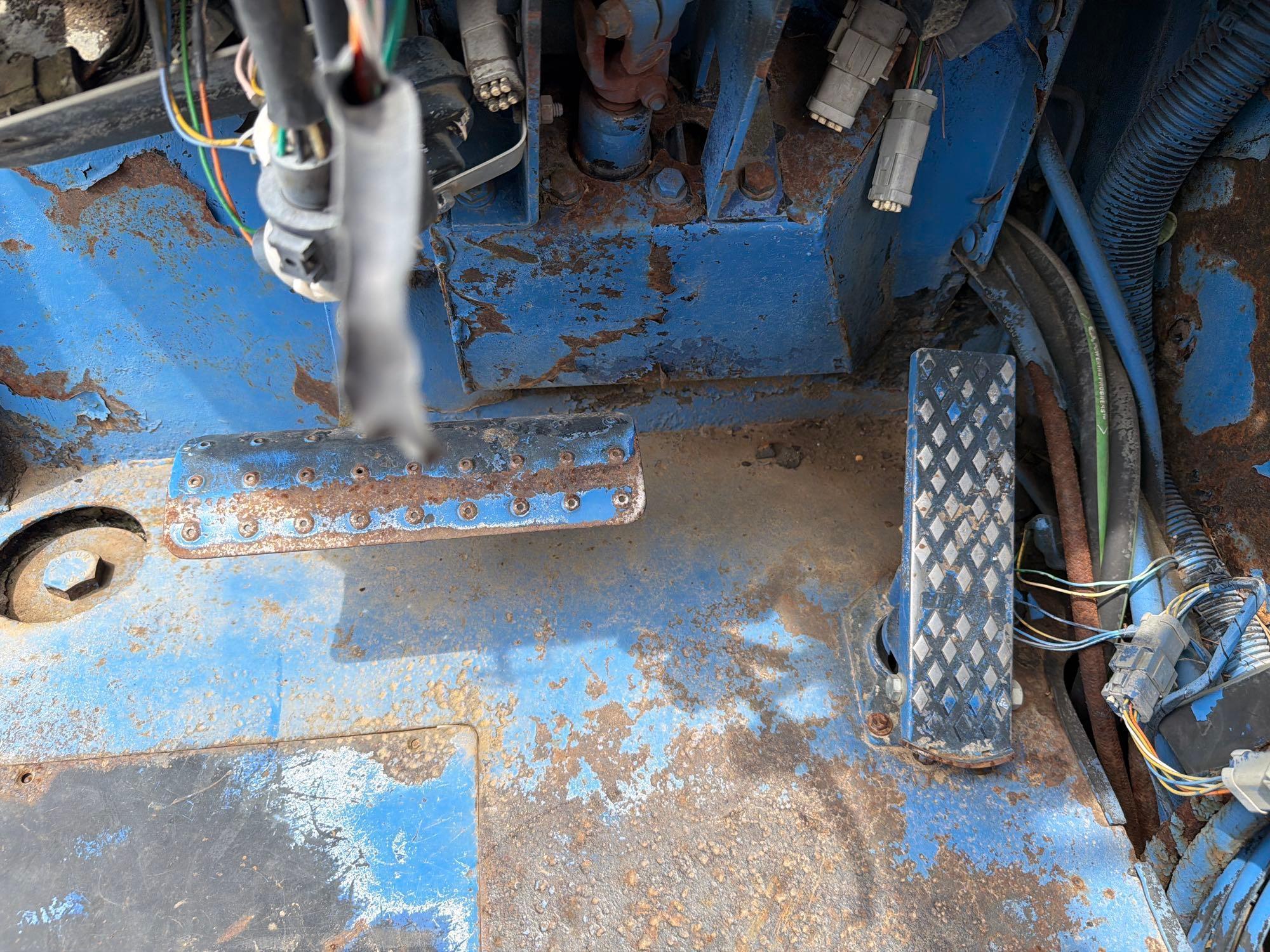

| Brakes |
|
Foot Brake |
Power assisted, foot-operated |
|
Parking Brake |
Hand-operated, modulating |
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Ground Clearance |
18 ft (5 m)
|
|
Ground Clearance |
18 ft (5 m)
|
|
Height |
8 ft (2 m)
|
|
Height |
8 ft (2 m)
|
|
Length |
19 ft (6 m)
|
|
Length - Fork Face |
19 ft (6 m)
|
|
Length To Fork Face |
9 ft (3 m)
|
|
Length To Fork Face |
19 ft (6 m)
|
|
Overall Height |
8 ft (2 m)
|
|
Overall Height |
8 ft (2 m)
|
|
Turning Radius - Over Forks |
17 ft (5 m)
|
|
Turning Radius - Over Tires |
13 ft (4 m)
|
|
Turning Radius Outside Tires |
12 ft (4 m)
|
|
Turning Radius Outside Tires |
12 ft (4 m)
|
|
Weight |
20,420 lbs (9,262 kg)
|
|
Wheel Base |
10 ft (3 m)
|
|
Wheelbase |
10 ft (3 m)
|
|
Wheelbase |
10 ft (3 m)
|
|
Width |
96 in (244 cm)
|
|
Width |
8 ft (2 m)
|
|
Width Over Tires |
8 ft (2 m)
|
|
Width Over Tires |
8 ft (2 m)
|

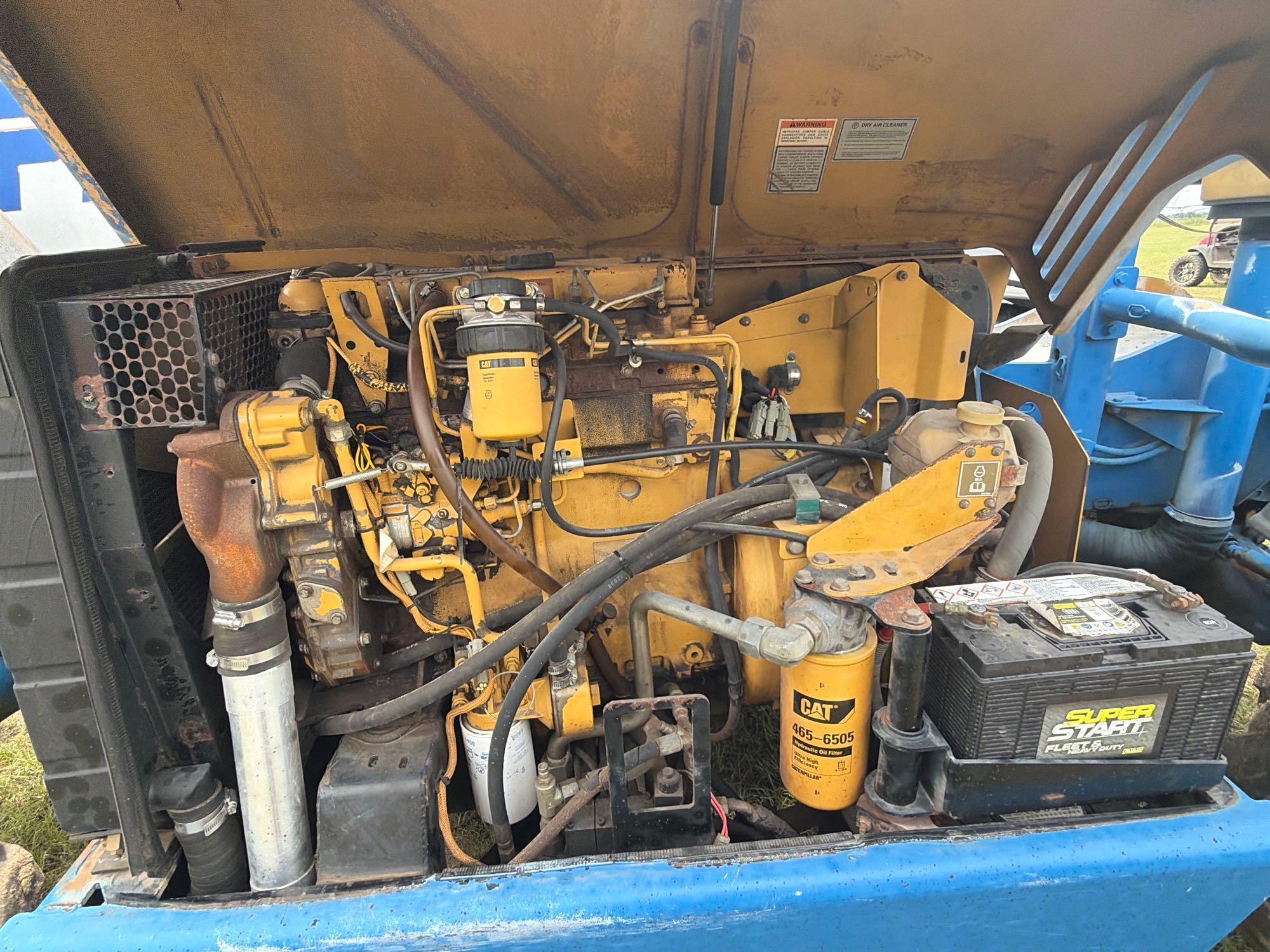

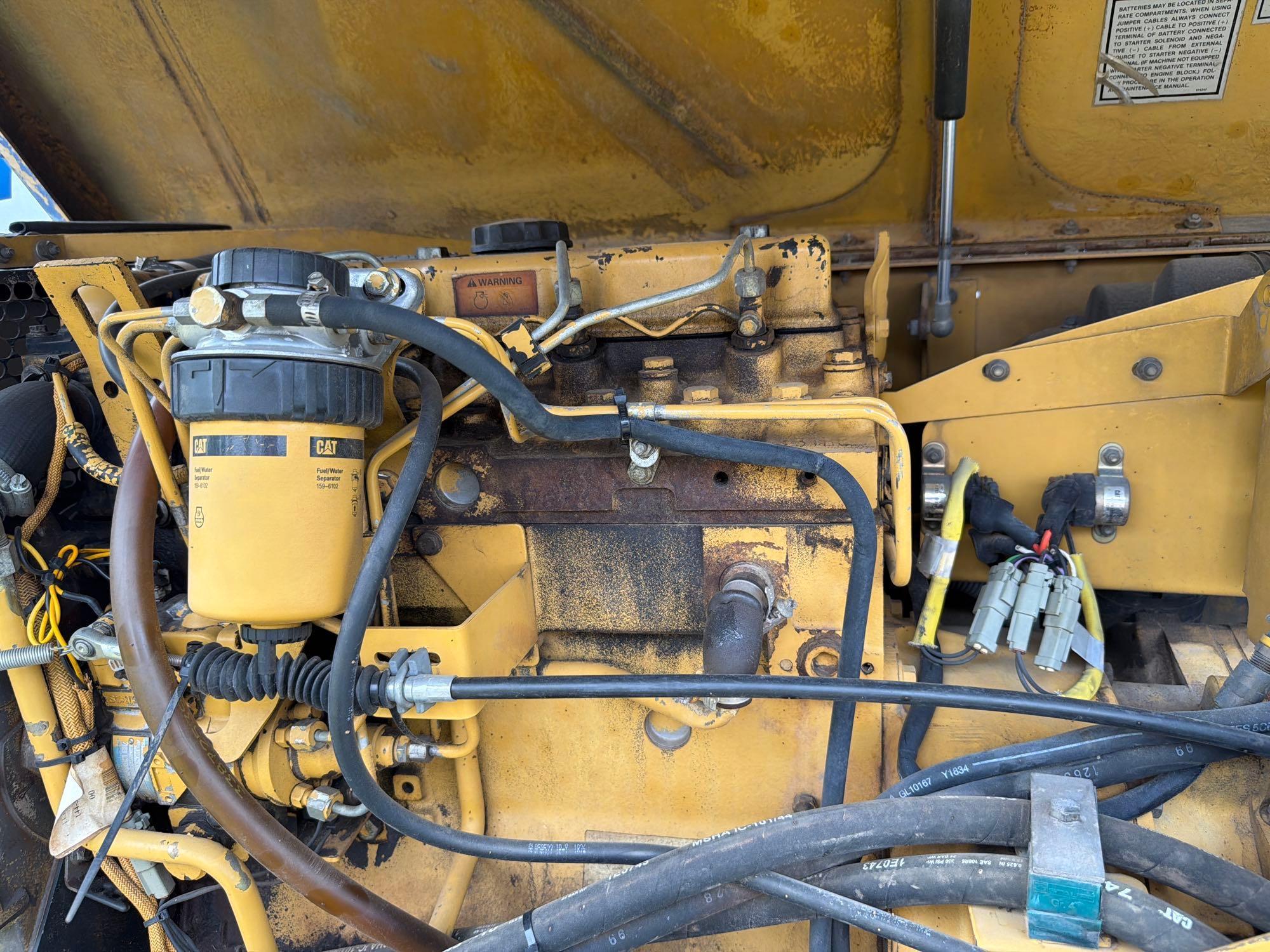

| Engine |
|
Bore |
4 in (10 cm)
|
|
Displacement |
243 cu in (3,982 cu cm)
|
|
Displacement |
244 cu in (4,000 cu cm)
|
|
Displacement |
244 cu in (4,000 cu cm)
|
|
Engine Model |
Cat 3054T |
|
Engine Model |
3,054 |
|
Engine Model |
3,054 |
|
Gross Power |
105 hp (78 kw)
|
|
Gross Power |
109 hp (81 kw)
|
|
Gross Power |
109 hp (81 kw)
|
|
Maximum Torque |
269 lbs ft (365 nm)
|
|
Net Power |
101 hp (75 kw)
|
|
Net Power |
81 hp (60 kw)
|
|
Net Power |
81 hp (60 kw)
|
|
Stroke |
5 in (13 cm)
|
| General Specifications |
|
1st (Since 1998)
|
6 4 |
|
1st (2001)
|
6 4 |
|
2nd (Since 1998)
|
11 7 |
|
2nd (2001)
|
11 7 |
|
3rd (Since 1998)
|
22 14 |
|
3rd (2001)
|
22 14 |
|
4th (Since 1998)
|
32 20 |
|
4th (2001)
|
32 20 |
|
A) Length to fork face (Since 1998)
|
225 in (572 cm)
|
|
A) Length to fork face (2001)
|
225 in (572 cm)
|
|
Aisle Width - Over Bucket @ carry (Since 2001)
|
175 in (445 cm)
|
|
Aisle Width - Over Forks (Since 2001)
|
169 in (429 cm)
|
|
B) Width (Since 1998)
|
96 in (244 cm)
|
|
B) Width (2001)
|
96 in (244 cm)
|
|
Bore (Since 1998)
|
4 in (10 cm)
|
|
Bore (2001)
|
4 in (10 cm)
|
|
C) Height (Since 1998)
|
96 in (244 cm)
|
|
C) Height (2001)
|
96 in (244 cm)
|
|
Capacity (Since 1998)
|
1,433 lbs (650 kg)
|
|
Capacity (Since 2001)
|
1,100 lbs (499 kg)
|
|
Capacity (heaped) (Since 1998)
|
1 cu yd (1 cu m)
|
|
Capacity (heaped) (Since 1998)
|
2 cu yd (2 cu m)
|
|
Capacity (heaped) (Since 1998)
|
1 cu yd (1 cu m)
|
|
Capacity (heaped) (Since 2001)
|
1 cu yd (1 cu m)
|
|
Capacity (heaped) (Since 2001)
|
2 cu yd (2 cu m)
|
|
D) Wheel base (Since 1998)
|
117 in (297 cm)
|
|
D) Wheel base (2001)
|
117 in (297 cm)
|
|
E) Ground clearance (Since 1998)
|
18 in (46 cm)
|
|
E) Ground clearance (2001)
|
18 in (46 cm)
|
|
Engine Displacement (Since 1998)
|
243 cu in (3,982 cu cm)
|
|
Engine Displacement (2001)
|
243 cu in (3,982 cu cm)
|
|
Engine Model (Since 1998)
|
3,054 |
|
Engine Model (Since 2001)
|
3054T |
|
F) Wheel track (Since 1998)
|
82 in (208 cm)
|
|
F) Wheel track (2001)
|
82 in (208 cm)
|
|
Floating fork movement (Since 1998)
|
3 in (8 cm)
|
|
Floating fork movement (2001)
|
3 in (8 cm)
|
|
Flywheel Power (Gross) (Since 1998)
|
81 hp (60 kw)
|
|
Flywheel Power (Gross) (Since 2001)
|
105 hp (78 kw)
|
|
G) Cab width (inside) (Since 1998)
|
38 in (97 cm)
|
|
G) Cab width (inside) (2001)
|
38 in (97 cm)
|
|
H) (Since 1998)
|
43 in (109 cm)
|
|
H) (2001)
|
43 in (109 cm)
|
|
Height (Since 1998)
|
45 in (114 cm)
|
|
Height (2001)
|
45 in (114 cm)
|
|
J) (Since 1998)
|
76 in (193 cm)
|
|
J) (2001)
|
76 in (193 cm)
|
|
K) (Since 1998)
|
185 in (470 cm)
|
|
K) (2001)
|
185 in (470 cm)
|
|
Length (Since 1998)
|
144 in (366 cm)
|
|
Length (Since 2001)
|
156 in (396 cm)
|
|
M.P. BUCKET Hydraulic Gripping (Since 2001)
|
Jaw Included |
|
MANURE FORK (Since 1998)
|
MANURE GRAB Hydraulic Top Grab Included |
|
MANURE FORK (2001)
|
MANURE GRAB Hydraulic Top Grab Included |
|
Max. fork spread (Since 1998)
|
73 in (185 cm)
|
|
Max. fork spread (Since 1998)
|
47 in (119 cm)
|
|
Max. fork spread (Since 2001)
|
73 in (185 cm)
|
|
Max. fork spread (Since 2001)
|
47 in (119 cm)
|
|
No. of Cylinders (Since 1998)
|
4 |
|
No. of Cylinders (2001)
|
4 |
|
Operating Weight (Since 1998)
|
20,420 lbs (9,262 kg)
|
|
Operating Weight (2001)
|
20,420 lbs (9,262 kg)
|
|
Rated Engine RPM (Since 1998)
|
2,200 rpm |
|
Rated Engine RPM (2001)
|
2,200 rpm |
|
REHANDLING BUCKET Cutting (Since 2001)
|
Included |
|
Rotation (Since 1998)
|
12 deg |
|
Rotation (2001)
|
12 deg |
|
Service Refill Cap - Fuel Tank @ 90% fill (Since 1998)
|
32 US gal (120 L)
|
|
Service Refill Cap - Fuel Tank @ 90% fill (2001)
|
32 US gal (120 L)
|
|
Service Refill Cap - Hydraulic Tank (Since 1998)
|
40 US gal (150 L)
|
|
Service Refill Cap - Hydraulic Tank (2001)
|
40 US gal (150 L)
|
|
Speeds Reverse - 1st (Since 1998)
|
6 4 |
|
Speeds Reverse - 1st (2001)
|
6 4 |
|
Speeds Reverse - 2nd (Since 1998)
|
11 7 |
|
Speeds Reverse - 2nd (2001)
|
11 7 |
|
Speeds Reverse - 3rd (Since 2001)
|
22 14 |
|
Stroke (Since 1998)
|
5 in (13 cm)
|
|
Stroke (Since 2001)
|
5 in (13 cm)
|
|
Tire Selection - 13.0 x (Since 2001)
|
Construction |
|
Tire Selection - 15.5 x (Since 2001)
|
Construction |
|
Tire Selection - 15.5 x (Since 2001)
|
Agricultural |
|
Tire Selection - 15.5 x (Since 2001)
|
Agricultural Agricultural Agricultural |
|
Tire Selection - 17.5 x (Since 2001)
|
Construction |
|
Tire Selection - Model Tire (Since 2001)
|
Type |
|
Tire Selection - TH103 14.0 x (Since 2001)
|
Construction Construction |
|
Tire Selection - TH62 15.5 x (Since 2001)
|
Agricultural Agricultural |
|
Tire Selection - TH63 15.5 x (Since 2001)
|
Construction |
|
Tire Selection - TH82 15.5 x (Since 2001)
|
Construction |
|
Tire Selection - TH83 14.0 x (Since 2001)
|
Construction |
|
Tires (Since 1998)
|
15.5 x 25 |
|
Tires (2001)
|
15.5 x 25 |
|
Turbocharged (Since 1998)
|
109 hp (81 kw)
|
|
Turning Circle Radius - Over Bucket (Since 2001)
|
207 in (526 cm)
|
|
Turning Circle Radius - Over Forks (Since 2001)
|
200 in (508 cm)
|
|
Turning Circle Radius - Over Tires (Since 2001)
|
149 in (378 cm)
|
|
Turning Circle Radius - Track (Since 2001)
|
141 in (358 cm)
|
|
Weight (Since 1998)
|
683 lbs (310 kg)
|
|
Weight (Since 1998)
|
983 lbs (446 kg)
|
|
Weight (Since 1998)
|
1,300 lbs (590 kg)
|
|
Weight (Since 1998)
|
1,058 lbs (480 kg)
|
|
Weight (Since 2001)
|
683 lbs (310 kg)
|
|
Weight (Since 2001)
|
1,005 lbs (456 kg)
|
|
Weight (Since 2001)
|
1,683 lbs (763 kg)
|
|
Weight (Since 2001)
|
1,056 lbs (479 kg)
|
|
Weight w/1220 mm (4'0") fork (Since 1998)
|
706 lbs (320 kg)
|
|
Weight w/1220 mm (4'0") fork (Since 1998)
|
529 lbs (240 kg)
|
|
Weight w/1220 mm (4'0") fork (Since 1998)
|
827 lbs (375 kg)
|
|
Weight w/1220 mm (4'0") fork (Since 1998)
|
1,003 lbs (455 kg)
|
|
Weight w/1220 mm (4'0") fork (Since 2001)
|
706 lbs (320 kg)
|
|
Weight w/1220 mm (4'0") fork (Since 2001)
|
529 lbs (240 kg)
|
|
Weight w/1220 mm (4'0") fork (Since 2001)
|
827 lbs (375 kg)
|
|
Weight w/1220 mm (4'0") fork (Since 2001)
|
1,003 lbs (455 kg)
|
|
Width (Since 1998)
|
74 in (188 cm)
|
|
Width (Since 1998)
|
48 in (122 cm)
|
|
Width (Since 1998)
|
96 in (244 cm)
|
|
Width (1998)
|
96 in (244 cm)
|
|
Width (Since 2001)
|
74 in (188 cm)
|
|
Width (Since 2001)
|
48 in (122 cm)
|
|
Width (Since 2001)
|
95 in (241 cm)
|
| Hydraulic System |
|
Auxiliary Hydraulic Supply (1) |
19 gpm (71 lpm)
|
|
Auxiliary Hydraulic Supply (2) |
1,800 psi |
|
Maximum Pressure |
3,625 psi |
|
Maximum Pump Flow |
28 gpm (106 lpm)
|
|
Maximum System Pressure |
3,625 psi |
|
Pump Standby Pressure |
455 psi |
|
Pump Type |
Axial piston |
|
Steering Relief Pressure |
2,535 psi |
| Lift |
|
Max Forward Reach |
27 ft (8 m)
|
|
Max Forward Reach |
27 ft (8 m)
|
|
Max Lift Capacity |
6,008 lbs (2,725 kg)
|
|
Max Lift Capacity |
6,614 lbs (3,000 kg)
|
|
Max Lift Height |
41 ft (13 m)
|
|
Max Lift Height |
4 ft (1 m)
|
|
Max Load At Max Height |
6,008 lbs (2,725 kg)
|
|
Max Load At Max Height |
6,614 lbs (3,000 kg)
|
|
Max Load At Max Reach |
3,009 lbs (1,365 kg)
|
|
Max Load At Max Reach |
3,142 lbs (1,425 kg)
|
| Operating Specifications |
|
Load At Maximum Height - No Stabilizers |
6,000 lbs (2,722 kg)
|
|
Load At Maximum Height - Stabilizers Down |
6,000 lbs (2,722 kg)
|
|
Load At Maximum Height - Stabilizers Up |
5,999 lbs (2,721 kg)
|
|
Load At Maximum Reach - No Stabilizers |
1,000 lbs (454 kg)
|
|
Load At Maximum Reach - Stabilizers Down |
2,000 lbs (907 kg)
|
|
Load At Maximum Reach - Stabilizers Up |
600 lbs (272 kg)
|
|
Maximum Forward Reach |
27 ft (8 m)
|
|
Maximum Lift Height |
41 ft (13 m)
|
|
Rated Load Capacity |
6,000 lbs (2,722 kg)
|
|
Top Travel Speed |
20 mph (32 kph)
|
| Operational |
|
Fuel Capacity |
32 gal (120 l)
|
|
Fuel Capacity |
32 gal (120 l)
|
|
Hydraulic System Fluid Capacity |
40 gal (150 l)
|
|
Hydraulic System Fluid Capacity |
40 gal (150 l)
|
|
Operating Weight |
20,282 lbs (9,200 kg)
|
|
Operating Weight |
20,415 lbs (9,260 kg)
|
|
Operating Weight |
20,415 lbs (9,260 kg)
|
|

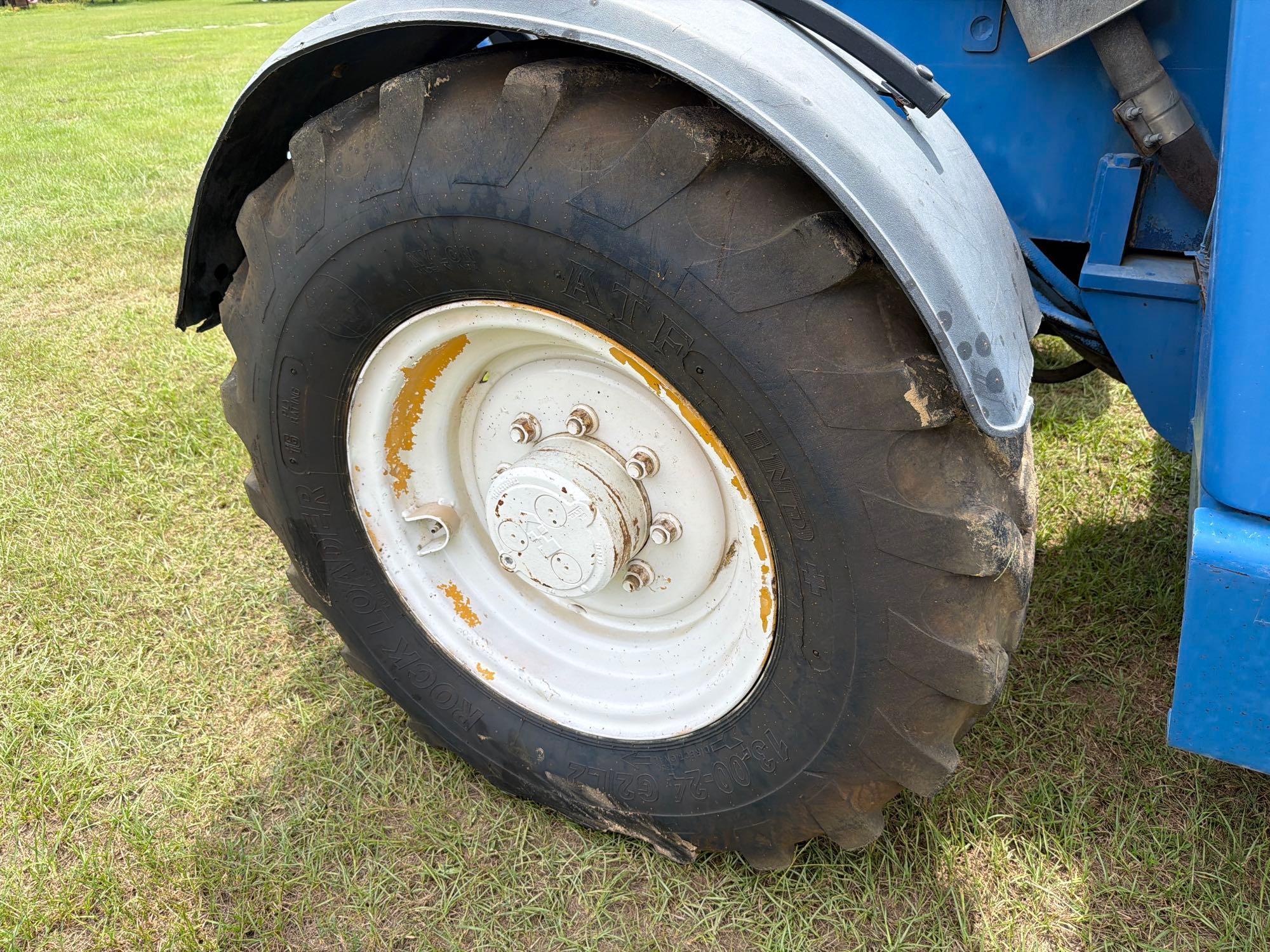

Tire Size |
13x24 12PR |
|
Tire Size |
Construct: 15.5x24 12PR Agricult: 15.5x80-24 |
| Service Refill Capacities |
|
Fuel Tank |
31 gal (117 l)
|
|
Hydraulic Tank |
36 gal (136 l)
|
| Transmission |
|
Max Speed - Forward |
20 mph (32 kph)
|
|
Max Speed - Forward |
20 mph (32 kph)
|
|
Max Speed - Reverse |
14 mph (22 kph)
|
|
Max Speed - Reverse |
14 mph (22 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
3 |
|
Number Of Reverse Gears |
3 |
| Transmission Speeds |
|
Forward - 1 |
4 mph (6 kph)
|
|
Forward - 2 |
7 mph (11 kph)
|
|
Forward - 3 |
14 mph (23 kph)
|
|
Forward - 4 |
20 mph (32 kph)
|
|
Reverse - 1 |
4 mph (6 kph)
|
|
Reverse - 2 |
7 mph (11 kph)
|
|
Reverse - 3 |
14 mph (23 kph)
|
